Rapid and Accurate Identification of Concrete Surface Cracks via a Lightweight & Efficient YOLOv3 Algorithm

1  Introduction

Concrete materials and structures have been extensively used in transportation infrastructure, typically highways and railways [1–3]. These materials and structures inevitably bear cracks during their long-term operation [4–6]. Owing to the large-scale characteristic of transportation infrastructure, the distribution of cracks in concrete materials and structures often exhibits divergence and dispersion [7,8]. The occurrence of cracks may impair the integrity and performance of related infrastructural systems [9,10]. The rapid and accurate detection of cracks in concrete materials and structures becomes exceptionally crucial to the safety of transformation infrastructure [11–13]. Therefore, it is of great significance to develop an efficient technique to rapidly identify crack locations and patterns and evaluate the service performance of concrete structures [14,15].

Crack identification currently mainly relies on conventional routine-based visual inspection [16]. Unfortunately, visual inspection-based condition assessment is time-consuming and depends on the experience and knowledge of inspectors [17]. In general, visual inspection cannot authentically discover abrupt and subtle cracks and may miss potential risks in concrete structures [18]. To address this issue, computer vision-aided intelligent identification methods have become a research focus for the online detection of surface cracks. Numerous image processing methods have been utilized to detect surface defects or damage in structures. The main implementation methods can be divided into three categories, namely, digital image processing (DIP), machine learning (ML), and deep learning (DL) methods.

DIP methods usually conduct edge detection or pattern recognition of images to identify cracks or defects based on the abnormality of pixel points [19]. The locations of cracks or defects can be identified with advanced 2D signal processing techniques such as various types of transformations [20,21] and filtering methods [22]. In addition, DIP methods can identify the crack width when combined with the Laplacian method [23]. Many environmental or artificial interfering factors such as lighting, background layers, noise, and threshold setting may significantly impact the identified results [24–27]. However, ML algorithms can detect cracks or defects with numerous applications in practice [28–32]. The algorithm can accomplish crack identification and classification integrated with DIP methods, but the generality of algorithms needs further expansion for low-resolution images with background and complex multi-classification problems.

DL methods can effectively extract image characteristics with environmental interference and are especially powerful in processing large-scale training datasets and multi-classification problems compared with DIP and ML methods. Convolutional neural networks (CNNs), a notable method in DL, have garnered widespread utilization in the realms of crack identification due to their superior multi-scale feature extraction, noise resilience, and broad-spectrum recognition capacities [33–35]. Crack identification currently encompasses both object detection [36–38] and semantic segmentation [39–42]. For example, an initial CNN can detect whether there are cracks in pictures, which is a dichotomous classification problem [43]. However, an initial CNN cannot identify crack locations and is disabled to take a further assessment of structures. To address this issue, a multi-layered image preprocessing strategy has been proposed to locate cracks in concrete structures in the measured pictures [44,45]. The cracking region is filled up with a large number of bounding boxes, which are not flexible enough to directly determine the region of cracks [46]. Further, several two-stage identification methods, including regional-based CNNs [47] and faster regional-based CNNs [48], were developed for object detection in images. The crack region can be first identified and then classified based on the above two-stage methods. Additionally, crack width can be identified based on improved mask-RCNN methods [49]. You Only Look Once (YOLO) [50] was recently proposed to accomplish the one-stage identification of location and classification of surface cracks or defects with applications in bridges [51] and pavement [52–54] or tunnel engineering [55] and aircraft structures [56]. The architectures of models such as YOLOv3, other single-stage and dual-stage detection networks, and semantic segmentation frameworks [14,40,41,45] are notably intricate. These models, characterized by their voluminous parameter sets, mandate exhaustive training processes. As a result, ensuring precise identification outcomes demands not only potent computational prowess but also ample memory capacity [51]. A simple network structure is necessary to improve computation speed and reduce memory consumption in order to implement the CNN algorithm on mobile terminals or unmanned aerial vehicles. A series of YOLO-based networks with fewer training coefficients, such as MobileNetv2-YOLOv3 (M2-YOLOv3) [57] and MobileNetv3-YOLOv3 (M3-YOLOv3) [58], were proposed to achieve the purpose of real-time object detection in mobile terminals [59,60]. These networks are more efficient and designed to detect hundreds of different objects; however, there are only tens of concrete crack classes. Therefore, the YOLO algorithm still has room for optimization in concrete crack identification.

To address this deficiency, this study proposes a lightweight YOLOv3, called MDN-YOLOv3, for intelligently identifying the cracks of concrete structures using a self-built training set. The rest of this paper is organized as follows. Section 2 briefly summarizes the structures and imperfections of YOLOv3 in identifying cracks in concrete structures. Section 3 proposes the improved design methods of the backbone network in MDN-YOLOv3. Section 4 compares the performance of the concrete crack identification of MDN-YOLOv3 with existing algorithms. Section 5 compares the test results and the accuracy of the method with existing models. Section 6 concludes and provides remarks on this study.

2  Inadequacies of YOLOv3 in Identifying Concrete Cracks

2.1 Overview

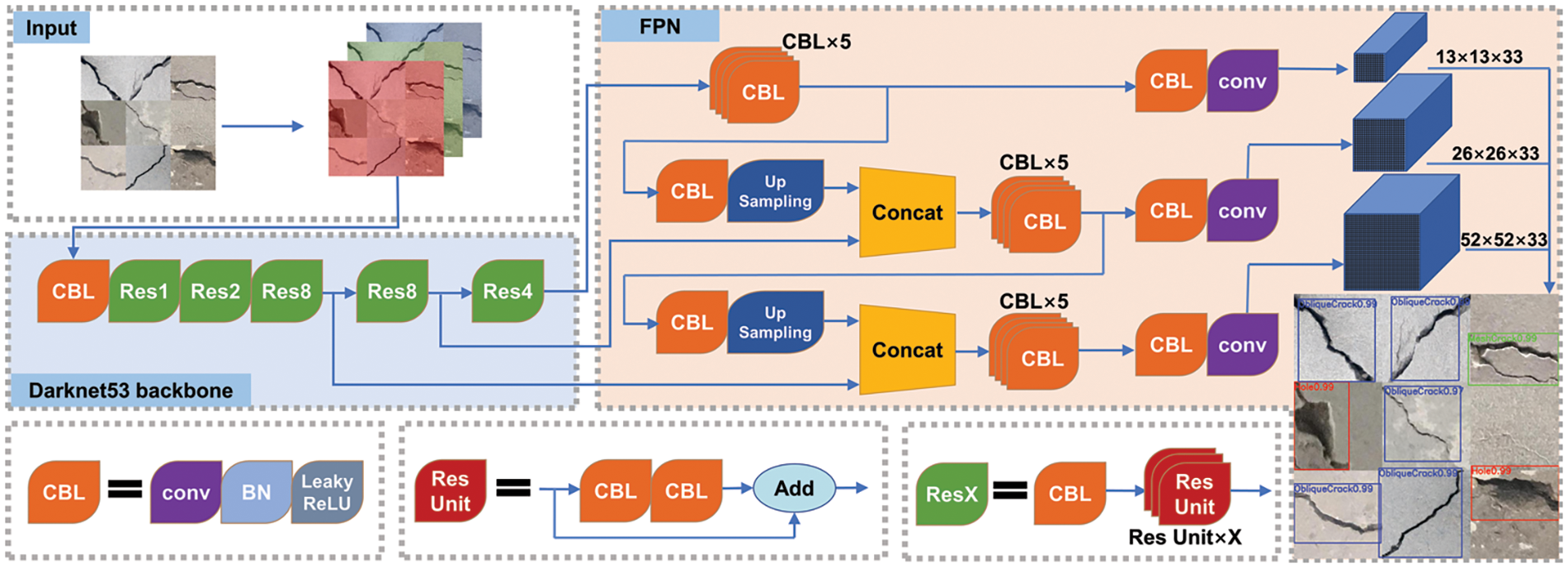

Fig. 1 illustrates the structure of YOLOv3, composed primarily of the Darknet-53 backbone and the feature pyramid network (FPN). The main identification process of YOLOv3 can be described as follows:

Figure 1: The structure of YOLOv3

(1) Input process: The size of input images is adjusted to 416 × 416 × 3 for the feature extraction process.

(2) Feature extraction process: First, the images with 416 × 416 × 3 pixels are input into the backbone network of Darknet-53 [61] for feature extraction, and three effective feature layers with sizes of 13 × 13, 26 × 26, and 52 × 52 are output, as visualized in Fig. 2. The depth of the feature maps starts from the three channels of the RGB image and expands through subsequent layers with 32, 64, 128, 256, 512, and finally 1024 filters. Every layer is responsible for learning more complex features. Then, the three effective feature layers are input into the FPN. Through a series of operations, including continuous convolution operation, up-sampling, down-sampling, and feature fusion from the three effective feature layers, the enhanced feature maps of FPN are output.

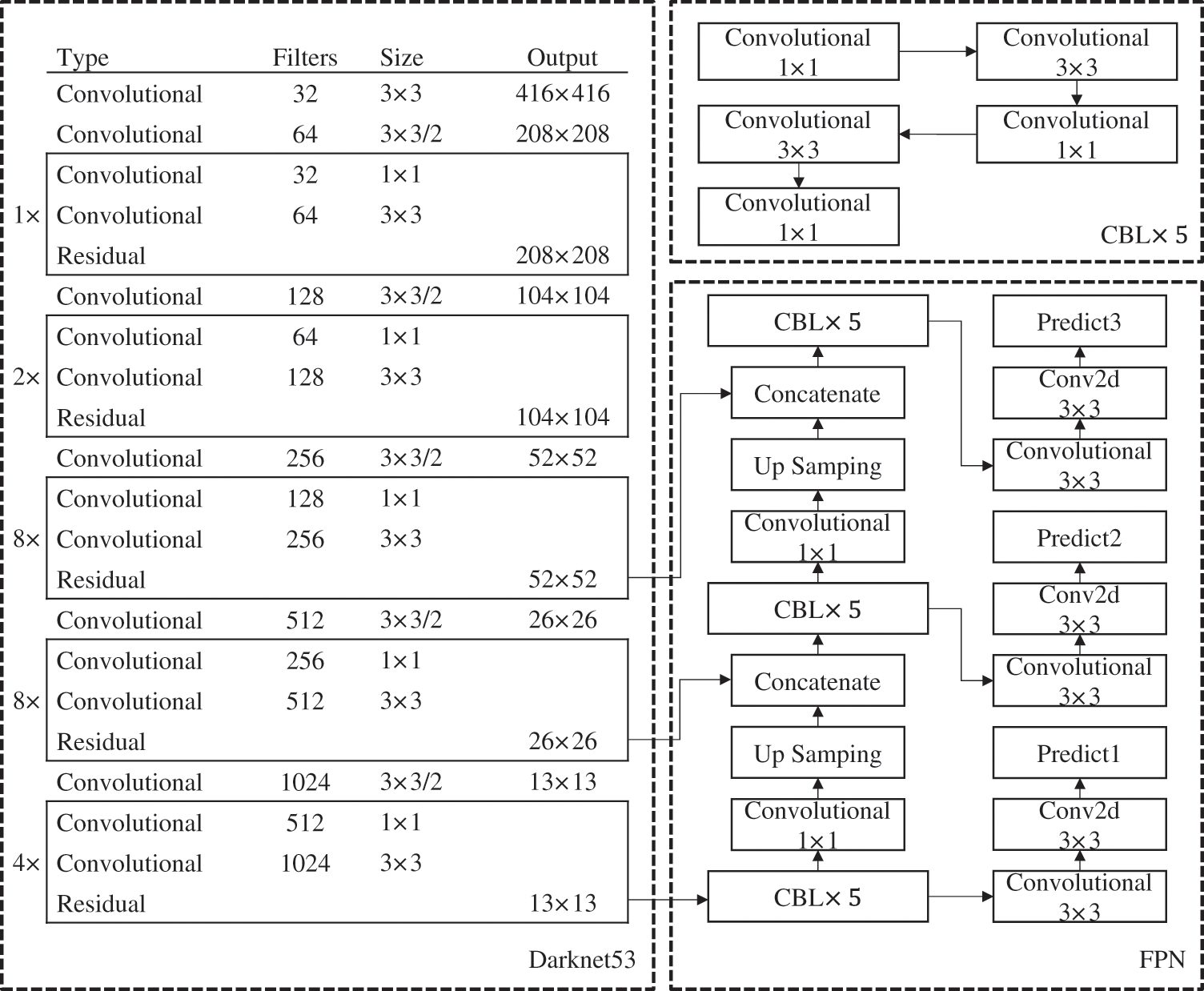

Figure 2: Network details of YOLOv3. Convolutional k×k = conv2d k×k + Nonlinear

(3) Output process: The output feature maps of FPN are used to predict three bounding boxes in every grid cell. The coordinate of the bounding box is shown in Fig. 3. Every bounding box predicts three key parameters based on extracted and multi-scale features: (i) Coordinate the dataset of the rectangular box, including horizontal coordinates tx and vertical coordinates ty of the centroid, width tw , and height th of the bounding box; (ii) Classification of detected objects; (iii) Confidence of predicted results.

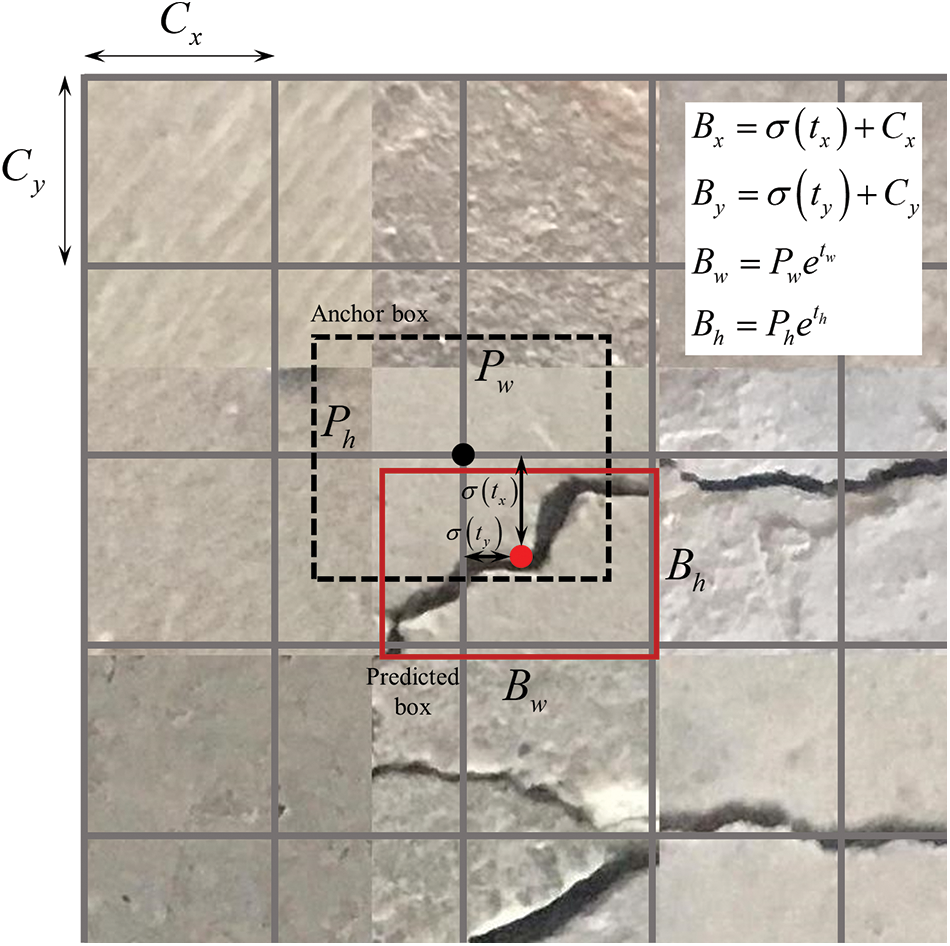

Figure 3: Anchor box to predict box process

The loss function can be calculated as follows:

Loss= λcoord∑i=0S2∑j=0BIijobj[(xi−x^ij)2+(yi−y^ij)2]+λcoord∑i=0S2∑j=0BIijobj[(wij−w^ij)2+(hij−h^ij)2]−∑i=0S2∑j=0BIijobj[C^ijlog⁡(Cij)+(1−C^ij)log⁡(1−Cij)]−λnoobj∑i=0S2∑j=0BIijnoobj[C^ijlog⁡(Cij)+(1−C^ij)log⁡(1−Cij)]−∑i=0S2Iijobj∑c∈classes([P^ijlog⁡(Pij)+(1−P^ij)log⁡(1−Pij)] (1)

where λcoord and λnoobj are weight coefficients and remain unchanged in the loss function. Iijobj is the responsible anchor box that has the highest intersection over union (IoU) with the ground-truth box, which is actually used for predictions in the loss function. Iijnoobj represents the complementary set of responsible anchor boxes Iijobj . S is the size of grid cells, and B is the number of anchor boxes. Cij and Pij are the confidence and probability of belonging to a specific category, respectively. The superscript represents the prediction center of the corresponding parameters.

The IoU can be calculated as follows:

IoU(A,B)=AreaA∩AreaBAreaA∪AreaB=AreaInterAreaA+AreaB−AreaInter (2)

where IOU(A,B) is the intersection over the union of the ground-truth boxes and anchor boxes.

The loss function serves to adjust the generated anchor box. It is primarily composed of three components: the loss associated with the box’s coordinates, the confidence, and the category. By minimizing this loss function, YOLOv3 can accurately pinpoint the location of objects in every output image.

2.2 Inadequacies

YOLOv3 can detect multiple targets in a single forward pass, simultaneously predicting class scores and bounding boxes, which streamlines the object detection process. As a result, YOLOv3 is efficient and has found applications in various domains [50,61,62]. There are a series of CNNs used as the backbone networks of YOLO with fewer training coefficients, such as MobileNetv2 and MobileNetv3; however, the backbone networks in YOLO still do not meet the demand for swift crack identification with high accuracy. This is because the CNNs serving as the backbone network of YOLO in concrete crack identification are made for identifying hundreds of classes, whereas there are only tens of classes in concrete cracks. Therefore, the series of universal YOLOv3 models are large in size and time-consuming in identifying concrete cracks. In other words, the series of universal YOLOv3 models is relatively complex and unsuitable for concrete crack identification [14,63,64]. To this end, a tailored deep-learning algorithm termed MDN-YOLOv3 is proposed.

3  MDN-YOLOv3

3.1 Retrofit Techniques

3.1.1 Depthwise Separable Convolution (DSC)

DSC was proposed by Sandler et al. [60], to improve the efficiency of a CNN [65]. Fig. 4 illustrates the difference between DSC and standard convolution. The parameter Cstd of the standard convolution is calculated as follows:

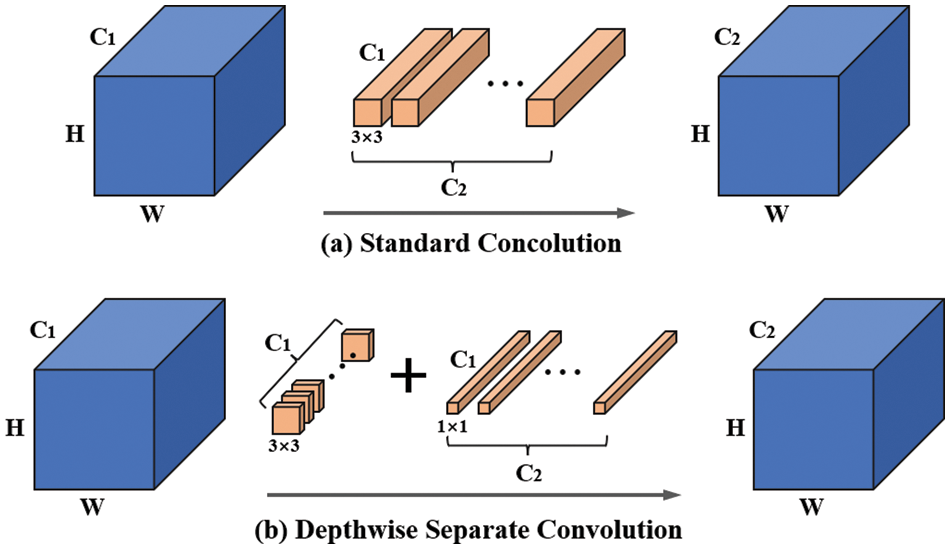

Figure 4: The difference between DSC and standard convolution

Cstd=3×3×C1×C2 (3)

where C1 is the number of input channels and C2 is the number of output channels of the structure, as shown in Fig. 4a.

As shown in Fig. 4b, the parameter Cdpt of the depthwise convolution is calculated as follows:

Cdpt=3×3×C1+1×1×C1×C2 (4)

The ratio of standard convolution parameters to those of DSC is as follows:

CdptCstd=3×3×C1+1×1×C1×C23×3×C1×C2=1C2+19 (5)

As shown in Eq. (5), the parameter of DSC is 90% smaller compared with that of standard convolution. Therefore, the use of DSC instead of standard convolution in YOLOv3 can effectively improve efficiency.

3.1.2 Multi-Scale Feature Fusion by Dilated-Down Sampling (DDS)

The diagram of DDS is shown in Fig. 5, which is the main component of the backbone network in MDN-YOLOv3. As depicted in Fig. 5, a series of dilated convolution blocks are utilized in the network. There are three steps for DDS blocks to extract features. First, dilated convolution blocks with a stride of two and different dilation rates of one, two, and three are used to extract multi-scale features from the feature maps. Second, the dilated convolution block is combined using the concatenate operation to fuse features on different receptive scales. Finally, a 1 × 1 convolution layer is used to integrate every channel of the feature maps. The output of DDS contains features of various receptive fields to describe concrete cracks.

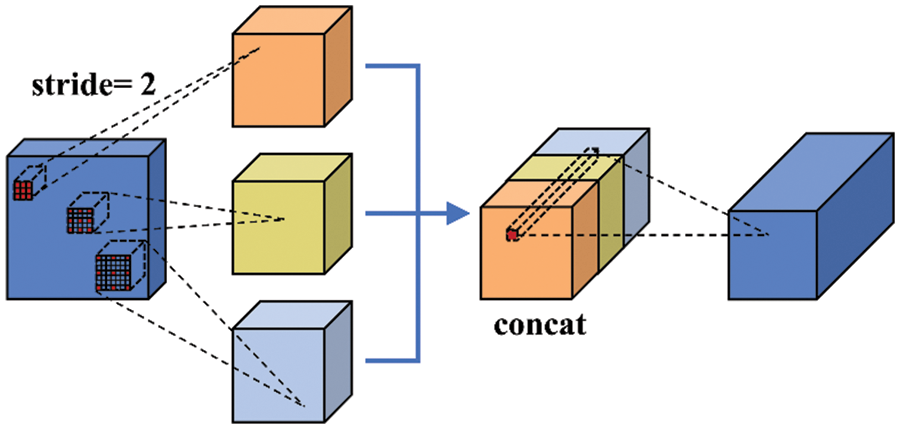

Figure 5: Block of the DDS

3.1.3 Attention Module of CBAM

The attention module of the Convolutional Block Attention Module (CBAM) is introduced into the backbone network, and the structure of this module is shown in Fig. 6. CBAM compresses feature maps using max-pooling (MaxPool) along with average-pooling (AvgPool) for channel and spatial attention.

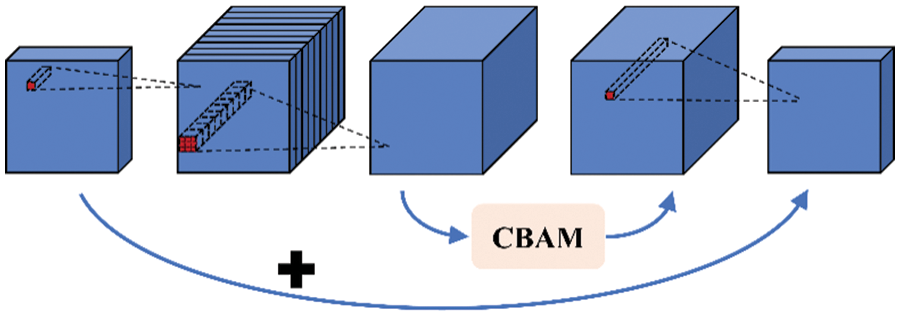

Figure 6: The CBAM in bottleneck

3.1.4 Optimization of the Predictive Layer of the Backbone Module with a K-Means Cluster

The classification of the anchor box is a key parameter in YOLOv3. To verify the best configuration of the anchor box in concrete crack detection, the K-means clustering algorithm is used to cluster the dataset of the concrete crack. The dataset of the concrete crack in this study contains 6066 figures with seven categories, including no crack, hole, mesh crack, oblique crack, transverse crack, vertical crack, and irregular crack. Average IoU is an index used to reflect the effect of clustering between anchors and real target boxes. For the dataset of crack detection in this study, the relationship between the average IoU and the clustering number K is shown in Fig. 7. The clustering number K = 4 is chosen because the average IoU has not changed significantly with the increase in clusters when K > 4 and the point after the great slope can be regarded as the optimal point. The K-means clustering results of the training set are shown in Fig. 8. The position of the four hollow marks is the center of the corresponding cluster, including (47, 137), (128, 133), (136, 89), and (137, 43). Thus, the anchor boxes of the MDN-YOLOv3 method are (47, 137), (128, 133), (136, 89), and (137, 43) for the concrete crack detection, while those in YOLOv3 are (35, 137), (51, 137), (83, 135), (109, 135) (136, 78), (136, 132), (136, 100), (137, 36), and (137, 54). In addition, the predictive layers of MDN-YOLOv3 are 8-fold and 16-fold downsampling layers, while the predictive layers are 8, 16, and 32-fold in YOLOv3. The optimization of the anchor configuration simplifies the prediction layer of the backbone module from three scales to two scales, resulting in higher efficiency compared with M3-YOLOv3.

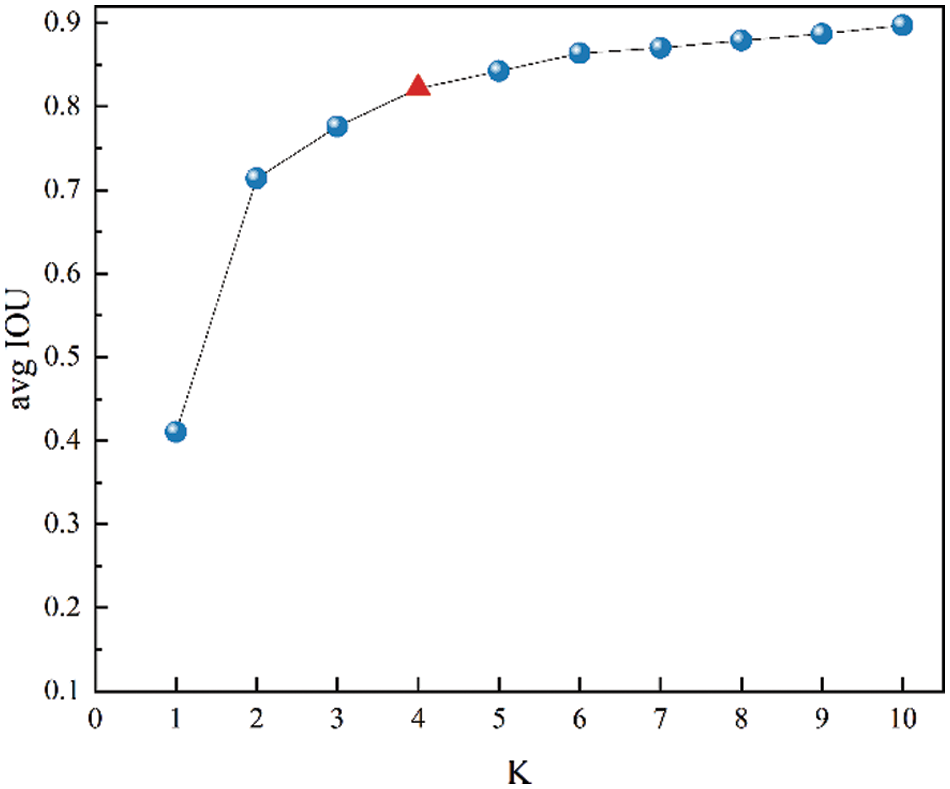

Figure 7: Clustering result of concrete-crack dataset

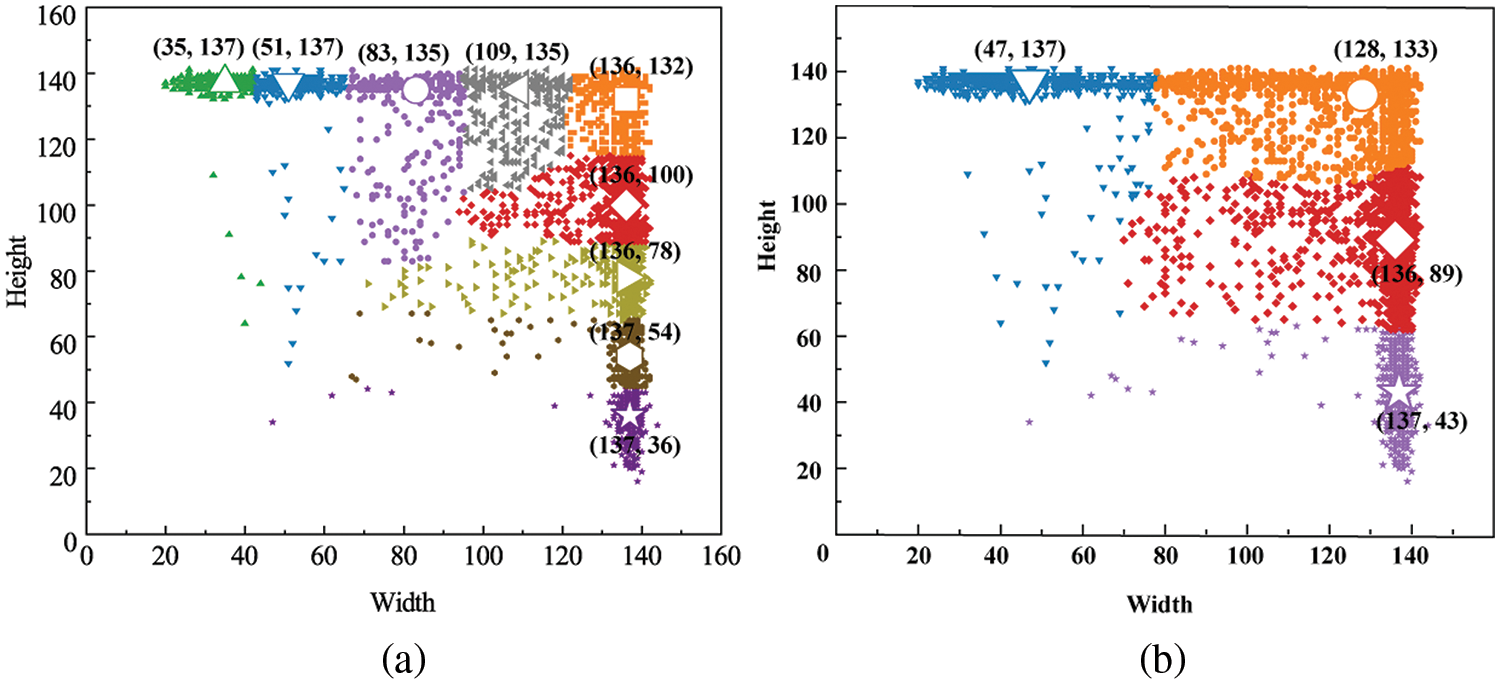

Figure 8: Clustering results of nine ground-truth boxes. (a) YOLOv3 (b) SciYOLOv3

3.2 Structure of MDN-YOLOv3

Combining the superiority of DSC and DDS and the attention mechanism of CBAM, the multi-dilated network (MDN) is proposed. MDN is used as the backbone network of YOLOv3, which can be called MDN-YOLOv3. Furthermore, the number of effective feature layers is streamlined from three to two. The whole structure of the MDN-YOLOv3 is shown in Figs. 9 and 10. The main structures can be divided into three modules: an MDN backbone, an FPN, and a prediction module.

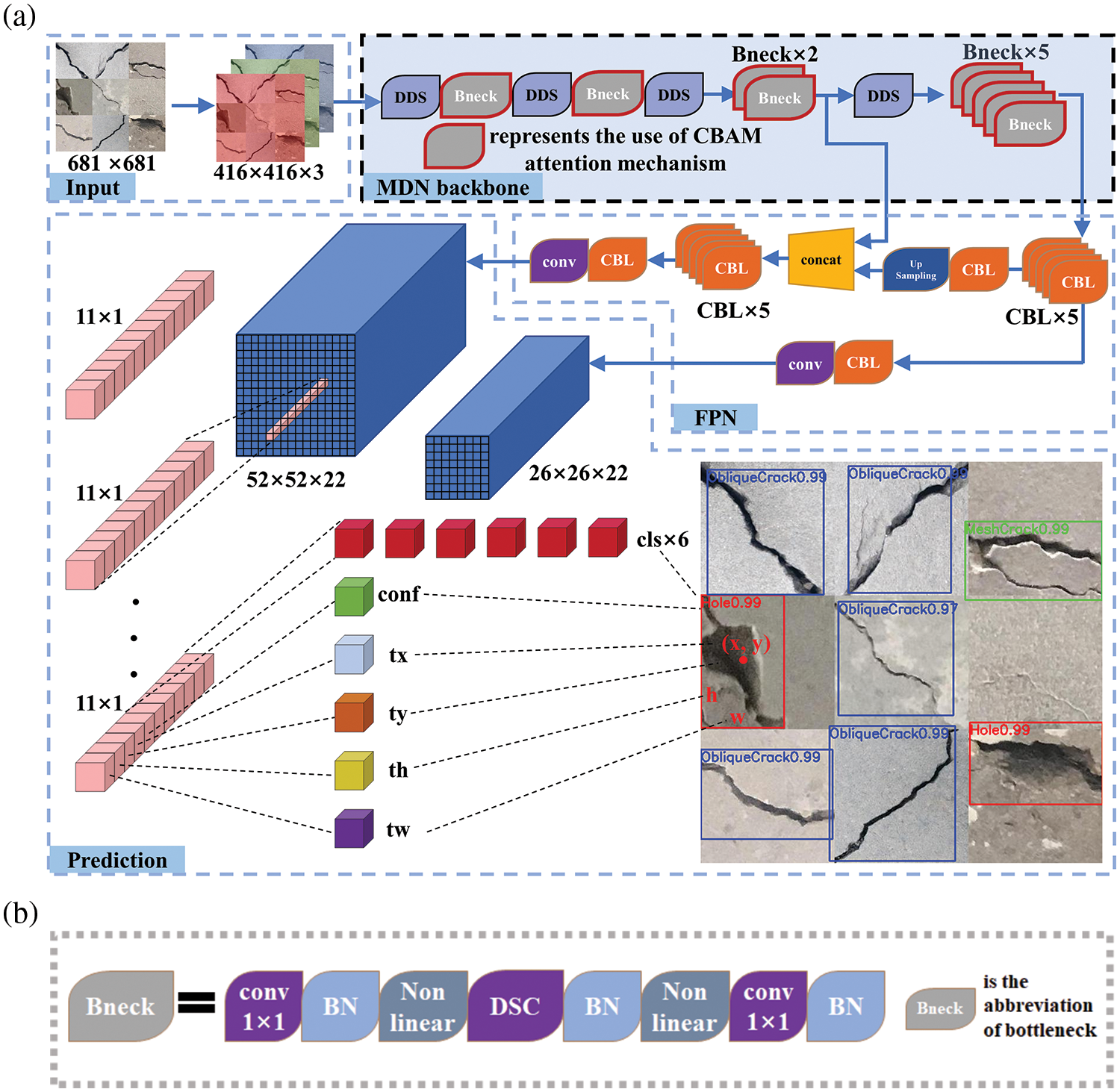

Figure 9: (a) The structure of MDN-YOLOv3. (b) The structure of the bottleneck

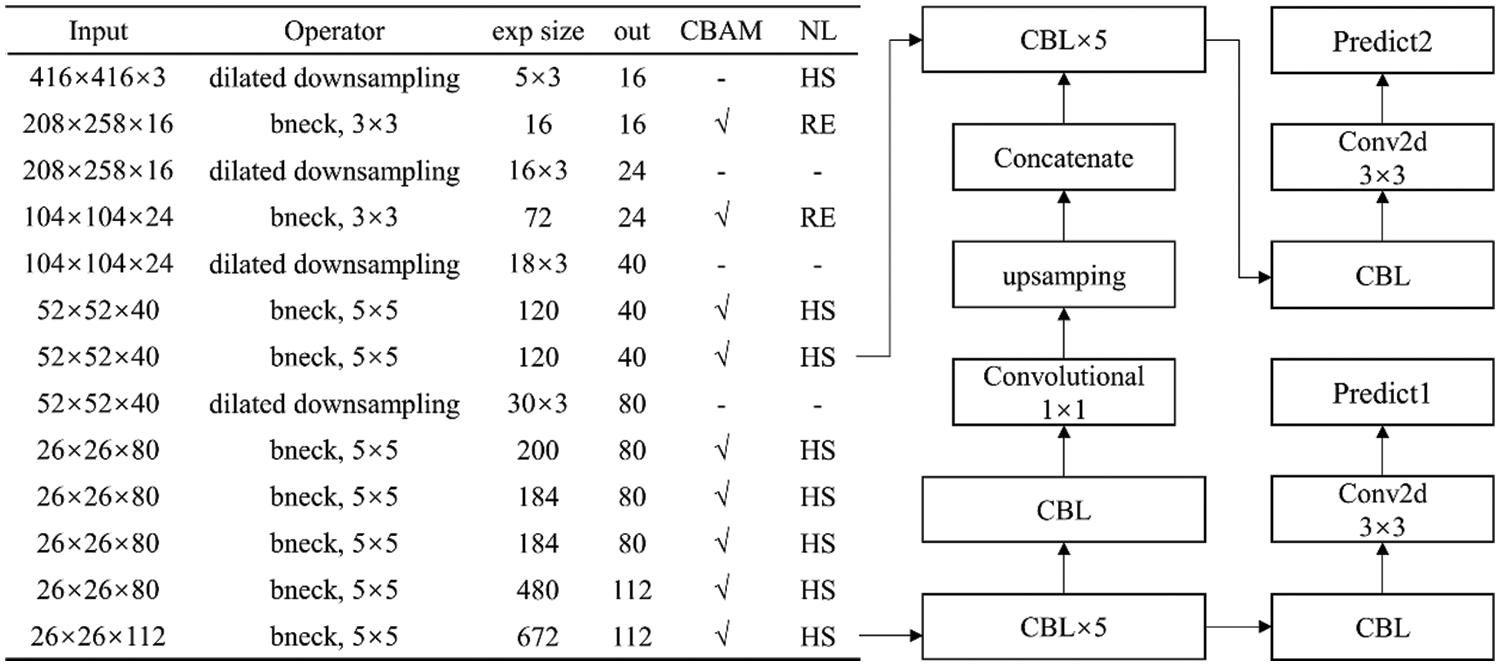

Figure 10: Network details of MDN-YOLOv3

The MDN serves as the backbone network for extracting multi-scale features. Specifically, crosswise MDN structures are added between bottleneck modules to extract and fuse multi-scale features from input images. In addition, the CBAM attention mechanism is introduced to enhance feature extraction ability. The output matrix dimensions of the effective feature layers in the MDN backbone are 1/16 and 1/8 of the original image size, resulting in feature maps of 52 × 52 and 26 × 26 pixels being output. These output feature maps can be used for prediction (see Fig. 9a). The resulting output data are a matrix with eleven rows and one column that includes four coordinate parameters, six classification parameters, and one confidence parameter.

4  Splicing Concrete-Crack Dataset (SCCD)

The existing crack datasets of concrete structures often focus on a single crack or several adjacent cracks. These crack patterns tend to be somewhat repetitive and are not suitable for identifying intricate patterns in real-world situations. To address this limitation, we develop a new dataset named the SCCD to capture more diverse and complex crack patterns. Overall, 6066 figures are collected and divided into seven categories: no crack, hole, mesh crack, oblique crack, transverse crack, vertical crack, and irregular crack, as shown in Figs. 11a–11g. Moreover, every nine images are spliced as a new image to increase the complexity of crack patterns, as shown in Fig. 11h. Various types of crack models can be generated randomly at different locations in splicing images with variable backgrounds. The new 674 general splicing images are further divided into two parts: 500 images are used as the training set and 174 images are used as the test set.

Figure 11: Concrete surface detect dataset. (a) no crack, (b) hole, (c) mesh crack, (d) oblique crack, (e) transverse crack, (f) vertical crack, (g) irregular crack, (h) splicing picture

5  Superiorities of MDN-YOLOv3

5.1 Training Environment

This experiment is conducted on a Windows 10 system using PyTorch. The parameter settings for the training experiments on this platform are presented in Table 1.

5.2 Training Parameters

When the MDN-YOLOv3 is trained, the learning rate is set to 0.001 and kept constant throughout the training process. The epoch, batch size, and weight decay numbers are set to 50, 4, and 0.0005, respectively.

5.3 Evaluate Indicators

The recall rate [66] and prediction rate [67] are calculated to evaluate the identification results of the MDN-YOLOv3. The definitions of these two parameters are

Recall=TPTP+FN (6)

Precision=TPTP+FP (7)

where TP represents the number of positive samples with a correct prediction, FP represents the number of wrong predictions, and FN represents the number of positive samples with a failed prediction.

In addition, two indexes, the mean average precision (mAP) at an IoU threshold of 0.5 and the frames per second (FPS), are calculated to quantitatively evaluate the calculation accuracy and speed of the network, respectively. The definition of mAP can be expressed as

mAP=∑i∈NAPiN (8)

APi=∫01Pi(Ri)dRi (9)

where APi is the average accuracy of the i-th crack pattern. Generally, a higher AP value shows better classification results for a model.

The FPS represents the identification speed and can be expressed as

FPS=NimageTime (10)

where Nimage is the number of images detected, and Time is the sum time of the detected images.

5.4 Comparison with Existing Typical Models

Table 2 displays the structures utilized in every model. Fig. 12 illustrates the P–R curves of six concrete cracks for various models, and their AP is calculated using Eq. (9) and summarized in Table 3. The highest AP among all of the compared models is observed for the hole, irregular crack, oblique crack, and transverse crack of MDN-YOLOv3; however, the mesh crack’s AP is slightly lower than that of YOLOv3 and M3-YOLOv3, while the vertical crack’s AP is a bit lower than that of YOLOv3, as shown in Table 3. The mAP of the models is determined by calculating the respective APs, as depicted in Fig. 13. While MDN-YOLOv3 and YOLOv3 have the highest mAP values, M2-YOLOv3 has the lowest value among them all.

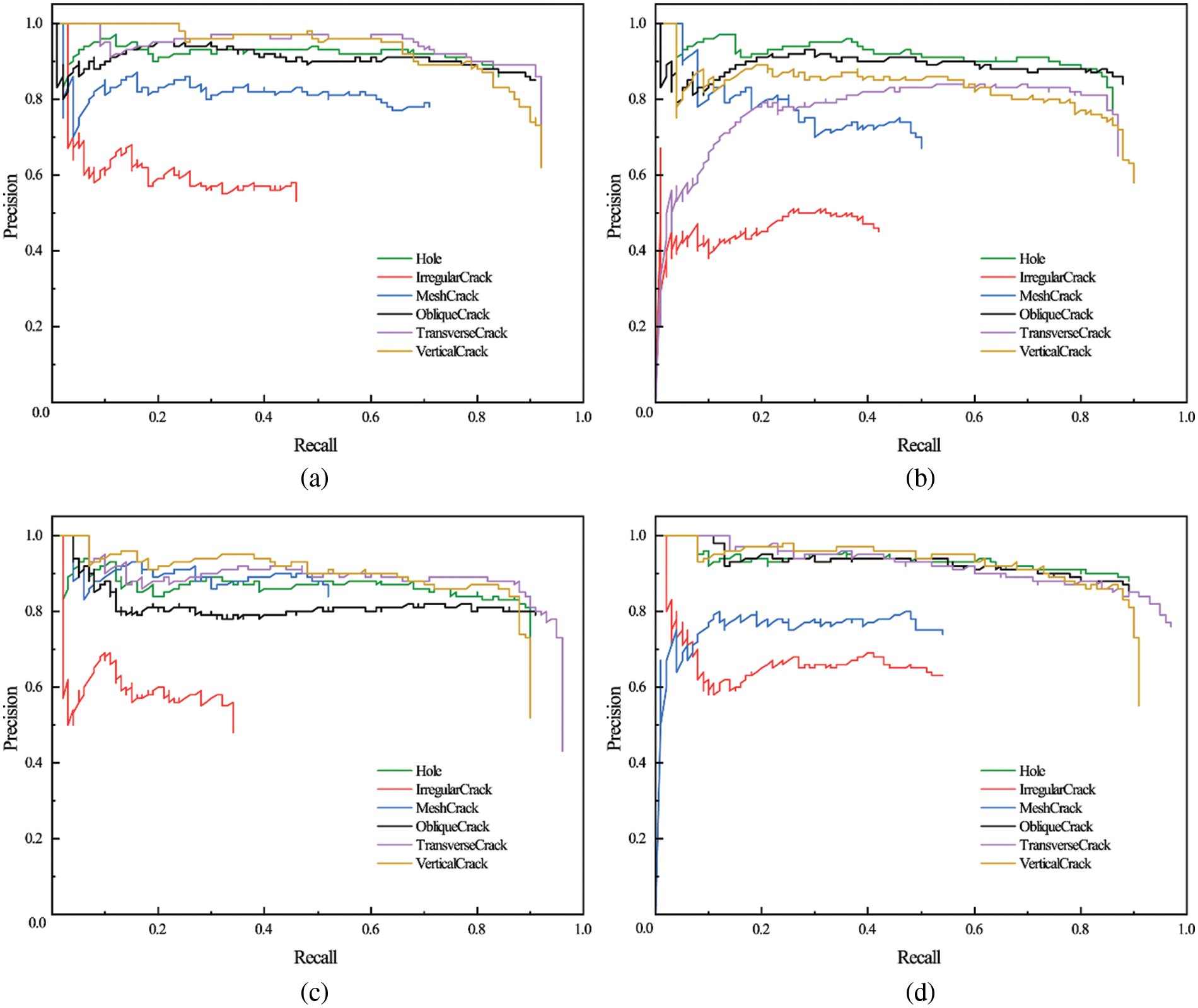

Figure 12: P–R curves of six concrete cracks for different models: (a) YOLOv3, (b) M2-YOLOv3, (c) M3-YOLOv3, (d) MDN-YOLOv3

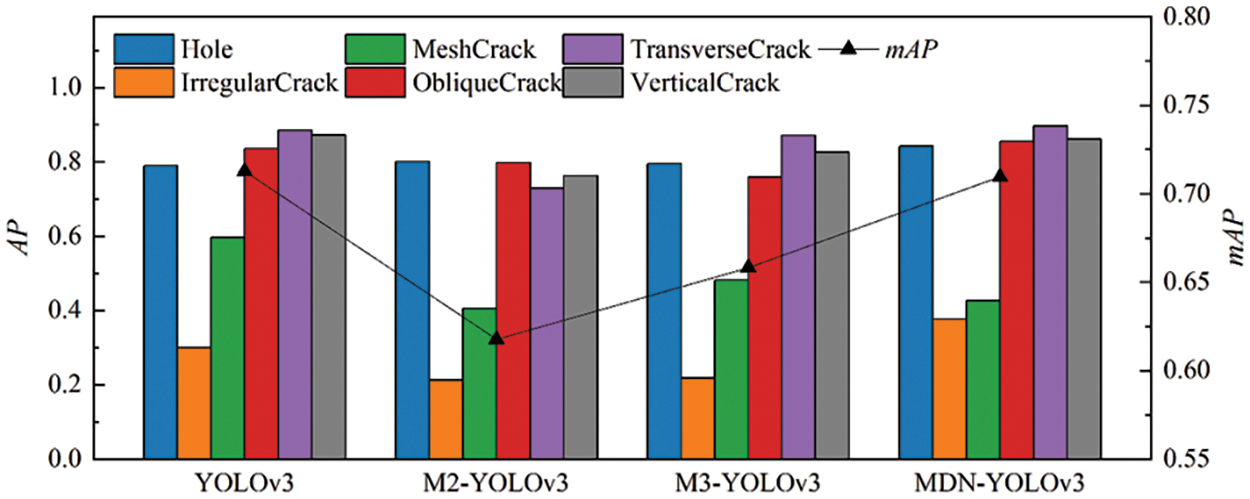

Figure 13: AP and mAP value comparison of different models

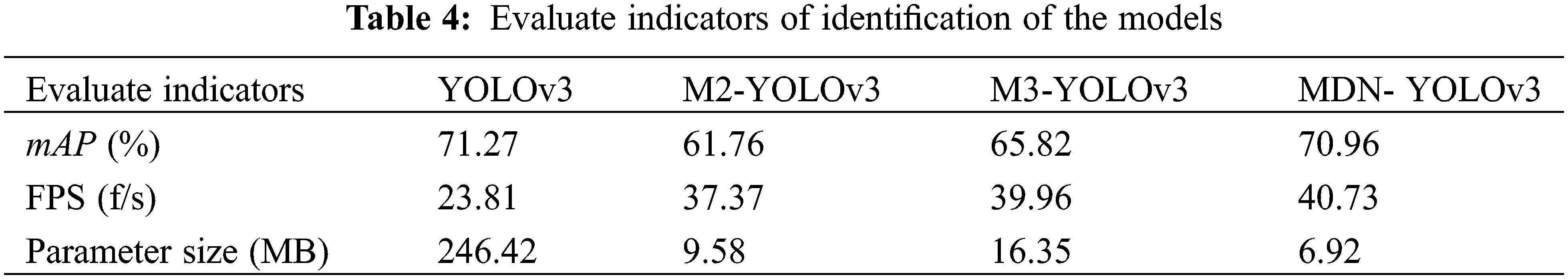

Table 4 summarizes the evolution indicators of mAP and FPS. The MDN-YOLOv3 has a mAP of 70.96%, which is almost identical to YOLOv3’s 71.27%. This value is significantly higher than that of M2-YOLOv3 and M3-YOLOv3. In addition, the FPS of MDN-YOLOv3 is 40.73 (f/s), making it faster by 41.5%, 8.25%, and 1.92% compared with YOLOv3, M2-YOLOv3, and M3-YOLOv3, respectively. Moreover, the model size of MDN-YOLOv3 is only 6.92 (MB), which makes it smaller by significant margins of 97.2%, 27.8%, and 57.7% when compared with the YOLOv3, M2-YOLOv3, and M3-YOLOv3 models, respectively.

To illustrate every model’s performance vividly, a bubble diagram has been made in Fig. 14 where the bubble size represents every model’s size, the abscissa shows the mAP, and the ordinate represents the corresponding FPS. As shown in Fig. 14, the bubble of MDN-YOLOv3 is the smallest and is located in the top right of the diagram. In other words, the MDN-YOLOv3 has the smallest model size and the fastest identification speed. Furthermore, the recognition accuracy of MDN-YOLOv3 is near that of M3-YOLOv3 and better than that of other comparison models.

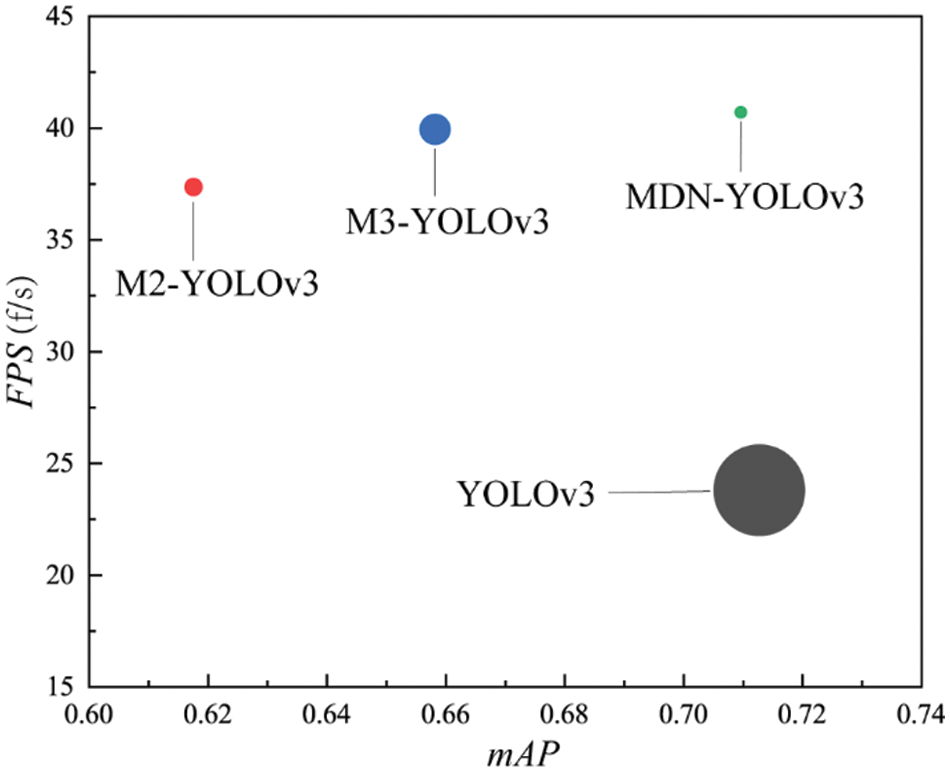

Figure 14: Comparison of mAP, FPS, and model size

In addition, the cracks in the test set are detected and classified with corresponding confidence, as shown in Fig. 15. The location and category of the cracks are clearly identified using the improved MDN-YOLOv3 method.

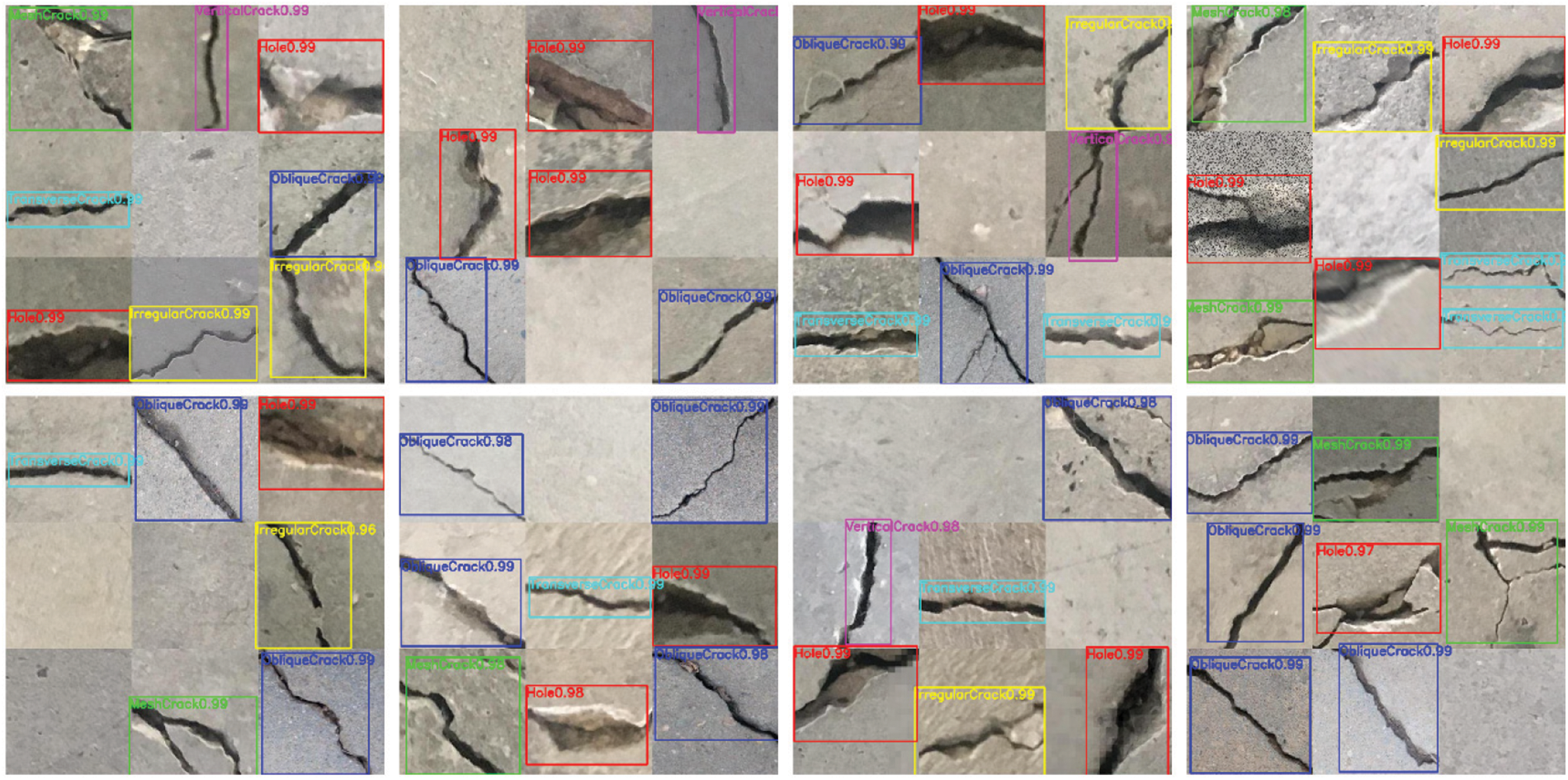

Figure 15: Crack detection results using MDN-YOLOv3

In summary, the proposed MDN-YOLOv3 identifies cracks quickly while maintaining high accuracy levels despite its small model size.

6  Conclusions

The identification of crack locations and patterns is of great significance in evaluating the service performance of concrete structures. To address this issue, this study proposes an improved YOLOv3 algorithm for the rapid and accurate identification of the surface cracks of concrete structures. The proposed model is verified using a self-built training set. The main conclusions are presented as follows:

(1) The proposed MDN-YOLOv3 has lightweight network structures and robust feature extraction capability. The DSC and proposed DDS structure can effectively extract and fuse the features of cracks.

(2) The proposed MDN-YOLOv3 has a model size of 6.92 M and an identification speed of 40.73 FPS, which is 97.2% smaller in size and 41.5% faster in speed than YOLOv3. This finding indicates that the proposed MDN-YOLOv3 is more suitable for applications on mobile devices due to the faster calculation speed and smaller memory of these devices.

In the future, a better crack identification scheme should be studied to evaluate the applications of proposed models, such as temperature cracks, concrete shrinkage cracks, and external load cracks. In addition, concrete crack images from complex scenes such as underwater concrete and tunnel concrete require further research and development.

Acknowledgement: None.

Funding Statement: The authors are grateful for the International Science & Technology Cooperation Project of Jiangsu Province (BZ2022010), the Jiangsu-Czech Bilateral Co-Funding R&D Project (No. BZ2023011), and “The Belt and Road” Innovative Talents Exchange Foreign Experts Project (No. DL2023019001L).

Author Contributions: The authors confirm contribution to the paper as follows: study conception and design: Maosen Cao, Dragoslav Sumarac; data collection: Alfred Strauss, Yehui Shi; analysis and interpretation of results: Haoan Gu, Kai Zhu, Alfred Strauss; draft manuscript preparation: Haoan Gu, Maosen Cao. All authors reviewed the results and approved the final version of the manuscript.

Availability of Data and Materials: The data that support the findings of this study are available from the corresponding author upon reasonable request.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
