Three New Hydroxytetradecenals from Amomum tsao-ko with Protein Tyrosine Phosphatase 1B and Glycogen Phosphorylase Inhibitory Activity

1  Introduction

Diabetes mellitus (DM) is a chronic metabolic disease characterized by fasting or postprandial hyperglycemia, which results from insulin deficiency and insulin resistance [1]. DM can lead to serious complications such as heart attack, diabetic kidney disease, cerebrovascular disease, and neuropathy [2]. About 537 million people are suffering from DM all over the world, of which type 2 diabetes (T2DM) occupies more than 90% of the cases [3]. Medicines are the main treatment strategy for T2DM and can be sketchily classified into oral and injection drugs according to their administration methods. Currently, several types of oral hypoglycemic drugs are available in the market, but their application is limited by the inevitable side effects and drug resistance [4]. Medicinal herbs are always considered to be important sources of new drugs, especially the plants used for both medicines and foods [5–8].

Amomum tsao-ko belonging to the Zingiberaceae family has a widespread distribution across Yunnan, Guangxi, and Guizhou Provinces of China [9]. Its dried fruits (Tsaoko Fructus, Cao-Guo in Chinese) are a well-known traditional Chinese medicine documented in Chinese Pharmacopoeia for the treatment of abdominal pain, vomiting, and plague. As a “medicine-food homology” material, Cao-Guo is widely consumed as a spice in the indigenous diets of East and Southeast Asian countries [10]. The major constituents of A. tsao-ko are essential oils, terpenoids, diarylheptanoids, flavonoids, phenols, amino acids, and saccharides [11]. Previous investigation manifested that A. tsao-ko had antidiabetic [12], cytotoxic [13], neuroprotective, anti-inflammatory [14], antioxidant [15], antimicrobial and antiviral effects [16,17]. Yu et al. reported that A. tsao-ko showed efficacy in promoting insulin secretion and increasing insulin sensitivity by regulating digestive enzymes, as well as reducing the plasma-free fatty acid concentration to improve insulin resistance [18,19]. In our latest study, a variety of diarylheptanoids and flavonoids with α‑glucosidase and PTP1B inhibitory effects were isolated from the ethyl acetate part of Cao-Guo, indicating the antidiabetic potency of the phenols [20–24].

Volatile oils are another type of constituent in Cao-Guo, which should be no less than 1.4% in the crude drugs according to the latest edition of Chinese Pharmacopoeia. Presently, more than one hundred constituents have been detected in its volatile oils, which are mainly 1,8-cineole, α-pinene, β-pinene, lemonol, α-citral, α-terpineol and α-phellandrene [25,26]. However, most of the volatile oils were only tentatively characterized by LCMS analysis, and their exact structures and biological activity were little studied.

To fully understand the antidiabetic potency of Cao-Guo, its petroleum ether soluble part was further investigated. As a result, three new hydroxytetradecenals were purified and unambiguously characterized by substantial spectroscopic data (Fig. 1). Their antidiabetic activity was evaluated against two diabetes-related enzymes, namely PTP1B and GPa. Their separation, structural analysis, and antidiabetic effects against PTP1B and GPa are herein reported.

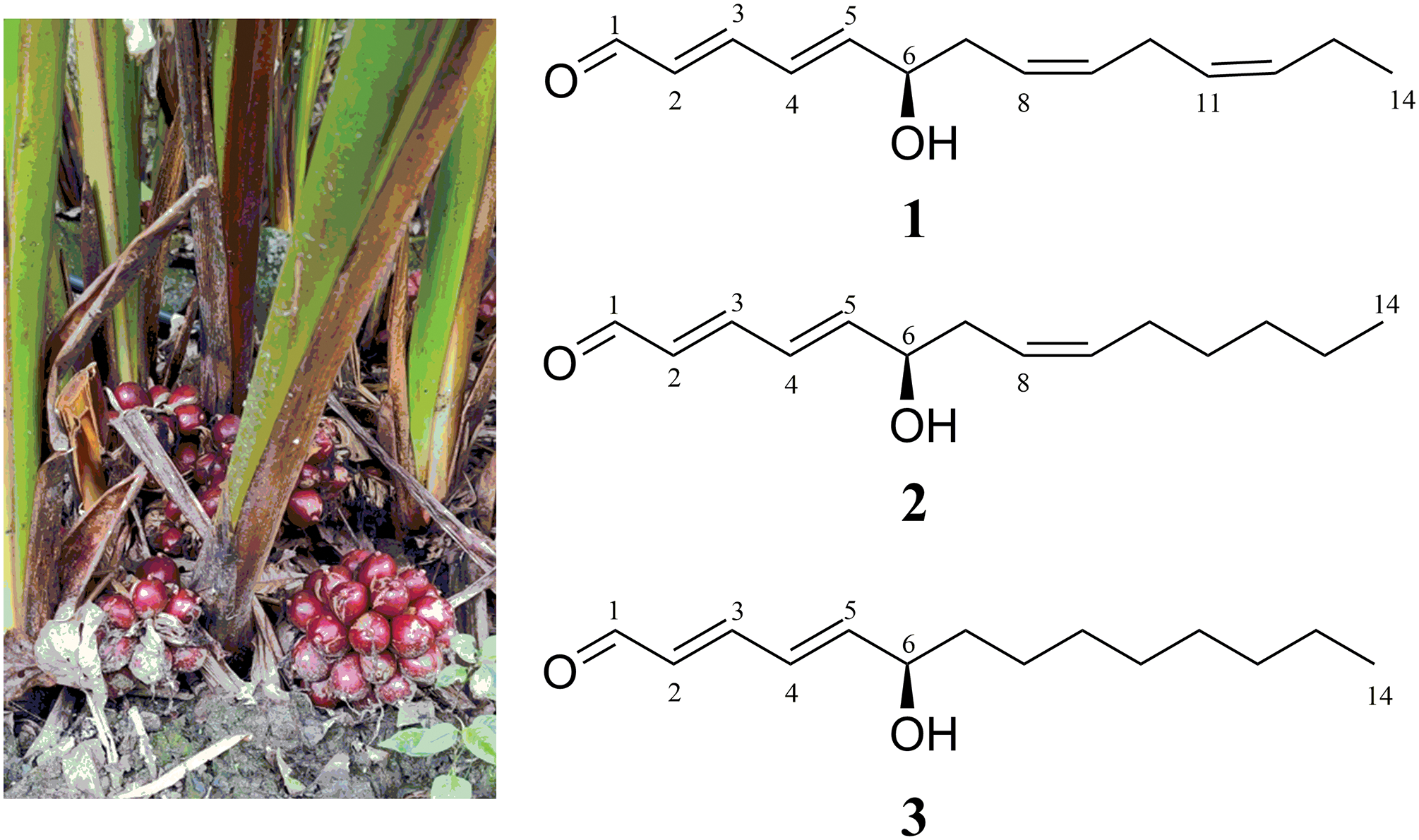

Figure 1: Plants of A. tsao-ko and the structures of three new hydroxytetradecenals 1−3

2  Materials and Methods

2.1 General Experimental Procedures

High-resolution mass spectra (HRESIMS) were measured with an LC/MS-IT-TOF spectrometer. Optical rotations were detected by a JASCO P-1020 digital polarimeter. 1D and 2D NMR spectra were measured with an Advance III-600 instrument. Thin-layer chromatography (TLC) analysis was performed on silica gel plates by spraying with 10% H2SO4. A Shimadzu LC-CBM-20 system with an Agilent XDB-C18 column was used for high-performance liquid chromatography (HPLC) purification.

2.2 Plant Materials

The fruits of Amomum tsao-ko Crevost et Lemarie were collected from Nujiang, Yunnan Province of China in 2022, and were authenticated by Yi Yang (Nujiang Green Spice Industry Research Institute). A voucher specimen (No. 20220701At) was deposited at the State Key Laboratory of Phytochemistry and Plant Resources in West China, Kunming Institute of Botany, Chinese Academy of Sciences.

2.3 Extraction and Isolation

The dried and ground fruits of A. tsao-ko (1 kg) were extracted with petroleum ether (PE) at room temperature twice (12 L each). The combined extraction was evaporated under vacuum, and separated through silica gel CC, employing ethyl acetate (EtOAc)-PE system (from 2:98 to 50:50, v/v). The EtOAc-PE (5:95, v/v) fraction was separated by Sephadex LH-20 CC [methanol (CH3OH)-chloroform (CHCl3), 50:50, v/v] and HPLC [C18 column, acetonitrile (CH3CN)-H2O (75:25, v/v)] to yield 1 (4 mg), 2 (3 mg) and 3 (0.5 mg).

2.4 Spectroscopic Data

(2E,4E,8Z,11Z)-6R-Hydroxytetradeca-2,4,8,11-tetraenal (1):

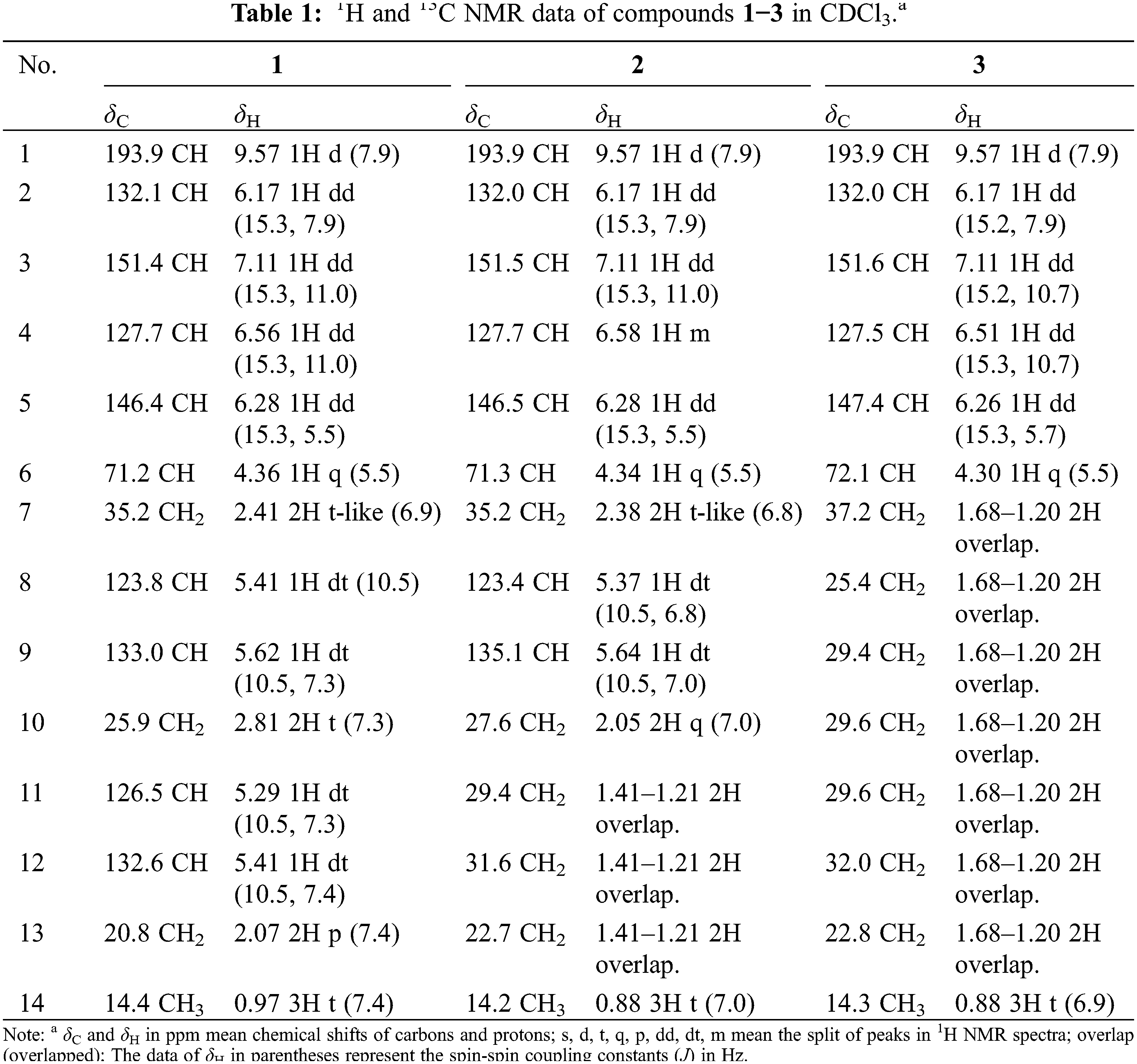

Pale yellow oil. [α]D24 −5.45 (c 0.11, MeOH); 1H and 13C NMR (DEPT), see data on Table 1; HRESIMS m/z 221.1521 Da ([M + H]+, calculated for C14H21O2, 221.1536 Da, −1.5 mDa); UV (MeOH) λmax (log ε): 272 nm.

(2E,4E,8Z)-6R-Hydroxytetradeca-2,4,8-trienal (2):

Pale yellow oil. [α]D21 −3.78 (c 0.09, MeOH); 1H and 13C NMR (DEPT), see data on Table 1; HRESIMS m/z 223.1700 Da ([M+H]+, calculated for C14H23O2, 223.1693 Da, +0.7 mDa); UV (MeOH) λmax (log ε): 273 nm.

(2E,4E)-6R-Hydroxytetradeca-2,4-dienal (3):

Pale yellow oil. [α]D24 −6.60 (c 0.02, MeOH); 1H and 13C NMR (DEPT) see data on Table 1; HRESIMS m/z 225.1835 Da ([M+H]+, calculated for C14H25O2, 225.1849 Da, −1.4 mDa); UV (MeOH) λmax (log ε): 272 nm.

2.5 Enzyme Inhibition Assays

Enzyme inhibition assays followed the previous method with minor modifications [27,28]. In the PTP1B inhibition assay, 100 mL of working buffer containing 3-(N-morpholino)propanesulfonic acid (MOPS, 722.0 mg), dithiothreitol (DTT, 30.0 mg), ethylene diamine tetraacetic acid (EDTA, 25.7 mg) and NaCl (12.1 g) was prepared before the test. Tested samples (10 μL), working buffer (70 μL), and PTP1B enzyme (10 μL) were pipetted into 96-well plates, followed by an incubation for 15 min. After adding the substrate (10 μL), the mixture was incubated for 30 min. To the mixture, 100 μL of Na2CO3 was added, and the absorbance was recorded on a FlexA-200 microplate reader. In the GPa inhibitory assay, tested samples (10 μL) and enzyme (50 μL) were added into 96-well plates, and incubated at 37°C for 15 min. After the addition of substrate solution (40 μL), the mixture was incubated for 30 min. Then, the mixture was supplemented with 150 μL of HCl containing ammonium molybdate (10 mg/mL) and malachite green (0.38 mg/mL). After incubation for 20 min, the absorbance was recorded at 620 nm. Sodium orthovanadate (Na3VO4) and CP-91149 were applied as the respective positive controls.

3  Results and Discussion

3.1 Structure Elucidation

Compound 1 had a molecular formula of C14H20O2 which was assigned by HRESIMS at m/z 221.1521 Da ([M + H]+, calculated for C14H21O2, −1.5 mDa), with five degrees of unsaturation. Its 13C NMR (DEPT) data exhibited 14 carbons ascribed to an aldehyde group, eight sp2 methines, one oxygenated methine, three methylenes, and a methyl. In the 1H NMR spectrum, an aldehyde proton at δH 9.57, two trans-double bonds at δH 6.17 and 7.11 (J = 15.3 Hz) and δH 6.56 and 6.28 (J = 15.3 Hz), two cis-double bonds at δH 5.41 and 5.62 (J = 10.5 Hz) and δH 5.29 and 5.41 (J = 10.5 Hz), and a methyl in triplet at δH 0.97, were recognized.

The 1H and 13C NMR data of 1 showed high similarity with lycocasuarinen acid E [29], except that a carboxyl group and two trans-double bonds in lycocasuarinen acid E were changed to be an aldehyde group and two cis-double bonds in 1. With the aid of the 1H-1H COSY experiment, the consecutive correlations from H-1 to H-14 established the C14 chain. Moreover, the ROESY correlations of H-1 with H-3, H-3 with H-5, and H-2 with H-4 verified the E-form of Δ2,4-diene; the correlations of H-7 with H-10, and H-10 with H-13 verified the Z-form of Δ8,11-diene (Fig. 2).

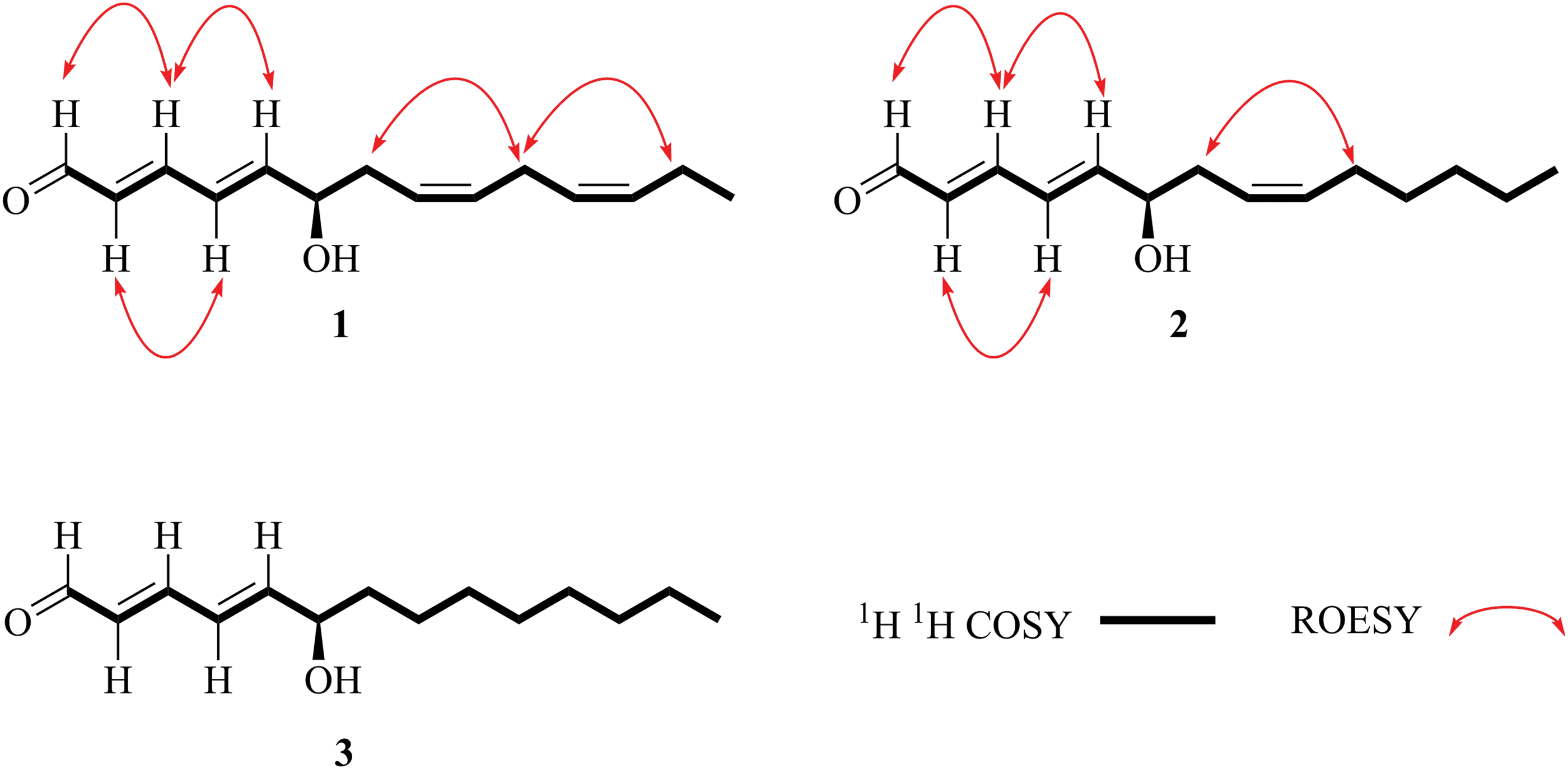

Figure 2: Key 2D NMR correlations of three new hydroxytetradecenals 1−3

The stereochemistry of C-6 was determined to be R by its negative rotation ([α]D24 −5.45), opposite to (2E,4E)-6S-hydroxyldodeca-2,4-dienoic acid ([α]D20 +11.7) [29]. Hence, compound 1 was characterized as (2E, 4E, 8Z, 11Z)-6R-hydroxytetradeca-2,4,8,11-tetraenal (1).

Compound 2 was assigned the molecular formula of C14H22O2 according to its HRESIMS at m/z 223.1700 Da ([M+H]+, calculated for C14H23O2, +0.7 mDa), showing four degrees of unsaturation. The NMR data of 2 are similar to 1 besides the absence of one cis-double bond and two extra methylenes. In the 1H-1H COSY spectrum, the consecutive correlations from H-1 to H-14 verified the Δ2,4,8-triene pattern in the structure. Thus, compound 2 was suggested to be the 11,12-dihydro derivative of 1. The Δ2- and Δ4-double bonds were deduced as trans-form by the coupling constant of 15.3 Hz, and the Δ8-double bond was deduced as cis-form by the coupling constant of 10.5 Hz. This deduction was further confirmed by the ROESY correlations of H-1/H-3/H-5, H-2/H-4, and H-7/H-10. Similarly, the configuration of C-6 was assigned to be R by the negative rotation (−3.78). Thus, compound 2 was identified as (2E,4E,8Z)-6R-hydroxytetradeca-2,4,8-trienal (2).

Compound 3 had a molecular formula of C14H24O2 which was deduced from the HRESIMS at m/z 225.1835 Da ([M+H]+, calculated for C14H25O2, −1.4 mDa), with two more hydrogens (H) than 2. Compared with 2, the 1H and 13C NMR data suggested the presence of two extra methylenes but the absence of one cis-double bond. From the above features, compound 3 was proposed to be the 8,9-dihydro derivative of 2, and was further supported by the 1H-1H COSY correlations from H-1 to H-14. The configuration of Δ2,4-diene was settled as E by the coupling constant of 15.2 Hz. Its absolute configuration was determined to be 6R by the negative rotation (−6.60). Finally, compound 3 was deduced as (2E, 4E)-6R-hydroxytetradeca-2,4-dienal (3).

3.2 Enzyme Inhibitory Activity

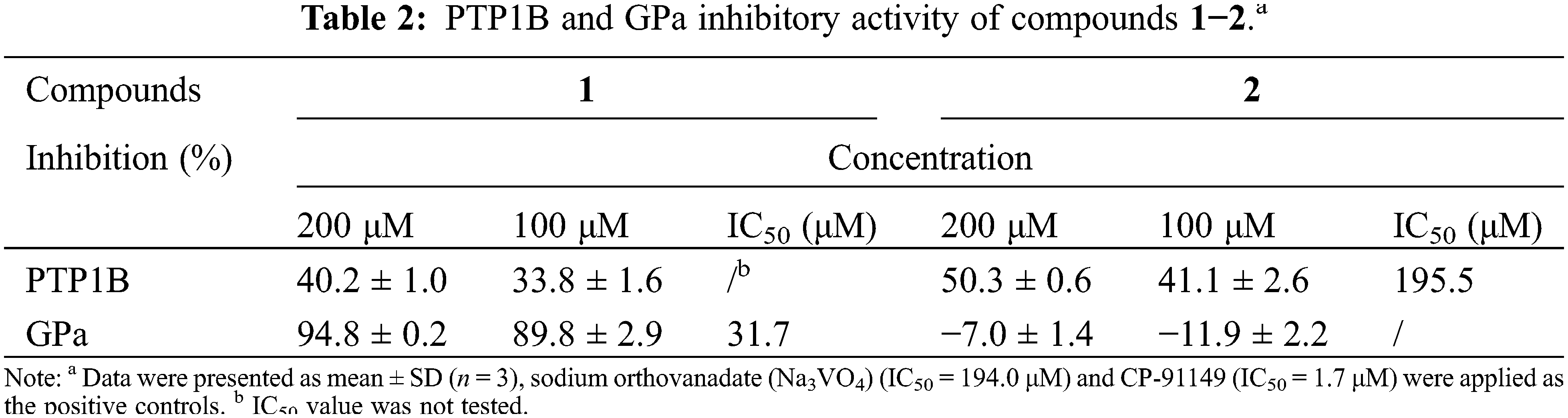

PTP1B and GPa are two potential therapeutic targets for the treatment of diabetes. PTP1B as a hydrolase located on the cytoplasmic surface of the endoplasmic reticulum (ER) is widely expressed in insulin-target tissues [30]. By inducing the dephosphorylation of phosphorylated insulin receptor and insulin receptor substrate 1 (IRS1), PTP1B terminates IR signaling and inhibits glucose uptake, thus resulting in insulin resistance [31]. Also, PTP1B can dephosphorylate and inactivate the leptin receptor-associated kinase JAK-2, thereby blocking the signal transduction of leptin [32]. Glycogen phosphorylase (GP) is the key enzyme in catalyzing the rate-limiting step of glycogen degradation. GPa is the active form of GP, inhibiting which can significantly lower the fasting plasma glucose in type 2 DM patients [33,34]. To assess their hypoglycemic potency, compounds 1 and 2 were tested for the PTP1B and GPa inhibitory activity. In Table 2, compounds 1 and 2 displayed moderate inhibition against PTP1B with inhibition rates of 40.2% ± 1.0%, 50.3% ± 0.6% at 200 µM, and 33.8% ± 1.6%, 41.1% ± 2.6% at 100 µM. For the GPa inhibitory assay, compound 1 exhibited high activity with inhibition rates of 94.8% ± 0.2% (200 µM) and 89.8% ± 2.9% (100 µM), whereas compound 2 was inactive at the tested concentrations. The IC50 value of 1 on GPa was calculated as 31.7 μM by a dose-response study (Fig. 3). Compound 3 was not tested for inhibitory activity due to the inadequate amount.

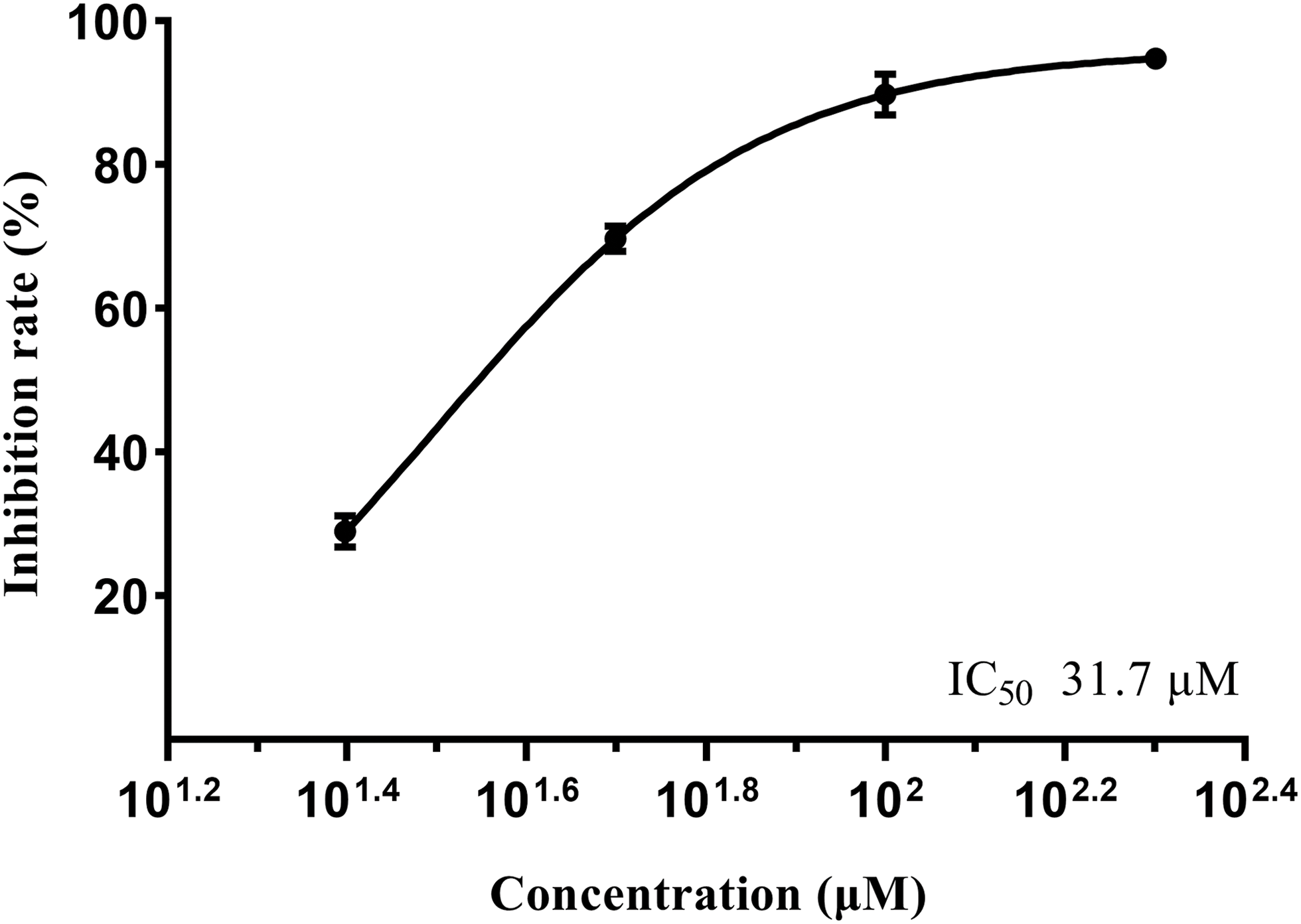

Figure 3: Dose-response curve of compound 1 on GPa

The fruits of A. tsao-ko (Cao-Guo) are widely used as both medicinal materials and food additives in China, showing diverse pharmacological activities such as antibiotic, anti-inflammatory, anticancer, antidiabetic, and neuroprotective effects [11]. Previously, the extracts of A. tsao-ko were reported to have α-amylase and α-glucosidase inhibitory activity in vitro [35] and hypoglycemic activity in vivo [12].

To search for antidiabetic clues from Zingiberaceae plants, our previous study reported a series of flavanol-fatty alcohol hybrids, flavanol-monoterpenoid hybrids, and diarylheptanoids which showed PTP1B and α‑glucosidase inhibitory activity from the EtOAc part of A. tsao-ko [20–24]. Although the low-polarity volatile oils in A. tsao-ko had been revealed with antibiotic, cytotoxic, and antioxidant effects, their antidiabetic potency was still unclear [11]. In connection with our previous research, the petroleum ether soluble part was further studied, from which three new hydroxytetradecenals were obtained and fully determined by HRMS, NMR, and [α]D data. Their effects against two diabetes-related enzymes PTP1B and GPa were assayed in vitro. Two compounds (1 and 2) exhibited moderate inhibition on PTP1B, and compound 1 showed obvious inhibition on GPa. This study further enriched the antidiabetic constituents of A. tsao-ko.

4  Conclusion

In this study, three new hydroxytetradecenals were isolated from the petroleum ether-soluble part of Cao-Guo. Structurally, compounds 1−3 are highly related but with different numbers of double bonds. Both compounds 1 and 2 showed inhibition on PTP1B, but only compound 1 was active to GPa, suggesting that the number of cis-double bonds highly influenced the activity. This study demonstrates that the low-polarity hydroxytetradecenals contribute to the antidiabetic potency of Cao-Guo, in addition to the middle-polarity phenols as described in our previous reports. Thus, A. tsao-ko could be considered as an alternative herb used alone or in combination for the treatment of diabetes.

Acknowledgement: Not applicable.

Funding Statement: This work was financially supported by the Yunnan Major Scientific and Technological Program (202202AE090035), Xingdian Yingcai Project (YNWR-QNBJ-2018-061), the Yunnan Fundamental Research Projects (202201AV070010, 202301AS070069), Yunnan Province Science and Technology Department (202305AH340005), and the Fund of State Key Laboratory of Phytochemistry and Plant Resources in West China (P2022-KF12).

Author Contributions: Xiaolu Qin carried out the isolation, and structure elucidation, and wrote the manuscript; Xinyu Li, Shengli Wu, and Pianchou Gongpan performed the bioassay and helped with writing; Yi Yang, Mei Huang, Lianzhang Wu, and Juncai He helped to collect the plant materials and provided guidance during the experiment; Changan Geng designed and guided the research and revised the manuscript. All data were generated in-house, and no paper mill was used. All authors agree to be accountable for all aspects of work ensuring integrity and accuracy.

Availability of Data and Materials: The data that support this study will be shared upon reasonable request to the corresponding author.

Ethics Approval: Not applicable.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.

Supplementary Materials: The supplementary material is available online at https://doi.org/10.32604/phyton.2024.048192.
