A Review on the Utilization of Waste Material for Autoclaved Aerated Concrete Production†
† This paper is an extended and revised article presented at the International Conference on Sustainable Energy and Green Technology 2019 (SEGT 2019) 11–14 December 2019 in Bangkok, Thailand.
1Solar Energy Research Institute (SERI), Universiti Kebangsaan Malaysia, Bangi, Selangor, 43600, Malaysia
2Department of Physics, Faculty of Science, Naresuan University, Phitsanulok, 65000, Thailand
*Corresponding Author: A. Fazlizan. Email: a.fazlizan@ukm.edu.my
Received: 01 August 2020; Accepted: 13 October 2020
Abstract: Autoclaved aerated concrete (AAC) has become more attractive due to its excellent and environmental-friendly properties in building construction. AAC is relatively lightweight, possesses lower thermal conductivity, higher heat resistance, lower shrinkage, and fasten construction than normal concrete. AAC is a combination of silica sand, cement, gypsum, lime, water, and an expansion agent. To improve its physical and mechanical properties and reduce its production cost, tremendous innovations where waste materials were utilized as partial replacement of AAC materials were done. This paper is intended to present the literature on the utilization of waste materials as a means of a partial replacement in AAC materials to enhance its physical and mechanical properties and thermal performance. The physical properties such as microstructure and mechanical properties such as density, compressive strength, water absorption are presented to classify the investigation that has been done in such innovations. Apart from that, the discussion on innovations to improve its thermal performance was also presented. Based on the review, an increase of AAC application causes much waste at construction sites and recycling concrete waste powder into wall concrete; particularly, an AAC was not frequently practiced in construction.
Keywords: Autoclaved aerated concrete; microstructure; waste material; compressive strength
 | This work is licensed under a Creative Commons Attribution 4.0 International License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. |
Construction works to build structures such as commercial buildings, high-rise buildings, building offices, and residential are rapidly growing significantly in developing countries, including Malaysia. Due to its excellent mechanical features, low cost and availability, concrete is a primary building material for most residential buildings. However, large-scale construction requires large building structures and foundation, resulting in the consumption of even more time and expenses.
The Monsoon region’s environmental condition, which includes the countries of Southeast Asia, is warm and humid, causing the heat and moisture accumulation in the construction wall, which then affects the building materials’ thermal performance and the energy consumption of the building [1,2]. As a consequence, ventilating ventilators and/or air-conditioners reduces heat and provides the building occupants with a calm conducive environment [3–5]. Meanwhile, both economic and energy crises have stimulated energy conservation awareness, resulting in a drastic increment of construction material studies that integrates energy conservation [6].
One of the approaches to maximize energy efficiency in buildings is to use lightweight construction materials with lower thermal conductivity and higher heat resistance. One of the famous building materials that have these is autoclaved aerated concrete (AAC). AAC is chosen due to its environmentally friendly characteristics and has excellent thermal insulation. Generally, AAC is relatively lightweight and possesses better heat resistance, low thermal conductivity, lower shrinkage, and fasten construction than standard concrete [7–10]. Because of its ability to minimize building energy consumption by about 50 percent without applying thermal insulation layers to the building wall, AAC can be deemed a green or environmental-friendly building material [11].
In preventing heat transfer into the building interior, many kinds of literature were reported using an insulator as a building material. Khedari et al. [12] reported that an internal concrete structure consisting of durian fibers and coconut then mixed with sand and cement in different proportions could exhibit lightweight characteristics. It shows that additive fiber blocks’ low density and thermal conductivity could help prevent heat transfer to build-in. Nevertheless, it only could be recommended for non-load - bearing units of concrete masonry because of their low compressive strength [12]. John et al. [13] performed an evaluation of degradation on a composite wall panel which made of clinker-free, low alkaline, activated coconut fiber-fortified slag cement. Although the decomposition and leaching of lignin in the fibres could not prevent the low alkaline cement from lignin’s leaching, it negligible the effect on the wall's performance.
In addition, cement and many other additives, such as ash, zeolite, or polystyrene foam, were used in different non-autoclaved and autoclaved lightweight concrete experiments to explain its structures and engineering properties [13–15]. For example, the effect of polymer cement modifiers was investigated on the mechanical and physical properties of mortar using waste concrete fine aggregate, and it was found that by adding higher polyacrylic ester (PAE) modifier material, mortar porosity could increase [16]. Hot water resistance and higher compressive strength but lower flexural strength could be enhanced by such a polymeric modifier [17].
Many studies have shown that either fine sands or cement replacement could increase its strength, reduce density and thermal conductivity, and some other characteristics [18]. In addition to improving its properties, AAC research also requires partial replacement of waste materials by materials that lead to lower production costs, thus reducing the cost of AAC construction [18–23].
Aerated concrete can be classified as autoclaved aerated concrete (AAC) and non-autoclaved aerated concrete (NAAC) based on the process of pore-formation, the type of binder, and the method of curing [24]. The AAC properties such as drying shrinkage compressive strength, water absorption, and density directly vary on the curing process and duration. Fig. 1 below shows the process difference in preparing aerated concrete between the NAAC (also known as foamed concrete) and AAC.

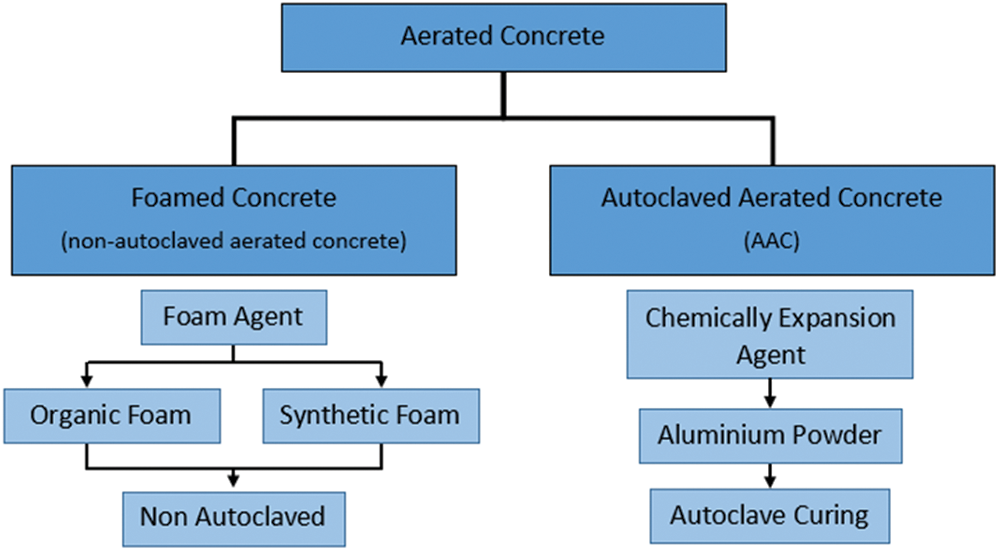

Figure 1: Process flow of the preparation of aerated concrete between the foamed concrete (NAAC) and AAC
AAC that has been used in current masonry units had an entrapped air voids product of combining silica sand, cement, gypsum, lime, water, and aluminum powder as an expansion agent [25]. In the mixture, the aluminum powder that serves as an expansion agent will react with the silica, resulting in the formation of millions of microscopic hydrogen bubbles [26]. The hydrogen then subsequently evaporates and leaving a highly closed-cell aerated concrete. The partially dried aerated concrete is cut into blocks or panels steamed and pressure-cured in an autoclave [24].
Also, the production methods for autoclaved aerated concrete consist of two types, chemical, and mechanical processes. The chemical response of aluminum paste makes it a porous shape having mild weight and more luxurious insulation houses making one-of-a-kind from different mild weight concrete [27]. Many metallic compounds will be used in the chemical process to react and produce enormous quantities of air bubbles in the textured concrete. In contrast, a vast foaming agent is usually used in mechanical processes [27]. In general, AAC can be prepared under temperature and pressure conditions greater than 180°C and 12 bar, respectively, in a high-pressure autoclave [28].
XRD analysis could determine the main mineralogical materials in AAC, which normally appears are tobermorite and fine-crystallined C-S-H [29]. In preparing the materials replacement or addition of additives in AAC, tobermorite stabilization or C/S ratio should be taken for determining the crystalline phases of formation and micro-morphology. Tobermorite can be stabilized with a C/S ratio of 0.8 to1.0 and a temperature of up to 150°C with the aid of an autoclave process [30]. At C/S ratio greater that 1, C-S-H transform to a needle-like tobermorite due to shorter chains of silica and dimers; hence C-S-H repositions more efficiently [31]. However, tobermorite’s increase could reduce the C/S ratio from 1.69 to 0.9 [32]. At a superficial level of C/S ratio, which is less than 0.8, the C-S-H, which is normally formed like a grass-type structure. Normally, the C/S ratio for the formation of tobermorite is in the range from 0.8 to 1 [33].
Tobermorite is normally found in the layer of tetrahedral silicate and octahedral calcium [34]. A two-step process can form the C-S-H system with the hydrothermal reaction between SiO2 and Ca(OH)2 as a slurry phase. In the first step, the SiO2 surface produces C-S-H gel and then reacts with Ca(OH)2 to form a standard crystalline. The curing of crystalline products will be considered in the second stage. During the autoclave curing process, where high pressure (10–12 bar) and temperature (180–190°C) occurs, tobermorite can be formed [34].
Autoclaving is necessary to form crystalline phases, but tobermorite formation would require excessive prolongation in the autoclave [29]. Mostafa [20] highlighted that the tobermorite phase strength did not improve after 2 h of autoclaving. Simultaneously, by increasing the time needed for autoclaving, which is from 8 h to 18 h, the mechanical and microstructural characteristics remained stable after 8 h. Autoclaving prolongation would not affect the tobermorite phase [28], suggesting that tobermorite formation was inhibited after 8 h of autoclaving. Relevant autoclave or steam pressure used can be due to this difference in the early preventing autoclaving time. Previous research shows that the existence of Al3+ speed up the tobermorite crystallization rate [35–37], and leads to an increase of the c unit-cell parameter, while the substitution of (SO4)2− give no effect [38]. The addition of Al3+ also lowers the autoclaving temperature and reduces the autoclaving time for tobermorite formation [20,36].
Bergold [39] presents the quantitative phase analysis of hydrating cement pastes, showing that the Rietveld refinement of an in-situ XRD pattern after 65 h of hydration at 23°C and water to solid ratio of 0.5. The phases determined are alite, portlandite and C-S-H. In contrast, other XRD analysis shows that tobermorite and crystalline C-S-H are the main components in AAC [20,23,26,28,35,40,41]. Secondary phases such as xonotlite, jennite, and other calcium silicate hydrates regularly appear depending on autoclaving temperature and time and C/S ratio [28,42,43].
4 Material Replacement in AAC Production
The development of AAC is divided into two types: Lime-based or cement-based, depending on the dissimilar materials applied, such as sand and fly ash, based on various silica materials or various calcareous materials used [29]. Aluminum powder is a very popular air-entraining agent that could be used to incorporate a trapped void device. In preparation for AAC, fly ash, silica fume, and slag have been increasingly used as supplementary cementitious material. The addition of silica and coal bottom ash in AAC production could increase the density. Apart from that, the excessive addition of more than 30 percent of coal bottom ash may weaken the strength of AAC and may also reduce the amount of absorbent voids due to the decrease in hydrogen gas. However, ash and silica fume variations significantly affect AAC’s thermal conductivity [19,44].
Previous researches shown in Tab. 1 are the innovations that have been done by replacing its based materials using waste materials (industrial by-products). These innovations are either to improve AAC characteristics, properties, and performance or the manufacturing cost while maintaining its properties at the acceptable ranges. Besides waste materials, additions or replacement, additives such as fibers, micro-particles, hydrophonic agents and superplastizer are also being applied in AAC preparation [45–48]. These additives also could enhance the properties of AAC, such as an addition of amorphous SiO2 increased the compressive and flexural strength.

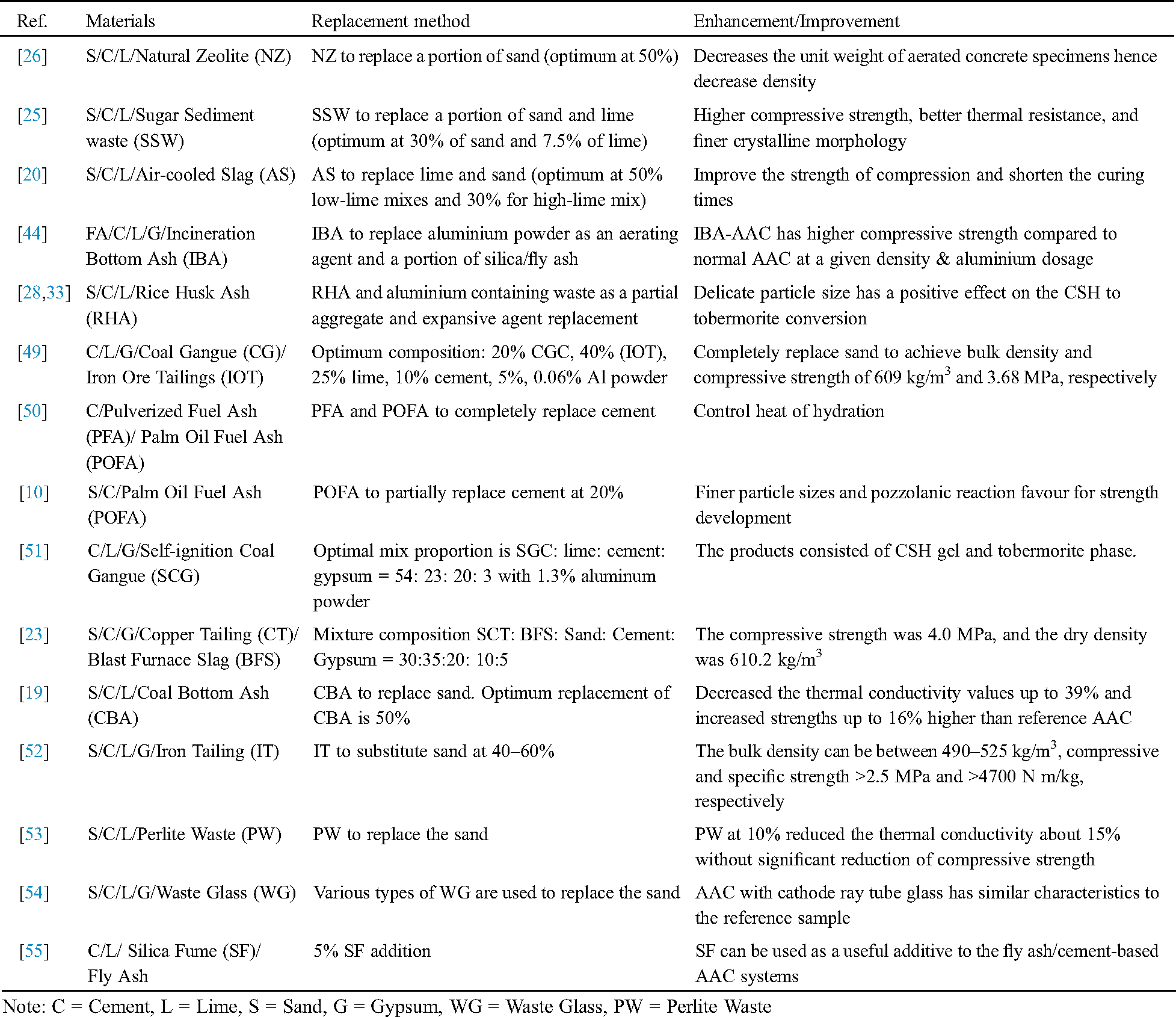

Table 1: Past and present innovations of materials’ replacement using industrial by-products to improve AAC properties
AAC physical properties reflect its microstructure and density. Most of AAC properties such as drying shrinkage, compressive strength, and thermal conductivity, are closely linked to its density [33]. As an expansion agent, the aluminium powder reacts with calcium hydroxide and water to form hydrogen, which slightly adjusts AAC density, as represents in chemical Eq. (1). The hydrogen gas foams and doubles the raw mix volume, gas bubbles are formed and then evaporate, leaving air voids up to 3 mm in diameter [56,57].
In other words, the material density is inversely proportional to the percentage of air bubbles produced during the expansion process [58]. Other physical characteristics of AAC, such as compressive strength, thermal properties, and drying shrinkage, depending on the AAC density itself. According to ACI Committee Guide 213 for Structural Lightweight Aggregate Concrete, lightweight concrete can be graded according to its unit weight or density, typically ranging from 320 kg/m3 to 1920 kg/m3 [59]. AAC is known as lightweight concrete, where its density values typically range from 300 to 1800 kg/m3 [24]. Further classification of lightweight concrete is classified into three density ranges, i.e., low-density concrete (0.7–2.0 MPa), medium-density concrete (7–14 MPa) and structural concrete (17–63 MPa) with densities ranging from 300–800 kg/m3, 800–1350 kg/m3, and 1350–1920 kg/m3 respectively [56]. Low-density lightweight concrete in construction has a range of advantages due to its low density, low thermal conductivity, low shrinkage, high heat resistance, reduced dead load, lower shipping costs, and higher construction rates [56,60].
Drying shrinkage of concrete is defined as contracting the hardened mixture due to the loss of capillary water, leading to increased tensile stress, which may cause crack formation [61]. Due to its high total porosity and the pores’ particular surface, drying shrinkage is important in aerated concrete [62]. Lam et al. [63] suggested that drying shrinkage of AAC is a function of the specific surface area of fine pores of radii 2–20 nm. Additionally, an increase of crystalline content in the substance will also reduce the substance [52]. Drying shrinkage also depends on the quantity of silicate calcium hydrate. In other words, due to the high tobermorite formation, the addition of alumina materials such as high-grade sandblast furnace, bauxite, and high alumina cement will reduce the dry shrinkage by about 30%–100% [25].
AAC is known to have high water absorption due to its high porosity and an expansive drainage channel [64]. The amount of water absorption has two parts, i.e., in the capillary hole (pore diameter < 1 μm) and in large ventilation port. Typically, there are two categories of pores, namely open pores, which relate to each other and the outside, and blind pores that are not connected. Driven by capillary force, the open pores have a water absorption effect [65]. Soluble salt in the liquid water absorbed into the porous materials may have a damaging impact on steel reinforcement [66]. Besides, the building materials’ thermal performance is also affected by liquid water, making the thermal analysis predict the building’s energy consumption affected [67].
The compressive strength is a measurement of the stress of resistance given by the pores’ wall, depends on the pore structure and the binder [27]. In such a way, the pore structure’s influence on the compressive strength is primarily more significant than that of the binder's maturity, which is construed by the fact that the average porosity impact to the compressive strength is twice that of the latter [68]. In addition, the reduction in density could decrease its compressive strength and increase its porosity [22,23,28,29,33,44,45,53,64], as shown in Fig. 2. Also, despite similar porosity, small-size pores’ increment leads to higher compressive strength [69]. In other words, to achieve both high porosity and elevated strength, the refinement of pore size distribution provides access.
Generally, the compressive strength increases linearly with density [70]. As high temperature and pressure resulted in a stable form of tobermorite, the Autoclaving process significantly increases the compressive strength. Tobermorite, since it is an important constituent of AAC, is one of the most industrially important calcium silicate hydrates. AAC’s mechanical properties are influenced by the quantity and quality of tobermorite provided by this process [71]. Depending on the autoclaving pressure and length, the final strength is reached, while the compressive strength decreases by decreasing density and increasing porosity, as shown in Fig. 2 below [29].
Jityachaipum in aerated concentrated studies has been conducted by substituting the Portland cement material with fly ash and natural zeolite to improve its strength. Lightweight concrete with comparatively high compressive strengths of 3.65 and 4.51 N/mm2, respectively, resulted in 10% by weight [72]. The sand replacement has enhanced its properties in terms of its physical strength, microstructure, and thermal conductivity in aerated concrete itself. Wang et al. [21] improved the microstructure of AAC using recycled clayish crushed stone for aerated concrete production. The hydration products were shown to be poorly crystalline C-S-H, tobermorite and hydrogamet. Using lead-zinc tailings, Li, Chen, and Long manufactured aerated concrete, which clarified the effects of casting temperature, water-binder ratio, and aluminium powder content on gas-forming actions. Those on the aerated concrete of lead-zinc tailing material, cement content, and conditioning agents [73].

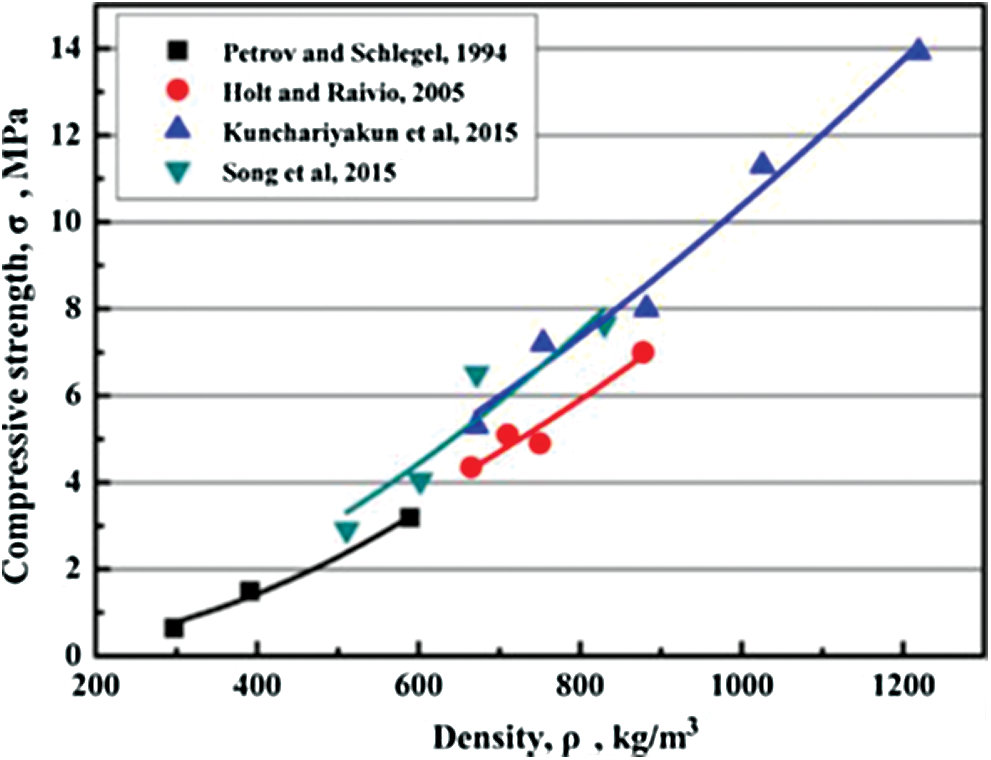

Figure 2: The relationship between compressive strength and density [24]
Meanwhile, Mostafa [20] performed a study to increase the compressive strength of lime and sand replacement by up to 50 percent by air-cooled slag of autoclaved aerated concrete. This optimal condition demonstrated a compressive strength of approximately 3.8 N/mm2. Kurama et al. [19] also study the use of coal bottom ash from Tuncbilek Thermal Power Plant as an aggregate, increasing its compressive strength gain to 2.78 N/mm2. Based on CEB Manual for AAC, standard values of compressive strength, static modulus elasticity, and thermal conductivity for different densities are tabulated in Tab. 2.

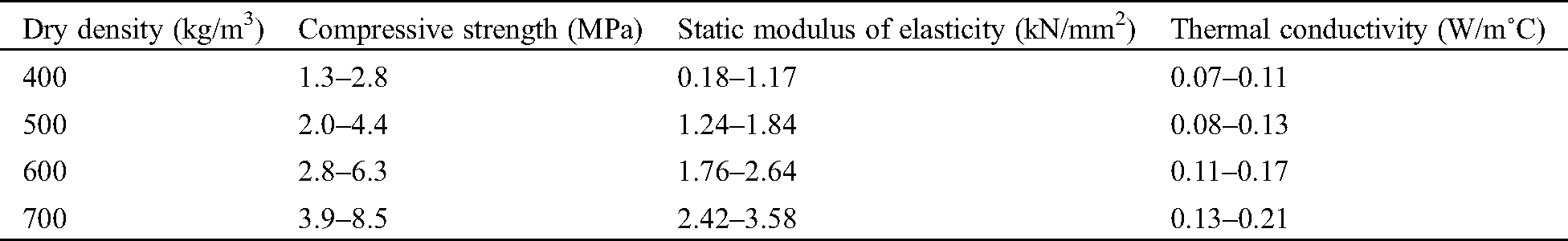

Table 2: Properties of AAC [24]
AAC has good thermal insulation due to its cell structure. Thermal performance value (k) is in the range of 0.1–0.7 W/(mK) for dry density values between 400–1700 kg/m3, which is about 2 to 20 times less than the conventional concrete where it is in the range of 1.6–2.0 W/(mK) [64,54,74]. Thermal performance is a dry density function where the thermal performance will also decrease if the density value decreases, as shown in Fig. 3 from below. A decrease in density of 100 kg/m3 induces a decrease in the thermal efficiency of at least 0.02–0.04 W/(mK), based on evidence obtained from previous experimental studies. In testing the thermal performance, the pores and distribution counts are also important.

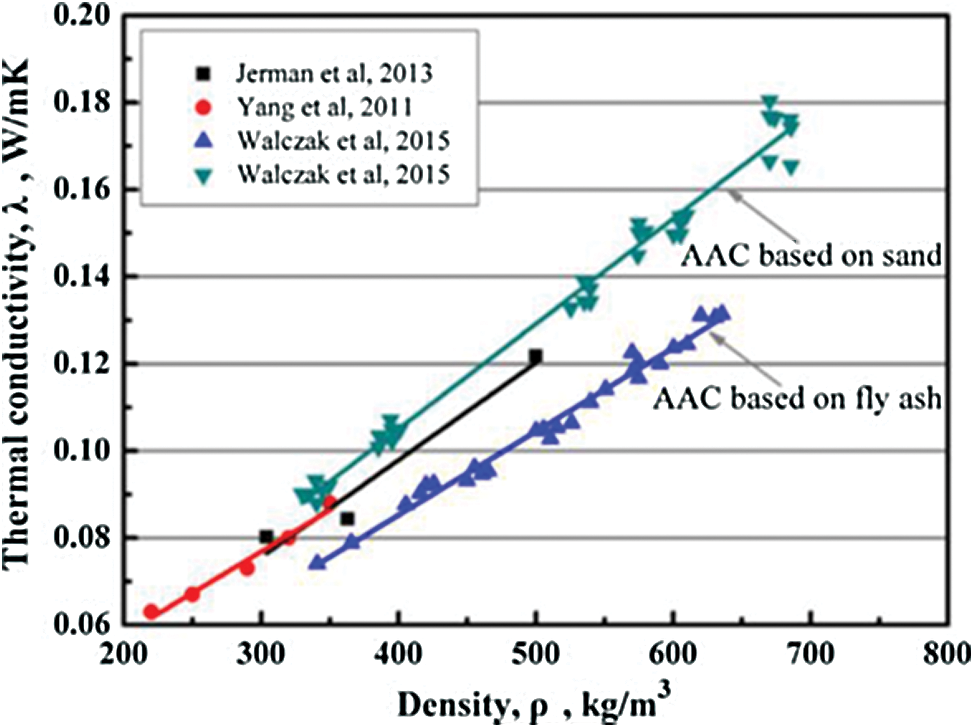

Figure 3: The thermal performance measured by library research as a function of density [64,54,74]
7 Opportunity for Recycled AAC Waste Powder as a Partial Replacement
In terms of its physical and mechanical properties, the removal of AAC materials such as the use of bottom ash, the inclusion of lead-zinc tailings, blast furnace slag, and recycled plastic aggregates may boost the AAC properties based on the previous study carried out [13,33,52,75]. Such different industrial wastes can be used in the preparation of AAC with the aid of autoclaving. During the autoclaved process, the phase transformation process of C-S-H to form the tobermorite was done under a condition of high pressure and temperature treatment. This tobermorite phase is more stable than the former phase. The micropores were distributed evenly under a high pressure autoclaving. In addition, the existence of the tobermorite phase in AAC plays an important role in providing various outstanding properties [34]. It is undoubtedly important to pay attention to the differences in microstructure and properties, but the abundance of AAC waste should not be overlooked [11]. Based on previous literature, less of an attempt to use recycled AAC as a partial replacement was reported, particularly building wall concrete. It is found that the aerated concrete demolition waste was used only as fine aggregate in floor screed and to replace cement in building construction [76,77]. Since there is an abundance of AAC waste available, especially in Malaysia, and it is free [11], using recycled AAC in producing a new AAC and improving its properties is an opportunity to be explored. In addition, the use of recycled AAC is a more sustainable approach and reduces the production cost, but it could contribute to the environmental impact.
Summarizing the research about innovations of replacement in AAC materials, the observations from the previous and current studies show that most waste materials used could improve AAC’s properties in terms of its physical and mechanical properties. With autoclaving, various industrial wastes can be used to prepare AAC, providing prospective access of industrial by-products and broadening AAC application.
Acknowledgement: The authors acknowledge Solar Energy Research Institute of Universiti Kebangsaan Malaysia for the facilities provided and Nareusan University, Thailand, for the research collaboration.
Funding Statement: The financial supports are from the Ministry of Education Malaysia under the Fundamental Research Grant Scheme (FRGS/1/2018/TK06/UKM/02/1).
Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
