Preparation and Characterization of Hydrogel Materials Based on the Hydrothermal Liquefaction of Enteromorpha prolifera

1  Introduction

The increase in fossil fuel usage has led to excessive greenhouse gas emissions, resulting in global warming. Consequently, the alternative of fossil fuel has been receiving widespread attention [1]. Biomass energy is such a feasible alternative as it is renewable and can produce liquid fuels and chemicals on a large scale [2]. So far, obtaining energy and high-value chemicals from biomass is currently the hot research topic.

In general, biomass energy has been classified into three generations. The first generation uses seeds and grains as raw materials, which yet raises many ethical concerns. The second generation uses woody biomass as raw material, which is less preferred due to its cost-ineffectiveness. The third generation involves the usage of algae biomass as a raw material, which shows many advantages, such as a short growth cycle, high yield, less land area requirement, and strong CO2 fixation ability.

In common, algae biomass is rich in moisture, thus limiting utilization process or technology. Fortunately, hydrothermal liquefaction (HTL) is a thermochemical conversion technology that can directly use wet biomass as a raw material to produce biocrude, avoiding costly drying steps as compared to other processes. Under the HTL process, the yield of bio-oil is moderate (40%–83%) and the calorific value is considerable (28–40 MJ/kg) [3]. Although HTL technology has great potential, few researchers have paid attention to the utilization of aqueous by-products (HTL-AP) obtained after hydrothermal liquefaction. Previous studies have shown that during hydrothermal liquefaction, protein and carbohydrate derivatives tend to be dissolved in the aqueous phase, resulting in the corresponding accumulations (protein and carbohydrates) in the aqueous phase. Therefore, the aqueous phase is often rich in organic acids, cyclic amine derivatives, and N/O heterocyclic compounds [4]. Given the high content of nitrogen and oxygen-containing derivatives, HTL-AP has the significant potential for recovery and reuse [5]. At present, the recycling methods mainly include microalgae cultivation [5], anaerobic fermentation [6], hydrothermal gasification [7], etc. However, these technical means require relatively high costs, so it is necessary to develop a new and inexpensive HTL-AP value-added technology. And directly synthesizing hydrogel from HTL-AP seems to be a promising way to broaden HTL-AP utilization at a low cost.

Hydrogels are three-dimensional and hydrophilic polymer networks capable of absorbing and retaining significant amounts of water or biological fluids. Thus, they are of high moisture content, biocompatibility, and tunable physical characteristics. Most importantly, they are suitable for drug delivery, tissue engineering, wound healing, biosensors, and other applications [8]. Mechanical properties of hydrogels, such as tensible strength, are important design parameters to be considered for the engineering of hydrogels from a pharmaceutical and biomedical point of view [9]. Softer hydrogels can be used in medical fields such as drug delivery and wound dressings [10]. Harder hydrogels, due to their higher elastic modulus, can generally be used in areas such as joint scaffolds [11]. In addition, hard hydrogels can also be used as pressure sensors or in construction materials [12]. Research on hydrogels and their applications has been extensive and rapidly evolving. However, since these materials do not exhibit either solid-like behavior or liquid-like behavior, their elastic modulus values are relatively low [13]. This poses significant challenges for researchers in measuring and interpreting mechanical data. Zhou et al. introduced modified starch into polyacrylic acid to obtain hydrogels, which attained a maximum elongation rate of up to 1290%, but their maximum fracture stress was only 49.29 kPa [14]. Huang et al. considered introducing Ca2+ into hydrogels to enhance their mechanical properties [15]. The results showed that after the introduction of Ca2+, the tensile strength of the hydrogels increased by 396.8%, reaching a maximum of 62.5 kPa. It can be seen that enhancing the tensile strength of hydrogels is one of the key focuses in current hydrogel research.

In this study, hydrogel synthesis was applied to the aqueous phase recovery. In HTL, Enteromorpha prolifera was selected as the raw material. Then, the aqueous phase from HTL and polyvinyl alcohol (PVA) were combined to prepare the substance-based hydrogel, so as to transform the hydrothermal aqueous phase into a high-quality hydrogel. Additionally, this study employed a salting-out method to construct a hydrogel with high mechanical strength. Compared to other aqueous phase valorization technologies, this method is cost-effective and offers significant potential for further development.

2  Materials and Methods

2.1 Materials

The used raw material is Enteromorpha prolifera, which is collected from the coast of Zhanjiang in the South China Sea, Guangdong Province, China. Polyvinyl alcohol PVA (the degree of polymerization is 1750 ± 50), anhydrous ethanol (analytical pure), dichloromethane (analytical pure), and anhydrous FeCl3 (chemical pure) were purchased from Shanghai National Pharmaceutical Group Chemical Reagent Co., Ltd., Shanghai, China.

2.2 Water Phase Preparation of Enteromorpha prolifera

In each set of experiments, 4 g of Enteromorpha prolifera powder was placed into the reactor. Then, 40 mL of deionized water was added to the reactor, resulting in a solid-to-liquid ratio of 1:10. The reactor valve was then closed and sealed. The mixture was heated using a 3.0 kW electric furnace, with the target temperatures set at 160°C, 180°C, and 200°C, respectively. Once the target temperature was reached, the reaction was maintained at that temperature for an additional 30 min.

After the completion of the reaction, the reactor was allowed to cool naturally. The liquid product and solid residue from the reactor were then transferred into centrifuge tubes and initially separated using a low-speed centrifuge. Next, the liquid was transferred to a beaker and subjected to a secondary separation using a vacuum filtration apparatus. Finally, the liquid sample was extracted using dichloromethane at a volume ratio of 2:1 (dichloromethane: bio-oil). After extraction, the water phase of the organic matter from the seaweed (Enteromorpha prolifera) was obtained.

2.3 Hydrogel Synthesis

After obtaining the organic water phase through hydrothermal liquefaction, 3 g of polyvinyl alcohol (PVA) was added to the obtained water phase (27 g) for introducing a high molecular polymer (the concentration of PVA is 10 wt.%). Then, it was heated and stirred at 80°C for 8 h until the PVA was completely dissolved, resulting in a pre-gel solution. It is worth mentioning that no residual hydrothermal liquefaction aqueous phase or PVA was left unused. The details of the raw materials used for hydrogel synthesis are shown in Table 1.

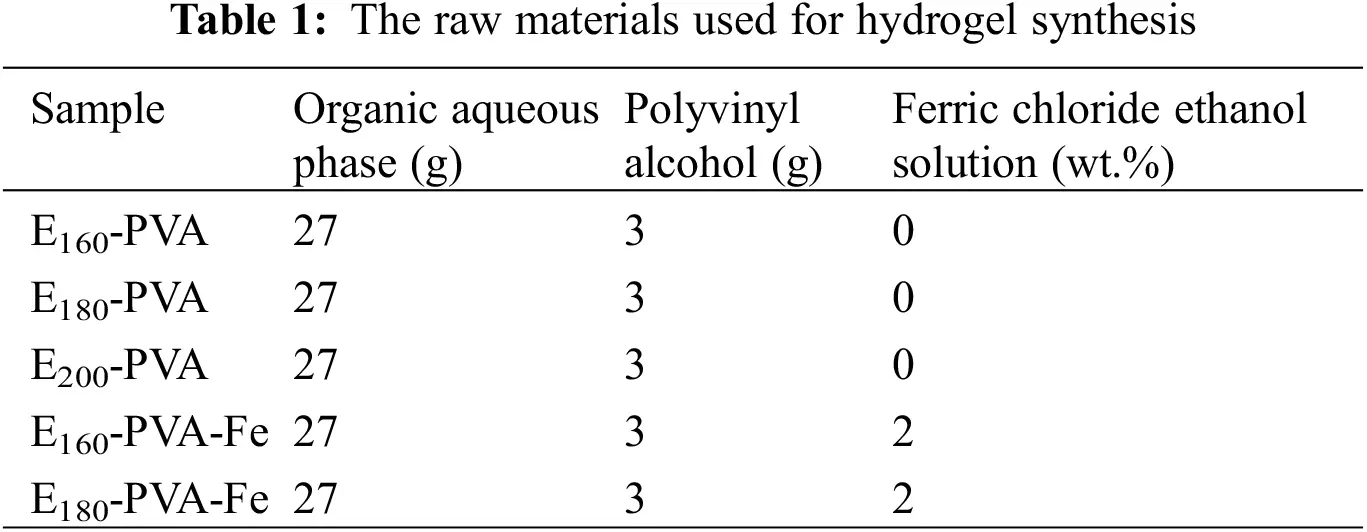

The pre-gel solution is placed in a beaker and subjected to freezing treatment at a low temperature of −20°C for 12 h. The resulting hydrogel is named Ex-PVA (where x represents the hydrothermal residence temperature of Enteromorpha prolifera).

To explore the effect of Fe3+ on gel behavior, two groups of frozen samples were immersed in a sufficient volume of ferric chloride ethanol solution (with a ferric chloride concentration of 2 wt.%) [16], and further kept at −10°C for 3 days. The resulting sample was named Ex-PVA-Fe (where x represents the hydrothermal residence temperature of Enteromorpha prolifera).

2.4 Material Characterization

Tensile stress-strain measurement was conducted in air using a uniaxial tensile machine (WANCE) equipped with a 100 N load cell at a deformation rate of 10 mm/min. The tensile test was conducted on a universal testing machine, and the specific steps are as follows: First, the wet hydrogel was cut into strips (length 16 ± 1 mm, width 15 ± 0.5 mm, thickness 5 ± 0.5 mm). Then, the clips on the machine clamped both ends of the hydrogel strip, gradually stretching it until the hydrogel strip broke, resulting in a stress-strain curve. Infrared spectroscopy tests on the hydrogel samples are performed using the attenuated total reflectance (ATR) method with an FT-IR spectrometer (Nicolet iS50). The morphology of the samples was observed using a scanning electron microscope (SEM) system (JSM-800, Japan). GC/MS (Agilent 7890 A/5975C, USA) was used to analyze the bio-oil composition. The ion source temperature and MS transfer line temperature were adjusted at 280°C and 60°C, respectively. Column temperature was maintained at 120°C for 5 min, then increased to 200°C at a rate of 20°C min−1, and further increased to 260°C at a rate of 10°C min−1, where it was maintained for 3 min. The flow rate of the carrier gas, Helium, was 1 mL min−1.

3  Results and Discussion

3.1 Mechanical Strength

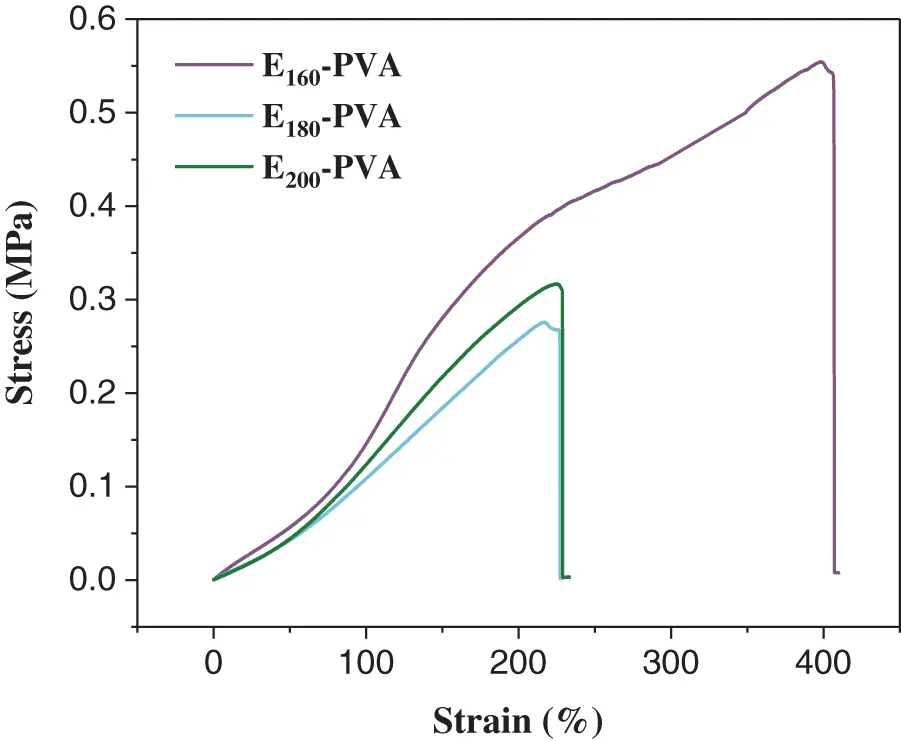

The stress-strain curves of the hydrogels obtained by cross-linking the organic aqueous phase with PVA are shown in Fig. 1. It can be seen from the figure that the tensile fracture stress of the hydrogel decreases initially and then increases with the rise in hydrothermal temperature. When the hydrothermal temperature is 160°C, the tensile fracture stress of the hydrogel is the highest, at 0.55 MPa. Sadeghzade et al. prepared alginate/methylcellulose hydrogels, which have a maximum fracture stress of 105.2 kPa [17]. It can be seen that the tensile strength of E-PVA has been significantly improved compared to previous studies, indicating that this process holds greater potential. As the hydrothermal temperature increases further, the maximum fracture stress withstanding capability of hydrogel decreases, which may be due to the further decomposition of macromolecular substances into small molecular organics in the aqueous phase under higher temperatures. Research shows that the mechanical strength of the hydrogel is related to the molecular weight [18]: the higher the molecular weight, the better the mechanical strength of the hydrogel. Notably, when the temperature continues to rise to 200°C, the fracture stress of the hydrogel slightly increases, which may be due to the change in the content of certain active groups in the aqueous phase.

Figure 1: Stress-strain curves of E160-PVA, E180-PVA and E200-PVA

3.2 FT-IR Infrared Testing

It is believed that the mechanical strength variation of hydrogel is ascribed to the difference of substances present in the aqueous phase from the hydrothermal process. Díaz-Vázquez et al. conducted hydrothermal liquefaction of seaweed, and the results showed the presence of organic acids, glycerol, various benzene derivatives, and nitrogen-containing compounds [19]. In addition, some studies have used microalgae as raw materials for hydrothermal liquefaction. They found that carbohydrates and protein compounds in the aqueous phase can be easily liquefied, which promotes the formation of organic acids, amine derivatives, and N/O heterocyclic compounds [20]. Similarly, it can be inferred that the aqueous phase from hydrothermal liquefaction of Enteromorpha prolifera contains -COOH, -NH2, -OH, and other functional groups. In response to this, the aqueous phase prepared at a hydrothermal temperature of 160°C was selected for GC-MS analysis in this study. The results, shown in Table A1, successfully confirmed the above inference.

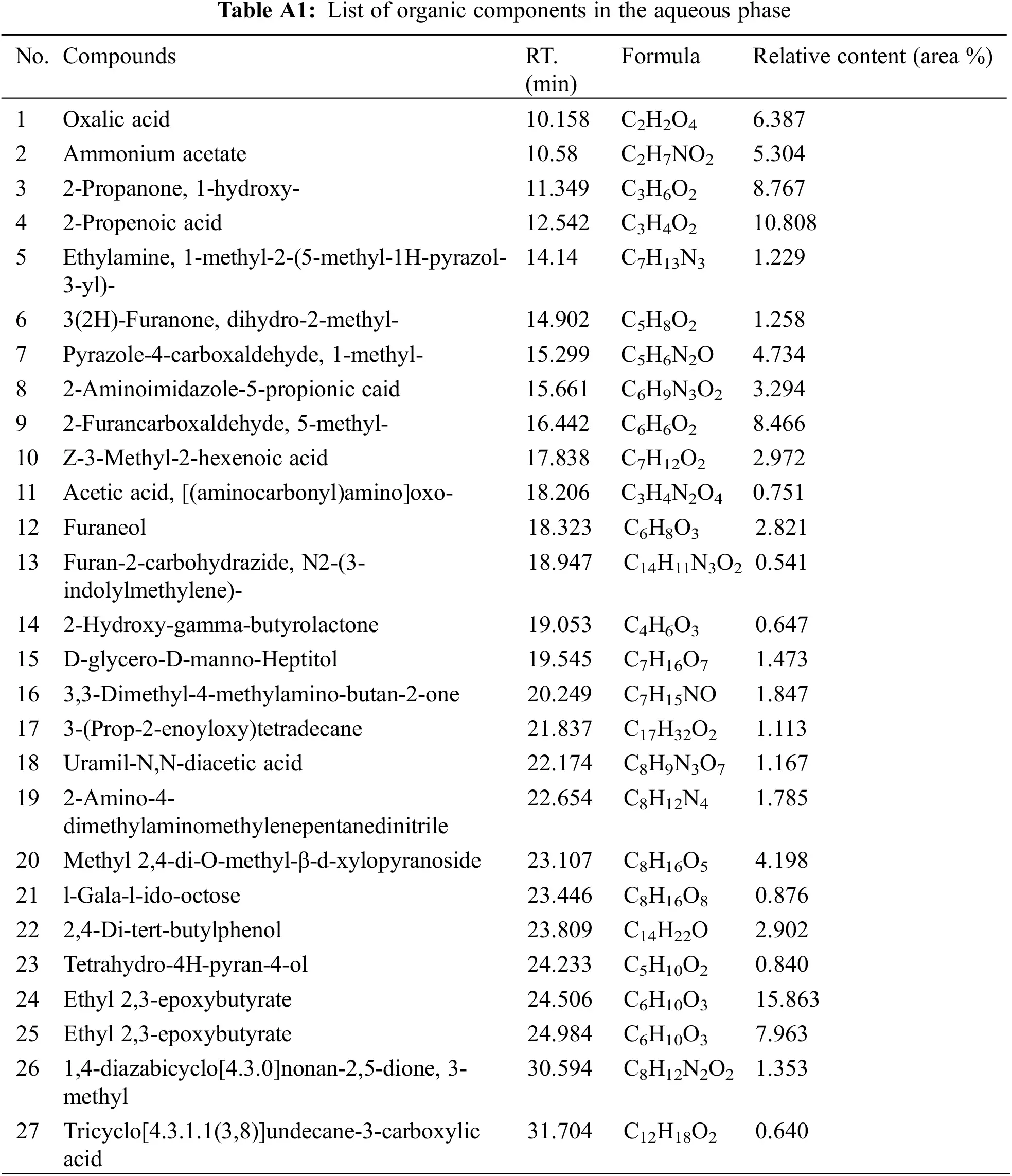

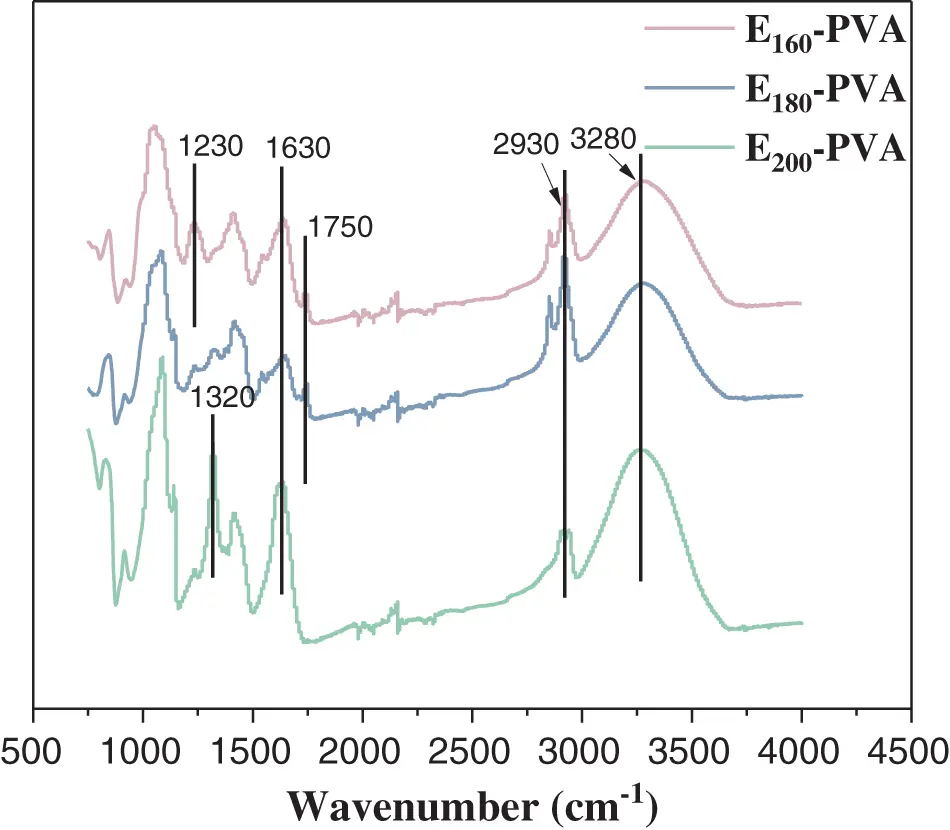

In order to analyze the possible reactions of previously mentioned function groups, FT-IR tests are applied to hydrogels, and the results are shown in Fig. 2. It can be seen from Fig. 2 that E-PVA hydrogels have characteristic peaks at 3280, 2930 and 1630 cm−1. The peak at 3280 cm−1 is attributed to the O-H bond stretching vibration, which is caused by the changes in intermolecular hydrogen bonds [21]. The peak at 2930 cm−1 corresponds to the N-H bond stretching vibration [22]. The peak at 1630 cm−1 represents the C=O bond stretching vibration in the amide II band [23]. In addition, compared to the other two hydrogels, E200-PVA has an obvious characteristic peak at about 1320 cm−1, which belongs to the stretching vibration peak of C-N bond [24]. This may be due to the fact that the increase in hydrothermal temperature causes organic N to migrate more into the aqueous phase. Previous studies have shown that the increase in C-N bonds will enhance the cross-linking degree of the hydrogel, which is also the reason for the rise in the fracture stress of E200-PVA [25]. However, the C=O bond characteristic peak of E200-PVA disappears at 1750 cm−1 [26], which may weaken the crosslinking effect with PVA. In contrast, the -NH bond (1230 cm−1) present in E160-PVA may enhance the crosslinking effect [27]. Shitrit et al. investigated the cross-linking mechanism by studying the interaction between pectin and chitosan [28]. The research results showed that the role of NH2 groups is mainly reflected in the electrostatic interactions between molecules. In addition, it was also observed that the hydrogen bonds between the OH group of chitosan and the COOH group of pectin have also played an important role in the cross-linking process.

Figure 2: FT-IR spectra of E160-PVA, E180-PVA and E200-PVA

3.3 SEM Testing

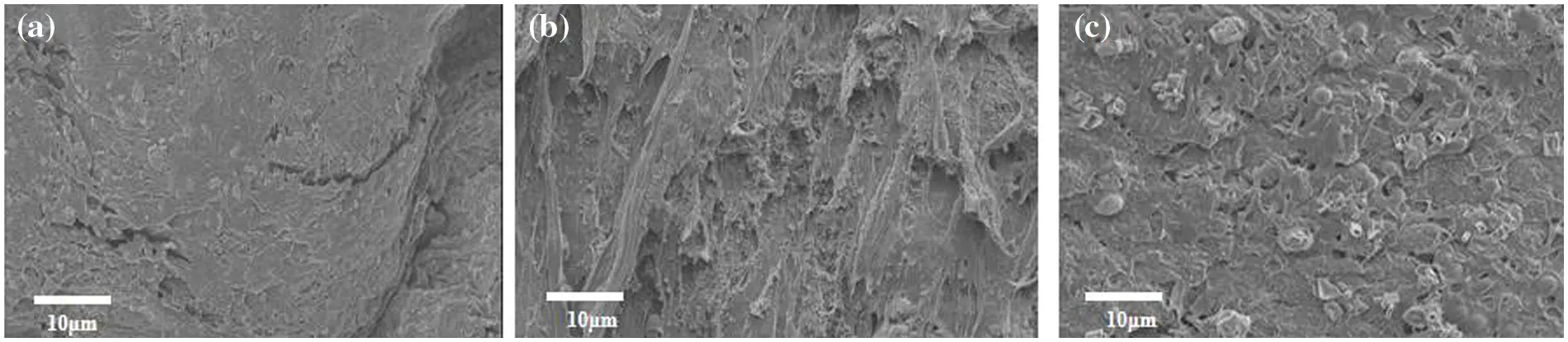

In order to further study the structure of the hydrogels, scanning electron microscopy (SEM) testing is conducted on the lyophilized hydrogels, as shown in Fig. 3. From the electron microscope image, it is evident that the surface structure of E160-PVA is dense, which helps in withstanding greater stress. Conversely, the surface distribution of E180-PVA appears relatively loose with numerous pores, potentially leading to a deterioration in its mechanical properties. With the increase in hydrothermal temperature, the surface pores of E200-PVA are less developed and the density falls between the first two, possibly resulting in better mechanical properties as compared to E180-PVA.

Figure 3: SEM of hydrogels: (a) E160-PVA, (b) E180-PVA, (c) E200-PVA

3.4 The Role of Salt Precipitation Treatment

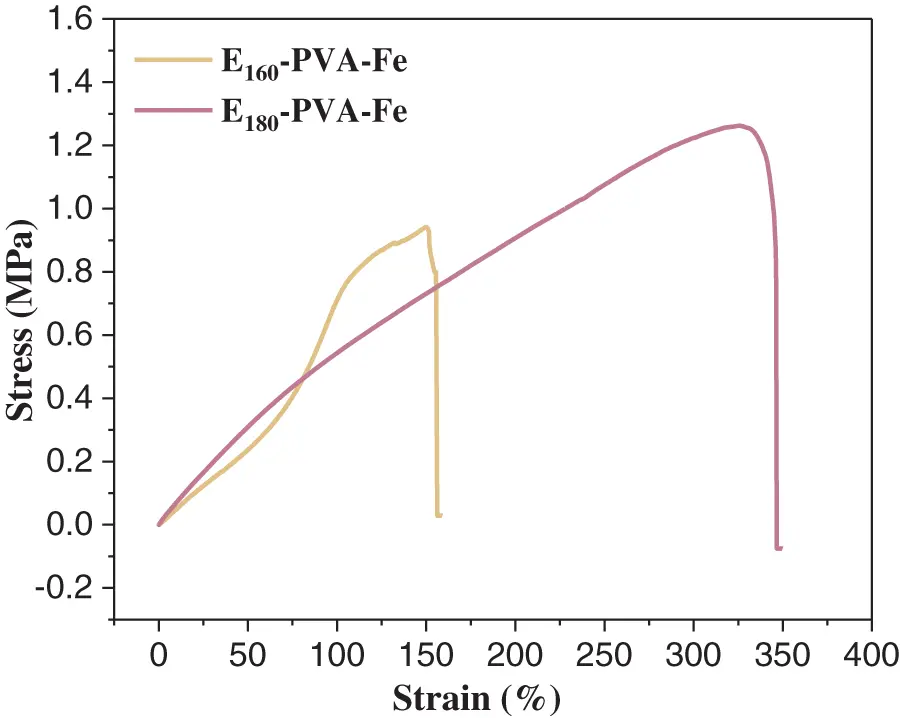

E160-PVA and E180-PVA were immersed in an FeCl3 solution and treated by salting-out to obtain E160-PVA-Fe and E180-PVA-Fe, respectively. Fig. 4 illustrates the stress-strain curves of the hydrogels obtained after Fe3+ salting-out treatment. As depicted in the figure, the mechanical strength of the hydrogels was significantly improved after the salting-out treatment. The tensile stress of E160-PVA-Fe was increased to 1.26 MPa, while that of E180-PVA-Fe increased to 0.94 MPa. This enhancement was primarily obtained from the improved mechanical properties of the hydrogels resulting from electrostatic interactions between ions [15]. The mechanical properties of these ion-based interaction hydrogels can be further enhanced by adjusting the concentration of metal ions [29]. Nevertheless, compared to before the salting-out treatment, the elongation at break of the hydrogels decreased, indicating that the toughness of the hydrogels declined and they became more rigid after the salting-out treatment.

Figure 4: Stress-strain curves of E160-PVA-Fe and E180-PVA-Fe

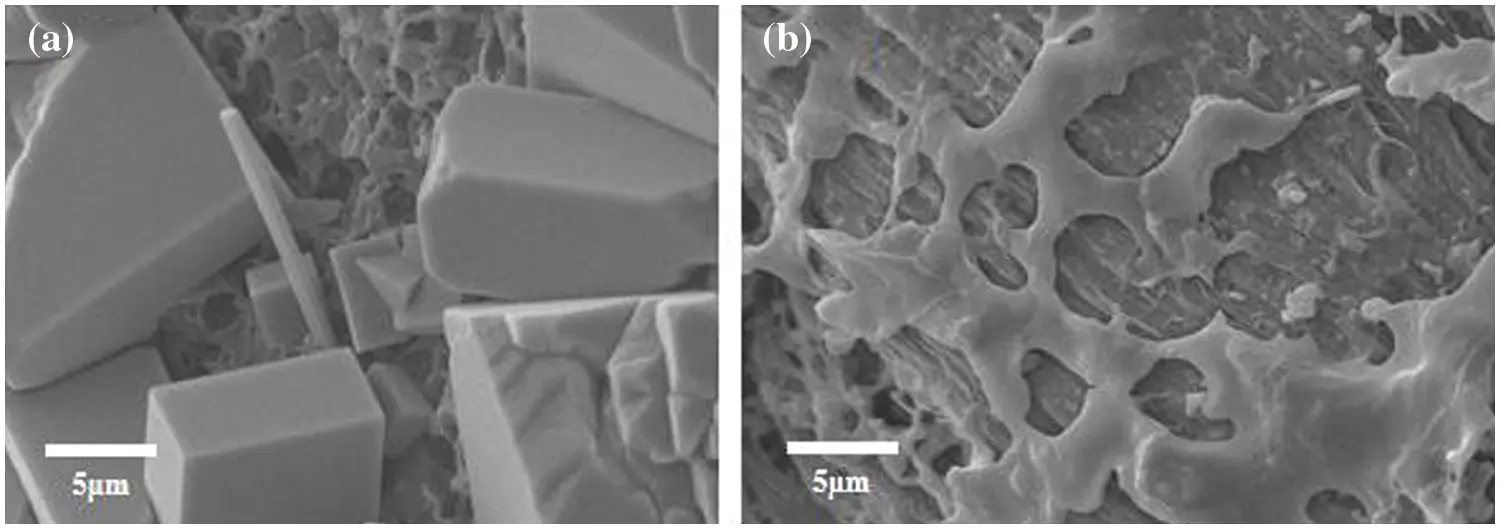

Fig. 5 shows that, compared to before salting-out, the surface of the hydrogels after salting-out forms partial crystal structures and becomes denser, enhancing the mechanical strength. This is similar to previous studies. Guo et al. found that freezing combined with Fe3+ salting-out treatment in hydrogels led to hydrophobic aggregation in the solution and increased polymer aggregation and crystallization induced by coordination reactions, resulting in an enhanced rigid structure [16]. Their research results also indicated that, at the microscopic level, the formation of hydrogen bonds and iron-oxygen coordination result in a honeycomb skeleton microstructure in the hydrogel samples.

Figure 5: SEM of hydrogels: (a) E160-PVA-Fe, (b) E180-PVA-Fe

4  Conclusions

In summary, seaweed can be processed through hydrothermal liquefaction to obtain oil, while the by-product, the aqueous phase rich in organics, could be used to produce hydrogels by cross-linking with polymer PVA. Furthermore, treating the hydrogels with Fe3+ salting-out enhances the cross-linking process and significantly increases their fracture stress. The fracture stress can be raised to as high as 1.26 MPa, which is approximately a 1.3-fold increase. Thus, the present study demonstrates that Fe3+ optimization is highly critical in the construction of hydrogel materials with high mechanical strength. Above all, this paper indicates that the process of valorizing the aqueous phase from hydrothermal liquefaction into hydrogels with high mechanical strength is very promising.
