Remediation of Cu Contaminated Soil by Fe₇₈Si₉B₁₃^AP Permeability Reaction Barrier Combined with Electrokinetic Method

1  Introduction

Farmland soil is the home for human survival, which provides a guarantee for the sustainable development of human society. However, with the acceleration of the process of social industrialization, the waste gas, wastewater, and waste residue containing a variety of heavy metals produced in the process of industrial production are also immersed into the farmland soil, resulting in plant physiological function disorder and malnutrition [1,2]. And heavy metals are potentially harmful after entering the human body through the food chain. Studies have shown that excessive copper intake by biological weight will cause concentration differences on both sides of the plasma membrane, increase membrane lipid peroxidation and enhance permeability, resulting in the outflow of potassium ions required by plants out of the cell membrane, thus damaging the plasma membrane of plant roots [3–5]. In addition, high copper content in plants can inhibit the synthesis of amino acids, resulting in the inability of roots to grow and yellowing leaves [6,7]. Soil pollution has attracted more and more attention, and it has become an important environmental problem all over the world. Soil heavy metal pollution has become a research hotspot for environmental and soil scientists [8,9].

At present, the commonly used soil remediation methods include thermal desorption [10], solidification [11], leaching [12], electrokinetic [13], and microbial methods [14]. Among them, the electrokinetic method is a soil remediation technology that sprang up in the 1990s. Its principle is to apply a low-voltage electric field to the contaminated area, and the charged pollutants are enriched to the area near the electrode by the electrodynamic effects of the electric field, such as electroosmosis, electromigration, and electrophoresis. Then the soil in the enrichment area is centrally remediated by chemical immobilization, adsorption, leaching, and ion exchange [15,16]. This method is especially suitable for the treatment of farmland soil with fine particles and high water content, which has the advantages of simplicity, low cost, and excellent effect [17,18]. Huang et al. [19] used a mild electrokinetic method with a voltage gradient of 0.25 V/cm to treat cadmium-contaminated soil for 48 h, and the content of exchangeable cadmium is reduced by up to 72.3%, which effectively reduces the bioavailability of cadmium. In order to further optimize the remediation process of the electrokinetic method, some researchers proposed an electrokinetic method combined with PRB to remediate heavy metal-contaminated soil. Zhang et al. [20] compared the simple electrokinetic method with ZVI as PRB combined electrokinetic method (EK-ZVI) to remedy Pb, As, Cu and Zn contaminated soil. Under the action of electric field force, Pb2+, As3+, Cu2+, and Zn2+ move to the cathode along the direction of the electric field, and the ion concentration increases gradually from the anode to the cathode. In the process of EK-ZVI combined remediation, near the PRB of ZVI, the concentrations of these four ions decreased due to the reduction of ZVI and the adsorption of iron oxides. However, the surface of ZVI is easy to be passivated, and its chemical activity is low, which seriously inhibits the immobilization effect of ions. Therefore, it is particularly important to develop new immobilized materials with high reaction activity.

Amorphous alloy (MGs) is a metastable material in which the superalloy melt solidifies rapidly at a cooling rate of more than 379 K/s. Its internal atoms are arranged in a long-range disorder and short-range order. This special atomic and electronic structure determines that MGs have higher chemical activity than crystalline materials in terms of catalytic performance [21]. Since the 1980s, some researchers have carried out theoretical research on the application of MGs to the degradation of environmental pollutants [22]. In recent years, a large number of literatures have reported the application of iron-based amorphous alloy (Fe-MGs) in the treatment of heavy metals and dye wastewater. For example, Tang et al. [23] compared the reaction rates kobs of amorphous ribbon Fe86B14AR, crystalline ribbon Fe86B14CR, and ZVI in the treatment of wastewater contaminated by direct blue 6. The results show that under the same experimental conditions, the kobs of the reaction of Fe86B14AR with direct blue 6 are 1.8 and 89 times higher than that of Fe86B14CR and ZVI, respectively, indicating that the ultra-high reaction activity of Fe86B14AR benefits from its unique amorphous structure. Yan et al. [24] used Fe78Si9B13AP and ZVI to treat the wastewater, whose initial concentration of Cu2+ was 500 mg/L. After 1 h, the content of Cu2+ in the solution treated by Fe78Si9B13AP was reduced to less than 1 mg/L, while the content of Cu2+ in the solution treated by ZVI still exceeds the upper limit of the discharge standard of industrial wastewater. Through Arrhenius formula fitting, it was found that the apparent activation energy of Fe78Si9B13AP is only 1/2 times of that of ZVI. Zhang et al. [25] measured the valence band density of Fe78Si9B13AR and ZVI, and found that the valence band top of Fe78Si9B13AR moves down compared with ZVI, which leads to the corresponding broadening of the empty band of Fe78Si9B13AR. Therefore, the electrons in the 4 s orbital of the iron atom are easier to cross the top of the energy band into the empty band, thus causing a redox reaction with pollutants.

In view of the excellent performance of Fe-MGs in industrial wastewater treatment, this paper proposes for the first time to use Fe78Si9B13AP instead of ZVI as PRB, combined with EK to remediate Cu-contaminated soil, focusing on the moving and immobilization process of Cu2+. First of all, the best voltage gradient and soil water content were selected, and on this basis, EK-ZVI was compared to explore the mechanism of Cu removal and chemical transformation of EK-Fe78Si9B13AP in soil. By observing the phase and morphology differences between Fe78Si9B13AP and ZVI after the reaction, the internal mechanism of high reaction activity of Fe78Si9B13AP is revealed.

2  Materials and Methods

2.1 Materials

The source of Cu in simulated contaminated soil is CuSO4⋅5H2O. HCl and NaOH are used to regulate the initial pH of soil. 2% citric acid solution (CA) as cathode electrolyte. The chemicals used in the continuous extraction of soil include HCl, HNO3, CH3COONH4, HOAc, NH2OH⋅HCl, H2O2, HClO4. The above reagents are all analytically pure and are provided by Gansu ruidong Chemical products Co., Ltd. (Gansu China). The purity of Fe78Si9B13AP and ZVI as PRB is more than 99.5%, and the average particle size is 30 μm, purchased from Beijing Yijin Chemicals Co., Ltd. (Beijing, China).

2.2 Soil Preparation

2.2.1 Soil Sampling

The loess soil of 5–10 cm underground without copper pollution was collected from the fields around Lanzhou University of Technology. After drying, the soil samples were screened with 2 mm sieve. The screened soil samples were washed three times with 0.1 mol/L HCl and distilled water to remove soluble salts and impurities. The washed soil is dried, ground, and then passed through the 2 mm sieve again.

2.2.2 Preparation of Cu-Contaminated Soil

The maximum copper content in the soil around the copper smelter of Baiyin Company (China), the largest copper producer in China, is 658 mg/kg [26]. As a result, it was determined that the total content of copper in the contaminated soil used in this experiment was 600 mg/kg. The operation is as follows: the spoon of 1 kg soil sample was gradually added to the CuSO4⋅5H2O solution of 1 L 600 mg/L, and the soil suspension was mechanically stirred until it was air-dried. In order to determine the uniformity of Cu dispersion in soil, different quality soil samples were added to the same volume of distilled water, and the content of Cu2+ was directly proportional to the added soil samples, which indicated that Cu dispersion in soil samples was good.

2.3 Experimental Device

The electric device used in this experiment was made of the corrosion-resistant glass plate. As shown in Fig. 1, the electric tank was divided into three parts by two pieces of the polytetrafluoroethylene filter membrane. The middle part was a soil chamber filled with Cu-contaminated soil, and its size was 170 × 100 × 100 mm. On both sides were electrode chambers filled with KNO3 solution. The soil chamber was flanked by electrode chambers. Two high-purity plate graphite electrodes (100 × 50 × 4 mm) connected to the DC power supply were inserted into the electrolyte solution to form a current path.

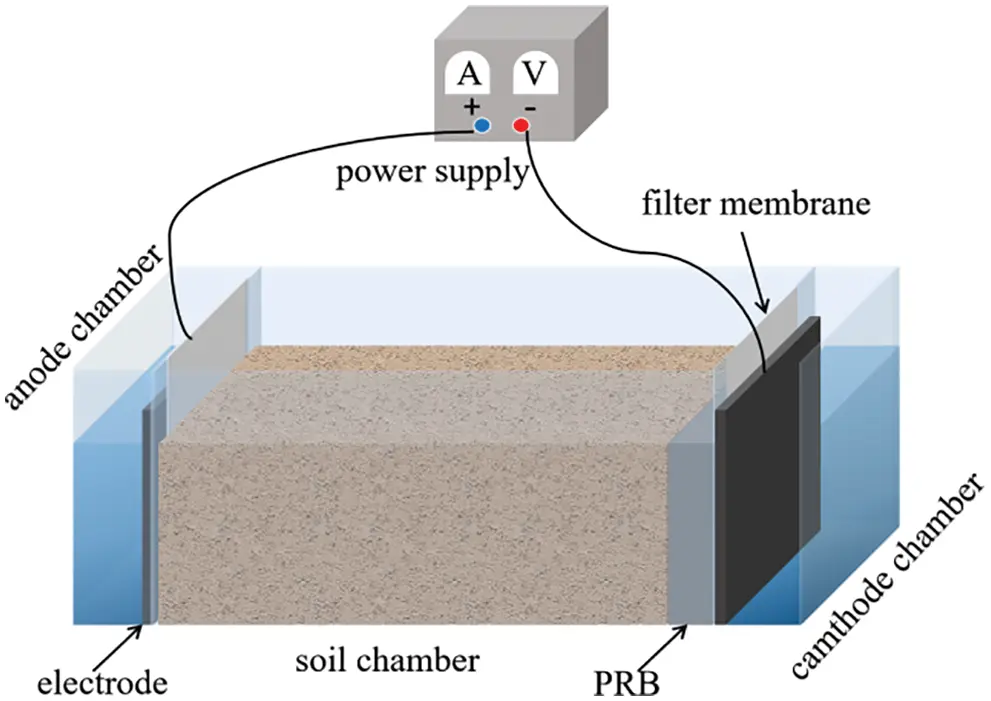

Figure 1: Schematic diagram of electrokinetic device

2.4 Electrokinetic Remediation

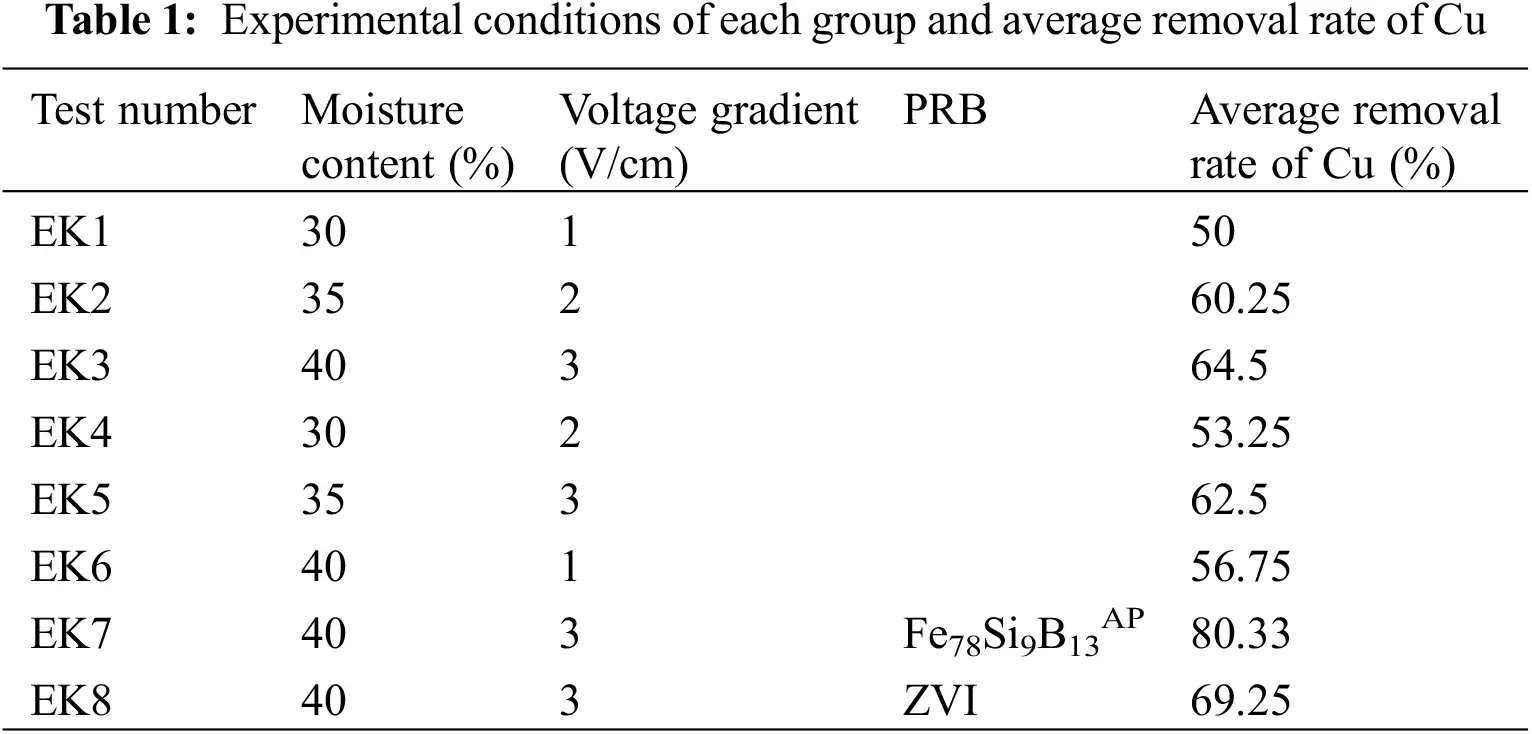

The electric remediation experiment was carried out in two stages. The first stage was the simple electrokinetic method without PRB, which explored the effects of water content, voltage gradient, and pH on the removal rate of total Cu in soil. The water content was set to 30%, 35%, 40%, and the voltage gradient was 1, 2, 3 V/cm. EK1-EK6 was carried out according to Table 1 to determine the optimal water content and voltage gradient. After the 1 kg contaminated soil samples were compacted in the electric reaction chamber, each group of experiments configured the soil solution according to the water content shown in Table 1. The soil chamber was covered with plastic film to prevent the evaporation of water. In order to transform the immobilized Cu into mobile Cu2+ as much as possible. The mixed solution of 0.05 mol/L citric acid and 0.1 mol/L MgCl2 were used in the electrolyte. Fu et al. [27] have found that citric acid can effectively promote the electrokinetic process. After 12 h of balance, two plate graphite electrodes were vertically inserted into the anode and cathode electrode chamber and connected with wires to stabilize the DC power supply, and the corresponding voltage gradient was adjusted in each group of experiments. The electrolyte in the electrode chamber was changed regularly to avoid the OH− generated by the cathode entering the soil during the electrolysis process and causing the focusing effect. Referring to the experimental cycle of the predecessors [28], it was determined that the electricity was stopped after 5 days of reaction, and the remedial soil was sampled. The sampling position is shown in Fig. 2, each sampling point was evenly spaced from anode to cathode, and 8 soil samples were taken from each reaction tank. According to the method introduced by Zhou et al. [29], the pH value and electrical conductivity of soil were measured by pH meter (PHS-3G) and electrical conductivity meter (ASAP-2010). In order to determine the total copper content at each sampling site, after each soil sample was digested with aqua regia, the concentration of Cu2+ was determined by an inductively coupled plasma atomic emission spectrometer (ICP-AES). The average extraction value of two soil samples in each column was taken as the experimental value. On the basis of the best combination determined by the first stage experiment, the second stage experiment was conducted with EK7 and EK8 to explore the morphological transformation of Cu and the change of total Cu content in soil when Fe78Si9B13AP and ZVI were used as osmotic reaction barriers. Before the experiment, the crystal structure of Fe78Si9B13AP was analyzed by Cu Kα irradiation (40 kV, 150 mA) X-ray diffractometer (XRD, Rigaku D/max-2400) and selected area electron diffraction (SAED) to ensure the amorphous structure of the powder. The operation procedure of these two groups of experiments was basically the same as that of the first stage, except that the infiltration PRB of Fe78Si9B13AP and ZVI with a thickness of about 0.5 cm were embedded into the shade extreme of the soil chamber. After the reaction, each soil sample was continuously extracted according to the steps shown in Fig. 3 to determine the morphological transformation of Cu in the soil. XRD and SEM were used to analyze the phase composition and product morphology of Fe78Si9B13AP and ZVI after the reaction.

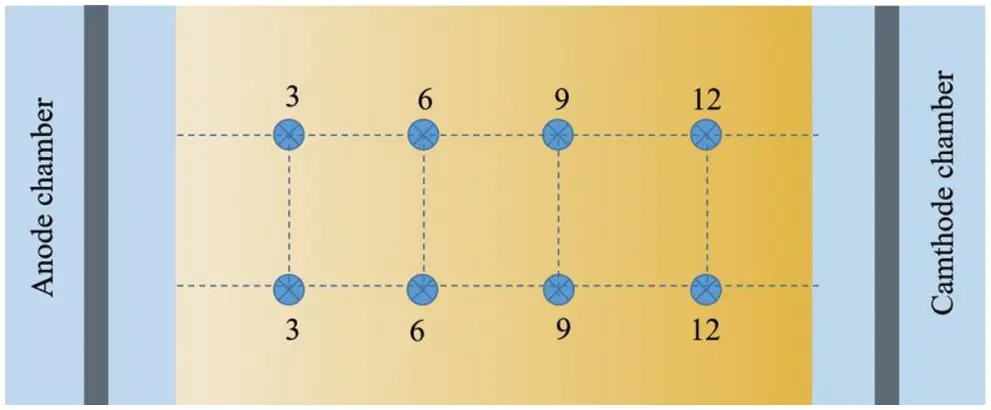

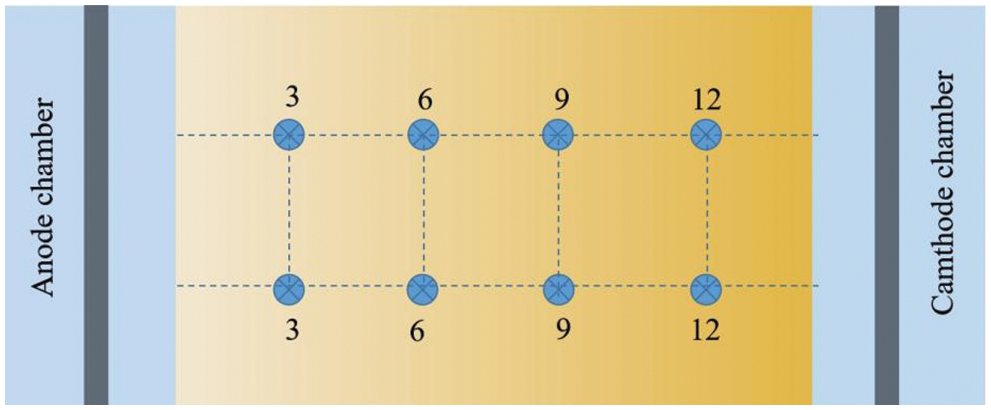

Figure 2: Location of soil sampling sites (top view of electrokinetic device)

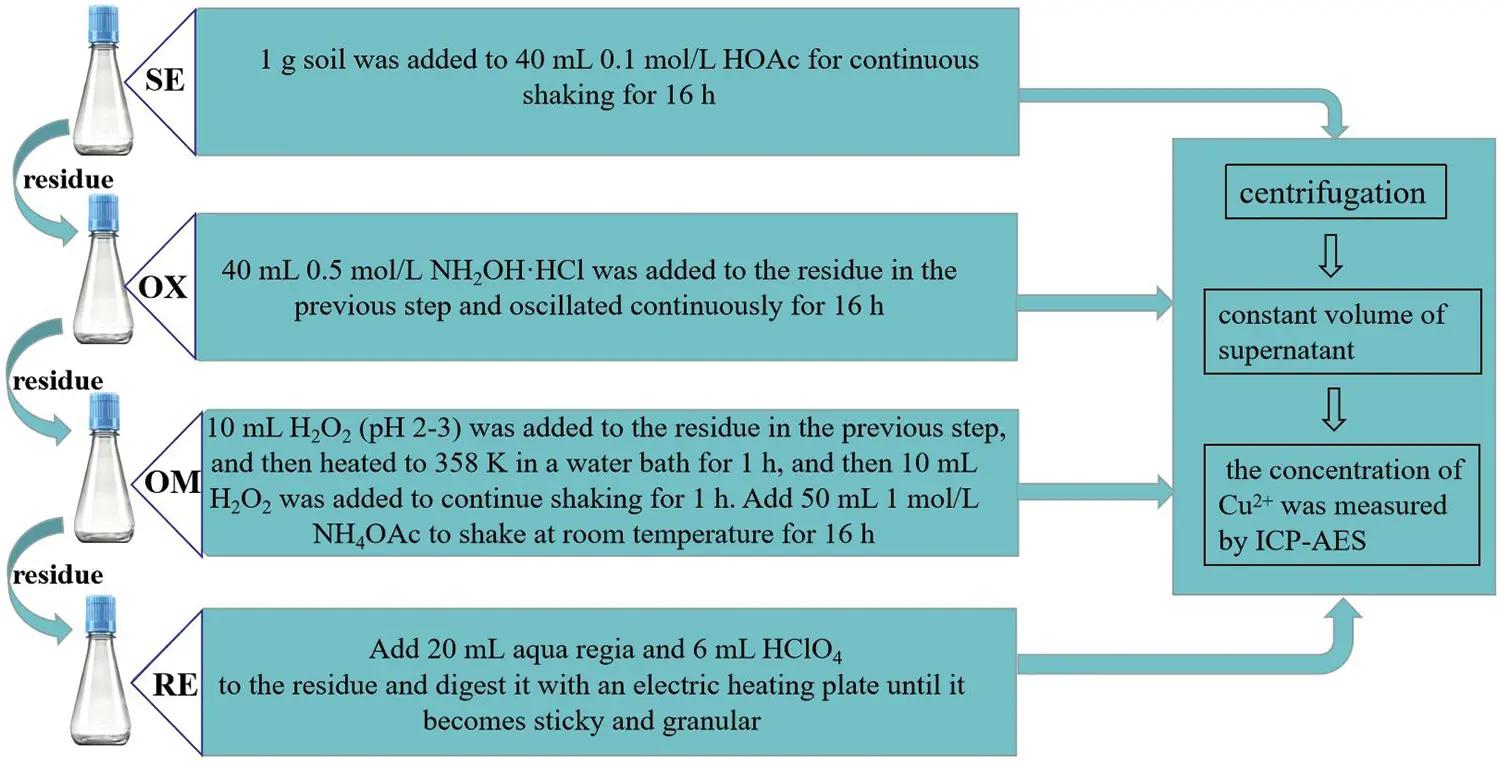

Figure 3: Continuous extraction steps of soil

3  Results and Discussion

3.1 Soil pH and Soil Conductivity

3.1.1 Soil pH

Fig. 4 shows the pH distribution of each sampling site after simple electrokinetic treatment of Cu-contaminated soil. On the whole, the pH of soil after remediation is significantly different from that before treatment, and the pH of each sampling site is also different. The initial pH of the soil is 6, and after 5 days of remediation, the soil pH changes to between 3.1 and 7.2. In each group of experiments, the pH increased gradually from anode to cathode. This is due to the electrolytic reaction of the water on the electrode in the electric remediation (anode: 2H2O→4e− + 4H+ + O2, cathode: 2H2O + 2e−→2OH− + H2), the H+ produced by the anode and the OH− produced by the cathode move in the opposite direction after entering the soil solution under the action of electric field force, and the concentrations of H+ and OH− are linearly distributed along the direction of the electric field. Some studies [30] have shown that the movement rate of H+ is 1.8 times higher than that of OH−, so the soil as a whole is in a slightly acidic environment and the acidity in the anode region is stronger than that in the cathode region. Compared with EK1 and EK6, it is found that the voltage gradient is 1 V/cm, the pH of the soil with 40% water content is 3.6, 4.6, 5.2, and 6.4, respectively, and the pH of the soil with 30% water content is 4, 5.8, 6.6, and 7, respectively. The pH of each sampling site in the soil with 40% water content is lower than that in the soil with 30% water content. Compared with EK2 and EK4, EK3 and EK5, there is a similar rule, which indicates that the soil with high water content has relatively low pH after being remedied by the electrokinetic method. This is due to the fact that more water in the soil with more water content is released by electrolysis to release H+ and OH−, and the acidity peak produced by H+ in the soil moves faster than the OH− alkaline peak, which increases the concentration difference between H+ and OH− and enhances the acidity. When different voltage gradients are applied at both ends of the soil with the same water content, the effect on the soil pH of each sampling site is not obvious. Although the voltage gradient can change the movement rate of ions, it does not change the relative distribution of H+ and OH− in soil.

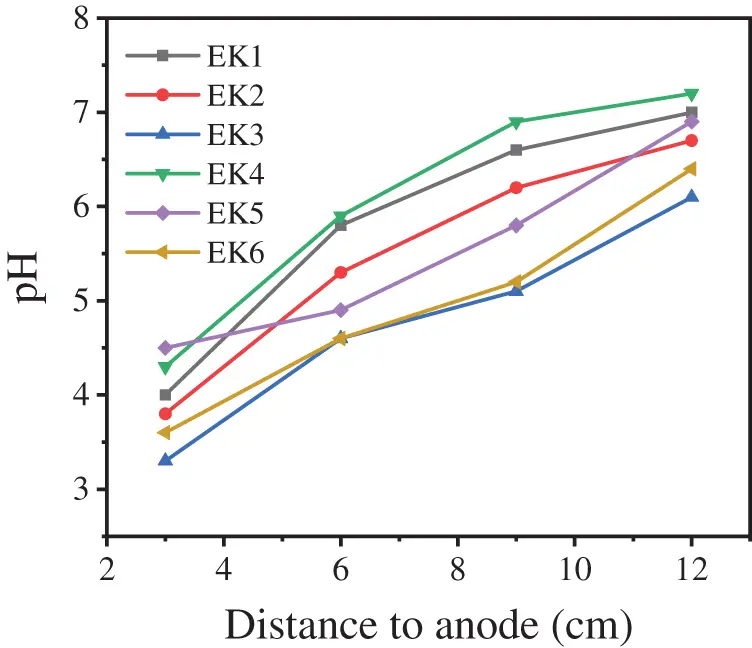

Figure 4: Soil pH at each sampling site

3.1.2 Soil Conductivity

Fig. 5 shows the electrical conductivity at different locations of the soil after electrokinetic remediation. The electrical conductivity cannot only reflect the number of free-moving ions in soil solution but also characterize the adsorption-desorption performance of soil to free ions to some extent. The conductivity of each point from the anode to the cathode decreases in turn, indicating that the number of free ions in the anode area is more than that in the cathode. This may be due to the weakening of the adsorption of ions by the soil under acidic conditions, and the ions are dissolved and released into the water. Therefore, the higher movement rate of the ions in the anode region is beneficial for the anode ions to move to the cathode region. Compared with EK1 and EK6, EK2 and EK4, EK3 and EK5, it is found that when the voltage gradient is the same, the number of free ions in the system with high water content is correspondingly higher. Compared with EK3 and EK6, EK2 and EK5, EK1 and EK4, it is found that when the water content is the same, the voltage gradient is positively correlated with electrical conductivity. It can be seen that higher water content and voltage gradient in the soil can inhibit the adsorption of ions in soil and promote the formation of free ions, which is conducive to the enrichment of heavy metal ions to the cathode region.

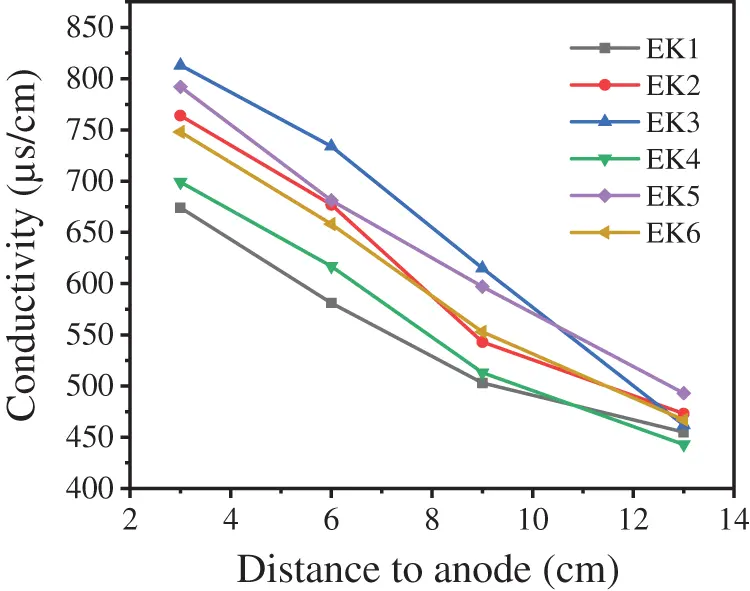

Figure 5: Soil electrical conductivity at each sampling site

3.2 The Removal Rate of Total Copper in EK1-EK6

Different water content and voltage gradient have a direct effect on the moving rate of Cu2+ in soil [31]. Fig. 6 shows the removal rate of total copper at each sampling point in EK1-EK6. Overall, the removal rate of Cu in the soil from anode to cathode decreased in turn. This is due to the electrical movement of the Cu2+ from the anode to the cathode along the direction of the electric field. A part of Cu2+ breaks away from the shackles of the soil and enters the cathode electrolytic chamber to pollute the electrolyte. The other part accumulates in the cathode region, thus forming a reverse electric field to inhibit the movement of Cu2+. The average removal rate of total Cu in each group of experiments is shown in Table 1. In EK3, with maximum water content and maximum voltage gradient, the average removal rate of Cu is the highest, reaching 64.5%. On the contrary, the average removal rate of Cu in EK1 with minimum water content and voltage gradient is the lowest, only 50%. It shows that the increase of soil water content and voltage gradient is beneficial to the removal of Cu.

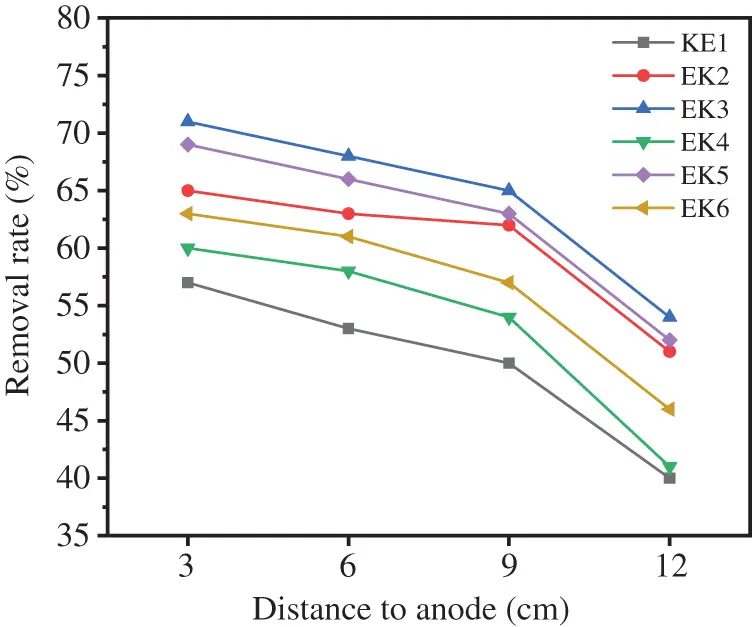

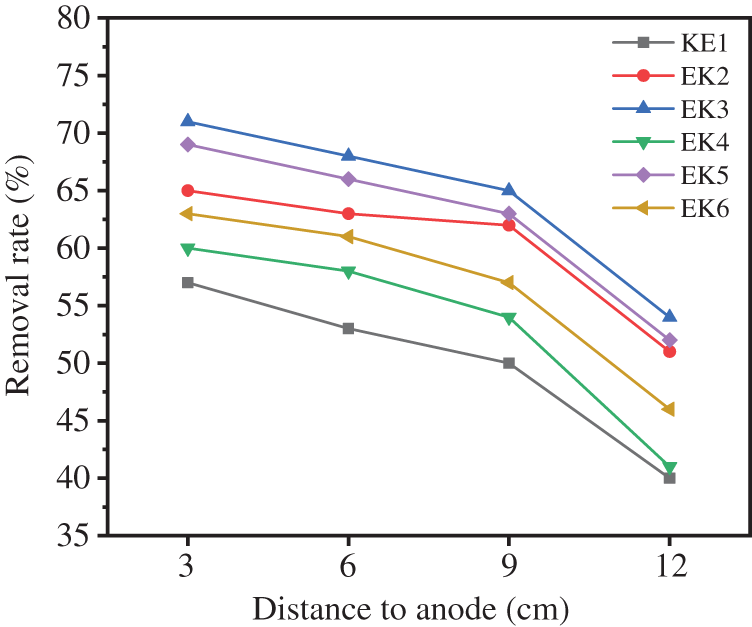

Figure 6: The removal rate of total copper in EK1-EK6

3.3 Characterization of Fe78Si9B13AP and ZVI

Fig. 7a shows the results of XRD analysis of Fe78Si9B13AP and ZVI. The Bragg diffraction peak of crystal structure does not appear in the diffraction pattern of Fe78Si9B13AP, but shows a broadening uplift in the range of 2θ = 40–60°, indicating that the atomized powder is mainly amorphous. The crystallization peak of α-Fe phase is observed in the ZVI pattern, while that of other impurities is not observed in other places, indicating that the purity of ZVI is higher and the surface oxide is less. There are no lattice stripes in the TEM image of Fe78Si9B13AP (Fig. 7b), and the atoms are arranged uniformly and disorderly. The illustration SAED image is the diffraction halo of Fe78Si9B13AP. Combined with the analysis results of XRD, it can be determined that the Fe78Si9B13AP used is amorphous.

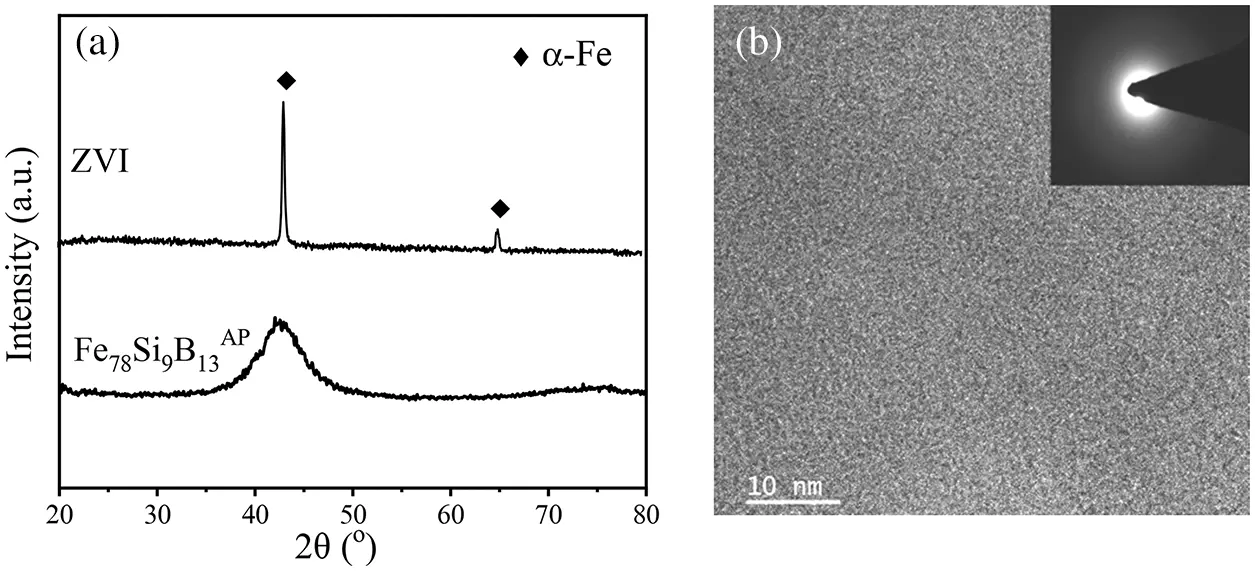

Figure 7: (a) The XRD spectra morphology of the Fe78Si9B13AP and ZVI before reaction; (b) The TEM image of the Fe78Si9B13AP

3.4 Speciation Distribution of Copper and Removal Rate of Total Copper in EK7 and EK8

As can be seen from the experimental results of 3.2, it is difficult to achieve the ideal effect of using the electrokinetic method to remedy heavy metal-contaminated soil. In order to eliminate the inhibitory effect of positive ions accumulated in the cathode region on the movement of Cu2+ in time, EK7 and EK8 used Fe78Si9B13AP and ZVI as PRB to improve the removal rate of Cu in soil. In addition, heavy metals can combine with different components in the soil to form a variety of chemical forms, and their chemical forms affect the movement rate and transformation process of heavy metals in the soil, as well as the toxicity to organisms and the degree of influence on the environment [32]. The three-stage BCR sequential extraction [33] divides the heavy metals in soil into the soluble, exchangeable state (SE), reducible state (OX), oxidizable state (OM), and residual state (RE). Among them, SE has strong mobility and transformation, which can easily enter the organism and interfere with the normal metabolic activities of organisms, so the environmental risk level of SE is the highest. Most soil remediation methods are to reduce the content of SE. OX, OM, and RE are called stationary states, and these heavy metals are difficult to move and transform. Therefore, the environmental risk level of these three forms is lower than that of SE.

Fig. 8 shows the chemical form distribution of copper and the removal rate of total copper after using Fe78Si9B13AP (EK7) and ZVI (EK8) as PRB to remediate Cu-contaminated soil by electrokinetic method for 5 days. Before remediation, Cu existed mainly as SE in the soil, accounting for about 76% of the total copper content. The contents of OM, OX, and RE are relatively less. It shows that the environmental risk level of Cu-contaminated soil is very high, so it is necessary to carry out reasonable remediation. The total copper content of all sampling sites in EK7 and EK8 decreased, and the total copper content from anode to cathode in EK7 gradually decreased to 82.7%, 80.5%, 78.7% and 79.4%, respectively. Taking the average removal rate of each point, the removal rate of Cu is 80.3%. However, the removal rates of EK8 are lower than that of EK7, which are 74.9%, 69.1%, 66.9%, and 66.1%, respectively. The average removal rate of Cu is only 69.2%. It can be seen that different materials of PRB have an obvious influence on the movement and removal of Cu. Some researchers have confirmed that the reaction rate of Fe78Si9B13AP with Cu2+ is 167 times that of ZVI [34]. Therefore, the Cu2+ moving from the anode region to the cathode is rapidly reduced and precipitated from the solution by Fe78Si9B13AP, which eliminates the reverse potential formed by the accumulation of Cu2+ in time, and promotes the continuous movement of Cu2+ to the cathode. On the contrary, the reaction rate between ZVI and Cu2+ is slower, and the accumulation of Cu2+ in the cathode region inhibits the movement of Cu2+ in the anode region to some extent.

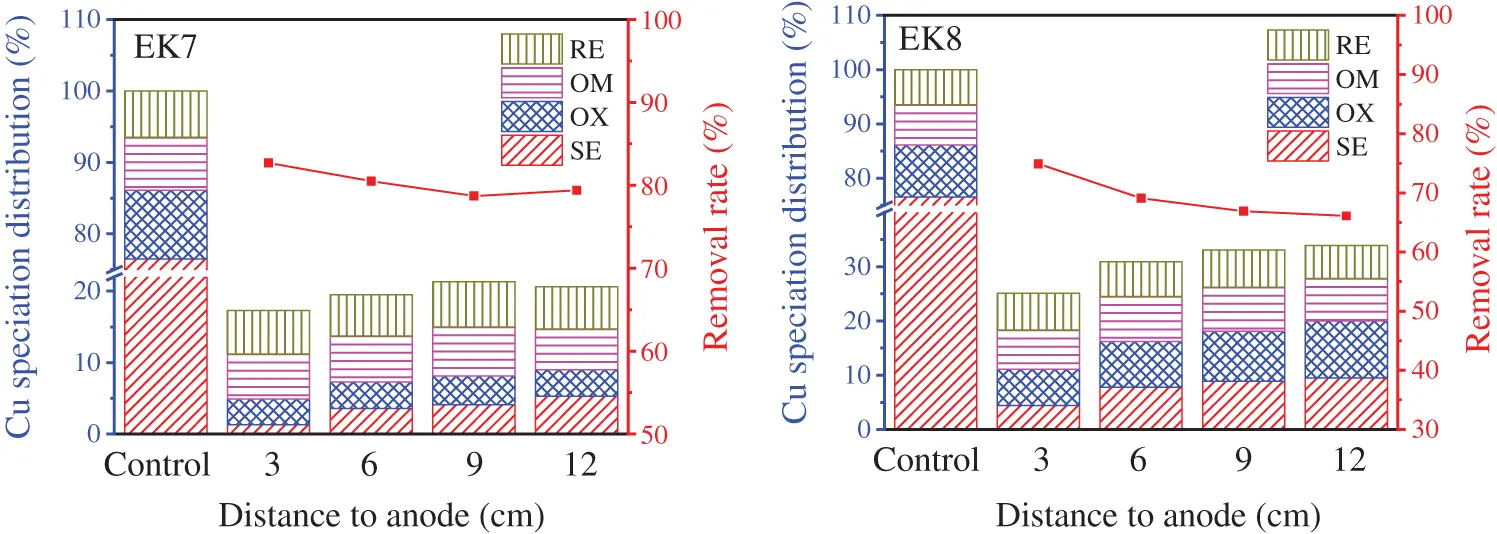

Figure 8: With Fe78Si9B13AP (EK7) and ZVI (EK8) as PRB and electrokinetic remediation of Cu-contaminated soil for 5 days, copper speciation distribution and total copper removal rate were studied

Comparing the chemical form changes of Cu before and after remediation, it is found that the content of SE decreases significantly in both groups. The SE content of each sampling point from anode to cathode in EK7 is 3.6%, 3.7%, and 3.7%, respectively, while the SE content of EK8 from anode to cathode is 4.4%, 7.8%, 8.9% and 9.5%, respectively. By comparison, it is found that SE in EK8 is slightly higher than EK7. The result proves once again that Fe78Si9B13AP has higher reactivity than ZVI and can immobilize Cu2+ through reduction more thoroughly. The OX content in the anode area is slightly lower than that before remediation, which is due to the enhancement of acidity in the anode area with the progress of electrokinetic process, resulting in the release of some Cu combined with Fe-Mn oxides. Because it is difficult to transform Cu into OM and RE in a short period of time, the contents of these two parts remain basically unchanged, indicating that the electric remediation method has little damage to soil organic matter and soil lattice. According to the above experimental results, the soil remediated by EK7 and EK8 is in full compliance with the “Soil Environmental Quality Risk Control Standard for Soil Contamination of Development” [35].

3.5 Reaction Mechanism Analysis

Generally speaking, soil particles have a negative charge and can adsorb heavy metal ions with a positive charge. Therefore, it is difficult to remove it by direct elution. If a constant voltage electric field is applied at both ends of the contaminated soil, the heavy metal ions will not only dissolve, precipitate, and self-diffuse but also move and permeate under the action of the electric field force. Thus the adsorption force of the soil can be overcome and separated from the soil [36]. The removal mechanism of Cu2+ in the soil system is shown in Fig. 9. Under the above forces, electric movement and electroosmosis are the main factors that Cu2+ can be analyzed from the soil. Under the action of electric field force, Cu2+ moves from the anode to the cathode in the direction of the electric field and is reduced and immobilized in PRB. In the process of electrokinetic reaction, the OH− produced by the electrolytic reaction of water in the cathode combines with H+ in citric acid, and the excess OH− is moved to PRB or soil by electroosmosis to increase the pH in the cathode region. As the alkaline environment is not conducive to the movement of Cu2+, it is necessary to replace the cathode electrolyte regularly.

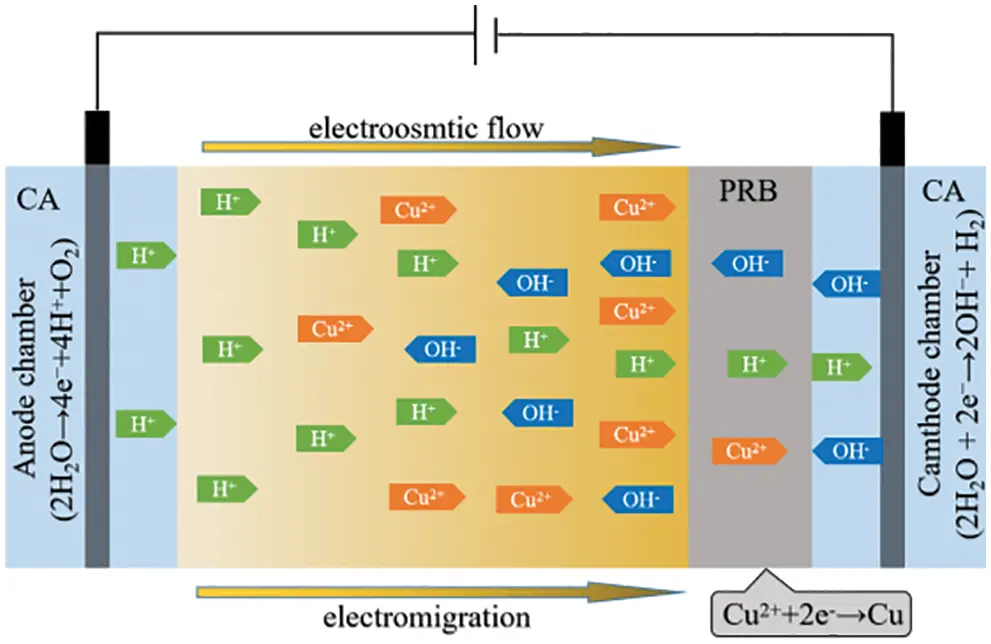

Figure 9: The main mechanism of Cu2+ removal in an electric system

Because the H+ produced by the anode moves faster to the cathode than OH−, most of the soil near the anode is acidic, which is beneficial to the analysis and movement of Cu2+. Therefore, the removal rate of Cu2+ in the anode area is higher than that in the cathode area. In order to eliminate the accumulation of Cu2+ in the cathode area and improve the removal rate of Cu in the cathode area. In this experiment, Fe78Si9B13AP with higher chemical reaction activity was selected as the PRB material, and the Cu2+ moved to the cathode was reduced in time, which eliminated the inhibitory effect of the reverse electric field on the movement of Cu2+.

In order to further explore the internal mechanism that Fe78Si9B13AP has high reaction activity, the Fe78Si9B13AP and ZVI after reaction are analyzed by XRD and SEM. From the XRD spectra of the products of the Fe78Si9B13AP and ZVI in Fig. 10, it can be seen that the Bragg diffraction peak of Cu0 is superimposed on the broadened amorphous diffraction peak on the spectral line of Fe78Si9B13AP, indicating that the reduced product of Cu2+ is immovable Cu0, and the reaction only takes place on the surface of Fe78Si9B13AP, which ensures the continuous and efficient reaction. The crystallization peak of Cu0 also appears in the XRD spectrum of the ZVI, indicating that the two kinds of iron-based materials can effectively reduce and immobilize Cu2+. From the standard electrode potentiometer, it is known that the standard electrode potential E(Cu/Cu2+) of copper is higher than the standard electrode potential E(H2/H+) of hydrogen, so changing the cathodic electrolyte will not cause the secondary dissolution of immobilized Cu0. XRD analysis shows that the reduction reaction takes place on the surface interface of the powder, so the morphology of the product will have a direct effect on the reaction rate. Fig. 11 shows the difference of the surface morphology of the products after the reaction of Fe78Si9B13AP and ZVI. From Fig. 11a, it is observed that spherical microcrystals of different sizes are produced on the surface of Fe78Si9B13AP, and a large number of unspheroidal lamellar structures appear in other regions. Through the high-resolution image of Fig. 11b, it is found that there are a large number of nano-lamellar intercalated pore structures perpendicular to the sphere in these regions, and Cu2+ can be diffused to the reaction interface through the channels, which is conducive to the sustainability of the reaction. Combined with the literature [37], it is known that the shedding mode of the Fe78Si9B13AP product layer is to form a lamellar structure intercalated with each other on the surface, and these lamellae grow up gradually to form spherical microcrystals. When the spherical microcrystal grows to a certain size, it falls off from the surface of Fe78Si9B13AP, so that the powder always maintains a thin product layer. In order to determine the material composition of these nano-lamellar structures, the elemental scanning analysis of the e region in the figure shows that the surface element ratio is Cu:Fe:Si:B = 73.4:23.6:2.1:0.9 in Fig. 11e. It can be seen that the main component of the product is Cu, and some iron oxides are attached. At the same time, lower contents of Si et al. [38] found that Si and B are oxidized to form SiO2 and B2O3, and the volume expansion makes the product layer easy to detach from the powder surface, which is one of the reasons why Fe78Si9B13AP has high reaction activity. Fig. 11c shows that there are small and uniform spherical microcrystals on the surface of ZVI, which are difficult to grow and fall off and can only be closely covered on the surface of the powder. The high-resolution image of Fig. 11d also found that there is a layer of flocculent film on the outer surface of the product layer, which is mainly composed of Cu (78.5%) and Fe (21.5%), which hinders the mass transfer process of the reaction and reduces the chemical reaction rate. Cao et al. [39] believed that the difference in the morphology of the products on the surface of the amorphous structure and crystal structure is caused by the existence of an active “liquid-like” layer on the surface of the amorphous structure. In addition, Tang et al. [40] compared the reaction rate of amorphous ribbon Fe-Si-BAR and crystalline ribbon Fe-Si-BCR with methyl orange under the same conditions and found that the reaction rate of Fe-Si-BAR is 26 times higher than that of Fe-Si-BCR, indicating that the amorphous structure can effectively improve the reaction activity of Fe-Si-BAR.

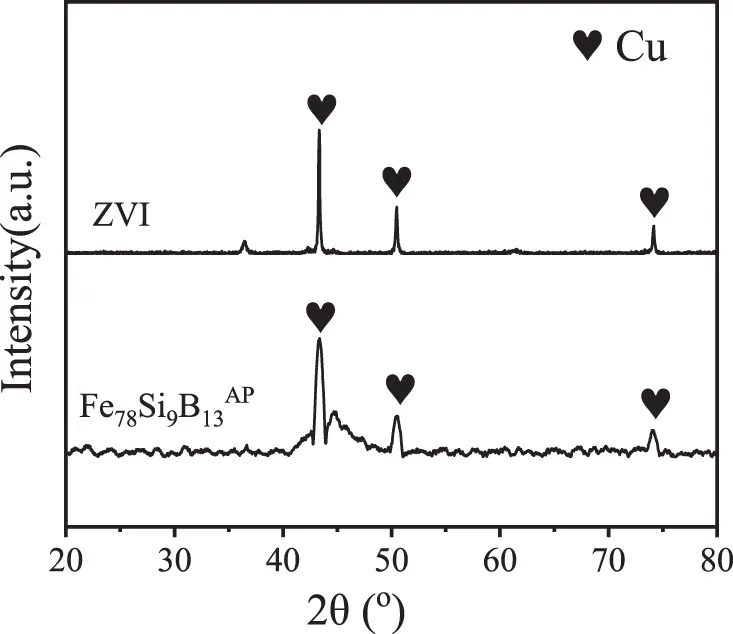

Figure 10: XRD spectra of the products of the Fe78Si9B13AP (EK7) and ZVI (EK8)

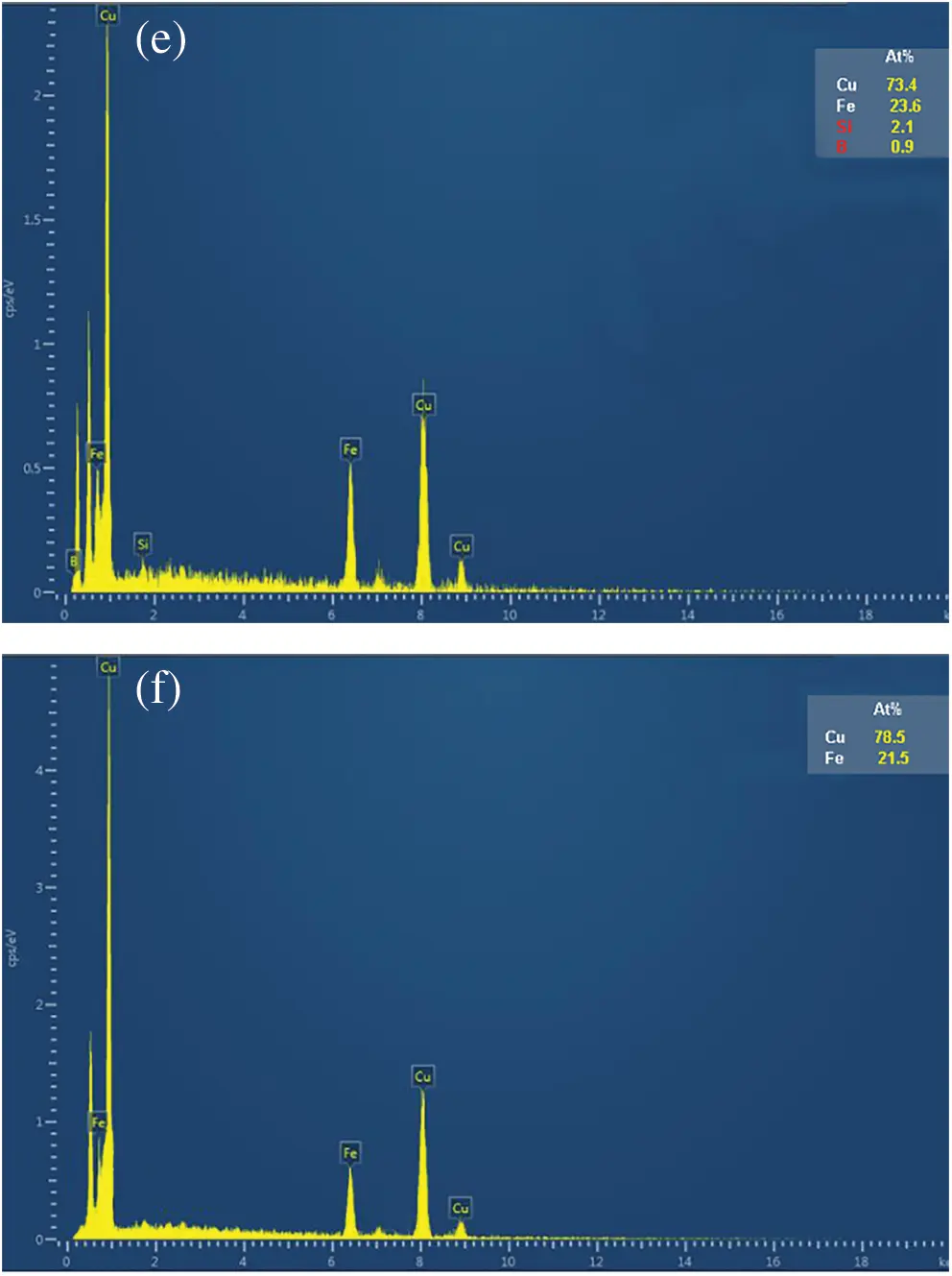

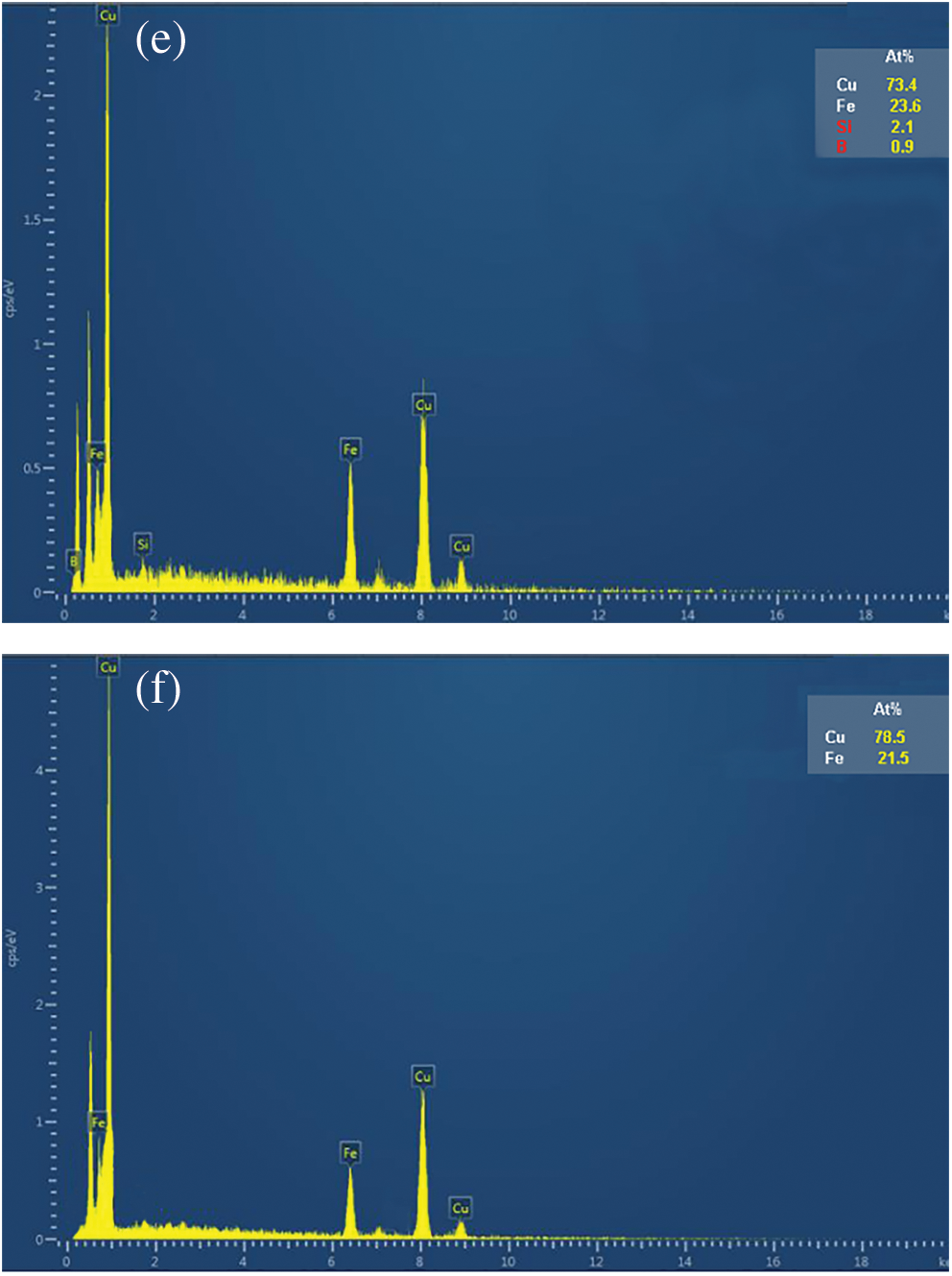

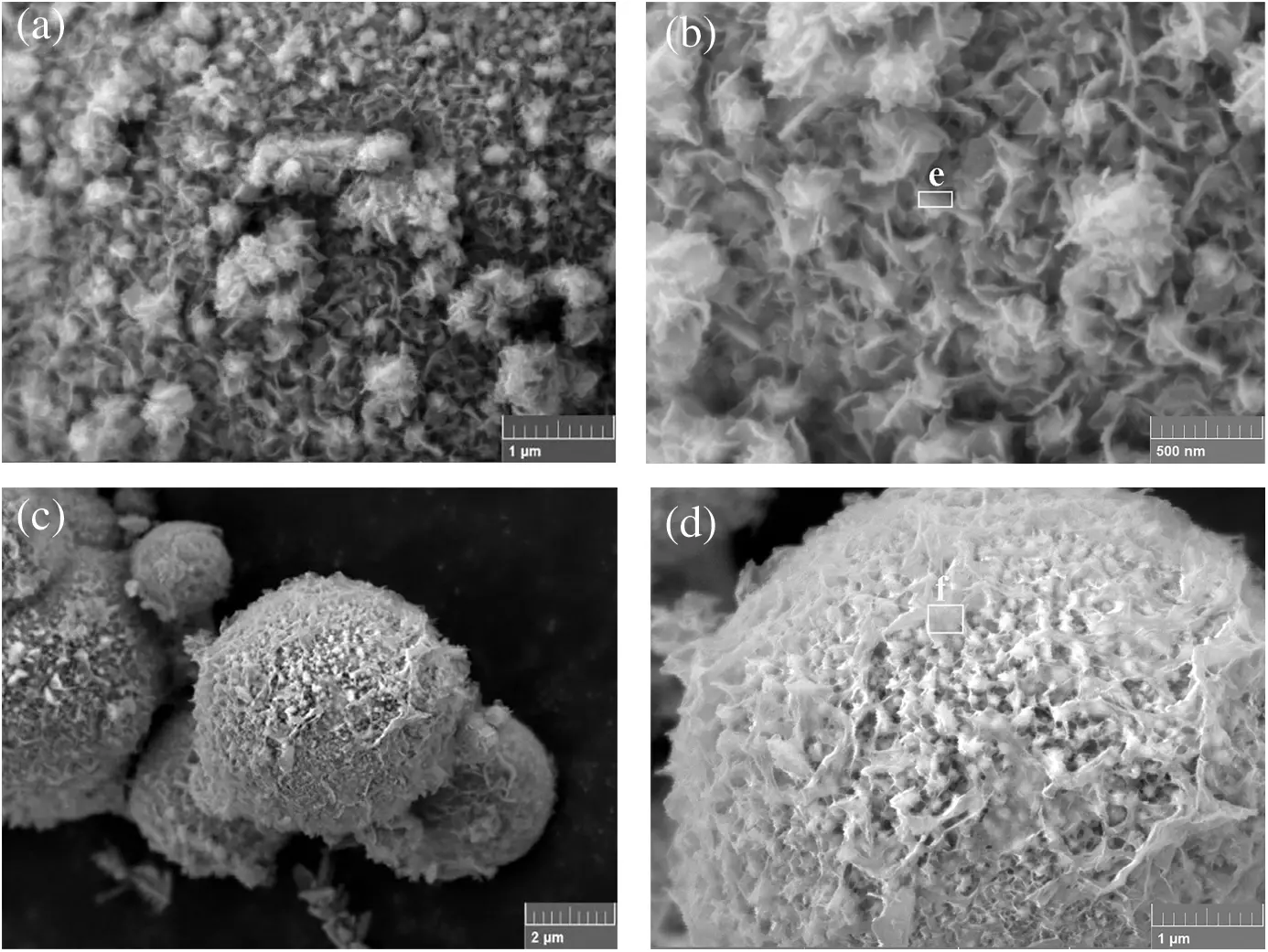

Figure 11: (a) The morphology of Fe78Si9B13 AP surface after reaction; (b) High-resolution map of (a); (c) The morphology of ZVI surface after reaction; (d) High-resolution map of (c); (e) The element content of area e in (b); (f) The element content of area f in (d)

In a word, the analysis of the mechanism of high reaction activity of Fe-based amorphous alloys and the existing literature reports are summarized as follows: (1) Compared with crystalline alloys. Amorphous alloys have lower activation energy and less energy for the chemical reaction [41]. (2) Fe-based amorphous alloys have more negative redox potential than amorphous alloys, which increases the driving force of electron transfer [40]. (3) The downward shift of the valence band top of the Fe-based amorphous alloy makes it easier for the valence electrons from the 4 s electron shell to overcome the energy barrier and be activated, thus crossing the valence band top into the empty band to participate in the formation of new materials [25].

4  Conclusions

The EK-Fe78Si9B13AP remediation process developed in this study can effectively remove total Cu and movable Cu in soil. The increase of soil water content and voltage gradient can significantly improve the mobility of Cu. When there is no PRB, the water content is 40%, and the voltage gradient is 3 V/cm, the average removal rate of Cu is 64.5%. When Fe78Si9B13AP and ZVI are added as PRB, the average removal rate of Cu reaches 80.3% and 69.2%, respectively, and the content of movable copper decreases to 3.6% and 4.4%, respectively. Compared with ZVI, Fe78Si9B13AP as PRB can quickly immobilize Cu2+ that moves to the cathode region. As a result, the bioavailable Cu in the soil can be effectively removed, and the environmental risk grade of contaminated soil can be reduced.

Acknowledgement: This work was supported by the National Natural Science Foundation of China (NSFC) [Grant Nos. 51661015 and 52061024]; the University Innovation Fund Project of Gansu Provincial Department of Education [Grant No. 2021B-553]; and the Natural Science Foundation of Zhejiang Province, China (4304030).

Funding Statement: This research was funded by the National Natural Science Foundation of China (NSFC) [Grant Nos. 51661015 and 52061024]; the University Innovation Fund Project of Gansu Provincial Department of Education [Grant No. 2021B-553]; and the Natural Science Foundation of Zhejiang Province, China (4304030).

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
