Effect of Natural Zeolite on Pore Structure of Cemented Uranium Tailings Backfill

Nomenclature

1  Introduction

The cement solidification/stabilization technique is an important method for the disposal of medium and low-level radioactive waste, and it is also one of the earliest mature methods for industrial application [1,2]. However, it is obviously inappropriate to completely rely on the process of cement solidification disposal of medium and low-level radioactive waste for large volumes of low (extremely low) radioactive solid waste such as uranium tailings. In recent years, the development of the paste backfill technique and its new cementitious materials have provided important ideas and references for the disposal of uranium tailings based on the principle of cement solidification [3–5]. Uranium tailings are different from the medium and low-level radioactive waste discharged by nuclear power plants. They are solid waste from various sources and are discharged during uranium resource mining, beneficiation, and metallurgy. Although their volume is often relatively large, the content of radionuclides is extremely low. If the underground cemented backfill treatment of uranium tailings is adopted, it does not need to be as high as the cement solidified body of medium and low-level radioactive waste, and it only needs to be higher than the treatment standard for uranium tailings stored on the surface. In addition, cemented backfill of uranium tailings is different from traditional cemented backfill. Its main quality index is no longer the compressive strength, and it must have a good leaching resistance on the premise of a certain compressive strength [6,7]. The high leaching rate of radionuclides is a deficiency of cement solidified medium and low-level radioactive waste, which also reminds us that we should pay close attention to the leaching resistance if the cemented uranium tailings backfill created from alkali-activated slag CUTB method is adopted.

Uranium tailings are produced by a wide range of sources, mainly including heap leaching tailings, hydrometallurgical tailings, drilling mud, and mining waste rock. Uranium tailings from various sources have a wide range of particle size distributions, from clay to gravel. Moreover, due to the different leaching processes, the elements contained in the uranium tailings are also very complex. These factors directly affect the hydration reaction, pore structure, permeability, and compactness of the CUTB and thus affect its mechanical properties and leaching resistance. Numerous studies conducted by experts and scholars have shown that the complex physics and chemistry of uranium tailings affect the performance of cemented backfill, which restricts its use as aggregate in filling engineering applications [8–12]. Recently, many experts and scholars have paid a great deal of attention to smelting slag as a substitute for backfill cementitious materials. This type of new cementitious materials, represented by alkali-activated slag, has a low cost, and these materials generally have the advantages of good water retention, corrosion resistance, and high later strength. Zhang et al. demonstrated that the use of smelting slag can solve the problems of expansion, strength reduction, and even disintegration of high sulfur tailings aggregate filling bodies [13–17]. This indicates that if alkali-activated slag is used as the cementitious material, it should be possible to solve the problems of the poor mechanical properties and poor long-term stability of CUTB and thus to improve its leaching resistance to a certain extent.

In backfill mining, in order to improve the fluidity of the filling slurry and the mechanical properties of the filling body, a certain quantity of backfill-modified materials is usually added [18–20]. For the cemented uranium tailings backfill created from alkali-activated slag cementitious materials, in addition to its mechanical properties, we should pay more attention to its leaching resistance [21–23]. If appropriate materials are added to improve the leaching resistance of the CUTB, such materials also fall into the category of backfill-modified materials. Krajnak et al. [24–26] reported that natural zeolite, an environmental functional mineral with a good adsorption and exchange capacity, also has a good uranium adsorption capacity. However, the mineral composition of these materials is basically consistent with the slag used to prepare cementitious materials. The environmental functional minerals added should participate in the formation of hydration products. Most studies have shown that the addition of these materials has a positive effect on the formation of hydration products; however, after these functional minerals are added, the strengths of the alkali-activated slag cementitious materials and its mortar or concrete are weakened to a certain extent. In the underground cemented backfill treatment of uranium tailings, we have to consider the coordination of the weakening and strengthening effects on the filling structure and leaching resistance.

When natural zeolite is added as the modified material of CUTB, it is of positive significance to further study the mechanical properties and leaching resistance by exploring its influence on the pore structure of CUTB. To explore the influence of natural zeolite on the pore structure of CUTB, we also need to discuss the influence of the polymerization degree of hydration products on the formation of pore structure from the perspective of the hydration products of alkali-activated slag mixed with natural zeolite, and discuss and analyze the types and formation mechanism of the pore structure in the filling body from the perspective of the physical and chemical processes of slurry mixing, pouring, forming, and curing.

2  Materials and Methods

2.1 Experimental Materials

The experimental materials included the backfill aggregates, cementitious materials, and modified materials.

(1)   The backfill aggregate selected for the experiments was hydrometallurgical tailings stacked in a tailings pond, with a water content of 10.91% and a density of 2.55 t/m3. The results of the particle size screening revealed that the inhomogeneity coefficient was 2.31, the curvature coefficient was 0.93, the grain size distribution of the tailings was discontinuous and non-uniform, and the gradation was not good.

(2)   The cementitious material selected for the experiments was alkali-activated slag. The slag was S95 granulated blast furnace slag micropowder produced by a building materials enterprise. Its specific surface area was 431 m2/kg, its chemical modulus was K = 1.91, its alkali modulus was Mo = 0.97, and its activity coefficient was Ma = 0.52. The activator was sodium silicate, and its modulus was adjusted to 1.2 using NaOH.

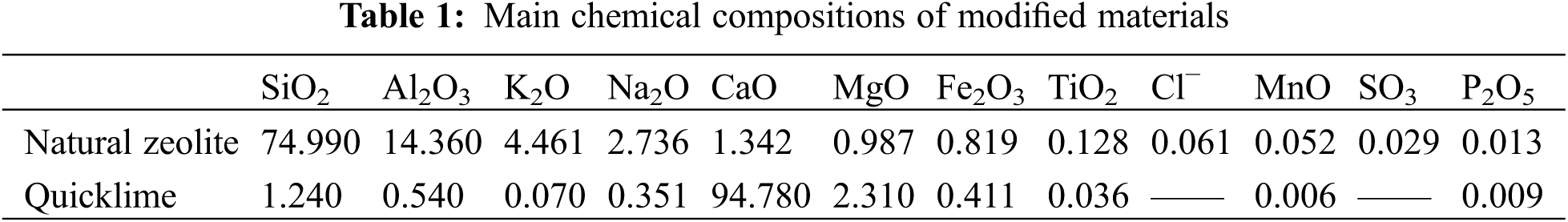

(3)   The modified material selected for the experiments was mainly natural zeolite. Its silicon to aluminum ratio k was 5.22, making it a medium silica zeolite (Table 1). In addition, CL90-QP grade Quicklime powder was selected as the auxiliary material, and urban tap water was directly selected as the water for the experiments.

2.2 Experimental Plan

To explore the influence of natural zeolite on the pore structure of CUTB, it was necessary to analyze the distribution characteristics of the pore structure and the formation of the hydration products. To avoid the adverse effect of the uranium tailings mixed in the materials during the analysis and sampling of the hydration products on the test results, two types of experiments were designed for the CUTB and AASP.

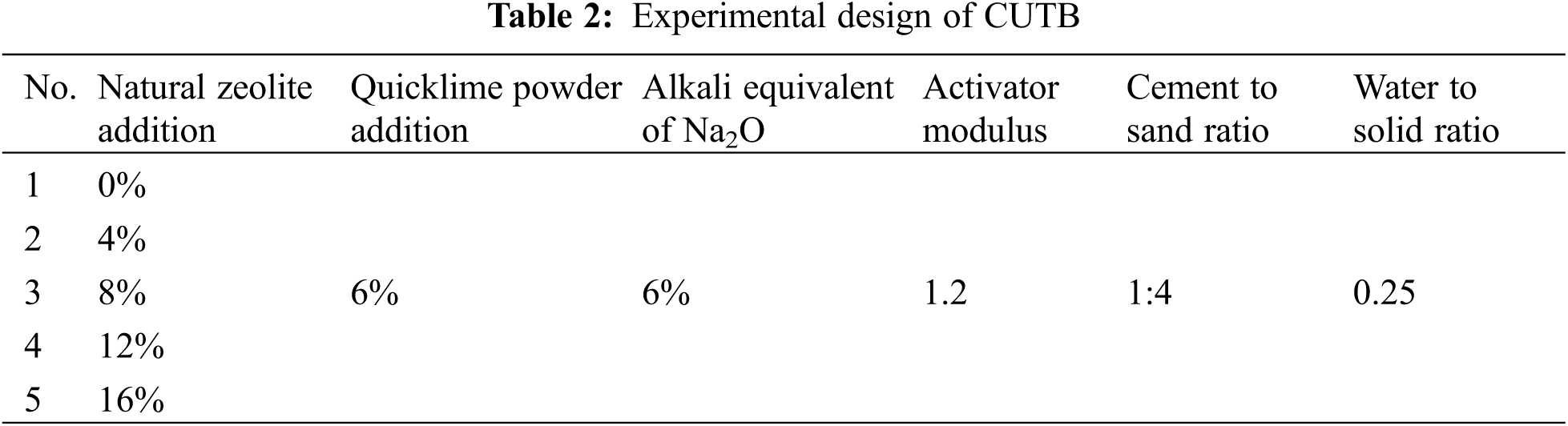

1)Experiments on CUTB. To explore the influence of the addition of functional minerals on the pore structure of CUTB, the following experimental parameters were fixed. The filling slurry was prepared with a water to solid ratio of 0.25 and a cement to sand ratio of 1:4. The modulus of the sodium silicate in the activator was 1.2, and the alkali equivalent of Na2O accounted for 6% of the mass ratio of the cementitious materials. Quicklime powder was added as an auxiliary material, accounting for 6% of the cementitious materials. The natural zeolite was mixed into the filler in proportions of 4%, 8%, 12%, and 16% of the cementitious materials for comprehensive testing (Table 2). For comparison, a control group with no functional minerals added (i.e., 0%) was also prepared.

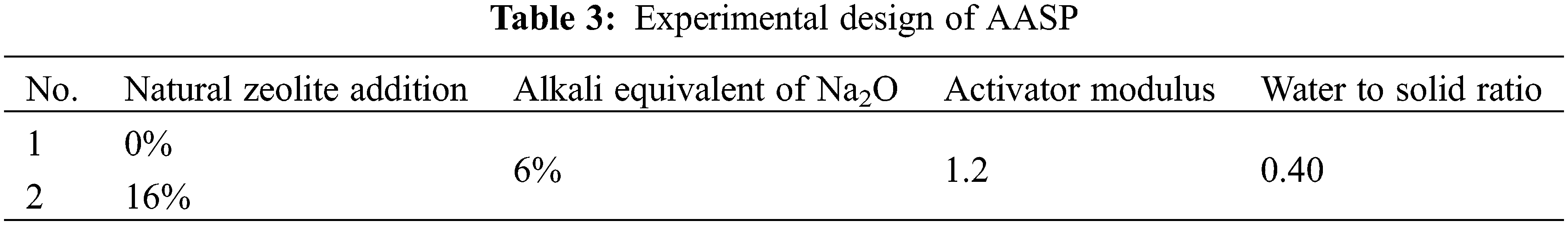

2)Experiment on AASP. To explore the characteristics of the hydration products of the AASP when natural zeolite was added, only the maximum content of natural zeolite in the above experiments was used to study the characteristics of the hydration products under the specific water to solid ratio and the addition of activator. That is, granulated blast furnace slag was selected as the base material of the cementitious materials, sodium silicate was used as the activator, the fixed alkali equivalent was 6%, the modulus was 1.2, the water to solid ratio was 0.4, and the content of natural zeolite was 16%. A control group with no functional minerals added (i.e., 0%) was also prepared (Table 3).

2.3 Experimental Scheme

The pore structure and its distribution are one of the factors controlling the strength of CUTB. In the radioactive waste cement solidification system, the leaching resistance is directly or indirectly affected by the physical and chemical seepage. By measuring the relaxation time of the fluid in the pore structure of the filling body using low field nuclear magnetic resonance (LF-NMR), we obtained its internal pore distribution, connectivity characteristics, and various physical parameters for a qualitative and quantitative analysis of the internal pore distribution. Due to the short testing time and non-destructive characteristics of LF-NMR, it is one of the most effective methods of analyzing the pore structure of a filling body.

1)   Preparation of CUTB. First, according to the proportion designated in the experimental plan and the Standard for test methods of performance of building mortar (JGJ/T70-2009), the filling materials were mechanically mixed using a JJ-5 cement mortar mixer. During the mixing, the materials were mixed at low speed for 120 s, then suspended for 15 s, and then mixed at high-speed for 120 s to ensure that all of the materials were evenly mixed. Then, the prepared slurry was poured into Φ50 mm × 50 mm cylindrical molds, and the samples were vibrated manually to eliminate bubbles formed during the pouring of the material into the mold. Finally, the cast sample was placed in a curing box (25 ± 5°C, humidity ≥ 95%). It was removed from the mold after 24 h and allowed to continue curing for an additional 27 days (i.e., a total of 28 days of curing).

2)   LF-NMR analysis. First, the uniaxial compressive strength (UCS) test was carried out on the filling specimen cured for 28 days. Second, the filling specimens were saturated with water, and the water on the surface of the filling specimen was wiped away. Then, the filling samples were tested using an AniMR-150 rock magnetic resonance imaging analysis system, and the porosity and relaxation time T2 distribution characteristics of the CUTB were obtained.

3)   Analyses of microstructure and hydration products of CUTB. First, a group of filling specimens with natural zeolite contents of 0% and 16% were selected for analysis. Second, these specimens were broken, the fresh fracture surfaces were collected for analysis, and the microstructure was observed using a MERLIN Compac 60–95 scanning electron microscope. Third, the hydration products in the broken filling body were screened and analyzed via Fourier infrared spectroscopy (FTIR) using a Nicolet 380 Fourier transform infrared spectrometer. In addition, NMR analysis of 29Si and 27Al was conducted using an AVANCE NEO 600M solid-state NMR spectrometer.

4)   Analysis of hydration products of AASP. First, the consolidated body of AASP was crushed and sieved. Then, as with the CUTB, SEM, FTIR, and NMR analyses were carried out.

3  Results and Discussion

3.1 T2 Distribution Characteristics

The pore size of the CUTB was positively correlated with the relaxation time T2, that is, the change in T2 reflected the change in the pore size in the sample. A larger T2 value indicates a larger pore radius, and vis versa. The transverse relaxation time T2 and the peak relaxation time area can reflect the size and number of pores in the sample [27,28].

For all of the natural zeolite contents, there was one main peak and several secondary peaks on the T2 diagram of the CUTB (Figs. 1 and 2). Since different T2 values represent different pore sizes, if the T2 value at the inflection point of the curve on the T2 diagram is taken as the boundary value, the T2 diagram can be divided into several zones. The enclosed area of each zone is the porosity of the corresponding range. The T2 diagram for the CUTB with natural zeolite contents of 0%–16% was divided into five zones, but the boundaries between two adjacent zones on some diagrams were not very clear, and they could be combined into one zone. For example, the boundary between zones III and IV on the diagram was not very clear for the CUTB with a natural zeolite content of 0% (Fig. 1). It should be noted that the boundary value for dividing two zones was not the same for the T2 diagrams of the different filling samples.

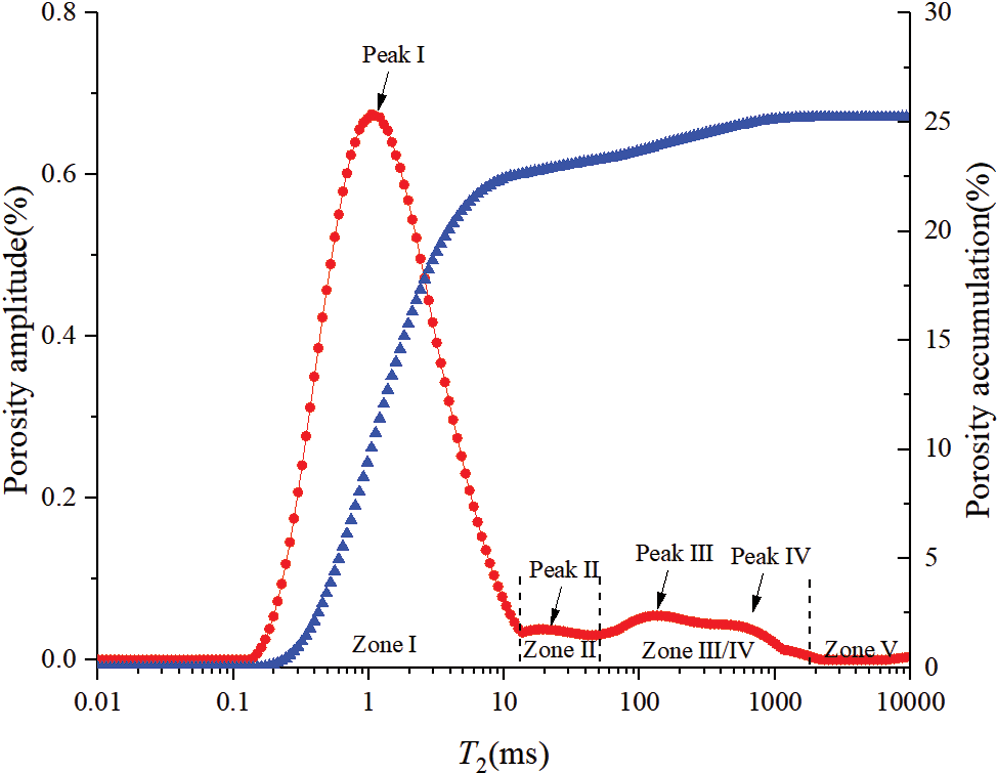

Figure 1: T2 diagram for the CUTB with a natural zeolite content of 0%

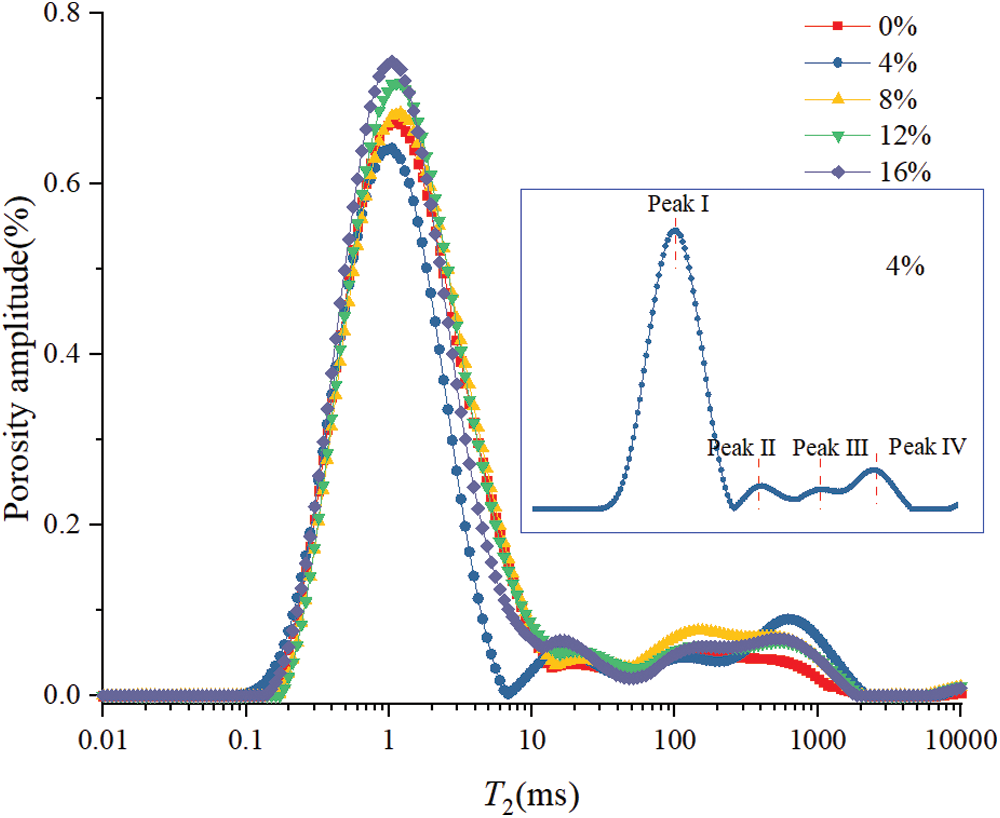

Figure 2: T2 diagram for the CUTB with different natural zeolite contents

On the T2 diagram of the CUTB mixed with natural zeolite, the characteristics of the relaxation peaks were more obvious. In particular, when the zeolite content was 4%, there were four obvious characteristic peaks (mini diagram in Fig. 2). However, the test results of the three groups with natural zeolite contents of 8%, 12%, and 16% show that the boundary between the third and fourth characteristic peaks was not obvious. After adding natural zeolite, the first characteristic peak of the T2 diagram of the CUTB shifted to the left compared with that without the addition of natural zeolite; and its relaxation time range (i.e., the range of zone I) was significantly narrower, which indicates that after adding natural zeolite, the small pores in the CUTB are significantly reduced. In particular, when the natural zeolite content was 4%, not only did the range of zone I narrow, i.e., 0.080–6.826 ms, but the peak value of the first peak (the relaxation time represents the proportion of pores with corresponding size) was also significantly reduced compared with the other groups. In the group of samples with a natural zeolite content of 4%, the total number of pores was only 22.30%, which was much lower than those of the other groups. The proportion of zone I was 83.13%, and the proportion below 10 ms was 83.50% (Table 4). As the natural zeolite content continued to increase from 8% to 16%, the total number of pores in the CUTB initially increased and then decreased, reaching the maximum value when the content was 12%, and the proportion of the zone of the first relaxation peak also exhibited the same trend. This also shows that when an appropriate amount of natural zeolite is added, the porosity of the CUTB can be reduced, especially the proportion of fine pores.

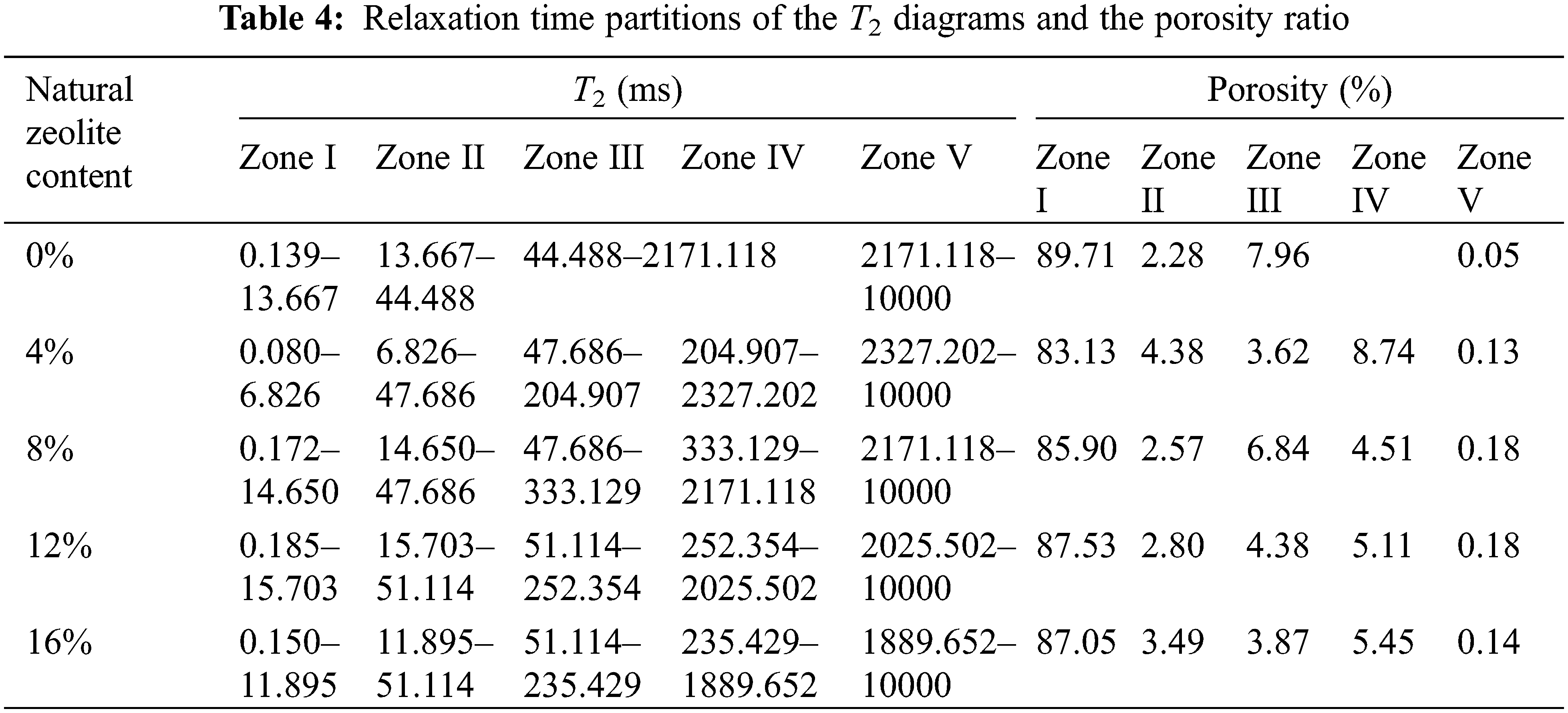

In addition to the division determined according to the minimum value for the proportion of component with different relaxation times as the limiting value, zone V generally appeared in all of the test results. This zone is characterized by large pores due to the large relaxation time. This may be due to the insufficient drying of the surface of the specimen containing free water, or it may be due to the large pores caused by bubbles in the surrounding wall of the specimen (Fig. 3).

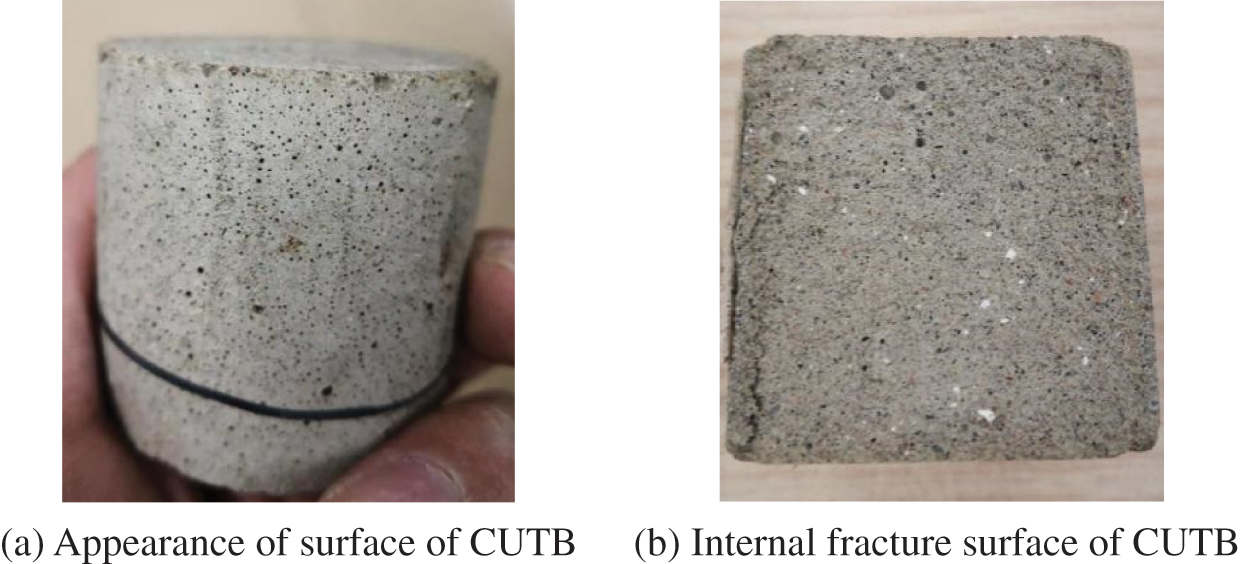

Figure 3: Apparent pore characteristics of CUTB

3.2 Micromorphology

To further verify the pore characteristics of the CUTB from the perspective of the micromorphology, the fracture surface of the CUTB was scanned via SEM (Fig. 4). No obvious needle-like and flake-like features were observed on the fracture surface of the CUTB, which are mainly accumulations formed by granular disorderly connections, as well as flocs formed via fibrous agglomeration. These products form a dense structure. It can be inferred that the hydration products may be mainly calcium aluminosilicate hydrate (C-A-S-H) or calcium silicate hydrate (C-S-H) and other amorphous calcium (alumino)silicate hydrate (C-(A)-S-H) materials. The dense structure of the hydration products should theoretically cause the filling body formed to have smaller pores and a higher strength.

Figure 4: SEM scanning image of CUTB mixed with natural zeolite

However, from the SEM images of the fracture surface of the CUTB with a magnification of 200 times, it can be seen that there are a large number of circular or irregular pore structures in addition to the circular pit like holes formed at the interface between the uranium tailings and the hydration products. When magnified to 1,000 times, fine cracks were also observed. When further magnified to 5,000 times, these cracks were clearly visible. When magnified to 10,000 times, it was found that in addition to these fractures, there were very small pores.

To eliminate the influence of the pore structure of the hydration products themselves, the AASP with the same amount of natural zeolite was observed using SEM (Fig. 5). No obvious circular or irregular pore structures were observed. That is, these pore structures only existed in the CUTB with uranium tailings added as the aggregate. It can also be seen from Fig. 3 that in addition to the internal fracture surface of the CUTB, the surface of the CUTB also contained visible pore structures. This explains why zone V appears on the T2 diagrams.

Figure 5: SEM images of AASP mixed with natural zeolite

The reaction of the filling slurry containing cementitious material to form the filling body is a three-phase dynamic adjustment process involving solid, liquid, and gas. In addition to free water, capillary water, and adsorbed water, there are gas or bubble attachments in the stirred filling slurry. During the alkali-activated slag reaction, the space occupied by the water molecules and gas is gradually occupied by the generated hydration products, which makes the filling body denser and increases its strength. Moreover, some of space is not effectively filled, resulting in the formation of the pore structure of the filling body. Only from the perspective of space occupation, the products with a low degree of polymerization are more conducive to diffusion into these spaces. However, when an appropriate amount of natural zeolite is added, because the structure of the zeolite is more compact and the proportion of fine pores is reduced, the total pore space in the filling body is greatly reduced.

For the filling body containing uranium tailings with alkali-activated slag as the cementitious material, whether natural zeolite is added or not, the pore structure can be divided into interfacial pores and the internal cracks and pores in the hydration products. The interfacial pores include the pores between the interfaces of the filling aggregate and hydration products, between the filling aggregate and filling aggregate, and between the hydration products and hydration products, which are based on the particle size composition of the uranium tailings as the filling aggregate. The bubbles generated during the mixing and molding of the slurry and the properties of the alkali-activated slag cementitious material affect the generation of the interfacial pores.

3.3 Relationship between Porosity and UCS

In theory, the larger the porosity of the CUTB is, the worse its uniaxial compressive strength (UCS) and other mechanical properties are. The porosity and UCS of the CUTB samples with different natural zeolite contents were analyzed to investigate the correlations between the properties (Fig. 6). There was no obvious functional relationship between the UCS and porosity of the CUTB, but there was a certain trend between them, that is, the UCS of the CUTB decreased with increasing porosity, which is similar to the general law of the UCS of rocks and rock-like concrete samples with porosity. It should be noted that the fitting degree of the trend line between the two was very low. In particular, when the natural zeolite content was 0%–16%, the R2 value was only 0.388, and the p-value was 0.262, indicating that the fitting effect was not significant at this time. The main reason for this is that when the natural zeolite content was 0%, although the porosity of the CUTB was relatively large, its UCS was still the maximum for the test group. When the natural zeolite content was 4%, although the porosity of the CUTB was greatly reduced, its UCS was also reduced to a certain extent.

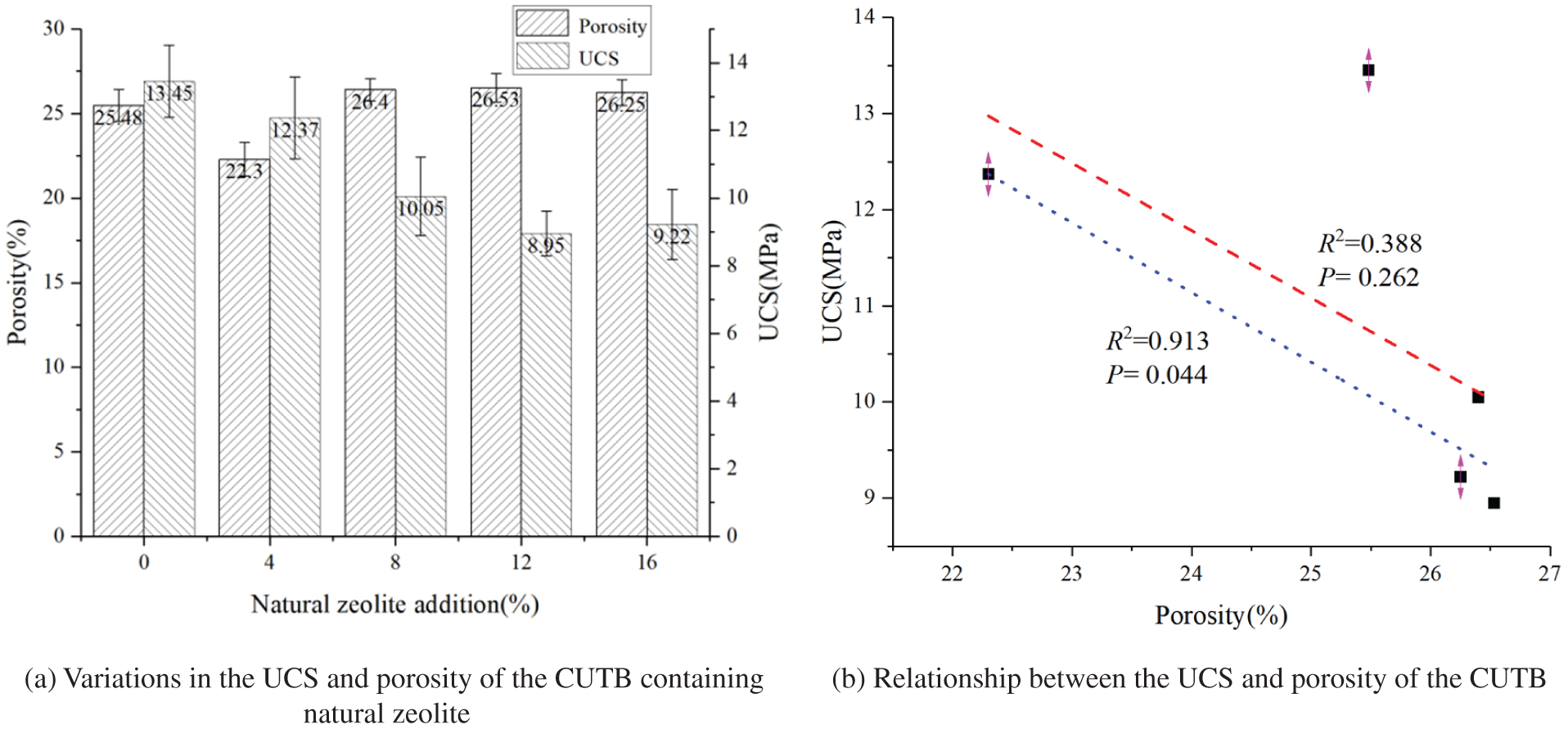

Figure 6: Correlation between the porosity and UCS of the CUTB

There was no exact functional relationship between the UCS of the CUTB and its porosity, which further shows that the formation of the mechanical properties of the CUTB was very complex when natural zeolite was added as the backfill-modified material. The mechanical properties of the CUTB were not only related to the pore structure but also to the hydration products of the alkali-activated slag mixed with the natural zeolite, which in turn affected the formation of the pore structure. In addition, after adding natural zeolite, the fluidity of the uranium tailings filling the slurry also changed, which also affected the formation of the interfacial pores in the CUTB due to improper vibration when the slurry was poured into the molds. Therefore, it was necessary to analyze the hydration products of the alkali-activated slag mixed with the natural zeolite.

3.4 FTIR Analysis of Hydration Products

The molecular structure and degree of polymerization of the alkali-activated slag hydration products were characterized by analyzing the characteristic peaks of the FTIR spectra (Fig. 7).

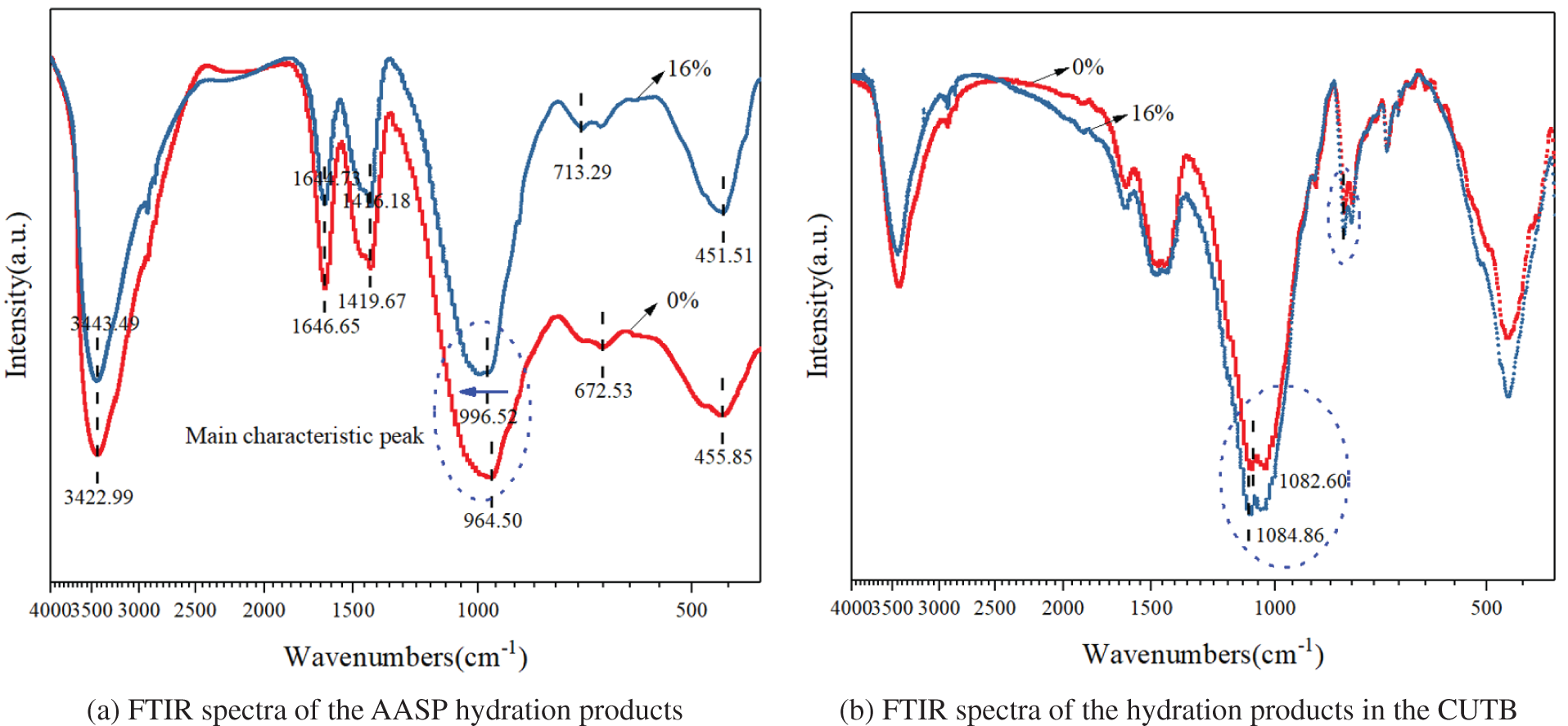

Figure 7: FTIR spectra of the hydration products

In the FTIR spectrum of the hydration products of the AASP with a natural zeolite content of 0%, the main characteristic peak was located at 964.50 cm−1. Shi et al. [29–32] reported that the main cementing components of geopolymer and alkali-activated slag may be C-A-S-H or sodium aluminosilicate hydrate (N-A-S-H), and the 960–970 cm−1 peak is generally ascribed to the asymmetric stretching vibration of Si-O in hydrated calcium silicate hydrate, and the calcium ions promote the formation of a C-(A)-S-H structure. According to the main characteristic peaks in the spectrum and the chemical composition of the slag materials, it was concluded that the hydration products were mainly C-(A)-S-H gels. It can be seen from the T-O-T wave number corresponding to SiQn (where n values of 4, 3, 2, 1, and 0 correspond to 1200, 1100, 1000, 900, and 850 cm−1, respectively) that the silica tetrahedron in the hydration products of the AASP was mainly Q2.

In the FTIR spectrum of the hydration products of the AASP with a natural zeolite content of 16%, the main characteristic peak in the range of 800–1300 cm−1 shifted to 996.52 cm−1 (i.e., toward a high wave number), which is closer to the wave number of 1000 cm−1 corresponding to Q2. This indicates that the hydration products were still mainly Q2, but the natural zeolite participated in the alkali-activated slag reaction, and the hydration products had a higher degree of polymerization. The absorption peak at 713.29 cm−1 is caused by the substitution of Al for Si in the Si-O tetrahedra tetrahedron and the formation of Si-O-Al bonds, which further indicates that the hydration products were mainly C-(A)-S-H gels.

Compared with the hydration products of the AASP, in the FTIR spectrum of the hydration products in the CUTB, each characteristic peak shifted in the higher wave number direction to a certain extent. When 0% and 16% natural zeolite were added, the main characteristic peaks were located at 1082.60 cm−1 and 1084.86 cm−1, respectively, which were generated by the asymmetric vibration of the Si-O-T (where T represents Si or Al) structure. When the Al content of the structure increases, the peak shifts in the lower wave number direction. The characteristic peak observed in the spectra is also a sign of the hydration products of the AASP. The absorption peaks at 789.25 cm−1 and 778.16 cm−1 are due to the symmetrical stretching vibration of Si-O-Si, but these two characteristic peaks were not observed in the hydration products of the AASP, which may be due to the uranium tailings mixed in the sample.

It can be seen that when natural zeolite was added, the hydration products had a higher degree of polymerization. In the backfill system, the use of uranium tailings as the filling aggregate had no adverse effect on the hydration reaction of the alkali-activated slag, and to some extent, it helped to promote this reaction. In addition, some of the elements in the uranium tailings may have entered the structure of the hydration products via adsorption and exchange.

3.5 NMR Analysis of Hydration Products

Solid state nuclear magnetic resonance (NMR) can be used to analyze the polymerization degree of silica and alumina polyhedrons based on the position of the spectral line (chemical shift), which is useful in determining the structure of the substance. It is an effective means of analyzing the structures of the hydration products of cementitious materials. 29Si and 27Al are common nuclei with nuclear magnetic moments in cement-based materials (Fig. 8).

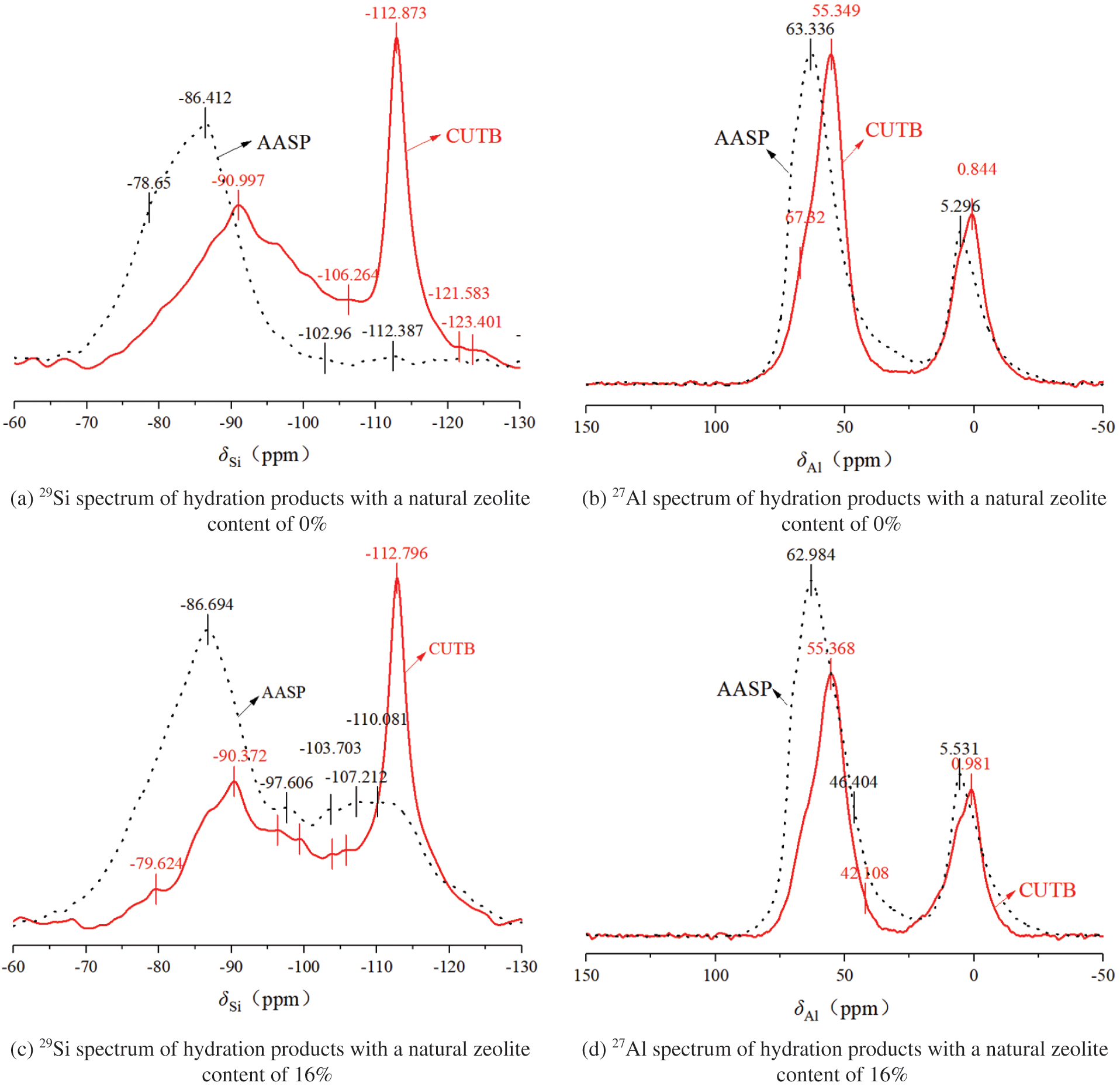

Figure 8: 29Si and 27Al spectra of hydration products

For the hydration products of AASP with a natural zeolite content of 0%, the 29Si spectrum contains four peaks at −78.65, −86.412, −102.96 and −112.387 ppm, corresponding to Q1 (chain tail) without hydration reaction in slag and Q2, Q4 (1Al), and Q4 in the hydration products, respectively. The 27Al spectrum contains two main peaks at 63.336 ppm and 5.296 ppm, indicating that the coordination of the 27Al is both four and six but is mainly four coordination. According to Wang and Walkley, the relationship between the coordination = of 27Al in the tetrahedron and its chemical shift is as follows: the Si at 75 ppm is Al instead of Si in C-S-H, resulting in C-A-S-H gels [33,34]. The 29Si analysis revealed that Al was present instead of Si, which further indicates that the products of the alkali-activated slag cementitious material were C-(A)-S-H gels.

In the 29Si spectrum of the hydration products of the AASP with a natural zeolite content of 16%, there are five peaks at −86.648, −97.606, −103.703, −107.212 and −110.08 ppm, corresponding to Q2, Q3, Q4, Q4 (1Al), and Q4, respectively, but there is no obvious Q1 unit, which indicates that the hydration reaction of the alkali-activated slag with a natural zeolite content of 16% was relatively sufficient. However, this may also be due to the chemical shift in the characterization of the Si in the natural zeolite minerals that were not involved in the reaction. The 27Al spectrum mainly contains peaks at 62.984 ppm and 5.531 ppm, which is basically consistent with the characteristics when no natural zeolite was added.

It can be seen that the chemical environment of the AASP and the AASP mixed with natural zeolite was mainly Q2, which is typical of C-(A)-S-H gel structures, and Q3, Q4, and Q4 (1Al) have a high degree of polymerization, which is consistent with the results of the FTIR analysis.

When the natural zeolite content was 0%, compared with the AASP, the 29Si NMR spectra of the hydration products screened from the CUTB had the following characteristics. First, there was a sharp characteristic peak at −112.873 ppm, which is an obvious characteristic of the 29Si four coordination chemical shift, which corresponds to the Q4 unit of a three-dimensional network structure with a higher degree of polymerization. Based on the 29Si spectrum and FTIR spectrum of the AASP, this Q4 unit does not represent a hydration product with a high degree of polymerization, and it was likely caused by the SiO2 in the uranium tailings mixed in during the sampling. Second, the characteristic peak shifted to the right (at −90.997 ppm) and became a broadener and smaller peak. The characteristic peak in the 27Al spectrum also moved to the right. When the zeolite content was 16%, the variations in the 29Si and 27Al spectra were similar. It can be seen that the use of uranium tailings as the filler aggregate did not have an obvious effect on the hydration reaction of the alkali-activated slag cementitious material mixed with the functional minerals, and the CUTB had good chemical stability.

In conclusion, the influence of natural zeolite on the pore structure of CUTB is mainly due to its participation in the hydration reaction of alkali-activated slag, and the high degree of polymerization hydration products produced have different effects on different types of pore structures in CUTB (Fig. 9). At the same time, the fluidity of filling slurry changes after adding natural zeolite, which inevitably affects the formation of various pore structures.

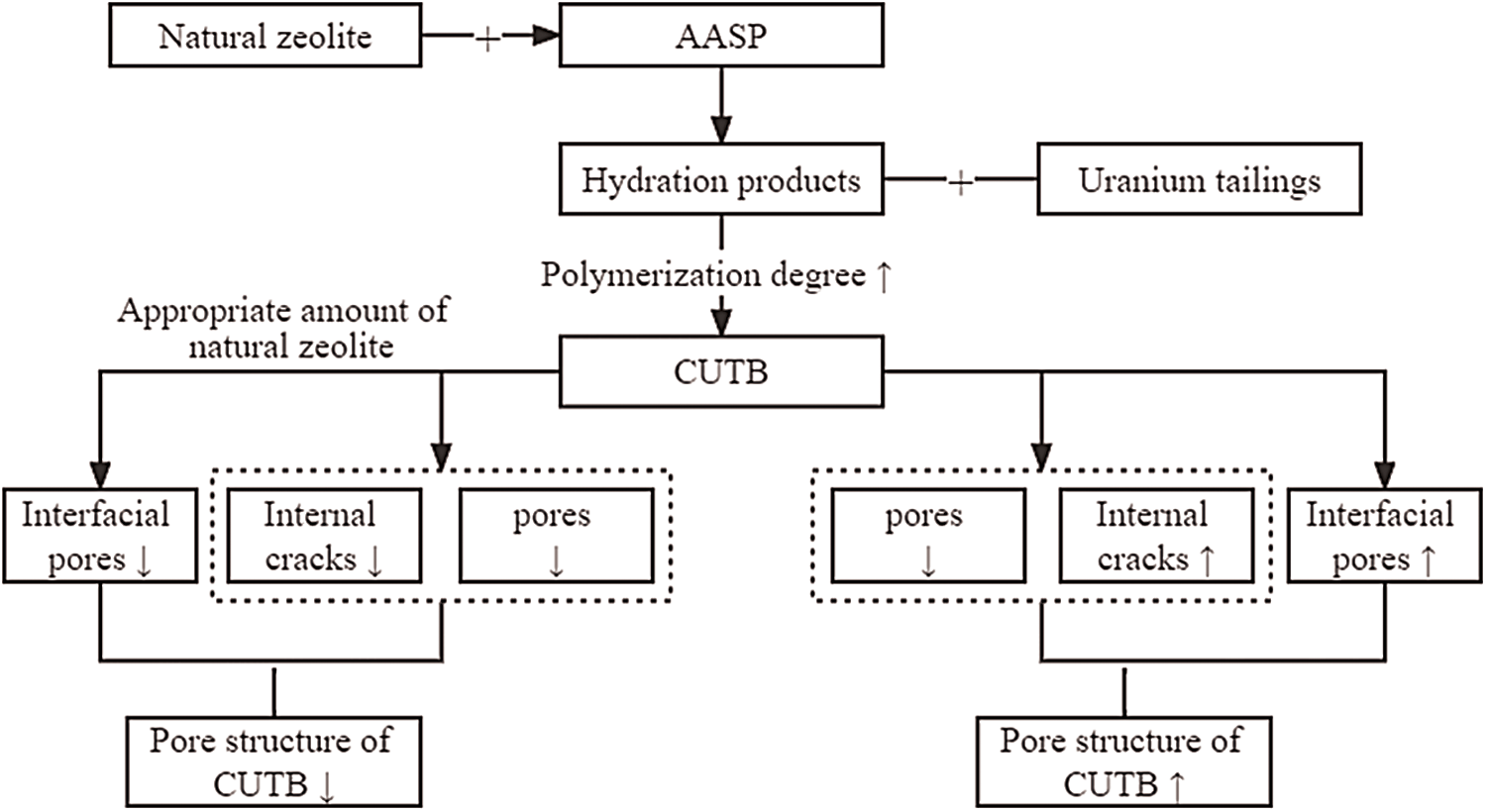

Figure 9: Influence of natural zeolite on the pore structure of CUTB

4  Conclusions

To study the influence of the addition of natural zeolite on the pore structure of the CUTB, the other conditions were fixed, the pore structure and UCS of the CUTB were tested, and the hydration products were analyzed. The conclusions that follow were drawn:

(1)   When natural zeolite was added to the CUTB, the porosity generally increased to a certain extent, but the minimum porosity (only 22.30%) was reached at a content of 4%. This is because the addition of natural zeolite mainly reduced the number of fine pores in the CUTB. However, the pores with relaxation times T2 of greater than 10 ms accounted for about 10% or more of the total pores, which also indicates that there are a certain number of large pores in the CUTB.

(2)   The relationship between the UCS and porosity of the CUTB containing natural zeolite was nonlinear, and the function fitting degree was low, but it generally exhibited a negative correlation trend, that is, the greater the porosity, the smaller the UCS. This shows that in addition to the influence of the porosity, the mechanical properties of the CUTB were mainly affected by the hydration products of the alkali-activated slag mixed with the natural zeolite.

(3)   The hydration products of the alkali-activated slag were mainly C-(A)-S-H gels. When natural zeolite was added, the hydration products became denser and had a high degree of polymerization; however, the reduction in the formation of low polymerization products led to the formation of larger fissure pores to a certain extent. This affected the flow properties of the slurry, thereby reducing the UCS of the CUTB.

(4)   The pore structure of the CUTB included interfacial pores (between the filling aggregate and hydration products, the filling aggregate and filling aggregate, and the hydration products and hydration products) and internal cracks and pores in the hydration products. The particle size composition of the uranium tailings used as filling aggregate, the mixing of the slurry, the air bubbles generated during the pouring of the slurry into the molds, and the properties of the alkali-activated slag cementitious material all had significant effects on the generation of the interfacial pores.

(5)   When natural zeolite was added to the CUTB as the backfill-modified material, its influence on the pore structure of the CUTB was complex, and the pore structure and mechanical properties affected and restricted each other. Therefore, it is not easy to draw a conclusion regarding the influence of its dosage on the pore structure and mechanical properties. It is necessary to investigate the influence of the change in the flow performance after its addition and the factors during the pouring of the slurry into the mold on the porosity.
