Desorption Behavior and Thermogravimetric Analysis of Bio-Hardeners
1Department of Mechanical Engineering, Higher Technical Teacher Training College Douala (ENSET), University of Douala, Douala, Cameroon
2Laboratory of Forest Resources and Wood Valorization (Larefob), ENSET of Douala, Douala, Cameroon
3Department of Engineering Science, West University, Trollhättan, Sweden
4LERMAB-ENSTIB, University of Lorraine, Epinal, 88051, France
5Laboratoire D’Etudes et de Recherche sur le Matériau Bois LERMAB, Faculté des Sciences et Technologies, Université de Lorraine, Nancy, France
6Laboratory of Materials Mechanics, Structures and Integrated Manufacturing, National Advanced School of Engineering, Yaoundé 1 University, Yaoundé, Cameroon
7Department of Mechanical Petroleum and Gas Engineering, Faculty of Mines and Petroleum Industries, University of Maroua, Kaélé, Cameroon
8Laboratory of Mechanic, Materials and Building, Sahel Institute of Maroua University, Maroua, Cameroon
*Corresponding Author: Antonio Pizzi. Email: firstname.lastname@example.org
Received: 22 October 2021; Accepted: 27 December 2021
Abstract: In this work, the thermal degradation and drying of bio-hardeners are investigated. Four bio-hardeners based on exudates of Senegalia senegal, Vachellia nilotica, Vachellia seyal, and Acacia siebteriana were analyzed by FTIR and thermogravimetric analysis, and a desorption study was also conducted. The analysis by infrared spectroscopy indicates the existence of oligomers of different types all giving 5-hydroxy-2-hydroxymethylfuran and 2, 5-dihydroxymethylfuran which are then the real hardening molecules. The pyrolysis of these extracts reveals three main regions of mass loss, a first region is located between 25°C and 110°C reflecting the loss of water from the adhesive and the formation of some traces of volatile organic compounds such as CO2 and CO, a second zone characterized by the release of CO, CO2 and CH4 gases with peaks between 110° and 798.8°C. At the end of the analysis, about 22% of the initial mass remains undecomposed, this mass corresponds to the rigid segments of the bio-hardener which are not completely decomposed.
Keywords: Exudates; pyrolysis; FTIR; bio-hardener; desorption
|FTIR||Fourier-transform infrared spectroscopy|
Today, the demand for particleboard and plywood has grown exponentially. The cohesion of these materials has long been ensured by synthetic resins that are used as a matrix in the wood industry. However, there are many limitations: panels based on these adhesives are not water-resistant and emit formaldehyde which is dangerous for humans and their environment . Indeed, formaldehyde is now classified as a carcinogen by the International Agency for Research on Cancer (CIRC 1995). As regards phenol-formaldehyde resins, these have a high cost, they discharge toxic phenols into the environment . For this reason, even their use is starting to be questioned today. Isocyanate adhesives are also expensive, and the presence of unreacted, free isocyanate group is also unacceptable for public health reasons .
The fight against pollution caused using synthetic resins, as well as using those based on formaldehyde (a substance classified as carcinogenic), has led several researchers to develop environment-friendly bio-adhesives to bond wood . Pichelin et al. ; were able to glue structural beams with formaldehyde combined with free tannin adhesives. In 2007, Liu et al. ; developed and characterized soy protein-based adhesives for wood bonding Konai et al.  developed bioadhesives based on Aningre superba tannin with 5.5% paraformaldehyde. Only from 2013 occurred successful preparation of a 100% bioadhesive from tannins using furfuryl alcohol  and from 2018 with hydroxymethylfurfural as a hardener ; lastly, Ndiwe et al. [10–12] produced for the first-time bio-adhesives using tannins and bio-hardeners from natural plants.
Compared to the new bio-based materials, wood-based materials bonded with traditional adhesives are still very extensively used by companies around the world. Most of these materials such as particleboard , plywood , medium density fiberboard , and oriented strand board  are prepared by gluing wood components with petroleum-derived adhesives. Urea-formaldehyde, melamine-formaldehyde, and phenol-formaldehyde resins are examples of such adhesives [17–20]. However, with the use of these resins comes the concern regarding volatile organic compound (VOC) emissions, potential health risks, and non-biodegradability [21–23]. Although isocyanate-based resins are used in the wood industry to avoid using formaldehyde, a great part of the raw materials for these adhesives are derived from non-renewable fossil resources, which continue to decline. These concerns have driven manufacturers of wood-based materials to focus research to establish product portfolios that contain more sustainable and environment-friendly products. Specifically, formaldehyde-free and renewable energy-based wood adhesives have become major topics of ongoing investigations [10,11,24–26].
To contribute to this objective, bio-adhesives using bio-hardeners from African plants have been shown today to be suitable for the preparation of particleboard [10–12].
It is, therefore, necessary to answer the question of the choice of hardeners for tannin resins without emission of formaldehyde while preparing panels of good mechanical resistance, which do not attack the environment, and which resist the attacks of insects and microbiological agents.
In this article, exudates used as bio-hardeners were extracted from tropical plants in Cameroon, Central Africa. Exudates are substances that ooze from the pores of diseased or damaged plant tissue, they are complex mixtures of organic compounds that are secreted into the extracellular matrix and normally appear on the plant surface , These substances have been harvested and used throughout history for example as adhesives and coatings, thickeners, cosmetic ingredients, The Mayans were already harvesting latex from trees 1600 BC to make large rubber balls which they used to secure the connection between the head and handle of axes . In addition, Egyptian hieroglyphs attest to the ancient use of exudates including gum arabic which has been traded for at least 4000 years . Some exudates, however, have been valued for their medicinal uses, in particular for their antiseptic and anti-inflammatory properties .
They are characterized for their potential use as bio-hardeners in the wood industry. It is therefore of primary interest to determine the upper-temperature limits to which the bio-hardeners can be safely subjected, to determine their decomposition points and stiffnesses, and to study their drying kinetics. This operation allows: to use bio-hardeners whose moisture content is in hygroscopic balance with their environment of use, to obtain relatively stable works, deactivation of enzymes responsible for the degradation of natural products, inhibition of the growth of microorganisms through the reduction of water activity, and to reduce the risks of deterioration and disorders caused by the attack of fungi and other parasites. This paper presents the results of thermal and drying experiments of bio-hardeners exudates of Vachellia nilotica, Vachelia seyal, Senegalia senegal, and Acacia siebteriana.
Exudates of Vachellia nilotica, Senegalia senegal, Vachelia seyal, and Acacia siebteriana from the Dacheka forest in the far northern region of Cameroon were extracted. The Vachellia nilotica tree was wounded by incisions and from the wound emerged a complex organic solution of high viscosity called an exudate.
The locality of Dacheka is in the Far-North Cameroon region, a semi-arid Sahelian tropical region with an aridity index between 0.20 and 0.50  his geographical coordinates are latitude: 10.1333, longitude: 14.9 10° 7′ 60″ North, 14° 54′ 0″ East. where it is extremely hot, with ambient temperatures reaching more than 40°C in March. This type of ecosystem is characterized by the non-availability of soil water with low rainfall, the annual rainfall being 811 mm. The harmattan wind blows from October to March. The heart of the dry season is in January. Southwest winds appear timidly in June, before bringing rain in August and especially in September. This climate favors the cultivation of Vachelia nilotica and Senegalia senegal, cotton, and cereals. Depending on the season, the landscape is characterized by savannah, grassland, and prickly steppe.
The exudates were collected and sun-dried at a temperature of 37°C for 21 days. Finally, the dried exudates were ground into a whitish water-soluble powder for easy storage and use.
2.2 ATR-FTIR Spectroscopy
The exudate extract powder was analyzed using a Perkin Elmer ATR Frontier spetrometer (Bruker Corporation, Epinal-France) equipped with a diamond/ZnSe crystal. The principle was to place about 2 mg of totally dry powder on the crystal device and contact was obtained by applying a force of about 150 N on the sample. Each spectrum was obtained with 32 scans with a resolution of 4 cm−1 from 3500 to 400 cm−1.
2.3 Thermogravimetric Analysis
Thermogravimetric analysis (TGA) was carried out using NETZSCH STA 449F3 Jupiter equipment (Epinal-France). Approximately 100 mg of each cured sample of exudate extract powder was placed on a balance located in the oven and heat applied in the temperature range of 20 to 900°C at a heating rate of 5 °C/min for 60 min in argon. Mass losses were recorded on the TG curve and the mass loss rate on the DTG curve.
2.4 Desorption Study at Different Temperatures
Dynamic desorption experiments were performed as follows: 10 g of anhydrous rendered exudate powders were weighed using a digital balance (PGW 753i) with an accuracy of 1:1000e. Isotherms of 50°C, 70°C, 90°C, and 103°C were used for the experiments . To achieve hygroscopic equilibrium with the environment, the specimens were kept in the laboratory in a controlled atmosphere with a relative humidity of 65% and a temperature of 24°C. The ventilated DRY OVER oven at the “Centre de Formation Professionnelle d’Excellence” (CFPE) in Douala was turned on and idled until stabilized before the samples were introduced. The samples were weighed to determine their wet mass mi due to exposure in the laboratory before cooking. After every 5 min (t) in the oven, the m(t) value of the sample mass was recorded. This was repeated until the stabilized mass was recorded, mf [33,34].
The desorption ratio, denoted MR, was determined using Eq. (1).
m(t): sample mass
mi: wet mass
mf: stabilized mass
MR: desorption ratio

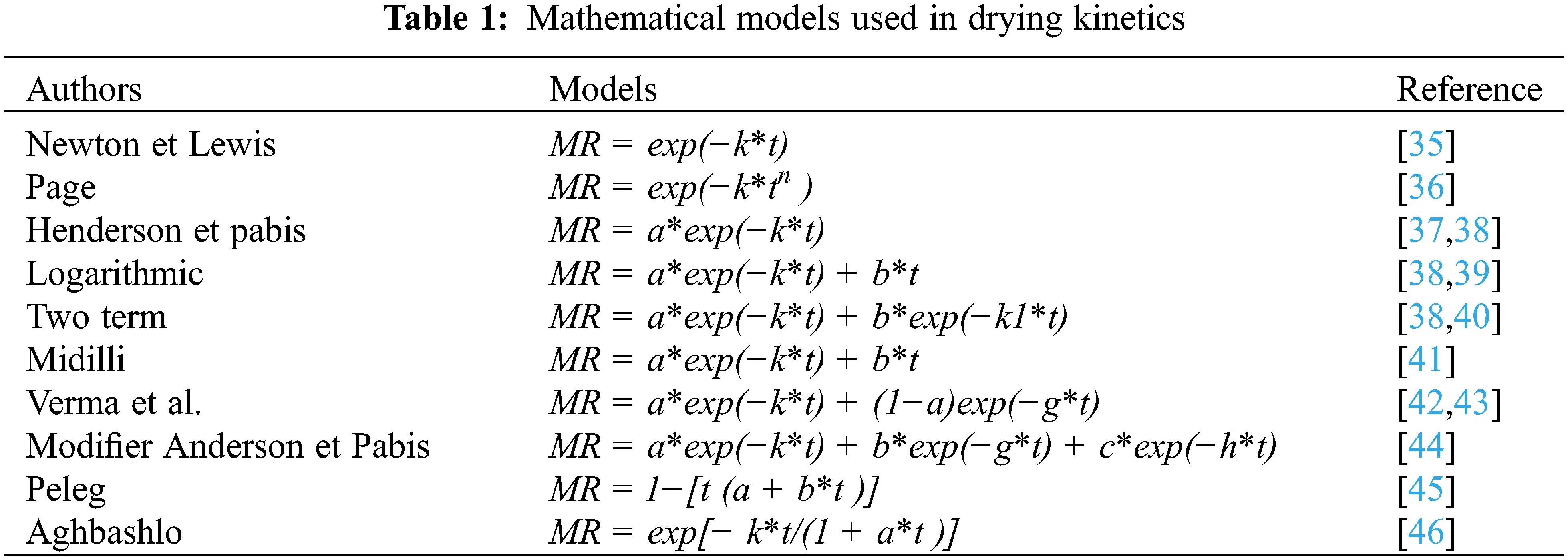

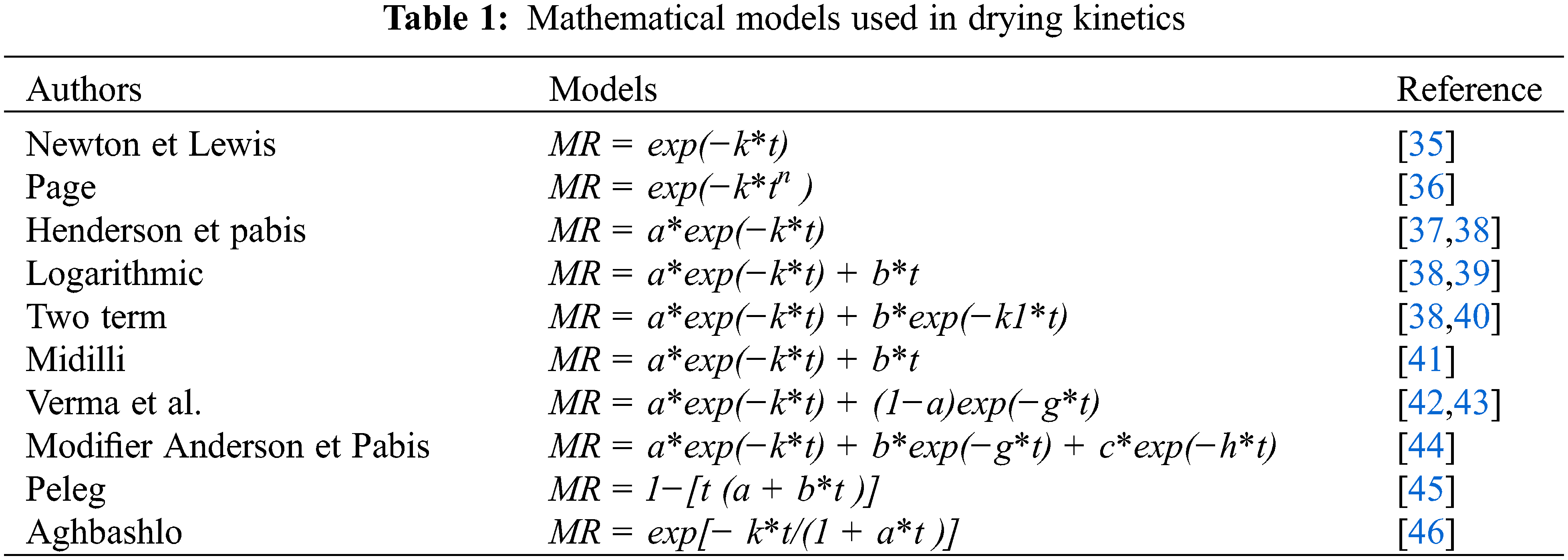

After desorption, the results of the analyses were used to plot the curves for the different temperatures and according to the mathematical models (Table 1). The mathematical models used, and their obtained correlation coefficient are presented in Tables 2 and 3 below.
The Newton and Lewis model is the general solution to the Fick equation, it only considers diffusion based on water migration. In 1949, Page modified the Lewis model to get a more accurate model by adding an empirical dimensionless constant (n) and applying this approach to grain drying . Henderson et al.  improved the drying model by using Fick’s second law of diffusion and applying it to grain drying. In 1994, Prabir et al.  proposed a new model derived from the Henderson and Pabis model with the addition of an empirical term (Logarithmic). In 2002, Midilli et al.  proposed a new model with the addition of an additional empirical term incorporating time t to the Henderson and Pabis model. This new model is the combination of an exponential term and a linear term. They applied this model to the drying of pollen, mushrooms, and pistachio for different drying methods. In 2001, Medeni Maskan applied the Peleg model to the drying of cereals, wheat, and firik (roasted/flame-cured immature wheat ears). The moisture content of the grains was about 09% .
The models of Two-term, Midilli, Verma et al. , Modifier Anderson and Pabis, Peleg and Aghbashlo were compared in terms of their coefficients of determination to estimate the solar drying curves of prickly pear fruit in a convective solar dryer operated with an auxiliary heating system under air-controlled conditions. The model of prickly pear fruit in a convective solar dryer operating with an auxiliary heating system under air-controlled conditions was found to satisfactorily describe the solar drying curves of prickly pear fruit with a correlation coefficient(r) near 1 [38,46].

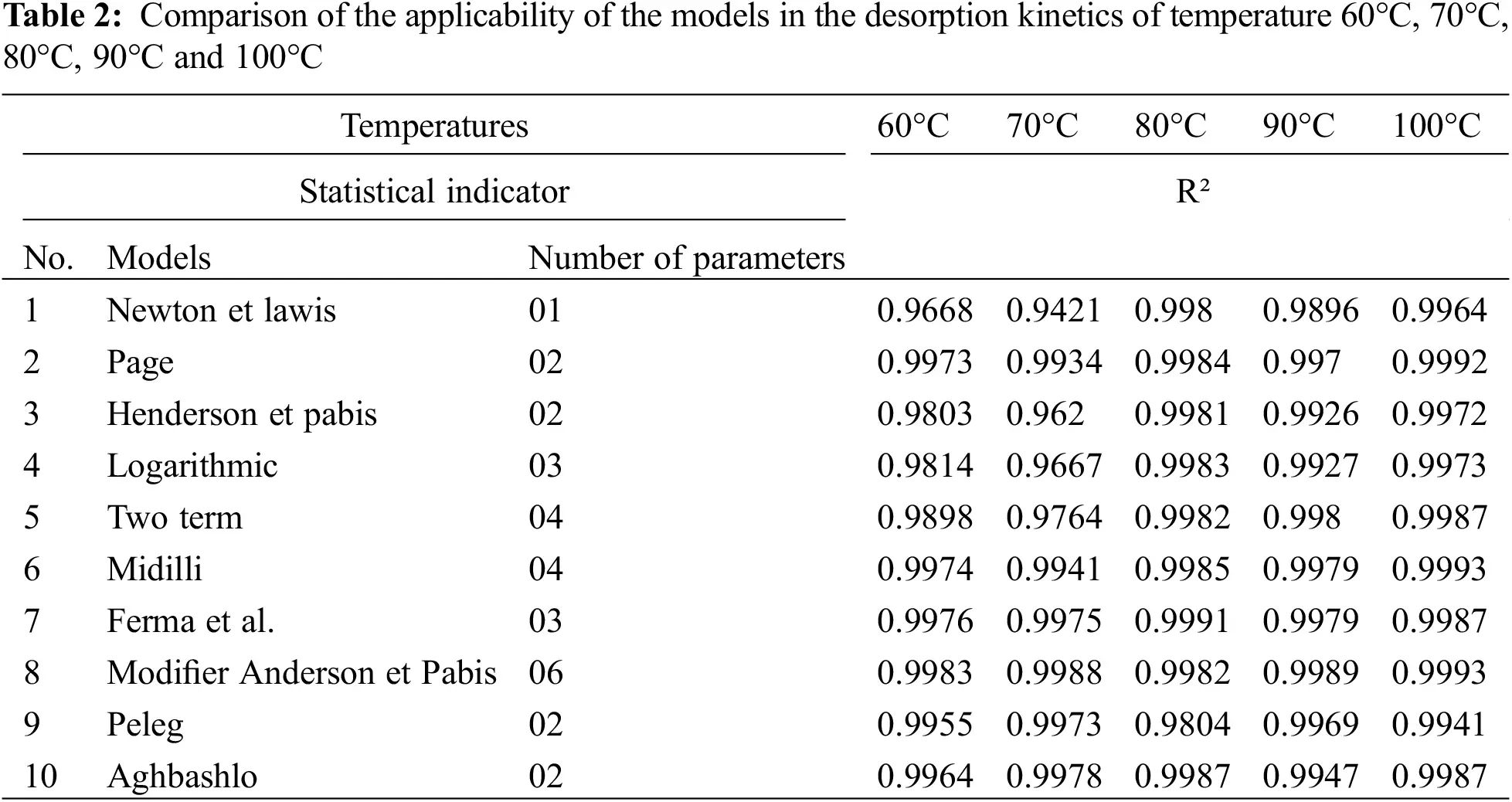

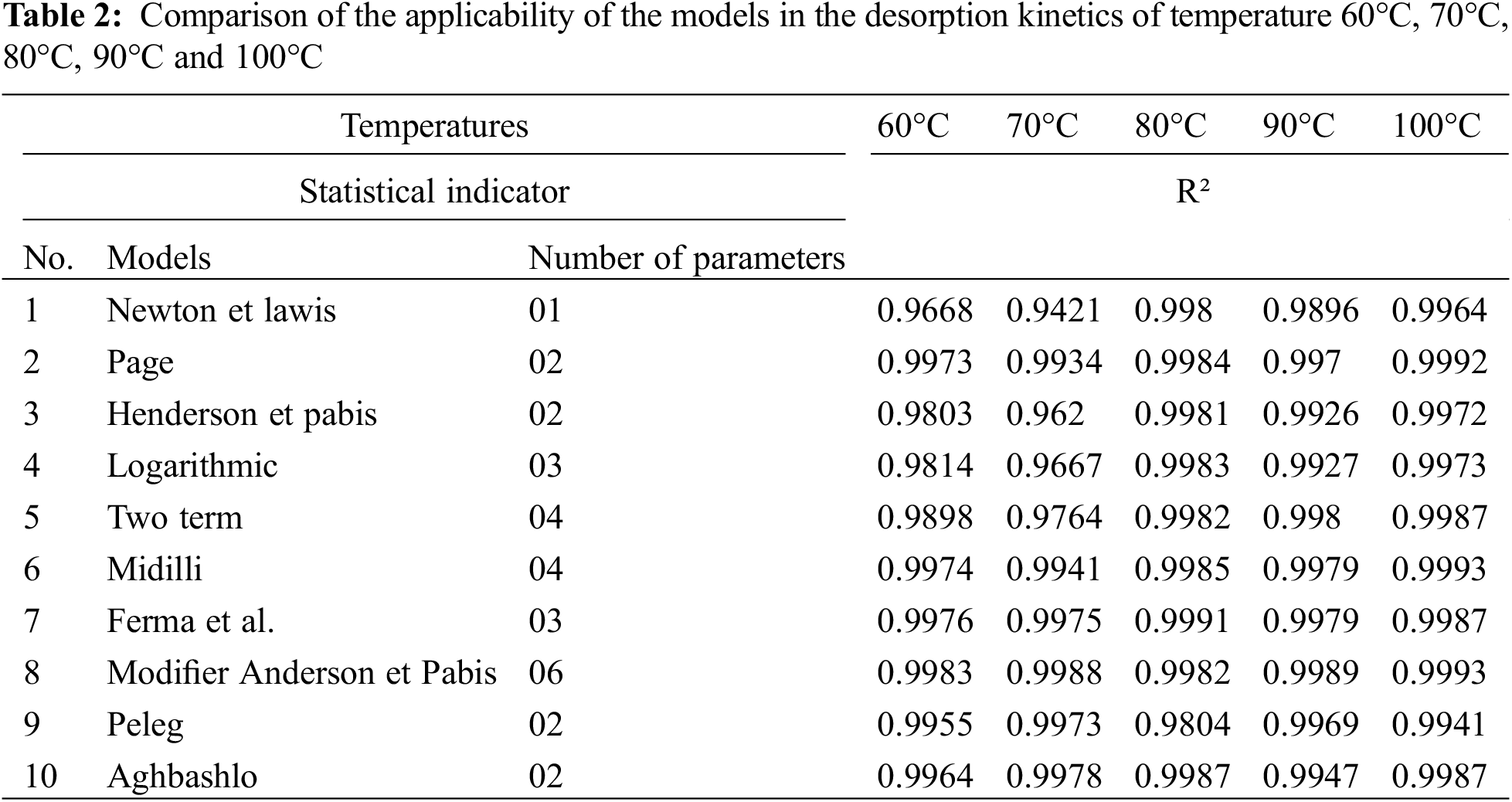

Desorption was performed at 60°C, 70°C, 80°C, 90°C and 100°C. The experimental results were compared with different mathematical models (Table 2) using Matlab software.
The model with the best correlation and lowest error can be selected from Table 3. It shows the average correlation coefficients of the different mathematical models.

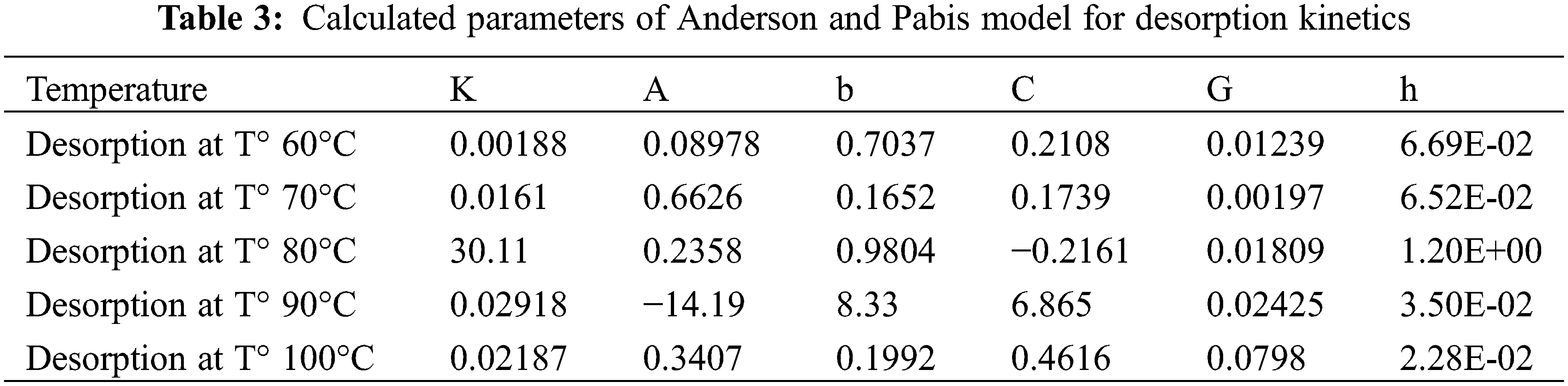

The Modifier Anderson and Pabis model with the best correlation for all temperatures was chosen to predict water desorption from exudates. The model equation is MR = a*exp(−k*t) +b*exp(−g*t) +c*exp(−h*t) (Fig. 4) with the parameters shown in Tables 2 and 3.
2.5 Preparation of Particleboard
The pure maritime pine (Pinus pinaster) tannin extract used as the resin was obtained from DRT (Derivés Résiniques et Terpeniques, Dax, France) was characterized previously .
Identical monolayer particleboards were prepared and tested using the following adhesive mixture: 100 g of pure maritime pine (Pinus pinaster) tannin was dissolved in water to give a concentration of 40% to 45% solids. The pH was corrected to 7.5 with a NaOH solution at a concentration of 33%. To this were added 10% Vachellia nilotica powder extract as a bio-hardener on the tannin solids. The adhesive mixture was applied at a level of 10%, by weight of the total solids content of the adhesive (tannin + exudate hardener) calculated on dry industrial pine wood chips. The wood chips had a moisture content of 2%. The particleboards were hot-pressed at 220°C for 7.5 min with a pressure cycle of 2.7 MPa/1.47 MPa/0.5 MPa min respectively (Table 6). All prepared panels were 350 × 350 × 14 mm3 in size. After cooling, each panel was conditioned at a temperature of 20°C and 65% relative humidity to reach an equilibrium moisture content of 12%, then cut and 5 samples of 50 × 50 mm for each panel was tested for internal bond strength (IB) in the dry state according to EN 319 . It is known that evidence of bonding performance is best measured in particleboard by measuring the internal bond strength (IB). IB strength was measured at a separation rate of 2 s per mm and according to EN 319 . Control panels using an industrial urea-formaldehyde (UF) resin (Georgia-Pacific LEAFC2 resin) with a urea/formaldehyde molar ratio of 1:1.08, a solids content of 66%, a viscosity at 20°C of 450 MPa.s, and a pH of 7.5, were also pressed under the same conditions with an IB = 0.40 MPa approximately. The adhesive was applied at the same level of total resin loading so that the results could be compared.
3 Results and Discussion
3.1 FTIR Analysis

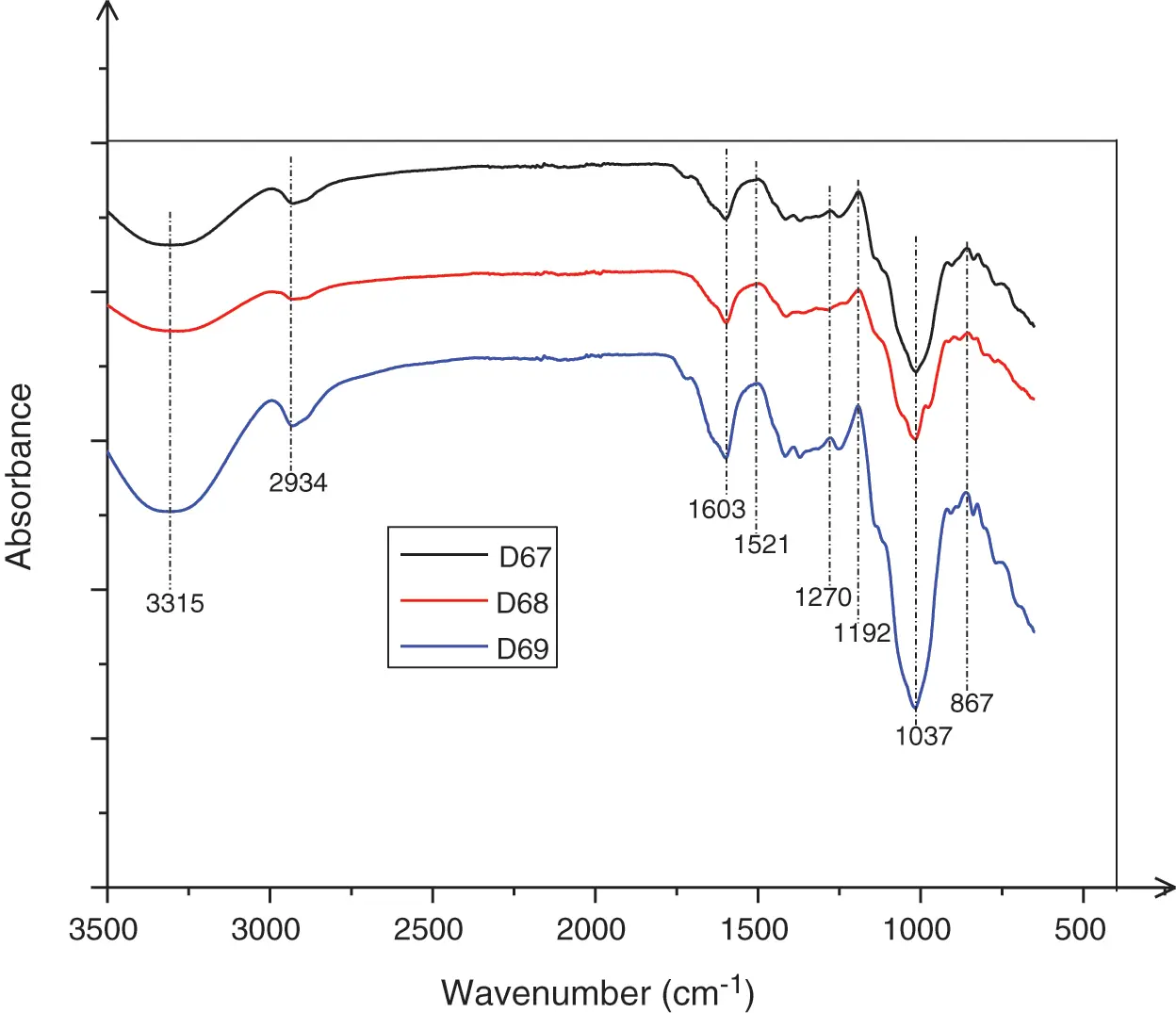

Fig. 1 shows the FTIR spectrum of the extracts of different exudates: Vachellia nilotica or Acacia Nilotica (D67 series), Vachellia seyal or Acacia Seyal (D68 series), and Senegalia senegal (D69 series) (3 samples of exudates) studied in the fingerprint range (3500–400 cm−1).

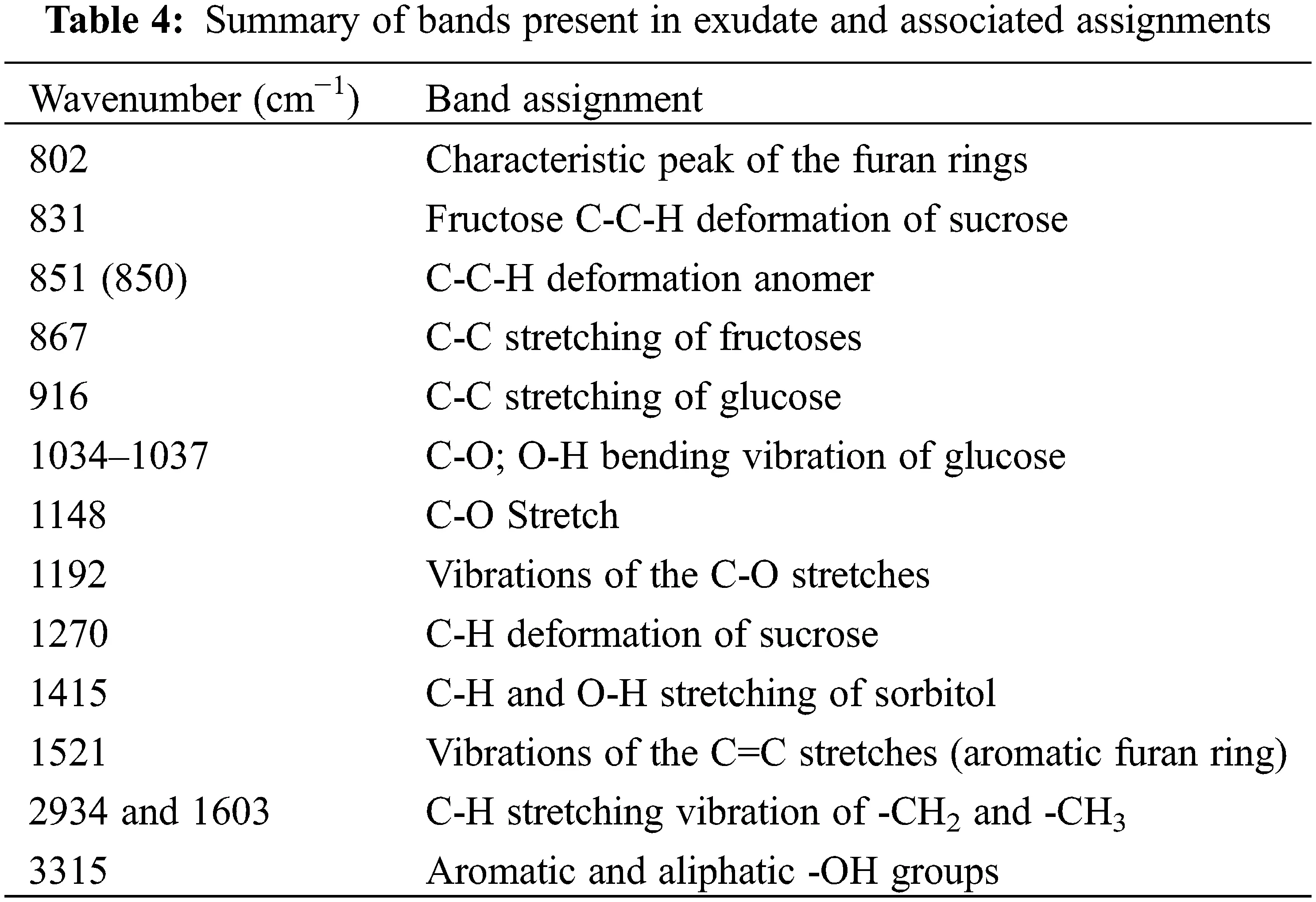

Fig. 1 and Table 4 show absorption peaks and wavenumbers of the functional groups present in the exudate extracts used as hardeners. These are listed in Table 3.
Thus, as with the spectra of all the curves in Fig. 4, the broad absorption band at 3315 cm−1, is attributed to the aromatic and aliphatic -OH groups characteristic of the FT-IR spectrum of exudates. There are two bands at 2934 cm−1 and 1603 cm−1, relative to the C-H stretching vibration of -CH2 and -CH3 . Moreover, the peaks at 1192; 1034; 1037, and 1148 cm−1 common to the spectra of the different exudate extracts are assigned to the C-O stretching vibration of the ether groups, and the peaks 1415; 1037 cm−1 correspond to the O-H bending vibration of the furans , the 802 and 1521 cm−1 peaks are characteristics of furan rings . The presence of elements of the sugar family has also been identified in these extracts. This presence is confirmed by the peaks at 916 and 851 cm−1 which are attributed to the stretching of sucrose and fructose (C-C) and the values of 831 and 851 cm−1 where the C-C-H deformation of hydroxymethylfurfural is affected. Thus, there are oligomers of different types all giving 5-hydroxy-2-hydroxymethylfuran and 2, 5-dihydroxymethylfuran (Fig. 2) which are then the true curing molecules . By comparing the spectra of the different exudates, we observe that they can be interchangeable. There are C=O absorption peaks at 1192 cm−1. During the curing process, these will continue to form ether bonds (C-O-C) or methylene bridges (-CH2-) thus improving the bonding.
3.2 Thermogravimetric Analysis

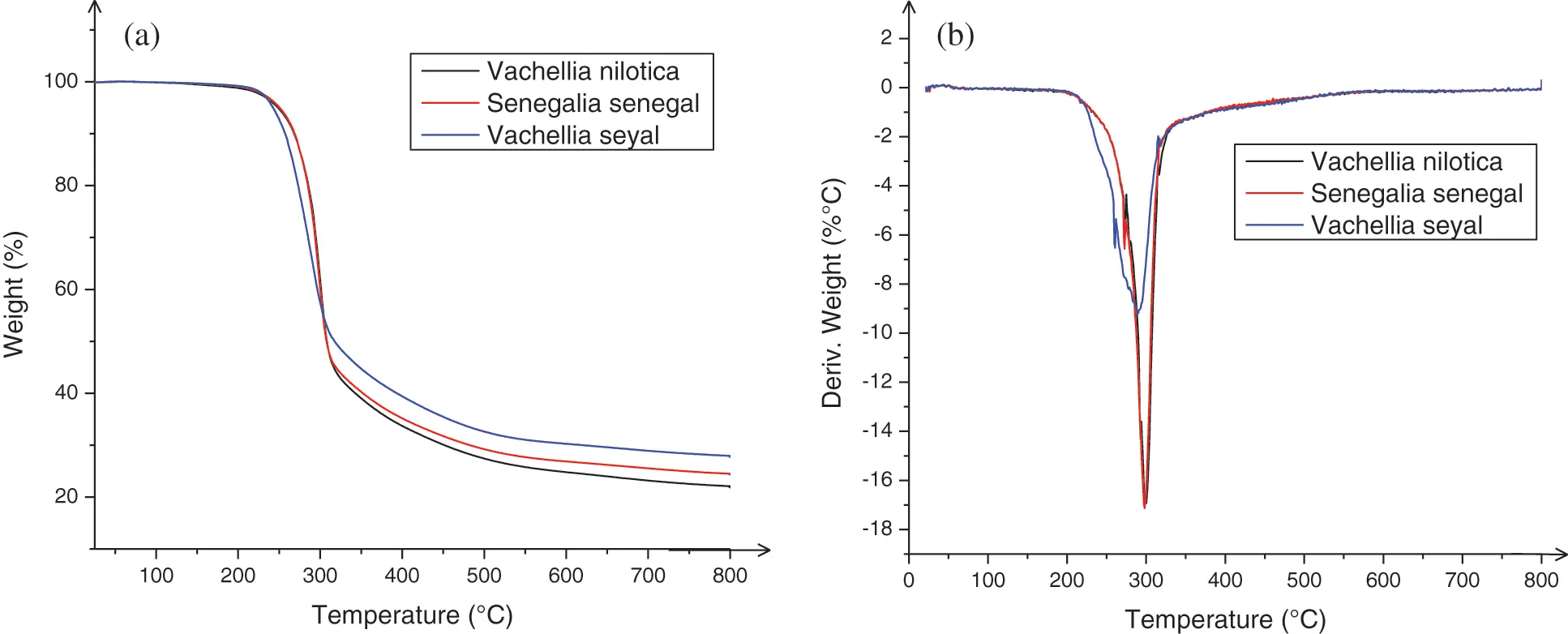

To evaluate the thermal stability of Vachellia nilotica; Senegalia senegal, and Vachellia seyal exudates, the thermogravimetric analysis (TGA) curves are presented in Fig. 3. The corresponding specific degradation temperatures and char yields at 799°C are listed in Table 5.
Similar three-step pyrolysis behavior of the exudates is observed in Fig. 3. The initial weight loss occurs in the temperature range of 25°C and 140, 170, 200°C for the exudate extracts of Vachellia nilotica, Senegalia senegal and Vachellia seyal respectively 25°C and 140, 170, 200°C for the exudate extracts of Vachellia nilotica, Senegalia senegal and Vachellia seyal, this being related to the release of volatilized absorbed water . For this region, the decomposition peak around 126°C is due to the degradation of the exudate extracts side chains . In this step, a weight loss of 0.29% occurred for the exudate of Vachellia nilotica, while a weight loss of 0.20% occurred for the exudates of Senegalia senegal and Vachellia seyal. The second range of weight loss is between 140°C and 520°C for Vachellia nilotica, between 170°C and 200°C showing 52.98% weight loss for exudates of Vachellia nilotica and Vachellia seyal, 45.37 weight loss for exudates of Senegalia senegal. The weight loss in this range is related to decomposition reactions by cleavage of intermolecular bonds; it is due to the decomposition of the rigid segments of the exudates on the one hand and a release of CO, CO2, and CH4 on the other hand. The third weight loss is the stage of exudate decomposition. This is the stage where the last weight loss occurs, which is greater than 30%. These results show that the exudates show similar weight losses at the pyrolysis temperature. Nevertheless, a slight difference exists in the residual mass at 799°C of the different types of exudates produced. The residual masses are of 22.1% for the exudate of Vachellia nilotica, 24.5% for the exudate of Senegalia senegal and 27.8% for the exudate of Vachellia seyal. The results show that the exudates have such high residues. On the one hand, this may mean that they have high flammability, a longer burning time, and higher burning intensity. On the other hand, it could be explained by their richness in secondary metabolites. Thermal stability has been observed at around 200°C.

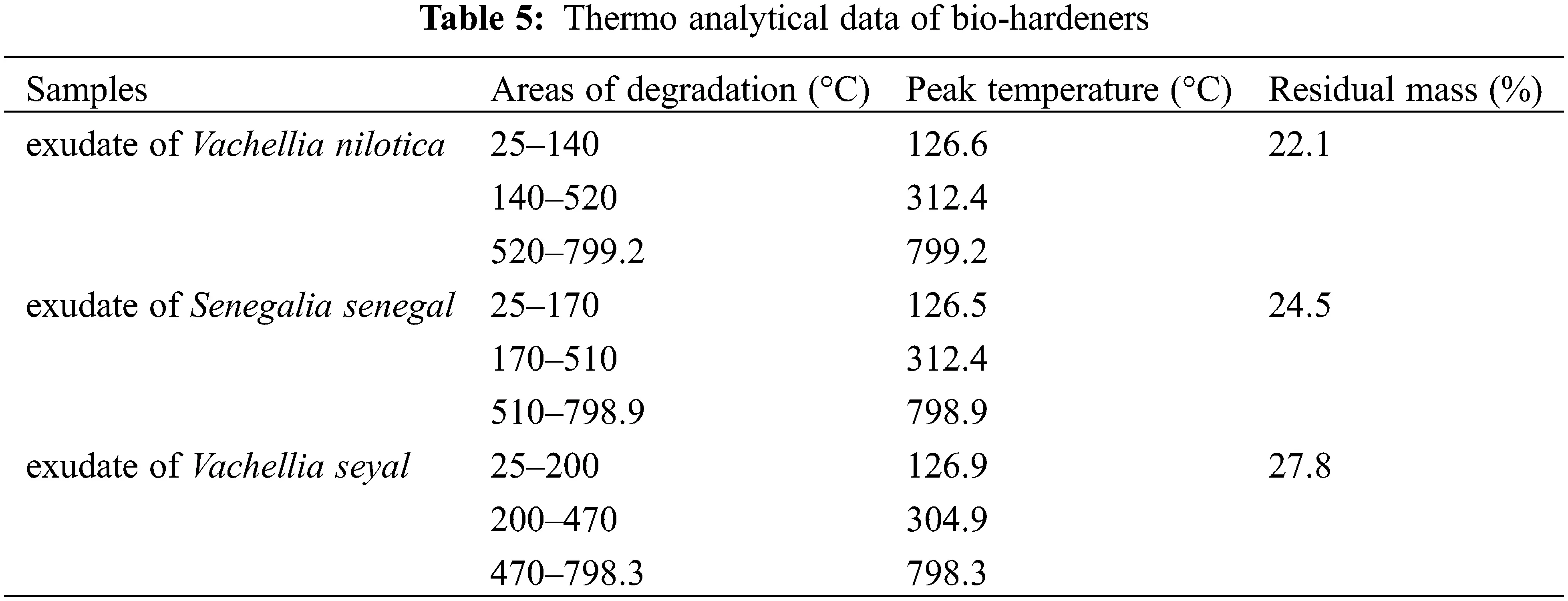

From the analysis of Table 5, the residue value shows that the exudate of Vachellia seyal lost less mass than the other two, followed respectively by the exudate of Senegalia senegal and Vachellia nilotica as follows (27.8 > 24.5 > 22.1%) The onset of decomposition of the biohardeners (25°C) is identical for all extracts; the thermal stability was observed around 200°C. The impurity of the compounds explains their strong decomposition. The pyrolysis curves of Vachellia nilotica exudate, Senegalia senegal exudate and Vachellia seyal exudate (Fig. 3) reveal that the major difference in the decomposition of these bio-hardeners is very small, which means that they can be superimposed on each other. The difference in decomposition observed in the temperature range of 300°C–750°C would be due to their thermal stability at high temperatures. Indeed, the chemical elements contained in these different bio hardeners such as fructose, sucrose, and furan (Table 3) with melting points of 103, 186, and −85.6°C respectively do not degrade in the same way at high temperature.
3.3 Desorption at 60°C, 70°C, 80°C, 90°C, and 100°C

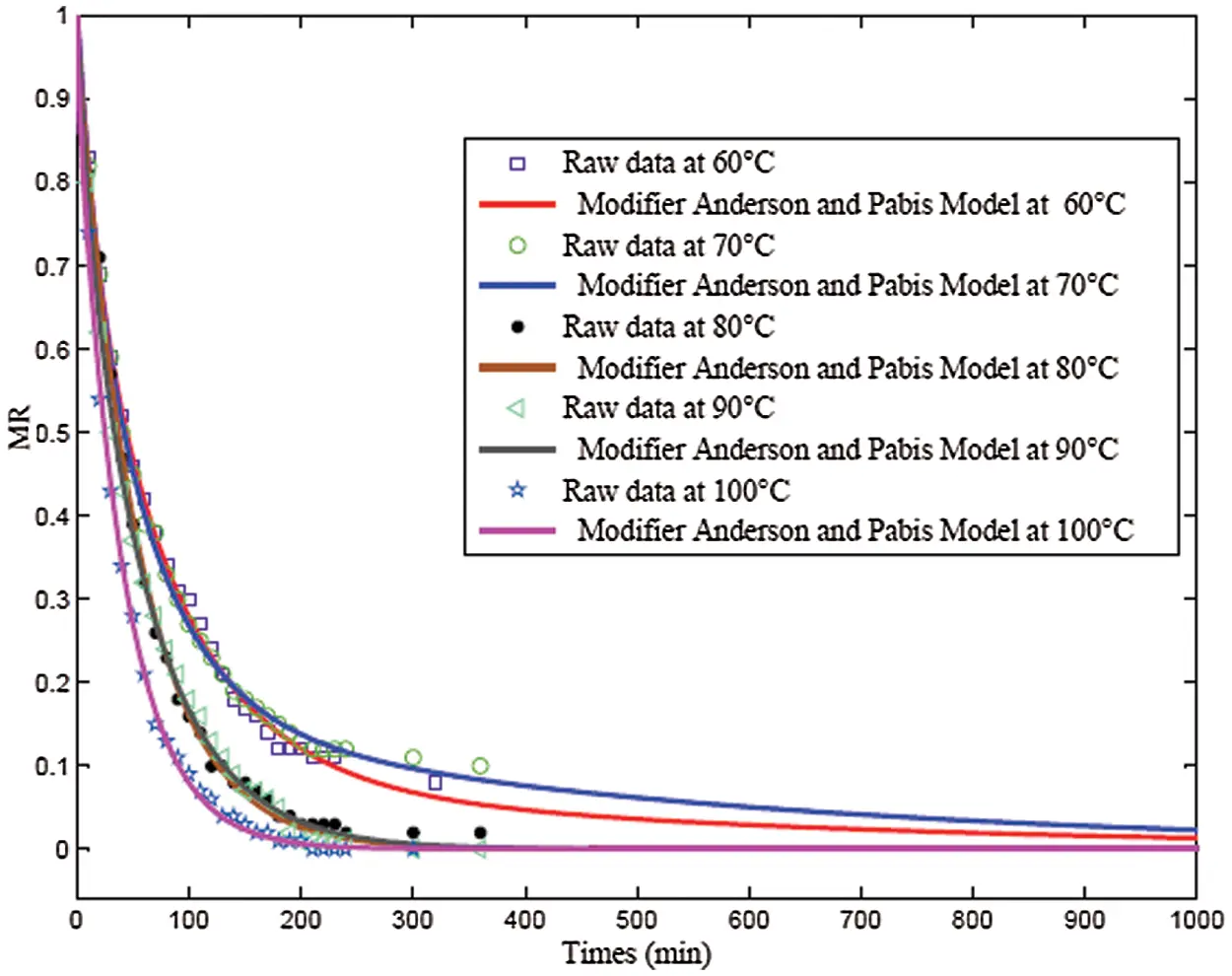

To predict the behavior of bio-hardeners both in the development of liquid-bonded composites and in the face of hydric environmental conditions and to harmonize their curing methods, the adopted Modifier Anderson and Pabis model were used to plotting and compare the desorption curves at 60°C, 70°C, 80°C 90°C and 100°C (Fig. 4). A similar evolution of MR is observed for the time interval from 0 to 30 min.
Beyond 30 min, the desorption kinetics at 60°C and 70°C became slower than those at 80°C, 90°C, and 100°C; the dry state was reached in 90 min for 100°C, in 100 min for temperatures 80°C and 100°C, and in 200 min at 60°C and 70°C. For the 80°C and 90°C kinetics, there was a trend toward stabilization around 180 min.
The study showed the thermal stability of the exudates for temperatures up to the boiling temperature of water of 100°C; the samples did not show any form of cracking or degradation. It is an advantage to use this bioresource as a bio-hardener to elaborate panel resins usable in furniture, in thermal insulation and acoustics, and as structuring materials. Thus, it is also possible to use it as aggregate for paints and anti-corrosives. Thus, it would be interesting to use it in the form of vessels or particles and the form of sand respectively for their use in wood composites and the manufacture of abrasives.
3.4 Comparative Bonding Test of Particleboard

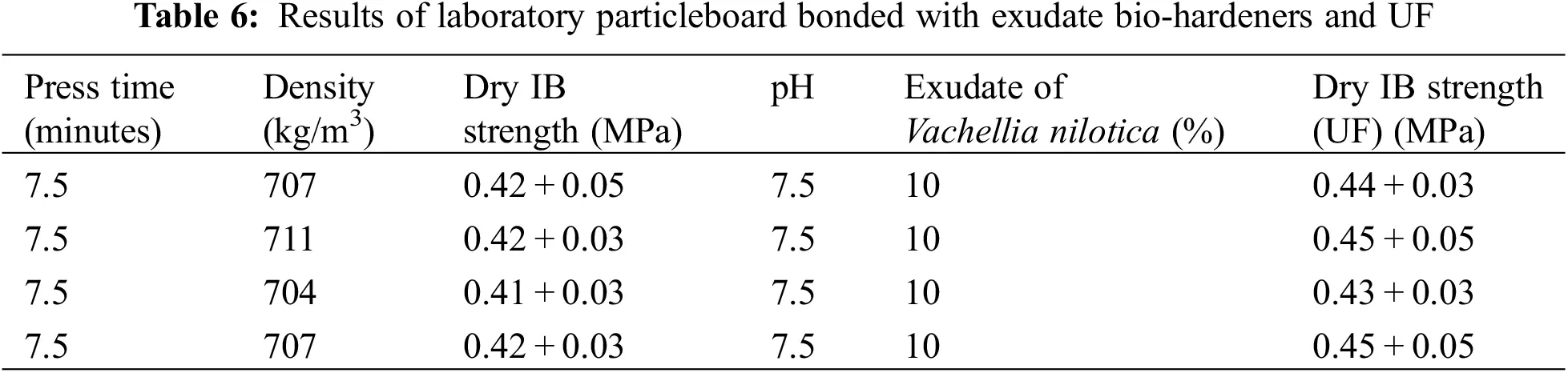

The encouraging dry IB strength values obtained for particleboard using the bio-hardeners (Table 6) indicate that these extracts are ideal for interior grade adhesives, along with those using paraformaldehyde as a synthetic hardener under the same conditions.
These results show that it is possible to manufacture fully bio-based panels using the exudate extract of the African trees Vachellia nilotica, Senegalia senegal, and Vachellia seyal bio-hardener. The mechanical characteristics of these panels comply with European standards.
The development of a multifunctional renewable product that can prevent pollution, resist mold and fire has become a major research topic for wood modification at present. In this paper, exudates of Vachellia nilotica, Senegalia senegal, and Vachellia seyal from Cameroonian renewable biomass were extracted for use as 100% bio-hardeners of tannin matrix particleboard for the wood industry in this study. The results showed that these bio-hardeners composed mainly of reactive species known as 2, 5-hydroxymethyl furan linked to carbohydrate oligomers:
– Represent a good future alternative for the wood industry, as the heat resistance of various species is encouraging. The biggest difference between these formulations occurs around 300°C.
– For the absorption kinetics, among the 10 models tested, the model Modifier Anderson and Pabis was the best mathematical model for the prediction of the phenomenon. The study kinetics study showed the thermal stability of exudates for temperatures up to 100°C.
– Particleboard using exudates as a biohardener showed satisfactory internal bond strength as particleboard that was cured with paraformaldehyde.
From all the results obtained, exudates are found to be very effective as fire retardants in case of fire. Therefore, this approach is applicable in practice.
