Preparation of Hollow-Porous Rosin-Based Polyurethane Microspheres with pH-Responsive Characteristics

Caili Yu, Hao Liu, Jintao Shao and Faai Zhang*

College of Chemistry and Biology Engineering, Guilin University of Technology, Guilin, 541004, China
*Corresponding Author: Faai Zhang. Email: zhangfaai@glut.edu.cn
Received: 01 May 2021; Accepted: 02 July 2021

Abstract: Preparation of polymer microspheres from naturally occurring resource is a challenge. Here, a rosin-based polyol (RAG) was used to prepare polyurethane resin (RPU) firstly, and then act as both self-assembled precursor and emulsifier, rosin based polyurethane microspheres (RPUMs) were prepared. In the process of self-emulsification, the RPU formed vesicles by self-assembly. The outer shell of the vesicle consisted of hydrophilic segments, while the inner shell contained the hydrophobic phase. After cross-linking the RPU and removal of the solvent in the core, the porous-hollow microspheres with pH-sensitive were obtained. The microspheres were characterized by optical microscope (OM), scanning electron microscopy (SEM) and transmission electron microscope (TEM). The effect of type and amount of the hydrophilic chain extender, and solvent on the morphology, particle size and distribution, and buffer volume of the microspheres were determined. The best conditions for synthetic RPUMs were as follows: nNCO/nOH = 1, nRAG:n1-(2-hydroxyethyl) piperazine = 4:6, with azodiisobutyronitrile level of 1.0 wt.%, based on reactive monomers, mixing speed of both emulsification and polymerization at 400 r·min−1, the RPUMs synthesized had porous-hollow structure with a buffer volume of 1.6 mL.

Keywords: Polyurethane microspheres; rosin-based; pH-responsive; hollow-porous

1  Introduction

In recent years, research on green renewable energy has become a global hot spot due to fossil fuel depletion and environmental pollution [1]. As a kind of renewable resources with great potential application, biomass is utilized to synthesize high value-added chemicals, making it as one of the important means to solve the global energy crisis [2]. Rosin is one of the most commonly used biomass with the advantages of abundance, low price, and easy modification. In addition, the characteristic hydrophenanthrene ring structure of rosin is similar to some cycloaliphatic and aromatic compounds, making its derivatives as potential substitutes for fossil-based compounds [3]. Unfortunately, up to date, researches of using rosin as raw material for preparation of valuable chemicals are generally unsatisfactory. There is a burning need to broaden its application field.

Polyurethanes (PUs) have been widely used in rigid foams [4], elastomers [5], adhesive [6], coatings [7] and biomaterials [8] due to their unique performance and various morphological structures. Among these morphologies studied, porous-hollow PU microspheres have recently aroused considerable interests. Previous studies has proved that porous-hollow microcapsules or microspheres show great potential for applications in the fields of adsorbents [9], tissues engineering [10], drug diagnosis [11], environmental protection [12], etc., owing to their high specific area, good flow ability and surface permeability. In current practice, electrospraying [13] and template-assisted technique [14] are main methods to synthesize porous-hollow PU microspheres. However, these methods require multi-step preparation procedures. Therefore, developing a novel and facile method to prepare porous-hollow PU microspheres are highly desired.

Intelligent materials perform self-regulating behavior under the stimulation of pH [15,16], temperature [17], light [18], etc., have drawn much attention in material science, tissue engineering and drug delivery systems [19]. It is well known that different parts of the human body have different pH values [20]. Thus, pH-sensitive materials can adjust their structure and conformation by ionizing functional groups through the process of ionization and deionization. For example, tumors or inflammation areas in the human body are often accompanied by acidosis, which could be employed as a target for pH-sensitive administration [21].

The development of intelligent materials has become the focus in the world. In order to widen the application field of RPU and improve the added value of rosin, a new type of functional PU based on rosin was developed. Then, rosin-based PU microspheres (RPUMs) are prepared using the RPU as both self-assembled precursor and emulsifier. More precisely, in the process of self-emulsification, the RPU forms vesicles by self-assembly. The outer shell of the vesicle consists of the ordered arrangement of hydrophilic segments, while the inner shell consists of the hydrophobic phase (e.g., hydrophobic segments, inert solvent). After cross-linking the RPU and removal of the solvent in the core, the porous-hollow microspheres with pH-sensitive are obtained.

2  Materials and Methods

2.1 Materials

An ester of acrylic rosin and glycidyl methacrylate (RAG, 97%, acid value: 4 mgKOH/g, hydroxyl value: 170 mgKOH/g) was made by our laboratory according to literature [12]. Hexamethylene diisocyanate (HDI, 99%) and methyldiethanolamine (MDEA, 99%) were purchased from Aladdin industrial corporation. Acetone, hydrochloric acid, sodium hydroxide, di-n-butylamine, dibutyltin dilaurate (DBTDL) and azodiisobutyronitrile (AIBN) were purchased from Xilong Scientific Co. (Shantou, China) Butyldiethanolamine (BDEA, 98%), bis-1, 4-(2-hydroxyethyl) piperazine (BHEP, 98%), 1-(2-hydroxyethyl) piperazine (HEP, 98%), carbon tetrachloride (CCl4) and butyl alcohol (NBA) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China) Toluene and N, N-dimthylformamide (DMF) were obtained from Guangdong Xilong Chemical Co., Ltd., Shantou, China.

2.2 Methods

The RAG (in toluene) and DBTDL (0.5 wt.% of reactive monomer) were mixed firstly. A three-necked flask containing the reaction mixture, fitted with a stirrer, a reflux condenser, and a nitrogen inlet, was heated to 55oC. Next, HDI was introduced into the system for the reaction. When RAG reacted with HDI for 2 h, the-NCO content was reduced to the theoretical value (~3%, according to acetone-di-n-butylamine method), a chain extender (nRAG+chain extender:nHDI=1:1) was added. When the-NCO content dropped to zero, the system was cooled down to 25oC with ice water. Subsequently, acetic acid was added as a neutralizer under stirring for 15 min. The rosin-based PU (RPU) in toluene was obtained.

At room temperature, a designed amount of RPU solution and an initiator AIBN (1 wt.% of reactive monomer) were mixed uniformly using ultrasonicator. Then, the mixed solution was added to a three-necked flask containing 60 mL of distilled water and heated to 80oC under N2 protection for 3 h. After centrifugation the mixture at 3000 r·min−1 for 15 min, washing with distilled water, secondary centrifugation and vacuum drying, the RPUMs were obtained.

Fourier transform infrared (FTIR) spectrum of RPUMs was recorded on an American Thermo scientific IS10 Fourier Transform Infrared Spectrometer in the range of 400–4,000 cm−1. After vacuum drying, the samples were mixed with KBr and tabletted. The morphologies of the RPUMs were observed with optical microscope (OM) (DMXRP, Germany). The surface morphology of RPUMs (80~260 mesh) was analyzed by using Japanese Electron Company JSM-6380LV scanning electron microscope. The internal structure of the microspheres (80~260 mesh) was observed by Japanese high-Tech Company JEM-2100F field emission transmission electron microscope.

The particle diameters of RPUMs were determined by image analysis using Nano measurer (DMXRP, Germany), which selected 100 microspheres from optical microscope photos. The particle size and particle distribution index (PDI) of the microspheres were calculated as follows:

Dn=i=1ndi/n (1)

Dw=i=1ndi4/indi3 (2)

PDI=Dw/Dn (3)

where Dn is the number average particle size/μm; Dw is the weight average particle size/μm; n is the number of microspheres measured.

The pH response behavior of the microspheres was determined by acid-base titration. RPUMs suspension in water (2 mg/mL) was prepared after adjusting pH = 2 by HCl and stirring for 30 h. Titrations were carried out by stepwise addition of 500 μL of NaOH (0.05 mol/L) with 3 min interval for equilibrium each time. The pH value was checked by a pH meter (PHS Type, Shanghai Electronic Science Instrument Co., Shanghai, China). The buffer capacity of RPUMs was calculated from the titration curves. The ionization degree (α) of the amino groups in the RPUMs was calculated through Eqs. (4) and (5) [22].

ΔVNaOH=V2V1 (4)

α=[basic][OH]+[H+]CNH (5)

where V1 is the NaOH consumption volume corresponding to the first mutation point, V2 is the NaOH consumption volume corresponding to the second mutation point; [basic], [OH ] and [H+ ] are the molar concentrations of the added NaOH for titration, free hydroxide ion and hydrogen ion, respectively, and CNH is the total molar concentration of the amino groups in RPUMs. The pH value at α = 0.5 is considered as the apparent dissociation constant pKa of PUs.

3  Results and Discussion

3.1 Effect of Hydrophilic Chain Extenders on the Properties of Microspheres

When the porogen was fixed as toluene, with the solid content of RPU (in toluene solution) of 25%, nRAG:nchain extender = 4:6, stirring speed for both polymerization and emulsification were 400 r·min−1 and reaction temperature at 80°C, different types of hydrophilic chain extender (Fig. 1) were used to prepare the RPUMs, and their effects on the particle size, PDI, and dissociative parameters of the RPUMs are shown in Tables 1 and 2, the optical microscope photographs and pH sensitivity of the RPUMs are presented in Figs. 2 and 3, respectively.

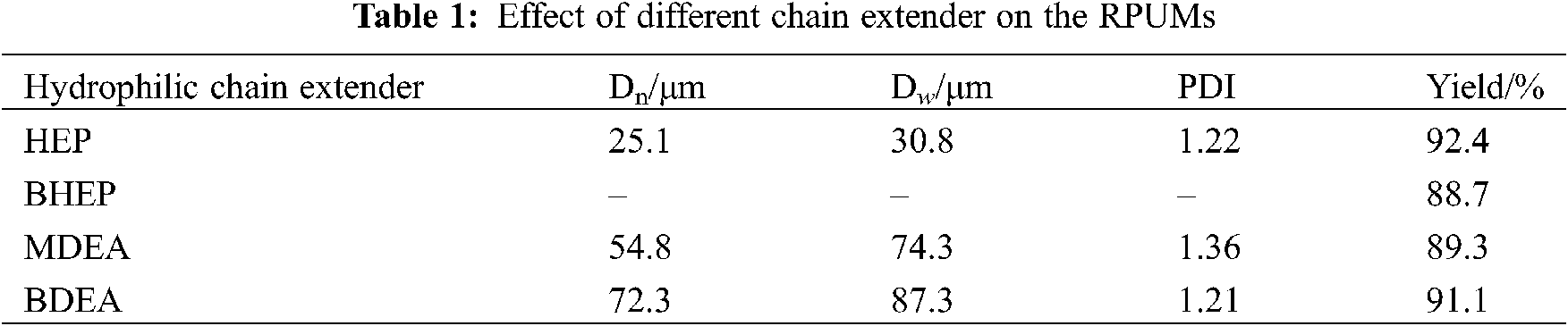

It can be seen from Fig. 2 and Table 1 that the average particle sizes of the RPUMs are large when the hydrophilic chain extenders are MDEA and BDEA, and some of the microspheres are broken to certain degrees. However, the microspheres from BHEP as hydrophilic chain extender are not spherical and broken into irregular blocks. The main reason is that the oil-in-water emulsion formed by self-emulsification is based on hydrophilic segment in RPU as outer shell, and hydrophobic segment as inner sphere shell, toluene as core. The size of the emulsion is positively related to the self-emulsifying ability of the RPU. When the RPU is neutralized by acetic acid, the tertiary amine groups in the chain combine H+ with the ionized CH3COO to form a double electric layer. The stronger the ability of tertiary amine group to bind H+, the higher the concentration of ionized CH3COO, the thicker the electric double layer, the stronger the hydrophilic ability of RPU. HEP and BHEP have stronger hydrophilic ability than MEDA and BDEA. In the case, the resistance of self-emulsifying and phase inversion is small, thus the oil phase is easier to be dispersed in the water phase, smaller particle size formed [23].

images

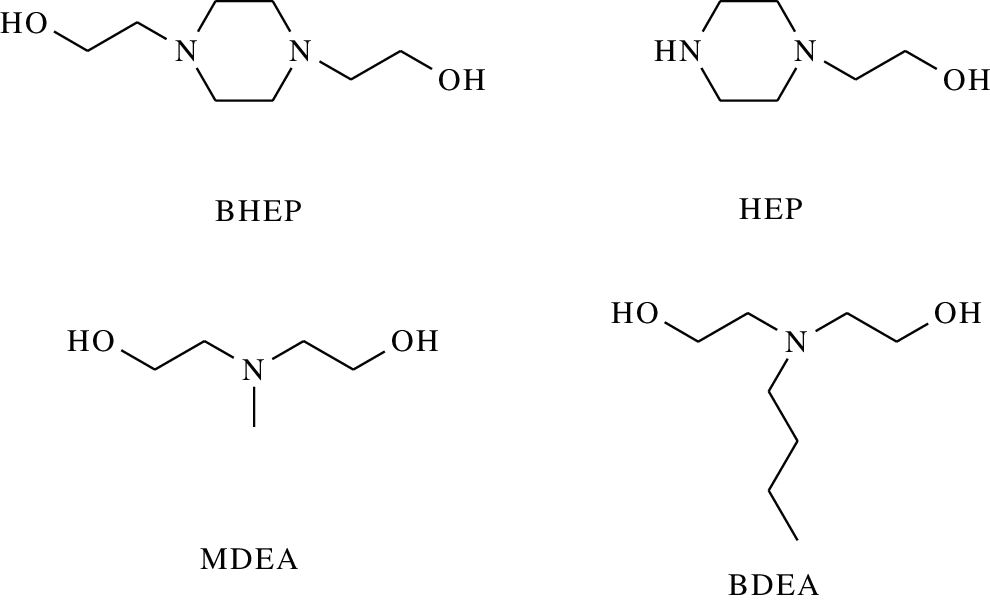

Figure 1: Molecular formula of hydrophilic chain extender

images

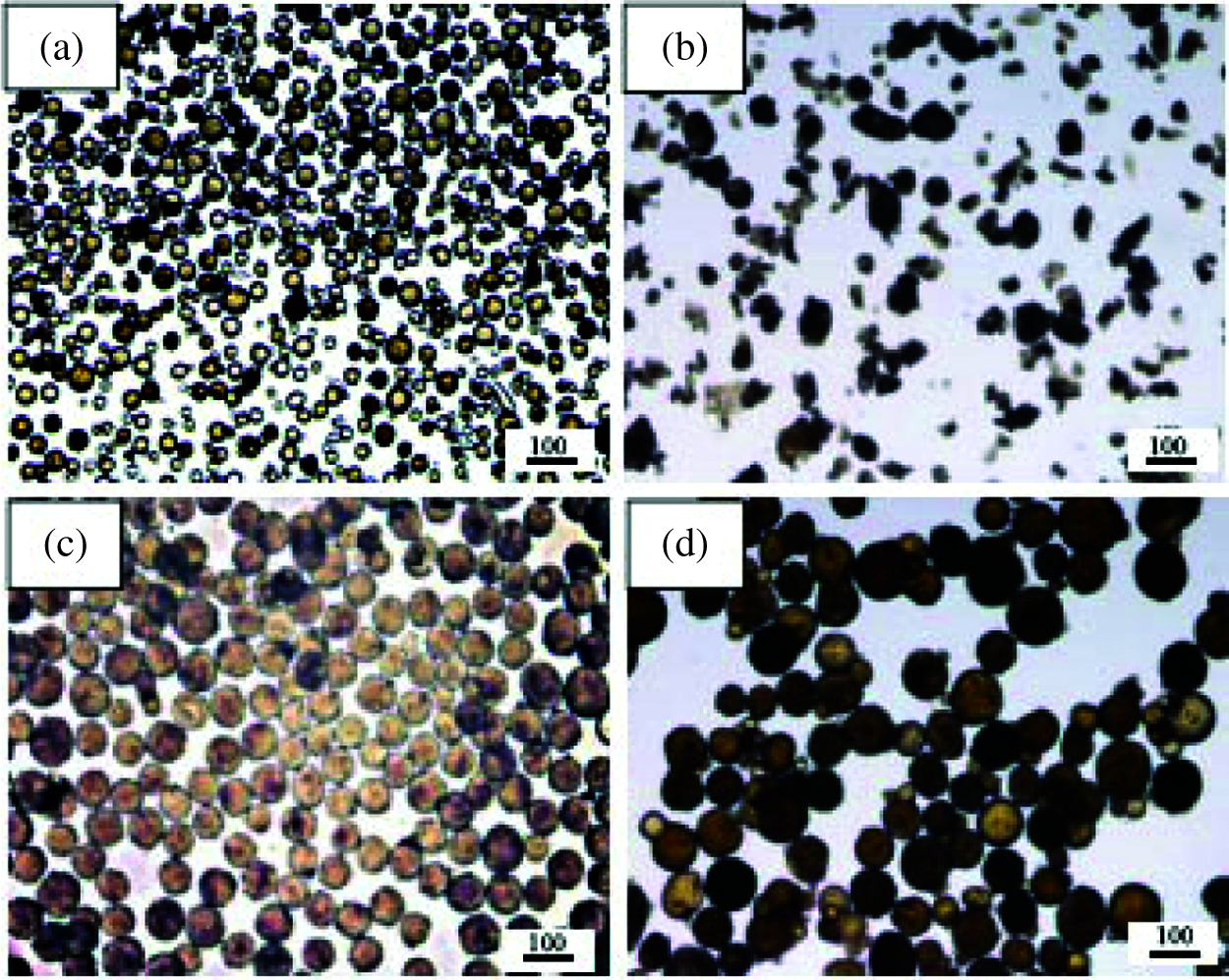

Figure 2: Optical microscope photos of the RPUMs with different hydrophilic chain extender (a: HEP; b: BHEP; c: MDEA; d: BDEA)

images

In addition, the molecular structures of MDEA and BDEA are flexible chains with strong molecular mobility. During the polymerization process, toluene continuously volatilizes out of the shell to form a cavity. At the same time, due to the combined action of collision between latex particles, it is difficult to maintain the shape of the shell layer of the microspheres with insufficient rigidity, resulting in depression and collapse of the microspheres. HEP contains six-membered alicyclic structure, compared with the chain structure of MDEA and BDEA, it has stronger rigidity and can confine the thermodynamic movement of the chain segment. In the process of spheroidization, HEP can alleviate the shell of microspheres from depressing or broken due to solvent volatilization and collision between microspheres, and maintain relatively good spherical shape. The molecular structure of BHEP is highly symmetrical, with good regularity of hard segment, strong rigidity, and difficult to be emulsified into spheres. Among the four types of hydrophilic monomers, the protonation ability of BHEP per unit volume is the strongest, and it is easy to be swelled after the formation of microspheres. With the further volatilization and diffusion of toluene from the spherical core, the cavity expands further and the swelling effect intensifies, so it is difficult to get a better spherical shape.

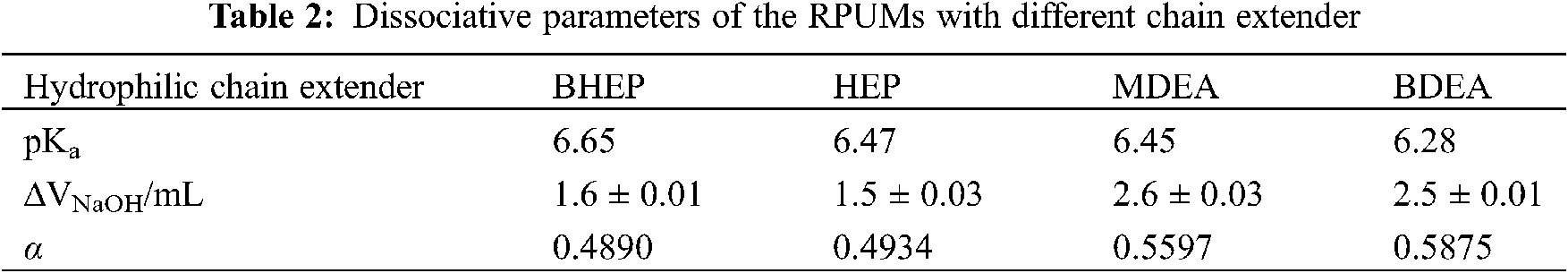

As can be seen from Fig. 3 and Table 2 that there are buffer platforms near pH = 6~7 for the microspheres with four chain extenders, and the dissociation constant pKa from large to small is BHEP, HEP, MDEA, BDEA, and the dissociation degree α for MDEA and BDEA is higher than that of HEP and BHEP. From the molecular structure of hydrophilic chain extender in Fig. 1, there are two tertiary amine groups in the structure of BHEP, and one tertiary amine group and one secondary amine group for HEP, and only one tertiary amine group in MDEA and BDEA. The longer -N side chain in BDEA lead to higher electron cloud density and stronger electron donating effect. The tertiary amine shows weaker binding ability to H+, and forms unstable –NH+. The stronger the binding ability of hydrophilic chain extender to H+, the weaker the acidity of –NH+ as proton donor, the lower the Ka and the higher the pKa.

images

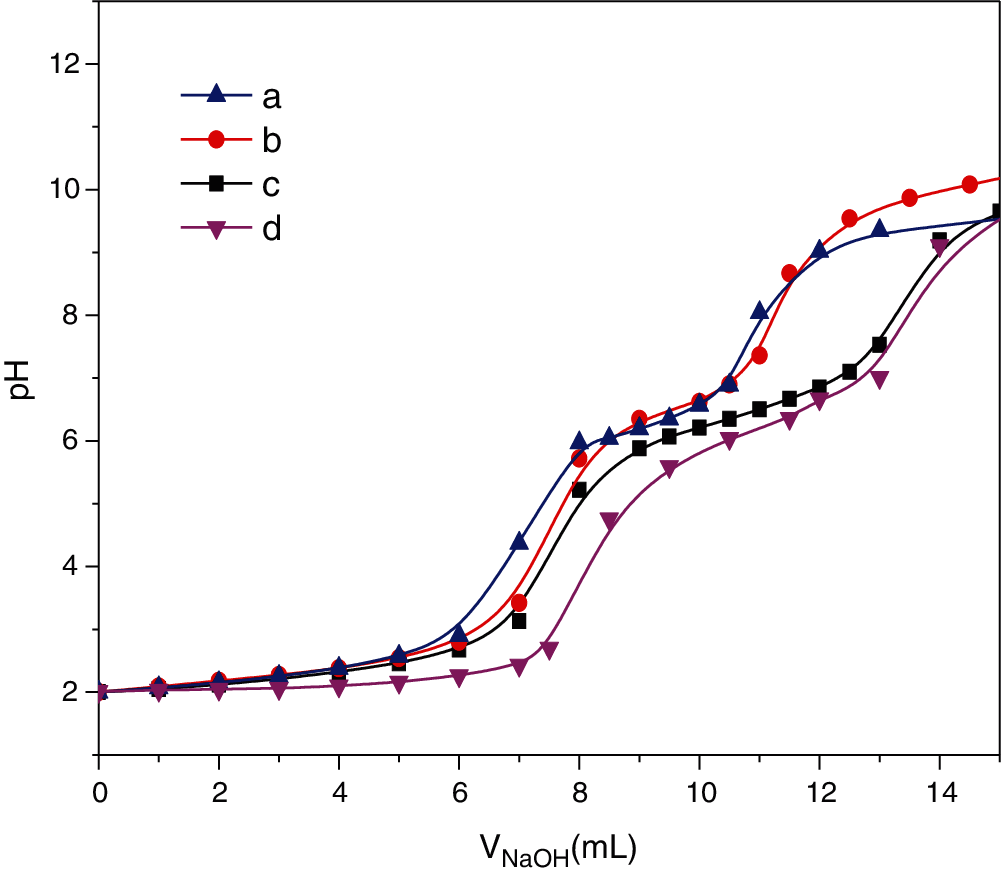

Figure 3: Effect of different hydrophilic chain extender on the pH sensitivity of the RPUMs (a: HEP; b: BHEP; c: MDEA; d: BDEA)

images

It can be seen from Table 2 that the α value of HEP is higher than that of BHEP. Although their molecular structures are similar, the urea group is formed after HEP is introduced into the PU chain segment. In the case, the electron cloud on the tertiary amine group in the urea group is shifted due to the electron-withdrawing effect of carbonyl group and p−π conjugation effect, so it is not easy to be combined with the empty orbit on H+ to produce protonation, and −NH+ combined with H+ is more prone to produce deprotonation effect. The dissociation ability and dissociation degree of −NH+ in RPUMs are enhanced, but the buffer volume of RPUMs with HEP is smaller than that of BHEP. Similarly, MDEA and BDEA have stronger deprotonation ability, and −NH+ obtained by combining tertiary amine with H+ has stronger dissociation ability. Therefore, the concentration of tertiary amine in RPUMs is low, and the final dissociation degree increases. Considering their small sizes, high strengths, and buffering capacities of the microspheres, HEP was selected as the chain extender for the following experiments.

3.2 Effect of Hydrophilic Chain Extender Amount on Properties of Microspheres

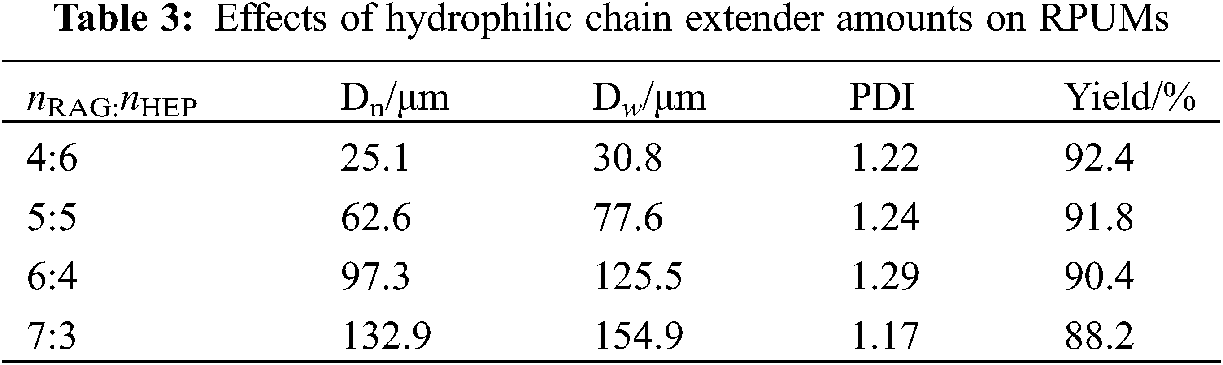

At the solid content of RPU solution of 25%, the effects of hydrophilic chain extender ratios, nRAG/nHEP on the performance of RPUMs were studied, and the results are shown in Tables 3 and 4, Figs. 4 and 5. It can be seen from Table 3 and Fig. 4 that RPUMs have a better spherical shape. As the amount of hydrophilic chain extender HEP decreases, the particle size of the obtained microspheres increases with less regular spherical shape and rough surface of the microspheres, and the yield gradually decreases. As the proportion of hydrophilic segments in the RPU molecule decreases, the resistance to the formation of the oil-in-water emulsion increases, and the particle size of the latex particles gradually increases.

images

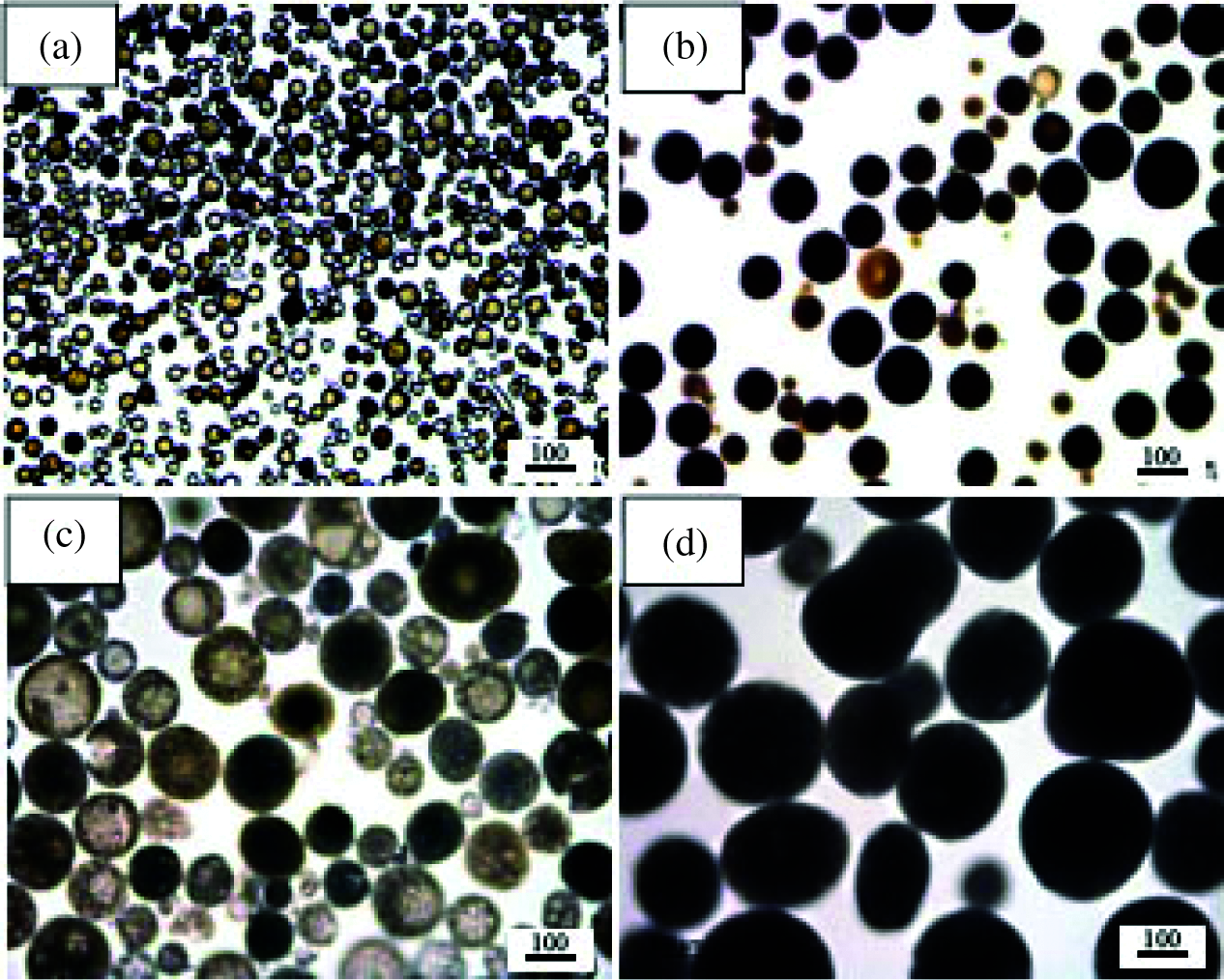

Figure 4: Optical microscope of RPUMs with different amounts of hydrophilic chain extender (n RAG: n HEP, a: 4:6; b: 5:5; c: 6:4; d: 7:3)

images

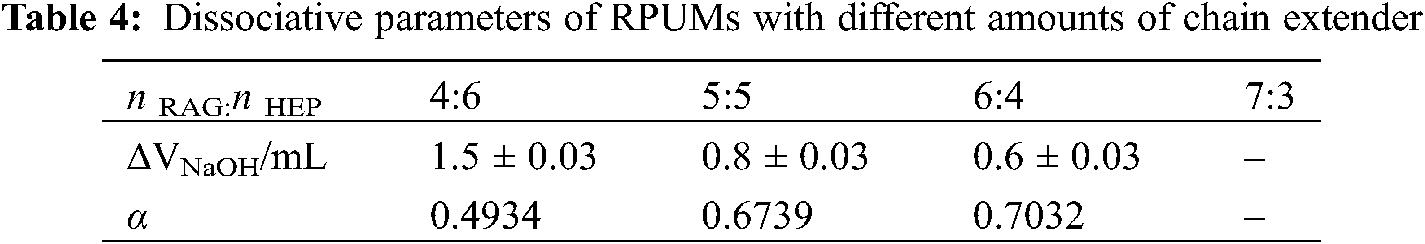

As can be seen from Fig. 5 and Table 4, when nRAG:nHEP are 4:6, 5: 5 and 6:4, the buffer platform appears, and as the HEP content decreases, the steps gradually become steeper, the amount of NaOH was reduced from 1.5 mL to 0.6 mL. The main reason was that the emergence of the platform in the first stage of the acid-base titration curve was the neutralization of HCl with NaOH, and the platform in the second stage was −NH+ deprotonation to form a buffer. Under this system, the buffering capacity of RPUMs was proportional to the −NH+ dissociation degree. Therefore, the dissociation capacity and molar concentration of −NH+ were the main factors affecting the dissociation degree. Thus, with the amount of HEP decreases, the relative content of hydrophilic segments per unit volume decreases, the molar concentration of −NH+ decreases, and the deprotonation process of −NH+ gradually overlaps with the neutralization reaction of strong acids and bases in the first stage.

images

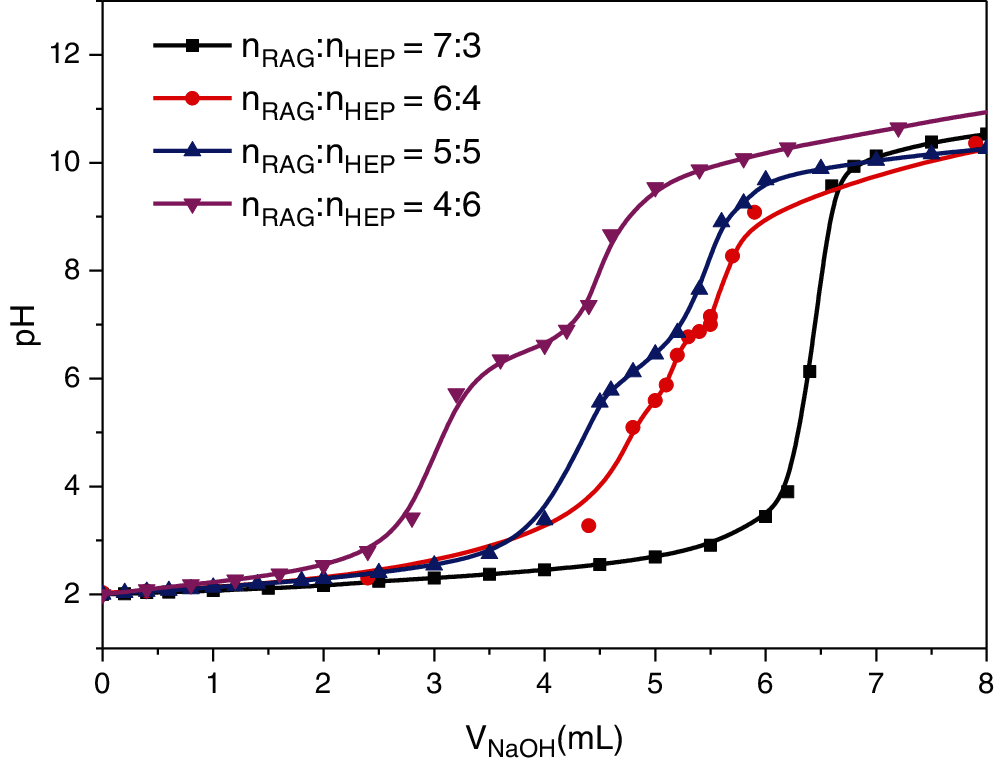

Figure 5: Effect of different amounts of hydrophilic chain extender on the pH sensitivity of RPUMs

images

3.3 Effect of Solvent Types on the Properties of RPUMs

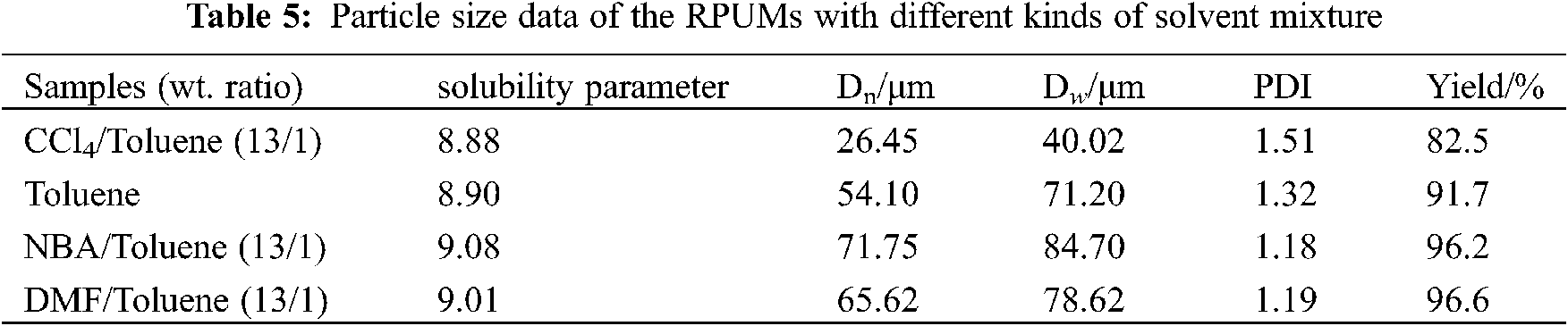

At the solid content of RPU solution was 30 %, nRAG:nHEP = 4:6, the effect of solvent mixtures on the performance of RPUMs was investigated. It can be seen from Table 5 and Fig. 6 that the RPUMs prepared by different kinds of solvents are all spherical. There had some polymer fragments and relatively low yields when the CCl4/toluene and pure toluene are used as solvent. The main reason may be that, CCl4 and toluene are non-polar solvents with low solubility parameters and poor compatibility with the more polar RPU molecular chain. Under the condition, the system displayed a non-uniform two-phase, and resultant RPU exhibited different emulsification degrees in the water phase, leading to the microspheres with large PDI value and poor mono-dispersity.

images

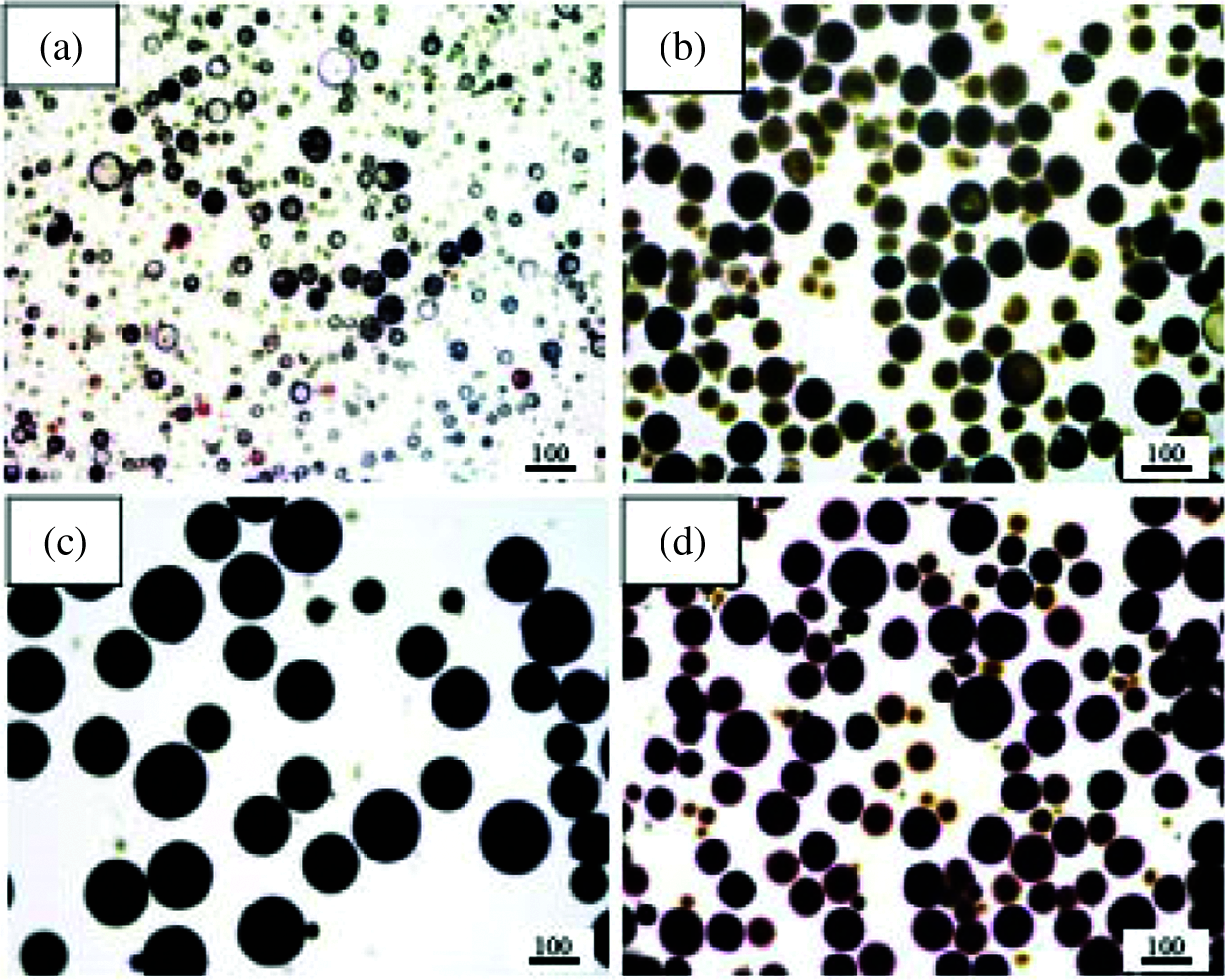

Figure 6: Optical microscope of RPUMs with different solvents (a: CCl4/Toluene; b: Toluene; c: NBA /Toluene; d: DMF/Toluene)

In addition, the boiling point of CCl4 is 76oC, which is slightly lower than the polymerization temperature (80oC). The microspheres could be damaged during the polymerization reaction due to CCl4 and toluene dispersed in the spherical cavity, continuously migrated from the inside to the outside, and the yield was relatively low. However, as the polarity of the mixed solvent increases, the solubility parameter increases, thus the compatibility of the solvent and RPU improved. In the case, the RPU can be dissolved in the solvent to form a homogeneous phase, and the vesicles obtained after emulsification are more uniform. As the good solvent was added, the RPU segment was more stretched in the medium, resulting in the looser and swelled latex particle, the microspheres particle size increased.

images

images

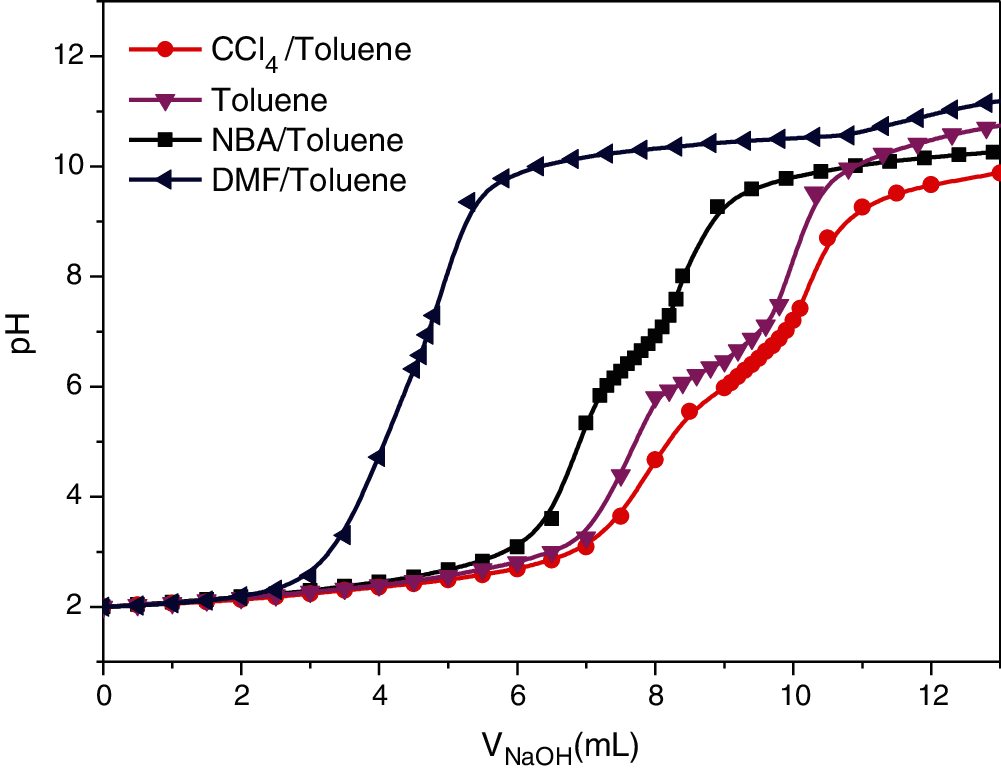

Figure 7: Effect of different kinds of solvent on the pH sensitivity of RPUMs

images

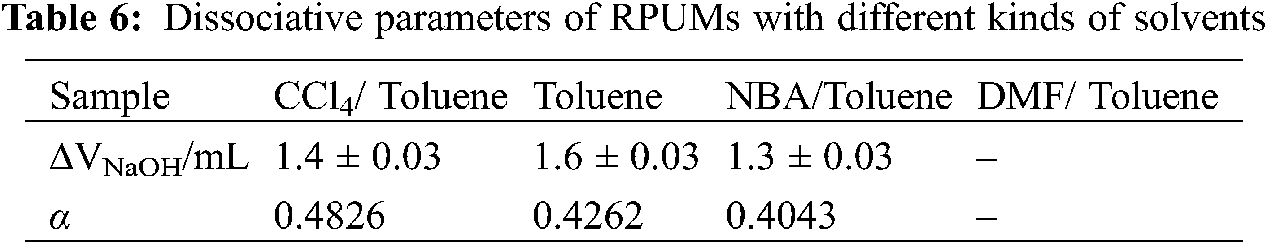

It can be seen from Fig. 7 and Table 6 that the RPUMs with DMF/toluene mixture as pore-forming agent shows no obvious buffering platform. However, when the pore-forming agent is NBA/toluene, toluene or CCl4/toluene, the resultant RPUMs all show certain amount of buffering capacity, from 1.3 to 1.6 mL. The results showed that the protonation and deprotonation ability of −NH+ of RPUMs synthesized under different kinds of porogens were different. In the process of RPUMs forming, RPU was used as self-emulsifier to wrap the mixed solvent, and also as monomer to solidify the microspheres shell by polymerizing and cross-linking of the double bonds. In the end, the solvent was removed from the microspheres by solvent volatilization to realize the porosity. Therefore, the number of pores in the microspheres directly affects the diffusion of H+ in the microspheres, and then affects the amount of the protonated tertiary amine. When the pore-forming agent was DMF/toluene, the resultant microspheres were solid, due to the difficult diffusion of H+ in the microspheres, resulting in the relatively small amount of −NH+ formed by the protonation of tertiary amine, so the microspheres had poor buffering performance. In contrast, when the pore-forming agent was CCl4/toluene, toluene and NBA/toluene, the resultant microspheres were hollow, and the spherical shell contained a large number of pores with high specific area. After protonation, the concentration of −NH+ in the spherical shells was high, and the microspheres had good buffering performance.

3.4 FTIR Spectrum Analysis

The infrared spectrum of RPUMs is shown in Fig. 8. The stretching vibration peak at 3387 cm−1 is attributed to −NH, the peaks at 2934 and 2863 cm−1 are attributed to −CH2 and −CH3−, respectively; the peak at 1725 cm−1 is carbonyl C=O, whereas the peak at 1533 cm−1 is from deformation vibration of secondary amide N−H. At the same time, the −CH2− plane vibration absorption peak at 771 cm−1 of the original double bond is enhanced, indicating that RPUMs were successfully prepared by radical polymerization of RPU.

images

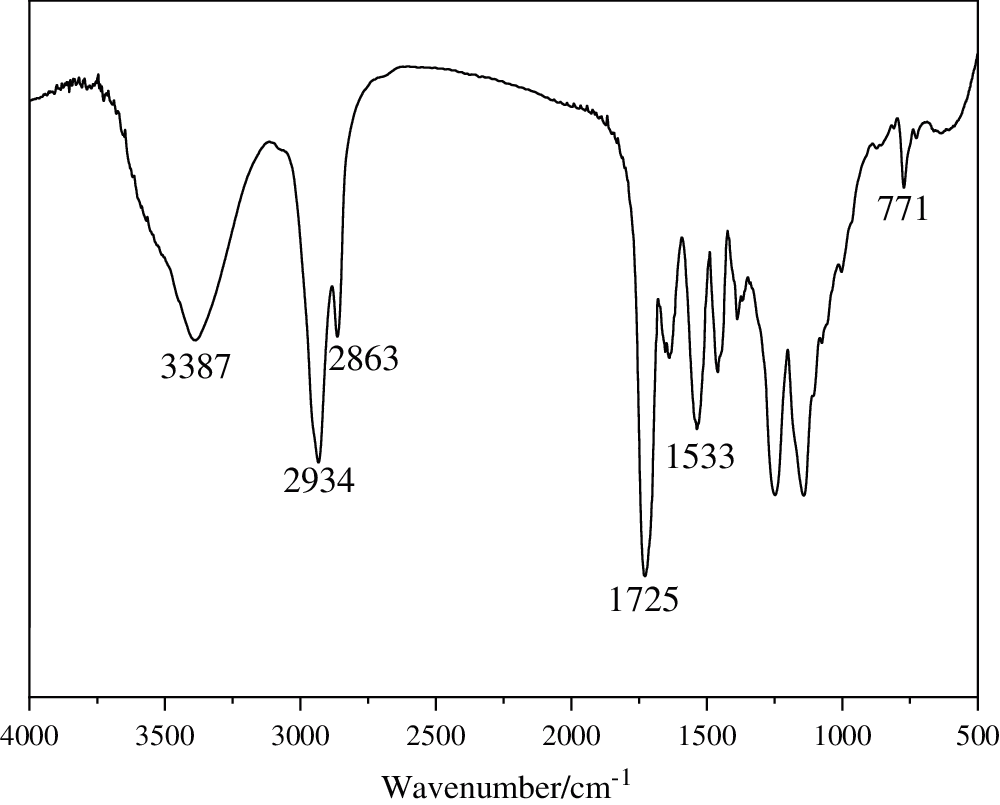

Figure 8: The FTIR spectrum of RPUMs

3.5 SEM Analysis

images

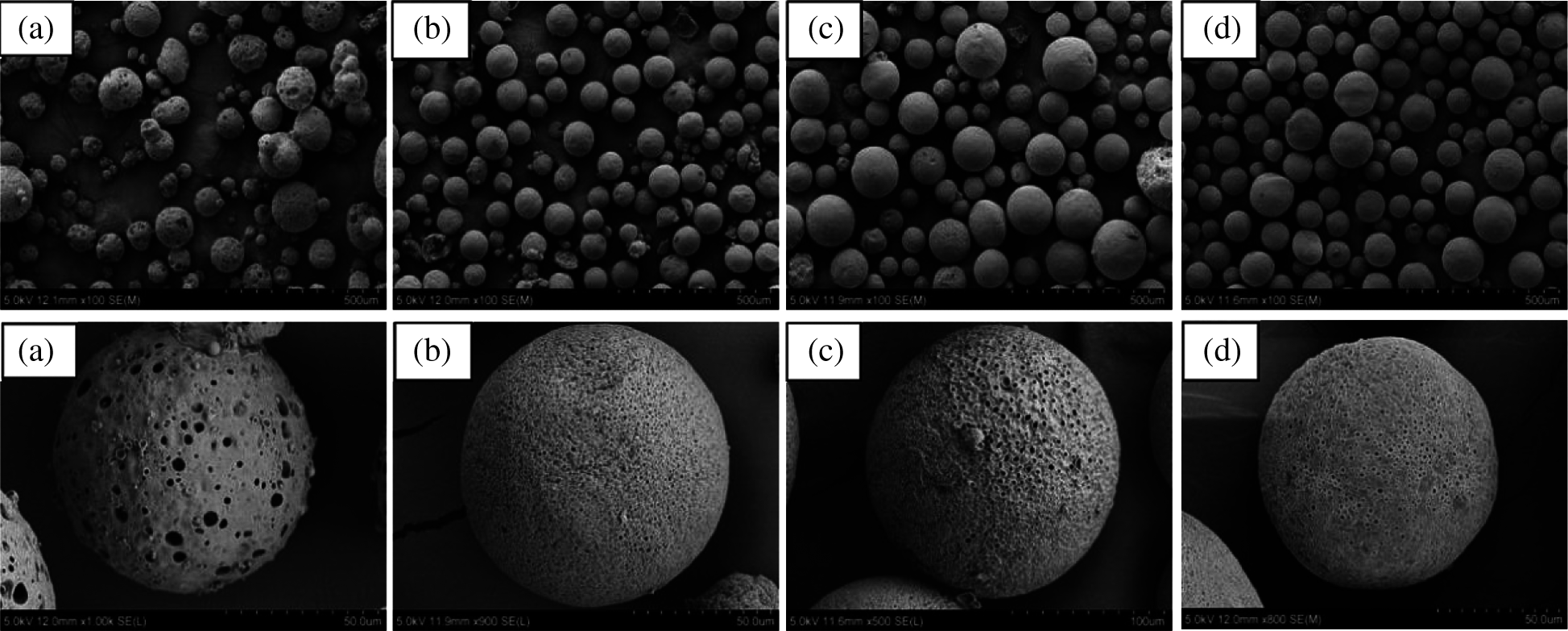

Figure 9: SEM images of RPUMs with different solvents (a: CCl4/Toluene; b: Toluene; c: NBA/Toluene; d: DMF /Toluene)

The SEM images of the RPUMs prepared from CCl4/toluene, toluene, NBA/toluene and DMF/toluene as porogens are shown in Fig. 9. It can be seen from Fig. 9 that RPUMs display very clear porous structure. The microspheres prepared with CCl4/toluene have a larger surface pore diameter and fewer pores than others. From the analysis of the sphere formation mechanism mentioned above, the initial cross-linking reaction was carried out in an O/W emulsion, and the hydrophilic chain extender was ordered toward the hydrophilic phase, while the other PU segment was arranged toward the oil phase. As the hydrophobic phase, the solvent was wrapped inside the microspheres, and gradually migrated from inside to outside under heating conditions to form pores. As the boiling point of CCl4 is 76oC, whereas the polymerization proceeded at 80oC, thus CCl4 could be quickly moved to outside during the polymerization process. The shells with not fully cured were dissolved or destroyed by volatilization of solvent, thus more lager pore size produced [13]. The higher boiling points of toluene, NBA and DMF led to the lower volatilization rate at the polymerization temperature, and the larger volume of organic solvent enclosed inside the microspheres, as it volatilized gradually, the more compact pores produced.

3.6 TEM Analysis

TEM images of the RPUMs prepared with different kinds of mix-solvents are shown in Fig. 10. When CCl4/toluene and toluene were used as porogens, the prepared microspheres had good cavity structure with the shell thickness of ~0.2 μm, while NBA/toluene and DMF/toluene were used as porogens, the microspheres were solid, no hollow structure was found. According to the formation mechanism of hollow microspheres, the solvent continuously migrated out from the inside solid phase (polymer phase), the hollow microspheres formed. Non-polar solvents, such as CCl4 and toluene, are not miscible with water, so they were easy to migrate from inside to outside, and hollow structure microspheres could be obtained. Polar solvents, such as BNA and DMF, are miscible with water, and they were not easy to migrate from water and wrapped by the hydrophobic phase, so solid microspheres were obtained.

images

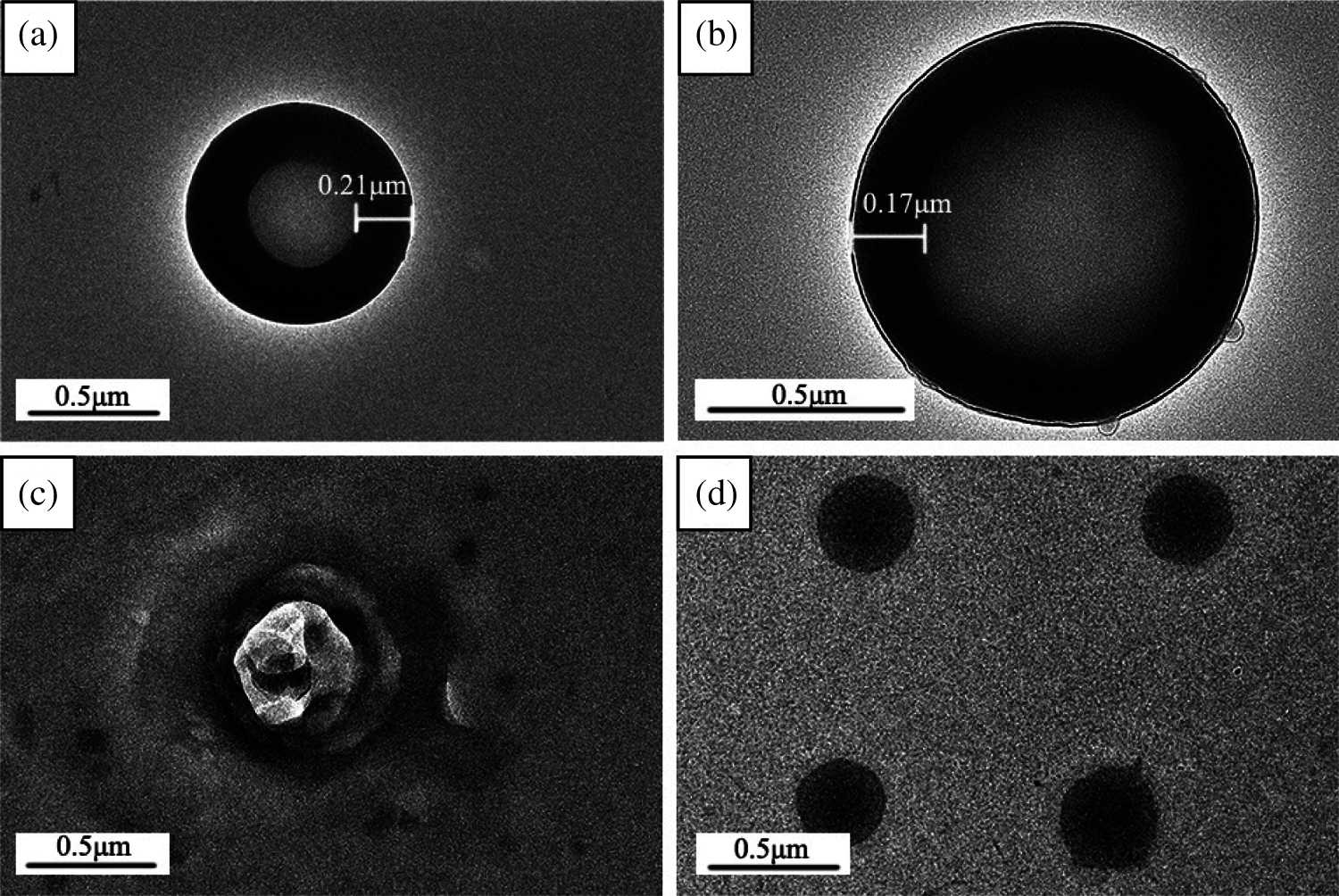

Figure 10: TEM images of RPUMs with different solvents (a: CCl4/Toluene; b: Toluene; c: NBA/Toluene; d: DMF/Toluene)

4  Conclusion

pH-responsive RPUMs were successfully prepared by self-assembly and self-polymerization methods using rosin-based RPU as both self-emulsifier and polymerizing monomer. The best synthesis conditions for synthetic RPUMs were as follows: n RAG:n HEP = 4:6, m RPU:mtoluene = 3:7, AIBN level was 1.0 wt.%, emulsification and polymerization mixing speed were 400 r·min−1, the RPUMs synthesized under this condition had porous-hollow structure with a buffer volume of 1.6 mL.
