Synthesis of Lignin-Based Polyacid in an Acidic Ionic Liquid: A Green Method to Improve the Performance of Lignin as Catalyst in Urea-Formaldehyde Resin

Hamed Younesi-Kordkheili1,* and Antonio Pizzi2

1Department of Wood and Paper Sciences, Faculty of Natural Resources, Semnan University, Semnan, Iran
2LERMAB, University of Lorraine, Epinal, France
*Corresponding Author: Hamed Younesi-Kordkheili. Email: Hamed.Younesi@semnan.ac.ir
Received: 11 June 2021; Accepted: 13 July 2021

1  Introduction

Nowadays most wood-based panels in the world are bonded with urea-formaldehyde (UF) resins. UF resins start curing under acid condition in the hot press when manufacturing panels [1]. For this reason, acid based catalysts such as inorganic acids, organic acids and acidic salts have been used to create suitable conditions for UF resins curing. Previous studies indicated that the acid-releasing salts such as NH4Cl exhibited better properties compared to other types of catalysts as they are inexpensive, effective, without annoying byproducts and easy to use [2]. Ionic liquid, H2SO4, HCl, H3PO4, and NaOH/NH4OH are the other types of catalysis which were used in UF resin. However the use of this catalysis did not growing due to economic reasons and their lower performance compared to NH4Cl [3]. As well adapt to the task NH4Cl is as an amino resin hardener, some drawbacks of its use are clearly present: (I) NH4Cl hydrolysis during hot-curing produces a number of open cavity blisters in the hardened resin due to ammonia gas being emitted, causing a resin strength decrease at the interface, hence of the bonded wood panel; (II) the toxic chlorine (Cl) is a environmental polluting chemical, in particular in the “greening” of a UF adhesive; (III) the acid residues left by the acid hardener in the resin may additionally degrade bioh the hardened adhesive and hydrolyse the wood carbohydrates at the panels resin/wood interface with some marked degradation [2,4]. Previous research work indicated that organic molecules exhibited good results as catalyst for thermoset resins [5], as small organic molecules catalysts can be vaporized during hot pressing. Thus, grafting of organic acid to macromolecules such as lignin as a new catalyst for UF resins has been proposed in previous research works [6,7]. In this method, an organic acid-yielding material such as maleic anhydride is reacted with the lignin macromolecule to produce polyacids. Although the use of lignin molecules as raw material to prepare polyacids has several advantages, nonetheless the number of potentially reactive sites available on the lignin phenyl propane units is low. Hence, the lignin molecules need to be modified to increase their reactivity before any other reaction such as hydroxymethylation and phenolation [8,9]. Moreover, chemical solvents and catalysts to prepare lignin-based polyacids, such DMSO and 1-methylimidazole have high cost. Previous studies showed that the mechanical strength of plywood panels bonded with UF resins catalyzed by maleic anhydride-hydroxymethylated lignin (MA-HL) is lower than that with NH4Cl as a control catalyst [6]. Thus, the aim of the present work was the synthesis of lignin-based polyacids by a green method to yield higher quality bonding with UF resins.

Ionic liquids (ILs), are green solvents and hardeners. This is so because they are chemically and thermally stable, presenting lower vapor pressure and higher ionic conductivity [10]. Halogen free ILs are more advantageous and because they are solvent free their use satisfies the aim of a greener catalysis. Husson et al. [11] indicated that acidic ionic liquid is a good solvent for fast esterification of lignin without the need of any catalyst. Li et al. [12] too showed that ionic liquid-modification is one of the best methods to improve the reactivity of lignin. The results of their research indicated that molecular weight and polydispersity of lignin molecules decreased further after treatment by ionic liquid compared to the hydroxymethylation method. Hence, the use of ionic liquid as green solvent for preparation of polyacids from lignin not only can modify the lignin’s structure but also it does not need any additional catalyst in the esterification process. Thus, the aim of the research work presented here was the ionic liquids catalyzed synthesis of lignin-based polyacids for urea-formaldehyde resins. Among different types of ionic liquids used, [Bmim][HSO4] acidic ionic liquids has been reported as being the most effective and thus was used for this research work [13].

So far the effect of different catalysts on UF resins has been studied by several researchers [13,14]. However there is no information in the literature on the synthesis of lignin-based polyacid by a green method to be used as a catalyst for UF resins. Thus, the additional aim of the work presented here was to investigate the synthesis of lignin-based polyacid with ionic liquid as a catalyst for urea-formaldehyde resins and its effect on the physical and mechanical properties of the plywood panels bonded with them.

2  Materials and Methods

2.1 Lignin

Bagasse Soda black liquor with pH = 13 and 80% solid content as source of lignin was prepared by Pars Company (Haft Tepe, Iran). Lignin was extracted by acid sulfuric from the liquor.

2.2 Synthesis of Ionic Liquid-Lignin Based Polyacid (MA-IL) Catalyst

Lignin-based polyacid by ionic liquid was prepared according to a method reported by Husson et al. [11]. The lignin was lyophilized and [Bmim][HSO4] was dried at 80°C under vacuum for 4 h. Lignin and [Bmim][HSO4] were then stored in desiccator for 48 h before each reaction. 300 mg of [Bmim][HSO4] (melting point 28°C) were incubated at 75°C under vigorous stirring until total liquefaction. Reaction was initiated by introducing lignin (10 mg) and maleic anhydride in the ratio: 1/5 (w/w) and was performed at 75°C for 4 h under vigorous stirring. After this duration, the mixture was cooled down in an ice bath in order to stop the reaction. Acetonitrile was added in the reaction medium to precipitate the modified lignin. The resulted solid residue was collected by vacuum filtration, thoroughly washed with acetonitrile to eliminate unreacted maleic anhydride and [Bmim][HSO4], allowing to check that there is no residual IL, and then dried for 4 h at 100°C.

2.3 Hydroxymethylation of Lignin

Lignin Hydroxymethylation was performed by reaction with glyoxal [15]. Lignin powder (295 parts by mass, 96% solid) was slowly added to 476.5 parts water, and sodium hydroxide solution (30%) was added from time to time to keep the pH of the solution between 12 and 12.5 for better dissolution of the lignin powder; this was also facilitated by vigorous stirring. A total of 141 parts by mass of sodium hydroxide solution (30%) was added, which resulted in a final pH close to 12.5. A 250 ml flat bottom flask equipped with a condenser, thermometer and magnetic stirrer bar was charged with the previous solution and heated to 58°C. Glyoxal (175 parts by mass, 40% in water) was added, and the lignin solution was then continuously stirred with a magnetic stirrer/hot plate for 8 h.

2.4 Synthesis of Hydroxymethylated Lignin-Based Polyacids (MA-HL) Hardeners

Glyoxalated Lignin-based polyacids were synthesized as reported by Gao et al. [5]. First, 15 g constant weight Hydroxymethylated lignin was dissolved with DMSO (50 mL) in a four-necked flask fitted with a mechanical stirrer and is flux condenser. As a catalyst for the esterification reaction 200 µL 1-methylimidazole was added drop wise to the lignin solution, and 20 g maleic anhydride was immediately introduced into the reaction system. Subsequently, the suspension was heated to 80°C and stirred continuously for 3 h. After that, the solution was cooled down and precipitated at pH 3 in order to recover the maleated lignin. The solid was continuously washed with water to remove the unreacted maleic anhydride. Finally, the residual solids were dried in an oven at 60°C. The maleated Lignins were named as MA-HL.

2.5 FTIR Analysis

Structural changes in hydroxymethylathed and IL-treated lignin were determined by Fourier Transform Infrared spectrometry (FTIR). The lignins were oven-dried and then reduced to powder by milling before testing by FTIR. FTIR spectra were obtained from potassium bromide (KBr) pellets with 1% of the powdered lignins at wave numbers between 400 and 4000 cm−1.

2.6 Addition of Catalysts to UF Resin

Different proportions of MA-HL and MA-IL (0, 1, 2, 3 wt%) were added to prepare the UF resin at room temperature. Also UF resin containing 2 wt% NH4Cl (10% solution) was prepared as a control sample. These resins were then immediately used to prepare the wood panels.

2.7 DSC Analysis

The curing process of UF resin with MA-IL, MA-HL and NH4Cl were tested by DSC with a NETZSCH DSC 200 F3 Model thermal analyzer at a heating rate of 10 °C/min under nitrogen atmosphere with a flow rate of 60 ml/min.

2.8 Physicochemical Tests

The pH value of the prepared resins at ambient temperature was determined with a Hanna pH meter (Limena, Italy). After calibration, 200 g of a UF sample was pipetted into a 250-mL beaker, and the initial pH values of the resin and the solution, adjusted by the gradual addition of MA-HL and MA-IL from 0% to 3% (solids on solids), were recorded as ambient pH after 5 min of magnetic stirring at 20°C. To determine the gel time, 5 g of the resin were introduced into a dry glass beaker. The beaker was then immersed into boiling water and the time until hardening was measured. The viscosity of synthesized resins also was determined by Ford Cup. Three replicas per sample were tested.

2.9 Plywood Manufacturing

240 mm × 200 mm × 2 mm Beech (Fagus orientalis) veneers were prepared and dried to a moisture content of less than 6% by mass for manufacturing three-plys plywood. The middle veneer was spread with 250 g/m² dgl (double glue line) of gluemix. The three plys were cross-assembled and hot-pressed at 160°C at a maximum pressure of 1 MPa for 5 min. Three panels were prepared for each resin. Preparation of the samples for shear strength and water absorption measurement was started 24 h after pressing.

2.10 Panel Testing

Shear specimens and water absorption tests were performed according to the ASTM D 906-98 and ASTM D4442–07 standards, respectively. The subsequent formaldehyde emission from the plywood panels was determined by using the flask method according EN 717-3 with the panel edges being left open. Five specimens were tested for each resin in all tests.

3  Results and Discussion

3.1 FTIR Spectroscopy

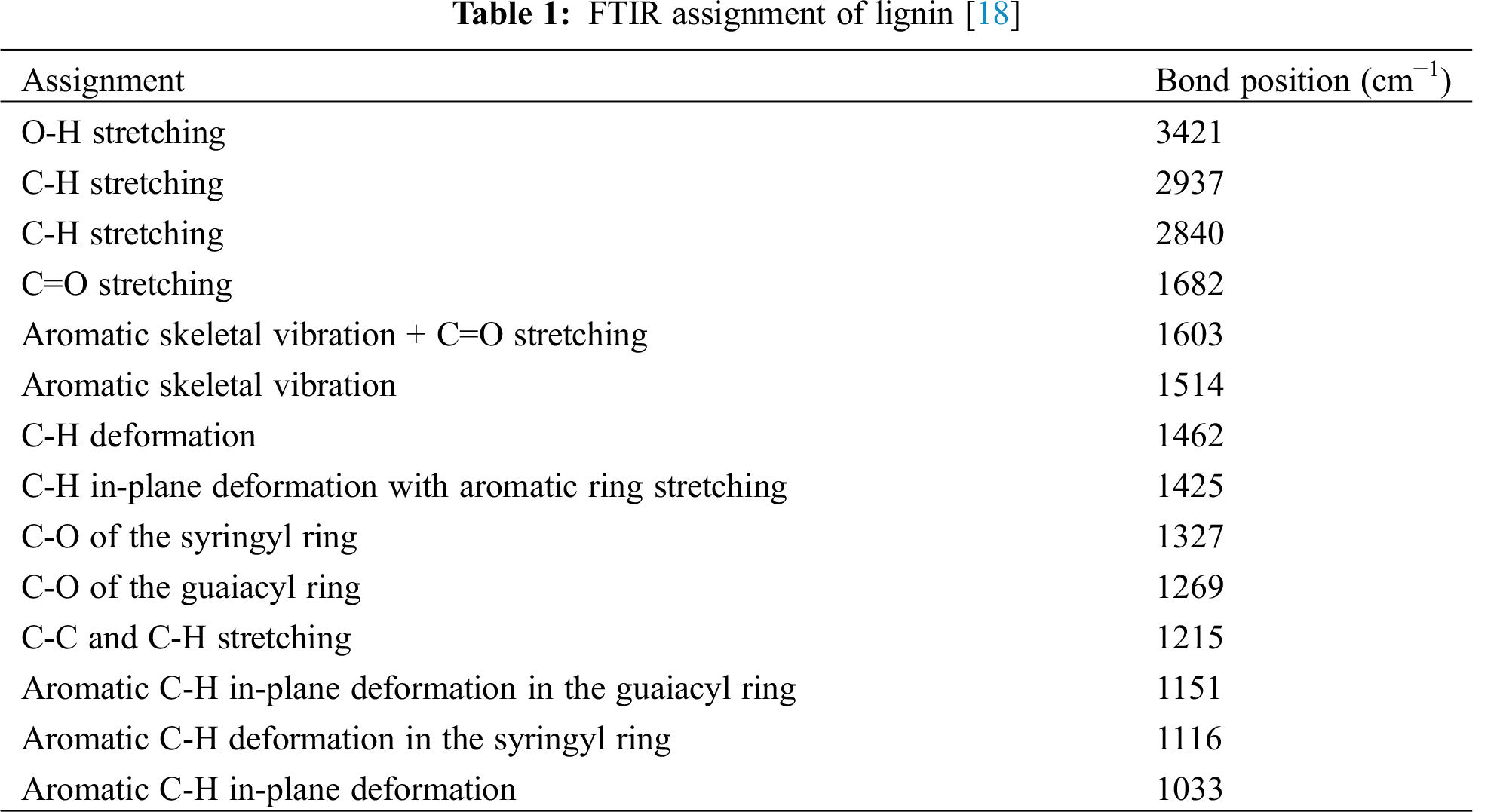

The infrared spectra obtained from Hydroxymethylated lignin and lignin treated with ionic liquid gave the FTIR spectra shown in Fig. 1 and Tab. 1 reports the relative interpretation assignements. The O-H stretching band at 3390 cm−1 in the IL-treated lignin is higher than for the hydroxymethylated lignin. This is due to the proportion of lignin’s aliphatic and phenolic hydroxyl groups being higher due to the IL treatment. Qu et al. [16] showed that ionic liquids could preserve the phenolic hydroxyl and carboxyl groups. This increases lignin reactivity in the subsequent conversion process. Also, compared to hydroxymethylated lignin, the 3050 cm−1 band related to the -COOH is lower than for the IL-treated lignin. Equally, the C-O bond at 1330 cm−1 from the esterification reaction between hydroxyl groups and maleic anhydride in the IL-treated lignin is higher than for hydroxymethylated lignin. The IL treated lignin samples displayed a significantly reduced 1700 cm−1 peak absorption compared to hydroxymethylated lignin. This may be related to the cleaved or isomerized carbonyl group or ester bonds of the sample during the treatment [17].

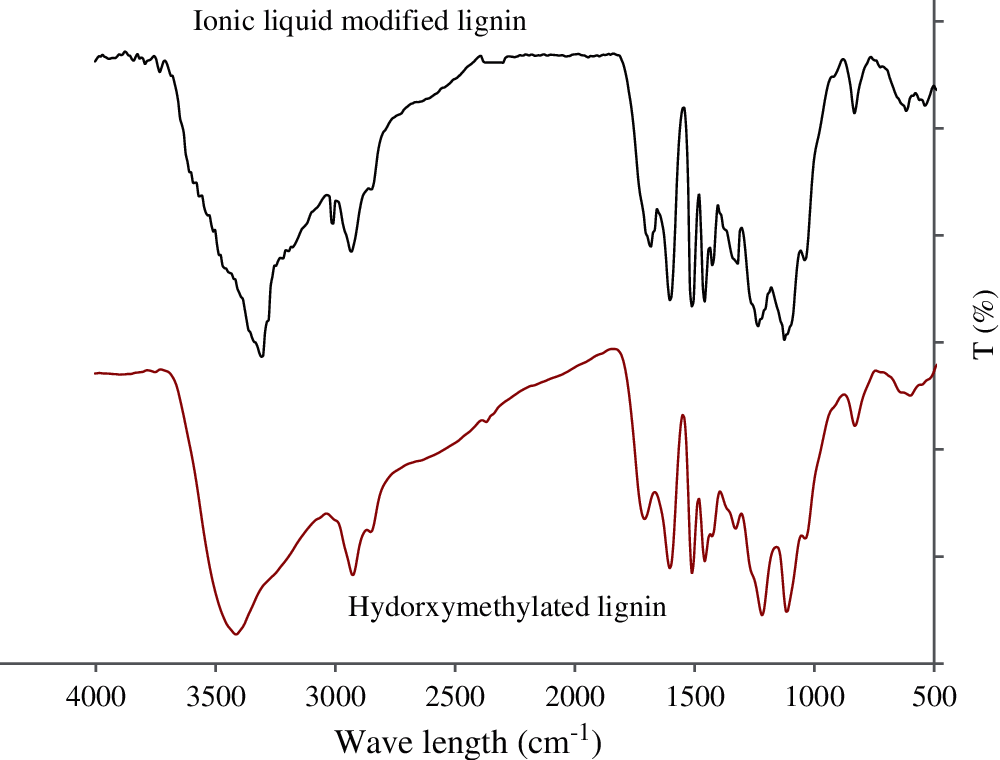

Figure 1: FTIR analysis of ionic liquid and hydorxymethylated lignin

3.2 Effect of the Catalyst Content on the Physicochemical Properties of the UF Resin

Fig. 2 shows that the pH value of the synthesized UF resin decreases by increasing the MA-HL and MA-IL content from 0% to 3%. Fig. 2 shows that the decrease of the pH value is initially very rapid, and that the slope of the curve then becomes less sharp with an increasing catalyst content. The acid groups grafted into lignin can catalyze the curing process of the UF resin. The effect of MA-HL and MA-IL on curing of the UF resin is to release H+ and with the increasing H+ concentration in the system, the rate of H+ release probably is retarded. Thus, the pH decreases quickly in the beginning and then more slowly (Fig. 2). Based on the results obtained, the UF resin with MA-IL had lower pH compared to those with NH4CL and MA-HL at constant level, respectively. This indicates that a higher H+ level can be obtained by addition of MA-IL rather than other catalysts used for UF resins.

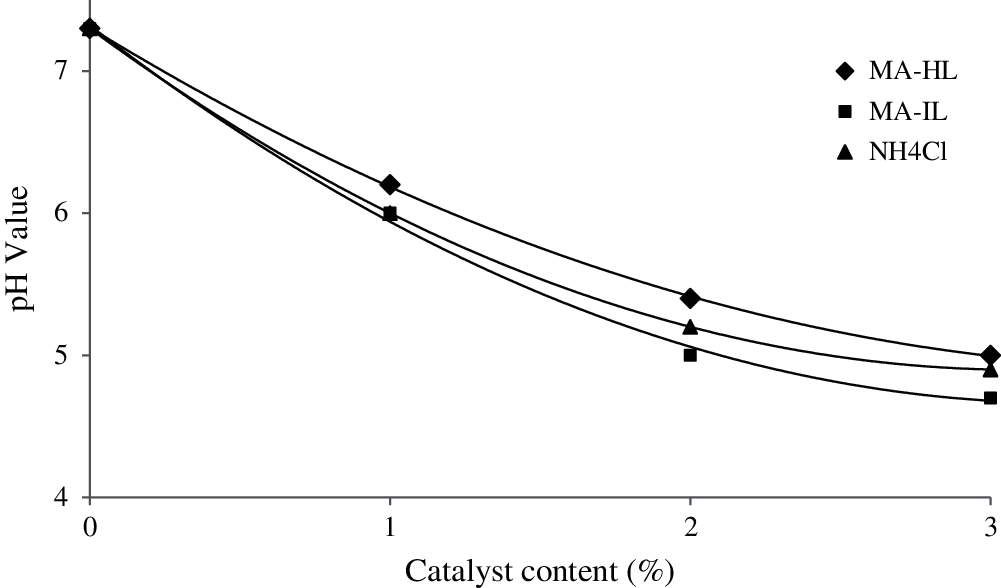

Figure 2: Effect of catalysts type on pH value of synthesized resin

The effect of the MA-HL and MA-IL content on the gel time of a UF resin is shown in Fig. 3. It can be seen that increasing both catalysts from 1% to 3% significantly shortens the gel time of UF resins. The resins with 3% MA-IL had 12% faster gelation time compared to the UF resin with MA-HL at equal level. It is obvious that stronger acidity can result in a faster curing and cross-linking rate of the UF resin. Hence, the faster gelation time of the UF resin with MA-IL compared to that with MA-HL as catalyst is surely related to the difference in pH. The results also indicate that the UF resin with MA-IL has a gel time shorter than that with NH4Cl at equal level. Thus, it the use of MA-IL as catalyst can further accelerates the rate of crosslinking. Xing et al. [19] indicated that the gel time of the UF resin obviously decreased with increasing catalyst content and decreasing pH.

The physicochemical test results also indicated that increasing all types of catalysts from 1% to 3 wt% progressively increased the viscosity of the UF resin. UF resins with MA-HL had lower viscosity compared to those one with MA-IL which is probably related to the more rapid reaction and higher level of cross-linking with the ionic liquid solution (Fig. 4). The control resin with NH4Cl had the lowest viscosity among all the synthesized resins.

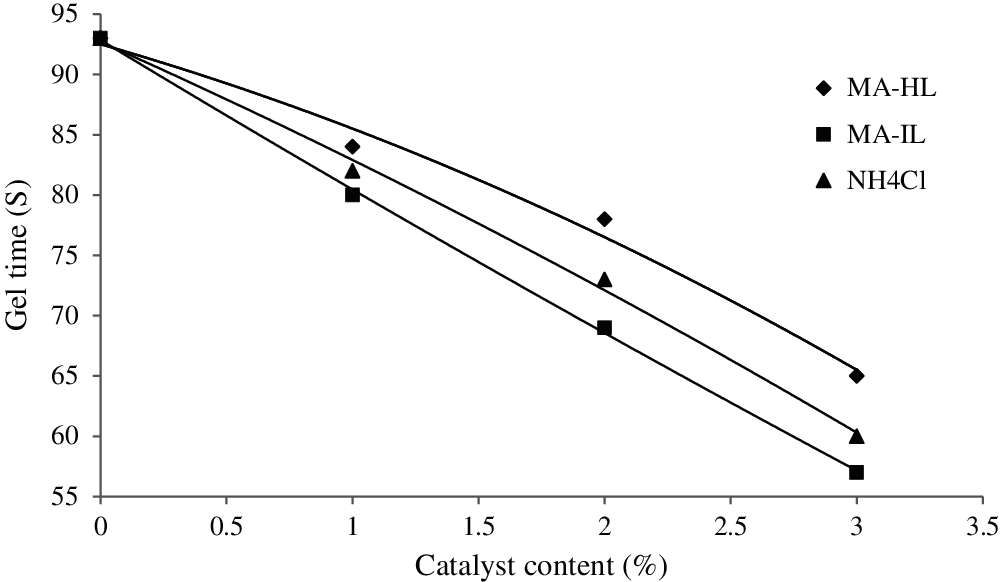

Figure 3: Effect of catalysts type on gelation time of synthesized resin

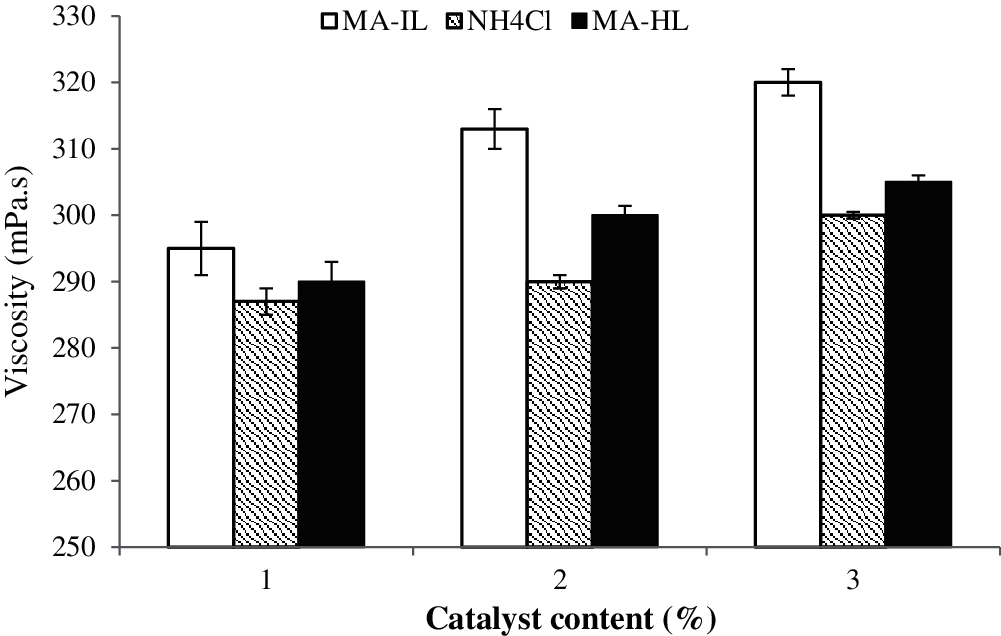

Figure 4: Influence of catalysts type on the viscosity of synthesized urea-formaldehyde resin

3.3 DSC Analysis

The influence of 2 wt% MA-HL, MA-IL and NH4Cl on the thermal curing behavior of UF resins was investigated by DSC. It can be seen that the curing process of the synthesized UF resin with all catalysts is an exothermic reaction (Fig. 5). As shown in Fig. 5, all catalysts have different effects on the exothermic peaks of the UF resin. For the UF resin with NH4Cl, the peak of temperature (Tpeak) was about 110°C while those one with MA-HL was 100°C. Based on the findings of this research, the peak temperature of the UF resin with MA-IL was 90°C which was lower than MA-HL and NH4Cl, respectively. The lower peak temperature of the UF resin containing the MA-IL catalyst compared to those with MA-HL indicated that the polyacids prepared from ionic liquid can further accelerates the hardening of a UF resin compared to those prepared with DMSO as a solution, and decrease further the energy of activation of curing of such a system. Previous studies indicated that ionic liquid can also better modify lignin structures compared to glyoxal resulting in higher reactivity of IL-treated lignin in the esterification process [11]. DSC results showing that the enthalpy of the cure reaction (ΔH) of the UF resin containing MA-IL was lower than that of MA-HL, which suggested better thermal stability of the UF resin cured by ionic liquid. It also indicated that the addition of MA-IL to the UF resin does decrease further the energy of activation of the curing reaction compared to MA-HL. For commercial applications, the combination of low heat reaction and fast curing rate is desirable, so obviously the UF resin with MA-IL appears to be an ideal choice.

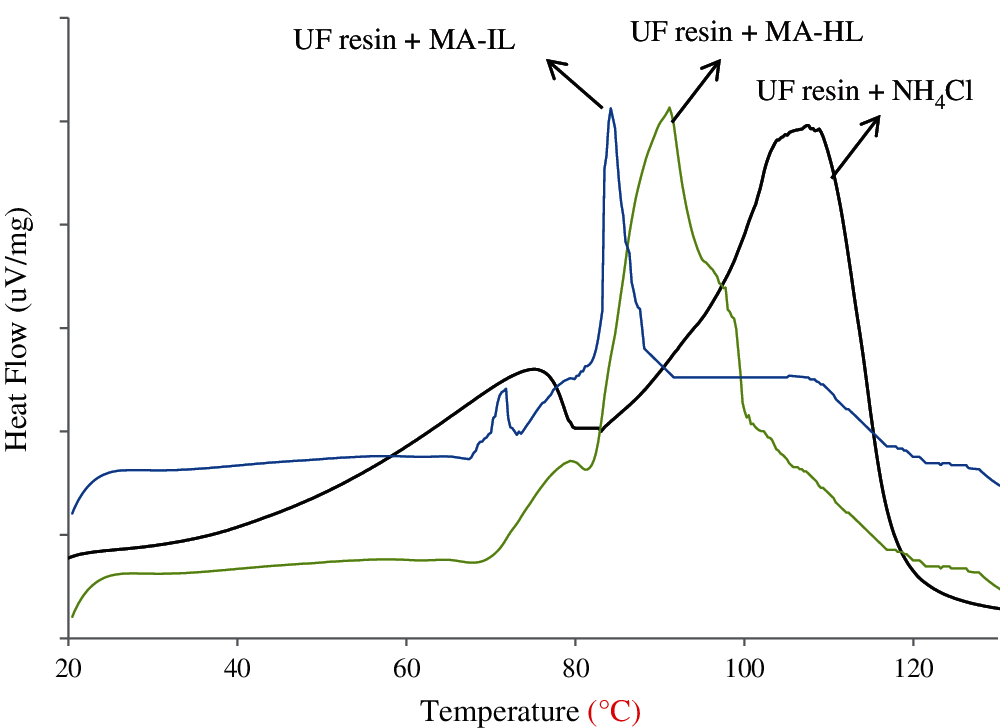

Figure 5: DSC curve of UF resin with MA-HL, MA-IL and NH4Cl

3.4 Properties of Panels Prepared

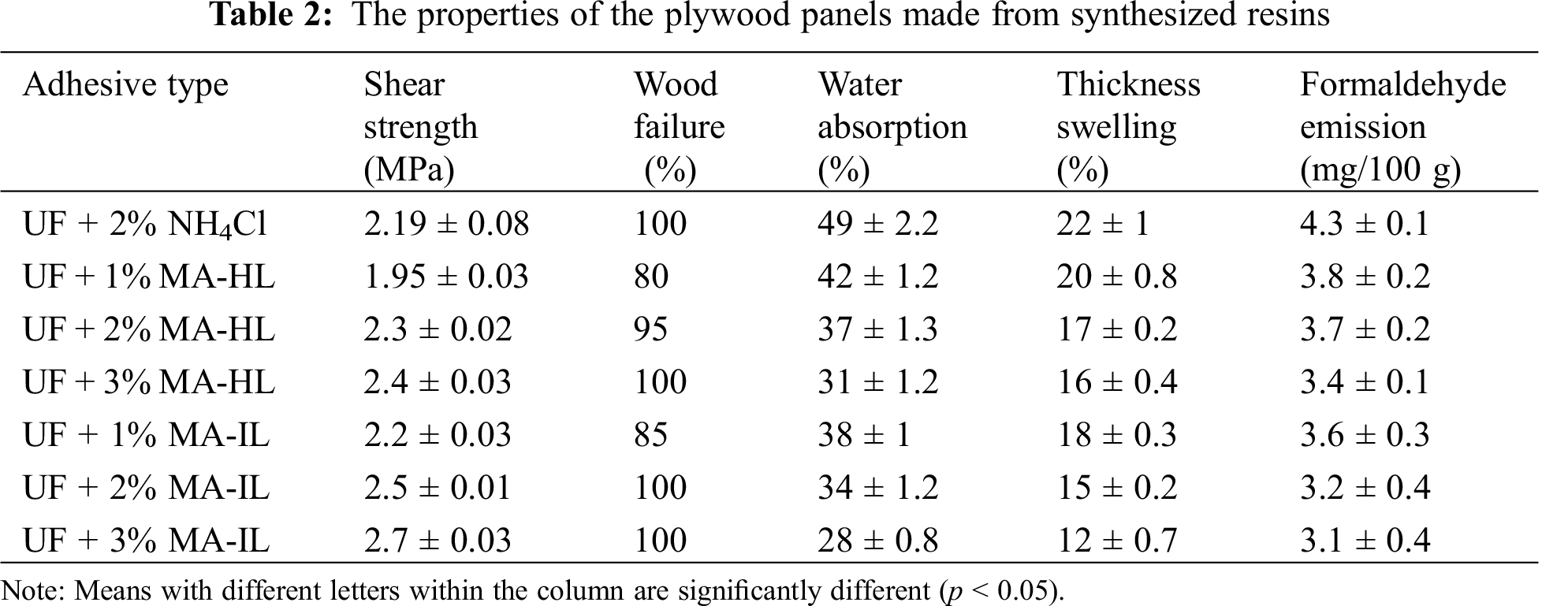

The shear strength and corresponding wood failure percentages of the panels prepared are shown in Tab. 2. According to Tab. 2, the shear strengths and wood failure percentages of the panels manufactured using the resins increases with increasing additions of catalysts from 0% to 3%. In addition to the enhanced catalytic performance, the higher amount of lignin might behave as a filler to efficiently improve shear strength [5]. In the plywood bonded with UF-lignin based catalyst, the highest shear strength (2.7 MPa) and wood failure percentage (100%) belonged to the UF resin containing 3% MA-IL whereas the UF resin with 1% MA-HL exhibited the lowest value strength (1.95 MPa) and wood failure percentage (80%), respectively. The higher shear strength of the panels made from UF resin with MA-IL rather than those one with MA-HL can be attributed to the better performance of the ionic liquid in esterifying lignin compared to other materials [10]. Lu et al. [10] indicating that ionic liquids function not only as good solvents but also as high performance catalysts for lignin esterification. Based on the FTIR analysis, more carboxyl groups (COOH) can be formed in lignin after esterification by IL compared to DMSO. Husson et al. [11] indicated that the chemical structure of the lignin can be better modified by ionic liquids than glyoxal. IL may cause cleavage of secondary and weak ether linkages of the lignin macromolecule thereby reducing its molecular weight and polydispersity [16]. Hossian et al. [20] showed that the anion of ionic liquids undergoes nucleophilic attack or catalyzes the cleavage of the ϐ-O-4 lignin linkages, thus reducing its average molecular weight and the polydispersity. Hence, the potential reactivity of lignin modified by ionic liquid is significantly higher than that reacted with glyoxal which can have an influence on the catalyst performance on the resin. The higher shear strength and wood failure percentages of the panels bonded with the UF resin catalyzed with ionic liquids can also be attributed to higher heat conductivity of the ionic liquid compared to DMSO. Better heat transfer to the core of panels causes better polymerization of the resin in the board. The results also showed that panels with 3 wt% MA-HL and MA-IL catalyst presented higher shear strength and wood failure percentage than those that used ammonium chloride (NH4Cl) as a catalyst. This is possibly also due to the larger voids which are produced after resin shrinkages or evaporation of HCL in the UF resin structures under hot-pressing condition [21]. These voids in the glue line can reduce the mechanical strength of the resin as well as the shear strength of the panels bonded with it. Moreover, the increasing of the acidity of the curing agent leads to an increase in viscosity and complete condensation of the UF resin, finally enhancing the prepress properties of the UF resin containing the lignin based catalyst [22]. Conversely, due to the condensation improvement of the UF resin by adding MA-HL and MA-IL, the cured polymer network formed yields a higher mechanical interlocking strength between adhesive and veneer [23].

Short-term (24 h) water absorption and thickness swelling of the panels prepared are presented in Tab. 2. It can be seen that the panels prepared with NH4Cl exhibited the highest water absorption (49%) and thickness swelling (22%) while the panels made from UF resin with 3% MA-IL had the lowest water absorption (28%) and thickness swelling (12%), respectively. These results also show that lower water absorption and thickness swelling can be achieved by increasing the MA-HL and MA-IL proportion from 0% to 3%. Based on these findings, the panels made from UF resin and MA-IL had higher dimensional stability compared to those with MA-HL at a constant level of catalyst used. This is probably due to the higher bonding strength of a UF resin with MA-IL compared to that of MA-HL. The higher level of crosslinks that appear to form after addition of MA-IL in the UF resin can also improve the dimensional stability of the panels. Higher water absorption and thickness swelling of the panels prepared with NH4Cl compared to those containing MA-IL and MA-HL can be explained by the evaporation of HCl during hot-pressing, this producing a greater porosity in the glue line which forms pores in the structure more accessible to water molecules [20]. The hydrophobicity of lignin also increases the water resistance of UF resin with a lignin-based catalysts compared on that catalyzed by NH4Cl.

Formaldehyde is a major harmful substance in UF resins bonded plywood. The formaldehyde emission from the panels made from the synthesized resins is shown in Tab. 2. The subsequent formaldehyde emission from the panels in service also decreases if the proportion of a maleated lignins catalyst is increased in the UF resin. The acidic component can catalyze the curing process and enhance the level of condensation, this contributing furthermore to form more compact three-dimensionally crosslinked networks which can prevent or at least obstruct formaldehyde being emitted. The residual reactive sites in the lignin structure could also potentially react with formaldehyde to decrease its emission [5]. The lower formaldehyde emission of the panels with MA-IL can be explained by the fact that this type of catalyst can form more cross-links than that of catalyzed with MA-HL. This is due to most of the free formaldehyde available in the UF resin being able to further react with residual unreacted sites of lignin. Based on the results of this research work, the highest formaldehyde emission (4.3 mg/100 g) can be observed for the panels bonded with the control UF resin catalyzed with NH4Cl, while the lowest value (3.1 mg/100 g) is observed for the panels with UF resin catalyzed with 3% MA-IL. As regards the low dimensional stability and high formaldehyde emission being the main problems associated to panels bonded with UF resins, the addition of MA-IL as catalyst can almost solve these problems.

4  Conclusion

In this work, synthesis of lignin-based polyacid with ionic liquid as a catalyst for urea-formaldehyde resin and its effect on physical and mechanical properties of the plywood panels was investigated. The following conclusions can be drawn from the results:

•   The FTIR analysis indicated that the COOH, O-H and C-O bonds in IL-treated lignin are higher than in hydroxymethylated lignin.

•   The gel time of UF resins is shortened by increasing the MA-IL content from 1% to 3%. The gelation time of the UF resin with MA-IL was also faster than with MA-HL.

•   DSC analysis indicated that the UF resins with MA-IL had a lower peak temperature than those with MA-HL and NH4Cl, respectively, hence a lower energy of activation of curing.

•   The plywood panels prepared with MA-IL had higher shear strength and dimensional stability compared to those made from UF resin containing MA-HL and NH4Cl, respectively.

•   The panels made from UF resins catalyzed with MA-IL yielded panels presenting the lowest formaldehyde emission.
