Heavy Metal Remediation in Sludge Compost: Recent Progress

Rongwei Xiong1,#, Xiufang Gao1,2,*,#, Xinyue Tu3, Yilin Mao1, Li Jiang1, Lu Zheng3 and Yitong Du3

1Yangtze University, Wuhan, 430100, China
2Engineering Research Center of Ecology and Agricultural Use of Wetland, Ministry of Education, Jingzhou, 434025, China
3School of Environmental Science & Engineering, Hubei Polytechnic University, Huangshi, 435003, China
*Corresponding Author: Xiufang Gao. Email: gxf20210703@163.com
#Co-first authors: Rongwei Xiong and Xiufang Gao are co-first authors of the article
Received: 23 April 2021; Accepted: 04 June 2021

1  Introduction

A number of environmental problems are occurring with the increase in the urban population [1,2]. Among these problems, sewage sludge has increased significantly, and sewage treatment technology has been developed rapidly [3]. Global sludge production is huge. For example, the output of urban sludge in China increased from 54.27 million tons to 74.36 million tons from 2010 to 2017, with an average annual growth rate of 4.6%. Sludge is a by-product of sewage treatment and an extremely complex heterogeneous body composed of organic debris, bacteria, inorganic particles, and colloids. Sludge has high water content, it easily decomposes, and it contains heavy metals, pathogens, and parasites.

Sludge treatment includes sanitary landfill, incineration, constructed wetland, composting and other methods. Sanitary landfill method has the advantages of simplicity, easy operation, low cost and strong adaptability. Although the most common method is sanitary landfilling in China, the future of sanitary landfilling is doubtful. The stability problem resulting from the poor physical nature of sludge and limited available landfill sites in large cities such as Shanghai and Shenzhen have become great barriers for landfill disposal [4,5]. Sludge incineration can carbonize all organic matter, kill pathogens, and minimize the volume of sludge. But its disadvantage lies in the treatment facility investment, the treatment cost is high, the equipment maintenance cost is high, the combustion will produce highly toxic substances [6]. Constructed wetland sludge treatment technology can be applied in various environmental conditions and various sludge quality. the method uses no chemicals and is low in energy and running costs, but the technology relies heavily on natural processes, which are slow and take a long time to process [7]. Composting is the most common and potential treatment technology for sludge stabilization and harmless treatment [8]. A series of physical, chemical and biological changes will occur in the process of composting, which can effectively kill pathogens, reduce the content of persistent organic pollutants and passivate heavy metals [9]. At present, incineration and landfilling are the main treatment methods for sludge in Asia and Europe, but it is difficult to use these methods for an extended period due to the risks of tail gas and groundwater pollution. However, composting can solve this problem. Composting technology has relatively low capital and operational costs, and is simple to operate efficiently [10–14].

Sludge must pass through a series of treatments to ensure the safety of the products after composting [15]. Municipal sludge includes abundant heavy metals (e.g., zinc, copper, iron, and manganese) [16–18], organic matter, nitrogen, phosphorus, and nutrient elements [19], which are excellent soil amendments and manure after composting [20,21]. The many advantages of sludge composting include improved product safety, reduced biomass quality and volume, and a reduced late carbon nitrogen ratio [22]. However, the high heavy metal content greatly restricts utilization of sludge [23,24]. Thus, the quantity of heavy metals in sludge has always been a concern [25–29]. Azari et al. [30] reported that compost concentrates or dilutes heavy metals in wastewater. Zheng et al. [31] discovered that heavy metals are converted into residual parts after composting, indicating that compost reduces biological utilization of heavy metals, and reduces the possibility that heavy metals will enter the soil during land use. Sanchez-Monedero et al. [32] reviewed the role of biochar as an additive in organic waste composting. Guo et al. [33] reviewed the agronomic functions of biochar as a compost additive and soil improver. Mudhoo et al. [34] described the application of composting materials to decolorize and remove dye. Soudejani et al. [35] discussed the latest developments in applying zeolite during composting of organic solid waste. These reviews focused on applying a variety of conditioning agents to sludge compost, while more recent reviews have focused on applying a single conditioning agent to sludge compost. Although some researchers have studied the removal of heavy metals from sludge compost, there is still a gap when applying different conditioning agents. Therefore, the purpose of this review is to comprehensively compare and analyze the effects of different conditioning agents on heavy metals in compost, clarify the action of the conditioning agents, and propose future research directions.

Proper composting effectively reduces heavy metal concentrations in sludge [36] to produce safe and reliable products. Fig. 1 summarizes the action mechanism and advantages of different conditioning agents in the treatment of heavy metals during sludge composting.

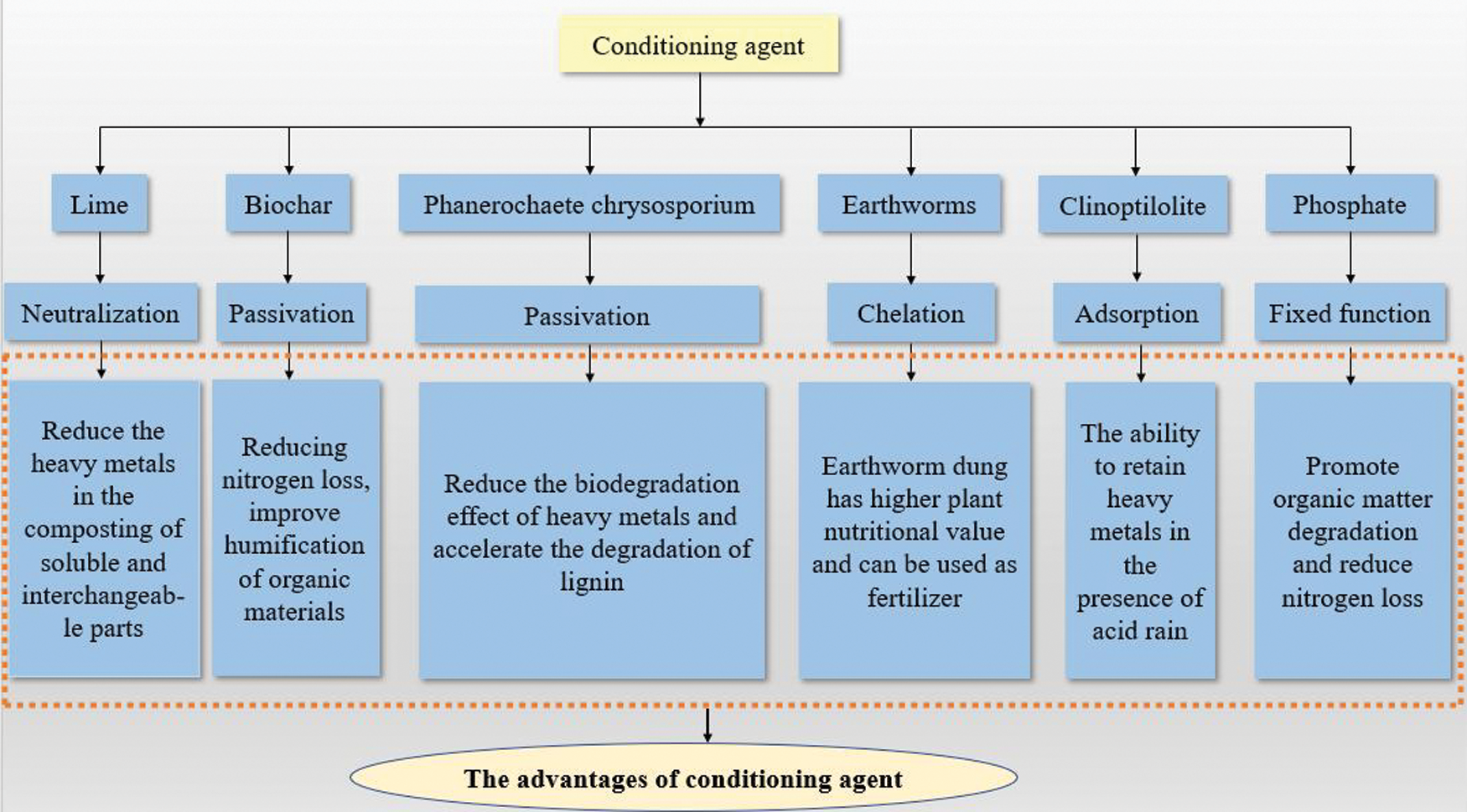

Figure 1: The action mechanism and outstanding advantages of different conditioning agents in the treatment of heavy metals in sludge composting

2  Changes in Heavy Metal Speciation and Concentration during Sludge Composting

Heavy metals are metals with significant biological toxicity, such as mercury, cadmium (Cd), Cr, lead (Pb), and arsenic (As). Heavy metals also refer to the toxic heavy metals, such as copper (Cu), zinc (Zn), tin, and Ni. Applications of heavy metal compost may pollute the soil [37,38]. In addition, some studies have shown that the availability of heavy metals determines their bioavailability, mobility, or phytotoxicity in soil [39]. Therefore, it is important to discuss changes in the concentrations and morphology of heavy metals in compost to assess their bioavailability and mobility. According to the five-step continuous extraction method proposed by Tessier et al. [40], heavy metals can be divided into five binding states: the metal exchangeable state, the iron (manganese) oxide bound state, the carbonate state, the residue lattice bound state, and the organic and sulfide bound state. There are six kinds of Cu, Zn, Cr, Cd, Pb, and Ni in municipal wastewater. In addition, most studies on heavy metals in wastewater are based on these six metals. To make the results more representative, we investigated these six heavy metals (Cu, Zn, Cr, Cd, Pb, and Ni).

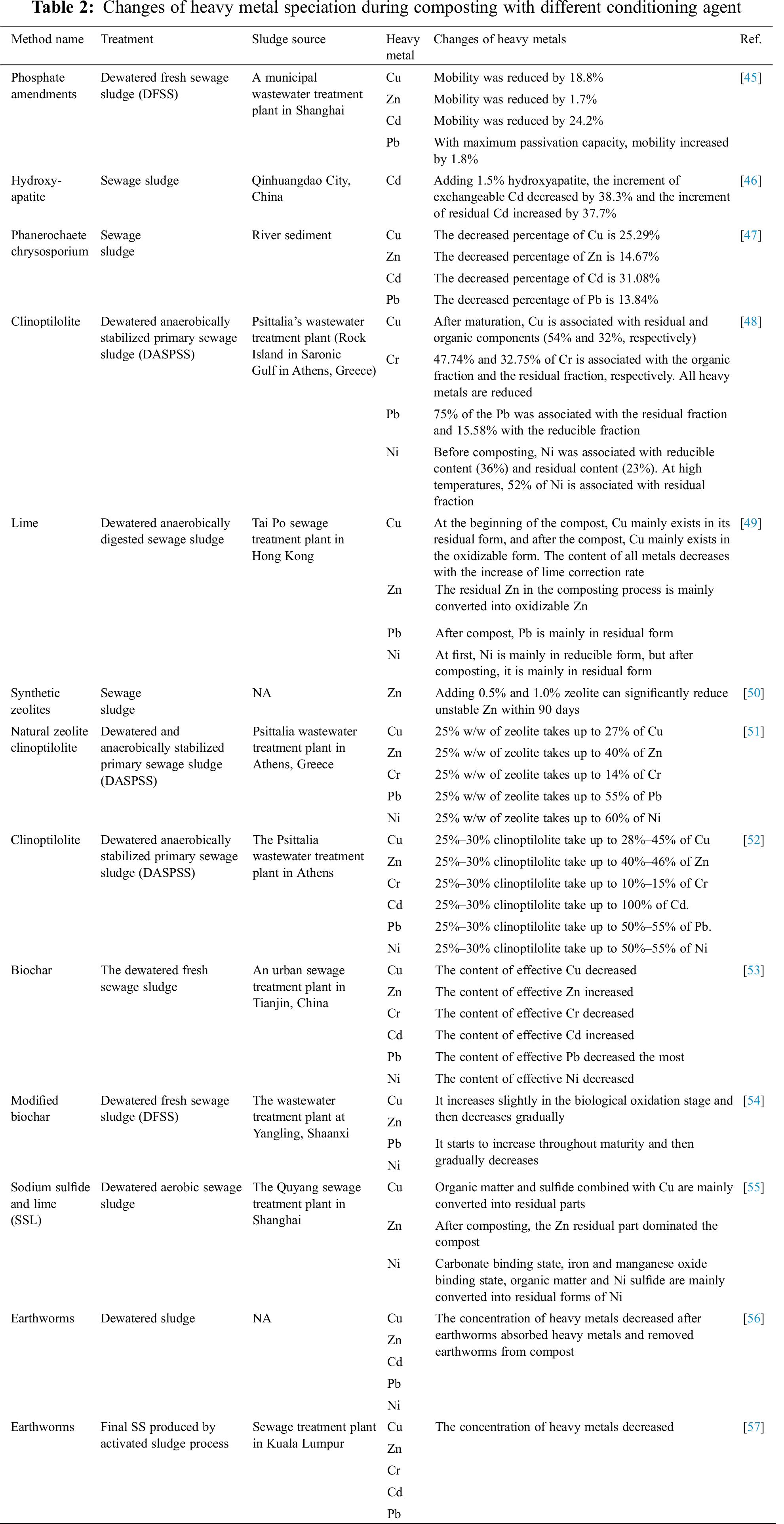

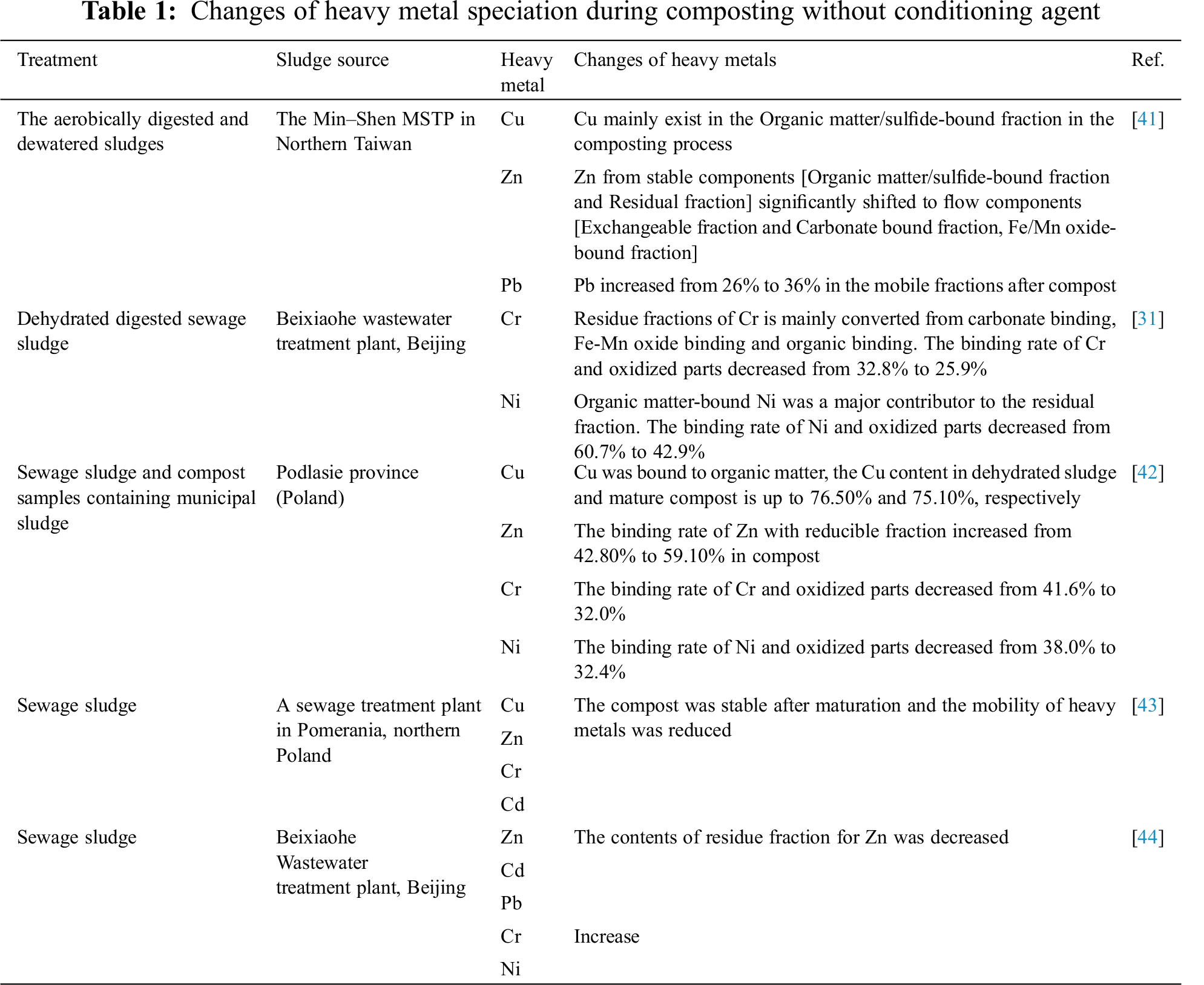

Tabs. 1 and 2 respectively summarize the specific effects of the absence of conditioning agents and adding different conditioning agents on specific forms or concentrations of heavy metals in compost.

By analyzing Tabs. 1, 2 and their corresponding references, it can be found that the compost was stable after maturation and the mobility of heavy metals was reduced. the addition of Phanerochaete chrysosporium can effectively reduce the concentrations of Cu, Zn, Cd and Pb. adding biochar can decrease the active concentration of Cu, Cr, Pb and Ni. the concentration of heavy metals decreased after earthworms absorbed heavy metals and removed earthworms from compost. The specific removal of each metal is described in detail in the following article.

2.1 Copper (Cu)

Soil Cu content far exceeds the carrying capacity of the soil environment with the mining of Cu, discharge of waste from smelters, the long-term and large use of Cu-containing fungicides, and the composting of municipal sludge. Global Cu content typically ranges from 2 to 100 mg/kg. Different soils have different Cu capacities, and different regions have different effects. There is no specific value. High Cu content is harmful to animals, plants, and soil microorganisms. Damage to the cytoplasmic membrane of the root system hinders root elongation, lateral roots become shorter, new leaves lose their green color, and old leaves to die. In animals, organ damage and metabolic disturbances lead to physical discomfort. Cu controls the growth of microorganisms, resulting in changes in quantity and population structure and seriously threatens stability of the ecosystem and human security. Therefore, soil Cu pollution is an urgent problem [58,59].

Nomeda et al. [41] found that after dealing with the composting, Cu stability of sludge and compost mixture components (sulfide/organic matter-bound fraction and residual fraction) have great affinity. The potential mobility and bioavailability of Cu decreases after composting. Ignatowicz used the BCR (European Communities Bureau of Reference) method to determine content. Organics account for 76.50% of total Cu content, which is conducive to the formation of strong metal-organic complexes and greatly reduces Cu mobility [42]. In addition, the results of Bożym et al. [43] are consistent with the above that the mobility of Cu decreases when no conditioning agent is added to compost.

In contrast, zeolite has a pore-forming silica lattice, with uniform pore size and large holes on the inner surface of the crystal allowing for strong adsorption of heavy metal ions. About 25%–30% clinoptilolite is used during the composting process, and 28%–45% of the Cu is absorbed by zeolite [52]. This result is similar to that of Zorpas et al. [48] Cu is mainly related to residual and organic components when the compost matures. Zorpas et al. [51] reported that the particle size of clinoptilolite affects its adsorption of heavy metals, and the metal content of the clinoptilolite increases with increased particle size. Using zeolite (particle size 3.3–4.0 mm) effectively removes 27% of the Cu.

When Wong et al. [49] added lime to sludge, the Cu form was significantly different before and after composting, and the oxidizable part (organic binding) increased significantly, but it was still mainly in the oxidation state. By Wang et al. [55] reported that Cu in the combined state of organic matter and sulfide is mainly converted to the residual state after mixing sodium sulfide with lime (SSL) during composting, but it mainly exists in the organic matter and sulfide components.

Some authors have found that adding 6% biochar has the best passivation effect on Cu, and that Cu content decreases significantly after composting [53]. However, Awasthi et al. [54] reported that lime-modified biochar reduces the bioavailability of Cu by 34.81%, and the passivation effect was better than that of lime alone. Liu et al. [56] found that earthworms accumulate heavy metals from sludge during composting; the concentration of heavy metals in earthworm compost decreases, but the concentration of heavy metals in earthworm dung increases. This is the same conclusion reached by Bakar et al. [57].

In addition, Wang et al. [45] used phosphate modifiers during sludge composting, and the results showed that the mobility of Cu decreases by 18.8% after adding calcium magnesium phosphate. Chen et al. [47] inoculated composting river sediments with Phanerochaete chrysosporium and reported that it was beneficial for passivation of Cu, and the percentage of Cu decreased by 25.29%.

2.2 Zinc (Zn)

The main sources of Zn pollution include Zn mining, smelting, machinery manufacturing, Zn plating, instrumentation, organic synthesis, papermaking, and other industrial emissions, automobile tire wear and coal burning dust, soot containing Zn and compounds, and Zn in industrial wastewater with a Zn hydroxyl complex. Moreover, the scope of Zn pollution is wide, as Zn pollutes the air, water, and soil. However, soil pollution is different from air pollution. Once formed, harmful substances that accumulate in the soil migrate into the water, air, and plants, and eventually enter the human body, causing long-term effects. Therefore, we must reduce heavy metal content in compost to reach a standard value before applying sludge compost.

In Nomeda et al. [41] study, stable components (organic matter/sulfide-bound fraction and residual fraction) of Zn into flow components (exchangeable fraction, carbonate-bound fraction, and Fe/Mn oxide-bound fraction), the total Zn content increased. Moreover, the potential mobility and bioavailability of Zn improve significantly. Similarly, Ignatowicz [42] reported that the binding rate of Zn with the reducible fraction increases from 42.80% to 59.10% in compost. This result was confirmed by Bożym et al. [43]. The total fluidity of Zn components (exchangeable fraction, carbonate bound fraction, and reducible iron) increase significantly when no conditioning agent is added to the compost [44].

In addition, Zorpas et al. [51] reported that 25% (w/w) zeolite adsorbs 40% of the Zn. Zorpas et al. also studied the adsorption of heavy metals by zeolite during the early stage. A mixture of 25%–30% clinoptilolite adsorbs 40%–46% of the Zn [52]. Some scholars have shown that adding 0.5% and 1.0% synthetic zeolite significantly reduces unstable Zn during composting [50].

Wong et al. [49] used lime and sludge co-composting and found that adding lime reduces the conversion of residual Zn to oxidized Zn and reduces the availability of Zn. However, Wang et al. [55] found that SSL mixed with sludge compost significantly reduces the dynamics and accessibility in the compost (exchange state and carbonate combined with recent). The Zn residual part dominated after composting.

Awasthi et al. [54] reported that adding lime-modified biochar to sludge compost reduces the bioavailability of Zn by 56.74%. However, other studies have reported different results. Liu et al. [53] used biochar as a conditioning agent and found that effective Zn content increases after composting. Some scholars have used earthworm composting to reduce heavy metals during sludge composting through biological accumulation [56,57].

In particular, Wang et al. added phosphate modifiers to compost and the mobility of Zn was reduced by 1.7% [45]. Some studies inoculated P. chrysosporium in river sediment compost, but found no effect on Zn [47].

2.3 Cadmium (Cd)

Cd is one of the most toxic elements in the food chain, and is a limiting factor in the land use of sludge. Cd is a common mobile metal in sludge. It is not a necessary trace element in the natural environment, and is very harmful. Bożym et al. reported that high Cd concentrations reduce or completely inhibit the activities of microorganisms under aerobic or anaerobic conditions. Cd often pollutes soil; however, the mobility of Cd is greatly reduced after composting [43]. Researchers have performed a series of studies on the migration and transformation of Cd. Wang et al. [45] discovered that adding calcium magnesium phosphate to composting sludge reduces the mobility of Cd by 24.2%. At the same time, Yuan et al. [60] reported that ferrous sulfate and phosphate have a synergistic effect on reducing the mobility of heavy metals in soil.

The soluble and exchangeable heavy metals are effective in plants, while the residual heavy metals belong to the ineffective part. Under certain conditions, other forms may be released slowly and in small amounts to supplement the effective state. The uptake of Cd by plants does not depend on the total amount of Cd in soil, but on the availability and existing forms of Cd. Therefore, experts have used a variety of conditioning agents to observe the results of various morphological changes. Hydroxyapatite (HAP) is a good modifier. HAP improves the environment by reducing the absorption of Cd by turfgrass. Liu et al. [46] added HAP to sludge in a composting experiment and found that it significantly improves greenness, the green retention period, and root strength of turfgrass in modified soil. Adding 1.5% HAP (1.5% is the most economical) to sludge compost reduces exchangeable Cd content by 6.0% and increases residual Cd content by 7.6%. Compared with single sludge compost, the increase in exchangeable Cd decreased by 38.3% and the reduction rate of residual Cd increased by 37.7% after adding 1.5% HAP, indicating that HAP has an effect on Cd. Liu et al. [44] reported that Cd residue content decreases during composting. Zorpas et al. [48] determined that clinoptilolite removes cations from aqueous solution and the solid phase, particularly heavy metals, such as Cr with increasing dosage, and it absorb 100% of the Cd to reduce its content. Chromium is transformed from a reducible and organic component into a residual component.

The activity and bioavailability of Cd in sludge compost is high. Chen et al. [47] reported that the passivation effect of P. chrysosporium on Cd is enhanced. The bioavailability of Cd decreases by 28.25% during composting. Yellow rot fungus accelerates the composting process and the degree of humification and promotes the maturation of agricultural waste and river sediment. Adding this material to the composting process reduces Cd by 31.08%.

2.4 Lead (Pb)

Pb is a relatively stable metal that usually exists as a bivalent insoluble compound in the soil environment, and water-soluble Pb content is very low. Pb is a nonessential element in plants. It affects seed germination when absorbed by plants and is toxic to the human body. However, sludge composting effectively reduces Pb content. Liu et al. [44] showed that the contents of residual Pb and Cd components decrease and the contents of total mobile components of Zn and Pb increase significantly during composting. The heavy metals Zn, Cu, Ni, Pb, Cd, and Cr are enriched during this complex process.

The biological availability of Pb is related to organic matter, the structure and cation exchange capacity of the soil, and to the form and distribution of Pb in the soil. Nomeda et al. investigated the distribution of Pb during sludge composting using sludge from Taiwan (Pb: 1,200 mg/kg), whose concentration is far lower than that of the European Union sludge directive. Pb is closely related to stable components (organic matter/sulfide component and residual component). The mobility and bioavailability of Pb increases during composting. The effect of the granular metal form on the environment is closely related to migratory behavior during sludge composting. The Pb content in the remaining part of the sludge is higher, reaching 70%. More than 93% of the Cu is distributed in the stable components of sewage sludge and recycled compost, while the Cu content in sawdust is only 56%. The distribution of Pb is similar to that of Cu. Moreover, the fluidity of Pb in raw materials is high. Pb mainly exists in a residual state in sewage sludge, from 32% to 17%. The transformation of Pb to more mobile (bioavailable) components occurs during the last stage of composting, so the proportion of Pb in stable components is higher. This finding indicates that heavy metals, such as Pb, are not easily released from these sludge and compost mixtures [41].

Wong et al. [49] studied the redistribution of Pb in lime compost sludge using a metal speciation analysis. A total of 54%–60% of the Pb existed in its residual form, and the residual form of Pb increased after lime was added. The exchangeable components are almost nonexistent by the end of composting.

Pb forms a stable complex with humus in sludge soil, and the Pb concentration in soil is positively correlated with humus content. The mobility and availability of Pb in soil depend on pH, eh, organic matter content, texture, available phosphorus, and amorphous iron manganese oxides. However, adding conditioning agents also has an effect on the migration and transformation of Pb, such as adding phosphate. Phosphate reduces activation of Pb, and the toxicity of phosphate in compost does not increase, and it even promotes plant growth. Adding phosphate ensures an increase in the temperature and degradation of organic matter during sludge composting. Wang et al. [45] showed that the mobility of Pb in sludge compost samples containing various phosphate modifiers increases, but that samples treated with potassium phosphate showed the largest Pb passivation ability and the lowest increase in mobility (1.8%). Clinoptilolite absorbs most exchangeable and carbonizable metals [52]. Zorpas et al. reported that zeolite adsorbs a large amount of heavy metals, as 25% (w/w) zeolite accounts for 55% of the Pb. The amount of metal absorbed by clinoptilolite increases as the particle size of the diabase increases. Therefore, the use of small particles achieves a high rate ion exchange process [51].

Biochar and microorganisms are increasingly being used during sludge composting. Liu et al. [53] confirmed that adding biochar and microbes reduces the effectiveness of Pb; thus, improving maturity of the final product. Awasthi et al. [54] found that adding lime-modified biochar reduces the bioavailability of Pb by 87.96% and improves the maturity of the compost. Liu et al. [56] studied bioaccumulation factors and reported that earthworm composting effectively removes heavy metals, and the total content of five metals (Cu, Ni, Cd, Pb, and Zn) was reduced. Bakar et al. also demonstrated this finding. They found that the concentrations of heavy metals in earthworm manure are higher than the initial concentrations because the heavy metals in earthworm manure combined with the heavy metals in earthworm manure, reduces the accumulation of heavy metals in earthworm tissues [57].

2.5 Chromium (Cr)

Cr is widely found in the earth’s crust. Cr minerals naturally occur in the form of oxides, hydroxides, sulfides, and silicates. Trace Cr promotes the production of some crops (such as wheat, peas, and cucumber), but a high concentration of Cr produces serious toxic effects on plants, and symptoms, such as dwarfism, leaf coil, and root brown, as well as short and stunted plants. Cr (III) is necessary for humans and is easily absorbed and accumulates in the human body, but it can be toxic. Cr enters the food chain through the soil-plant system and threatens human health.

The form of a heavy metal plays a very important role in its toxicity. Zheng et al. [31] measured heavy metal forms using the Tessier sequential extraction method: the Cr concentration in sludge increases steadily by 36.0% after aerobic composting, compared to the initial state. Chromium is exchangeable, and the carbonate binding state, Fe-Mn oxide binding state, and organic binding state of Cr increase. The stability of Cr in sludge improves. The Cr residue increases after the five Tessier extraction steps. The form of Cr is not only related to the total content of heavy metals, but also to pH and temperature. The correlation between Cr and composting temperature was 0.680, and the correlation between the total flow component and composting temperature was 0.682. The pH value of the Cr form has little relationship to the composting process [44].

Zorpas et al. [48] reported that total heavy metal contents increase, as the contents of Cd, Ni, Mn, Pb, and Zn increase and Cu and Fe contents decrease during dewatering and anaerobic stabilization of primary sewage sludge. The content of organic Cr is high during the high temperature composting stage.

Clinoptilolite effectively adsorbs heavy metals. Zorpas et al. [52] conducted a composting experiment with compost containing 25%–30% clinoptilolite, and the clinoptilolite absorbed 10%–15% of the Cr. Zeolite 25% (w/w) with a particle size of 3.3 mm/4.0 mm removes 14% of the Cr [51]. the total amount of Heavy Metals in end products more than agriculture, urban sewage sludge composting and limit of organic fertilizer.

2.6 Nickel (Ni)

Nickel is often dissolved in water in the form of halides, nitrates, sulfates, and some inorganic and organic complexes. Excessive consumption (250 mg of soluble Ni per day) of Ni leads to poisoning. The Ni in the environment is the most important source of Ni. Preventing Ni from entering the environment is a human health concern.

The Ni concentration in sludge increased by 30.4% after the aerobic composting experiment performed by Zheng et al. [31] Ni changes from an exchangeable state to a carbonate state, a Fe-Mn oxidation state, or an organic state to reduce toxicity in sludge. Liu et al. [44] in the process of aerobic sludge compost, the residues of Ni increased, Ni flow component concentration increase was not obvious, almost no change, and the components from the selected parameters such as pH, organic matter content of the compost temperature, a linear correlation. As pH decreased, Ni and total flow fraction increased. The correlation between the increase in Ni and the decrease in the pH value was 0.612, and the correlation between the increase in the total flow fraction and the decrease in the pH value was 0.661.

Ignatowicz used the BCR method to measure heavy metal content and the formation of heavy metal-organic complexes, and the binding degree was very high. Most heavy metals have a binding degree of 30%–40%, so mobility of the heavy metals is greatly reduced. The three stages of chemical analysis of the extract revealed high Ni content, which stabilized at 35.30% of the total content in water sludge after mixing with wood chips. The Ni content in treated compost should not exceed the limit of biological utilization [42].

Zorpas et al. [48] reported that binding and exchangeable carbonate capacity was significant after adding clinoptilolite to compost, and Ni in the carbonate state is formed during the process. Zorpas et al. [52] used the continuous extraction method to determine that 70% of the Ni content was bound, particularly in the residue and organic components. About 50%–55% of the Ni content is absorbed by 25%–30% clinoptilolite compost. The effect of zeolite on heavy metals is mainly reflected in adsorption. According to Zorpas et al. [51], the proportions of heavy metals in zeolite with a particle size of 3.3 mm/4.0 mm and 25% (w/w) are Cu, 27%, Cr, 14%, Zn, 55%, and Ni, 60%. The metals adsorbed by the clinoptilolite increase with the increase in particle size of the clinoptilolite, and the adsorption of heavy metals by the 25% (w/w) zeolite with a particle size of 3.3 mm/4.0 mm is effective for composting treatment.

Wong et al. [49] found that composting and a 1.63% lime treatment changes the pH of sludge from neutral to alkaline during the maturation period; the pH eventually returns to near neutral, with a decrease in exchangeable Ni and mobility and an increase in the residual state. The content of extractable heavy metals in sludge products is lowered to reach the agriculture standard, compared to a single sludge compost. Lime processes Ni content in 21 days [54].

Wang et al. [55] reported that a mixture of SSL accelerates the process of Ni conversion from an effective state to a poorly effective state, with a decrease in the carbonate state, the content of organic state and vulcanized state increase, and the increase of Ni residual fraction, which greatly reduced the bioavailability of Ni.

In summary, the removal mechanism and quantitative relationship between different metals can be explained by different methods. The clinoptilolite molecular sieve has the characteristics of ion exchange, adsorption separation, catalysis, and stability. Clinoptilolite removes Cd, Cu, Zn, Ni, Pb, and Cr by ion-exchange adsorption. Among them, ion exchange has a significant effect on the formation of the carbonate state, and clinoptilolite reduces the bioavailability of all heavy metals through adsorption.

Lime reduces the formation of metallic organics during composting of lime sludge by neutralizing the organic acids released, and converts some of the organic Cd, organic Cu, organic Zn, organic Ni, organic Pb, and organic Cr into residues and reduces the fluidity of all heavy metals.

Lime-modified biochar compost is superior to lime compost. Biochar itself contains many properties that are conducive to the passivation of heavy metals and this type of compost inhibits their activation. The content of surface oxygen-containing functional groups is beneficial to the passivation of heavy metals. Lime-modified biochar compost has high concentrations of humic and fulvic acids, which effectively reduce heavy metal contents. Adding biochar and microbial modifiers reduces the effectiveness of Cu, Cd, Ni, Zn, Cr, and Pb.

In addition, earthworm composting removes heavy metals from the compost through bioaccumulation. The main mechanism of the resistance to heavy metal pollution by earthworms is as follows: the lipid antioxidase system reduces oxidative stress, detoxifies chelated metals, activates lysosomes and the cytoplasm, and inhibits heavy metal activity. Thus, the concentrations of Cu, Zn, Cd, Pb, Ni, and Cr decrease.

Phosphate transfers heavy metals from the bioavailable stage to the stable stage. Phosphate treatment reduces the fluidity of Cd, Cu, Zn, and other heavy metals in compost. Adding phosphate greatly improves the fixation effect of heavy metals while reducing their activation. The mobility of a series of heavy metals represented by Cu and Zn decreases after adding phosphate modifiers, which may be due to the formation of CuFeS2 and Zn Cu (P2O7) crystals during composting.

Finally, P. chrysosporium inactivates heavy metals by chelating organic humus. Through the passivation treatment of a series of heavy metals represented by these six heavy metals, the heavy metals can be reduced by adding P. chrysosporium during composting.

2.7 Conditioning Agents to Treat Heavy Metals

Based on the detailed interpretation of each metal, the main methods to remove heavy metals from sludge are discussed in detail. Then, the characteristics of the heavy metals in sludge compost are briefly described. The characteristics of these heavy metals are a major factor affecting removal efficiency.

Pb2+ is the most common and active form of the two valence states of Pb, including the zero state and the divalent state. Pb2+ easily combines with inorganic ions, humic acids, or amino acids to form poorly soluble compounds.

Chromium (VI) is the most toxic and fluid material in sludge compost and is found mainly in the form of chromate and dichromate. Cr (VI) is reduced to Cr (III) with weak toxicity and mobility in the environment by organic matter, S2−, and Fe2−. The leaching concentration of Cr (VI) increases with pH.

Environmental pH has a strong effect on Cd activity, and the Cd2+ activity is higher in soil under acidic conditions (pH 4.5–5.5). Under a high soil pH, Cd2+ precipitates with hydroxide and carbonate ions. Cd2+ also forms a precipitate with phosphate, dichromate, and S ions.

Cu has three valence states, such as 0, +1, and +2, with the strongest toxicity in the bivalent state. Cu2+ activity is highly dependent on pH, which decreases with the increase in soil pH. Cu2+ activity is regulated by the adsorption of carbonate, phosphate, and clay minerals.

In the environment, Zn2+ combines with hydroxides, carbonates, sulfates, phosphates, and other anions to form precipitates, and also combines with organic acids to form complexes. Under reducing conditions, Zn and Fe/Mn and other hydrated oxides form co-precipitates.

The characteristics of these heavy metals are a major factor affecting removal efficiency. For example, biochar can be added to sludge compost to affect removal efficiency. Biochar for passivation of heavy metals in sludge, the removal of heavy metals in the compost similarities: biochar of nitrogen and phosphorus, potassium, calcium, magnesium, such as inorganic nutrients can be extracted, they are all with increase of pH value method to suppress the activation of heavy metals. The efficiency of removing heavy metals is affected by the sensitivity of each metal to pH, and oxygen-containing functional groups on the surface favor passivation of heavy metals.

And specific involves the change of each heavy metal quantity how much and is not the same, Principal component analysis (PCA) was used to analyze the effectiveness of heavy metals before and after composting. The contribution rates of principal component PC1–PC3 were 47.01%, 24.75%, and 20.57%, respectively. PC1 was the main factor affecting the availability of heavy metals in biochar compost. To further analyze the contribution of heavy metals to the three PCs, a factor loading analysis was performed on the three PCs. Pb had the largest contribution to PC1, Cr had the largest contribution to PC2, and As had the largest contribution to PC3. These results show that the different treatments have different passivation effects on the heavy metals, among which the Pb passivation effect was the best, followed by As and Cr.

Natural clinoptilolite, such as oblique zeolite, absorb and remove metals by ion exchange. Clinoptilolite uses ion exchange to remove cations from the aqueous solution and solid phases, which is how clinoptilolite removes heavy metals from water or sludge.

The removal effect of different heavy metals by clinoptilolite, such as Zn2+, Pb2+, Cd2+ and Ni2+ is also different. The selectivity of Pb, Cu, Cd, Zn, and Cr is higher than that of Ni. Thus, the clinoptilolite selective sequence is Pb > Cu > Cd > Zn > Cr > Ni. Clinoptilolite easily absorbs almost all metals bound to the exchangeable and carbonate components. Under these conditions, clinoptilolite occupies all metals in the exchangeable and carbonate components in the order of Cu > Cr > Ni > Pb > Zn.

The metal content in clinoptilolite increases with an increase in particle size. Surface dust blocks some of the pores in the clinoptilolite structure, resulting in slower ion exchange kinetics for smaller particles than for larger particles during Pb2+/Na+ ion exchange in water systems. In addition, structural damage to the small particles due to the grinding process affects the removal of heavy metals. The treatment effect also differs due to the different nature of some of the heavy metals. For example, the particle size of clinoptilolite has a more obvious effect on the absorption of Ni, and clinoptilolite is a relatively poor remover of Ni2+ in an aqueous solution, which is due to the high stability of the aqueous complex. More Zn2+ was removed, most Cu2+ was removed, and less Ni2+ was removed under the same conditions. The stable macrocomplexes of these metals may be too large to easily enter the zeolite pores.

Another common factor that prevents adsorption by clinoptilolite is ion size. If the ion is larger than the pore, the substance is excluded. The size of the hydration ions of the metals generated the following selective sequence: Pb > Ni > Cu > Cd > Zn > Cr.

Finally, earthworms remove heavy metals. The main mechanism by which earthworms remove heavy metal pollution is to reduce oxidative stress using the lipid antioxidase system, chelation, and activation of lysosomes and plasmids to inhibit heavy metal activity.

The variations in the concentrations of different metals can be attributed to the enrichment of heavy metals by earthworms. The concentrations of compounds in organisms are mainly based on absorption, elimination, and biotransformation. Eliminating unnecessary excess metal-to-metal bioaccumulation in sludge is a very important treatment.

The initial absorption of base metals, such as Cu and Zn, is rapid, and subsequent equilibrium is achieved after several days of exposure, indicating physiological control and possible excretion of these elements by earthworms. External metals, such as Cd, are excreted slowly or are not excreted. The same biological concentration of Cu in earthworms at all sampling sites resulted in a decrease of the bioaccumulation factor (BAF) in contaminated soil, which may be the result of this mechanism. A low metal concentration in soil corresponds to a high BAF. The excretion of some Zn by earthworms helps regulate the concentration of metal ions, and BAF is low in most contaminated soils, even at very high Zn concentrations. Eisenia fetida earthworms accumulated some Ni in this study, but only a small amount. The BAFs of the five heavy metals in E. fetida were ranked as Cd > Zn > Cu > Ni > Pb.

3  Sludge Composting Conditions and General Methods for Reducing Heavy Metal Hazards

The compost structure, ventilation, nutrient balance, water content [61], particle size, pH, soluble salts, stability, weeds, heavy metals, phytotoxic compounds and the presence of foreign matter affect compost [62].

3.1 PH

pH is an important parameter affecting the composting process.

High pH values can inhibit microbial growth [63]. The optimal pH for bacterial growth ranges from 6.0 to 9.0, and the optimal pH for fungal growth ranges from 5.5 to 8.0 [64]. The maximum growth and activity of microorganisms are conducive to rapid aerobic composting of sludge [63]. Microorganisms are an important factor affecting the leaching of heavy metals when their activities are enhanced [65].

3.2 Water Content and Temperature

The water content of sludge compost should be controlled between 40% and 60%, and the temperature should be about 55°C. A turning frequency of more than once per week effectively promotes the efficiency of composting [63].

The concentrations of some heavy metals in sludge composting decrease due to the solubility of water [66].

Leached metal contents decrease with an increase in temperature, and accumulate significantly in the solid phase. The metal form effectively migrates to a minimally toxic or non-toxic state, which activates pathogens and microbial activities [63,67].

3.3 Other Conditions

Ventilation is another important condition. Adequate ventilation and optimum humidity, as well as the removal of excess water from metabolic activities and the supply of adequate oxygen are important [68]. Maximum airflow shortens composting time and improves reactor capacity [62]. The ratio of carbon to nitrogen and carbon to phosphorus has a tremendous effect on fermentation. It is generally believed that the best C/N ratio for sludge compost is 20–35: 1. Sludge is rich in phosphorus, and the appropriate C/P for heap fertilizer is 75–150: 1. The average suitable particle size for compost material is 12–60 mm, and the optimal particle size varies with the physical characteristics of the waste. Organic matter content affects the temperature and ventilation and oxygen supply requirements of the heap, and the most suitable organic matter content of heap is 20%–80%.

Good composting products can be obtained with high microbial activity, fast composting efficiency, and a short composting cycle when the pH value is 6–8, water content is 40%–60%, the temperature is controlled at 55°C, C/N is 20–35: 1, the C/P is 75–150: 1, and oxygen and organic content is 20%–80%. Among these factors, the pH value, water content, and temperature affect the removal of heavy metals from sludge. As the main factor determining heavy metal leaching, and an increase in pH reduces soluble heavy metal concentrations; thus, reducing bioavailability. The solubility of water is used to reduce the concentration of some heavy metals. The increase in temperature leads to increased metal leaching and the metal migrates to a state of minimal toxicity or non-toxicity. To sum up, various sludge compost parameters play a role in reducing heavy metal toxicity. Appropriate parameters combined with the use of conditioning agents can reduce the dosage; thus, reducing the environmental pollution.

4  Future Recommendations

Research shows that the toxicity of heavy metals decreases gradually after sludge composting. Due to the rapid development of the sewage treatment industry and the progress in sludge treatment technology, Cu, Zn, Cd, and other heavy metal contents in sludge are reduced. Therefore, after the heavy metals in the sludge compost are passivated, the harm to the soil will also be reduced, but there are still some problems that need to be resolved.

The development of new multifunctional conditioning agents will be a trend of future research because of environmental risk and an unstable repair effect. The remediation of heavy metals during sludge composting is affected by many factors. Notably, a single conditioning agent only has a significant impact on a small number of heavy metals in the sludge. However, the use of a variety of conditioning agents, such as lime and clay minerals, will have a great influence on the repair effect. Therefore, it is important to develop multi-functional conditioning agents for various heavy metals to reduce the cost and improve the practical effect.

5  Conclusion

This review systematically analyzes and summarizes the effects of conditioning agents on the concentration and morphology of heavy metals during sludge composting. Adding conditioning agents to the composting process greatly reduces the harmful effects of heavy metals during sludge composting. Swelling agents, such as calcium oxide, zeolite, and biochar, are good loose fertilizers that decrease the concentration of heavy metals in sludge and passivate zeolite to reduce the mobility of heavy metals. biochar treatment promotes the passivation of heavy metals, particularly Pb. Zeolite can effectively significantly reduce the unstable Zn. treatment with earthworms not only optimizes the soil but reduces the concentrations of heavy metals, such as Cu, Cd, Cr, Pb, and Zn. The removal rate of Cu, Zn, Cd, Cr and Ni could reach 27%, 40%–46%, 31.08%, 10%–15% and 50%–55% by adding conditioning agents.

Most experiments now use a single conditioning agent, but different conditioning agents have different abilities to remove heavy metals, so they can be used in combination or new conditioning agents can be developed to remove many kinds of heavy metals, but also not cancel the original advantages. This is one direction for the future.
