Agro-Industrial Waste as a Source of Raw Material: Eggshell and Ash of Agave salmiana Useful for the Synthesis of Hydroxyapatite

Nora Elizondo-Villarreal1,*, Luz H. Verástegui-Dominguez1, Jose J. Quijano-Briones1, Francisco J. Vázquez-Rodríguez2, Eden Rodríguez-Castellanos3, Enrique López-Cuellar3, Ernesto Torres-Lopez1 and Victor M. Castaño-Meneses4,*

1Universidad Autónoma de Nuevo León, Facultad de Ciencias Físico Matemáticas, Ciudad Universitaria, San Nicolás de los Garza, Nuevo León, México
2Universidad Autónoma de Nuevo León, Facultad de Arquitectura, Ciudad Universitaria, San Nicolás de los Garza, Nuevo León, México
3Universidad Autónoma de Nuevo León, Facultad de Ingeniería Mecánica y Eléctrica, Ciudad Universitaria, San Nicolás de los Garza, Nuevo León, México
4Centro de Física Aplicada y Tecnología Avanzada, Universidad Nacional Autónoma de México, Querétaro, México
*Corresponding Authors: Nora Elizondo-Villarreal. Email: nora.elizondovl@uanl.edu.mx; Victor M. Castaño-Meneses. Email: vmcastano@unam.mx
Received: 14 February 2022; Accepted: 24 March 2022

Nomenclature

1  Introduction

Hydroxyapatite (HAP) is the main inorganic component of vertebrate bone, representing between 60 and 70% of the calcified human skeleton and 90% of the inorganic bone matrix. The hydroxyapatite nanoparticles (Ca10(PO4)6(OH)2 are of great interest for they have a very wide range of applications, from drug delivery and chromatography to gene therapy, and also as a retardant of cancer cells reproduction [1–4]. Hydroxyapatite is an ideal material for artificial bones, as well as a replacement of small parts of bones, dental applications, and bone cement [5–7]. HAP has been found to have an inhibitory function on the growth of many kinds of tumor cells and its nanoparticles have shown stronger anti-cancerous effect than macromolecule microparticles [7,8], and they can improve the adsorption and photocatalytic decomposition of toxic metals, bacteria, viruses and other substances that represent a biological risk [9].

HAP has 39.68% Ca and 18.45% P by theoretical weight, resulting in a molar ratio of Ca/P = 1.67. HAP crystallizes in a hexagonal system with cell values of a = b = 9.432 Å, and c = 6.88 Å. The ionic character of hydroxyapatite allows to partially or completely replace ions from the Ca2+, PO43+, OH– network by others of similar size such as chloride (Cl–), carbonates (CO32–), and fluorides (F−) resulting in changes in their properties, morphology, solubility, etc. without significant changes in their hexagonal structure [10].

HAP can be synthesized by various methods, such as mechanochemical synthesis, combustion preparation, direct precipitation of aqueous solutions, sol-gel processes, hydrothermal method, emulsion synthesis routes, electrochemical processes, and biomimetics [11–19]. It is known that the mechanochemical and the hydrothermal process allow to produce HAP at nanometric sizes [20,21].

Around 12% of the chicken egg weight is provided by the shell and it is composed of 94% of calcium carbonate (CaCO3), small amounts of magnesium carbonate (MgCO3), calcium phosphate (CaPO4), and organic matter, including mucopolysaccharide-type proteins [22]. Calcium oxide (CaO) is usually produced via the thermal decomposition of limestones obtained through mining and quarrying [23].

Agave belongs to the family of the Agavaceae and includes many native species found in the deserts of the American continent. Its leaves are rich in long fibers used to obtain hemp, ropes, and nets, among others products. Agave produces many drinks, among which the most popular are tequila and mezcal, which have been a tradition in Mexico since the seventeenth century. The production of these alcoholic beverages generates an agricultural byproduct in the form of bagasse. For each liter of the mixture, 15 kg of bagasse is produced. Therefore, extensive research has been carried out to use this bagasse produced in arid lands as a renewable energy alternative [24].

In contrast, the Aloe barbadensis belongs to a family of more than 200 species called Aloeneae of the Liliaceae family, originally from Africa, known in the Americas since the 16th century. Around 320 species have been described from the Aloe gender. In Mexico, the most frequently cultivated species are Aloe barbadensis and Aloe ferox, these can be found throughout the country. Currently, there is much interest in the use of Aloe barbadensis as a natural surfactant for the synthesis of metal nanoparticles [25].

Accordingly, the aim of this work is the synthesis of hydroxyapatite based on the green chemistry principles, so residues such as eggshells [26] and bagasse from Agavesalmiana were used as CaO source, as well as Aloe barbadensis as a natural surfactant. Their effects on the structure and morphology of HAP were examined.

Some works have demonstrated that a proper selection of biological precursors from sustainable natural resources can effectively replace the commercial surfactant for the fabrication of nanomaterials. The green biotemplate Aloe barbadensis plant extract has emerged as a better substitute for industrial surfactant poly(ethylene)glycol for the synthesis of nanomaterials.

The Aloe barbadensis-surfactant could provide steric hindrance effects, confining the particle growth to a certain direction. Then, Aloe barbadensis a biotemplating/capping agent for the green synthesis of particles. The quantity of surface functional groups from Aloe barbadensis allows to control the dynamic characteristics of nucleation and particle growth [27,28].

There are some works were surfactants such as sodium dodecyl sulfate (SDS) and hexadecyltrimethylammonium bromide (CTAB) were used for synthesizing hydroxyapatite, as a regulator of the nucleation and crystal growth, followed by a hydrothermal treatment.

Surfactants are extensively applied to assist and accelerate the hydrothermal reaction process. The surfactants have an effect on the nucleation and growth during the process of aqueous reaction, due to their great solubility in water, low residues, and easy cleaning [29,30].

Our present work represents an innovative and original approach, because we use agro-industrial waste, such as eggshells and Agave salmiana, as a source of raw materials, as well as Aloe barbadensis as a natural surfactant for the synthesis of hydroxyapatite.

2  Materials and Methods

The green synthesis of Hydroxyapatite (HAP) was carried out by a hydrothermal method in the presence of Aloe barbadensis leaf extract. Prior to the synthesis of HAP, the CaO precursor materials were prepared.

2.1 Preparation of Eggshell

The eggshell was washed using distilled water and placed into a 1M NaOH solution for a week, to remove any organic residues. Then, the eggshell was washed again and filtered with distilled water. At 90°C for 12 h, the eggshell was dried before it was milled in a ball mill for 40 min. Then, the CaCO3 powder was obtained from the eggshell by milling and heated at 800°C for 5 h to allow the decomposition of CaCO3 into CaO.

2.2 Preparation of Bagasse Agave salmiana

The bagasse Agave salmiana was sun-dried until all the liquid water and alcohols structure were eliminated. Then, the bagasse was burned on direct fire to obtain ashes from the bagasse fibers. These fibers contained a high concentration of CaCO3. The bagasse ash from Agave salmiana was mechanical milled in a ball mill for 40 min. Finally, ashes of bagasse were heated at 900°C for 3 h to allow the decomposition of CaCO3 into CaO.

2.2.1 Hydroxyapatite Synthesis: Hydrothermal Route

Hydroxyapatite was synthesized by the hydrothermal route with eggshell as CaO source, as described in reference [26].

2.2.2 Hydroxyapatite Synthesis: Hydrothermal Route Using Aloe barbadensis as a Natural Surfactant

Hydroxyapatite was synthesized by the hydrothermal method from commercial dibasic calcium phosphate (CaHPO4) and lime (CaO) obtained from agro-industrial residues (eggshell powder and Agave salmiana ash). In a teflon glass, CaHPO4 and CaO were mixed in a 3:1 ratio, then 30% of the mass of the Aloe barbadensis extract was added to the mix. The mixture was then acidified with vinegar to a pH of 5 and the teflon glass was sealed. Finally, the vessel is transferred to the reactor and allowed to react at 180°C for 13 h. The obtained powder was filtered and washed with distilled water and dried at 150°C for 2 h.

3  Results and Discussion

The CaO precursors were characterized to determine their composition, size, and morphology, by using XRF and SEM. The products of the green synthesis were characterized by X-ray diffraction, Fourier transform infrared spectroscopy (FTIR), and scanning electron microscopy (SEM). The crystalline phases analysis was performed by powder X-ray diffraction in a Riaku Miniflex II diffractometer with a Cu Kα radiation (λ = 1.5418). The data were collected in an interval of 5°–90° with a scanning speed of 2°/s. For FTIR analysis, an infrared spectrophotometer with an attenuated total reflectance device, Perkin Elmer Spectrum was used. Between 0.1–0.3 g of powder was used for the analysis. The range of wavenumbers to obtain the spectra was 4000–550 cm–1, corresponding to the middle region of the infrared spectrum. The microstructural analysis was carried out using a scanning electron microscope, JEOL JSM-6510LV with EDS detector Oxford Instruments X-Max.

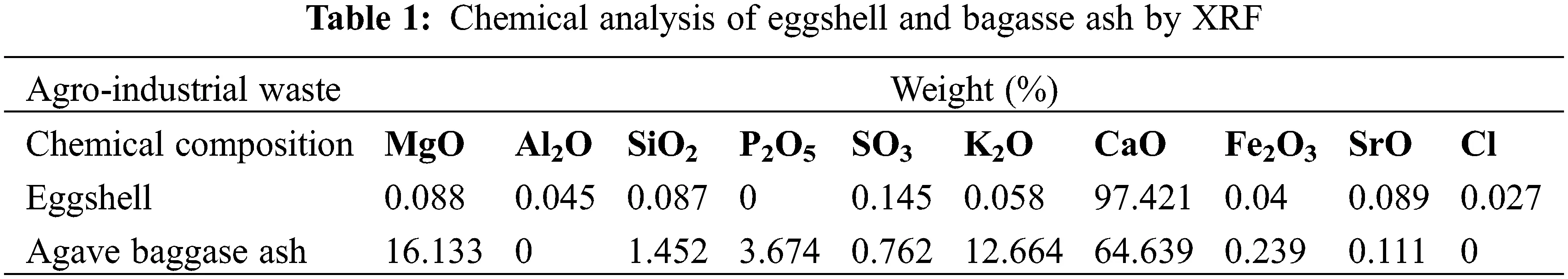

Table 1 shows the chemical analysis of bagasse ash by XRF. Fig. 2 shows the microstructure of the calcined fibers, where irregular particles (CaCO3) are shown with sizes below 2 μm.

The chemical analysis of the eggshell was performed by the volumetric method (atomic absorption) and the technique of X-ray fluorescence (XRF). By atomic absorption a content of Ca = 37.5%, CaCO3 = 93.8%, and Mg = 0.37% was obtained. Table 1 shows the chemical analysis of the eggshell evaluated by X-ray fluorescence. Fig. 1 shows the microstructure by SEM of the eggshell a) before being processed and b) after the mechanical milling process. From Fig. 1a it can be seen that the eggshell was composed of 12 µm cavities and some areas with organic residues from the eggshell inner shell.

Figure 1: (a) Eggshell surface before the milling process (b) eggshell powder after the mechanical milling process for 40 min

Figure 2: Irregular morphology of the bagasse ash of Agave salmiana. The particle size is in the range of 1 to 5 µm

The average particle size (d50) of the eggshell powder was evaluated by a MICROTRAC 3500 size analyzer. An average particle size of d50 < 7 µm was obtained (Fig. 3a).

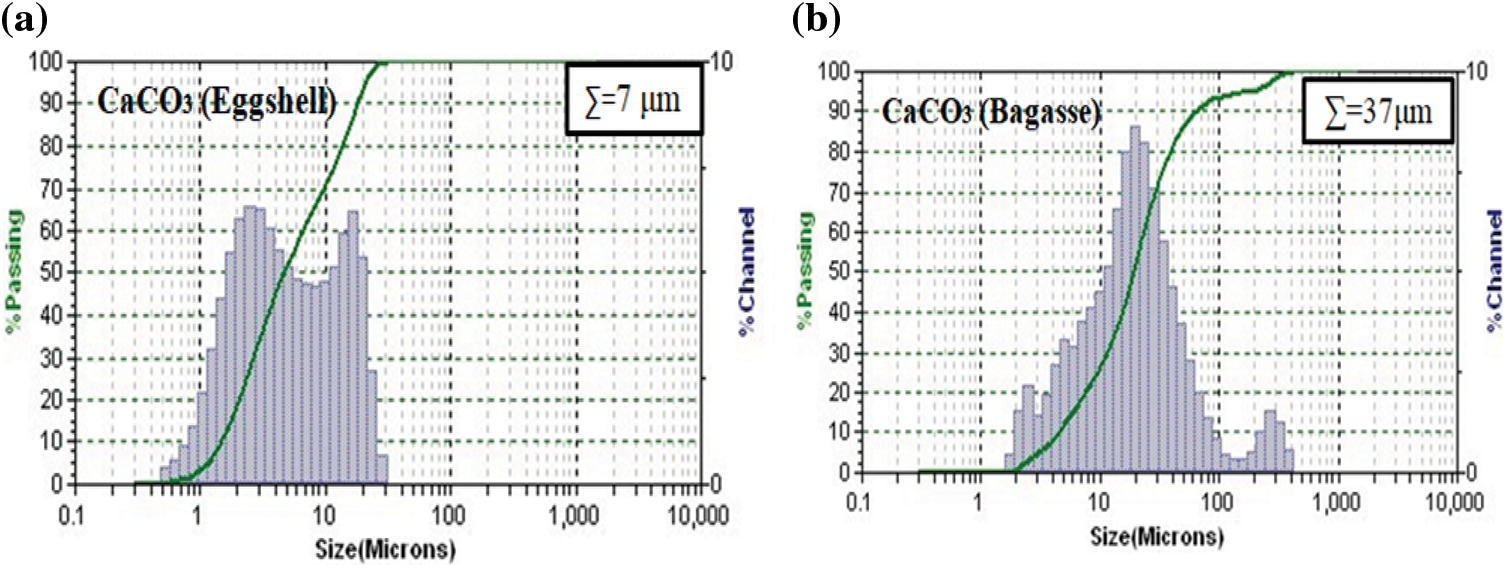

Figure 3: Particle size analyzer MICROTRACT. (a) CaCO3–Eggshell after the milled. (b) CaCO3–Agave salmiana bagasse ash after the milled

The average particle size (d50) of the bagasse ash was in the range d50 < 37 µm, as evaluated by a MICROTRAC 3500 size analyzer (Fig. 3b).

After calcination, eggshell, and bagasse ash were characterized by the XRD technique. According to the diffractograms shown in Fig. 4, it can be observed CaO with a cubic structure and spatial group Fm3m, according to Physics and Chemistry of Minerals 27 (1999) 103–111 is the only crystalline phase present after the calcination.

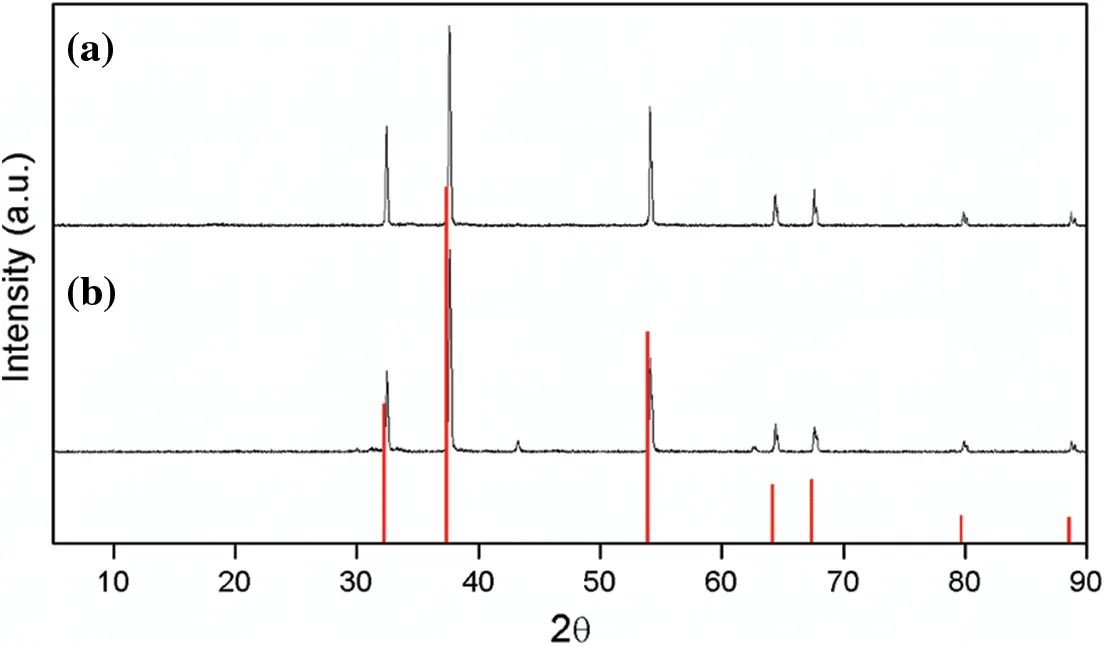

Figure 4: Diffractograms were obtained from calcined (a) eggshell and (b) Agave salmiana bagasse ash, and in red color diffraction base pattern of CaO

The resulting powders were synthesized using a) HAP without aloe extract, b) HAP– eggsheell with Aloe barbadensis extract, c) HAP–bagasse ash of agave with Aloe barbadensis extract, and d) Reference Diffraction pattern. All samples are mainly composed of Hydroxyapatite with a hexagonal structure and spatial group P6_3/m according to American Mineralogist 74 (1989) 870–876. The presence of calcium phosphate acid (CaHPO4) in the synthesized powders was also observed (Fig. 5).

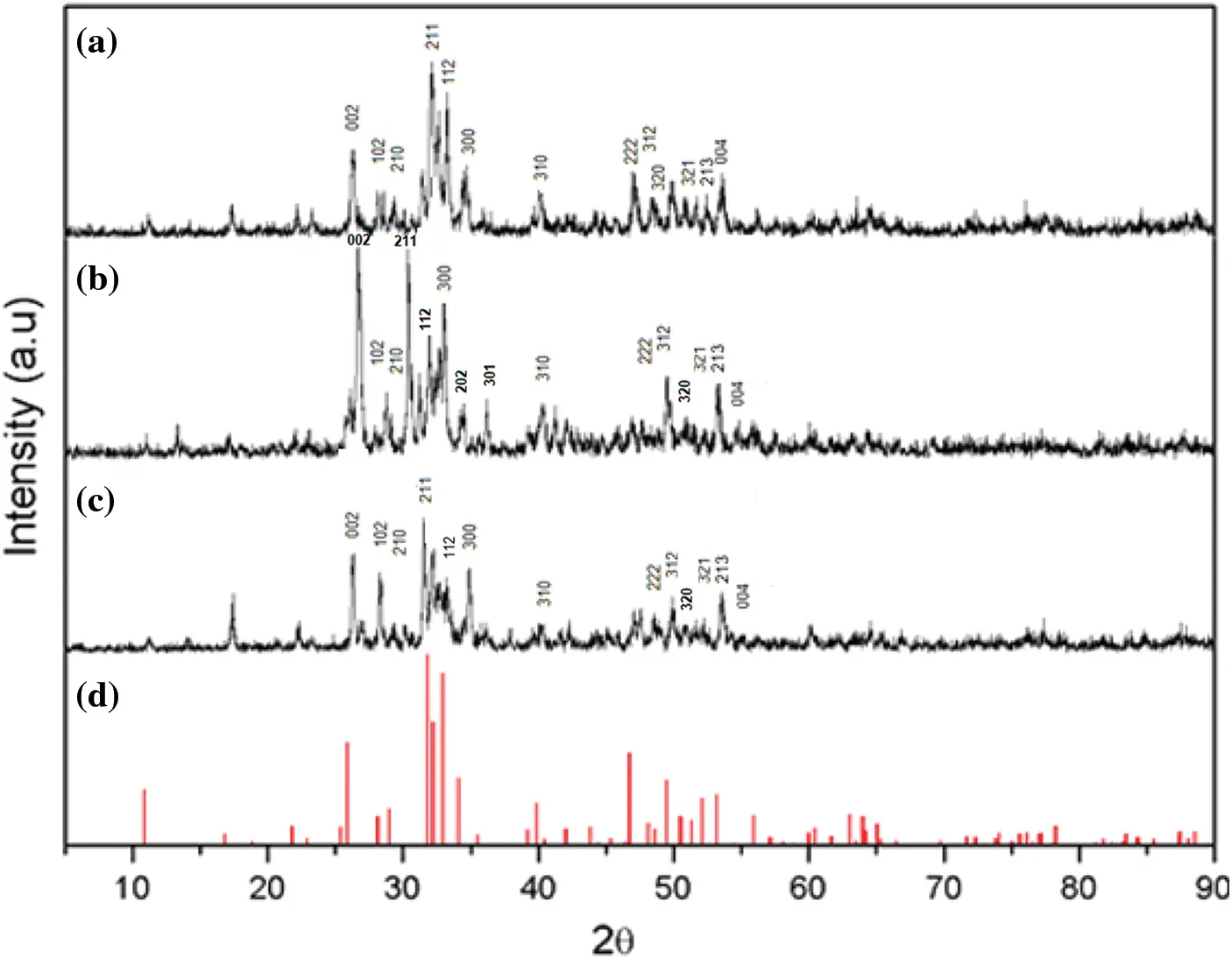

Figure 5: Diffractograms of the Hydroxyapatite synthesis: (a) HAP without aloe extract, (b) HAP–eggshell with Aloe barbadensis extract, (c) HAP–Agave salmiana bagasse ash with Aloe barbadensis extract, and (d) Diffraction base pattern of HAP

The FTIR spectra, Fig. 6, show the characteristic bands for PO43− which are observed in 561, 601, 962, 1090 cm–1. The vibration of the OH− ion is also observed in 631 cm–1. The peak that appears in 875 cm–1 corresponds to CO32− , 1025 cm–1 corresponds to Ca3(PO4)2.

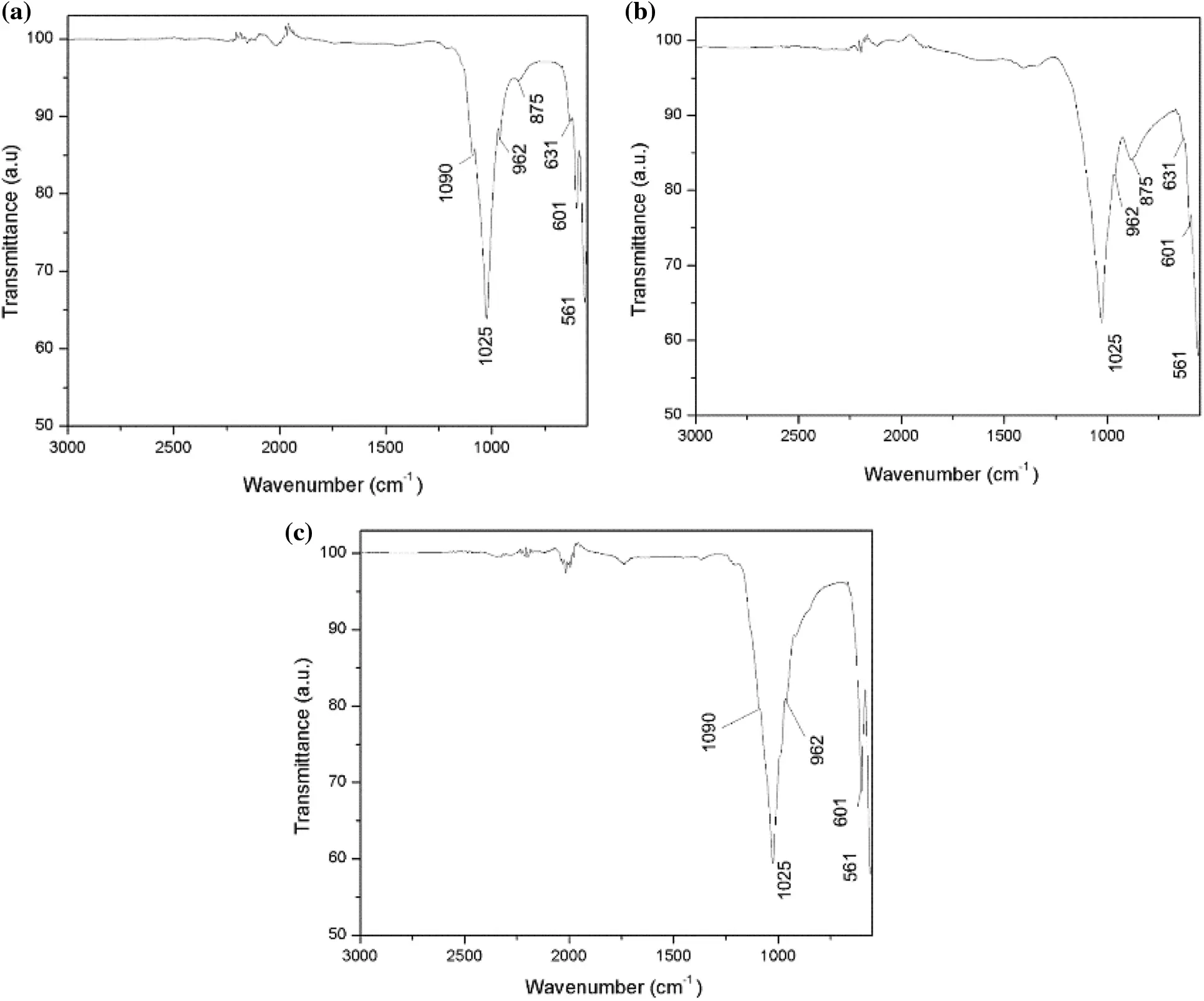

Figure 6: (a) FTIR spectrums of HAP without Aloe barbadensis extract. (b) FTIR spectrums of HAP–eggshell using Aloe barbadensis extract. (c) FTIR spectrums of HAP–Agave salmiana bagasse ash using Aloe barbadensis extract

Fig. 7 shows SEM images where it can be seen the morphology of the powder resulting from the hydrothermal synthesis by using CaO obtained from eggshells. Irregular particles of micrometric size are observed but also we can appreciate small needles of nanometric size. Fig. 8 shows SEM images of the HAP morphology by using CaO of eggshell and Aloe barbadensis. Rods and some platelets of micrometric size particles are observed. Fig. 9 corresponds to the SEM images of HAP morphology using CaO from Agave salmiana and Aloe barbadensis. Rectangular and hexagonal rods and some shapeless micrometric size particles are observed. It should be noted that, for each experiment performed, similar particles were obtained with rod and needle morphologies of different dimensions, depending on the initial conditions used during the synthesis. It is also observed that for the HAP where CaO of eggshell is used, nano-sized particles are generated.

Figure 7: SEM micrographs of hydroxyapatite powder resulting from the hydrothermal synthesis of commercial phosphate and CaO obtained from eggshells with a magnification of (a) 10 µm, (b) 2 µm and (c) 1 µm

Figure 8: Hydroxyapatite powder micrographs resulting from the hydrothermal synthesis of commercial dibasic phosphate, (a) CaO obtained from eggshells and (b) CaO obtained from eggshells in solution with extract of Aloe barbadensis

Figure 9: Hydroxyapatite powder micrographs resulting from the hydrothermal synthesis of commercial phosphate, CaO obtained from Agave salmiana with a magnification of (a) 10 µm and (b) 2 µm

Figs. 10a and 10b are TEM images of different zones of the sample of Hydroxyapatite powder resulting from the hydrothermal synthesis with CaO obtained from Agave salmiana. As it can be observed, there are several nanograins oriented in different directions. Fig. 11a corresponds to the zoom of Figs. 10a and 11b is the zoom from Fig. 10b, respectively. Interplane distances are indicated in Table 2. Moreover, the expected value of the planes of the Hydroxyapatite and angles between them can be appreciated also in Table 2. As it can be observed, the measured distances are very close to those distances indexed from the expected crystal structure of the Hydroxyapatite. The expected distances were calculated in the CaRIne. Crystallography 3.1 program, introducing the structure of the Hydroxyapatite reported by Ortega et al. [31] and Cao et al. [32].

Figure 10: Images in TEM mode in high resolution of the sample of Hydroxyapatite powder resulting from the hydrothermal synthesis of commercial phosphate, CaO obtained from Agave salmiana in different zones (a) and (b)

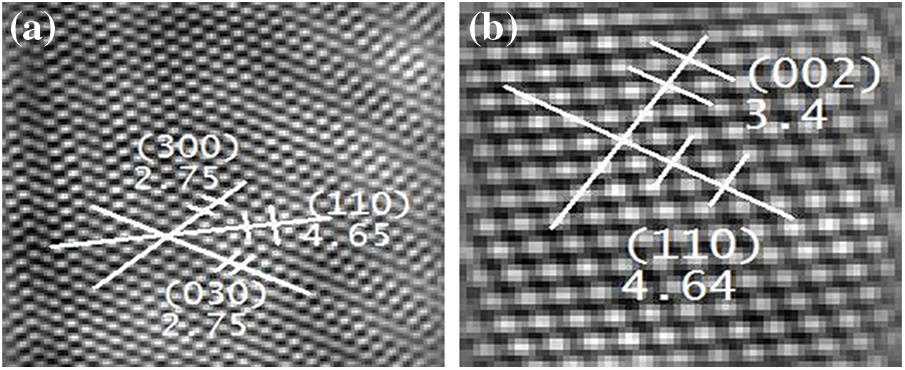

Figure 11: (a) Enlargement of Fig. 10a, to show further microstructure details; (b) Enlargement of Fig. 10b, to show further microstructure details

The size and shape of the hydroxyapatite changed dramatically in the presence of Aloe barbadensis. Large crystals of Hydroxyapatite were observed when Eggshell powder and Agave salmiana ash were used as raw materials in the presence of the Aloe barbadensis surfactant. Crystals with shapes of ribbons and plates from 1 micrometer to 8 micrometers were observed when using the eggshell powder in the presence of Aloe barbadensis and, in the case of Agave salmiana ash in the presence of Aloe barbadensis, crystals with shapes of quadrangular prisms and hexagonal (polyhedra) with sizes from 2 micrometers to 20 micrometers were observed.

The Aloe barbadesis contain polyphenols, several polysaccharides, and other functional groups. The phenols are highly reactive compounds due to their polydentate ligands with a multiplicity of potential binding sites, i.e., phenolic groups. They may be the active agents in the extracts, responsible for the enhanced stability of micelles and the content of polysaccharides is responsible for the micellization behavior [33,34].

The formation of HAP in the presence of surfactant was accelerated, obtaining large crystals of several micrometers in comparison with HAP synthesized without surfactant at the same reaction time. The added surfactant is then supposed to bind to certain faces of the crystals and bind to certain ions as well so that ions could be incorporated into the existing nuclei at a steady rate and the final shape and size can be well obtained.

The HAP crystals synthesized in the presence of Aloe barbadesis exhibited a controlled irregular hexagonal and square prism-like shape and subsequently grew up by the thermal treatment to be larger-sized crystals at a well-dispersed state.

It was also found that the Aloe barbadesis surfactant induced heterogeneous nucleation to initiate the nucleation/growth processes.

In contrast, HAP crystals synthesized without surfactant exhibited irregular and nails shaped and aggregated crystals, which are due to dominantly occurring homogeneous nucleation as schematically depicted in Scheme 1 [29–32,34].

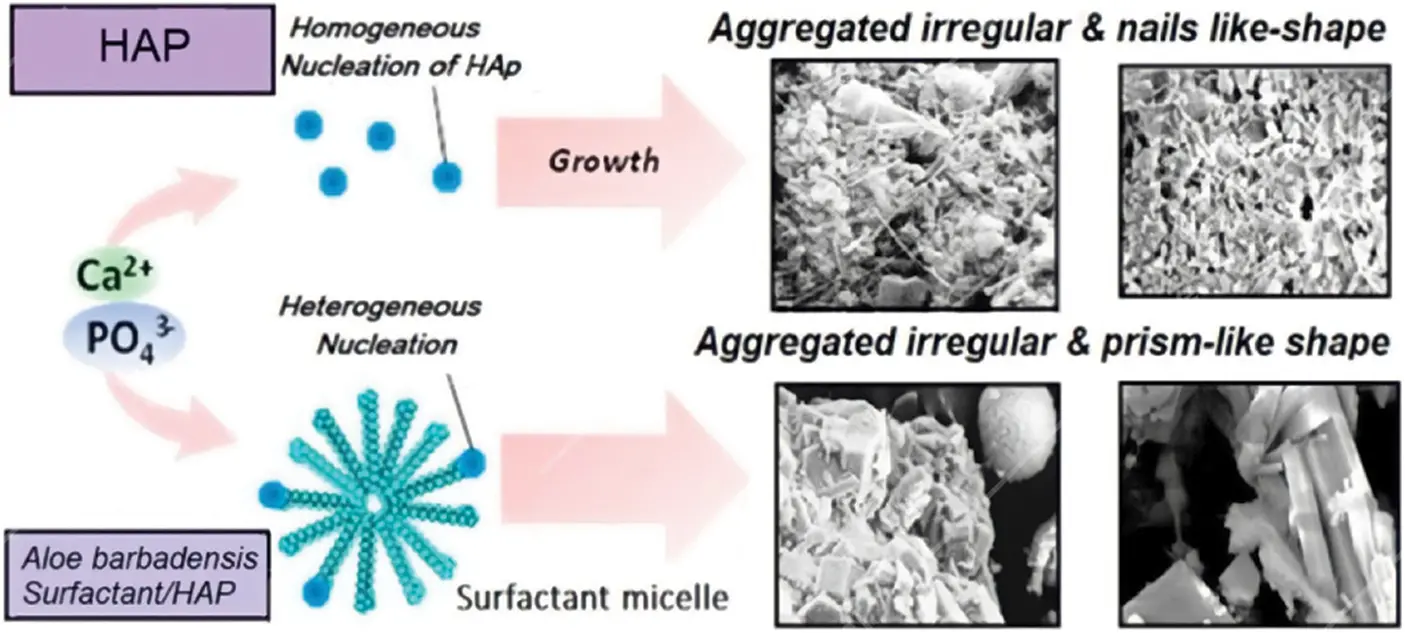

Scheme 1: Illustration of the possible coexistence effect of the Aloe barbadensis as a surfactant responsible for the enhanced stability of micelles and for the influence of the micellization behavior on the HAP Crystal Formation Process

4  Conclusions

Hydroxyapatite successfully obtained by a simple hydrothermal method, with Eggshell and Agave salmiana as raw materials. The product was a mixture of CaHPO4 and CaO in a ratio of 3:1 with HAP morphology in the form of hexagonal and rectangle prisms, rods, needles, and some platelets. In addition, the use of green chemistry during HAP synthesis with eggshell and Agave salmiana using a solution of Aloe barbadensis as a surfactant agent, acts as a crystalline growth agent for the particles of HAP.

Acknowledgement: This article is dedicated to the memory of the late Mrs. Aida Meneses-Castillo.

Funding Statement: The funding was provided by Project CE1645-21 PAICYT UANL.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
