A Method of Integrating Length Constraints into Encoder-Decoder Transformer for Abstractive Text Summarization
1 Faculty of Information Technology, Haiphong University, Haiphong, 180000, Vietnam
2 Faculty of Information Technology, VNU University of Engineering and Technology, Hanoi, 10000, Vietnam
3 Natural Language Processing and Knowledge Discovery Laboratory, Faculty of Information Technology, Ton Duc Thang University, Ho Chi Minh City, Vietnam
* Corresponding Author: Anh-Cuong Le. Email:
Intelligent Automation & Soft Computing 2023, 38(1), 1-18. https://doi.org/10.32604/iasc.2023.037083
Received 22 October 2022; Accepted 20 February 2023; Issue published 26 January 2024
Abstract
Text summarization aims to generate a concise version of the original text. The longer the summary text is, the more detailed it will be from the original text, and this depends on the intended use. Therefore, the problem of generating summary texts with desired lengths is a vital task to put the research into practice. To solve this problem, in this paper, we propose a new method to integrate the desired length of the summarized text into the encoder-decoder model for the abstractive text summarization problem. This length parameter is integrated into the encoding phase at each self-attention step and the decoding process by preserving the remaining length for calculating head-attention in the generation process and using it as length embeddings added to the word embeddings. We conducted experiments for the proposed model on the two data sets, Cable News Network (CNN) Daily and NEWSROOM, with different desired output lengths. The obtained results show the proposed model’s effectiveness compared with related studies.Keywords
There are two common approaches to dealing with the text summarization problem: extractive text summarization (ETS) and abstractive text summarization (ATS). While ATS aims to generate a new text to summarize the main content of the original text [1–4], the purpose of ETS is to extract important sentences from the original text. The former approach seems natural and appropriate and is similar to what humans do when summarizing a text, thus making it an exciting subject to study. Furthermore, the AST is a highly customizable approach, especially for the length of the generated summary text.
It was shown that it is a practical need to generate a summary text with different levels of abstraction [5]. Therefore, the problem of text summarization with a desired length is an important problem that has attracted much interes in the summarization community. This problem is called the controllable abstractive summarization we are dealing with.
A well-known approach for AST is to apply deep learning models for generating an output sequence from an input sequence, which consists of two components, the encoder and decoder components. The first component is responsible for encoding information from the original text, while the second one is responsible for generating the summarized sequence [6]. The commonly used models are Long Short-Term Memory (LSTM) and Transformer [7]. Related studies solve this problem according to a general principle that includes the length constraint in the generation process. The standard technique used is that it tries to stop early in the decoding process. A typical method was shown in Rush et al. [8], where the proposed model assigns a negative number to generated words that exceed the desired length limit. This approach is entirely mechanical and does not provide timely information about the desired length of the output at all stages of the encoding and decoding processes. In other studies, Length Embedding (LE) [9] encodes the remaining length as an additional input length for the LSTM of the decoder, and Length Attention (LA) [10] proposes a Length Attention mechanism to make a priority in length control. These studies have used the desired length information more flexibly by creating a length context vector and using it in the attention mechanism. However, it will not be effective when the training data is sparse because it contains more parameters to use this length of information.
Several other studies (e.g., Length-controllable Prototype Abstractive Summarization (LPAS) [11]) try to use the desired length information in the encoding process to select the corresponding number of most important words for the encoding process, thereby influencing the generated summary. Takase et al. [12] used the desired length as added information in the encoding processing, extending the sinusoidal positional encoding formula given in [13].
In this paper, we also aim to use the information about the desired length of the output sequence in both the encoder and decoder components of the sequence-to-sequence (seq2seq) model. However, unlike the previous studies, in our proposed model, the encoding of length information is dynamically integrated into the model more intrinsically. We consider the desired length a valuable information source, and it is equally used in encoding along with word embeddings and position embeddings. During the decoding process, we will dynamically encode the desired length of information. We will gradually reduce this information so that the completion of output generation happens naturally. We also use length embeddings at the decoder as added information to word embeddings for generating output words.
The novelty of our approach is to use as much as possible of the desired length by integrating it into both the encoder and decoder, unifying their use as an embedding vector integrated with word embeddings to derive the information for generating the output text of the desired length. The idea is to utilize the characteristics of deep learning models, in which the information is filtered by itself based on the model and big data. If the information is added in many different aspects through the learning process, it will make a useful contribution to producing the desired output. Our proposed model is based on the Transformer model for the Sequence to Sequence type of problem, in which we integrate the additional information about the desired output length.
In summary, our proposal represents the following new contributions:
• First, we uniformly represented the desired length information by an embedding vector. We combined it with the word vectors and position vectors in both the encoder and decoder components. In addition, we suggest using an additional Head Attention to control the remaining length of the output when referring to the desired length. Our approach helps the proposed model contain more information about the desired length in various encoding and decoding aspects than in other studies such as in [9,10,12,13].
• Second, our proposal uses only the encoder-decoder transformer model and does not use additional modules as in the study [11]. The proposed model utilizes the characteristics of deep learning models and big data to filter helpful information to produce the desired output.
The rest of the paper is organized as follows. Section 2 describes an abstractive summarization problem with a length constraint and presents some technical details of the Transformer model to supplement the description of the new technical proposals. Section 3 describes in detail the proposals for integrating the desired length information into the proposed model’s encoder and decoder. Section 4 gives the experiments and results of the proposed model when compared to previous models. Finally, the contribution of this paper is summarized in conclusion.
2 Length-Controllable Summarization with Transformer Model
The seq2seq model for the summarization problem takes an input text as a sequence of words and generates a summary text that is also considered as a sequence of words. In Length-controllable summarization, the model takes the source document
Like most other studies, we use the Transformer model in this work. The model is trained on pairs (original text, summary text); here we will use the length of the summary text for the parameter l.

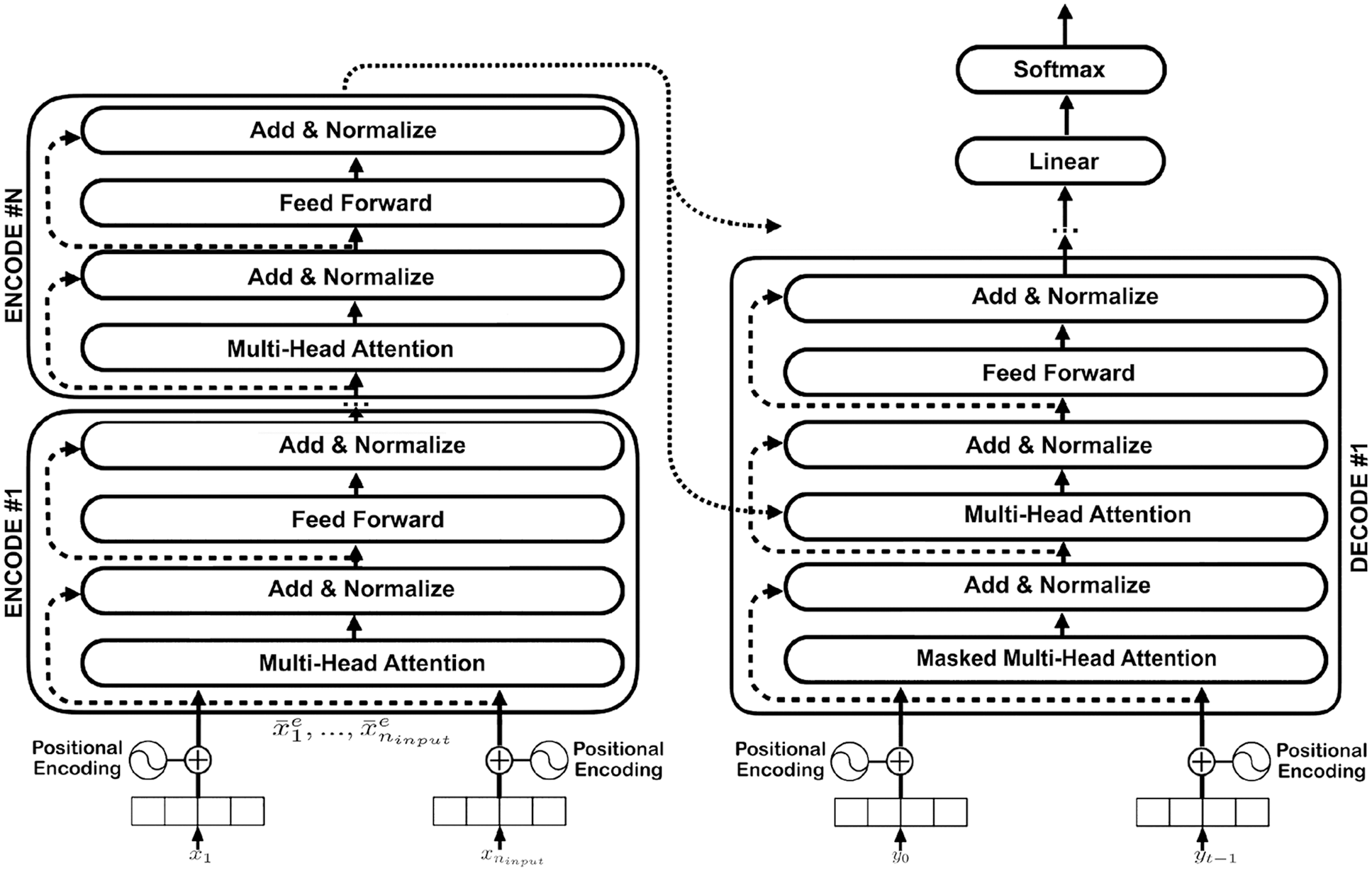

The conventional transformer model for the abstractive summarization problem is quite clear. The transformer consists of two components: the encoder component, which has the goal of encoding the input text, and the decoder component, which is responsible for generating the word string that is the result of the summary.
The encoder takes as an input a sequence of vectors containing information about the corresponding words of the input text. The transformer uses self-attention and multi-head mechanisms to encode the context information of each word. As the result, the encoder maps an input sequence of symbol representations
The goal is to efficiently integrate information about the desired length of the output into the encoding and decoding processes so that the resulting summary text satisfies both the summary quality and the desired length.
2.2 Some Basics of Seq2Seq Transformer Model
Transformers draw inspiration from the encoder-decoder architecture found in RNNs because of their attention mechanism. It can handle sequence-to-sequence (seq2seq) tasks while removing the sequential component. A Transformer, unlike an RNN, does not perform data processing in sequential order, allowing greater parallelization and faster training. The Transformer model’s architecture, including the encoder and decoder for the seq2seq problem, is illustrated in Fig. 1.
We list here some important notations in the formulas used in the Transformer model.
The encoder
The encoder includes N layers, each of which has two sub-layers. The first is the most important layer, which is a multi-head self-attention mechanism. The second one is a position-wise fully connected feed-forward network.
The decoder
The decoder is designed with the same number of layers as the encoder. In addition to the two sub-layers, as in every encoder layer, the decoder inserts a more sub-layer, which performs multi-head attention over the output of the encoder stack.
Attention
The seft-attention value is estimated by the following equation:
where
Multi-head attention allows the model to attend to different aspects of context-based representation. The multi-head attention for stack i in the encoder is calculated by:
which
Similarly, for the decoder multi-head attention for layer i in the decoder, we have that
where
Masked multi-head attention only exists in the decoder. For the masked multi-head for layer i in the decoder during training, we have that
where
Here, Mask(m) is a function of a square matrix m, and it holds that m’ = Mask(m) if
For the masked multi-head for layer i in the decoder during inference, the mask function is removed. That is to say, the MaskedMultiHead layer is the same as the MultiHead layer during inference.
where
LayerNorm is a normalized layer that does not change the shape of tensors. We use residual connections and apply layer normalization to determine the output value of layer i in the encoder and decoder, i.e.,
Note that in all the formulas, the notation W is used to denote the parameter of the model. In the last layer of the decoder, we usually use a linear layer and then go through the soft-max layer to generate the corresponding output.

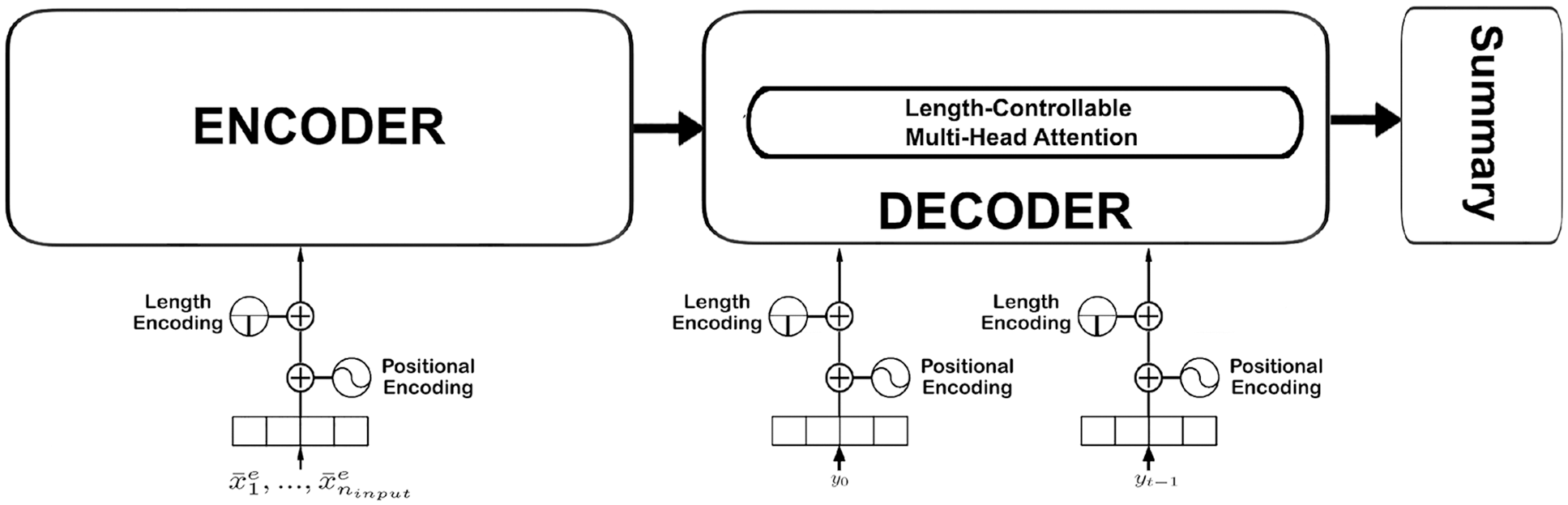

In this section, we will present our proposal about how to integrate information on the desired length of the output into the encoder and decoder of the basic model presented in the previous section (see Fig. 2). The algorithm schema of the model is shown in Fig. 3, which shows the information about the desired length used in different aspects. The length embedding is integrated with word embedding in both the encoder and decoder. The length-controllable head attention is calculated in the Multi-Head Attention calculation step by Eq. (24). This length-controllable head attention is calculated based on the desired length and remaining length. It is used to control the output length.
3.1 Integrating Length Information into Encoder
As mentioned above, the input of the encoder is a sequence of vectors, which are calculated from the embeddings of input words and of their positions.
To use the desired length information l of the output, we first represent it by a vector and then add it with the word embeddings and word position embeddings.
Suppose that
Then the input representation of
3.2 Integrating Length Information into Decoder
The desired length l of the output sequence is used to add information to the words yi through a discretization of levels in the segment [1, l]. Then
The input representation of
At the decoding step, the remaining length information
where
Especially, we propose to use one more head-attention
Here we started to apply self-attention at fist stack in the encoder
We use residual connection and apply layer normalization
Then we do feed forward neural network
We use residual connection and apply layer normalization
We iterate this process N times and get
We then look at the decoder. We have the translation output, which is the translation of input, consisting of
The input to the decoder the right shifted of y is called
Then we started to apply self-attention. However, to prevent the current word input from peaking at the following words, we used masked multi-head attention instead of the ordinary multi-head attention we used in the encoder. Here is the intuition. During training, the entire right shifted output
We use residual connection and apply layer normalization
Then we use queries from
We use residual connection and apply layer normalization
Then we do feed forward neural network
We use residual connection and apply layer normalization
We iterate this process N times and get
We then apply SoftMax to get the probability matrix
Finally, we could calculate the cross entropy loss using y and P. More specifically, each row of
To evaluate the effectiveness of the proposed model, we conducted experiments on the popular datasets CNN/Daily Mail (CNNDM) and NEWSROOM, which were widely used in related studies such as in [7,9,11].
Structured CNN/Daily Mail (CNNDM) data consists of text pairs and the summary text of that texts. This data includes 286,817 pairs of training texts, 13,368 pairs of evaluation texts, and 11,487 pairs of test texts.
NEWSROOM has 1.3 million text pairs and corresponding summaries. We randomly selected 973,042 text pairs for training data, 30,000 text pairs as the evaluation data set, and 106,394 text pairs for model testing data [6,14].
Our proposal is indicated by integrating different aspects of the desired output length information into the encoder and decoder of the transformer model. Our proposed model adds desired length information to both the encoder and the decoder, so we will build different test models to test the effectiveness of these suggestions. Furthermore, how we represent and integrate desired length information into our Seq2Seq Transformer architecture is also different so we will compare the experimental results obtained with those of related studies. Specifically, we build the following test models:
• The proposed model with fully integrated information of the desired length, including the length head attention at the decoder and the length embedding at both the encoder and decoder. We call this model “the full proposed model.”
• The proposed without integrating desired length information at the encoder. We call it “the proposed model 1”. This model uses the length head attention and length embeddings at the decoder without the length embedding at the encoder.
• “The proposed model 2” contains the information about the desired length in two aspects: the length head attention at the decoder and the length embedding at the encoder.

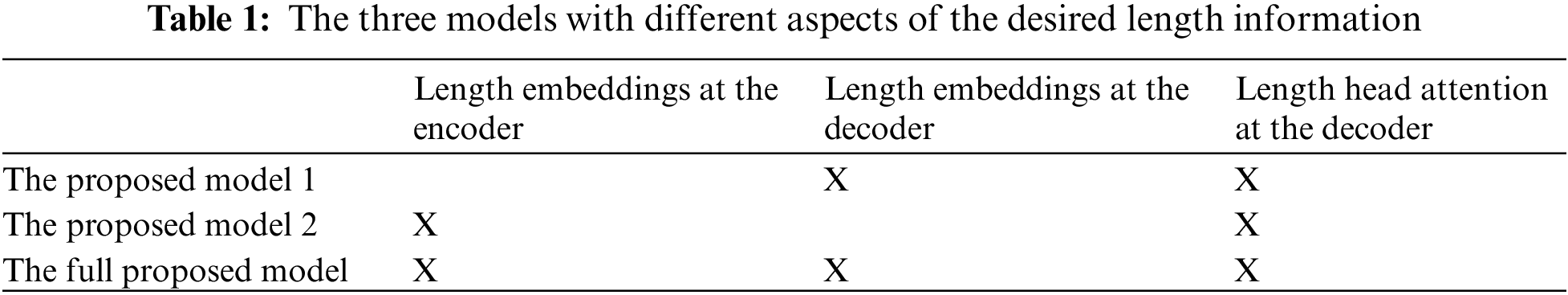

In summary, Table 1 illustrates the three models with varying utilization of the desired length information.
In the experimental process, we used the same network configuration parameters on the two corpora. The model uses the 300-dimensional Glove Embeddings set. The encoder-decoder uses a Transformer with 6 blocks, with 8 heads on the data and 1 head length. The dimension of the Feed Forward Network (FFN) network is 2048, dmodel is set to 510. We use true Adam’s optimization with the scheduled learning rate suggested in the study of Vaswani et al. [13]. The learning rate is fixed at 0.0001, and mini-batches of size 16 are used. Gradient clipping is also used with a maximum gradient norm of 2.0. For all datasets, the vocabulary consists of 50K words and is shared between the source and target. During training, we run 35 epochs for the CNN/Daily Mail dataset and 20 epochs for the Newsroom dataset. During testing, we set the size of a beam to 5. The model sets the lexical sizes of the input and output of the model to 100,000 and 1,000, respectively.
Similar to previous related studies, we also performed experiments with different desired output lengths, including three values of 30, 50 and 70.
We used the ROUGE scores (F1), including ROUGE-1(R1), ROUGE-2 (R-2), and ROUGE-L (R-L), as the evaluation metrics [15]. We used the files2rouge toolkit for calculating the ROUGE scores1.

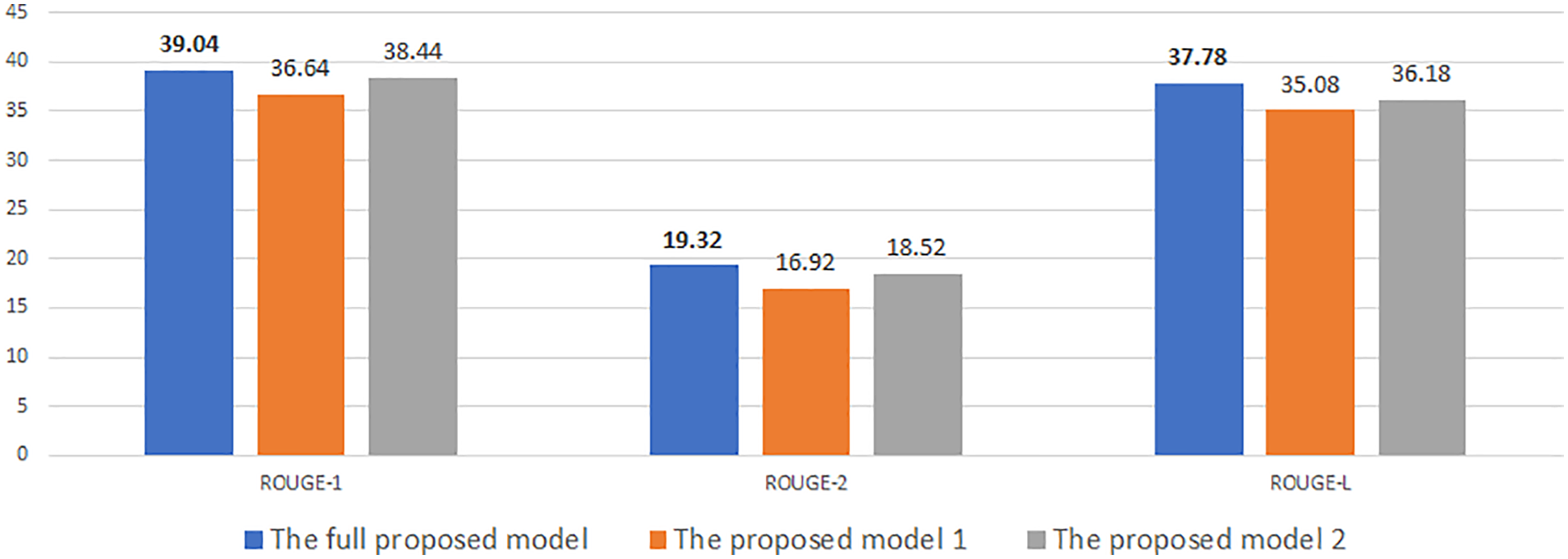

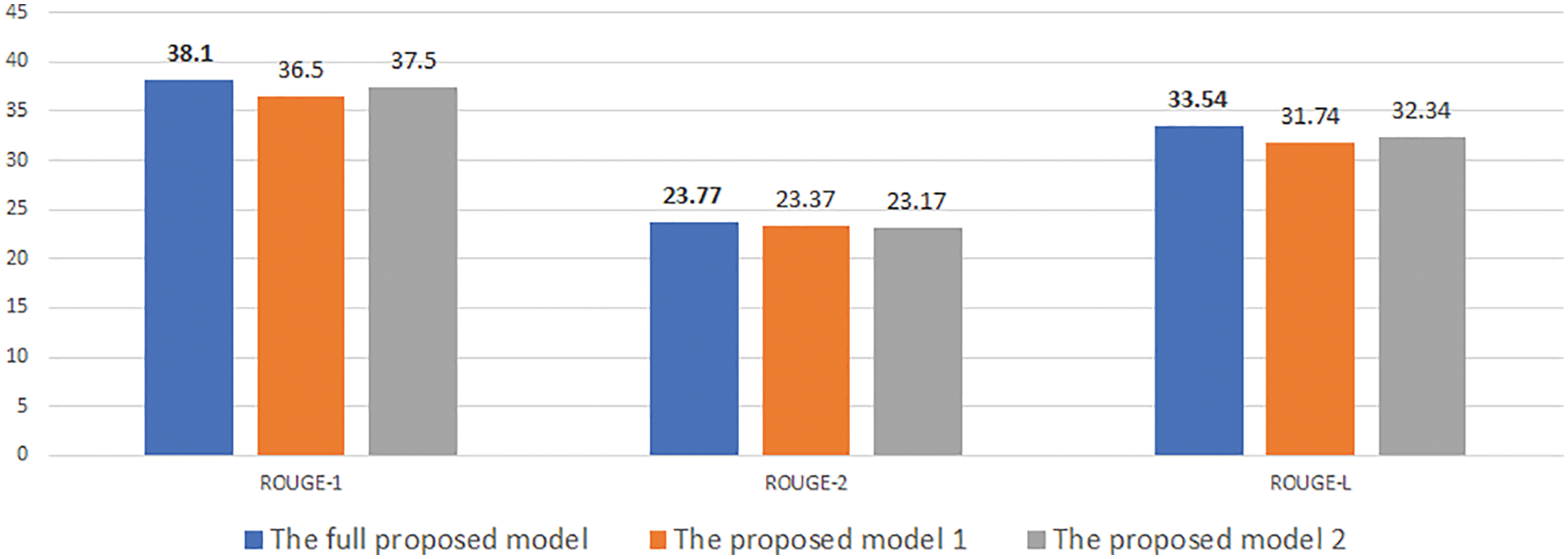

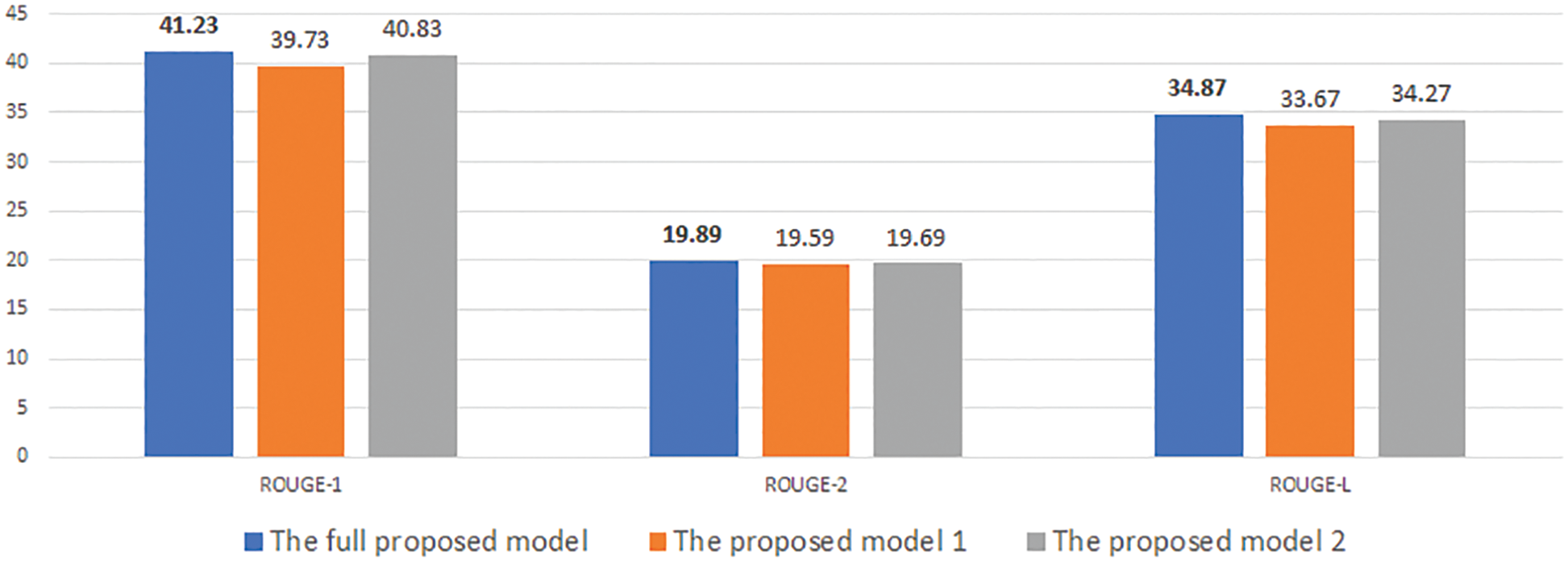

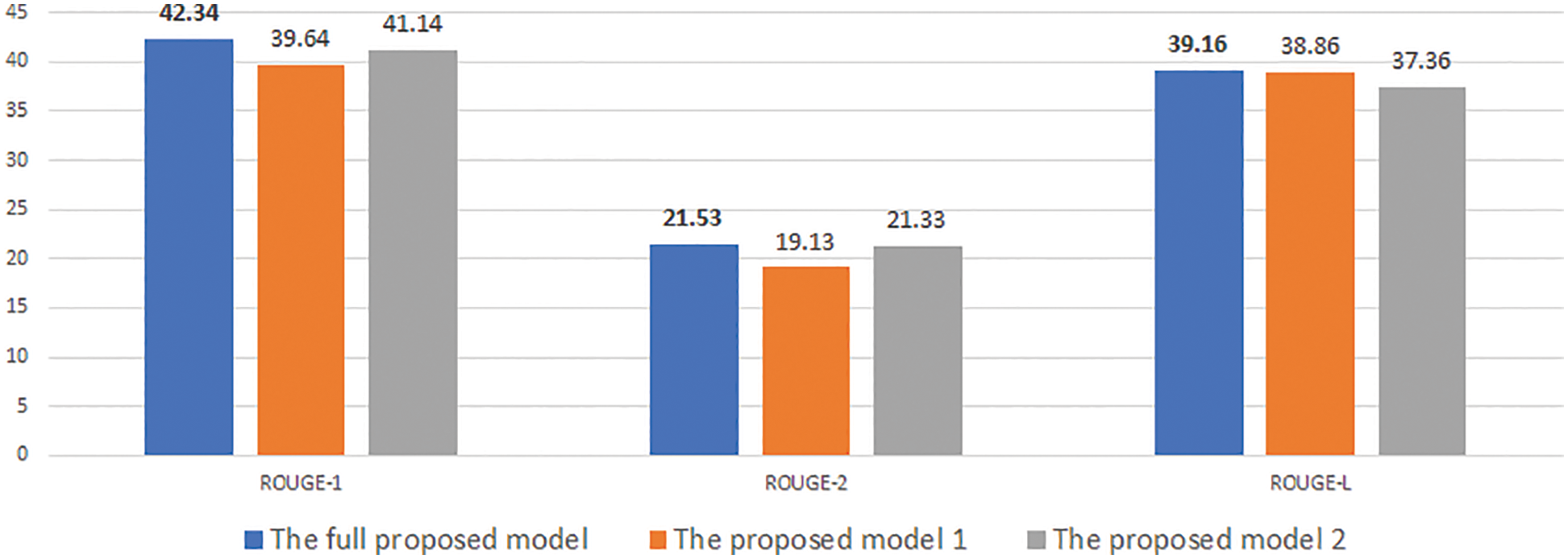

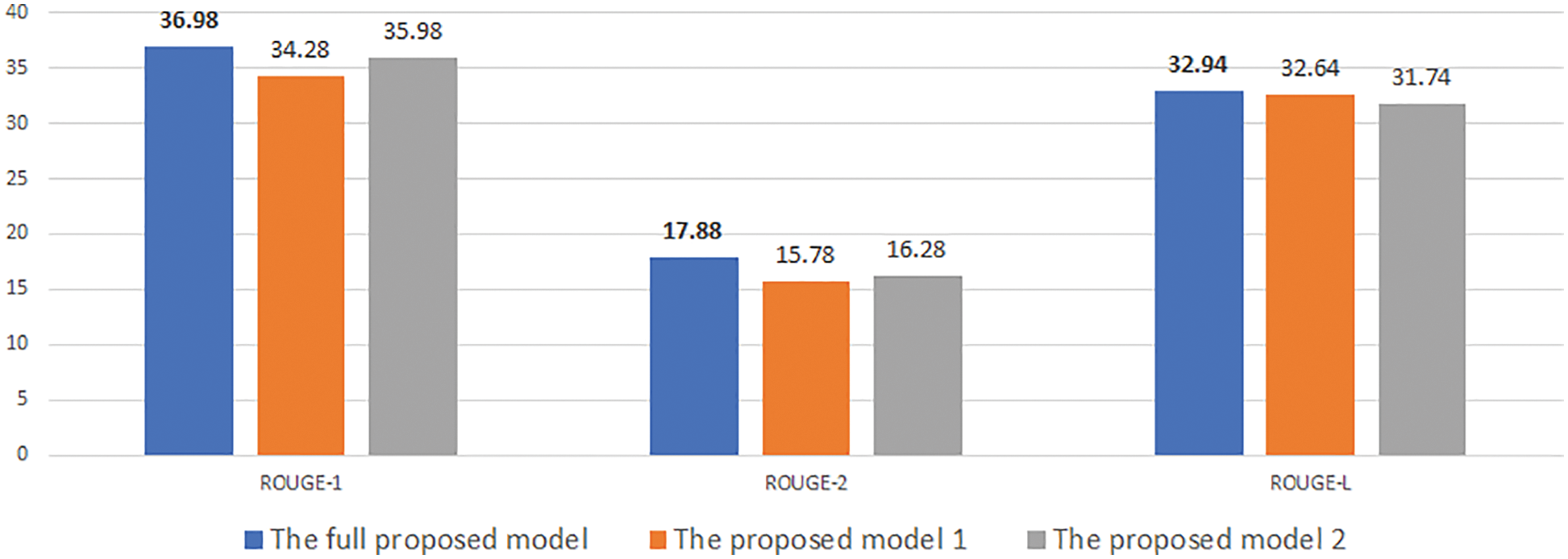

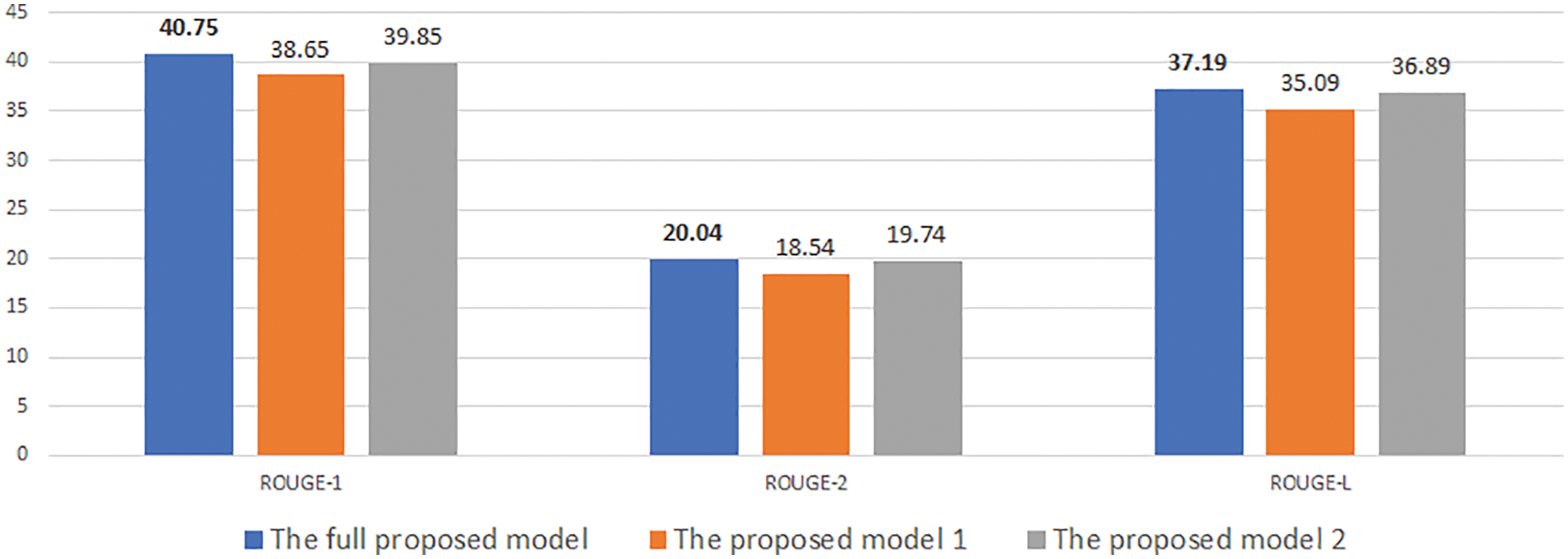

At first, Figs. 4–9 show the results of our experimental models. They represent a unified assessment that the full proposed model outperforms the rest of the models in different criteria: on different measures Rouge-1, Rouge-2, and Rouge-L, as well as for different desired lengths 30, 50, and 70. The superiority of the complete proposed model is also confirmed for both data sets, CNNDM and NEWSROOM.
Note that all three models (i.e., the full model, model 1, and model 2) use the length head attention. However, our proposed full model uses information about the desired length, such as length embedding in both the encoder and decoder. Whereas model 1 contains only the length embedding in the decoder, model 2 contains only the length embedding in the decoder. The full model’s use of desired length information in various aspects explains why it yields better results than model 1 and model 2.
To compare with previous models, we choose four typical recent models, and they are performed experimentally on the same data sets. In Figs. 10–15, we denote LE for the study of Kikuchi et al. [9], which encodes input length embeddings to the decoder. We denote LA for the study of Yu et al. [16], which uses the desired length as attention for decoding. Two other studies using the method of extracting information from input text based on the desired length before decoding are [11,17], denoted as Length Control (LC) and LPAS, respectively.

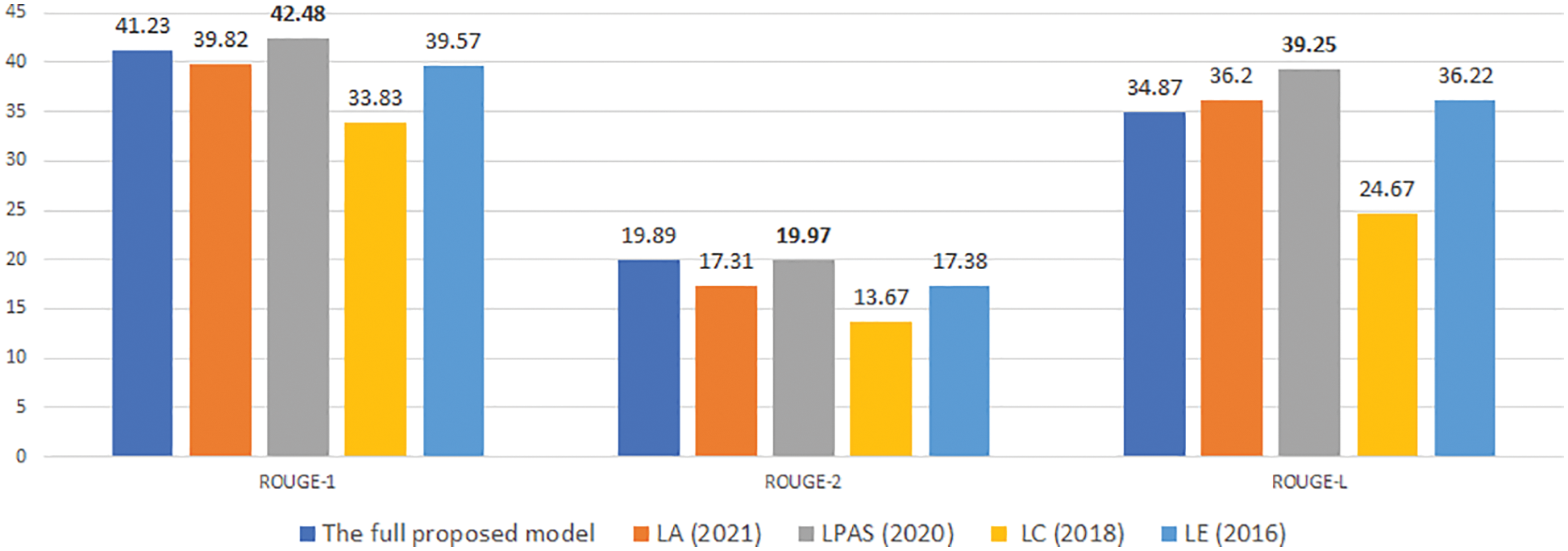

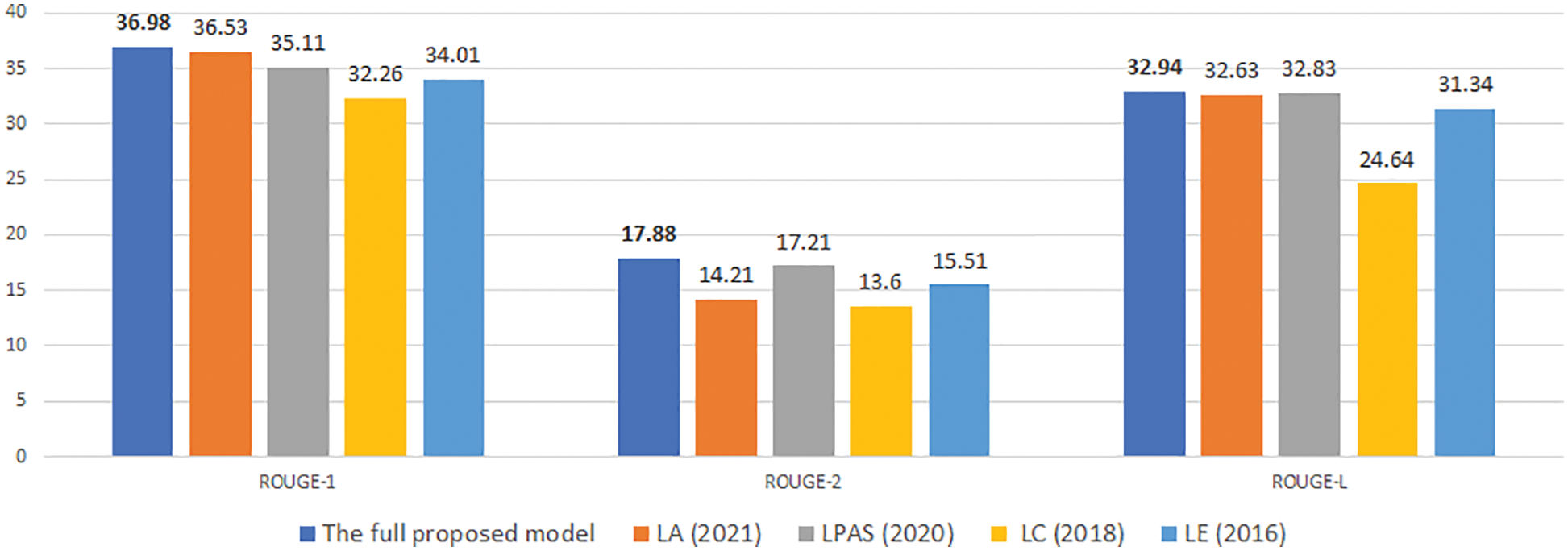

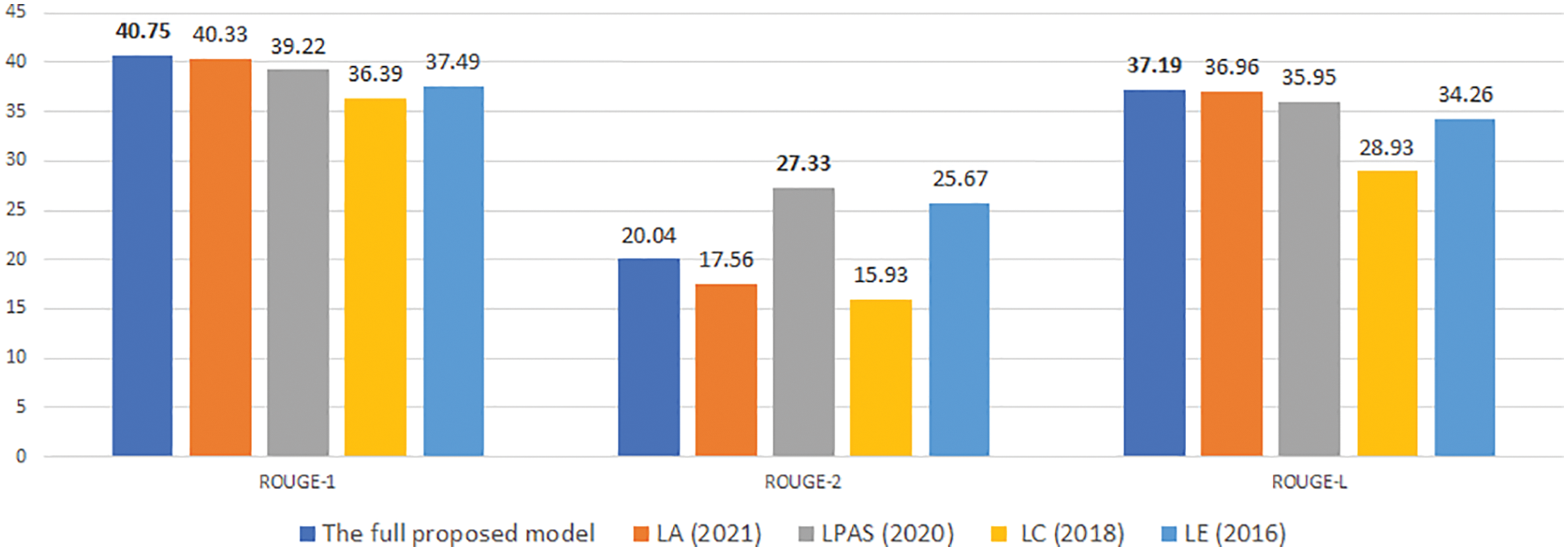

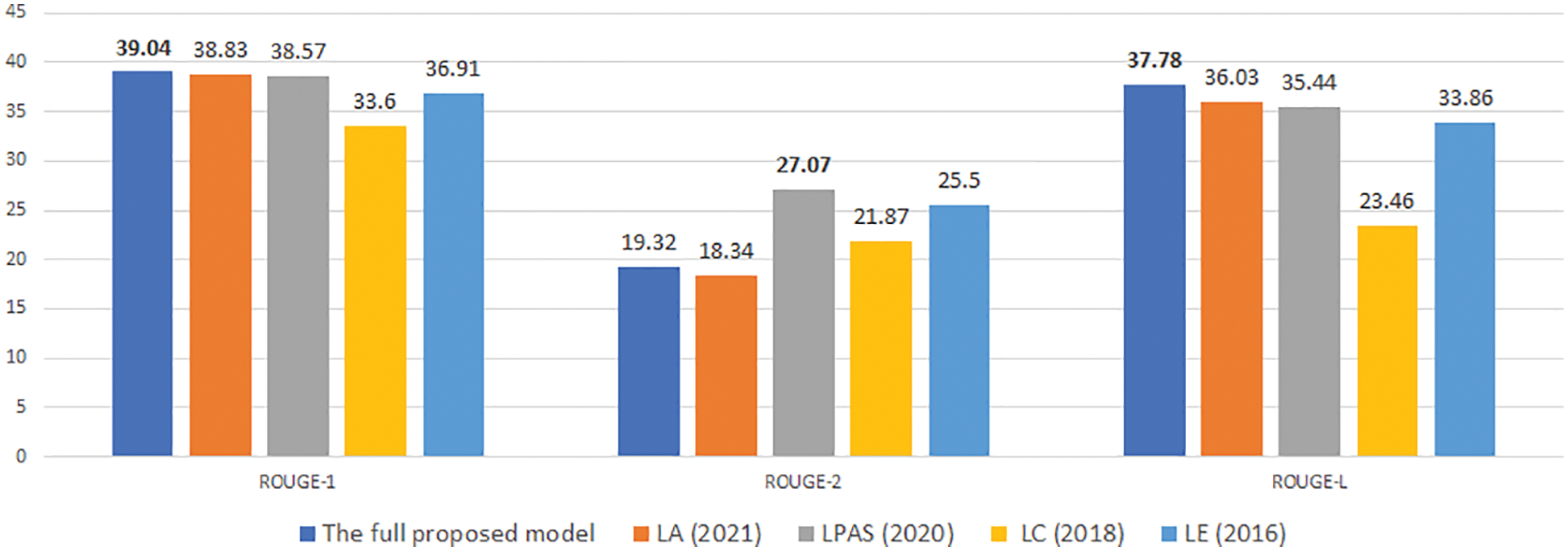

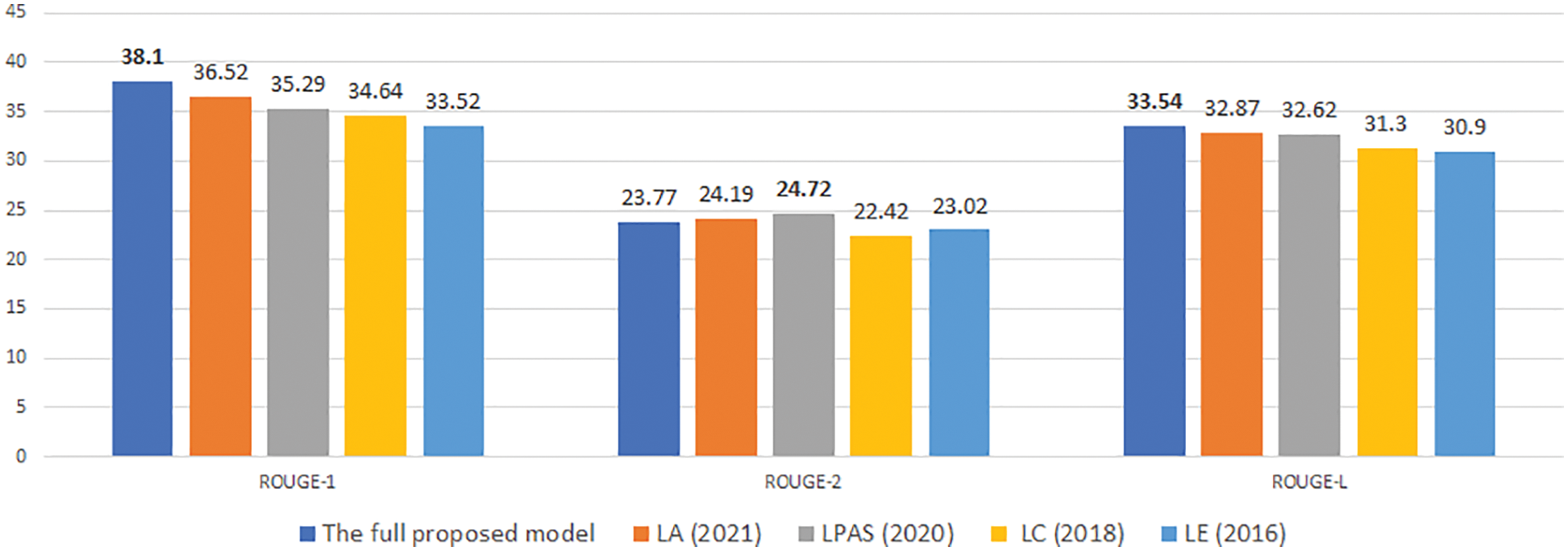

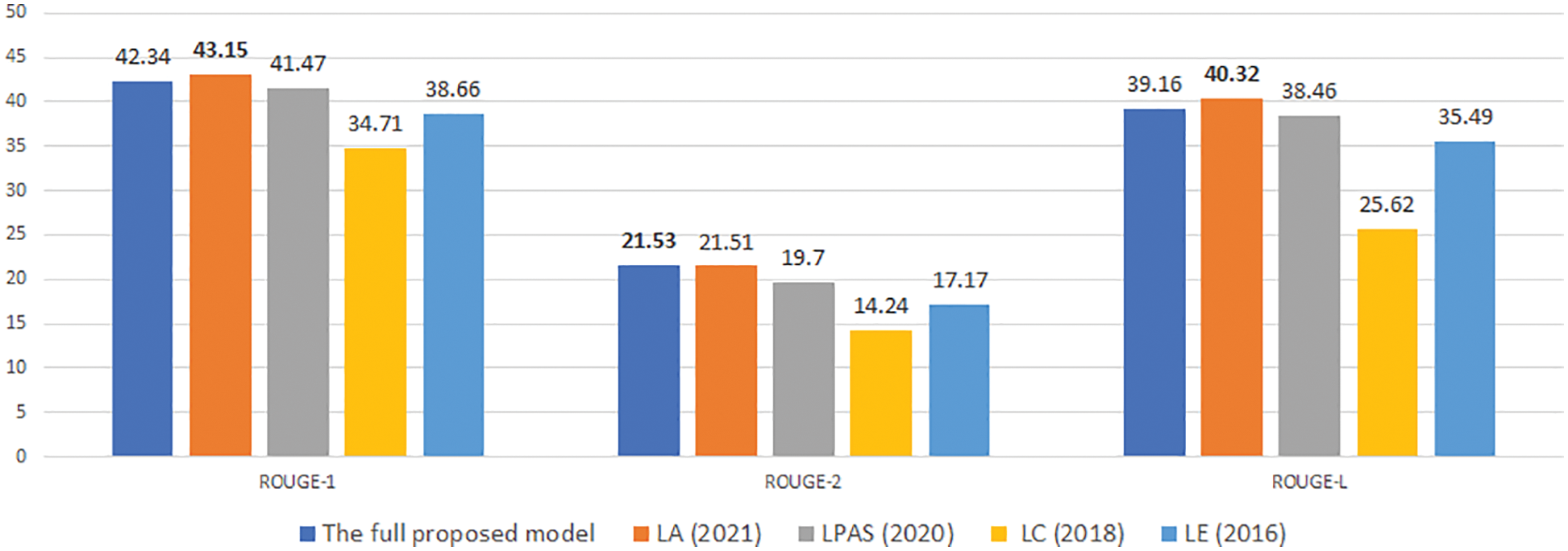

Experimental results in Figs. 10–15 show that our proposed model gives competitive results with previously published research models.
For the NEWSROM corpus, which is considered a more diverse corpus in terms of summary style because it is synthesized from many different news sites, the experimental results in Figs. 13–15 show the results. In the model, we proposed to give competitive results on the ROUGE-1 and ROUGE-L measures in the model. However, ROUGE-2 in the LPAS model is much better, which shows that our proposed model has an excellent ability to link important words but could be a better ability to link important phrases. The LPAS model gives a better possibility. However, the approach of the LPAS model is very different; LPAS is formed based on LA, which is a model that combines the author’s proposed unit of attention with a PAULUS model [18], which has achieved outstanding results in the text summarization problem. Besides that, LPAS includes a separate stage to extract the list of important words/phrases containing the content of the original text, so this method is more complex and takes more time. At the same time, our solution represents a fully automated process using a length constraint to extract important information within the model itself. Therefore, it is also an open issue for us to study in the future to improve the efficiency of the proposed model.
In this paper, we have presented our new approach to the problem of Length-Controllable Abstractive Summarization. We proposed to use the desired length constraint information with various aspects in both the encoder and decoder of the sequence-to-sequence transformer model. Experimental results on different configurations of the proposed model have proved that our proposal is efficient; each additional component has added helpful information to the model and contributed to increasing the accuracy of the output. Our experiment also shows that the proposed model achieves competitive results with the related summarization methods.
In future work, we will continue to improve the proposed model by combining it with the advantages of the approach to extracting important words at the encoder step described in [19] and hope to create more efficient models.
Acknowledgement: None.
Funding Statement: This research is funded by Vietnam National Foundation for Science and Technology Development (NAFOSTED) under Grant Number 102.05-2020.26.
Author Contributions: Proposing ideas, solutions and formulation, writing the article: Ngoc-Khuong Nguyen, Anh-Cuong Le, Viet-Ha Nguyen; Conducting the experiment: Ngoc-Khuong Nguyen, Dac-Nhuong Le. All authors reviewed the results and approved the final version of the manuscripts.
Availability of Data and Materials: The data that support the findings of this study are openly available at https://github.com/abisee/cnn-dailymail for the CNNDM dataset and https://github.com/lil-lab/newsroom for the NEWROOM dataset.
Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
1https://github.com/pltrdy/les2rouge.
