Multi-Task Deep Learning with Task Attention for Post-Click Conversion Rate Prediction
School of Information Science and Engineering, Yunnan University, Kunming, 650500, China
* Corresponding Author: Xiaobing Zhou. Email:
Intelligent Automation & Soft Computing 2023, 36(3), 3583-3593. https://doi.org/10.32604/iasc.2023.036622
Received 07 October 2022; Accepted 06 December 2022; Issue published 15 March 2023
Abstract
Online advertising has gained much attention on various platforms as a hugely lucrative market. In promoting content and advertisements in real life, the acquisition of user target actions is usually a multi-step process, such as impression→click→conversion, which means the process from the delivery of the recommended item to the user’s click to the final conversion. Due to data sparsity or sample selection bias, it is difficult for the trained model to achieve the business goal of the target campaign. Multi-task learning, a classical solution to this problem, aims to generalize better on the original task given several related tasks by exploiting the knowledge between tasks to share the same feature and label space. Adaptively learned task relations bring better performance to make full use of the correlation between tasks. We train a general model capable of capturing the relationships between various tasks on all existing active tasks from a meta-learning perspective. In addition, this paper proposes a Multi-task Attention Network (MAN) to identify commonalities and differences between tasks in the feature space. The model performance is improved by explicitly learning the stacking of task relationships in the label space. To illustrate the effectiveness of our method, experiments are conducted on Alibaba Click and Conversion Prediction (Ali-CCP) dataset. Experimental results show that the method outperforms the state-of-the-art multi-task learning methods.Keywords
Conversion Rate (CVR) prediction is a fundamental task in online advertising and recommendation. For example, the predicted CVR is used in Optimized Cost-Per-Click (OCPC) advertising to adjust the bid price per click, achieving a win-win for both the platform and the advertiser [1]. CVR modeling refers to the task of estimating the post-click conversion rate, i.e., pCVR = p (conversion|click, impression). We mainly study the CVR estimation problem. Considering the continuous action information in the user’s multi-step transformation process, we adopt Multi-Task Learning (MTL) for modeling. MTL is a typical solution to improve end-to-end transformation in many-step tasks in industry and academia.
By using shared representations between sets of related tasks, MTL can improve data efficiency and potentially lead to faster learning rates for related or downstream tasks. MTL learning techniques have been widely applied in various fields, from Natural Language Processing (NLP) [2] to Computer Vision (CV) [3], bug triage [4], code retrieval [5] and so on. Recent studies have shown that MTL techniques are very suitable for recommender systems [6–10]. Multi-task neural network models share low-level information among different tasks, separate each task’s unique features, and finally associate them to obtain the final information. Knowledge transfer mainly relies on inter-task relationships. Therefore, how to properly model the relationship between tasks and how to control the knowledge transfer between tasks is the key to MTL.
Training a custom model from scratch for each task has serious overfitting problems. The pre-trained embedding layer cannot consider the relationship between multiple tasks, and the model cannot generalize well. Hence, the customized network is only suitable for the original distribution space. Deep learning uses large-scale sample instances to “violently” train the network, allowing the model to process a single task effectively. However, this can only alleviate temporary needs, and cannot implement the same set of algorithms to solve various complex tasks. In order to cope with this challenge, we introduce a meta-learning strategy in the training process to train a general model for all tasks that captures complex relationships between tasks.
In this paper, we propose a Multi-task Attention Network (MAN) to control knowledge transfer between tasks dynamically. MAN is an attention mechanism-based method to solve the problem of user sequence modeling and alleviates data imbalances by leveraging shared information across tasks, and captures correlations between sequential tasks by leveraging prior knowledge in MTL. The idea of meta-learning is introduced in the training process, and two-stage training is carried out. First, a general generalization model is obtained through the early stop mechanism. On this basis, the high-level information of the fusion model is continued to be trained to improve the training effect, and it can eliminate data sparsity and sample selection bias problems. The task-sharing experts and task-specific experts in the model enable the model to separate the characteristics of each task and integrate the commonalities among multiple tasks. Compared with existing models, we improve training performance by reducing conflicts by sharing objectives.
To verify the effectiveness of our model, we conduct experiments on the Ali-CCP dataset [6], and compare the results with the state-of-the-art multi-task models, showing that our results are up to the best. The main contributions of this paper include the following points:
1) We propose a Multi-task Attention Network to dynamically learn the relationship between tasks and control knowledge sharing in multi-task learning from the perspective of joint representation learning. So the correlation between user sequence actions can be learned.
2) We define the problems of data sparsity and sample selection bias from the perspective of meta-learning and use meta-learning to solve them.
3) We propose a two-stage training scheme, which is important for improving our performance.
Our work is organized as follows. In Section 2, we summarize related work. Section 3 formally defines our problem and introduces methods for learning feature interactions. In Section 4, we present the experimental results and detailed analysis. Section 5 concludes this paper.
Accurately predicting user responses, such as click-through rates and conversion rates, is essential in the recommendation, search, and advertising applications. As shown in Fig. 1, click-through rate (CTR) is designed to predict the probability of a user clicking on an advertisement. At the same time, CVR is to estimate the probability of a user’s actions based on the previous one, and there is an order sequence of actions in between. These two tasks can often be formalized as a classic binary classification problem [11]. A major challenge in CVR estimation is the problem of sample selection bias [12]. DeepFM [13] uses Factorization Machines (FM) instead of Logistic Regression (LR) in the wide-area part to automatically learn second-order feature interactions, while DCN [14] uses a cross-network to learn higher-order representations. DUPN [15] learns common user representations across multiple search and recommendation tasks for more effective personalization. MA-RDPG [16] improves the overall performance of ranking strategies in search, recommendation, and advertising through multi-agent reinforcement learning. Weighted Fake Negative (FN) and FN calibration loss functions [17] are proposed to address delayed feedback with continuous training of neural networks in CTR prediction. But they do not exploit the task relationship in the label space. To address this issue, ESMM [6] simultaneously models the posterior view click-through rate and post-view click-through & conversion rate (CTCVR) by employing a feature representation transfer learning strategy across the entire space. HoAFM [18] proposes a high-order attention decomposition machine by considering the interaction of high-order sparse features, and uses a bit-attention mechanism to learn the importance of co-occurring features.
MTL provides an effective framework for leveraging task relationships to transfer knowledge and improve model generalization. To exploit the task relationship in MTL, there are recent examples such as the cross-stitch network [19] using linear units to learn the optimal combination of task-specific representations for each task, and a hard parameter sharing structure is thought to help each task better leverage knowledge learned from other tasks, but the natural differences between each task may lead to conflicts in learning shared representations. Furthermore, ESMM [6] proposes a new perspective on multi-task modeling with sequence dependencies to tackle the challenges of extreme data sparsity and sample selection bias. PAL [20] utilizes a two-task model to remove positional bias in advertisement recommendation, which separates view-through and click-through rates. F3 [21] proposes an intuitive yet effective general framework to concatenate different learners with the filter mechanism to filter out unchanged fixes. Flow2Vec [22] presents a new code embedding approach that preserves interprocedural, context-sensitive and alias-aware value-flows in the low-dimensional vector space to better support subsequent learning tasks. These methods exhibit better feature learning in shared and task-specific representations and achieve better performances than typical MTL methods. However, there are still some limitations, such as the model depends on specific application scenarios and statically captures task relationships.
Previous work [23,24] attempts to measure differences between tasks based on assumptions about the data generation process. Still, in the real world, the data generation process is often more complex and harder to measure. Existing studies still lack an in-depth exploration of the conflicting nature of shared parameters, nor an in-depth analysis of the incompatibility and synergy of each task. Recent research has shown that tower top modules tend to contain richer and more useful information, and if there is no information exchange between them, they cannot help tasks improve each other. Multiple tasks will suffer if any of these probabilities cannot be predicted accurately. In this paper, we attempt to adaptively model task relationships in MTL with self-attention networks, dynamically learn the relationships between tasks and control the knowledge transfer between tasks. Our proposed Multi-task Attention Network (MAN) trains a model that can be generalized across multiple tasks from a meta-learning perspective. MAN combines shared and task experts to further capture task relationships and learn transferable knowledge. This enables each task to obtain shared feature representations better, thus enabling MTL methods to achieve better performance.
Impression is represented as a feature set containing user features, item features, and other contextual features. The feature set of impressions is converted into sparse feature vectors (composed of various one-hot encodings), such as user fields, item fields, etc. Consider a sample of impressions
Since the original feature vector
In order to better learn the relationship between complex tasks, we introduce a model to obtain the feature information that is beneficial to each task from the original user input, and improve the prediction of the network. The model framework consists of a customized gate control network model, a meta-learning framework, and an attention network, as shown in Fig. 2.
Lower-level representations are jointly extracted/aggregated during knowledge extraction and transformation and routed to higher-level shared experts. Shared knowledge is captured and gradually distributed to specific tower layers, enabling more efficient and flexible joint representation learning and sharing. The CVR task shares the embedding dictionary representation with the CTR task, which follows a feature representation transfer learning paradigm. Since the training samples of the CTR task are relatively abundant, using the parameter sharing mechanism is of great help in alleviating the problem of data sparsity.
Given an impression sparse feature vector for the CTR estimation task, the embedding layer converts high-dimensional, sparse features and sequence features into a low-dimensional dense representation, and then concatenates these embeddings to obtain the feature embedding
Different experts specialize in different spaces and can capture feature information in different subspaces. Therefore, for a specific task, we choose task-specific experts for learning, and the experts do not interfere with each other. For task-shared features, we use shared experts to learn the representations. Different tasks share the outputs of experts and task-specific experts by combining tasks through a gated network. By combining experts with the gating network, the model can retain the ability of transfer learning and avoid the negative transfer phenomenon. Each of the
3.2.3 Multi-Task Attention Network
In order to better utilize richer and more useful information, facilitate the exchange of information between tasks, and help tasks to improve each other, we use attention networks [26–28] to model relevant task information. For the two tasks
Each task is equipped with tower networks for converting the final task-specific representation into predicted values. The tower network is further learned to interact by a two-layer Multi-Layer Perceptron (MLP) with ReLU activation. The final logits output the probabilities after the Sigmoid function. The final loss is a linear combination of individual task losses, defined as follows:
where
where
The performance of our proposed method is evaluated on the public dataset Ali-CCP [6]. The overall description of Ali-CCP data is
• OMoE [8]: OMoE builds on the shared expert base model by sharing a gate across all tasks to integrate the output of experts.
• MMoE [8]: The difference from OMoE is that the original unique gate is changed to gates of the number of tasks to integrate the output of experts respectively.
• ESMM [6]: This model is designed to be trained on the entire space to address non-end-to-end post-click conversion rates. With the help of two auxiliary tasks, CTR and CTCVR, ESMM subtly addresses the challenges of sample selection bias and data sparsity encountered in practical applications of CVR modeling.
• PLE [10]: Progressive Hierarchical Extraction (PLE) distinguishes inter-task shared information from specific information by constructing task-sharing experts and task-specific experts.
• AITM [30]: AITM improves the performance of sequence-dependent multi-task learning by constructing an adaptive information transfer multi-task framework to simulate sequential dependencies among transitions across many steps. This method achieves state-of-the-art results under different task dependencies.
Experimental Settings: We set the hidden dimension of each expert to be [256, 128]. We use 3 layers [128, 16, 32] MLP as a tower network to predict each task. For OMoE, MMoE, PLE, we use 8 experts, where 4 shared experts and 4 task-specific experts for fair comparison. Since ESMM and AITM do not use expert networks, we follow the original settings for the rest of the parameter settings. For our model, we set expert_per_task to 4 and shared_expert_num to 4. In these six models, the activation function of the expert is set to ReLU. All models are optimized using Adam Optimizer [31] with batch size 2048, setting weight decay to 1e-6 and learning rate to 0.001. Preliminary optimal parameters are obtained through grid search, and the optimal parameters are determined on this basis. For feature input, we use the same embedding module for consistency and fairness. All experiments are repeated 5 times and the average results are reported. We also try to use the focal loss proposed in [32], but it does not improve our results.

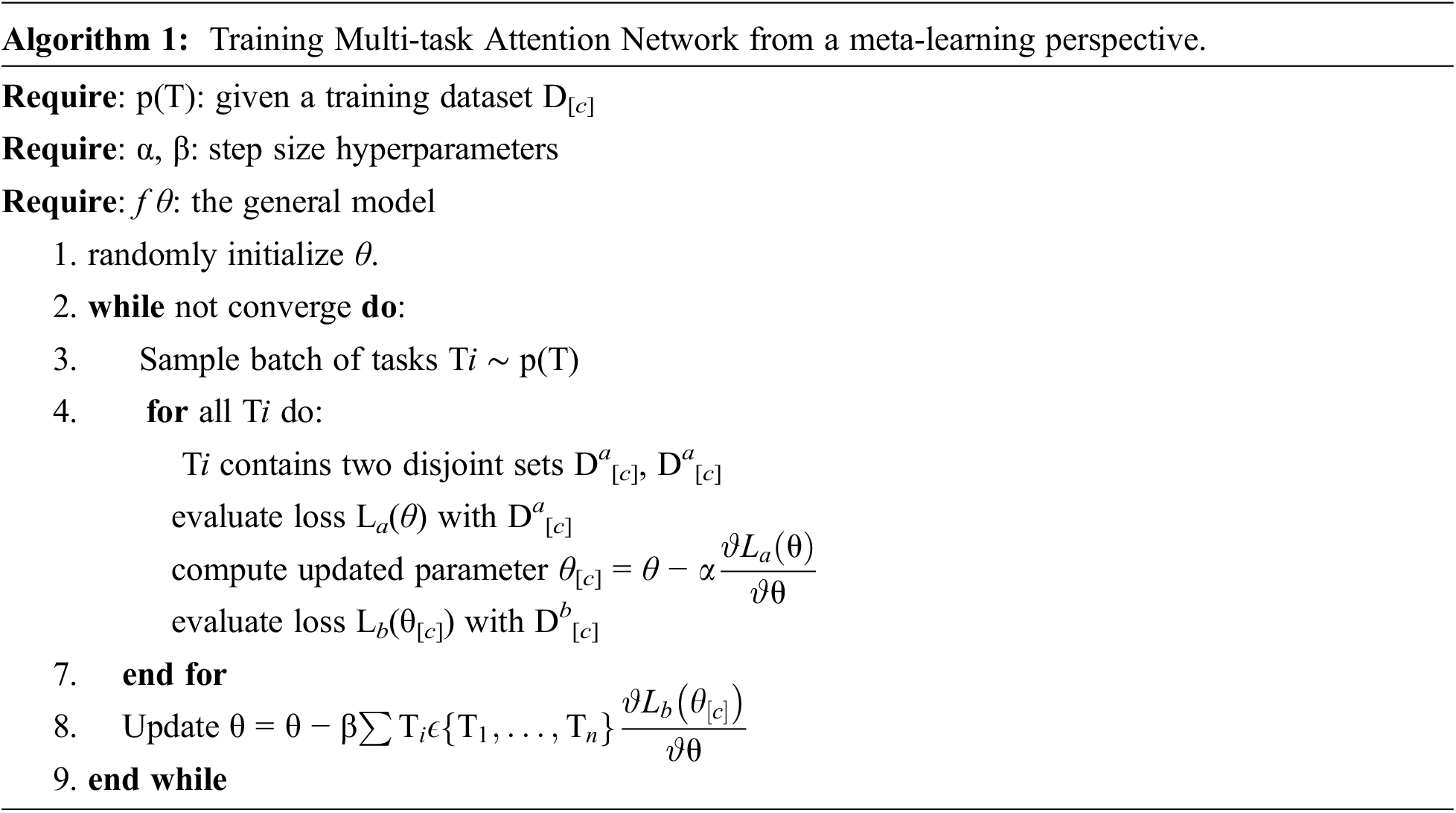

Meta-learning is helpful in achieving fast learning to alleviate overfitting, and can quickly learn general knowledge of tasks even in a limited sample space [33–35]. We treat the overall training algorithm from a meta-learning perspective. First, we prepare

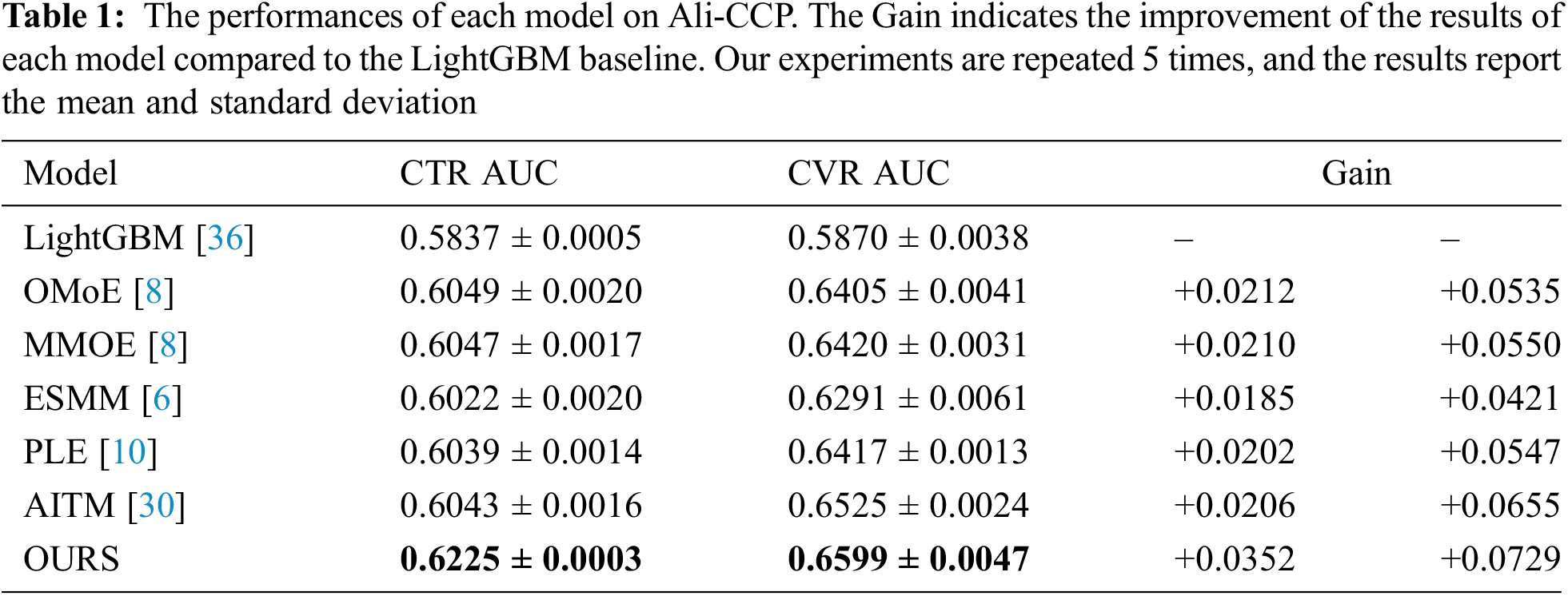

The results show that our proposed model outperforms the mainstream models on all metrics tested offline. Among the base models we compared, only ESMM performed slightly worse on the CTR task, which may be due to the model implicitly modeling the relationship between tasks and relying too much on the performance of the previous task leading to the seesaw phenomenon. From the detailed data information, we can find that the samples have serious class imbalance classes, and from the results in Table 1, we can find that the click task appears as the first task in these MTL baseline models, and the MTL model does not significantly improve its performance. We explicitly model the relationship between tasks through an attention network, so our model can achieve better performance in this case and good generalization performance even in the case of sample class imbalance. We print out the final weights for model training and find that the weights assigned to the two tasks are [0.0041, 0.0765]. From the learning results of the model, it can be seen that the reason for this result is due to the problem of sample selection bias. The completion process from click event to conversion event is rare, so the model learns different weights to balance the training process, indicating that our method is effective in solving the above problems. Compared with the state-of-the-art models, our model achieves 3.52% and 7.29% improvements over the LightGBM [36] baseline model on the CTR and CVR tasks, respectively. Our model achieves the best results Ali-CCP dataset, proving the effectiveness of our model.

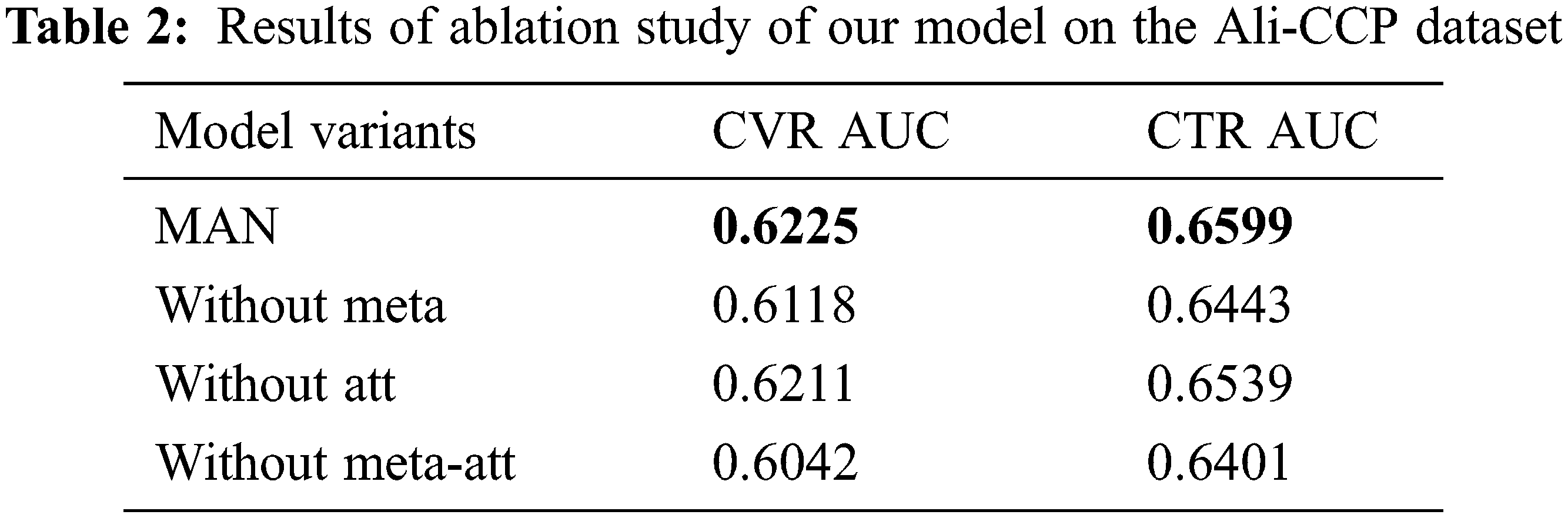

To verify the effectiveness of our method, we further compare our model with its own variants, evaluating our various modules, and the results are shown in Table 2. “Without meta” means to remove the training method of meta-learning, “Without att” means to remove the attention network, “Without meta-att” means to remove the embedding layer and directly train the original feature data. The results show that under the same setting, our main method outperforms several other variants in both CTR and CVR estimation. The addition of meta-learning enables fast adaptation tasks. After training for 3 epochs, the AUC of CTR and CVR can reach 0.61 and 0.64, respectively, which is helpful in alleviating overfitting. The attention network module promotes the exchange of information between tasks, so that the auxiliary information of related tasks can be used between tasks to improve the model’s performance. Experimental results show that considering the task hierarchy in the process of using multi-task learning to solve the CVR modeling problem can further improve performance.
In this paper, we propose a Multi-task Attention Network to learn knowledge transfer between tasks and use an attention network to learn weight assignment and knowledge sharing between complex tasks. The correlations between tasks are captured by leveraging prior knowledge in MTL. The shared experts and task-specific experts in the model can well separate the characteristics of each task and integrate the commonalities between multiple tasks, avoiding the phenomenon of negative transfer. In the training process, a two-stage training meta-learning strategy is introduced to train a general model for all tasks that can capture the complex relationships between tasks. Experimental results show that our method achieves state-of-the-art results.
Funding Statement: Our work was supported by the research project of Yunnan University (Grant No. 2021Y274), Natural Science Foundation of China (Grant No. 61862064).
Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
