NDN Content Poisoning Mitigation Using Bird Swarm Optimization and Trust Value

1  Introduction

The Internet of Things (IoT) is built on an ever-increasing number of small, embedded devices and advances in wireless technology that allows objects to communicate, analyze and synchronize with other IoT objects. Despite the extensive research on IoT, its definition remains ambiguous. According to most reports, it is a global network of intelligent devices capable of perceiving and responding to their environments. These changes promise to significantly increase the quantity of data that the network can carry. Due to IoT devices’ resource constraints compared to traditional Internet hosts, scalable architecture is necessary to enable data transmission over the web. IoT data is often sparse and fleeting compared to Internet content, which is massive and persistent over time. As a result, Smart Home, Smart Health Care, and other critical domain applications, such as those on the Internet of Things, have many requirements. Additionally, they are more receptive to information than to direct conversation. Despite these different characteristics of IoT systems, the research community has been hard at work constructing a massive networking protocol stack to enable communications that depend on IoT. The established communication paradigm depends on the Internet and is developed from a network-centric perspective. Each content request begins with a source node locating and identifying the storage location of the requested content. Notably, this mode of thought has persisted for forty years. It was inevitably ended with time. Now, nodes have a range of network interfaces associated with different sorts of access. Because of upgrading the IPv6 protocol, each interface now has a worldwide address network. Apart from that, Internet has grown into an overlay network in which individuals share material rather than a collection of interconnected networks. The more frequent “one-to-many” and “many-to-many” Internet traffic patterns have supplanted the conventional “one-to-one” Internet traffic pattern. Apart from its evolution, the Internet’s current design has several shortcomings in content distribution efficiency, scalability, mobility, and security. As a result of these challenges, the Internet must be reformed to ensure its continued healthy and sustainable growth [1].

Numerous researchers have concentrated on this issue. The researcher in [2] tried to address this issue adequately to reference one case study. They’ve developed a concept known as Information-Centric Networking (ICN). The latter suggests a transition from a network-centric to a content-centric orientation. Users can now request material by name rather than by network localization. ICN assigns each material item a unique, permanent, and location-independent term. ICN includes multicast capability, as well as caching and name-based routing. This indicates that ICN can become a critical technology for data delivery in IoT networks. Numerous studies have already been conducted on this subject. Because data can be provided via an intermediate node, in-network caching enables producers to obtain data quickly. This reduces network traffic while increasing data retrieval speed. As a result, resource-constrained IoT devices benefit from ICN’s low dissemination latency, decreased bandwidth consumption, and lower energy consumption. Although caching is not a novel concept, it has been widely implemented on the Internet, peer-to-peer systems, and Content Distribution Networks (CDNs). On the other hand, ICN’s in-network caching is more substantial and more complex to deploy than other caching systems available today. To begin, it is entirely transparent and eliminates the need for a third-party program to cache content. Because caching is feasible on any ICN node, it is common [3]. It’s critical to remember that in-network caching only retains the most recent version of sensed data, making it incompatible with programs that rely on older metrics, such as health apps.

Information-Centric Networking (ICN) pioneered by NDN [4]. NDN is also known as a name-based network since packets are identified and transmitted to identify the contents. IP-based networks forward packets according to the packet address or port number they include [5]. NDN and IP-based networks diverge here in terms of network topology. NDN uses interest packets and data packets, both of which NDN employs. The name of the content is contained in a string in both types of boxes [6]. When it comes to interest packets, they have the information sought by the user, whereas data packets include the actual data [7]. It is feasible to send data packets to receive interest packets with specific content [6]. The material’s originator uploads a few files to a server for dissemination. Routers construct their forwarding databases using the contents’ name prefixes [7]. The hop-by-hop method is used for packet forwarding. The NDN router is illustrated in Fig. 1.

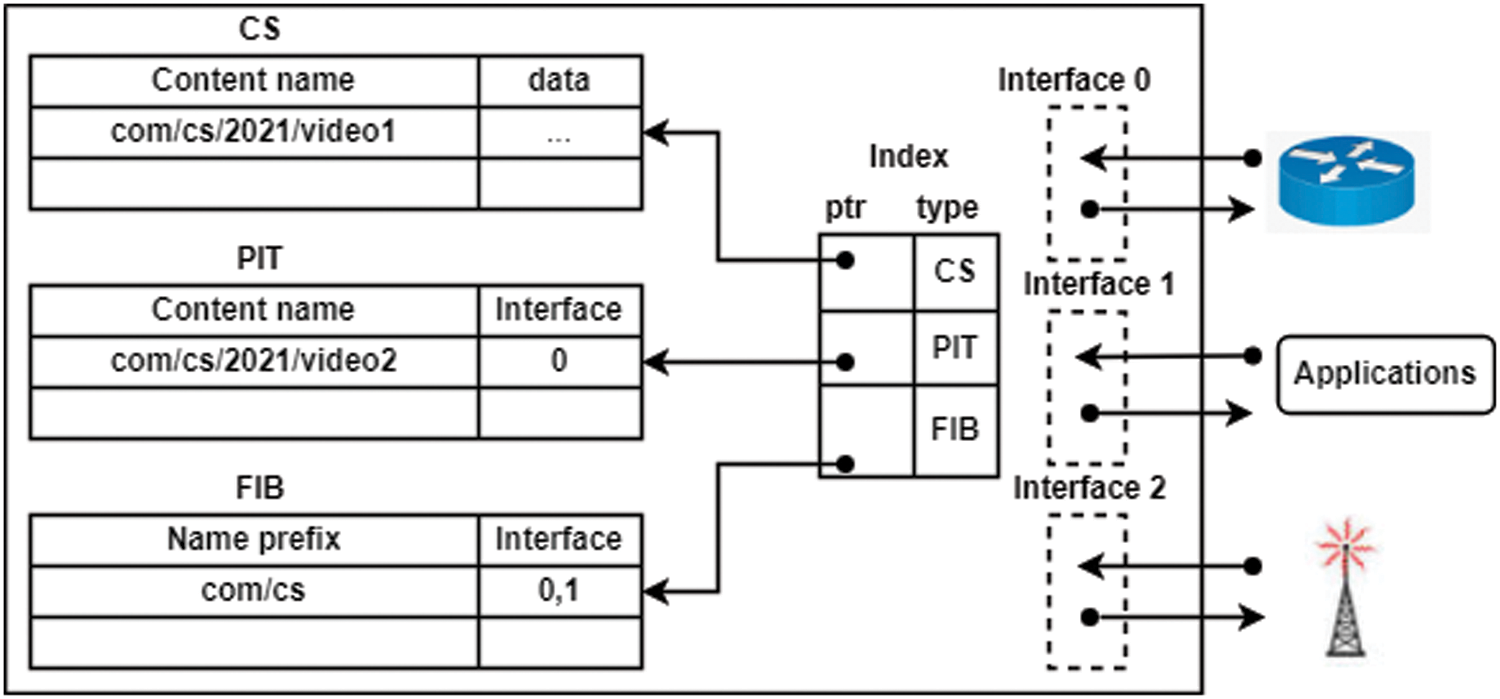

Figure 1: Components of NDN router

Forwarded interest base (FIB), content store (CS), and pending interest table (PIT) are all components of the NDN. FIB keeps track of the interfaces of interest packets as they are forwarded upstream and the Longest Prefix Matching (LPM) when delivering them. Content producers and providers have interfaces that may or may not have the necessary data.

Until interest packets are consumed, or their shelf life expires, PIT keeps on to them. It finds PIT entries using the Exact Matching (EM) method and simultaneously transmits many interest packets. When many interest packets come for the same piece of information, only one is sent out; the rest are held in PIT until the matching data packet arrives. For the most part, CS’s goal is to make material retrieval and delivery faster. A temporary data cache is used when many people are requesting the same thing at the same time, such as watching a movie. CS searches for CS entries using the EM approach as well. Fig. 2 [8] depicts the transmission of an interest packet at the NDN router’s interface.

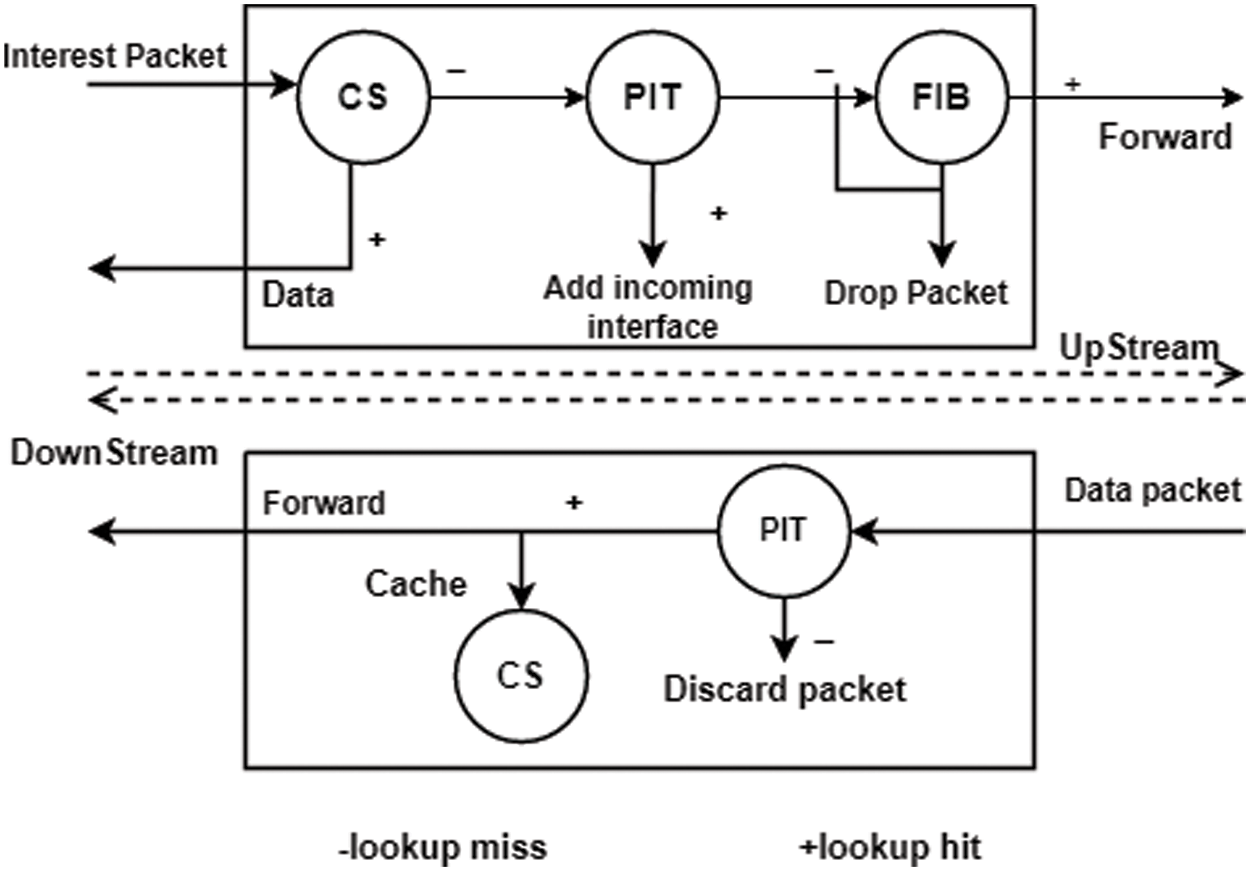

Figure 2: Forwarding process in NDN

If the router already has a copy of the requested data packet in its cache, it doesn’t need to look for it again. The data packet follows suit as soon as the interest packet is sent. PIT is searched if CS does not contain an entry for an interest packet. An entry matching the specified entry may exist in the PIT’s list of incoming interfaces. The router creates a new interest record and utilizes LPM to identify the next hop before forwarding it to the FIB for lack of a match. When a data packet reaches the NDN router, the steps were followed: The router examines each PIT entry. When a data packet hits a game in the PIT, the router forwards it to the PIT-connected interfaces and deletes the previous one. The router’s caching policy may modify the CS if the data packet is cached. If the PIT does not contain a matching entry, the data packet is dropped (for a lifetime or another reason) [9].

Rather than using an IP prefix, NDN users transmit their requests via Interest messages, including a name prefix (a name identifier). Networks are tasked with retrieving any Content messages linked with an Interest message, regardless of whether their names exactly match. To retrace its steps back to its original position, Content follows the path reversed by Interest to re-connect with its intended recipient. Thus, the Content message can be stored as effectively as feasible in intervening nodes for future requests. Additionally, pervasive caching is critical for reducing latency and bandwidth use [10]. While pervasive caching improves response time, decreases bandwidth consumption, and reduces the original server load in emerging networks, cache poisoning attacks significantly degrade pervasive caching and networks. Cache poisoning attacks are difficult to mitigate with NDN, making performance optimization challenges. The NDN architecture incorporates producer signatures into content packets and provides means for users to authenticate and verify their signatures [11]. Because of the related expenses and the number of messages carried over the network, using signature verification in intermediate routers to advise against cache poisoning may not be a realistic solution. Unlike cryptographic techniques, which require an authorized entity and additional computations, trust-based procedures do not. As a result, the trust-based approach is available to prevent cache poisoning while also encouraging users to share trusted material. This paper’s major contribution is as follows:

•   Calculate the trust value for each node.

•   Add a table that maintains the velocity and position of the node used in the forwarding mechanism using Bird Swarm Optimization.

•   Delete fake data based on the hash value then update position and velocity.

The remaining paper is structured in the following way. A review of related work in Named Data Network content validation using trust management has been given in Section II. Section III provides a brief explanation of the proposed method. Section IV contains the experimental analysis and Section V includes the conclusion.

2  Related Works

Named data networking is at risk from content poisoning. A forged signature certifies the fake content, which is then injected into the cache. Attackers can employ digital signature forged data to convey bogus data to a target system in a content poisoning attack by taking over the intermediary router. In recent years, researchers have developed a variety of strategies for defending against content poisoning attacks. To protect against content poisoning attacks, numerous ways for detecting retrieved Data packets via signature verification by intermediary routers [12–14] have been proposed. If an attacker gains control of the transmission line’s routers, these tactics may fail. This type of poisoning assault is more harmful since, unlike the malicious content server, the routers cannot be quickly shut down and the attackers are more difficult to trace down if they replace the controlled routers on a regular basis. Additionally, they are more difficult to identify. The incorporation of reputation-based trust in NDN could improve an Internet of Things (IoT) environment prone to security challenges. Numerous researchers have realized that ICN is ideally suited to address the new challenges provided by the Internet of Things. According to the authors of Reference [15], the IP paradigm imposes numerous security and integration requirements in such environments, hence increasing their complexity. By contrast, ICN’s retrieved named data is semantically aligned by default, making it easier to use and its basic capabilities can assist in meeting other critical network-related requirements, such as greater energy efficiency, security and robustness [16].

Currently, only two types of strategies for identifying and reducing CPA have been proposed: (a) verification reduction and (b) feedback-based techniques (or exclusion). To use NDN, content providers must sign and verify each Data packet they provide. To obtain the right data, consumers and routers must validate the signature. On the other hand, doing several verifications on each piece of data when using signature verification places a significant administrative strain on routers. As a result, intermediate routers should not have to do on-the-fly signature checks. Because routers cannot validate all signatures on forwarded or cached data packets, content poisoning attacks are conceivable [17]. Data must be signed with a wrong (private) key or have an invalid signature to be considered corrupted. Corrupted and fabricated data packets are referred to as poisoned material. While the attacker isolates legitimate content, he utilizes a poisoning approach to propagate infected files throughout the network. To initiate this form of attack, poisoned Data packets with the same name as those indicated in an Interest are utilized. On its way back to the consumer, poisoned content contaminates intermediary router caches, where it may be utilized in the future to serve the sender’s goals. A more serious concern is that the receiver may be unable to proceed to authentic content sources following the issuance of a reissued Interest with poisoned content omitted, even if the reissued Interest’s recipient verifies the receiver’s signature. The energy efficiency advantage of NDN is diminished when contaminated content is transmitted via caching, delivery and signature verification [18]. One approach of preventing content poisoning is to use self-certifying content names, the final component of which is the content’s hash value [19,20]. The validity of a Data packet can be verified without performing signature verification by correlating it to the hash function included together within Interest. This strategy, however, is confined to static content because the hash value of periodically generated content cannot be calculated or illuminated a priority.

Prefix hijacking is largely responsible for the content poisoning assault [17]. With no reliable authentication or permission, anyone can advertise content under any prefix, making it simpler for harmful information to spread. Data providers can serve content under a namespace to which they have been granted permission [18]. It has been considered that interest key binding (IKB) [21,22] protects users from retrieving potentially hazardous items unintentionally. When issuing an Interest, IKB requires that each consumer provide the publisher’s public key digest (PPKD) in the Key Locator field of its Data packets, as well as the content creator’s public key. While each NDN router is not required to receive, retain, or parse public key certificates, or to execute revocation or expiration checks, each Data packet must be verified, placing an obstacle on NDN routers. A mitigating technique based on a cached content ranking algorithm has been described [23]. It seeks to distinguish authentic content from poisoned content and to prioritize valid content in response to consumer interests, based on observed consumer behavior. Recent exclusions have a lower ranking than previous inclusions. NDN does not have a patented method of omitting items. Along with avoiding hazardous content, customers might avoid a publisher or version they dislike. When object ranking is combined with recent exclusion history, content poisoning may be difficult to explain effectively.

A router, according to Rebiro et al. [24], could accept caching all of the Data it forwards but validate it only when a cache-hit happens. Successfully confirmed data packets are prioritized in the CS without further verification. Despite this, authentication for popular content is still required, putting enormous strain on networks. On the other hand, our on-demand signature verification would greatly minimize the verification pressure on NDN routers. Verification attacks, in which malicious clients repeatedly re-issue false Data to generate cache hits for unpopular content, can also increase the stress on the router. For example, Rebeiro et al. [25] analyzed the verification attack and proposed a defense strategy based on the link between the amount of serving content and the number of cache-hit events. All routers in the network must check the signature of the contents based on predefined probabilities. The article presented a similar strategy termed ‘Lossy Caching’ in [26,27]. Lossy Caching verifies and caches content with a high degree of assurance. As a result of the lower probability, overhead is minimized. Probability, on the other hand, influences both the hit ratio and the freshness of network caches. As the likelihood falls, verification and caching are limited to more popular content, while caches are more likely to contain obsolete content. As a result, determining the best probability value is difficult. Because of the close link between Lossy Caching and Probabilistic Caching, this method is challenging to implement with a variety of cache replacement policies.

On-path content poisoning was investigated by DiBenedetto and Papadopoulos [28]. They devised a new technique for detecting, reporting and avoiding poisoned information by using the verification work that consumer must do anyway and NDN’s adaptive and stateful forwarding plane [29]. Alternative forwarding solutions are being studied in response to poisoned content allegations from consumers. The goal is to restore legitimate content retrieval. In this proposed system, customers are required to provide further reports to routers and routers must keep a list of arriving Data packets’ names and faces, as well as actively transmit traffic to investigate alternate valid channels. This could put a burden on consumers and routers equally. Router-oriented mitigation (ROM) of content poisoning [30] is a strategy that is quite similar to that described in [28]. It guards against poisoning of content during transfer by blocking access to malicious routers briefly. As a result, more trustworthy routers are more likely to be included in the transmission chain. On-path attackers must be stopped or avoided in the network. Consumers can be trusted and will not send back false verification results, which may occur in practice.

To enforce various security policies, [31] constructed designs based on capabilities and put them in NDN packets. The Merkle Hash Tree-based one-time signature mechanism is used to generate and verify lightweight capabilities [32,33]. NDN nodes can validate data by verifying their capability, which is included in each data packet. Due to the inability of these data packets to be validated, any fraudulent or malicious data packets will be lost. Even if the verification overhead is lower than with NDN, such capability-based security enforcement architectures do not relieve routers of the burden of verifying each Data packet that passes by, but rather impose additional burdens on routers in terms of maintaining capability information up to date.

In this paper, we proposed a bird swarm optimization content poisoning mitigation scheme based on the trust or credibility of the content in each router. In the event of content poisoning, Bird Swarm Optimization (BSO) investigates the secure data transfer path.

3  Proposed Method

3.1 Preliminaries

Prefixes and outgoing interfaces are saved in FIB, a table in NDN used to forward Interest packets. Before forwarding interest packets, BSO-Content Poisoning performs a link velocity update to verify the safety of each path. As a result, each router needs keep a “Position Velocity table” (PV table) to determine the most secure forwarding path, which is determined in the BSO-Content Poisoning method via a Bird Swarm path finding process. Typically, PV tables at routers contain the following information: the contents name, the associated interface Iij from one router to another ( RTi to RTj ), the associated position fij(t) from one router to another ( RTi to RTj ) and the forwarding velocity Pij . The fij(t) and Pij variable can be updated and cleared during the bird swarm path finding method. Nodes can compute Pij and use its ranking to determine which interface to use when forwarding a packet based on fij(t) . In practice, the PV table will consume just a small amount of memory because it is used to store erroneous data. When an Interest packet arrives, RTi will initially search the PV table. If the PV table has the matching name, the Interest packet will be forwarded based on the Pij ranking in the PV table. If the FIB and RTi do not match, the standard NDN technique will be utilized. When an Interest packet is received, router RTi checks the PV table first in Tab. 1.

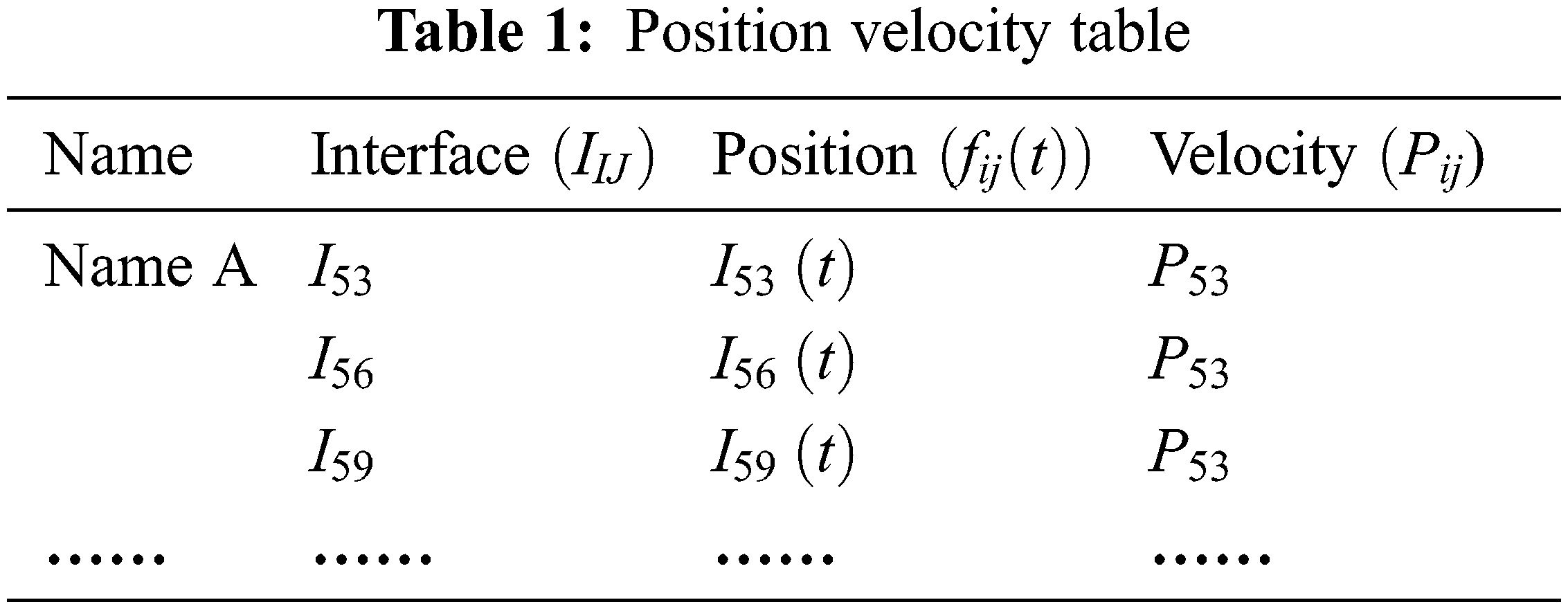

For example, RT5 has three interfaces that correspond to “Name A” ( P53 ), indicating that RT5 will send Interest packets to RT3 via the I53 interface. These interfaces are ranked in ascending order ( P53 > P59 > P56 ). As a result, a more secure strategy will be employed to acquire content C1→RT1→ RT5→RT3→RT4→L1 where C1 is consumer and  L1 is legitimate producer.

Additionally, each router’s interface Iij stores a Trust Value (TVij) that describes the neighboring router RTj ’s credibility. Increased TVij equates to increased credibility for RTj . Eq. (1) can be used to deduce TVij as:

TVij=λ (1 −NEND) (1)

The value ND represents the number of items received by RTi in relation to the interface Iij . NE is the total number of Exclude packets delivered by Iij within a T-minute period pointing to data received from Iij . And the routers’ credibility value is set to λ by default. The greater the number of Exclude packets sent from RTj to a router RTi , the more cause we have to consider the link between RTi and RTj is harmful. TVij is used to initialize  fij(t0) at the start of each statistical period T. When an Exclude packet arrives at RTi for the first time, an entry is often created in the PV table. After a certain number of statistics periods without receiving any Exclude packets, the entry in the PV table is erased. When calculating TVij , the names of the data packets received from the router RTj must be tracked in a list maintained by each of the interfaces of the routers in RTi.ND and NE are counted and removed from the Data Name list at the conclusion of the statistics period T. Fitness function for each node can be calculated using below Eq. (2).

μ(t)= B1Dt+B2n−1∑i=1nDididi+1 (2)

where t denotes current node, n is number of nodes, Di is the node’s residual energy, Dt denotes current node’s energy and di is the distance between the node i. B2 and B1 are the neighbor node energy co-efficient and current node’s weight co-efficient respectively and B2+B1=1 whereB2,B1∈{0,1} .

3.2 BSO–Content Poisoning Mitigation Framework

Using this strategy, the customer periodically releases Interest packets to initiate the path finding mechanism, which is subsequently responded to by the manufacturer with Data packets. Interest packets can collect security information from all links along the transmission path, but data packets can modify the values of velocity fij(t) and position Pij at each interface along the path taken and then returned. A secure transmission method based on the highest Pij at each hop and using the PV table produced by the BSO-Content Poisoning mechanism will be utilized to forward packets of Normal Interest to the authentic producer of the content. This will result in the removal of malicious routers from the system. Additionally, the Interest packet may contain the hash value of bogus Data and be used to clear bogus Data packets stored in CS.

The BSO-Content Poisoning Mitigation method has altered the Interest and Data packets. According to Fig. 3a, interest contains information about the content’s name, selector and link. The connection stores information about each hop that an Interest packet has taken. Additionally, false data hash values can be employed to purge the CS of erroneous data. The data packets represented in Fig. 3b include the content name, selector, link information and PS value. The connection information is derived from the received Interest packet and the PS value is a path security parameter that will be explained in further detail later. By extending the NDN Interest and Data packets that come standard, it is feasible to create lightweight Interest and Data packets.

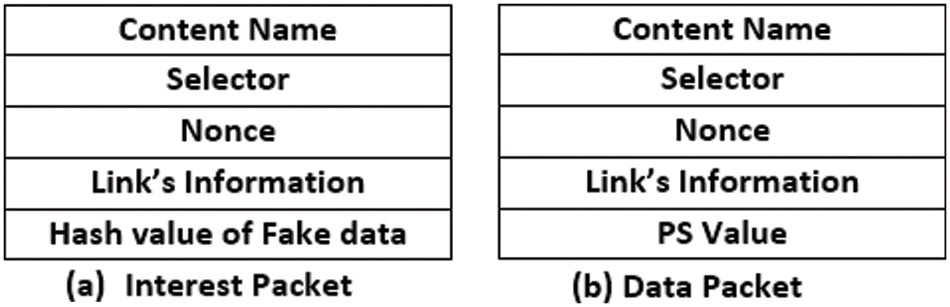

Figure 3: Packet structure in NDN

(a) Consumer Interest Packet Activation

After receiving a Data packet, the consumer should validate its legitimacy using the BSO-Content Poisoning Mitigation method. If the packet is genuine, nothing will happen. If this is not the case, the consumer will construct and release an Interest packet at the start of each statistical period T to explore plausible secure paths for the fraudulent contents discovered in the previous period using bird swarm optimization. Interest packets are transmitted more often during a statistics period T to maintain the connection’s velocity. Each packet of Interest will be distributed at a time interval of ta .  k occurrences ta denotes a relationship between the variables T and ta . Data packets and intermediary routers can help reduce the overhead associated with signature verification.

(b) Interest Packet Forwarding Mechanism

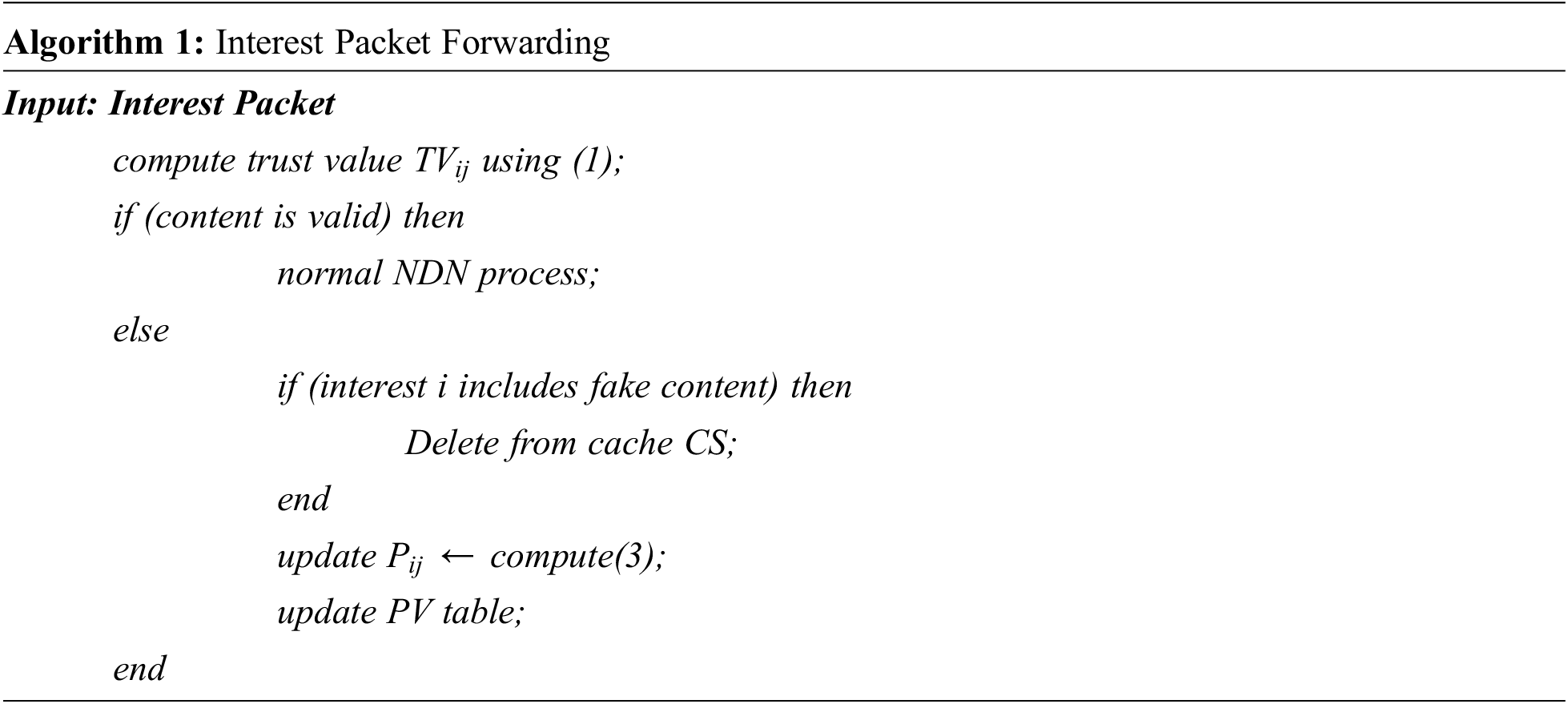

When an Interest packet arrives, RTi determines what type of packet it is. If the Interest packet is valid, RTi will correctly match the CS, PIT, PV table and FIB and perform the normal NDN procedure. Otherwise, RTi will extract the hash value of bogus material from the Interest packet if it has not been cached in its CS. False content is removed immediately upon discovery. This means that upon detection of poisoning, the Interest packet can be used to instruct polluted routers to empty their cache. Then, RTi will query the PV table for the matching content name and update the corresponding Position Pij using Eq. (3).

Pij(t)=Pij(t−1)+  fij(t) (3)

Then, RTi will include Pij in the link information for the Interest packet and forward it to the next hop. The mechanism for forwarding data packets at a router is depicted in Fig. 4.

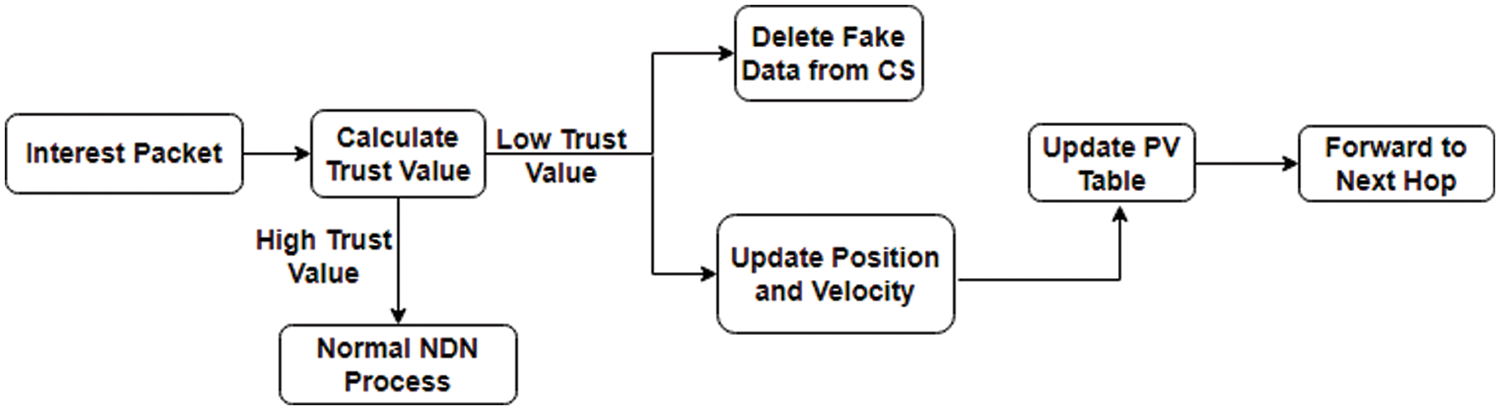

Figure 4: Interest packet forward process in BSO-content poisoning mitigation scheme

(c) Producer Data Packet Activation

It is the producer’s responsibility to respond to an Interest packet with security information for the entire transmission path. To denote the degree of safety offered by each path, we create an path state attribute called Path state (PS) in this section that is determined using the Eq. (4):

PS=∑(i,j)∈L⁡PijH (4)

In this case, L denotes the network information contained in the Interest packet and H is the number of hops required by the Interest packet to reach its destination. The producer will build a Data packet using the PS and link information (extracted from the Interest packet) and forward it to the next hop using the link information. Because the Interest packet does not generate PIT records during forwarding, the Data packet’s link information can direct it to return to the consumer via the Interest packet’s forwarding channel.

(d) Data Packet Forwarding Mechanism

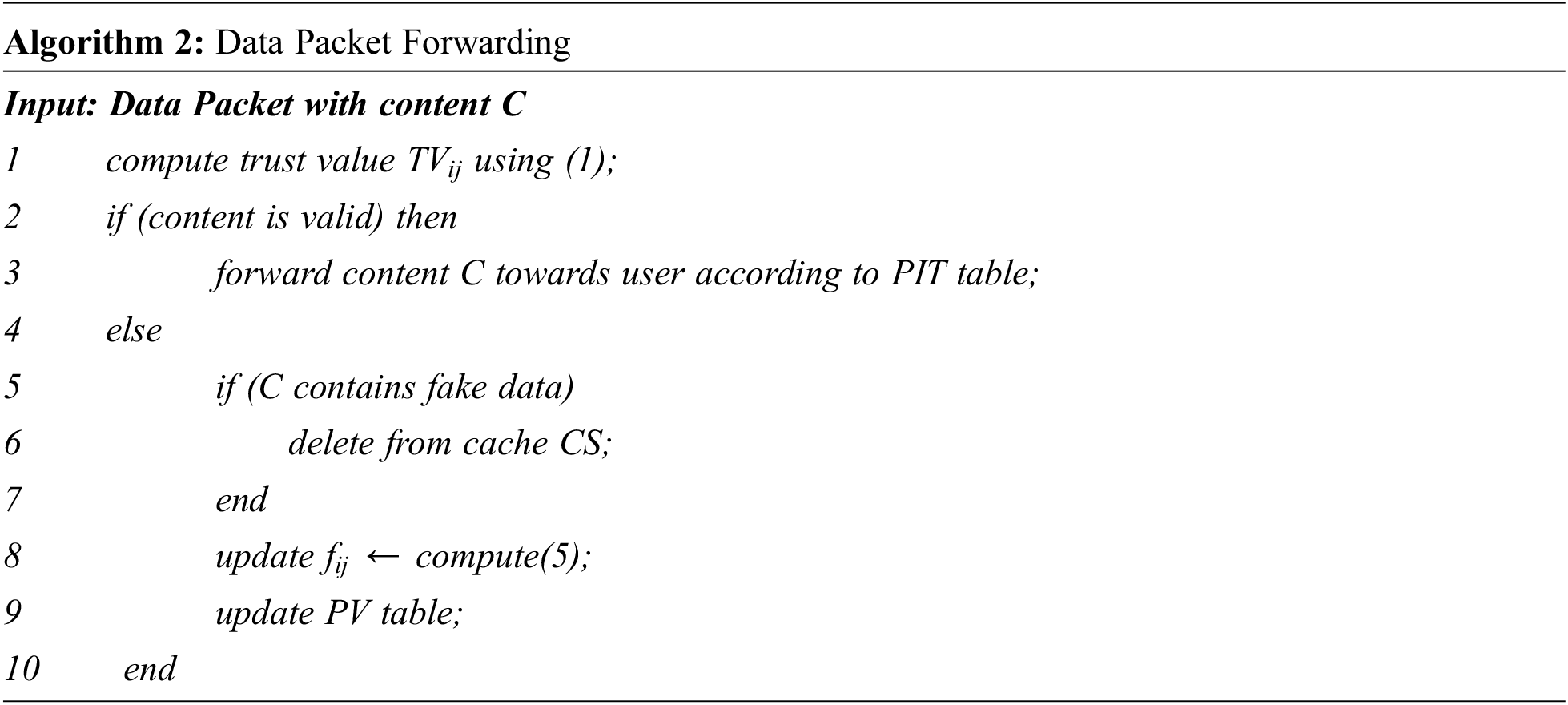

The mechanism for forwarding data packets at a router is depicted in Fig. 5. When RTi receives a Data packet, the first thing it does is identify its kind. If the packet is a normal one, the regular NDN method will be followed. Alternatively, RTi will extract the PA value from the Data packet and update fij(t) value by apply the Eq. (5)

{fij(t)=fij(t−1)+B1r1(pbest(t)−Pij(t−1))+B2r2(gbest(t)−Pij(t−1))+∇f∇f=PS (5)

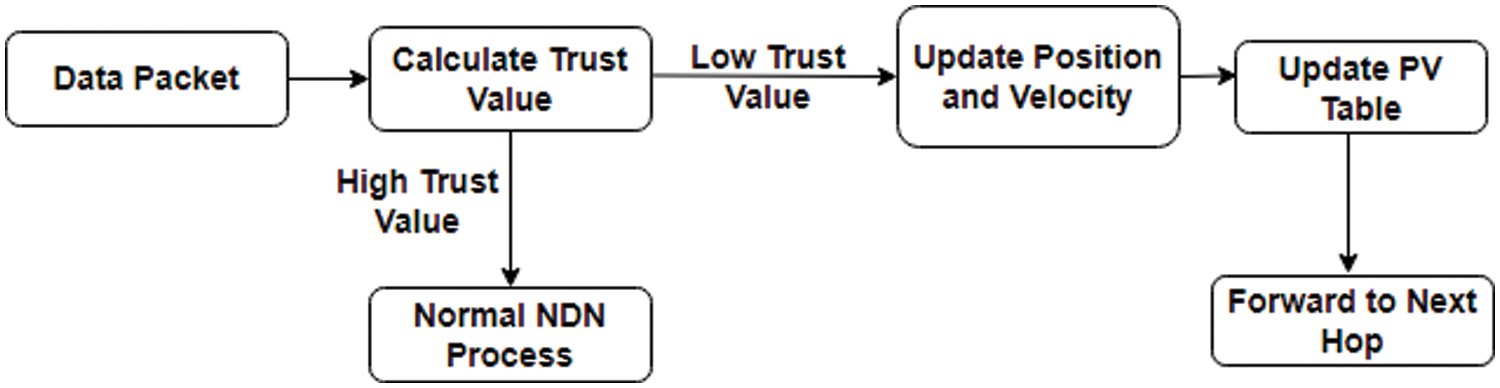

Figure 5: Data packet forward process in BSO-content poisoning mitigation scheme

Due to positional velocity at the end of period T, if no Data packet arrives within the statistical period T (∇f= 0) , fij(t) will equal 0. Pij will be changed in the PV table to reflect the new value of fij(t) following RTi ’s update. Following that, RTi will deliver the Data packet to the next hop in the network based on the data in its link. As shown, each router can update its fij(t) using PS based on the safe condition of the entire transmission line rather than the reputation of neighbor nodes. As a result, from a worldwide security standpoint, the proposed BSO-Content Poisoning Mitigation system can recover legal content post poisoning. At the end of the Bird Swarm path finding statistical period T, RTi will discard all fij(t) entries from the PV table but will retain Pij data.

4  Experimental Analysis

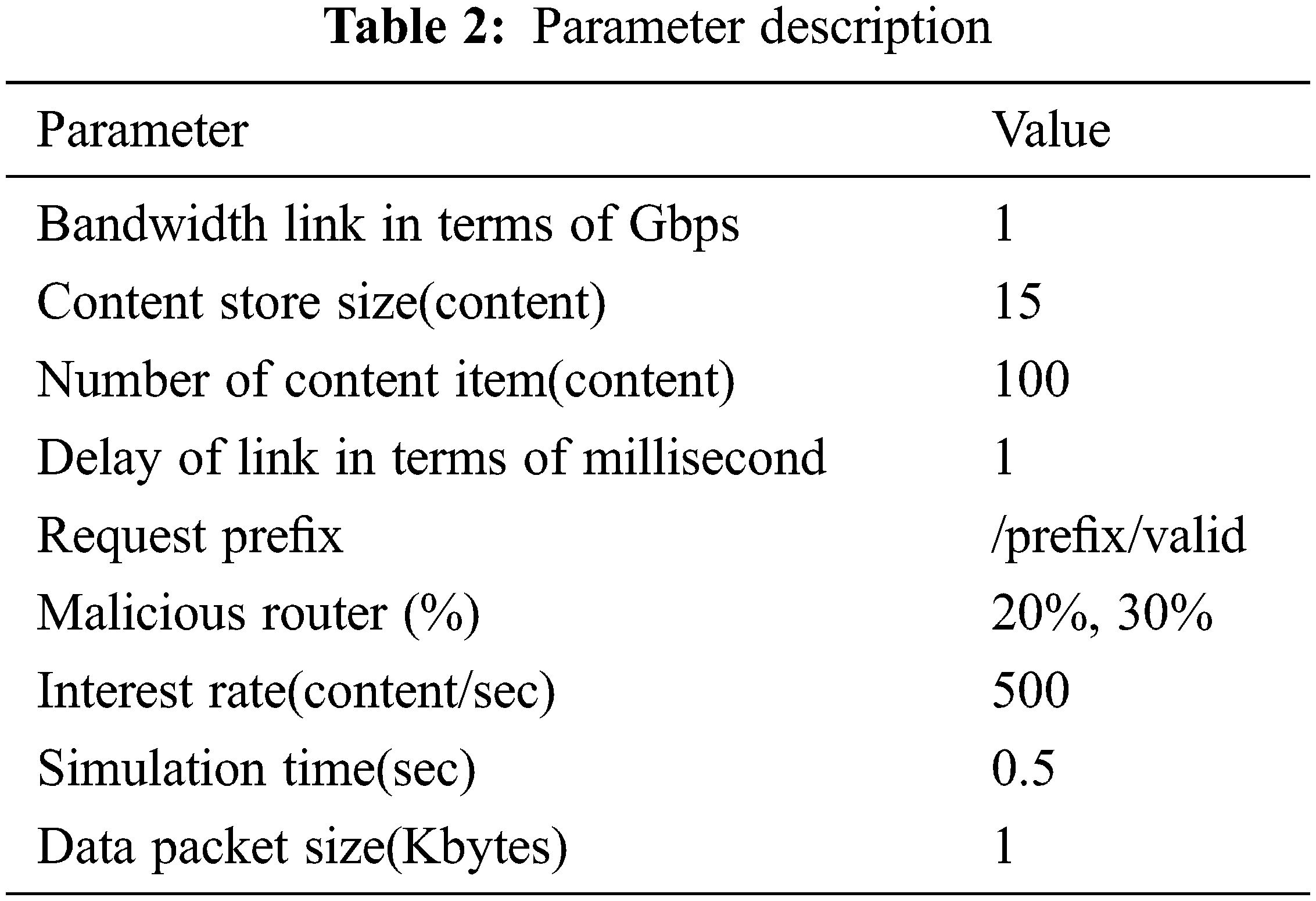

In this part, we compared our technique to the well-known ROM strategy, which evaluates a router’s trust based on a “reputation” score and subsequently sends information based on the trust value. This strategy, however, has limitations. For example, the forwarding method cannot be altered in real time in response to other transmission nodes’ security information. This paper’s simulation is based on the open-source ndnSIM package. This package enhanced the NS-3 based simulator by providing a modular implementation of the NDN’s basic component. For our experimental investigation, we used Deutsches ForschungsNetz (DFN) topology. We analyzed the performance of the BSO-Content Poisoning Mitigation Strategy and the ROM scheme at PMR percentages of 20% and 30%. This network has three legitimate producers and 35 legitimate clients. The network is comprised of 30 routers. Because these traffic patterns provide a good approximation of the traffic mix, it’s safe to assume that all users transmit their Interest packets at roughly the same average rate, with a random delay between each one. Tab. 2 contains list of the parameters and their values.

The performance metrics used in our evaluation are listed below.

1.    The elapsed time between sending an Interest packet and receiving a valid packet of data in return is referred to as Content Retrieval Latency (CRL).

2.    The ratio of poisoned or legitimate content to capacity of entire cache (PPLC) is used to determine the success of poisoned content removal from cached content CS.

3.    The Good Cache Hit Ratio (CHR) is a measure for the effectiveness of a system in mitigating content poisoning attempts, as it represents the total number of great contents in caches as a proportion of all requests.

4.1 Simulation Result

4.1.1 CRL

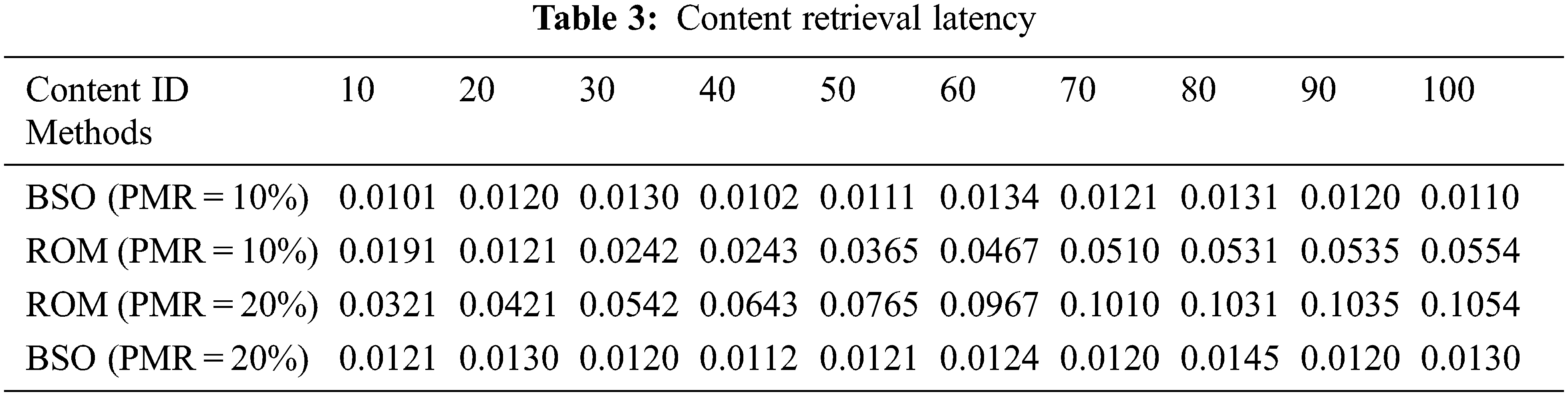

The CRL value is utilized in this section to compare the efficiency of the BSO-Content Poisoning Mitigation also, ROM mitigation techniques. When the PMR value is 10%, as illustrated in Tab. 3, the ROM system takes about 0.05 s to make a safe transmission of content, but the BSO-Content Poisoning Mitigation approach takes about 0.01 s. If the PMR is at 20%, ROM completes safe content delivery in about 0.10 s, whereas BSO-Content Poisoning Mitigation Scheme takes approximately 0.02 s.

As seen by this result, BSO-Content Poisoning Mitigation Scheme requires less transmission delay than ROM. Due to the fact that the Exclude packet is only an avoidance mechanism and cannot directly request the legitimate Data packet, this is the result we get. Additionally, the ROM architecture limits the amount of security information that each NDN router may obtain from neighboring routers, as the information is only available during content acquisition. Due to the restrictions of the ROM technique, it is not possible to modify the forwarding strategy. Because of the BSO-Content Poisoning Mitigation Scheme’s ability to alter the formulation of a strategy in real-time depending on the sensitive information of all routers on the data transmission, global secure content acquisition is now possible.

As a result, BSO-Content Poisoning Mitigation Scheme is more efficient and faster than the ROM technique in obtaining valid Data packets.

4.1.2 PPLC

When PMR is 10%, the BSO-Content Poisoning Mitigation Scheme approach may reduce the value of proportion of poisoned content cache to zero in 0.2 s, as seen in Fig. 6. However, after 0.2 s, the ROM scheme’s poisoned content value preserves at roughly 0.3. When PMR is 20%, the proportion of poisoned content cache of BSO-Content Poisoning Mitigation Scheme can be lowered to zero in 0.25 s, but the proportion of poisoned content cache of the ROM scheme can only be preserves in 0.25 s around 0.6. When the PMR value is 10%, the BSO-Content Poisoning Mitigation Scheme can climb to 0.95 in 0.05 s, as illustrated in Fig. 7. However, after 0.05 s, the ROM.

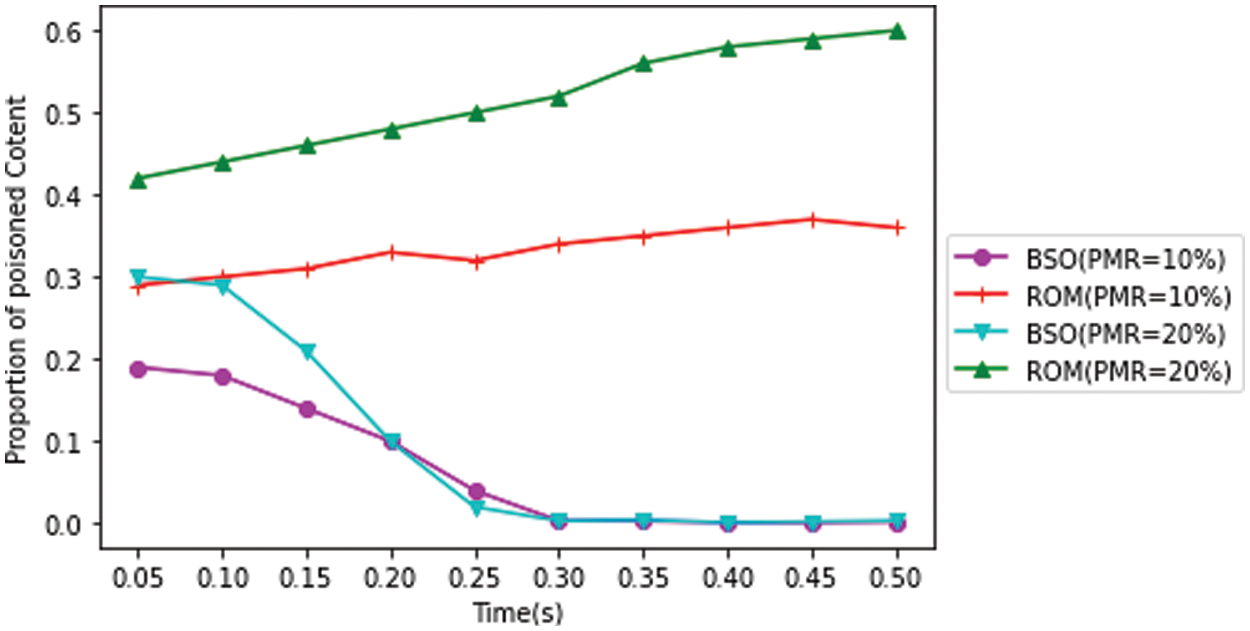

Figure 6: Proportion of poisoned content in cache

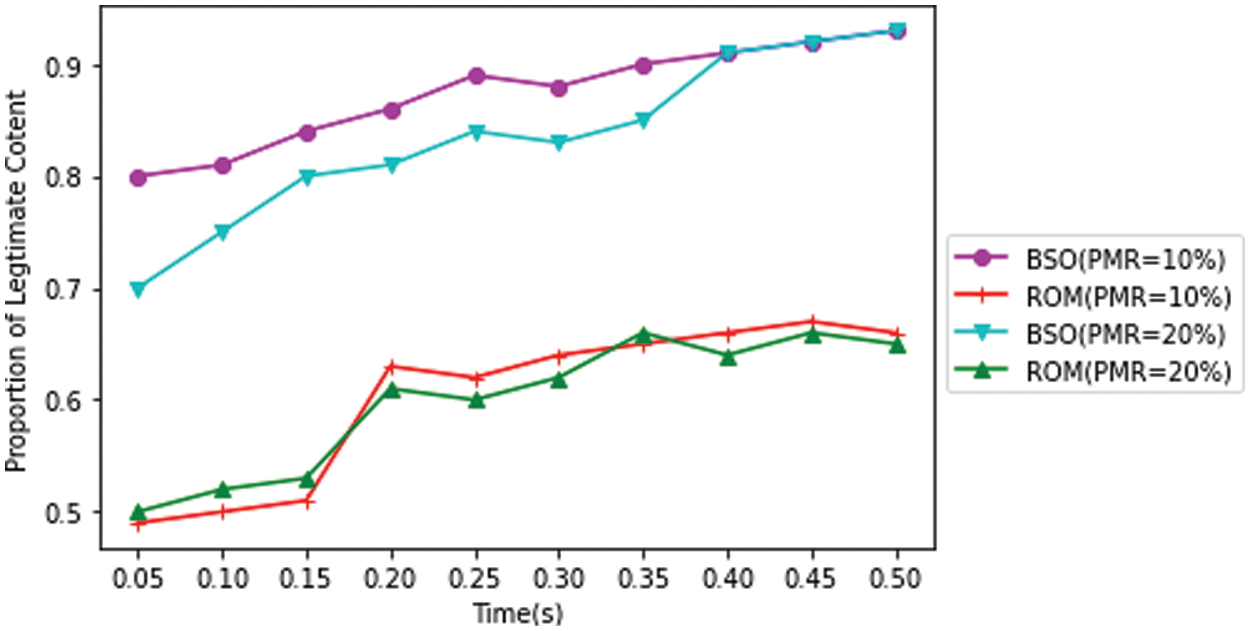

Figure 7: Proportion of poisoned content in cache

Scheme’s proportion of Legitimate content cache value stabilizes around 0.7. While the proportion of Legitimate content cache value rise up to 0.95 in 0.1 s, if the value of PMR is 20% in the BSO-Content Poisoning Mitigation Scheme, it preserves at approximately 0.5 in the ROM system during the same time period.

The BSO-Content Poisoning Mitigation Scheme is capable of cleaning out bogus contents held at intermediate routers throughout the process of new routing of Interest packets, reducing attacks from rogue routers that poison content.

Additionally, because routers cannot be promptly shut down (unlike content servers), it is difficult to completely purge the network of illegal content. Additionally, any router can be used to distribute fraudulent content. When the malicious node percentage is 10% or 20%, respectively, the fraction of legal content cannot eventually stabilize at 100% and the proportion of poisoned content cannot eventually stabilize at 0% in both methods.

4.1.3 CHR

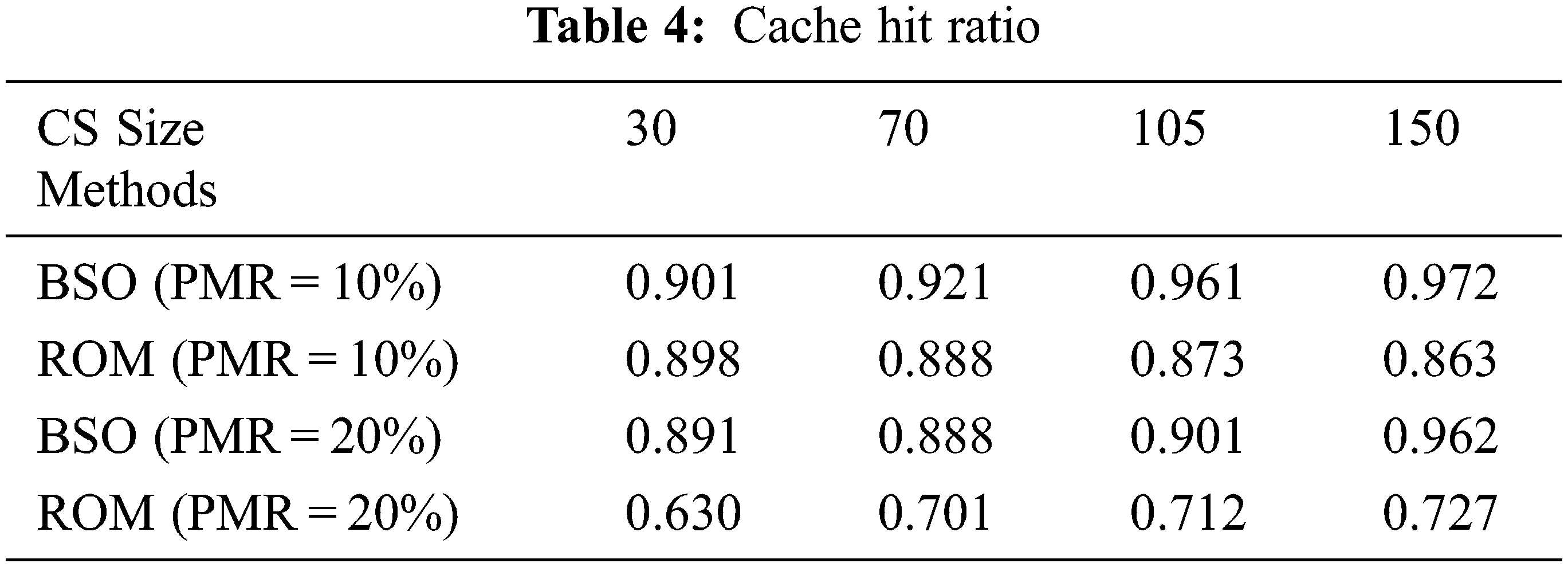

We studied the impacts of changing the overall cache capacity from 35, 70, 105 and 140 items on the cache hit ratio, results are shown in Tab. 4. There are 300 content items with a simulation time of 0.1 s.

As illustrated in Fig. 8, regardless of whether the PMR value is 10% or 20%, the BSO-Content Poisoning value is greater than the ROM value. As a result, the BSO-Content Poisoning method is more effective at purging defective content from the system than the ROM scheme, resulting in a higher good cache hit ratio in a comparatively less amount of time.

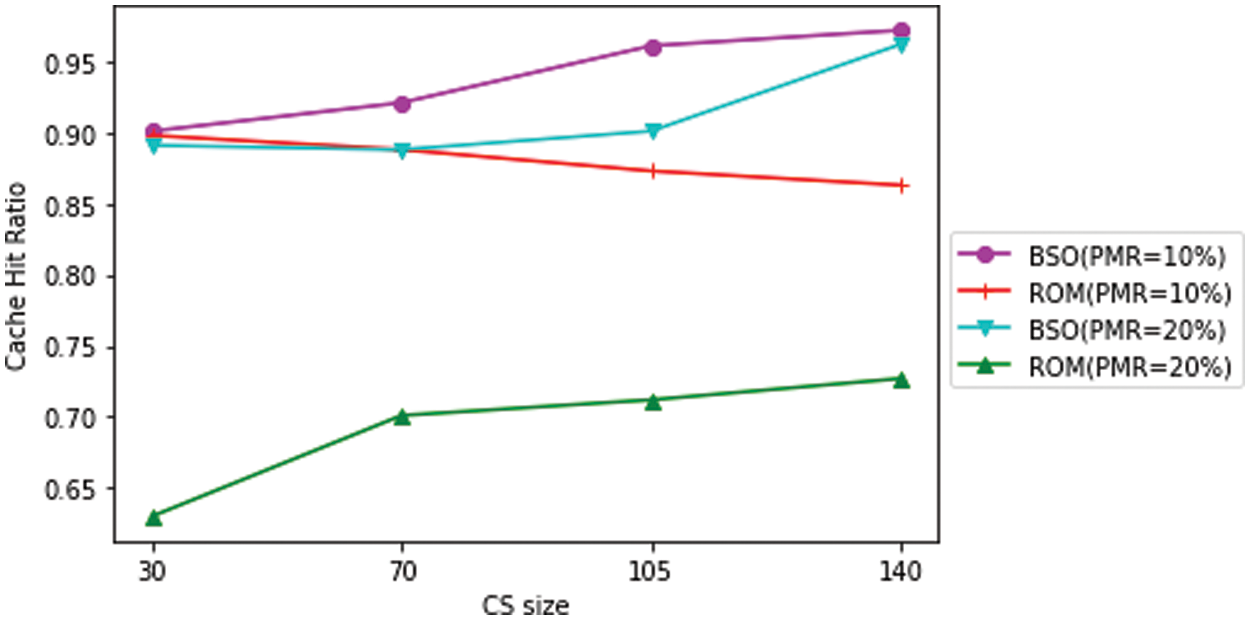

Figure 8: Cache hit ratio comparison

5  Conclusion

This work is directed towards to develop a Content Poisoning Mitigation Scheme based on Birds Swarm Optimization Algorithm in NDN. By utilizing Bird Swarm Optimization to collect sensitive information from all routers on the transmission channel. The BSO-Content Poisoning method can help networks find a well secure forwarding channel to reinstate legitimate data retrieval while also avoiding rogue routers. Furthermore, by eliminating faulty data packets from the cache store during the path finding process, the proposed technique can assist reduce content poisoning. Our proposed method has been compared with the ROM Scheme using the NS-3 simulator. The simulation results demonstrate that our approach is capable of mitigating content poisoning threats induced by malicious routers in a timely and effective manner. BSO-Content Poisoning Mitigation Scheme is more efficient and faster than the ROM technique in obtaining valid Data packets and resulting in a higher good cache hit ratio of 0.962 in a comparatively less amount of time and also content retrieval time is 0.013. Our proposed method effectively keeps track of poisoned content and eliminate those content by clearing the cache using Bird Swarm Optimization.

Funding Statement: The authors received no specific funding for this study.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
