Optimal Deep Belief Network Enabled Malware Detection and Classification Model

1  Introduction

Portable Document Format (PDF) is a very popular and trusted extension, while Adobe Reader is the most commonly used program for opening this type of file. This factor encourages attackers to seek and research for vulnerability and new ways of making exploits that implement random code when opened with this software. PDF document is more commonly utilized to launch attacks by cybercriminal [1]. A PDF document with exciting topics is transferred to the target, and once the document is opened, specific vulnerability in the software configuration or implementation is exploited for launching the next level of attacks [2]. For instance, direct implementation of native executable (when code was embedded in the PDF document itself), injection of code into an operational process or even downloading binary from the internet and later executing them [3,4].

The malware detection method is categorized into signature and behavior methods [5]. Now, signature-based malware detector effectively works with formerly known malware that has been detected previously by anti-malware vendors. To address this challenge, utilize machine learning (ML) techniques and heuristic analysis that provide high recognition performance [6]. Based on available data, the conventional method in the malware detection field depended on signature analysis [7], which is unacceptable to detect unknown computer viruses. To sustain the appropriate security level, users were forced to timely and constantly upgrade antivirus databases.

The ML technique for malware classification has utilized a wide range of information for learning discriminative functions that can distinguish benign and malicious software. Few common data sources [8] have been studied, including entropy measures on the binary, dynamic system call traces disassembled files, binary files, control flow graphs, and dynamic instruction traces. In the last few years, several attempts have been made to develop a classifier with the malware feature. Data mining and ML methods are utilized for developing smart malware classification and detection techniques [9]. The Deep neural network (DNN) has attained considerable achievement in various applications, particularly in computer vision. Even though the deep learning (DL) model is effective, they have some limitations in real-time detection tasks, particularly in security domain [10]. With the flow of zero-day and unlabeled malware, the recognition accuracy using DL is also lower. This deep model requires a high computational overhead and is very intricate. They also need a considerable amount of hyperparameters, and improved performance can be accomplished by tuning them properly.

This study presents a mayfly optimization with a deep belief network for PDF malware detection and classification (MFODBN-MDC). The proposed MFODBN-MDC model primarily undergoes two stages of pre-processing, namely categorical encoding and null value removal. Moreover, the MFODBN-MDC technique derives an MFO algorithm for optimal selection of feature subsets. Furthermore, Adamax optimizer with the DBN model is used for PDF malware detection and classification. At last, the hyperparameter tuning of the DBN model takes place using the Adamax optimizer. For exhibiting the better performance of the MFODBN-MDC model, a wide range of simulations were executed and the results were evaluated under numerous aspects.

The rest of the paper is organized as follows. Section 2 offers a detailed literature review and Section 3 discusses the proposed model. Then, Section 4 provides experimental validation and Section 5 draws the conclusions.

2  Literature Review

Corum et al. [11] introduced a learning-based model for identifying PDF malware with processing and image processing methods. The PDF file is initially transformed into grayscale image through the image visualization technique. Next, the image feature represents the visual features of malware and benign PDF files are removed. Lastly, a learning algorithm is employed for creating the classification method to categorize a PDF file as malevolent or benign. Sethi et al. [12] proposed an ML based malware analysis method for accurate and efficient malware classification and detection. Furthermore, we proposed feature selection and extraction modules that extract features from the report and select the essential feature to ensure higher accuracy at a minimal computational cost. We use a distinct ML method for fine-grained classification and accurate detection.

The researchers in [13] proposed the trusted architecture to identify unknown malware in Linux virtual machine (VM) cloud-environment. The presented method obtains volatile memory dump from the examined VM by enquiring about the hypervisor in a reliable way and overpowering malware capability for evading detection and the security mechanism. We use the ML algorithm to leverage informative traces (171 features) from distinct portions of the VM volatile memory. Li et al. [14] developed an evasion mechanism-based feature-vector generative adversarial network (fvGAN) for attacking a learning enabled malware classification. The proposed method was commonly employed in real-time fake image generation. Damaševičius et al. [15] proposed an ensemble classifier-based method for detecting malware. Initially, it is implemented by a convolution neural network (CNN) and stacked ensemble of dense (FC), then it is implemented by a meta-learner. For a meta learner, we compare and explore fourteen classifiers.

In [16], a new malware detection scheme based on a two-phase artificial neural network (ANN) is presented. The presented method is tested on the ‘Malimg’ dataset comprising of visual depiction of malware family. Here, some significant image features are extracted. According to this feature, the ANN was trained. Next, the ANN is utilized for detecting and classifying other data samples. Shhadat et al. [17] examined the ML algorithm utilized in unknown malware detection. The study proposes a feature set using RF to minimize the amount of features. Various ML methods are employed on a standard dataset in this experiment. Roy et al. [18] aim is to develop a DL-based detector DeepRan for ransomware earlier classification and recognition. The presented method employs an attention based bidirectional long short term memory (Bi-LSTM) with fully connected (FC) layer for modelling normalcy of host in an operating enterprise scheme and detecting anomalous activities from a massive amount of ambient host logging information gathered from bare metal server. The researchers in [19] presented Deep-Hook, a trusted architecture for detecting unknown malware in Linux-based cloud environment. The memory dump is converted as to visual image that is investigated by a CNN based classification.

3  The Proposed Model

In this study, a new MFODBN-MDC model has been developed for the identification and classification of PDF malware. The proposed MFODBN-MDC model involves three stages of operations such as pre-processing, MFO based feature subset selection, DBN classification, and Adamax hyperparameter optimization. Fig. 1 illustrates the overall process of the MFODBN-MDC technique.

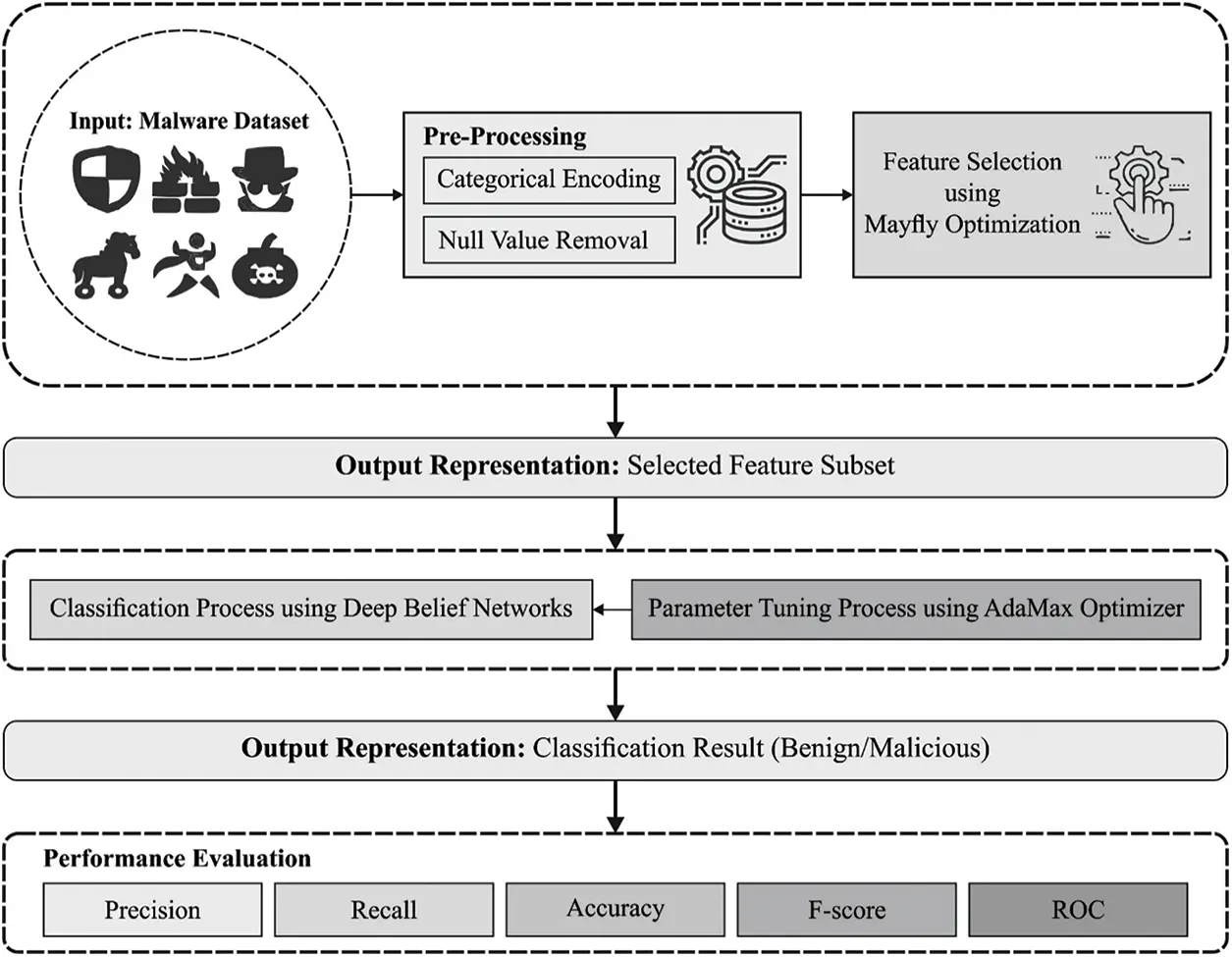

Figure 1: Overall process of MFODBN-MDC technique

3.1 Data Pre-processing

At the initial stage, the input data is pre-processed in two stages of operations such as categorical encoding and null value removal. Firstly, the categorical values are encoded into numerical values. Secondly, the null values that exist in the dataset are removed.

3.2 Design of MFO Based Feature Selection Approach

Next to data pre-processing, the MFO algorithm is utilized for the effective choice of the features involved in it [19]. MFO algorithm was proposed by imitating the group behavior of MF, especially the mating behavior. Initially, the mayfly (MF) is classified into male and female populations. In other words, each MF is arbitrarily scattered in a d-dimension space, and it can be taken into account as candidate solutions using the expression of =(ξ1,ξ2,⋯,ξd) . Next, the velocity vector represents the modified in location is determined by y=(ϖ1,ϖ2,⋯,ϖd) .

Movement of male MF: ξI˙t denotes the location of i−th male MF at time t , and ϖI˙malet+1 denotes the velocity that is added to ξI˙t for changing the location of i−th individuals. The t+1 location of the male MF ξ(t+1) is formulated as follows

ξit+1=ξit+ϖi,malet+1 (1)

The velocity of i−th MF at j−th dimension as follows:

ϖij,malet+1=ϖij,malet+a1exp(−βpp2)∗(pbestij−ξijt)+a2exp(−βpg2)∗(gbestj−ξijt) (2)

Whereas ξijt and ϖi,jmalet denotes the location and velocity of ith MF at jth dimension, correspondingly. ai(i=1,2) signifies the positive attraction constant that responds to the rule of social and cognitive mechanisms. pbestij and gbestj denotes the local and global optimum locations, correspondingly. β signifies a fixed visibility co-efficient that limits the visibility of individuals to other individuals. pp and pg denotes the cartesian distance in ith MF to the local and global optimum solutions, correspondingly. To minimize problem, the local optimum valuespbestij and optimum global values gbestj is estimated by the following equation

pbesti={ξit+1,if{ϕ1…..c(ξir+1)}≺{ϕ(pbesti)}iskeptthesame,otherwise (3)

gbest∈{pbest1,pbest2,⋯,pbestN,|(ϕ1…..c(cbest)}=dominate{{ϕ1…..c(pbest1)},{ϕ1…..c(pbest2)},⋯{ϕ1…..c(pbestN)}} (4)

Whereas ϕ1,…,c : ℝn→ℝ characterizes the objective function. The optimum MF in the population continually execute an up-and-down nuptial dance to guarantee the efficient process, viz., velocity of the optimum MF should always be changed as follows:

ϖij,malet+1=ϖij,malet+d ∗ p (5)

In which d characterizes the nuptial dance coefficient, p indicates an arbitrary value within [−1,1] , and ϖij,malet indicates the location of the i−th male MF at the j−th parameter.

Movement of female MF: Different from male MF that gathers in swarm, the female individual is towards the male individual to breed. The existing location and the velocity of i−th female MF at time r are fixed to ψit and ϖi,femalet+1 , correspondingly. Next, the (t+1)−th location of the female MF is given by:

ψit+1=ψit+ϖi,femalet+1 (6)

During the optimization method of MFO algorithm, the attraction approach is determined by a deterministic system. Regarding the minimized problem, the velocity of i-th female MF at j-th parameter is estimated as follows

ϖij,femalet+1={ϖijtfemale+a2exp(−βpmf2) ∗ (ξij′−ψijt),if∅(ψi)>(p(ξj)ϖij,femalet+fl∗p,if∅(ψi)≤(p(ξi) (7)

Whereas ψI˙jt and ϖij,femalet denotes the location and velocity of ith female MF at jth variable. pmf means the cartesian distance from ith male MF to ith female MF. fl characterizes the arbitrary walk co-efficient.

Mating of MF: Two parents are carefully chosen in male as well as female populations, correspondingly. The mating rule depends on the mating of optimal male with optimal female, creating 2 offspring based on the following equations:

offspring1=μ∗male+(1−μ)∗female (8)

offspring2=μ∗female+(1−μ)∗male (9)

Here, males and females denote the male and female individuals of the preceding generation, and μ∈(0,1) signifies an arbitrary number. The primary velocity of the individual in the present generation denotes 0. The MFO algorithm derives a fitness function using two parameters for the effective selection of features namely classification accuracy and number of chosen features. It can be derived as follows.

fitness=ω1×acc(classifier)+ω2×(1−sp) (10)

where p signifies total number of features and s denotes the number of chosen features. Here, the value of ω1 and ω2 are 1 and 0.001, respectively, [17]. The acc(classifer) represents the overall classifier accuracy attained by the DBN model that can be attained using Eq. (11):

acc(classifier)=ncnc+ni×100% (11)

where ni and nc represents the number of wrongly and properly classified samples respectively.

3.3 Process Involved in Optimal DBN Based Classification

For the identification and classification of PDF malware, the DBN model [20] is applied in this work. DBN is a multi-layered probabilistic model [20] that comprises multi-parameters for learning models. All the layers contain a simple undirected graph named restricted Boltzman machine (RBM). The RBM layer is of two kinds, that is visible layer and hidden layer. The hidden layer denotes the top layer, and visible layer represents the bottom layer. Fig. 2 illustrates the framework of DBN. An RBM encode the joint likelihood distribution through the energy function, where v denotes the visible data, h indicates the hidden data, w represents the weight, and θ=(w,b(v),b(h)) . It can be expressed as follows.

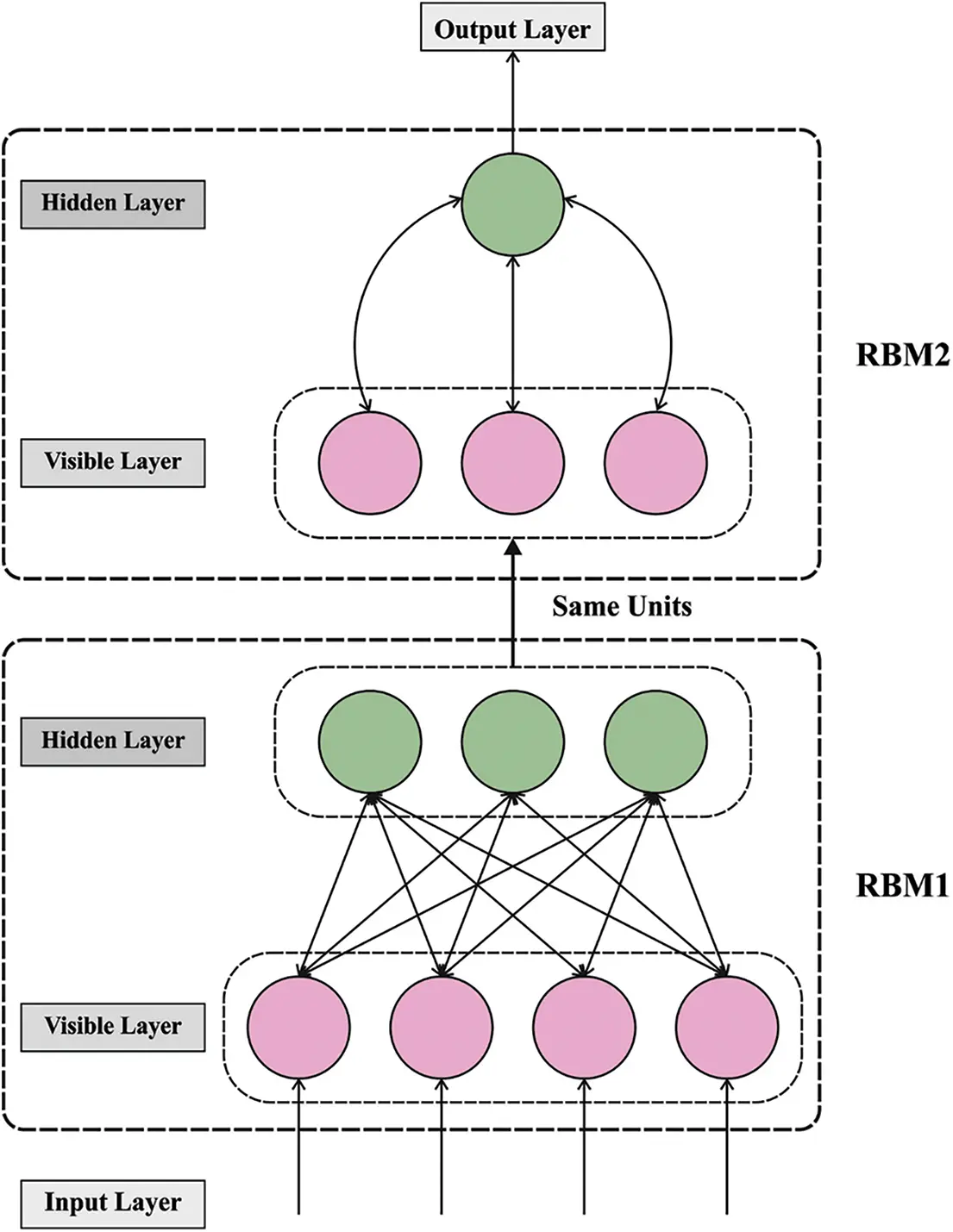

Figure 2: DBN architecture

E(v,h,θ)=−∑i⁡∑j⁡wijvihj−∑i⁡bi(v)vi−∑i⁡bj(h)hj (12)

p(v,h|θ)=exp(−E(v,h:θ)Σv′Σh,exp(−E(v,h,θ). (13)

This rule can be derived to upgrade the primary state; thus, each update gives a low energy state and eventually settles into equilibrium. Now, σ(x)=1/(1+exp(−x)) , whereas the sigmoid function is detected as follows:

p(vi=1|h,θ)=σ(∑j⁡wijhj+bi(v)) (14)

p(hi=1|v,θ)=σ(∑i⁡wijvi+bj(h)) (15)

The visible layer is offered with the input data for training the RBM. Now, the learning is to adopt the variable θ thus the likelihood distribution becomes maximally analogous to the true value implies that it maximizes the log-probability of observed data. The contrastive divergence (CD) samples the value for each hidden layer and the present input gives a whole sample (vdata,hdata) . It can be attained the sample from the model as (vmodel,hmodel) . The weight is upgraded as follows

Δwij=η(vi,datahj,data−vi,modelhj,model). (16)

In order to effectually modify the hyperparameter values of the DBN model, the Adamax optimizer is utilized [21]. Adamax is a variant of Adam dependent upon the infinity norm. Here, the update rules for separate weight measure the gradient inversely proportionate to a (scaled) L2 norm of the present and previous gradients. Then, generalize the L2 norm-based updating rules to Lp norm-based updating rules. This variant becomes arithmetically unstable for larger p . But, in the special case [22], we consider p→∞, which emerges as a stable and simple approach. Update biased first moment estimation:

mt←β1.mt−1+(1−β1) (17)

Update the exponentially weighted infinity norm:

ut←max(β2.ut−1,|gt|) (18)

Update parameter:

θt←θt−1−(α1−β1t).mt/ut (19)

The default setting for the tested ML problem is α=0.002, β1=0.9, β2=0.999.

4  Performance Validation

In this section, the experimental validation of the MFODBN-MDC model is carried out using the CIC Evasive-PDFMal2022 (https://www.unb.ca/cic/datasets/pdfmal-2022.html) and Contagio (https://github.com/srndic/mimicus/tree/master/data) datasets. The first CIC Evasive-PDFMal2022 dataset includes 31 features with two classes, namely Benign and Malicious. The proposed technique has chosen a set of 15 features. Similarly, the Contagio dataset includes 136 features, and the proposed model has selected a collection of 40 features.

Fig. 3 showcases the convergence analysis of the MFODBN-MDC model on the two datasets, namely CIC Evasive-PDFMal2022 and Contagio dataset. The figure shows that the MFODBN-MDC model has shown effective performance with an optimal convergence rate.

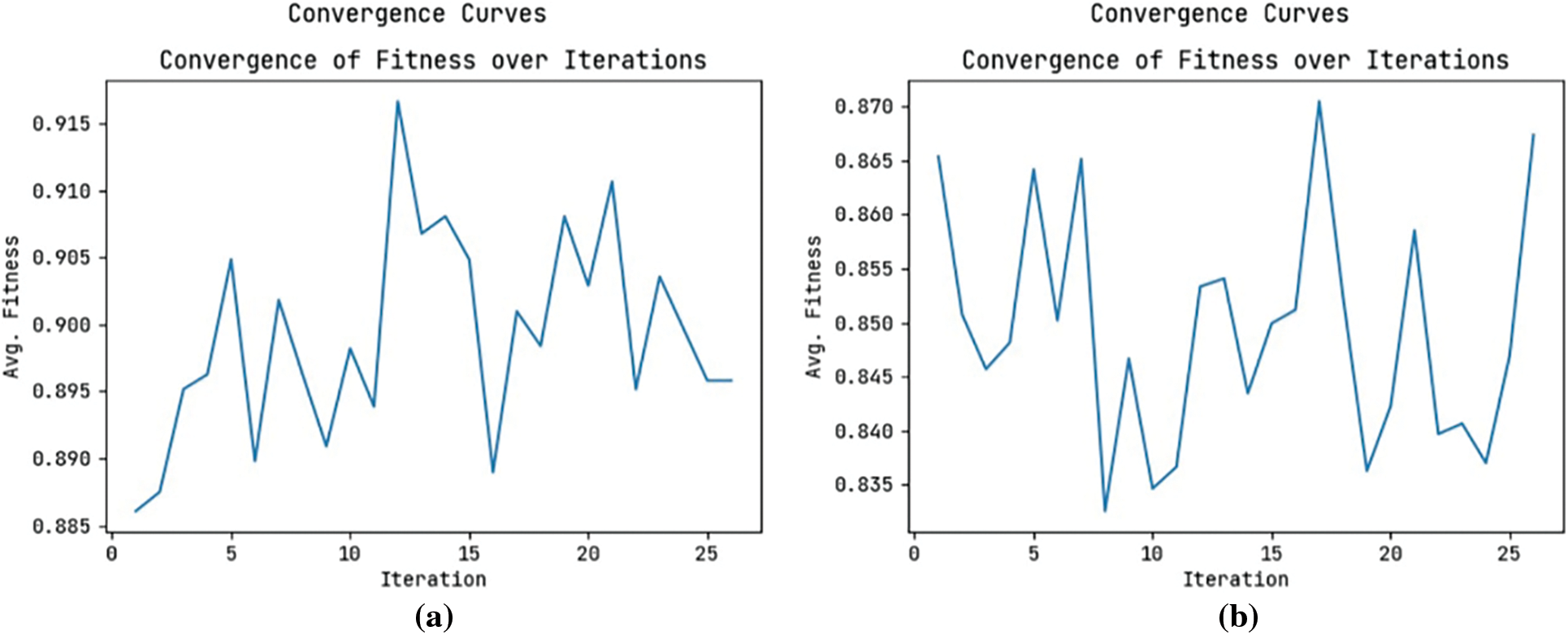

Figure 3: Convergence analysis (a) CIC Evasive-PDFMal2022, (b) Contagio dataset

The selected features on the CIC Evasive-PDFMal2022 dataset are metadata size, pages, xref Length, title characters, isEncrypted, embedded files, images, text, header, obj, endobj, stream, endstream, xref, and trailer. Besides, the chosen features from the Contagio Dataset are author_dot, author_lc, author_len, author_mismatch, author_num, author_oth, author_uc, box_nonother_types, box_other_only, company_mismatch, count_acroform, count_acroform_obs, count_action, count_action_obs, count_box_a4, count_box_legal, count_box_letter, count_box_other, count_box_overlap, count_endobj, count_endstream, count_eof, count_font, count_font_obs, count_image_large, count_image_med, count_image_small, count_image_total, count_image_xlarge, count_image_xsmall, count_javascript, count_javascript_obs, count_js, count_js_obs, count_obj, count_objstm, count_objstm_obs, count_page, count_page_obs, count_startxref.

Fig. 4 demonstrates a brief result analysis of the MFODBN-MDC model on the test CIC-Evasive-PDFMal2022 dataset. Fig. 4a depicts the confusion matrix offered by the DBN model. The figure denoted that the DBN model has identified 4358 instances under benign and 4601 instances under Malicious. Similarly, Fig. 4b indicated that MFODBN-MDC model has recognized 4237 samples under benign class and 5343 samples under malicious class. Next, Figs. 4c and 4d demonstrate the precision recall analysis of the DBN and MFODBN-MDC model. The figures exposed that the MFODBN-MDC technique has obtained maximum performance over the DBN model. Finally, Figs. 4e and 4f illustrate the receiver operating characteristic (ROC) investigation of the DBN and MFODBN-MDC model. The figure indicated that the MFODBN-MDC model has obtained a higher ROC of 0.9891 and 0.9891 under benign and malicious classes respectively.

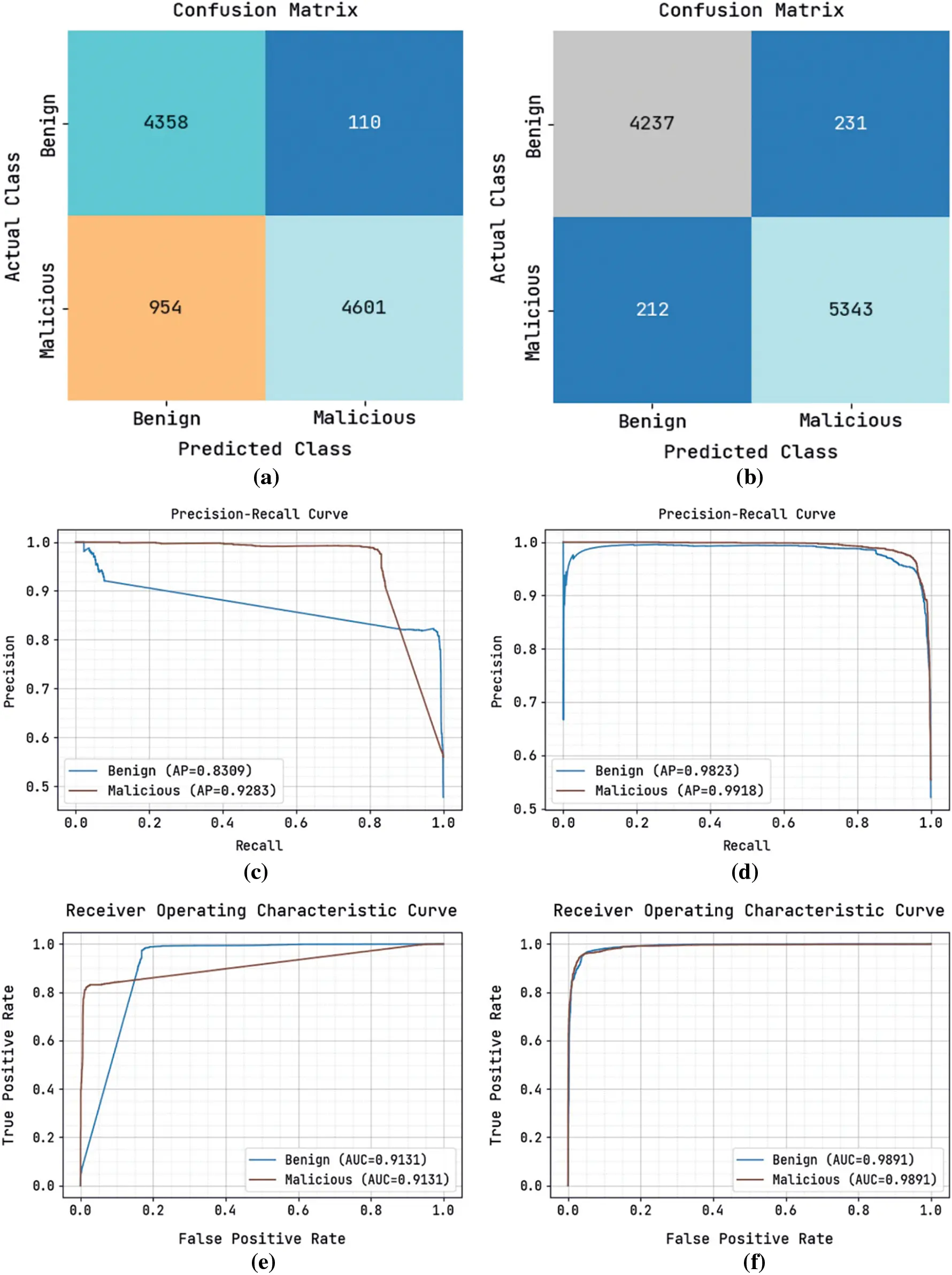

Figure 4: CIC Evasive-PDFMal2022 dataset (a) CM DBN, (b) CM MFODBN-MDC, (c) PCR DBN, (d) PCR MFODBN-MDC, (e) ROC DBN, (f) ROC MFODBN-MDC

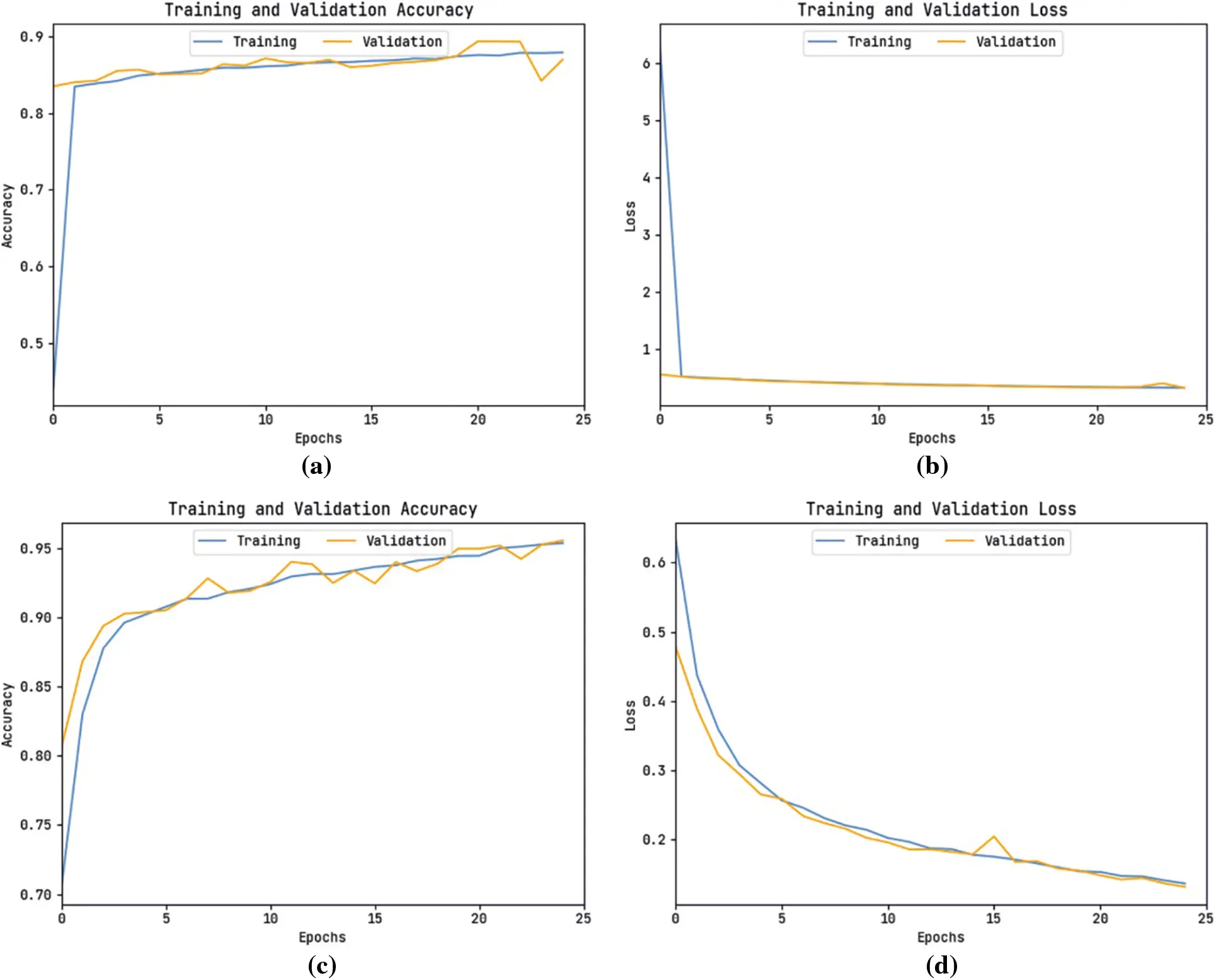

Fig. 5 offers the accuracy and loss graph analysis of the DBN and MFODBN-MDC methods on CIC-Evasive-PDFMal2022 dataset. The outcomes show that the accuracy value tends to increase and loss value tends to decrease with an increase in epoch count. Also, It is observed that the training loss is low, and validation accuracy is high on the CIC-Evasive-PDFMal2022 dataset.

Figure 5: CIC Evasive-PDFMal2022 dataset (a) Accuracy of DBN, (b) Loss of DBN, (c) Accuracy of MFODBN-MDC, (d) Loss of MFODBN-MDC

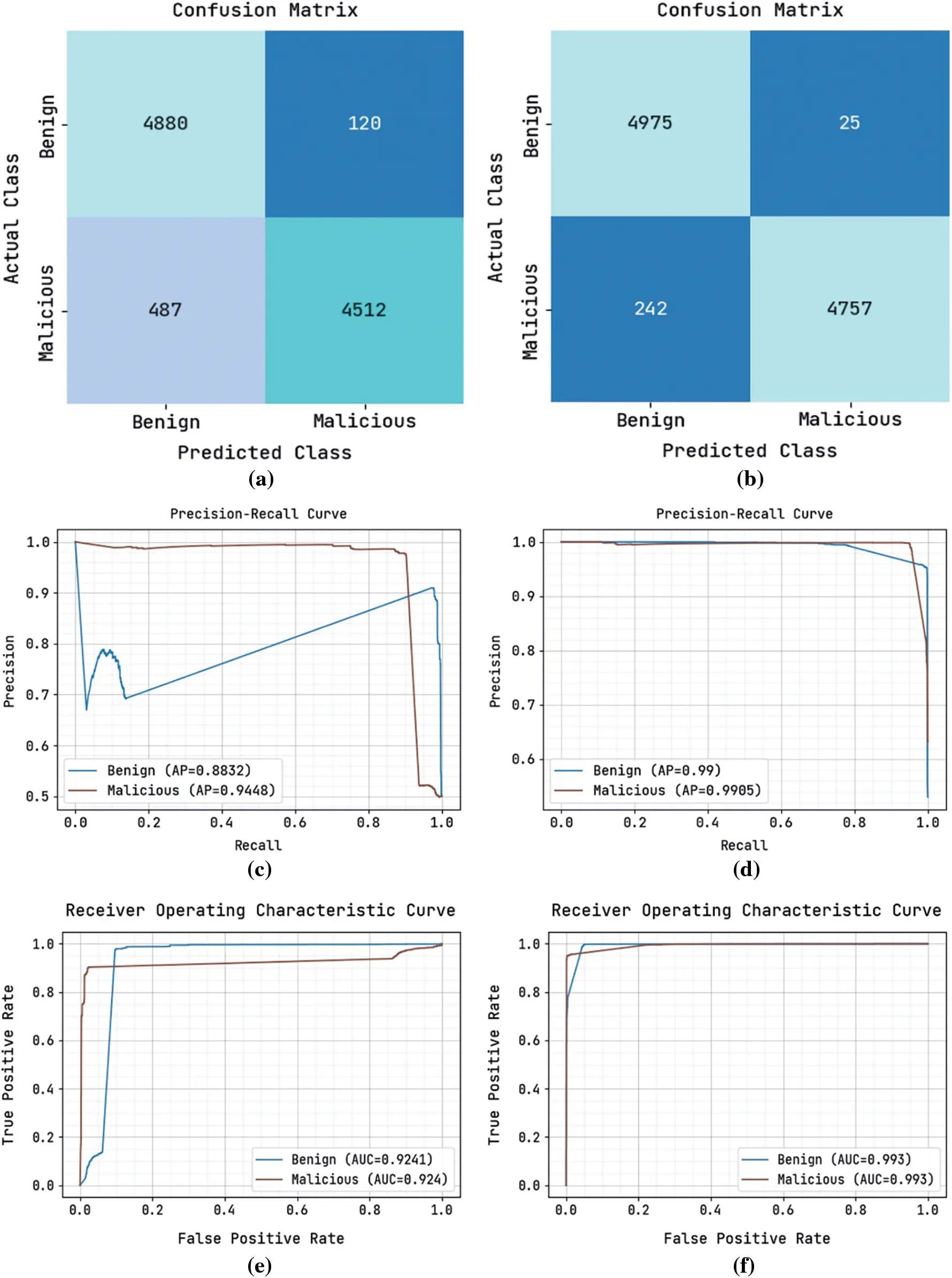

Fig. 6 depicts a brief result analysis of the MFODBN-MDC system on the test Contagio dataset. Fig. 6a demonstrates the confusion matrix presented by the DBN method. The figure denotes that the DBN method has recognized 4880 instances under benign and 4512 instances under Malicious. Likewise, Fig. 6b shown that the MFODBN-MDC method has recognized 4975 samples under benign class and 4757 samples under malicious class. Then, Figs. 6c and 6d prove the precision recall analysis of DBN and MFODBN-MDC method. The figure reports that the MFODBN-MDC approach has gained maximal performance over the DBN system. Lastly, Figs. 6e and 6f show the ROC investigation of the DBN and MFODBN-MDC method. The figure shows that the MFODBN-MDC technique has correspondingly attained high ROC of 0.993 and 0.993 under benign and malicious classes.

Figure 6: Contagio dataset (a) CM DBN, (b) CM MFODBN-MDC, (c) PCR DBN, (d) PCR MFODBN-MDC, (e) ROC DBN, (f) ROC MFODBN-MDC

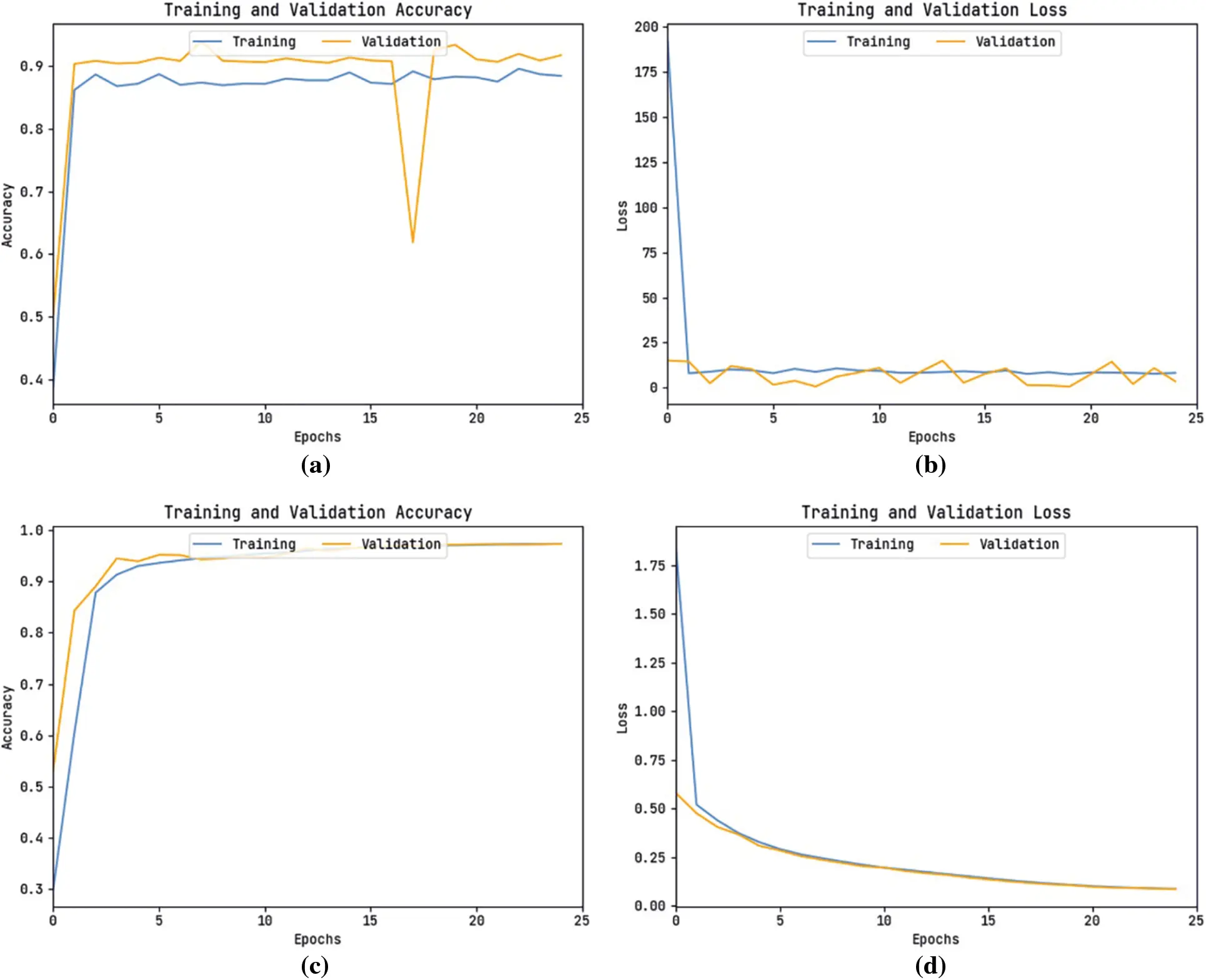

Fig. 7 offers the accuracy and loss graph analysis of the DBN and MFODBN-MDC methods on Contagio dataset. The results exposed that the accuracy value tends to increase and loss value tends to decrease with an increase in epoch count. Also, it is observed that the training loss is low, and validation accuracy is high on Contagio dataset.

Figure 7: Contagio dataset (a) Accuracy of DBN, (b) Loss of DBN, (c) Accuracy of MFODBN-MDC, (d) Loss of MFODBN-MDC

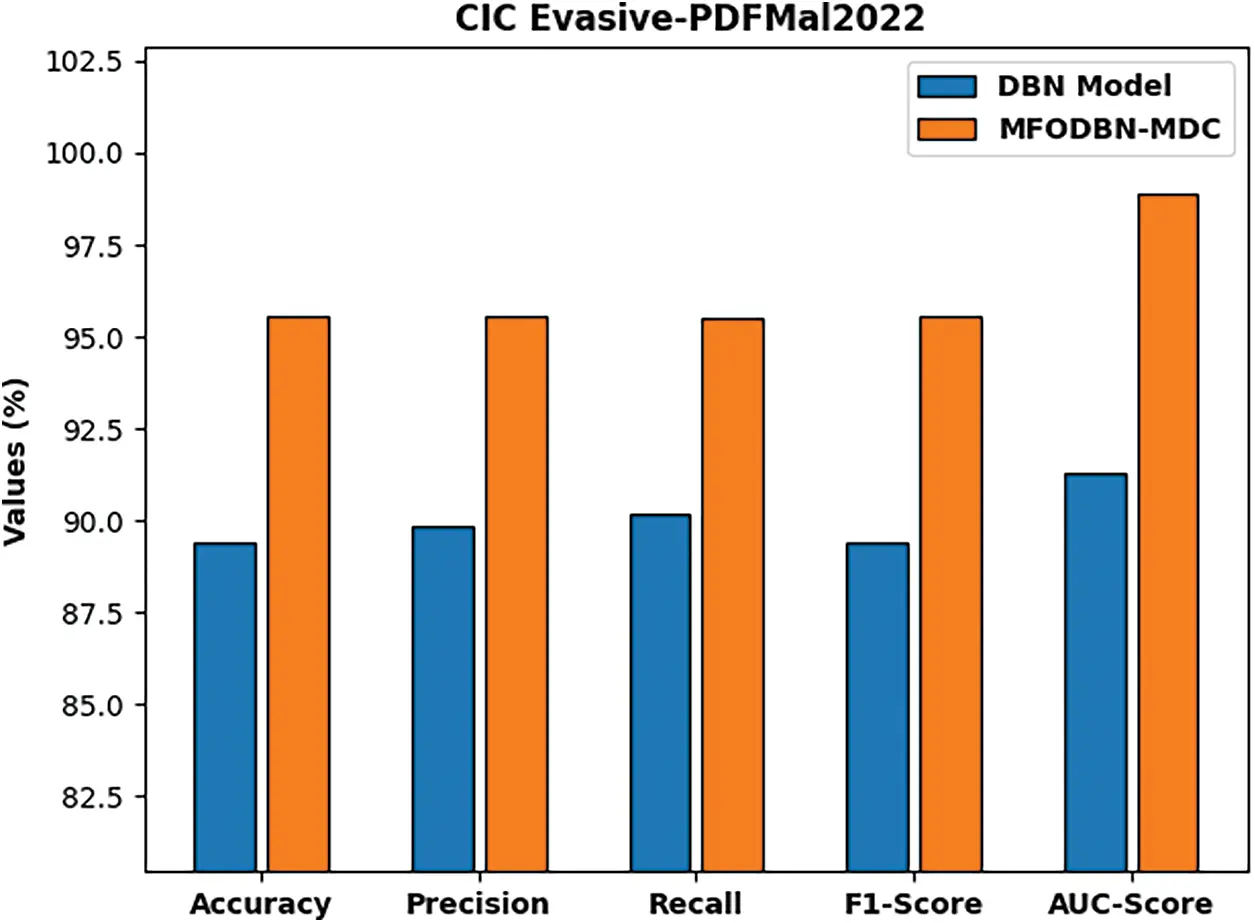

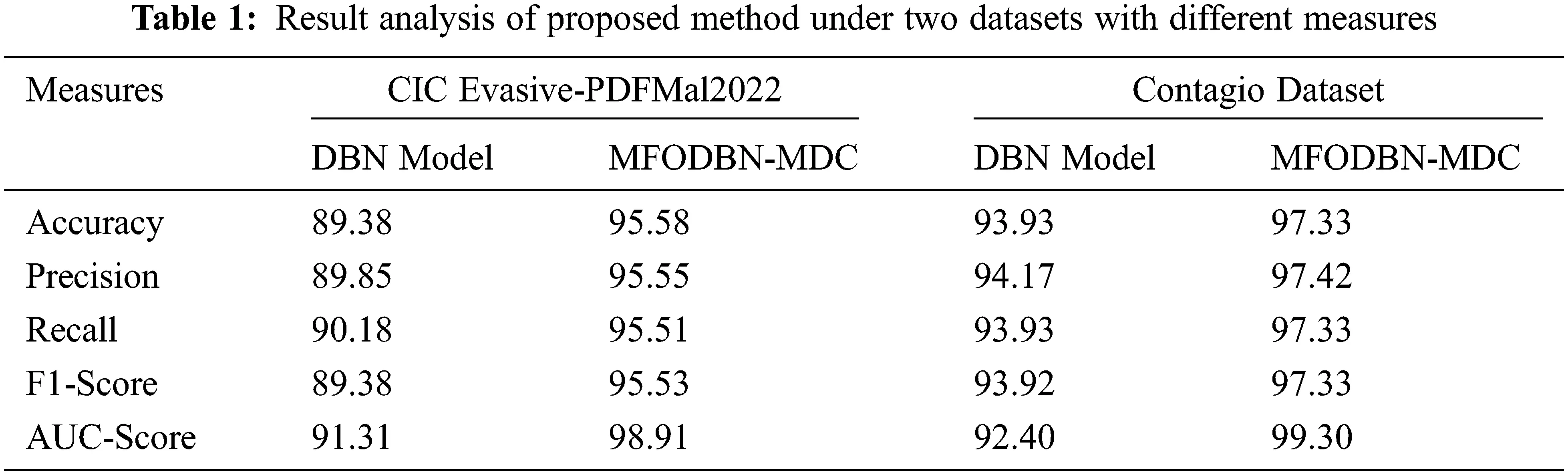

Tab. 1 provides detailed classification outcomes of the DBN and MFODBN-MDC models on two datasets. Fig. 8 reports the result analysis of the MFODBN-MDC model and DBN model on the CIC Evasive-PDFMal2022 dataset. The results indicated that the DBN model has obtained acccy , precn , recal , F1score , and Area Under the Curve (AUC) of 89.38%, 89.85%, 90.18%, 89.38%, and 91.31% respectively. However, the MFODBN-MDC model has offered enhanced performance with acccy , precn , recal , F1score , and AUC of 95.58%, 95.55%, 95.51%, 95.53%, and 98.91% respectively.

Figure 8: Result analysis of proposed method on CIC Evasive-PDFMal2022 dataset

Fig. 9 shows the result analysis of the MFODBN-MDC and DBN models on Contagio dataset. The results showed that the DBN system has gained acccy , precn , recal , F1score , and AUC of 93.93%, 94.17%, 93.93%, 93.92%, and 92.40% correspondingly. But the MFODBN-MDC technique has presented enhanced performance with acccy , precn , recal , F1score , and AUC of 97.33%, 97.42%, 97.33%, 97.33%, and 99.30% correspondingly.

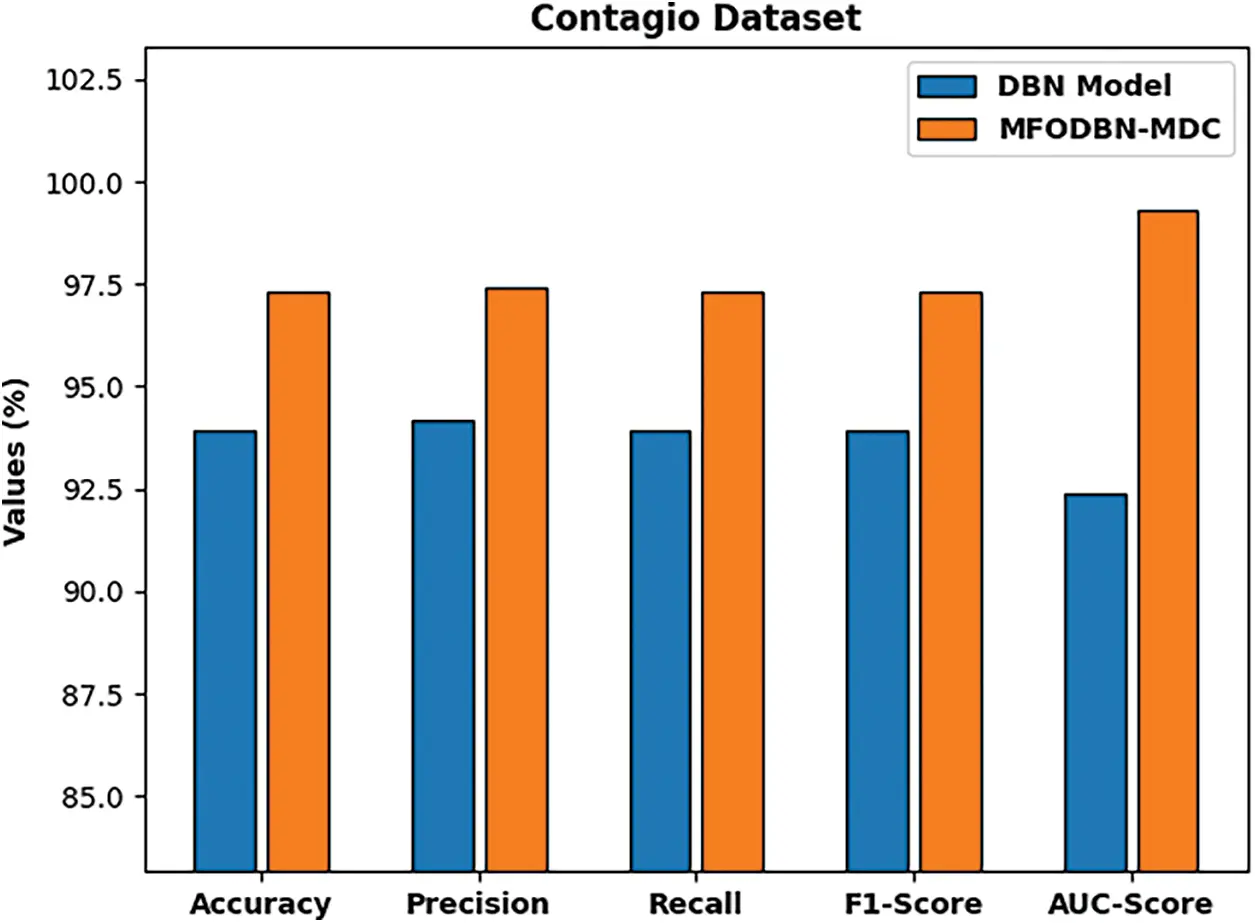

Figure 9: Result analysis of proposed method on Contagio dataset

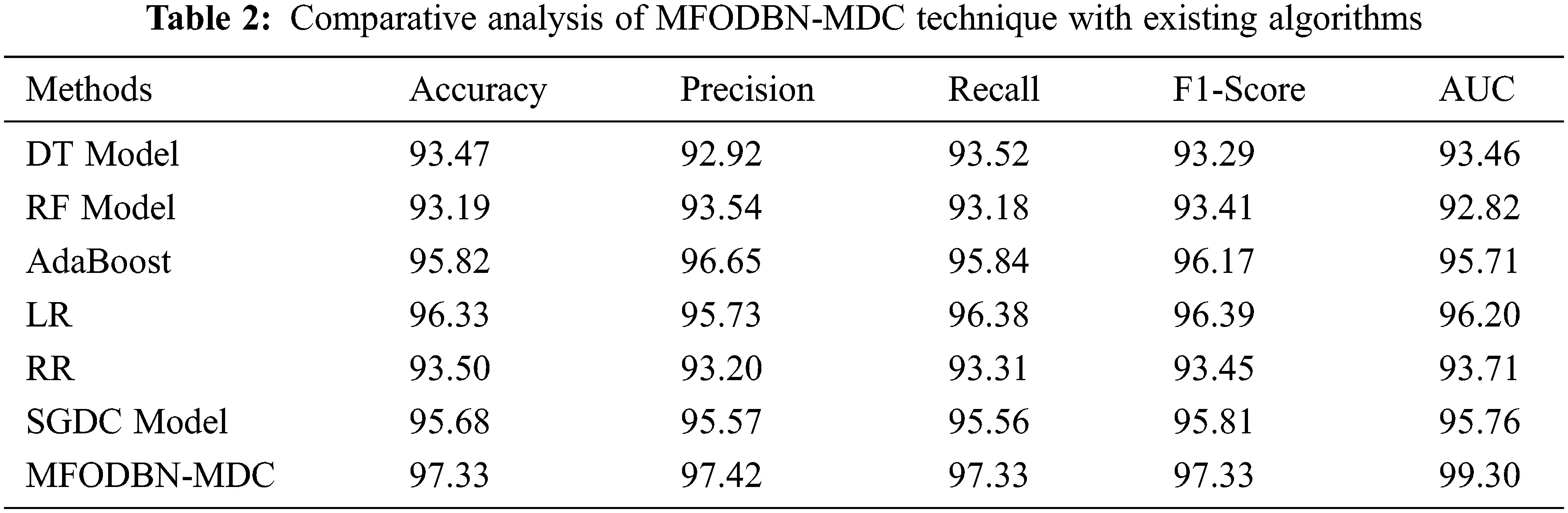

To ensure the MFODBN-MDC model's better performance, detailed comparative analyses with existing models are carried out in Tab. 2. For comparison study, decision tree (DT), random forest (RF), AdaBoost, Logistic regression (LR), ridge regression (RR), and SGDC models. The experimental outcomes indicated that the MFODBN-MDC technique has obtained maximal performance over the other methods under several measures.

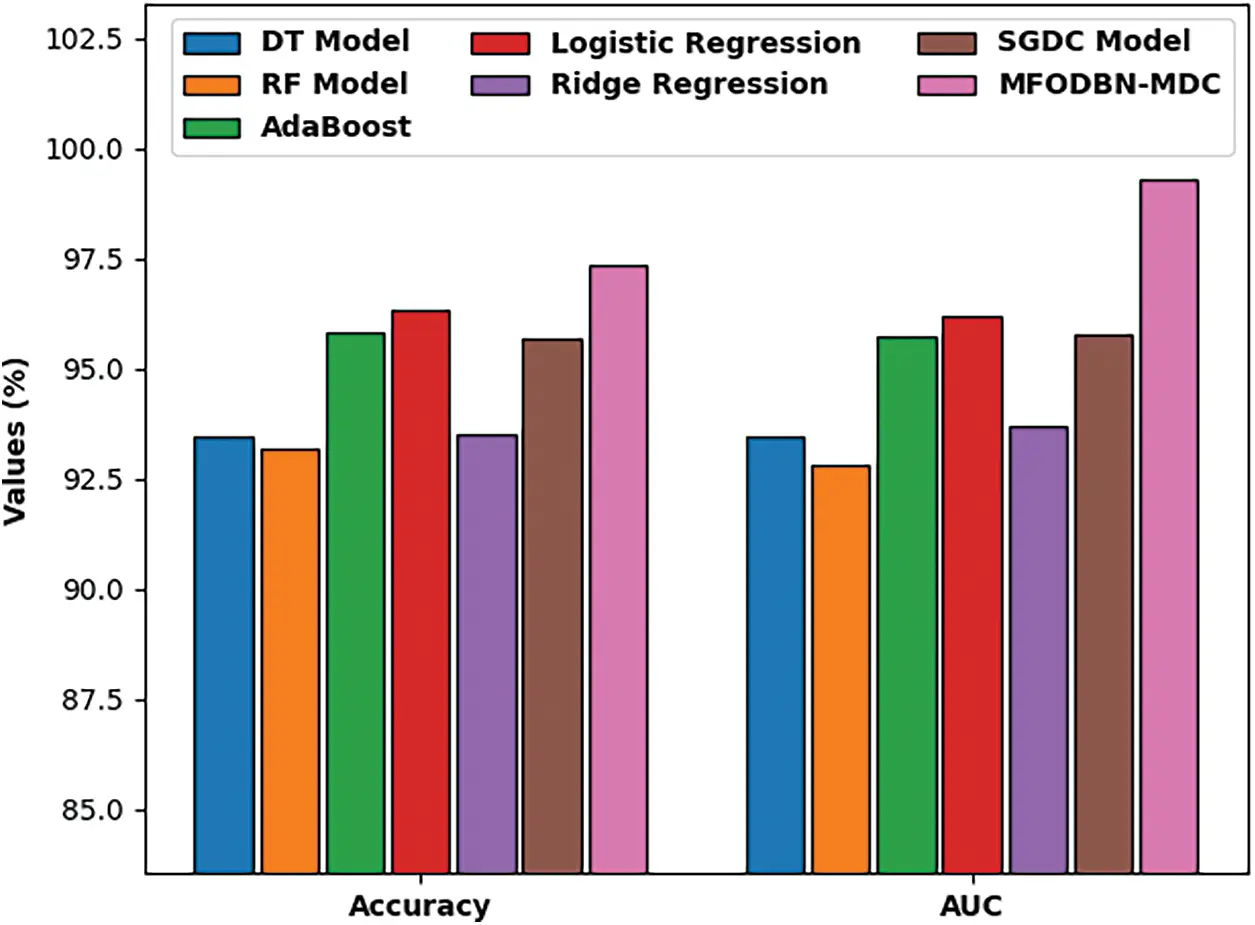

Fig. 10 demonstrates a comparative accuy and AUC examination of the MFODBN-MDC model with existing models. The figure reported that the DT, RF, and RR models have showcased poor performance with least values of accuy and AUC. Followed by, the AdaBoost and SGDC models have reported slightly enhanced values of accuy and AUC. In line with, the LR model has accomplished considerately accuy and AUC values of 96.33% and 96.20%. However, the MFODBN-MDC model has resulted in maximum accuy and AUC of 97.33% and 99.30%.

Figure 10: Accy and AUC analysis of MFODBN-MDC technique with existing algorithms

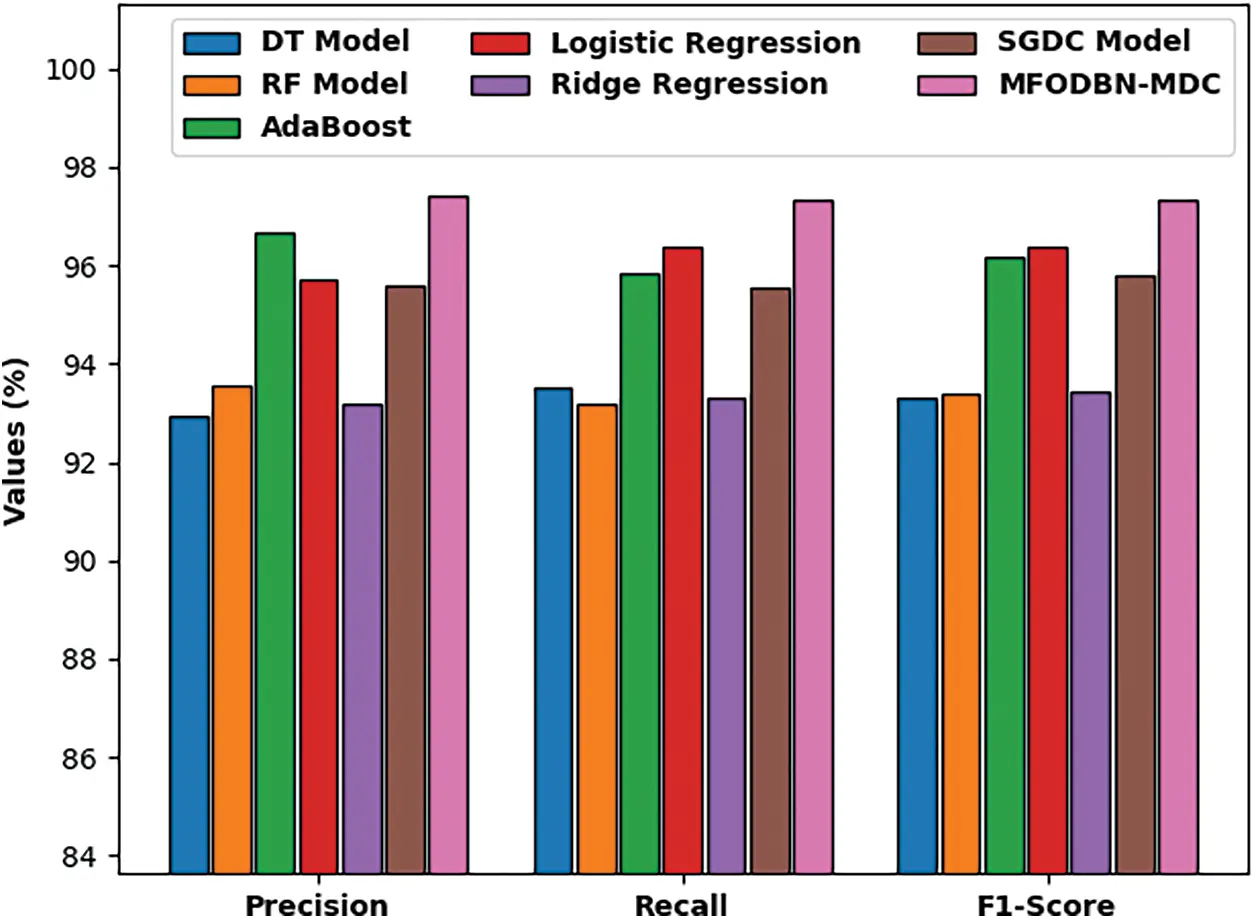

Fig. 11 proves a comparative precn , recal , and F1score examination of the MFODBN-MDC model with existing model. The figure reports that the DT, RF, and RR methods have shown poor performance with minimum values of precn , recal , and F1score . Next, the AdaBoost and SGDC approaches have reported somewhat improved values of precn , recal , and F1score . In line with, the LR method has gained considerately precn , recal , and F1score values of 95.73%, 96.38%, and 96.39%. However, the MFODBN-MDC method has resulted in maxima precn , recal , and F1score of 97.42%, 97.33%, and 97.33%. After examining the abovementioned tables and figures, it is clear that the MFODBN-MDC model has accomplished maximum PDF malware detection and classification outcomes.

Figure 11: Comparative analysis of MFODBN-MDC technique with existing algorithms

5  Conclusion

In this study, a MFODBN-MDC technique was established for the identification and classification of PDF malware. The proposed MFODBN-MDC technique contains three stages of operations such as pre-processing, MFO based feature subset selection, DBN classification, and Adamax hyperparameter optimization. For exhibiting the better performance of the MFODBN-MDC model, a wide range of simulations are executed, and the outcomes are evaluated under various aspects. The extensive comparative analysis reported the enhanced outcomes of the MFODBN-MDC model over the recent approaches. Therefore, the MFODBN-MDC model can be utilized as a proficient tool for PDF malware detection and classification. In the future, the classification results of the MFODBN-MDC model can be improved by using outlier detection and feature reduction approaches.

Funding Statement: The authors received no specific funding for this study.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
