Multiple Events Detection Using Context-Intelligence Features
1Department of Computer Science and Software Engineering, Al Ain University, Al Ain, 15551, UAE
2Department of Computer Science, Air University, Islamabad, Pakistan
3Department of Computer Science, College of Computer, Qassim University, Buraydah, 51452, Saudi Arabia
4Department of Humanities and Social Science, Al Ain University, Al Ain, 15551, UAE
5Department of Human-Computer Interaction, Hanyang University, Ansan, 15588, Korea
*Corresponding Author: Kibum Kim. Email: kibum@hanyang.ac.kr
Received: 08 November 2021; Accepted: 13 January 2022
Abstract: Event detection systems are mainly used to observe and monitor human behavior via red green blue (RGB) images and videos. Event detection using RGB images is one of the challenging tasks of the current era. Human detection, position and orientation of human body parts in RGB images is a critical phase for numerous systems models. In this research article, the detection of human body parts by extracting context-aware energy features for event recognition is described. For this, silhouette extraction, estimation of human body parts, and context-aware features are extracted. To optimize the context-intelligence vector, we applied an artificial intelligence-based self-organized map (SOM) while a genetic algorithm (GA) is applied for multiple event detection. The experimental results on challenging RGB images and video-based datasets were promising. Three datasets were used. Event recognition and body parts detection accuracy rates for the University of central Florida’s (UCF) dataset were 88.88% and 86.75% respectively. 90.0% and 87.37% for event recognition and body parts detection were achieved over the University of Texas (UT) dataset. 87.89% and 85.87% for event recognition and body parts detection were achieved for the sports videos in the wild (SVW) dataset. The proposed system performs better than other current state-of-the-art approaches in terms of body parts and event detection and recognition outcomes.
Keywords: Body parts detection; event detection; context-intelligence features; genetic algorithm; machine learning; self-organized map
Social interaction and event detection [1] cause a social communication network between millions of posts every minute, and these graphs are growing daily [2]. User-generated information is associated with private or shared interactions, which can be described as multimedia information that can be captured as digital data [3]. Current research studies show that multimedia information is organized based on underlying experiences that facilitate efficient descriptions, synchronization, analysis, indexing, and surfing [4]. Event recognition is an important research area and it is widely used in various applications where high-level image recognition is required, e.g., safety control, smart systems [5–7], data security [8], emergency systems [9], monitoring of interactions between humans and computers [10], intelligent indexing [11] and sports event detection [12]. Regarding the identification of security-related data and events [13], a surveillance footage feature [14] is available in several areas such as smart homes [15], parking spaces, hospitals [16] as well as community sites [17].
In this research study, we describe a new robust computational intelligent system for multiple event detection and classification with the help of a context-intelligent features extraction approach, data optimization and a genetic algorithm. In our approach, we take RGB images and three publicly available video-based datasets, namely, the UCF sports action dataset, the UT-interaction dataset, and the Sports videos in the wild (SVW) dataset. Initially, RGB conversion, noise reduction and binary conversion are performed to minimize the computational cost in time and processing loads. After this, the next step is to extract the human silhouette and detect human body parts with the help of skin detection and Otsu’s method. Then, context-intelligent features extraction is performed in which we extract angular geometric features, multi-angle joints features, triangular area points features, the distance between 2 points, and an energy feature. To reduce the computational power burden and to make the system more intelligent, we adopt a machine learning-based data optimization method with the help of a self-organized map (SOM). Finally, for multiple event detection and classification, a genetic algorithm (GA) is adopted. The key contributions of this paper are as follows:
Human silhouette extraction using two different approaches to optimize the human silhouette. Two-dimensional (2D) stick modelling is adopted for human posture information and analyses of human body movement in RGB images and video data. Context-intelligent features extraction in which angular geometric features, multi-angle joint features, triangular area points features, the distance between two points and energy features are extracted. To save time and computational cost, a data optimization technique is adopted while, for multiple event detection, an artificial intelligence-based genetic algorithm is applied.

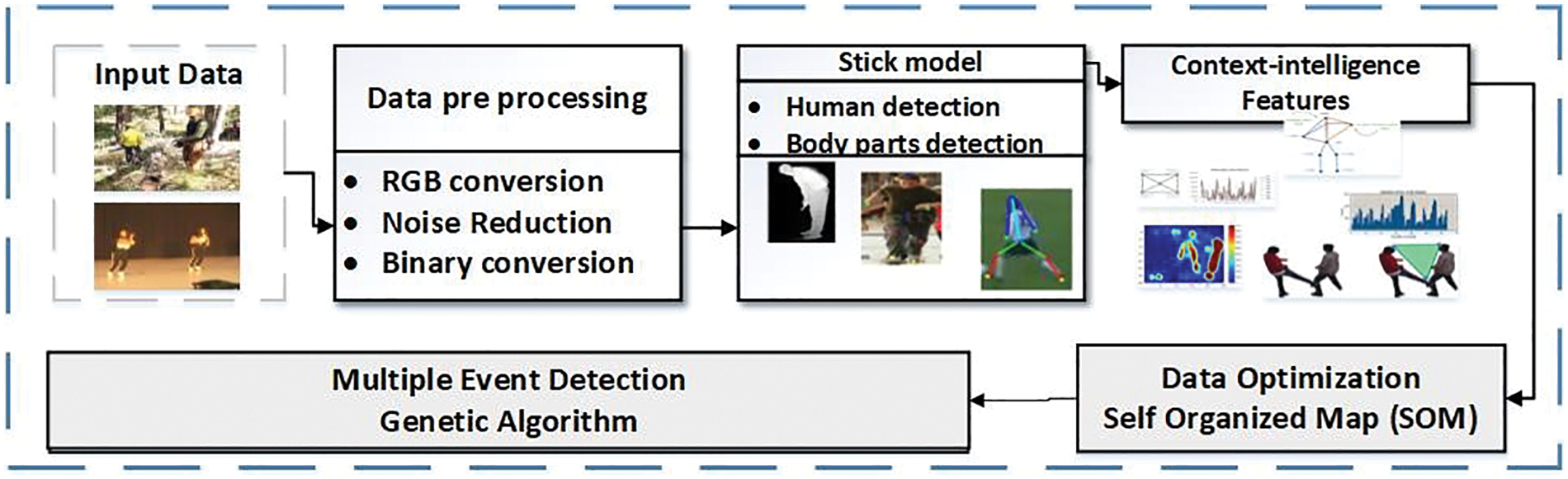

The majority of the article is arranged as follows: Section 2 explains related work. Section 3 describes the layout of the system and displays our conceptual system architecture which involves a pre-classification process that explains individual object segmentation, initialization of body parts, the identification of eight body parts, and the extraction of distance and energy features. Section 4 discusses our hypotheses and explains the quality of our system in three separate tables. Section 5 offers a conclusion and a note on future work.
Several research studies have documented their efforts to detect vital and informative movements of human body points. In [18], Einfalt et al. established a two-step system for extracting sequential 2D pose configurations from videos for event identification in the movement of players. Using localization activity classification, they created a convolution layers segment network to specifically recognize such events. Their procedure outlines skin tone detection with a green (Y), blue (Cb), red (Cr) YCbCr color model, heuristic [19] thresholds and skin tone improvement [20]. Jalal et al. [21] worked on human activity detection using video depth without adding any movement. They developed a system of random forest iteration with specific temporal characteristics to demonstrate different actions [22]. In [23] they presented an alternative method that identified human body part silhouettes using Hidden Markov Models. To track human pose, Lee et al. [24] introduced an innovative hierarchical system that uses edge-based functionality in the rough stage. Aggarwal et al. [25] designed Human movement analysis using 2D and three-dimensional (3D) shape analysis. Wang et al. [26] built a framework for estimating human movement and for recognizing behaviors. In [27] authors proposed to integrate neural network models with the conceptual hierarchy with human bodies. As a result, they described the strategy as a structure for combining neural information. This framework is easy to put together the results of several inference procedures across a period of straight reasoning (directly anticipating each component of the system) lower part prediction (using visual data to estimate a human body), (building information from disparate components), and assumption from the bottom up. The lowest part and upper assumptions, including both, show up the compositional connections in human bodies. In authors proposed a heuristic approach for the detection of human-object interaction via human-based video and images data. In [28] author used Graph Parsing Neural Network (GPNN), which includes i) the graph structure and adjacency matrix, and ii) the labeled node. They used the Pixel Value Co-occurrence Model (GLCM) as well as the Local Binary Pattern (LBP) to build a novel mixed features descriptor technique for intensive detections LBP. For activity recognition, researchers combined obtained features with pattern recognition supervised classification techniques. In [29] authors described a detailed analysis that covers a wide range of topics, including algorithm taxonomy to unresolved problems. They initially look into deep salient object detection (SOD) methods from a variety of angles, covering network design, supervisory level, learning methodology, and instrument identification. The current SOD statistics and assessment metrics are then summarized. Furthermore, they compare a wide number of sample SOD systems and give in-depth assessments of the outcomes. Additionally, they create a unique SOD dataset containing extensive characteristic descriptions spanning multiple object classification kinds, difficult aspects, and scene classifications to examine the behavior of SOD algorithms with varied characteristic configurations, which have not been properly examined previously. In [30] the researcher proposed a new approach for human gaze communication in public videos that are studied at both the atomic and the event levels, which are important for understanding human social interactions. To address this unique and difficult challenge, we provide vacation, a multimedia content dataset that includes comprehensive descriptions of objects including human faces, human engagement, and communication structures and labeling at both the atomic and the event levels.
In this research article, we propose a vital method for event detection in which a salient area detection process is applied to detect visibly significant regions and skin tone detection is implemented for background segmentation. For the body parts model, eight main points of the body are identified, and a 2D stick model is constructed and implemented. After human detection, the next step is feature extraction of the detected human silhouette. Two types of feature extraction methods are performed on the UCF sports action dataset, the first is the distance between body parts feature and the second is the context-aware energy feature.
In the designed system methodology, we elaborate on our human event recognition (HER) in the following phases (1) pre-processing, (2) human detection and silhouette extraction, (3) skeleton and 2D stick model (4) feature extraction, and (5) classification. The design architecture of the proposed system is shown in Fig. 1.
Primarily, for silhouette identification and segmentation processes, we require multiple steps such as the detection of height and width of associated parts, skin identification, noise reduction, and ambient silhouette separation. For the detection of skin, a tone and connected components method is applied; eight human body parts are detected via skin pixel and the resizing of images, then 2D stick modeling of human skeletons is performed upon the extracted human body points. After that, we extract the energy and distance features from the RGB images. Next, we find the event class of the data by applying SOM as a data optimizer and the GA algorithm for event classification.
During the pre-processing of RGB images, resizing of the images, noise removing via Gaussian filter [31,32] and RGB to binary (0, 1) image conversion [33,34] are applied.
In this section, we describe two methods for silhouette extraction. Firstly, we have a human skin detection method to find skin pixels from the images [35,36]. A Gaussian filter is applied to remove noise in images where the skin tone is detected and for the segmentation of [37,38] human silhouettes we use heuristic [39] thresholding [40]. In step 1, we define a heuristic threshold [41] value δ (see Eq. (1)) with an existing Otsu’s image thresholding method [42,43] which is represented as;
where R is round, ThO is the threshold defined by Otsu’s method and Thmax is the maximum point of color frequency for defined histogram values. This process is implemented for each greyscale region of an image, formulated as Eq. (2);
Then, we extract the skin pixel region from the human silhouette via a skin detection technique in which YCbCr is used to identify the skin tone regions [44,45]. In the second step; a propagation-based method for saliency detection [46,47] is applied. These skin detection and propagation-based methods for saliency detection are merged for further processing [48,49]. Fig. 2 shows silhouette representation on saliency detection and propagation methods.
Once the silhouette is obtained, we initialize the human silhouette to implement the algorithm for the body parts. In body parts extraction [50–52] we detect the general body parts using skin algorithms, human body shape, and angle techniques.
In this section, we provide a detailed overview of our key body parts [53] model. Initially, we select 8 points on the human body, namely, head point, torso, right/left hands, right/left knees, and right/left feet. We detect these points by applying skin detection and image resizing methods. For head point detection, we find skin pixels in the image using skin tone detection. In this technique, the binary image is used and the search is started from the top to the head position. The following formulation Eq. (3) is used for head tracking;
where KHI is the location of the head point at any particular frame I. This is attained to find a correlation in the arrangements of frames. For torso detection, we take the mid-point of all the skin pixels. For right-hand detection, we use the hand width and height model to find the side of the hand. After hand detection, our model detects knee and footpoints. After this, we applied a 2D stick model from our detected human body parts.
After body initialization, we describe the stick model which consists of 7 sticks that are connected between the body points to represent [54–56] the human skeleton. Head, neck, shoulders and hand points are considered as upper 2D stick maps, while feet, knees, and torso points are considered as lower 2D stick maps [57]. The head point is connected with the hands and torso point. Fig. 3 represents the 2D stick model.
3.6.1 Angular Geometric Features
From this type of feature, we consider the areas of the triangles as angular geometric features. We have triangle one (head, right hand, and mid-point), triangle two (head, left hand, and mid-point), triangle three (mid, right knee, and right foot), triangle four (mid, left knee, and left foot). Eq. (4) shows the mathematical representation of the angular geometric features
where A_gf denotes the triangular area, 〖Ha〗_1 and 〖Ha〗_2 show the head points, L_(hp2 ) and L_hp1 show the left-hand points and 〖Mp〗_1, 〖Mp〗_2 denote midpoints of the human body.
3.6.2 Multi-Angle Joints Features
For multi-angle joint features, we apply this procedure over detected human body parts. A 5 × 5 pixel-based window is defined by considering the center pixel of each detected human body part. After that, we derive eight angles by developing four triangles to find the angle information. Eq. (5) shows the mathematical information:
where A1, A2, A3, A4, A5, A6, A7 and A8 show the edges of the four triangles and cos(i, j) shows the angle value of giving (i, j) pixels, and → l for the sides of the windows. Fig. 4 shows the results and conceptual design for the multi-angle joint features.
3.6.3 Triangular Area Points Features
In triangular area points features, we considered a triangular shape over the detected human body parts. For this we connected the head points of two people in the interaction and connected the point of contact of both people as point three (See Fig. 5). After this, we find the area with the help of Eq. (6).
where Tap denotes the triangular point area, Ha1 and Ha2 shows the head points of person one, Hb2 and Hb1 shows the head point of person two and Cp1, Cp2 denotes the first connection point of both persons. Fig. 5 shows the complete overview of the triangular area point features.
3.6.4 Distance Measuring Between Two Points
In this section, we find the distance between each set of two points, namely, head to torso-point, head to hands, torso points to knee and knee to footpoints. The distance between two edge points b1 and b2 having x, the y coordinates are given as Eq. (7);
where Distance(P1 , P2) is the Euclidean distance.
3.6.5 Energy Feature Representation

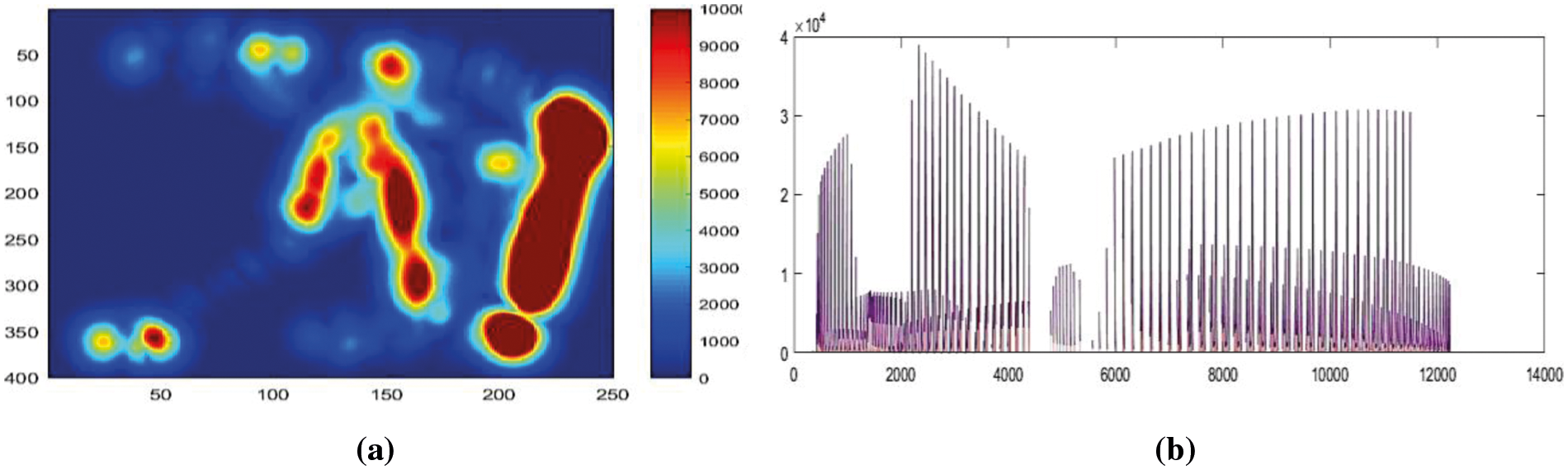

In the energy feature section, we extract context-aware energy features over RGB images by applying an energy map to the entire image. Initially, we examine an energy index-based matrix with the range of 0–10000 indexes which is based on each silhouette. We find a certain threshold index value and find the RGB value of a particular index from the energy map matrix and store them in a vector. Eq. (8) shows the energy vector and Fig. 6 shows the result for energy features extraction.
where Eng is denoted as an energy vector and w shows the index values and InR represents the RGB values of a particular index pixel. After getting the energy vector, we concatenate it with the distance vector for further classification. Eq. (9) represents the context-intelligent feature vector as;
where FV is context-intelligent features vector, Distance(P1 , P2) is the distance, Eng is energy feature vector, Tap is the triangular area points features,
For event classification, we used two machine learning classifiers: SOM (Self-organized map) [58] as a pre-classifier and (GA) genetic algorithm as a classifier.
3.7.1 Self-organized map (SOM)
A self-organizing map (SOM) [59] is trained by an unsupervised learning method [60] in which training samples are discretized representations of the input that is called a map [61]. Self-organizing maps apply competitive learning methods as back propagation with gradient descent, [62] during pre-classification [63] the SOM algorithm shapes a map between the high-dimensional data space of a typical two-dimensional data structure [64]. The model vectors are situated in the data space which acts as an ordered set of different types of data items [65]. The map is used as an ordered groundwork for illustrating different aspects of the dataset [66]. After that, we applied the artificial neural networks (ANN) to get better results [67].
A genetic algorithm (GA) [68] is adopted as a prediction model for event detection, [69] identification [70], and recognition [71]. Three general steps [72–74] are adopted in the genetic algorithm [75] for each interval to produce the upcoming generation with the help of the existing population [76]. Initially, the selection of the individual’s forms [77] given data which are called parent nodes [78–80]. Parents are essential for the next or upcoming generation [81]. For the next solution [82], the base chromosome follows a cross-over step over children’s, as represented in Eq. (10).
where Cfit(Cr) denotes the fitness function over jth iteration and fj are the chromosome fitness values [83–86]. Finally, mutation procedures are performed to find the optimal solution from the given data.
This section describes the detailed overview of three datasets [87–89] used for UCF Sports dataset, UT-interaction, and Sports Videos in the Wild (SVW) dataset. Various experimental results evaluate for the proposed system with other state-of-the-art systems.
Three benchmark datasets have been used, i.e., UCF Sports dataset, UT-interaction, and Sports Videos in the Wild (SVW). Tab. 1 shows the detailed description of datasets
4.2 Experimental Settings and Results
4.2.1 Experimental Results on Datasets
Experiment I: Human Body Parts Detection
To test the efficacy of our proposed system, we first measured the Euclidean distance from the ground truth of each identified body part and our proposed system. To compute the Euclidean distance, the formula and Eq. (11) is:
where xp is the ground truth for human body parts detection, the point yp is identified and the distance which is found by error calculator, Distancep is the distance Euclidean. To analyze the ground truth of our identified point technique, we used 20 pixels as a margin of an error value. Tab. 1 presents the performance accuracy of human body key point recognition and shows experimental results for the UCF Sports action dataset, the UT interaction dataset and the sports videos in the wild (SVW) dataset. Our system achieved accuracy for recognition of human body parts of 86.67% for the UCF Sports action, 87.37% for the UT interaction dataset, and 85.87% for the sports videos in the wild (SVW) dataset as shown in Tab. 2.
Experiment II: Multiple Event Detection

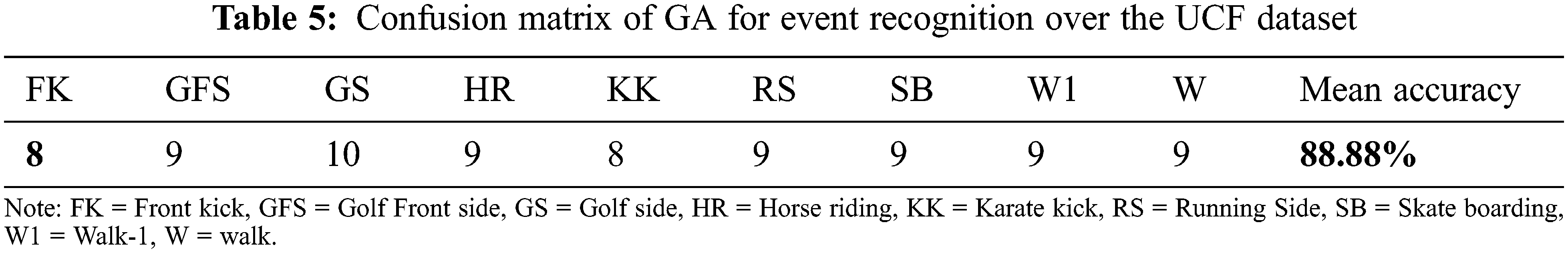

For multiple event detection, after the data optimization, artificial intelligence based on a computational intelligent genetic algorithm is applied. Tab. 3 shows the confusion matrix with 90.00% accuracy for event recognition over the UT-interaction dataset. Tab. 4 shows the confusion matrix with 88.88% accuracy for event recognition over the UCF sports action dataset. Tab. 5 shows the confusion matrix with 87.89% accuracy for event recognition over the SWV dataset.
Experiment III: Comparison with Other Classification Algorithms
In this phase, we evaluate the precision, recall, and f-1 measure over the UCF sports action dataset, the SVW dataset, and the UT-interaction dataset. For the classification [92] of multiple event comparison, we used the machine learning and artificial intelligence-based Genetic algorithm (GA), Artificial Neural Network (ANN) and Adaboost. Fig. 7 shows the comparison of machine learning classifiers for precision, recall and F-1 measure over the UT-interaction dataset.
4.2.2 Comparison with Other Systems

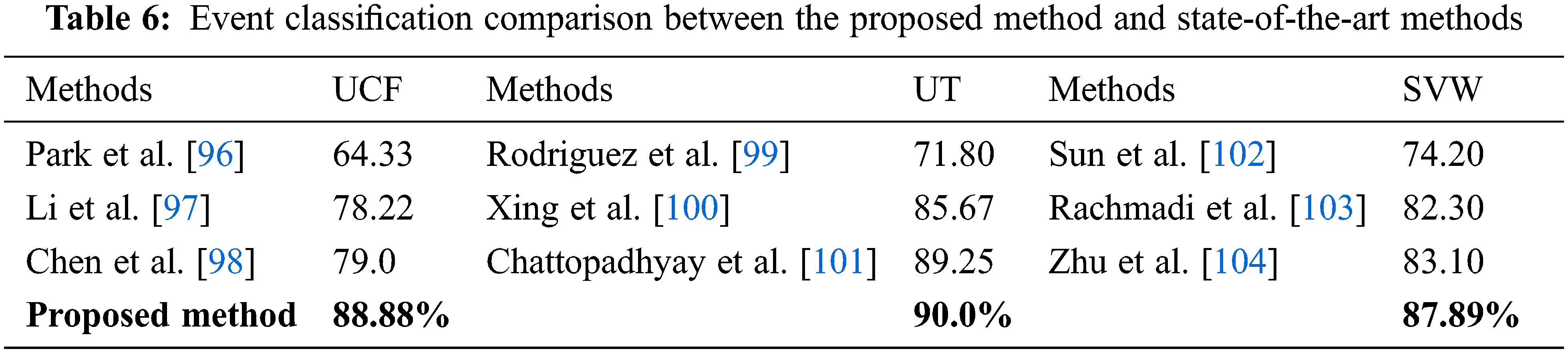

Comparisons of our proposed system with state-of-the-art methods [93], as shown in Tab. 6, indicate that our efficiency [94] on the datasets is much better [95] the existing approaches listed in Tab. 6. The Markov random field model is used by Park et al. [96]. Which combine pixels into linked blobs and to record inter-blob relations. Traditional neural networks are used by Li et al. [97] to estimate human body pose. H. W. Chen et al. [98] used morphological segmentation of the surface color and systematic thresholding. Rodriguez et al. proposed a novel method for estimating future body motion. They used realistic explanations and targeted failure processes to motivate a reproductive system to predict specific future human motion. Tab. 5 shows the detailed multiple event detection and classification comparison with state-of-the-art methods and techniques.
In this paper, the challenging datasets are used. In which, we had small discrepancies in findings due to complicated perspective information and complexity of human data. Occlusion and merging problems in a specific region while working with these aspects of data and situations, we ran across several issues. We will research this challenge in the future and adopt a deep learning technique, and we will create a new strategy to get excellent outcomes.
In this paper, we proposed a method for detecting complex human activity-based events with novel context-intelligence features and 2D stick models. To identify body parts and event detection in RGB images, we introduced an enhanced multi-function extraction design. To optimize the context-intelligence vector we applied an artificial intelligence-based self-organized map (SOM). A genetic algorithm (GA) is applied for multiple event detection. The experimental results were obtained through challenging RGB images and three videos-based datasets, namely, the UCF sports action dataset, the UT-interaction dataset, and the sports videos in the wild dataset. The proposed system performs better than current state-of-the-art approaches in terms of body parts and event recognition. In the future, we will introduce some additional features such as intensity vector and color vector to increase the efficiency of our human event recognition (HER) system.
