A Pursuit of Sustainable Privacy Protection in Big Data Environment by an Optimized Clustered-Purpose Based Algorithm
1Department of Information Systems, Faculty of Computer Science & Information Technology, Universiti Malaya, Kuala Lumpur, 50603, Malaysia
2Information and Communication Technology Department, School of Electrical and Computer Engineering, Xiamen University Malaysia, Sepang, 43900, Malaysia
*Corresponding Author: Raja Majid Mehmood. Email: rmeex07@ieee.org; rajamajid@xmu.edu.my
Received: 26 May 2020; Accepted: 07 July 2020
Abstract: Achievement of sustainable privacy preservation is mostly very challenging in a resource shared computer environment. This challenge demands a dedicated focus on the exponential growth of big data. Despite the existence of specific privacy preservation policies at the organizational level, still sustainable protection of a user’s data at various levels, i.e., data collection, utilization, reuse, and disclosure, etc. have not been implemented to its spirit. For every personal data being collected and used, organizations must ensure that they are complying with their defined obligations. We are proposing a new clustered-purpose based access control for users’ sustainable data privacy protection in a big data environment. The clustered-purpose based access control significantly contributes to handling the personal data for stated, unambiguous, and genuine purposes. The proposed algorithm picks specific records from the sample space. It ensures the sustainability and utilization of data for intended purposes by validating the existing privacy tags, assigning new privacy tags based on a clustered-purpose based approach. The proposed method equally ensures the security and sustainable privacy aspects of existing as well as new personal data managed inside large databases repositories. The comparative analysis of significant results presents the outperformance of the proposed algorithm as compared to existing non-purpose based conventional methods of sustainable privacy preservation. The proposed algorithm clusters the large datasets in a big data environment and allows only authorized access to users. The current study is limited to purpose-based access control based on privacy tags. However, future research can also consider other types of privacy protection scenarios in a shared environment.
Keywords: Sustainable privacy; access control; purpose; role attribute; access purpose; intended purpose; clustering data
We can observe an exponential growth of data in the recent era. The information technology interfaces human-computer interaction in the best possible ways but suffers equally to ensure the privacy and security of sensitive information of users. Though we can notice very sophisticated systems that collect massive amounts of personal data, store and manage the data accordingly, still optimal preservation of privacy is an open optimization problem at organizational levels. Therefore, ensuring security and privacy has become quite a challenge. As this challenge has yet to be tackled, still quite a few people fear to share their information online or otherwise.
The central concept of security is always protecting the integrity, confidentiality, and availability. With the development of online data sharing and the advancement of information technology, data security became an increasingly important issue. Data are vulnerable to exposure by several factors such as cyber-attack, data combinations, or end-user tracking. Protection on these rouges is possible using technologies that could enhance privacy (PETs) and provide optimized security procedures. Such could also deal with all other kinds of data and privacy protection employing new tools for personal protection of data through offline and online transactions [1].
The amount of data that an organization has helps its management make strategic decisions. Business intelligence talks about the power of data over anything else. Data analytics based on the individual also yields unintended conclusions, for example, the case of a father finding out about his teenage daughter’s pregnancy through a personalized promotion directed to the daughter via Amazon data analytics. There are specific security threats involved in the utilization of big data that emerge from public repositories (migration of data to the cloud and its sharing with the public users) [2].
Most organizations have come up with a guideline or regulations about protecting consumer/user’s privacy to ease people about sharing their information. The problem arises when the responsible party fails to comply with its rules. This concern is amplified when the data used within an organization and is shared across the platform among their companies. Even worse, data is now available to purchase via certain vendors, for example, Amazon. According to Yang et al. [3], the conventional procedures that grant through authorized access to authorized data suffer since a decrypted access to a patient’s medical data hinders the timely treatment and may cause outsourcing the sensitive information.
Restricting access to sensitive data or clustering the specific data based on users’ tags can be an effective solution to control access to data centres. It is noticeable that access to sensitive data should be equipped with necessary security requirements in addition to efficient and flexible management, insertion, and retrieval of data. The security and privacy requirements should be implemented through the organizational policies for granting access and control of sensitive users’ data [4]. As privacy policies closely relate to the purpose of the data usage compared to the actions performed on the transactions, the conventional access control models are not suitable to be used in achieving privacy protection. Hence, Byun et al. [5] introduced the concept of purpose as an essential component in models implementing access control to protect privacy. The idea of this access control is the use of “purpose” as the basis of access control policy.
Similarly, Byun et al. [6] also proposed similar models based on privacy-related access control as a synonym to Ghani et al. [7–9]. According to Byun et al. [6], traditional access control is not appropriate in ensuring privacy protection due to its focus on the object that performs a particular action on a specific object or transaction. Nevertheless, when users’ privacy is the primary consideration, a trustworthy policy is required that could bind the data object with the specific purpose of access. Based on the output of this study, to ensure data privacy, the concept of intent should be considered, and a suitable metadata mechanism should be developed for having consideration of privacy-related access control criteria. Therefore, an approach based on purpose is introduced. The purpose is classified into two types:
• Intended purpose: A policy that recognizes the deliberate type of access of data.
• Access purpose: A policy that recognizes the purpose of data access bound with the intention.
Ethically and professionally, the organizations collecting sensitive data of users should prior inform the users about the purpose and intention for seeking the information. Besides, such organizations should also notify the users in the context of exposing or forwarding this sensitive information to other entities for other purposes. The privacy of users, though, can be ensured in this manner, but mostly the users are not willing to allow organizations to access and spreading sensitive information for specific purposes. In such a model, organizations may lose the chance to seek data from users. Kabir et al. [8] enhanced this model by proposing:
• Allowed intended purpose: Any access to data is permitted for a specific use defined by the data provider
• Prohibited intended purpose: Any access to information is not enabled for any particular purpose specified by the data provider.

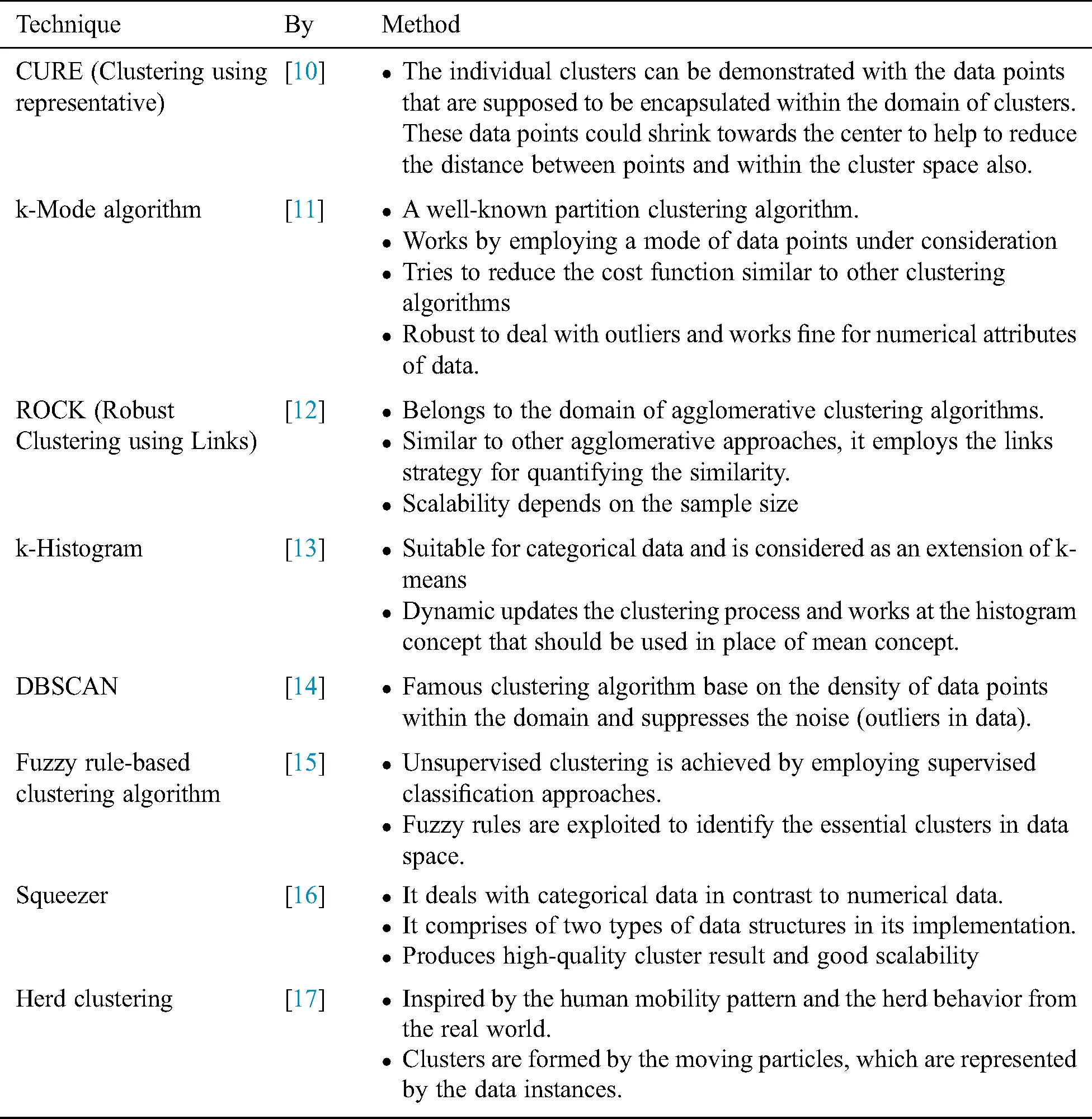

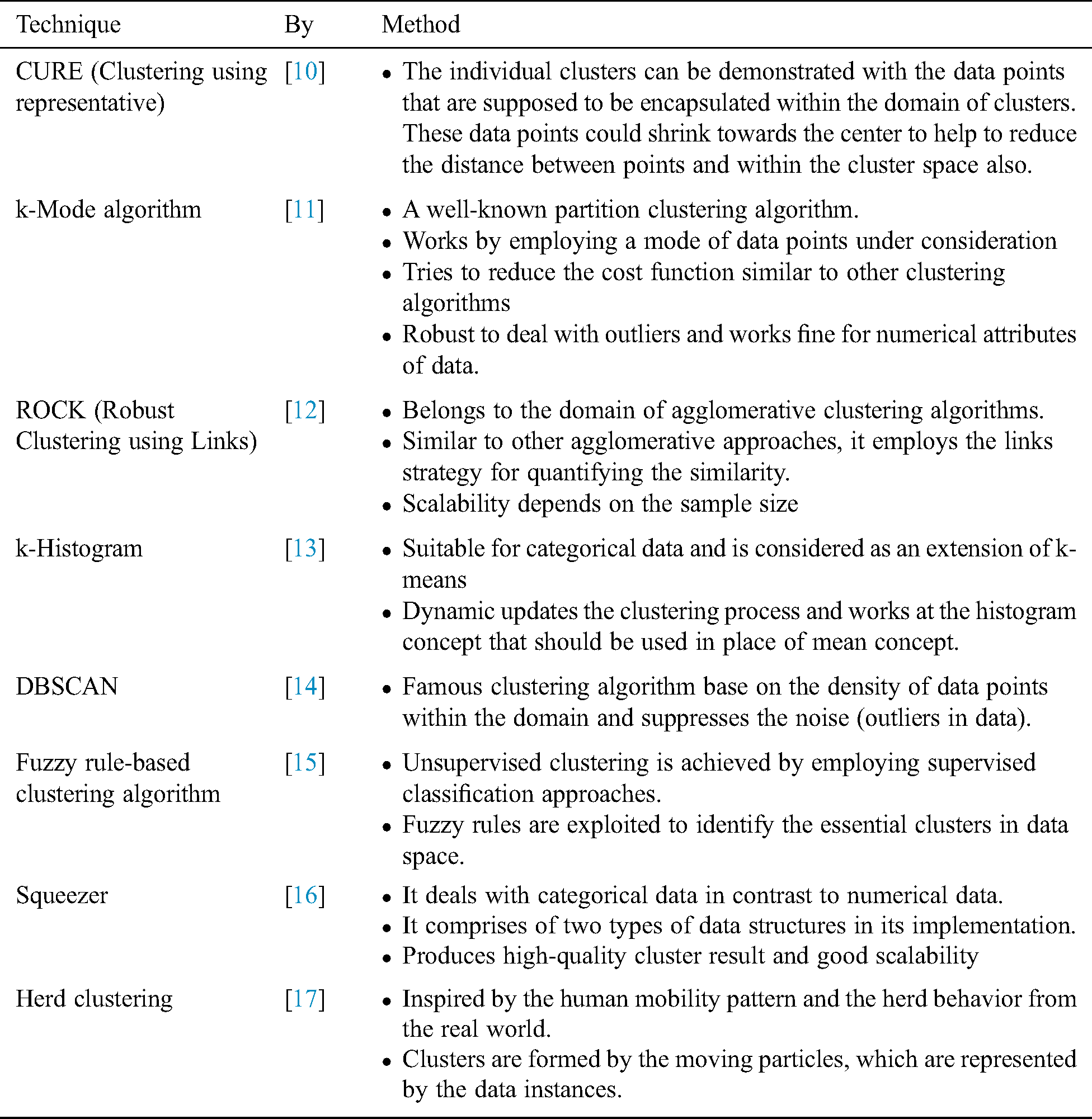

This section discusses the previous works in data clustering and purpose-based access control. Tab. 1 shows the following existing data clustering techniques.
We can notice several studies aiming at protecting and preserving the privacy of users employing the concept of “purpose” for seeking an access-control related to a particular policy.

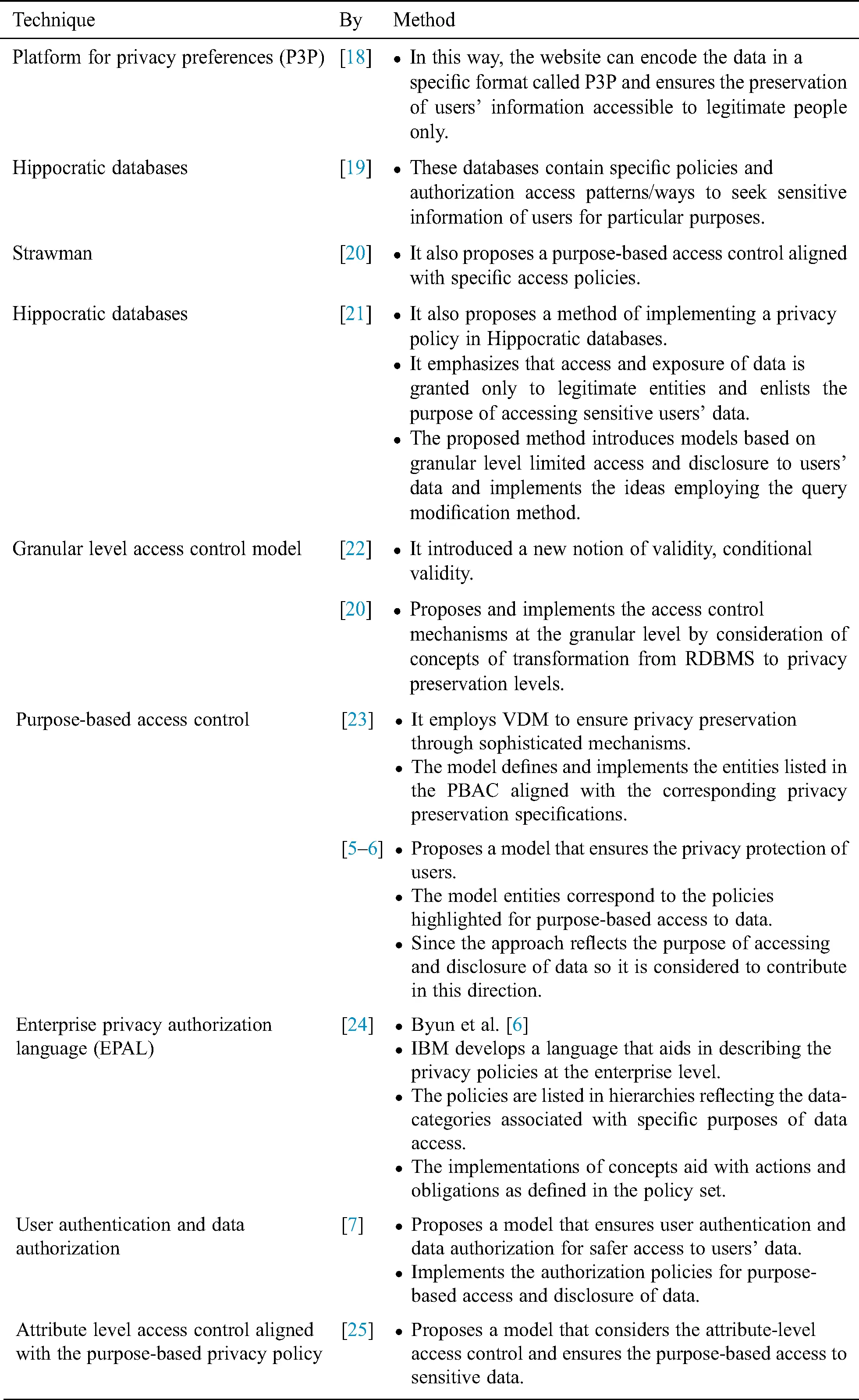

Tab. 2 provides a summarization of models noted in the literature that are built at a purpose based grant of access and disclosure control to users’ sensitive data. In recent years, the organization is paying much attention to access and disclose the users’ data with a purpose-based access. It is also noted that users are much concerned while allowing specific data access controllers to grant and disclose data for specific purposes [26]. Thus, it is crucial to consider these two aspects related to the quality of data and the privacy of data while achieving the purpose-based access to users’ data. The new models should encapsulate and implement the two concepts to their spirits [5,7,27–29].
An achievement of sustainable privacy preservation is mostly very challenging in a resource shared computer environment. This challenge demands a dedicated focus on the exponential growth of big data. Despite the existence of specific privacy preservation policies at the organizational level, still the protection of a user’s data at various levels, i.e., data collection, utilization, reuse, and disclosure, etc. have not been implemented to its spirit. For every personal data being collected and used, organizations must ensure that they are complying with their defined obligations. We are proposing a new clustered-purpose based access control for users’ sustainable data privacy protection in a big data environment. The clustered-purpose based access control significantly contributes to handling the personal data for stated, unambiguous, and genuine purposes.

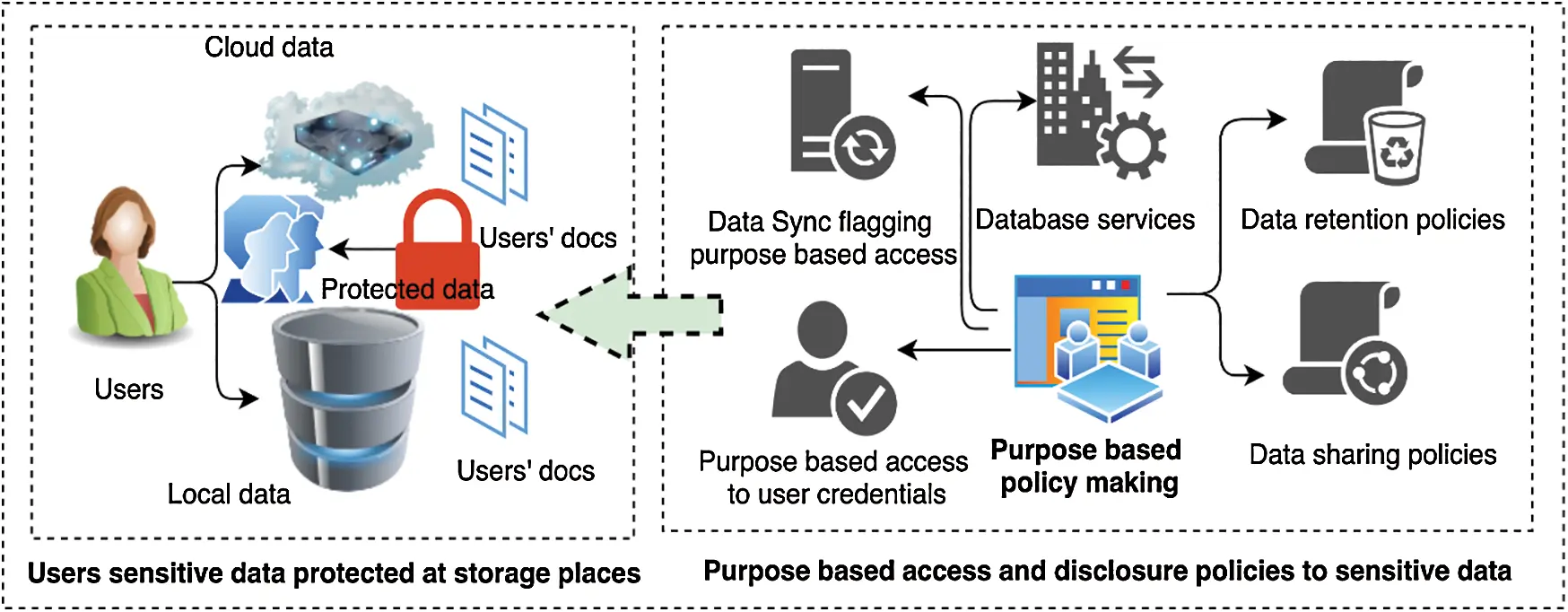

The general architecture of the proposed purpose-based access model is shown in Fig. 1. Users’ sensitive data is commonly managed by organizational servers manipulating data employing either local or cloud equipped resources. The organization mostly protects the credentials and sensitive data using many security and privacy tools. In a broader context, the organizational policymakers prepare and implement the data privacy of its stakeholders.
Contrary to conventional data access, archive, retention, and sharing policies, the proposed architecture incorporates the essential aspect “the sustainable purpose of access,” ensuring that purpose-based data access and disclosure as a core component. The purpose-based access confirms the intentions of proper and appropriate usages of data for specifically defined purposes. It has been keenly noticed that satisfaction level, agreement, and trust of users towards purpose-based access of data authenticates the implementation of this architecture as compared to existing conventional data access architectures.
Data clustering plays an essential role in data mining due to its ability to work on a large amount of data [30–37]. The literature cites several existing clustering algorithms, namely hierarchical clustering, DBSCAN, k-means, and k-medoid algorithms work under different scenarios. Although the clustering has widely been applied for clustering documents, very few citations could be noticed for purpose-based clustered access and disclosure to users’ sensitive data. We have implemented this architecture by proposing clustered purpose-based data access.

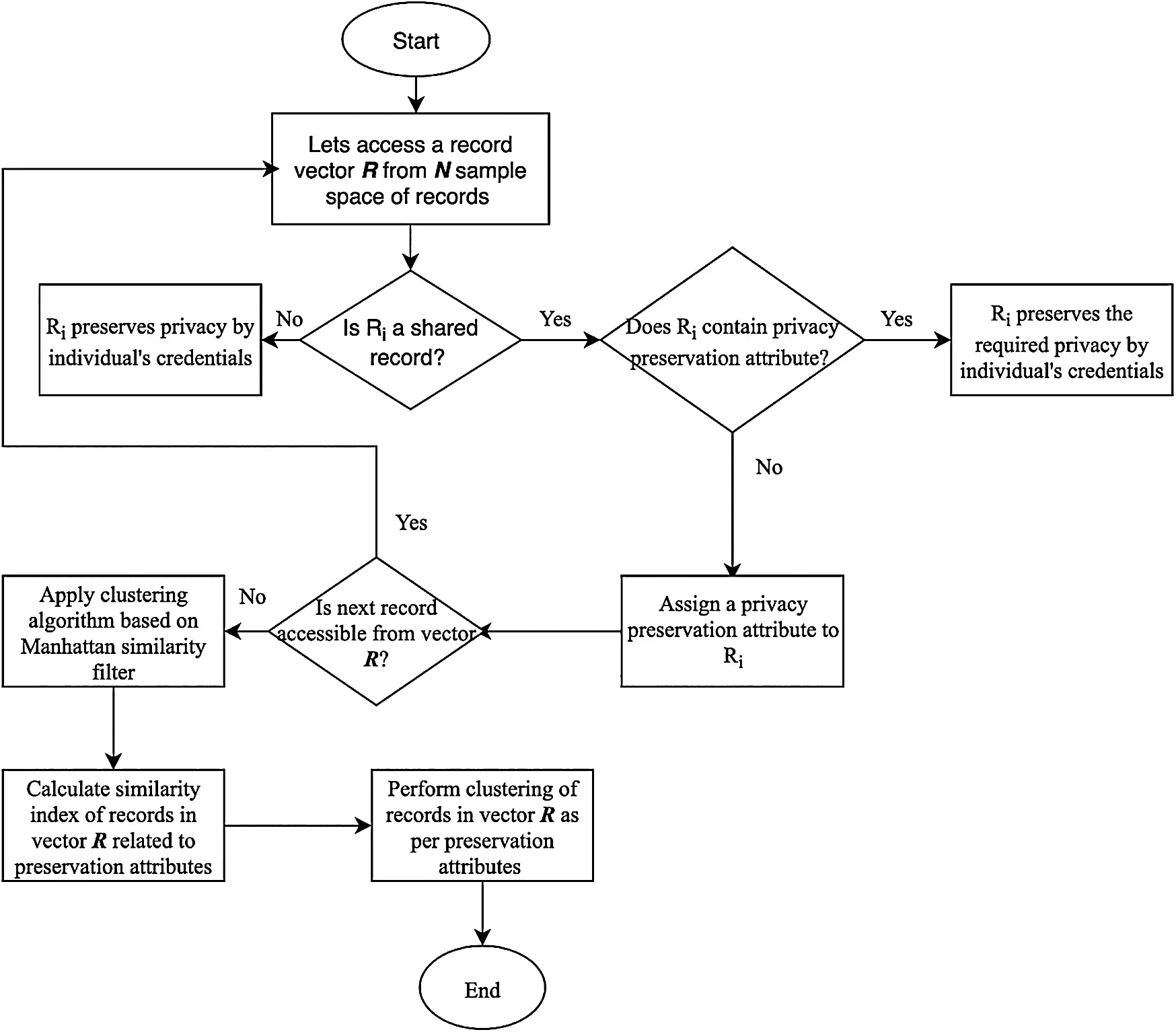

Fig. 2 depicts the schematic flow of clustered proposed purpose-based access control. The steps of algorithms are,
1. Pick a record vector R of sample space N that contains Ri sub-vectors such that i ≤ N, let us assume that these sub-vectors are represented as Ri = (r1i, r2i, r3i), where i ε {1, 2, 3, N}.
2. Define purpose-based tags Tg = (t1g, t2g, t3g, t4g), where g ε {corresponding set of organizational policies determined by purpose-based policymakers according to users’ sensitive data}.
3. Identify documents based on Tg represented by vectors , where (access levels in the hierarchy of access granted for purpose-based access).
4. Compute the similarity between documents contained in the vector given by the Manhattan similarity metric:
5. Establish a similarity matrix based on Step (4) by assigning each document to the cluster that has the closest similarity as defined in (2).
6. Output the similarities of Sm documents as cluster sets such that 1 < m < N as ruled per (2) and (3).
The process starts by selecting a vector of users’ records randomly from a sample space repository (with the concept of non-duplicate records for the next fetch of records from sample space). We devise a filter that validates the existence or non-existence of a purpose-based access tag of individual records. The records with the non-existence of purpose-based access tags are then assigned the tags defined by the organization in a purpose-based access policy. Once tags are assigned, we select a seed to start building a cluster, subsequently by selecting and adding more records to the cluster such that the record added incurs the least information loss within the cluster. The algorithm determines the clusters having a proximity relationship with the neighboring clusters based on the similarity index score. The “purpose aware” semantic similarity identification is achieved through employing the Manhattan similarity index.
Generally, looking for records that are not directly next to the first cluster will result in a longer wait compared to looking for the closest record to build the second cluster since we need to find a degree of similarity that satisfies the purpose-based policy criteria also. Therefore, the distance of the next record is based on the distance function that can be determined and changed by the system administrator as per change or update in a purpose-based access policy.
It is viable that with the addition of an outlier in a cluster, the information loss ratio increases since the outliers occur in data samples regardless of the similarity. The records are now stored in the database along with the tag of the cluster. The amount of data that can be accessed by the user would depend on their role or the purpose of their search. For example, in a situation, an entity accessing the database would not have a need to access the entire database. Instead, the cluster of matching tags (with the notion of purpose-based access) will be reachable. This will enhance the privacy preservation of users’ sensitive data for illegitimate access.
The methodology ensures that restricting access to users’ sensitive data for specific data access is based on users’ tags so that to provide an effective solution to control access to data centres. Besides, it is taken care that access to sensitive data should be equipped with necessary security requirements in addition to efficient and flexible management, insertion, and retrieval of data. The security and privacy requirements are implemented through the organizational policies for granting access and control of sensitive users’ data. As privacy policies closely relate to the purpose of the data usage compared to the actions performed on the transactions, the conventional access control models are not suitable to be used in achieving privacy protection. Hence, the concept of purpose as an essential component in this proposed model for implementing access control to protect privacy.
3.1 Significance of the Proposed Methodology
There are different access control mechanisms in the cloud environment, e.g., discretionary access control, mandatory access control, and role-based access control mechanisms [37–38]. Based on the particular organization needs and cloud environment, the access control policy opts. The national institute of standards and technology (NIST) is considered as an institution that ensures that organizations are adopting the standard procedures for the secure execution of their operations [39]. As per the principle of NIST, the least privilege grants granular access to users according to defined attribute-based policy.

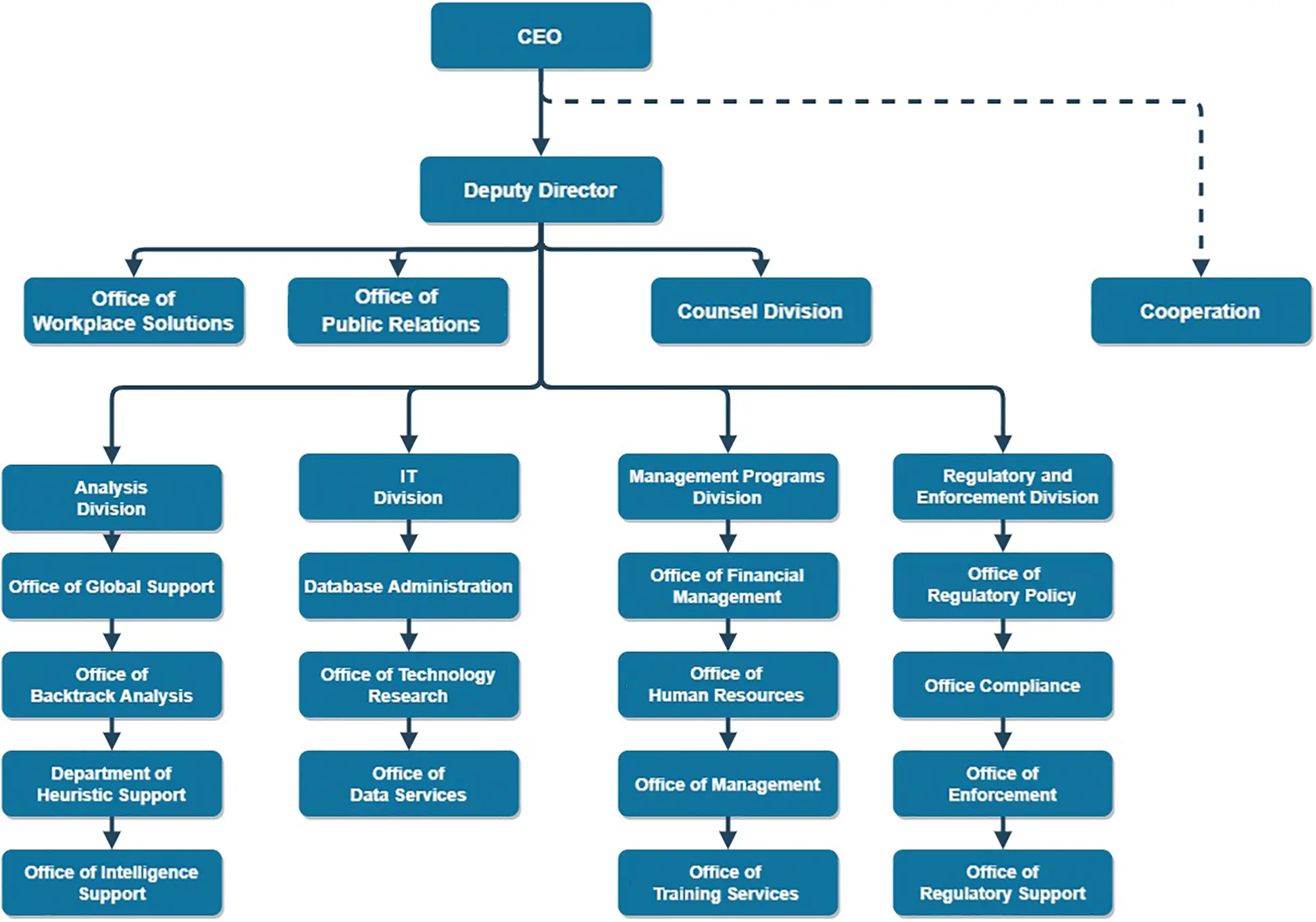

Fig. 3 describes an example of role-based access control in an organization. The diagram is an example drawn using Microsoft draw.io web application [40]. The role-based access control is defined in a static manner as shown in once the organization finalizes its policy. Contrary to this type of access control, we have proposed a purpose-based access control that clusters and grants access to the purpose-based data in a dynamically semantic manner that purpose-based access is customized when the organizational policy is changed. Similar research has also been carried out by Lo et al. [41] that grants role-based access to users in a cloud environment.
Contrary to the defined conventional access control mechanisms, the proposed purpose-based access control signifies these essential objectives,
1. Clusters the purpose-based users’ data as per defined attributes
2. Dynamic purpose-based access control as per change in organizational policy
3. Authorizes access to users according to the purpose-based clusters where the user’s authorization exists.

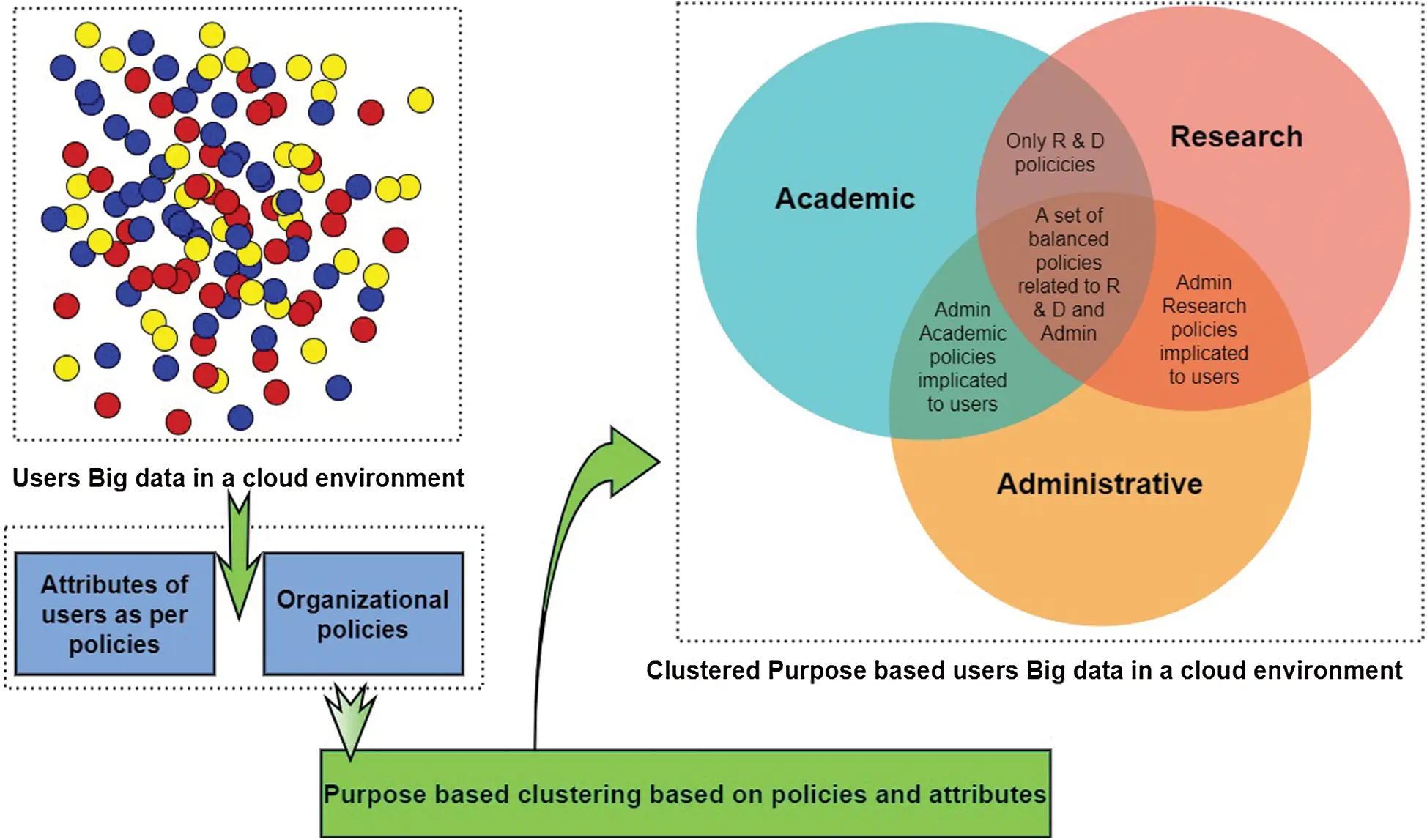

Fig. 4 glimpses the mechanism that clusters the organizational data on semantic understanding of corporate policies and attributes defined for the purpose-based access.
For instance, an organization comprises of users of different departments whose data is managed and controlled by a cloud environment. The organizational policies change from time to time to reflect the regulatory plan and users’ requirements for data access. Let’s assume that the users’ data is randomly scattered, and there has been no semantic understanding assigned to access control to information. At one instance of time, the organization defines a defined policy on how to control the access given to the data. The proposed mechanism clusters the data as per organizational attributes given to users according to access policies. Later at some other instance of time, if the regulatory policy changes, the purpose-based access control is also customized as per needs.

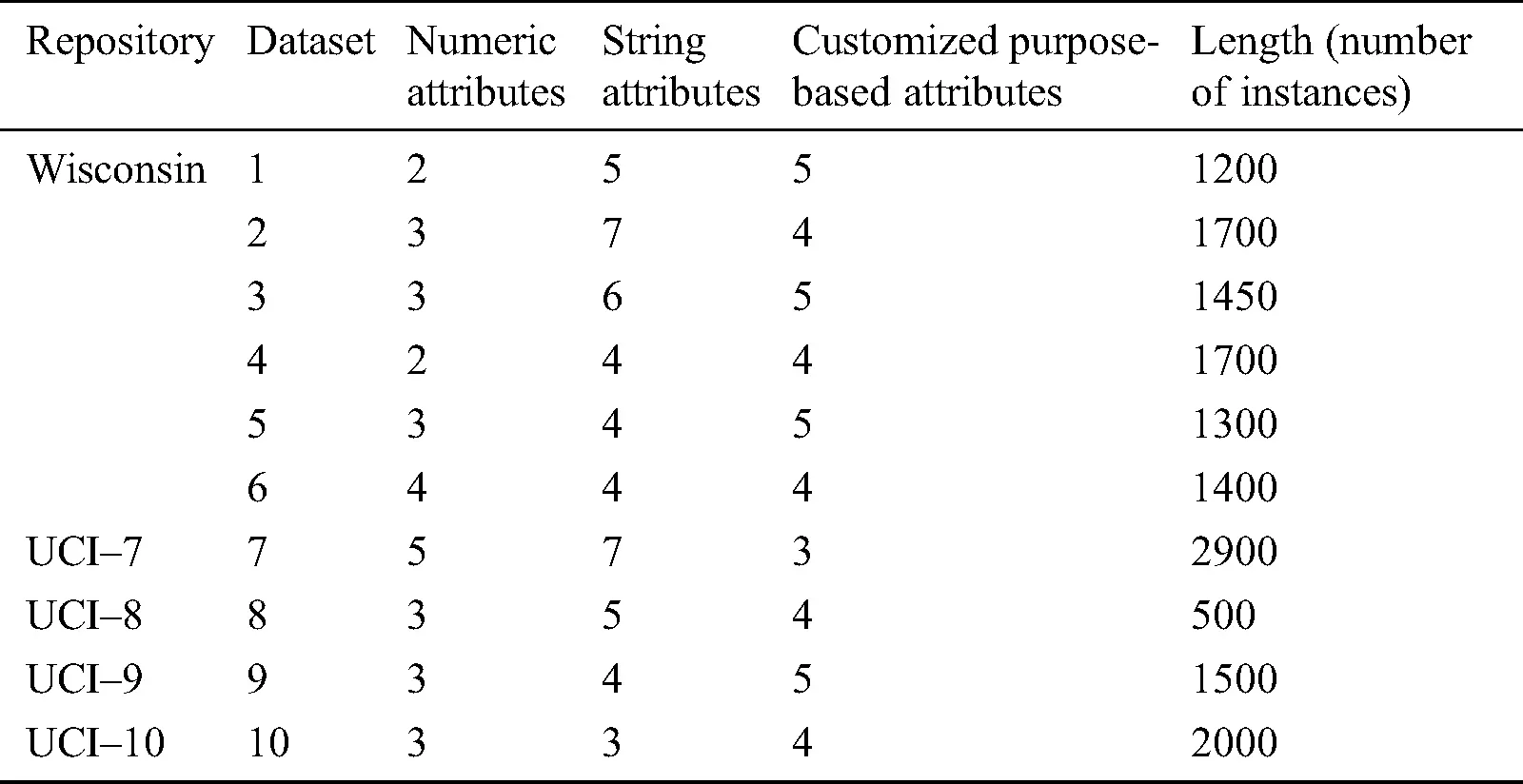

The performance of the proposed clustered purpose-based access algorithm was evaluated with a non-purpose based scenario employing different sets of data. For simulation, we considered six datasets generated from Wisconsin Benchmark datasets [42] and four datasets from UCI machine repository datasets [43]. The simulated performance of the proposed algorithm was measured with the Wisconsin datasets, while UCI datasets were used for performance validation. Tab. 3 describes the datasets employed for comparative analysis between purpose-based access control and non-purpose based mechanisms.
The goal of these experiments was to investigate the performance of algorithms. The datasets were analyzed using python 3.0 with a Jupiter notebook. From the datasets, we have created two scenarios, i.e., clustered purpose-based access to users’ records and non-purpose based access. We present here an example that describes the purpose tree and its implementation using metadata structure for purpose-based access control to data.

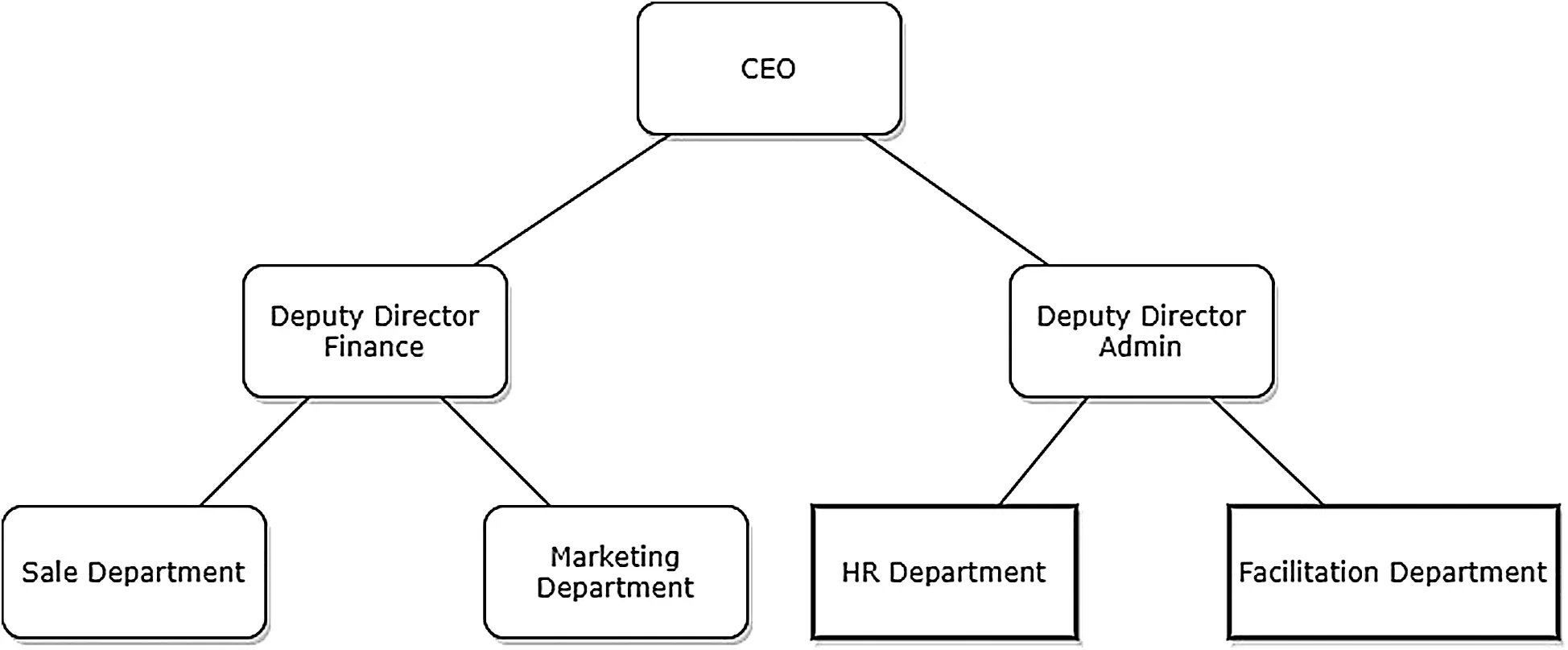

Fig. 5 describes a typical organizational structure that can be represented as a purpose tree for manipulation of purpose-based access control to users’ data. In terms of metadata structure, we can describe it as,

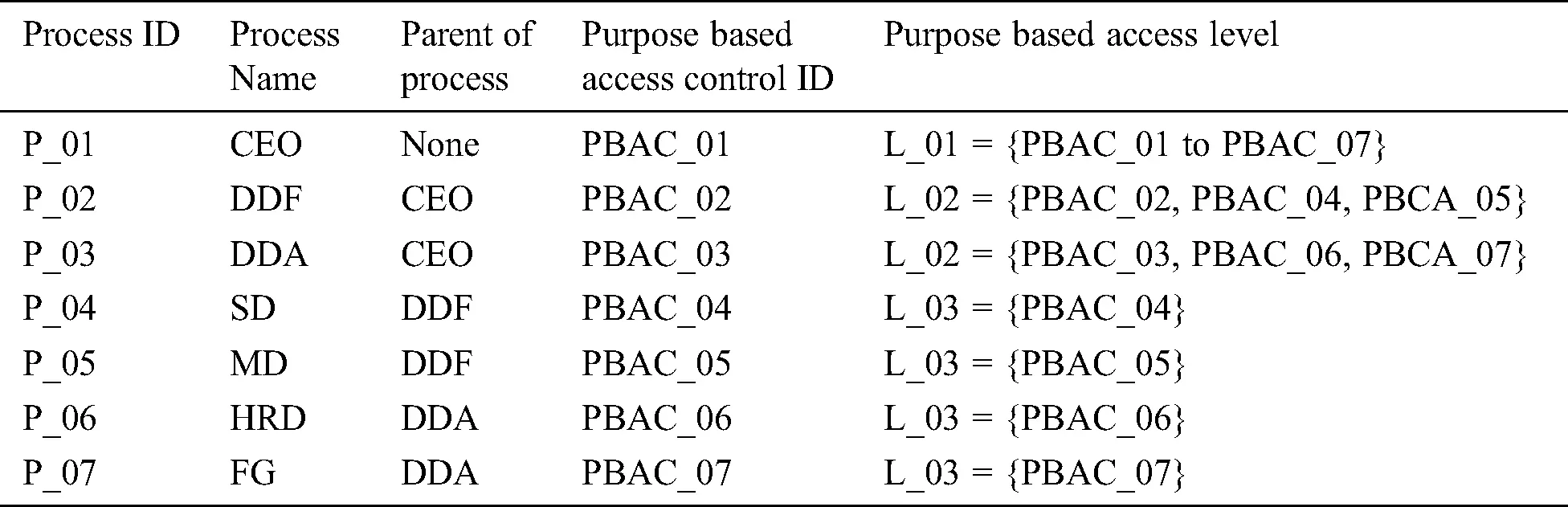

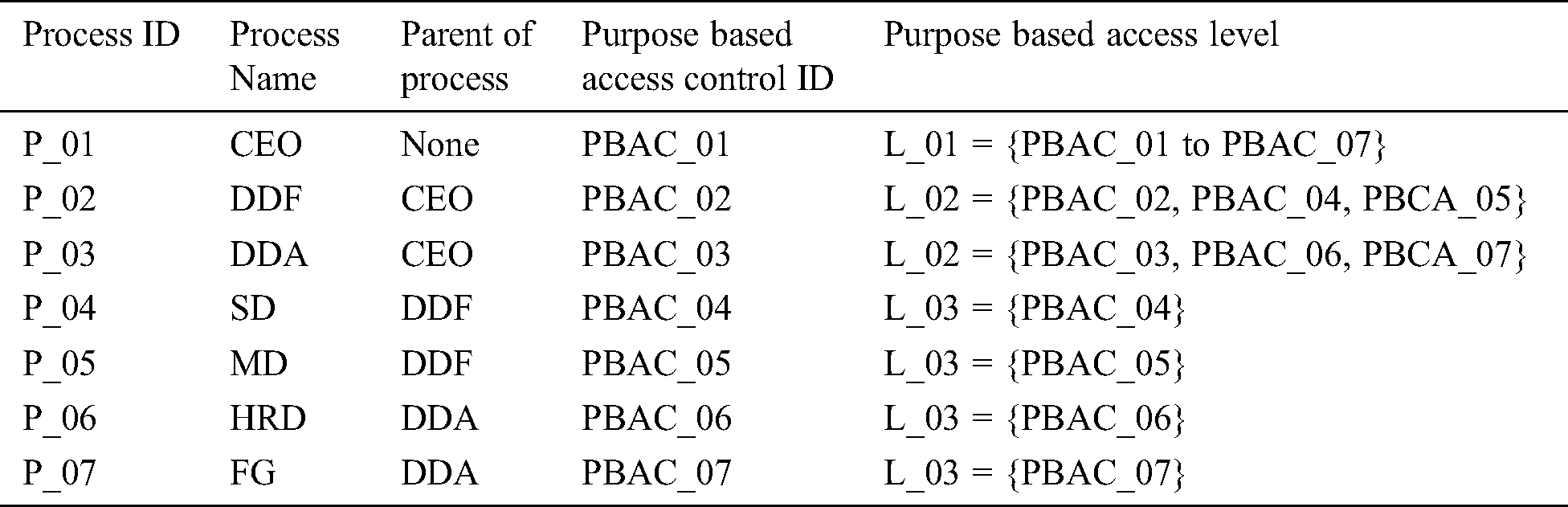

For instance, Tab. 4 describes the metadata structure of the process tree defined in Fig. 5. A process ID represents each node in the process tree. Parent nodes of the process contain the reference of their children. We further assign a purpose-based access control ID for each node that later describes the access level of a particular node in the process tree, e.g., Process P_01 has access control to processes PBCA_01 to PBCA_07. This policy of purpose-based access control is governed by an individual organization and is not generally applicable to every scenario. With changing the organizational plan, the access control can either dynamically or manually be changed. Based on policy labels/tags, the purpose-oriented clustering algorithm clusters the data using semantic consideration of labels as a distance measure between data nodes.
The performance evaluation of purpose-based access control is measured in terms of the query control mechanism [5,6,9]. We investigate here the number of records and the time (in seconds) required by the query in fetching the desired data against purpose-based and non-purpose based access mechanisms. Close observation at simulations statistics, we noticed that the proposed purpose-based access algorithm carries only the intended records from the sample space of records. At the same time, the existing non-purpose based scenario brought all the records.

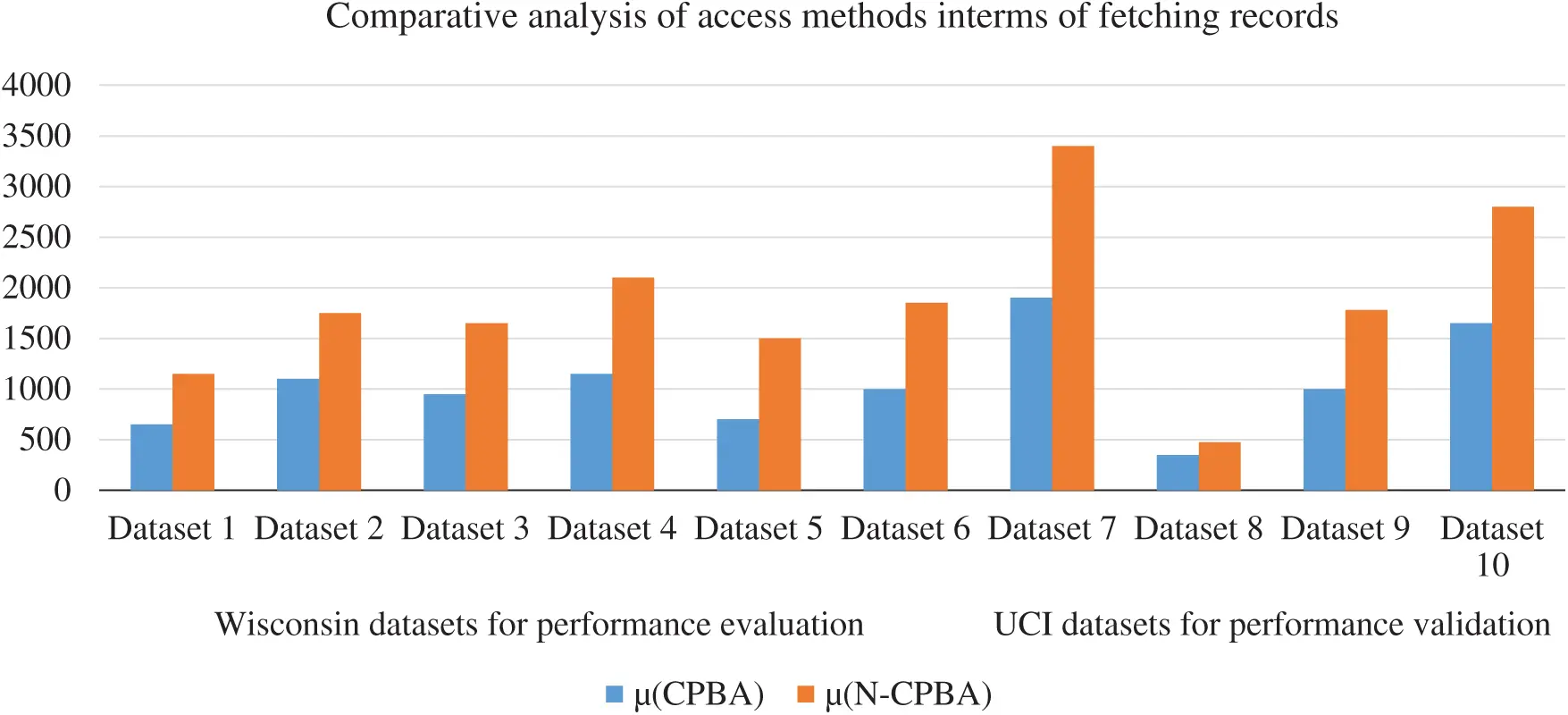

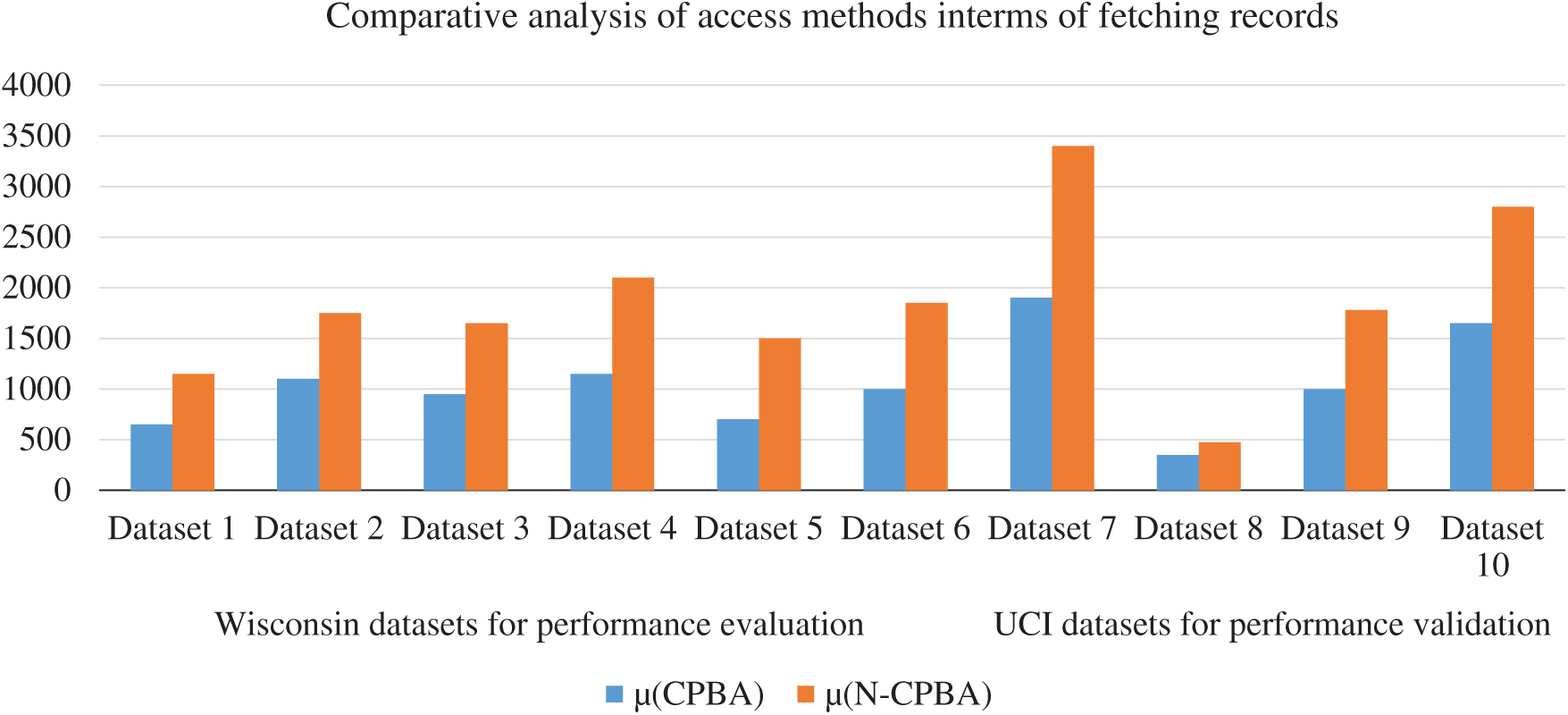

Fig. 6 presents the comparative analysis of access scenarios in terms of numbers of records fetched by the two approaches. It is evident that the proposed CBPA carries only intended records from the users’ records space and thus reduces the space complexity involved in seeking all the records.
Similarly, we also observed the notable performance achievement of the proposed algorithm in terms of seek time for accessing a purpose-based number of records. We can vet that the proposed algorithm outperforms in reducing the time complexity involved in fetching the users’ records.

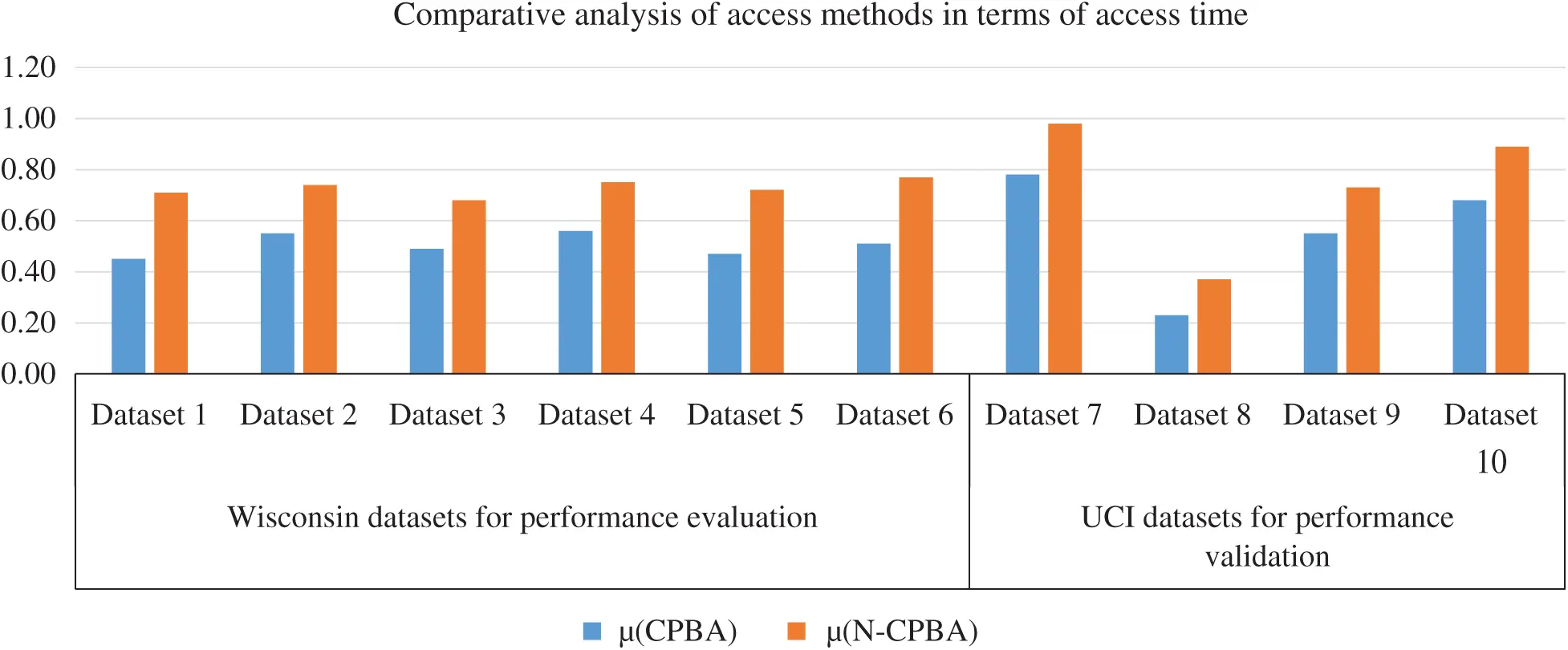

Fig. 7 depicts the comparative analysis of two approaches in terms of seek time. We can observe that non-purpose based access takes comparatively longer access time as compared to purpose-based access. Hence, the time complexity involved in seeking users’ data is significantly reduced with the proposed CBPA algorithm.
4.1 Pursuit of Privacy Protection in Big Data Environment
The proposed algorithm ensures the sustainable privacy preservation to users’ sensitive data for stated, unambiguous, and genuine purposes. The sustainability is achieved by validating the existing privacy tags and assigns new sustainable privacy tags based on non-privacy preserved data aiming clustered-purpose based approach. In this way, the proposed method equally ensures the security and sustainable privacy aspects of existing as well as new personal data managed inside large databases repositories.
Sustainable privacy preservation (especially in a shared computer environment) is quite challenging and requires careful access to users’ sensitive data. This paper presented a new clustered-purpose based access control for users’ sustainable data privacy protection in a big data environment. The clustered-purpose based access control significantly contributed to handle the personal data for stated, unambiguous, and genuine purposes. The proposed algorithm clusters and seeks access to users’ records by validating the existing privacy tags and assigns new privacy tags based on non-privacy preserved data aiming clustered-purpose based approach. In this way, the proposed method equally ensures the security and privacy aspects of existing as well as new personal data managed inside large databases repositories. The comparative analysis of results reveals the outperformance of our cluster-purpose based access algorithm as compared to conventional non-purpose based access algorithms towards sustainable privacy presentation to users’ sensitive records. The current research study assumes that the organizations have defined access policies that serve as inputs to the proposed model to cluster the data based on purpose-based tagging and access. The study is also limited to purpose-based access control based on privacy tags. However, future research can also consider other types of privacy protection scenarios in a shared environment.
Acknowledgement: Conceptualization, Norjihan Abdul Ghani; Data curation, Zahra Mahmoud and Raja Majid Mehmood; Formal analysis, Norjihan Abdul Ghani and Zahra Mahmoud; Funding acquisition, Raja Majid Mehmood; Methodology, Muneer Ahmad; Project administration, Norjihan Abdul Ghani; Resources, Raja Majid Mehmood; Writing–original draft, Zahra Mahmoud; Writing – review & editing, Muneer Ahmad.
Funding Statement: This work was supported by the Xiamen University Malaysia Research Fund (XMUMRF) (Grant No. XMUMRF/2019–C3/IECE/0007) and Fundamental Research Grant Scheme [FP072–2015A] funded by the Ministry of Education, Malaysia.
Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
