Influence of Urea Uneven Injection on the Performances of a Diesel Engine

Chang Huang, Shuzhan Bai, Guoxiang Li* and Ke Sun*

School of Energy and Power Engineering, Shandong University, Jinan, 250061, China
*Corresponding Authors: Guoxiang Li. Email: liguox@sdu.edu.cn; Ke Sun. Email: sunkeke@sdu.edu.cn
Received: 26 January 2022; Accepted: 13 April 2022

Abstract: The influence of heterogeneous flow injection of urea at different velocities and temperatures on NOx conversion efficiency, ammonia storage and ammonia leakage is investigated experimentally. A diesel engine employing a selective catalytic reduction (SCR) technology is considered. It is found that for a fixed injection velocity, the degree of ammonia leakage changes depending on the temperature. The higher the temperature, the faster the catalytic reduction reaction and the smaller the degree of ammonia leakage. The temperature has a great influence on the catalytic reduction reaction rate. At an injection velocity of 10000/h, the average reaction rate at 420°C is 12 times higher than that at 180°C. The injection velocity has a weak influence on the reaction rate. When the injection velocity changes from 10000/h to 40000/h at the same temperature, the average reaction rate does not change appreciably. However, increasing the space velocity can accelerate the leakage of ammonia, thereby mitigating the benefits associated with the NOx conversion.

Keywords: Diesel engine; ammonia leak; conversion efficiency; the urea; flow

1  Introduction

Compared with gasoline engines, diesel engines have higher thermal efficiency and lower CO2 emissions, so they are widely used in heavy trucks. However, diesel engines produced by NOx occupy most of atmospheric nitrogen oxides. With the increasingly strict emission regulations, effective technologies are urgently needed to reduce the emission of NOx, With the increasingly strict emission regulations, the selective catalytic reduction (SCR) technology with urea as reducing agent is urgently needed to reduce NOx emission [1]. SCR is to inject NH3 and other reducing agents into the exhaust pipe, and then react with NOx in the pipe to generate N2 and H2O , so as to strive for higher NOx conversion rate and lower NH3 leakage. But this technique still needs to improve in some aspects, such as the solution when the diesel engine at low speed conditions NOx asked conversion efficiency is very low. Therefore, a lot of experiments are needed to find out the factors that affect the low conversion efficiency of NOx, and a reasonable scheme is formulated to make the diesel engine have lower ammonia leakage and higher conversion efficiency of NOx under any working conditions. An experiment shows that the conversion efficiency of ammonia to NOx in the adsorption process can be improved at low temperature, but attention should be paid to controlling the urea injection amount in the process of fast operation mode, because with the increase of urea injection amount, the catalysts in ammonia storage is also greatly improved, and ammonia leakage is easy to occur when the maximum storage amount is exceeded after one distribution [2,3]. Therefore, it is necessary to estimate the storage amount of ammonia in advance, reasonably control the urea injection amount under different working condition of the engine, and make every effort to reduce or avoid ammonia leakage.

This paper is based on the research of matching vanadium VI diesel engine and the real case of SCR catalysts in ammonia storage and conversion efficiency. Ammonia leakage, according to the different operating conditions, formulate reasonable strategies of urea injection, making the whole machine have higher NOx conversion rate and lower NH3 .

2  Experimental Setup

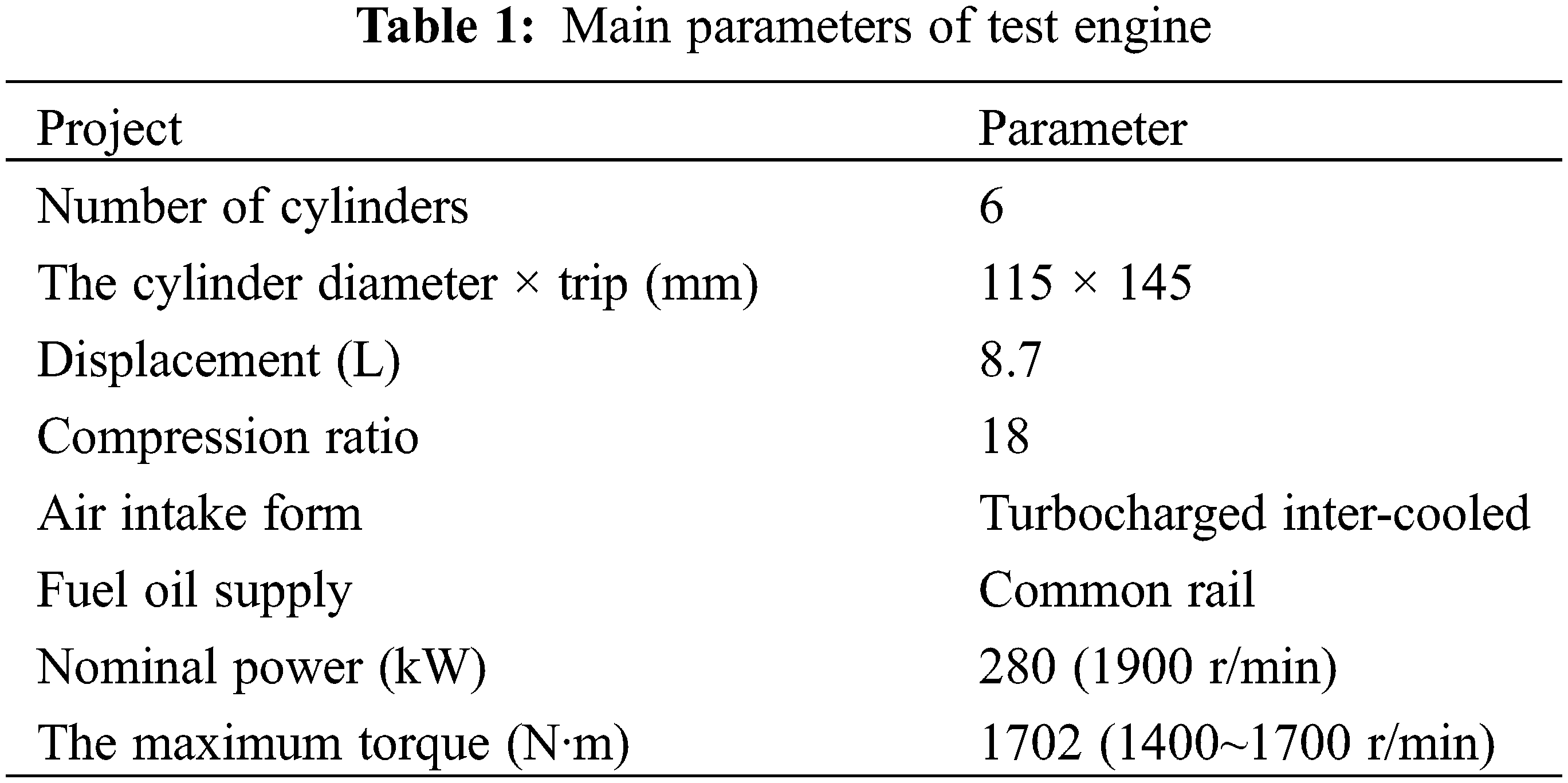

This test-bed mainly includes dynamometer, diesel engine, emission test system and SCR after treatment system, test using dynamometer for electrical dynamometer. The test bench arrangement is shown in Fig. 1. Parameters of the engine are shown in Table 1.

images

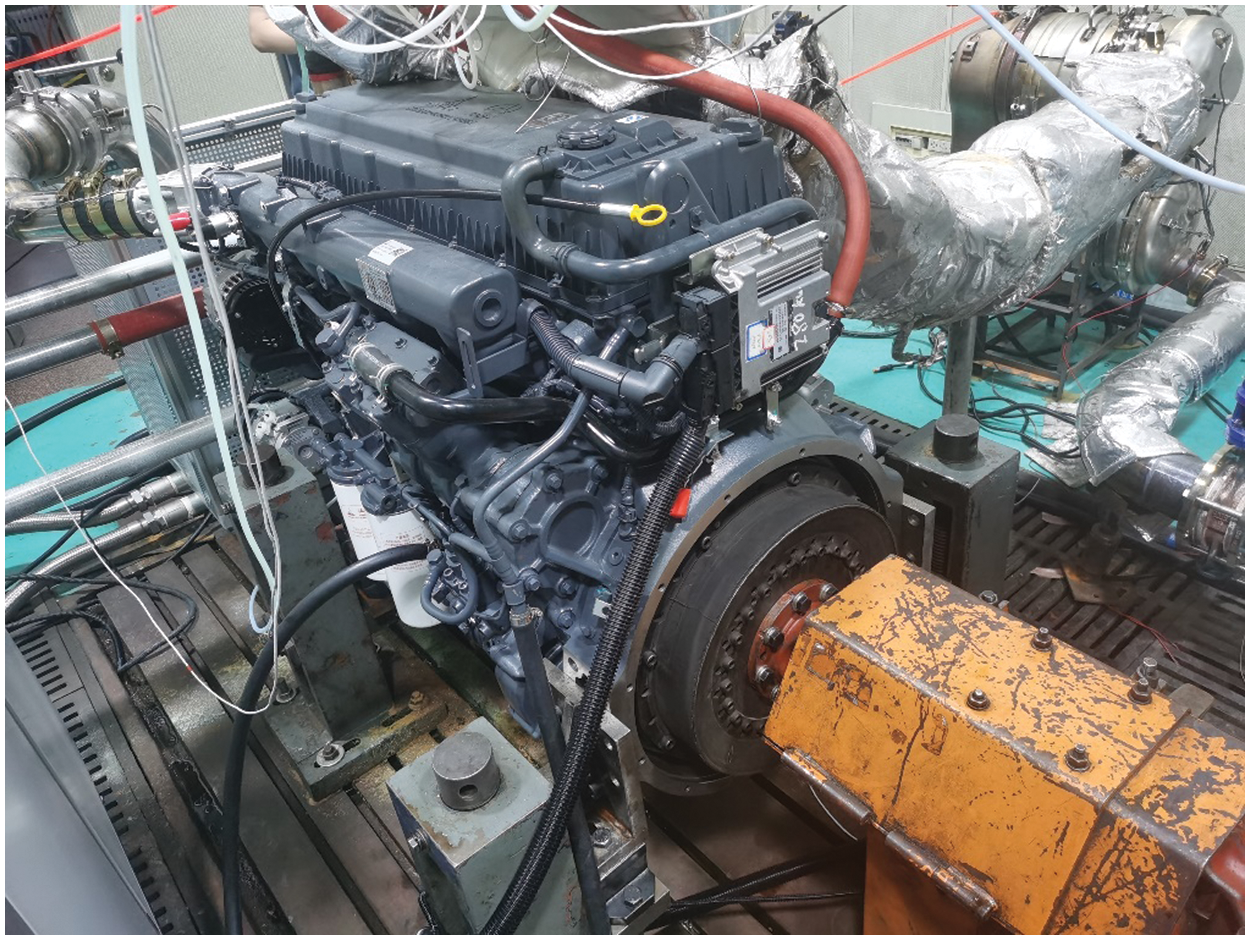

Figure 1: Engine test bench

images

This test uses an integrated urea box and a 32.5% standard urea aqueous solution, it is in line with the implementation of GB/T 29518-2013. The test mainly used the AVL i60 emission meter to measure gas components such as NOx, and the ammonia analyzer to measure NH3 . Fig. 2 shows the experimental test diagram.

images

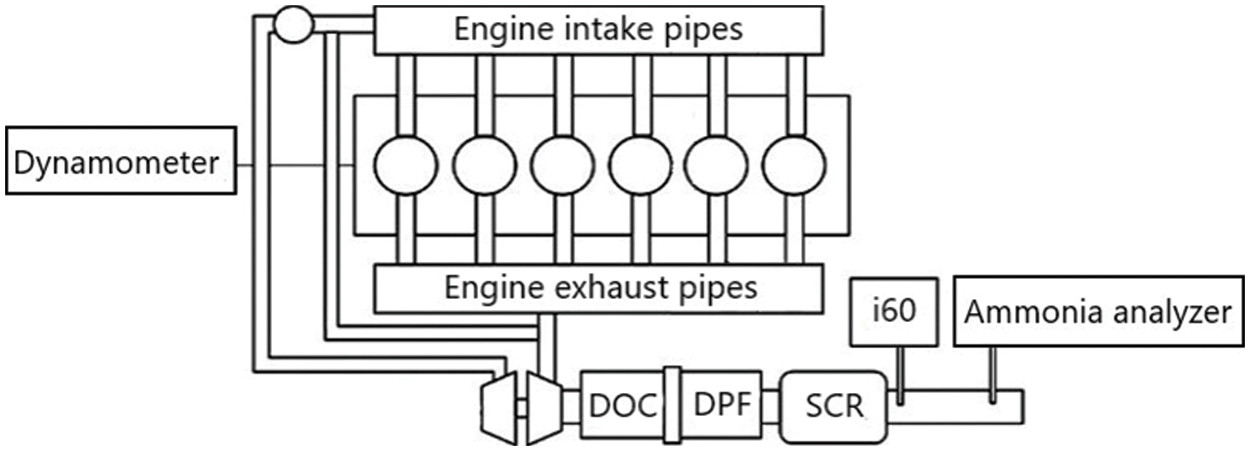

Figure 2: Details of test section

The space velocity and the exhaust temperature of ammonia during storage and release were mainly studied experimentally, and the influence of ammonia storage on the conversion efficiency of NOx was analyzed. The space velocity is defined as the standard state of exhaust volume ratio and catalyst volume per hour.

It is necessary to test constant adjusting speed and torque to control space velocity and exhaust temperature respectively, and to provide enough ammonia to smoothly form ammonia storage [4]. Therefore, the ammonia-nitrogen ratio is 1.2:1 when spraying urea under all conditions in the experiment. During the test, the high temperature of waste gas was purged at 500°C first, and then the difference between the values of current NOx was about 20–30 PPM. When the peak value of NOx before and after the engine changes within 30 ppm and there is no leakage of NH3 , stop purging and then run the engine at low temperature, and adjust the engine to the required exhaust temperature and space velocity until the difference of NOx before and after the engine is about 20–30 ppm. And the steady-state data of 1~2 min was recorded when the peak value of NOx before and after was within 30 ppm. Urea injection was carried out with ANR = 1.2, and the injection was stopped when the leakage value of NH3 reached 10 ppm. Before and after the stop after injection, waiting for NOx value between about 20–30 PPM. After stopping injection, the difference between the values of NOx before and after waiting is about 20–30 ppm. When the peak values of NOx before and after waiting are within 30 ppm, purge at the exhaust temperature of 500°C and continue to look for the next operating point. According to the volume concentration change of NOx and NH3 , urea injection rate and exhaust flow rate, the ammonia storage rate was deduced. Integrate the ammonia storage rate to obtain the maximum ammonia storage.

Continuously measure and record the volume concentration change process of NOx and NH3 at the back end of SCR catalyst from a certain time before urea solution injection. According to the curve of NOx over time, the rate of catalytic reduction reaction under different operating conditions is analyzed. According to the curve of NOx and NH3 volume concentration with time and the injection rate of urea solution, the storage amount of NH3 under each working condition is calculated.

3  Results and Discussion

3.1 Ammonia Storage and NOx Conversion Efficiency

The saturated storage capacity of ammonia and its influence on the real-time conversion efficiency of NOx at different temperatures and space velocity were studied. The calculation method of ammonia storage capacity was from the initial urea injection until there was a leakage of ammonia with a volume concentration of 10 × 10−6, at which time the urea injection was stopped, and the storage capacity of ammonia in this process was the saturated storage capacity of ammonia.

As can be seen from Fig. 3, under the condition of space velocity of 20000/h, when the temperature is lower than 420°C, the saturated ammonia storage decreases linearly with the increase of temperature, with 22.52 g at 180°C and only 4.09 g at 420°C, which shows that the temperature has a great influence on the saturated ammonia storage.

images

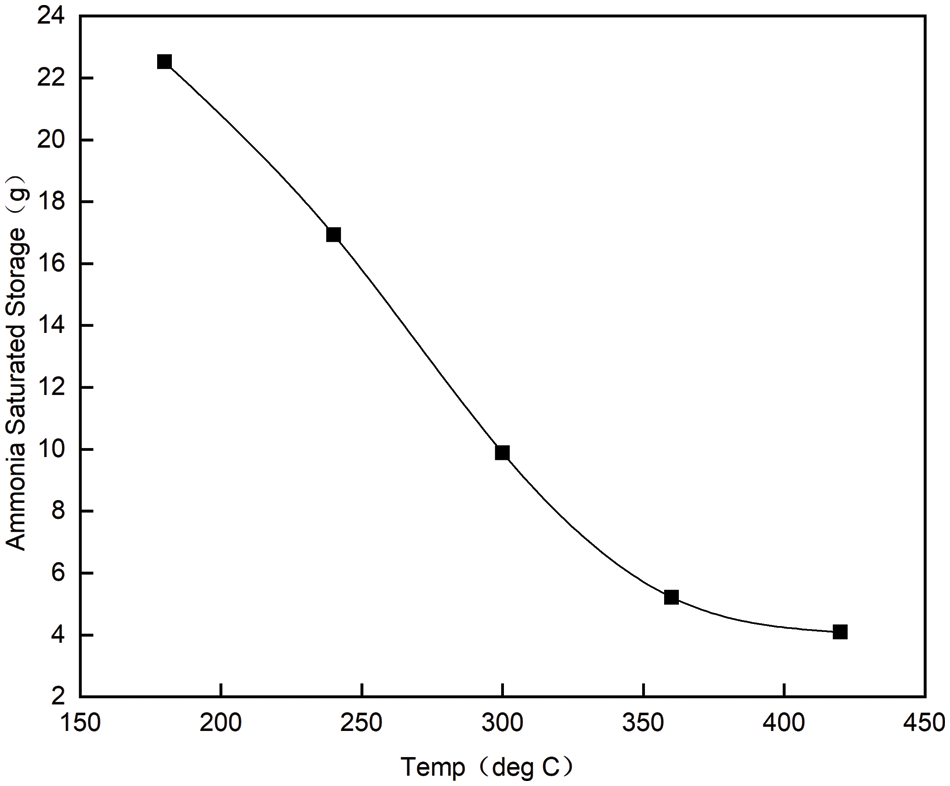

Figure 3: Saturated storage capacity of ammonia at space velocity of 20000/h

As can be seen from Fig. 4, when the temperature is maintained at 300°C, the saturated ammonia storage decreases slightly with the increase of space velocity, because increasing space velocity will cause ammonia leakage to occur more easily, thus reducing the final ammonia storage [5]. According to the changing trend of ammonia saturated storage when space velocity changes from 10000/h to 40000/h, it can be seen that space velocity has little influence on ammonia saturated storage.

images

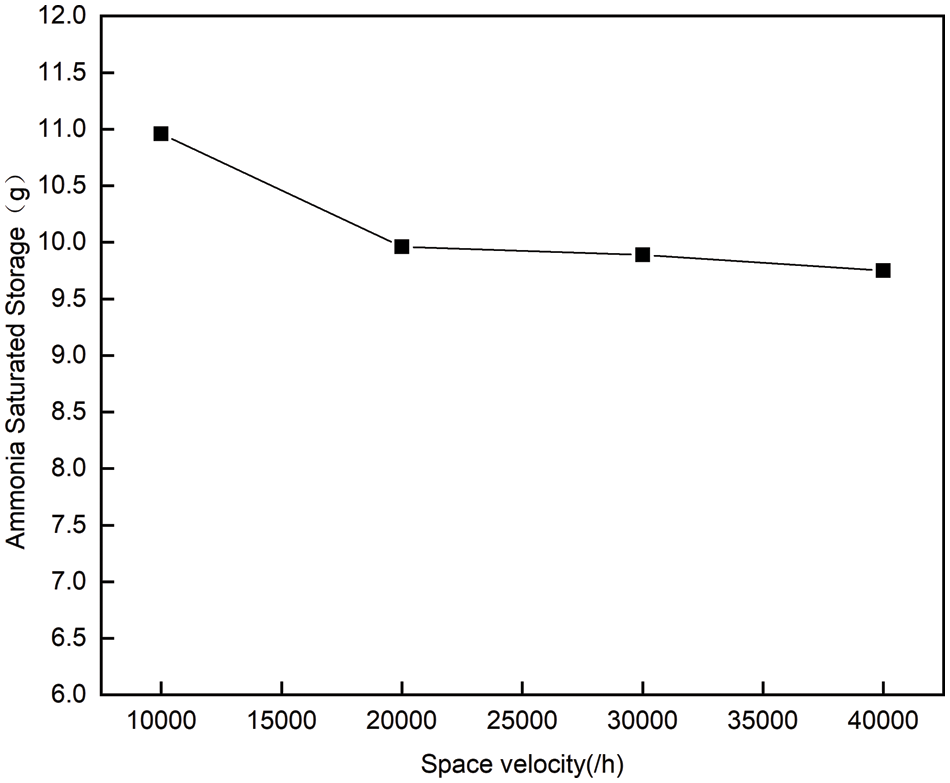

Figure 4: Saturated storage capacity of ammonia at 300°C

From Fig. 5, it can be concluded that when the temperature is controlled at 180°C, the conversion efficiency and ammonia storage capacity of NOx show a linear trend, which is due to the poor low-temperature activity of the catalyst, which leads to the slow reaction rate. When the storage amount of ammonia increases, there will be more ammonia to increase the reaction rate [6]. This shows that the conversion efficiency of NOx at low temperature is greatly influenced by ammonia storage.

images

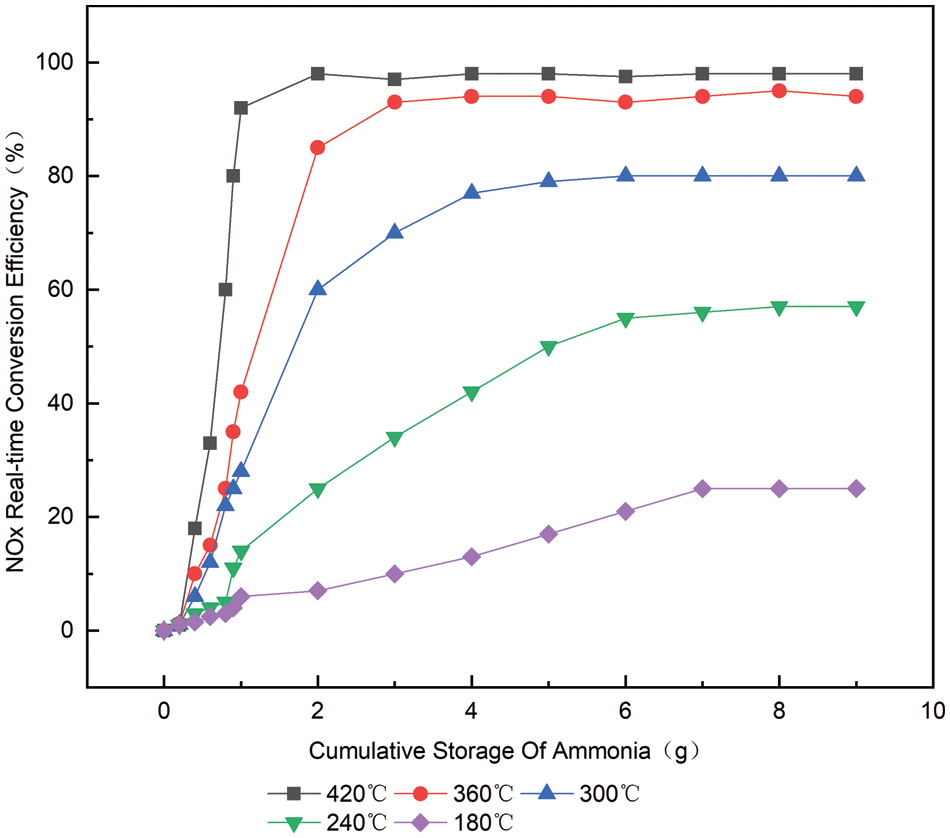

Figure 5: The relationship between the real-time conversion efficiency of NOx and ammonia storage capacity at 20000/h space velocity and different temperatures

As the temperature rises, the activity of catalysts becomes stronger, then ammonia storage for NOx would also reduce the conversion efficiency of effects [7]. When the temperature is 420°C, the conversion efficiency of NOx reaches its peak after 7 s of urea injection, and the ammonia storage is only about 0.9 g at this time, which is basically unchanged from the conversion efficiency of NOx, and the ammonia leakage does not occur until ammonia storage reaches 1.59 g.

This is obtained from the curve of ammonia storage and the conversion efficiency of NOx in Fig. 5. Under the condition of low temperature and NOx, the conversion efficiency is affected by the large amount of ammonia storage. With the increase in ammonia storage, the conversion efficiency of NOx is significantly improved. As the temperature increases, the rate of catalytic reduction reaction accelerates, and the effect of ammonia storage on the NOx conversion efficiency gradually decreases. By 300°C, the effect of ammonia storage on the improvement of NOx conversion efficiency is already very limited. At high temperatures of 420°C, the amount of ammonia stored has little effect on NOx conversion efficiency [8,9].

3.2 The Influence of Temperature on the Reaction Rate

The average rate and reduction time of catalytic reduction reaction changes with the change of temperature under the same space velocity [10]. The time from the start of the reaction to 95% of the total steady-state decrease is called the decrease time, which reflects the main process of catalytic reduction. The reaction rate refers to the ratio of NOx reaction amount to the falling time. The total steady-state decline is defined as the volume concentration difference between the initial NOx and the ammonia leakage volume concentration of 10 × 10−6. Fig. 6 shows the change trend of volume concentration of 30000/h space velocity at 180°C, 240°C, 300°C, 360°C and 420°C, respectively, from the 40 s of urea injection to 10 × 10−6 NOx of ammonia leakage volume concentration. It can be seen from Fig. 6 that when the temperature is 180°C the concentration changes very gently. Because it is the catalytic reduction reaction rate that is slow at low temperature. As the temperature increases, the rate of catalytic reduction reaction also accelerates [11]. When the temperature is 180°C, 240°C, 300°C, 360°C and 420°C, the falling time are 450, 259, 197, 80 and 48 s, respectively.

images

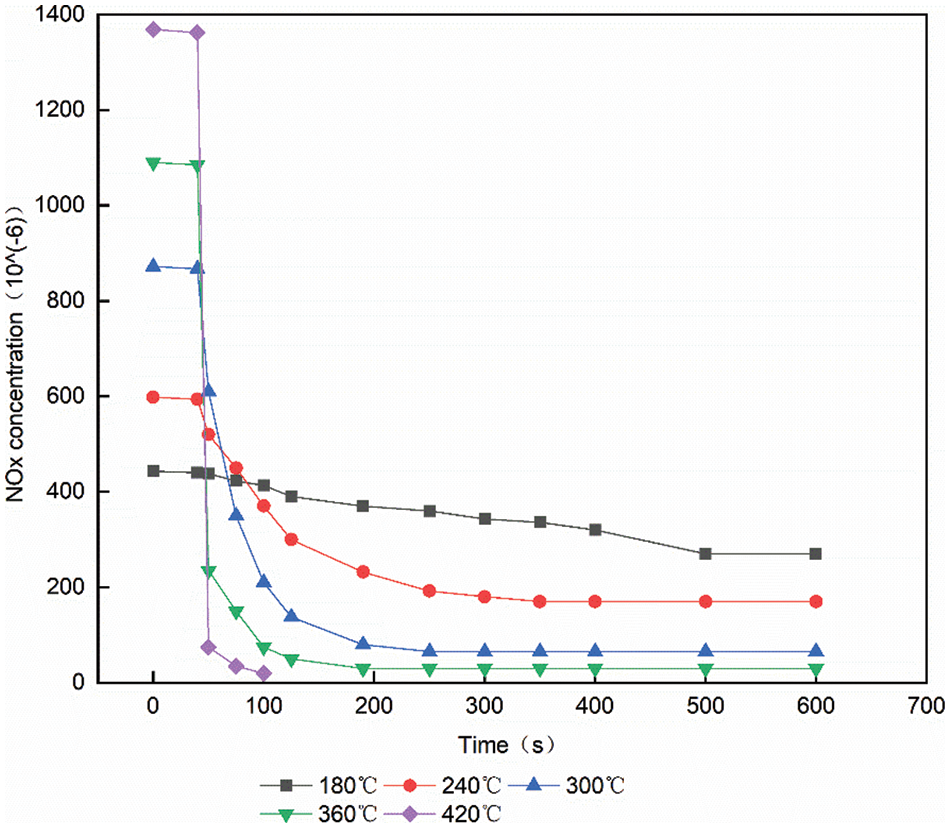

Figure 6: The volume concentration of the NOx after SCR at 30000/h space velocity changes with temperature

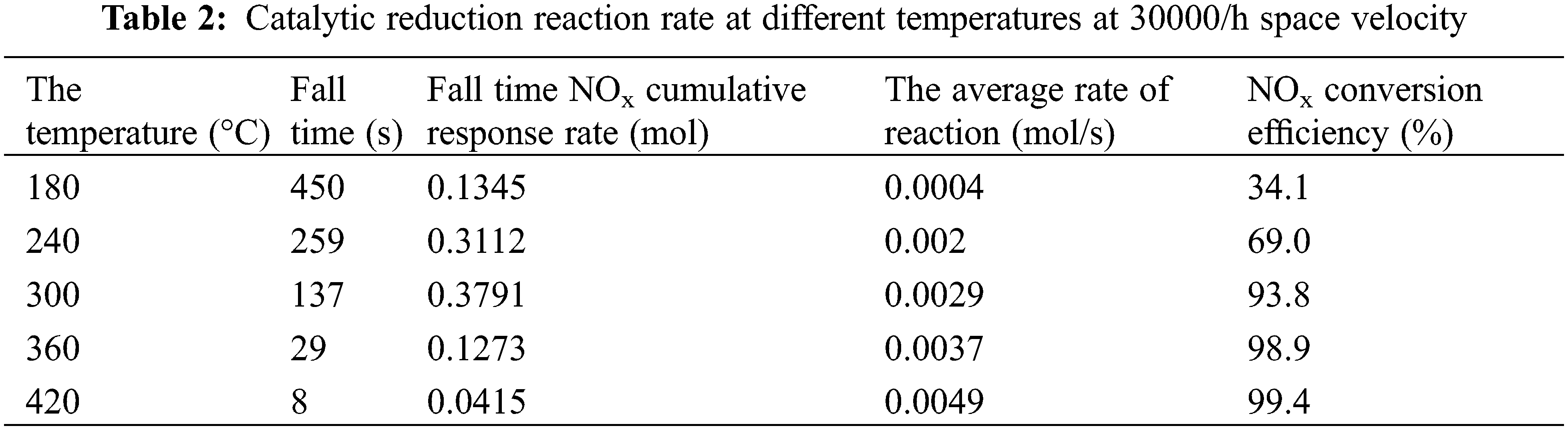

The average response rate NOx at different temperatures is shown in Table 2 and Fig. 7. We can see that with the increase of temperature from 180°C to 420°C, the average reaction rate of NOx raised from 0.0004 to 0.0049 mol/s. Average indicated temperature on NOx has great influence on the reaction rate. The higher the temperature, the faster the reaction rate [12].

images

images

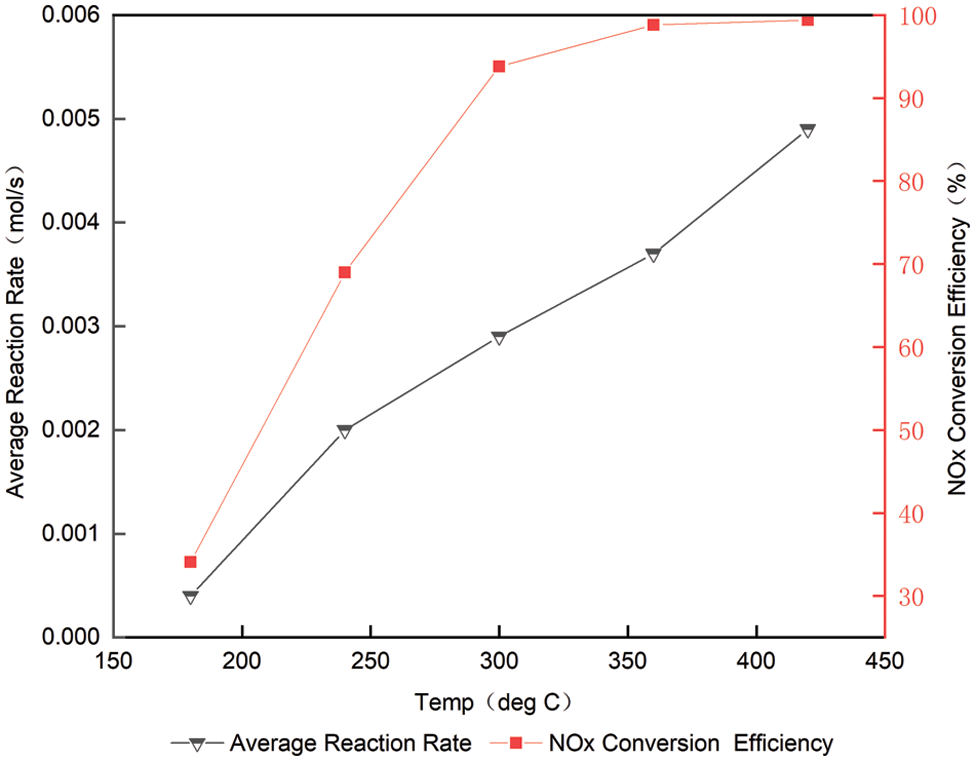

Figure 7: Average reaction rate at different temperatures at space velocity of 30000/h

3.3 Effect of Space Velocity on Reaction Rate

Experimental study on the constant temperature, catalytic reduction reaction rate and down time with space velocity changes. Fig. 8 shows the change trend of the volume concentration of NOx from urea injection to ammonia leakage volume concentration of 10 × 10−6 when the temperature is 300°C and the space velocity is 10000/h, 20000/h, 30000/h and 40000/h, respectively. As can be seen from Fig. 8, when the temperature remains unchanged, although the space velocity increases, the volume concentration of NOx does not have a great downward trend, and ammonia leakage will occur earlier. When the space velocity is 10000/h, there is 10 × 10−6 volume concentration of ammonia leakage after 210 s of urea injection, while when the space velocity is 40000/h, there is 10 × 10−6 volume concentration of ammonia leakage after 60 s of urea injection. It can be concluded that when other conditions are the same, the larger the space velocity, the easier ammonia leakage will occur [13,14]. The main reason is that NH3 will undergo catalyst reduction and other reactions at the active site of the catalyst, and with the increase of space velocity, most of NH3 will be blown away by exhaust gas before adsorption, thus shortening the time of ammonia leakage.

images

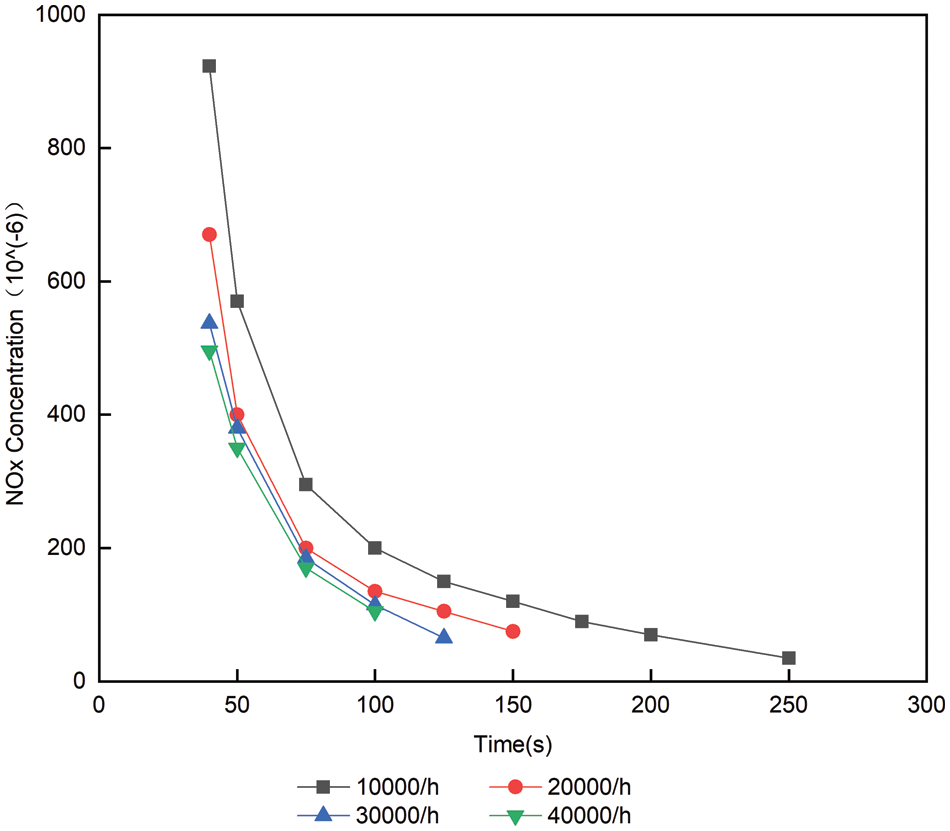

Figure 8: Volume concentration change of NOx downstream of catalytic converter at different space velocity at 300°C

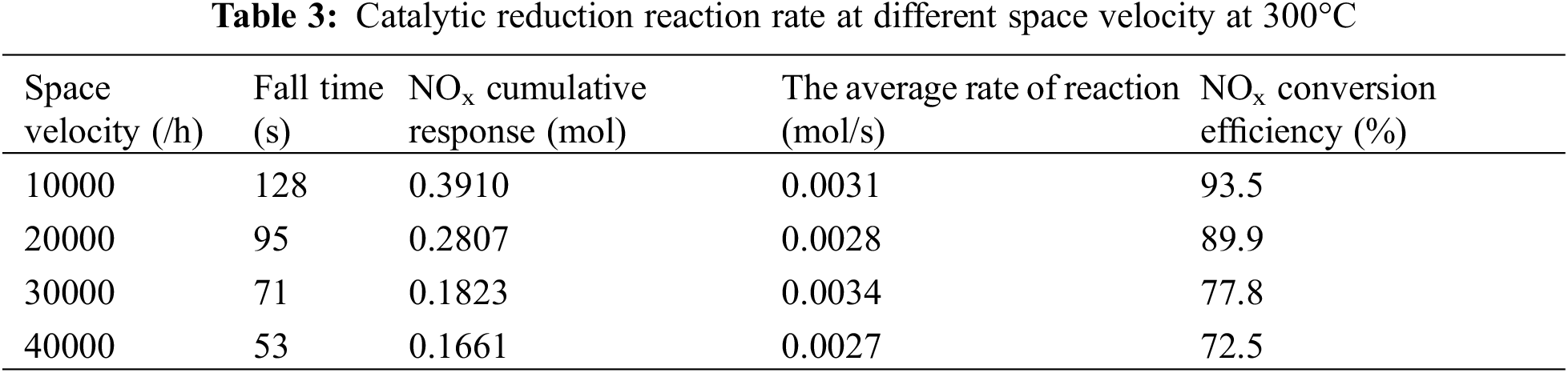

When the temperature is 300°C, the average reaction rate and the total amount of NOx at the back end of SCR are shown in Table 3 and Fig. 9. Table 3 shows that the reaction rate is around 0.0030 mol/s at all space velocity, indicating that the main factors affecting the reaction rate is not space velocity, but temperature [15]. With the increase of space velocity, the cumulative reaction amount of NOx decreases slightly. It can be seen from Table 3 that when the space velocity increases from 10000/h to 4000/h, the conversion efficiency of NOx corresponding to the ammonia leakage volume concentration of 10 × 10−6 decreases by about 21% [16]. This is because increasing the space velocity will shorten the contact time between NH3 and the catalyst. And at the same time, it will lead to incomplete hydrolysis and pyrolysis of urea and decrease the efficiency of generating NH3 , which will lead to a significant decrease in the conversion efficiency of NOx.

images

images

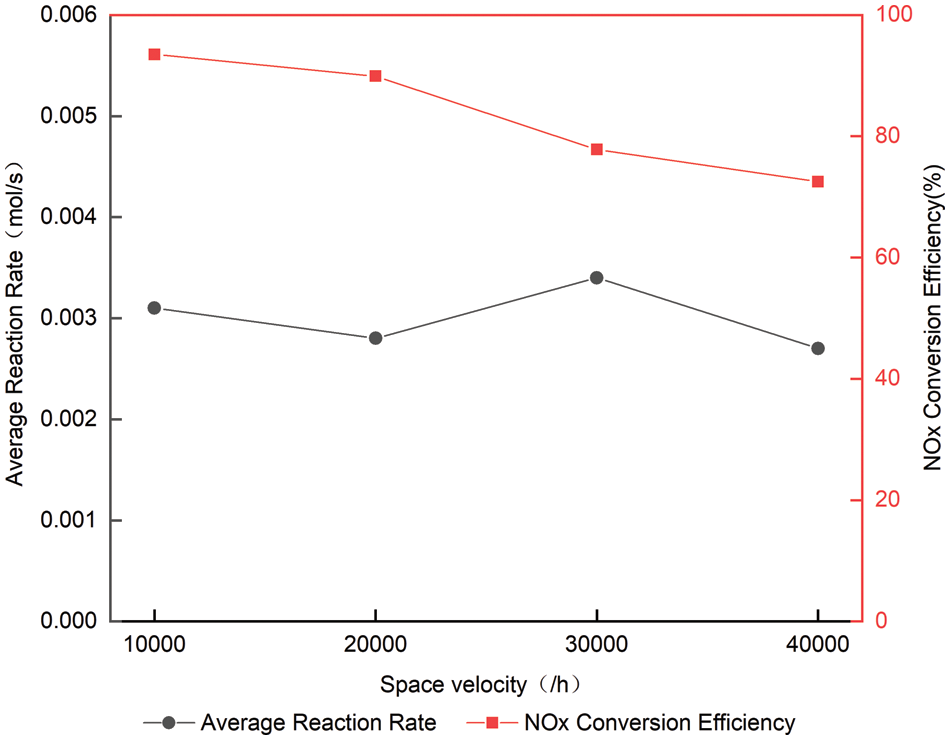

Figure 9: Average reaction rates at different space velocity at 300°C

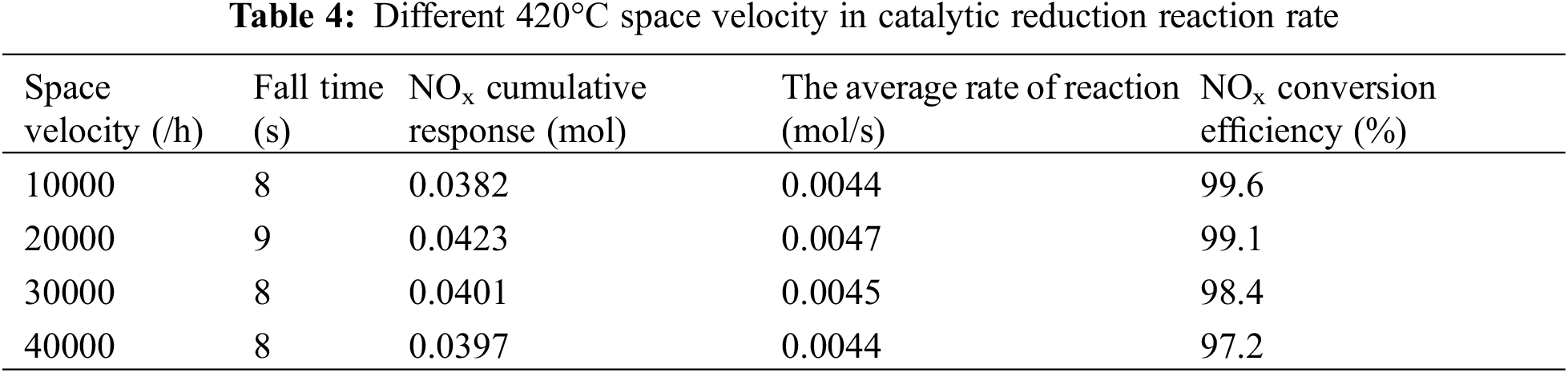

Figs. 10 and 11 and Table 4 compare the change process of the volume concentration of each space velocity NOx at 420°C and the average reaction rate of NOx, and urea injection starts from 38 s. As can be seen from Fig. 10, increasing the space velocity makes the ammonia leakage happen earlier, for the same reason as the analysis at 300°C. From Fig. 10, it can be concluded that the space velocity is increased at 420°C. Although the contact time between the catalyst and the reducing agent is shorter, the reaction rate is kept at about 0.0045 mol/s, which shows that the space velocity has little effect on the average reaction rate of NOx at high temperature, and the temperature at 420°C is the main factor to control the reaction rate [17,18]. The reason for this phenomenon is the same as that at 300°C. The higher the space velocity, the shorter the reaction time between NH3 and the catalyst, and the lower the conversion efficiency of NOx. However, because the catalyst has strong activity at high temperature, NOx has always maintained a high conversion efficiency. To sum up, space velocity has great influence on ammonia leakage, but little influence on reaction rate.

images

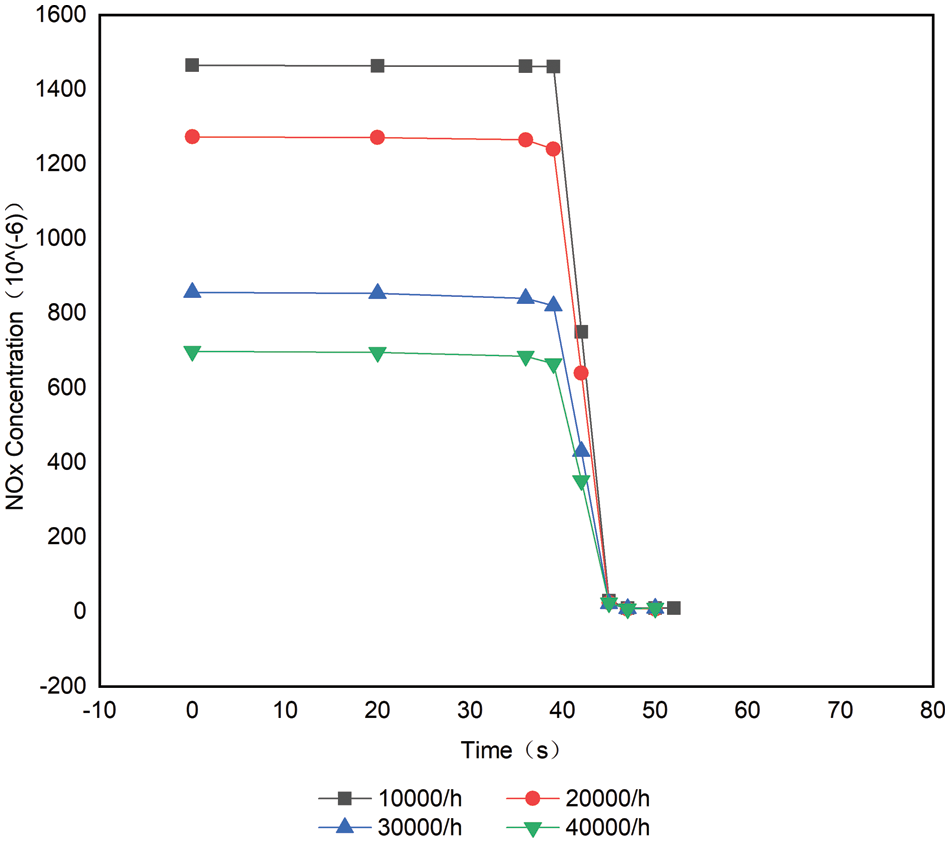

Figure 10: 420°C with different space velocity distribution at downstream NOx volume concentration changes

images

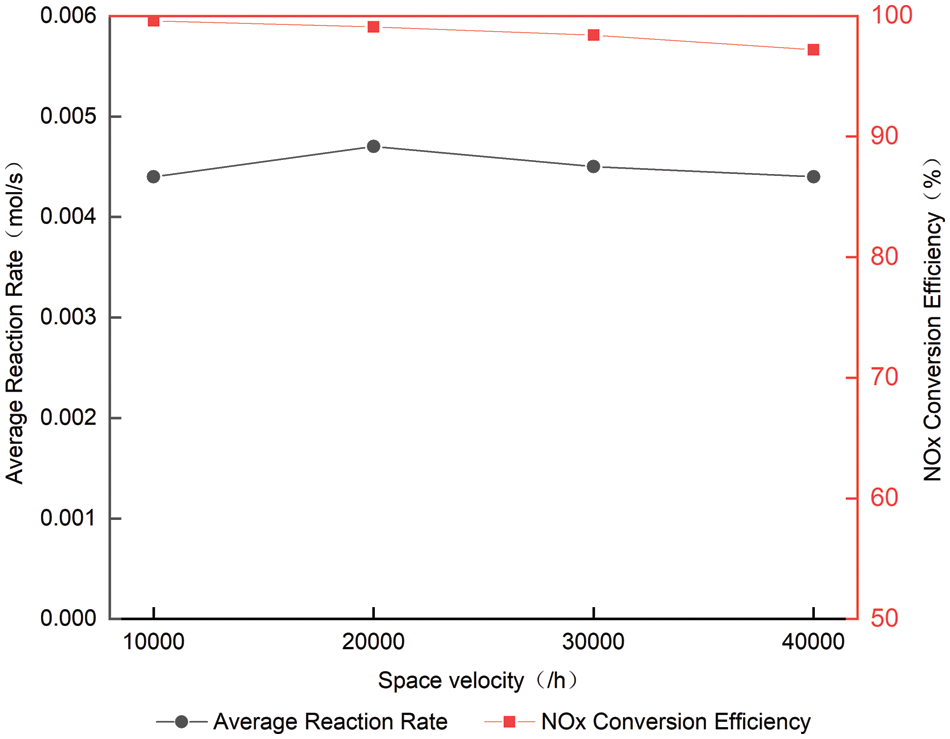

Figure 11: Average reaction rate at different space velocity at 420°C

images

4  Conclusions

1.    The dynamic reaction process of SCR is quite different from the steady-state reaction process. When formulating the urea uniform flow injection strategy, the storage and release characteristics of ammonia in the catalyst and its influence on NOx conversion efficiency should be considered. In order to accurately control the urea injection quantity, it is necessary to study the dynamic reaction characteristics of the catalyst and establish relevant models.

2.    The saturated ammonia storage capacity is greatly influenced by temperature, and when the space velocity is constant, the saturated ammonia storage capacity decreases sharply with the increase of temperature. However, space velocity has little effect on the saturated ammonia storage. When the temperature is constant, the saturated ammonia storage only slightly decreases with the increase of space velocity.

3.    According to the relationship between ammonia storage and NOx conversion efficiency, increasing ammonia storage can be considered to improve NOx conversion efficiency at low temperature, but reasonable control of ammonia storage is needed, otherwise, the engine load will suddenly increase, the catalyst temperature will rise, and more ammonia stored before the ammonia storage capacity declines will be too late to consume, resulting in ammonia leakage.

Funding Statement: This work was supported by the Natural Science Foundation Project of Shandong Provincial (Grant No. ZR2019MEE041), and the open funds of National Engineering Laboratory of Mobile Source Emission Control Technology (Grant No. NELMS2019A01). The authors would like to thank the reviews whose constructive and detailed critique contributed to the quality of this paper.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
