Optimization Scheme of Integrated Community Energy Utilization System Based on Improved Sine-Cosine Algorithm

Xin Zhang*, Jinpeng Jiang, Haoran Zheng and Jihong Zhang

School of Information Engineering, Inner Mongolia University of Science & Technology, Baotou, 014010, China
*Corresponding Author: Xin Zhang. Email: zhangxin19861986@126.com
Received: 05 May 2021; Accepted: 02 July 2021

Nomenclature

1  Introduction

With increasingly serious global environmental problems and continuous depletion of traditional fossil energy, renewable energy technology has become the focus of attention worldwide [1–3]. Therefore, the integrated energy network concept arises at this historic moment [4,5]. Energy supply networks (power grids, natural gas networks and cool-heat networks), energy exchange units (cool-heat-electricity supply units and air-source heat pumps), energy storage units (batteries and cold-heat storage devices) and a large number of integrated terminal energy units have been included in integrated energy networks. The multidirectional interaction of cool-heat-electricity-gas energy flow has been achieved. The sharing and stable renewable energy applications among multiple networks to meet the growing demand for high-quality energy services [6,7] have been implemented. The integrated energy unit configured in urban communities refers to ICEUS, the integrated terminal energy utilization unit. With the accelerating urbanization process in China, areas of urban power grids and heating have expanded rapidly. However, there are some problems in communities of urban fringes, such as poor power quality and substandard heating temperatures. Through studying ICEUS, various renewable resources can be fully utilized to achieve a high-quality electricity-heat supply in the community. Given that the upgrading of distribution networks and heating units is delayed, ICEUS is of great guiding significance to the construction and development of urban communities in China.

At present, there have been domestic and international studies on the optimal dispatch of integrated energy networks [8–25]. Rural micro-energy grids are constructed, and the corresponding day-ahead optimal dispatch model of multienergy flow micro-energy grids is established. The optimal dispatching model on rural micro-energy grids is based on the improved hybrid PSO. The example analysis results show that the above algorithm can achieve the cost-effective operation of rural micro-energy grids in [8]. The optimal dispatching process of micro-energy grids is divided into two stages. A double-layer optimal dispatching model is established, and a micro-energy grid based on the model predictive control is used to make the optimal dispatching scheme of the micro-energy grid more accurate in [9]. The objective function for the lowest operating cost of micro-energy grids is constructed. A genetic algorithm based on a memory mechanism is proposed to solve the objective function in [10]. A hybrid PSO is proposed to optimize the cost-effective operation model of micro-energy grids in [11]. Cinar et al. [12] used SCA to solve the optimized management problem of a multienergy storage system. Pang et al. [13] proposed a multiunit coordinated operation strategy. SCA is used to formulate unit combinations. PSO, the genetic algorithm, and SCA are usually used to solve the optimal model in the above papers. However, these algorithms are relatively conventional, and the solution process can easily be stuck in a local optimization, making the realization of a globally optimal solution impossible. Tan et al. [14] designed an independent micro-energy grid structure of all renewable energy for islands or remote mountainous areas. The example verifies the feasibility, economy and reliability of the model. Zhang et al. [15] established the operation structure of a distribution network with micro-energy grids. A double-layer optimal model and an improved gray wolf optimal solving algorithm are proposed, and the coordinated distribution networks with micro-energy grids is achieved. Liu et al. [16] proposed energy management and optimization of a single micro-energy grid based on deep reinforcement learning. Hua et al. [17] established an energy internet model consisting of multimicro energy grids. The solution method is deep reinforcement learning. Li et al. [19] proposed an optimal dispatch method of island micro-energy grids, including the uncertainty of load and renewable energy. CPLEX solves the model to realize the optimal operation of island micro-energy grids. Considering the randomness of renewable energy and the comfortability for users, Li et al. [20] proposed an optimal dispatch model of the integrated energy utilization system based on chance-constrained programming. Zhang et al. [21] used the deep learning method to coordinate and optimize micro-energy grids’ hybrid energy storage system. Li et al. [22] established a stochastic robust optimal operation model of a community-integrated energy system based on integrated demand response. Gao et al. [23] demonstrated a robust chance-constrained optimization model for the day-ahead economic dispatch of an integrated energy utilization system of electricity, gas and heat based on distributed robust optimization technology. Li et al. [24] established a two-stage optimal operation model of an integrated energy system. In [26], a multitime-space scale optimal operation strategy of the integrated energy system is proposed. In the above references, regulation of the user-side load has not been fully considered, and the economy and reliability of the system operation have further improved the space. In [27], the integrated energy system includes, new energy producer, integrated energy service producer, and consumers. Considering multiagent interest balance and gas cost, the integrated energy system model is established. The improved NSGA-II is used to solve the model. In [28], natural gas was used as the fuel input for the cold-heat-electricity supply unit. An optimal dispatch method of the integrated energy utilization system is proposed based on a Stackelberg game. In [29], the deployment of island microgrids was studied. Natural gas is also a major energy source. However, China has a high consumption of natural gas, especially in winter. The shortage of natural gas may cause the failure of ICEUS to output stable electricity and heat, which brings enormous losses to users.

In conclusion, there are still the following problems in the optimal dispatch of ICEUS:

1)   There are usually PSO, the genetic algorithm and SCA in solving the optimal model in the existing references. These algorithms are relatively conventional, and the solution process is easily stuck in a local optimum, making the global optimal solution impossible. The cost-effective operation of ICEUS has not been achieved.

2)   Some of the above references have not fully considered the regulation of the user-side load. Introducing the regulation technology of the user-side load into ICEUS can effectively guarantee the real-time balance of energy in the network and improve system operation's economy and reliability.

3)   The consumption of natural gas in winter is high in China. Taking natural gas as the fuel input for cold-heat-electricity supply units may cause problems in the above references. Due to the shortage of natural gas, electricity-heat energy cannot be stably output in ICEUS.

This study aims to solve the above problems, and its contributions are as follows:

1)   Garbage power was proposed as a thermoelectric coupling device that did not consume natural gas. At the same time, urban garbage could be consumed effectively.

2)   The energy supply structure of ICEUS was established, which included a distributed wind power, photovoltaic (PV) power and garbage power generation combined system, air-source heat pump, lithium-ion storage device and cold-heat storage device.

3)   Considering the regulation of the user-side load, the optimal dispatch model of ICEUS was constructed.

4)   An improved SCA based on nonlinear factors and segmented weights was proposed to solve the dispatching model. SCA was superior to PSO and genetic algorithms in operation speed, global search ability and convergence accuracy. The improved SCA based on nonlinear factors and segmented weight provided a strong algorithm guarantee for the optimal operation of ICEUS.

The organizational structure of the study is as follows. Section 2 establishes the energy supply structure of ICEUS and sets the mathematical model of energy supply and energy storage devices. The optimal dispatch model of ICEUS is built. In Section 3, the improved SCA based on nonlinear factors and segmented weight was proposed, and the algorithm's effectiveness was verified. An example was used to verify the model and method presented in Section 4. In Section 5, the entire paper is summarized, and future research work is explored. The general workflow of the study is shown in Fig. 1.

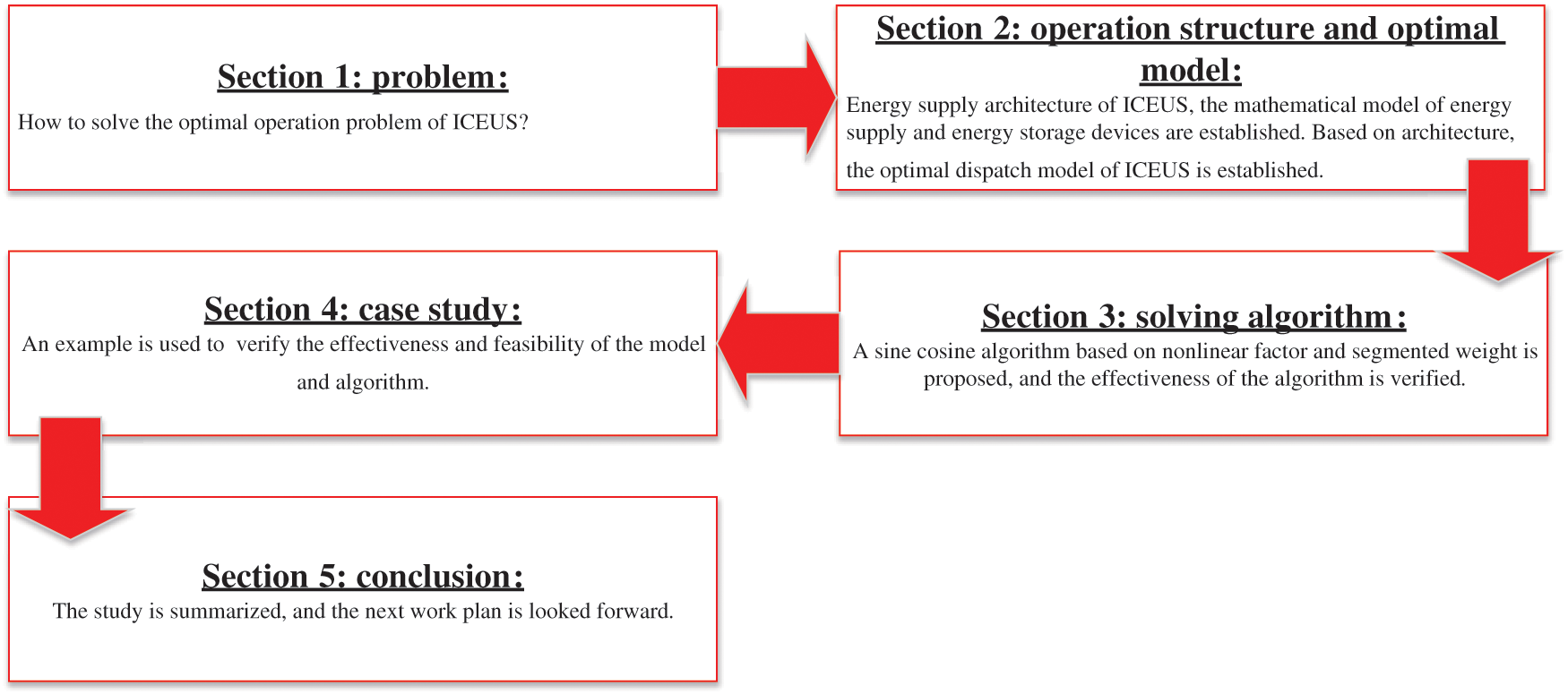

Figure 1: General workflow of the study

2  The Structure of ICEUS

ICEUS was mainly composed of energy production, transmission, conversion, storage, and utilization units. The cold-heat-electricity-gas energy flow could achieve multiway interaction and mutual support through energy conversion devices, power grids and cold-heat pipe networks. By doing so, the integrated and efficient utilization of a variety of energy sources was achieved. The system structure is shown in Fig. 2.

1)   The energy production unit was a device that converted wind, solar and natural gas power into cold-heat-electricity energy required by the system. The unit mainly included a distributed wind power, PV power and garbage power generation combined system.

2)   The energy transmission unit referred to the transmission channel between various types of energy and load points, and it mainly included the power grid and the cold-heat energy network.

3)   The energy conversion unit refers to the energy converting device of cool-heat-electricity-gas. It includes the air-source heat pump, the lithium-bromide absorption-type refrigerator and the heat recovery boiler.

4)   The energy storage unit referred to the power storage device of cool-heat-electricity, and it included the lithium-ion battery and the power storage device of cool-heat-electricity. The main role of the energy storage unit was to smooth the power fluctuations of renewable energy sources such as wind power and PV power and to realize the function of peak cutting and valley filling in the system.

5)   The energy utilization unit refers to the cool-heat-electricity load point in the system.

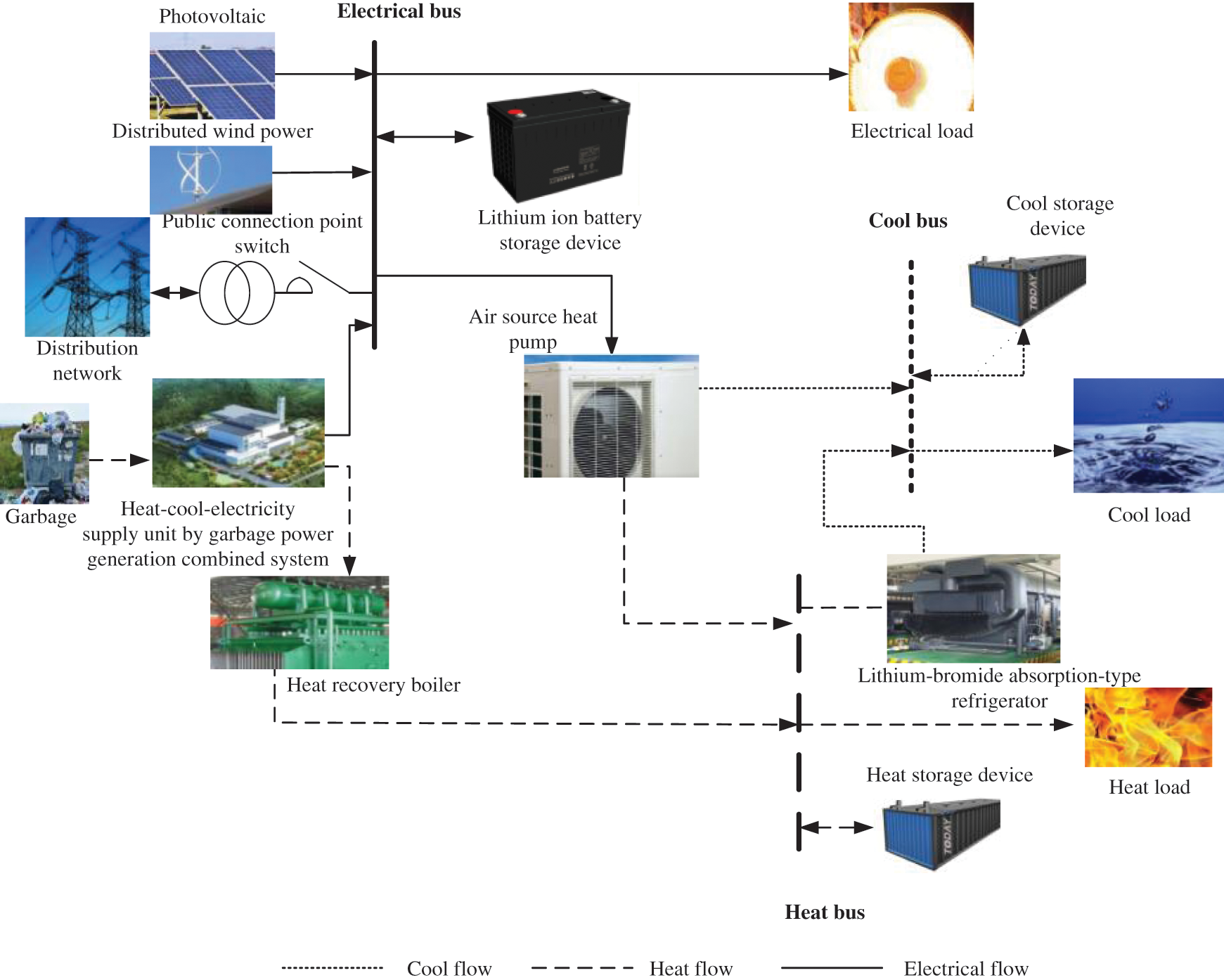

Figure 2: Structure of ICEUS

2.1 Mathematical Model of Garbage Power Generation Combined System

The garbage power generation combined system mainly included garbage generators, heat recovery boilers, and lithium-bromide absorption-type refrigerators. The integrated garbage power generation system used crushed garbage powder to drive garbage generators to generate electricity. The high-temperature flue gas produced in combustion generates heat energy through the heat recovery boiler to meet the heat load demand of community residents in winter. The high-temperature steam produced by the heat recovery boiler generated cooling power through the lithium-bromide absorption-type refrigerator to meet the cooling load demand of community residents in summer. The mathematical model is defined as follows:

PHWASTEt=PEWASTEt(1−ηE)ηEηHηre(1)

PCWASTEt=PEWASTEt(1−ηE)ηEηHηreηC(2)

where PHWASTEt is the heat power of the combined system, PCWASTEt is the cooling power, PEWASTEt is the electrical power of the integrated system, ηE is the electricity transmission effectiveness, ηH is the heat transmission effectiveness of the integrated system, ηC is the cool transmission effectiveness, and ηre is the recovery rate of flue gas waste heat.

2.2 Mathematical Model of Air Source Heat Pump

The air-source heat pump was a device that drove working fluid circulation through a compressor fueled by electricity. It could convert low heat energy to the required high heat energy and have a cooling function. The mathematical model is defined as follows:

PHASHPt=ηHASHPPASHPt(3)

PCASHPt=ηCASHPPASHPt(4)

where PCASHPt is the cool transmission power, PHASHPt is the heat transmission power, PASHPt is the consumption power, ηHASHP is the heat transmission effectiveness, and ηCASHP is the cool transmission effectiveness.

2.3 Mathematical Model of Lithium-Ion Battery Storage and Cool-Heat Storage Device

The charging and discharging principles of lithium-ion battery storage and cool-heat storage devices were similar. The related model is as follows:

Sstort=Sstort−1(1−δ)+ΔTPchtηch/Etstor−ΔTPdist/(ηdisEtstor)(5)

where Sstort is the charged state of the lithium-ion battery storage and cool-heat storage device, δ is the self-discharge efficiency of the device, Pcht is the charging power of the device, Pdist is the discharging power, ηch is the charging efficiency of the device, ηdis is the discharging efficiency, and Etstor is the total energy capacity of the lithium-ion battery storage and cool-heat storage device.

2.4 Objective Function of the Optimal Dispatching Model on ICEUS

The optimal dispatching objective function of ICEUS constructed in this study had the lowest daily system operating cost. The raw material for the garbage power plant was domestic garbage, which was provided free by users in the service zones of ICEUS, and there was an adequate supply of domestic garbage. Daily operation costs of ICEUS included the electricity transaction cost with the distribution network and the maintenance cost of the system's energy supply and storage devices. The objective function is as follows:

minC=∑t=124(eBUYt+eSELLt2PEXt+eBUYt−eSELLt2|PEXt|+CWTPWTt+CPVPPVt+CWSATEPEWASTEt+CWSATEPHWASTEt+CASHPPASHPt+CESTOR|PESTORt|+CHSTOR|PHSTORt|+CCSTOR|PCSTORt|)(6)

where eBUYt is the electricity buying price of ICEUS and eSELLt is the electricity selling price of the system; PEXt is the electricity transaction value between ICEUS and the distribution network (electricity buying value is positive and electricity selling value is negative); PWTt is wind power; PPVt is PV power; PASHPt is the power consumption of the air-source heat pump; PESTORt is the electrical power of the lithium-ion battery (discharging power value is positive and charging power value is negative); PHSTORt is the heat power of the heat energy storage device (discharging heat power value is positive and charging heat power value is negative); PCSTORt is the cooling power of cooling power storage device (discharging cooling power value is positive and charging cooling power value is negative); CWT is the maintenance cost of wind power generation; CPV is the maintenance cost of PV power generation; CWASTE is the maintenance cost of the garbage power generation combined device; CASHP is the maintenance cost of the air-source heat pump; CESTOR is the maintenance cost of the PV power generation; CHSTOR is the maintenance cost of CCSTOR is the maintenance cost of the garbage power storage device.

2.5 Constraints of the Optimal Dispatching Model on ICEUS

1)   Constraint condition of electrical power balance

PESTORt+PEWASTEt+PEXt+PWTt+PPVt−PASHPt=Pelectriloadt(7)

2)   Constraint condition of heat power balance

PHASHPt+PHWASTEt+PHSTORt=Pheatloadt(8)

3)   Constraint condition of cooling power balance

PCASHPt+PCWASTEt+PCSTORt=Pcoolloadt(9)

4)   Constraint condition of the garbage power generation combined device

PEWASTEmin≤PEWASTEt≤PEWASTEmax(10)

5)   Constraint condition of the lithium-ion battery storage and cool-heat storage device

Because the function and principle of the lithium-ion battery storage and cool-heat storage device were similar, the general model can be used as the constraint condition.

Sstormin≤Sstort≤Sstormax(11)

Sstor0=SstorT(12)

0≤Pdist≤Pdmax(13)

0≤Pcht≤Pcmax(14)

Pstort={Pdist,Pstort≥0−Pcht,Pstort<0(15)

where Sstormax and Sstormin are the maximum and minimum charged states of the lithium-ion battery storage and cool-heat storage device, respectively; Pcmax and Pdmax are the maximum charging power and maximum discharging power of the device, respectively; and Pstort is the charging and discharging power of the device.

6)   Constraint condition of the air-source heat pump

0≤PASHPt≤PASHPmax(16)

7)   Constraint condition of reserve power

PWTmax+PPVmax+PEWASTEmax+PEXmax≥Pelectriloadt(1+Yres)(17)

8)   Constraint condition of the power transaction between ICEUS and the external distribution network

PEXmin≤PEXt≤PEXmax(18)

9)   Constraint condition of regulating load

The electricity load was divided into the regulating load and the nonregulating load in the study. The regulating load indicated that the electricity supply time of the load could be changed. The nonregulating load suggested that the electricity supply time of the load could not be changed. The relevant constraints are as follows:

Pafter(t)=Pfore(t)+∑k=1sPk(t′,t)+∑k=1sPk(t,t′′)(19)

∑t=1TPafter(t)=∑t=1TPfore(t)(20)

where Pfore(t) and Pafter(t) are the power values before and after the load regulation, respectively; Pk(t,t′′) and Pk(t′,t) are the power transmission values of the class k load.

3  Solution to the Optimal Dispatching Model on ICEUS

3.1 Improved SCA Based on Nonlinear Factors and Segment Weight

The optimal dispatch model of ICEUS established in this study had a multivariate nonlinear optimization problem with complex equations. Therefore, an improved SCA based on nonlinear factors and segment weight was proposed to solve the optimal model. SCA [30] was proposed by Australian scholar in 2015. In the algorithm, the individual state update was achieved by changing the mathematical functions of Sine and Cosine. SCA kept the population diversity early, maintained a strong search ability and strengthened the individual local development ability in the later stage. Finally, the global optimal solution was obtained. Formulas included in the algorithm are as follows:

Xijt={dweightt×Xijt+r1×sin⁡(r2)×|r3Pgjt−Xijt|,r4<0.5dweightt×Xijt+r1×sin⁡(r2)×|r3Pgjt−Xijt|,r4≥0.5(21)

r1=a−taT(22)

where formula (21) is the individual update formula in the algorithm; Xijt is the position of the individual i in the space j at iteration t; r1 is the control parameter; Pgjt is the global optimal solution to the population; r2, r3 and r4 are random numbers, and the ranges are r2∈[0,2π], r3∈[−2,2], and r4∈[−1,1], respectively; a=2; and T is the maximum iteration number.

Concerning the problem that the traditional sine-cosine algorithm is easily stuck in a local optimum and has poor convergence accuracy, the following improvement schemes were proposed in the study:

1)   The control parameter r1 was changed from a linear function to a nonlinear function, which was more suitable for the algorithm's actual search process and enhanced the algorithm's search ability. The improved formula is as follows:

r1=1−(tT)2(23)

2)   The updating formula (21) of the individual position was improved. The weight factor was increased. The improved results enabled the algorithm to break out of the trap of local minima more easily and improve the global search ability and convergence accuracy. The improved formulas are as follows:

dweightt={1−tT+e(−r1−r2−2),t<T21−0.9(tT),t>T2(24)

Xijt={dweightt×Xijt+r1×sin⁡(r2)×|r3Pgjt−Xijt|,r4<0.5dweightt×Xijt+r1×sin⁡(r2)×|r3Pgjt−Xijt|,r4≥0.5(25)

where dweightt is the weight factor.

Each individual in the sine-cosine algorithm represents a solution. The solving steps of the dispatch model of ICEUS by the improved SCA were as follows.

1)   Population initialization

The parameters of energy supply devices in ICEUS were randomly initialized as a set of solutions in the range values of energy supply devices.

2)   The fitness of each individual was calculated, and the optimal individual position was found.

Using the improved sine-cosine algorithm, the objective function formula (6) was solved. A set of optimal solutions for energy supply devices of the integrated community energy were obtained.

3)   The individual position was updated based on formulas (23–25)

Formulas (23–25) were used to update a set of solutions to energy supply devices. Then the objective function formula (6) was recalculated to determine whether the current objective function value was better than the previous objective function value. If so, a set of solutions to the energy supply devices with the current objective function values were taken as the current global optimal solution.

4)   If the current iteration number t was smaller than the maximum iteration number T,

Step 3 was returned. Conversely, the algorithm ended and the final results were outputted.

The improved SCA was used to solve the dispatching model of ICEUS. The flow chart is shown in Fig. 3.

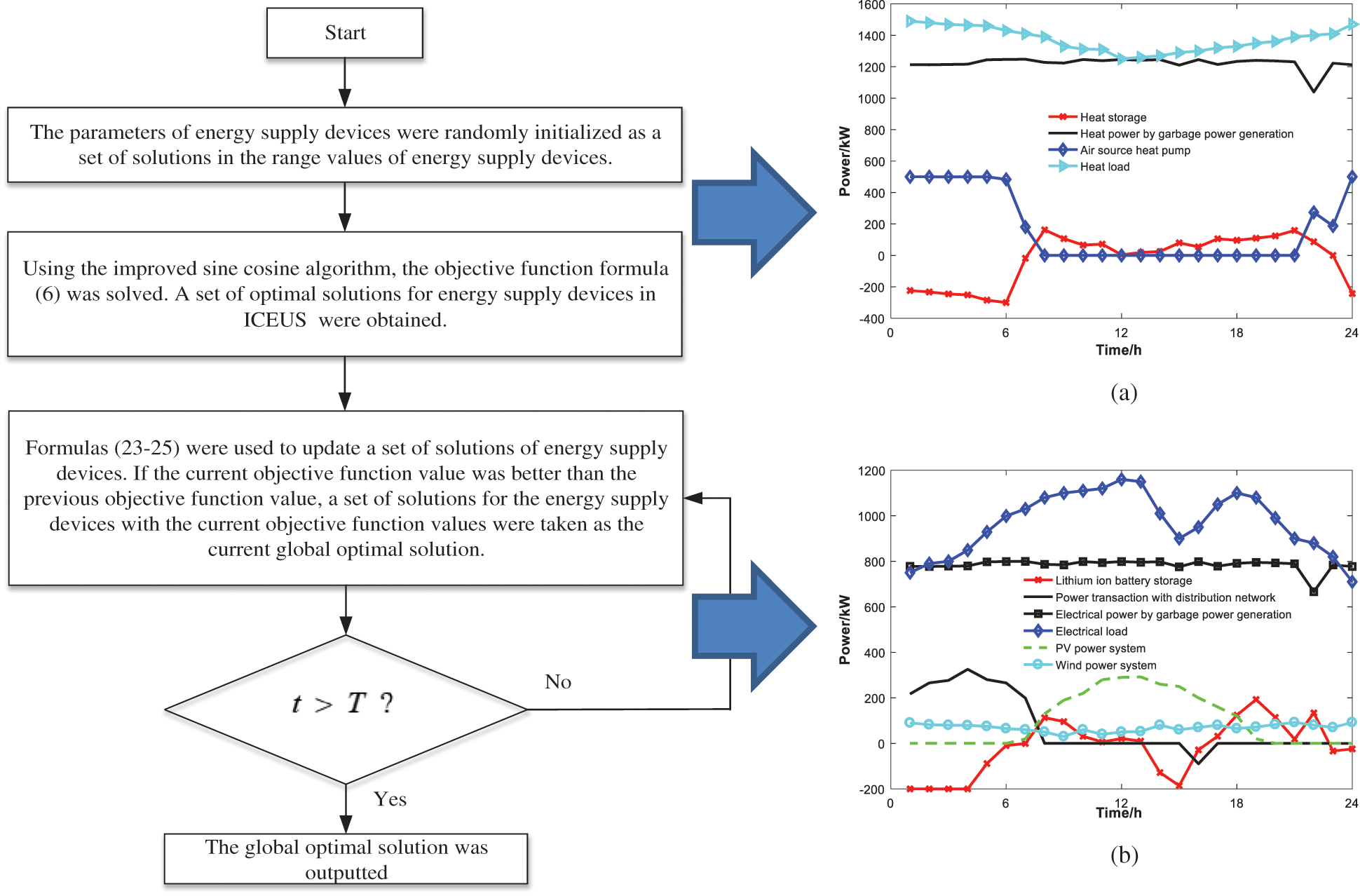

Figure 3: Flow chart of the dispatching model for ICEUS with improved sine-cosine algorithm. (a) Daily dispatching curve of the heat supply device in winter after electrical load regulation. (b) Daily dispatching curve of the electricity supply device in winter after electrical load regulation

3.2 Feasibility of Improved SCA

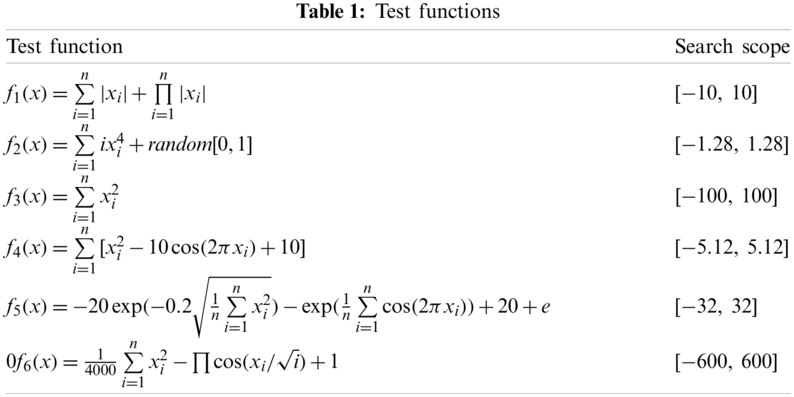

The six test functions were used to verify the feasibility of the algorithm proposed in the study. The six text functions were divided into two groups. One set of functions was a single-peak function including f1(x), f2(x), and f3(x). Another set was a multipeak function including f4(x), f5(x), and f6(x). Single-peak functions were used to test the global convergence of the algorithm. Multipeak functions were used to test the local convergence of the algorithm. The test function dimension was set to 10. The six test functions are shown in Table 1.

PSO [29], SCA [30], PSCA [31], ESCA [31], and the improved SCA proposed in the study were tested. The parameters of the PSO algorithm were as follows: the proportional weight was 0.8; the particle swarm size was 100; the learning factor was 2, and the maximum number of iterations was 200. The parameters of the SCA and its improved algorithm were as follows: the population size was 100, and the maximum number of iterations was 200. The above five algorithms were used to solve the test function, and the simulations are shown in Fig. 4.

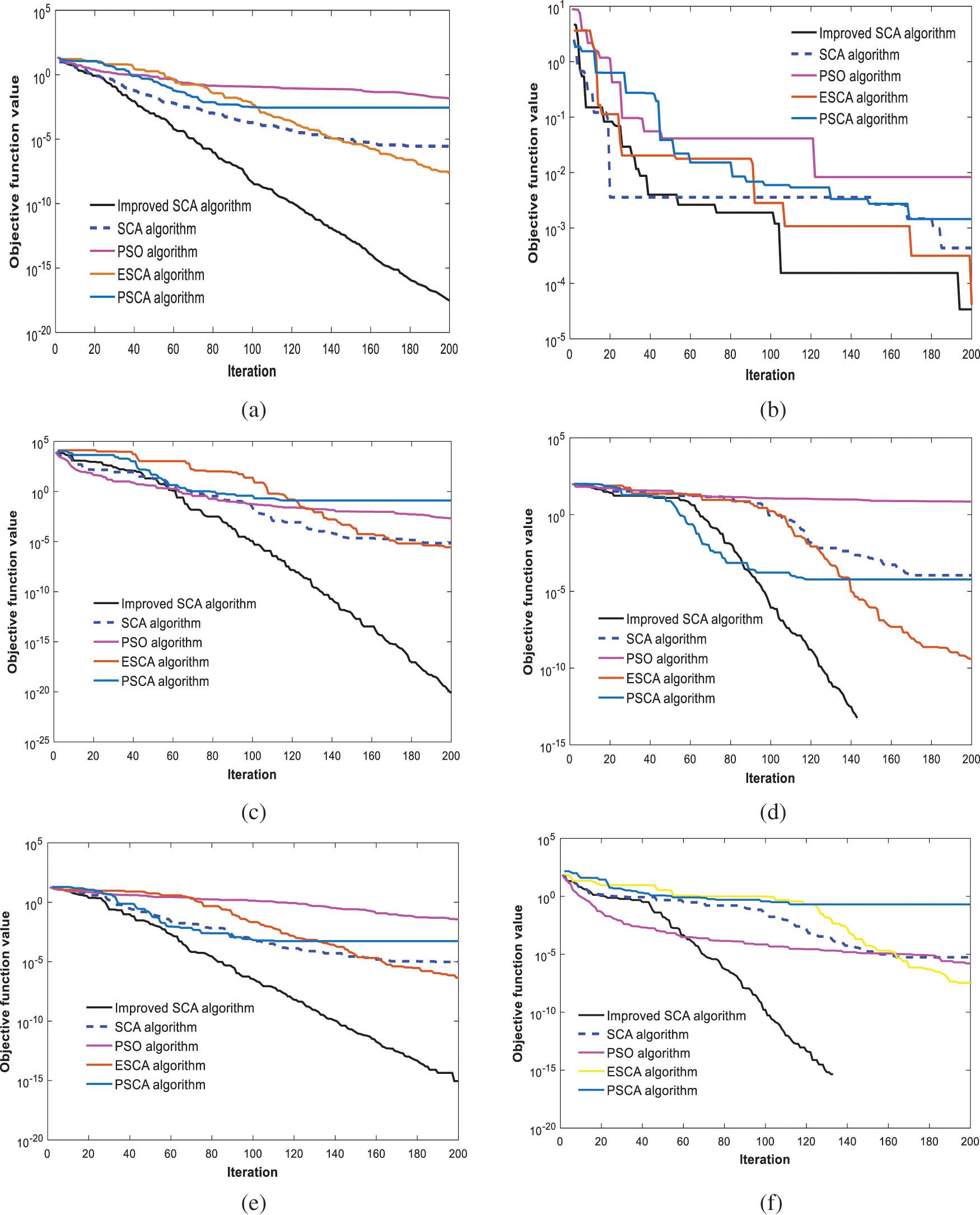

Figure 4: Effect comparison chart of the sine-cosine algorithm and its improved algorithm. (a) Function 1; (b) Function 2; (c) Function 3; (d) Function 4; (e) Function 5 (f) Function 6

Fig. 4 shows that compared with PSO, SCA, ESCA and PSCA, the improved SCA proposed in the study showed significant advantages in optimization ability and convergence speed in the optimal process of the five functions. For example, Function 6 was a multimodal function with more local minimum values. The improved SCA proposed in this paper was able to find the global optimal solution in iteration number 140. The optimal process efficiency of the improved SCA was higher than that of the other four algorithms, which proved the correctness and superiority of the proposed algorithm in this study.

4  Example Analysis

4.1 Basic Data

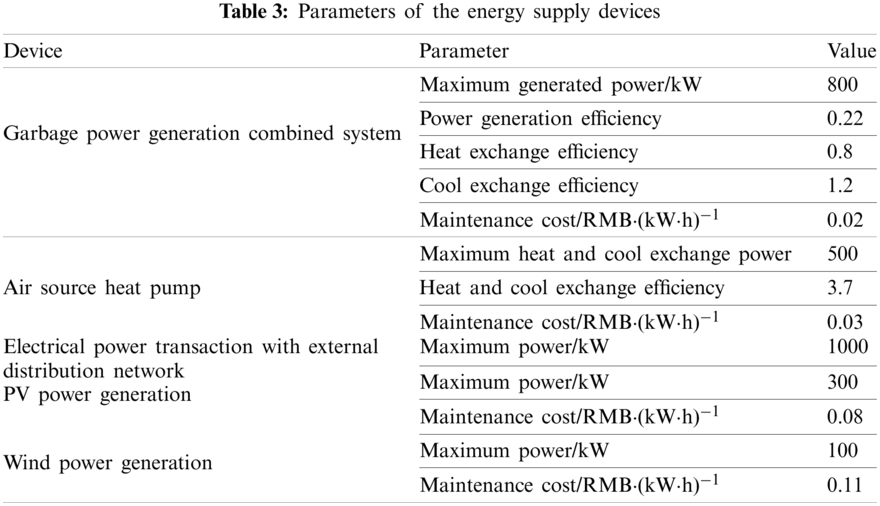

A city community in Western China was taken as a sample of the study. The electrical buying and selling prices of the power grid [32] are shown in Fig. 5. The daily heat-electricity load curves and wind power and PV power prediction curves in winter are shown in Fig. 6. The daily cool-electricity load curves and wind power and PV power prediction curves in summer are shown in Fig. 7. The curves in Figs. 6 and 7 were simulated by Monte Carlo technology [33,34]. The regulating characteristics of ICEUS are shown in Table 2. The parameters of energy supply devices in ICEUS are shown in Tables 3 and 4 [35–37]. The parameters of PSO were as follows: the proportional weight was 0.8; the particle swarm size was 100; the learning factor was 2; and the maximum number of iterations was 200. The parameters of the SCA and its improved algorithm were as follows: the population size was 100, and the maximum number of iterations was 200.

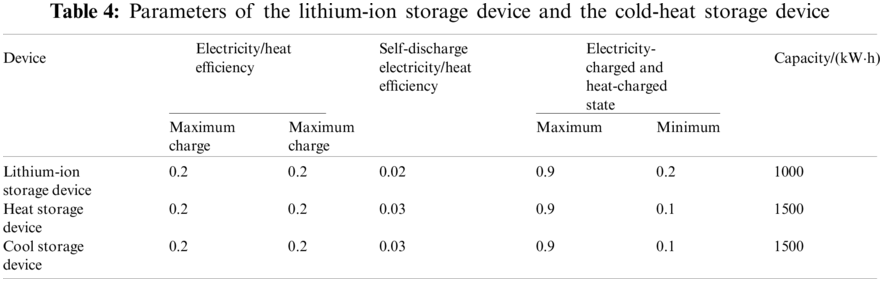

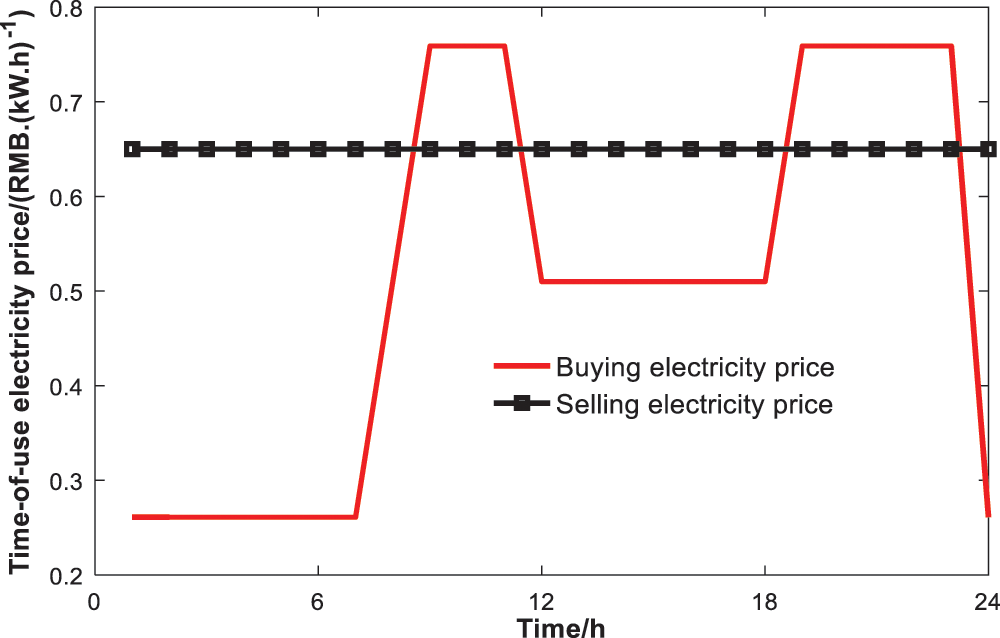

Figure 5: Electrical buying and selling prices of the power grid

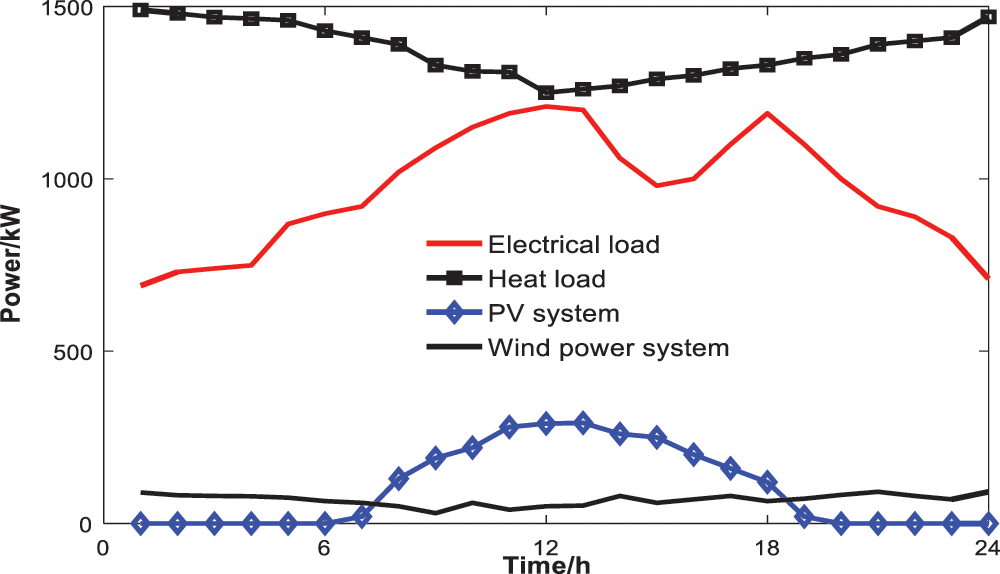

Figure 6: Daily heat-electricity load curves and wind power and PV power prediction curves in winter

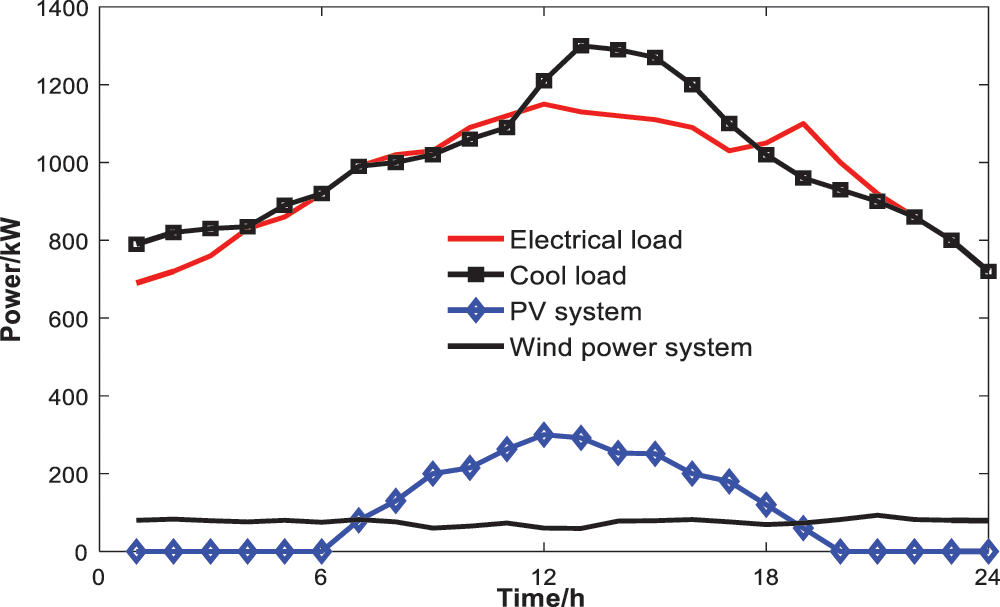

Figure 7: Daily cool-electricity load curves and wind power and PV power prediction curves in summer

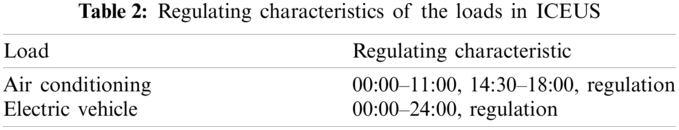

According to the regulating characteristics of the loads in ICEUS at Table 2, related regulating load constraints, and electrical load model in reference [38], when loads transferred in or out were not allowed to reach 110 kW during each period, the internal point method would be used to obtain the winter typical electrical load curves before and after electrical load regulation in Fig. 8. The summer typical electrical load curves before and after electrical load regulation are shown in Fig. 9.

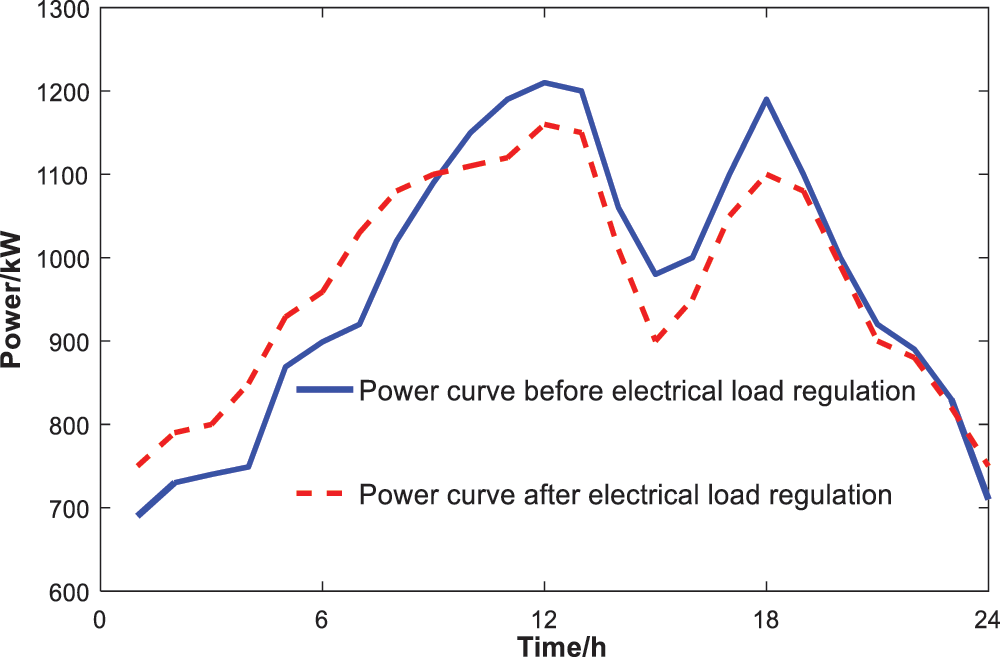

Figure 8: Daily electrical load power curves before and after electrical load regulation in winter

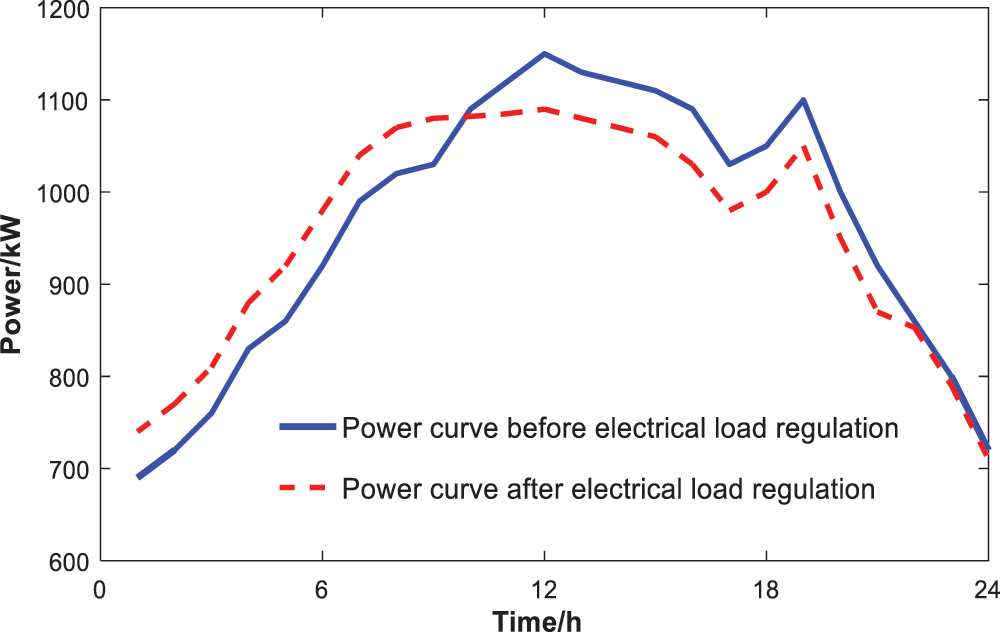

Figure 9: Daily electrical load power curves before and after electrical load regulation in summer

4.2 Daily Dispatching Curve of ICEUS before and after Electrical Load Regulation in Winter and Summer

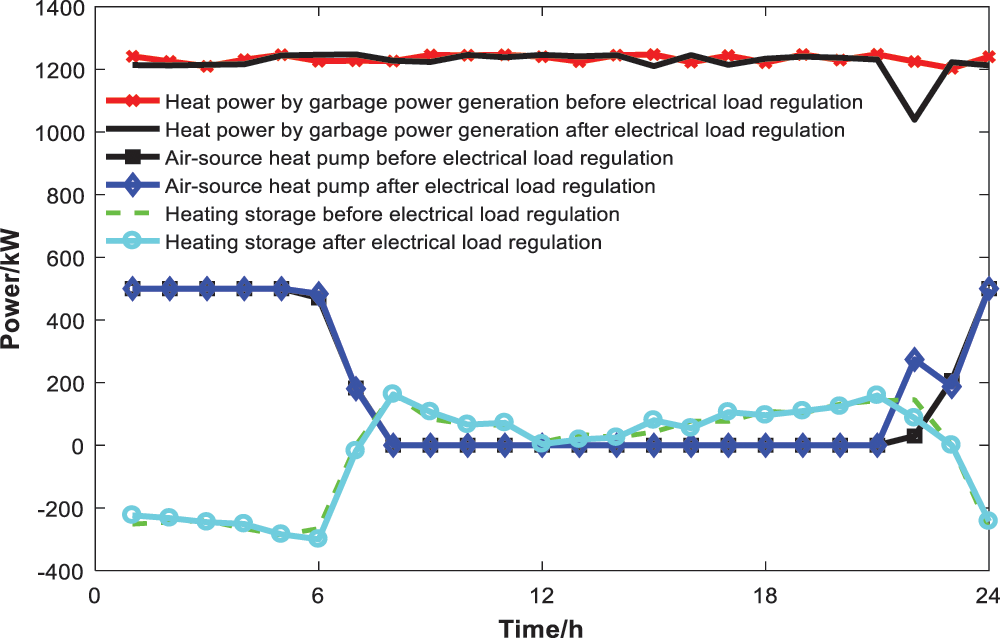

Fig. 10 shows the daily dispatching curve of the heat supply device in winter before and after electrical load regulation. From Fig. 10, during low electricity price periods, i.e., 23:00–24:00 and 00:00–07:00, the air-source heat pump and the garbage power generation combined system could meet the heat load. The heat storage device was charged simultaneously. The integrated garbage power generation system became the main heat supply unit during the high electricity price period, i.e., 07:00–23:00. The unmet heat demand was satisfied by the heat storage device. The heat storage device was charged during the low electricity price period and discharged during the high electricity price period, which met the system demand. The output power was relatively stable because the integrated garbage power generation system was less affected by the electrical load regulation. The dispatching curves of the heat supply device were unchanged before and after electrical load regulation.

Figure 10: Daily dispatching curve of the heat supply device in winter before and after electrical load regulation

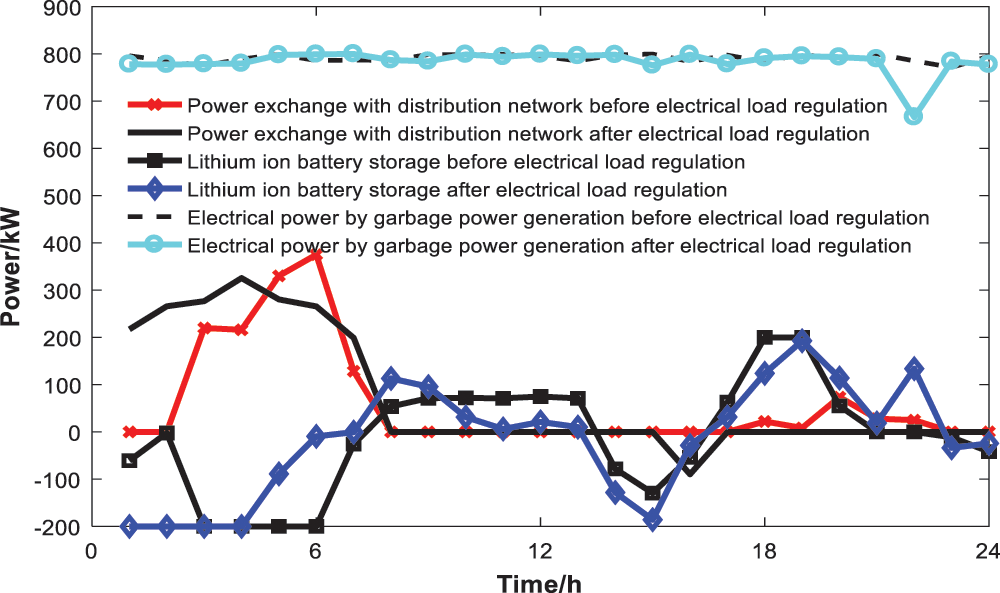

Fig. 11 shows the daily dispatching curve of the electricity supply device in winter before and after electrical load regulation. From Fig. 11, the common points are shown as follows before and after electrical load regulation. During low electricity price periods, i.e., 23:00–24:00 and 00:00–07:00, the electricity load demands were satisfied by buying electricity from the distribution network, the garbage power generation combined system, and the wind power generation system. The lithium-ion battery was charged simultaneously. During the high electricity price period, i.e., 07:00–23:00, the buying price of electricity from external distribution networks was higher. The garbage power generation combined system, PV, wind, and lithium-ion batteries became the main electricity supply units. The function of the lithium-ion battery was peak cutting and valley filling. The different points are shown as follows before and after the electricity load regulation. During the flat and peak periods of the electricity price, except for the electricity required by the residents, the rest of the electricity could be connected to the external distribution network to gain revenues. In the valley period of the electricity price, a large amount of cheap electricity from the external distribution network was used to meet the electrical load demand.

Figure 11: Daily dispatching curve of the electricity supply device in winter before and after electrical load regulation

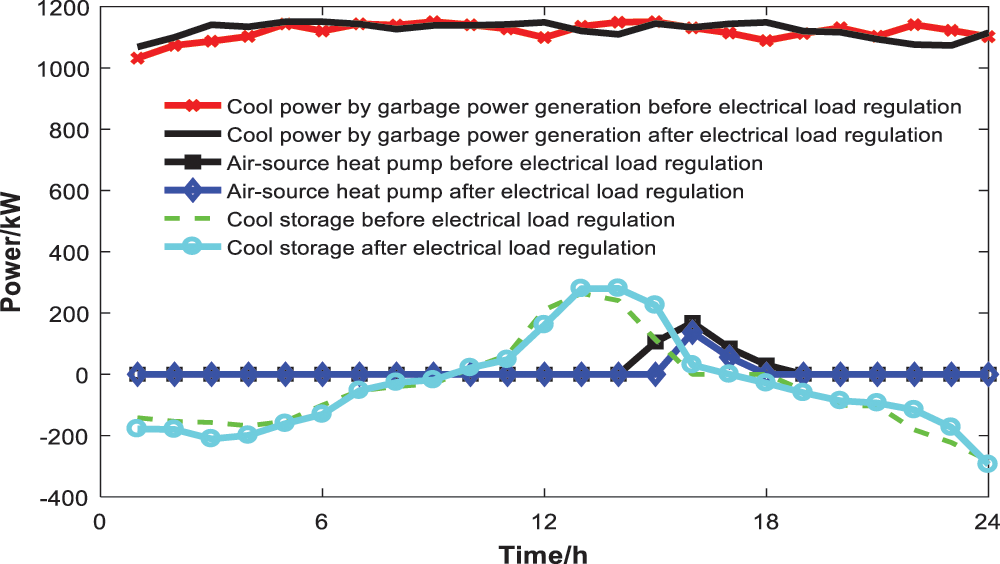

Fig. 12 shows the daily dispatching curve of the cool supply device in the summer before and after electrical load regulation. Similar to the dispatching curve of the heat supply device in winter, during low electricity price periods, i.e., 23:00–24:00 and 00:00–07:00, the garbage power generation combined system met the cooling load. The excess cool power was stored in the cold storage device. The integrated garbage power generation system became the main cold supply unit during the high electricity price period, i.e., 07:00–23:00. The unmet cold demand was satisfied by the cool storage device and the air-source heat pump. The cool storage device was charged during the low electricity price period and discharged during the high electricity price period, which met the system demand. The output power was relatively stable because the integrated garbage power generation system was less affected by the electrical load regulation. The dispatching curve of the cold supply device was unchanged before and after electrical load regulation.

Figure 12: Daily dispatching curve of the cool supply device in summer before and after electrical load regulation

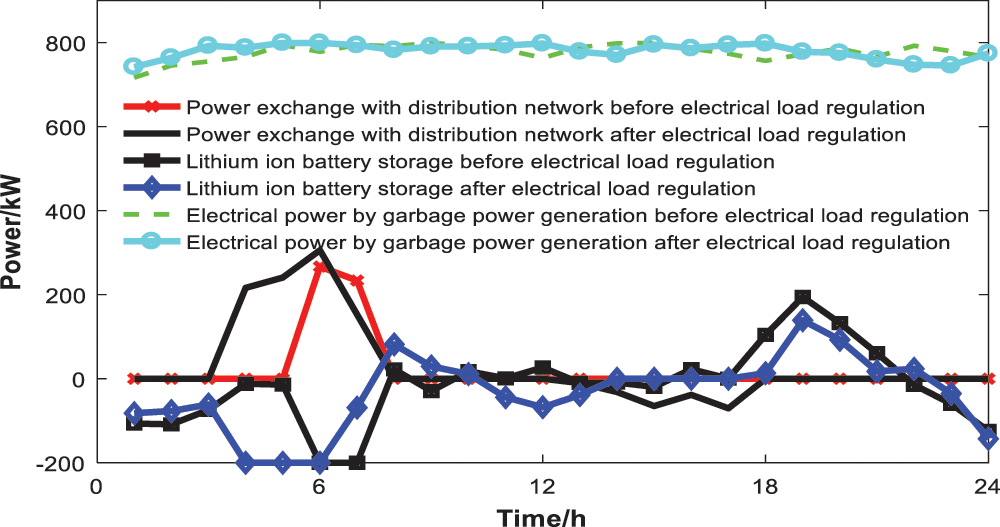

Fig. 13 shows the daily dispatching curve of the electricity supply device in the summer before and after electrical load regulation. Similar to the dispatching curve of the electricity supply device in winter, the common points are shown as follows before and after electrical load regulation. During low electricity price periods, i.e., 23:00–24:00 and 00:00–07:00, the electricity load demand was satisfied by purchasing electricity power from the distribution network, the garbage power generation combined system, and the wind power generation system. The lithium-ion battery was charged simultaneously. During the high electricity price period, i.e., 07:00–23:00, the purchasing price of electricity from the external distribution network was higher. The integrated garbage power generation system, PV, wind, and lithium-ion batteries became the main electricity supply units. The function of the lithium-ion battery was peak cutting and valley filling. The differences are shown below before and after electrical load regulation. During the flat and peak periods of the electricity price, except for the electricity required for the residents, the rest of the electricity power could be connected to the external distribution network to gain revenues.

Figure 13: Daily dispatching curve of the electricity supply device in summer before and after electrical load regulation

4.3 Comparison of Daily Operating Costs of ICEUS before and after Electrical Load Regulation

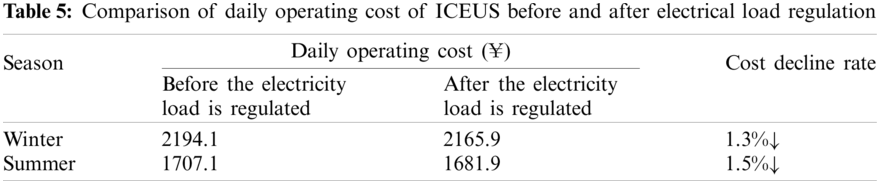

Table 5 shows a comparison of the daily operating costs of ICEUS before and after electrical load regulation. Before the electrical load regulation, the daily operating cost of ICEUS was ¥2194.1 and ¥1707.1 in winter and summer, respectively. After the electrical load regulation, the daily operating cost of the system was ¥2165.9 and ¥1681.9 in winter and summer, respectively. The daily operating cost of the system was cut by 1.3% and 1.5% in winter and summer, respectively. It was proven that finding and controlling the regulating characteristics of the electrical load could reduce the daily operating costs of ICEUS. The economically feasible operation of the system was achieved.

4.4 Performance Validity of the Improved SCA Proposed in the Study

The validity of the proposed algorithm in the paper was verified by PV power, wind power, and electricity-heat-cool load data on a typical day in both winter and summer after electrical load regulation. Fig. 14 shows the comparison curve of the daily operating cost of ICEUS based on five algorithms on a typical day in winter. The daily operating cost of ICEUS was ¥2265.6 by PSO [29], ¥2231.3 by SCA [30], ¥2224.3 by ESCA [31], and ¥2258.4 by PSCA [31]. Compared with PSO, SCA, ESCA, and PSCA, the daily operation cost of ICEUS by the improved SCA was reduced by 4.4%, 2.9%, 2.6% and 4.1%, respectively. The above results showed that a better global optimal solution could be found with the improved SCA, and a more economical daily operating cost and better device dispatching scheme could be obtained. Therefore, the validity and feasibility of the algorithm proposed in this paper was proven.

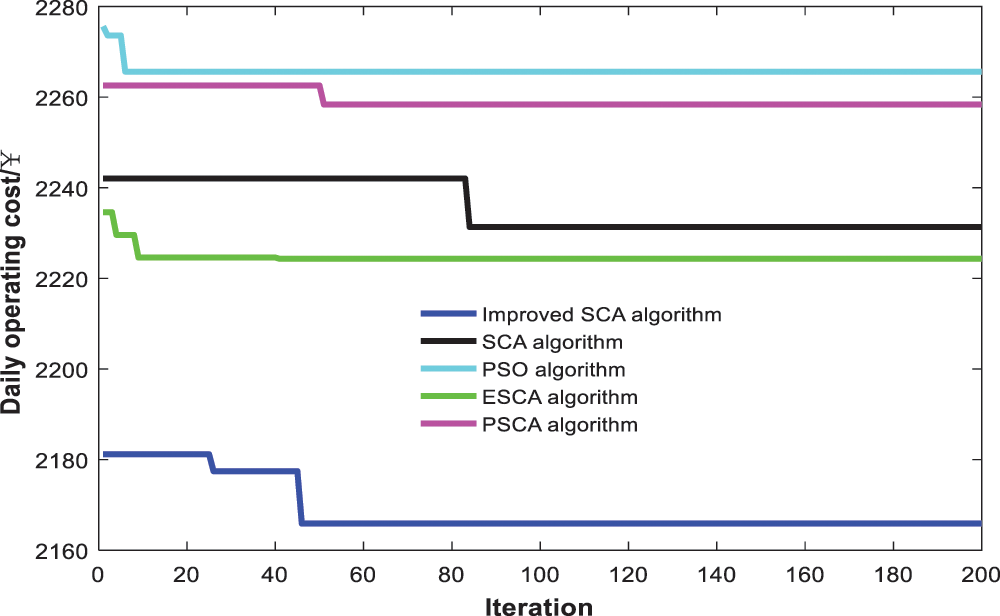

Figure 14: Comparison curve of the daily operating cost of ICEUS based on five algorithms on a typical day in winter

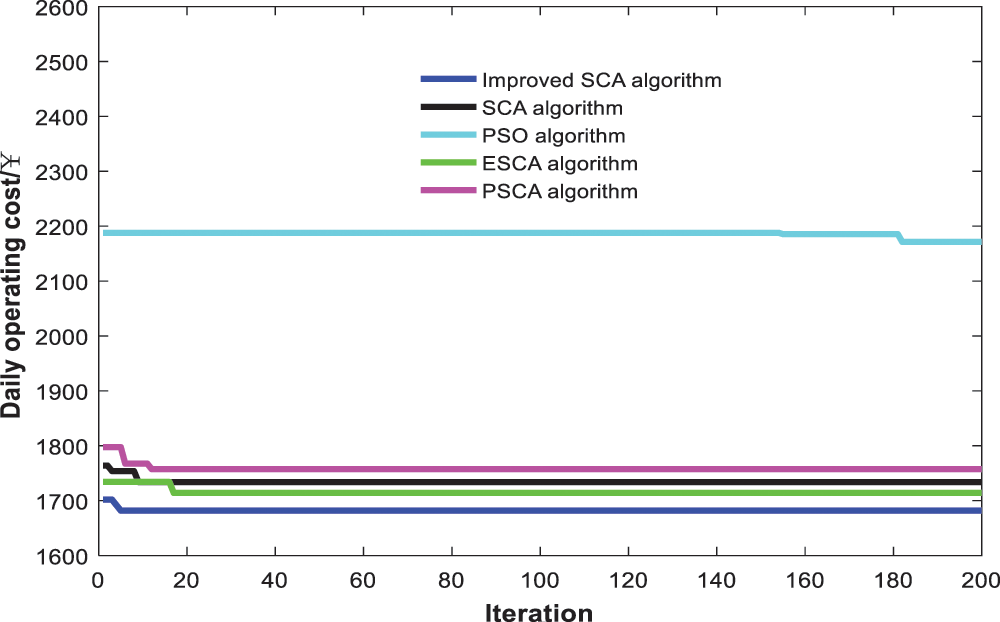

Fig. 15 shows the comparison curve of the daily operating cost of ICEUS based on five algorithms on a typical day in summer. The daily operating cost of the system was ¥2171.4 by PSO, ¥1733.9 by SCA, ¥1714.1 by ESCA, and ¥1757.4 by PSCA. Compared with PSO, SCA, ESCA and PSCA, the daily operation cost of ICEUS by the improved SCA was reduced by 22.5%, 3.0%, 1.9% and 4.3%, respectively. The above results showed that a better global optimal solution could be found with the improved SCA, and a more economical daily operating cost and better device dispatching scheme could be obtained. Therefore, the validity and feasibility of the algorithm proposed in this paper was proven.

Figure 15: Comparison curve of the daily operating cost of ICEUS based on five algorithms on a typical day in summer

5  Conclusion

The structure of ICEUS was constructed in the study. The regulating characteristics of air conditioning and electric vehicles were discovered. The objective function was the lowest daily operating cost. The optimal dispatching model of ICEUS was established. The improved SCA solved the above model based on nonlinear factors and segment weight. The relevant conclusions are shown by example analysis as follows:

1)   By regulating the electrical load, the peak-to-valley difference of the load was reduced. The kinds of energy supply and storage devices were optimally dispatched. The daily operating cost of ICEUS was effectively lowered. After electrical load regulation, the daily operating cost of ICEUS was cut by 1.3% and 1.5% in winter and summer, respectively. Moreover, in the peak period of the load, the rest of the electricity power was connected to the distribution network and supported the operation of the distribution network.

2)   An improved SCA based on nonlinear factors and segmented weights is proposed to solve the optimal dispatching model of ICEUS. Compared with traditional algorithms, there are the advantages of fast convergence speed and high convergence accuracy in the improved SCA. The economic feasibility of the system operation was improved effectively. Therefore, the effectiveness and feasibility of the proposed algorithm in the study was proven.

In the next step, the model will be further improved. Joint optimal dispatching research on multiple ICEUS will be conducted. The rapid development of integrated energy technology will be promoted.

Acknowledgement: We appreciate the support from the School of Information Engineering at Inner Mongolia University of Science & Technology.

Funding Statement: The work is funded partly by the Natural Science Foundation of Inner Mongolia (2019MS05047), Key Technology Projects of Inner Mongolia Autonomous Region (2019GG319) and Research on Key Technologies of MW advanced flywheel energy storage (2020ZD0017).

Conflicts of Interest: The authors declare that they have no conflicts of interest related to the present study.
