| Energy Engineering | |
DOI: 10.32604/EE.2021.017270
ARTICLE
Modelling and Optimal Design of Hybrid Power System Photovoltaic/Solid Oxide Fuel Cell for a Mediterranean City
1School of Materials Sciences and Engineering, Wuhan University of Technology, Wuhan, China
2Power and Control Department, Electronic and Electrical Engineering Institute, M'hamed Bougara University, Boumerdes, Algeria
3Sustainable and Renewable Energy Engineering Department, University of Sharjah, Sharjah, United Arab Emirates
4Institute of Manufacturing Information and Systems, National Cheng Kung University, Tainan, Taiwan
5Electrical Engineering Department, University of Sharjah, Sharjah, United Arab Emirates
*Corresponding Author: Mamdouh El Haj Assad. Email: massad@sharjah.ac.ae
Received: 27 April 2021; Accepted: 03 August 2021
Abstract: This work presents a hybrid power system consisting of photovoltaic and solid oxide fuel cell (PV-SOFC) for electricity production and hydrogen production. The simulation of this hybrid system is adjusted for Bou-Zedjar city in north Algeria. Homer software was used for this simulation to calculate the power output and the total net present cost. The method used depends on the annual average monthly values of clearness index and radiation for which the energy contributions are determined for each component of PV/SOFC hybrid system. The economic study is more important criterion in the proposed hybrid system, and the results show that the cost is very suitable for the use of this hybrid system, which ensures that the area is fed continuously with the sufficient energy for the load which assumed to be 500 kW in the peak season. The optimized results of the present study show that the photovoltaic is capable of generating 8733 kW electricity while the SOFC produces 500 kW electricity. The electrolyzer is capable of producing 238750 kg of hydrogen which is used as fuel in the SOFC to compensate the energy lack in nights and during peak season.
Keywords: Energy storage; PV/SOFC; hybrid systems; hydrogen production; energy and economic optimization
For sustainable development, the transmission of electrical energy for isolated areas is problematic and it occurs at high cost. Therefore, using renewable energy sources is imperative. For the increase of system reliability and security, a hybrid energy source schemes should be adopted [1]. Several works have discussed how to determine the optimal design of hybrid energy systems, where it results that separated renewable energy hybrid generation systems proved itself as a good solution for isolated areas or where a lack of grid is faced [2]. There are many works about design and analyses in the context of hybrid renewable energy power generation [3,4] where the results were very promising. For this reason, it is advisable to think about PV/SOFC hybrid system in the region of Bou-Zedjar in the north of Algeria due to its favorable climate, which is suitable for PV operating temperature. In fact, this advanced technology can be used on a large scale [5–8]. Additionally, a battery storage is required [9–11] to ensure the continuous source of electricity. The use of super capacitors in the case of energy storage problems is a viable solution [12,13]. The complementary combination of renewable energy sources provides a continuous power output with the support of storage devices hence the hybrid system is more reliable [14,15].
The application of the proposed hybrid system is a challenging and important step as Algeria has strong solar energy capabilities, and it needs to develop systems with renewable energy sources for the large number of remote areas in the country. Therefore, it is necessary to know the contribution of each source (PV/SOFC) to provide the required electricity load to produce, taking into account the economic factor. In case the renewable sources are unable to handle the load demand, the hybrid system can be supported with a conventional energy source such as diesel generator [16–21].
According to reviews of other research works, the present study was not only able to meet the energy needs of the region by proposing the following hybrid system (PV/SOFC), but also reduce the initial cost. Based on this optimization, the proposed system can be used for replacing diesel generators and reducing the polluting gases. The most important point in this research is that the optimization of the system is considered without using the battery for energy storage, which has a significant effect on the cost. According to the authors knowledge, this study is the first work that has been applied to a city in Algeria.
Renewable energy sources became a good solution for many home owners in the world for the reduction of grid dependency, and thus a big domain of study for researchers; a case study in Sapporo, Japan where the energy consumption reduced by 66% for residents with PV/Fuel Cell (FC) energy system [22], as well as for rural areas, the off-grid applications are essential for farms in water pumping, or small villages, as the case of Northern Australia where Solar/Metal Hydride/Fuel Cell became the energy source for more than 100 communities with a load of hundreds of kW [23], in some studies, the real and reactive power (PQ) in a PV/SOFC microgrid operation was controlled for load changes in a grid connected and islanded mode for maximizing the power output using a heuristic method (artificial bee colony (ABC)) [24], or using fuzzy logic controller (FLC) for the Maximum Power Point Tracker (MPPT) purpose in solar power for a PV/SOFC system by considering a 1.26 kW proton exchange membrane FC with 950 W PV power output [25]. “V. P. Vinod” used the Improved Particle Swarm Optimization (IPSO) for the control of the voltage and frequency of the PV/SOFC microgrid [26]. A study case combined tidal power with PV/SOFC system in Ternate and Pulau-Tidore Islands with a maximum load of 1200 kW, a battery Energy Storage System (BESS) also has been added for better reliability with a 38.6 kWh storage capacity [27]; and a comparison of PV/BESS with PV/SOFC technologies ended with showing the preference of the PV/SOFC system which has lower cost and better feasibility, such that for 25 years of work, the Levelized cost of electricity (LCOE) for PV/BESS is 0.16 US$/kWh, and 0.11 US$/kWh for PV/SOFC [28].
The chosen site for our study is an isolated coastal and tourist village in Algeria called Bou-Zedjar at latitude: 35.5744°N and longitude: −1.16695°E. This village is located in Ain Temouchent province and consists of a few tourist complexes. The actual readings for the location were obtained from the NASA atmospheric data center [29]. Solar PV and SOFC can be a sustainable and more convenient solution for providing environmentally friendly energy. Meteorological data used are solar radiation and ambient temperature for this area.
Hybrid Optimization Model for Electric Renewables (HOMER) is a computer software which is developed by the U. S. National Renewable Energy Laboratory to make the hybrid power configuration systems easier as well as their technology comparison in different designs [30].
The simulation covers a study period of one year with 1 min step, which analyzes the design sensitivity and gives outputs to different inputs before the design construction. The optimization simulation goal is the economic evaluation and technical possibility in terms of technology, cost and energy resource availability [30–34].
The software simulation gives several possible designs, with a best hybrid power system configuration optimization [35]. In this study, different options such: PV generators, fuel cells, electrolyzer, and a hydrogen storage as a hybrid power system were used.

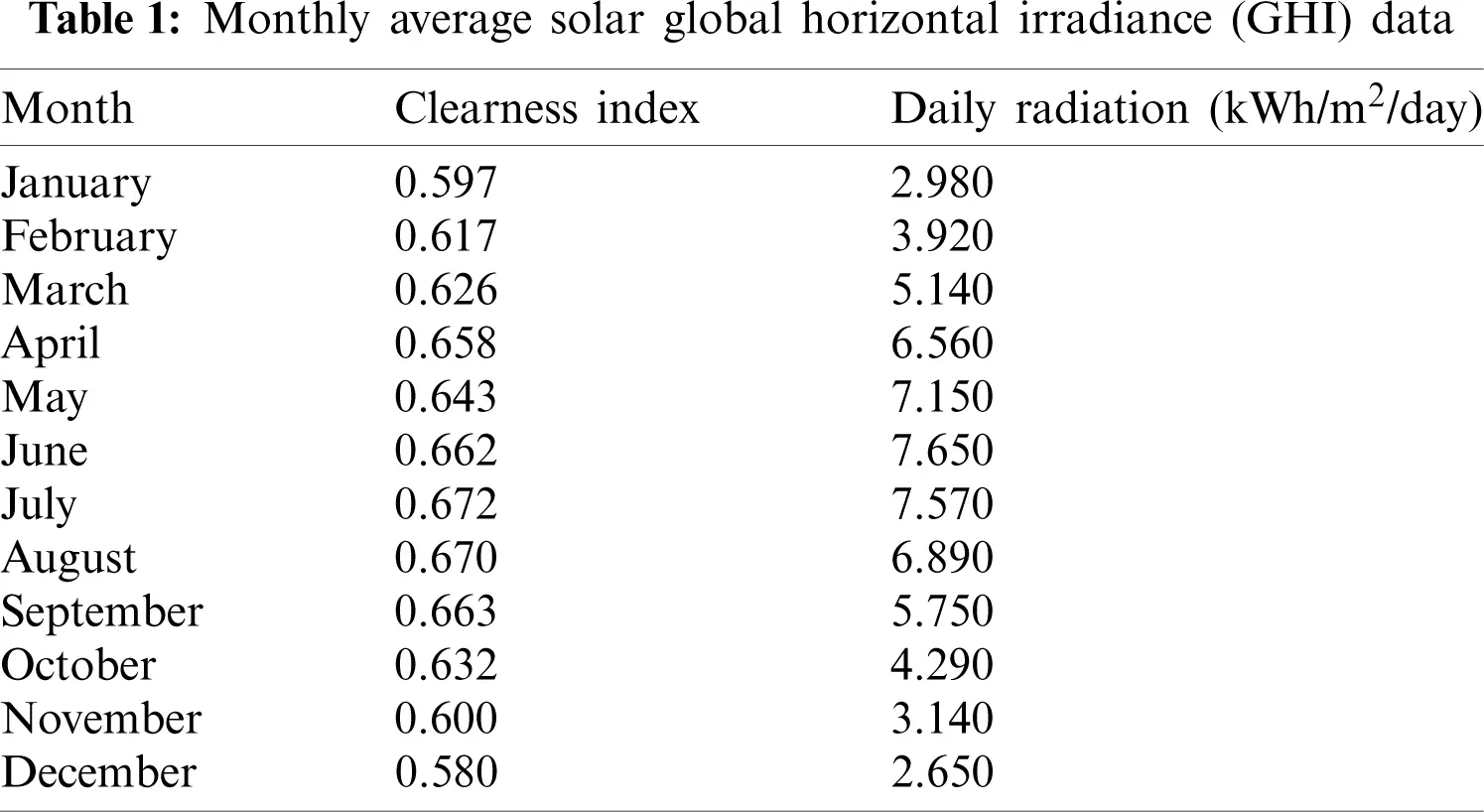

The annual assessment of the climatic characteristics of the site is shown in Fig. 1 and Tab. 1.

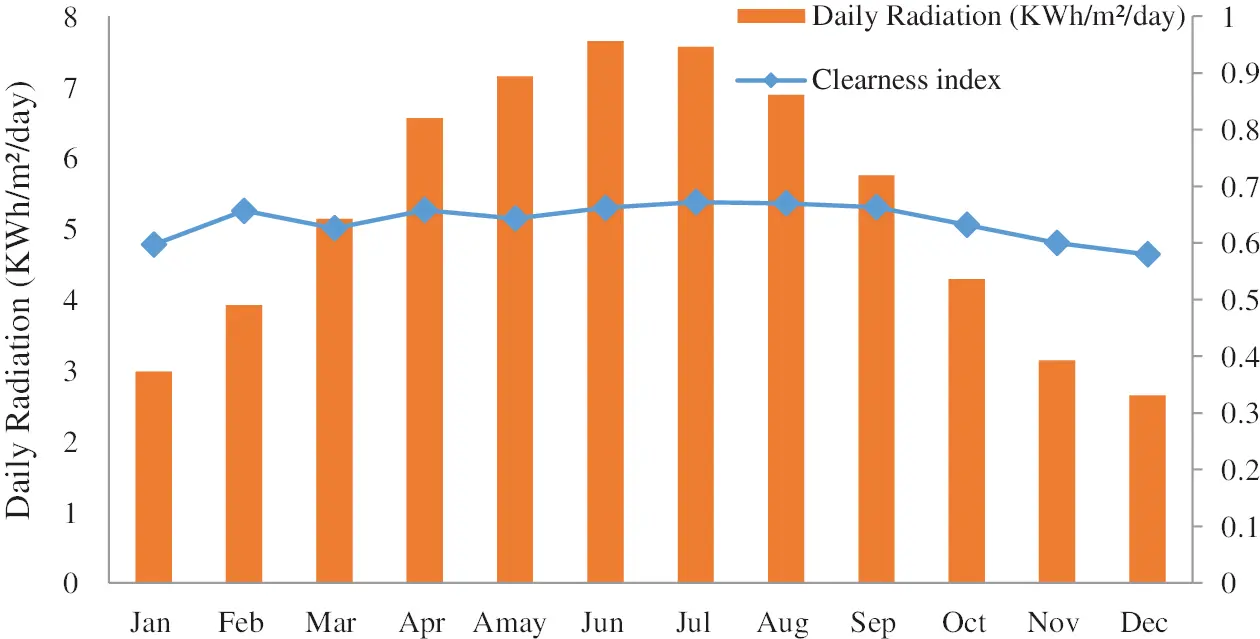

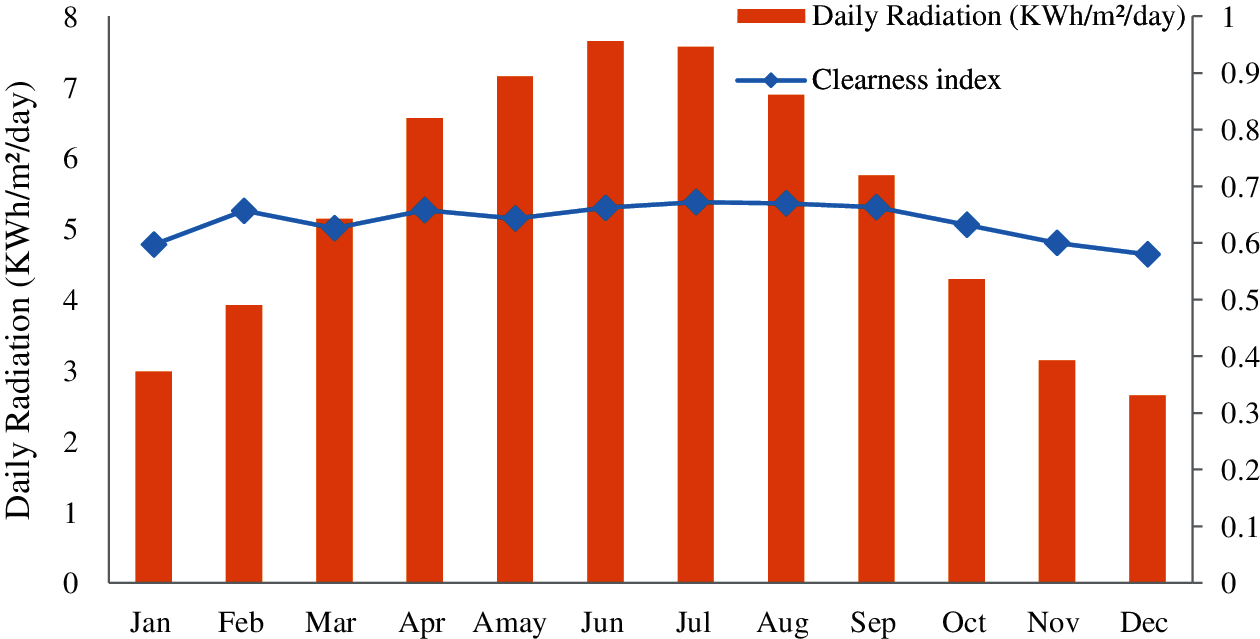

Figure 1: Daily Radiation (kWh/m²/day) and clearness index
Fig. 1 shows that the Bou-Zedjar City has a good amount of solar radiation throughout the year, especially in summer. It can be observed from Tab. 1 that the clearness index is in the range of 0.58 to 0.7, which means that clean energy can be generated with high return. Thus, a hybrid power system consisting of a PV/SOFC is a viable strategy and a feasible solution.
The mathematical formulations of the prosed hybrid system are given in the next sections and these formulations are solved in order by HOMER software.
The monthly average clearness index is defined as:
where Have is the monthly average radiation on the horizontal surface of the earth [kWh/m2/day] and Ho, aveis the extraterrestrial horizontal radiation, meaning the radiation on a horizontal surface at the top of the earth's atmosphere [kWh/m2/day].
Ho, ave can calculated for any month of the year for a given latitude. By knowing either Have or KT, HOMER is able to compute the other for each new value entered into the monthly data table in the solar resource inputs using Eq. (1).
The following equation is used by HOMER to calculate the intensity of solar radiation at the top of the Earth's atmosphere:
where Gsc is the solar constant which is considered as 1.367 kW/m2 and n is the day of the year [30].
Eq. (2) gives the extraterrestrial radiation on a surface normal to the sun's rays.
The extraterrestrial radiation on the horizontal surface is expressed by:
where θZis the zenith angle which is calculated from:
where ϕ is the latitude, δ is the solar declination angle and ω is the hour angle.
The solar declination angle is expressed by:
where n is the day of the year.
The total daily extraterrestrial radiation per square meter can be found by computing the integral of
where
The average for the month using the following equation:
where N is the number of days in the month.
HOMER software divides the monthly average global solar radiation by Ho, ave to find the monthly average clearness index.
4.1.2 Radiation Incident on PV Array
The location of the sun in the sky depends on the time of day, it can be described by an hour angle. HOMER takes the hour angle as zero at solar noon (when the position of the sun is in the highest point in the sky), negative before solar noon, and positive after solar noon. The hour angle can be found using the following equation:
where tsis the solar time in hours.
It is assumed that all time-dependent data are specified in civil time (local standard time) not in solar time. The solar time in hours is calculated by:
where tc is the civil time in hours corresponding to the midpoint of the time step [hr], λ is the longitude [°], Zc is the time zone in hours east of GMT [hr] and E is the equation of time [hr]
The equation of time is calculated as:
where B is given by:
where n is the day of the year, starting on the first of January.
The angle of incidence can be defined using the following equation:
where θ is the angle of incidence, β the surface slope, γ is the azimuth of the surface.
Because of the simulation on a time-step-by-time-step basis in HOMER software, the equation of the extraterrestrial radiation on the horizontal surface is integrated over one time step to find the average extraterrestrial horizontal radiation over the time step:
where ω1 is the hour angle at the beginning of the time step and ω2 is the hour angle at the end of the time step.
The clearness index is defined as follows:
where
where
HOMER measures only the global horizontal radiation in most cases that is why HOMER's Solar Resource Inputs should be filled up with the global horizontal radiation then, in every time step, HOMER will find its components to define the radiation incident on the PV array. The diffuse fraction as a function of the clearness index is expressed as [36]:
To calculate the global radiation striking the tilted surface of the PV array, HOMER uses the HDKR model (Hay & Davies, Klucher & Reindl) which assumes that there are three components of the diffuse solar radiation: an isotropic component, a circumsolar component, and a horizon brightening component.
The HDKR model calculates the global radiation incident on the PV array by the following equation:
where Ai is the anisotropy index which is defined as
where ρg is the ground reflectance [%].
The output of the PV array is obtained by:
where YPV is the rated capacity of the PV array, meaning its power output under Standard Test Conditions (STC) [kW], fPV is the PV derating factor [%],
The proposed hybrid system consists of two energy providers: photovoltaic cells (PV) and solid oxide fuel cell (SOFC); in addition to an electrolyzer to provide hydrogen which is stored in a hydrogen tank and a converter. Fig. 2 shows the schematic of PV/SOFC hybrid system.

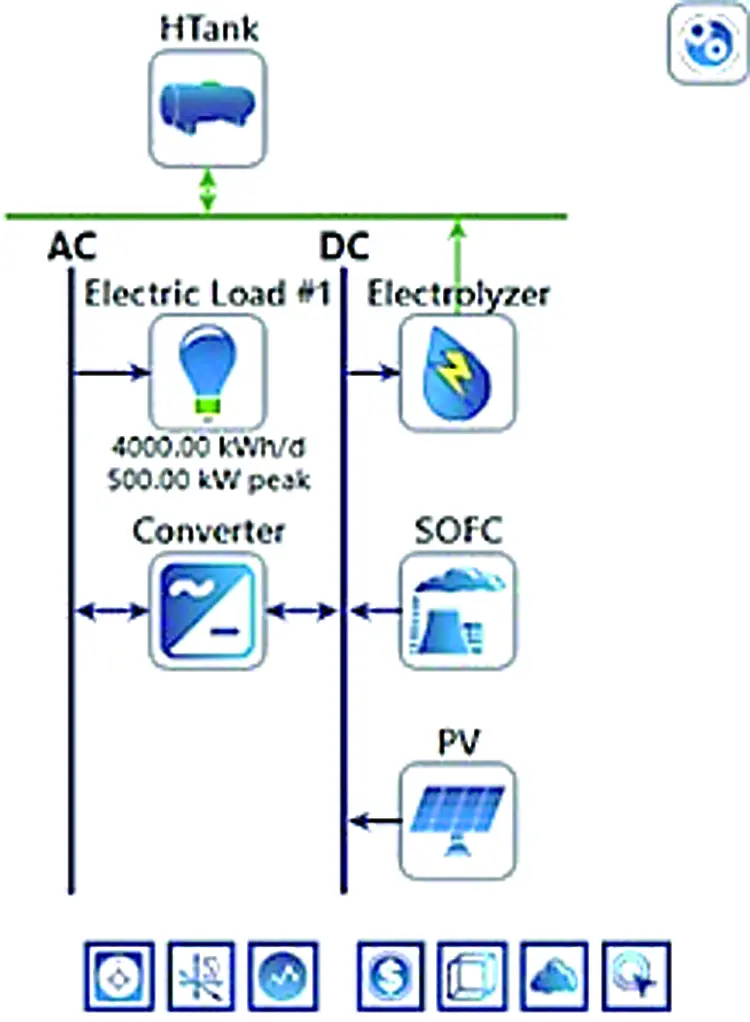

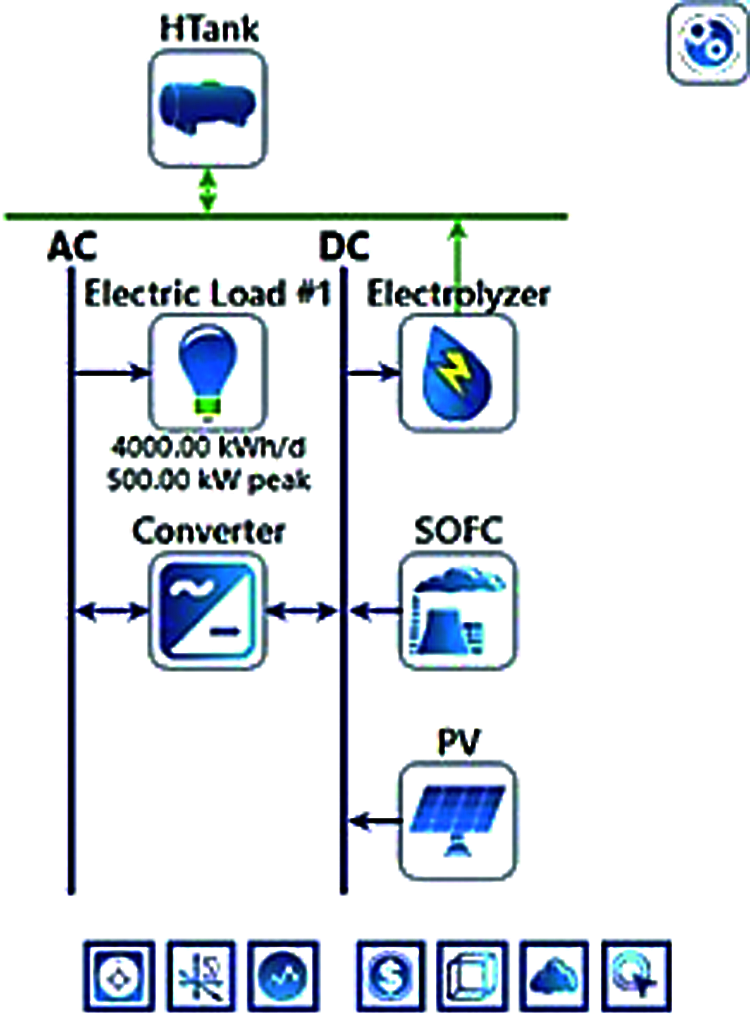

Figure 2: Schematic of the proposed PV/SOFC hybrid system
Fig. 3 shows the variations of hourly average load for all months of the year. it is noted that there is a difference in the annual peak load between winter and summer seasons, where the highest value was recorded in June to July with 500 KW, while the lowest value of load was recorded in the fall and winter season (November to January) with 160 kW.

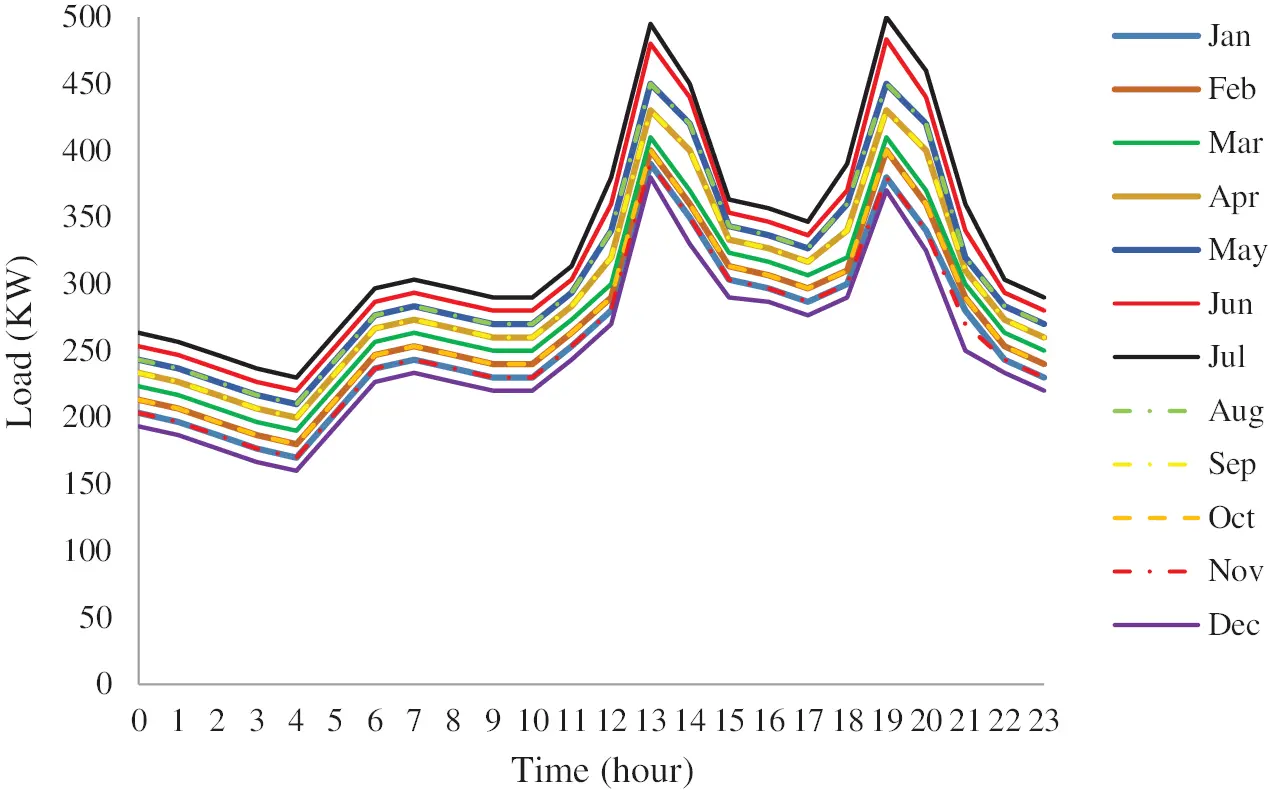

Figure 3: Hourly average load variations in a year for all months
The annual operation output divided by the load is shown in Fig. 4, while Fig. 5 shows the annual operation output divided by the generator load.

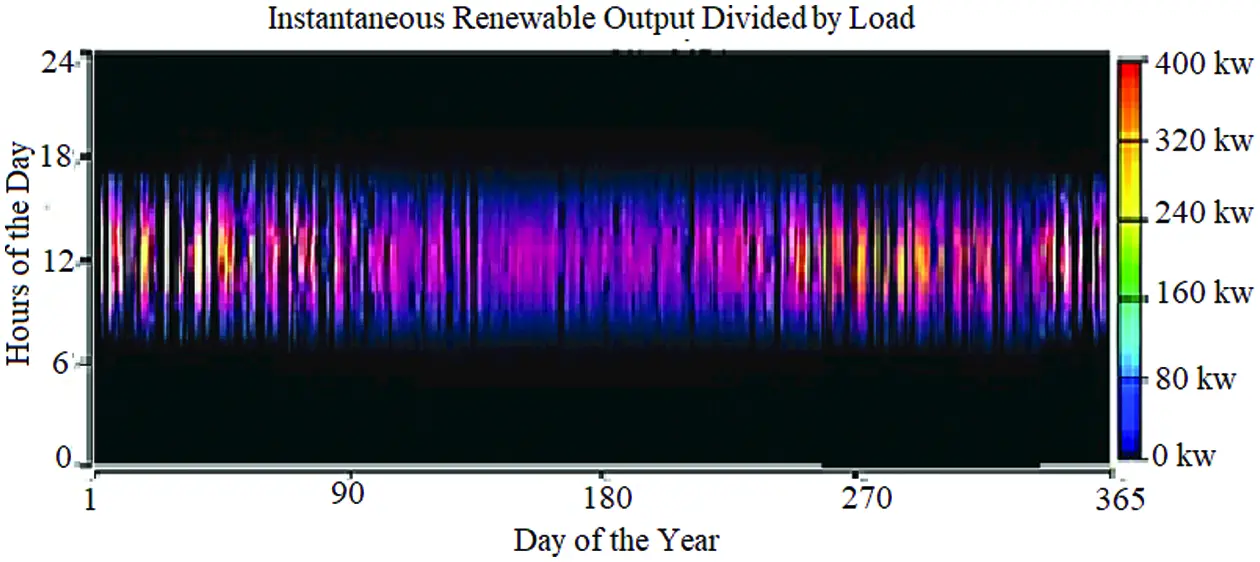

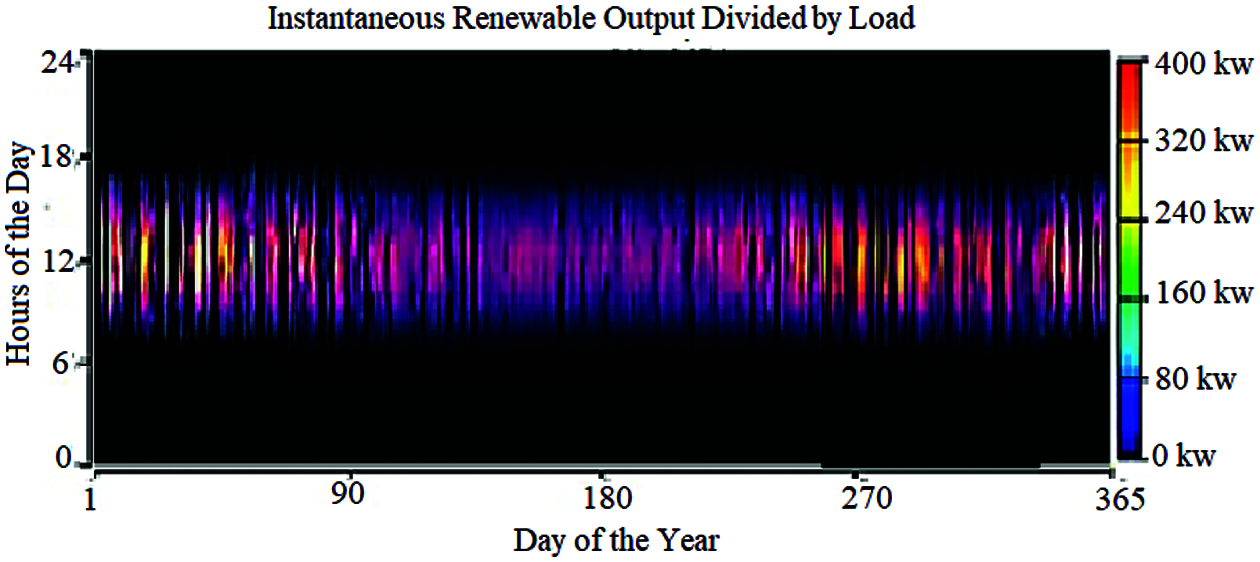

Figure 4: Instantaneous renewable output divided by load
The annual operation outputs of the SOFC and PV are shown in Figs. 6a and 6b, respectively. According to the weather data and the load demand of Bou-Zedjar City, we used the results presented in Figs. 4–6, to understand the operational strategy for our power hybrid system.

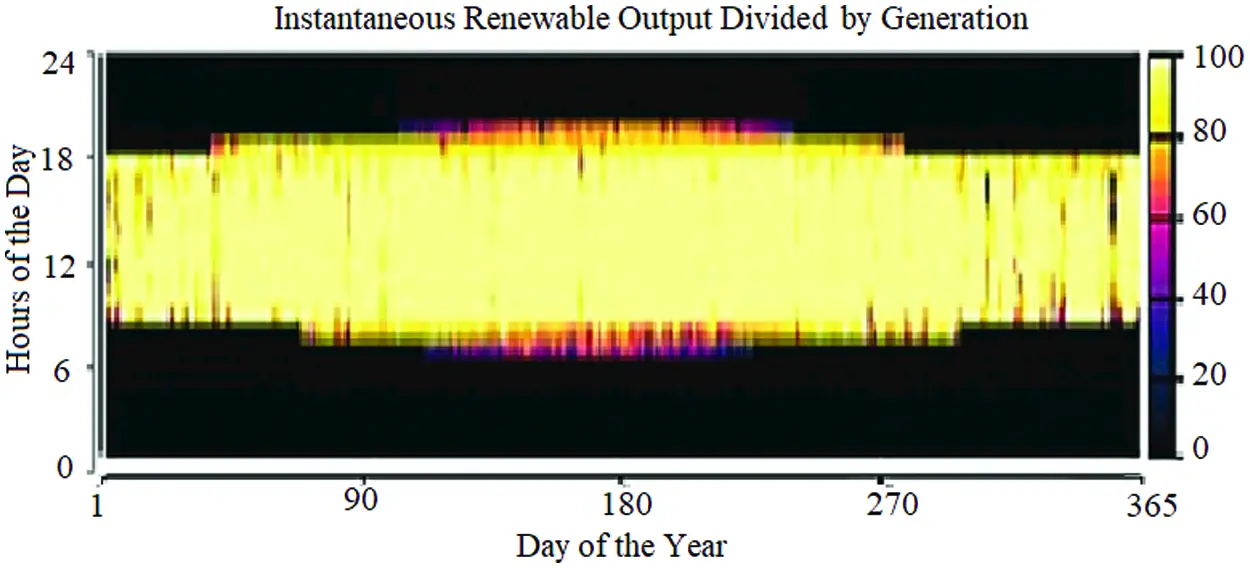

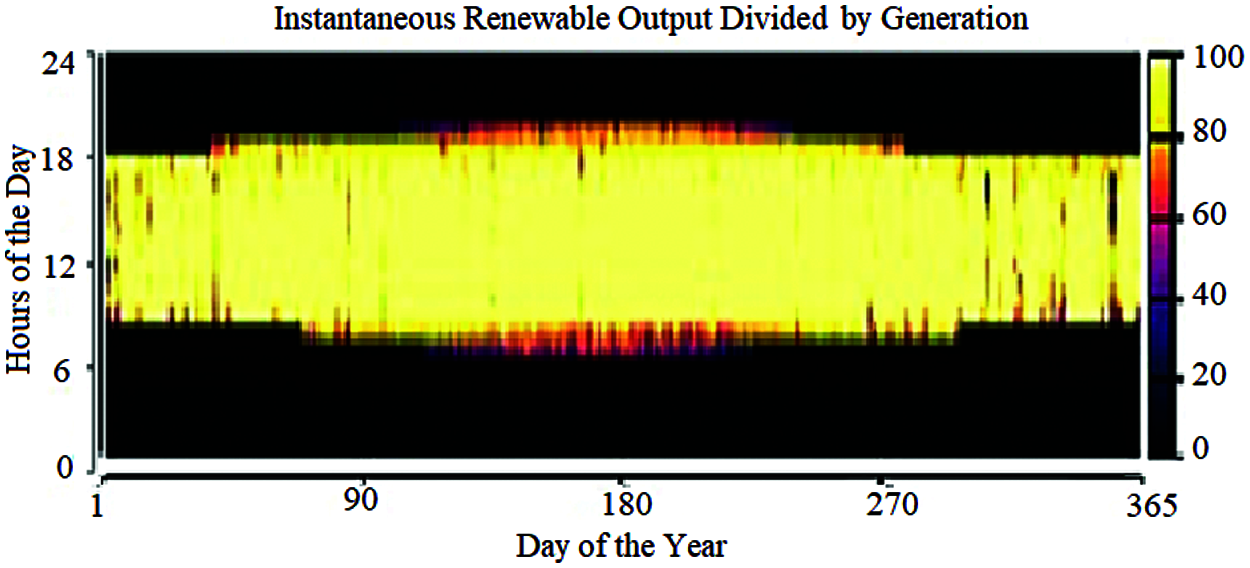

Figure 5: Instantaneous renewable output divided by generation

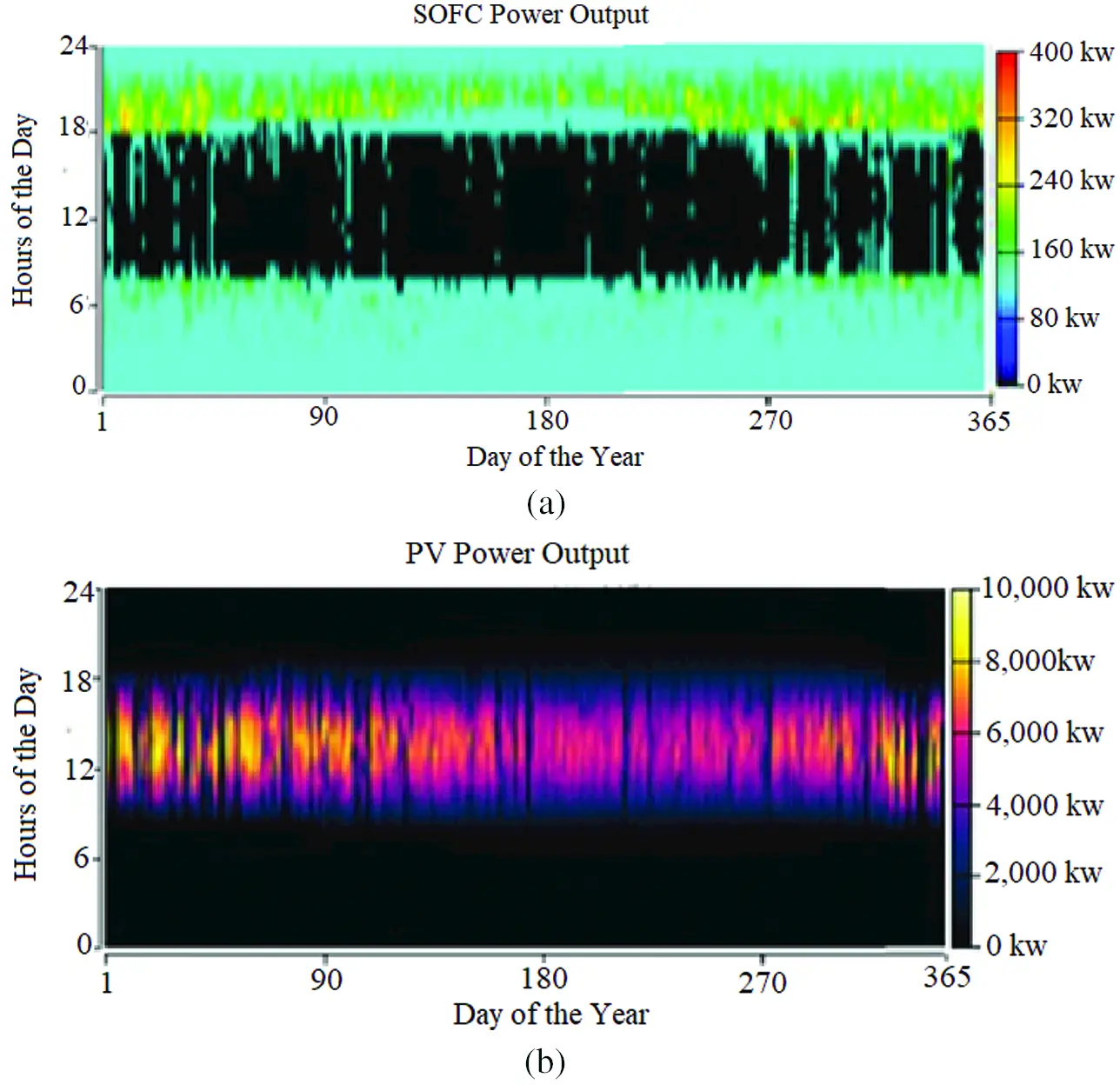

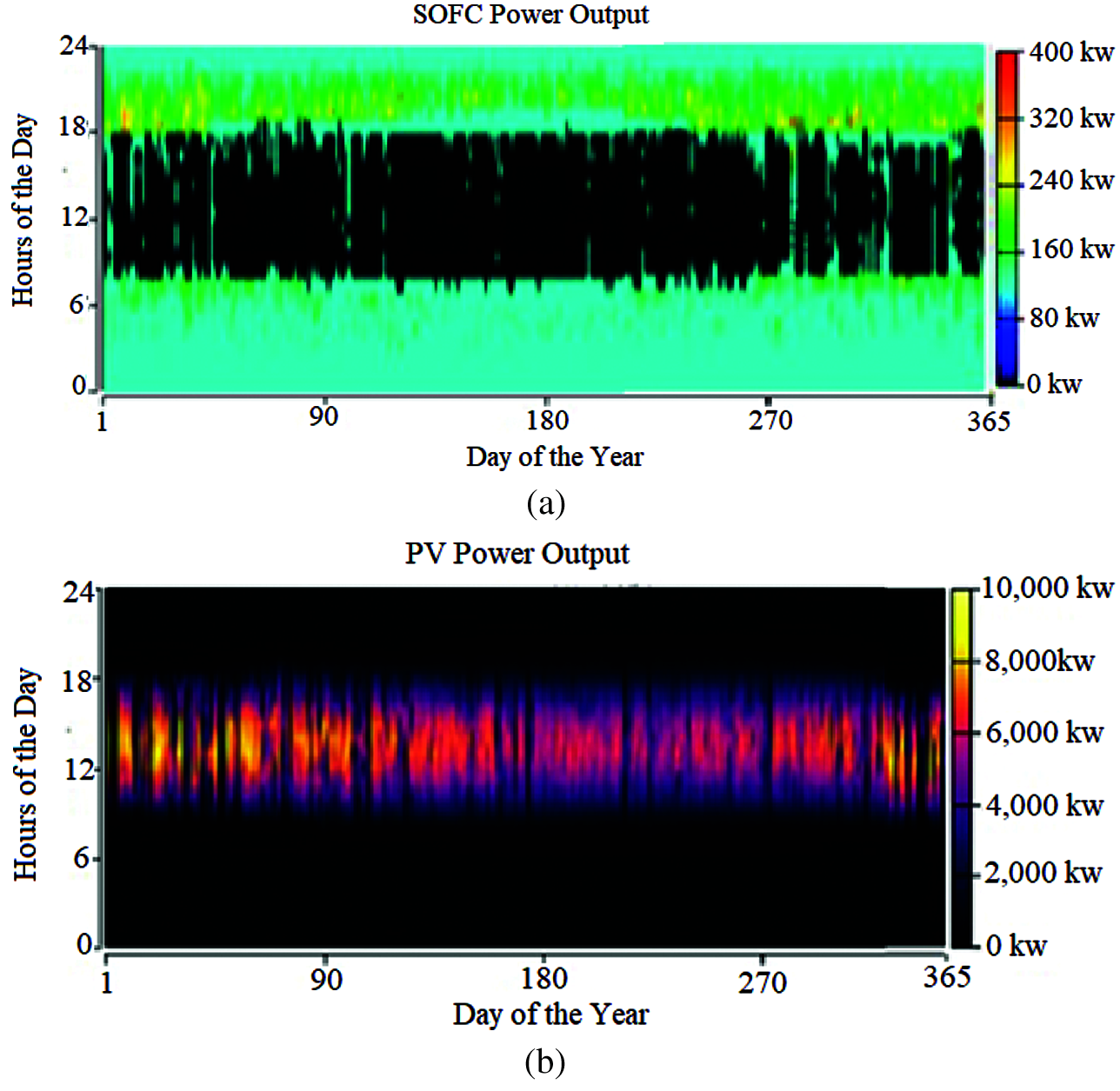

Figure 6: (a) The SOFC power output; (b) The PV power output
6 Solar Resource with PV and SOFC Generator Data
Since the PV cells produce direct current, a converter is used to convert the direct current produced by the photovoltaic cells into alternating current. The solar cells will produce water vapor which is sent to the electrolyzer whose function is to separate the hydrogen gas and send it for storage in the storage tank. The stored hydrogen is used by the SOFC which is for energy compensation when the sun is unavailable (night and rainy days).
The energy produced by the two generators is shown in Fig. 7.

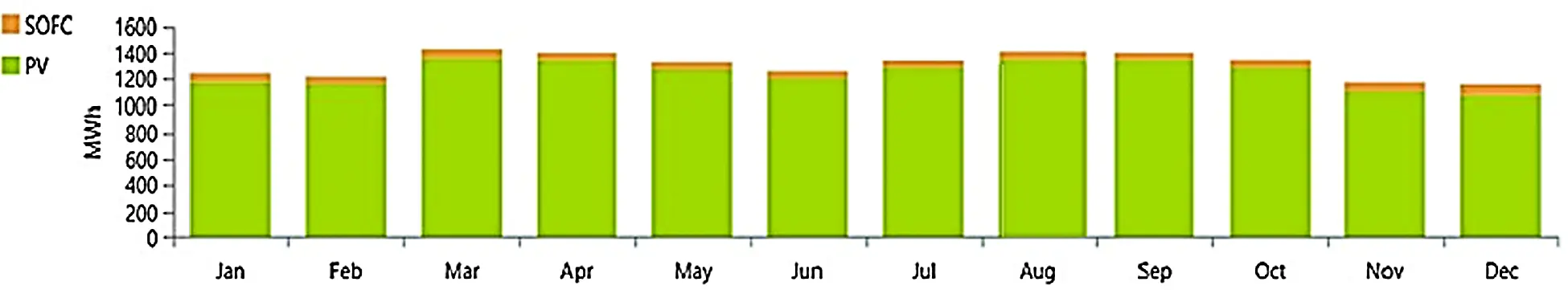

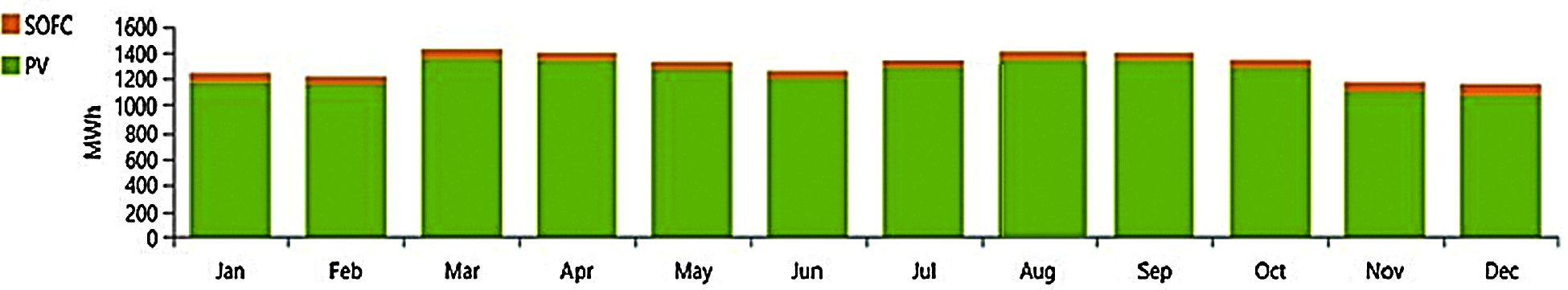

Figure 7: The energy produced by the PV and SOFC generators
Since the load demand of the chosen region varies throughout the year, and so the weather data, the PV and SOFC are going to work in a variable way; the fuel consumption is shown in Fig. 8. Thus, the power produced by the stored hydrogen also will vary throughout the year as shown in Fig. 9.

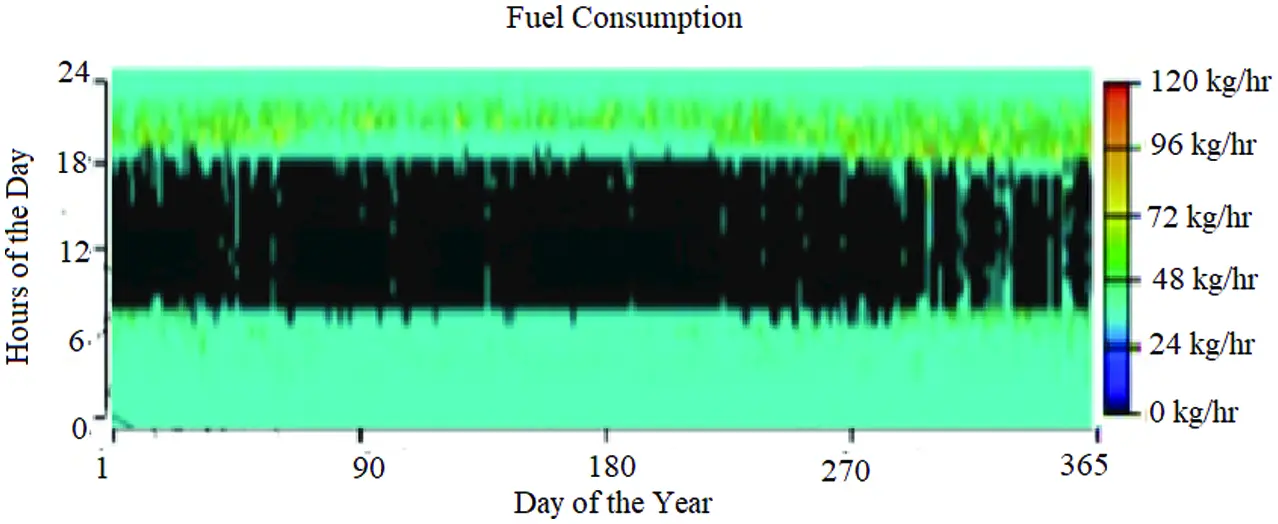

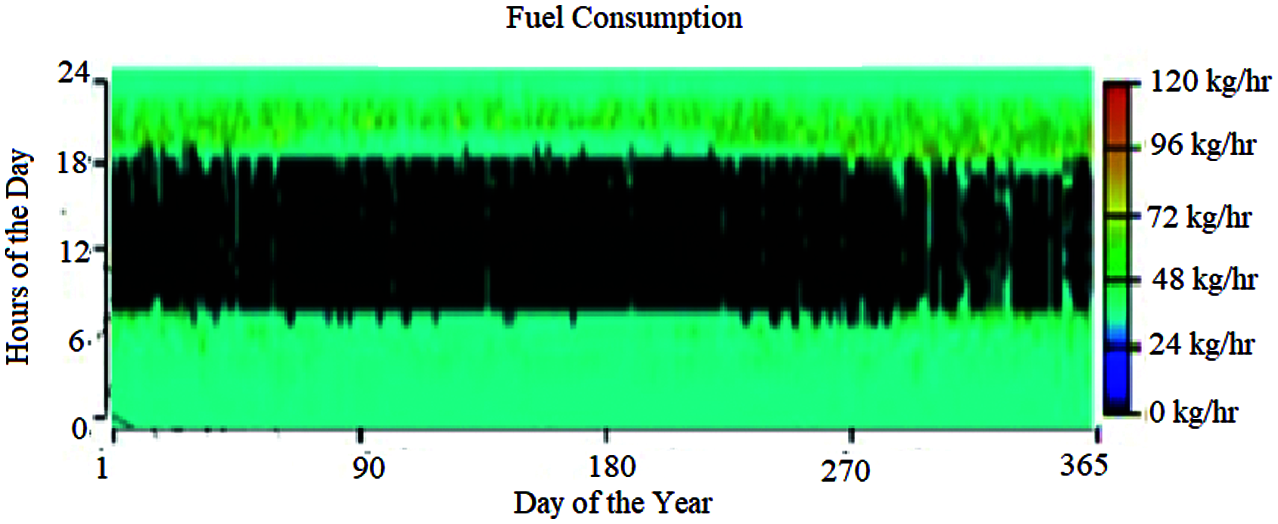

Figure 8: Fuel consumption

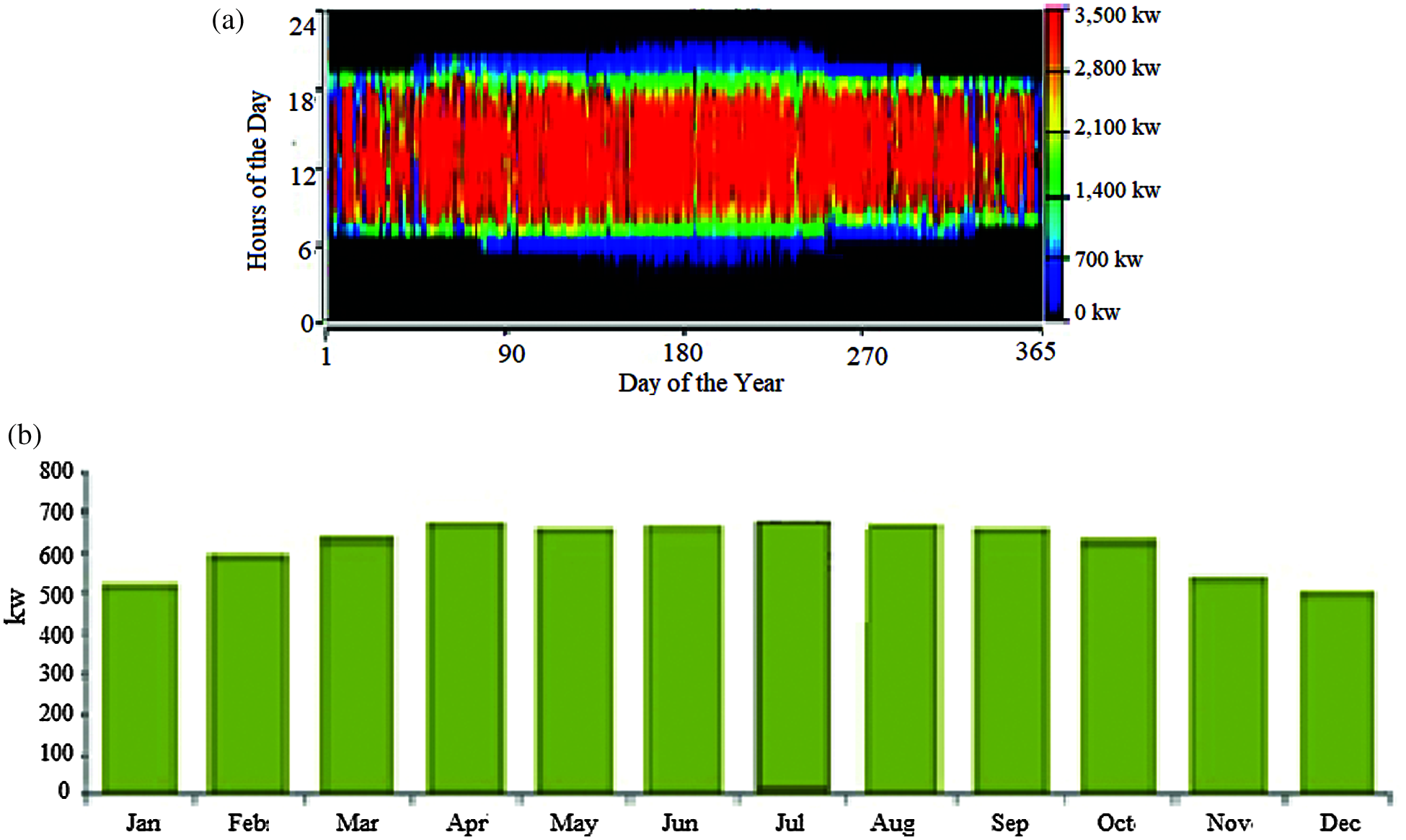

Figure 9: (a) Electrolyzer output power; (b) Electrolyzer input power
After the simulation process with Homer software, in which climate data for Bou-Zedjar region were used and an annual clearness index of 0.643, and considering the capacities of different hybrid system options: (PV, fuel cell, electrolyzer, hydrogen storage), the capacities are obtained and presented in Tab. 2.

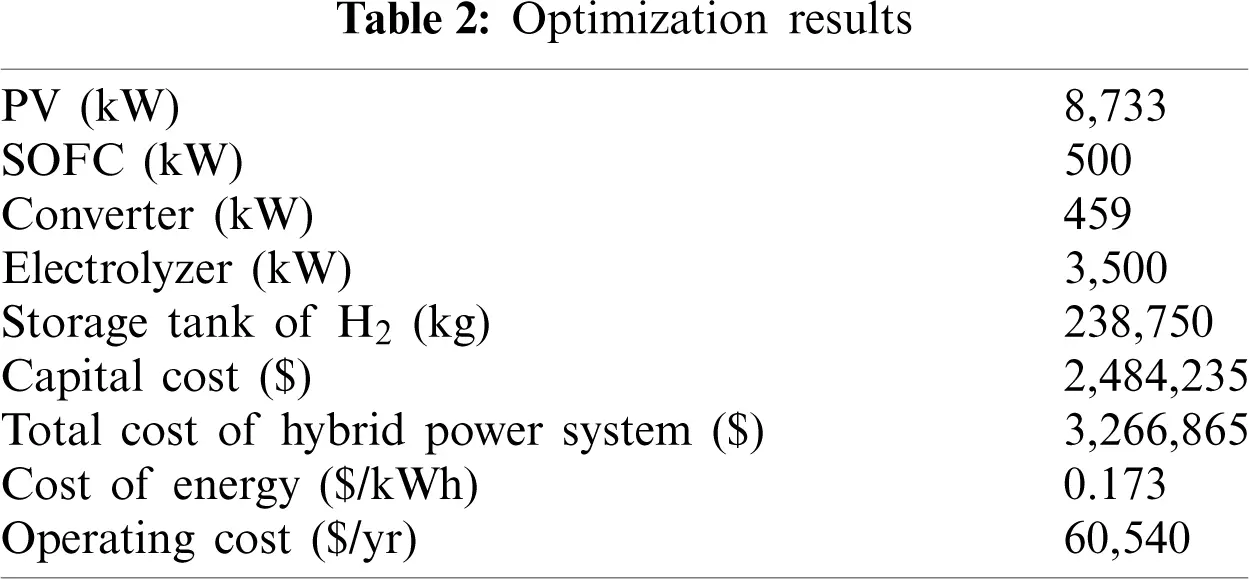

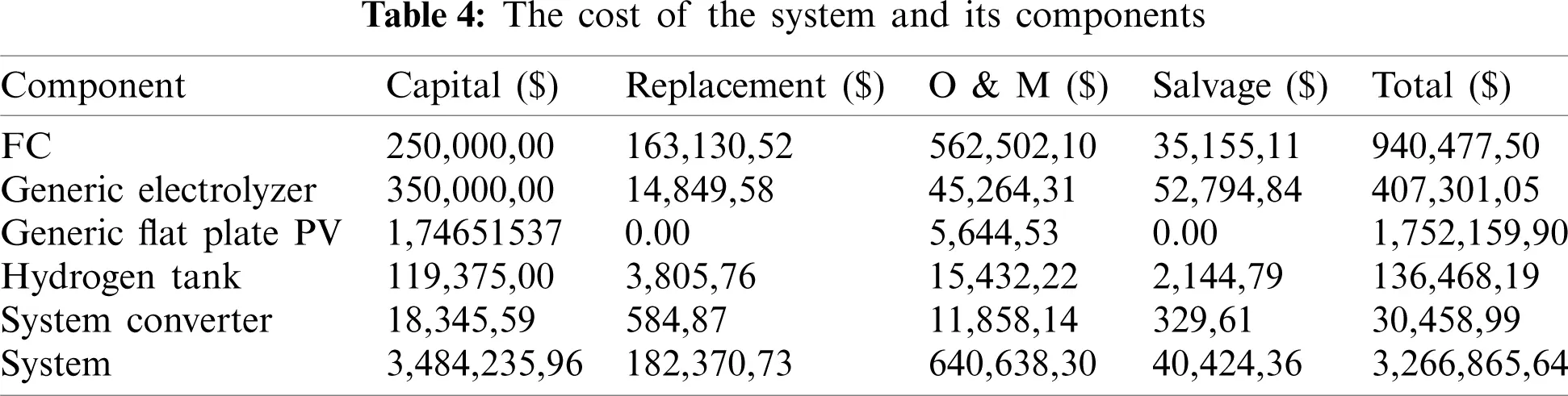

Fig. 10 and Tabs. 2 and 4 summarize the HOMER-based optimization of the FC/PV hybrid system, the Total Net Present Cost (TNPC) is 3, 266,865,64$ with a capital cost of 3,484,235,96$.

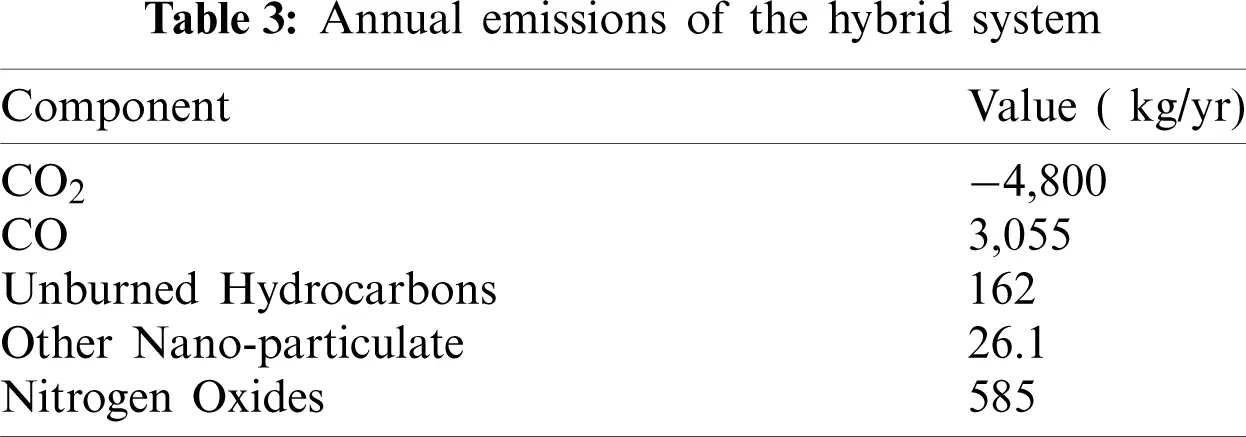

Tab. 3 shows the hybrid power system annual emissions, where the monoxide emission is below zero because our system is a carbon negative since it removes more than the emitted carbon into the atmosphere.
The constructed system should supply the power required by Bou-Zedjar city as well as satisfying its yearly load with an annual real interest rate of 0.2%.
For a hybrid system lifetime of 25 years:
The annual real interest rate = the nominal interest rate − the inflation rate.

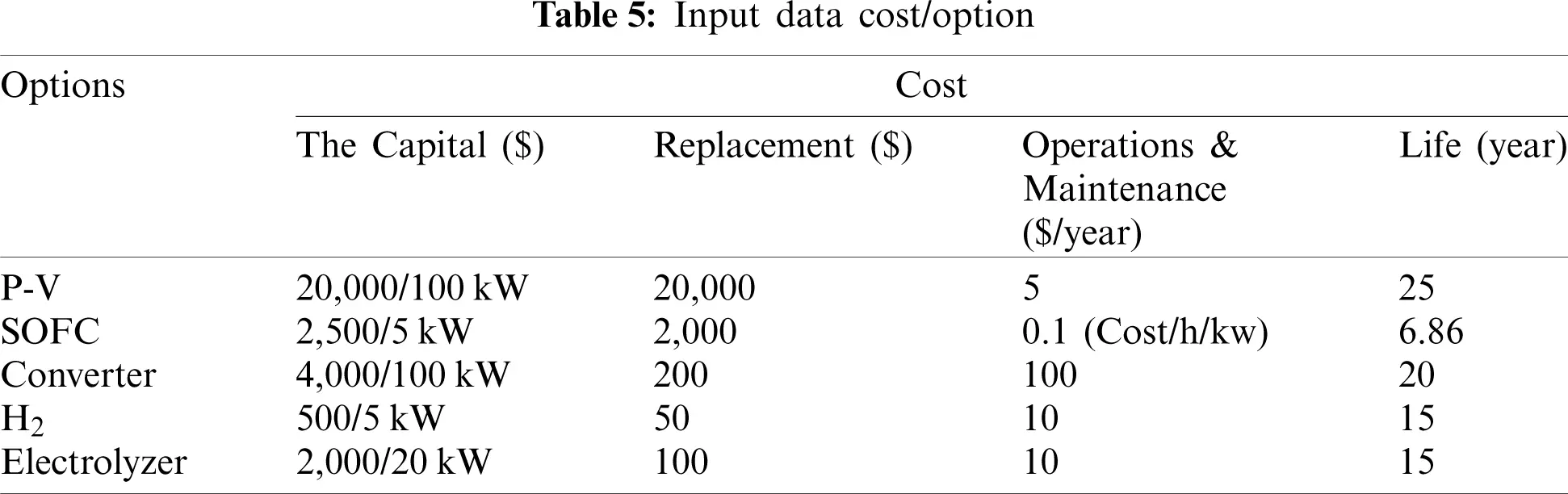

The input data to HOMER software are shown in Tab. 5 [37,38].

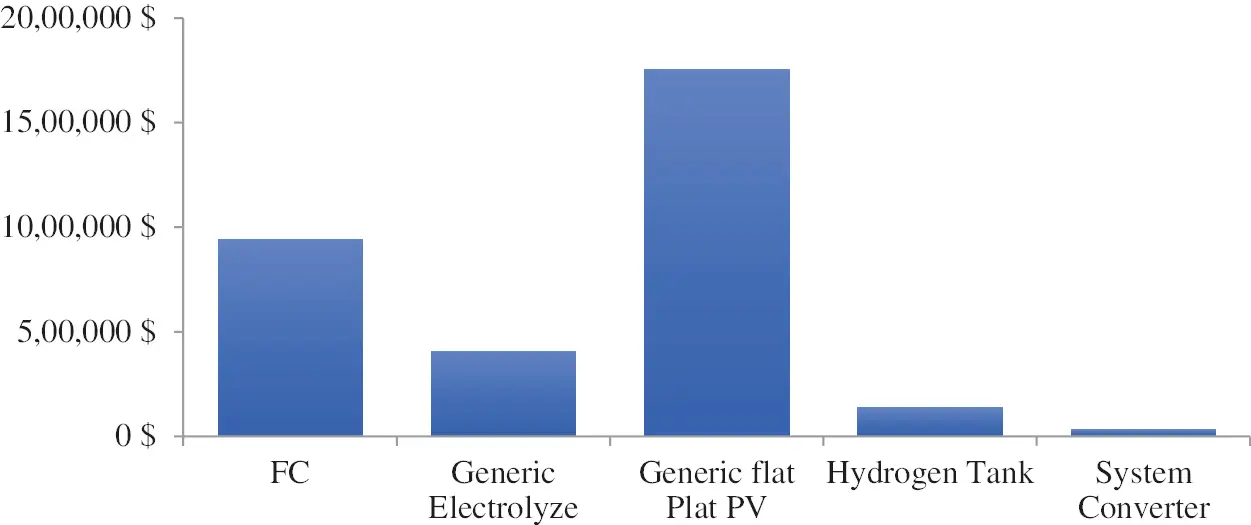

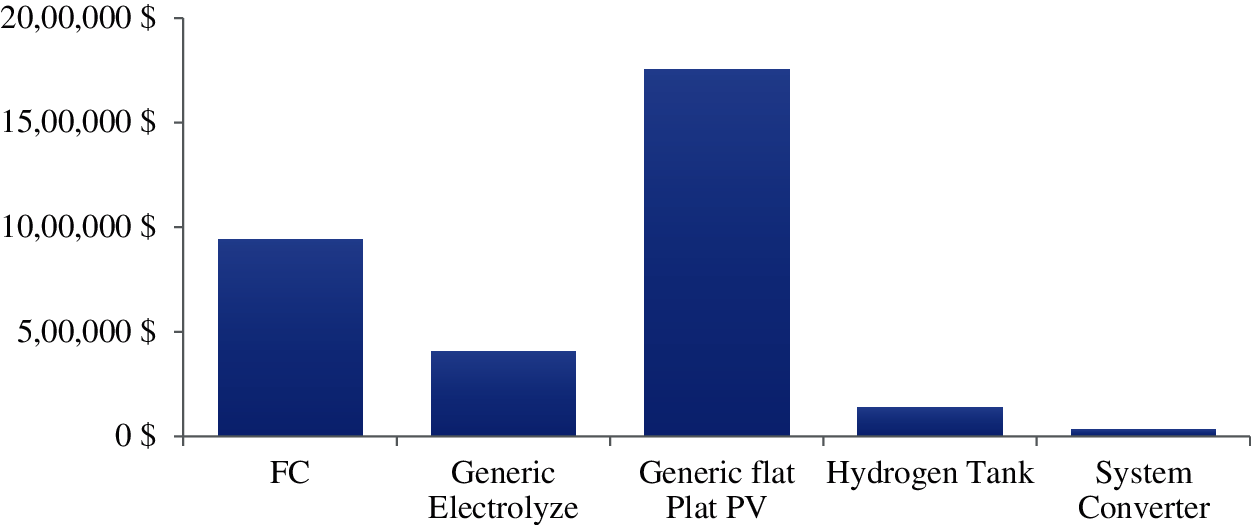

Figure 10: Cost summary of fuel cell (FC), generic electrolyzer, generic flat plate PV, hydrogen tank and System converter
In this paper, the optimal design of PV/FC hybrid power system has been studied to meet the load demand of Bou-Zedjar City, Ain Temouchent in Algeria without the need for a battery storage. The PV panels can provide enough energy to feed the load with an extra energy used to produce the hydrogen for SOFC for power generation later in night or in cloudy days where the FC generator is a guaranteed compensator for satisfying the growing loads that are assumed to be 500 kW in the peak season. The optimization process revealed that the PV was capable of producing 8.733 MW, the SOFC generated 0.5 MW, and the electrolyzer produced 238570 kg of hydrogen with a total cost of the hybrid power system of 3,266,865$.
The results insured the ability of the fuel cell generator to provide the necessary growing loads, as well as its ability to be a renewable source of energy. In addition to be a non-polluting reliable energy source, the study of economic performance using HOMER software has proved that the previous PV/SOFC hybrid power system is a suitable combination with the ability to replace the diesel generators in addition of being less expensive in maintenance.
