Prediction Model for Gas Outburst Intensity of Coal Mining Face Based on Improved PSO and LSSVM

Liu, Haibo; Dong, Yujie; Wang, Fuzhong

doi:10.32604/EE.2021.014630

1School of Electric Engineering and Automation, Henan Polytechnic University, Jiaozuo, 454000, China
2College of Computer Science and Technology, Henan Polytechnic University, Jiaozuo, 454000, China
*Corresponding Author: Haibo Liu. Email: liuhaibo09@hpu.edu.cn
Received: 13 October 2020; Accepted: 30 November 2020

Abstract: For the problems of nonlinearity, uncertainty and low prediction accuracy in the gas outburst prediction of coal mining face, the least squares support vector machine (LSSVM) is proposed to establish the prediction model. Firstly, considering the inertia coefficients as global parameters lacks the ability to improve the solution for the traditional particle swarm optimization (PSO), an improved PSO (IPSO) algorithm is introduced to adjust different inertia weights in updating the particle swarm and solve the fitness to stagnate. Secondly, the penalty factor and kernel function parameter of LSSVM are searched automatically, and the regression accuracy and generalization performance is enhanced by applying IPSO. Finally, to verify the proposed prediction model, the model is applied for gas outburst prediction of Jiuli Hill coal mine in Jiaozuo City, and the results are compared with that of PSO-SVM model, IGA-LSSVM model and BP model. The results show that the relative errors of the proposed model are not greater than 2.7%, and the prediction accuracy is higher than other three prediction models. The IPSO-LSSVM model can be used to predict the intensity of gas outburst of coal mining face effectively.

Keywords: Mining face; gas outburst; least squares support vector machine; improved particle swarm optimization; prediction

In recent years, with the increasing depth and intensity of mine exploitation in China, the number of dangerous mines with gas outburst has increased rapidly, and coal mine gas explosions and outburst accidents have occurred frequently, which has brought serious impact on coal mine safety production and economic benefits [1]. How to predict the occurrence of coal mine gas outburst accurately and reliably and prevent it effectively has become an important direction in the research of coal mine safety production technology, and also a problem to be solved urgently in the field of safety production.

Coal and gas outburst is the destabilizing release of broken coal and gas stored in coal seam, which shows that a large amount of coal and gas are thrown into the production space in a very short time, which may induce gas explosion and cause greater disasters [2,3]. The cause of gas outbursts is fairly complicated and involves many influencing factors, such as in-situ stress, gas content, gas pressure, firmness coefficient and geological structure and so on. The relationship between the gas outburst and influencing factors has the characteristics of non-linearity, randomness and fuzziness, which make it impossible to use classical mathematical theory to establish accurate prediction model. Since the traditional empirical model and deterministic model have certain limitations, many researchers have tried to develop many prediction methods to improve low accuracy and efficiency of coal and gas outburst prediction, including fuzzy theory [4,5], grey theory [6], neural network [7,8], support vector machine (SVM) [9,10], data mining and fusion [11–15], double coupling algorithm [16] and machine learning [17–20] and so on. In [6], Guo et al. proposed a grey theory and neural network method to predict coal and gas outburst. Main controlling factors were filtered by the grey correlation method, and the mathematical model and systematic structure of artificial neural network were established. Qu [7] proposed to apply the BP neural network method to predict, used the neural network method to train the main outburst controlling factors, and established an artificial neural network mathematical model. Liu [8] used the combination of fuzzy neural network and D-S theory to obtain a gas outburst evaluation strategy by two fusions of sample data. As the development of the techniques mentioned above, many advanced prediction models for gas outburst are obtained in the literature. However, it should be pointed out that gas outburst of coal mining face are complex non-linear dynamic systems, establishing fast and effective prediction models and making evaluations on outburst risk are still a challenging problem.

During the last several decades, a great deal of efforts has been devoted to gas prediction of coal mining face. Hence, remarkable results have been proposed in the literature [6–10,16,17,21–27]. In [9], on basis of the strong recognition ability of SVM in the case of small samples, the gray correlation analysis was introduced in outburst influencing factors, the feature vector was extracted, and SVM prediction model was obtained. In [10], to improve the classification accuracy and generalization ability of SVMs, a parameter selection model for SVMs with RBF kernel was proposed based on adaptive differential evolution (ADE) algorithm, which can adjust parameters automatically and promote the searching ability for local optimal values. By applying BPNN to set up identification model and introducing D-S theory to fuse the identification results in the time domain and the spatial domain, a gas outburst prediction model based on data mining and information fusion was proposed which effectively improved the accuracy of prediction in [11]. Xu [15] presented a method of combining wavelet principal component analysis (KPCA) and improved extreme learning machine (IQGA-ELM), KPCA was used to extract the principal component sequence of the primate index, using the IQGA to optimize the input weight and the hidden layer threshold of ELM. The model had strong generalization performance and improve the accuracy of prediction. In [19], the main influence factors were analyzed and extracted by gray correlation and factor analysis model, and the quantum genetic algorithm (QGA) was applied to optimize the parameters of the least squares support vector machine (LSSVM). The QGA-LSSVM model was established and can effectively predict the outburst type. In [25], an outburst fragmentation index was developed based on a new surface theory by analyzing the ejected coal, which can be linearly fitted with the relative intensity of outburst nonlinearly. Thus the η prediction method was proposed, and the relationship with f prediction method was analyzed. These scholars have achieved fruitful results on gas outburst prediction. However, it should be noted that, most of them require more input factors, and the kernel function and penalty parameter in [9,10] are selected based on experience and traditional PSO, which will affect the classification effect of prediction model significantly. Therefore, there are still rooms for further enhancement on the feasible region of coal and gas outburst prediction for mining face.

On basis of the above discussion, considering the complex non-linear relationship between gas outburst and influencing factors, an IPSO-LSSVM model for coal mine gas outburst prediction is established. Firstly, considering the inertia coefficients as global parameters lacks the ability to improve the solution at the later stage of evolution, an IPSO algorithm is introduced, which can adjust different inertia weights in updating the particle swarm and solve the fitness to stagnate. Secondly, by applying the IPSO algorithm, the penalty factor and kernel function parameter of LSSVM are searched automatically, and the regression accuracy and generalization performance is enhanced. Finally, the proposed model is applied for gas outburst prediction of Jiuli Hill coal mine in Henan Province, China, which has higher accuracy and reliability by comparing with PSO-SVM model, IGA-LSSVM model and BP model.

SVM is a kind of classification algorithm, which can improve the generalization ability of learning machine by seeking the structural risk minimization and realize the minimization of empirical risk and confidence range [9]. In 1999, Suykens introduced least squares into SVM and proposed LSSVM, which used the least squares linear system as the loss function to transform the quadratic programming problem into solving linear equations in standard SVM training [11].

Suppose training set {xi,yi},i=1,⋯,m , where xi∈Rn , yi∈R , regression estimation by following equation:

where, ϕ(⋅) is the nonlinear mapping to map the input data to the high-dimensional feature space; wT is the transpose of the weight vector w, b is the real constant parameter threshold, b∈R . The optimization problem of LSSVM is expressed as follows:

Introducing the Lagrangian operator α=[α1,⋯,αm]T , define the Lagrang function as:

{∂L∂w:=0⇒w=∑i=1mαiϕ(xi)∂L∂b:=0⇒∑i=1mαi=0∂L∂ei:=0⇒αi=γei∂L∂αi:=0⇒wTϕ(xi)+b+ei−yi=0 (5)

where, i=1,⋯,m . Eliminate the variables e and w, the following matrix equations can be obtained.

where I is the unit matrix, 1=[1,⋯,1]T , y=[y1,⋯,ym]T , Ω is the kernel matrix. The existence of mapping function ϕ and kernel function K(⋅,⋅) makes the following equation hold.

Let A=Ω+γ−1I . A−1 exists for any γ > 0. Solving the linear equation for Eq. (6) gives:

By substituting w in the first fraction of Eqs. (5) and (4) into Eq. (1), a least squares support vector regression estimate can be obtained:

where, αi and b are given by Eq. (8), depending on the γ and kernel matrix. In order to avoid solving complex non-linear mapping functions, radial basis function (RBF) is introduced to replace the point product operation in high-dimensional space, which can greatly reduce the computational complexity. Moreover, RBF kernel function can easily realize the optimization process of SVM, and support vectors and weights can be obtained by an algorithm. The kernel function is:

where, σ is the kernel width, then the linear regression equation of LS-SVM becomes:

PSO is a swarm intelligence search algorithm proposed by J Kennedy and R Eberhart in 1995 to find the optimal solution through cooperation and information sharing among individuals in the swarm [10]. It is relatively simple and easy to implement, and has been widely used in many fields.

In PSO, a population consisting of m particles is distributed in the D-dimensional space, xi=[xi1,xi2,⋯,xiD]T is the positional information of the i-th particle in space, vi=[vi1,vi2,⋯,viD]T is the velocity information of the i-th particle, pi=[pi1,pi2,⋯,piD]T represents the optimal position of the i-th particle passing at time t, pg=[pg1,pg2,⋯,pgD]T is optimal position that particle swarm can search, i=1,2,⋯,m . The particles update their speed and position by means of Eqs. (12) and (13). After multiple iterations, the individual's optimization in free space is finally realized.

where, ω is the inertia coefficient, r1 and r2 are the random numbers in [0,1]; c1 and c2 are the acceleration factors, the position range and velocity interval of the particles can be set to appropriately constrain the motion.

The setting of inertia coefficients in PSO algorithm directly affects the balance between global and local search ability of particles. Taking the inertia coefficients as global parameters lacks the ability to improve the solution at the later stage of evolution, which will cause the fitness to stagnate. In [18], a new strategy of inertia weight adjustment and the corresponding PSO were proposed, different inertia weights are used in updating the particle swarm in the same generation in the new PSO. The particle individual sets are sorted in descending order according to the size of the fitness value, and a new set of individual particles is arranged in order. Since the fitness value of particle in the first position of the new individual set is the largest, it is called a good particle. The position of i-th particle in the individual particle set is called the best particle distance of the individual i, and the inertia weight adjustment model is established as follows:

where, cIter and MaxcIter is the current and maximum iteration number respectively, ωe and ωs are the initial and end values of ω, respectively; u(di , x) is the control factor of the individual inertia coefficient of the particle. The specific form is as follows:

where N is the population size, S1 and S2 are control parameters, and α and β are adjustment parameters, S1 < S2 < 1, α > 0, β > 0.

The main geological factors affecting outburst are gas pressure, coal seam thickness, permeability coefficient of coal seam, destruction type and geological structure type of coal. The relationship between gas outburst and its influencing factors is complex and non-linear, so it is difficult to express it in explicit mathematical form. This is described by LSSVM (x1, x2, …, xn).

where, X = (x1, x2, …, xn) is the factor affecting gas outburst, such as coal seam thickness, geological structure type of coal, and Y is the intensity of gas outburst. The actual representative data samples are used for LSSVM learning to establish a non-linear relationship model.

2. Initializing the IPSO-LSSVM, including the particle dimension n, the population size m, the number of iterations p, randomly giving the initial space position xi0 and initial velocity vi0 of the particle (i ≤ m).

3. Predict the test sample through LSSVM model corresponding to each particle vector, and the prediction error is used as the individual fitness to reflect the generalization and prediction ability of LSSVM.

4. Comparing the fitness value calculated by each particle with pbesti of the current individual optimal solution, if Si(x) < pbesti, the current individual optimal solution is replaced by the particle, pbesti = Si(x), xpbesti = xi.

5. Comparing the fitness value pbesti of each particle’s current individual optimal solution with gbest of current population optimal solution, if pbesti < gbest, the particle will replace the original population optimal solution, gbest=pbesti, xpbesti = xi.

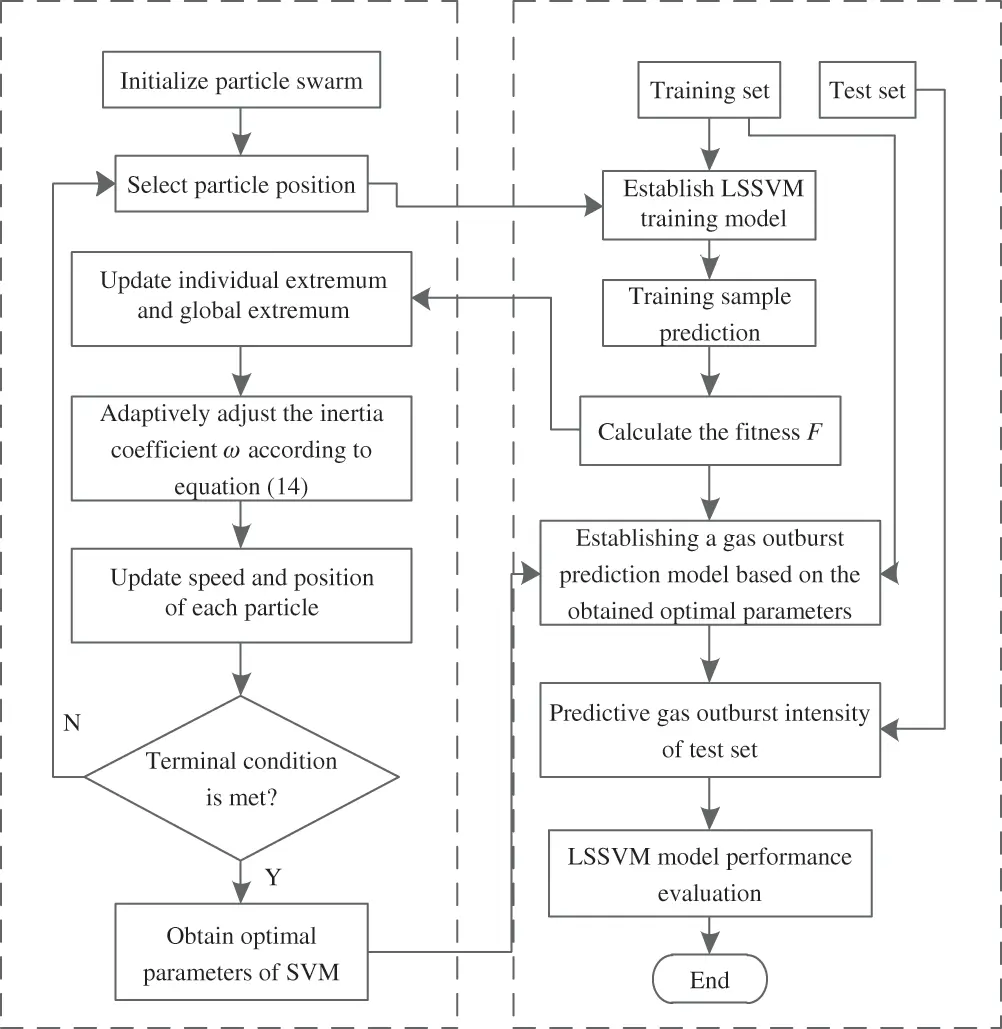

6. After the whole population particle calculation, the termination condition is judged. If not, the particle moves according to Eqs. (12, 13) to generate a new population and return to Step (2). If the termination requirement is satisfied, the calculation is completed and the calculation results are output.

The occurrence of gas outburst in coal mining face is affected by many geological factors and is an extremely complex dynamic process involving coal, rock and gas. When predicting the gas outburst in the coal mining face, first select the typical factors that affect the gas outburst. According to the comprehensive hypothesis of outburst mechanism and site conditions, this paper selected coal seam thickness (p1), gas pressure (p2), gas content (p3), initial speed of methane emission (p4), firmness coefficient (p5), geological structure (p6), failure type of coal (p7) and coal seam permeability coefficient (p8) as gas outburst influence factors. The scale of coal and gas outburst is quite different. The scale of gas outburst is usually expressed by outburst intensity. The outburst intensity refers to the amount of coal (t) thrown out and the amount of gas (m3) emitted in each outburst. Since the amount of gas in the process of outburst is difficult to accurately measure, the amount of coal (rock) outburst is used as the basis for classification usually. In general, there are four prediction types: I (0~1t), II (1-50t), III (50~100t) and IV (100t or more). Among them, I represents negligible risk, II represents low risk, III represents medium risk and IV represents high risk [25]. The four prediction types are used as the evaluation set, which is the output result of LSSVM model.

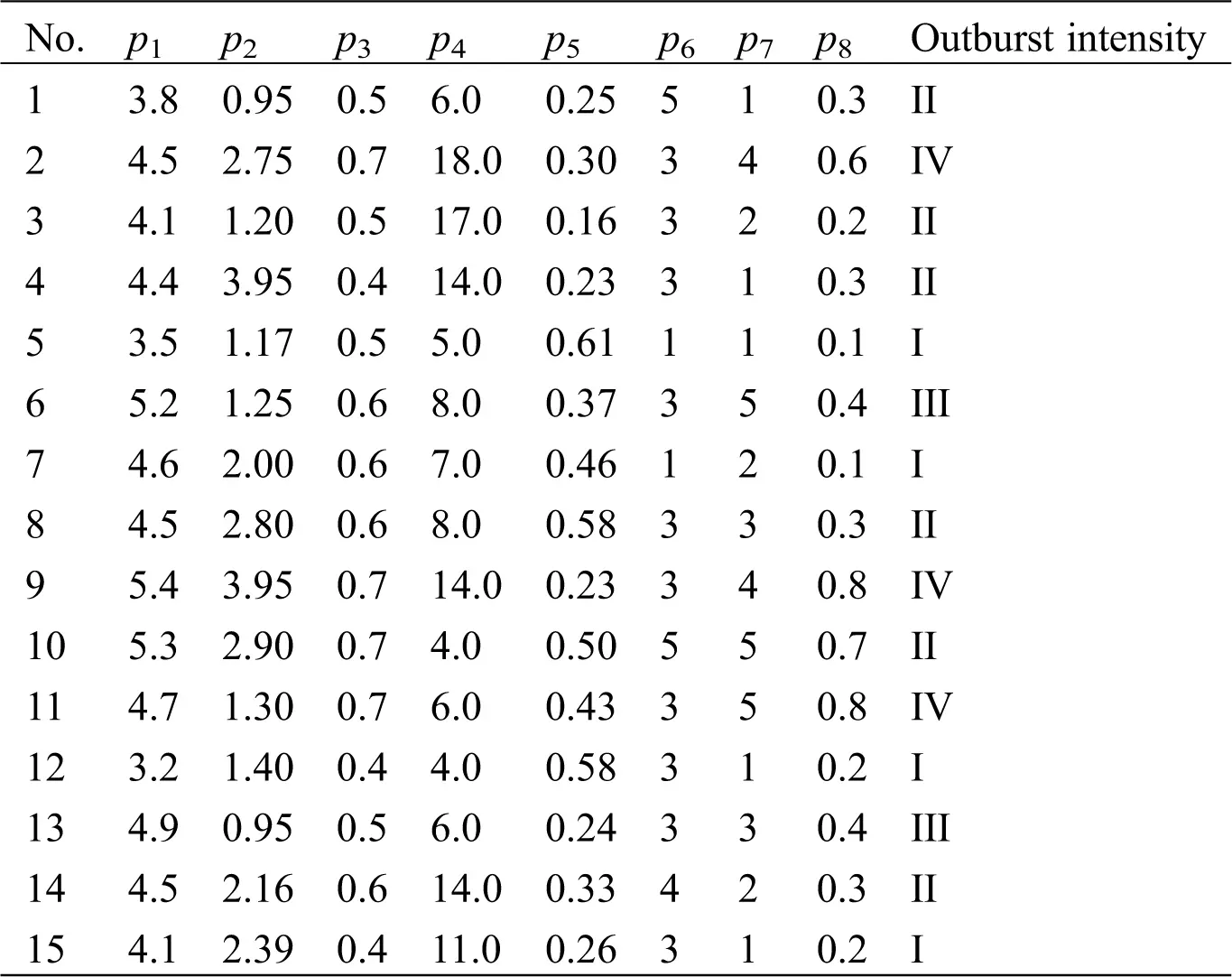

In order to establish the IPSO-LSSVM gas outburst prediction model, the historical gas outburst data of 2306 working face of Jiuli Hill No. 1 Coal Mine of Jiaozuo Coal Group in Henan Province was collected and taken as the basic data source. The working face is the first caving face in 23 mining areas. The mining object is 2# coal seam in the middle and lower part of Henan Formation. The average thickness of coal seam is 5.45 m. During the production process, the gas emission amount is 29.63 m3/min, the gas pressure is 0.5 MPa, the gas content in coal seam is 5.85–8.20 m3/t, the average is 6.98 m3/t, and the gas emission amount from the working face of the roadway is 9 m3/t. The mining area is a typical high gas mining area, and high gas has become the main problem of the mining area. A total of 60 representative samples were selected from the entire sample data set. Some original training samples are shown in Tab. 1.

For eliminating the influence of different data dimensions on the performance of prediction model, the sample data of each factors should be normalized before modeling. The Min–Max normalization approach is used to preprocess the original sample data in this paper, which is a linear transformation and ensure the result is mapped between [0,1]. The normalized equation is as follows:

where p¯i is the normalized value, pi is the initial value of the salient factor, and pmax and pmin are the maximum and minimum values of salient factor, respectively.

In this paper, LIBSVM is selected as the training and testing tool for the LSSVM model, and the simulation experiment is carried out in MATLAB. Under the condition that other parameters are set at the default value of the system, the relative error and standard deviation of the gas outburst prediction model established by the three kernel functions in the training process are compared, as shown in Tab. 2.

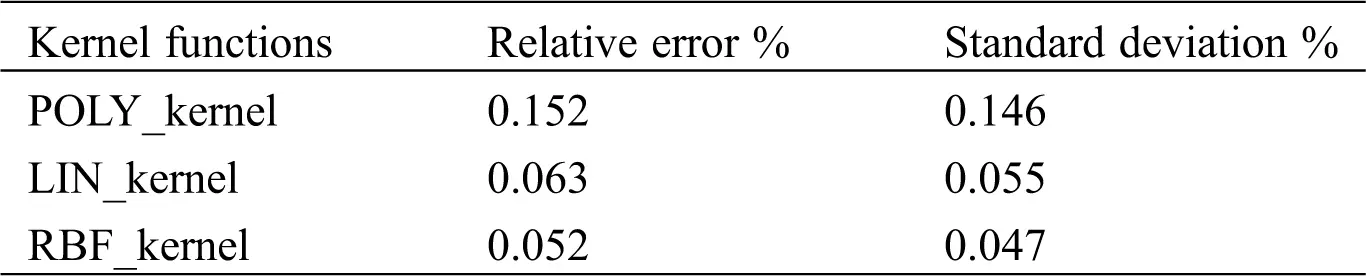

Table 2: Relative error and standard deviation of models with different kernel function

As can be seen from Tab. 2, the relative error and standard deviation of the prediction model established by RBF_kernel function are less than model established by Poly_kernel and LIN_kernel function. Therefore, RBF_kernel function is used in this paper.

When training the training samples with IPSO, the parameters are set as follows. The first 45 groups were selected as the training samples from the 60 sets of sample data, and the last 15 groups were used as test samples to test the prediction accuracy of model. C and kernel function parameters of LSSVM are optimized by changing the parameters c1 and c2 of IPSO and the number of iterations. The main parameters are as follows: N = 20, particle dimension is 2, c1 = 1.5, c2 = 1.7, the maximum number of iterations is 100. The optimized parameters were obtained, and the IPSO-LSSVM model was used to predict the intensity of gas outburst. The fitness curve of IPSO is shown in Fig. 2, which shows that after 20 iterations, the optimal fitness reaches 90%. Tab. 2 shows α of the partial sample support vectors.

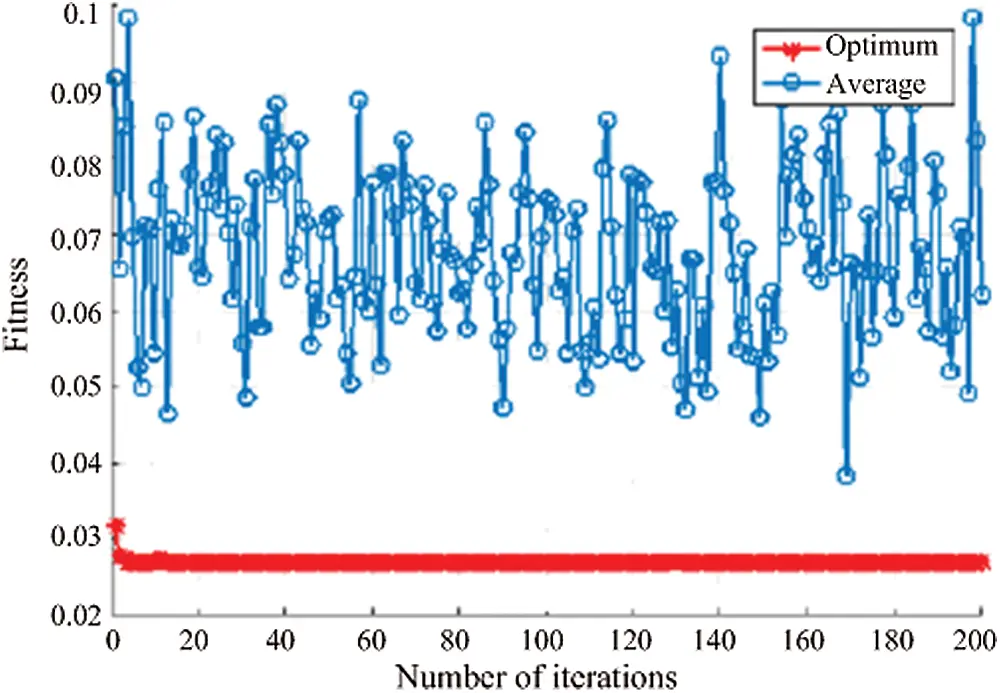

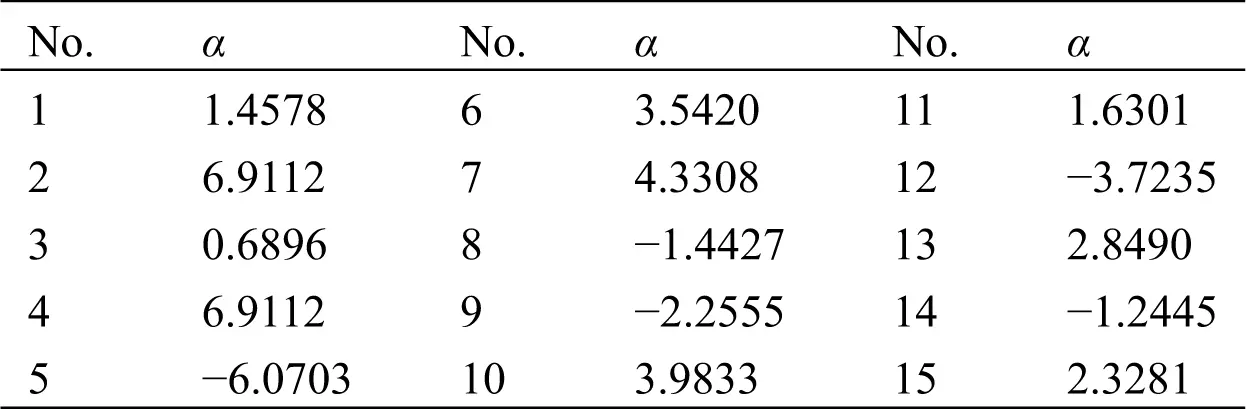

According to the optimal penalty parameters and the optimal kernel function parameters obtained, the IPSO-LSSVM gas outburst prediction model is used to predict the test samples. The results of some test samples are shown in Tab. 4.

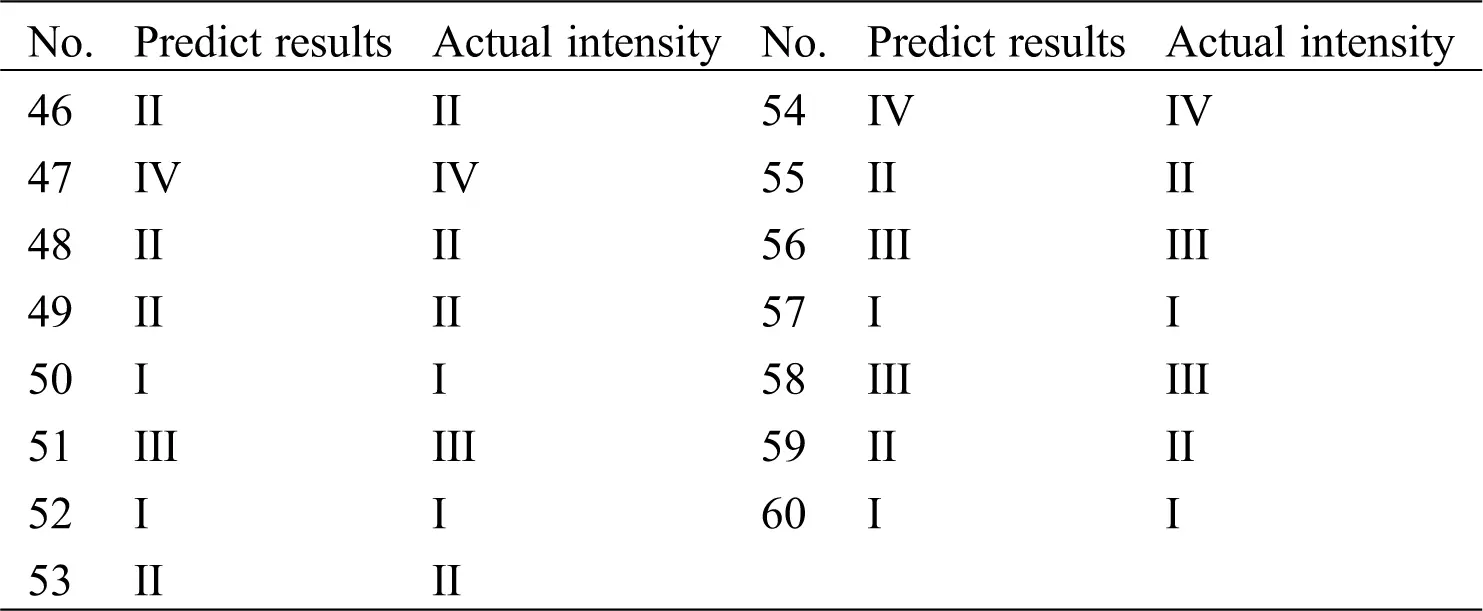

Tab. 4 shows that the predicted results of test samples are in good agreement with the actual results, indicating the validity of the proposed model. In order to verify the superiority of IPSO-LSSVM gas outburst prediction model, the model is compared with the BP model [13], IGA-LSSVM model [15] and PSO-SVM model [26] through simulation experiments. The results are shown in Fig. 3.

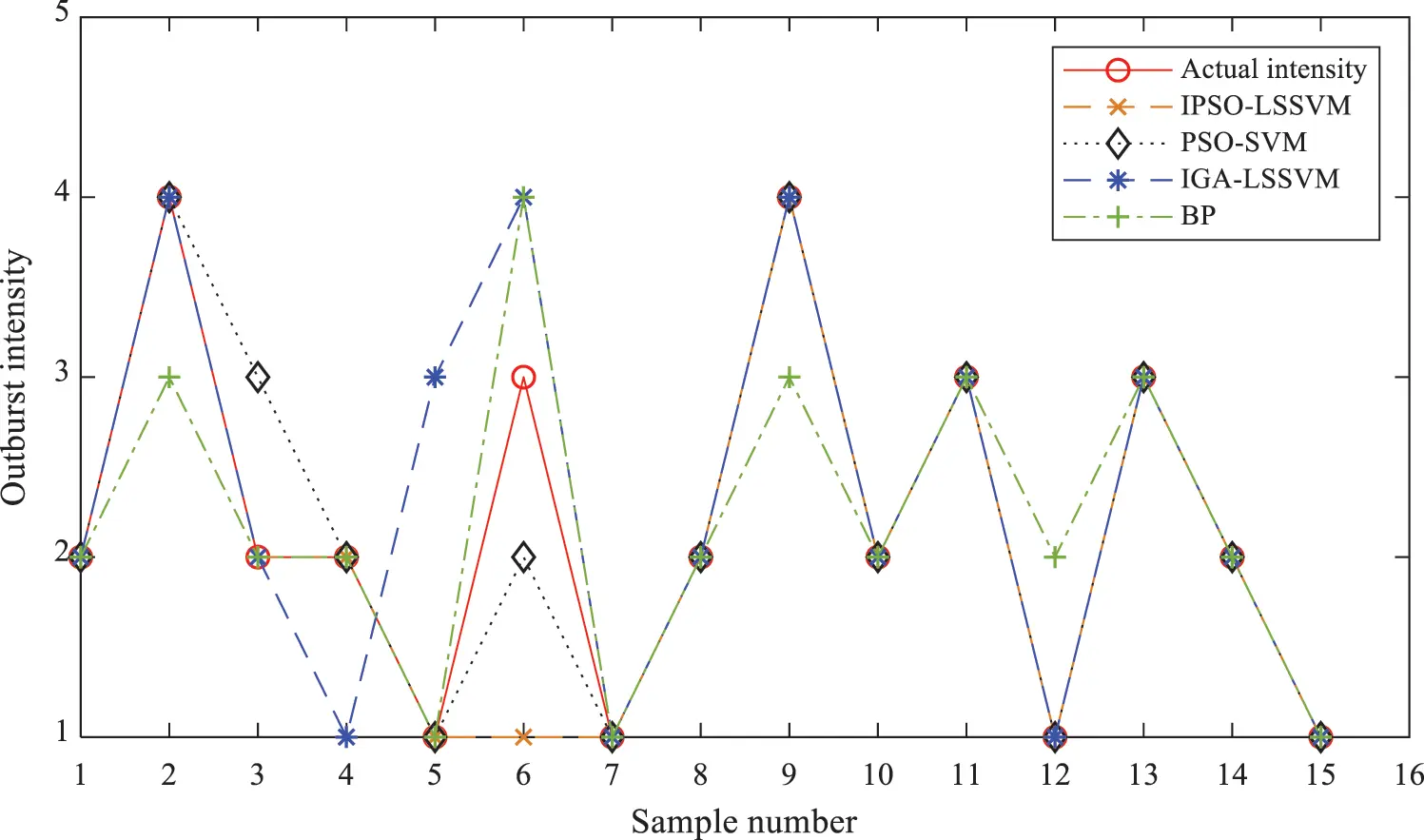

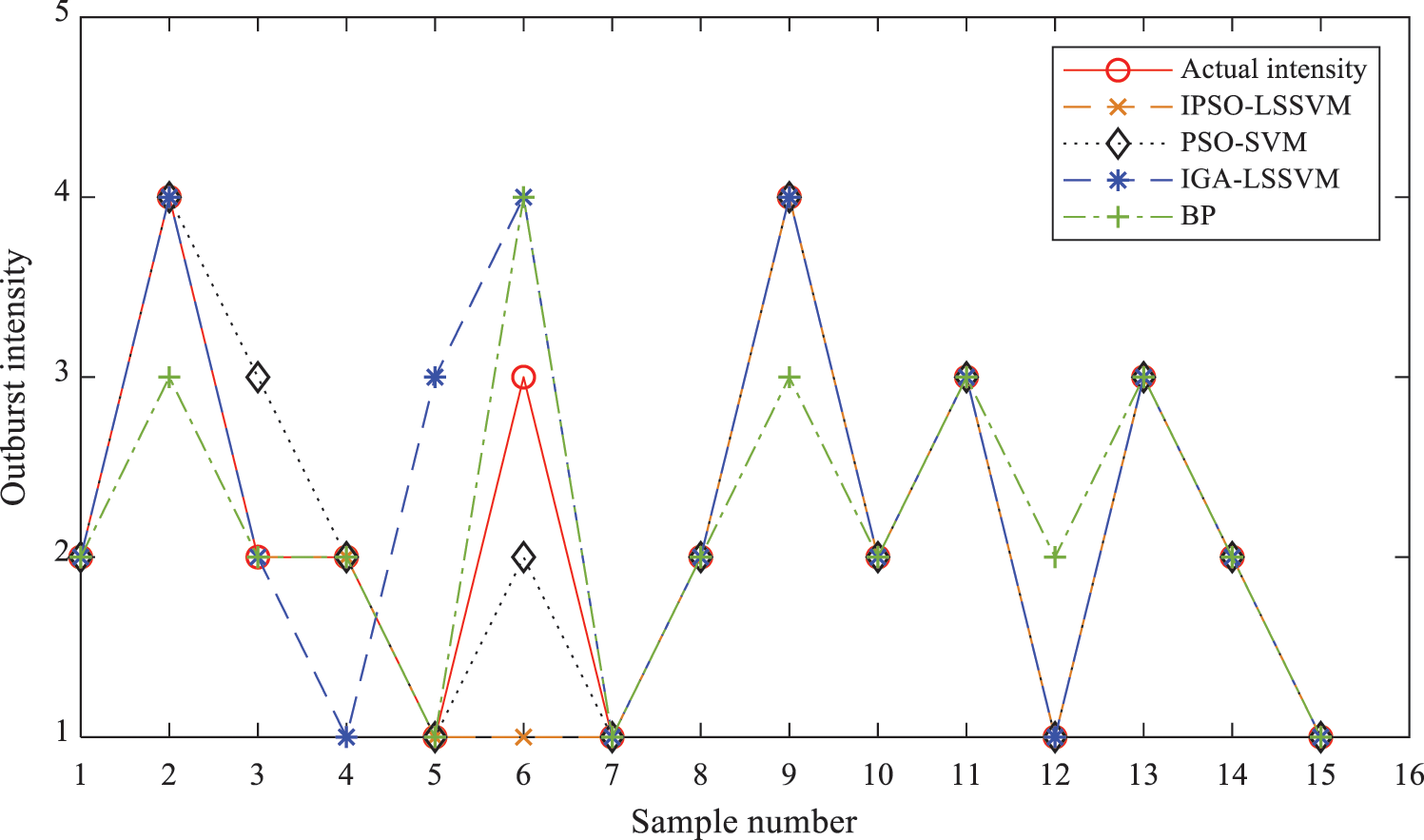

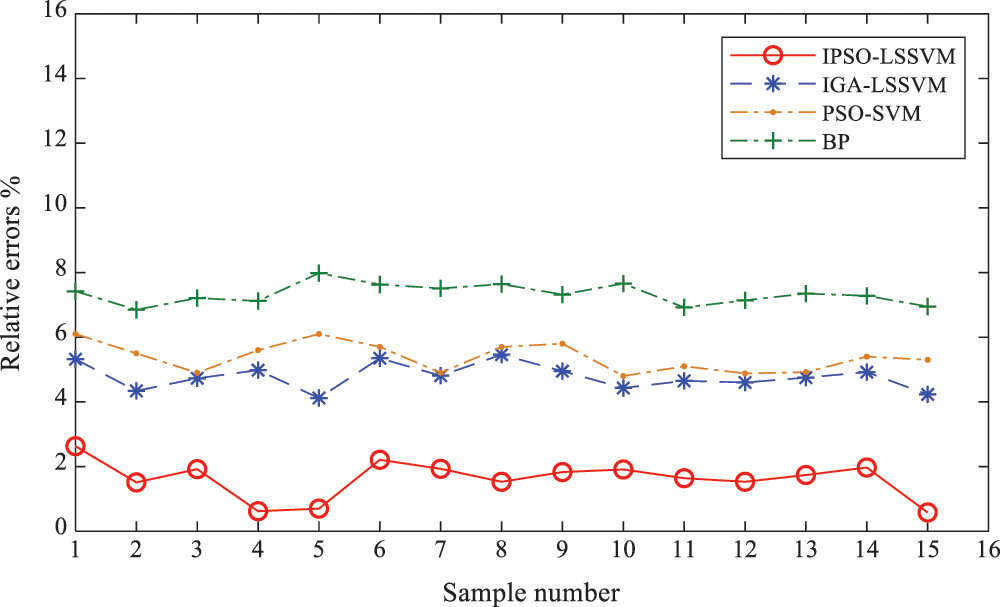

Fig. 3 shows that the accuracy of BP neural network prediction is 60%, PSO-SVM model prediction is 78% and that of IGA-LSSVM model prediction is 80%, indicating that the IPSO-LSSVM model has higher accuracy compared with the other four prediction methods. From Fig. 4, one can clearly see that the relative errors of the four predicted methods are 2.7%, 5.6%, 5.9% and 7.8% respectively, and our results provides smaller relative error than those in [12,13,26]. Compared with the general LSSVM model, an IPSO algorithm is introduced which can adjust different inertia weights in updating the particle swarm in the same generation and solve the fitness to stagnate. And the penalty factor and kernel function parameter of LSSVM are searched automatically and optimized by IPSO, which enhance the regression accuracy and generalization performance of LSSVM models and improve the prediction accuracy. The comparison results indicate that the proposed prediction model in this paper has higher accuracy and can be applied to other coal mines in the future.

In this paper, a new IPSO-LSSVM prediction model for gas outburst of mining face is proposed. The proposed model establishes the mapping relationship between gas outburst and influencing factors effectively, and improves the prediction accuracy. The main conclusions are as follows:

1. Considering the inertia coefficients as global parameters lacks the ability to improve the solution for traditional PSO, an IPSO algorithm is introduced which can adjust different inertia weights in updating the particle swarm and solve the fitness to stagnate.

2. By applying the IPSO algorithm, the penalty factor and kernel function parameter of LSSVM are searched automatically, and the regression accuracy and generalization performance of LSSVM models are enhanced.

3. Based on a comprehensive analysis of influencing factors of gas outburst, eight influencing factors are selected. Then, the prediction model based on IPSO and LSSVM is established, and is applied for gas outburst prediction of Jiuli Hill coal mine in Jiaozuo City, China. The results show that the relative errors of the proposed model are not greater than 2.7%, and the prediction accuracy is higher than other three prediction models.

Funding Statement: This work was supported by Key Project of Science and Technology of Education Department of Henan Province (19B120002) and Key Laboratory of Control Engineering of Henan Province (KG2016-17).

Conflicts of Interest: The authors declare that there are no conflicts of interest regarding the publication of this paper.
