Quantum Fuzzy Support Vector Machine for Binary Classification

1  Introduction

Support Vector Machine (SVM) is a machine learning algorithm that can overcome the local minimum and curse of dimensionality in traditional machine learning algorithms. It is based on the rule of Vapnik-Chervonenkis theory and structural risk minimization principle in statistical learning theory. It is a binary classification technique that uses the training dataset to predict an optimal hyperplane in an n-dimensional space. This hyperplane is used to classify new data sets. There are currently several types of SVM, such as twin SVM [1], Gaussian SVM [2], multi-kernel SVM [3] and so on. Furthermore, SVM has been widely applied in a variety of fields, for example, handwritten hindi character recognition [4], face recognition [5], network intrusion detection [6] and breast cancer diagnosis [7], and so on. Although SVM is a common algorithm for classification problems that treats all samples equally and ignores the effect of outliers and noise on the construction of optimal hyperplanes, it fails to perform well when classifying new sets of data with fuzzy information.

To address this issue, some researchers incorporate fuzzy set theory into SVM and propose fuzzy support vector machine (FSVM) algorithms. Inoue et al. [8] proposed the first FSVM algorithm in 2001, which introduces a fuzzy membership function and uses the FSVM classification technique to eliminate the inseparable area. To reduce the influence of noise or outliers, Taiwan scholars Lin et al. [9] combined fuzzy set theory and proposed an FSVM algorithm in 2002, which assigns a fuzzy membership grade to each training sample to make different training samples have different contributions in predicting an optimal hyperplane in an n-dimensional space. Following that, FSVM was rapidly developed. Wang et al. [10] proposed a bilateral-weighted fuzzy support vector machine (B-FSVM), which improves generalization by assigning different memberships to each training sample. Li et al. [11] proposed a regularized monotonic fuzzy support vector machine model that takes into account the various contributions of each training data as well as prior knowledge of monotonicity. Tao et al. [12] proposed an affinity and class probability-based fuzzy support vector machine technique (ACFSVM) that has a better generalization performance when dealing with imbalanced data set classification problems. The key to the FSVM is to construct the fuzzy membership function and choose a suitable fuzzy membership function, which can effectively reduce the effects of outliers and noise when solving the classification problem. Tang et al. [13] proposed a new fuzzy membership function combined with the concept of the k-nearest neighbor algorithm, in which the distance between each training sample and the center of classification, as well as sample affinity, are considered concurrently. Tang [14] proposed a new fuzzy membership function based on the structural information of two classes in the input space and feature space that can effectively distinguish the support vectors and the outliers. To deal with classification problems with outliers or noises, Yang et al. [15] proposed a kernel fuzzy c-means clustering-based fuzzy SVM algorithm (KFCM-FSVM). Currently, the FSVM algorithm has demonstrated superior generalization performance in a variety of fields, including bankruptcy prediction [16], short-term load forecasting [17], and Breast cancer diagnosis [18]. Despite the fact that the FSVM algorithm can deal with a set of data with fuzzy information, it cannot efficiently deal with the complexity and uncertainty of big data.

Due to the high parallelism of quantum computing, some researchers have set out to combine quantum computing and machine learning algorithms and propose quantum machine learning algorithms [19–22]. Rebentrost et al. [23] proposed a quantum support vector machine (QSVM) algorithm in 2014, which uses a swap test [24] to solve inner products and the HHL algorithm [25] to solve matrix inversion. This work demonstrated the feasibility of executing QSVM in a near-term quantum computer by implementing an experimental realization of QSVM for handwriting recognition on a four-qubit NMR test [26]. Ding et al. [27] proposed a quantum-inspired classical algorithm for the least-square support vector machine (LS-SVM) using an improved fast sampling technique, which was inspired by the QSVM algorithm. Lin et al. [28] proposed a novel quantum algorithm for simplifying quantum LS-SVM, as well as a hybrid quantum-classical version for sparse solutions of LS-SVM. Although QSVM is a generalization of the traditional SVM and it can hold the promise of faster algorithmic processing of data, it cannot deal with classification problems for training samples with fuzzy information, so research into QSVM with fuzzy training samples is very meaningful. Moreover, there are many uncertainties in the objective world, how to deal with the ambiguity of big data efficiently and accurately is the premise and key to the SVM algorithm.

Based on the analysis presented above, this paper proposes a novel quantum fuzzy support vector machine for binary classification, paving the way for dealing with the complexity and uncertainty of big data efficiently and accurately. This paper uses the fact that quantum computing can efficiently process big data and FSVM is easy to deal with the complexity and uncertainty problems to research and propose an efficient and accurate QFSVM algorithm. The core idea of the proposed algorithm is to use the least-squares method to convert the quadratic programming problem in FSVM into a linear equation and then solve the linear equation using the HHL algorithm, which can effectively improve the computational complexity of FSVM. The proposed QFSVM algorithm can efficiently deal with classification problems for training samples with fuzzy information, and it can determine whether a sample belongs to the positive or negative class. Moreover, it is applied to the handwritten characters and the experimental results show that the proposed QFSVM algorithm can achieve accurate classification of handwritten characters, and that executing QFSVM in a near-term quantum computer is feasible.

The rest of this paper is structured as follows. A fuzzy support vector machine is introduced in Section 2. The proposed quantum fuzzy support vector machine for binary classification is described in Section 3. Experimental realization of quantum fuzzy support vector machine is given in Section 4. Discussion and conclusion are contained in Section 5.

2  Fuzzy Support Vector Machine

2.1 The Concept of Fuzzy Sets

Classical set theory: crisp set A of X is defined by the characteristic function fA(x) of set A.

fA(x):X→0,1 (1)

where χA(u)={0u∉A1u∈A .

Fuzzy Set Theory [29]: If the set X denotes a collection of objects defined by x, then a fuzzy set A in X can be formulated as a set of ordered pairs:

A={(x,μA(x))|x∈X} (2)

where μA(x):X→[0,1] , and μA(x) is the membership degree of x belonging to X. Membership function μA(x) assigns each element of x to a membership degree between 0 and 1 (include).

2.2 Fuzzy Support Vector Machine

The data points of FSVM are given by

S={(xi,yi,μi)}i=1l=(x1,y1,μ1),(x2,y2,μ2),⋯,(xl,yl,μl) (3)

where xi∈Rd denotes the characteristic of a training point. yi∈{+1,−1} donates the class label of train point xi , the membership degree μi∈[0,1] donates the degree that the training point xi belongs to yi .

The FSVM algorithm, like the SVM algorithm, seeks an optimal separate hyperplane wTϕ(x)+b=0 that maximizes the margin between two classes. When the sample is nonlinearly separable, finding the optimal hyperplane problem in a high-dimensional feature space is considered the solution to the following optimization problem:

{minw,b,ξ12‖w‖2+C∑i=1l⁡μiξis.t.yi(wTϕ(xi)+b)−1+ξi≥0ξi≥0,i=1,2,3,…,l (4)

where ξ=(ξ1,…,ξl)T is a slack variable, C>0 is a regularization parameter that controls the trade-off between maximizing the margin and minimizing the training error term.

To solve the above optimization problem, we construct the following Lagrangian function:

L(w,b,α,β,ξ)=12‖w‖2+C∑i=1l⁡μiξi+∑i=1l⁡αi(1−ξi−yi(wTϕ(xi)+b))−∑i=1l⁡βiξi (5)

where αi≥0 and βi≥0 are Lagrangian multipliers corresponding with each training point.

we differentiate Eq. (5) to w,b,ξi and setting the results equal to zero, then we obtain:

{∂L(w,b,α,β,ξ)∂w=w−∑i=1l⁡αiyiϕ(xi)=0∂L(w,b,α,β,ξ)∂b=−∑i=1l⁡αiyi=0∂L(w,b,α,β,ξ)∂ξi=μiC−αi−βi=0 (6)

Substituting Eq. (6) into Eq. (4), maximizing αi , and considering the knowledge of kernel function, the optimization problem is converted as the following quadratic programming problem:

{maxαi⁡∑i=1l⁡αi−12∑i=1l⁡∑j=1l⁡αiαjyiyjK(xi,xj)s.t.∑i=1l⁡αiyi=0,0≤αi≤siC,i=1,2,…,l (7)

where K(xi,xj)=ϕ(xi)Tϕ(xj) is a kernel function, which makes inner products in the input space mapped into a high dimensional feature space through the nonlinear mapping, to solve the curse of dimensionality. If α meets the condition of αi=0 , the corresponding vector is not a support vector; if 0<αi≤siC , the corresponding vector is a support vector, and only the support vectors are decisive for finding an optimal separate hyperplane.

To solve the quadratic programming problem, we can get α∗=(α1,α2,⋯,αl)T . And the decision function becomes

f(x)=sgn(wTϕ(x)+b)=sgn(∑i=1l⁡αi∗yiK(xi,x)+b∗) (8)

where b∗=yj−∑i=1l⁡αi∗yi(xi,x) , i∈{i|0<αi≤siC} . For a new data xi , and substituting xiinto the Eq. (8), we can know its class label.

3  Quantum Fuzzy Support Vector Machine for Binary Classification

3.1 Fuzzy Membership Function Based on K-Nearest Neighbor Algorithm

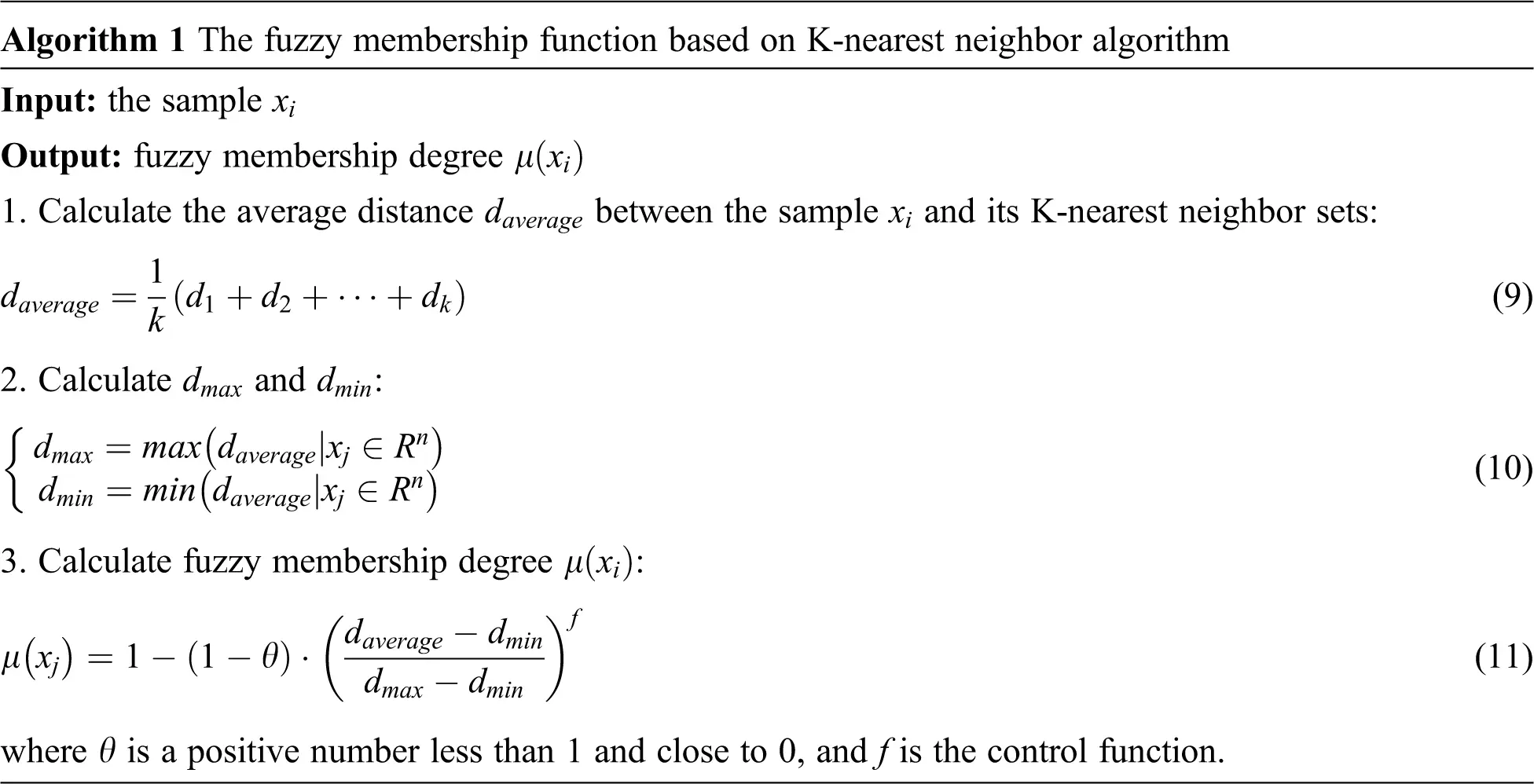

The fuzzy membership function based on K-nearest neighbor algorithm is described in Algorithm 1.

From Eq. (11), it can be seen that when daverage is closer to dmin , the value of μ(xi) is closer to 1, the sample point xi is most likely to be noise or outliers. When daverage is closer to dmax , the probability that the sample point xi is noise or outliers is θ .

3.2 Quantum Fuzzy Support Vector Machine

The solution to the quadratic programming problem of Eq. (4) has high computational complexity. By introducing the least squares method, Eq. (4) is transformed into the following optimization problem to solve the quadratic programming problem:

{minw,b,ξ12‖w‖2+12C∑i=1l⁡μiξi2s.t.yi(wTϕ(xi)+b)=1−ξiξi≥0,i=1,2,3,⋯,l (12)

To solve the above quadratic programming problem, we construct the following Lagrangian function:

L(w,b,α,β,ξ)=12‖w‖2+12C∑i=1l⁡μiξi2+∑i=1l⁡αi(1−ξi−yi(wTϕ(xi)+b))−∑i=1l⁡βiξi (13)

We differentiate the Lagrangian function L(w,b,α,ξ) in Eq. (13) to w,b,ξi,αi , and setting the results equal to zero, we can get:

{∂L(w,b,α,β,ξ)∂w=w−∑i=1l⁡αiyiϕ(xi)=0∂L(w,b,α,β,ξ)∂b=−∑i=1l⁡αiyi=0∂L(w,b,α,β,ξ)∂ξi=μiC−αi−βi=0∂L(w,b,α,β,ξ)∂αi=1−ξi−yi(wTϕ(xi)+b)=0 (14)

After eliminating variables ξi,w , the optimization problem in Eq. (12) is converted as the following matrix equation:

[01→vT1→vK+(Cμi)−1I][bα→]=[0y→] (15)

where Kij=x→iTx→j is again the kernel matrix, 1→v=(1,⋯,1)T , y→=(y1,⋯,yl)T , and α→=(α1,α2,⋯,αl) . Set F=[01→vT1→vK+(Cμi)−1I] , the matrix F is (l+1)×(l+1) dimensional.

FSVM parameters b,α→ are equal to the solution of the following equation:

[bα→]=[01→vT1→vK+(Cμi)−1I]−1[0y→]=F−1[0y→] (16)

Therefore, the SVM parameters are determined schematically by (b,α→T)=F−1(0,y→T)T . The HHL algorithm can be used to obtain FSVM parameters b,α→ .

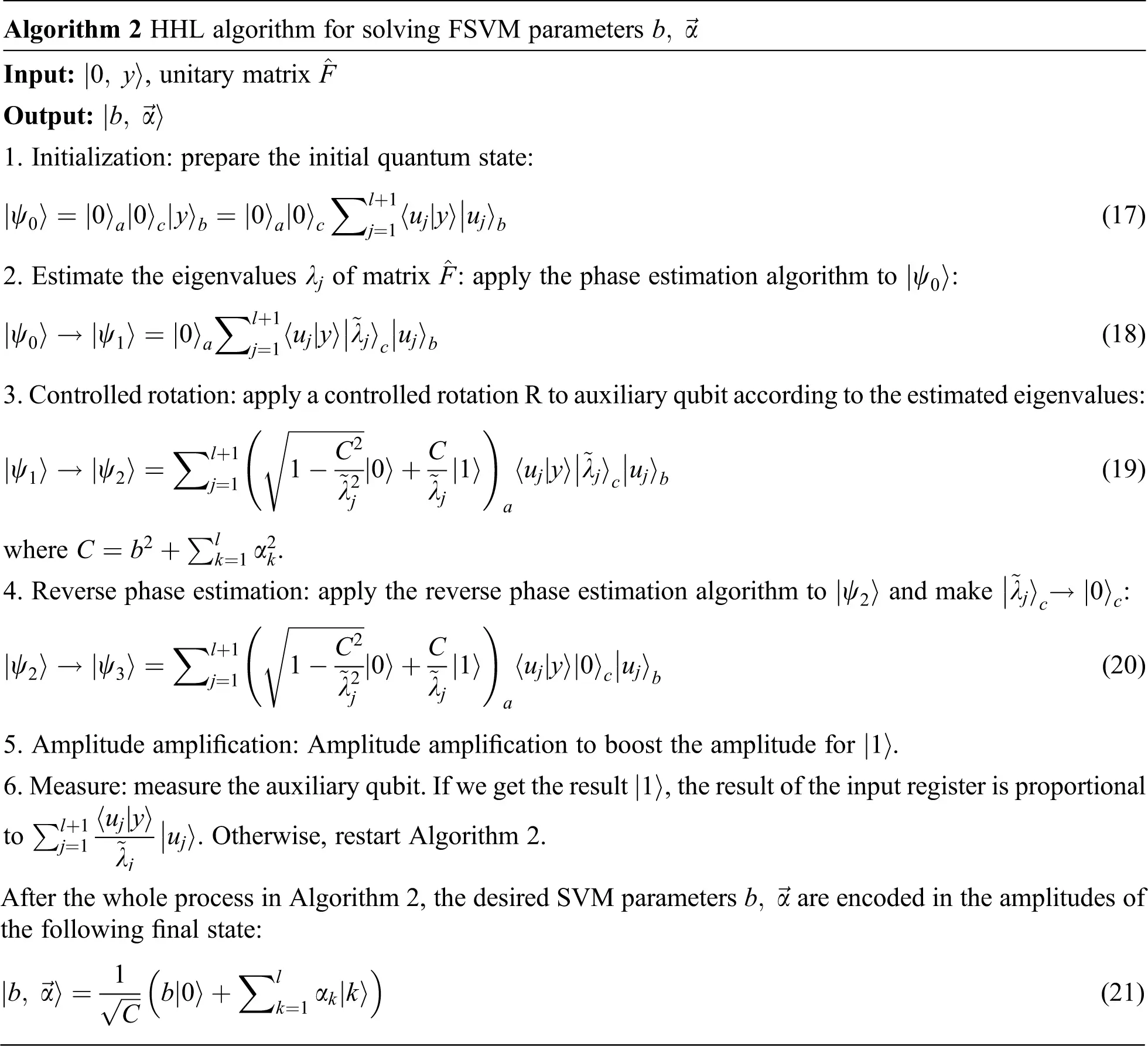

A step-by-step procedure for obtaining the SVM parameters b,α→ is given in Algorithm 2. It should be noted that subscript a, b, and c represent the quantum state in the ancilla register, clock register, and input register respectively.

The final state in Eq. (21) can be used for classifying the new data x, and determine whether it belongs to the positive or negative class ( y=+1 or y=−1 ). The swap test in quantum computing can be used to replace the decision function that is used to categorize new data. Therefore, the decision function of FSVM is given by

f(x)=sgn(⟨u|x⟩) (22)

where |u⟩ and |x⟩ denote the quantum states of training samples and the new data respectively.

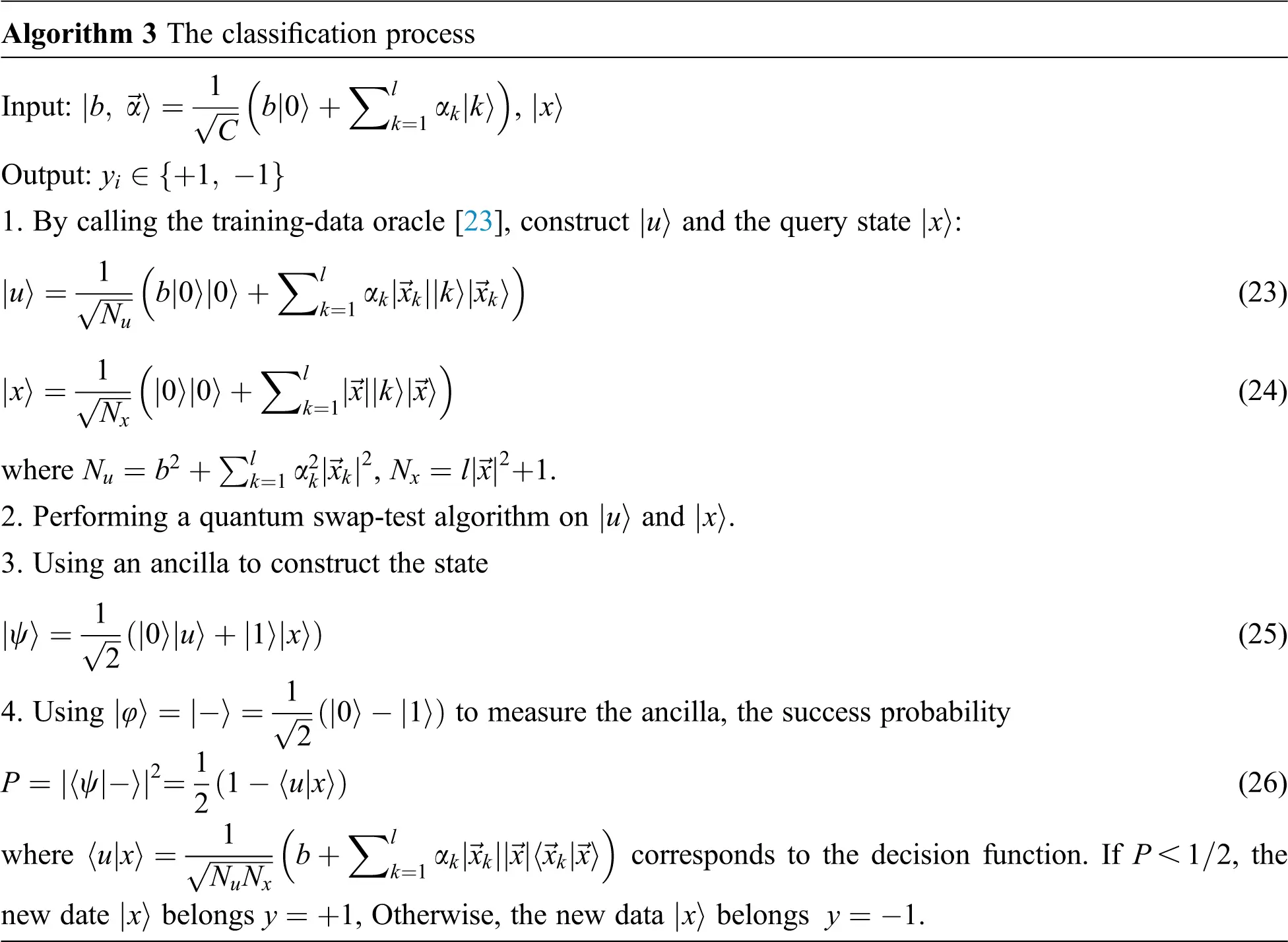

The classification process is shown in Algorithm 3.

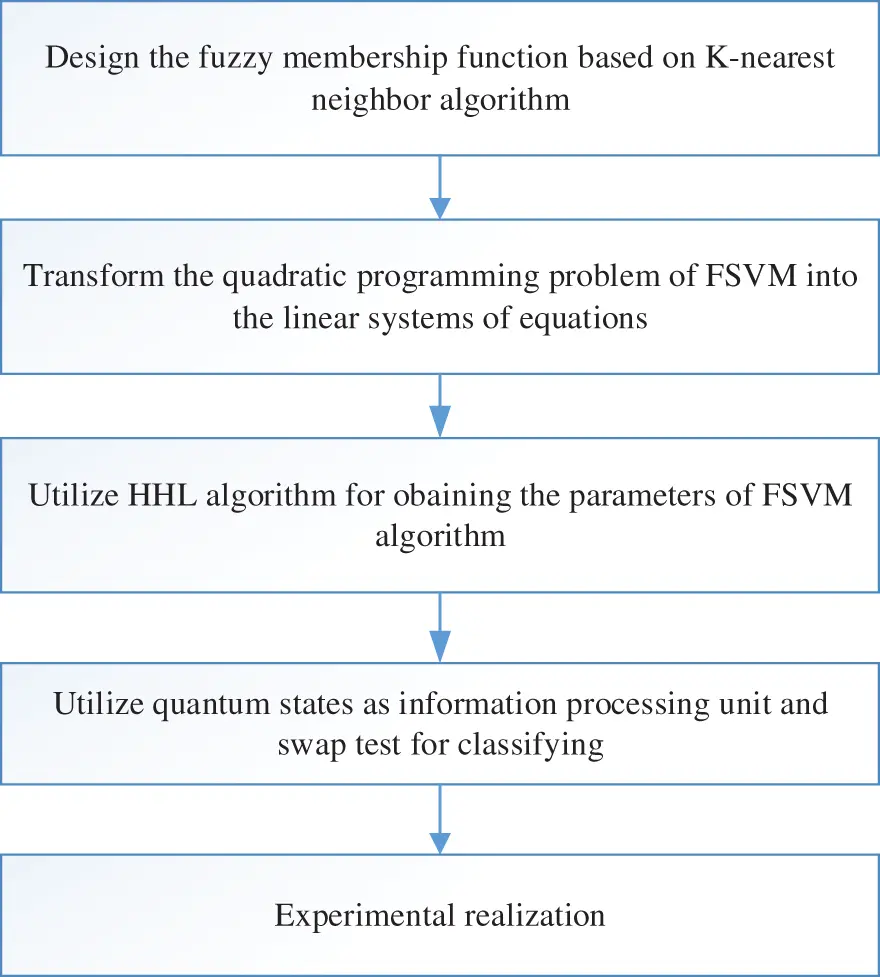

The flowchart of the proposed QFSVM algorithm can be seen in Fig. 1.

Figure 1: The flowchart of the proposed QFSVM algorithm

For nonlinear FSVM, a kernel function is introduced, a nonlinear mapping x↦ϕ(x) into a higher-dimensional vector space is performed, and the kernel function becomes a nonlinear function:

K(xi,xj)=ϕ(xi)⋅ϕ(xj) (27)

Assuming that the kernel function is a polynomial function K(xi,xj)=(xi⋅xj)d , map each sample |xi⟩ and |xj⟩ into the d-times tensor product:

|ϕ(xi)⟩=|xi⟩⊗d=|xi⟩⊗⋯|xi⟩ (28)

|ϕ(xj)⟩=|xj⟩⊗d=|xj⟩⊗⋯|xj⟩ (29)

Solving the nonlinear function is equivalent to the inner product of |ϕ(xi)⟩ and |ϕ(xj)⟩ :

⟨ϕ(xi)|ϕ(xj)⟩=⟨xi|xj⟩d (30)

The inner product can be calculated by swap test algorithm. Arbitrary polynomial kernels can be constructed using this trick. The polynomial kernel in the original space is converted into a linear hyperplane optimization in the d-times tensor product space.

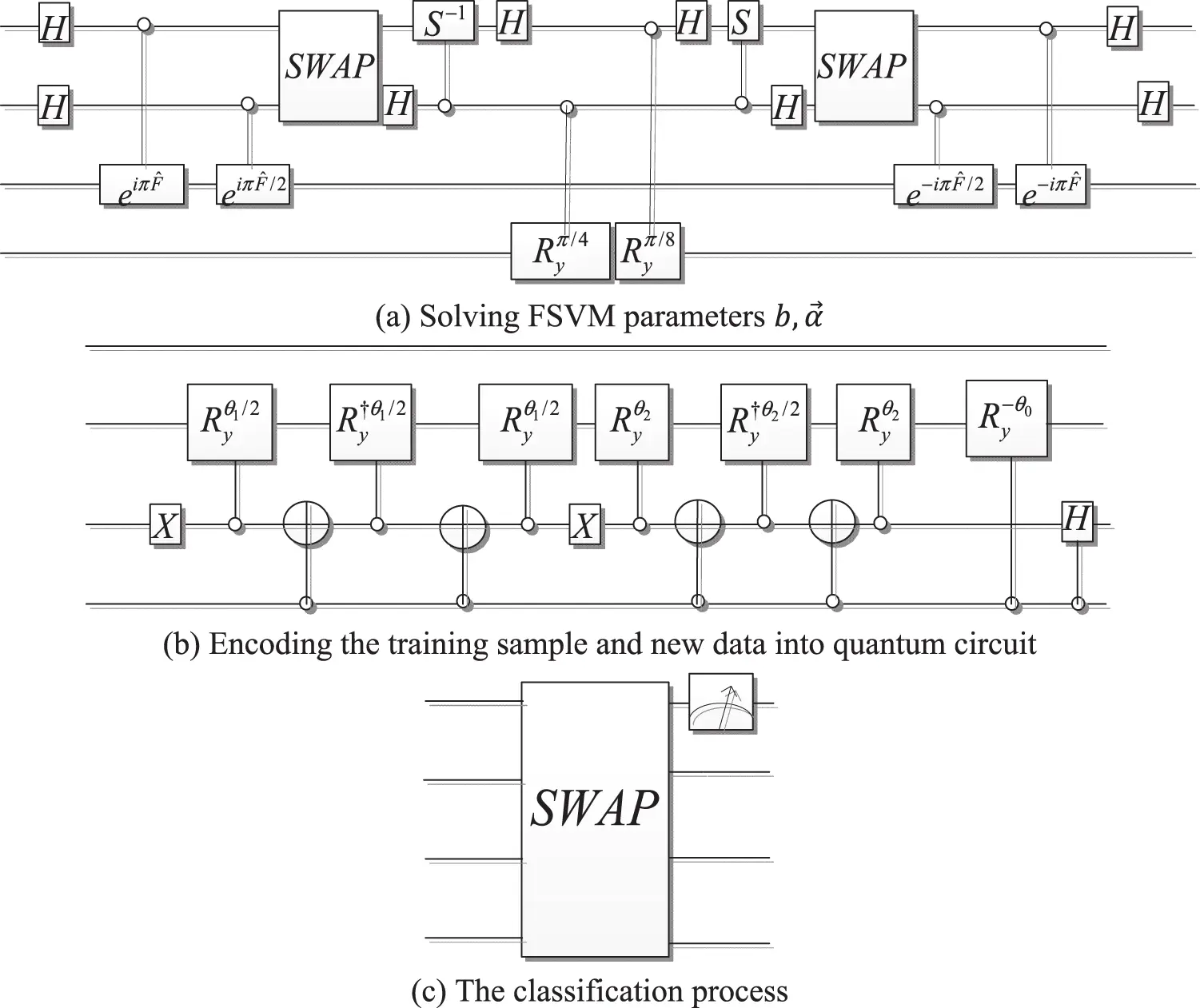

The whole quantum circuit of QFSVM for binary classification can be seen in Fig. 2 below.

Figure 2: Quantum circuit of QFSVM for binary classification. H denotes the Hadamard gate, SWAP denotes the swap gate, S denotes the phase gate, S−1 denotes the inverse phase gate, X denotes the quantum NOT gate. θi(i=0,1,2) is the angle value converted from the feature information of the given datasets

4  Experimental Realization

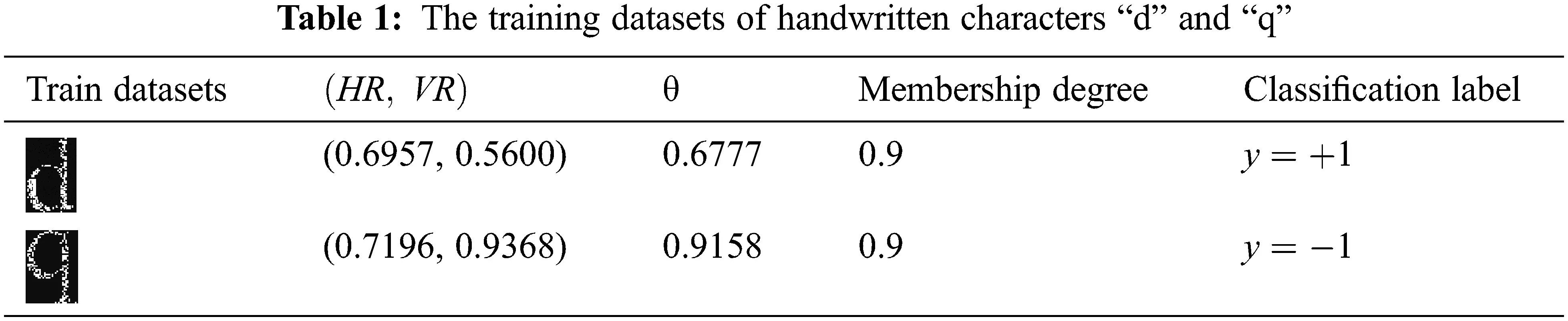

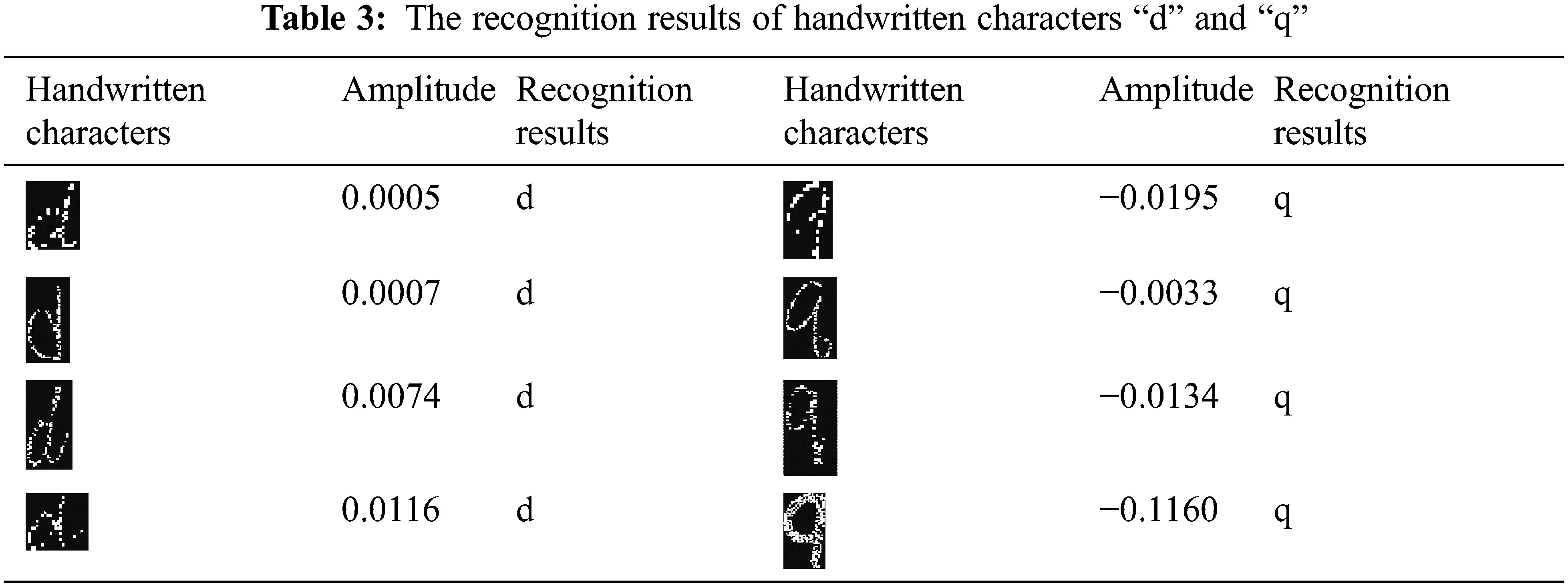

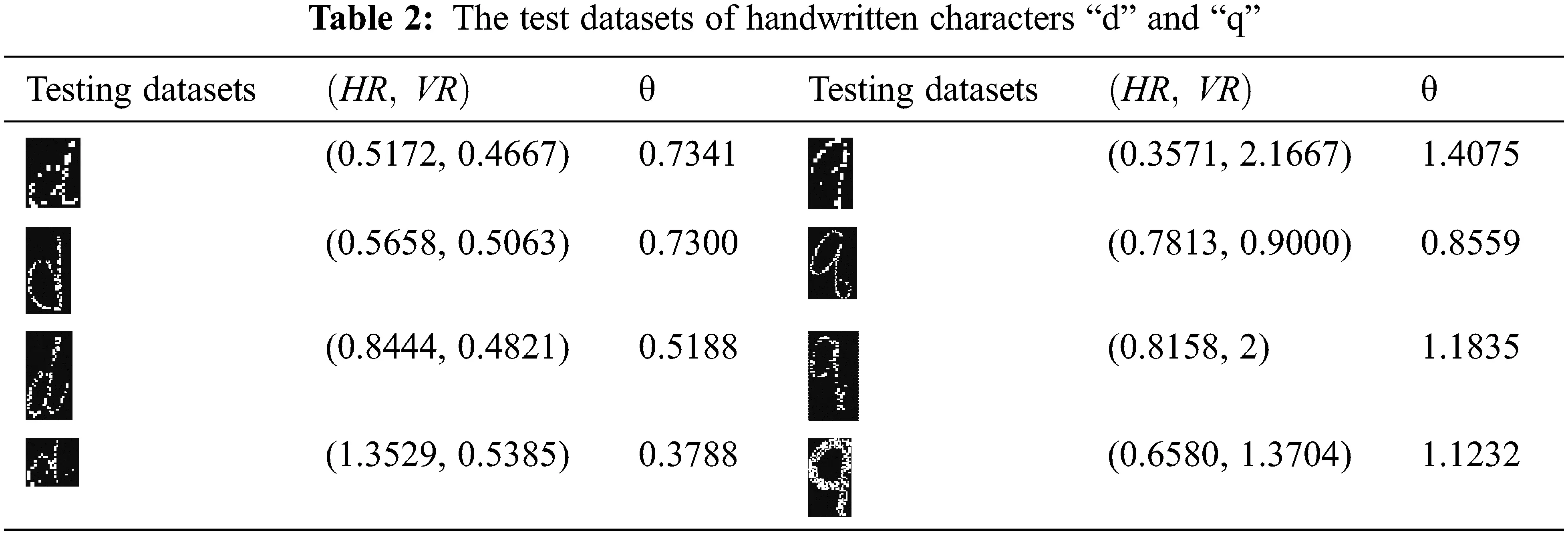

This section demonstrates the experimental realization of a quantum fuzzy support vector machine for binary classification. The proposed QFSVM algorithm is trained with the handwritten characters “d” and “q”, and then eight handwritten characters “d” and “q” chosen from the Modified National Institute of Standards and Technology database (MNIST database) are divided into two-character groups by performing the algorithm. It is worth noting that each handwritten character should be preprocessed, including resizing the pixels and calculating the features. In our experiment, the feature values of the handwritten character are chosen as the horizontal (HR) and vertical ratios (VR), which can be calculated from the pixels in the left (upper) half over the right (lower) half. For the handwritten character picture, calculating its horizontal ratio (HR) and vertical ratio (VR), its angle value θ=arccot(HR/VR) , and the Hermite matrix F^ as the input of quantum circuit in Fig. 2, the class label of new data can be obtained. The training datasets of handwritten characters “d” and “q” can be seen in Tab. 1 below. The testing datasets of handwritten characters “d” and “q” are shown in Tab. 2. The Hermite matrix F^=FtrF=(0.47980.36130.36130.5202) is calculated by the handwritten characters “d” and “q”, and it can be used to obtain the desired SVM parameters b,α→ in Algorithm 2. The recognition results of the handwritten character “d” and “q” are shown in Tab. 3. The test data is classified as d if the amplitude is less than zero. Otherwise, the test data is labeled q. The recognition results in Tab. 3 show that the proposed QFSVM algorithm can achieve accurate classification of handwritten characters when applied to handwritten characters, and that executing QFSVM in a near-term quantum computer is feasible.

5  Discussion and Conclusion

As an excellent classifier, the train points in (quantum) support vector machines must be specific sets, and the QSVM and SVM cannot deal with the classification problems for training samples with fuzzy information. In comparison to QSVM and SVM, the proposed QFSVM is a generalization of FSVM, and it can not only deal with the training samples with fuzzy information efficiently and accurately, but also assign a fuzzy membership degree to each training sample to reduce the effect of outliers and noise in constructing an optimal hyperplane. In comparison to FSVM, which has the computational complexity of O(poly(N,M)) , where N is the number of dimensions of the feature space and M is the number of training samples. QFSVM gives exponential speed-up over the FSVM, and the computational complexity is O(log(N)log(M)) .

In conclusion, a quantum fuzzy support vector machine for binary classification is proposed in this paper. It is derived from the fuzzy support vector machine algorithm and can process training samples with fuzzy membership efficiently and accurately, as well as deal with the complexity and uncertainty of big data efficiently and accurately. The proposed algorithm is applied to the handwritten characters, and experimental results show that the proposed QFSVM has good classification accuracy and that executing QFSVM in a near-term quantum computer is feasible. More importantly, it opens up a new path for processing large amounts of data with fuzzy information. In the future, we will focus on the quantum fuzzy support vector machine for multiclass classification and the quantum fuzzy support vector machine for privacy protection.

Funding Statement: This work is supported by the National Natural Science Foundation of China (No. 62076042), the Key Research and Development Project of Sichuan Province (No. 2021YFSY0012, No. 2020YFG0307, No. 2021YFG0332), the Science and Technology Innovation Project of Sichuan (No. 2020017), the Key Research and Development Project of Chengdu (No. 2019-YF05-02028-GX), the Innovation Team of Quantum Security Communication of Sichuan Province (No. 17TD0009), the Academic and Technical Leaders Training Funding Support Projects of Sichuan Province (No. 2016120080102643).

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
