A Secure Framework for Blockchain Transactions Protection

1  Introduction

In recent years, network technology has been renovated day by day, and at the same time, it has brought more complex network attack methods or means, such as zero-day exploit [1], advanced persistent threat (APT), social engineering, etc. [2]. Due to the asymmetry of information, security defenders are at a natural disadvantage in the “speed battle” of complex system security attack and defense as shown in Fig. 1, according to Verizon’s 2018 report, attackers can attack and defend complex systems within minutes (87% of enterprises’ network systems were compromised, while 68% of enterprises would only find out that their network systems were compromised several months later) [3,4]. In the face of complex attack forms and serious attack consequences, relying on the technical strength of individuals or a single organization can only obtain partial attack information [5,6], cannot build a complete attack chain [7,8], and cannot accurately and effectively prevent attackers. Network security threat intelligence sharing and utilization, as a technical method of “exchanging space for time”, can timely use the efficient threat intelligence generated in other networks to improve the response capability of the defender and shorten the response time, thereby forming a mechanism to alleviate the asymmetric situation of attack and defense [9–11].

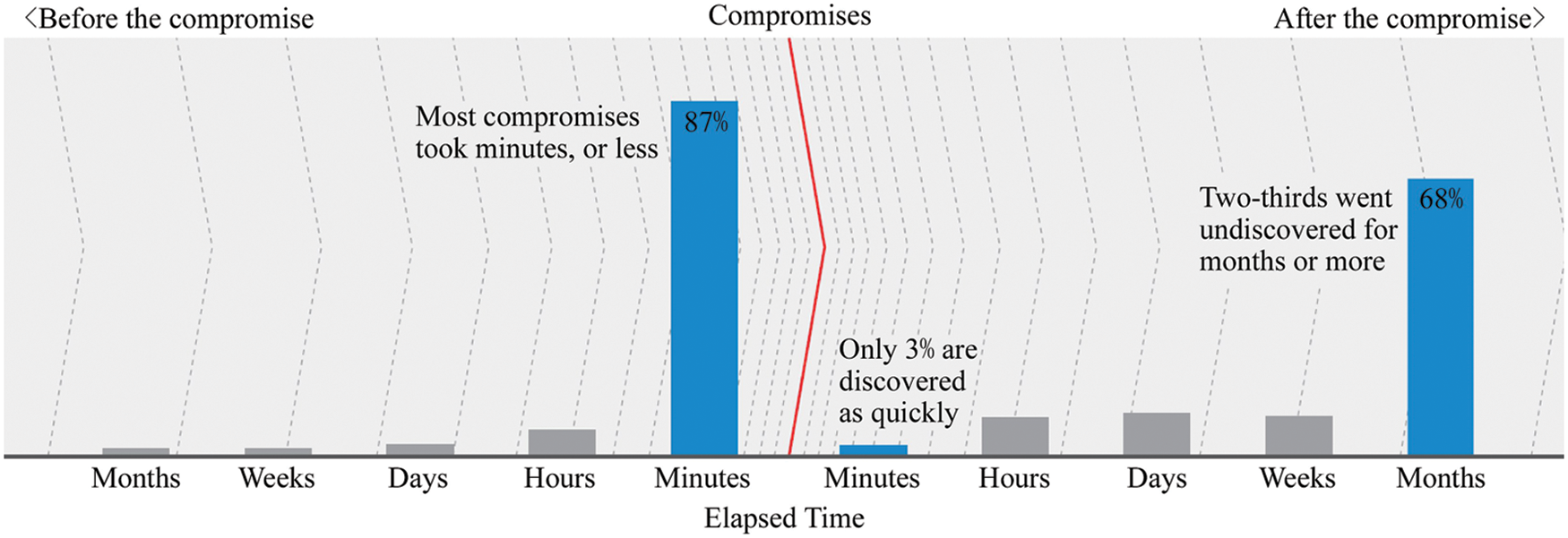

Figure 1: Evaluation of data breaching [11]

Information sharing may lead to the leakage of private information, and the sharing of cybersecurity threat intelligence is no exception [12]. In the real society, there have been cases where the leakage of private information has resulted in loss of business economy or reputation [13], which in turn affects the enthusiasm of enterprises to participate in cybersecurity threat intelligence sharing. Aiming at the privacy protection issue in cybersecurity threat intelligence sharing, literature [14–17] progressed from the aspects of protecting intelligence sharing organization identity information, protecting intelligence using the membership information and improving the privacy leakage in Structured Threaten Formation Expression (STIX) sharing standard. However, strict privacy protection also hinders the inference construction of the complete attack chain. For example, a server with IP address 12.1.2.3 of a bank was attacked by malicious code M and became a command and control (C2) server. In order to protect the private information, the bank released generalized threat intelligence: Malicious code M attacks the bank server, compromised server assumes C2 server function, then analysts cannot use the IP address 12.1.2.3 for reasoning analysis of the attack chain. That is, it is impossible to build a complete attack chain, so it is necessary to propose a method that can not only meet the needs of privacy protection, but also use threat intelligence to analyze and build a network security threat intelligence sharing model for a complete attack chain.

Aiming at the contradiction between privacy protection and threat intelligence utilization, this paper proposes a blockchain-based network security threat intelligence sharing model.

The key contributions are as follows:

•   It deploys the account anonymity of the blockchain to protect the identity of the threat intelligence sharing party and the user.

•   It uses the encrypted threat intelligence to build a complete attack chain, and complete the decryption of the threat source in the attack chain with the backtracking capability of the blockchain.

•   It also deploys smart contracts to automatically issue early warning responses to potential attack targets.

2  Related Work

Researchers have carried out a lot of research on the framework or model of cybersecurity threat intelligence sharing, privacy protection in cybersecurity threat intelligence sharing, and the use of blockchain in information sharing, which provides the basis and reference for the work of this paper.

In terms of cybersecurity threat intelligence sharing, reference [18] discussed the necessity of cybersecurity information sharing and provided guidelines for types of shared information, defined community cybersecurity threat alert levels, and discussed the effects of different alert levels on information sharing. In this paper, a collaborative information sharing framework is proposed, and then the security, trustworthiness, privacy and other issues that may be encountered in the sharing process and future research directions are expounded. Reference [19] analyzed the historical background of information sharing with the help of Microsoft’s experience in infrastructure security management, and expounded the classification of information sharing in terms of models, methods and mechanisms. The above research work has fully affirmed the necessity of network security threat intelligence sharing, and also put forward the demand for privacy protection, but failed to provide effective privacy protection methods or measures.

In terms of the combination of blockchain technology and information sharing, reference [20] applied the blockchain to the sharing and exchange of medical files, and realized the sharing of data while protecting the privacy of patients. Reference [21] applied the blockchain to in-vehicle edge computing and network data sharing, and achieved certain results. Reference [22] proposed a blockchain-based iShare framework, in which the members participating in the iShare framework can only share the scheme or overview of network security protection, and used the game theory to analyze the possible malicious behavior in the framework. Some progress has been made in the research of blockchain technology in the information sharing in other industries, but these research results cannot be directly applied to the sharing of cybersecurity threat intelligence. The iShare framework can only share the network security protection scheme, and does not involve the sharing of threat intelligence information [23].

In terms of privacy protection in threat intelligence sharing, reference [24] used an aggregated blind signature (based on BBS + signature scheme) mechanism in order to protect the identity information of organizations sharing threat intelligence, and proposed a registration, sharing, and demonstration method. In order to prevent the private information from being leaked to untrusted participants or hackers in the process of threat intelligence sharing, reference [25] proposed a network security threat intelligence sharing and utilization framework based on the homomorphic encryption. Reference [26] analyzed the possible privacy information leakage problem in STIX network security threat intelligence sharing standard, and tried to solve the privacy information leakage problem by using an improved data sharing protocol. The above research work has played a role in privacy protection from a unilateral dimension, but cannot protect the privacy information of the intelligence sharing party, the intelligence user and the intelligence-related parties at the same time [27–32].

In view of the limitations of existing research work, this paper constructs a network security threat intelligence sharing model based on blockchain. This model utilizes the account anonymity of the blockchain and the unified one-way encryption function to fully protect the privacy information of the intelligence sharing party, the user and the intelligence involved other parties. At the same time, the encrypted threat intelligence can be correlated and analyzed to construct a complete attack chain, improve the efficiency, and ability of security protection.

3  System Model

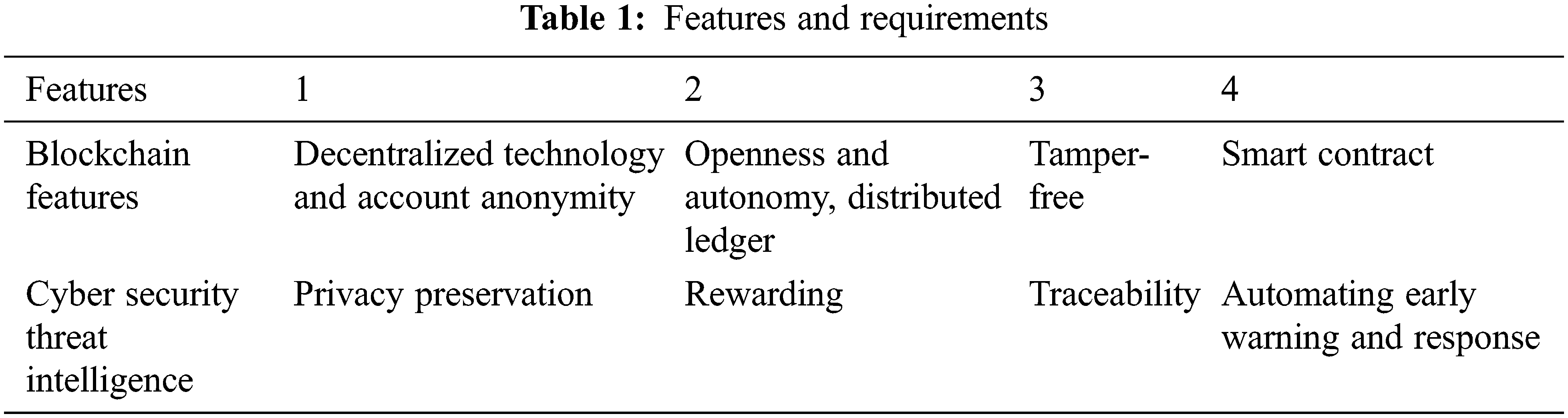

As shown in Tab. 1, the features or functions of blockchain such as decentralization, account anonymity, openness, autonomy, immutability, and smart contract mechanism can meet the privacy protection in cybersecurity threat intelligence sharing, according to the contribution value for reward, threat intelligence traceability, automatic early warning response and other requirements, among which:

1) The anonymity of the blockchain is determined by the Bitcoin address generation process. The Bitcoin address is generated by a series of encoding algorithms and hashing algorithms on the public key of the elliptic curve.

2) The traceability of the blockchain is determined by the blockchain construction process, Block(N)=Hash(tp(N),Merkle(N),Block(N−1),nounce) , where tp(N) represents the Timestamp, Merkle(N)=Hash(Tx(N)) means the Merkle root containing the existing transaction, and nounce means the random number.

3) Smart contracts can trigger transactions when the contract conditions are met, that is:

isexecute={True,x∈conditionsorx=conditions;False,otherwise (1)

In view of this, this paper proposes a blockchain-based network security threat intelligence sharing model.

3.1 Definition

Before expounding the model and algorithm in this paper, the relevant definitions are given first.

Definition 1. One Meta-Class Network Security Threat Intelligence (OneCti). It mainly includes network security threat indicator (indicator of compromise, IoC) or threat object type intelligence, such as email, IP address, domain name, malicious code, organization, domain name owner, attacker, etc. It is described using a quadruple tp,type,value,label , where tp represents the timestamp, type represents the element type (type∈{tp,type,value,label}) , value represents the element value, and label represents the label tag; such as: 〈2019-05-16T10:00:00, IP, 12.6.5.3, C2〉 indicates that the IP address 12.6.5.3 was detected at 2019-05-16T10:00:00 at C2 server.

Definition 2. Binary Class Network Security Threat Intelligence (TwoCti). It mainly includes network security event type intelligence, which is described using the 7-tuple: <tp , type1 , value1 , rel , type2 , value2 , desc> . It represents the relationship between two elements (rel∈{connect,inject,scan,…} , desc represents the descriptive information related to the intelligence. For example: < 2019-05-16T10:00:00, ip, 12.6.5.3, connect, ip, 13.5.6.6, connect server > means that when 2019-05-16T10:00:00, the IP address is 12.6.5.3 and it is connected to the server whose IP address is 13.5.6.6.

Definition 3. Cybersecurity Intelligence Sharing Transaction (STrans). It refers to the process in which organizations share cybersecurity threat intelligence to the threat intelligence center, and the threat intelligence center verifies the threat intelligence, gives a certain ticket after evaluation, and returns the intelligence sharing certificate (ticket , using the six-tuple ⟨tp,Oacc,Cacc,reward,SENc(Cpubk,Cti),ticket⟩ description, where tp represents the timestamp, Oacc , Cacc and SENc(Cpubk,Cti) indicates the threat intelligence encrypted with the public key Cpubk of the threat intelligence center.

Definition 4. Network security threat intelligence map. It refers to the directed graph composed of the element values of network security threat intelligence using one-way encryption, described by G=⟨V,E,L,R⟩ . Among them, V represents the one-way encrypted ciphertext of IP, domain name, mailbox and other element values. If there is a binary network security threat intelligence between u,v∈V , forming a directed edge from u to v , then (u,v)∈E ; L is the set of labels of nodes v∈V ; R is the set of relations between nodes.

Definition 5. Network Security Intelligence Analysis Transaction (ATrans). It refers to the organization’s request for threat intelligence analysis to the threat intelligence center. After the intelligence center correlates the threat intelligence provided by the organization with the intelligence in the database, it returns the analysis result or threat disposal suggestion (result) and charges a certain amount of intelligence usage fee (uf) process, using the six-tuple: ⟨tp,Oacc,Cacc,uf,SEnc(Cpubk,Cti),SEnc(Cpubk,result)⟩ description, where tp,Oacc,Cacc,uf,SEnc(Cpubk,Cti) have the same meaning as STrans. The meaning is the same as in, SEnc(Opubk,result)> represents the result of intelligence analysis encrypted with the public key Opubk of the organization.

3.2 Model Description

As shown in Fig. 2, the blockchain-based network security threat intelligence sharing model is represented by the octet: ⟨Org,Center,BlockNet,CtiDB,Cti,Trans,SC,Operation⟩ , where:

1) Org represents an organization that can share and use cybersecurity threat intelligence. There are N organizations Orgi(1≤i≤N) in the model. Each organization Orgi acts as a node of the blockchain and has the blockchain account address Oacc . The organizations use the network security threat intelligence in the process of sharing and using the network security threat intelligence. Oacc appears in the form which can effectively protect the identity information of organizations.

2)Center represents the network security threat intelligence analysis center, which has the function of analyzing network security threat intelligence, and is an indispensable trusted third party for reasoning and constructing a complete attack chain. Have a blockchain account address Cacc .’

3)BlockNet represents the blockchain network, which consists of Org and Center.

4)CtiDB represents network security threat intelligence database, which can store network security threat intelligence. In this model, the intelligence in the network security threat intelligence database is encrypted intelligence Hash (Cti), which can effectively prevent the leakage of private information in the intelligence.

5)Cti represents network security threat intelligence (Cti∈{OneCti,TwoCti}). This paper mainly discusses one-dimensional and two-dimensional network security threat intelligence, and other multi-category network security threat intelligence can be divided into multiple binary or one-dimensional categories. A combination of cybersecurity threat intelligence.

6)Trans represents the transaction information on the blockchain, including the network security threat intelligence sharing transaction and the network security threat intelligence analysis transaction, namely Trans∈{STrans,ATrans} .

7)SC represents the smart contract created by the organization, which is composed of creator account address Oacc , trigger condition, early warning response measure response, intelligence usage fee uf , using the quadruple: ⟨Oacc,condition,response,uf⟩ . When Center is found in the intelligence analysis and reasoning that the triggering condition of the smart contract is met, the early warning response measures will be executed, and the fee uf will be deducted from the account Oacc, of the creator of the smart contract.

8)Operation represents the action operation between the main body Org , Center , CtiDB and BlockNet , including intelligence node registration (registry), threat intelligence sharing (sharing), evaluation, analysis, transaction broadcast, storage, extraction (get) and smart contract creation, etc. As shown in Fig. 3, when the organization Org1 and Center share information, different subjects will involve sharing, get, evaluate, store, broadcast and other actions.

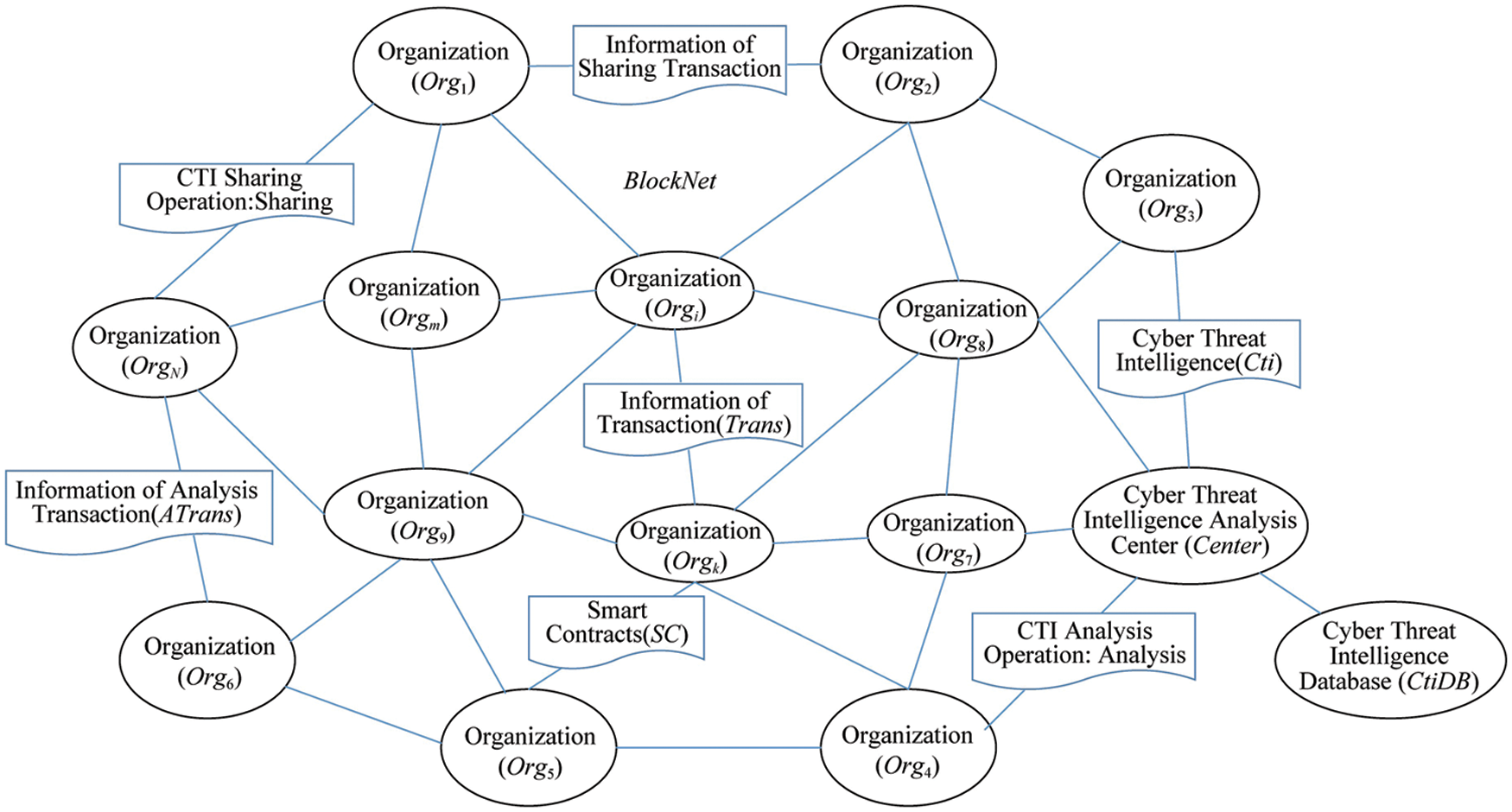

Figure 2: Blockchain model

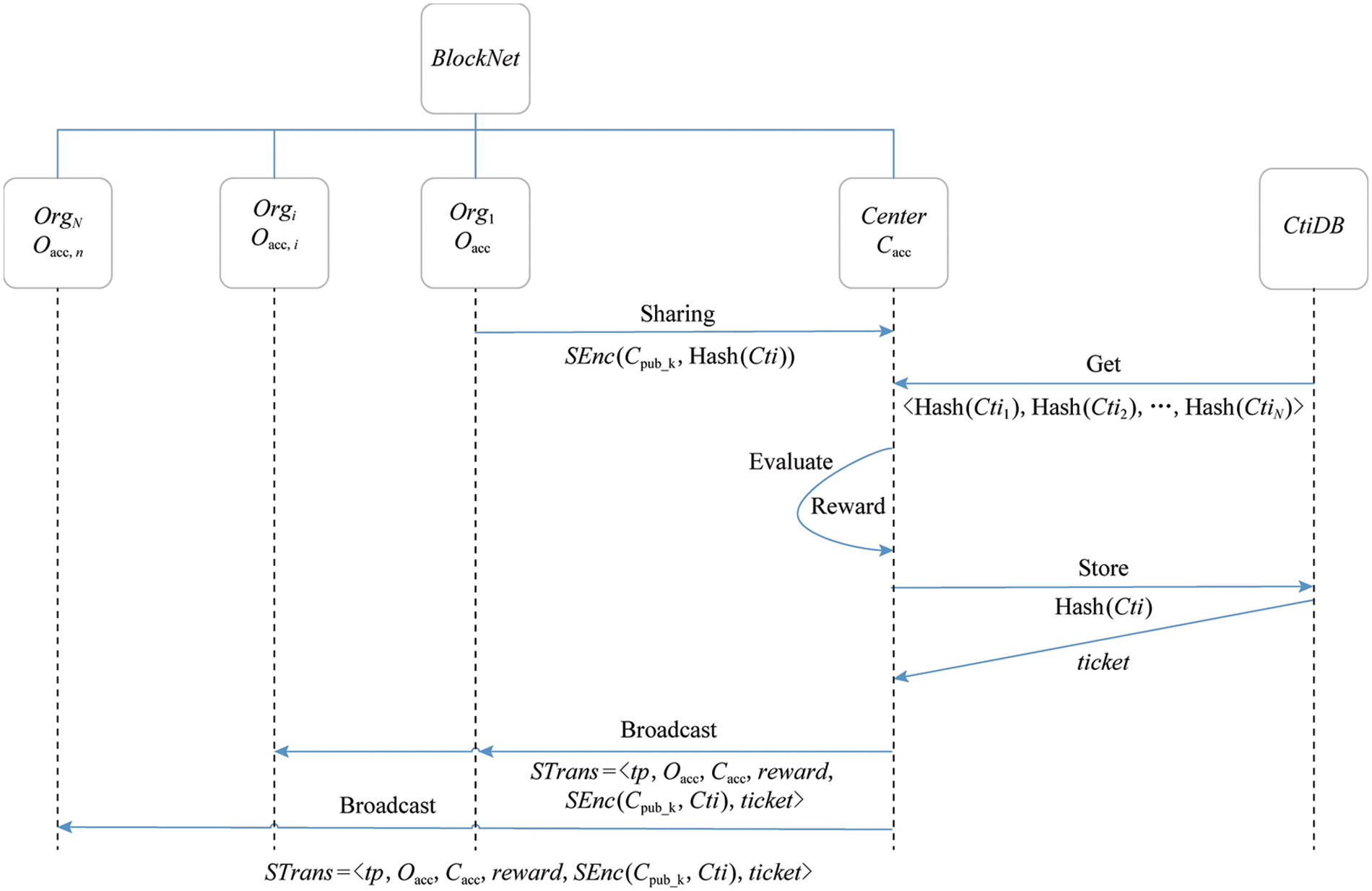

Figure 3: Intelligence sharing process

4  Intelligence Node Registration Algorithm

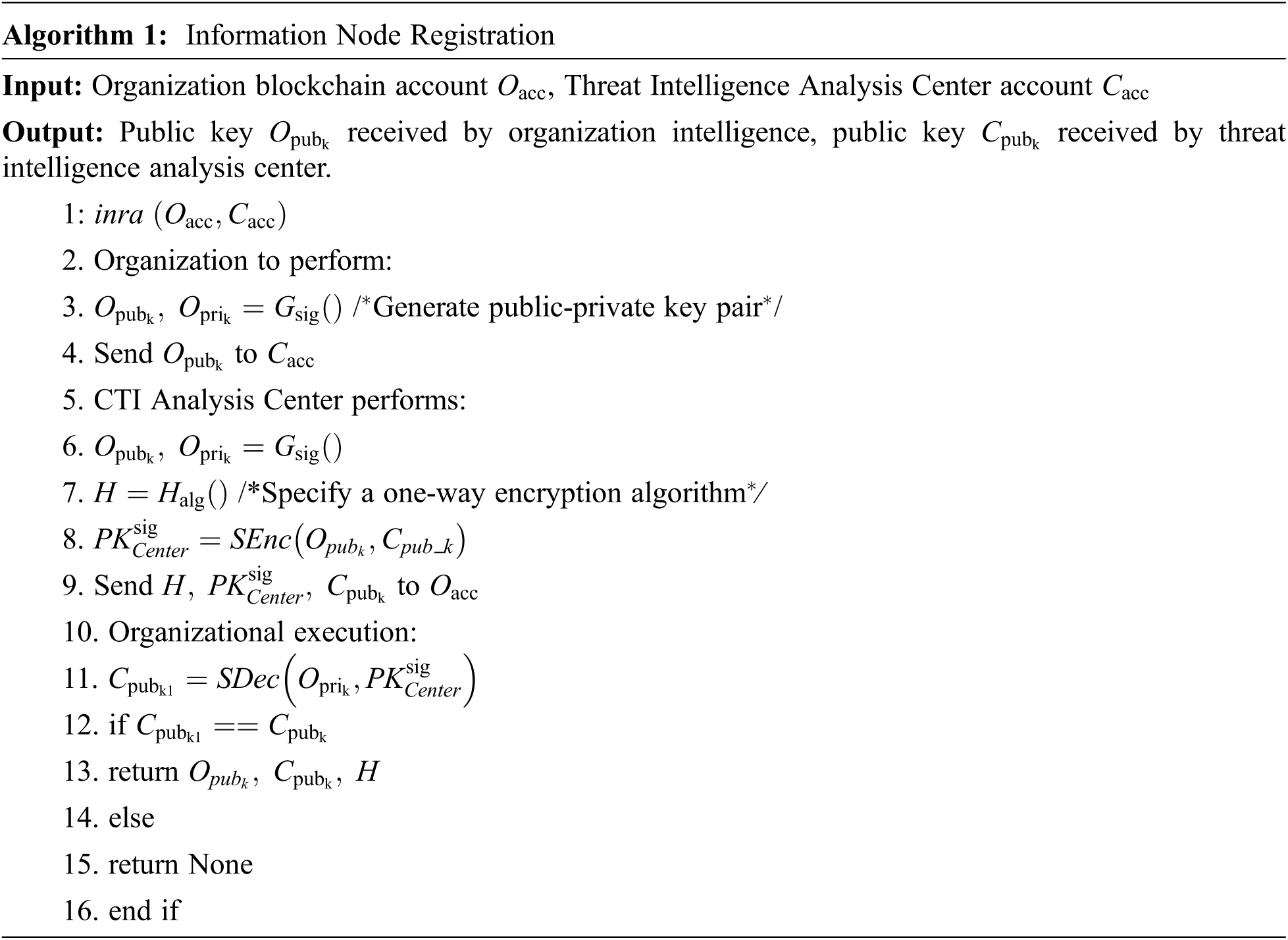

In order to ensure the credibility of intelligence nodes and protect intelligence sharing and use of private information, this paper introduces the intelligence node registration algorithm as shown in Algorithm 1. The organizations try to join the threat intelligence blockchain and become intelligence nodes. They need to report to the network. The Security Threat Intelligence Center performs registration, and the registration process relies on the standard encryption system to complete. Among them, the asymmetric encryption consists of triples: ⟨Gsig,SEnc,SDec⟩ . Gsig generates a public-private key pair, SEnc is an asymmetric encryption algorithm, and SDec is an asymmetric decryption algorithm. The one-way encryption function is represented by Halg . Specifically, steps 2 ~ 4 of Algorithm 1 generate the public-private key pair (Opubk,Opri_k) that receives the information returned by the Threat Intelligence Center, and send Opubk to the Threat Intelligence Analysis Center. Steps 5 ~ 9 generate the public-private key pair Cpubk , Cprik and the one-way encryption function H for the information submitted by the receiving organization. In order to verify whether Opubk has been tampered with, use Org’s public key Opubk to encrypt Cpubk , and send the ciphertext and plaintext of the public key to Org. Steps 10 ~ 15 use its own private key to decrypt and obtain Cpubk1 , and judge whether it is equal to the plaintext Cpubk . If it is equal, complete the negotiation of the encryption key and the designation of the one-way encryption algorithm during the information exchange. The algorithm is a linear algorithm, and the time complexity is in the range of O(1).

5  Intelligence Data Accounting Algorithm

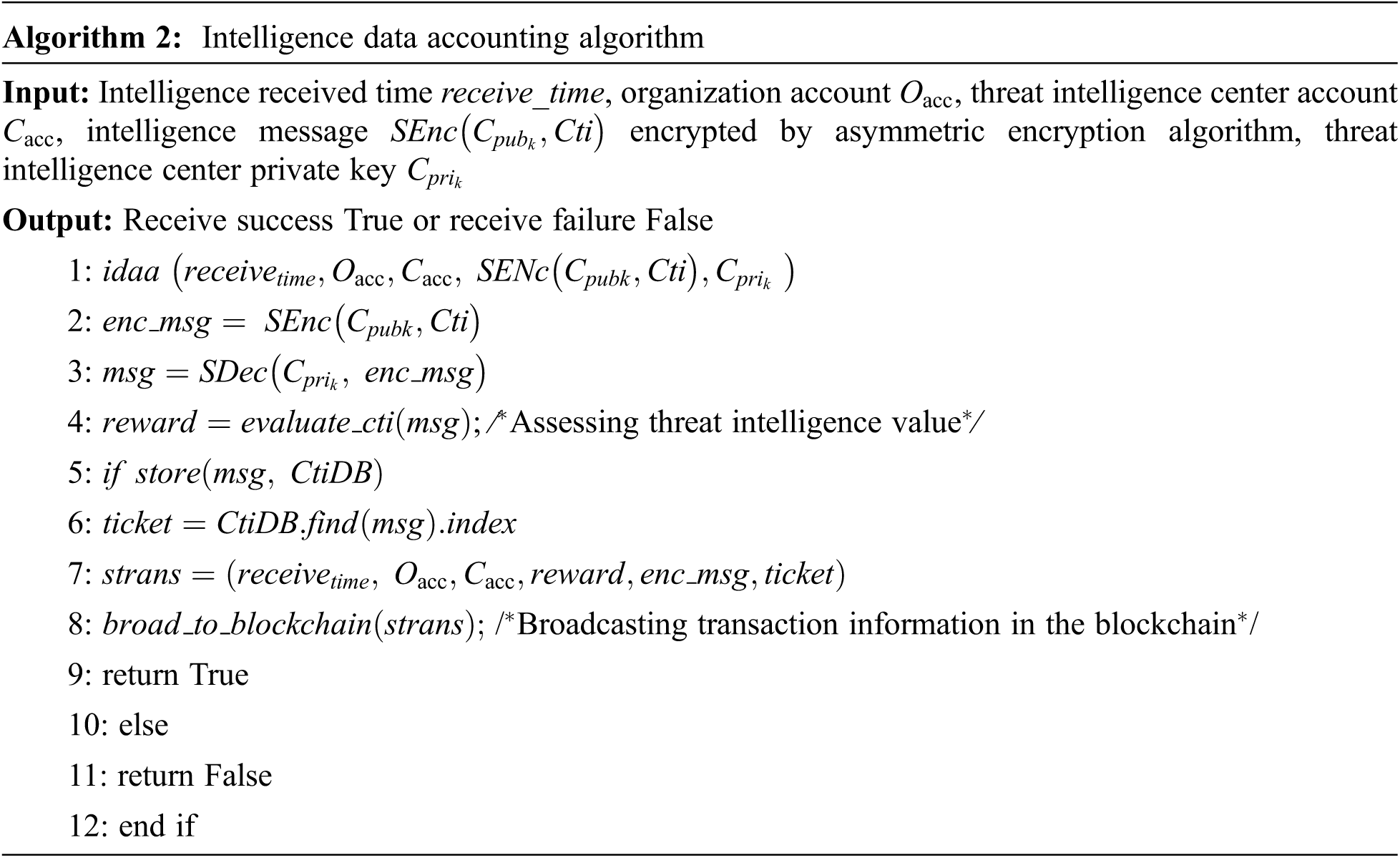

In order to ensure the healthy development of the intelligence sharing community and avoid the “free-rider” behavior of intelligence nodes that only use intelligence and do not share intelligence, this paper designs the intelligence data accounting algorithm shown in Algorithm 2, which realizes the organization intelligence sharing between the agency and the network security threat intelligence center. The shared intelligence is encrypted and recorded in the blockchain, which is convenient for the follow-up threat source traceability and decryption. At the same time, a reward mechanism is introduced to encourage intelligence nodes to actively share intelligence. First, the organization submits the encrypted network security threat intelligence SEnc(Cpubk,Cti)(Cti=⟨tp,type,H(value),label⟩||⟨tp,type,H(value),rel,type,H(value),desc⟩) . Then, as shown in steps 2 ~ 6 in Algorithm 2, the intelligence analysis center decrypts, evaluates and stores the submitted intelligence after receiving the submitted intelligence. The value assessment of threat intelligence is mainly based on the degree of correlation with the existing intelligence. Finally, as shown in steps 7 ~ 8 in Algorithm 2, the Cacc broadcasts the intelligence sharing transaction information to the entire blockchain network to complete the accounting operation of intelligence sharing.

6  Analysis and Trading Algorithms Based on Intelligence Graphs

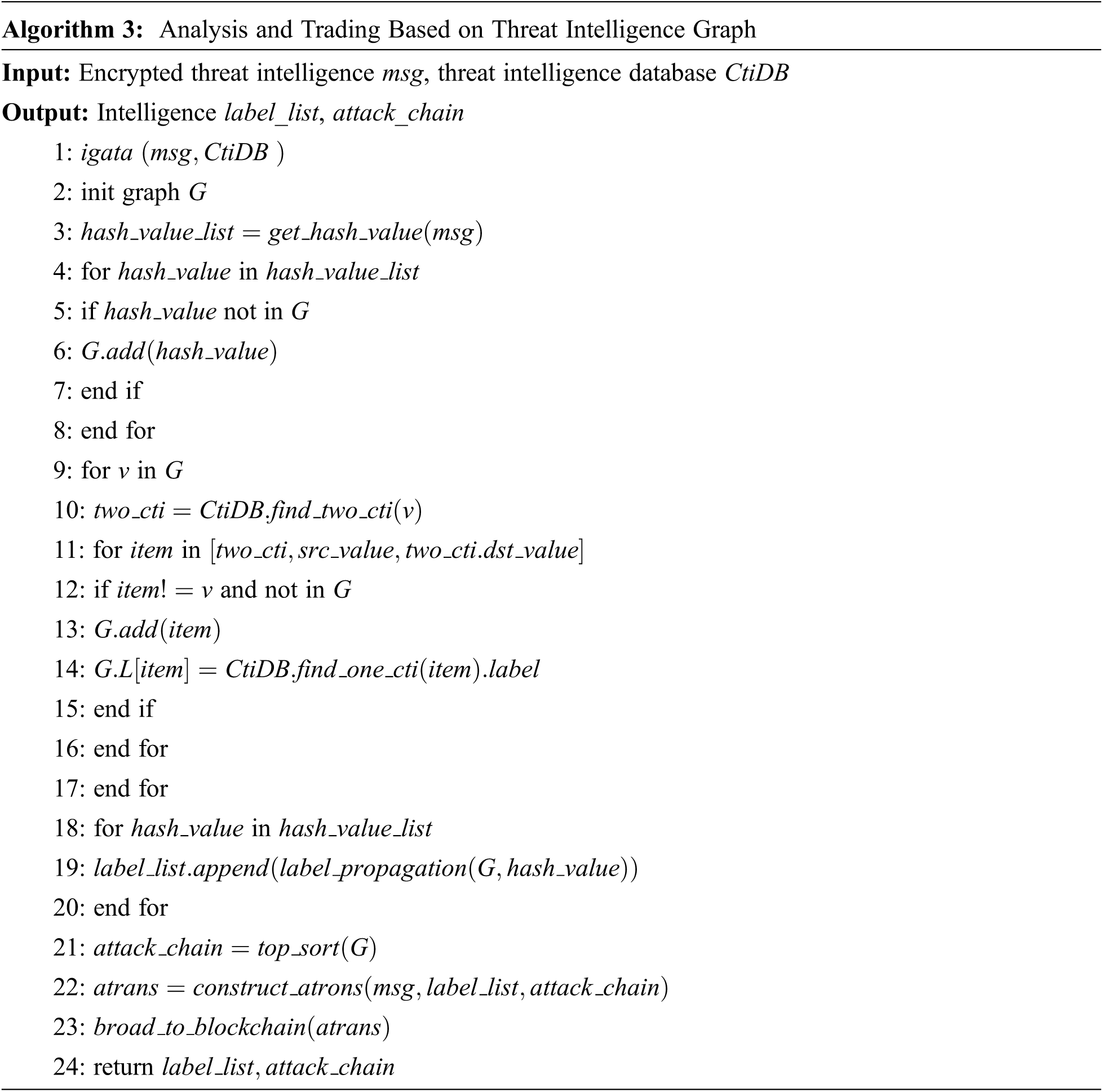

In order to effectively use the network security threat intelligence shared by the intelligence nodes, this paper introduces the intelligence graph-based analysis and transaction algorithm shown in Algorithm 3, which realizes the intelligence analysis between the organization and the network security threat intelligence center. The combined intelligence clues and intelligence results are recorded in the blockchain. Specifically, the network security threat intelligence center and the existing intelligence are correlated with each other to construct a network security threat intelligence map. Then, use the label propagation algorithm to infer the labels of the threat intelligence elements, and then use the topological sorting algorithm to construct the attack chain. Finally, according to the attack chain and element label, with the help of the traceability function of the blockchain, the one-way encrypted network security threat element value is decrypted, returned to the initiator of the analysis request, and the analysis transaction information is written into the blockchain.

Time complexity analysis of Algorithm 3: The main time of Algorithm 3 is spent in the process of building the intelligence graph. Assuming that the number of nodes in the constructed intelligence graph is n, the directed edges are m, and CtiDB uses the form of key-value pairs for database storage or cloud computing. The storage and access time is O(1), then, the time complexity of building the intelligence graph is O(n2), the time consumption of the label propagation algorithm is less than O(m), and the time consumption of the attack chain construction process is O(n + m), Then the total time complexity is close to O(n2).

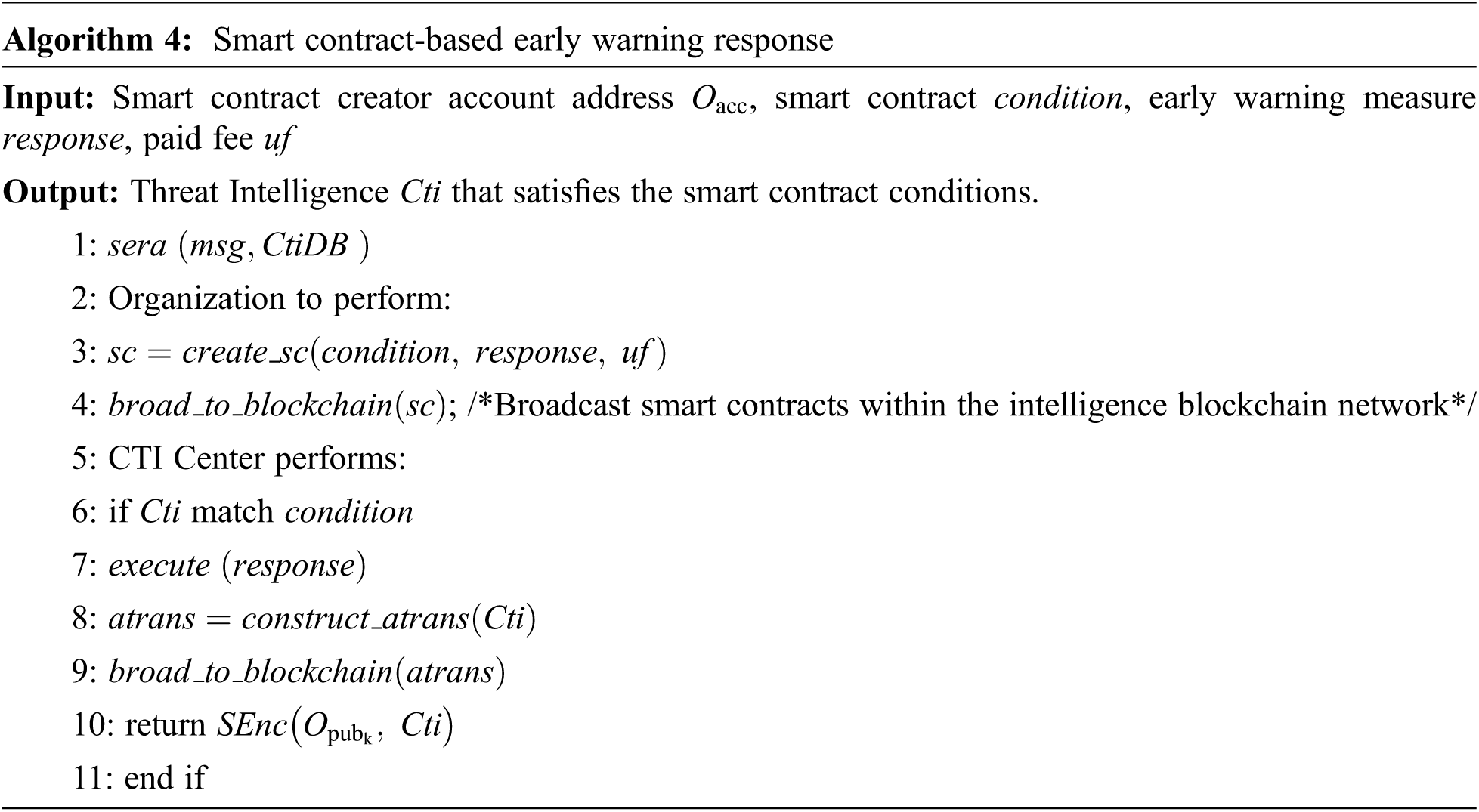

7  Early Warning Response Algorithm Based on Smart Contract

In view of the time asymmetry of network security attack and defense confrontation, how to improve the response speed of the defender has become a focus of attack and defense confrontation. In order to improve the speed of early warning response in the intelligence blockchain network, a smart contract-based early warning response mechanism is introduced into the model, as shown in Algorithm 4. First, the organization (steps 2 ~ 4) will create smart contracts on the blockchain for the systems that need key protection, and broadcast the entire blockchain network. Then, when analyzing the intelligence, the cybersecurity threat intelligence center will analyze the threat intelligence related to the smart contract created by the organization. If there is any threat intelligence that meets the triggering conditions of the smart contract, the model will automatically trigger the smart contract and execute it. Among them, the early warning response process or measures, and the analysis is transformed into network security threat intelligence analysis transaction information broadcast intelligence blockchain network.

8  Experimental Evaluation

In order to verify and evaluate the effect of the above threat intelligence sharing model, this paper designs a network with the topology shown in Fig. 4, among which 16.1.5.20, 16.1.5.23, 16.1.5.26, 16.1.5.29, 16.1.5.30 constitute the blockchain network, 16.1.5.20 carries the function of the network security threat intelligence analysis center, and the network security threat intelligence database is stored on the cloud storage built by ownCloud.

Figure 4: Proposed network topology

Referring to the kill chain (reconnaissance and tracking, weapon construction, payload delivery, vulnerability exploitation, installation and implantation, command and control, and target achievement), this paper designs a simulated attack scenario as shown in Fig. 5: 2019-05-26T10:00:00, the attacker Alice used the server with the IP of 12.1.5.67 to attack the server of the Org0 enterprise with the IP of 16.1.5.29, and dropped the malicious code payload M0, and then used the 16.1.5.29 as Springboard captured the 16.1.5.30 server and dropped malicious code payload M1 (a variant of M0). The malicious code M0 uses its own propagation mechanism to spread to the server whose IP is 16.1.5.26. At 2019-05-27T01:00:00, the attacker Alice received the new zombie machine 16.1.5.26 and used it to compromise the 16.1.5.23 server of the enterprise Org3 and dropped malicious code payloads M1.

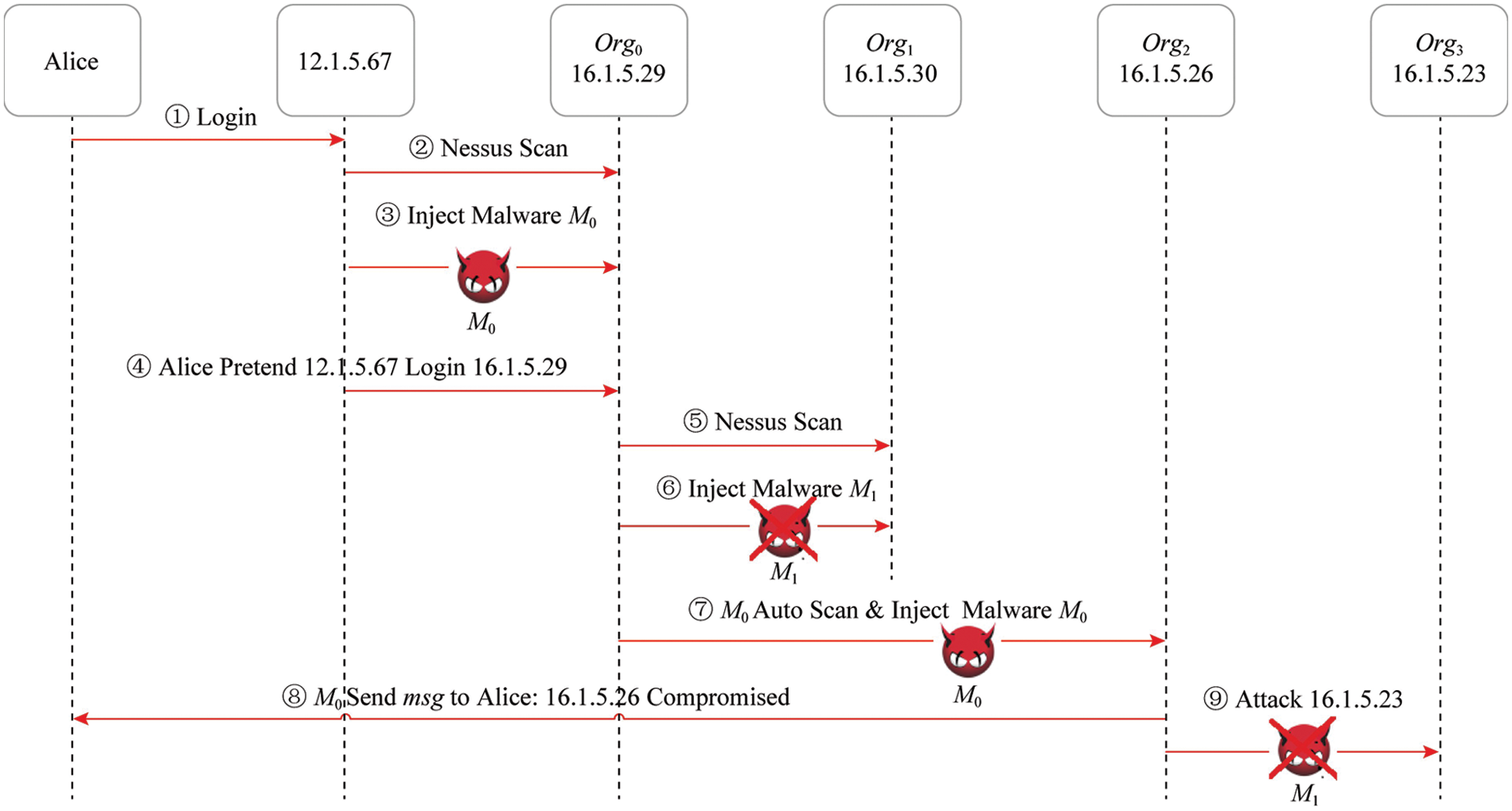

Figure 5: Illustrations of cyber attack

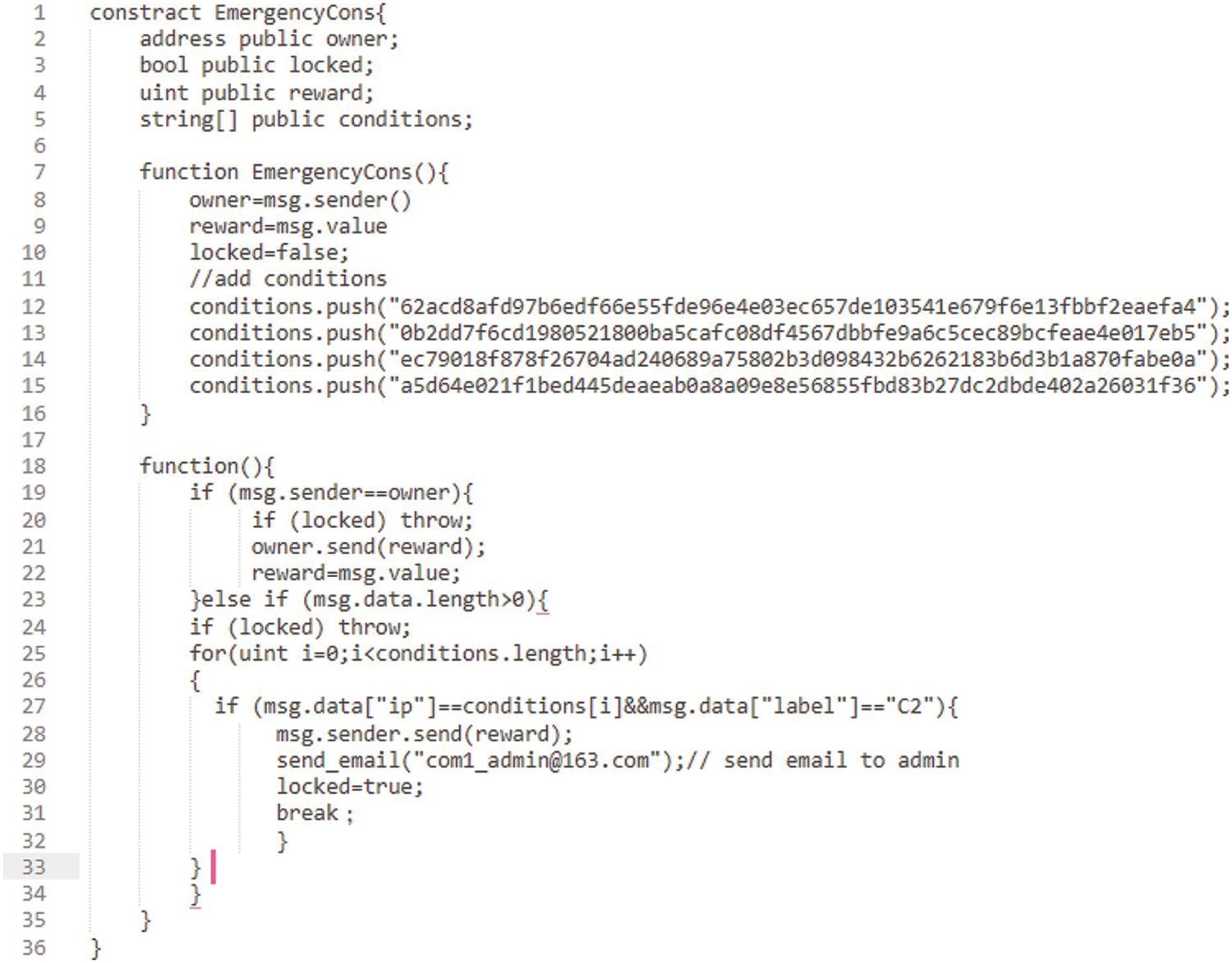

Org1 creates a smart contract as shown in Fig. 6 on the blockchain network, as long as the conditions are met: ip∈{SHA256(16.1.5.23),…SHA256(16.1.5.29)} & label=C2 , execute the function send_email(“org1_admin@163.com,”) to send alarm information to the server administrator.

Figure 6: Illustrations Org1 smart contract

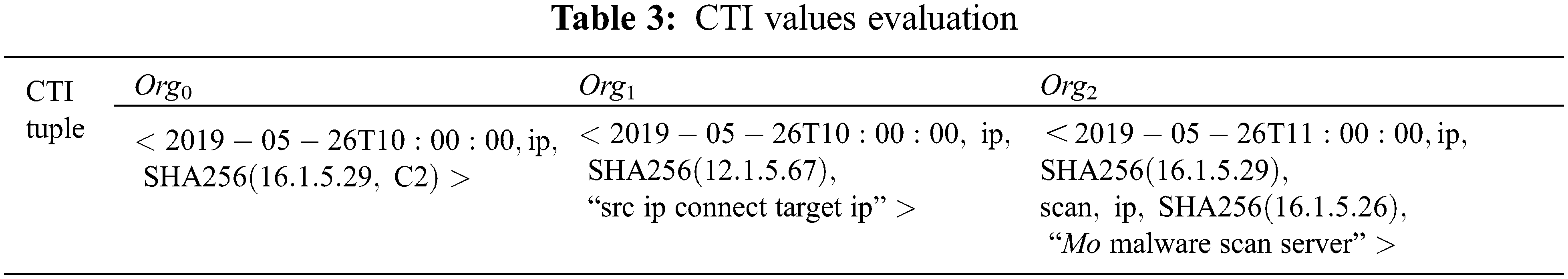

In order to meet the model requirements, in the experimental evaluation, the asymmetric encryption adopts the Rivest-Shamir-Adleman (RSA) algorithm, the symmetric encryption adopts the Advanced Encryption Standard (AES) algorithm, and the one-way encryption adopts the SHA256 algorithm. According to the model design, the IP information in this paper appears in the form of SHA256(IP) during intelligence sharing, that is, as shown in the value of SHA256(IP) in Tab. 2, which avoids the leakage of IP information in intelligence. The same applies to domain names, email addresses and names. The STIX standard is referred to when sharing network security threat intelligence in the community. As shown in Fig. 7, first, each organization Org registers with the Cyber Security Threat Intelligence Center. Then, Org1 creates the smart contract as shown in Fig. 6. Subsequently, Org0 shared the first cybersecurity threat intelligence with, because the triggering condition of the smart contract SHA256(16.1.5.2) ∈ {SHA256(16.1.5.23),…, SHA256(16.1.5.29)} & label = C2, the system sends a threat source request to Org0 (because SHA256(16.1.5.29) involves private information, Org0 chooses not to decrypt the IP address, but returns nothing. The behavior and emergency response method of the malicious code M0 involving privacy and trigger the execution of the smart contract of Org1, and send the alarm information to the administrator of 16.1.5.30. Finally, when Org3 issues < 2019-05-27T01:00:00, ip, SHA256 (16.1.5.26) > , the network security threat intelligence analysis requirements, the system builds an intelligence graph with the help of existing network security threat intelligence, and uses the label propagation algorithm calculates that the label of SHA256 (16.1.5.26) is C2, and at the same time builds a possible complete attack chain: SHA256 (12.1.5.67) → SHA256 (16.1.5.29) → SHA256 (16.1.5.26), and use the blockchain to decrypt SHA256 (12.1.5.67) to get 12.1.5.67. Tab. 3 provides the sharing list of the cyber threat intelligence.

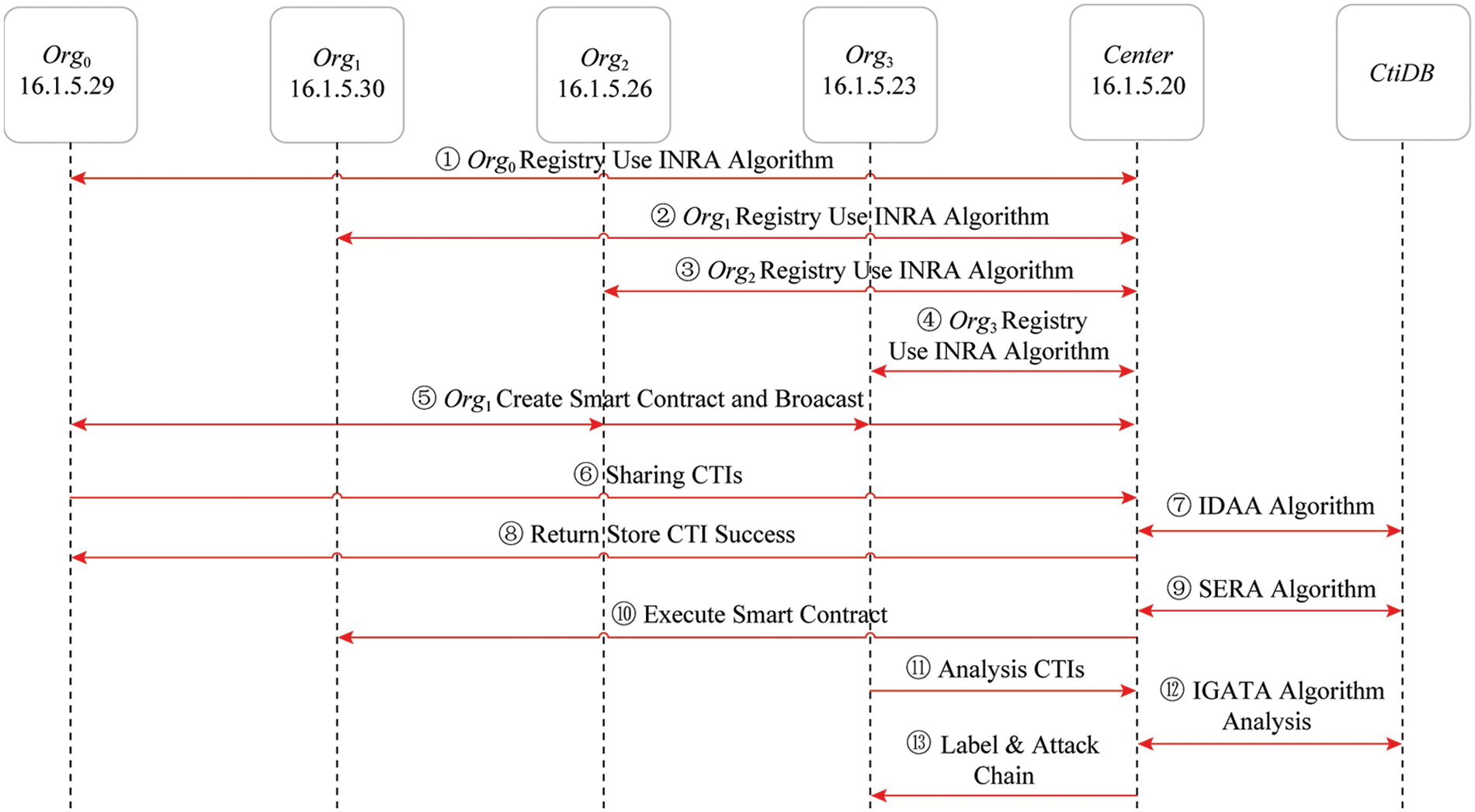

Figure 7: Flow illustrations of CTI

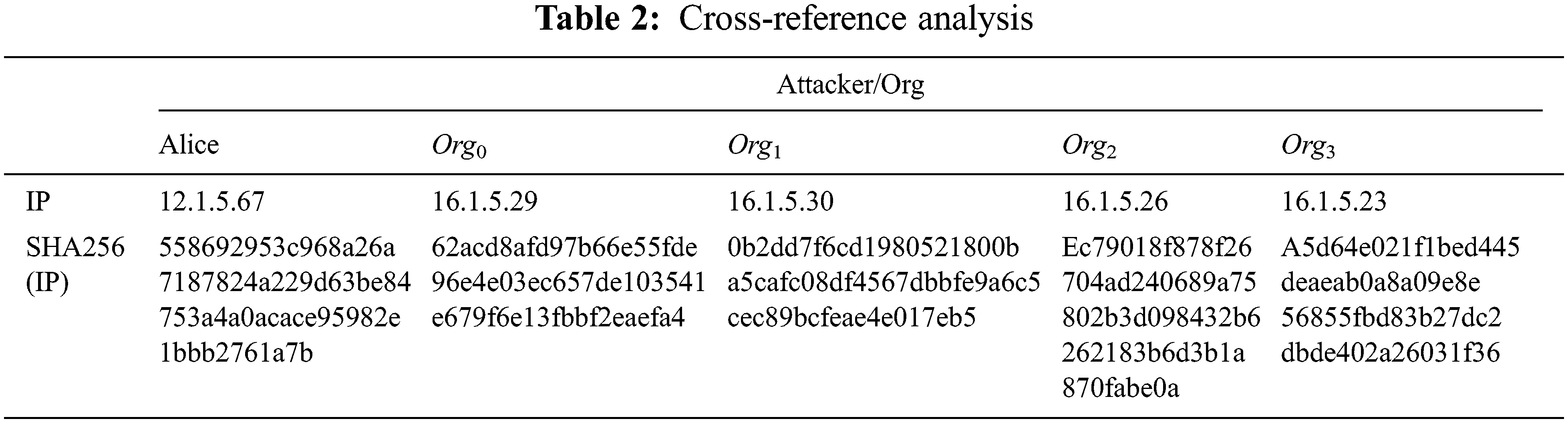

The above process verifies that the blockchain-based threat intelligence sharing model can build a complete attack chain while protecting intelligence privacy. In order to further prove the validity of this model, this paper extracts 15 complete attack chains from 2010 pieces of intelligence information collected by open source intelligence, and maps the 30 IP addresses involved to 16.1.5.10~16.1.5.29 experiment in the address segment. The 30 IPs are 4 C2IPs, 11 attack IPs, and 15 attack target IPs. Fig. 8 shows the impact of the proportion of a certain type of tagged IP becoming an intelligence node on the successful construction of an attack chain when other types of tagged IPs have become intelligence nodes. It can be seen that when C2IP becomes an intelligence node, threat intelligence sharing is more effective to the construction of a complete attack chain.

Figure 8: Comparison of various attacks

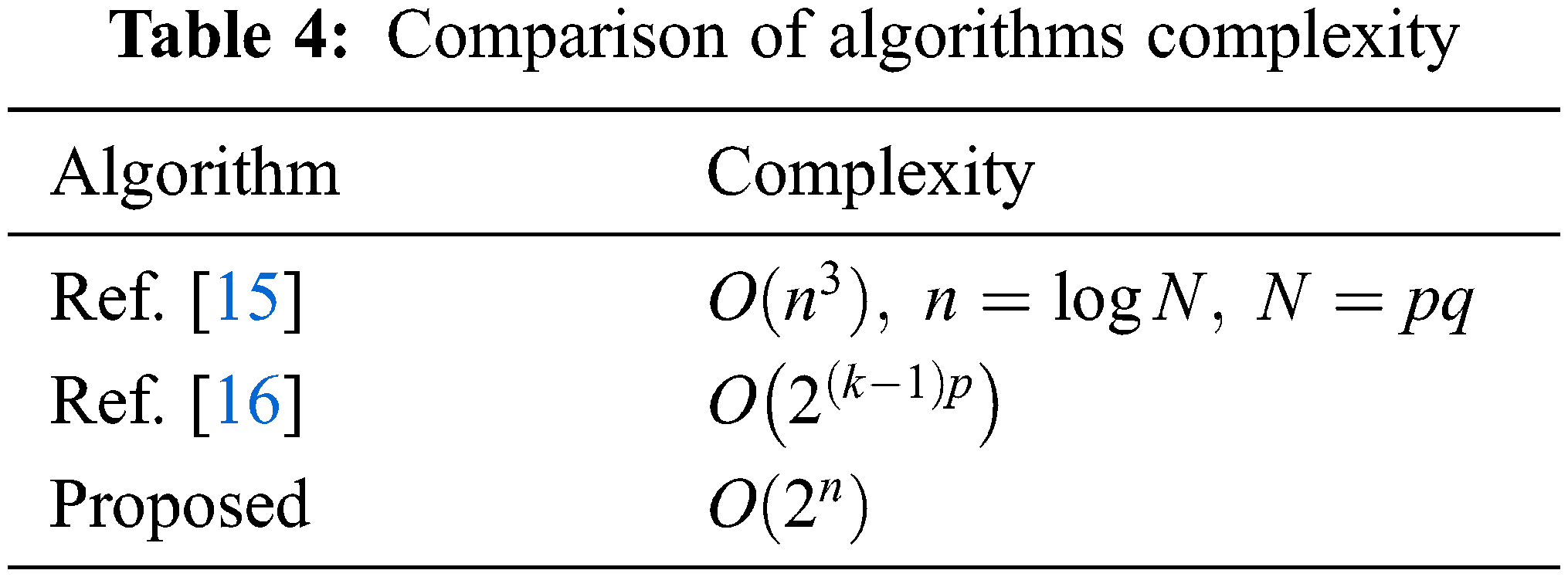

In order to further evaluate the privacy protection of this model in the process of intelligence sharing, this paper conducts analysis and simulation experiments with the existing typical models in terms of the privacy protection strength of the intelligence sharing party, the intelligence utilizing party, and the third party involved in the intelligence. The experimental results are as follows: As shown in Fig. 9, the vertical axis represents the privacy protection strength, and the privacy protection strength is set according to the cracking difficulty of the privacy protection algorithm in Tab. 4. The horizontal axis represents the privacy that needs to be protected in intelligence sharing (that is, the privacy of the intelligence sharing party, the privacy of the intelligence user, and the privacy of the third party involved in the intelligence) and the comprehensive privacy protection evaluation index (according to the importance of the three-party privacy protection to intelligence sharing, the use of Eq. (2) calculated by the weighted average method as:

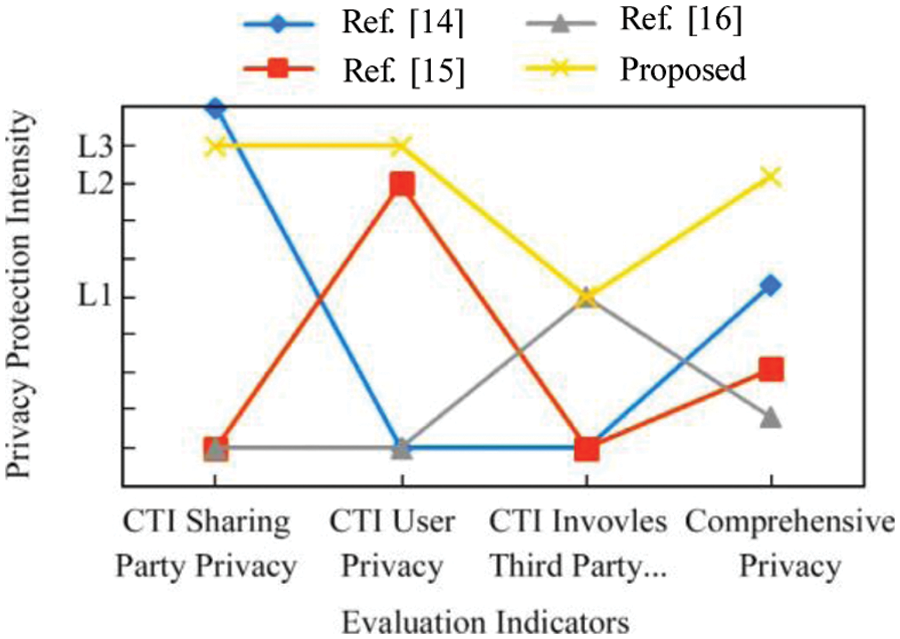

Figure 9: Privacy protection comparison of the proposed and existing algorithms

f=0.5ss+0.3su+0.2st (2)

Among them, ss represents the privacy protection strength of the intelligence sharing party; su represents the privacy protection strength of the intelligence user; st indicates that intelligence involves the strength of third-party privacy protection.

In Fig. 9, the method of reference [14] can better solve the privacy protection problem of the intelligence sharing party, but this solution is insufficient for the privacy protection of the intelligence user and the third party involved in the intelligence. Reference [15] protects the privacy of the intelligence user, but the protection strength is still lower than the protection intensity of the intelligence user in this paper. Reference [16] mainly protects the third-party privacy involved in intelligence, and its adoption method is similar to the third-party privacy protection method in this paper, so the protection strength is basically the same. It can be concluded that the proposed scheme to protect the privacy of the intelligence sharing party and the intelligence user by using the blockchain anonymity mechanism and the one-way encryption algorithm to protect the privacy of the third party involved in intelligence has obvious advantages in terms of comprehensive privacy protection strength.

9  Conclusion

Aiming at the contradiction between privacy protection and attack chain construction in the current network security threat intelligence sharing process, this paper proposes a blockchain-based network security threat intelligence sharing model, which utilizes the decentralization and anonymity of blockchain technology. It not only protects the private information of participating organizations and involved organizations in cybersecurity threat intelligence sharing, but also facilitates reasoning and analysis of the complete cyberattack chain. Use the backtracking capability of the blockchain to retrospectively restore the threat source in the attack chain. Using the smart contract mechanism to realize automatic early warning and response to network threats. Finally, the feasibility and effectiveness of the model are verified by simulation experiments. Future work is to consider cache analysis of the blockchain network in view of the proposed approach.
