Cost Effective Optimal Task Scheduling Model in Hybrid Cloud Environment
1Department of Computer Science & Engineering, Sri Krishna College of Engineering and Technology, Coimbatore, 641008, India
2Department of Electrical and Electronics Engineering, SNS College of Technology, Coimbatore, 641035, India
3Department of Computer Science & Engineering, SNS College of Technology, Coimbatore, 641035, India
*Corresponding Author: M. Manikandan. Email: manimmk9792@gmail.com
Received: 15 July 2021; Accepted: 18 August 2021
Abstract: In today’s world, Cloud Computing (CC) enables the users to access computing resources and services over cloud without any need to own the infrastructure. Cloud Computing is a concept in which a network of devices, located in remote locations, is integrated to perform operations like data collection, processing, data profiling and data storage. In this context, resource allocation and task scheduling are important processes which must be managed based on the requirements of a user. In order to allocate the resources effectively, hybrid cloud is employed since it is a capable solution to process large-scale consumer applications in a pay-by-use manner. Hence, the model is to be designed as a profit-driven framework to reduce cost and make span. With this motivation, the current research work develops a Cost-Effective Optimal Task Scheduling Model (CEOTS). A novel algorithm called Target-based Cost Derivation (TCD) model is used in the proposed work for hybrid clouds. Moreover, the algorithm works on the basis of multi-intentional task completion process with optimal resource allocation. The model was successfully simulated to validate its effectiveness based on factors such as processing time, make span and efficient utilization of virtual machines. The results infer that the proposed model outperformed the existing works and can be relied in future for real-time applications.
Keywords: Cost effectiveness; hybrid cloud; optimal task scheduling; virtual machine; resource allocation; make span
Cloud Paradigm has been defined by the International Organization of Standardization as follows; “Cloud is a paradigm for providing network access to a reliable and resilient pool of shared resources with demand based self-service provisioning and management”. Cloud network comprises of various responsibilities such as cloud protocols and activities, service types, categories and deployment models [1]. Among these, cloud deployment models are as follows; a Private Cloud, a Public Cloud, a Community Cloud and a Hybrid Cloud.
Cloud computing framework enables a user to access and leverage the resources without possessing the infrastructure. As per Service Level Agreement (SLA), the consumers are provided with access to the resources. Furthermore, resource management process is executed with the help of virtualization-based architectures [2]. In cloud computing phenomenon, the satisfaction of consumers is measured based on the Quality of Service (QoS), a parameter that defines the agreement between cloud users and Cloud Service Providers (CSP) [3]. In case of an increase in the number of cloud users, it is necessary to find an effective solution for scheduling the receiving tasks, under the norms of SLA. Moreover, task scheduling is a cloud computing technique to map the required resources or Virtual Machines (VMs) so as to execute the tasks. A sample scenario is presented in Fig. 1 in which many users are requesting for cloud resources with different SLAs. These requests have to be processed by allocating cloud resources in a simultaneous manner.

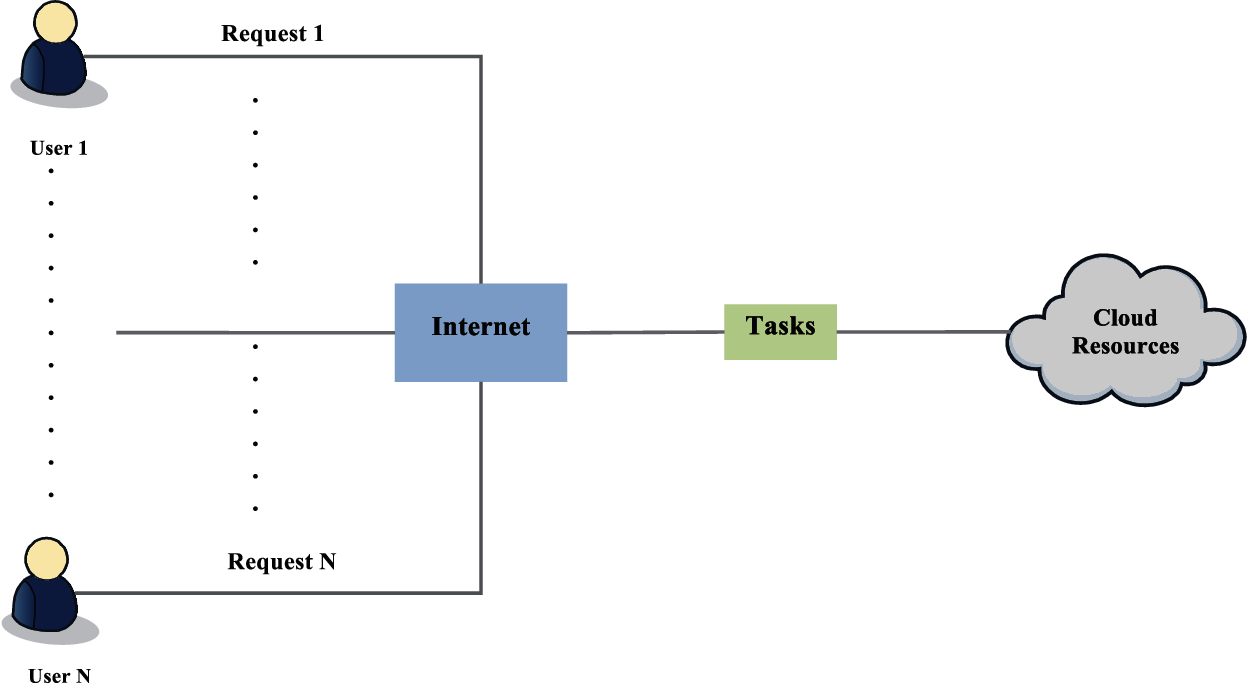

Figure 1: Execution of multiple user tasks in cloud
For example, some users may raise a request for additional storage while another user may request to increase the CPU time for performing complex tasks effectively. So, there is a demand exists for developing efficient task scheduling model. Moreover, when private cloud is considered, the resources are limited, inefficient for big data processing and cost-consuming [4,5]. Hence, the current research work is concentrated on hybrid cloud model for effective big data processing. When developing an efficient task scheduling model, the following things are primarily considered,
• Multiplicity of tasks submitted by cloud users
• Heterogeneity of resources available in the cloud
• Differences in QoS
To effectively resolve the issues, Cost-Effective Optimal Task Scheduling Model (CEOTS) is proposed and developed in current research work. Here, queuing model is determined based on the available resources and type of tasks. When the tasks are entered in a queue in parallel resource pool, scheduling is processed to satisfy the user’s demands. The major contributions of the proposed model are listed below.
• Analysis of hybrid cloud model characteristics to frame the workflow
• Target based Cost Derivation is processed to minimize the cost by considering the make span
• Cross-over and mutation techniques are utilized for optimal resource management and scheduling
• Extensive experimentation was conducted to validate the effectiveness of the proposed model
• Comparison graphs are provided in the paper to establish that the proposed model is cost effective than the existing models.
Rest of the sections in this paper are organized as given herewith. Section 2 contains the description about existing job scheduling models in cloud. Problem definition is provided in section 3. Section 4 explains the processes involved in the proposed model. The results and comparisons are given in section 5. Both conclusion and future enhancement are provided in section 6.
Researchers developed an extensive number of techniques to resolve the make span issues and make cloud computing service, a cost-effective one. In literature [6], a hybrid model is presented out of two optimization models to enhance the throughput of a defined cloud model. Further, an informative and valuable survey work was presented in the study conducted earlier [7]. This research work reviewed different existing resource allocation models and challenges faced during resource allocation in cloud. Another literature survey was presented in [8] which described about resource allocation with different resources, comprising data, services and cloud-based applications. An in-depth explanation was given about cloud management-based resource allocation process. Further, static and dynamic resource allocation strategies were explained in the study conducted earlier [9]. All possible task scheduling issues and mitigation techniques were analyzed in this work. Resource management and task scheduling models in cloud computing were effectively discussed in [10]. The main intention behind the development of this model is to execute the resource allocation in cloud so as to make cloud solutions, a cost-effective one. Different performance evaluations were conducted for the model and the results of the model showed a consistent increase in the performance [11]. In the study conducted earlier [12], Resource Allocation System (RAS) was developed to optimize efficient resource management in cloud.
An efficient mechanism called Heuristic Algorithm-based Deadline Early Tree (DET) model was proposed in the literature [13] to reduce the cost as well as make span. On the contrary to [13], the researchers published an article [14], which studied about the problem of reducing make span based on the cost limitation for cloud operations. To resolve the issues, user- and cost-based workflow scheduling models called Scale star were proposed to allocate the jobs to VMs. The model [15] designed a workflow schedule framework for Map Reduce tasks in heterogeneous cloud, on the basis of budget limitations and based on the concern that multiple cloud providers can provide heterogeneous cloud in parallel manner. Further, a cost minimization-based workflow scheduling model was proposed using Discrete Particle Swarm Optimization (DPSO) model for multiple cloud environment [16].
Budget pre-assignment model was proposed to minimize the processing cost for cloud operations. Moreover, in literature [17–19], the researchers discussed about Heterogeneous Earliest Finish Time (HEFT) model for optimization of cost and make span in collaborative cloud model. Fuzzy-based sorting model, with HEFT, was utilized to optimize the cost incurred in providing Infrastructure-as-a-Service over cloud [17]. Further, Particle Swarm Optimization (PSO) was integrated with HEFT in the study conducted earlier [19] for cost and make span optimization in cloud. Though the models provided effective results in public cloud, it was not feasible for hybrid cloud. Deadline-driven resource allocation model was proposed earlier in hybrid clouds and the model was implemented in Aneka Cloud Platform. This model effectively reduced the processing time [20]. In order to minimize the execution cost, least cost per connection model was proposed in the literature [21].
The authors [22] clearly defined the cost minimization problem of data processing in hybrid cloud. Further, in literature [23], the researchers described a PSO-based resource management model for hybrid cloud frameworks. Deadline-constrained workflow-based job allocation model was developed in [24]. However, this model was not considered and processed for cost and make span effectiveness in parallel manner. The aforementioned models have effectively discussed about resource management and task scheduling models. However, the issues on cost and make span have not been effectively discussed or explored in hybrid cloud models. So, the current study aims at fulfilling this research gap.
Quality of Service (QoS) is cloud is primarily measured by two important factors such as cost effectiveness and make span [25–27]. In this background, the problem definition for the proposed model is as follows,
i) Cost-effective optimal task scheduling model is proposed here in which both cost effectiveness and make span are considered in hybrid cloud
ii) Target-based Cost Derivation (TCD) model is framed for hybrid clouds
iii) Multi-intentional task completion process, with optimal resource allocation, is derived in current work for enhanced QoS in cloud model
4 Working Process of the Proposed Model
The main objective of the proposed model is to minimize the cost and make span to ensure efficient resource allocation in cloud. Target-based Cost Derivation (TCD) model is developed in the proposed work. To resolve the issues over cost effectiveness in hybrid cloud, generic algorithm-based resource allocation is performed. The process includes three phases as follows.
• Chromosome Encoding
• VM analysis and selection
• Cross Over
• Mutation
The chromosome encoding for task scheduling is framed as follows.
where, ‘

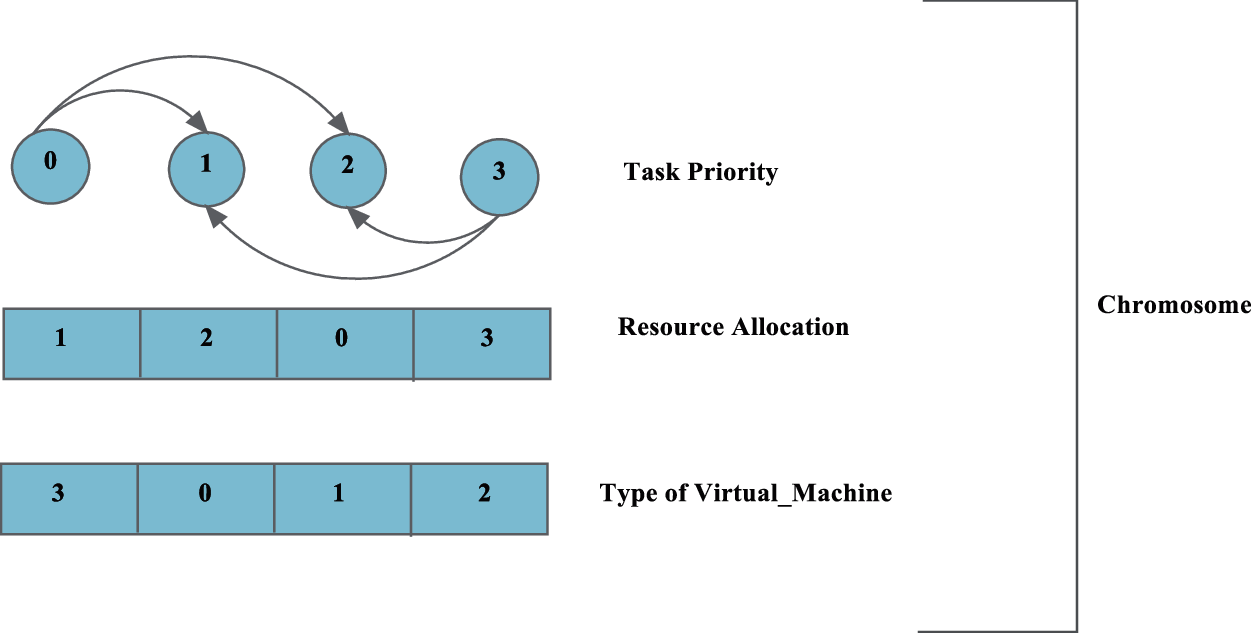

Figure 2: Chromosome encoding for resource allocation
Here, the chromosomal set is considered as a population to determine the solution set. At first, Population_set is initialized and the steps are explained herewith.
i) ‘A’ denotes the number of tasks and ‘B’ denotes the number of virtual machines in hybrid cloud whereas
ii)
iii) Initiation for task to virtual machine assignment.
iv) To ensure the population differences, a random number is selected from 0 to 1.
v) When random number is less than 0.5, the values of
vi) And, each task is allocated to virtual machine,
vii) The non-allocated virtual machine,
Fitness function is computed to determine the efficient VM among the population of numerous virtual machines for task allocation in hybrid cloud. In Genetic Algorithm-based models, fitness function computation is highly important since it influences the convergence speed of the model for deriving optimal solutions. To be specific, fitness function is derived based on the model with an objective for enhancing cost effectiveness. Hence, in the proposed model, fitness function is given as follows.
where, ‘p’ denotes the penalty factor and ‘
4.2.1 Expected Processing Time (EPT) Computation
Expected Processing Time, termed as EPT, can be defined as the time taken for cloud resource ‘R’ to process the task, T. EPT can also be termed as burst time for tasks. While the equation is as follows.
4.2.2 Task Completion Time Calculation
Task_completion time is calculated here by determining the available cloud resources. And, the expected task_completion Time
Based on the above computations, Fitness Function (FF) for efficient resource allocation of the tasks is processed here and the equation is given as (5).
where, ‘n’ is the number of tasks and ‘m’ is the available virtual resources from hybrid cloud.
In the proposed model, single-point crossover operations are carried out to determine the new chromosome and the process is explained in algorithm given below. The initial process of the algorithm randomly selects the position, ‘s’ that lies between

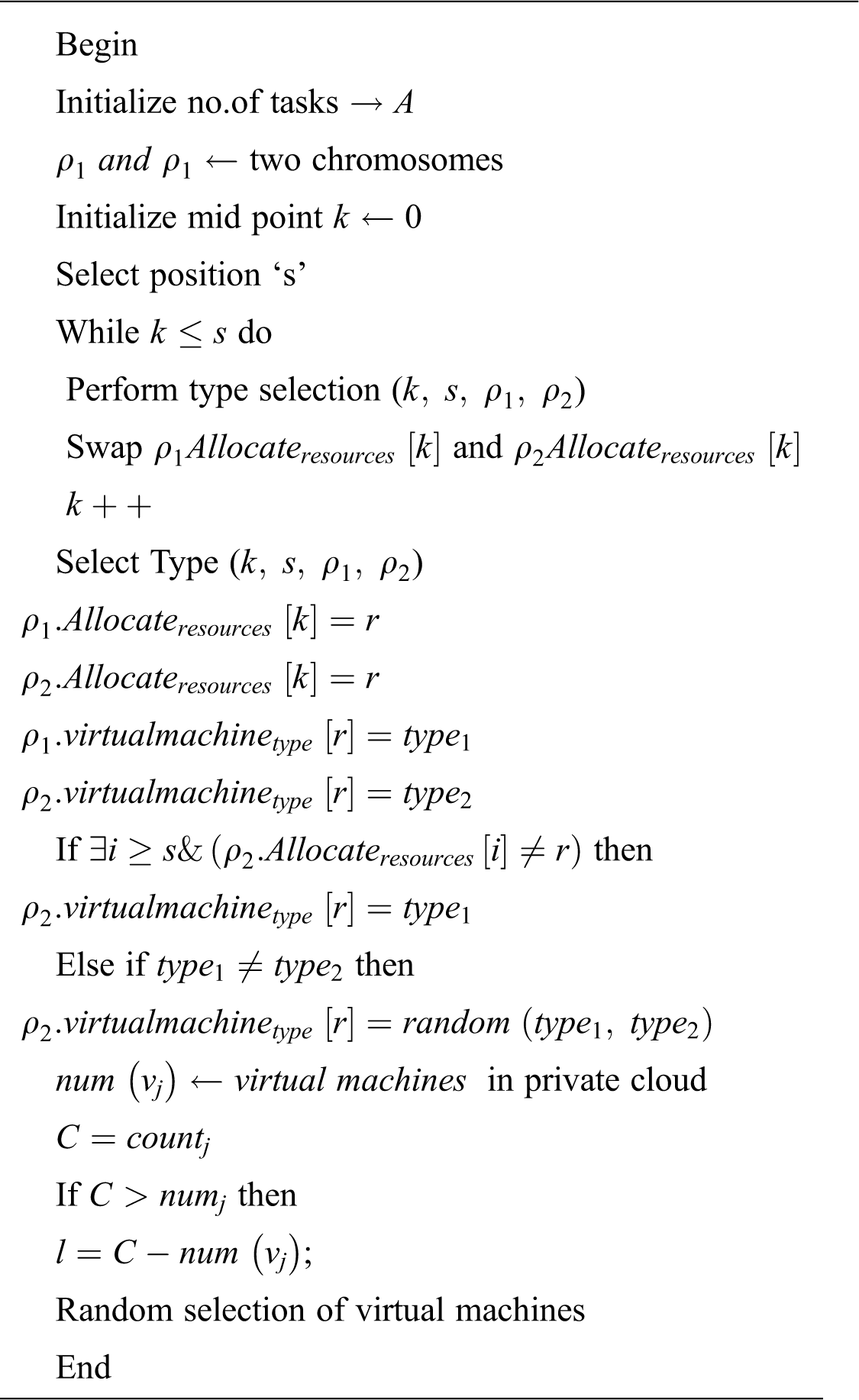

As shown in the algorithm, the operations are carried out based on the number of tasks in workflow queue and population
This section describes the process of mutation and the process is shown in Fig. 3.

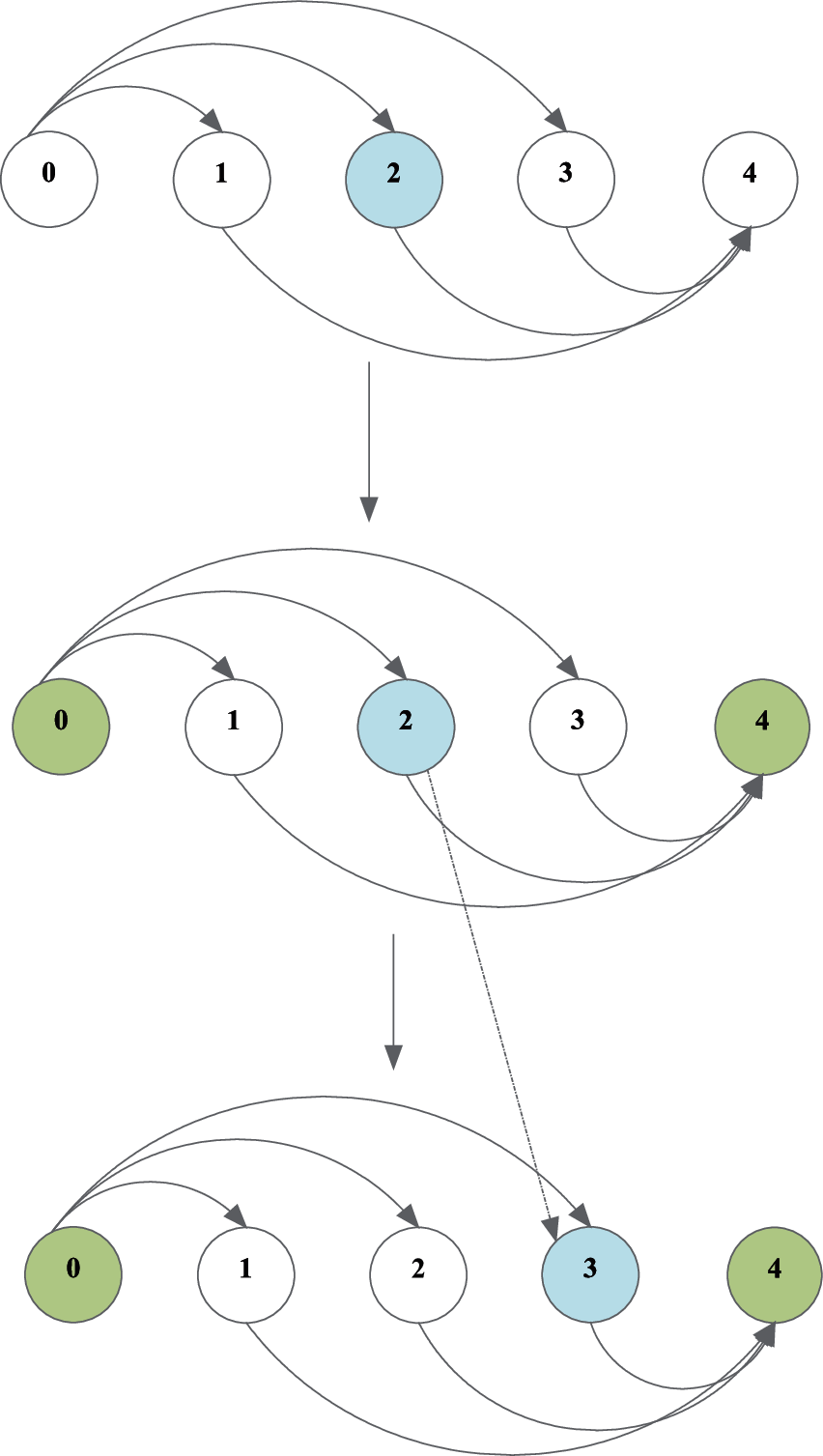

Figure 3: Scenario of mutation process
Based on the number of tasks presented in workflow, the mutation operation is performed at position, ‘s’. Further, the fragment search process is determined in two directions. The search process is stopped, when the present task is based on the selection of front or back task. Finally, the mutation process executes the task in a new position in detection range.
4.5 Cost-Effective Optimal Task Scheduling Model (CEOTS) Workflow
The current section presents the complete work flow of the proposed Cost-Effective Optimal Task Scheduling Model (CEOTS) that performs effectively in hybrid cloud framework. A complete work flow of the proposed model is shown in Fig. 4.

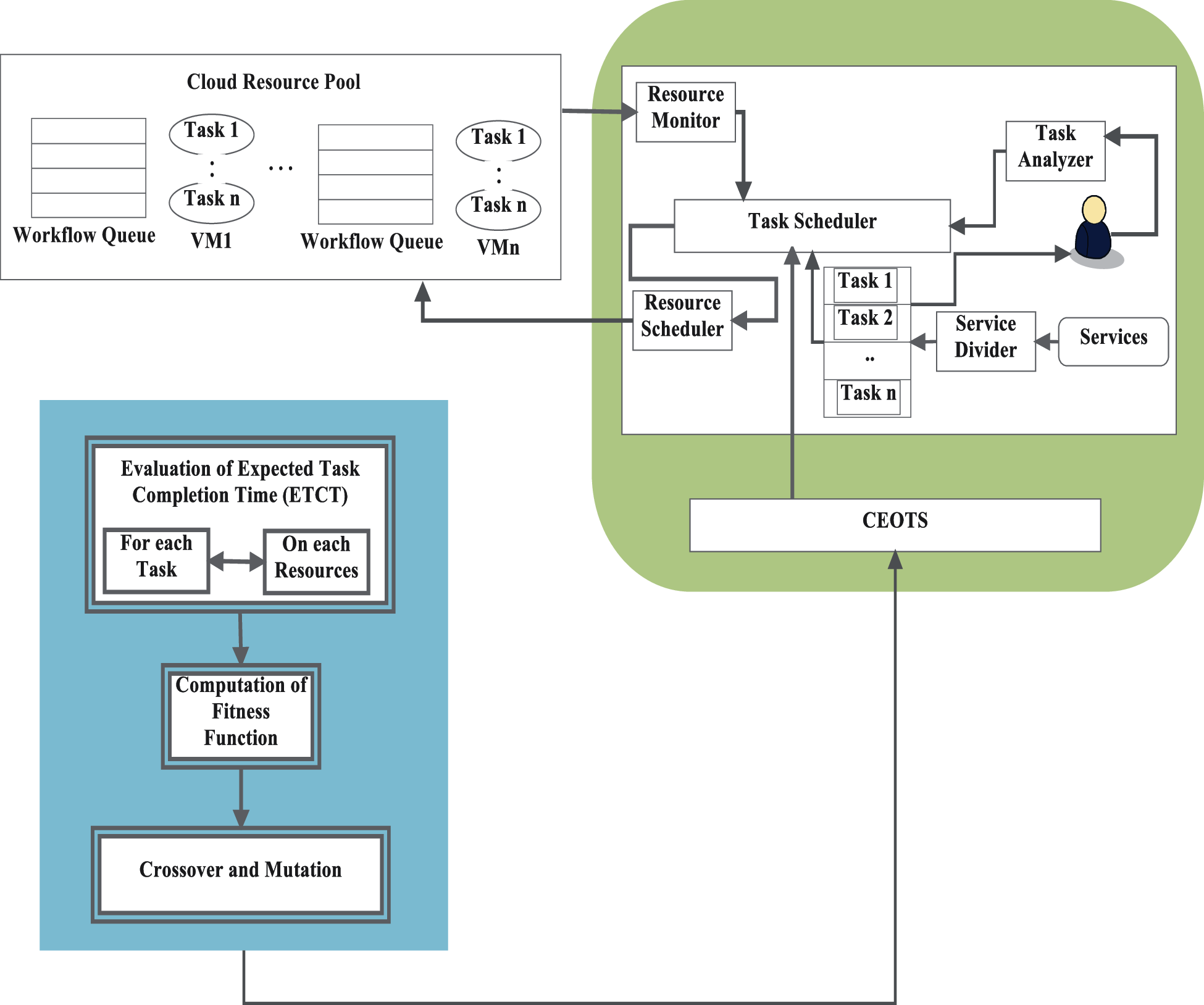

Figure 4: Workflow of Cost-Effective Optimal Task Scheduling model (CEOTS)
The operations of the proposed model shown in Fig. 4 are explained clearly in the following steps.
i) The consumer needs are obtained and the tasks are divided by CSP.
ii) The function of task manager is to analyse the task attributes and the factors include task_type, scheduling pattern and so on.
iii) Task information is transmitted to protocol analyzer.
iv) CEOTS model is incorporated for task scheduling in an optimal manner.
v) The arithmetic computations are carried out in CEOTS and are provided for task scheduling.
The task scheduler ensures that the resources are allocated for efficient task accomplishment based on the requirements of a user. By utilizing the computations of the proposed model, efficient resources are allocated to appropriate tasks. The process can reduce the waiting time for completion of the tasks, thereby the make span gets effectively reduced.
5 Experimental Evaluations and Discussions
The proposed model was implemented in CloudSim platform for model evaluation. Few factors such as task completion time, make span and processing cost were used to test the efficacy of the model. In order to establish that the model is optimal, the results were compared with results attained from existing models such as Resource Allocation System (RAS), Deadline Early Tree (DET) and Heterogeneous Earliest Finish Time (HEFT). Moreover, the evaluations were conducted based on two cases as given herewith.
Case 1:
This evaluation had a total of five tasks and three virtual machines were considered. The task set is as follows
Case 2:
In this scenario, the task rates were considered as 50, 100, 150, 200 and 250 and considerable virtual resources from hybrid cloud are required to process the tasks. Here, the VMs were assumed to vary in the range of 20 and 40 to complete the allocated jobs. The deadline for each task is computed as follows,
where, ‘c’ denotes the deadline constraint parameter that varies based on processing.
Fig. 5 is a depiction of results achieved from comparative analysis of total processing time attained by RAS, DET, HEFT and the proposed CEOTS. It is clear from the graph that the proposed model consumed only minimal time for processing the tasks than the compared models.

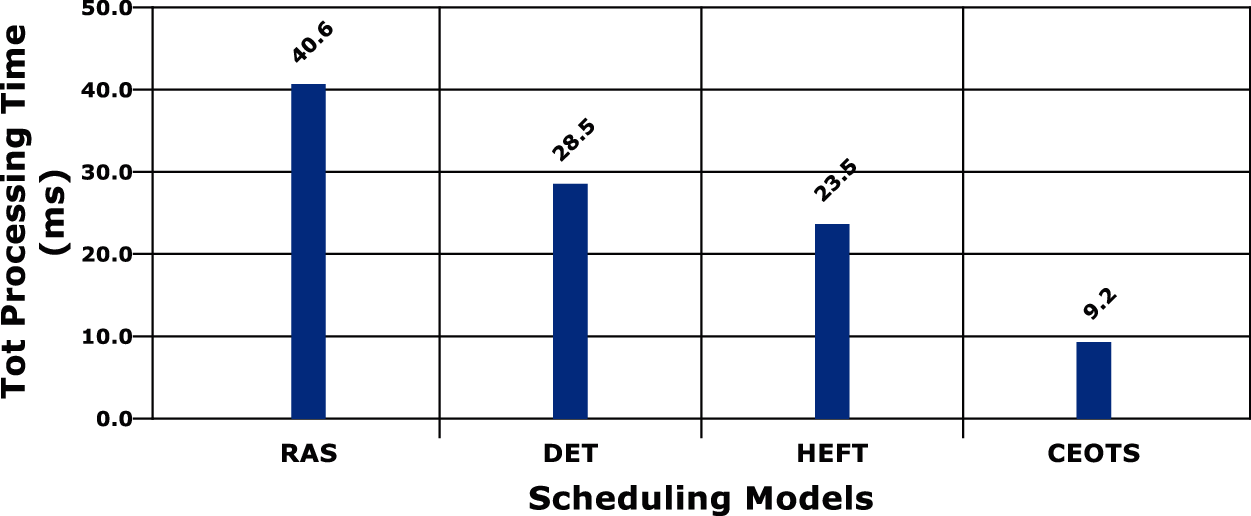

Figure 5: Comparison of total processing time in case 1

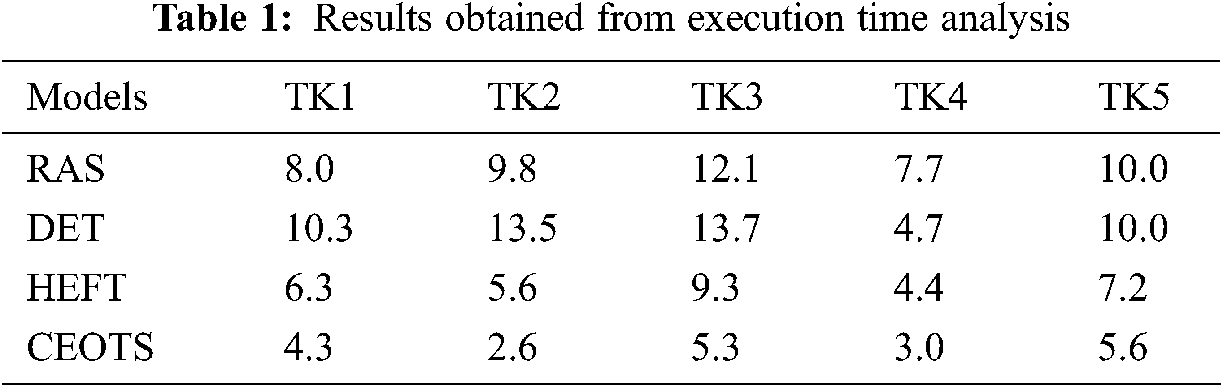

The calculations to determine the ETCT, for all the tasks received from users and corresponding rates, are provided in the graph for analysis. Fig. 6 shows the results for the analysis conducted with task sets such as

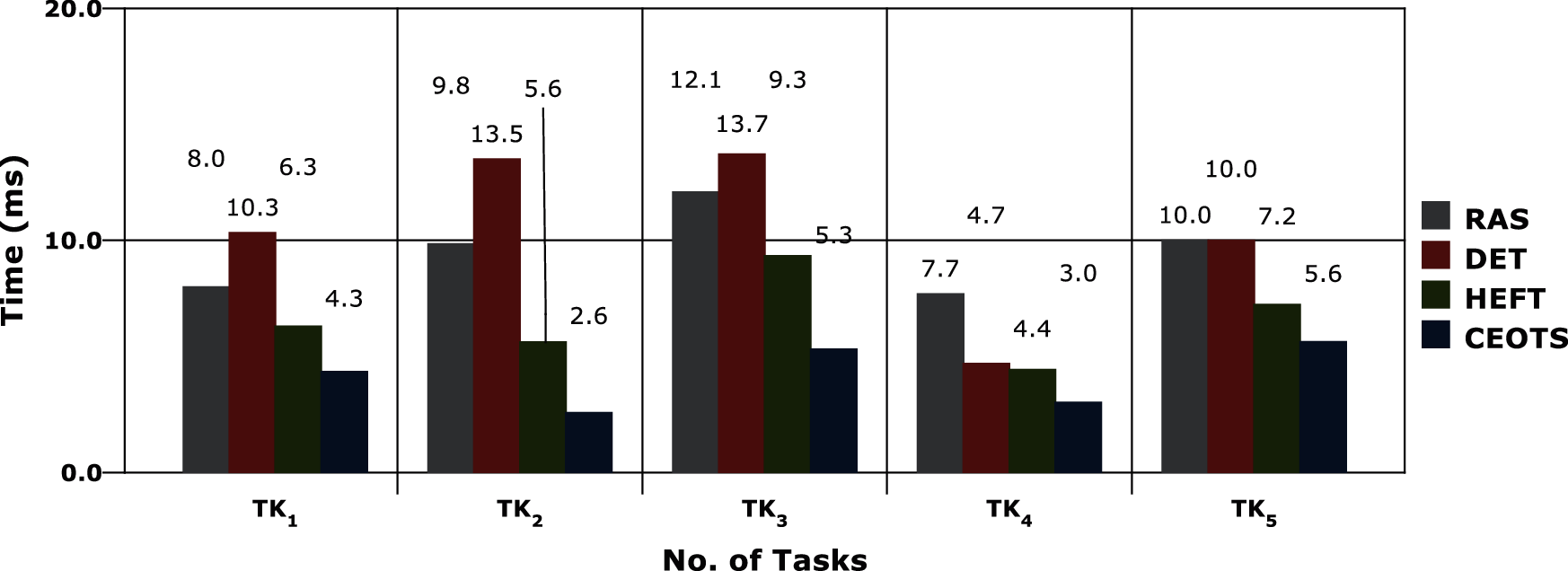

Figure 6: Execution time taken for individual tasks

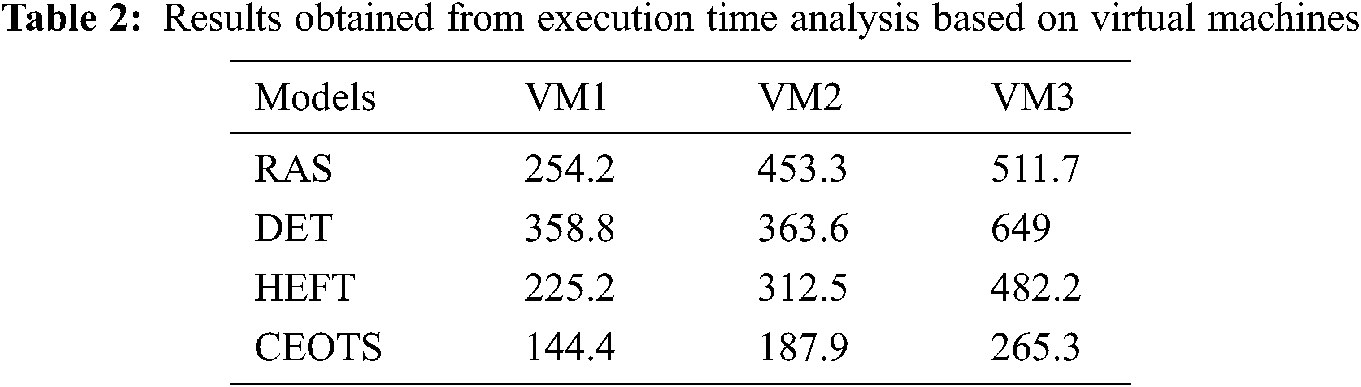

Fig. 7 shows the results achieved for processing time based on the virtual machine considerations, assumed in case 2. The obtained results are presented in Tab. 2. According to the results and corresponding graph, the proposed model is efficient than the compared models.

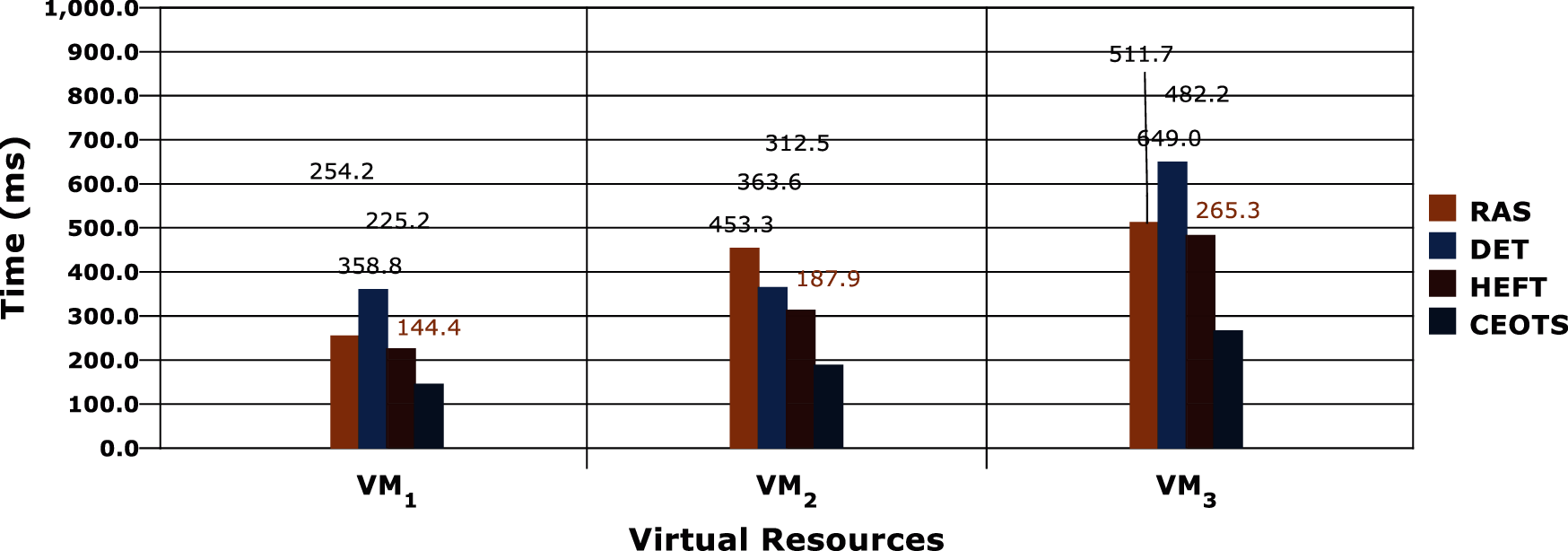

Figure 7: Comparison of total processing time based on VMS

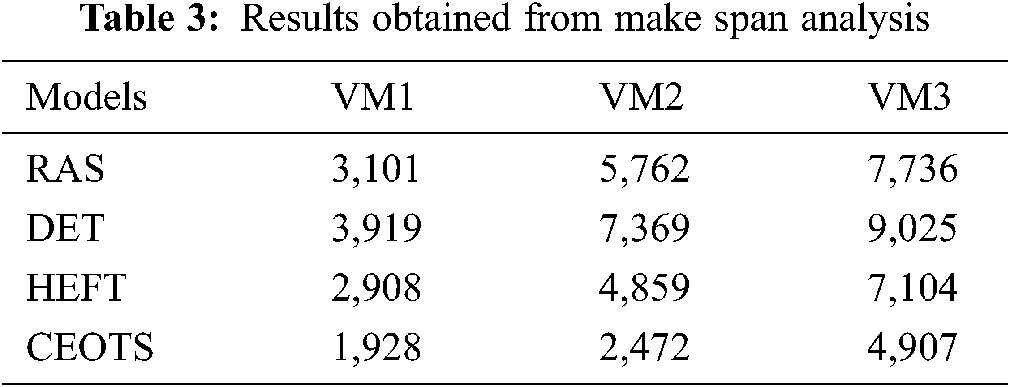

Make span is an important factor to measure the efficiency of cloud mode. It is defined as the time needed by a model to complete the tasks allotted. The model that achieves minimal make span rate infers that the scheduling model is highly efficient in resource allocation. Figs. 8 and 9 show the results achieved for case 1 and case 2 considerations, respectively. Further, the values of the respective results are provided in Tabs. 3 and 4. For case 2, the number of virtual machines varied between 20 and 40.
From the graphs, it is explicit that the proposed model achieved optimal resource scheduling for cloud resources to perform the tasks efficiently. Moreover, the results confirmed that CEOTS model utilized minimal cloud resources at a lesser make span than other models and this way the proposed model increases the system performance.

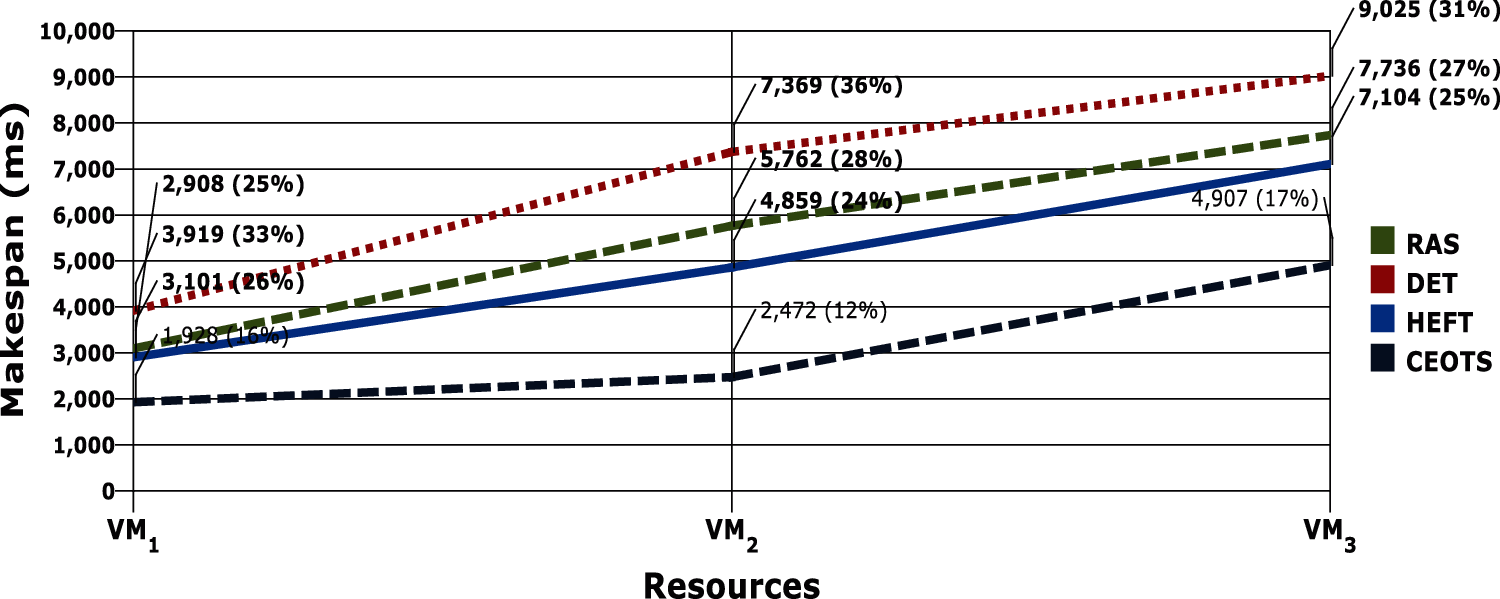

Figure 8: Make span analysis and comparison with other models

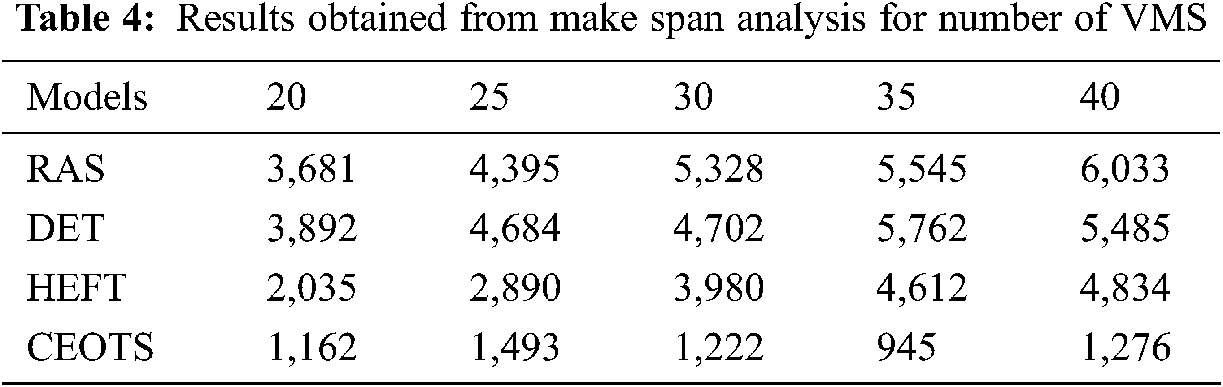

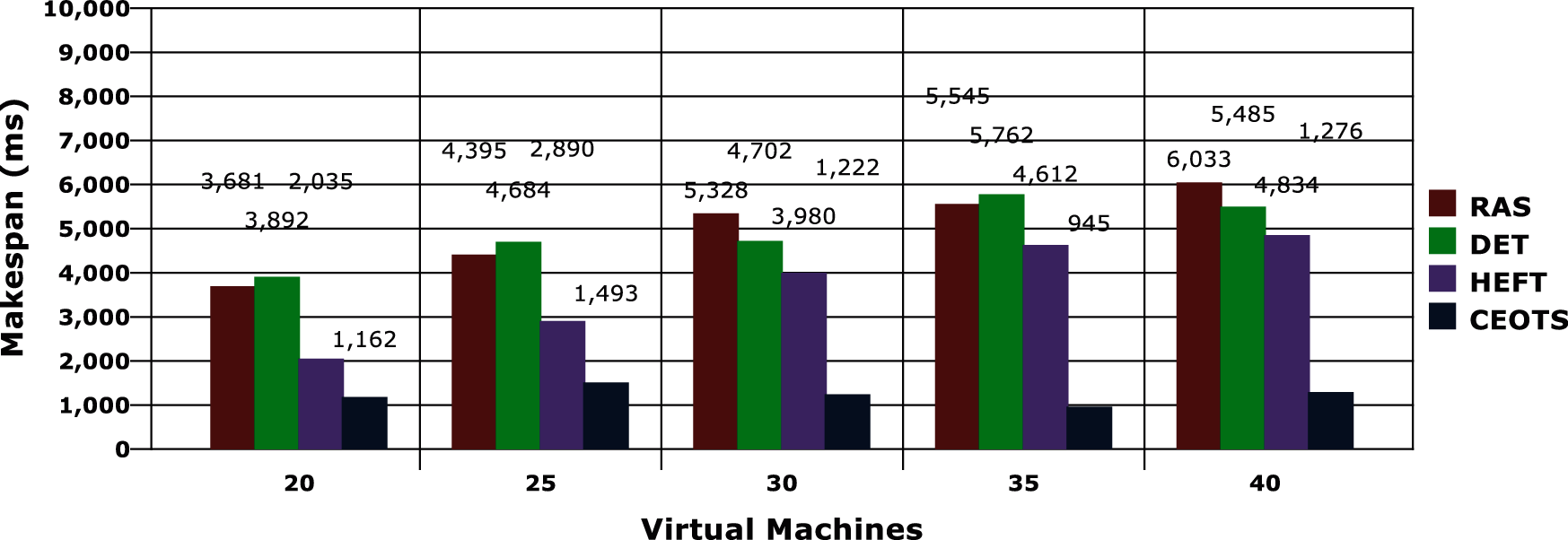

Figure 9: Make span evaluation among the models with different virtual machines

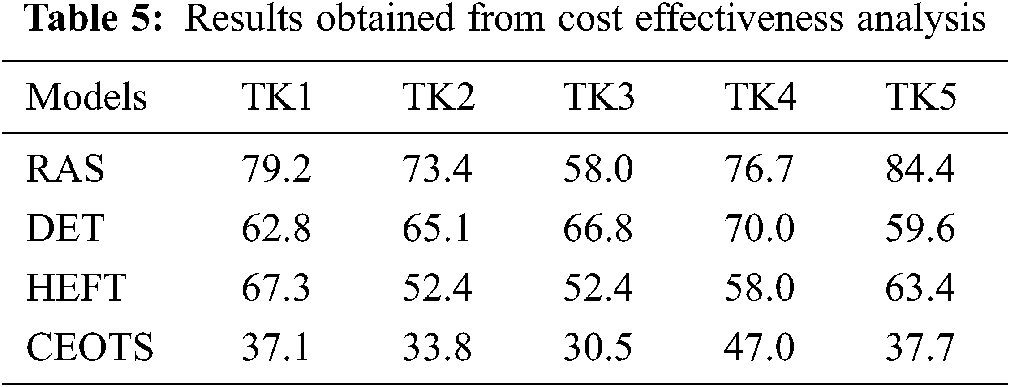

Cost effectiveness is another significant factor to evaluate the resource scheduling model in cloud. Fig. 10 shows the results of comparatively analysis in terms of overall processing costs for task executions. The obtained values are tabulated in Tab. 5. Through efficient incorporation of genetic algorithm with time computations, the proposed model used minimal resources and reduced the processing time. Hence, the processing cost to perform the tasks got reduced by the proposed model than the compared models.

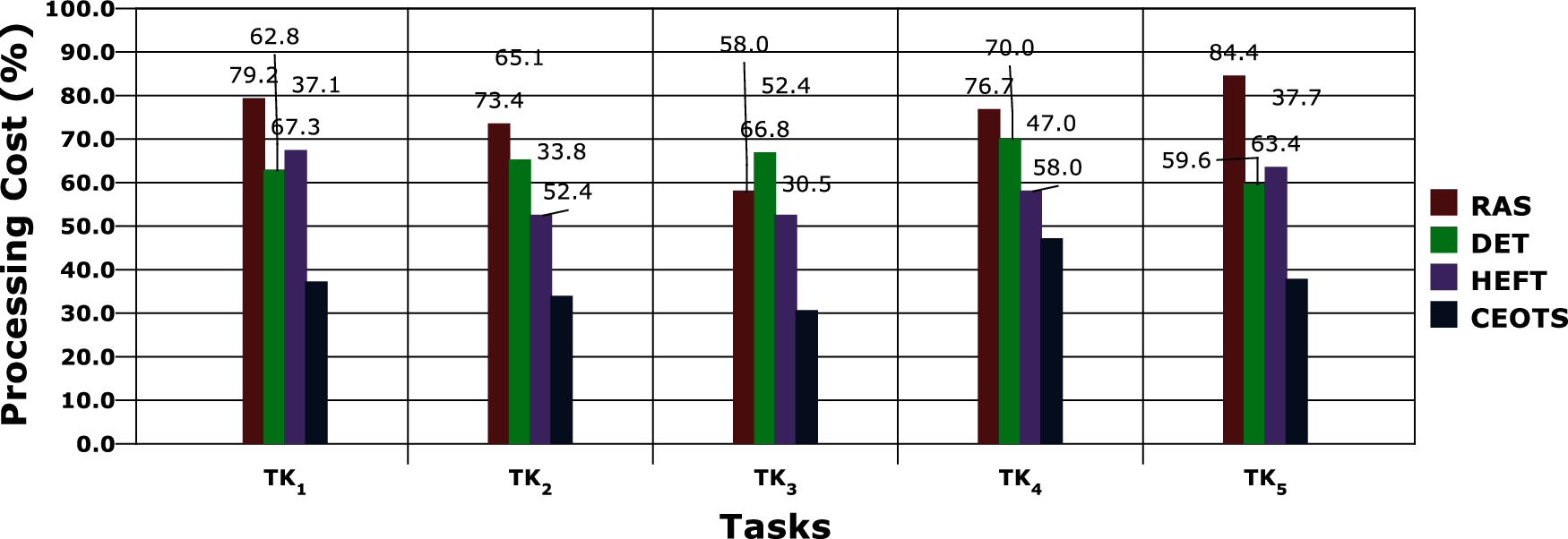

Figure 10: Processing cost vs. tasks
In order to resolve the task scheduling problems in cloud, the current research work proposed and developed a new model called Cost-Effective Optimal Task Scheduling Model (CEOTS). The model considered task priority, resource allocation, and the type of VM for optimal task scheduling and resource allocation. In order to reduce the cost and makespan effectively, the model performed optimal resource allocation using GA model with crossover and mutation operations. In order to enhance the results, the model used processing time computation for fitness function derivation. The proposed model was evaluated based on few factors such as make span, cost, and processing time. From the graphs and comparisons discussed in previous section, it is concluded that the proposed model achieved better results than the existing models. In future, the model can be implemented in real-time environment while reliability-based operations can also be included in the model for efficient task scheduling in hybrid cloud model.
