Computer Systems Science & Engineering
DOI:10.32604/csse.2022.020414
images
Article

Phishing Websites Detection by Using Optimized Stacking Ensemble Model

Zeyad Ghaleb Al-Mekhlafi1, Badiea Abdulkarem Mohammed1,2,*, Mohammed Al-Sarem3, Faisal Saeed3, Tawfik Al-Hadhrami4, Mohammad T. Alshammari1, Abdulrahman Alreshidi1 and Talal Sarheed Alshammari1

1College of Computer Science and Engineering, University of Ha'il, Ha'il, 81481, KSA
2College of Computer Sciences and Engineering, Hodeidah University, Hodeidah, 967, Yemen
3College of Computer Science and Engineering, Taibah University, Al-Madinah, 42353, KSA
4Nottingham Trent University, Mansfield, NG18 5BH, United Kingdom
*Corresponding Author: Badiea Abdulkarem Mohammed. Email: b.alshaibani@uoh.edu.sa
Received: 22 May 2021; Accepted: 23 June 2021

Abstract: Phishing attacks are security attacks that do not affect only individuals’ or organizations’ websites but may affect Internet of Things (IoT) devices and networks. IoT environment is an exposed environment for such attacks. Attackers may use thingbots software for the dispersal of hidden junk emails that are not noticed by users. Machine and deep learning and other methods were used to design detection methods for these attacks. However, there is still a need to enhance detection accuracy. Optimization of an ensemble classification method for phishing website (PW) detection is proposed in this study. A Genetic Algorithm (GA) was used for the proposed method optimization by tuning several ensemble Machine Learning (ML) methods parameters, including Random Forest (RF), AdaBoost (AB), XGBoost (XGB), Bagging (BA), GradientBoost (GB), and LightGBM (LGBM). These were accomplished by ranking the optimized classifiers to pick out the best classifiers as a base for the proposed method. A PW dataset that is made up of 4898 PWs and 6157 legitimate websites (LWs) was used for this study's experiments. As a result, detection accuracy was enhanced and reached 97.16 percent.

Keywords: Phishing websites; ensemble classifiers; optimization methods; genetic algorithm

1  Introduction

Cybercrimes became a concern of many organizations and scholars in the current years. Phishing is a type of cybercrimes that is considered one of the greatest harmful types. In phishing, the attackers stole the user's credentials and information by using false emails or websites that look like original ones. This type of attack became a concern because it affects many internet users and organizations. In phishing, a LW of a selected organization is faked by the attacker and then distributed to victims via fake or junk emails or posted URLs in social media and networks, or any medium of communication. This may lead victims to click on the links in those emails or posts which will redirect them to the fake website [1].

Internet of Things (IoT) environments are more exposed to phishing threats. In IoT, the devices are highly connected and IoT sensors can be considered as an easy attacker medium. As mentioned in [2], the smart routers, TVs, and fridges were between 25 percent of junk email hosts. Furthermore, attackers may use thingbots software of an IoT device for the dispersal of junk emails without sending any viruses or Trojans. This can be done without the user knowing, as the functionality of the IoT device may not be affected [3]. Therefore, the literature introduced several methods to increase the security of the IoT environment. However, there is no effective phishing detection method, which can effectively detect phishing emails and websites [1,4]. The literature introduced some PWs detection approaches and methods in the IoT environment. For example, a lightweight deep learning method was introduced in [5]. This method suggests the use of a detection sensor to detect PWs. The detection sensor can work in real-time and have a feature to save energy consumption. With this proposed system, IoT devices do not need to install anti-phishing software. Moreover, the detection sensor only needs to be installed once in a location between the devices and the internet local router. This method is considered somewhat efficient and can be installed in the router directly.

Several techniques were used for PW detection. Deep learning [6,7], Convolution and Deep Neural Network (CNN and DNN), Long Short-Term Memory [6], GA [7], ML [810], and other methods were utilized to enhance the accuracy of PW detection approaches. The results of these studies exhibited that the suggested approaches gained significant enhancement regarding sensitivity, specificity, accuracy, and other measures comparing to other modern methods. However, there is still a need to enhance the detection accuracy.

An optimized ensemble classification model for PWs detection is proposed in the present study. To build the proposed model, the GA was used. This includes three main stages that are training, ranking, and testing. First, training was used to train the classifiers (RF, AB, XGB, BA, GB, and LGBM). In this step, no optimization method was applied. In the second step, GA is used to optimize these classifiers to select the optimal values of the model parameters that can be used to increase the whole accuracy of the classifiers. Next, optimized classifiers were employed as the stacking ensemble method base classifiers based on their ranking. Finally, a test dataset is generated by collecting new websites and used to foresee the ultimate class label of the websites.

The organization of this study is as follows. An overview of the related literature is presented in Section 2. The methodology and materials were disused in Section 3. The findings of the experiments of the present study are presented in Section 4. In the same section, the findings are explained and compared with related literature. In Section 5, the conclusion of the present study is summarized in which the results and recommendations are presented.

2  Related Literature

Various research has formerly been performed in the phishing detection field. Information from related literature has been intensely reviewed to help in motivating the methodology of the present study. This related literature can be organized as follows:

2.1 IoT- Based Phishing Detection Methods

Several millions of connected IoT devices suffer from serious security issues that menace the IoT web safety [11]. Therefore, it is highly necessary to protect these IoT devices against several kinds of attacks (e.g., phishing). The targets of phishing attacks usually are unconventional networks, for instance, the IoT [1]. In [12], the main cyber menaces for the IoT industry (IIoT) have been examined and have been identified as 5 kinds of attacks, the first kind was phishing. Phishers apply compromised attacks in critical infrastructures such as IoT, an advanced approach combining zero-days malware with social engineering and they also use other functions that are developed on remote websites to attack IIoT systems. The front-end level is used by attackers to access the IIoT.

Several methods were proposed in the IoT environment to detect PWs. Parra et al. suggested in [13] a framework that depends on cloud and deep learning comprises two tools: cloud-based temporal Long Short-Term Memory and Distributed CNN. The first tool was used for the detection of phishing as an IoT micro-security device, whereas the second tool was employed on the back-end to Botnet attacks detection and realize CNN embedding for the detection of IoT devices’ distributed phishing attacks. Results from experiments demonstrated that the first tool could achieve 94.3 percent detection accuracy with CNN and 93.58 percent with F-score for phishing attacks.

Mao et al. talked in [14] about the main security concerns in intelligent IoT systems and discovered that phishing is of the most frequent types of attacks. As a proposed solution based on ML, an automated page-layout-based approach was developed by them to detect PWs. Detecting PWs in this approach is based on gaining the page layout resemblance by using aggregation analysis. In their experiments, four ML methods were employed, and the results showed improved precision.

In [15], Virat et al. he thoroughly discussed the security issues in IoT, arguing that its devices are not intelligent, making problem-solving difficult and requiring adequate methods of detection the main challenge of IoT security. Deogirikar, as well as Vidhate, have also investigated several vulnerabilities, which have endangered the IoT technology [16]. They have reviewed different IoT attacks and how to reduce their production and damage level in IoT and they have accomplished extensive research to find effective solutions.

2.2 ML-Based Detection Methods

The detection methods for several cybersecurity issues widely utilized AI and ML. Several methods based on AI and ML with good detection ability were offered for detecting PWs. Alsariera et al., for example, proposed new AI-based schemes that considered new methods of phishing mitigation [17]. Four meta-learner methods were introduced based on the extra-tree base classifiers that were applied on data sets of PW. The previous experiments’ results indicate that the models achieved 97 percent accuracy and the false-positive rate was reduced to 0.028.

In the context of hyperlinks contained in HTML, Jain and Gupta in [18] proposed a new approach to detect PWs. This method brings several new hyperlink characteristics together and divides them into twelve types that are used in ML model training. The method was applied with several ML classifiers to a PW dataset. Experimental results showed that 98.4 percent accuracy was achieved with a logistic regression classifier in the proposed model. This procedure is a solution on the client-side that needs no support from third parties. Another PW detection model was introduced by Feng via a neural system [19]. This model used a Montecarlo technique during the training stage and accuracy that was achieved reached 97.71 percent, with False Positive Rate reaching 1.7 percent, signifying that the suggested model is worthy in comparison to other ML methods of PWs detection.

In order to predict PWs, Aburub and Hadi in [20] used association rules. The phishing multi-class Association Rule system was employed with a dataset that contains 10,068 legitimate and PWs, which is comparable to other associative classification methods. Their findings showed that their method gained acceptance rate of detection. Likewise, there have been other ML-based methods using selection techniques [21,22], ensemble classifiers [23], hybrid deep learning and ML methods [24], and other methods.

3  Materials and Methods

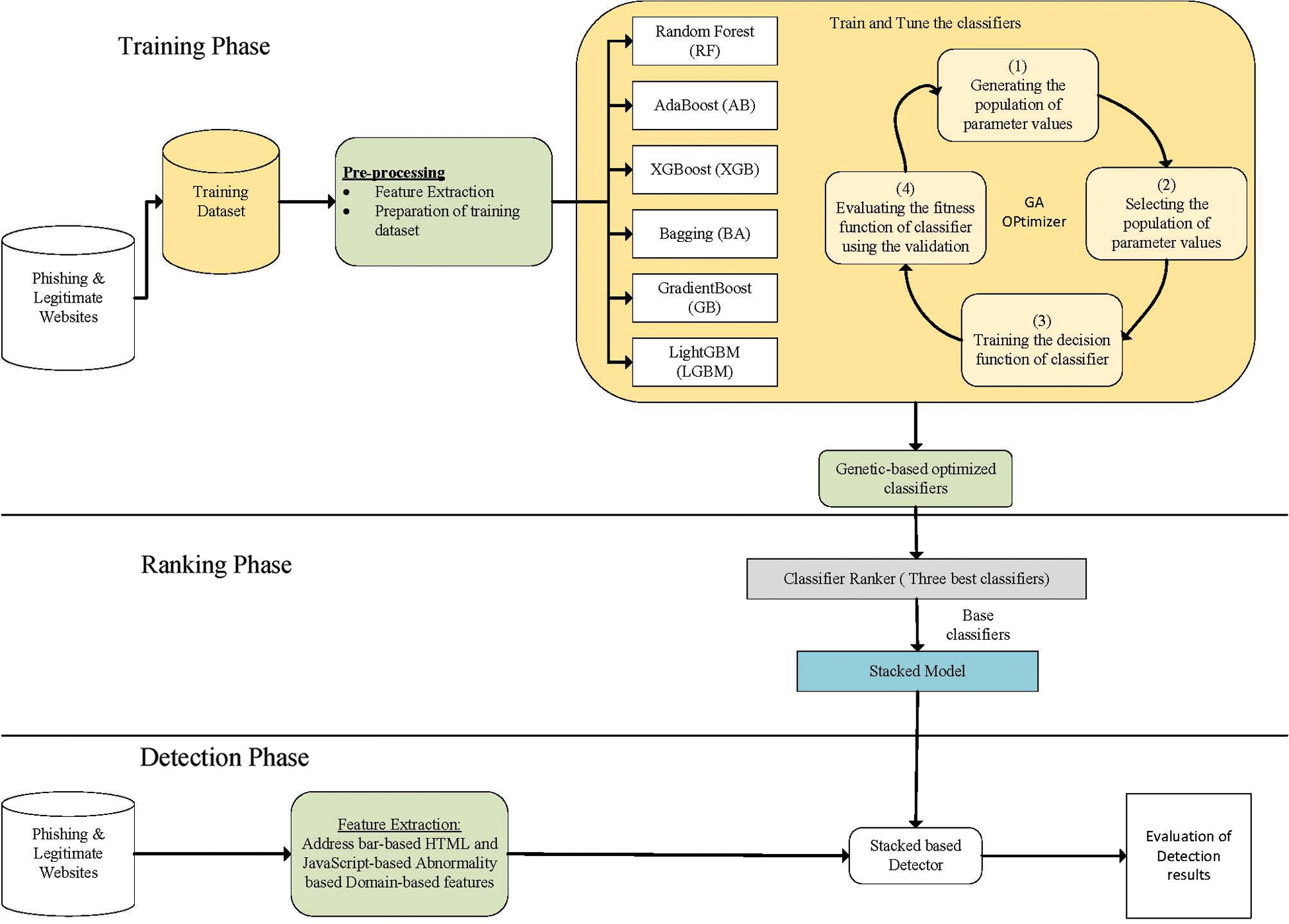

The present section presents and explains the suggested genetic-based ensemble classifier technique for enhancing PW detection. The methodology that was followed in the present study is shown in Fig. 1. Three main stages constitute the methodology of the present study: training, ranking, and testing stages. These stages are more discussed in the following sub-sections. The training stage aims to train the classifiers (RF, AB, XGB, BA, GB, and LGBM) without optimization. The purpose after that is: first, to get an overview of the ensemble classification performance before optimization, and second, to discover which of the PW characteristics are most valuable. The GA is then used to optimize the above-mentioned classifiers. Here, the GA was used to increase the whole accuracy of the suggested model by picking the optimal values of model parameters. Next, in the ranking stage, the stacking method was used to arrange the optimized classifiers and build an ensemble classifier. In the testing phase, testing data was gathered and used.

images

Figure 1: Proposed model for PW detection

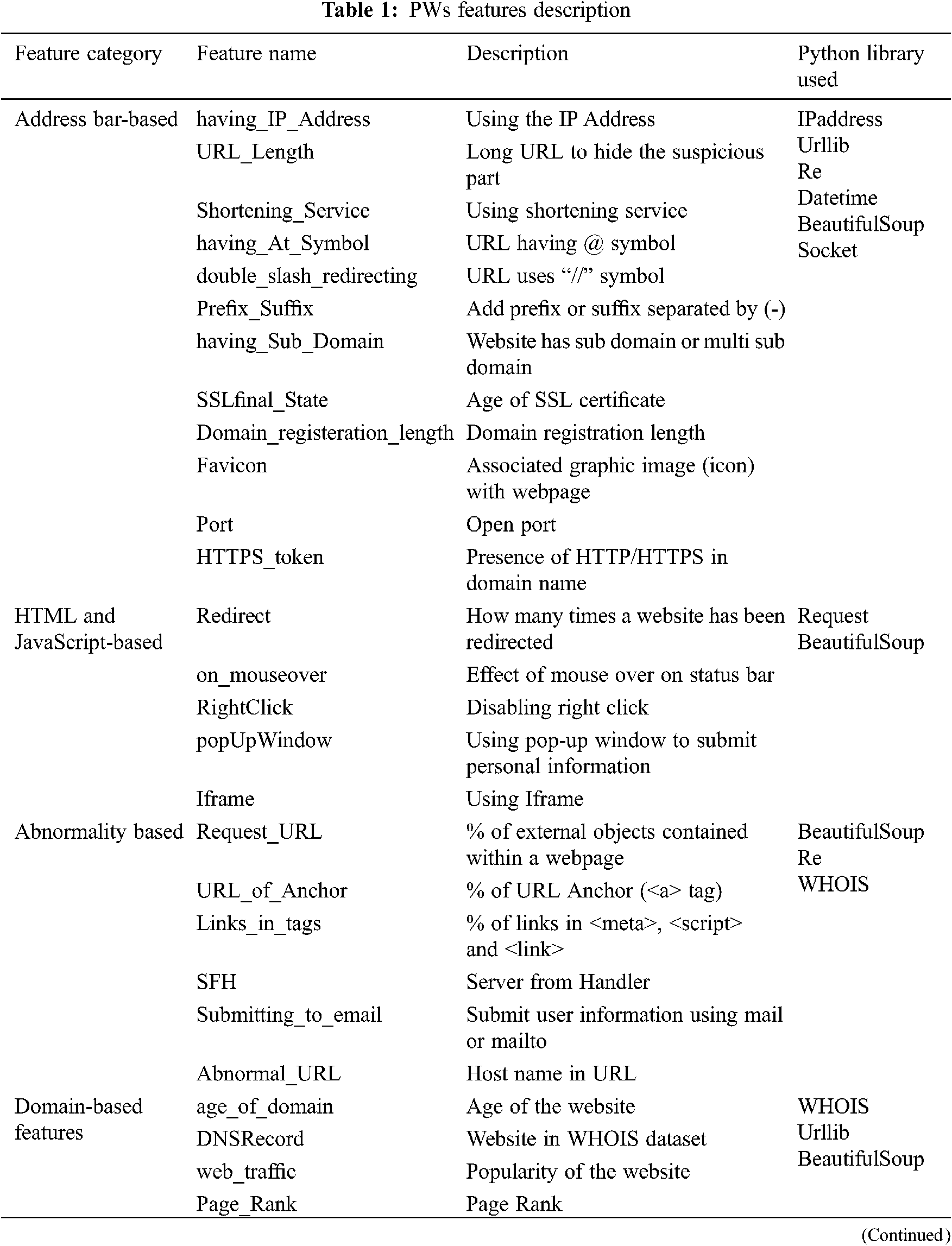

The methodology in [25] has been followed for websites’ features excerption. PhishTank database was used in this methodology. Malware and Phishing Blacklist has been gathered from a range of benign and malicious websites [26]. A Python script is created with the Whois, urllib, ipaddress, requests and Beautiful Soup libraries so that the features that were used in the dataset of training (abnormality-based features, domain-based features, bar-based features and HTML and JavaScript features) were removed. Subsequently, these features were ultimately provided into the classifiers to forecast the website's ultimate label of the class.

Experiments in the present study were conducted on a public dataset available in the UCI ML Repository [27]. Scripts were written in the Anaconda environment under windows 10 64-bit. The Python 3.6 language was used. The employed dataset that was used in these experiments is comprised of 6157 LWs (56 percent) and 4898 PWs (44 percent). The number of minority classes was increased by the oversampling technique to imbalance the dataset. SVM-SMOTE that incorporate the SVM algorithm to identify the misclassification points, were used in the present study. The features of the dataset (30 features) can be classified into 4 groups: domain-based (7 features), abnormality-based (6 features), HTML and JavaScript-based (5 features), and address bar-based (12 features). Tab. 1 lists the names of these features, as well as the Python libraries that were used to extract each one during the testing phase of the project.

images

To assess the ensemble model, specific performance measures were utilized. These measures are classification accuracy, recall, precision, F-score, false-negative rate (FNR), and false-positive rate (FPR). Commonly, numerous researches used these measures to assess the PW detection systems’ performance [10]. The measures were computed as shown in Eqs. (1)–(6) respectively.

•   Accuracy: It is the ratio of tweets that are successfully predicted and accurately specified to the entire dataset D.

Acc=TP+TN|D| (1)

•   Recall: It is the number of rumor tweets accurately predicted (TPs) to the total actual tweet numbers (TP+FNs).

R=TPTP+FN (2)

•   Precision: It is the number of rumor tweets (TP) accurately predicted to total predicted rumor tweets (TP+FP).

P=TPTP+FP (3)

•   F1-score: It is precision and recall harmonic mean. It balanced assessment between precision and recall.

F1=2×P×RP+R (4)

•   False-Positive Rate (FPR): It is the total negative numbers are divided by the number of incorrect positive predictions.

FPR=FPTN+FP (5)

•   False-Negative Rate (FNP): It is the percentage of the incorrectly classified PWs.

FNP=FNTP+FN (6)

In order to assess the suggested method accurately, 10-fold cross-validation was used with all the conducted experiments with optimized or non-optimized classifiers. The normality of each fold was also checked.

4  Results and Discussion

The present section designates each method's results before comparing them with the related works with proper discussion.

4.1 Experimental Results in Training Stage

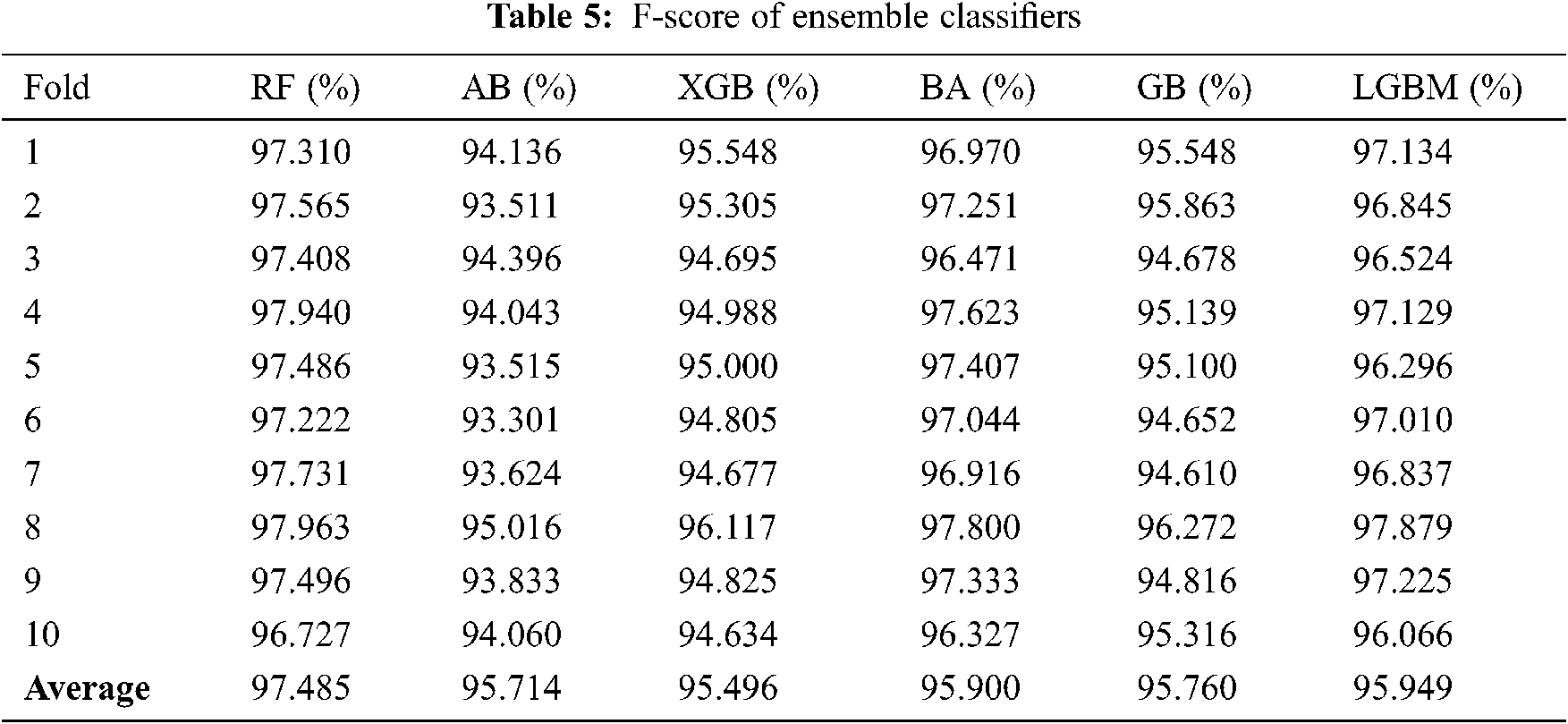

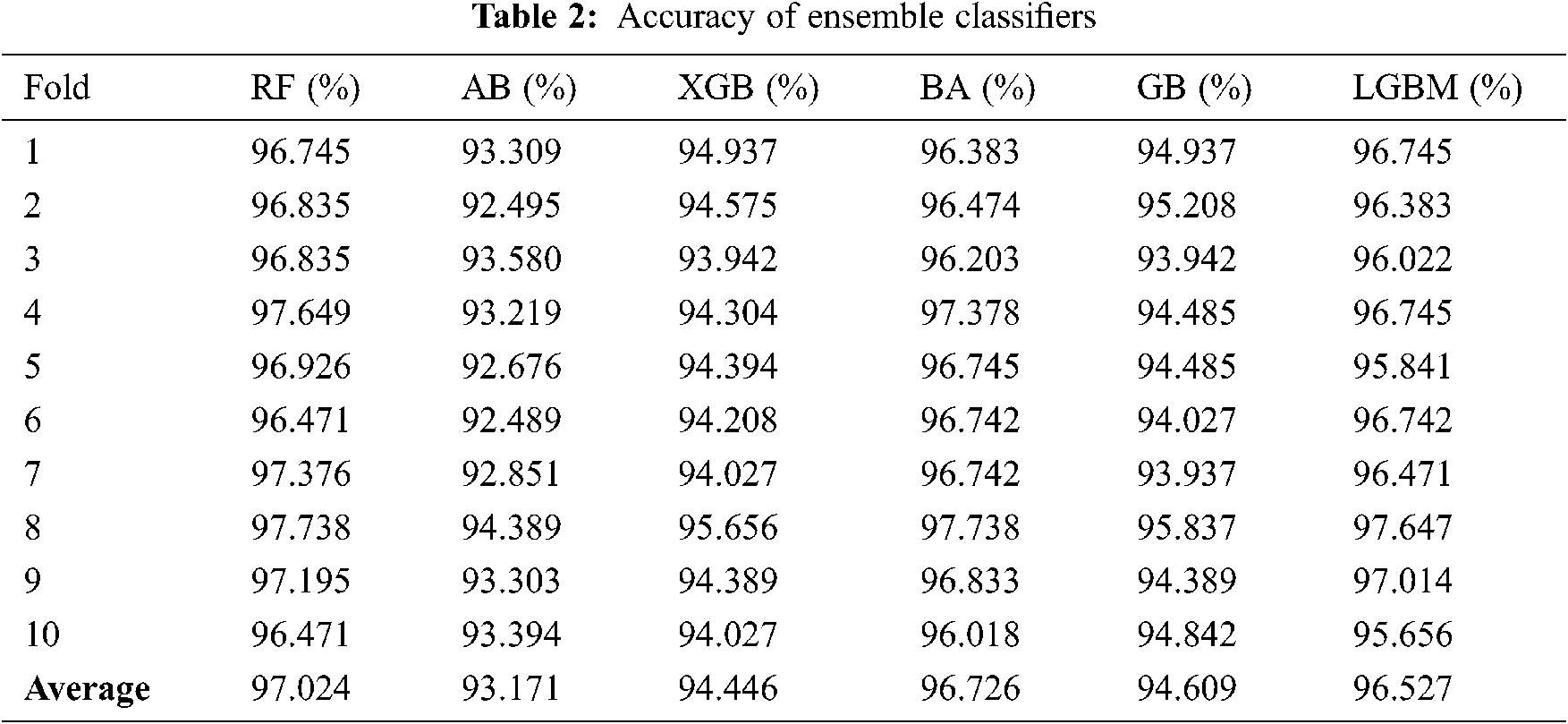

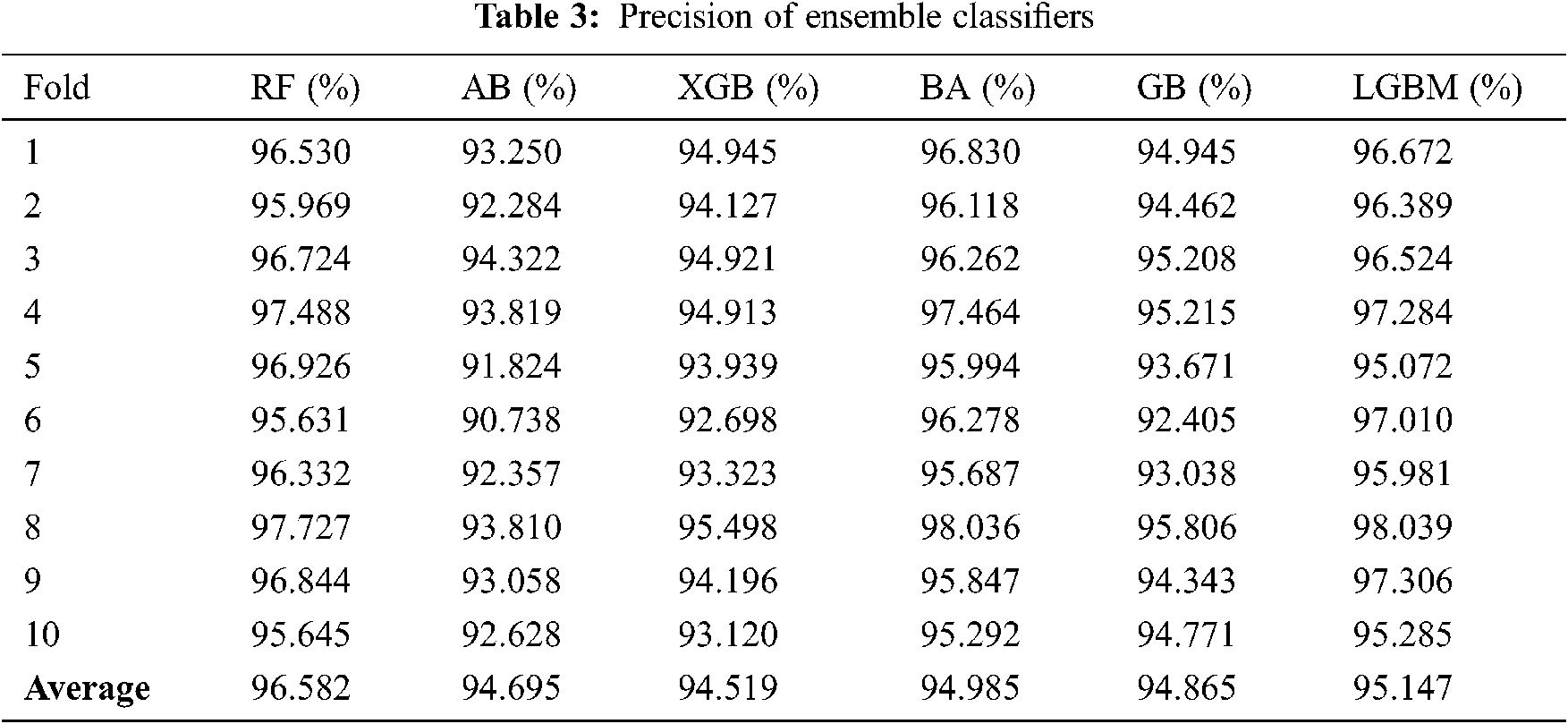

As mentioned above, 10-fold cross-validation was used to train a set of ensemble classifiers. The experiment was first conducted without the use of GA. The default configuration classifier performance is shown in Tabs. 25 to obtain the highest precision compared with other classifiers. RF classification was the best and achieved approximately 97 percent accuracy. The rest of the classifiers achieved an accuracy ranging from 93 percent to 94.61 percent. BA also attained a good accuracy of 96.73 percent and LGBM of 96.53 percent.

images

images

images

images

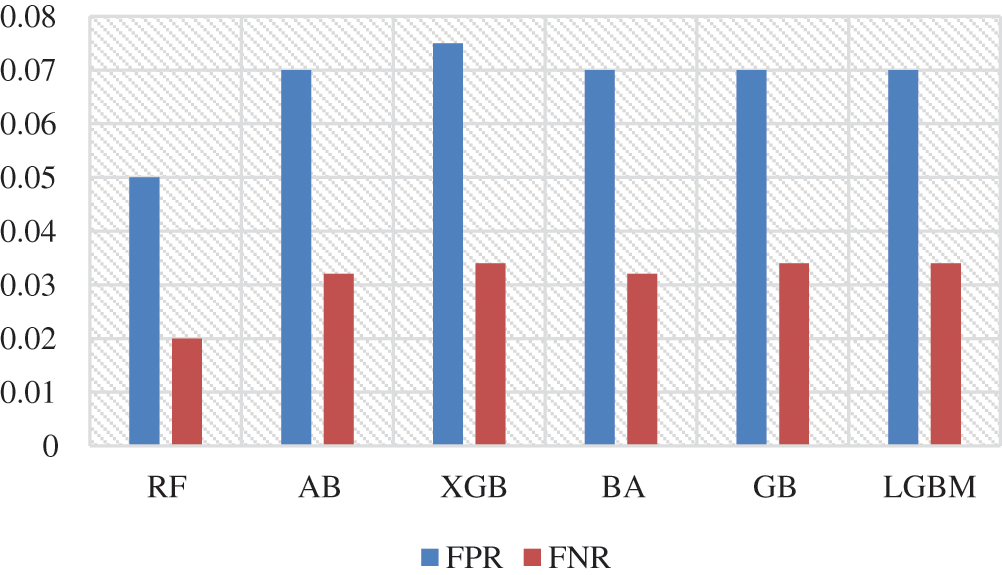

Fig. 2 shows FPR and FNR. It was found that RF achieved a distinguished FPR (0.05) and FNR (0.02). LGBM achieved the second range with an FPR that equals 0,068. The GB classification obtained a 0.07 value of FPR. The lowest FNR value was also found in the RF (0.02), followed by AB and BA. while the AB classification had low FNR, FPR levels were higher than those of the LGBM, which means that a false alarm is likely to be raised. If the true value is negative, then a positive result is given.

images

Figure 2: Ensemble methods’ FPR and FNR

4.2 Experimental Results of Ranking and Testing Stages

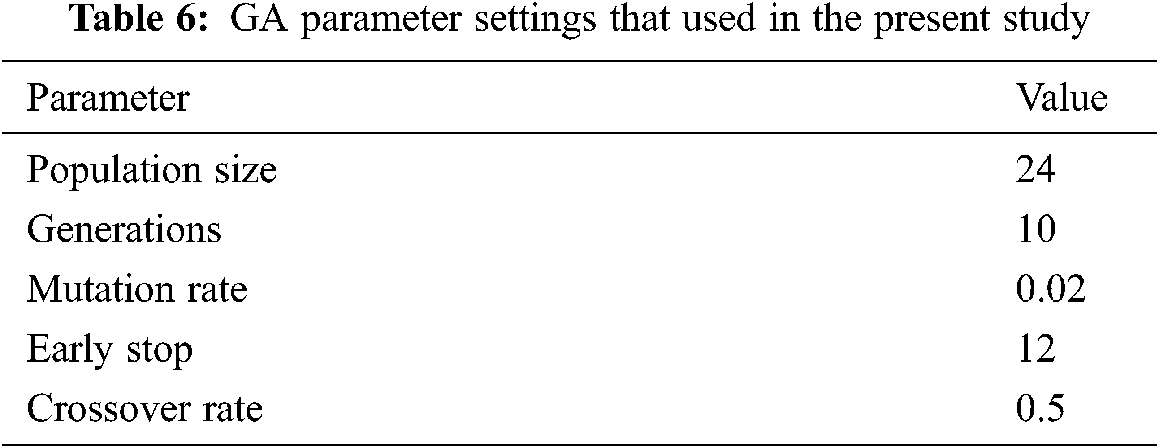

While all classifiers have demonstrated good performance, several parameters have to be adjusted to achieve better assessment results. For each classifier, it is relatively difficult to adjust such parameters. The GA in the present study is used to adjust the parameters of classifiers. In the area of algorithm parameter search, the GA has shown good results [28]. For configuring the GA, the following parameters were used (see Tab. 6).

images

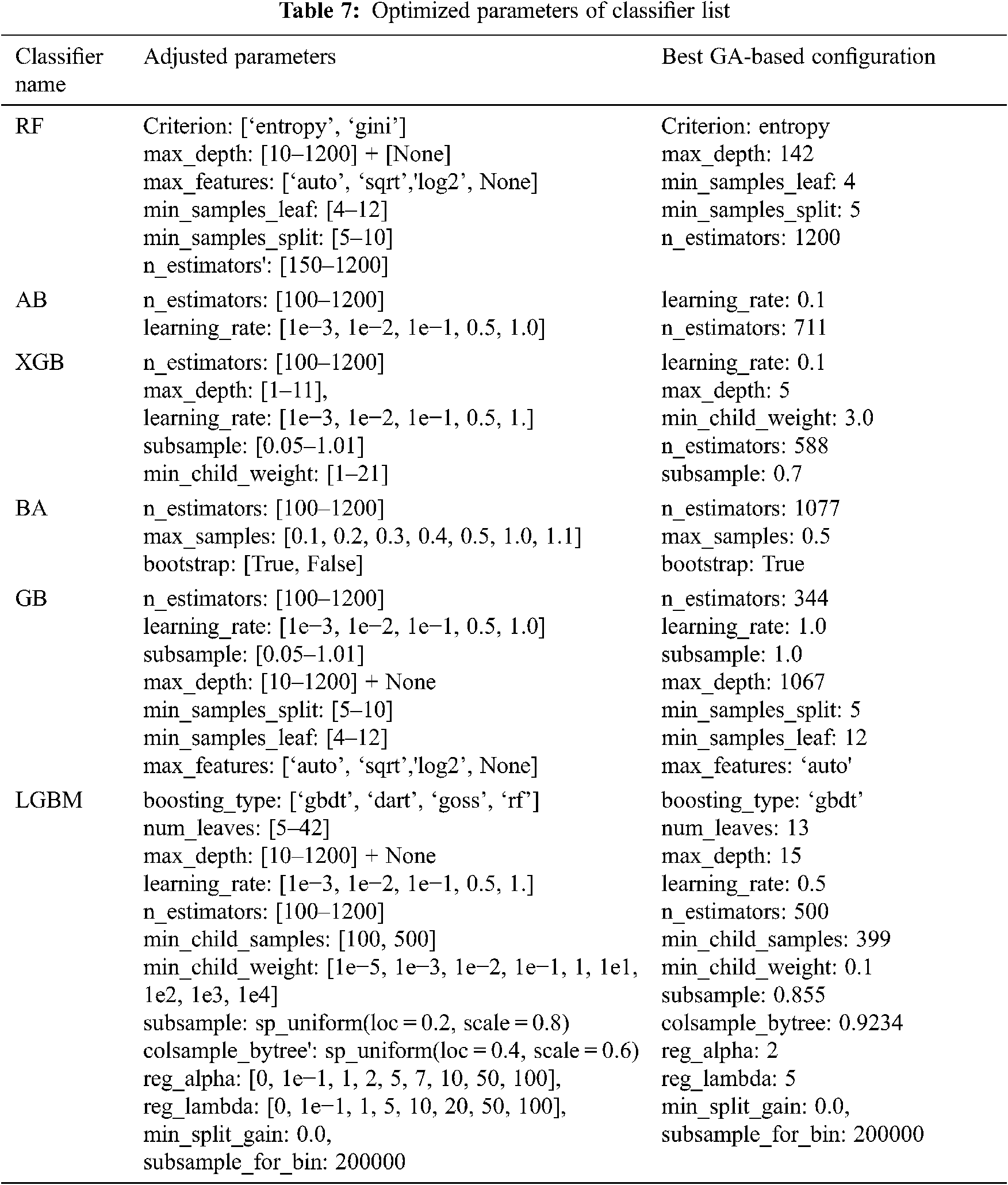

As a result of the multitude of configurable parameters, Tab. 7 displays the list of each classifier's adjusted parameters and the GA optimized parameters. The learning rate and optimal number of estimators obtained the most important parameters, among all parameters that have a significant impact on the classification's performance.

images

Compared with the default parameters in Tab. 8, XGB and GB have significantly improved. In the meantime, both the LGBM and RF classification performance has been reduced.

images

In addition, RF, XGB, Gradient Boost and LGBM confusion matrices are illustrated in Figs. 36.

images

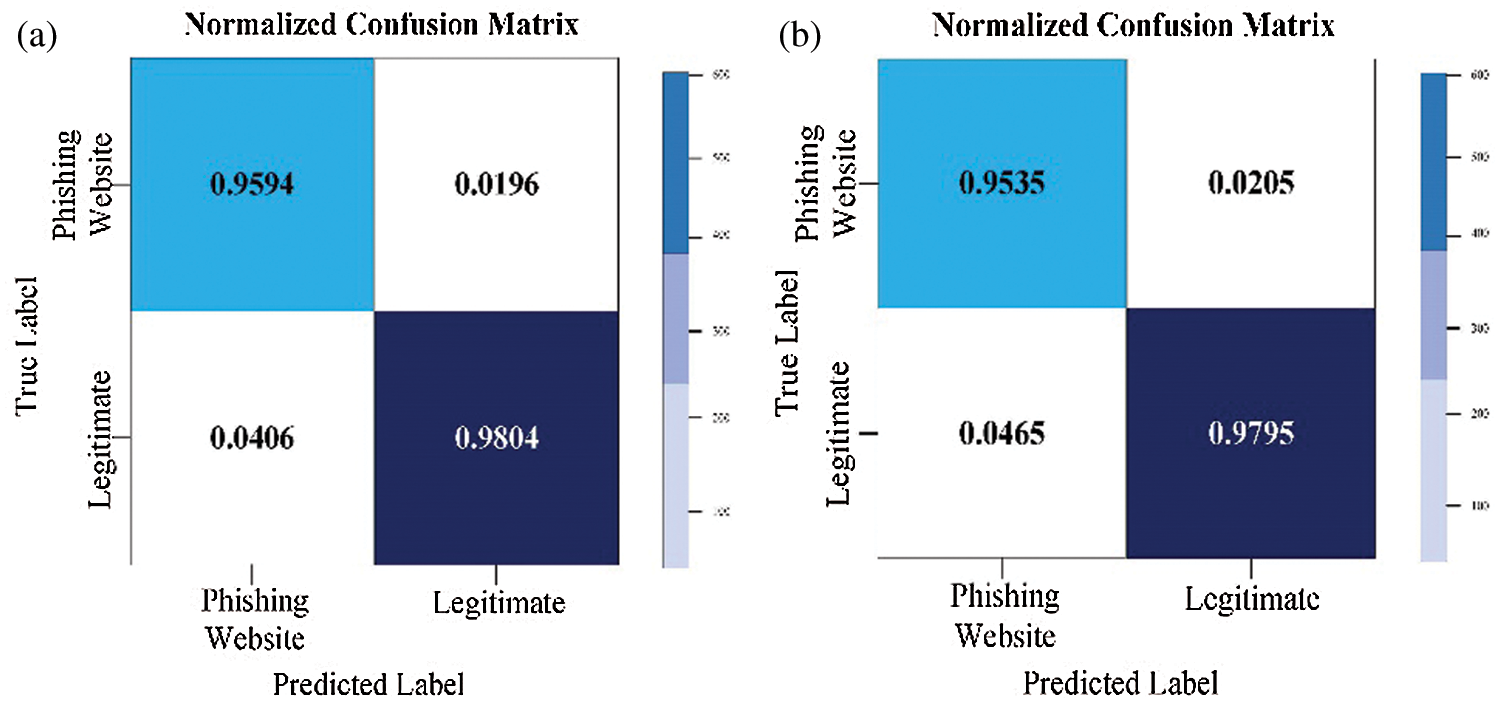

Figure 3: Normalized RF confusion matrix for the PW (a) with default parameters; (b) with optimized parameters

images

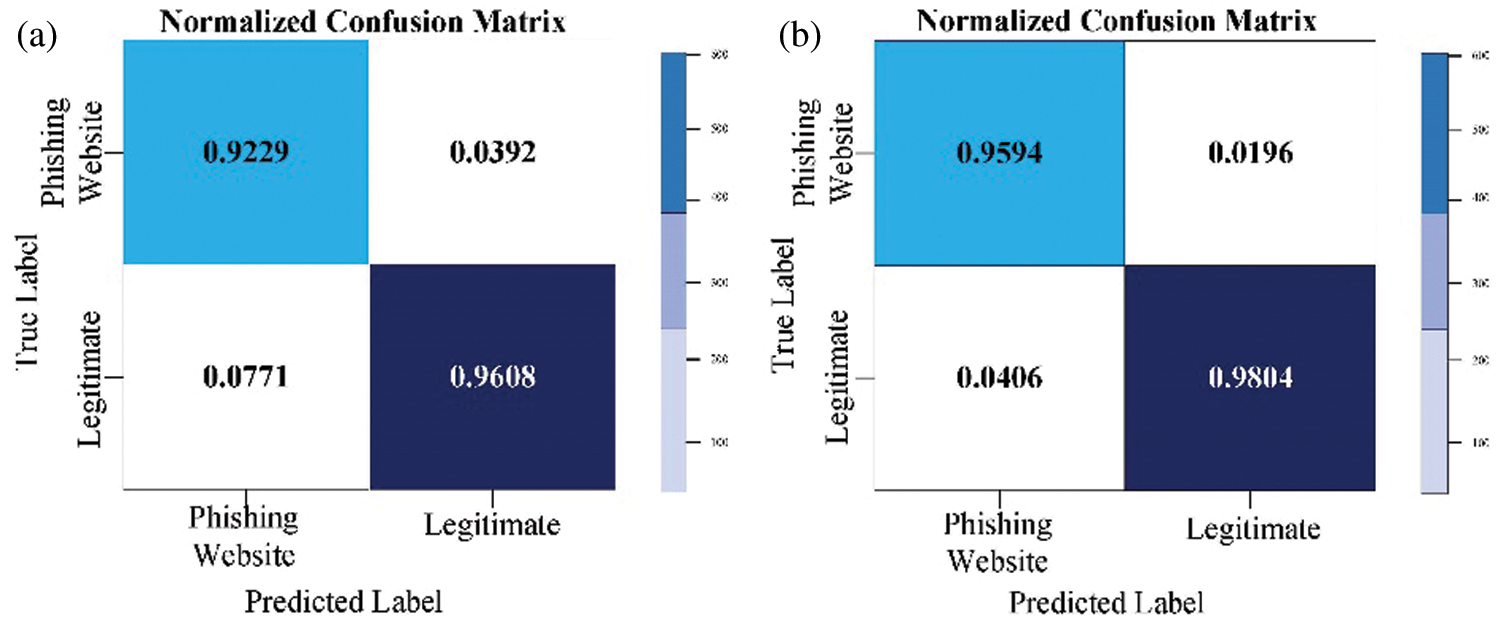

Figure 4: Normalized XGB confusion matrix for the PW (a) with default parameters; (b) with optimized parameters

images

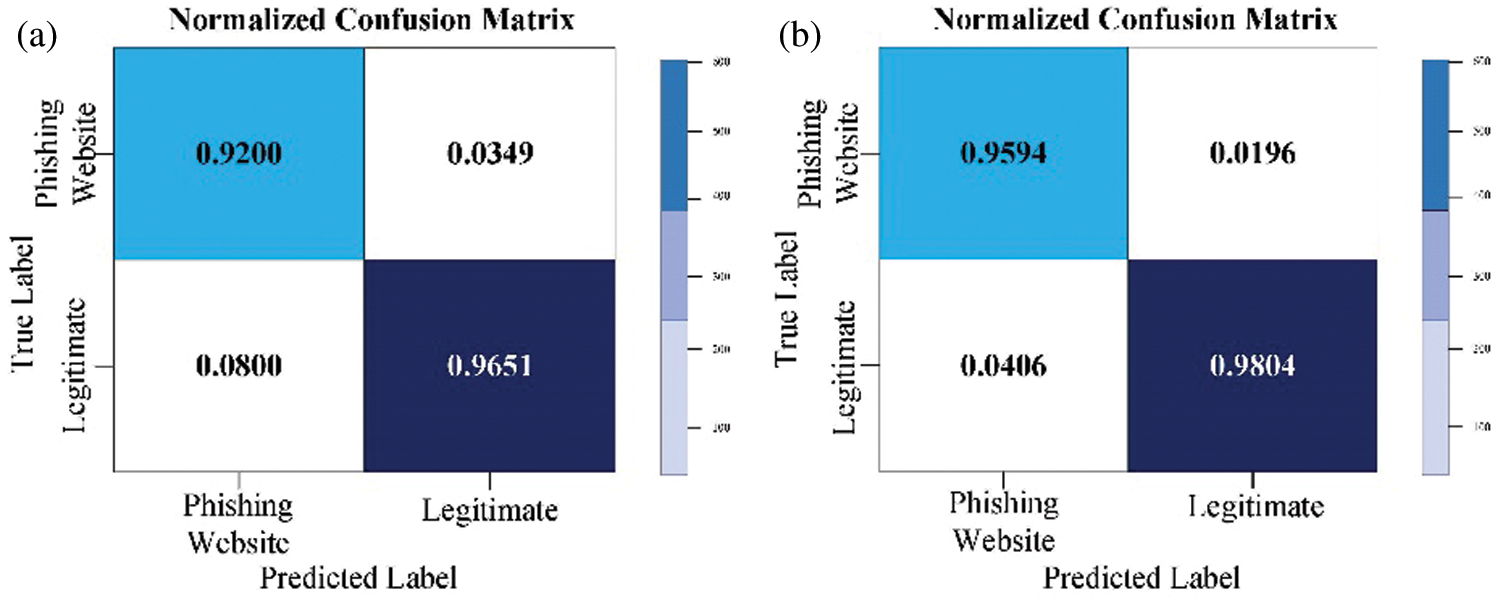

Figure 5: Normalized GB confusion matrix for the PW (a) with default parameters; (b) with optimized parameters

images

Figure 6: Normalized LGBM confusion matrix for the PW (a) with default parameters; (b) with optimized parameters

In Fig. 4b and Fig. 5b, it is noticeable that the classifier GA-XGB and GA-GB have been optimized to the greatest benefit. 95.94 percent of cases have been detected correctly as a PW class, representing the TP measure and 4.06 percent of instances incorrectly as ‘legitimate’ class, which is the FP measure. Furthermore, 98.04 percent of instances were detected as the “legitimate” class representing the TN measure, whereas the FN measure represented incorrectly 1.96 percent of detected instances as a PW class. It is possible to conclude that GA-XGB and GA-GB classification systems have achieved a high TP rate and a low FP. The results for other performance measures are listed in Tab. 9.

images

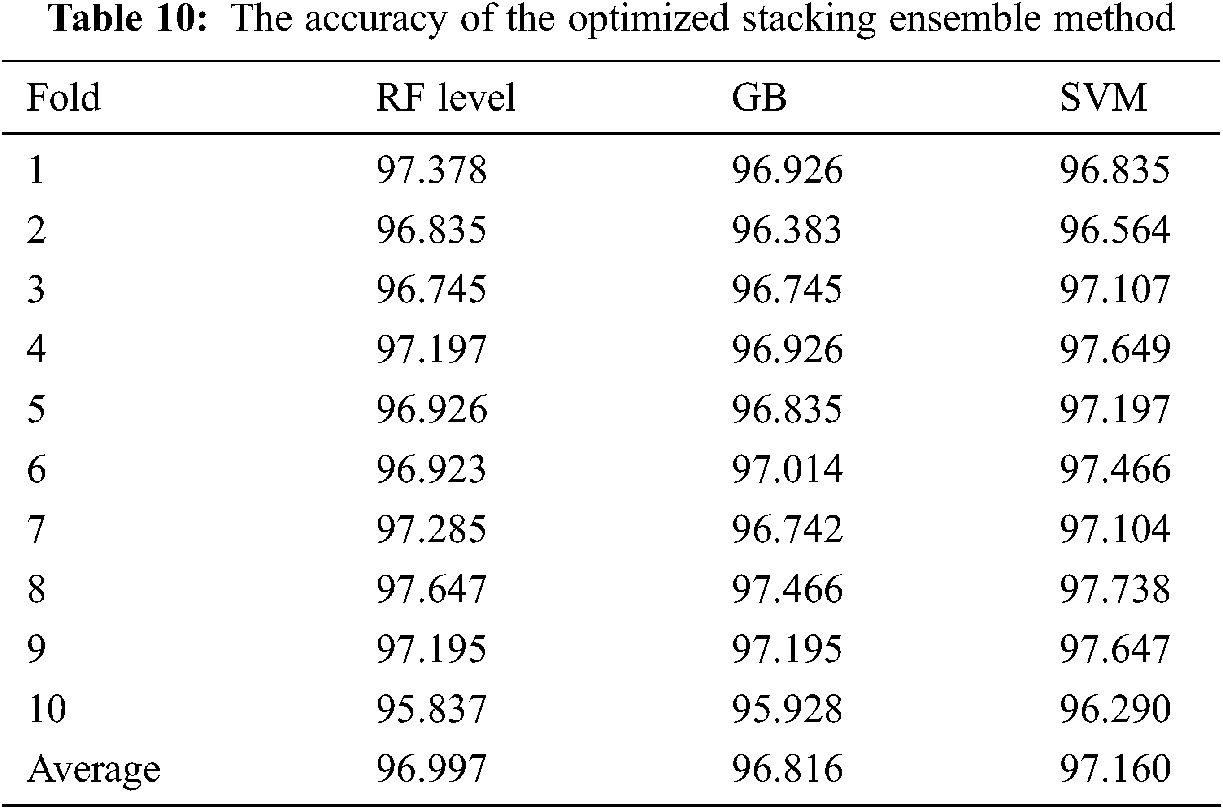

The performance of these classifiers was classified after the training phase, with the best three models being GA-GB, GA-XGB, and GA-BA. These models were used as base classifiers of a stacking ensemble method in the next stage. In the meta-learner, RF, GB, and Support Vector Machine (SVM) classification were investigated. Finally, the achieved accuracy reached 97.16 percent, which in the previous phase exceeds the other ensemble methods (see Tab. 10).

images

4.3 Statistical Analysis

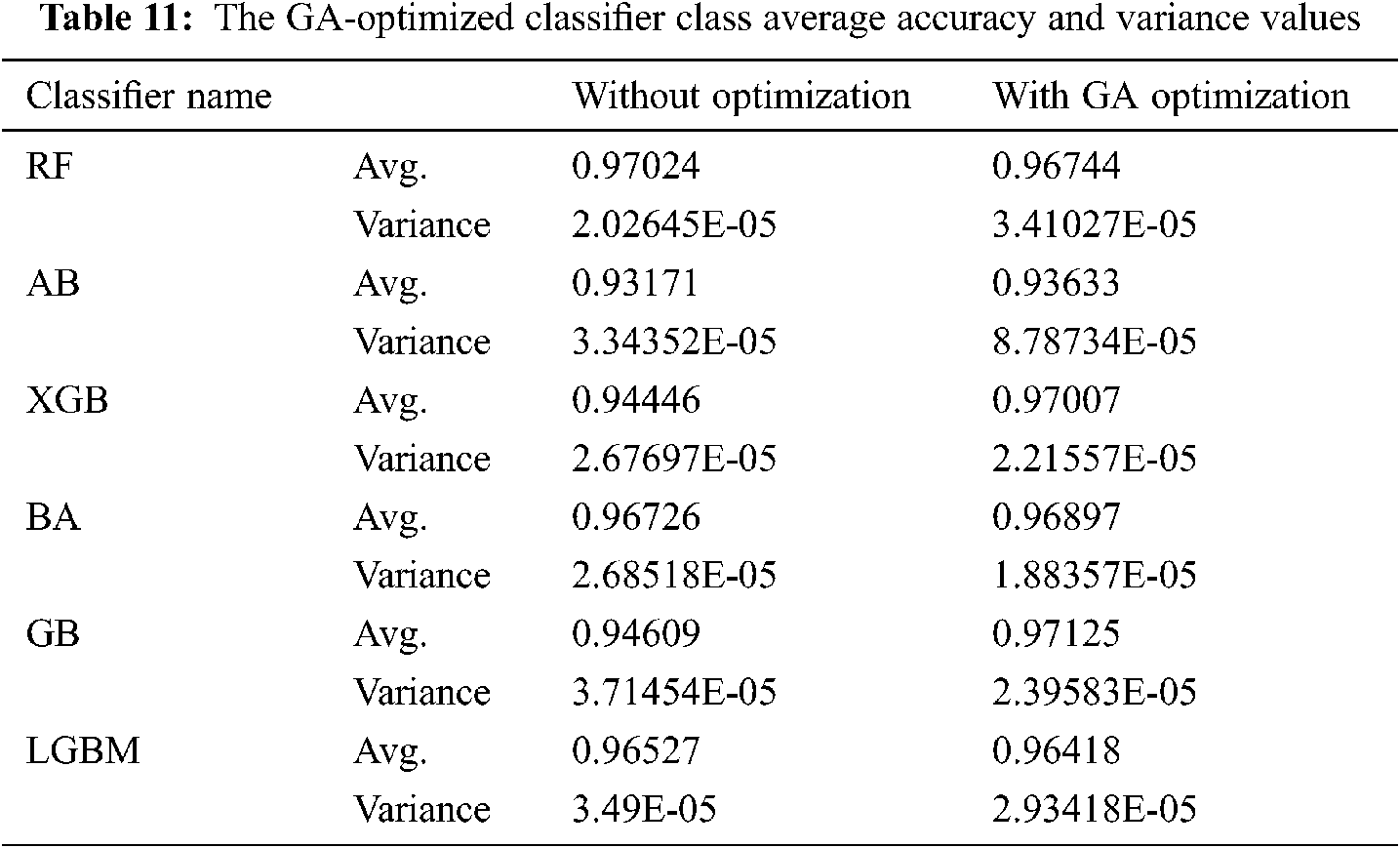

Tab. 11 compares the results obtained by preliminary settings where classifiers are trained using standard hyperparameter settings, and by adjusting the hyperparameters in a classifier after application of GA. The mean of precision and variance values for each classifier is also summarized. The results also show that the mean of the GB classification by means of GA optimization was above the level of all other classification devices before and after optimization.

images

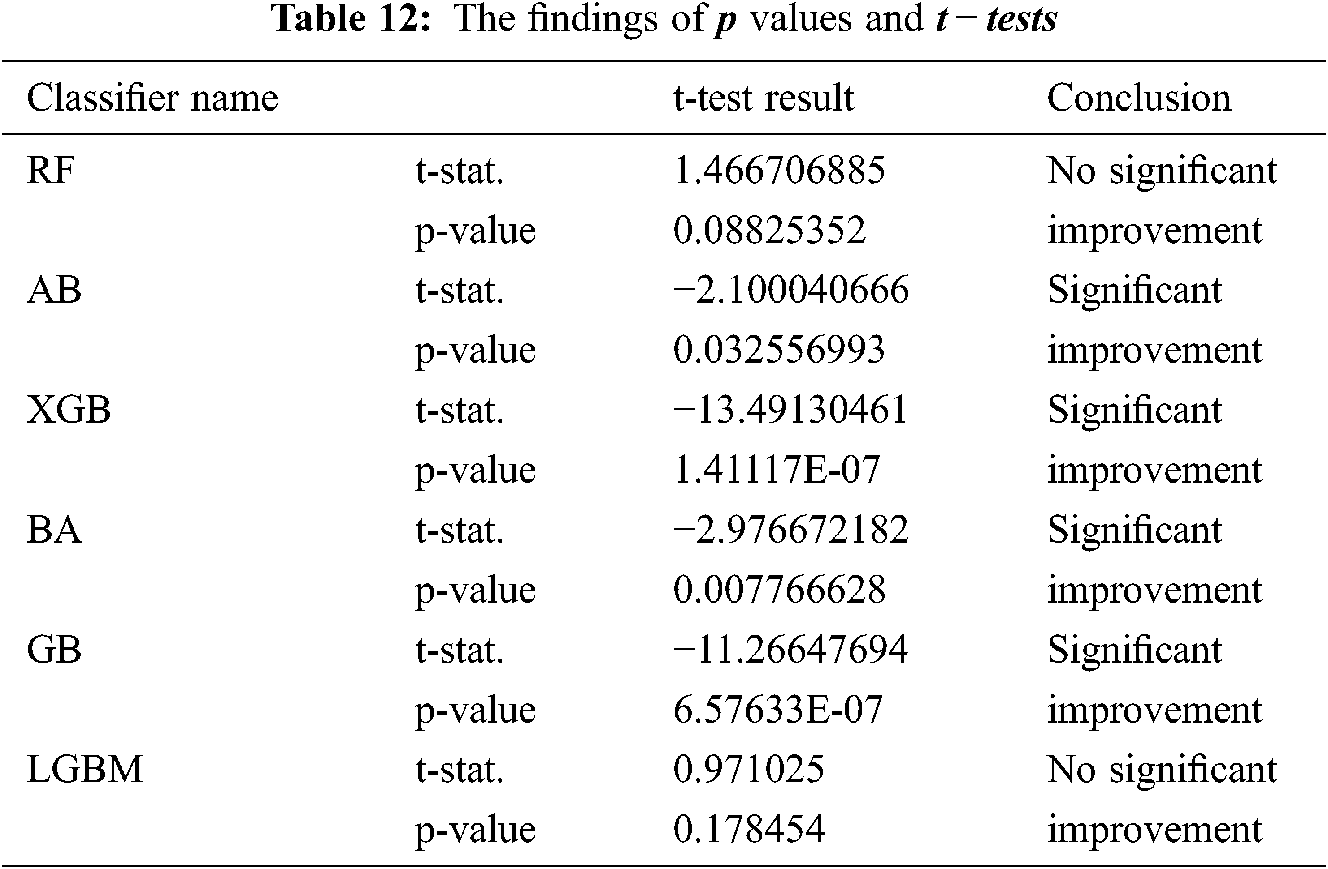

The statistical significance was also measured in several stages, besides the basic statistical measurements listed above. The two samples for the mean t-test were therefore used. This comparison zero hypothesis, h0, is that ‘precise methods of GA optimization are identical in classifiers before and after application.’ The p values show that the null hypothesis can be rejected with an accepted level of significance, so there were statistically significant improvements in AB, XGB, BA, and GB (see Tab. 12).

images

Moreover, a comparison with the earlier studies that used the same PWs as shown in Tab. 13 was made. The measurements included accuracy, precision, and recall. The results demonstrated that the proposed method overtook other related and recent projects in both [7] and [10].

images

5  Conclusion

This paper proposes, to detect phishing sites, an optimized stacking ensemble model. The optimization method has been used to identify the optimized parameter values of several ensemble learning methods by using a GA. Training, ranking, and testing are the three stages that form the proposed model. In the training stage, several ensemble learning methods have been trained, including RF, AB, XGB, BA, GB, and LGBM, without using the GA method. GA is then used to optimize these classifiers by selecting the optimum model parameter values and enhancing whole precision. In the ranking phase, certain classifiers were used as basis classifiers for the stacking ensemble method. These classifiers were the best ensemble methods (GA-GB, GA-XGB, and GA-BA). Finally, new websites were compiled in the testing phase and used as a test data set to guess the ultimate label of the class (legitimate or phishing). The experiments’ findings demonstrate a higher performance compared to other ML-based detection methods with the proposed optimized stacking ensemble method. The accuracy achieved amounted to 97.16 percent. To prove that the acquired improvements were statistically significant, a statistical analysis was performed. In addition, the findings showed that the proposed methods got higher accuracy compared with recent studies that used the same phishing dataset. As a recommendation for future studies, more light detection methods will be more accurate with IoT environments. Furthermore, using deep learning methods to investigate and improve the detection rate of PWs and using more phishing datasets is also advisable.

Acknowledgement: Our acknowledgement for the funding of this research goes to the Scientific Research Deanship at the University of Ha'il, Saudi Arabia.

Funding Statement: This research has been funded by the Scientific Research Deanship at University of Ha'il-Saudi Arabia through Project Number RG-20 023.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
