Image Manipulation Detection Through Laterally Linked Pixels and Kernel Algorithms

K. K. Thyagharajan and G. Nirmala*

RMD Engineering College, Kavaraipettai, Chennai, India
*Corresponding Author: G. Nirmala. Email: nirmalaganapathy@yahoo.co.in
Received: 17 May 2021; Accepted: 01 July 2021

Abstract: In this paper, copy-move forgery in image is detected for single image with multiple manipulations such as blurring, noise addition, gray scale conversion, brightness modifications, rotation, Hu adjustment, color adjustment, contrast changes and JPEG Compression. However, traditional algorithms detect only copy-move attacks in image and never for different manipulation in single image. The proposed LLP (Laterally linked pixel) algorithm has two dimensional arrays and single layer is obtained through unit linking pulsed neural network for detection of copied region and kernel tricks is applied for detection of multiple manipulations in single forged image. LLP algorithm consists of two channels such as feeding component (F-Channel) and linking component (L channel) for linking pixels. LLP algorithm linking pixels detects image with multiple manipulation and copy-move forgery due to one-to-one correspondence between pixel and neuron, where each pixel’s intensity is taken as input for F channel of neuron and connected for forgery identification. Furthermore, neuron is connected with neighboring field of neuron by L channel for detecting forged images with multiple manipulations in the image along with copy-move, through kernel trick classifier (KTC). From experimental results, proposed LLP algorithm performs better than traditional algorithms for multiple manipulated copy and paste images. The accuracy obtained through LLP algorithm is about 90% and further forgery detection is improved based on optimized kernel selections in classification algorithm.

Keywords: Machine learning; copy move forgery; support vectors; kernel; feature extraction

1  Introduction

Recently, free image editing tools available in internet leads to duplication of image and detecting duplication in image is a major problem for many researchers. In this internet world, day-by-day digital photo plays a vital role in various e-commerce applications such as sales and marketing. Furthermore, sharing of digital image in social media is increasing exponentially. However, identifying original image needs efficient software tools based on type of duplication of image such as copy-move, splicing, digital watermarking, digital signature, and image compression and re sampling duplicated images. Among the above duplication of image, copy-move duplication is more in social media, due to availability of many free editing tools and easy to manipulate. Moreover, according to statistics many forensic cases are related to copy-move duplicated images [1]. The traditional algorithms for detecting copy-move forgery performs based on any one of the following procedures such as key-points in pixels, image block based detection, feature vectors, feature matching, decomposing transform co-efficient, testing and training based detection. However, copy-move forgery detection by traditional algorithms is implemented in standard forgery image data sets. The efficiency of traditional algorithm needs to be checked with various software based manipulations in images such as blurring, rotation, translation, JPEG compression, noise addition, brightness change and Hu-adjustment. The software manipulations need to be performed with standard tools such as adobe, spark and pine tools. Furthermore, efficiency of traditional algorithms need to be checked with fabricated multiple manipulations in single image. The fabricated manipulations need to be performed during acquisition of images through the manipulations in camera lens. The traditional algorithm which performs better for standard data sets never performs for image of the same data sets image with multiple manipulations. Similarly, dataset images with fabricated photo manipulations needs efficient and robust algorithm to detect such forensic images.

2  Contributions

1.    The proposed LLP algorithm performs copy and move detection in single image with multiple manipulations through free online software. The algorithm performs forgery detection in single image with multiple manipulations through single linear linked pixels. The single linear linked pixels differentiate software manipulation in images through the property of automatic feature extraction in CNN.

2.    The software manipulations needs feature extractions through dimensional-reduced feature matching to differentiate copy and move pixels for reducing time complexity and improves duplication accuracy.

3.    The single and multiple manipulations in single image detection and classification of duplicate and original image is performed through selecting optimum kernel in support vector machines. The kernel selection for the multiple manipulated images is performed through various functions such as cost function, sigmoid, linear, polynomial and radial basis function.

2.1 Related Work

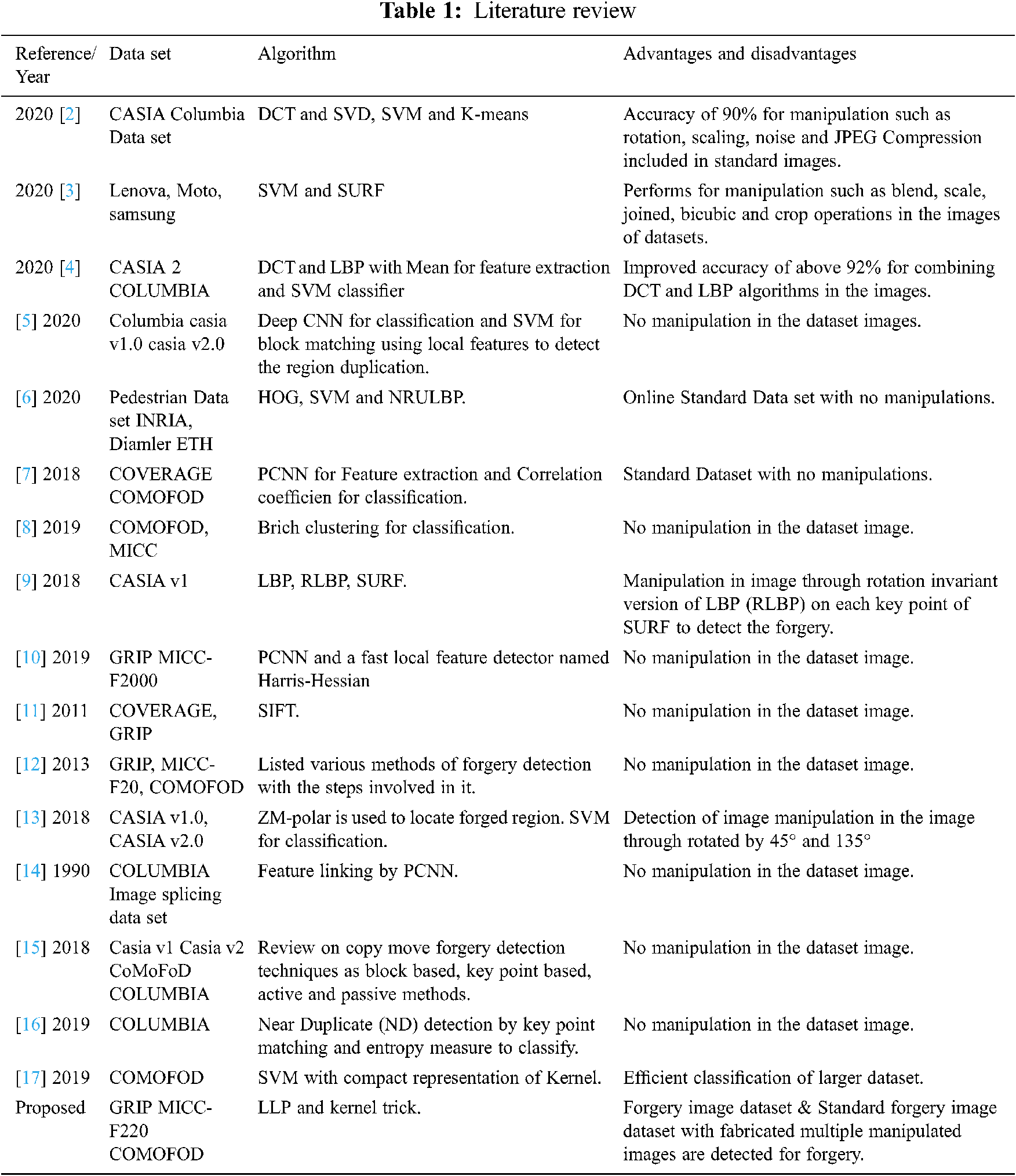

From Tab. 1 it is understood that block based and key point based methods uses feature extraction as a separate method and classification based on features are done. This gives a way support vector machines to be combined with LLP algorithm for bringing the improvement in terms of classification accuracy. Another novel idea to find the images with single and multiple manipulations in addition to standard forgery dataset was implemented.

images

2.2 Inferences from Literature Survey

Till now, copy-move forgery detection in high resolution images are performed with various algorithms such as CNN, LBP, SVM, DCT and DWT. However, performance of above algorithms needs to be evaluated for low and medium resolution copy move forgery images. The existing algorithms require change in thresholding levels for DWT, DCT and such level changes in algorithms leads to high computational complexity. Moreover, deep learning algorithms needs change in network architecture and which leads to more false identification due to less number of data sets for learning and training. Furthermore, SVM algorithm needs changes in kernels to detect low and medium resolution images for more accuracy. From traditional algorithms, manipulated images such as blurred, noise added (single) which lead to low and medium resolution images need more accurate selection of kernels or threshold levels. To avoid the above problem, LLP algorithms are proposed based on selected properties such as linked pixels and kernel modifications. The proposed algorithm discriminate pixels in copy move region with high and low resolutions.

2.3 Materials and Methods

The growth of internet technologies increases forgery images and identifying forgery images is a challenging task due multiple manipulations in a single image. Copy-move forged images consist of small the portion copied from different image and pasted in different part of image. Figs. 1A1L is copy-move forged image from MICC-200 dataset. B is tampered image of A. but both looks similar.

images

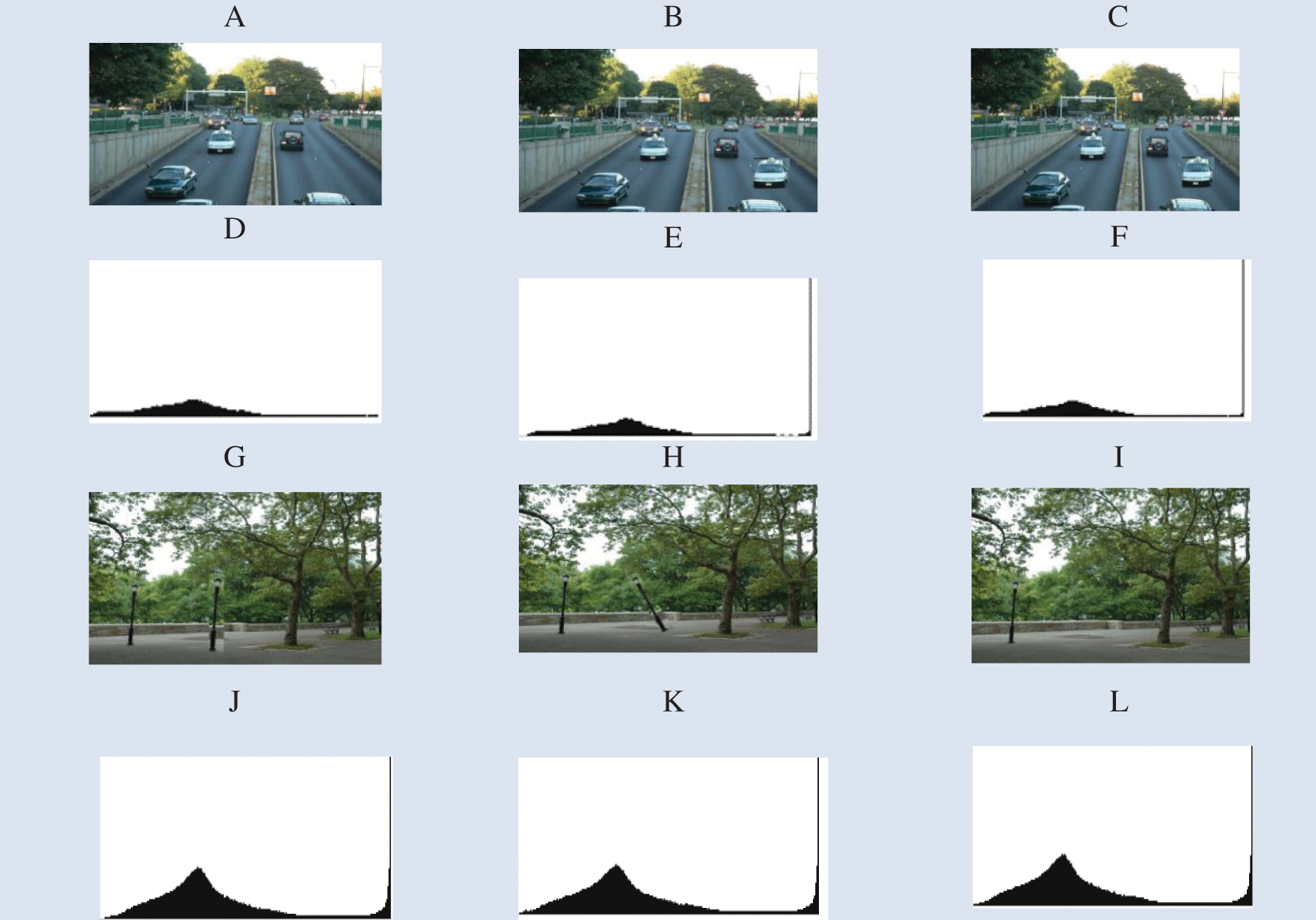

Figure 1: (A–L) Copy-move forged image from MICC-200 dataset with histogram

Figs. 1A1L does not show any difference in original image and forged image through visual interpretation and similarly histogram shows no different in bin for all the images such as forged and original image. In Fig. 1L are a multiple manipulated image and its histogram which never show difference for forged and original image. However, Fig. 1A with single manipulation shows negligible difference in histogram, whereas for multiple manipulation images as in Fig. 1J shows no difference in bins of histogram. The multiple manipulations in image need efficient algorithms for detecting forgery images. Along with images in standard dataset different multiple manipulations of image through different software are also taken as input images. The manipulated images never show difference in image between original and multiple manipulated one.

In proposed LLP block as given above in Fig. 2 initially, input image is converted into M*N matrix and from matrix initialize the values of Sij, decay term for feeding, linking and threshold alpha T is obtained. Initial magnitude scaling term is assigned, linking strength is obtained and from number of iterations values such as Feeding Pixel (FP), Feeding component (FC), Output Pixels (OP), Output Pixels (OC), Mean (M), Weight (W) are calculated, updates feeding and linking input for each iteration i.e., Fij [n] = Sij Lining field (Lij[n]) = klykl(n1) getting Lij as 0 or 1 and compute for performing LLP, Compute Uij=Sij(1+(0.1Lij)) , TCIij = TPIij   exp (-alpha T) + (5 *YPIij), YPIij > 0 then Lij = 1, else 0 and if Uij > TCIij then Yij = 1 else 0 update the threshold and updates the activity and explained in the further section.

images

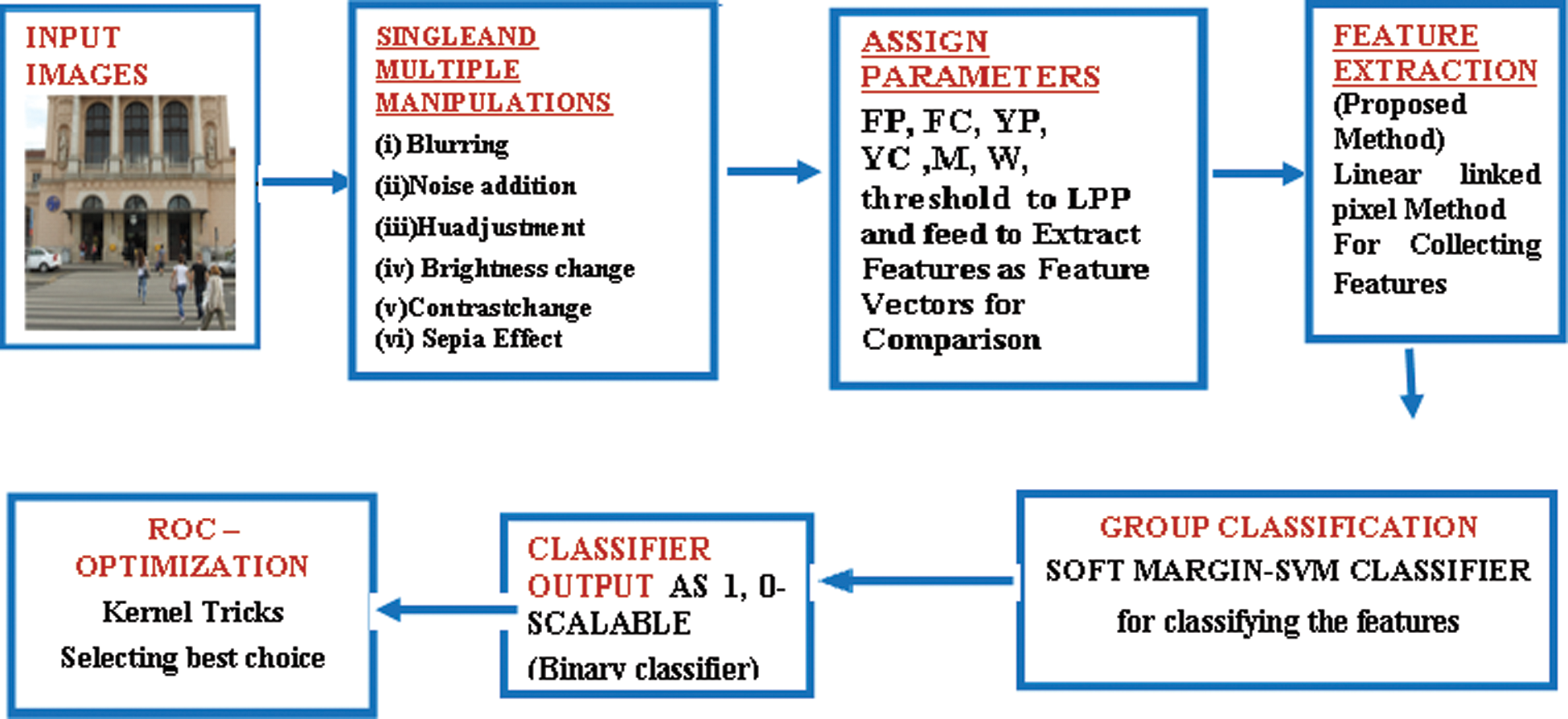

Figure 2: Block diagram of the proposed LLP algorithm

3  LLP Algorithm (Linear Linked Pixels Unit Linking PCNN Model)

The model of LLP is represented in the above Fig. 3 with input as y consisting pixels as rows and columns and feature vectors are extracted as output from the block. In LLP, input signal Sij (external stimulus) is intensity of pixel at (i, j) position. LLP is feeding component (input stimuli) to neuron. Each pixel in input image is connected to a neuron. Each neuron connects with outputs of its neighboring neurons, for receiving local stimuli from them. The external and local stimuli are combined (multiplied) in an internal activation system Uij (membrane potential). At one stage, internal activity is larger than threshold and hence neuron fires, which makes output of the neuron ‘1’. Moreover, threshold decays exponentially in each successive iteration; when its value becomes below internal activity a specific iteration, output will become ‘0’. This creates sequence of 1 s and 0 s and it is called as time series of pixel (image) created by neuron(s). It is called as temporal series of pulse outputs. The temporal series of pulse outputs contain information of input images and used for various image processing applications, such as image segmentation and feature generation. The linking field value is computed as given below according to neuron model shown in Fig. 1. In this paper, LLP follow the method suggested in [18] for estimating the value of Lij[n] as given below. If a set of neurons is in neighborhood of neuron (i, j) and if set is denoted as N(i, j), linking value is given by.

Lij[n]={1klN(i,j)Ykl(n1)>00klN(i,j)Ykl(n1)=0 (1)

where each (k, l) is neighbor neuron’s position of center neuron (i, j). Eq. (1) indicates, if any one of neighboring neurons fires, then Lij (n) = 1 otherwise it will be zero. If Ykl is output of neuron found at (k, l) position, use a 3 × 3 (k = 3, l = 3) or 5 × 5 (k = 5, l = 5) square linking neuron set with “×” pattern or “ + ” pattern linking as shown below in the matrix respectively. Eight-link neuron set is used as below.

010111010 101010101111111111

(a) ‘+’ Linking (b) ‘X’ Linking (c) 8-linking

Uij[n]=Fij[n](1+βLij[n]) (2)

Tij[n]=Tij[n1]eαT+VTYij[n1] (3)

images

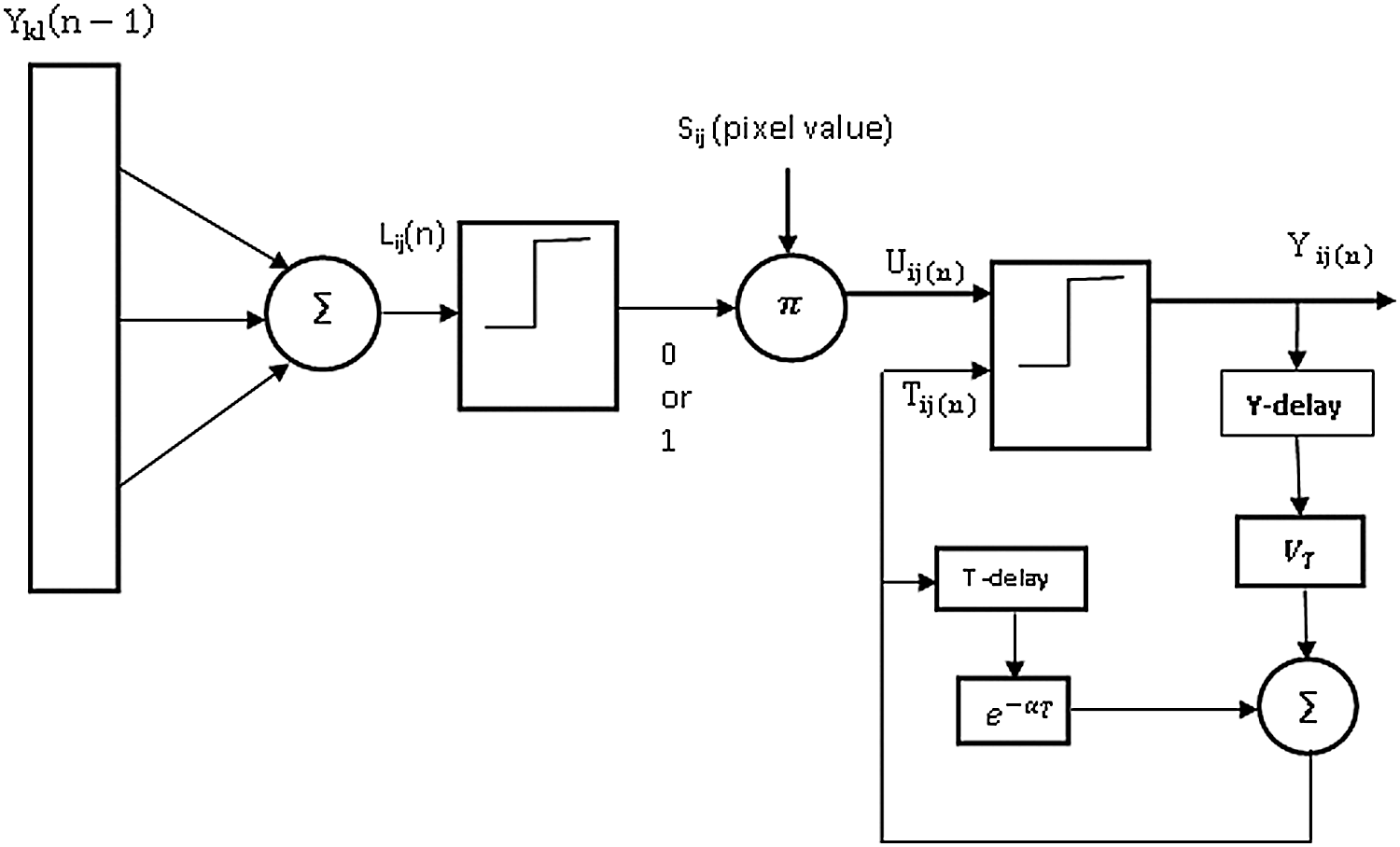

Figure 3: Model of LLP

The values of Uij[n] and Tij [n] is to decide output of neuron at different iterations. The first pulse cycle of neuron has ‘n’ number of iterations. This cycle starts with value of Tij[n] = VT, when next pulse cycle started at (n+1) th iteration, gets residual value VTenαT from previous cycle. If αT or ‘n’ is chosen high value, residual value becomes zero and next pulse cycle will also have ‘n’ number of iterations otherwise number of iterations in next pulse cycle will be more. But, if ‘n’ is to be high αT should be small to make threshold value slowly decaying

Yij[n]={1,if Uij[n]>Tij[n]0,else (4)

The output Yij of a set of neurons corresponding to an image of size M × N is a time series matrix of order M × N. When whole image is provided as input to LLP, time series produced is called global time signature or global image icon. If only a portion of whole image is provided as input, LLP(UL-PCNN) produces signature of corresponding region and it is called as local time signature or local image icon. Dividing an image into smaller blocks and finding local signatures is necessary in applications such as object detection, navigation and authentication. The local time signature will reflect local changes and used for image forgery detection or image authentication. The change in neuron’s output from 0 to 1 and again to 0 produces an oscillation. The frequency of oscillation depends on values assigned to above parameters of PCNN. The amplitude of this oscillation in each iteration is sum of outputs of all neurons.

G(n)=Yij(n)

Time series G(n) is rotation, translation, scaling and distortion in variance. The length of feature vector is defined as total number of the LLP iterative steps after analyzing the various methods for feature matching [19]. The LLP transforms an image into a series of binary images. The binary image sequence contains lots of information about shape, edge and texture features of original image. Similar images should show same features i.e., should produce same frequency and amplitude. Still, a duplicated image will have small group of pixels with intensities changed due to changed color or changed illumination levels or changed size of objects in image. Therefore, small difference exhibited by the forged pixels in their features. The G(n) depends on number of pixels in image i.e., if size of the image is changed, G(n) will change, so it is proposed to normalize G(n) against size of image.

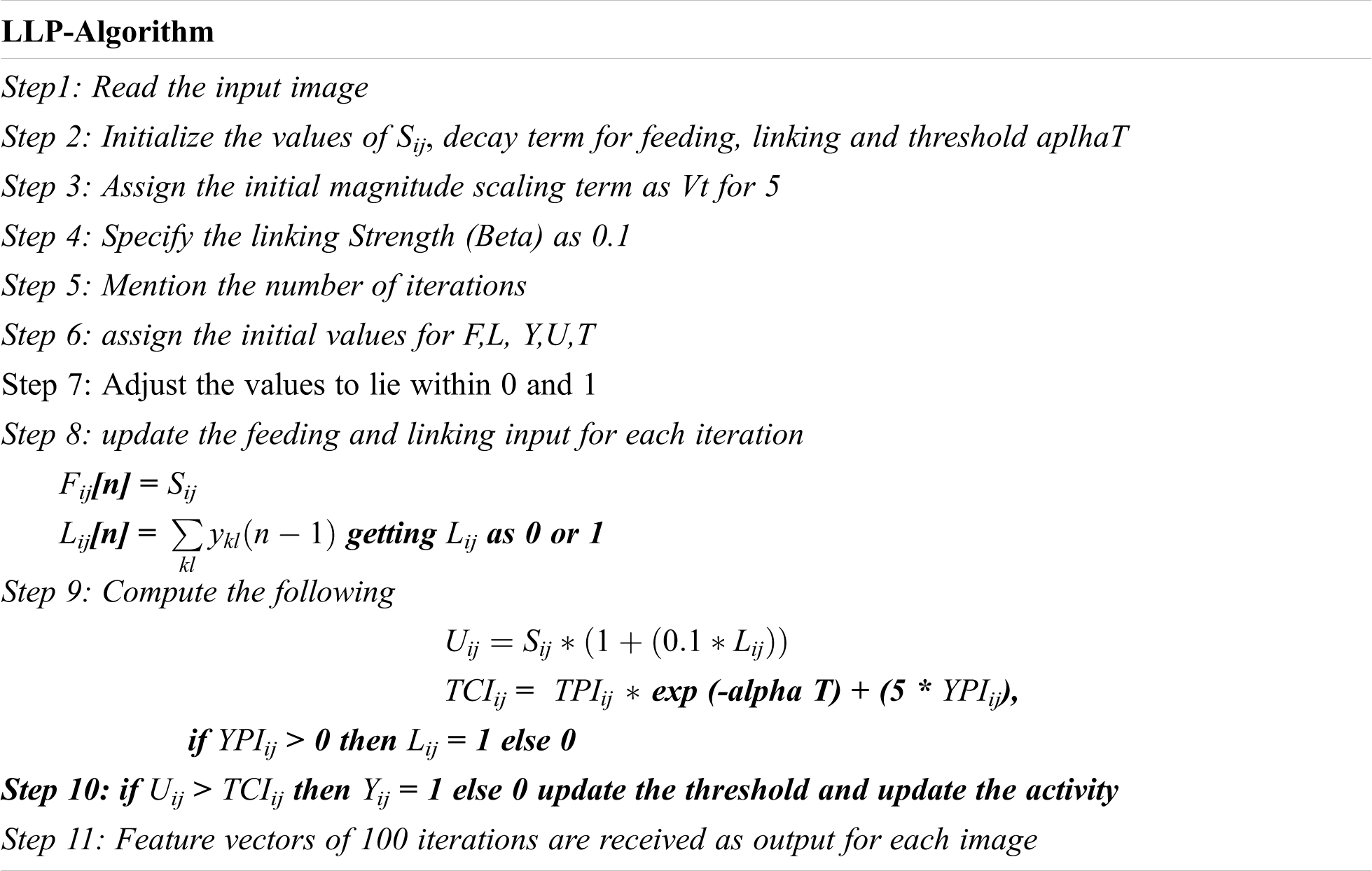

LLP is used for identification of forensic through binary images obtained at various values of G(n). The recognition precision is to estimate through percentage against number of iterations. Furthermore, Duplication in image is identified with 100% precision, whereas more than 45% change seen in texture of image and never classified. In the proposed LLP method extract features of images and does not require any training. Furthermore, intensity of pixel (i, j) i.e., Sij is normalized against maximum intensity level in image, so that any pixel can have a value from 0 to 1. The input Sij to a particular neuron (i, j) is constant throughout all iterations. The LLP-Algorithms steps are as below. The LLP algorithm identification is explained for each manipulated images in further sections.

images

Irrespective of the type of image, if a neuron is excited by a pixel with an intensity value of Sij =1. The number of iterations required between two consecutive firing is known as pulse cycle. Since, the value for threshold-decay parameter (αT) is constant, if a neuron is excited by a pixel with an intensity value of Sij = 0, then more number of iterations will be taken by that neuron to complete one pulse cycle. This indicates that a high intensity pixel will have more influence on output or feature vector of LLP, than a low intensity pixel. When number of iterations is manually fixed to less value, then neurons with low level of activation will not contribute anything in output or feature produced. At the same time if more number of iterations are used, neurons with high activation will produce ‘1’ frequently and may mislead final conclusion. Therefore, it is necessary to derive expressions to know minimum number of iterations required within all neurons and will be fired.

3.1 Singe Manipulated Copy-Move Forgery Identification

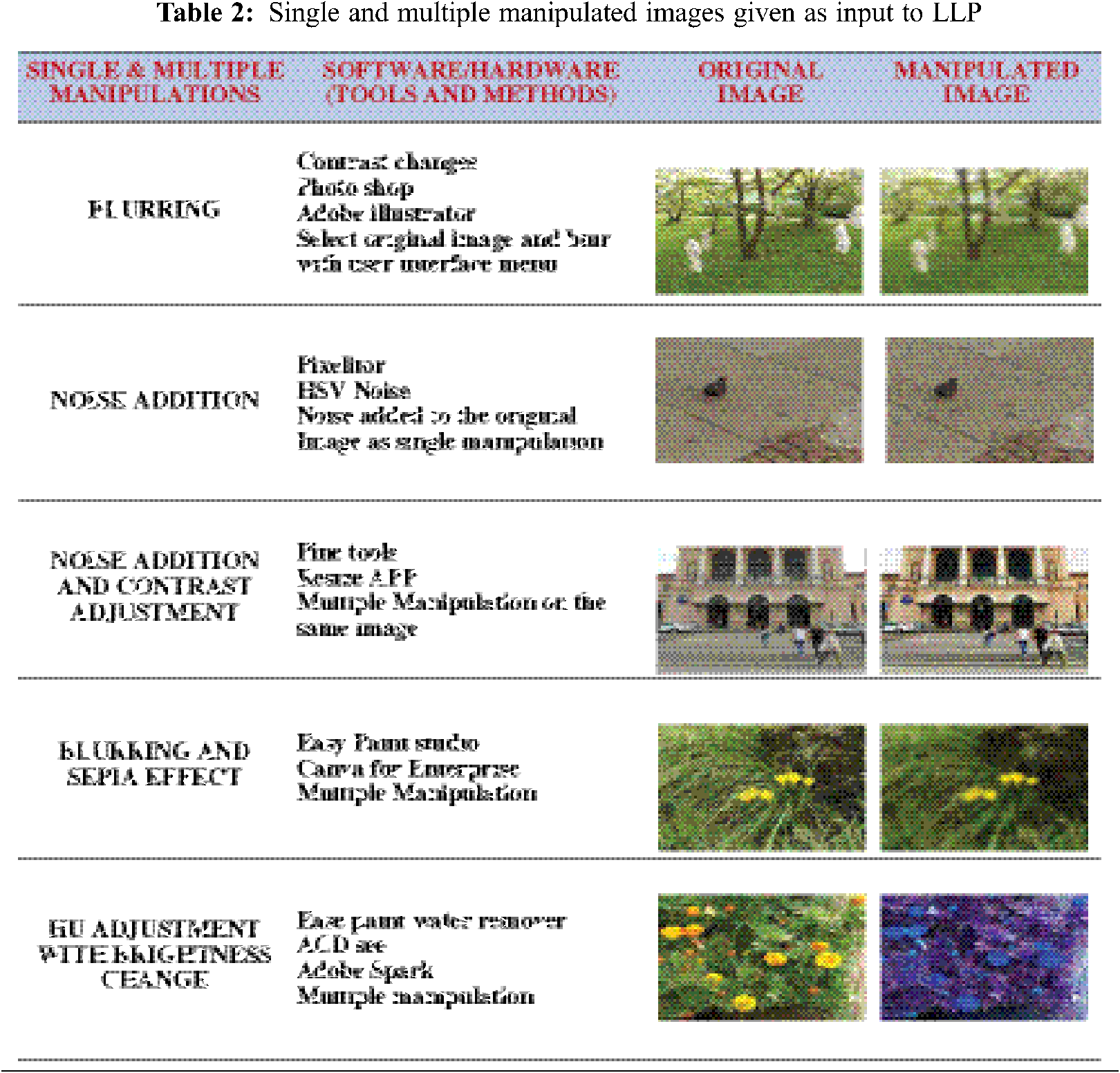

The images from benchmark data sets are taken for color and rotation changes, these changes in image done through free online image editing tools like adobe spark, pine tools for giving additional inputs to model for feature extraction. These changes give intentionally more number of copied images as innovative idea to predict originality of image. The below given Tab. 2 shows a set of changes performed from original image in data set.

images

3.2 Multiple Manipulated Copy-Move Forgery

It is verified experimentally that more than one change done on same image are also taken as input for feature extraction to proposed LLP algorithm. Multiple manipulations perform through original image and performing the blurring, noise addition with contrast adjustment on the same image after doing multiple changes in single image, noise is added image.

Again contrast is increased for making to look image with minor variations that cannot be detected through eye. For the above single and multiple manipulations, LLP features are obtained as in Tab. 3

images

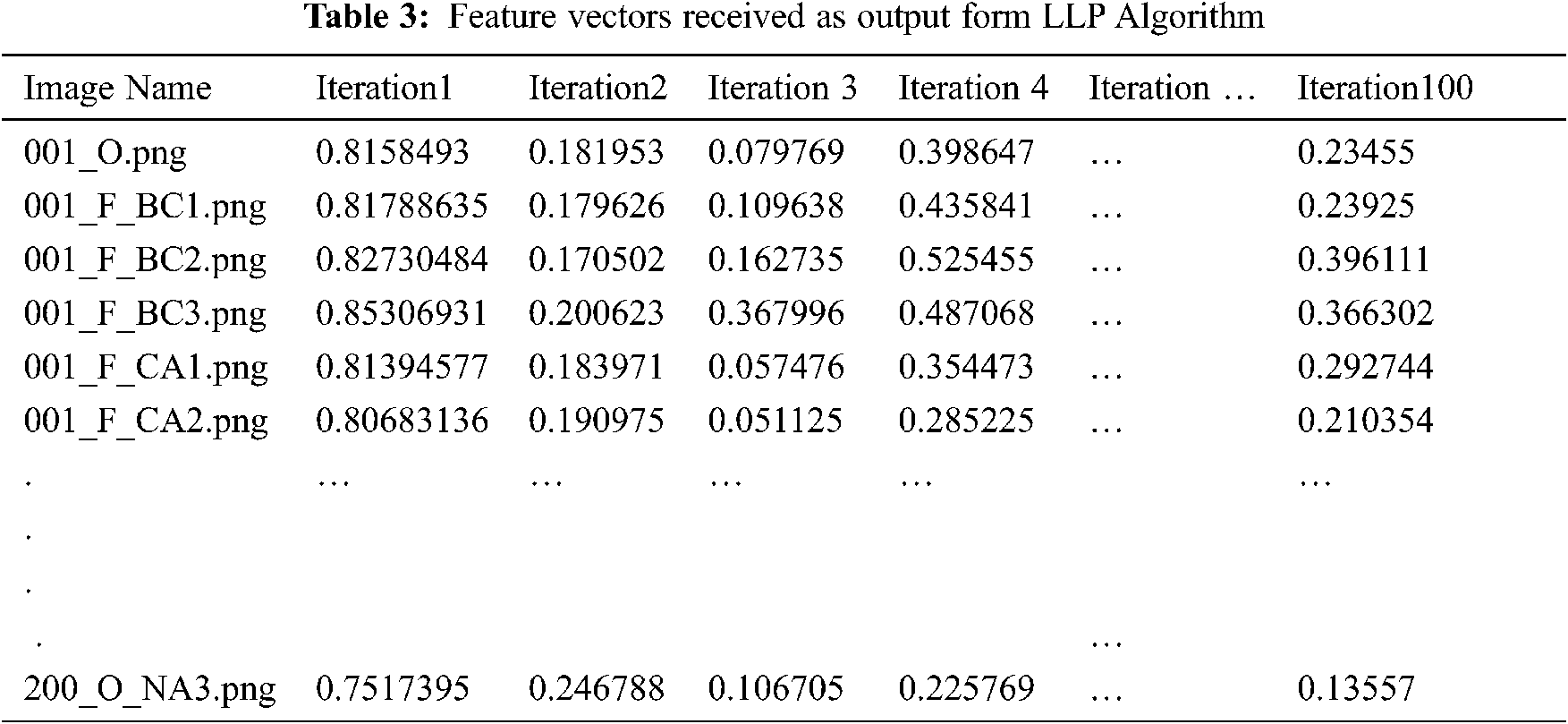

Tab. 3 shows the feature vectors extracted using LLP as time series vector from iteration 1 to 100 for all 10,000 images from CoMoFoD, GRIP and MICC-220.

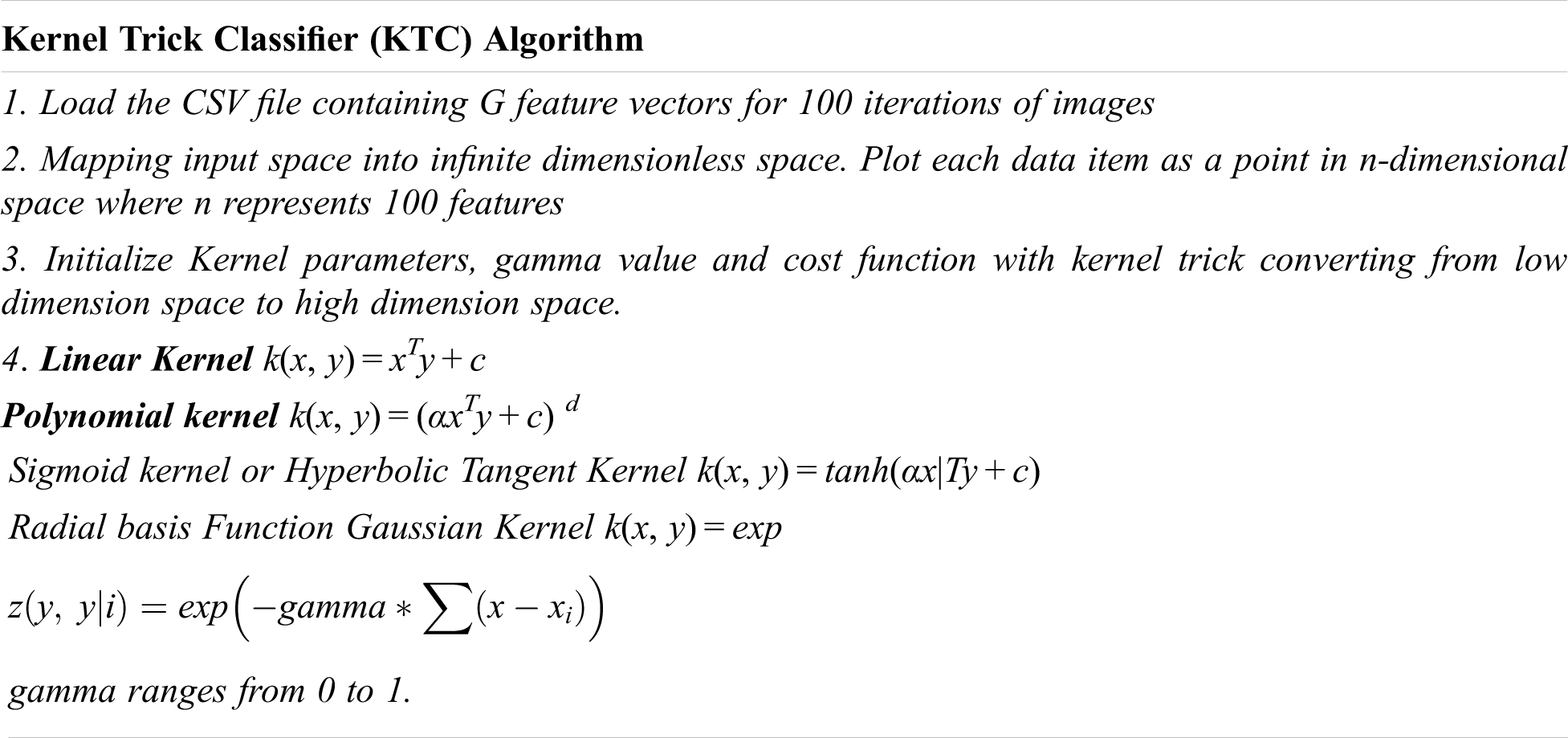

3.3 SVM and Kernel Trick

Support vector is a supervised Machine learning classification algorithm. Kernel trick is applied for finding the optimization boundary by converting the data points for high dimensional data of feature vectors. There are seven types of kernel of which four types are implemented such as linear kernel, polynomial kernel, sigmoid kernel and radial basis kernel. Each kernel features are explained in the algorithm given below.

images

4  Experimental Results and Discussion

In this section, feature vectors obtain from LLP is applied for kernel trick for forgery image identification. In kernel tricks, initially find optimum number of LLP-Features and optimum value of threshold (matching accuracy) to be used. From selected LLP features, a heuristic rule for selecting optimum number of features and matching accuracy values are applied. This heuristic rule on forgery image datasets such as CoMoFoD [20], GRIP, MICC-220 [21] is to justify performance of proposed LLP method and parameter selection compared with other existing approaches. All experiments are conducted on Intel (R) Core (TM) i5 2410 M, 2.3 GHz with turbo boost up to 2.9 GHz and 4 GB RAM. Our method was implemented using 64-bit MATLAB V2020 run under Windows 7 Home premium 64-bit operating system. Further, G(n) features from LLP as times series are given input to kernel trick classifier algorithm and classify with parameters. The kernel trick classifier algorithms is as shown below. By using the kernel trick classifier accuracy was improved and produces better accuracy.

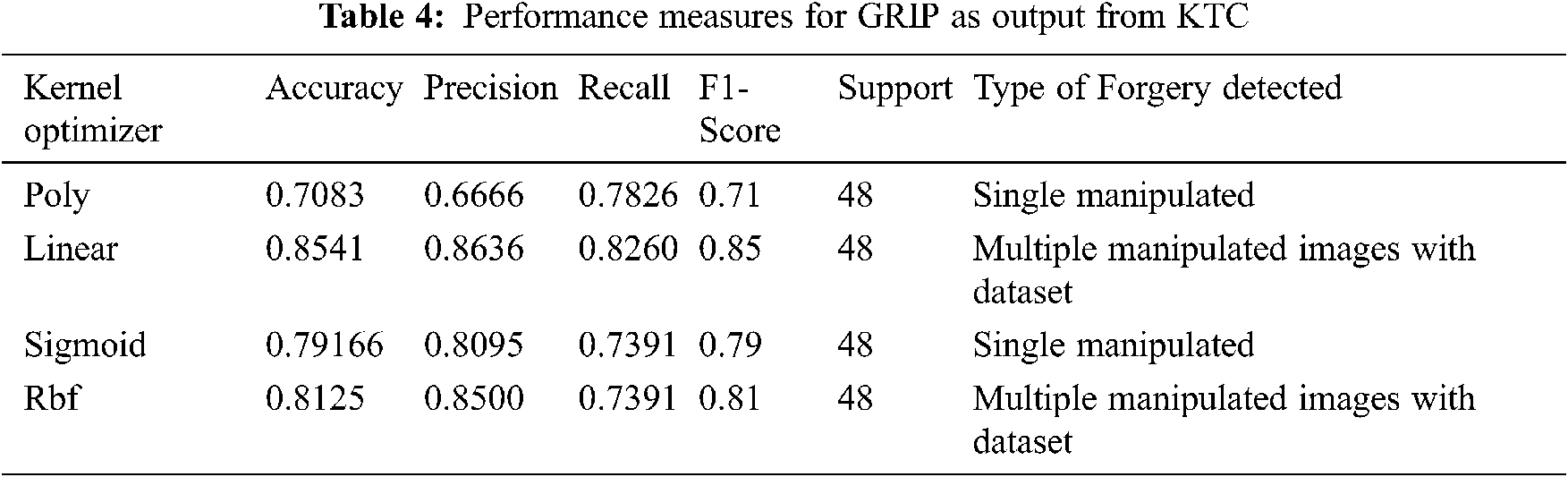

Tab. 4 represents GRIP image dataset with single manipulation dataset with poly kernel reaches accuracy of 70% which is less, when compared to multiple manipulated image with an improved accuracy of 85%. From simulation results, it is conveyed that sigmoid and RBF kernel are producing better accuracy in classification between poly and linear. Linear kernel is better for multiple manipulated images (GRIP dataset).

images

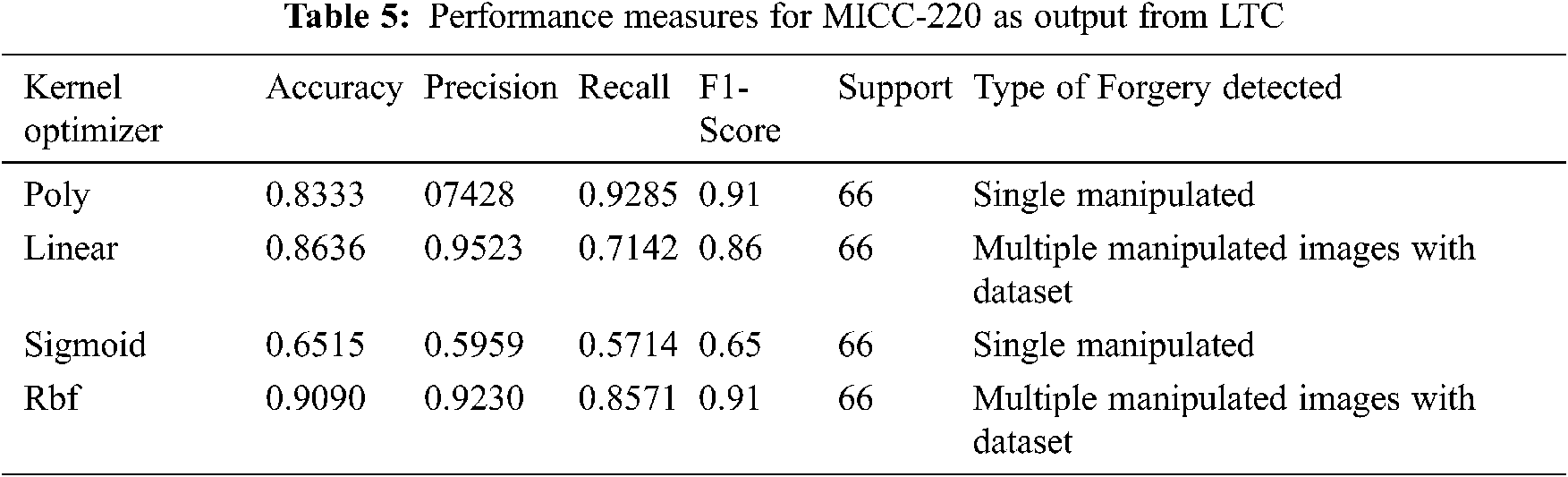

Tab. 5 gives the results received from MICC-220 dataset with single and multiple manipulated images with reference to [22]. It is seen from result RBF kernel provides 90% accuracy for MICC-220, for rotated, blurred and single manipulated images have lesser classifier accuracy with 83%, 86% and 65% for poly, linear and sigmoid kernels respectively. So it is proved that RBF kernel is the best classifier for MICC-220.

images

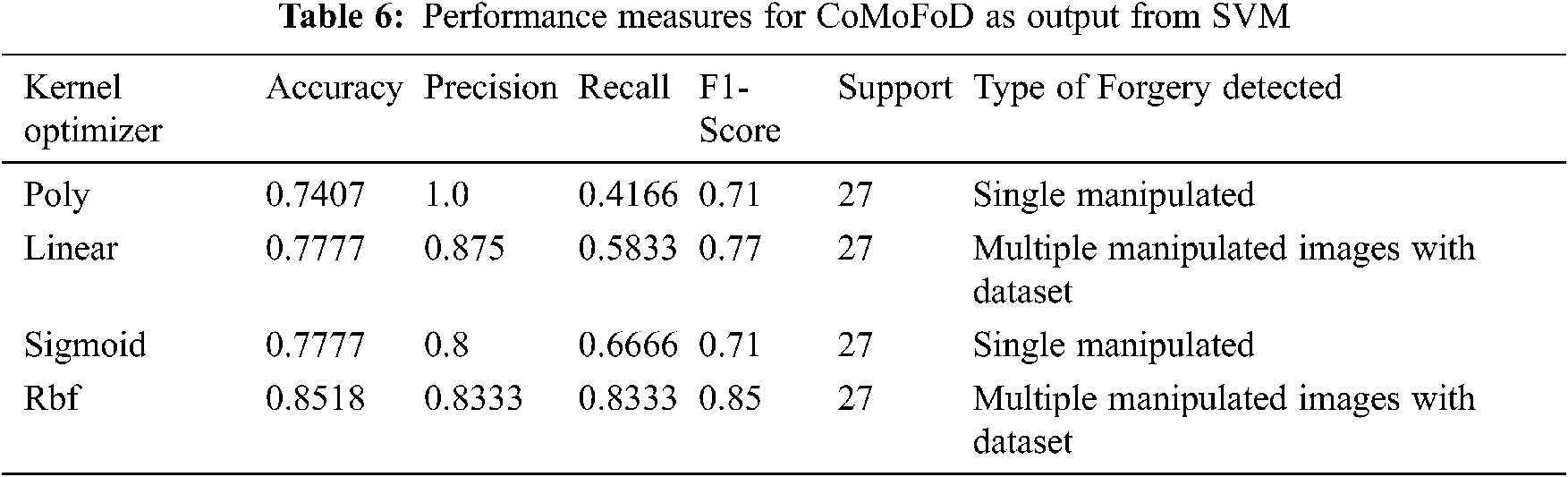

In Tab. 6 results shows for CoMoFoD dataset with multiple manipulated image and produces greater accuracy in RBF kernel of 85.18% when compared to single manipulated image with dataset of 74%, 77%, 77% in poly, linear and sigmoid kernels respectively.

images

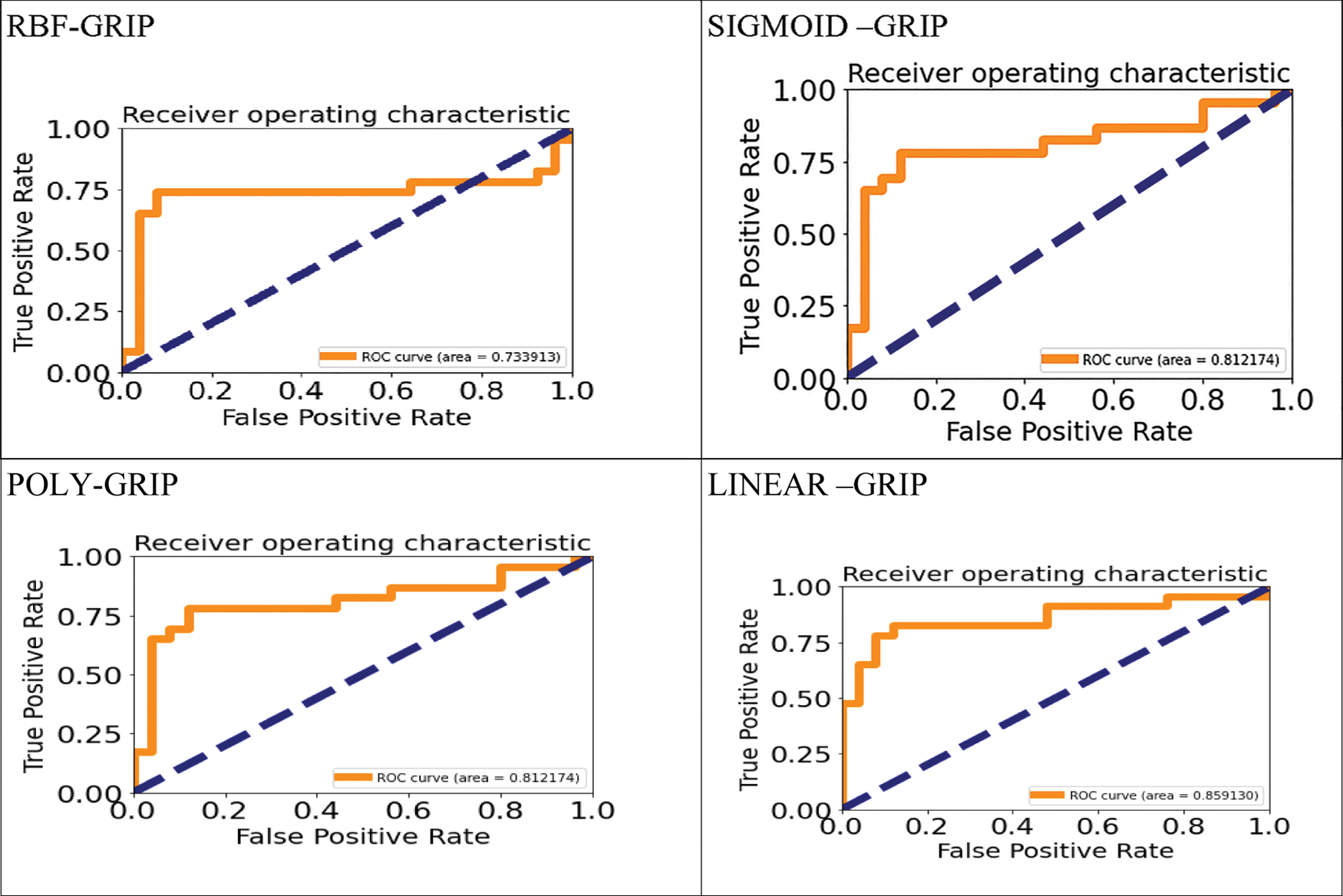

In Fig. 4, MICC-220 with multiple Manipulated images provides accuracy of 95.39% with RBF kernel and CoMoFoD with ROC curve is 89.2%, Sigmoid and RBF is about 87.71%. For GRIP dataset Linear kernel is 85.91%.The range of ROC value varies from 73.39% to 85.91%.

imagesimages

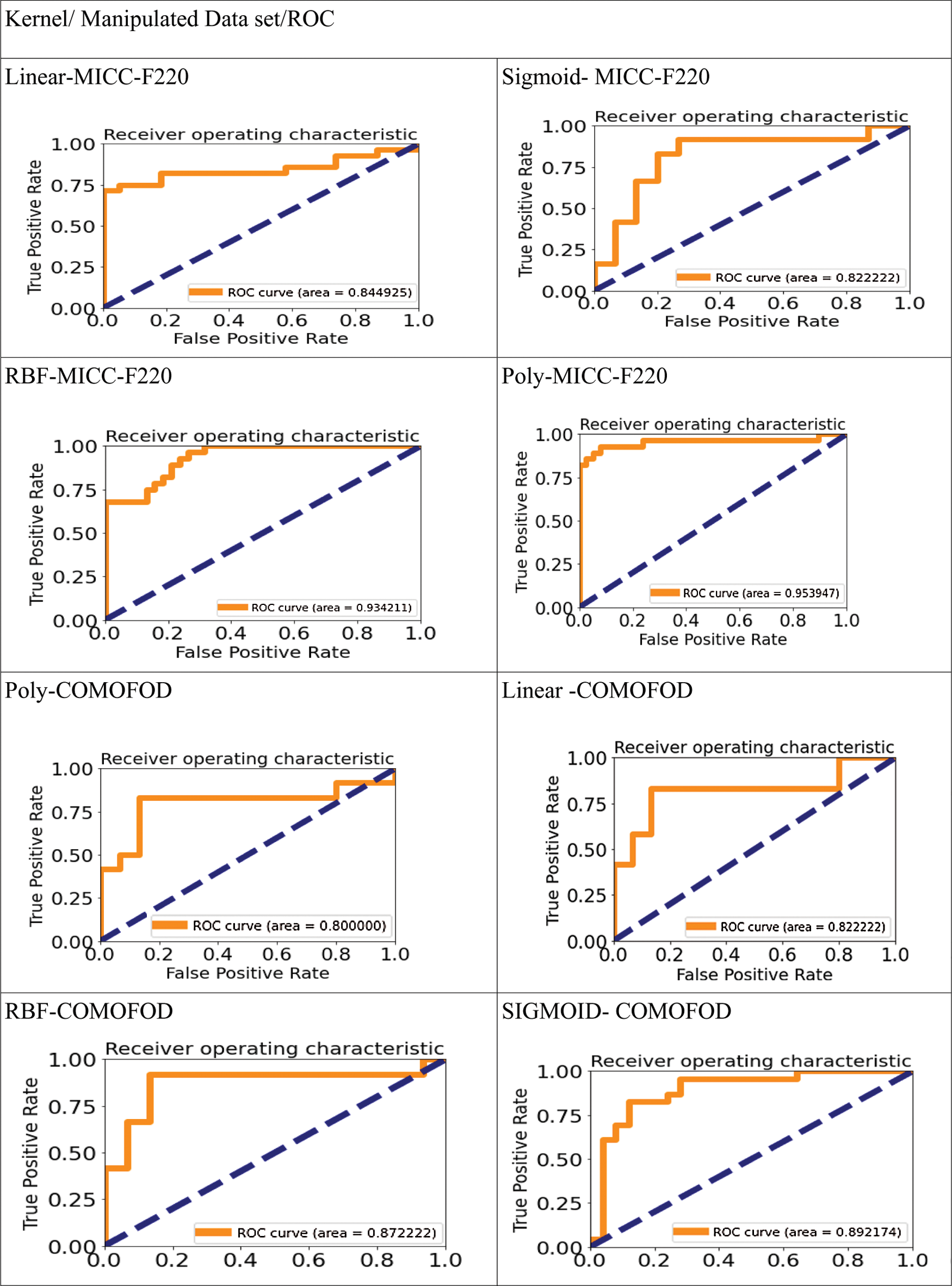

Figure 4: ROC curve for various kernel and dataset

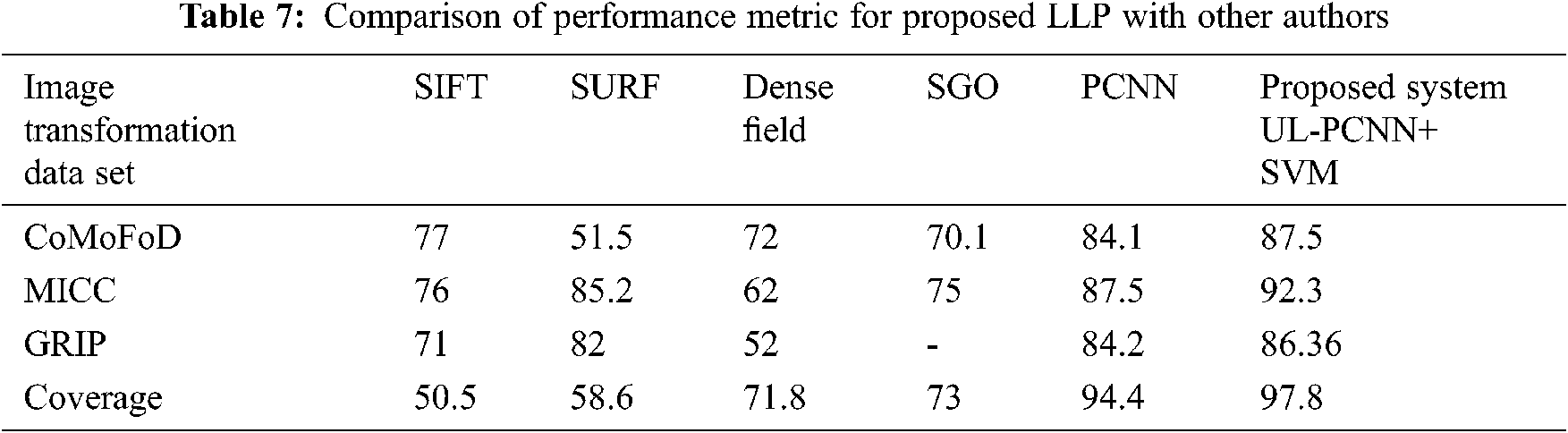

Tab. 7 shows precision values of proposed LLP with other algorithms. Comparatively, proposed LLP accuracy is about 87.5%, 92.3%, 86.36% and 97.8%. The proposed LLP algorithm shows better performance with different datasets including coverage [23].

images

5  Conclusion

The proposed LLP algorithm obtained through pulsed neural network and combines with kernel tricks for detection of manipulations in forged image. LLP algorithm linking pixels detects image multiple manipulation due to correspondence between pixel and neuron. Neuron is connected with neighboring field of neuron for detecting forged images with multiple manipulations in the image along with copy-move, through kernel trick classifier (KTC). The proposed system with LLP algorithm is implemented by selecting optimum feature parameter from LLP. The LLP applied in forgery standard dataset such as GRIP, COVERAGE, MICC-220 particularly for copy move forgery and same dataset images apply with single and multiple manipulated through standard software tool, checked for performance of LLP and KTC. The proposed LLP method provide better performance with suitable precision and recall values for manipulated images along with images in standard and created data set. The proposed LLP algorithm shows better performance in terms of accuracy about 87.5%, 92.3%, 86.36% and 97.8% in various data sets. The images which that are duplicated with simple changes, multiple changes on the same image, changes made in different images and pasted on original image have correlation value for matching percentage range about 0.8, 0.4, 0.3 respectively. The results are more useful for forgery and forgery manipulated image detections. Furthermore, hardware based forgery image acquired images need to be check with proposed LLP and KTC algorithms.

Acknowledgement: The authors are sincerely grateful to the anonymous referees and the editor for their timely effort in providing constructive and value comments and suggestions that have led to a substantial improvement in the paper.

Funding Statement: The authors received no specific funding for this study.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the Present study.
