DOI:10.32604/csse.2022.016759
| Computer Systems Science & Engineering DOI:10.32604/csse.2022.016759 | |
| Article |
Mining Syndrome Differentiating Principles from Traditional Chinese Medicine Clinical Data
1Jiangsu Internet of Things and Mobile Internet Technology Engineering Laboratory, Huaiyin Institute of Technology, Huaian, 223003, China
2Huaiyin Wu Jutong Institute of Traditional Chinese Medicine, Huaian, 223000, China
3The Affiliated Huaian No.1 People’s Hospital of Nanjing Medical University, Huaian, 223000, China
4Jiangsu Eazytec Co., Ltd., Wuxi, China
5University of Fribourg, Fribourg, 1700, Switzerland
*Corresponding Author: Jialin Ma. Email: majl@hyit.edu.cn
Received: 11 January 2021; Accepted: 30 April 2021
Abstract: Syndrome differentiation-based treatment is one of the key characteristics of Traditional Chinese Medicine (TCM). The process of syndrome differentiation is difficult and challenging due to its complexity, diversity and vagueness. Analyzing syndrome principles from historical records of TCM using data mining (DM) technology has been of high interest in recent years. Nevertheless, in most relevant studies, existing DM algorithms have been simply developed for TCM mining, while the combination of TCM theories or its characteristics with DM algorithms has rarely been reported. This paper presents a novel Symptom-Syndrome Topic Model (SSTM), which is a supervised probabilistic topic model with three-tier Bayesian structure. In the SSTM, syndromes are considered as observed topic labels to distinguish certain symptoms from possible symptoms according to their different positions. The generation of our model is in full compliance with the syndrome differentiation theory of TCM. Experimental results show that the SSTM is more effective than other models for syndrome differentiating.
Keywords: TCM; syndrome differentiation; topic model; LDA; SSTM
TCM has been existing for more than 3000 years. Different from modern orthodox biomedicine, it has an independently developed system of medical knowledge. The Therapy of TCM depends on natural herbs, acupuncture, scrape, cupping, etc. In addition, its diagnostic methods are unique via look, listen, question and feel the pulse. This is quite different from the modern medicine which mainly rely on medical instruments [1–3]. Furthermore, human body is considered as a synthetic system and abundant Chinese traditional naive philosophical thoughts are brought in TCM. Its aim is to adjust the ecological balance of human body rather than to treat an individual organ. Plenty of clinical practice has been proved that the TCM has unique effects on many special diseases like SARS, COVID-19, etc. In recent years, a growing number of foreigners have been accepting the treatment or health management of TCM [4–6].
One of the significant characteristic of TCM is to treat diseases based on syndrome differentiation. This is a process of comprehensive judgment based on analysis, induction, reasoning via four-ways information diagnosis. This is also the key link for doctors to select proper prescriptions or therapies [7–10]. However, the relationship between syndromes is complex. In clinical practice, there are several difficulties for syndrome differentiation as follows:
(a) Syndromes are complex, diverse and vague.
A disease is often accompanied with multiple syndromes, and different diseases share the same syndromes. Besides, the description of syndromes usually relies on natural language which is also polysemic and imprecise.
(b) The process of syndrome differentiation often has some subjectivity.
Syndrome differentiation is a process through which doctors make a diagnosis based on subjective knowledge and experience in accord with the objective reality of a patient. Because of the differences in individuals and the limited knowledge or experience of doctors, one patient may be diagnosed with different syndromes by different doctors [11–14].
In order to accurately master the complex structure of syndromes, and establish a diagnostic standard for TCM, in time, it is of great significance to analyze the principles of syndrome differentiation. This is beneficial for the inheritance, the improvement and the development of the diagnosis theory of TCM [15].
During the past thousand years of Chinese history, a huge number of TCM clinical data have been recorded as clinical cases, in ancient textbooks, and as classical ancient prescriptions etc. These data usually exist in the form of texts. At present, the technology of Text Mining (TM) has been frequently utilized to analyze TCM knowledge hidden in the large-scale textual data [5–9]. Feng et al. [12] provided an overview of knowledge discovery and KDD that had been applied in TCM. They emphasized that syndrome (Zheng) is a core element in TCM. They considered that KDD is a promising technology that can connect TCM and modern life sciences using TM and other knowledge discovery methods. Liu et al. [16] reviewed the application of TM in TCM knowledge discovery. They mentioned that using TM to analyzing TCM is still immature. They also pointed out that we great efforts should be made in acquiring richer semantic information in the future. In fact, syndrome differentiation (Bian Zheng) by the four ways information diagnosis is the first and the most important step in TCM clinical practice [7,8].
By observing massive TCM historical clinic records, we can find that usually more than one syndrome and a stack of symptoms were recorded for a patient. These syndromes can be considered as labels and symptoms as ‘word’ for these records. These textual records are very suitable to model by topic model which is a popular probabilistic graphical model. The topic model is an open generative modelling method that fully conforms to the Bayesian framework [17]. Although it has been successfully applied to latent semantic analysis and knowledge discovery, such as topic discovery, emotion analysis, and even image analysis, how to effectively combine the actual theory of analysis objects is the key [18,19]. Analysis syndrome differentiation principles began in Chinese ancient times. For example, in the famous TCM classic book “Shang Han Lun”, Zhongjing Zhang divided certain and possible symptoms in the process of syndrome differentiation.
In this paper, we present a generative probabilistic model—the Symptom-Syndrome Topic Model (SSTM) which is a three-level hierarchical Bayesian model. The SSTM can capture co-occurrence information between symptoms and syndromes from TCM history records. This study is a further expansion on the conference report we had published previously [20]. Compared with the previous version, the principle and parameters inference about SSTM are clarified more comprehensively in this paper. Besides, multiple experiments and comparisons are showed. In our SSTM, symptom-syndrome is modelled by a generative process, in which “Bian Zheng” (syndrome differentiation) knowledge or principles from TCM historical records are acquired as patterns. Particularly, it is different from other relevant researches that we distinguish certain and possible symptoms in our model. This benefit to capture more effective latent relationship between symptoms and syndromes. Taken together, our method contributes to a better understanding of TCM diagnostic principles, and provides an effective model for computer automatic diagnosis.
In addition, literature review about TCM mining is summarized in the Section 2. The details and experimental results about SSTM are shown in the Sections 3 and 4 respectively. Finally, the conclusion and future work are illustrated in the Section 5.
KDD has been a research hotspot in modern biomedicine field for many years, but its application in TCM has been highlighted in recent years [1–4,21–23]. Lukman et al. [24] surveyed the progress of computational approaches for TCM formulation and diagnosis mining. They considered that Bayesian networks (BNs) are available to capture relationships among complicated features from TCM records. However, topology learning for BNs is intractable due to the dramatically increased of features [25]. Miao et al. [15] focused on integrating syndrome differentiation with orthodox modern medical diagnosis in order to find novel methods for overall medical diagnosis and treatment [16]. In addition, a framework which can automatically mine treatment pattern from TCM clinical cases was proposed [26]. They introduced supervised topic models into field of TCM. Jiang et al. [13] directly applied the LinkLDA model to extract symptoms and their corresponding herbs. Zhao et al. [11] proposed a symptom-herb-diagnosis topic (SHDT) model to automatically extract the common relationships among symptoms, syndromes and formulas from large-scale TCM clinical data.
Recently, topic model has been becoming a hot theory in the research direction of TCM mining [20,27–28], which is one of a NB based on probability statistics theories. It can be used for detecting latent semantic structures and information in large-scale textual data [29–30]. In the early years, latent semantic analysis (LSA) as one of the famous representative method was used to capture word co-occurrence in documents [31]. The LSA can reveal the semantic dimensionality between texts and words. Then, probabilistic latent semantic analysis (PLSA) was progressed from LSA [32], in which a document is regarded as a mixture of topics, while a topic is a probability distribution over words. LDA was proposed for the first time by Blei in 2003 in order to improve the defects of the PLSA. Different from the PLSA, the LDA added Dirichlet priors in the distributions [17]. Therefore, LDA is a more completely generative model which had achieved great successes in TM and other artificial intelligence domains [33].
However, a standard LDA still cannot be directly used for TCM mining [34–36], because it is an unsupervised topic model, which unable to express observable syndromes. Another topic model labeled LDA is a probabilistic graphical model which can model multi-labeled document collection [19]. Nevertheless, labeled LDA fails to take into the theory about syndrome differentiation. Zhang et al. [11] captured a whole and general relationship among symptoms, herbs and diagnoses using SHDT, but they did not focus on the differentiating syndrome. This is a rare relevant study that mapped symptoms to syndromes and treatment methods. However, their method rely on the domain ontology base which usually is not easily to acquire [26,37]. The above-mentioned methods rarely focus on the relationship between syndromes and symptoms, they do not distinguish certain symptoms from possible ones which should be differentially treated in model. Therefore, our study intends to propose a novel model to identify the relationship between symptoms and syndromes based on relevant TCM theories. This is special for discovering syndrome principles from clinical textual data of TCM.
This study is devoted to discover syndrome differentiation patterns from a large number of TCM clinical textual records by machine learning. Our work is beneficial to conclude the principles of “Bian Zheng”. Although conventional probability topic models like LDA and labeled LDA are outstanding models for latent semantic analysis, relevant theory about syndromes differentiation is not considerate in these models. In this section, we present our SSTM and relevant TCM theory. The specific detail of the SSTM model and its parameters inferring are described in Sections 3.2 and 3.3 respectively. Finally, we present the framework of syndrome prediction based on SSTM in the Section 3.4.
3.1 Our Thinking and the Relevant TCM Theory
First of all, we observe the characteristics of TCM clinical records which come from China’s national population and health science data sharing platform (http://www.ncmi.cn/). A part of three diabetes patients TCM clinical records show in Tab. 1.
As shown in the Tab. 1, one patient often has multiple syndromes, and the relationships between syndromes and symptoms are diverse. These relationships have implicit structures, so their corresponding relationships are not explicit shown in these records. Furthermore, a patient usually has more than one syndrome. The symptoms in a record can be regarded as a document, and its corresponding syndromes are taken as multi-label. This relationships of syndromes-syndromes can be described in Fig. 1(a).

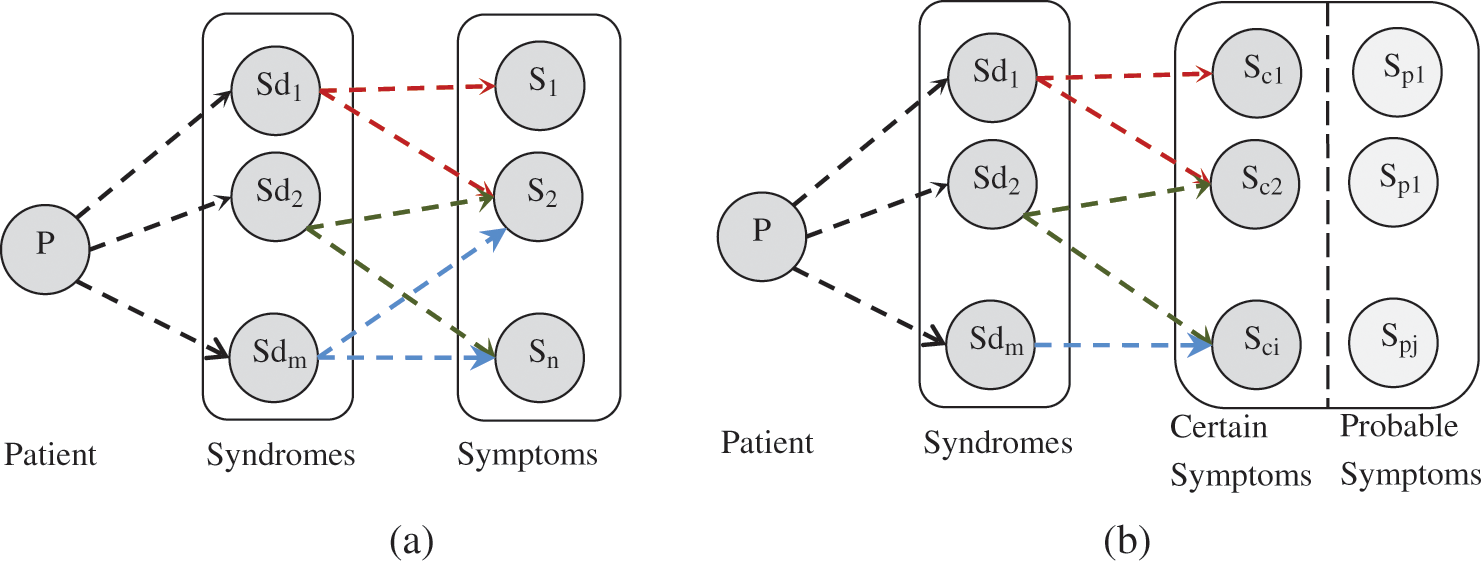

Figure 1: The relationships between symptoms and syndromes, (a) general and (b) comprehensive
However, hidden relationships about important principle of individual differences in TCM records is neglected in Fig. 1(a). In TCM theory, the individual differences exist with changes of the climate, local and physical conditions. In fact, a patient usually has developed symptoms which mix up with individual symptoms. Therefore, syndromes of each patient vary a lot, and individualized syndromes also highlight the importance of the individualized diagnosis and treatment in TCM. Some symptoms are not useful for diagnosis, but they may even interfere the syndrome differentiation. One syndrome usually has some basic and individual symptoms, which was also mentioned in many TCM literatures, such as “Shang Han Lun” (Febrile Diseases). This principle was followed by TCM exporters who were even organized by China Administration to develop standards for syndromes. Therefore, according to the relevant theory of “Bian Zheng”, symptoms are divided into two different subtypes in our model.
• Certain symptoms are some main or necessary symptoms for a syndrome. They often determine pathogeny, location and nature of a disease.
• Possible symptoms are some uncertain symptoms for a syndrome. They often possibly appear, and unimportant or subordinate for diagnosis, but they can be transformed into primary symptoms sometimes.
According to the above definition, a more comprehensive relationships of symptoms-symptoms for a patient is shown in Fig. 1(b). The difference between certain symptoms and possible symptoms is specifically concerned in our model, which benefits to effectively capture latent relationships between symptoms and syndromes.
Conventional topic models, like PLSA [32], LDA [17], supervised LDA [30], and labeled LDA [19] etc., reveal the latent topics within corpus by implicitly capturing the document-level word co-occurrence patterns. Despite all of this, all terms in these standard topic models are considered as the same status [38]. However, such equal status of terms is not suitable to some fields where terms play different roles on the semantic contribution. This phenomenon is particularly evident for syndromes.
We propose a generative probabilistic topic model SSTM to capture the relationship between symptoms and the syndromes from TCM records. It is a three-level hierarchical Bayesian model, in which symptoms are distributed in a syndrome, and observable variable symptoms are distinguished into certain and possible symptoms. This distinguishing type of symptoms complies with the theory of TCM, which is more beneficial to capture effective co-occurrence information for syndrome differentiating.
In the SSTM, TCM clinical records set is considered as the number of D independent text generation process. The symptoms in a record is regard as a ‘document’ and a symptom is a ‘term’. Syndromes are taken as observed topic labels corresponding to a series of symptoms. Syndromes can be seen as a multi-topic labels set for the ‘document’. Similar to standard topic model, document d is composed of the number of K topics in proportion, which satisfies multinomial distribution in SSTM. The number of K topics is also composed of words (symptoms), which also satisfies multinomial distribution. According to Bayesian theory, all parameters need to satisfy a certain distribution. Here, Dirichlet distribution is the prior for multinomial distribution. Different from the classical LDA model, the SSTM is a supervised model, in which syndromes are observed constraint in the generating of topics. Consistent with the labeled LDA, the SSTM focuses on the distinction between the certain and possible symptoms for a patient, which is controlled by a binary variable y who satisfies Bernoulli distribution, and its prior is Beta distribution. Therefore, the SSTM conforms relevant theory of TCM, and it is conductive to capture syndrome differentiating patterns.
The graphical model of the SSTM is shown in Fig. 2. All symbols are annotated in Tab. 2. Vector L = {1,2,3…,K} represents a set of the topics labels (syndromes), and vector Λds = (t1, t2,…, tK) is a list of binary topic presence/absence indicator of a document d (d∈D), where each tk∈{0,1}. Let φk denotes the symptom distribution on topics and ψd denotes the subordinate symptoms distribution. Λd obeys Bernoulli distribution, in which θd is only restricted over the topics corresponding to Λd. λd denotes Bernoulli distribution which controls the indicator ydn for choice between certain or possible symptom. φk, θd, and ψd all obey multinomial distributions. Their prior distributions are drawn from the symmetric Dirichlet (β), Dirichlet (α), and Dirichlet (η) respectively. Moreover, λd and Λd are drawn from prior distributions Beta (γ) and Beta (ν) respectively. The probability of a symptom sdn is formulated as follows:

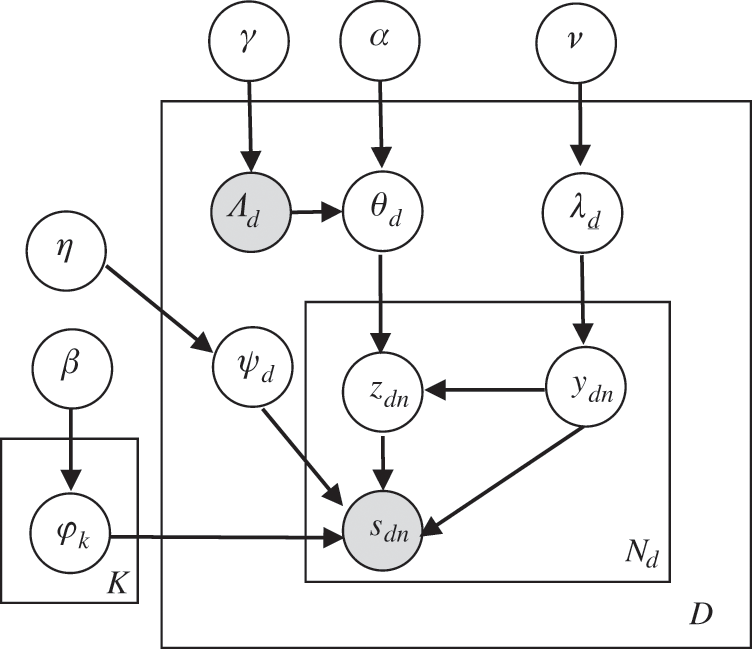

Figure 2: The graphical models of the SSTM
The generation processes of clinical data set by SSTM are listed as follows:
Step 1: For each topic k = 1,2,…,K:
Draw φk~ Dir (β)
Step 2: For each document d = 1,2,… D:
Step 2-1; Draw ψd~Dir (η), Draw λd~Beta (ν),
Step 2-2; For each topic k∈{1,…,K}
Draw Λdk∈{0,1}~Beta (γ)
Step 2-3; Draw θd~ Dir(α|Λdk), where ti = 1
Step 2-4; For each symptom s = 1,2,…Nd
(Ι) Draw y ~ Bernoulli (λd)
(Π) if y = 1 then
Draw sdn~Multi (ψd)
Else
Draw zdn~ Multi (θd),
Draw sdn| zdn,φk~Multinomial (φzdn)
As a probability graph model, the SSTM contains several observed and latent variables. As shown in Fig. 2, grey node variables Λ (syndrome label) and S (symptom) are observed variables, the hollow node variables y, z, λ, θ, φ and ψ are all unknown latent variables requiring to be inferred. The super parameters α, β, ν, η and γ can be manually set according to experiences or experiments. Therefore, they can be regarded as known variables. In SSTM, certain or possible inferring for each symptom in document (y = 0 or y = 1) is the first key event. This follows by the inference of the syndrome label z for the certain symptom. Finally, other parameters λ, θ, φ and ψ can be calculated indirectly.
Multiple methods can be used for parameter estimation of a topic model, such as expectation maximization algorithm (EM), variation inference, maximum a posteriori estimation and Gibbs sampling. All of them estimate parameters approximately, because accurate inference is difficult to achieve. Gibbs sampling is an effectively and widely used Markov chain Monte Carlo algorithm for latent variable inference [27,33]. Therefore, we adopt Gibbs sampling to estimate the latent variables in the SSTM. Here, a collapse Gibbs sample method is used to infer the latent variables ydn and zdn. The specific formulas deduction process are as follows:
In Eqs. (2) and (3) ‘–’ refers to exclude the current instance; ‘.’ represents all; n(d) -dn,y = 1 represents the count of all symptoms with y = 1 after excluding the current position symptom in d; n(y = 1)-dn,t represents the count of symptom t marked y = 1 in the whole data set when the current instance is excluded; Md represents the number of syndrome in document d; V represents the number of symptoms. Other symbols have similar meanings. The above formulas are two Gibbs sampling for latent variables y and z. In addition, according to Bayesian principle, other latent parameters λ, θ, φ and ψ can be obtained by the following posterior estimation using average method:
Automatic learning syndromes differentiation patterns from TCM clinical records by computers has been settled by the proposed SSTM above. How to predict syndromes in the condition with unlabeled symptoms for a patient. It means we need to infer syndromes (topics or labels) for unlabeled records by the trained SSTM. According to the four ways of diagnosis information, automatic diagnosis should be realized by computers.
According to Bayesian theory, the prior and posterior parameters in SSTM follow the same distribution. They are conjugate distributions which can be used to predict syndromes labels when give new observed variables. The model parameters of prior distribution have been solved by Gibbs sampling in the section 3.3. Because the SSTM is a supervised model, it cannot be directly used for syndrome prediction. To solve this problem, we relax the SSTM by removing the constraint Λd. Fig. 3 shows the framework of syndrome prediction, which is based on the SSTM.

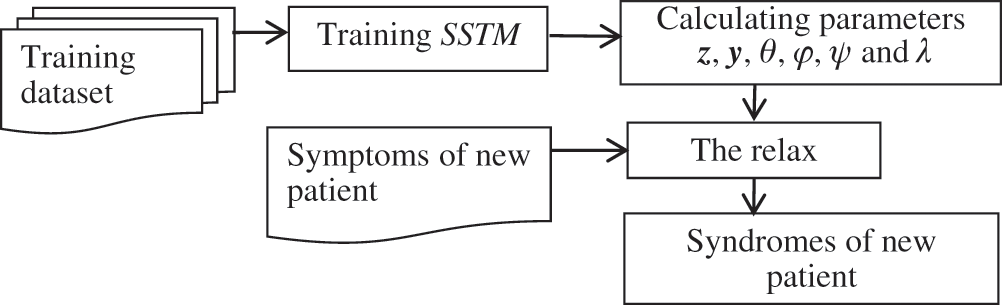

Figure 3: Framework for syndromes prediction based on the SSTM
In our study, two kind of experiments were conducted for models assessing. The first kind were to evaluate objective performance indexes, including perplexity, Kullback-Leibler and time consuming between the SSTM and other traditional probabilistic topic models (LDA and labeled LDA). The second kind experiments were performed to compare model learning and prediction effectiveness.
Experimental data were obtained from the Chinese traditional medicine database of national population and health science data sharing platform (http://www.ncmi.cn/index.html). This dataset contains 24 subject databases with a total of 1,741 diseases, and involves 127,541 pieces of records. After removing records which lack syndromes or symptoms, a total of 8,653 pieces of eligible records were used for our experiments. The statistical information of the data set is shown in Tab. 3
4.2 Performance Evaluation and Analysis
The indexes perplexity and Kullback Leibler (KL) distance are commonly used for performance evaluation of probabilistic topic models. Perplexity is used to evaluate prediction ability by test data, which reflects the ability of generalization. Perplexity is negatively correlated to the prediction ability; the lower perplexity indicates the stronger prediction ability of the model. Here, the perplexity is used to evaluate the performance of LDA and CTM [38]. Its calculation formula is listed as follows:
In the Eq. (8), Φ represents parameters of the evaluated model.
KL distance is usually used to test the distinguishing ability of the model by calculating the average similarity between topics. The lower similarity indicates a higher quality of the topics. Because of the asymmetry, the symmetrical KL (sKL) divergence is often used to calculate the average distance between topics [33]. The specific formula of sKL is as follows:
In Eq. (9), K represents the total number of topics; φi and φj represent the probability distribution of two topics words.
In our experiment, 90% of the experimental records were randomly selected for model training, and the remaining were used to test. We calculated the perplexity and sKL distance of the LDA, labeled and SSTM respectively. The common parameters of the three models referred to a previous study, where α = 0.01, and β = K/50 [33]. K = 166 is the number of unique syndromes in the dataset. The super parameter η = 0.01 and α = 0.5 were set for SSTM. The iterations for the three models were set to inter = 1000. The experiments were run on a computer with 8 GB memory and dual Core Intel processor i5-6500. The indexes of perplexity, sKL, and time consuming among SSTM, LDA and labeled LDA are shown in Figs. 4–6.
Figure 4: The perplexity indexes of the three models
Figure 5: The sKL indexes of the three models
Figure 6: Time-consuming of the three models
As shown in Fig. 4, with the increasing number of observed symptoms in the test data (from 2 to 20 steps 2), the perplexity indexes of the three topic models were calculated. All the perplexity points of LDA are almost higher than the other two models (Fig. 4). The SSTM is lower than or close to the labeled LDA at most of time. It means that the prediction ability of the SSTM is better than labeled LDA. The SSTM and labeled LDA both performed better than LDA. Because we take the interference of possible symptoms for syndrome differentiation into consideration in SSTM, its prediction ability is better than labeled LDA. Fig. 5 shows the average sKL divergence of the SSTM is also higher than the other two models. We set K = 166 for LDA model and the other two supervised models, but syndrome assigning is an unsupervised process. Therefore, the prediction and quality of LDA are more inferior than other two models.
The experimental program was written in ‘Pycharm 2017’ with Python 3.5. According to the principle of the LDA, labeled LDA and SSTM, all of their algorithm time complexity are O (Inter * M * N), where Inter represents iterations, M is the total number of documents, and N is the total number of words in the dataset. Fig. 6 shows the consumption of training time of the three models. Obviously, the training time of LDA remains the longest, which is about 7 times as much as that of the other two models. It may be attributed to the calculation of posteriori probability for each symptom of all syndromes (k = 166) in the training process. In contrast, labeled LDA and SSTM only calculated the probability of the syndromes in the explicit constraint set Λd, which greatly reduce the amount of calculation and the time consumption.
4.3 Effectiveness Evaluation and Analysis
Fig. 7 shows some representative visual cases of the SSTM training results. In addition, 10 syndrome examples learned by the SSTM are depicted in Tab. 5, where the top 6 symptoms and their probabilities of the example are listed. Furthermore, the definition of the above 10 syndromes in Baidu Encyclopedia knowledge base is taken as a baseline for comparing the effect of learning syndrome differentiation patterns between SSTM and labeled LDA. The accuracy of comparison results is calculated by the follows formula:
In Eq. (10), sd represents a syndrome; s represents a symptom; Ntop,sd represents the number of top N symptoms selects according to the probability value about sd. NBaidu,sd represents the number of symptoms listed in the definition of Baidu Encyclopedia knowledge about sd; count() denotes the number of intersection symptoms of two sets. Tab. 4 shows the precision of learning for the 10 syndromes differentiation patterns by SSTM and labeled LDA.
Figure 7: A representative visual case of SSTM training results

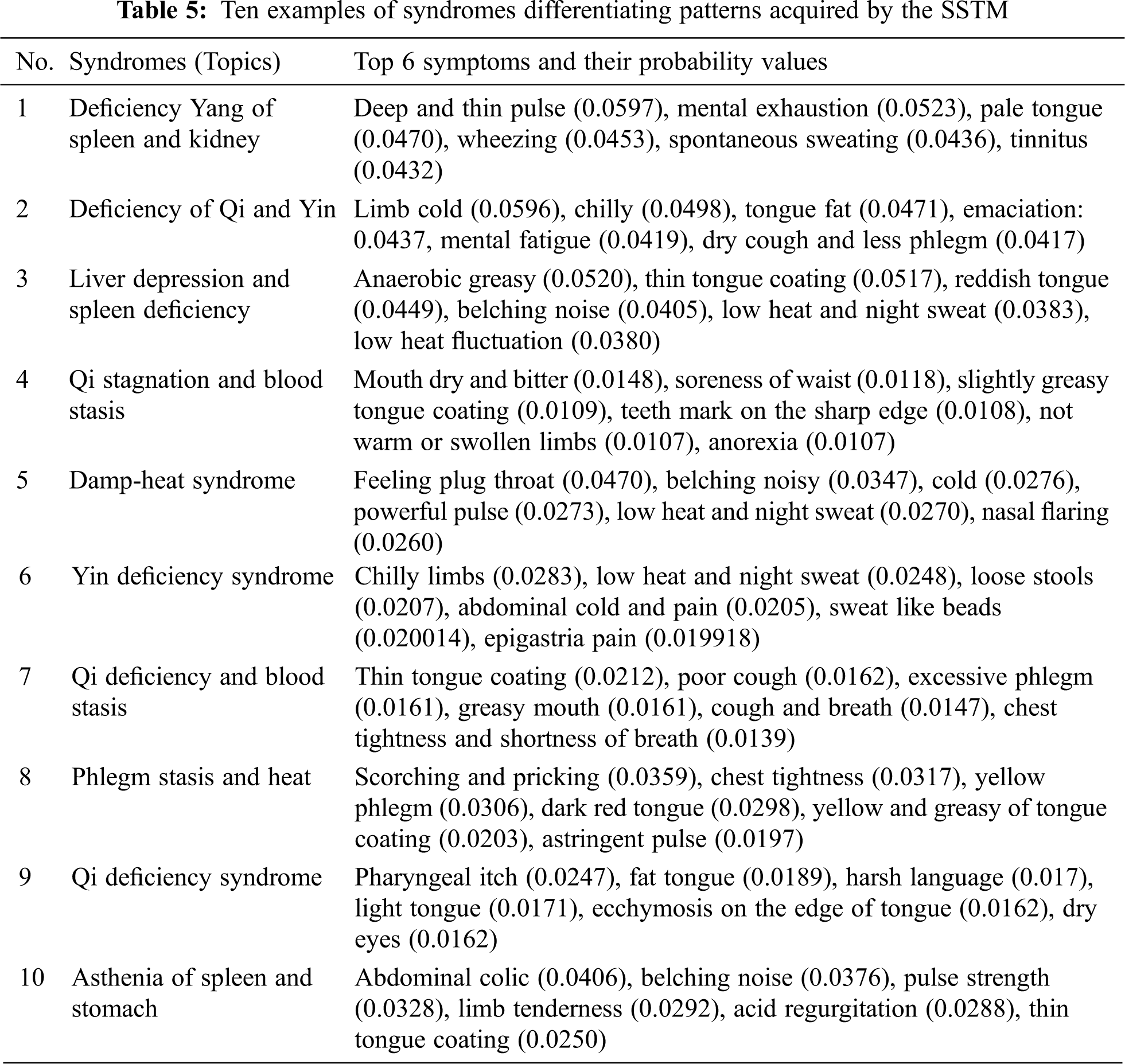

Tab. 5 shows the comparison of the precision between the labeled LDA and SSTM for learning patterns of syndromes differentiation. The manual evaluation was selected to define syndrome terms in Baidu Encyclopedia as the baseline. Synonyms were manually treated in the process of comparison. We selected the top 8 symptoms with the highest probability learned by the two models as the comparison objects. As shown in Tab. 4, the precision of the SSTM for all syndromes of 10 is 10%–20% higher than labeled LDA. The above results demonstrate that the SSTM is more effective than labeled LDA in the task of syndromes differentiation, mainly because the interference of possible symptoms in syndromes differentiation is taken into consideration in the SSTM. Therefore, the SSTM is capable of capturing purer syndrome patterns.
We present a novel Symptom-Syndrome Topic Model (SSTM) that can effectively analyze complex and changeable syndrome differentiation patterns from TCM historical clinic records. These acquired patterns reify abundant diagnosis experiences and principles from TCM doctors. Furthermore, we then present a computer automatic diagnosis method (syndromes differentiating) based on the SSTM. The SSTM is characterized by the combination of relevant theories of TCM. We consider the interference of possible symptoms for syndrome differentiation in our model, which is more consistent with diverse clinical manifestations due to individual differences. Our experimental results confirmed the better quality of syndrome differentiation patterns learned by SSTM than labeled LDA. This study provides a method for TCM intelligent diagnosis. However, this novel model requires annotated data sets which are often difficult to obtain. The future work should be extended to semi-supervised or unsupervised learning model.
Funding Statement: The authors received no specific funding for this study.
Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
1. Z. Liu, Z. Y. Zheng, X. W. Guo, L. Qi, J. Gui et al., “Attentive herb: A novel method for traditional medicine prescription generation,” IEEE Access, vol. 7, no. 59, pp. 139069–139085, 2019. [Google Scholar]
2. A. Mirarab, S. L. Mirtaheri and S. A. Asghari, “A model to create organizational value with big data analytics,” Computer Systems Science and Engineering, vol. 35, no. 2, pp. 69–79, 2020. [Google Scholar]
3. G. Zhang, Y. Huang and X. Zhang, “Deep feature learning based clustering with application to TCM data analysis,” in Proc. ITME, Beijing, BJ, China, pp. 750–754, 2018. [Google Scholar]
4. L. Yao, Y. Zhang, B. G. Wei, W. J. Zhang and Z. Jin, “A topic modeling approach for traditional Chinese medicine prescriptions,” IEEE Transactions on Knowledge and Data Engineering, vol. 30, no. 6, pp. 1007–1021, 2018. [Google Scholar]
5. Y. H. Gu, Y. Wang, C. L. Ji, P. Fan, T. Wang et al., “Syndrome differentiation of IgA nephropathy based on clinic pathological parameters: A decision tree model,” Evidence-Based Complementary and Alternative Medicine, vol. 2017, no. 2, pp. 1–11, 2017. [Google Scholar]
6. Y. F. Zhao, L. Y. He, G. Z. Li, B. Y. Liu, J. Wang et al., “A novel classification method for syndrome differentiation of patients with AIDS,” Evidence-Based Complementary and Alternative Medicine, vol. 2015, no. 6, pp. 1–8, 2015. [Google Scholar]
7. L. Yao, Y. Zhang, B. G. Wei and Z. Jin, “Incorporating knowledge graph embedding into topic modeling,” in Proc. 31th AAAI Conf. on Artificial Intelligence, San Francisco, USA, pp. 3119–3126, 2017. [Google Scholar]
8. X. L. Zhou, Y. G. Liu, Q. Q. Li, Y. Zhang and C. B. Wen, “Mining effective patterns of Chinese medicinal formulae using top-k weighted association rules for the Internet of medical things,” IEEE Access, vol. 6, no. 11, pp. 57840–57855, 2018. [Google Scholar]
9. M. Chen, Y. Hao, K. H. Wang and L. Wang, “Disease prediction by machine learning over big data from healthcare communities,” IEEE Access, vol. 5, no. 15, pp. 8869–8879, 2017. [Google Scholar]
10. J. Chen, D. X. Yang, Y. Cao and Y. Y. Ma, “Syndrome differentiation and treatment algorithm model in traditional Chinese medicine based on disease cause, location, characteristics and conditions,” IEEE Access, vol. 6, no. 21, pp. 71801–71813, 2018. [Google Scholar]
11. X. P. Zhao, X. Z. Zhou, H. K. Huang, Q. Feng and B. S. Chen, “Topic model for Chinese medicine diagnosis and prescription regularities analysis: Case on diabetes,” Chinese Journal of Integrative Medicine, vol. 17, no. 4, pp. 307–313, 2011. [Google Scholar]
12. Y. Feng, Z. H. Wu, X. Z. Zhou, Z. M. Zhou and W. Y. Fan, “Knowledge discovery in traditional Chinese medicine: State of the art and perspectives,” Artificial Intelligence in Medicine, vol. 38, no. 3, pp. 219–236, 2006. [Google Scholar]
13. Z. Jiang, X. Zhou, X. Zhang and S. Chen, “Using link topic model to analyze traditional Chinese medicine clinical symptom-herb regularities,” in Proc. IEEE 14th Int. Conf. on e-Health Networking, Applications and Services, Beijing, BJ, China, pp. 15–18, 2012. [Google Scholar]
14. Z. Huang, W. Dong, L. Ji, C. H. He and H. L. Duan, “Incorporating comorbidities into latent treatment pattern mining for clinical pathways,” Journal of Biomedical Informatics, vol. 59, no. 54, pp. 227–239, 2016. [Google Scholar]
15. J. Miao, C. Lu, C. Zhang, J. Yang, Y. Tan et al., “Syndrome differentiation in modern research of traditional Chinese medicine,” Journal of Ethnopharmacology, vol. 140, no. 3, pp. 634–642, 2012. [Google Scholar]
16. B. Y. Liu, X. Z. Zhou, Y. H. Wang, Q. J. Hu, L. Y. He et al., “Data processing and analysis in real-world traditional Chinese medicine clinical data: Challenges and approaches,” Statistics in Medicine, vol. 31, no. 7, pp. 653–660, 2012. [Google Scholar]
17. D. Blei, A. Y. Ng and M. I. Jordan, “Latent Dirichlet allocation,” Journal of Machine Learning Research, vol. 3, no. 2, pp. 993–1022, 2003. [Google Scholar]
18. D. M. Blei, “Probabilistic topic models,” Communications of the ACM, vol. 55, no. 4, pp. 77–84, 2012. [Google Scholar]
19. D. Ramage, D. Hall, R. Nallapati and C. D. Manning, “Labeled LDA: A supervised topic model for credit attribution in multi-labeled corpora,” in Proc. of the 2009 Conf. on Empirical Methods in Natural Language Processing, SG, Singapore, pp. 248–256, 2009. [Google Scholar]
20. J. L. Ma and Z. J. Wang, “Discovering syndrome regularities in traditional Chinese medicine clinical by topic model,” in Proc. Int. Conf. on P2P, Parallel, Grid, Cloud and Internet Computing, Asan, Korea, pp. 157–162, 2016. [Google Scholar]
21. J. Ma, J. Cheng, L. Zhang, L. Zhou and B. Chen, “A phrase topic model based on distributed representation,” Computers Materials & Continua, vol. 64, no. 1, pp. 455–469, 2020. [Google Scholar]
22. P. Kalaivaani and D. R. Thangarajan, “Enhancing the classification accuracy in sentiment analysis with computational intelligence using joint sentiment topic detection with medlda,” Intelligent Automation & Soft Computing, vol. 26, no. 1, pp. 71–79, 2020. [Google Scholar]
23. Z. Zhou, J. Qin, X. Xiang, Y. Tan, Q. Liu et al., “News text topic clustering optimized method based on TF-IDF algorithm on spark,” Computers Materials & Continua, vol. 62, no. 1, pp. 217–231, 2020. [Google Scholar]
24. S. Lukman, Y. L. He and S. C. Hui, “Computational methods for Traditional Chinese medicine: A survey,” Computer Methods and Programs in Biomedicine, vol. 88, no. 3, pp. 283–294, 2007. [Google Scholar]
25. Z. Wu, H. Chen and X. Jiang, “Overview of knowledge discovery in traditional Chinese medicine,” Modern Computational Approaches to Traditional Chinese Medicine, vol. 32, no. 10, pp. 1–26, 2012. [Google Scholar]
26. L. Yao, Y. Zhang, B. Wei, W. Wang, Y. Zhang et al., “Discovering treatment pattern in traditional Chinese medicine clinical cases using topic model and domain knowledge,” in Proc. 2014 IEEE Int. Conf. on Bioinformatics and Biomedicine, London, UK, pp. 191–192, 2014. [Google Scholar]
27. C. Chemudugunta, P. Smyth and M. Steyvers, “Modeling general and specific aspects of documents with a probabilistic topic model,” Advances in Neural Information Processing Systems, vol. 13, no. 5, pp. 241–248, 2007. [Google Scholar]
28. Z. Huang, X. Lu and X. Duan, “Latent treatment pattern discovery for clinical processes,” Journal of Medical Systems, vol. 37, no. 2, pp. 9915, 2013. [Google Scholar]
29. X. Yan, J. Guo, Y. Lan and X. Cheng, “A biterm topic model for short texts,” in Proc. of the 22nd Int. Conf. on World Wide Web, Brazil: Rio de Janeiro, pp. 1445–1156, 2013. [Google Scholar]
30. D. M. Blei and J. D. Mcauliffe, “Supervised topic models,” Advances in Neural Information Processing Systems, vol. 20, pp. 121–128, 2010. [Google Scholar]
31. K. Thomas, P. W. F. Landauer and L. Darrell, “An introduction to latent semantic analysis,” Discourse Processes, vol. 25, no. 259, pp. 259–284, 1998. [Google Scholar]
32. T. Hofmann, “Probabilistic latent semantic indexing,” Proc. of the 22nd Annual Int. ACM SIGIR Conf. on Research and Development in Information Retrieval, Berkeley, California, USA, vol. 41, no. 6, pp. 50–57, 1999. [Google Scholar]
33. G. Heinrich, “Parameter estimation for text analysis,” Technical Report, 2005. [Google Scholar]
34. N. Esfandiari, M. R. Babavalian, A. M. E. Moghadam and V. K. Tabar, “Knowledge discovery in medicine: Current issue and future trend,” Expert Systems with Applications, vol. 41, no. 9, pp. 4434–4463, 2014. [Google Scholar]
35. X. W. Wang, H. B. Qu, P. Liu and Y. Y. Cheng, “A self-learning expert system for diagnosis in traditional Chinese medicine,” Expert Systems with Applications, vol. 26, no. 4, pp. 557–566, 2004. [Google Scholar]
36. X. L. Xie, C. J. Lu, Z. Zeng and Z. P. Zeng, “Research on the psoriasis vulgaris syndrome differentiation standard of traditional Chinese medicine based on data mining technology,” in Proc. BIBM, Shanghai, SH, China, pp. 281–284, 2013. [Google Scholar]
37. L. Yao, Y. Zhang, B. G. Wei, W. Wang, Y. J. Zhang et al., “Discovering treatment pattern in traditional Chinese medicine clinical cases by exploiting supervised topic model and domain knowledge,” Journal of Biomedical Informatics, vol. 58, no. 29, pp. 260–267, 2015. [Google Scholar]
38. D. Blei and J. Lafferty, “Correlated topic models,” in Proc. of the 18th Int. Conf. on Neural Information Processing Systems, Cambridge, United States, pp. 147–154, 2005. [Google Scholar]
