Computer Systems Science & Engineering
DOI:10.32604/csse.2021.014030
images
Article

A Generative Adversarial Networks for Log Anomaly Detection

Xiaoyu Duan1, Shi Ying1,*, Wanli Yuan1, Hailong Cheng1 and Xiang Yin2

1School of Computer Science, Wuhan University, Wuhan, 430072, China
2Institute of Information Engineering, Chinese Academy of Sciences, Beijing, 100093, China
*Corresponding Author: Shi Ying. Email: yingshi@whu.edu.cn
Received: 30 August 2020; Accepted: 22 September 2020

Abstract: Detecting anomaly logs is a great significance step for guarding system faults. Due to the uncertainty of abnormal log types, lack of real anomaly logs and accurately labeled log datasets. Existing technologies cannot be enough for detecting complex and various log point anomalies by using human-defined rules. We propose a log anomaly detection method based on Generative Adversarial Networks (GAN). This method uses the Encoder-Decoder framework based on Long Short-Term Memory (LSTM) network as the generator, takes the log keywords as the input of the encoder, and the decoder outputs the generated log template. The discriminator uses the Convolutional Neural Networks (CNN) to identify the difference between the generated log template and the real log template. The model parameters are optimized automatically by iteration. In the stage of anomaly detection, the probability of anomaly is calculated by the Euclidean distance. Experiments on real data show that this method can detect log point anomalies with an average precision of 95%. Besides, it outperforms other existing log-based anomaly detection methods.

Keywords: Generative adversarial networks; anomaly detection; data mining; deep learning

1  Introduction

Logs record system states and application behaviors, Operation & Maintenance Personnel (OPS) usually analyze system logs to locate the fault [1]. Besides, such log data is universally available in nearly all computer systems. Therefore, system logs are an essential data source for performance monitoring, understanding system status and anomaly detection.

System anomalies can be classified into three groups: point anomalies, execution sequence anomalies, and collective or group anomalies. This paper focuses on detecting log point anomalies. Traditional point anomaly detection methods are usually based on rules. There are many defects in traditional methods, for example, (1) it needs domain knowledge; (2) it is difficult to identify the unknown faults; (3) with the growth of log data and log update, it is challenging to build rule base effectively. Therefore, traditional anomaly detection methods are no longer workable. In log anomaly detection, it is not easy to get the labeled data. Therefore, most existing popular approaches that leverage system log data for log point anomaly detection are based on unsupervised and semi-supervised technology, such as clustering [2], isolation forest [3], and support vector machines (SVM) [4,5]. The challenges of log point anomaly detection can be summarized as follows:

•    Uncertainty: It is difficult to define the characteristics of all abnormal logs. Besides, the boundary between normal logs and abnormal logs is unclear. Therefore, the outlier observations close to the edge might be a normal log.

•    Imbalance: The training samples belonging to normal logs are much more than ones belonging to abnormal logs, and it is not easy to gain the labeled log datasets.

•    Unstructured: Log data has unstructured characteristics.

Our research is based on unsupervised technology Generative Adversarial Network [6], namely GAN-EDC (GAN based on Encoder-Decoder framework and Convolutional Neural Networks [7]). In recent years, GAN has made significant progress in many fields, such as image detection [8,9], image segmentation [10], and speech production [11]. To apply GAN in detecting abnormal logs, we use the Encoder-Decoder framework as the generator, Convolutional Neural Networks as the discriminator. The encoder maps the input log keywords to potential representation and then generates the corresponding log template through the decoder. CNN discriminator identifies the differences between the generated log template and the actual template and then gives a scalar (realistic or fake). The model parameters are optimized automatically by iteration. Finally, we use the Euclidean distance to calculate the abnormal value of logs. Compared with the existing unsupervised point anomaly detection methods, this method can (1) update the optimization model parameters through the confrontation between generator and discriminator; (2) no boundary needs to be found for anomaly detection, which avoids the influence of imbalanced data; (3) not limited to detecting known types of abnormal logs and has high versatility. We evaluated GAN-EDC on real log datasets with over 300 thousand log entries. The results show that GAN-EDC has high accuracy.

The primary contributions of this paper are as follows:

•    We propose a detection model aimed at log point anomaly, namely GAN-EDC.

•    We study the feasibility of GAN in log anomaly detection and the effect of parameter k value on the model.

•    We summarize and compare a variety of log point anomaly detection methods and prove the superiority of GAN-EDC.

The rest of this paper is organized as follows: Section 2 presents related work on log anomaly detection. Section 3 introduces the basic structure and the pre-processing of the log dataset. Section 4 presents the design and construction of GAN-EDC. We evaluated the performance of GAN-EDC in Section 5. Finally, Section 6 presents the final remarks.

2  Related Work

Anomaly detection has long played an essential role in a wide variety of fields such as internet security [12], software security [13], web security [14], social network [15], big data [16]. Errors in the data can cause anomalies, but anomalies sometimes indicate a new, previously unknown, underlying process. As early as 1987, Paper [17] has defined the anomalies. Enderlin pointed out that the anomaly data is the data that deviates from other observation data seriously (i.e., abnormal instances are markedly different from normal instances). Therefore, anomaly detection is also called outlier detection. Existing approaches that leverage log data for log point anomaly detection can be broadly classified into four groups: rule-based methods, statistics-based methods, machine learning algorithm-based methods, and deep learning-based methods.

Rule-based methods are put forward early. Detection is a two-step process. These methods first use the algorithm to get the rules or make rules by the expert and then determine whether it is an abnormal log according to the rules. These methods have high detection accuracy but only successful in specific scenarios. For example, Ren et al. [18] uses the Apriori algorithm to find the association rules and frequent episodes in log datasets. The disadvantages of this method are limited by the domain knowledge. If there are new types of abnormal, the existing rule base is ineffective.

Statistics-based methods considered that the normal log entries are in the high probability interval of the random model. On the contrary, the abnormal log entries are usually in the low probability interval. These methods first build a statistical model for the given normal dataset and determine whether the newly arrived data is the same as the statistical model. For example, Goldstein et al. [19] proposed an anomaly detection method based on the histogram. It first models univariate feature densities using histograms with a fixed or a dynamic bin width. Then, all histograms are used to compute an anomaly score for each data instance. These methods are over-reliant on strong independence between features, so it is difficult to detect anomalies in real log datasets. Statistical-based methods also include literature [20].

In recent years, machine learning-based methods and deep learning-based anomaly detection methods are popular research directions. These two methods can be divided into supervised, semi-supervised and unsupervised. Supervised methods have higher accuracy, such as decision trees [21] and random forest [22]. However, supervised anomaly detection methods generally require a lot of labeled samples to accomplish their training tasks. Besides, it is difficult for experts to label all data manually, and anomalies rarely occur in log datasets. Therefore, the semi-supervised method is widely used. The normal techniques include Recursive Neural Network (RNN) [23], CNN [24], and Restricted Boltzmann Machine (RBM) [25]. Compared with supervised anomaly detection methods, although semi-supervised anomaly detection methods need fewer labeled objects, it still needs a certain number of labeled objects to ensure accuracy. Unsupervised anomaly detection methods such as LSTM [1], Isolation Forest (IForest) [3] and Cluster [26] do not need the labeled data. Paper [2] proposed LogCluster, an approach that clusters the logs to ease log-based problem identification. LogCluster facilitates problem identification by clustering similar log sequences and retrieving recurrent issues. This model first clusters log sequence to construct an initial knowledge base. Second, it analyzes the log sequences and checks if the clusters can be found in the knowledge base. In the end, it only examines a small number of representative log sequences from the clusters that are previously unseen. LogCluster improves the effectiveness, but the strategy is too coarse-grained. Du proposes DeepLog [1], a deep neural network model utilizing Long Short-Term Memory, to model a system log as a natural language sequence. DeepLog uses the normal log dataset in the training stage to train a log key anomaly detection model for diagnosis purposes. In the detection stage, it compares the predicted results and the actual results to determine whether the system is abnormal or not. Papers that model log sequences as natural language sequences also include [27,28].

Ian Goodfellow proposed the Generative Adversarial Networks network in 2014, which is widely used in the field of image processing [2932] and has an excellent performance. In 2017, Yu et al. [33] was the one who first applies GAN in text generation, namely SeqGAN. Inspired by SeqGAN, we use GAN in log point anomaly detection. We compare the generated log entry and the log entry generated by the system to determine whether the system is normal. The experimental results show the superiority of GAN in log anomaly detection.

3  Log Parser

Log parsing is the basis of anomaly detection. In log anomaly detection, it is not feasible to detect anomalies on massive unstructured logs directly. Therefore, we need to parse unstructured, free-text log entries into a structured representation to learn log patterns over a structured dataset.

The log dataset contains both template words and parameter words. Parameter words have no semantic information and usually appear in different forms. Template words reveal the event template of the log entry and remain the same for every event occurrence. Each log entry includes three parts: timestamp, log type, and log event. Timestamp records the time when an event occurs, log type usually shows the severity level of the event (e.g., “INFO” or “WARN”), and log event records the system execution information. The original log entries, the log templates of each raw log entry and classification log data are shown in Fig. 1.

images

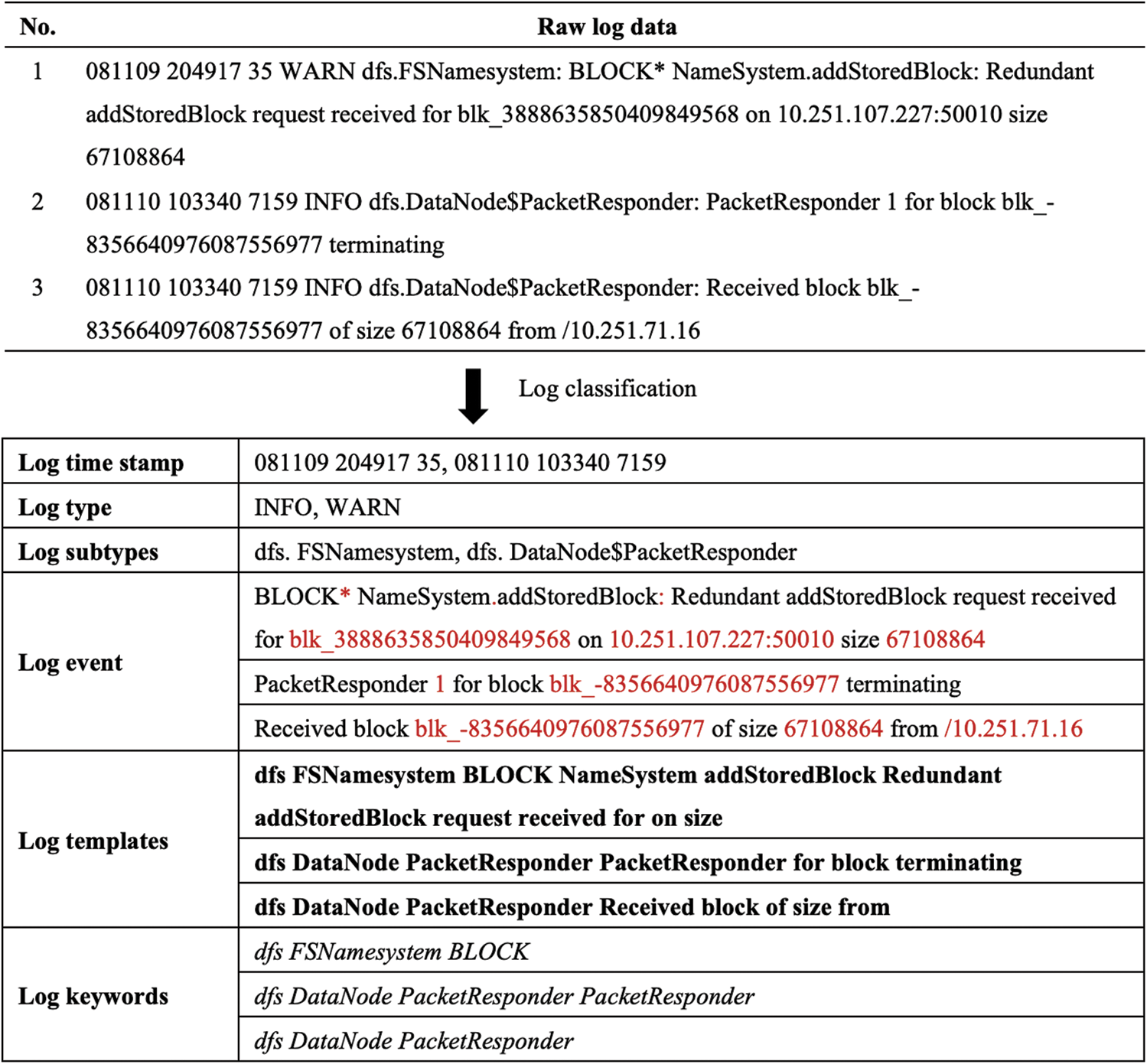

Figure 1: Raw logs from HDFS

As seen in Fig. 1, the parameter words are highlighted in red. We first parses raw logs to find the log templates. Second, we extract the keywords of each log template. We select the log type, log subtype and the first word of log event as the log keywords. Note that each log keyword is a log template word. Finally, we build a dictionary C, which includes all log template words. The log keywords are shown in the log keywords item of Fig. 1.

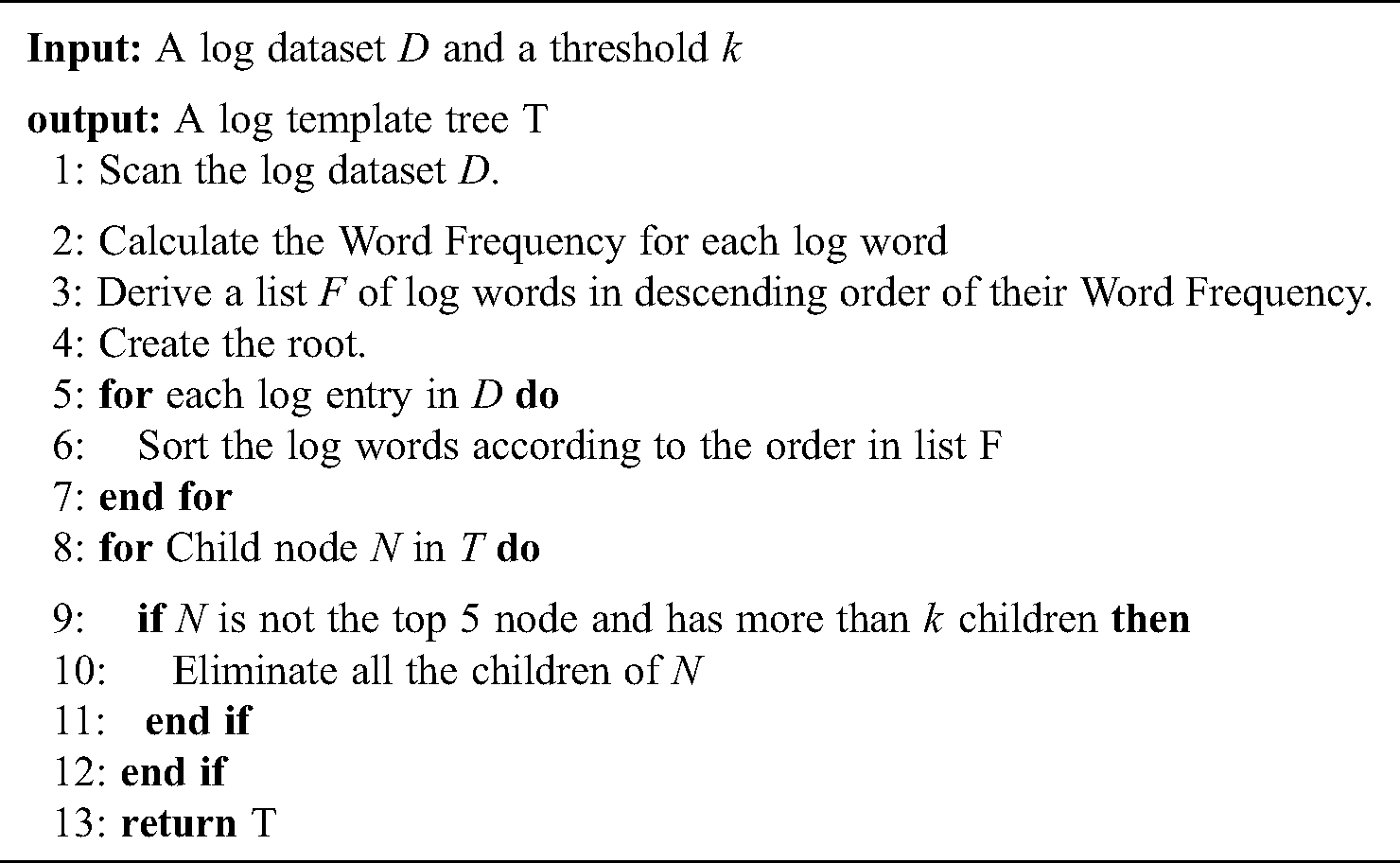

Let images be the log dataset, each images in images is a log entry. For example, the dataset in Fig. 1 is images. Each log entry images is composed of multiple words, clearly images, where each images is a word (template word or parameter word). If images occurs frequently (i.e. images has a large support), images will be a template word. In log template extraction, (1) the first step is to scan the whole log dataset and use the regular expression to delete symbols and parameter words with a fixed format, such as IP address, mac address, and file path. Remarkably, special symbols are not in the research scope of this paper. We purposely count the symbols of six data sets with 10MB. The results are shown in Tab. 1. There are no special symbols in these data sets, and we can easily delete these symbols by using the regular expression. (2) Then, we compute the number of times that word images in log event has occurred in the dataset (i.e., Word Frequency) and derive a list F of words in descending order of their Word Frequency. Each word has a fixed serial number (ID). (3) When a new log entry arrives. We create the root of a tree, which is labeled with the log type. In our case, it is “INFO” and “WARN”. Then we construct the first path of the tree according to the ID of the words in list F. When the next log entry is processed, if the current log entry has the common prefix word with processed log entries, then share a common prefix with the existing path; otherwise, a new branch is created as a sub-tree of the node. Finally, we prune the tree. For example, if a node is not in the top 5 nodes and has too many children (exceeding a threshold k), all its children (or sub-trees) are deleted from the tree, and the node becomes leaf itself. Each root-to-leaf path is a log template. The algorithm of extract log template is shown in Algorithm 1.

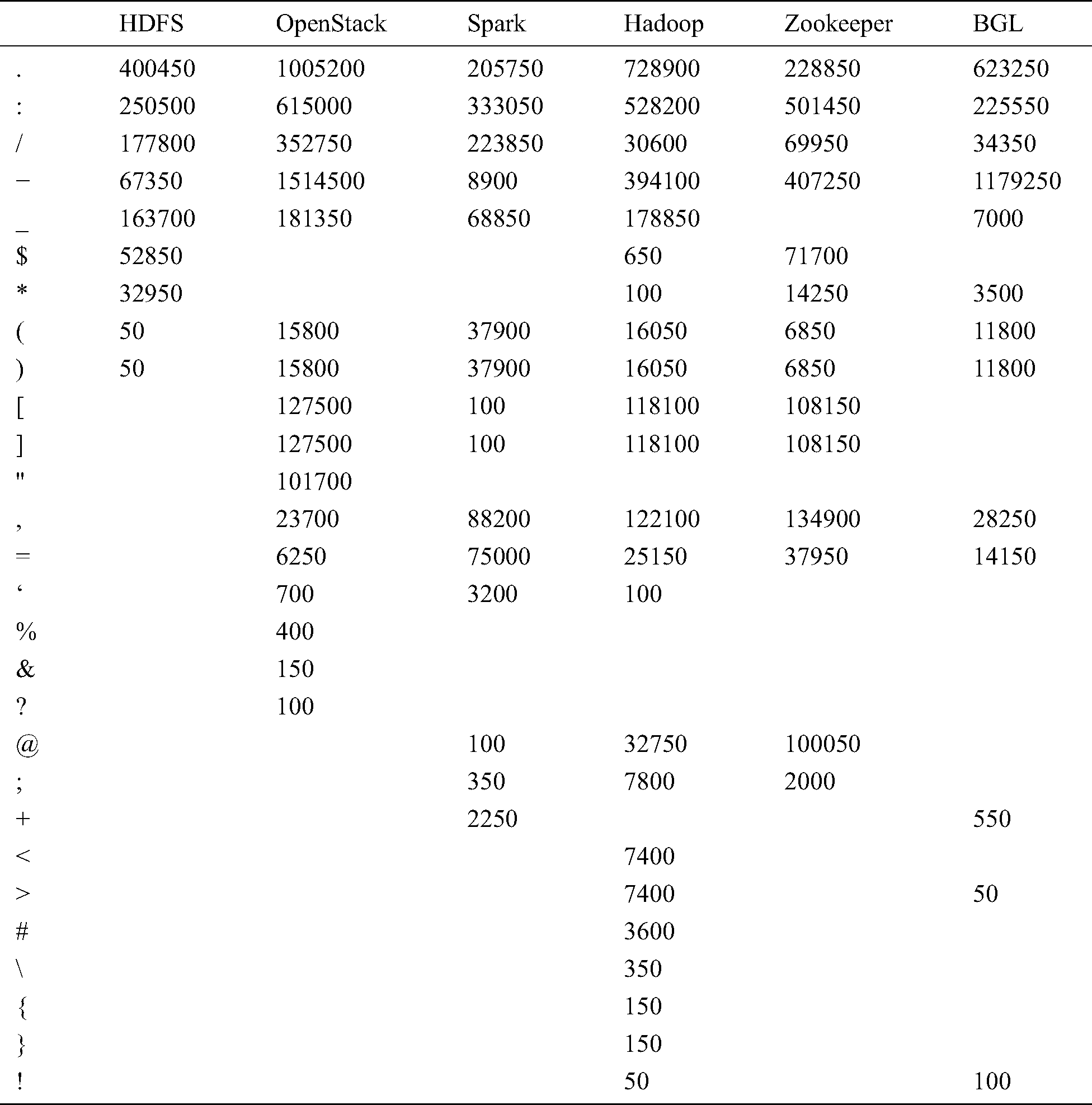

Table 1: The count result of symbol on six log datasets

images

4  Design and Construction

In this section, we first describe traditional Generative Adversarial Networks. Second, we introduce the generator model based on the Encoder-Decoder framework and the discriminator model based on Convolutional Neural Networks. Finally, we present the process of anomaly detection by using the anomaly detection model. The GAN-EDC architecture is shown in Fig. 2 with three key components: generator model, discriminator model and anomaly detection model.

Training stage. Training data for GAN-EDC are log entries from the normal system. Each log entry is parsed to a log template. Then GAN-EDC extracts log keywords of each log entry. We input the log keyword into the generator and train the generator to generate instances of log template. The input of the discriminator is the log template generated by the generator and the real log template. The discriminator is to distinguish between the real log template and the generated sample.

Detection stage. A newly arrived log entry is parsed to log keywords and log words. The anomaly detection model uses the log template and the generated sample to check whether the incoming log entry is normal. The output of the anomaly detection model is the detection result (normal log entry or abnormal log entry).

images

images

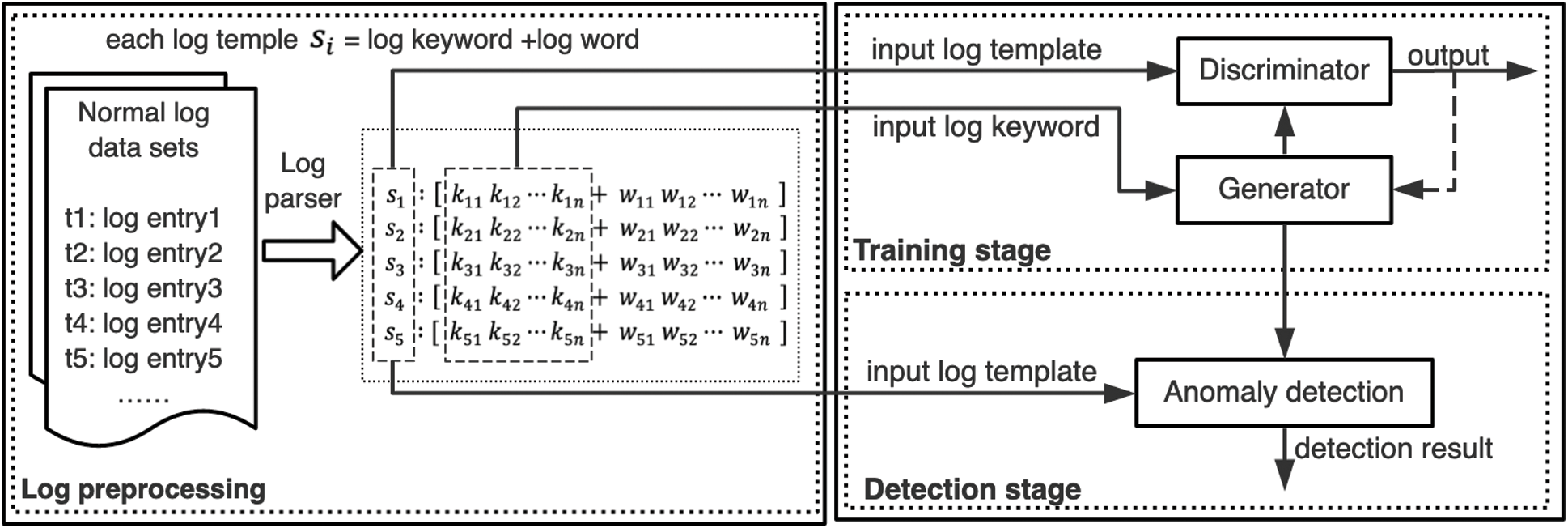

Figure 2: GAN-EDC architecture

4.1 Generative Adversarial Networks

GAN is a dynamic game model, which comprises two adversarial models: a generator images that captures the data distribution, and a discriminator images that estimates the probability that a sample came from the training data rather than generator. In the process of dynamic game training, the purpose of the generator is to increase the error probability of discriminator, the purpose of the discriminator is distinguishing between the real data and the generated samples. Training of GANs involves both finding the parameters of a discriminator that maximize its classification accuracy and finding the parameters of a generator which maximally confuse the discriminator.

Set a prior on input noise variables images, then represent a mapping to data space as images, where images is a differentiable function represented by a multilayer perceptron with parameters images. Set second multilayer perceptronimages, images is the data, images is the parameter. images represents the probability that images came from the data rather than the generator's distribution images. images and images play the following two-player minimax game with value function images.

images

4.2 Generative Based on Encoder-Decoder

In our research, we choose the Encoder-Decoder framework based on LSTM to build the generative model images. First, we input the log keyword into the LSTM of the encoder phase and get the hidden state with fixed dimension. After encoder processing, input the hidden state into the LSTM of the decoder phase. Finally, we get the log template from the generator (i.e., we train the generator to generate the instances of log template).

Encoder. The LSTM encoder learns fixed-length vector representation of the input. Given a log dataset images, where images is the total number of log templates, images is a log template. Each log template images is composed of multiple words, clearly images={images}, where each images denotes the i-th word in log template images. Some of these words are log keywords, let log keyword of images is images (images), images is a log keyword. Consider a keyword sequence images of length images, images is the hidden state of the encoder at time images for each images, where images, images is the number of LSTM units in the hidden layer of the encoder. Enter the log keywords into the LSTM encoder. Memory Cell is the core part of the LSTM, composed of parameters and a gating unit system. It is used to judge whether the information is useful or not. Each gating unit system includes three gates, namely input gate, forgetting gate and output gate. LSTM uses a separate memory cell to remember long term dependencies, which can be updated depending on the current input. At each time step, an LSTM takes current input images and previous memory cell state images as input and computes the current cell state images. Finally, we get the end hidden state images.

Decoder. The final state images of the encoder is used as the initial state for the decoder. For example, the decoder takes images and images as input to obtain the next hidden state images. Processing continues in this same way. We can get the hidden state of each time. The hidden state of each time inputs into a Softmax function, and the output is a probability distribution describing the probability for each template word from the dictionary images. We choose the word with the highest probability as the output. The output can be expressed as

images

where images is the hidden state of decoder LSTM at the time images, images is the output of the previous time and take as the input as time images. images is a non-linear multi-layer perceptron, which produces the probability that each word in dictionary images belongs to images.

4.3 Discriminator Based on CNN

We use CNN to build the discriminator model of GAN, and the discriminator is a binary classifier. The input of the discriminator is the generated log template and the real log template. The output is a number between 0 and 1. The number represents the probability that the input log template is real.

The discriminator consists of a convolution layer and a max-pooling operation over the entire sentence for each feature map. Set the log template generated as images, each word images is embedded into a k-dimensional word vector images, where images is a word embedding matrix (to be learned). Then a log template of length T (padded where necessary) is represented as a matrix images, by concatenating its word embeddings as columns, i.e., the t-th column of images is images. Set the convolution kernel is images, where images is the number of words. For example, the convolution kernel with a window size of one word can be expressed as images. First, we get the feature map images by convolution of the input matrix images, where images is a nonlinear activation function, images denotes the convolutional operator, images is a bias vector. Second, we apply a max-over-time pooling operation to the feature map and take its maximum value images. Third, we apply the fully connected layer of sigmoid function to output a scalar, the scalar represents the probability of images is from the log data distribution, rather than from adversarial images.

Training. G and D share a set of parameters, which are updated alternately by a stochastic gradient descent method. G and D are trained simultaneously. The training strategy is to train the k-steps D and then train the 1-step G, i.e., The discriminator is trained until optimal with respect to the current generator. Then, the generator is updated again. We adjust parameters for G to minimize images and adjust parameters for D to minimize images, as if they are following the two-player min-max game with value function images.

images

where S is the keyword sequence.

4.4 Anomaly Detection

GAN-EDC has learned the feature distributions of normal log entries. Therefore, we design an abnormal score to evaluate the error between the input templates and templates from images. The abnormal score can be expressed as

images

where images is the abnormal score, images is the input log entry, images is the parameters of images. We select a suitable threshold images. If images is less than images, the input log entry is normal; otherwise, it is abnormal.

5  Evaluation

In this section, we first introduce the datasets and experimental environment. All log datasets are collected from the real-world. Second, we evaluate the performance of GAN-EDC and compare it with those methods, such as Cluster, SVM, decision tree, PCA. Finally, we assess the effect of the k value.

5.1 Log Data Sets and Experiment Setup

We use distributed system log datasets as training sets and test sets, including the HDFS dataset and BGL dataset. HDFS dataset is generated through running Hadoop MapReduce jobs on more than 100 Amazon’s EC2 nodes. There are 29 log templates and 575056 execution sequences in the HDFS dataset, including normal and abnormal log. The Blue Gene/L supercomputer system log dataset contains 4747963 log entries and 385 log templates. There are 348698 (7%) log entries labeled as anomalies. These two datasets are labeled by experts. Details of the HDFS dataset and Blue Gene/L dataset could be found in these papers [1,34,35,36]. Zhu et al. [34] has officially released these datasets, and we have made no modification to these datasets in this paper. These datasets have been downloaded over 7000 times. Tab. 2 summarizes the two datasets.

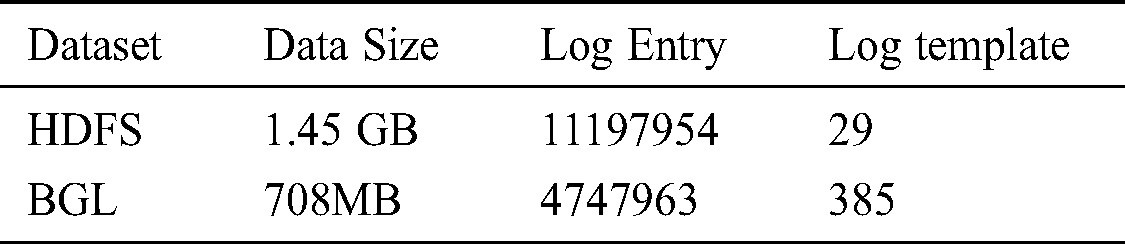

Table 2: Log data sets

images

The platform used in sections 6.2, 6.3 and 6.4 is Python 3.7. All experiments use the same machine with an Intel (R) Xeon (R) Silver 2.20 GHz CPU, 128 G memory, and Windows 10 operating system.

5.2 Accuracy Evaluation of Anomaly Detection

In this section, we evaluate the accuracy of the GAN-EDC. The following three intuitive metrics usually assess a method's effect to detect abnormal log: images, images and images. These evaluation metrics are used in previous studies, frequently [3739]. Eqs. (5), (6) and (7) show the formulas of these three metrics.

images

images

images

where images is true positive, images is true negative, images is false positive, images is false negative. images is the harmonic mean of images and images. We ran two supervised methods (i.e., decision tree and SVM) and two unsupervised methods (i.e., clustering and PCA) to detect the log point anomalies for the HDFS dataset and BGL dataset, respectively. For all methods, we choose the first 80% data as the training data and the remaining 20% as the testing data. Fig. 3 shows the comparison using images, images and images.

images

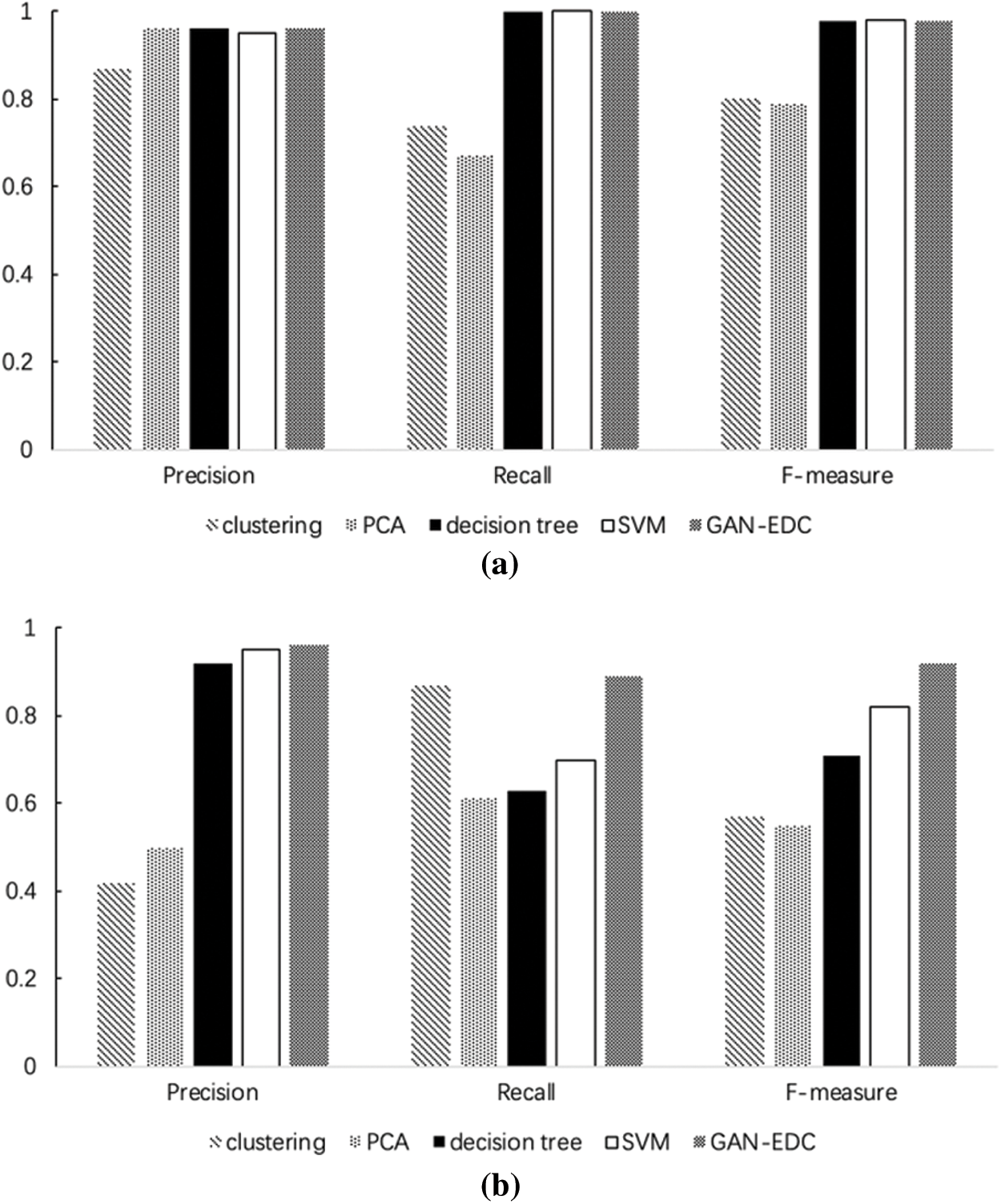

Figure 3: Evaluation on HDFS dataset and BGL dataset. (a) Accuracy on HDFS dataset. (b) Accuracy on BGL dataset

As illustrated in Fig. 3. We can observe that supervised methods (namely decision tree and SVM) and GAN-EDC achieve high accuracy (over 0.95) in the HDFS dataset. Clearly, GAN-EDC has achieved the best overall performance in two datasets, especially in the BGL dataset with images 96%, images 89% and images 92%. The result proves that GAN-EDC can effectively separate normal instances and abnormal instances by using feature representation. Besides, the overall accuracy on the HDFS dataset is higher than the accuracy on the BGL dataset. Because the HDFS dataset only records 29 log templates, which is much less than that in the BGL dataset (it records 385 log templates). The detection strategy of the cluster is too coarse-grained, so it has the lowest accuracy. Compared with the supervised methods, all unsupervised methods relatively low accuracy on two datasets.

5.3 Efficiency Evaluation of Anomaly Detection

In Fig. 4, the efficiency of all these anomaly detection methods is evaluated on both HDFS and BGL datasets with varying log sizes. Because the clustering cannot handle large-scale datasets in an acceptable time, the running time results of clustering are not fully plotted. All methods can detect anomalies in a short time (except clustering). The time complexity of clustering is images. The other detection methods scale linearly as the log size increases. Furthermore, the decision tree is the fastest detection method and slightly quicker than GAN-EDC, but GAN-EDC is higher than the decision tree in detection accuracy. Combine detection accuracy, GAN-EDC has achieved the best overall performance than other methods in two datasets. It is proved that GAN-EDC is effective for large-scale datasets.

images

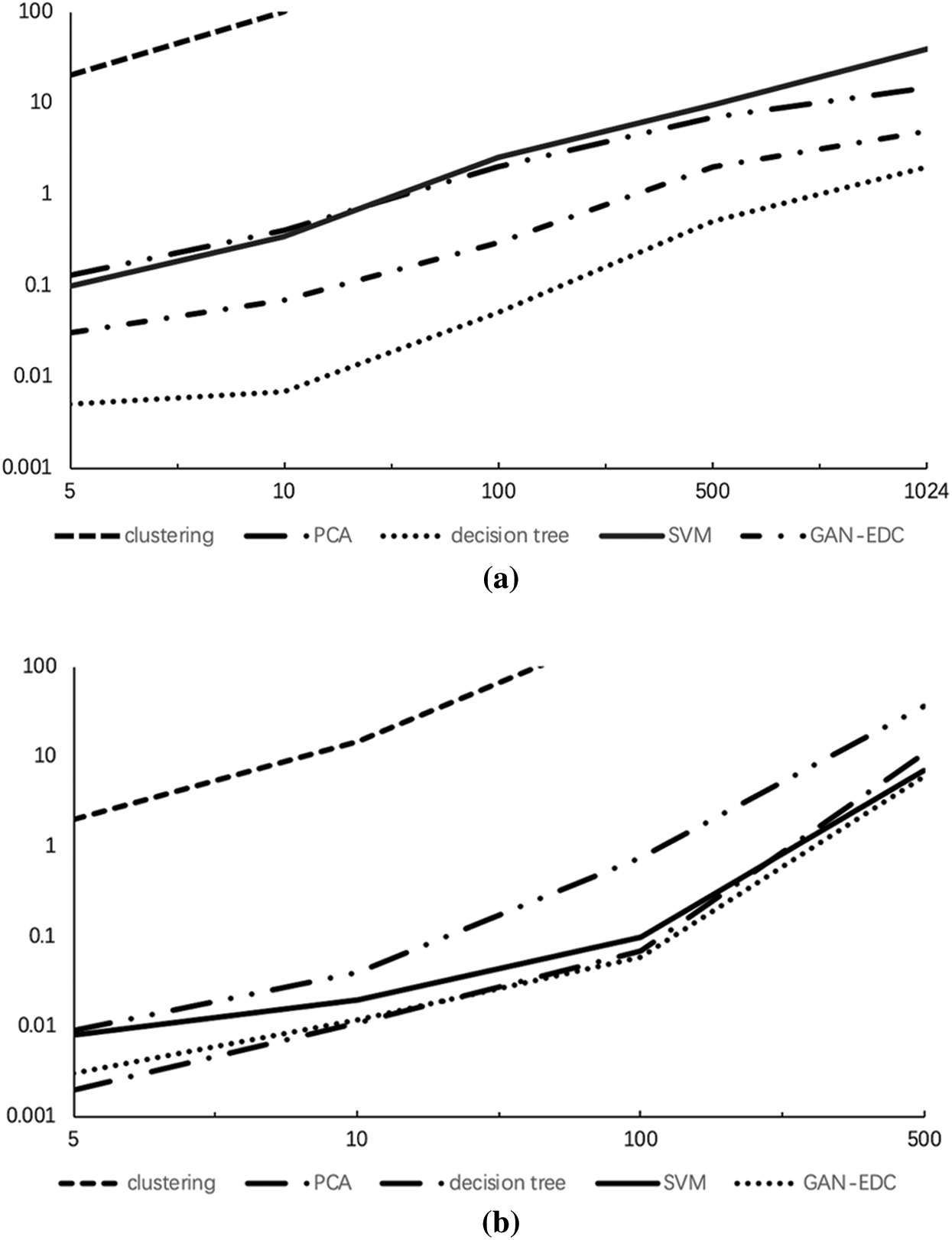

Figure 4: Evaluation running time with increasing log size. (a) HDFS dataset. (b) BGL dataset

5.4 The Effect of K Value

In this section, we evaluate the effect of k value on the generator by using the evaluation metric images [33]. In our case, we assume that the expert has learned an accurate model of the real data distribution images. Only the negative log-likelihood is minimized, i.e., images, the real data and the generated data are difficult to distinguish. Therefore, we use the LSTM network to capture the relationship between words in real log templates. We first initialize the parameters of an LSTM network following the normal distribution images as the oracle (namely images) describing the real log distribution images. Then, we use it to generate 10,000 sequences as the training dataset for the generative images. Finally, we evaluate images by using the oracle model. The evaluation function can be expressed as

images

where images is the generated series before time T. images is the oracle model and images is the generative model.

We use images to generate 10,000 samples and calculate images with different k (k = 1, 3, 5) for each sample by images and their average score. We vary the values of k while using the same values for others. Fig. 5 shows the evaluation result.

images

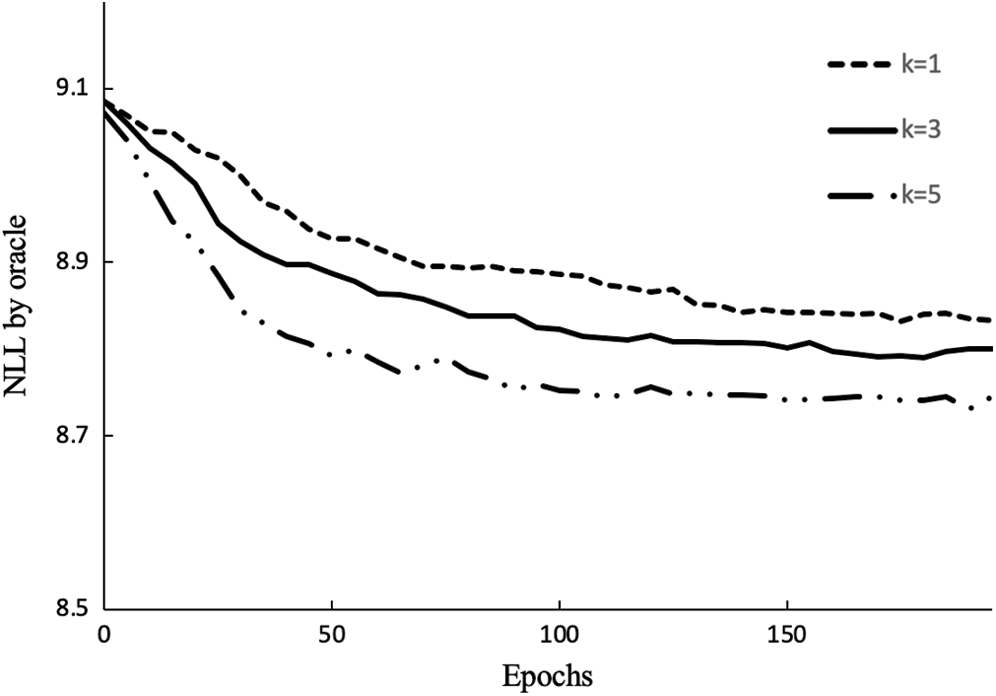

Figure 5: Negative log-likelihood convergence performance of GAN-EDC with different k-steps

We can see the impact of k. when k = 3, the baselines outperform other baselines significantly and pay equal attention to convergence speed. The baselines of k = 1 and k = 3 also converge to stable values, but the results are imperfect 8.83 and 8.79 respectively. When k = 5, the convergence speed of the model is the fast, and the result is the best 8.74. This proofs that the selection of the k has great effects on the convergence time of the model and the quality of generated data. Therefore, we set k = 5 in this paper.

6  Conclusion

In this paper, we propose a log anomaly detection method based on GAN. This method uses the Encoder-Decoder framework based on LSTM as the generator. The discriminator uses the CNN network to identify the difference between the generated log template and the real log template. In the phase of anomaly detection, the probability of anomaly is calculated by the Euclidean distance. Experiments on real data set show the effectiveness of GAN-EDC. Compared with the state of the art, GAN-EDC can not only detect log point anomalies with high accuracy but also outperform other existing log-based anomaly detection methods. Our future work considers using a reinforcement learning method to select k value instead of a human setting automatically. For example, we consider but are not limited to combine the Q-learning algorithm [40] or the Actor-Critic algorithm (A3C) [41].

Funding Statement: The work was supported by National Natural Science Foundation of China under grant NO.61672392 and NO.61373038, the National Key Research and Development Program of China under grant NO.2016YFC1202204.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
