An Asynchronous Data Transmission Policy for Task Offloading in Edge-Computing Enabled Ultra-Dense IoT

1  Introduction

The rapid development of the Internet of Things (IoT) and the continuous complexity of application scenarios have indeed led to a significant increase in the computational load on terminal devices (TDs) [1,2]. This led to the issue of slow response times for application services becoming particularly pronounced due to the insufficient computational capacity of TDs [3]. Task offloading technology allows TDs to submit computational tasks to edge-computing networks or cloud platforms, reducing the computational load on the TDs [4,5].

The most commonly applied task offloading paradigm involves TDs offloading computation-intensive tasks to cloud platforms or edge-computing networks [6]. TDs submit task offloading requests to nearby computing networks via wireless access networks and upload the data associated with the computational tasks [7]. As the number of terminal devices continues to rise, numerous computation-intensive jobs have begun to compete for resources in the edge network [8]. This trend has placed immense pressure on the network services at the wireless access layer, leading to network congestion [9]. Compared to cloud computing, edge-computing systems have relatively limited bandwidth resources. The coexistence of numerous devices poses challenges for bandwidth allocation. Additionally, reducing data processing latency is also a pressing issue that needs to be addressed [10].

Indeed, both computational and transmission delays play a critical role in influencing the overall efficacy of task offloading [11]. However, existing research has focused extensively on optimizing computational resource allocation, while considerations for transmission optimization remain relatively limited. Concurrent data uploads can lead to severe wireless network congestion, particularly in densely populated networks [12]. Therefore, the completion time of tasks increases due to the failure of task data to arrive at the corresponding virtual machine (VM) promptly. Thus, it is essential to optimize the data transmission process for task scheduling based on effective network bandwidth allocation strategies. However, such problems have been proven NP-hard due to their complex optimization requirements and dynamic environments [13]. This means that it is challenging to find an algorithm that can guarantee an optimal solution within polynomial time.

The common bandwidth allocation mechanism involves assigning different priorities to the data streams of tasks [14,15]. However, this can result in low-priority data experiencing significant transmission delays [16]. Some studies [17,18] utilize M/M/1 queues to model task processing. However, this requires ensuring that the computing nodes have sufficient resources to handle incoming data at all times. This is challenging to guarantee in edge-computing networks. Additionally, heuristic bandwidth allocation methods, while providing near-optimal solutions, often lack scalability.

AI-based network resource scheduling methods can effectively handle more complex transmission demands and environmental constraints, thereby optimizing overall network performance [19,20]. However, existing research in this area primarily focuses on optimizing IoT data transmission and abstract data communication scheduling. Some AI-based resource scheduling methods aimed at task offloading take into account the varying transmission demands of task data and the constraints of available bandwidth. Nonetheless, they all lack efficient mechanisms for scheduling the network transmission of task data to align with the dynamic allocation of VM resources. To address the aforementioned issues, we propose an asynchronous data transmission policy for task offloading in edge-computing-enabled IoT. This policy takes into full account the delay associated with the arrival of task data at the target VM, thereby reducing resource wastage by dynamically allocating the limited available network bandwidth. Specifically, our main contributions are listed as follows:

•   Deconstructed the factors influencing task offloading efficiency and focused on the optimization of task data transmission in high-density task offloading scenarios. Subsequently, this NP-hard mixed integer nonlinear programming (MINLP) optimization problem was transformed into a Markov decision process (MDP) that can be solved using reinforcement learning techniques. Furthermore, the discrete nature of VM allocation was differentiated from the continuous characteristics of network bandwidth allocation to adapt to various reinforcement learning neural networks.

•   Proposed an Asynchronous Data Transmission Policy (ADTP) that jointly considers the matching of tasks with computational resources and network resource constraints to dynamically allocate network bandwidth. Additionally, ADTP incorporates Quality of Experience (QoE) feedback to refine the bandwidth allocation strategy. Consequently, task data can be uploaded promptly to the corresponding VMs for processing, while simultaneously reducing the computational cost of the scheduling algorithm.

•   Established a simulation environment and conducted extensive comparative experiments. The simulation results demonstrate that the proposed Asynchronous Data Transmission Policy (ADTP) utilizes limited network resources more effectively. Both the success rate of task execution and response time were enhanced due to the timely upload of task data to the corresponding virtual computing nodes.

The rest of this paper is organized as follows. Section 2 explained the relevant prior works. Section 3 describes the system model and formulates the optimization problem of task data transmission. Section 4 presents the proposed data transmission policy for IoT task offloading. The performance evaluation of the proposed policy is presented in Section 5. Finally, we provide conclusions and future research works in Section 6.

2  Related Work

Data transmission optimization based on network resource allocation has been investigated across various levels in tandem with the advancement of IoT and task offloading technologies. However, the majority of existing research fails to adequately address the optimization of data transmission within the context of task offloading scenarios.

In [21], channel resources are allocated based on the size of the task data to avoid transmission conflicts among IoT nodes. However, data size alone does not fully represent the multidimensional requirements for data transmission. In [22], the proposed transmission optimization method prioritizes data based on task deadlines; however, this prioritized transmission approach does not support parallel data transfers. In [23], a weighted fair queuing (WFQ) mechanism with delay constraints is employed to reduce overall latency. Nonetheless, fairness is not the requisite mode for task offloading data transmission. If resources for either communication or computation are insufficient, tasks must wait in the queue. Each upstream queue can only process upload tasks sequentially.

Compared to the aforementioned simple data transmission optimization schemes, heuristic and meta-heuristic algorithms can handle relatively complex data transmission constraints. In [24], an Index-Based Transmission Scheduling (IBTS) approach is employed to optimize the transmission of task data after offloading decisions. However, this scheme only considers data size and transmission rate, neglecting the timing constraints for task data arrival at the server. In [25], the proposed Grey Wolf Optimization (GWO) meta-heuristic method is utilized to optimize data transmission and reduce wireless communication energy consumption for terminal devices. Nonetheless, this method suffers from slow convergence and a tendency to get trapped in local optima.

AI-based data transmission schemes can manage a vast array of environmental parameters and task constraints, demonstrating robust capabilities for optimizing task data transmission in complex scenarios. In [26], an improved K-means algorithm is proposed for the automatic clustering of NB-IoT terminals, followed by the generation of a prioritized transmission sequence for task data. However, this method overlooks the impact of the delay in task data arrival at the edge server on task completion time. In [27], the proposed approach utilizes deep neural networks (DNN) to learn data transmission characteristics for each time slot and dynamically adjust the allocation of wireless communication resources. However, this method primarily focuses on optimizing network throughput, latency, and the conflict rate of data transmissions.

The advancement of deep reinforcement learning (DRL) techniques offers improved solutions for optimizing task data transmission due to their ability to automatically adapt to dynamic changes in the network environment. In [28], multiple Deep Q-Learning Networks (DQN) are employed for the dynamic scheduling of network transmission states and data transmission requirements, optimizing channel allocation and throughput. Similarly, DDQN has also been applied to dynamically allocate time slot resources across multiple channels [29]. However, these approaches primarily optimize at the packet transmission level and lack awareness of the overall structure of task data.

To address such independent optimization challenges, hybrid solutions that integrate multiple techniques have been proposed. However, existing methods struggle to flexibly coordinate the discrete nature of the VM selection problem with the continuous nature of the bandwidth allocation issue [30–32]. Moreover, the expansion of network scale and the proliferation of numerous application tasks impose constraints on reinforcement learning agents in tackling high-dimensional problems, as this may give rise to the curse of dimensionality. In [33], a hierarchical DDPG (HDDPG) framework was proposed, which first optimizes the data communication process and subsequently addresses the computational resource allocation problem. However, the use of two synchronously operating DDPG neural networks introduces relatively high computational costs.

To address these challenges, we propose an Asynchronous Data Transmission Policy (ADTP) for task offloading in edge-computing enabled ultra-dense IoT environment.

3  System Model and Problem Formulation

In this section, an edge-computing enabled IoT task-offloading network architecture is presented. Additionally, we describe the system model including the task computing model and the data communication model for IoT task offloading. Subsequently, the problem of minimizing task completion time is formulated as a Markov Decision Process (MDP).

We consider a typical edge-computing enabled IoT network architecture as shown in Fig. 1. Similar scenario designs are widely adopted [34]. There is a set of TDs communicating with the edge-computing network via bandwidth-limited wireless connections. The communication between the edge-computing network and the cloud platform utilizes Wide Area Network (WAN) connections. Within the edge-computing network, multiple data centers are interconnected through high-speed networks. The orchestrator in the edge-computing network is responsible for allocating virtual machine resources and wireless bandwidth to tasks from TDs based on task offloading requests and the operational state of the network. Consequently, the completion time of a task is equal to the transmission time of the task data plus the execution time of the task on the virtual machine. Each Access Point (AP) has the same total available bandwidth. The ADTP dynamically adjusts the bandwidth allocated for the transmission of each task data in each time slot. Fig. 1 illustrates the system architecture of task offloading in Multi-access Edge Computing (MEC).

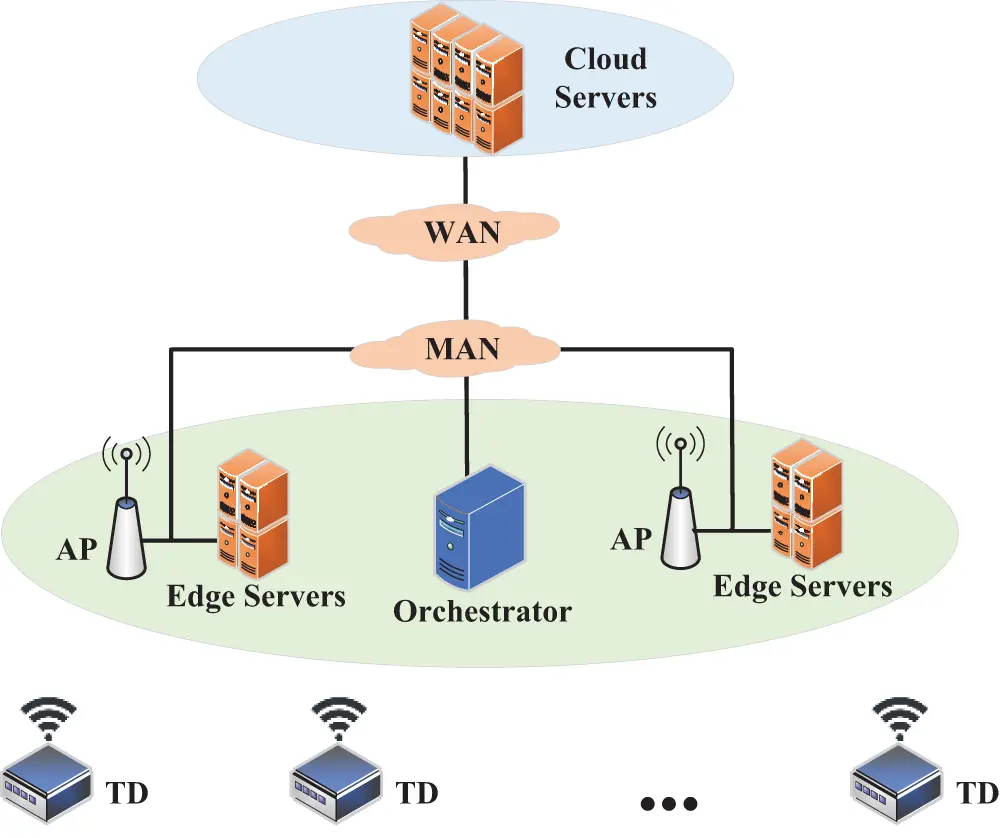

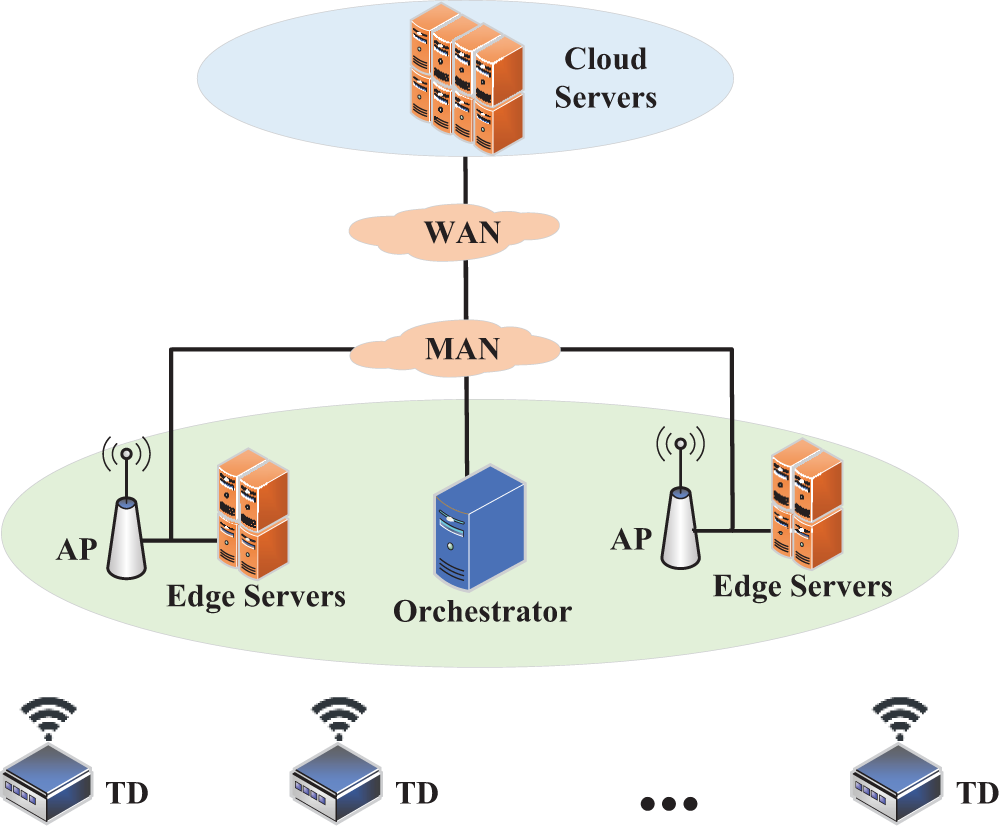

Figure 1: The system architecture of task offloading in MEC

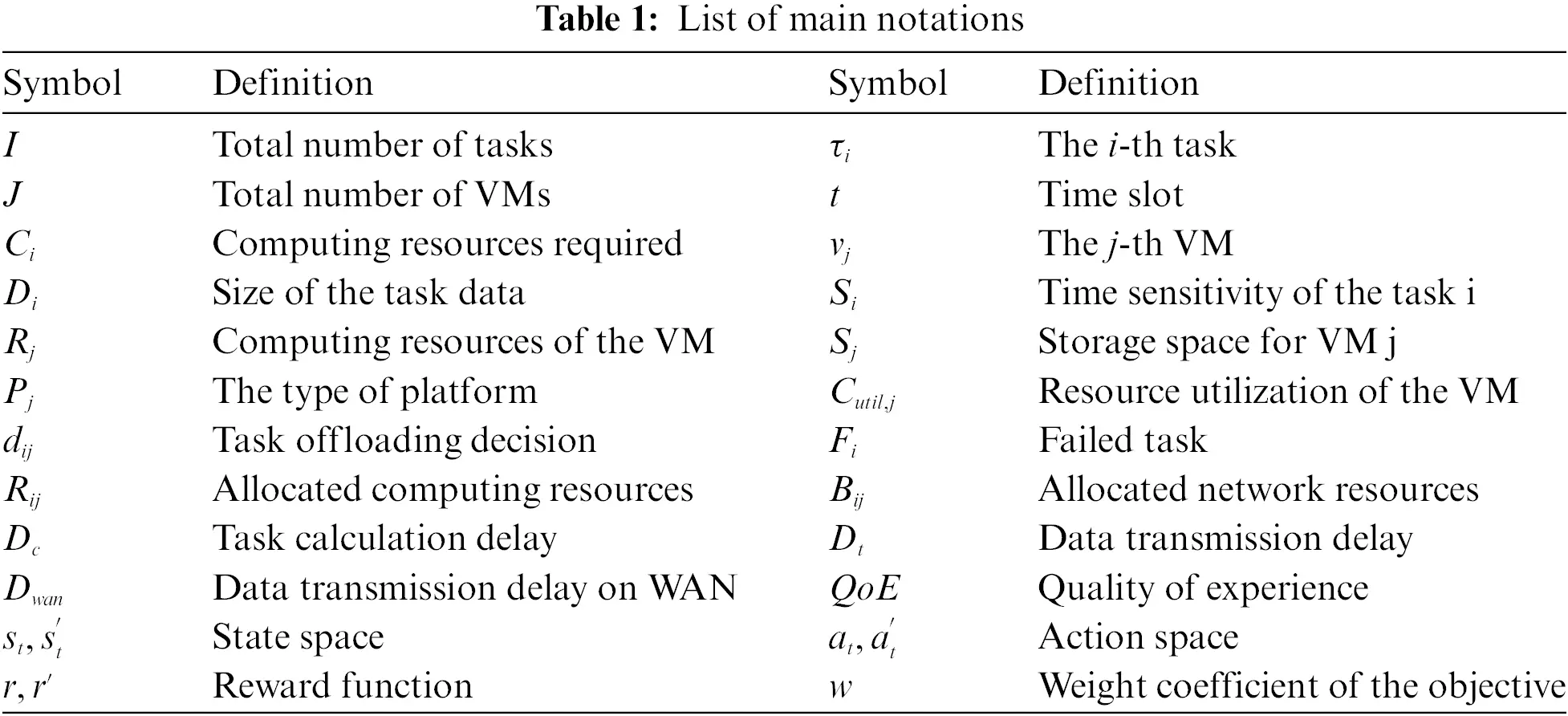

To describe the problem under investigation, let the system’s operating time be T with time slots t∈{1,2,…,T}, where each time slot has a duration of Δt. The total number of tasks and virtual machines are denoted as I∈Z+ and J∈Z+, respectively. Additionally, each task waiting to be offloaded has multiple attributes defined as τi=(Ci,Di,Si), where Ci represents the computational resources required by the task (in MIPS), Di denotes the size of the task data (in bytes), and Si indicates the time sensitivity of the task. Furthermore, each computing node is defined as vj=(Rj,Sj,Pj,Cutil,j), where Rj represents the computational resources (in MIPS), Sj denotes the data storage resources (in bytes), Pj indicates the type of platform where the VM is located (1 for edge, 2 for cloud), and Cutil,j represents the resource utilization. Thus, the offloading decision variable dij indicates whether the task is assigned to a virtual machine j, this is a common definition in this type of research [20,22]:

dij={1,if τi is assigned to vj0, otherwise(1)

Accepted offloaded tasks will be allocated computational resources Rij(t) and network bandwidth resources Bij(t). However, not all tasks can be completed within the specified time due to various uncertainties. Therefore, we define the failure state of a task as:

Fi(t)={1,if task i  fails0, otherwise(2)

Consequently, the average task failure rate can be expressed as:

F¯(t)=1N∑i=1NFi(t)(3)

In this case, the remote server operates in timesharing mode, which means multiple tasks can be executed in parallel on the server providing computational resources. The computational delay of the offloaded tasks can be expressed by:

Dc(i,j)=CiRj⋅(1−Cutil,j)(4)

where Ci represents the computational resource demand of the task, and Cutil,j denotes the resource utilization for VMj. In addition to the computation time associated with tasks, another significant delay that contributes to the overall completion time is the transmission delay of task data. In the context of this study, multiple TDs are competing for the limited bandwidth of the wireless access network to upload their data to the edge-computing infrastructure. However, the transmission rate for each data transfer is subject to temporal fluctuations due to device mobility and intricate contention conflicts. Consequently, it is imperative to dynamically optimize the scheduling of available communication resources for each task’s data within each time slot. Fig. 2 illustrates the fundamental principle of bandwidth adjustment for multiple data streams across time slots.

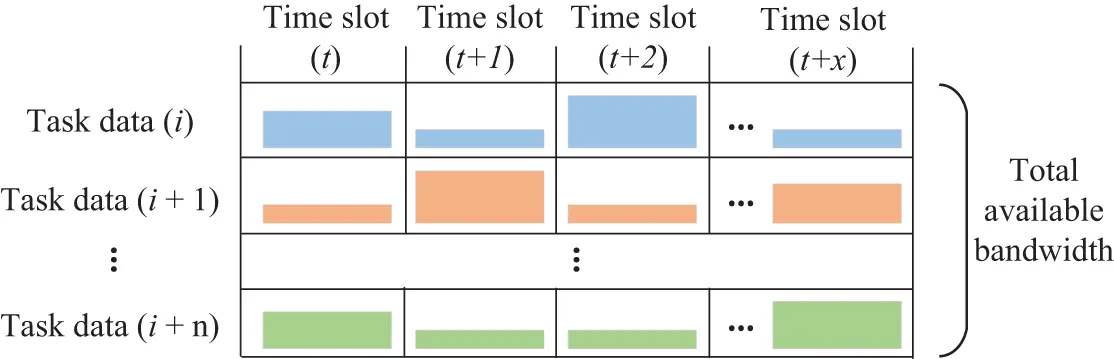

Figure 2: The fundamental principle of bandwidth adjustment for multiple data streams

Here, the downstream network transmission delay is neglected due to the size of the task computation results being significantly smaller than the size of the uploaded data, and the downstream bandwidth typically being larger than the upstream bandwidth [35–37]. The delay associated with the data transmission over the network can be denoted by:

Dt(i)=DiBij(t)+Dwan(i)(5)

where Dwan(i)=0 when the task is assigned to the edge server. For cloud computing, where data is transmitted over the Wide Area Network (WAN), the delay is modeled using an M/M/1 queue system due to the more complex nature of the transmission [38]. Thus, service delays can be expressed as:

Ds(i,j)=Dc(i,j)+Dt(i)(6)

In high-density IoT networks, the substantial volume of upload data streams from terminal devices (TDs) competes for the limited available bandwidth of the wireless access network. The data associated with tasks should be transmitted to the matched computing nodes at appropriate times. Therefore, the optimization objective for bandwidth resource allocation is to minimize the service time of tasks while improving resource utilization: min∑i=1NDs(i,j), while also enhancing the Quality of Experience (QoE): maxU(Rj,QoE(t)). Consequently, the objective function can be expressed as:

min𝒪=w1∑i=1NDs(i,j)+w2(1−1M∑j=1MUj)−w3QoE(t)−w4∑i=1NSis.t. C1:∑i=1NdijCi≤Rj⋅(1−Cutil,j)∀j C2:Cutil,j<1∀j C3:∑j=1Mdij=1∀i(7)

where w1,w2,w3,w4 are weighting coefficients and w1+w2+w3+w4=1. The allocation of weights should be optimized according to the requirements of different application scenarios. Constraints C1 and C2 denote that the scheduler will not oversubscribe resources to tasks waiting for offloading. Constraints C3 specifies that each task can only be offloaded to a single computing node. For clarity, the main notations are shown in Table 1. It is worth mentioning that the model can be enhanced by adding more parameters and constraints for different application contexts.

4  Proposed Asynchronous Data Transmission Policy (ADTP) Based on Reinforcement Learning

In this section, we address the optimization problem presented in Section 3. An asynchronous resource allocation-based data transmission optimization strategy is proposed, which aims to minimize the average completion time of tasks. This optimization method first utilizes Deep Q-Network (DQN) to determine the virtual machine to which task offloading requests are assigned. Subsequently, it employs a Deep Deterministic Policy Gradient (DDPG) approach to dynamically generate bandwidth allocation decisions for task data transmission. Fig. 3 illustrates the proposed Asynchronous Data Transmission Protocol (ADTP) logical framework. Furthermore, the VM allocation decisions are event-driven and are not repeated in every time slot to reduce computational load and energy consumption. In contrast, adjustments to wireless communication resources occur in every time slot due to the mobility of the TD and the rapid changes in network conditions.

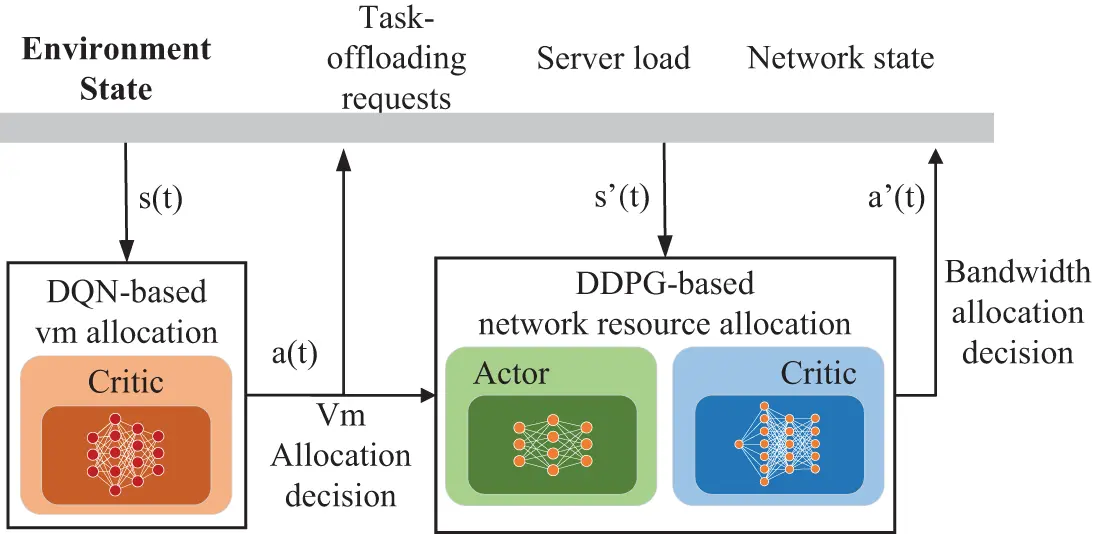

Figure 3: The architecture of CRADTP

For VM allocation, we employ the widely recognized DQN-based approach to facilitate offloading decisions [39–41]. The inputs to the DQN encompass the operational state of the edge network, the resource requirements of the tasks, and the failure rates associated with task offloading. The output generated by the decision-making algorithm is an allocation vector that delineates the offloading of tasks to designated VMs. The reward for the algorithm is derived from the weighted sum of the service time and user satisfaction of the offloaded tasks, thereby incentivizing optimal performance in task allocation. The state-action space and reward definitions for the reinforcement learning algorithm are as follows:

State Space: Let S represents the system state space. The current system state space s∈S is expressed as:

st={dji(t),Rj(t),F¯(t),Ds(i,j),Cutili,j(t),Ci,Di}(8)

where dji(t) denotes the distribution of the task on the virtual machine based on ongoing offloading decisions. Rj(t) is the available MIPS on the server j. F¯(t) is the average task failure rate. Ds(i,j) is the service time. Cutili,j(t) denotes the computational resource utilization of VMj. Ci is the Computing resources required for the task i. Di is the data size of task i.

Action Space: The action space for the DQN algorithm will be the selection of a VM for a particular task. Thus, the action a∈A can be given by:

at={dij}(9)

where at is the action to allocate task i to VMj.

Reward: The reward function will be designed to encourage the allocation of tasks to the servers that can minimize the expected completion time.

r(s,a)=−(β1Ds(i,j)+β2vQoE(t))(10)

where β1 and β2 stand for the weight parameters, which indicate the preferences for service time and satisfaction. Here, β1,β2∈[0,1] and β1+β2=1.

Overall, the DQN iteratively learns and generates offloading decisions for the matching of tasks and VMs. The pseudocode for the algorithm is presented in Algorithm 1.

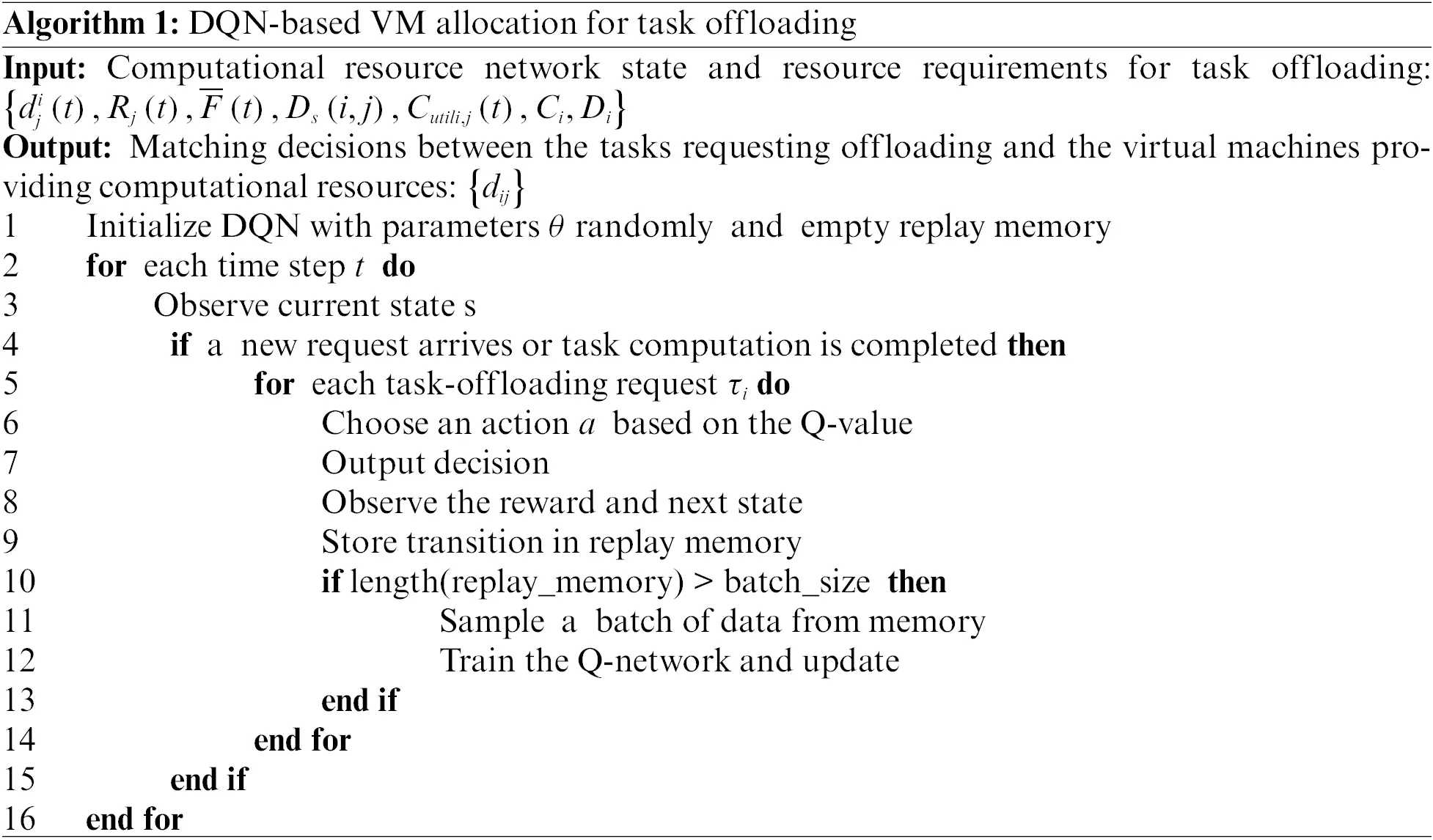

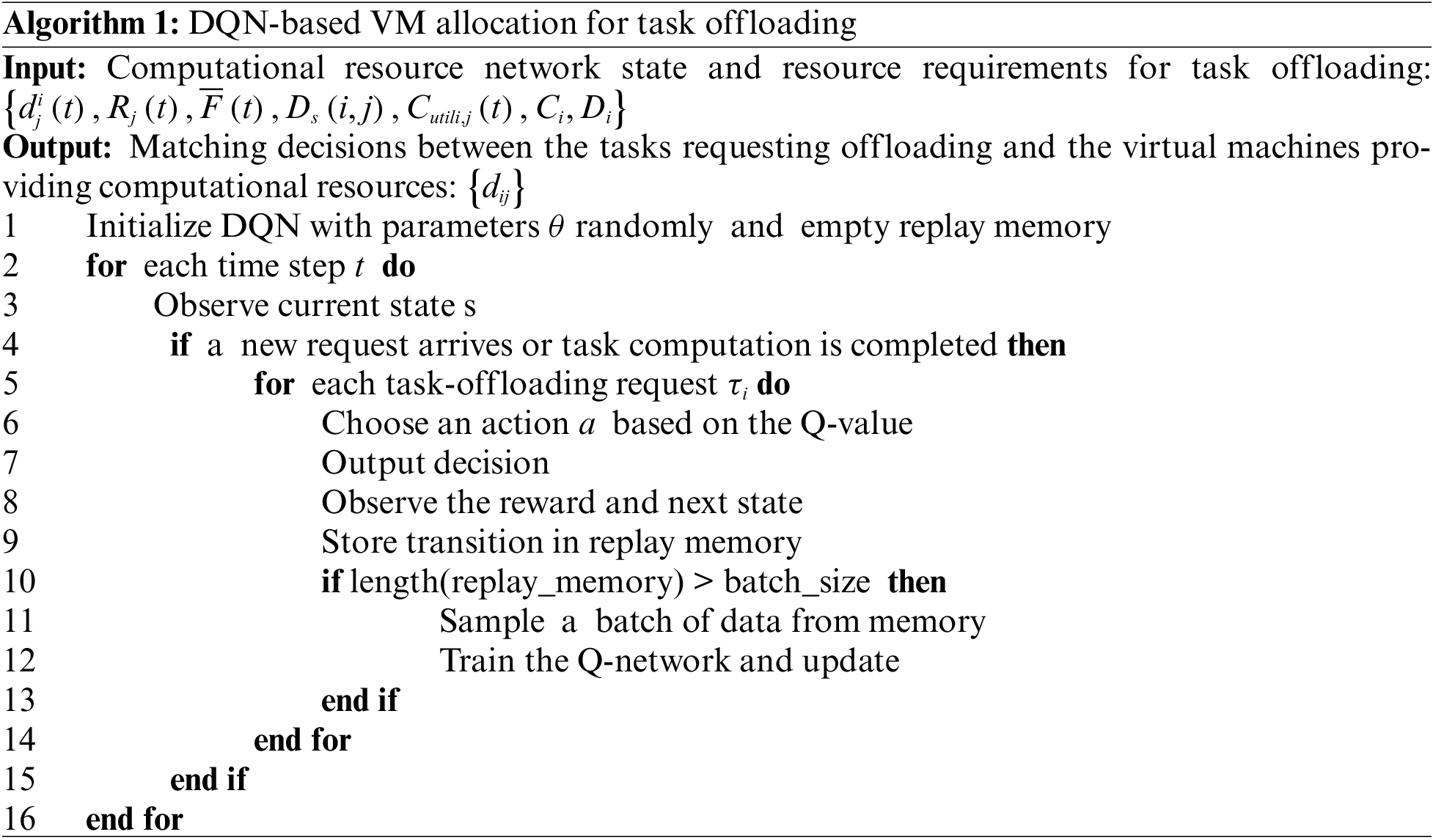

As illustrated in Algorithm 1, the neural network and replay memory are initialized in the first line. The second line initiates a loop to iteratively execute the core functionalities of the algorithm at each time step. Lines 3 and 4 evaluate the necessity for offloading decisions and algorithm updates based on the current state of the edge network. The decision-making component remains inactive when no new offloading requests are received and no task computations are completed, thereby minimizing computational resource usage and energy consumption. Lines 6 to 9 execute the generation and output of resource-matching decisions based on reinforcement learning. Finally, Lines 10 to 12 are devoted to the periodic updating of the neural network to enhance its adaptability to scheduling optimizations. The core unit of the algorithm operates based on DQN, allocating VM resources for incoming task offloading requests in each time slot. Therefore, the algorithm has a time complexity of O(N).

In the context of the scenarios addressed in this study, we adopt the widely recognized DDPG-based [42–44] approach to dynamically allocate bandwidth in each time slot, capitalizing on its self-learning capabilities and proficiency in generating continuous values. The state-action space and reward definitions for the reinforcement learning algorithm are as follows:

State Space: The state space for the DDPG algorithm will represent the current state of the network regarding bandwidth allocation, which includes:

st′={at,Rj(t),F¯(t),Ds(i,j)}(11)

where at is the decision made by the DQN for offloading tasks to the VM. Rj(t) denotes the computational resources of VMj. F¯(t) represents the average task failure rate. Ds(i,j) is the service time of the task τi.

Action Space: The action space for the DDPG algorithm will be the bandwidth allocation for each task in each time slot.

at′={Bij(t)}(12)

where at′ is the bandwidth allocated to task τi in time slot t.

Reward: The reward function for the DDPG algorithm will encourage efficient bandwidth allocation that minimizes the total transmission time for all tasks.

r′(s′,a′)=−(δ1Ds(i,j)+δ2vQoE(t)+δ3Cnet(t))(13)

where δ1,δ2 and δ3 represent the weight parameters, which specify the preferences for service time, satisfaction and network utilization. Here, δ1,δ2,δ3∈[0,1] and δ1+δ2+δ3=1.

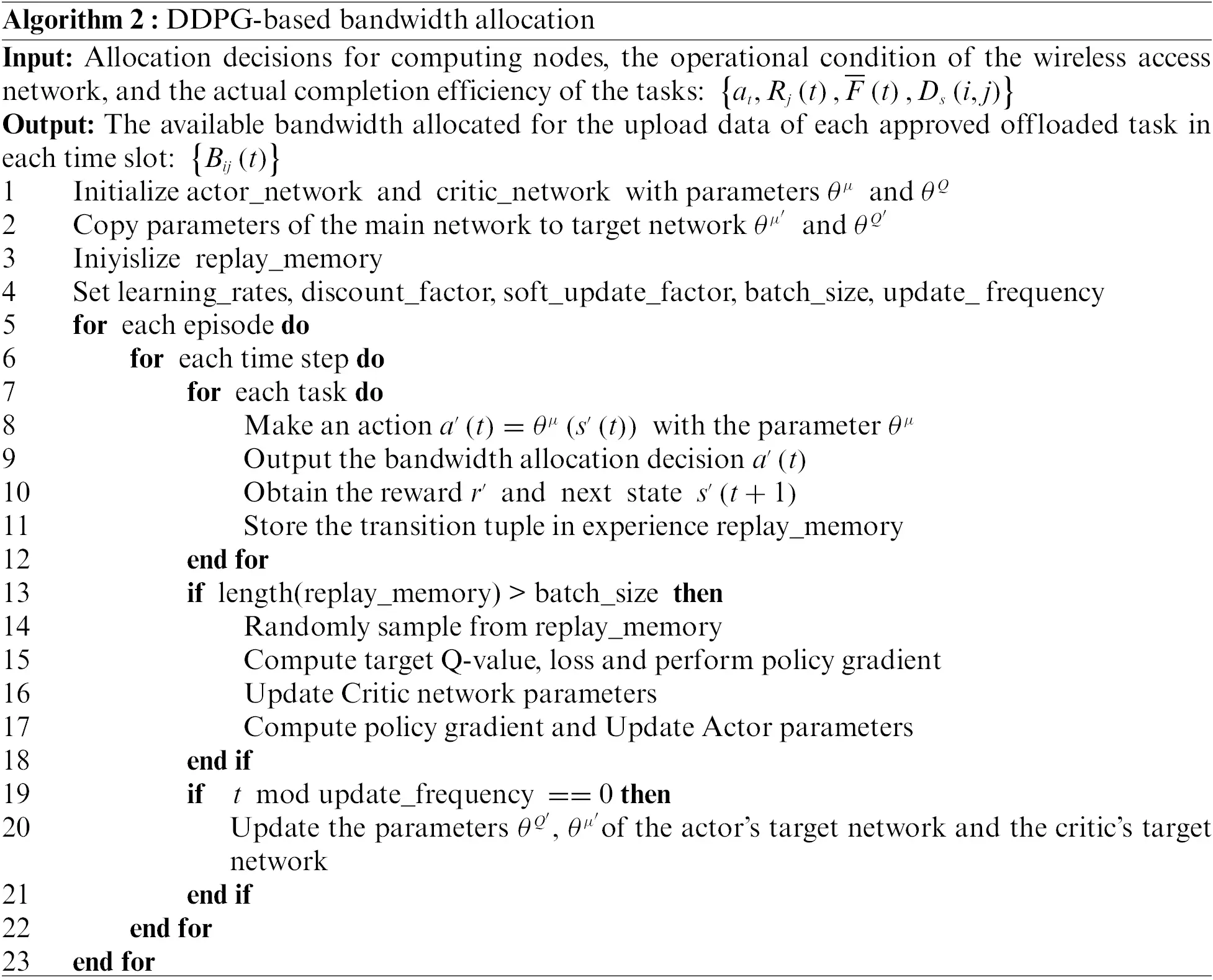

The pseudocode for the algorithm is presented in Algorithm 2.

As illustrated in Algorithm 2, the Actor-Critic networks are created in Lines 1 and 2. Correspondingly, various hyper-parameters and the buffer for experience replay are initialized in Lines 3 and 4. Lines 5 to 7 establish three nested loops to iterate through each training epoch, each time slot, and each task. Lines 8 to 11 are dedicated to generating bandwidth allocation decisions and saving the replay memory records. Lines 13 to 18 conditionally execute model training. Finally, Lines 19 to 21 update the target networks when the update conditions are met. The time complexity of the DDPG part in the algorithm is linear. When the algorithm operates continuously in each time slots, the overall time complexity is O(N).

5  Performance Evaluation

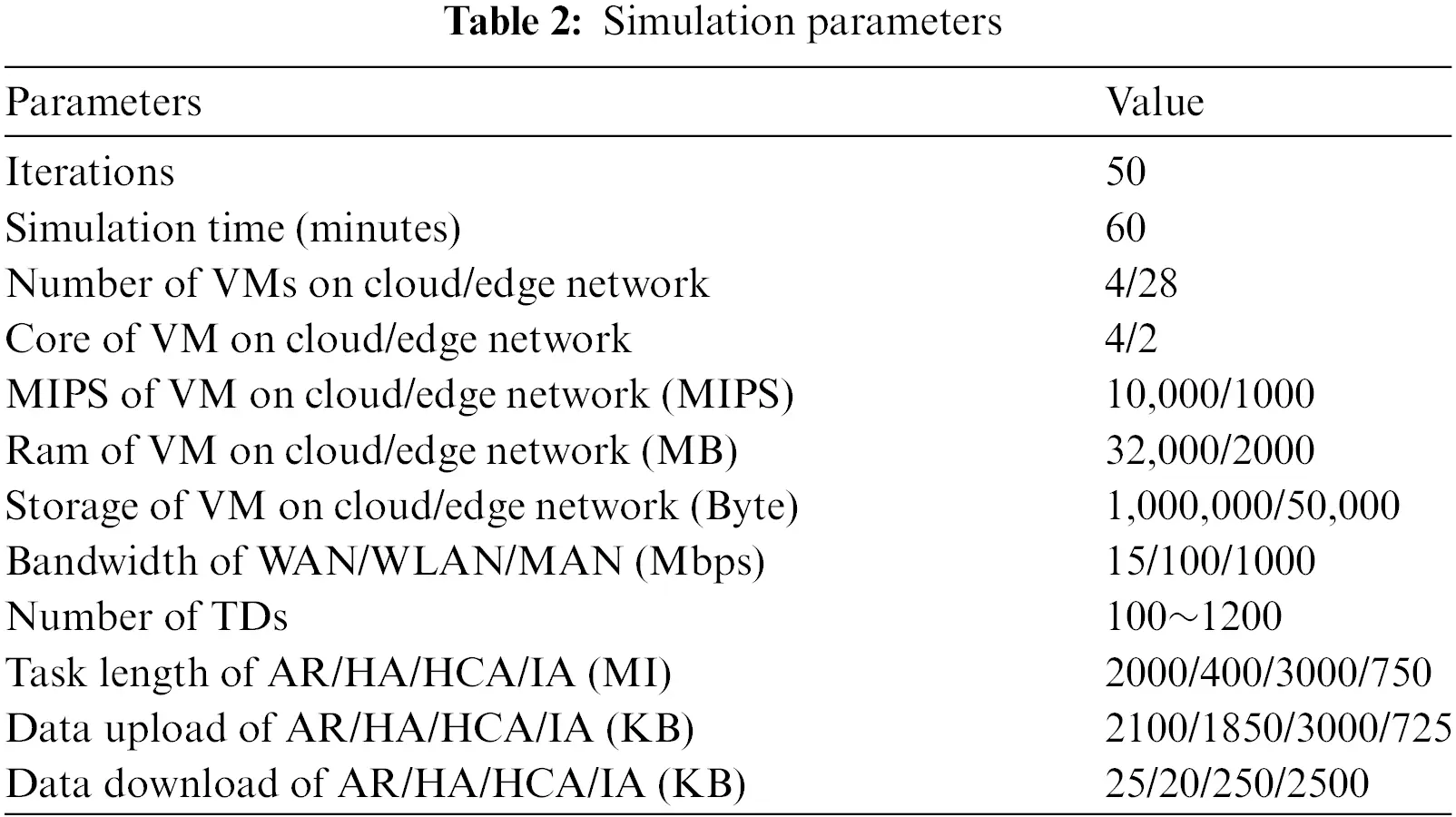

In this section, we verify the performance of the proposed task data transmission policy through simulation experiments. We use EdgeCloudSim [34] as the foundational environment for task offloading simulation. Additionally, we extend the network transmission and virtual machine allocation modules of EdgeCloudSim. Thus, the proposed ADTP and the comparison algorithms can be implemented. The resource allocation module, based on deep neural networks, is implemented in PyTorch 3.8 and provides functional enhancements to EdgeCloudSim via a custom developed interface. The computer hardware comes with inter I7 CPU, 16 GB RAM to support the operation of the simulation environment. The detailed parameters of the experiments are shown in Table 2.

In the context of task offloading, the most significant factors affecting user experience are delay and failure rate. Therefore, we concentrated on evaluating task data transmission delay, average service time, and the effects of various factors on task offloading failure rates to demonstrate the advantages of ADTP. To visually evaluate the performance of the proposed ADTP, the following benchmark strategies are simulated for comparison:

•   Bandwidth Sharing (BS): This serves as the baseline. In this scheme, all tasks engage in unrestricted competition for data uploads.

•   Relative-execution Deadline First (RDF): In this scheme, the priority of each task’s data flow is dynamically adjusted based on deadlines when bandwidth resources become scarce [45].

•   Double Deep Q-Network (DDQN): In this scheme, the bandwidth resources of the AP are divided into multiple virtual channels of identical performance. A deep learning network collects information on data transmission requests and network bandwidth conditions to dynamically optimize bandwidth allocation [46].

•   Asynchronous Data Transmission Policy (ADTP): Proposed dynamic data transmission strategy based on asynchronous reinforcement learning to facilitate optimized scheduling of task data flows and enhance the overall performance of task offloading.

Network latency is the primary focus of this study. Fig. 4 compares the network latency of various solutions. The baseline free competition scheme exhibits lower performance due to a high incidence of conflicts during the competition process, resulting in a significant number of data transmission failures. In contrast, the RDF approach strives to ensure that multiple packets belonging to the same task are uploaded with priority. Furthermore, the DDQN-based solution is capable of comprehensively gathering information regarding data transmission requests and network bandwidth conditions to dynamically optimize bandwidth allocation, thereby demonstrating superior performance. However, it lacks awareness of task execution processes within the virtual machines (VMs). Additionally, the fixed-bandwidth allocation of network resources into virtual channels introduces a challenge related to excessive scheduling granularity. In contrast, the Asynchronous Data Transmission Policy (ADTP) holistically considers task offloading decisions and network conditions to deliver refined network resource allocations. Thus, this approach exhibits significantly higher performance.

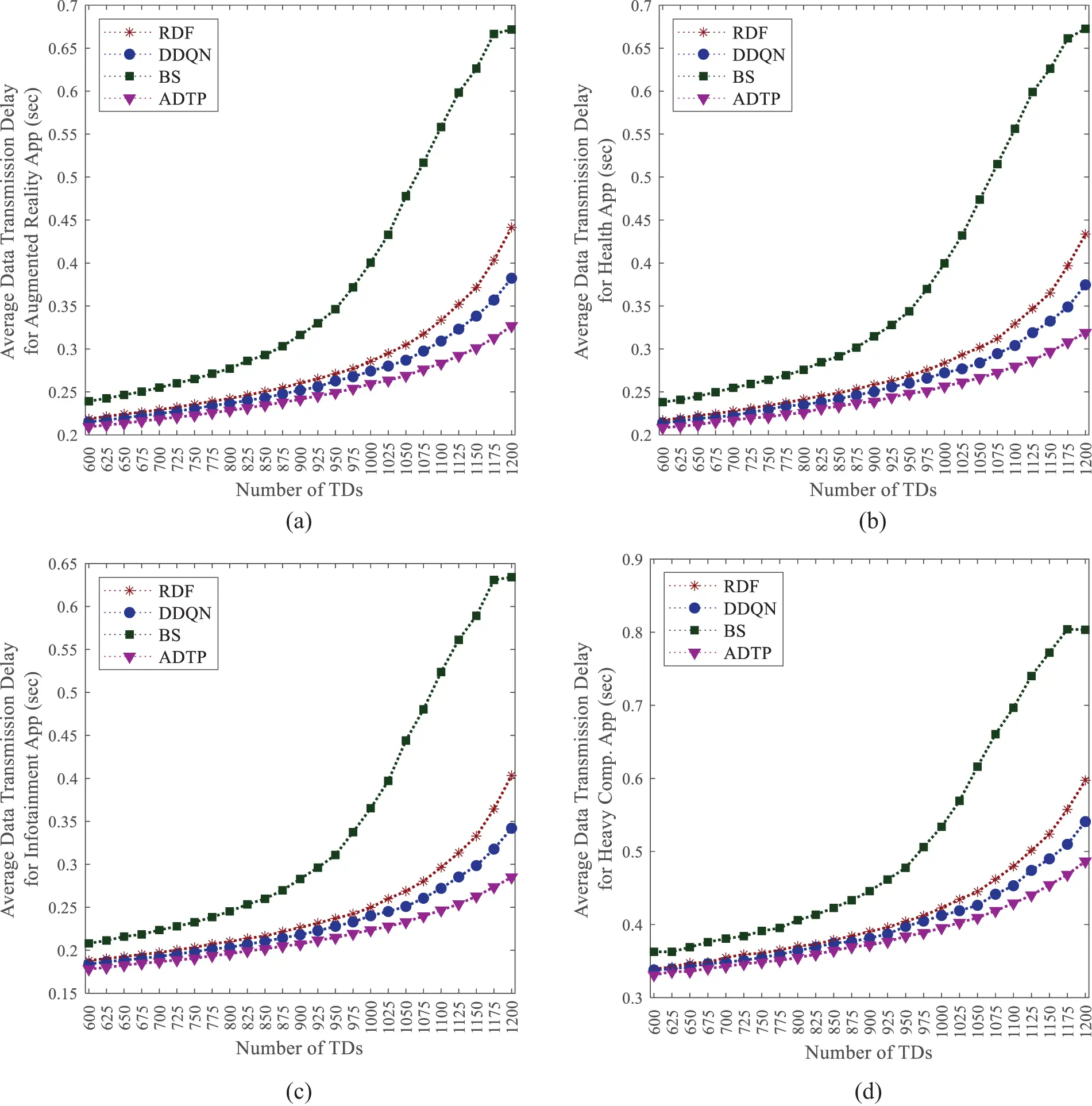

Figure 4: Average data transmission delay for (a) Augmented reality App; (b) Health App; (c) Infotainment App; (d) Heavy Comp. App

Additionally, network latency and computational latency together influence the overall service time for tasks. Fig. 5 presents a comparative analysis of service times for each application, further highlighting the relative advantages of the ADTP. This superiority is attributable to the fact that network transmission latency constitutes a critical component of overall service time. As the duration of task data transmission diminishes, there is a corresponding reduction in service time. It is noteworthy that the disparities in service times across the various schemes remain relatively minimal when the number of mobile devices is limited, as the data flow within the wireless network is not significantly congested. Conversely, the influence of data transmission scheduling on service time becomes markedly more pronounced as the number of mobile devices increases.

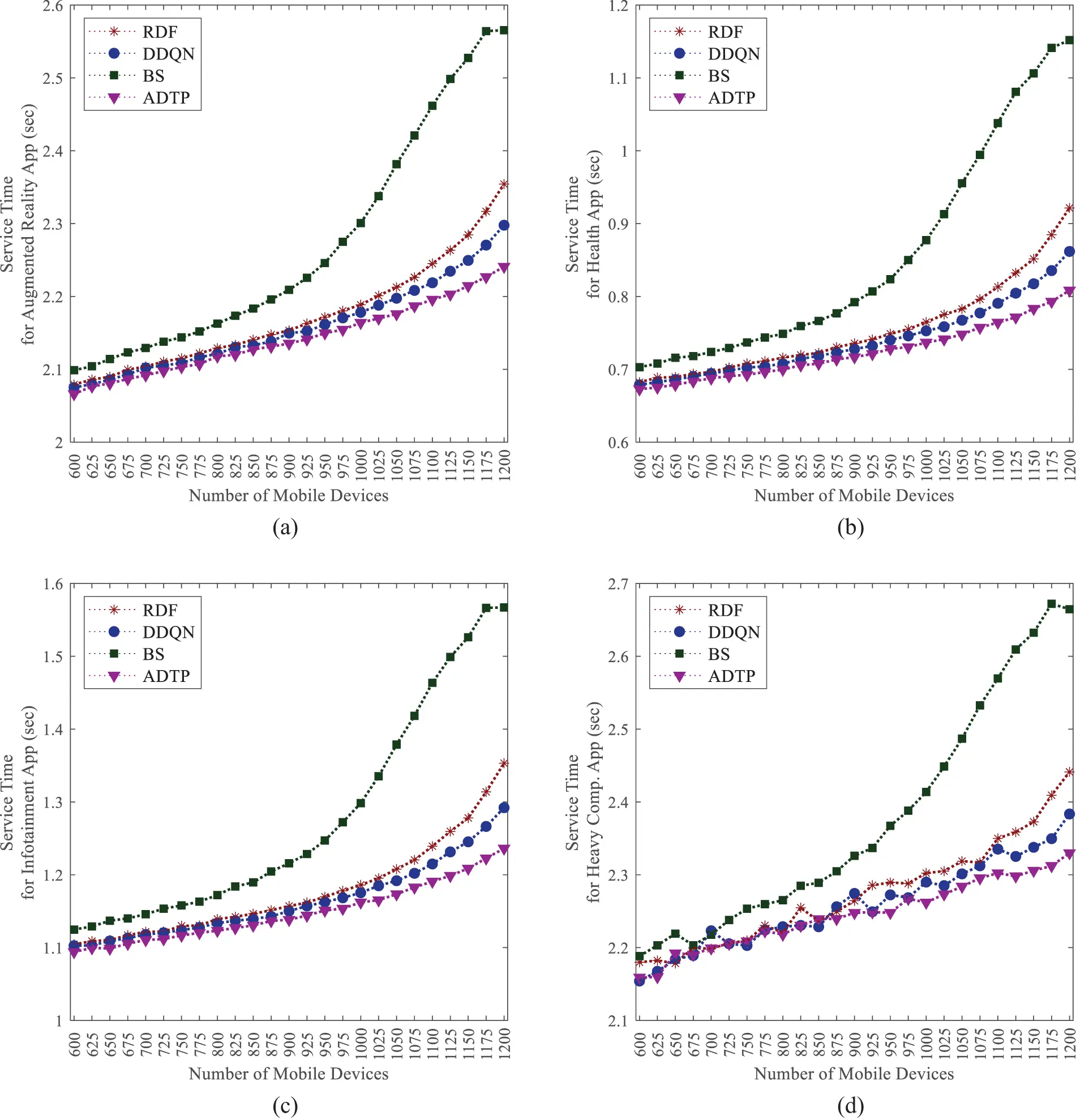

Figure 5: Service time for (a) Augmented reality App; (b) Health App; (c) Infotainment App; (d) Heavy Comp. App

While many factors can lead to task offloading failures, the primary challenges stem from inadequate computational resources and limited network transmission capabilities. As shown in Fig. 6, both data upload conflicts and resource limitations of VMs are equally significant contributors to task failures when the number of TDs is relatively low. However, as the number of TDs increases, inefficient mechanisms for network resource allocation give rise to communication-related issues, which subsequently become the predominant factor leading to task failures. In this context, the proportion of task failures attributable to computational resource constraints exhibits a consistent decline. Conversely, the ADTP demonstrates effective data transmission optimization capabilities, which results in computational blocking becoming the main reason for task failures.

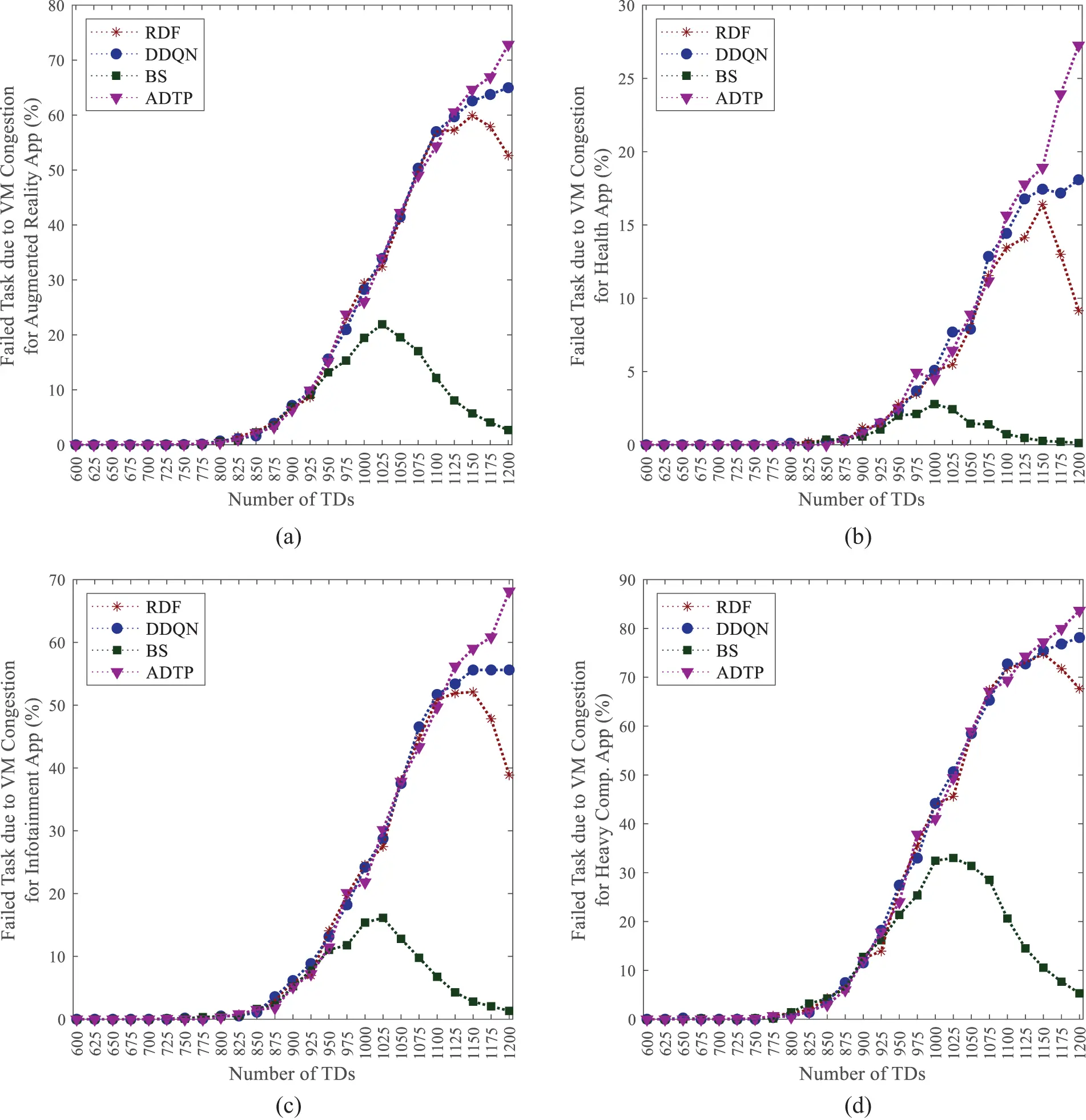

Figure 6: Failed task due to VM congestion for (a) Augmented reality App; (b) Health App; (c) Infotainment App; (d) Heavy Comp. App

Fig. 7 illustrates the relationship between data transmission efficiency and task failure rates. Notably, tasks offloaded to the edge-computing network require data uploads solely through the wireless access network. In contrast, tasks directed to the cloud platform necessitate multi-hop data transmission through both the WAN and the wireless access network. This study concentrates exclusively on optimizing data transmission within the wireless access network, while the WAN is configured in a resource-sharing mode. Analysis of Fig. 7 reveals that when the density of task offloading is low, the influence of various network resource scheduling strategies on task failure rates is minimal. This phenomenon can be attributed to the capability of task data to reach computing nodes within an acceptable time frame. Conversely, as the volume of offloaded tasks escalates, the efficient scheduling facilitated by the ADTP significantly mitigates data transmission delays and failure rates, thereby resulting in a decreased overall task offloading failure rate.

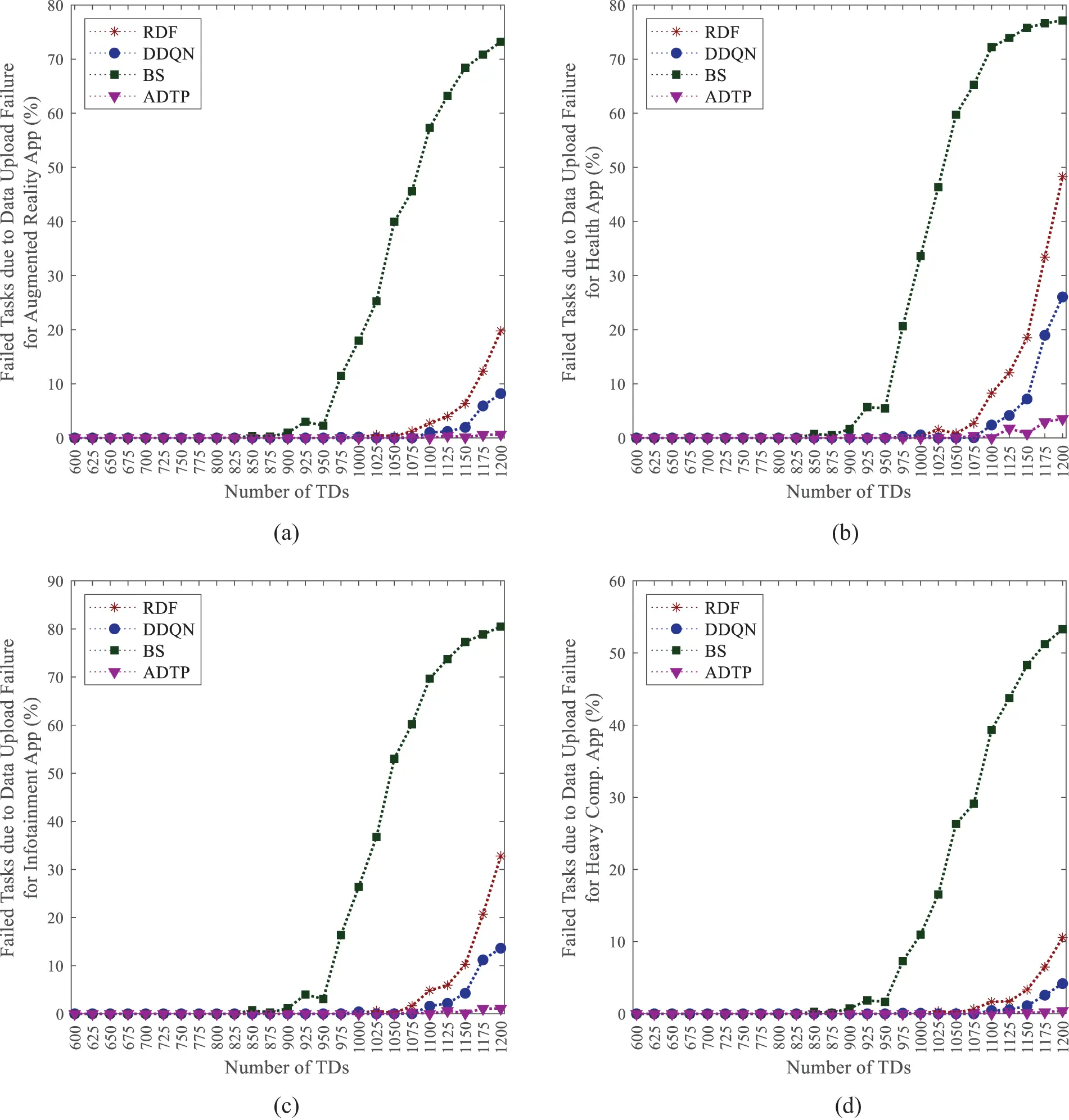

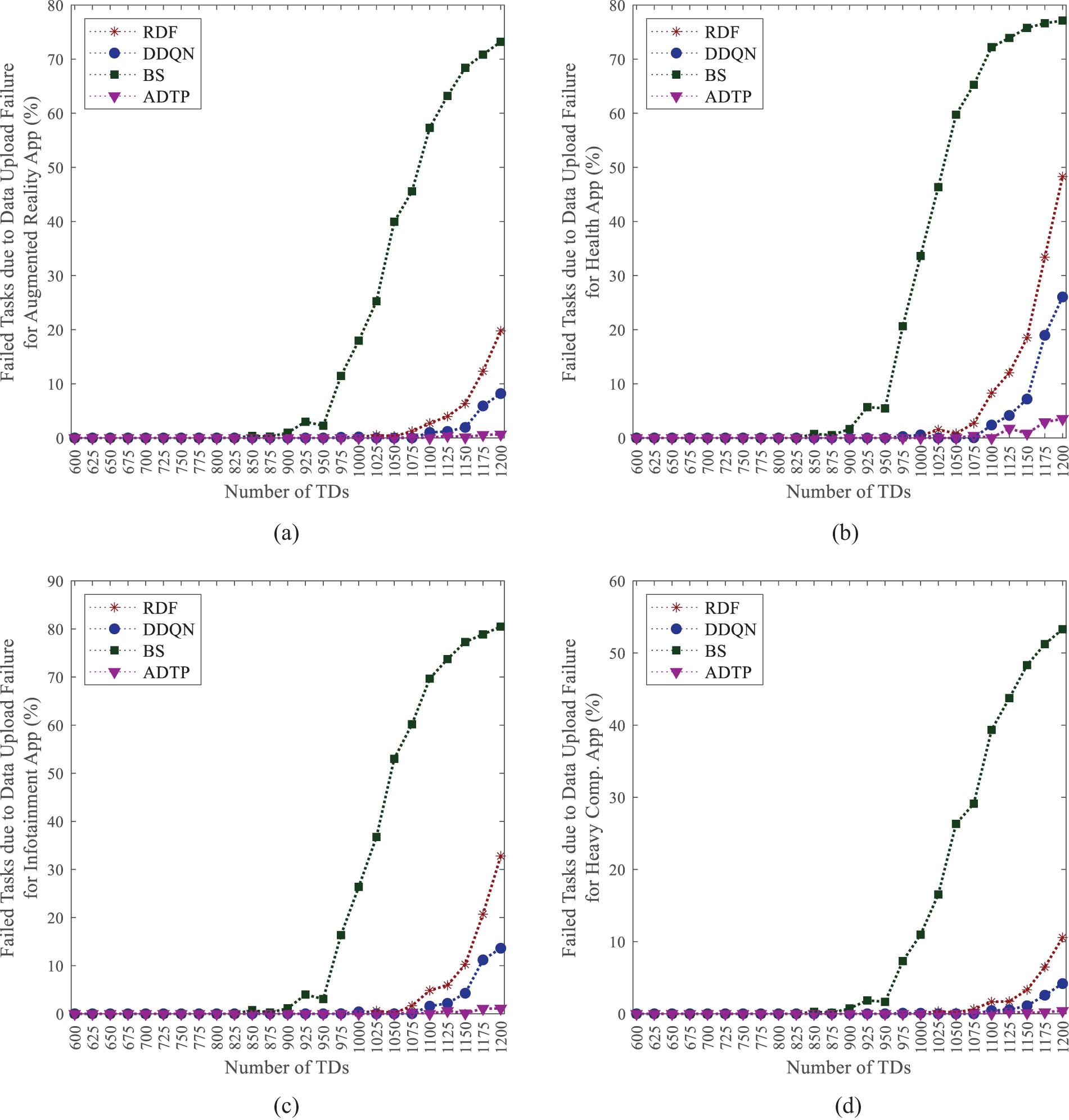

Figure 7: Failed task due to data upload failure for (a) Augmented reality App; (b) Health App; (c) Infotainment App; (d) Heavy Comp. App

In summary, the ADTP effectively monitors the requirements for task data transmission and the fluctuations in network operating conditions to generate optimized bandwidth resource allocation strategies. As a result, task data can be transmitted efficiently to VMs, rationally utilizing the available network bandwidth. Thus, the overall operational performance of the task offloading network is enhanced.

6  Conclusion

Task offloading technology has developed significantly in this information age. In this paper, we propose and focus on the optimization of data transmission within task offloading scheduling in high-density IoT network environments. To address this issue, we consider the dynamic allocation of available bandwidth for each uploaded task data stream, facilitating the efficient execution of tasks on virtual machines based on the timely arrival of task data at the virtual computing nodes. We propose an Asynchronous Data Transmission Policy (ADTP) to jointly consider the matching of tasks with virtual machines and the congestion status of the wireless access network. ADTP comprises two asynchronously functioning intelligent agents, each focusing on the discrete VM allocation decisions and the continuous bandwidth adjustment, aimed at optimizing the overall task offloading data transmission.

Experimental results indicate that ADTP effectively reduces network latency and improves data transmission efficiency in resource-constrained networks. Consequently, more tasks can be timely transferred to VM hosts for execution. This reduces the service time for task offloading and increases the success rate of task offloading. Notably, as the number of TDs increases, task offloading failures tend to be primarily driven by insufficient VM resources rather than transmission barriers. This further demonstrates that ADTP effectively optimizes the transmission process of task data.

The limitation of this study lies in its exclusive focus on optimizing the data uploads of task data from the terminal device, without addressing the optimization of data transmission from the edge network to the cloud. In future work, we aim to jointly optimize the data transmission process of task data within the edge-cloud continuum. Additionally, we will consider incorporating Spiking Neural Network (SNN) technology to reduce the computational costs and energy consumption of decision generation.

Acknowledgement: We thank UTM for supporting us during this work.

Funding Statement: The authors received no specific funding for this study.

Author Contributions: The authors confirm their contribution to the paper as follows: Dayong Wang contributed to conceptualization and writing—original draft preparation, Babangida Isyaku and Dayong Wang contributed to methodology, Dayong Wang and Liping Lei contributed to integrate the results from multiple rounds of experiments and analysis, Babangida Isyaku and Kamalrulnizam Bin Abu Bakar contributed to writing reviews and editing, and Kamalrulnizam Bin Abu Bakar supervised the process of the research. All authors reviewed the results and approved the final version of the manuscript.

Availability of Data and Materials: Not applicable.

Ethics Approval: Not applicable.

Conflicts of Interest: The authors declare no conflicts of interest to report regarding the present study.
