A Dynamic YOLO-Based Sequence-Matching Model for Efficient Coverless Image Steganography

1  Introduction

Steganography is a method used to transmit secret information through various media such as videos, images, audio, or text. Despite significant advancements in image steganography [1–5], modifying image pixels or transform domain coefficients always leads to changes in the statistical characteristics of the images, which can be detected by some steganalysis techniques. In contrast, coverless steganography [6] directly selects images as stego ones based on mapping rules. Zheng et al. [7] improved this method by incorporating Scale-Invariant Feature Transform (SIFT) feature points, enhancing resistance to rotation and scaling attacks. Zou et al. [8] introduced a model based on average pixel values to increase steganography capacity. In [9,10], sub-block coefficients in the transform domain are used to create robust feature sequences, which demonstrate improved resistance to noise attacks compared to previous models but are sensitive to geometric attacks. In 2023, Tan et al. [11] focused on image features and designed a low-similarity feature for mapping sequences, which reduces the database load to some extent.

Deep learning, especially reinforcement learning [12], is increasingly being utilized in steganography and coverless steganography based on mapping rules. In 2020, Luo et al. [13] proposed a steganography method based on Faster Region-based Convolutional Network (Faster RCNN), which established a mapping dictionary between objects and labels for concealing secret information. This method is resilient against geometric attacks but less tolerant to noise compared to previous works. In the same year, Liu et al. [14] employed Densely Connected Convolutional Networks (DenseNet) [15] to extract high-dimensional Convolutional Neural Network (CNN) features for hash sequence mapping. Another approach [16] hides secret information through semantic feature extraction and image object region segmentation. Additionally, a coverless scheme using camouflage images and CNN features was introduced [17], which offers more flexible capacity settings and robustness against image attacks. However, these techniques usually require building a sizable image database, posing challenges in maintaining uniqueness and preventing feature collisions among those extracted from different images. Tan et al. [18] introduced a novel approach to coverless image steganography, leveraging human pose data for enhanced concealment and robustness against steganalysis, achieving up to 92% average robustness across multiple datasets.

Cover image generation is another method to reduce database load, which uses generative models, such as Generative Adversarial Networks (GAN) [19]. In 2017, using Auxiliary Classifier Generative Adversarial Network (ACGAN) was proposed to create stego images by converting hidden data into noise and feeding it into the ACGAN network [20]. However, the generated images lacked realism. Zhang et al. [21] used GAN to create several texture images and map them to binary sequences. However, the diversity of images decreases when their number exceeds a certain threshold. To boost hiding capacity, Chen et al. [22] used SIFT [23] to select images and Star Generative Adversarial Network (StarGAN) [24] to create new images by mapping facial features to hidden data. While this improves security and robustness, the capacity is still limited. A multi-domain image transformation method [25] was proposed to handle the lack of cover images. It hides messages with a generator and recovers them with a classifier. Another method [26], inspired by neural network irreversibility, used gradient descent to update the noise vector for data extraction. In 2024, Wen et al. [27] designed a method to convert stego images into realistic ones, creating more high-quality images. Another scheme [28] used GANs to generate anime characters for secure communication, improving image quality with super-resolution GAN (SRGAN). This method offers high embedding capacity and robustness with low distortion, surpassing existing text-hiding techniques. While these methods reduce the load on image databases, the resulting images lack quality and diversity, making them easier for attackers to detect. Additionally, image content might be lost or altered during network operations, affecting data extraction. Especially, Setiadi et al. [29] reviewed and classified steganographic methods, challenges, and datasets, and Table 1 compares several methods.

In coverless steganography, we are exploring the idea of making the length of hidden information in each cover image variable rather than fixed. This is aimed at enhancing the hiding capacity while reducing the burden on the database. A sequence of length u generates (u2 + u)/2 binary substrings, which can be represented as an image. This approach allows for dynamic matching of secret information fragments with substrings of varying lengths. The larger the u is, the more substrings are yielded for information matching, and relatively fewer images are needed in the database. To enhance the limited robustness of coverless steganography, we leverage high-level semantic features for flexible mapping rules. Recent advancements in object detection models, especially YOLO, have shown superior real-time performance and higher average accuracy compared to techniques like Deformable Part Models (DPM) and Region-based Convolutional Neural Networks (R-CNN). This solution uses YOLO mainly due to its fast inference speed and stable feature extraction performance. The main contributions of this paper are as follows:

1.    Given the superior detection accuracy and inference time of YOLOs, we explored an Optimal Object Filtering Algorithm (OOFA) using YOLO-v5 to establish a robust mapping rule between the secret information and cover images. Tests conducted under geometric and noise attacks demonstrate the remarkable robustness of our method, which reaches nearly 87.4%.

2.    To increase the capacity for hiding information within images, we extend the sequence key length sufficient to dynamically match the secret information with multiple substrings. Experiments have shown that, under ideal conditions, our approach outperforms existing methods, with an average hiding capacity of 19 bits per image.

3.    To mitigate the impact of hiding capacity on image database load, we hide the information indirectly in the keys rather than in the cover images. In contrast to other approaches, ours requires fewer cover images to meet the same hiding capacity.

The rest of this paper is organized as follows. Section 2 introduces fundamental tools applied in the scheme; Section 3 presents the main idea of the proposed method; Section 4 provides experimental results and analysis; Section 5 consists of the conclusion, where we discuss future directions.

2  Relevant Model

The YOLO algorithm series employs a single-stage neural network to perform object detection, including positioning and classification [30]. While YOLO-v8 may have a higher theoretical accuracy, YOLO-v5 has a smaller model and simpler architecture, maintaining a relatively high accuracy rate and running faster. This makes it more suitable for real-time object detection tasks. Therefore, when considering both accuracy and real-time performance, it is more appropriate to choose YOLO-v5 over YOLO-v8 for object detection.

2.1 YOLO-v5

Without detailed grid partitioning, multiple targets are often present within the same grid [31]. However, the YOLO-v5 effectively addresses this shortcoming. The model uses two parameters to control its depth and breadth. It employs Mosaic data augmentation during training and adaptive image scaling during inference, enhancing inference speed by 37%. To prevent overfitting, it uses the DropBlock mechanism, which drops continuous regions of an activation map, forcing remaining units to learn better features. YOLO-v5 also incorporates a partial cross-stage network (CSPNet) to efficiently connect layers and enhance feature fusion, improving its performance.

At the output end, the CIoU loss function is adopted as the coordinate loss [32], which considers not only the overlapping area of the predicted bounding box(b) and the ground truth bounding box(b^), but also the distance between the center point of them. CIoU converges faster with fewer iterations and improves average precision and average recall for object detection. The effectiveness of the YOLO-v5 network in our system is verified by the experimental results.

LCIoU=1−IoU+D2(b, b^)C2(b, b^)+α⋅v(1)

v=(2π(arctan⁡(w^h^)−arctan⁡(wh)))2(2)

where IoU for assessing the overlap between box(b) and box(b^), D2(b,b^) denoting the distance between the center points of box(b) and box(b^), C2(b,b^) as the length of the diagonal of box(b) and box(b^), α for weighting the aspect ratio penalty term. And v as a variable quantifying area discrepancies between box(b^) and box(b). w^ and h^ represent the width and height of box(b^), while w and h represent the width and height of box(b).

2.2 YOLO-v5 Models

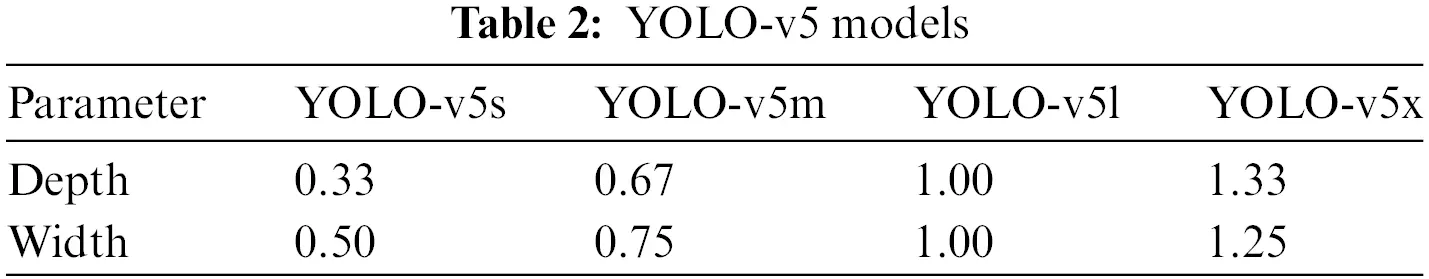

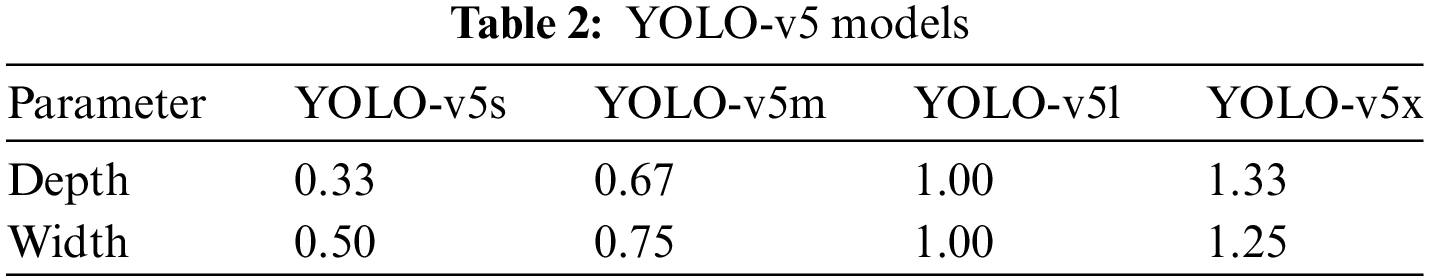

The YOLO-v5 model [33] includes four variations: YOLO-v5s, YOLO-v5m, YOLO-v5l, and YOLO-v5x. The depth and width parameters for these models are detailed in Table 2. YOLO-v5s has the smallest network depth and width, while the other three models are progressively deeper and wider versions of YOLO-v5s. Smaller network models have lower performance requirements on mobile devices, making them easier to deploy. Therefore, YOLO-v5s is employed in our scheme.

3  The Proposed Method

3.1 Overall Framework

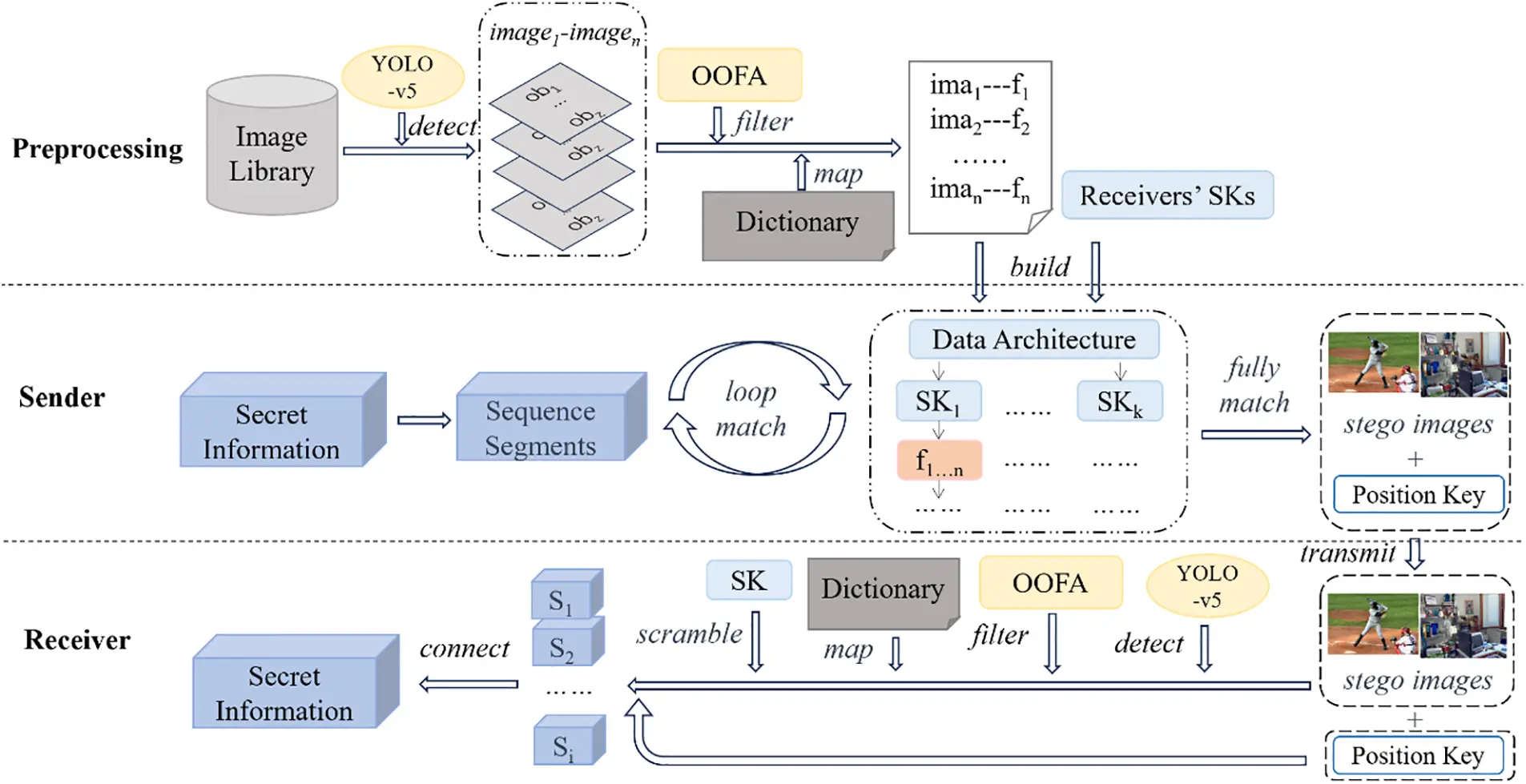

Fig. 1 illustrates the proposed framework, which consists of three main components: preprocessing, information hiding, and information extraction. Preprocessing is aimed at improving the efficiency of the sender in hiding information. During this stage, each receiver has a unique sequence key (SK). Once YOLO-v5 identifies all cover images in the database, a mapping dictionary must be established to generate the scrambling factors. These factors will then be used to scrambled the sequence keys, leading to the development of a data architecture based on the relationships between the sequence keys, scrambling factors, scrambled sequences, and cover images. Information hiding refers to the sender matching steganographic images based on the secret information. After secret data matches substrings of scrambled sequences, the sender transmits the position key and corresponding stego images to the receiver. Information extraction involves the receiver recovering the secret information from the set of steganographic images.

Figure 1: Flowchart of the coverless image steganography algorithm

3.2 Preprocessing

In our system, the sender and each receiver agree on a specific sequence key while ensuring perfect confidentiality. Preprocessing tasks like establishing the mapping dictionary, producing the scrambling factors, and creating the inverted index, are necessary before transferring the secret information.

3.2.1 Mapping Dictionary Creation

A mapping dictionary needs to be built to convert the object labels of images recognized by YOLO-v5 into scrambling factors. After all images in the database are detected by YOLO-v5, a label list is obtained for all the objects. These labels are sorted alphabetically and each object will be assigned a unique scrambling factor according to the mapping dictionary. The mapping rules can be updated periodically to ensure security, such as in ascending or descending order.

3.2.2 Sequence Key Distribution

Each receiver must be issued a unique sequence key of length t whose value is empirically set to 10000 following capacity and time cost testing. There are two approaches to assigning each receiver a specific sequence key. One way is to create a unique sequence by using the recipient ID as a random seed and reordering the initial sequence by the pseudo-random number generator. Another way is to manually distribute a bit-string of length t to each recipient, which exhibits a high degree of randomness, and when combined with proper security measures, it becomes exceedingly challenging for any third party to deduce the assigned bit strings. Considering that the system is more vulnerable to attacks if the attacker is skilled with the pseudo-random function and receiver IDs, we choose the first method for key distribution.

3.2.3 Scrambling Factor Generation

The previously created mapping dictionary has established a mapping relationship between the image objects and scrambling factors. YOLO-v5 may find multiple objects from an image since it handles multi-object classification and localization. It’s worth noting that those objects with lower category probabilities may not be detected again after the image is attacked, which would result in poor robustness of the steganography model. Therefore, our algorithm will eliminate those undesirable bounding boxes and keep only the ones with the highest category probability. The generation process of scrambling factors is given as follows:

Step 1: Detect an input image c with YOLO to get all the objects OB=ob1||ob2||…||obn. The area of the bounding box and class probability of each object are recorded as A(ob) and P(ob), respectively.

Step 2: In general, objects with a larger area or higher category probability tend to exhibit better robustness. Therefore, we set thresholds P and A to filter out objects with low robustness performance. After filtering out objects whose bounding box area is less than A, we select the one (only one) as obopt with a class probability exceeding P and maximum among the remaining objects.

OBfiltered={obi∈OB|Ai>A}(3)

obopt=arg maxobi∈OBfiltered⁡{Pi|Pi>P}(4)

Step 3: If the obopt cannot be found, it means that the image is not suitable as a stego image and should be discarded. Otherwise, a scrambling factor is generated according to the dictionary D, which will be used as a random seed input into the random function to scramble the sequence key.

f={NUll,obopt==Null;D[obopt],else;(5)

After the aforementioned steps, images with suitable objects can generate a scrambling factor. Through extensive experiments, we found that a 15% filtering factor significantly alters the image’s features to enhance security and privacy while maintaining sufficient image quality for practical use. Moreover, our research revealed that the class probability of certain objects might not decrease, and could even increase, after being attacked. In such cases, setting the value of P to 50% provides an optimal balance. The 50% setting accounts for the uncertainty in class probabilities and ensures the system’s robustness and reliability against various potential attacks.

3.2.4 Building Data Architecture

After completing the preceding three steps, we can construct a four-tiered data architecture. This architecture is pre-generated and stored, which means the sender doesn’t have to process all images again before hiding the secret information. This significantly reduces the time needed for the information hiding process. The first tier comprises sequence keys that are shared among all receivers. The second tier encompasses scrambling factors derived from the images themselves. The third tier involves scrambled sequences (SS) obtained by applying the scrambling factors to the sequence keys. Each fourth tier contains a collection of images, from which the same scrambling factor can be extracted if they belong to the same list.

It is crucial to emphasize that images with similar suitable objects will be associated with the same scrambling factor and subsequently grouped into the same image list. This organization facilitates efficient handling and retrieval. Fig. 2 illustrates the outlined data structure.

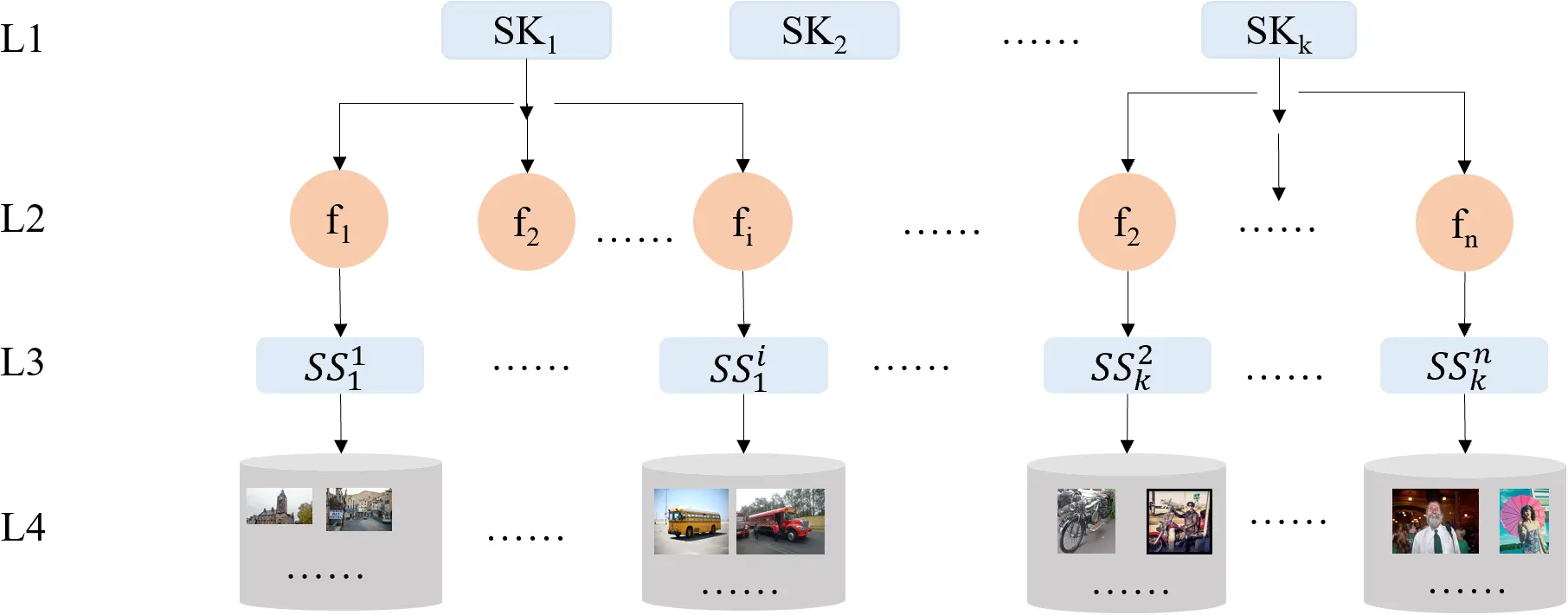

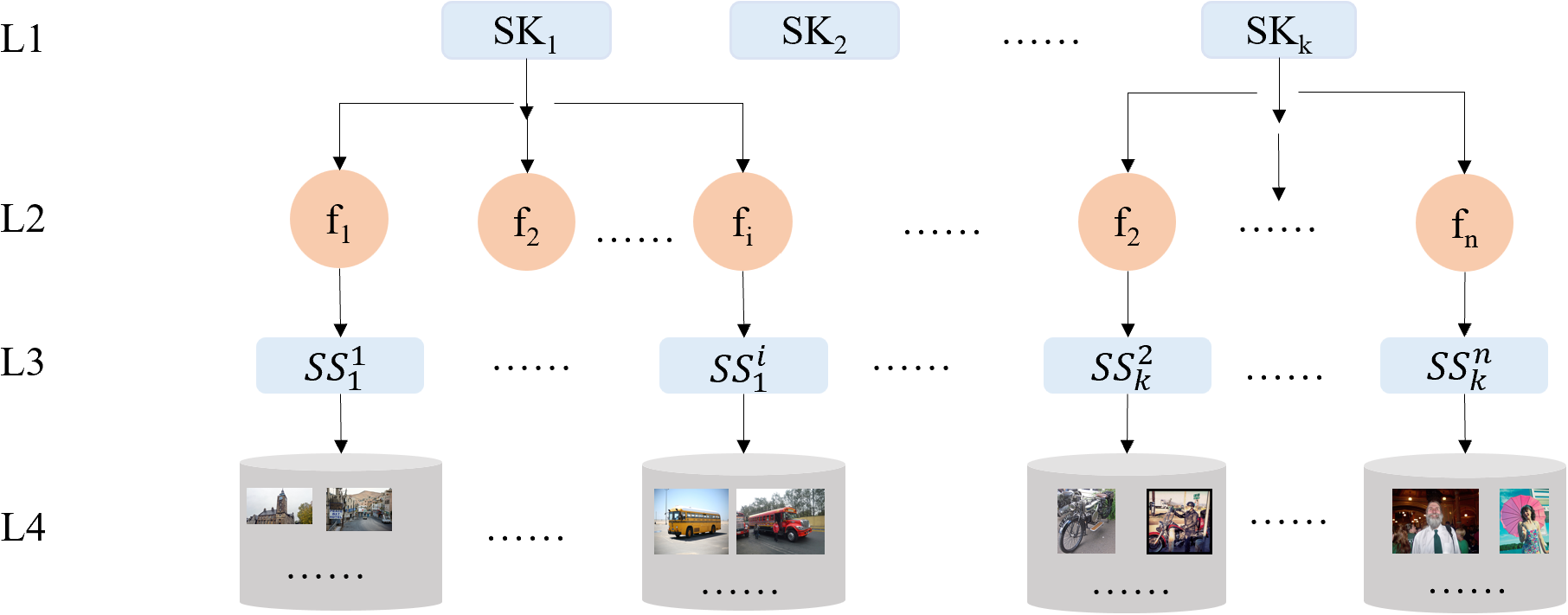

Figure 2: The data architecture of image database

3.3 Information Hiding

Before selecting stego images, the secret information SM needs to be converted into a binary stream M whose length is denoted as L. The length of the sequence key also needs to be considered during the matching process, which is noted t. Then match the image in the data architecture mentioned above, which can be divided into the following steps:

Step 1: For SM, select its first n bits MG=mg1||mg2||…||mgn. Due to the impossibility of matching extensive information within brief sequences, the value of n in the first matching is computed by Eq. (6) to steer clear of such futile matching endeavors.

nfirst=min(t,L)(6)

Step 2: Match all substrings with length n in the third level of the data architecture, Match(MG,SS) == 0 indicates the matching is failed, then set n to n − 1, repeat this step. Otherwise, a stego image sim could be obtained.

{n=n−1,Match(MG, SS)==0;SI=SI||sim, else;(7)

Match(MG, SS)=maxi=1L−n+1δ(MG, SS[i:i+n−1])(8)

Step 3: In addition, the location information keym={kf, kl} (including the left position index and length of the substring) should be record.

kf=argmax(Match(MG, SS))(9)

kl=n(10)

Step 4: Regard the rest of information as a new piece of information, and set L to L − n, repeat the previous steps until all the secret information is matched successfully, and get the stego images SI=si1||si2||…||sim.

Step 5: Since the position and length of substrings are also the key factors to recover secret information accurately, the Key=key1||key2||…||keym should be transmitted to the receiver. In light of the item of efficiency, we use AES encryption algorithm to encrypt Key before the transfer.

This algorithm design ensures the security of secret information while maximizing the hiding capacity of the stego image. Furthermore, we can pass Key and stego images to the receiver respectively in different time periods and channels.

3.4 Information Extraction

Some stego images may be attacked during transmission and the suitable objects fails to be detected, so that the receiver cannot restore the information accurately. For avoiding a missing object affecting the extraction of other location information, the same number of ‘0’ need to be added to the missing position. The Key can provide us with the lengths of information hidden in stego images. This operation is shown in Fig. 3.

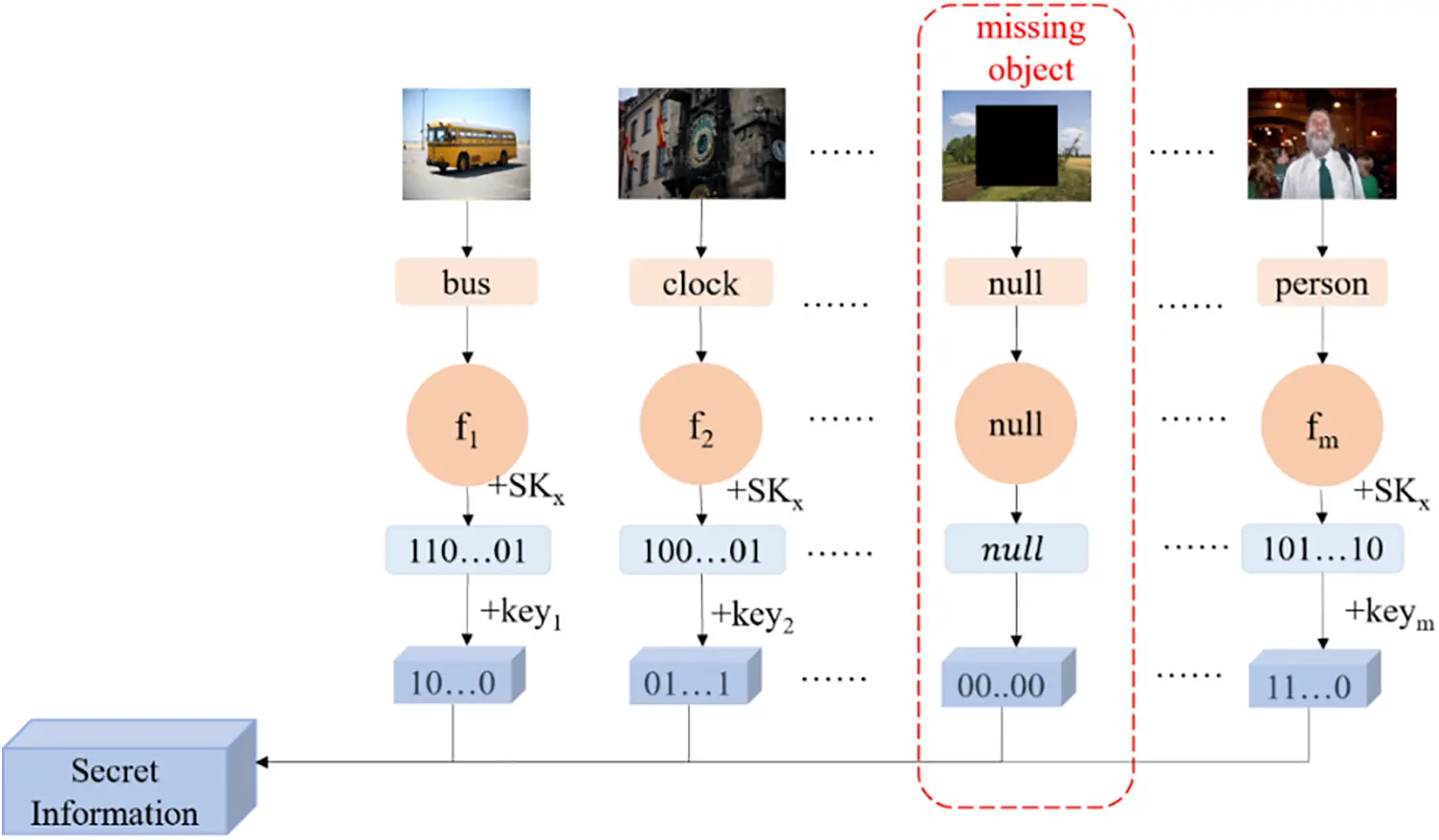

Figure 3: Process chart for information extraction

The steps of information extraction are as follows:

Step 1: Firstly, get object OBj=ob1||ob2||…||obn after using YOLO-v5 to detect the jth stego image sij, with 1 ≦ j ≦ m.

Step 2: Secondly, the objects with small bounding box area less than A are filtered out from OBj, then The object with the highest classification probability is chosen as obopt.

OBfiltered={obi∈OBj|Ai>A}(11)

obopt=arg maxobi∈OBfiltered⁡{Pi|Pi>P}(12)

Step 3: Match obopt in the mapping dictionary D to get a scrambling factor fj. Then fj is used to scramble the sequence key SKx own by receiver to generate the scrambled sequence SSxj.

fj=D[obopt](13)

SSxj=Scrambling(SKx, fj)(14)

Step 4: Extract the hidden secret information mgj of the image from SSx through keyj.

mgj=SSxj[keyj[0], keyj[0]+keyj[1]−1](15)

Step 5: Finally, the all information fragments extracted from stego images are spliced together to recover the binary stream representation of secret information M=mg1||mg2||…||mgm, then M is converted to secret information SM.

4  Experiments and Analysis

Experimental environment: Intel(R) Xeon(R) Silver 4310 CPU @ 2.10 GHz, 30.00 GB RAM and one Nvidia GeForce RTX A4000 GPU. All experiments are completed in Pycharm and MATLAB R2021a.

Data set: MS COCO 2017 includes 118,287 training images, 5000 validation images, and 40,670 test images. This data set contains natural pictures and common object pictures in life and and is known for its complex background and relatively large number of objects, making it ideal for training YOLO-v5. And all comparative experiments use this dataset in this section.

4.1 Efficiency

There are various operations involved in the entire secret information transmission process, such as feature extraction, image matching, etc., so the efficiency of this method is also a crucial point to be taken into consideration. In this section, we will discuss the efficiency of our approach from three perspectives: (1) preprocessing efficiency; (2) image matching efficiency; (3) information extraction efficiency.

4.1.1 Preprocessing Efficiency

Due to the linear relationship between the time consumption of both object detection and establishing the data structure with the number of images, the time complexity for preprocessing can be expressed as O(a), wherein a denotes the quantity of inputted images.

We randomly select 100,..., 1300 images to form a database, and then evaluate the time of object detection and the construction of data architecture, respectively. The test results are presented in Table 3.

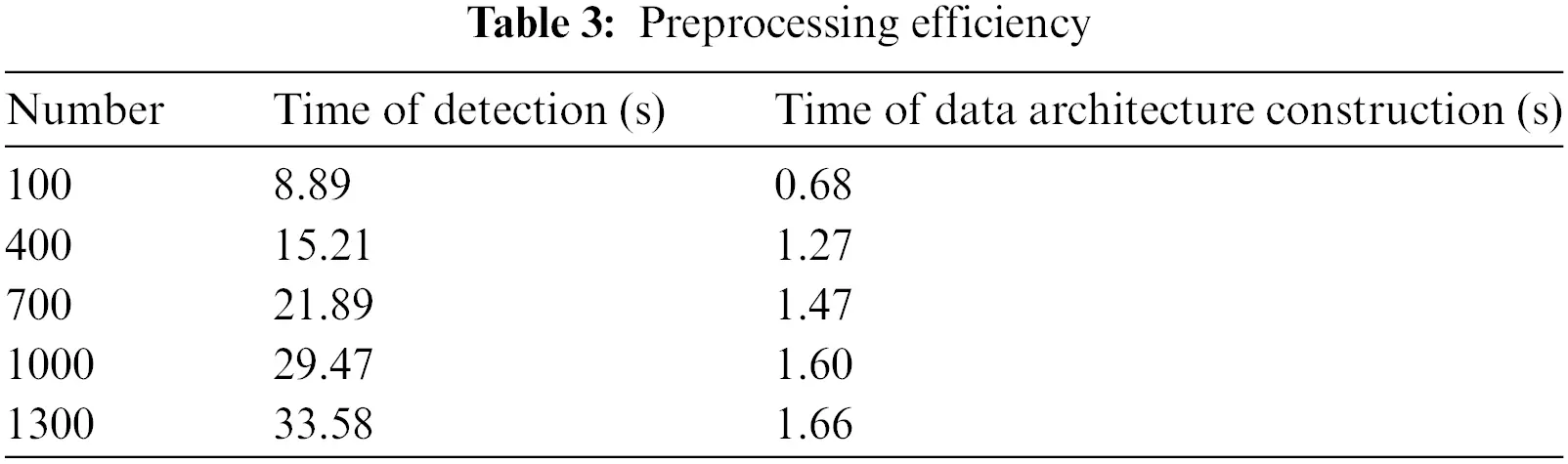

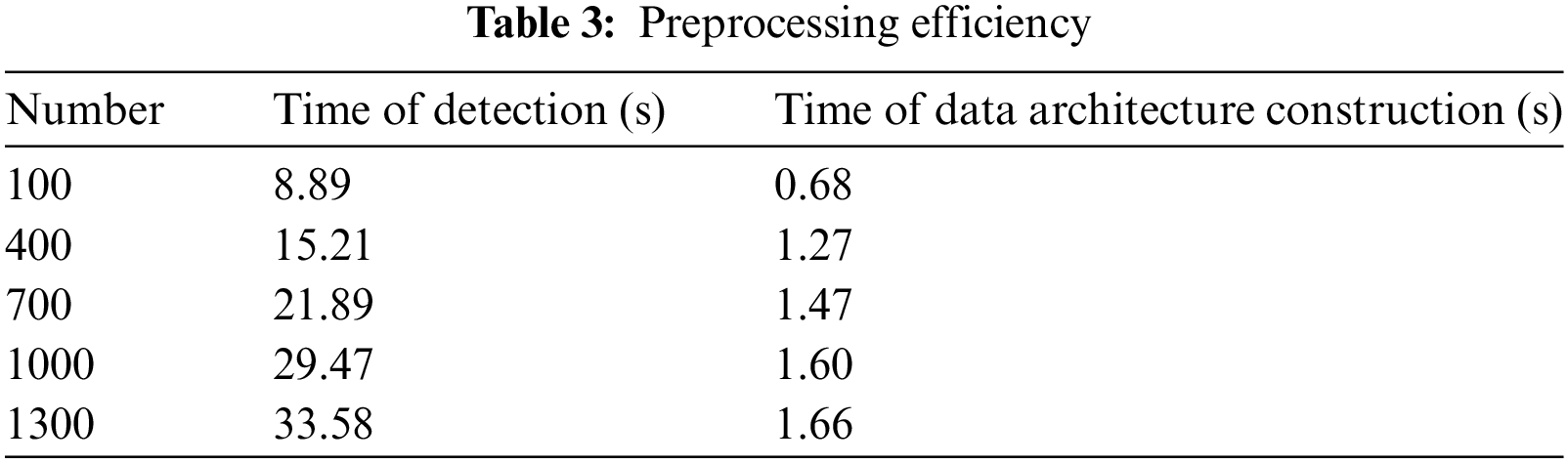

As can be observed from Table 1, YOLO-v5 offers a remarkable detection speed, with a remarkably low time consumption for data architecture construction.

4.1.2 Image Matching Efficiency

We can assess the efficiency by analyzing two aspects: the comparison of secret information of various lengths, and the comparison of sequences key of various lengths. The time complexity of secret message hiding depends on the substring matching during the iteration process. In the worst-case scenario, each substring must be compared against the scrambled sequence, incurring a linear time complexity. Consequently, the overall time complexity can be expressed as O(nt). And the results of this analysis are presented in Table 4.

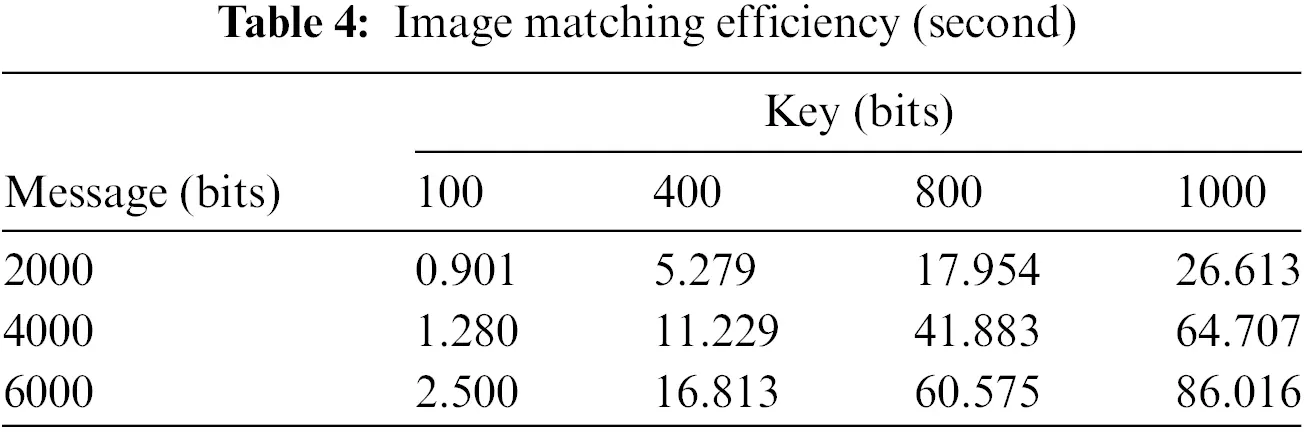

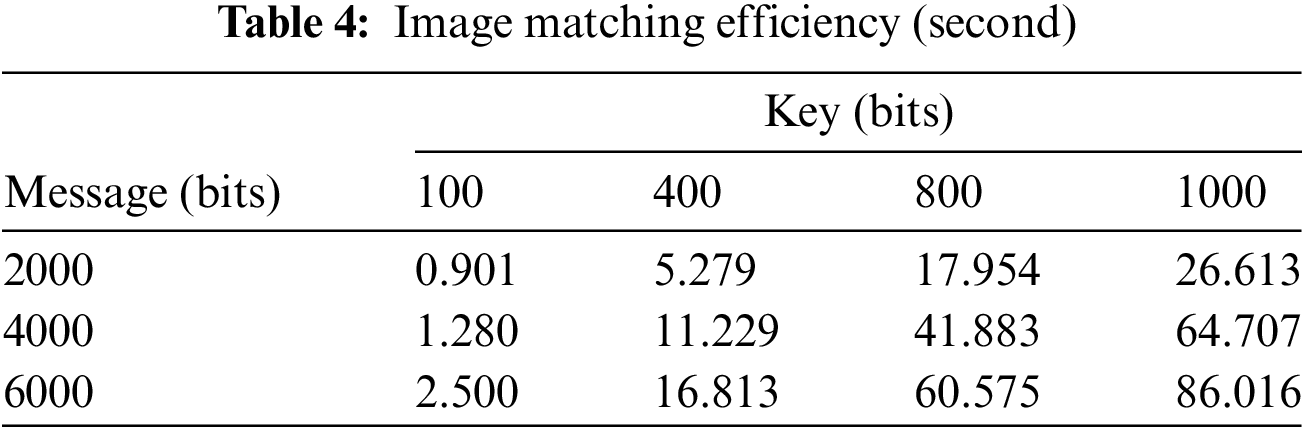

As is shown in Table 3, the time consumed in searching for stego images is not small, owing to the fact that a tremendous amount of substrings take part in the process of matching secret data.

4.1.3 Information Extraction Efficiency

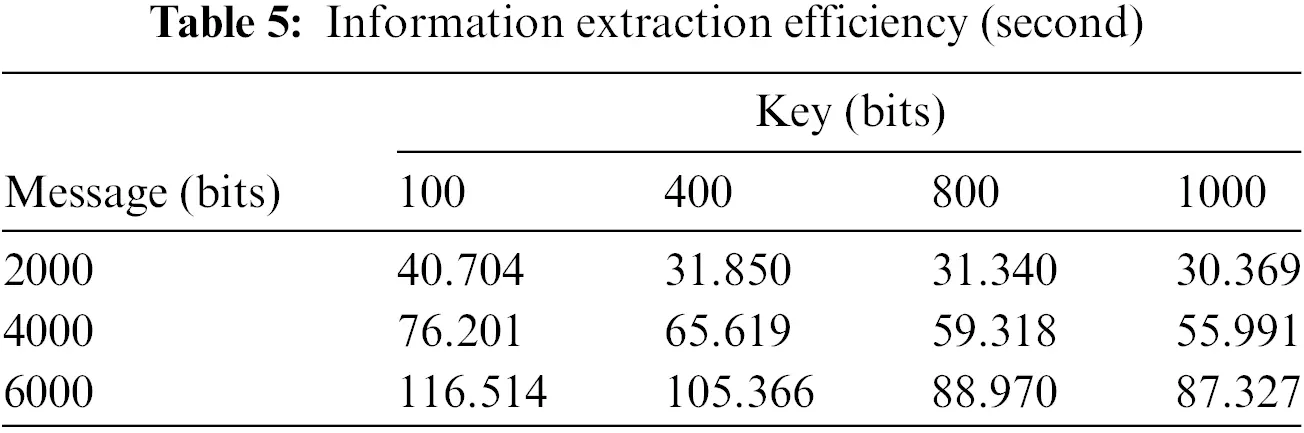

In this subsection, we adopt the same parameters as in the preceding subsection to evaluate the efficiency of information extraction. Similar to the information hiding phase, the efficiency of information extraction is also constrained by the length of the sequence key and the secret message. Likewise, its time complexity is evaluated as O(nt). The results are illustrated in Table 5.

Information extraction is a time-intensive process primarily because YOLO-v5 needs to be restarted for each image detection, leading to significant redundancy in time consumption. Therefore, it consumes more time compared to information hiding.

4.2 Hiding Capacity

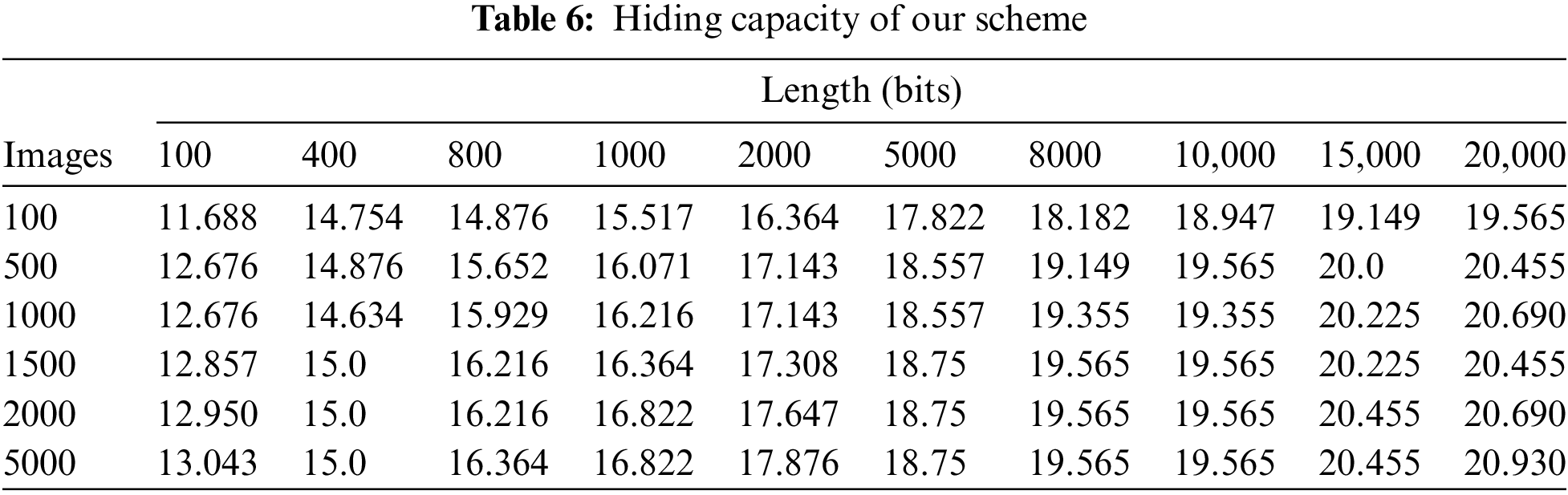

4.2.1 Capacity Test of Our Method

It is worth noting that a longer sequence key and more scramble factors can allow more substrings to be involved in the matching process, thus increasing the probability of long substrings being successfully matched. As the steganography capacity depends on the length of the sequence key and the number of scrambling factors, we test the capacity by comparing both sequence keys with different lengths and image databases with different sizes.

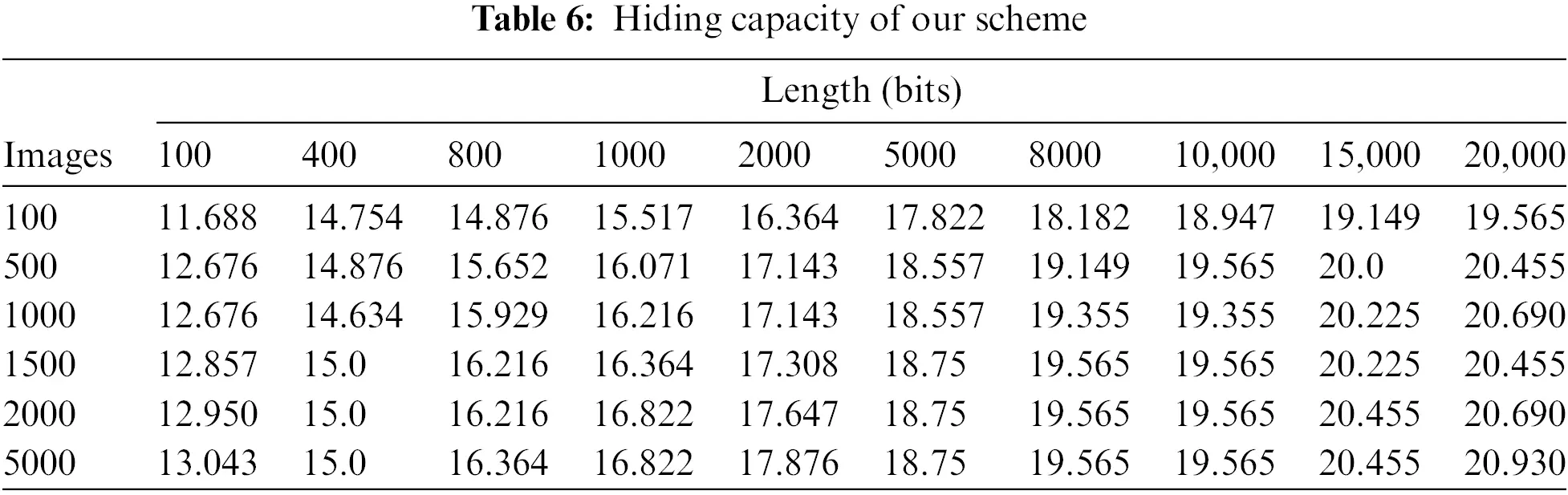

In this test, we randomly selected 100,..., 5000 images from the COCO dataset to form 6 image databases. For each database, we conducted tests by setting the length of sequence keys to 100,..., 50,000 bits. The results are presented in Table 6 and Fig. 4. We can observe that when the number of images surpasses a certain value, its impact on the capacity is insignificant. Additionally, within the same size database, we found that the steganography capacity increases with the augmentation of the length of the sequence key, yet the increment is significantly diminishing. Taking into account the retrieval efficiency, we recommend setting the length of the sequence key to 10,000 where the steganography capacity reaches around 19 bits.

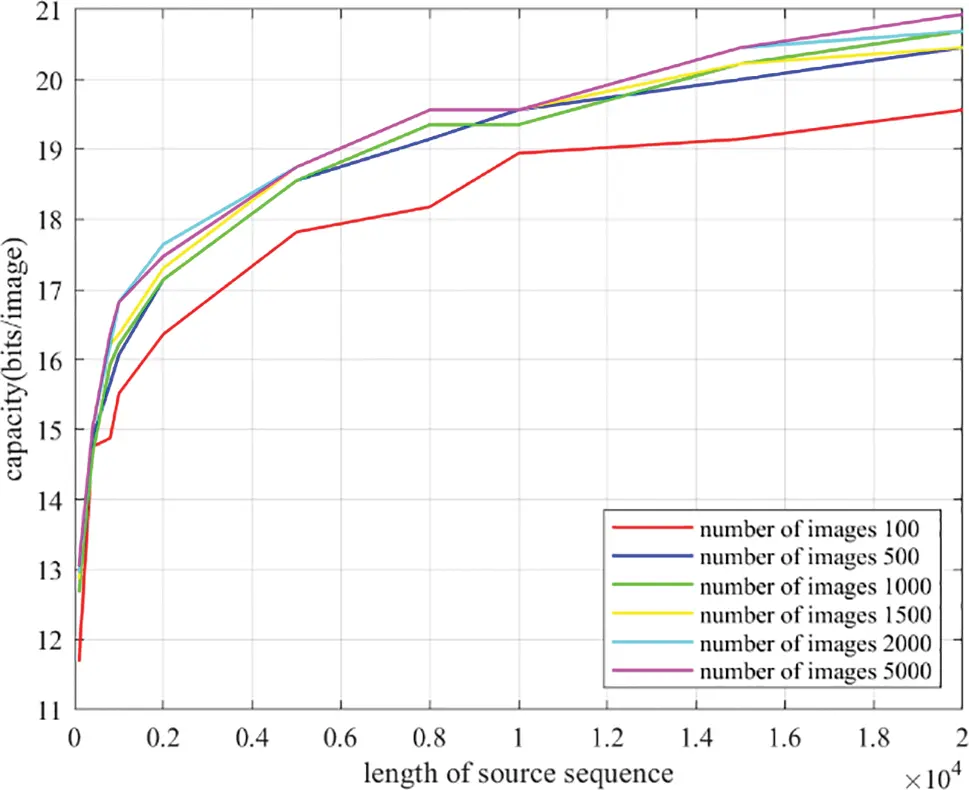

Figure 4: Capacity test under source sequences with different lengths

4.2.2 Comparison of Capacity

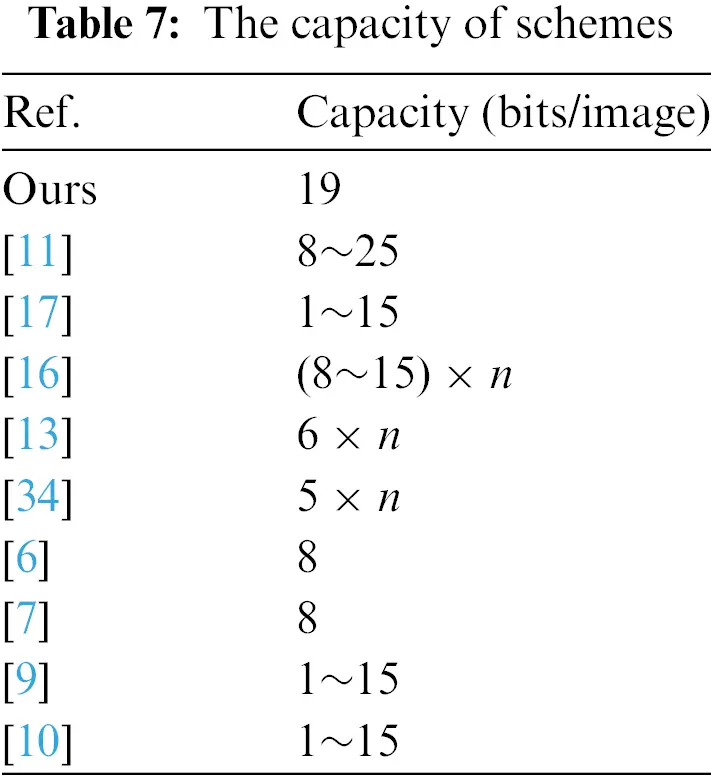

In this part, our method is compared with a selection of other methods that rely on mapping rules. Unfortunately, some models could not be reproduced, so the data used for comparison was taken directly from the original paper or from papers cited therein. The comparison results are given in the Table 7. The steganography capacities in [13,16,34] are (8~15) × n, 6 × n, and 5 × n, respectively. In [16], the value of n is determined by the number of objects included in each cover image, while in [13], n depended on the number of objects (less than 4) with the largest areas, and in [34], n hinge on the number of object areas of 5–25 kb in an image. However, most of the images only have 1~3 detectable objects, that is to say, the value of n is 1~3 in general. Even if images containing multiple objects are purposely collected in order to assemble the database, these images tend to lack robustness. A cover image can be partitioned into nine blocks with the aid of methods [6,7], thereby yielding an 8-bit sequence. Moreover, methods [9,10] embed the secret message in the transform domain, having a steganography capacity of 1~15 bits per image. Nevertheless, our method still has a slight advantage over these methods. However, the capacity of coverless steganography is typically lower than that of traditional steganography due to the limitations of the mapping rules that result in the collision-prone nature of image features.

4.3 Database Size

In order to carry out image matching on every conceivable binary stream of confidential information, it is essential to have a comprehensive database. However, the current coverless steganography is limited by the length of the hash, and the reason why the length of the hash cannot be overly long is because of the difficulty in constructing a comprehensive database. Therefore, it is worth exploring how to effectively reduce the size of the image database.

4.3.1 Database Size Test of Our Method

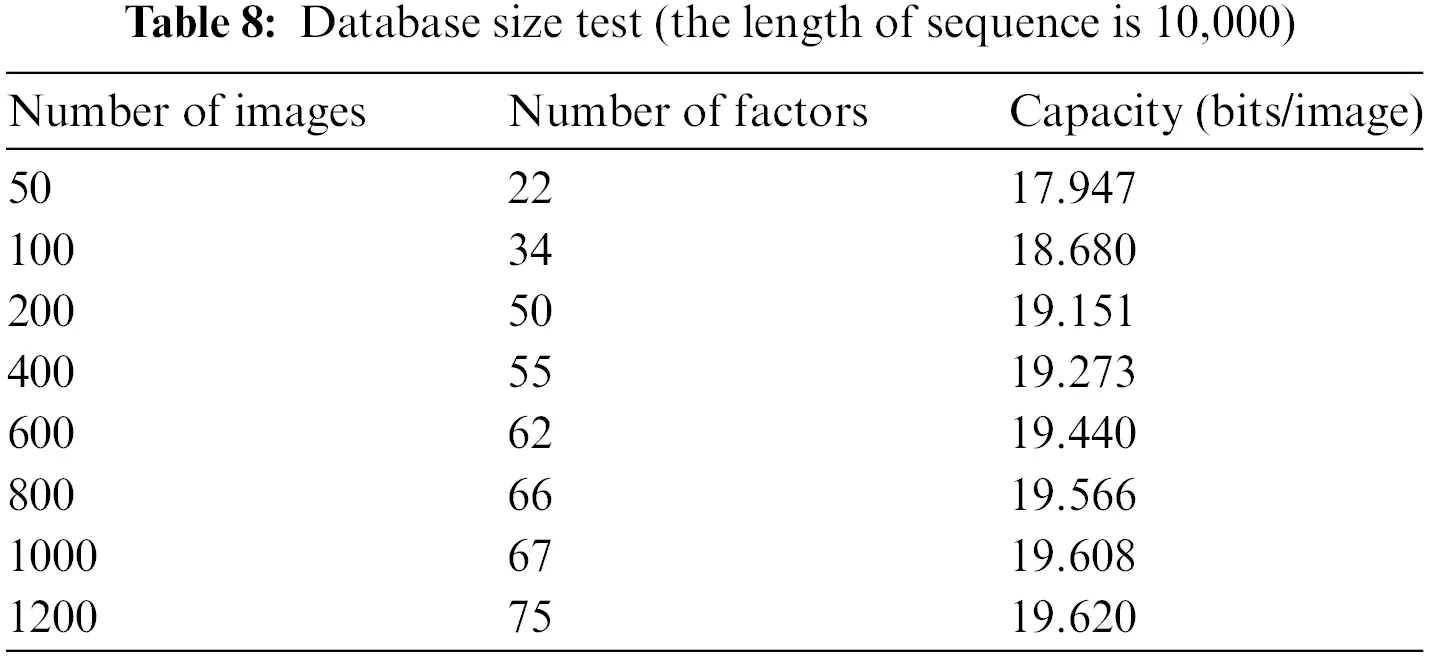

In the dictionary we have set up, each object is associated with a distinct scrambling factor, so the amount of detected entities that satisfy the concealed demand decides the amount of scrambling factors. In this section, we investigate how databases of different sizes influence the number of scrambling factors. To do this, we conduct experiments with various databases and evaluate the number of scrambling factors for each. According to the preceding section, the length of the sequence key is set to 10,000. It is evident from Table 6 that the size of the database exerts a greater influence on the steganography capacity when its value is within 1500. Therefore, it is advisable to choose a suitable size of the database within this range. We randomly drew 50,..., 1200 images from the COCO dataset to build the dataset, respectively. After conducting a series of experiments, the average number of scrambling factors generated by each dataset was determined, and the results were listed in Table 8.

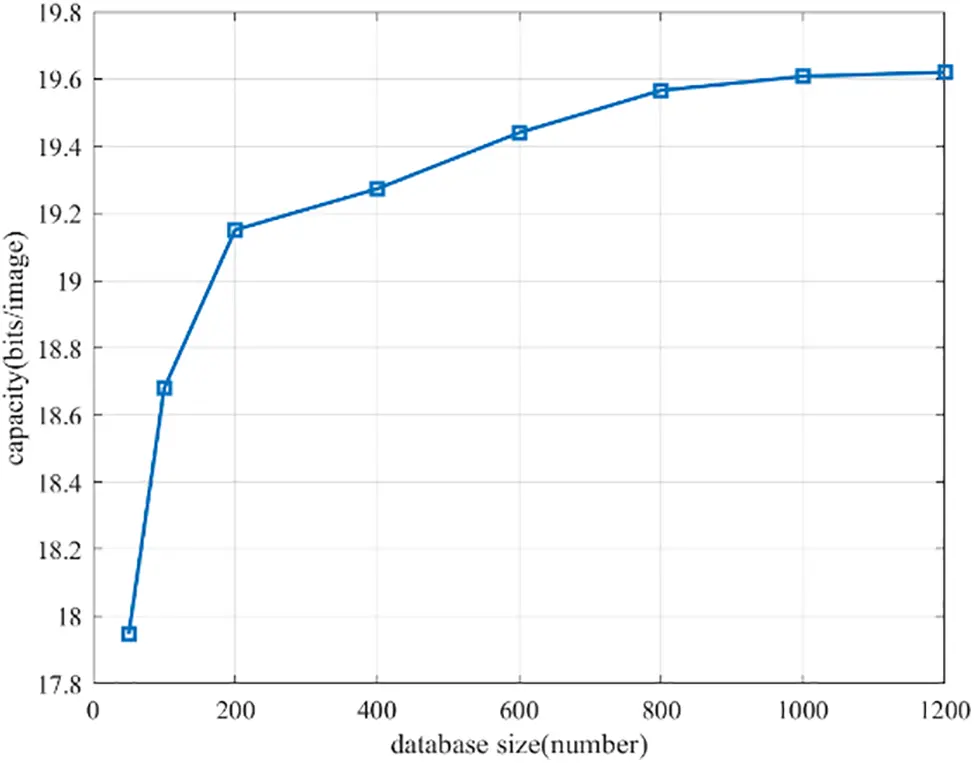

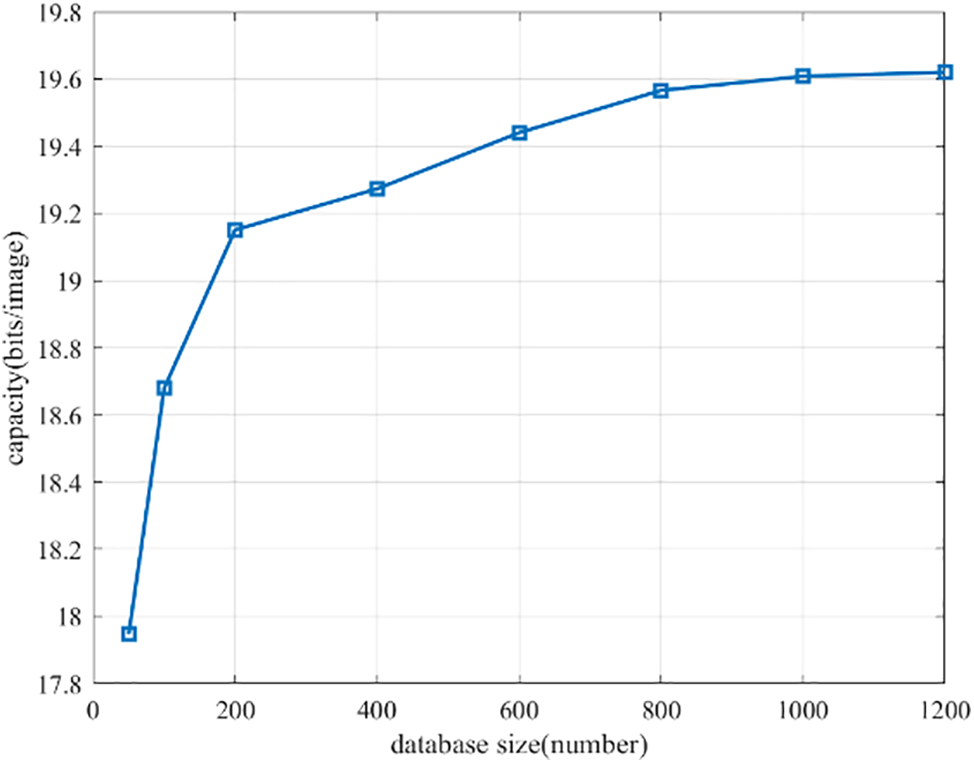

From Fig. 5, it is clear that the number of scrambling factors increases significantly when the database size increases from 50 to 200. However, when the size of the database is increased from 200 to 1200, the change in the number of scrambling factors is not very remarkable. This implies that 200 cover images are adequate to generate a large amount of scrambling factors, satisfying the requirements of steganography.

Figure 5: The relationship between image database size and steganography capacity

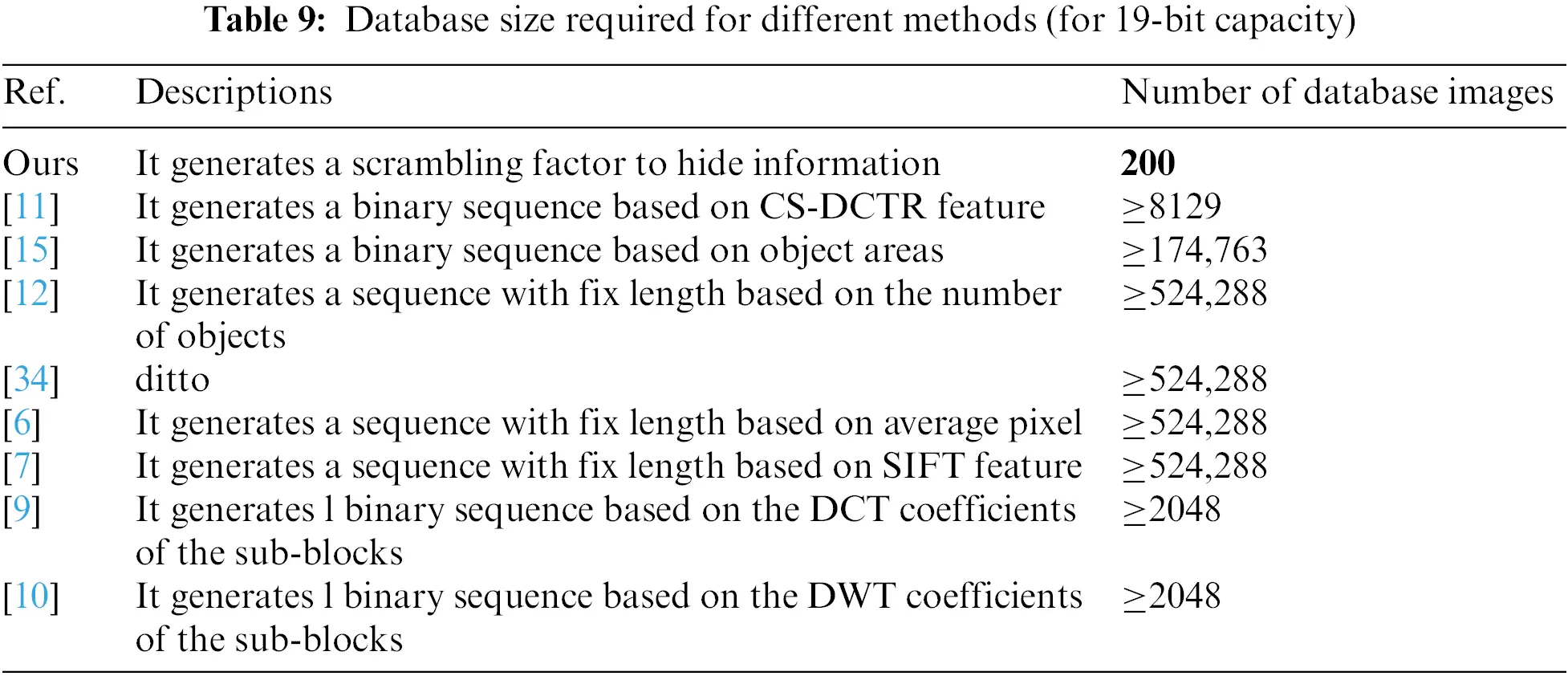

4.3.2 Comparison of Database Size

As should be expected, we compare our method with other models based on mapping rules. Existing methods, after all, directly map the features of cover images into binary sequences. Consequently, the steganography capacity of such methods is contingent upon the sequence length, and a larger sequence length means a larger database. Due to the different capacities utilized in these methods, it is impossible to make a direct comparison between their image database sizes. All methods are supposed to be expanded to 19 bits based on their original methods, and then the database size value can be attained via calculation. Considering that we could not get a sufficient amount of images to finish up the experiment, we had to make a manual estimation of the theoretical minimum.

In [6,7], their models map features of each cover image to a binary sequence with a fixed length. Consequently, the length of the binary sequence determines the minimum number of cover images that the image databases need. Taking v as the length, the required number of covers theoretically is 2v. Therefore, the steganography capacities of their models are 219 = 524,288. In [9,10], each cover image is partitioned into l sub-blocks, and for each sub-block, a sequence of length k can be generated. Considering factors such as robustness, the maximum value of l is set to 256 in its experiment, so the image can be mapped to 16 × 16 = 256 sequences, 219/256 = 2048 images are needed at least. Methods [13,34] proposed a mapping rule between objects and bit strings. However, regardless of the number of objects in the cover image, it can only be mapped to one sequence in the end, thus requiring a minimum of 219 = 524,288 images for these methods. In [16], each image can be mapped to different sequences according to different object areas. However, there are only about 1~3 objects that are suitable for representing secret information in an image. As a result, the minimal amount of images required is calculated to be 219/3 = 174,763. In [11], each image can be mapped to up to 64 different sequences, so a minimum of 219/64 = 8129 images need to be reserved. The results are shown in the Table 9. Of course, having considered the collisions between features of images, the sizes of the database are much larger than these values indicated.

From the comparison, we can find that other methods require an enormous amount of effort and time to construct an image database, whereas our method only necessitates around 200 random images to build the same. Consequently, our method has a great predominance in database management by comparison.

4.4 Robustness

During the transmission of stego images, malicious attackers may attempt to destroy them, thus will give rise to the hidden information of the images may not be accurately extracted. Therefore, robustness is also an important indicator to measure the quality of a steganography model.

All the pixels of the stego image may affect the extraction of information in vast majority of methods, so the rate of secret information extracted correctly is used to measure robustness. The calculation method for:

R=SMcSMo×100% (16)

where SMc is the length of the correctly extracted secret information, and SMo is the length of the original information.

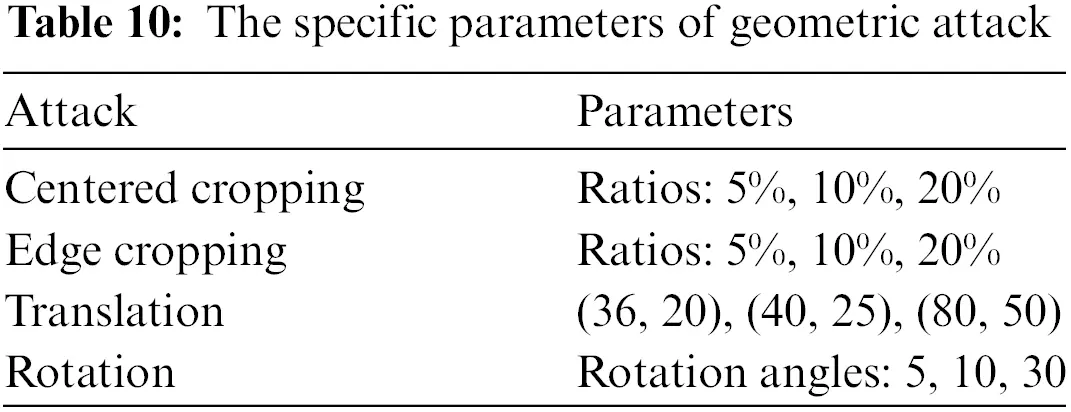

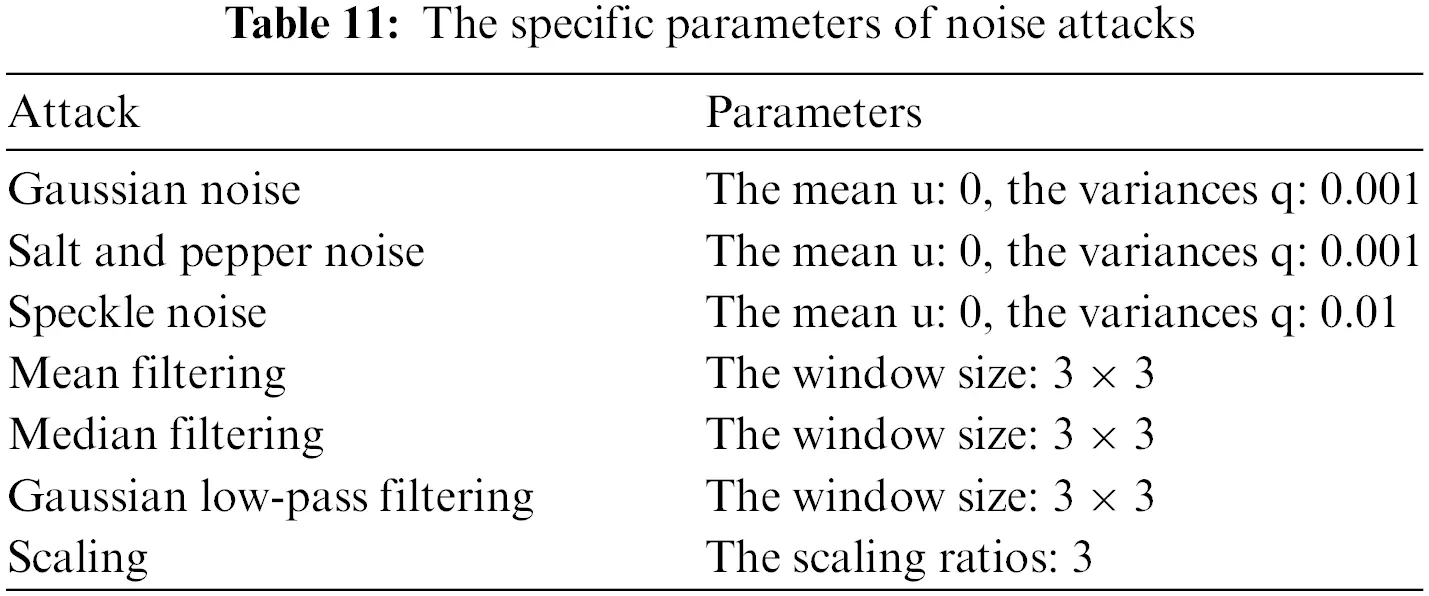

In this section, 4 common geometric attacks and 7 common noise attacks are used to test the robustness of the methods. And the performances of each attack under different parameters are supposed to be tested. All attack types and their associated parameters are shown in the Tables 10 and 11. The Figs. 6 and 7 illustrate the effects of these attacks.

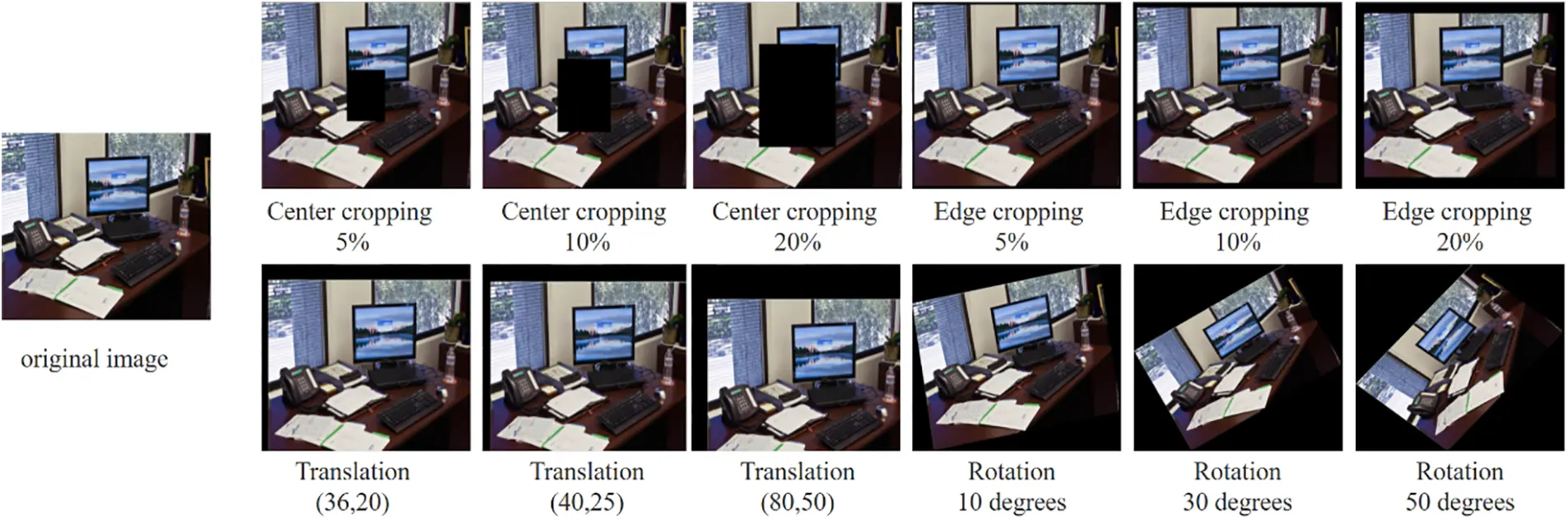

Figure 6: The geometric attack schemes

Figure 7: The noise attack schemes

Next, we will test and analyze the result of the methods under geometric attack and noise attack separately. For those models that could not be reproduced, we will take the data from the related papers directly. And it ensures that all data was derived from experiments conducted using the same COCO dataset.

4.4.1 Robustness Comparison on Geometric Attacks

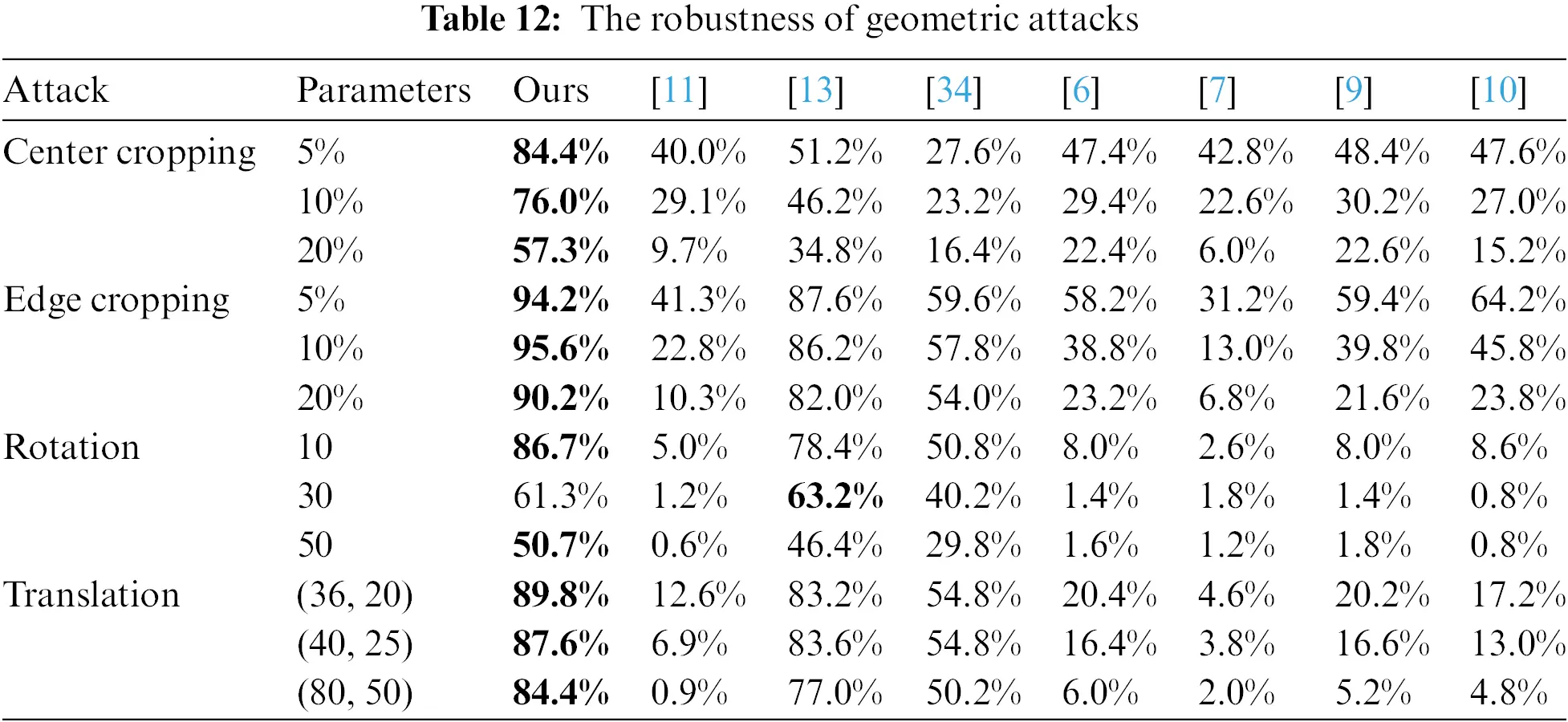

Traditional coverless steganography has poor robustness against geometric attacks, as the features used to map sequences are prone to be damaged or lost after the stego images have been attacked. Particularly when it comes to rotation attacks, its robustness is less than 10%. Nevertheless, there is a more optimistic outcome in most deep learning-based coverless steganography. This is because when constructing mappings, the objects used may still be detected after being attacked. It is noteworthy that the success of this type of model is contingent on the precision of the object detection model and the details of the mapping rules. Table 12 shows that the YOLO-v5 and mapping algorithms mentioned in our method have a good promotion in robustness. Facing to cropping attacks, in particular, it has an ascending advantage over other deep learning-based methods.

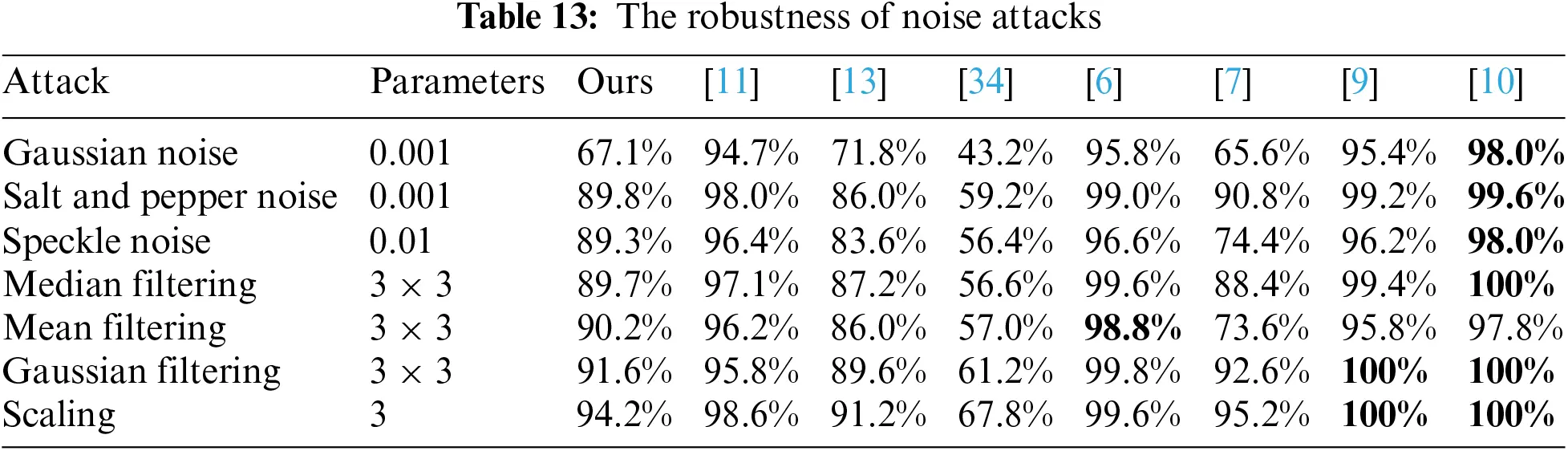

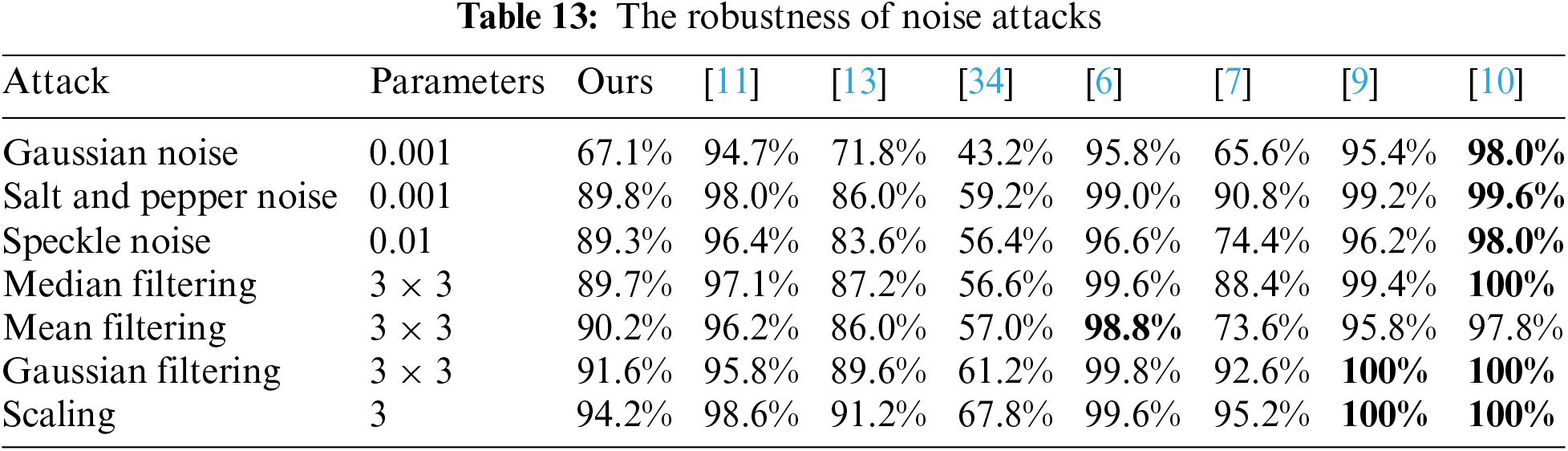

4.4.2 Robustness Comparison on Noise Attacks

Traditional coverless steganography is highly resilient to noise attacks due to the selection of features that are less vulnerable to noise. On the contrary, the robustness of coverless steganography based on deep learning is slightly weaker by reason of the limit to the accuracy of existing object detection models. But as can be observed from Table 13, the performance is still impressive, with our method achieving an average of 87.4%, which is marginally better than other deep learning models.

4.5 Security

Our method effectively conceals secret information by forming a bond between objects, scrambling elements, and a sequence key. The statistical properties of the image remain unchanged, meaning that existing steganalysis techniques cannot detect stego images that contain the secret information. Thus it can be seen that our method has an impressive level of resistance to steganalysis.

Even if the stego images are suspected by the attacker and the Key is also cracked, the attacker would still be unable to extract the secret information, since the mapping dictionary and sequence key are agreed upon in advance and kept strictly confidential by both the sender and receiver. Despite the fact that one receiver inadvertently leaked the mapping dictionary and its sequence key, the security of the other receivers was not compromised, since each receiver has its own unique sequence key. This demonstrates the robustness of our method in terms of safety.

5  Conclusions

Our proposed method involves dynamic mapping-based coverless steganography. Unlike existing models, our scheme avoids direct image-sequence links and extracts a scrambling factor from the cover images. When the key is scrambled, a new sequence is created, with all substrings containing hidden information. The selection of stego images maximizes capacity within sequence length limits, reducing the load on the database. Each image can be mapped to multiple sequences, simplifying database management. Our method is effectively resistant to steganalysis, thereby ensuring the security of the algorithm. Experiments show robustness to geometric and noise attacks, although noise resistance is slightly less effective compared to traditional methods. The capacity is high but falls below traditional benchmarks. Our future work aims to significantly enhance the hidden ability of the method.

Acknowledgement: The authors would like to express their gratitude to all the researchers and reviewers who contributed to enhancing the quality of the idea, concept, and the paper overall.

Funding Statement: The authors received no specific funding for this study.

Author Contributions: The authors confirm contribution to the paper as follows: study conception and design: Jiajun Liu, Lina Tan; data collection: Yi Li, Peng Chen; analysis and interpretation of results: Jiajun Liu, Zhili Zhou, Weijin Jiang; draft manuscript preparation: Lina Tan, Yi Li, Peng Chen. All authors reviewed the results and approved the final version of the manuscript.

Availability of Data and Materials: The data that support the findings of this study are available from the corresponding author, Lina Tan, upon reasonable request.

Ethics Approval: Not applicable.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
