IGED: Towards Intelligent DDoS Detection Model Using Improved Generalized Entropy and DNN
1 College of Computer and Data Science, Fuzhou University, Fuzhou, 350108, China
2 Engineering Research Center of Big Data Intelligence, Ministry of Education, Fuzhou, 350108, China
3 Fujian Key Laboratory of Network Computing and Intelligent Information Processing, Fuzhou University, Fuzhou, 350108, China
4 College of Computer, National University of Defense Technology, Changsha, 410073, China
* Corresponding Author: Baokang Zhao. Email:
(This article belongs to the Special Issue: Innovative Security for the Next Generation Mobile Communication and Internet Systems)
Computers, Materials & Continua 2024, 80(2), 1851-1866. https://doi.org/10.32604/cmc.2024.051194
Received 29 February 2024; Accepted 11 June 2024; Issue published 15 August 2024
Abstract
As the scale of the networks continually expands, the detection of distributed denial of service (DDoS) attacks has become increasingly vital. We propose an intelligent detection model named IGED by using improved generalized entropy and deep neural network (DNN). The initial detection is based on improved generalized entropy to filter out as much normal traffic as possible, thereby reducing data volume. Then the fine detection is based on DNN to perform precise DDoS detection on the filtered suspicious traffic, enhancing the neural network’s generalization capabilities. Experimental results show that the proposed method can efficiently distinguish normal traffic from DDoS traffic. Compared with the benchmark methods, our method reaches 99.9% on low-rate DDoS (LDDoS), flooded DDoS and CICDDoS2019 datasets in terms of both accuracy and efficiency in identifying attack flows while reducing the time by 17%, 31% and 8%.Keywords
With the rapid advancement of network technologies [1], the landscape of DDoS attacks has has expanded dramatically in both magnitude and sophistication. These sophisticated assaults pose formidable challenges, precipitating disruptions in service delivery, exacerbating network latencies, and engendering comprehensive exhaustion of computational resources. Consequently, the imperative to promptly and accurately detect DDoS attacks has emerged as a pivotal aspect in maintaining the integrity and functionality of networked systems, which underscores the critical need for advanced detection methods. Fig. 1 shows a DDoS attack scenario where the attacker launches a DDoS attack on some important servers by manipulating multiple puppet machines [2]. These DDoS attacks come from different puppet machines, and each puppet machine may execute different types of DDoS attacks.
Figure 1: Example of DDoS attacks
Nowadays DDoS detection techniques can be categorized into three types: statistic-based methods [3], machine-learning-based methods [4], and deep-learning-based methods [5]. The statistic-based DDoS detection methods adjust the threshold by enhancing entropy to identify and filter DDoS attacks [6]. However, their relative simplicity in model design and paucity of extracted features contribute to a limitation in achieving high detection accuracy. Therefore, a deep learning-based approach was proposed by training a model from a compact representation of the input data and applying a random threshold method to detect DDoS [7–9]. While machine learning and deep learning methods boast superior accuracy in detection tasks, they are encumbered by a heightened degree of implementation complexity and a sluggish detection pace [10], which does not meet the real-time requirements of the network [11]. Therefore, some scholars currently detect DDoS by combining statistics and deep learning methods [12,13]. Nonetheless, a commonality above these methods lies in their reliance on the information entropy, which is insufficient in dynamically adapting the entropy value to effectively discern and counteract DDoS attacks [6,14]. With the persistent escalation in network bandwidth and transmission velocities [15,16], current DDoS detection methods often struggle to keep pace with the constantly evolving attack techniques employed by attackers, which are difficult to achieve high accuracy and real-time performance.
In response to the aforementioned challenges, we propose a dual-phase strategy, which consists of an initial detection model based on improved generalized entropy and a fine detection model based on DNN. By synergistically harnessing the rapid computational prowess of the generalized entropy methods and the heightened precision offered by DNN to filter as much normal traffic as possible in the initial detection model, followed perform precise DDoS detection in the fine detection model. The main contributions of this work are as follows:
(1) Feature extraction and extension of captured traffic. Firstly, feature extraction of traffic is performed by utilizing the importance of traffic features to reduce the dimensionality of traffic data, which can effectively reduce the time and memory overhead of neural network training. Then, feature expansion based on one-hot coding technique with threshold is performed to solve the issue of data irregularity.
(2) The initial detection model is proposed, which adopts the generalized entropy method to fully learn the characteristic distribution law of DDoS attacks. The generalized entropy is further improved to realize the parameter self-training process by introducing the threshold value to automatically optimize the model parameters.
(3) Research on DNN precision detection model containing a discard layer. This design enables the DNN to randomly omit neurons during each training iteration with a predefined probability. By doing so, it introduces stochasticity into the learning process, effectively curtailing the likelihood of overfitting and reducing the time consumption.
Generalized entropy constitutes a broader extension of information entropy [17]. The formulation for calculating the generalized entropy associated with IP address
The probability of
The high probability events have more influence on the value of generalized entropy from Eq. (1) when
DNN comprises an input layer, multiple hidden layers, and an output layer. The ReLu function [18] and the Sigmoid function [19] activation functions in DNN, and their formulas are given below:
The dropout layer discards neurons with probability of
The formula of loss function is given:
We propose a DDoS detection model based on improved generalized entropy and DNN, named IGED, and the model framework is shown in Fig. 2.
Figure 2: Framework of IGED
The IGED framework consists of a feature extraction and expansion module, an improved generalized entropy initial detection module, and a DNN fine detection module. The feature extraction and expansion module preprocesses the traffic data. The initial detection model is to pre-screen potential DDoS attack traffic and mark it as suspicious traffic, which helps to reduce the burden of the fine detection module. The fine detection model is to improve the accuracy and reliability of the detection through a more complex DNN for in-depth detection of suspicious traffic.
3.1 Feature Extraction and Expansion
Different traffic features are extracted separately for the initial and fine detection models because of their different design concepts and objectives. In addition, the traffic features need to be expanded for better detect DDoS attacks.
The initial detection module need to have both a high degree of detection accuracy and expedited processing speed. Therefore, only a few important features in the traffic data are taken to realize the fast calculation of generalized entropy. The features extracted for the initial detection module are shown in Table 1.

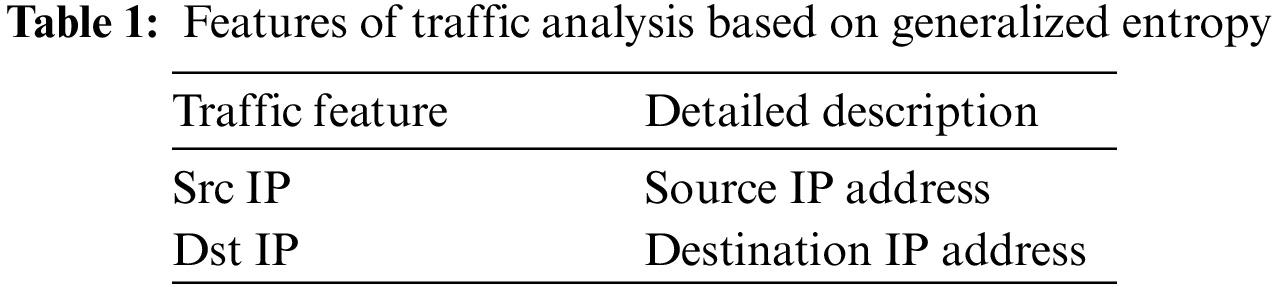

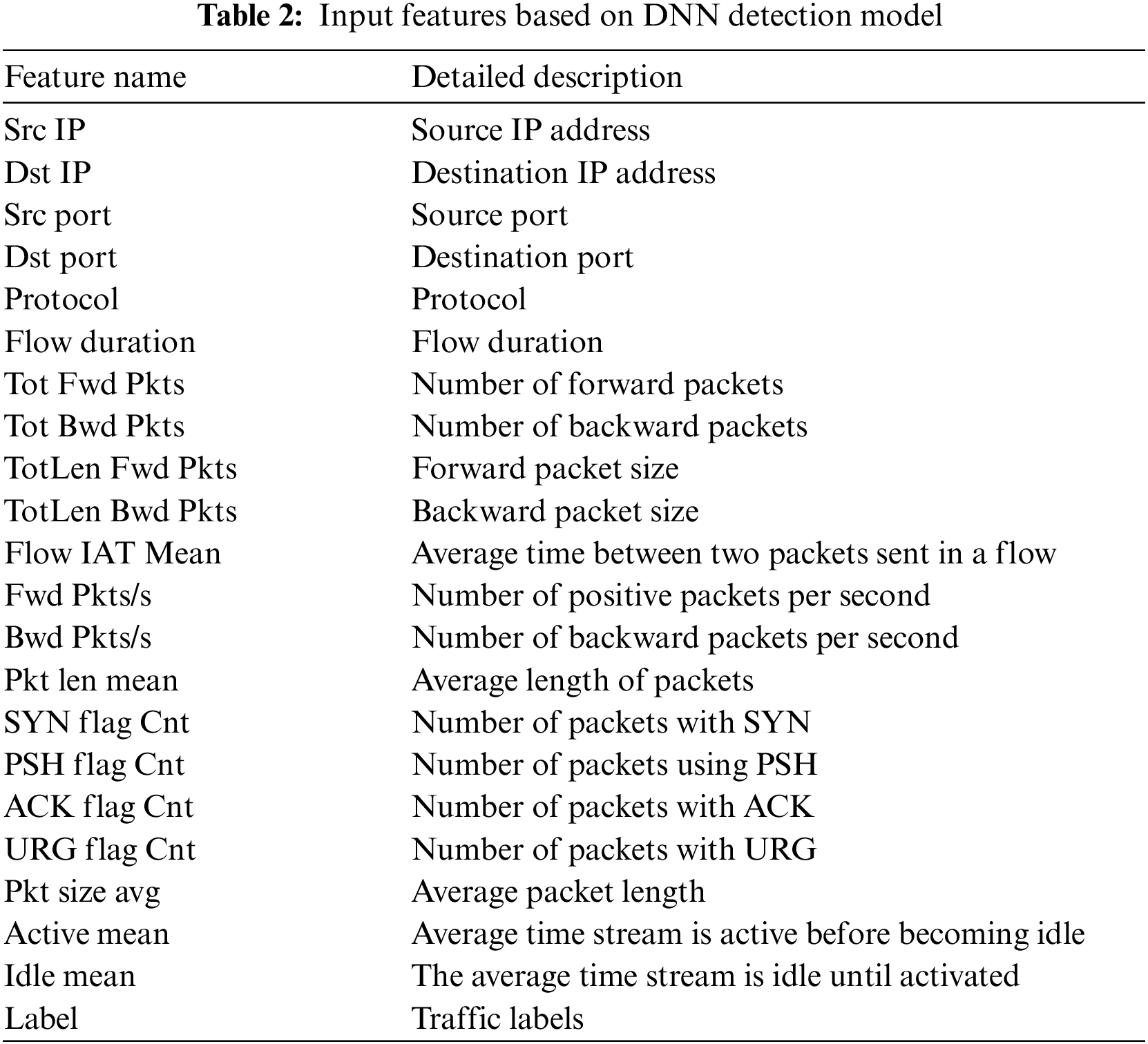

DDoS attacks are characterized by large data size and many data features, so it is necessary to reasonably screen the traffic features. Consequently, the employment of DNN within the fine detection module emerges as a choice, capitalizing on its capability to enhance accuracy. The features extracted for the fine detection module are shown in Table 2.

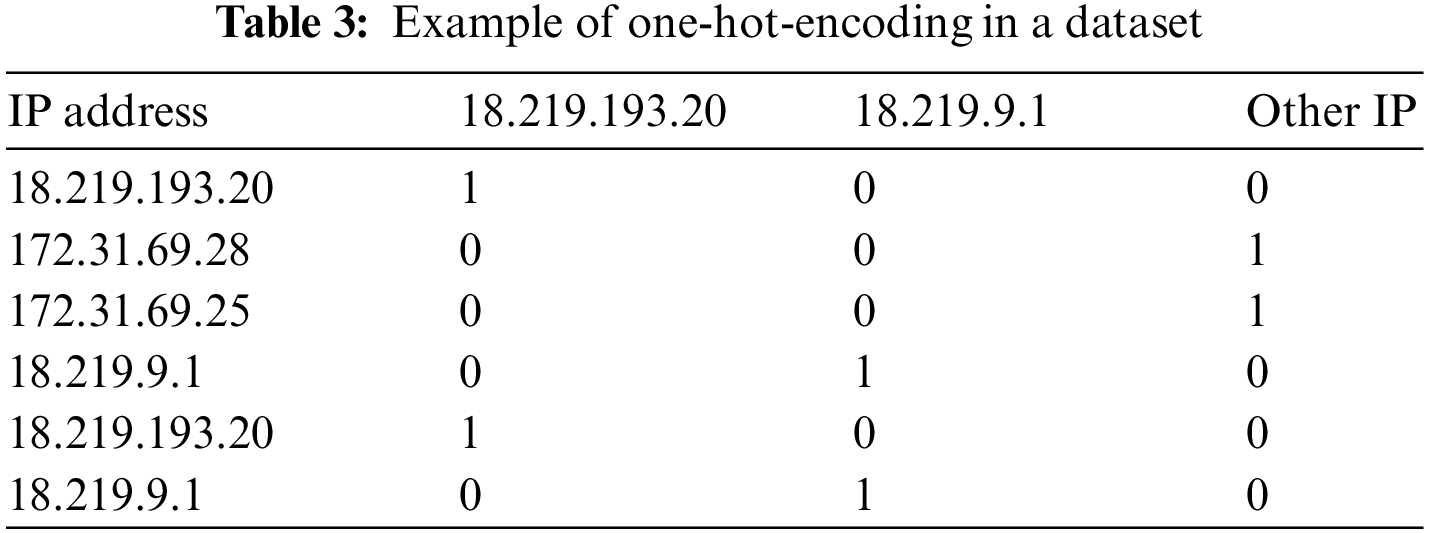

Since the traffic features contain string type fields such as “Src IP” and “Dst IP” which cannot realize the corresponding computation in neural networks, the one-hot-encoding technique is used to reconstruct the “Src IP” and “Dst IP” fields. One-hot-encoding is known as one-bit efficient encoding that encodes N different IP addresses in the dataset using N columns. Each IP address has its own independent column and only one of them is valid at any given time. Essentially, the one-hot-encoding technique transforms the dataset by expanding its original K feature columns into a new format consisting of K + N different binary columns.
Due to the large amount of data and the multitude of different IP addresses in DDoS attacks, using One-hot-encoding directly will lead to the addition of too many columns of data. Consequently, an improvement to the conventional one-hot-encoding technique has been introduced by incorporating a threshold criterion. Under this modification, only those IP addresses that occur with a frequency meeting or exceeding the predefined threshold undergo one-hot-encoding; IP addresses with occurrences falling below this threshold are directly classified as “Other IP”. The results with the threshold value set to 2 can be shown in Table 3.
3.2 Initial Detection Model Based on Improved Generalized Entropy
To tackle the issue of artificially set parameters in generalized entropy, we propose an initial module that incorporate a parameter self-training procedure. The framework is shown in Fig. 3.
Figure 3: Framework of the initial detection model
The parameter self-training process entails dividing both the training and test datasets into

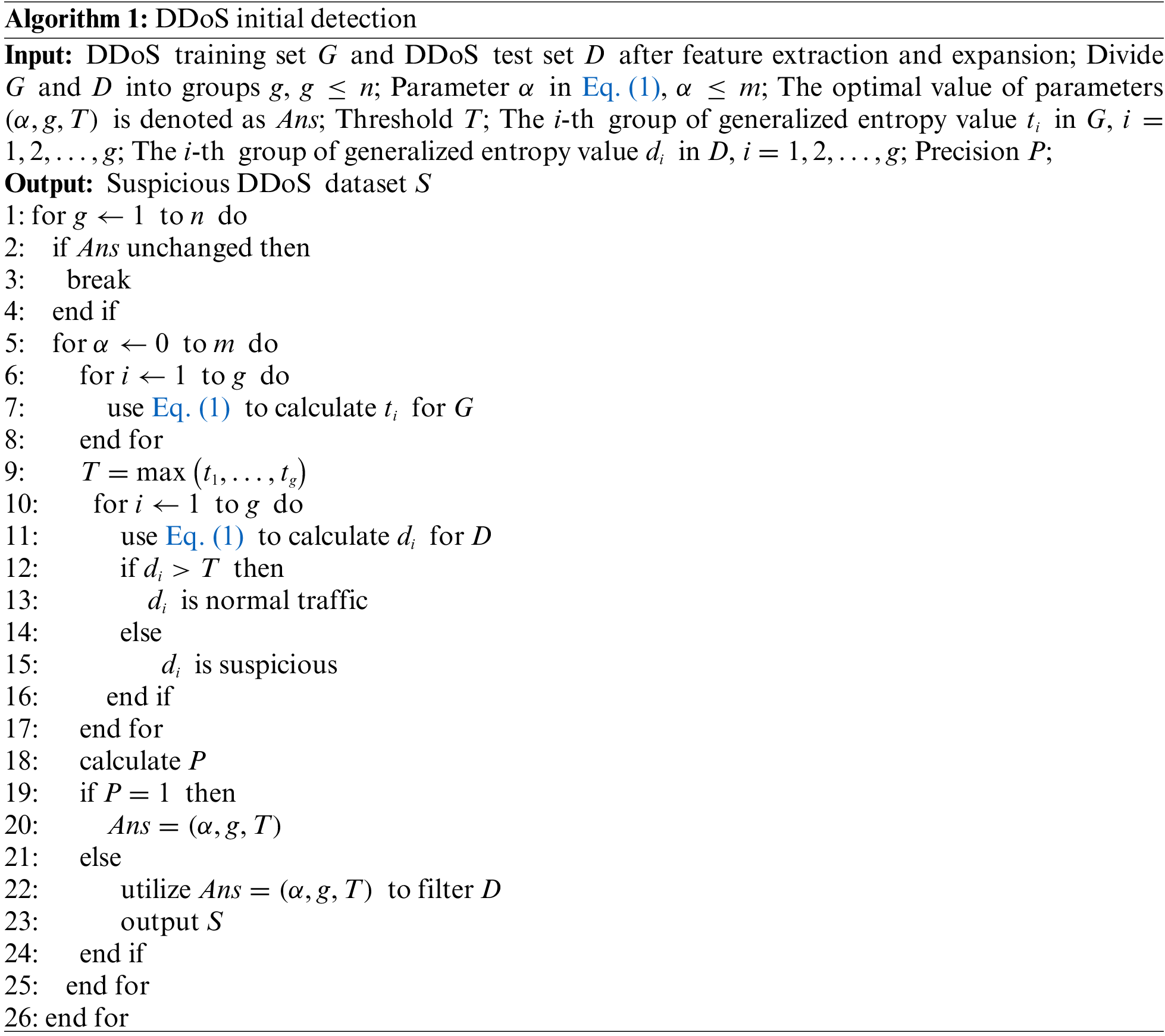

The DDoS initial detection algorithm based on improved generalized entropy is shown in Algorithm 1.
3.3 Fine Detection Model Based on DNN
Considering the real-time demands of network attack detection, this paper designs a five-layer structure of DNN. The model commences with an input layer accommodating a dimensionality of K + N. Two dropout layers are introduced and each configured to randomly deactivate neurons with a probability of

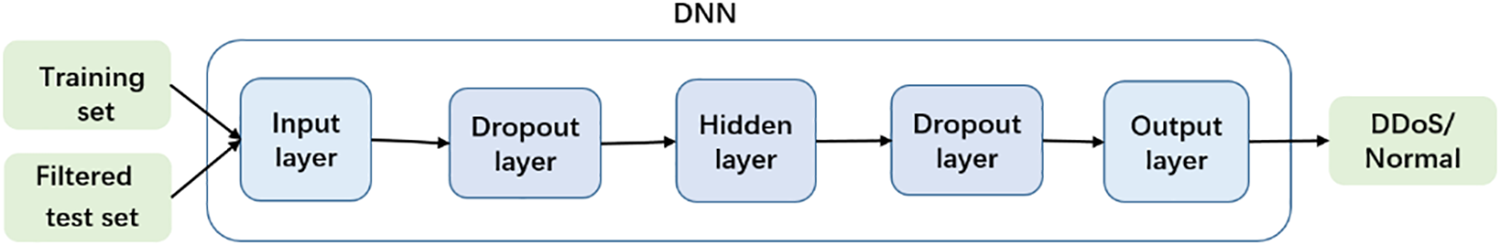

Figure 4: Framework the fine detection model

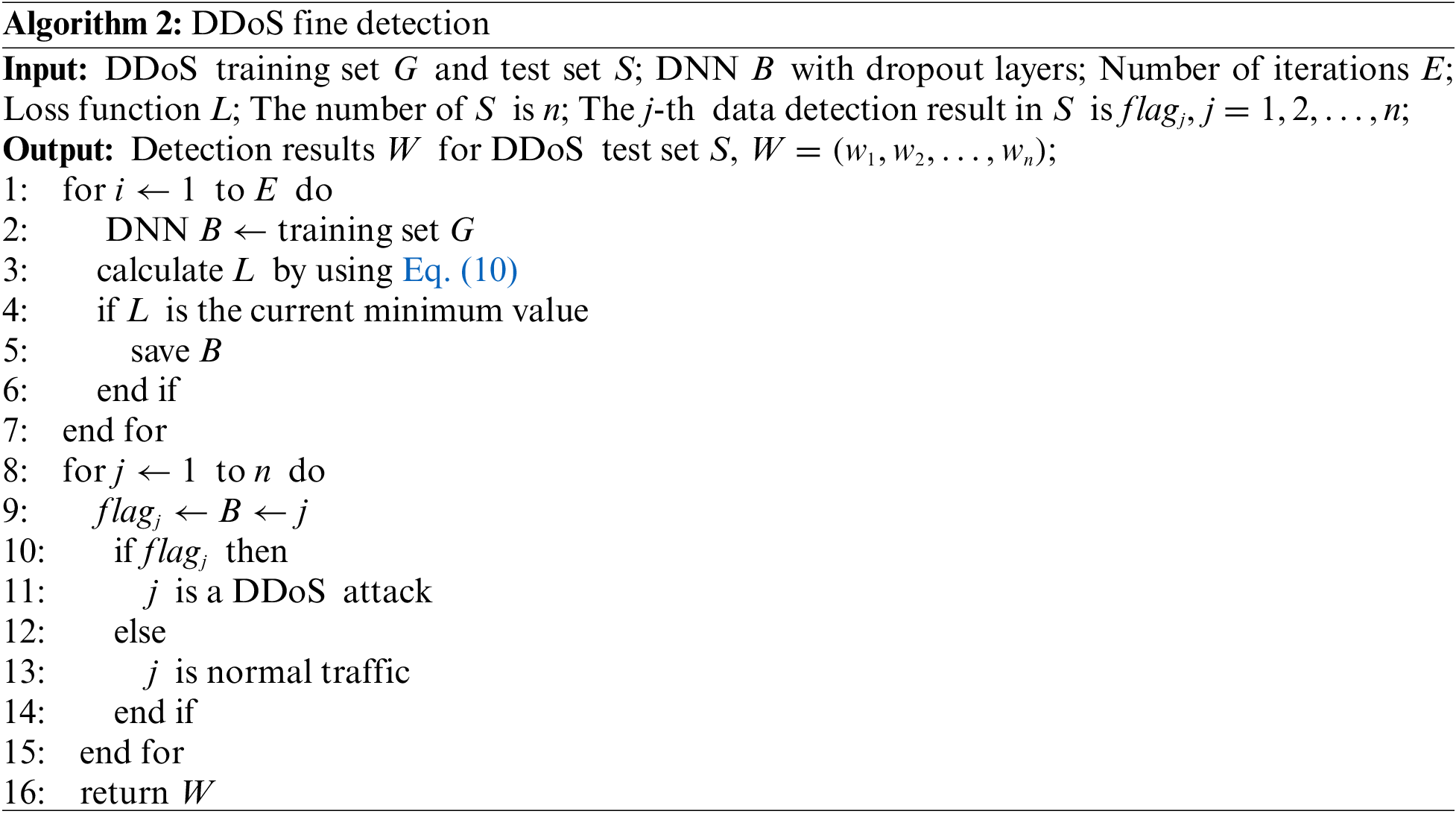

As a result, the DDoS fine detection algorithm based on DNN can be obtained as shown in Algorithm 2.
Firstly, the DNN is trained using the training set, and then input the suspicious dataset filtered by the initial detection model into the trained DNN to realize the accurate judgment of DDoS attacks. From Algorithm 1, we can get that the main computational cost of improving the generalized entropy is in the feature and iterative computation, so the computational complexity is o(G), where G is the size of the training set data. The size of the dataset filtered by Algorithm 1 is of size n. From Algorithm 2, we know that the main computational cost of the deep neural network model depends on the size of the data samples, so the computational complexity of the deep neural network model is o(n). So the computational complexity of the deep neural network model is based on the improved generalized entropy and is o(G).
All experiments are done by using TensorFlow framework, and the Linux system used for experiments is Intel(R) Core(TM) i7-4720HQ CPU @ 2.60 GHz, GPU is NVIDIA GeForce GTX 950 M with 16 GB RAM.
To evaluate the efficiency of the model for DDoS attack detection, three datasets are used for the experiments. The information about three datasets are shown in Table 4.
The mixed-type DDoS dataset is derived from the Kaggle competition platform which consists of various types of DDoS attacks and normal traffic from the public datasets CSE-CIC-IDS2018-AWS, CICIDS2017, and CIC DoS dataset (2016).
The LDDoS dataset is derived from data that is tagged with LDDoS label within the CSE-CIC-IDS2018-AWS dataset.
CICDDoS2019 is a dataset containing various DDoS attacks. Since the number of DDoS attacks in this dataset far exceeds the number of normal traffic, to make it have the same division ratio as the other two datasets, we choose to use all the normal traffic data and take some DDoS attack traffic from the CICDDoS2019 dataset according to the corresponding ratio to build the dataset we need.
The three datasets are labeled as “DDoS” and “Benign”, incorporating a total of 84 features. The LDDoS dataset comprises 332,841 pieces of traffic data, the mixed-type DDoS dataset contains a total of 76,165,090 pieces of traffic data, while the CICDDoS2019 holds 68,510 pieces of traffic data. 17% of the traffic data across these datasets are flagged as “DDoS” and 83% of the traffic data are flagged as “Benign”. The experiments were conducted by dividing the three datasets into a training set and a test set in the ratio of 8:2, respectively.
We choose four metrics to evaluate the performance of the proposed DDoS attack detection model: accuracy (
4.3 Initial Detection Model Experiment
Due to the processed CICDDoS2019 dataset in this paper is small and belongs to the same type as the mixed-type dataset, both of which contain a variety of DDoS attacks, we only use the mixed-type dataset and the LDDoS dataset for our experiments in the initial and fine detection modules, and use all three datasets in the control experiments.
Since the directional nature of traffic transmission, where “Src IP” and “Dst IP” are correspondent, “Src IP” and “Dst IP” in each traffic data is viewed as a tuple. The generalized entropy is then computed for all tuples within the defined window size and the specific steps are shown in Algorithm 1. The effect of the group numbers
4.3.1 Calculate the Optimal Model Thresholds

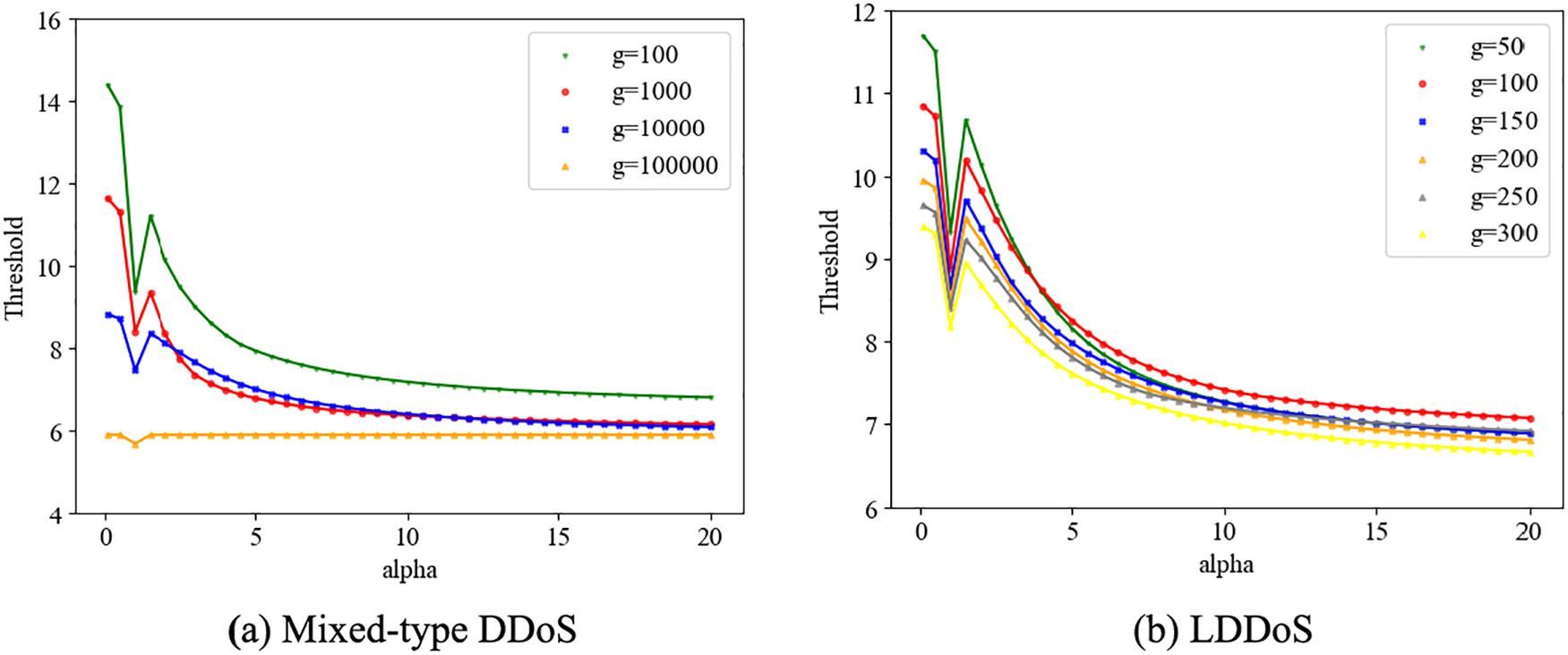

Fig. 5 illustrates the impact of partitioning the training set into
Figure 5: Validity of the initial detection model
4.3.2 Validity of the Initial Detection Model

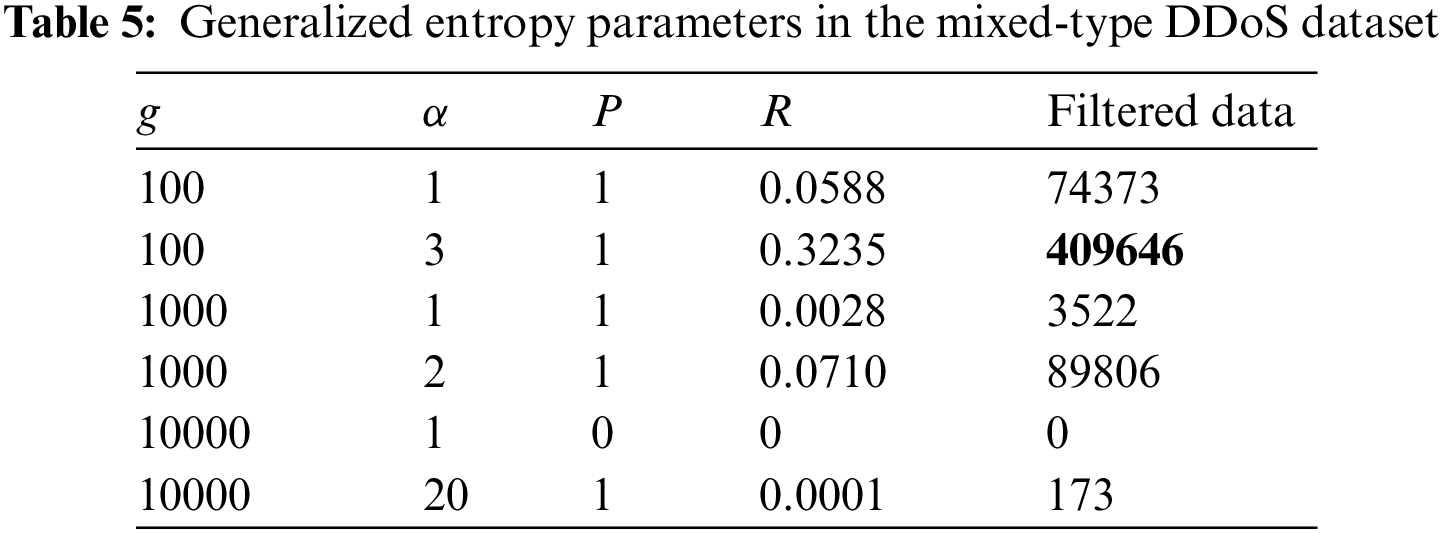

In order to validate the efficacy of the improved generalized entropy method on the test set, the experimental procedure commences with computing the generalized entropy value for each data group within the test set and then compares it with the thresholds of the corresponding parameter calculated in Fig. 5. The test set’s traffic is classified accordingly through this process and the precision and recall of the test results are obtained. Calculations reveal that with model parameters set at
Drawing from the analysis and findings above, it can be inferred that the
4.4 Fine Detection Model Experiment
The test set comprises potentially containing DDoS attacks, having undergone initial screening by our detection algorithm. The related information is shown in Table 7. In addition, the early stopping method [20] is added to the training process of each model to stop the training when
This section undertakes a series of comparative experiments aimed at validating the efficacy of the model’s feature expansion method based on the One-hot-encoding technique. Leveraging the dataset of suspected DDoS attack traffic, these experiments employ Algorithm 2, varying the One-hot-encoding thresholds to scrutinize its impact on DDoS detection capabilities. The results are shown in Tables 8 and 9. The experiment regards the dataset when the threshold is 0 as the original dataset without feature processing in Section 3.1, which contains all the features. In addition, the smaller the threshold of the feature extraction and expansion model is taken, the more features are expanded. An excessive count of features will impede detection speed; whereas a limited features will easily cause the model ignoring the features related to the IP address so that reducing the accuracy. Therefore, the thresholds are appropriately selected for comparison One-hot-encoding according to the size of the dataset.
In summary, based on the performance metrics corresponding to each threshold, a threshold of 10,000 is selected for the mixed-type DDoS attack dataset while a threshold of 100 is selected for the LDDoS dataset. The model are compared with the K-nearest neighbor method (KNN) [21], decision tree (DT) [22], random forest (RF) [22], extreme gradient boosting(XGBoost) [23], and long short-term memory network (LSTM) [24]. The results are shown in Tables 10 and 11.
The designed DNN model is better than other models in terms of
To evaluate the effectiveness of the model based on improved generalized entropy and DNN, as well as to show the superiority of the improved generalized entropy method, we added the CICDDoS2019 dataset for comparison experiments that contain the proposed model, the detection model based on DNN, and the detection model [13] based on information entropy and DNN. The results of the experiments are shown in Tables 12–14. To accurately compare the evaluation metrics, all models perform metrics evaluation based on the original dataset.
The
In this paper, we propose an intelligent DDoS detection method IGED based on improved generalized entropy and DNN. Firstly, we propose an improved generalized entropy method to initial screening traffic in order to reduce data size. Then we propose a DNN-based method for further precise detection of suspicious traffic. Experimental results show that the proposed method can filter more normal traffic, which provides both improved accuracy and enhanced timeliness for swift response and mitigation of attacks.
Although the detection method proposed in this paper successfully identifies DDoS attack behavior, its discriminative capability is currently limited to generalized attack detection, falling short of precisely categorizing different types of DDoS attacks. Therefore, in future work, we should focus on devising an innovative detection model that, while maintaining efficient real-time responsiveness, can conduct deeply granular multi-classification of DDoS attacks. By employing more advanced algorithms and deep learning methodologies, the objective should be twofold: not just to augment the accuracy in identifying established attack patterns, but also to bolster the model’s adaptability and predictive efficacy against emerging attack tactics and their variants, thereby securing its long-term viability.
Acknowledgement: The authors would like to express appreciation to the National Natural Science Foundation of China, the Natural Science Foundation of Fujian Province, and the Major Science and Technology project of Fuzhou for their financial support. The authors would like to thank the editor-in-chief, editor, and reviewers for their valuable comments and suggestions.
Funding Statement: This work is supported by the National Natural Science Foundation of China (Grant Nos. U22B2005, 62072109), the Natural Science Foundation of Fujian Province (Grant No. 2021J01625), and the Major Science and Technology Project of Fuzhou (Grant No. 2023-ZD-003).
Author Contributions: Study conception and design: Yanhua Liu, Baokang Zhao; data collection: Xiaofeng Wang; analysis and interpretation of results: Xiaofeng Wang, Yuting Han; draft manuscript preparation: Ximeng Liu, Hui Chen. All authors reviewed the results and approved the final version of the manuscript.
Availability of Data and Materials: Data openly available in a public repository. The data that support the findings of this study are openly available at https://www.kaggle.com/devendra416/ddos-datasets (accessed on 19/04/2024).
Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
