AnonymousTollPass: A Blockchain-Based Privacy-Preserving Electronic Toll Payment Model

1  Introduction

The rapid advancement of intelligent vehicle performance is accelerating the establishment of vehicular services and Intelligent Transport Systems (ITS) [1–4]. An Electronic Toll Collection (ETC) system, which is one of the main pivotal services of the ITS, is a wireless payment system that allows drivers to pass through toll facilities without stopping and paying toll fees [5]. The system facilitates smooth traffic flow and enables efficient traffic management. Due to these advantages, the implementation of ETC Systems is gradually increasing in developing countries such as India FASTag [6], and Pakistan NADRA [7], aimed at providing convenient payment options, improving efficiency, and complying with government regulations on carbon emissions. Accordingly, the market size of the ETC System is expected to increase from $9.2 Billion in 2020 to $17.7 Billion in 2027 [8].

The current ETC System faces two significant challenges. The first challenge is how TSPs can securely share toll information in a distributed environment. Currently, in most countries operating ETC Systems, multiple companies and institutions have their own Toll Service Provider (TSP)s and manage Toll Plaza (TP)s in each region [1]. Thus, ETC Systems have been developed in decentralized environments where each TSP has its own database, considering the realistic situation of ETC Systems built in each country. At this point, since vehicles move through multiple regions and pay tolls via several TSPs and TPs, TSPs should be able to share toll usage information for accurate toll payments in a decentralized environment. However, when sharing toll information in a distributed environment, security issues may arise related to data synchronization and validation among TSP.

Secondly, the vehicle’s travel route is revealed during the electronic toll payment process. electronic toll payments using credit cards are flawed in protecting driver privacy. That is because credit card transaction data can lead to patterns of behavior that can reveal identifying information at any given time. In fact, ETC Systems (e.g., E-ZPass [9], hi-pass [10], and Vietnam Electronic Toll Collection (VETC) [11]) used in many countries make credit card-based payments in a similar way to the use of unique codes. However, this may expose personal information connected to the credit cards themselves. In these systems, TSPs can get payment data that can identify the driver, such as tolling information, each time the vehicle makes a toll payment. Especially when drivers commute by vehicle or regularly visit specific places like hospitals or supermarkets, TSPs can derive personal information such as the driver’s driving patterns and destination based on the collected payment information. Exposing a driver’s personal information is highly risky because a privacy disclosure can trigger many safety concerns and even physical attacks on the driver [12,13]. To address these challenges, it is necessary to have a privacy-preserving data-sharing method for the ETC System in decentralized environments to ensure the unlinkability of each toll usage record of vehicles and conceal the entire toll usage history.

In the design of a secure data sharing model in a distributed environment, blockchain technology can be utilized to provide data traceability, integrity, and distributed ledger functionality. So far, several researchers [14–16] have been working on blockchain-based electronic toll payment systems. Ying et al. [14] proposed a blockchain-based highway electronic toll payment framework for efficient authentication using aggregate signature. Deng et al. [15] designed a smart contract-based electronic toll payment scheme for vehicle-to-RSU transactions. However, the blockchain models proposed in these papers still suffer from the issue of exposing users’ personal information to Roadside Units (RSUs), toll plazas, or other users, as the users’ toll usage records and payment details are directly stored and shared on the blockchain ledger. To preserve a vehicle’s privacy, Guo et al. [16] proposed a blockchain-based privacy-preserving electronic toll payment scheme using zero-knowledge Succinct Non-interactive ARgument of Knowledge (zk-SNARK) and group signature. Nevertheless, the group leader can still trace who generated a signature. Furthermore, the requirement for vehicles to execute smart contract operations for each toll payment is both financially and computationally inefficient.

To hide the user’s toll usage records from other entities such as TSPs and toll plazas, we proposed AnonymousTollPass, a blockchain-based anonymous electronic toll ticket payment model. Vehicles buy a one-time AnonymousTollPass ticket for toll payment using smart contracts, and AnonymousTollPass tickets are generated based on traceable ring signatures (TRS) [17]. According to TRS’s characteristics, the user’s identity using the ticket remains concealed. If someone who has already used the ticket attempts to reuse the same ticket, their identity is revealed. Since the used AnonymousTollPass ticket information is recorded in the smart contract, the stored data is resistant to forgery and tampering and is safely managed by TSPs. We implemented our smart contract system to prove the proposed model’s effectiveness. Then, we deployed it on the Ethereum blockchain, measuring the gas fee, processing time of each phase, and key sizes according to the ring sizes. The simulation results show that the proposed model exhibits reduced implementation costs compared to the existing privacy-preserving ETC model, attributed to the reduction in computational load within smart contracts. The main contributions of this paper are as follows:

1.    Blockchain-based ETC Model: We designed the AnonymousTollPass model, a blockchain-based ETC payment system. It eliminates the single point of failure and ensures reliable toll usage data sharing among the participants.

2.    Anonymous Tickets: We introduced a method to hide users’ identities with AnonymousTollPass tickets, which is based on the traceable ring signature (TRS) algorithm. When a vehicle uses the ticket, no one, including the TSP that sold the ticket, can infer exactly which of the ring members used the ticket except for double payment.

3.    Smart Contracts with Lower Costs: We designed two smart contracts, TicketSaleContract and TicketUsageContract, to handle ticket usage history. These smart contracts demonstrate cost efficiency that improves with ring size; as the ring size increases, the operational cost decreases. With a ring size of 50, the proposed smart contract requires only about 10% of the gas fees compared to those used in previous studies.

The rest of this paper is organized as follows: We discuss related works for ETC Systems in Section 2. We describe overall model including security requirements and AnonymousTollPass ticket in Section 3. We propose two smart contract systems and a basic protocol of our AnonymousTollPass model in Section 4. Then, we provide security analysis in Section 5. Also, we provide the performance evaluation of our model in Section 6. We discuss a case study of South Korea in Section 7. Finally, we conclude this paper in Section 8.

2  Related Works

2.1 Text Layout Electronic Toll Collection for ITS

An ITS is an advanced transportation system that integrates communication, sensors, AI, and other intelligent technologies into legacy transportation systems to provide innovative applications. Accordingly, various studies [18–21] have been conducted to enhance user convenience through data management systems that collect and analyze transportation information. Borges et al. [18] proposed a privacy-preserving ETC scheme that utilizes a protocol called “Priced Oblivious Transfer” (POT) [19]. To use the POT protocol, the service provider needs to prepare tickets for all possible entrances when a vehicle exits the highway. It has a significant time overhead as all vehicles must use the system simultaneously. Randriamasy et al. [20] proposed an ETC model for vehicles equipped with C-ITS (Cooperative intelligent transport system) devices. They identified the vehicle’s geolocation at a toll plaza with a barrier environment and automatically opened the barrier for vehicles that successfully paid the toll. In this model, it requires an additional device. Aung et al. [21] proposed a system that reserves planned roads to alleviate congested traffic environments. Instead of collecting tolls, they used the T-coin (Traffic coin) they proposed to provide rewards for using alternative routes based on traffic congestion. References [20, 21] proposed an efficient ETC System, but they did not address the issue of user privacy exposure. Additionally, since the systems of [19–21] operate with a single central server, they have the issue of a single point of failure.

2.2 Blockchain-Based Electronic Toll Collection System

Blockchain means a distributed ledger technology in which multiple nodes that do not trust each other store a ledger without a trusted agency [22]. Using a cryptographic hash function and electronic signature, the recorded transactions’ order and contents in the ledger cannot be modified, providing data integrity. Blockchain technology plays a significant role in various fields that require safe data sharing and storage, such as vehicular networks [1], healthcare [23], and smart cities [24]. Also, researchers have conducted studies on integrating blockchain technology into the ETC System, which operates as a distributed system involving TPs and multiple TSPs the ETC System, to safely manage toll payment information. TP,TSP, and vehicles participate as blockchain nodes to safely perform toll payments through smart contracts distributed on the blockchain and store toll payment information such as toll transaction date and payment amount in the blockchain. A blockchain-based ETC System is generally structured as shown in Fig. 1.

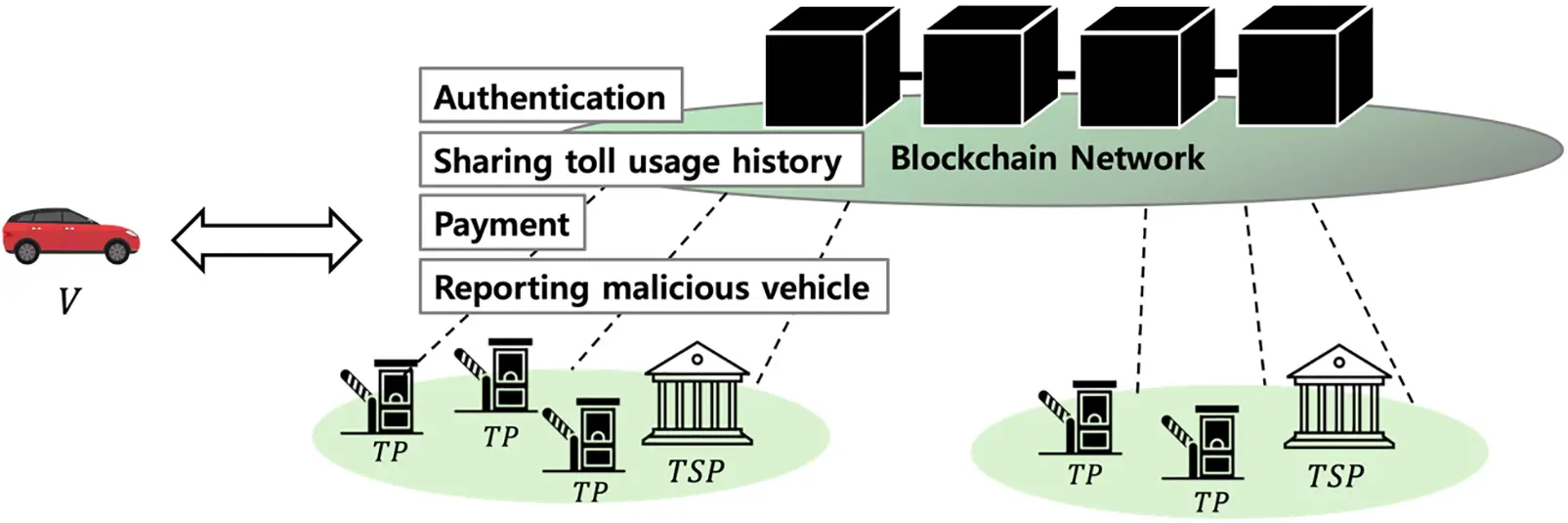

Figure 1: General blockchain-based ETC Systems

Ying et al. [14] suggested a blockchain-based efficient highway toll paradigm considering vehicle platoons. In the model, a vehicle platoon leader pays the toll fee for all platoon members simultaneously by applying an aggregate signature algorithm, enabling efficient vehicle toll payment. Deng et al. [15] proposed two electronic payment schemes, including a vehicle-to-RSU (V-R) transaction and a vehicle-to-RSUs (V-Rs) transaction. Vehicles conduct toll payments through a smart contract and RSUs. Chiu et al. [25] proposed a blockchain-based electronic toll collection system using a practical byzantine fault tolerance (PBFT) algorithm as a consensus algorithm for fast transaction processing. Xiao et al. [26] suggested a blockchain-based toll collection system for public sharing using edge nodes. In order to reduce the overhead of an edge node when there are a large number of toll payment requests, the authors applied a proxy server and greedy algorithm for efficiently matching the edge node and vehicle. Shukla et al. [27] proposed a deep learning-based dynamic toll pricing scheme. The proposed model predicts vehicle traffic and determines the toll payment amount according to lane type and vehicle class. References [14, 15, 25–27] proposed a blockchain-based electronic toll payment model. However, the vehicle’s public key, vehicle ID, and location of the toll plaza are stored in the blockchain so attackers can track a driver’s private information and driving routes. To overcome the limitation, some studies concern blockchain-based electronic toll systems, considering vehicle privacy. Wang et al. [28] designed a credit electronic toll collection system, including an evidence chain framework. Vehicle information is stored in a trusted storage center, and the evidence is recorded in the blockchain. However, RSUs and toll stations still know the driver’s personal information and payment history. Guo et al. [16] proposed a blockchain-based privacy-preserving payment scheme. The proposed scheme protects the vehicle’s location privacy by hiding the toll station information the vehicle has passed through by using zk-SNARK (zero-knowledge succinct non-interactive argument of knowledge) proof and a group signature algorithm. Nevertheless, a group leader can know who generates a signature according to the characteristics of the group signature. Therefore, the vehicle’s driving route may be revealed regardless of the vehicle’s will. In addition, vehicles should participate as a blockchain node and execute a payment smart contract whenever they start or end the toll service. So, vehicles must update and store the blockchain ledger in real-time, which burdens them due to their limited memory, low computing power, and mobility.

To effectively protect the privacy of vehicles from other vehicles, RSUs, and toll plazas, we propose a blockchain-based toll payment model utilizing a traceable ring signature that can safely hide the vehicle’s toll plaza usage information. Also, vehicles with relatively low computational power and memory capacity do not participate as blockchain nodes in our proposed model. So, the smart contract only stores ticket information to lower the execution costs of the smart contract.

3  System Architecture

In this section, we define the entities and threat models in the proposed model. We also present the security requirements and describe how we design AnonymousTollPass model.

3.1 Overall Model

The proposed model is based on a private blockchain in which TSP and TP participate, storing toll payment information. Vehicles with relatively low computational power and memory capacity do not participate as blockchain nodes in our blockchain-based electronic toll ticket system. Instead, TSPs and TPs, which have sufficient computational power and memory, maintain the blockchain ledger. The blockchain ledger stores information about used toll tickets, public key lists for ticket validation, payment dates and times, and related TP information. The recorded toll payment data is used as a statistical indicator for urban infrastructure construction and traffic flow analysis [29]. There are four main entities in our AnonymousTollPass model: Registration Authority RA, Vehicle V, Toll Plaza TP, and Toll Service Provider TSP. The main entities are described as follows:

•   Registration Authority RA: A registration authority RA is an organization, which manages registration information. The vehicle owner registers his vehicle information with the RA to use the ETC service. Only registered vehicles Vs can purchase an AnonymousTollPass ticket from the TSP.

•   Vehicle V: Vehicles have their identity registered in the government sector through their platoon number in advance. A vehicle V buys an AnonymousTollPass ticket from the TSP to use the toll service. The V submits the ticket to TPx for toll payment after using the highway. A V can read the blockchain ledger to check its ticket-related data.

•   Toll Service Provider TSP: A Toll Service Provider is a service organization that operates toll plazas. It works as a full node in the private blockchain network. The TSP sells AnonymousTollPass tickets, which can be used in the toll plaza system, to Vs and deploys a ticket sale contract and a ticket usage contract in the blockchain.

•   Toll Plaza TP: Toll Plazas are located at every highway entry and exit point. Following a real ETC scenario, the Toll Plaza (TP) consists of an entry Toll Plaza TPn where vehicles enter the highway and an exit Toll Plaza TPx where vehicles pay tolls and leave the highway. They have sufficient computing power and memory for AnonymousTollPass ticket verification and ledger management. They also maintain the blockchain ledgers to record ticket information.

In the proposed model, a V submits an AnonymousTollPass ticket instead of paying a toll directly to TPx. The AnonymousTollPass ticket is created based on a traceable ring signature to hide the ticket user’s private information according to the characteristics of the traceable ring signature. Vs buy an AnonymousTollPass ticket from the TSP and ticket prices vary depending on the travel distance. For instance, expressway toll fees in South Korea range from about $1 to $50, and the toll price is the same even if vehicles drive on different routes [30]. Reflecting it, the TSP gathers Vs traveling the same distance and forms a ring. The TSP deploys a ticket sale contract for checking ticket sales information and a ticket usage contract for managing used tickets. The Vs, which belong to the ring and purchase the ticket, receive the smart contract addresses from the TSP. Each V can check the ring group information to which it belongs and ticket information through these smart contracts. The process of the overall model is shown in Fig. 2.

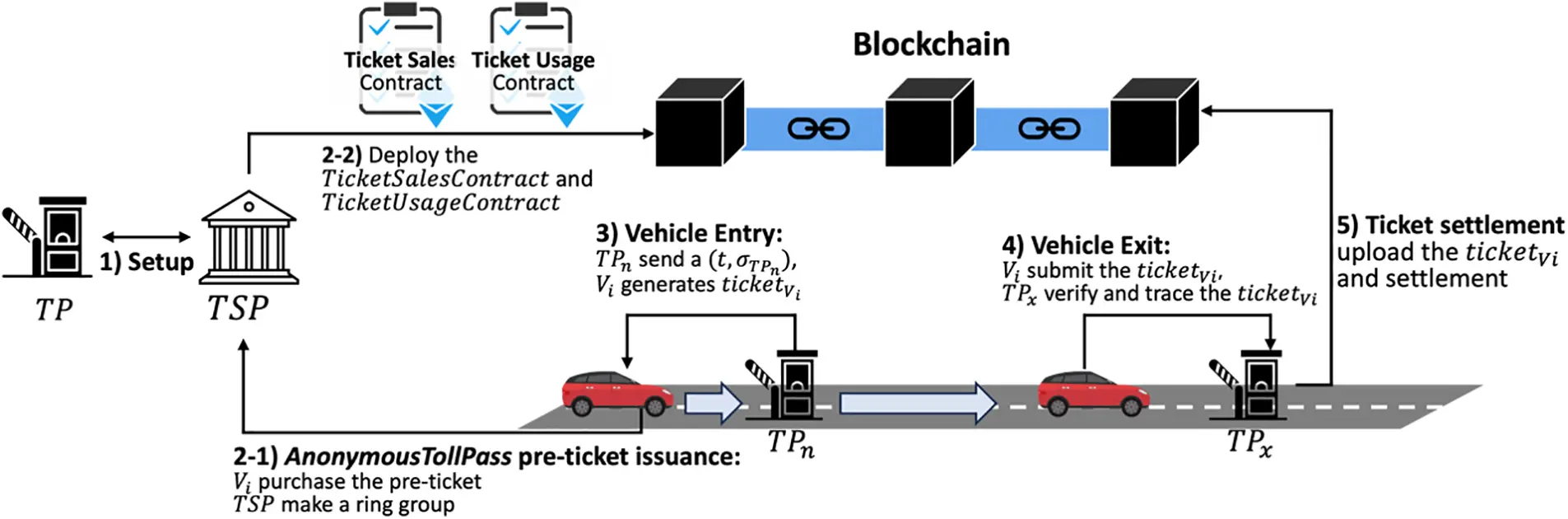

Figure 2: Overall model

3.2 Threat Model & Security Requirements

In the proposed model, we classified the threat models into three categories: A malicious V, a curious TP, and a curious TSP. The malicious V attempts to evade toll payment by reusing AnonymousTollPass tickets that others have used. It can also try to forge the location of the highway entry point, attempting to travel a greater distance than the purchased ticket would allow. The curious TP and the curious TSP can attempt to reveal V’s identity by analyzing V’s ticket usage histories and figuring out V’s driving route through recorded transactions. In order to operate an electronic toll collection model secure against attackers, the proposed model should satisfy the following security requirements:

1.    Identity Privacy: When a V uses the electronic toll collection model, the model should hide the V’s toll plaza usage information to protect the privacy of the V. All TPs and TSPs should not be able to identify the V through the AnonymousTollPass ticket received from the V. However, if the V behaves maliciously, the model should be able to reveal his identity.

2.    Ticket Unlinkability: An attacker may attempt to infer the V’s driving route through the used ticket information stored in the blockchain. Therefore, the proposed model should not be able to link AnonymousTollPass tickets generated by the same vehicle. In addition, even if the public key of the V for a specific ticket is exposed, other participants should not be able to infer other tickets of Vs from the exposed information.

3.    Resistance to distance forgery: The AnonymousTollPass ticket price is proportional to the distance traveled by the V from the entry toll plaza to the exit toll plaza. Therefore, the proposed model requires the toll plaza location information when a V uses a ticket. However, a malicious V may attempt to forge information about a TPn or a TPx to pay a lower fee. To ensure a secure toll payment model, the proposed model should enable TPx to verify which TPn the V used to enter the highway when verifying the V’s ticket, and the V must not be able to modify their usage history.

4.    Abuse of tickets: A malicious V may attempt to reuse an AnonymousTollPass ticket that has already been used, or it may try to steal the information of a ticket purchased by other vehicles and use it for toll payment. To prevent a malicious V from abusing tickets, the proposed model should enable TPx to verify whether an AnonymousTollPass ticket has been properly paid for.

3.3 AnonymousTollPass Ticket

In this paper, we propose an AnonymousTollPass ticket to preserve vehicles’ privacy in the blockchain-based electronic toll payment model. The AnonymousTollPass ticket is a one-time toll ticket generated based on the traceable ring signature (TRS) algorithm [17]. The identity of each V using tickets is concealed within a ring group, making it difficult for TPs and other vehicles Vs to determine which ring group member utilized the ticket. In addition, if a malicious vehicle attempts to use a spent ticket, its identity is revoked through the TRS’s characteristics. The AnonymousTollPass ticket ticketVi (m,σ) consists of a message m and its corresponding TRS value σ. The AnonymousTollPass tickets are composed of four algorithms: Key pair generation (GEN), AnonymousTollPass ticket generation (ticketGEN), AnonymousTollPass ticket verification (ticketVER), and AnonymousTollPass ticket trace (ticketTRACE).

•   (pkVi,skVi)←GEN(1λ). The GEN algorithm takes a security parameter 1λ as input and generates the public key pkVi and the private key skVi. Let G be a multiplicative group of order q with g as the generator of G. Each Vi selects a random xi from Zq, and calculates yi=gxi. Each Vi uses skVi={pkVi,xi} as its private key and pkVi={g,yi,G} as its public key.

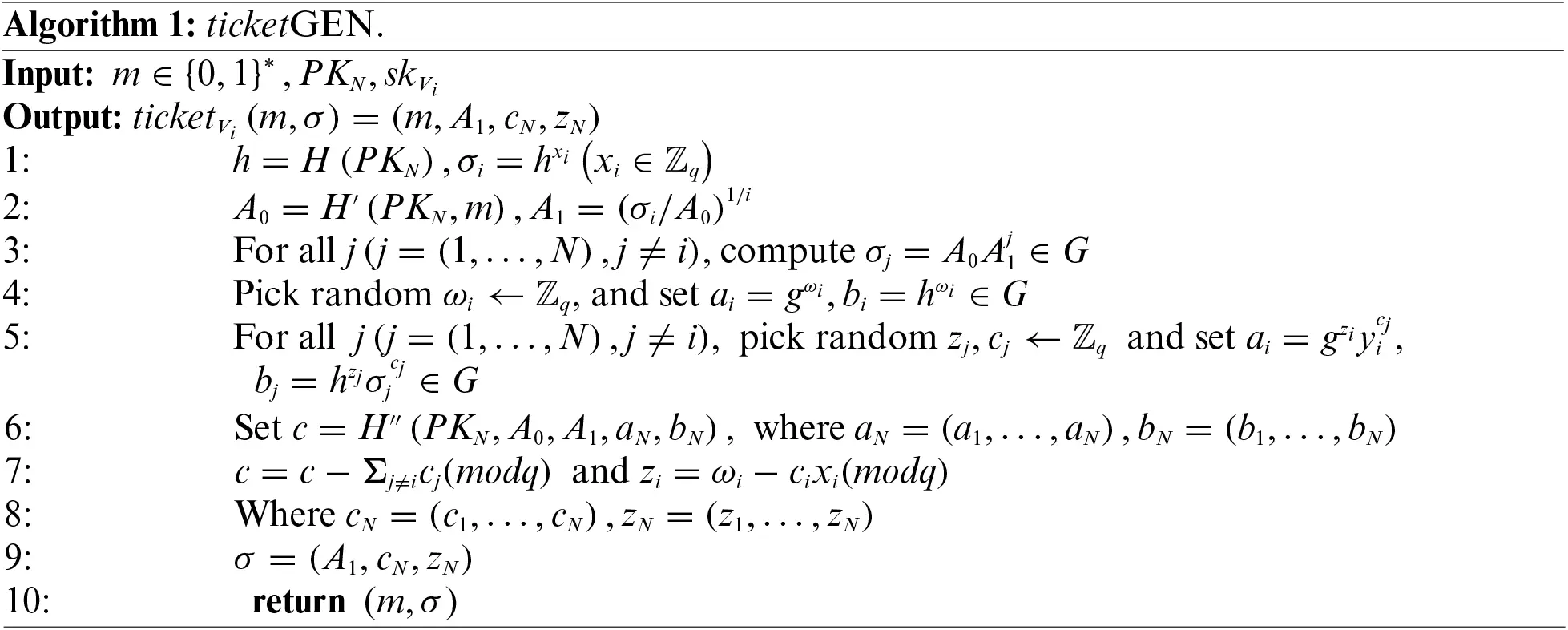

•   ticketVi(m,σ)←ticketGEN(skVi,PKN,m). When Vi generates a AnonymousTollPass ticket, the ticketGEN algorithm takes a private key skVi, public key list of the ring group members PKN, and message m as inputs, then outputs ticketVi. The detailed process is shown in Algorithm 1.

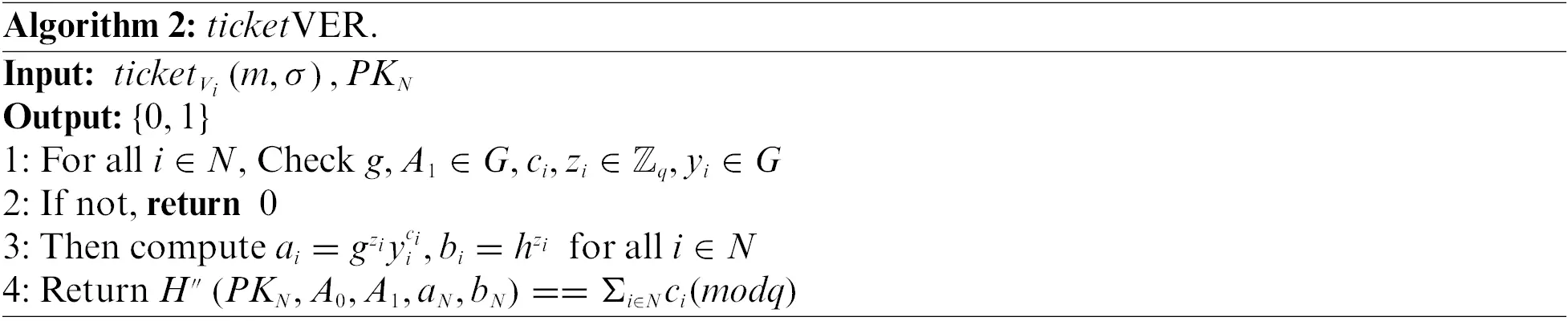

•   {0,1}←ticketVER(ticketVi,PKN). The ticketVER algorithm verifies whether the ticket submitted by Vi is generated by a member belonging to the PKN. It takes the AnonymousTollPass ticket ticketVi(m,σ), and public key set PKN as inputs. The output is 1 if the verification succeeds and 0 if it fails. The detailed process is shown in Algorithm 2.

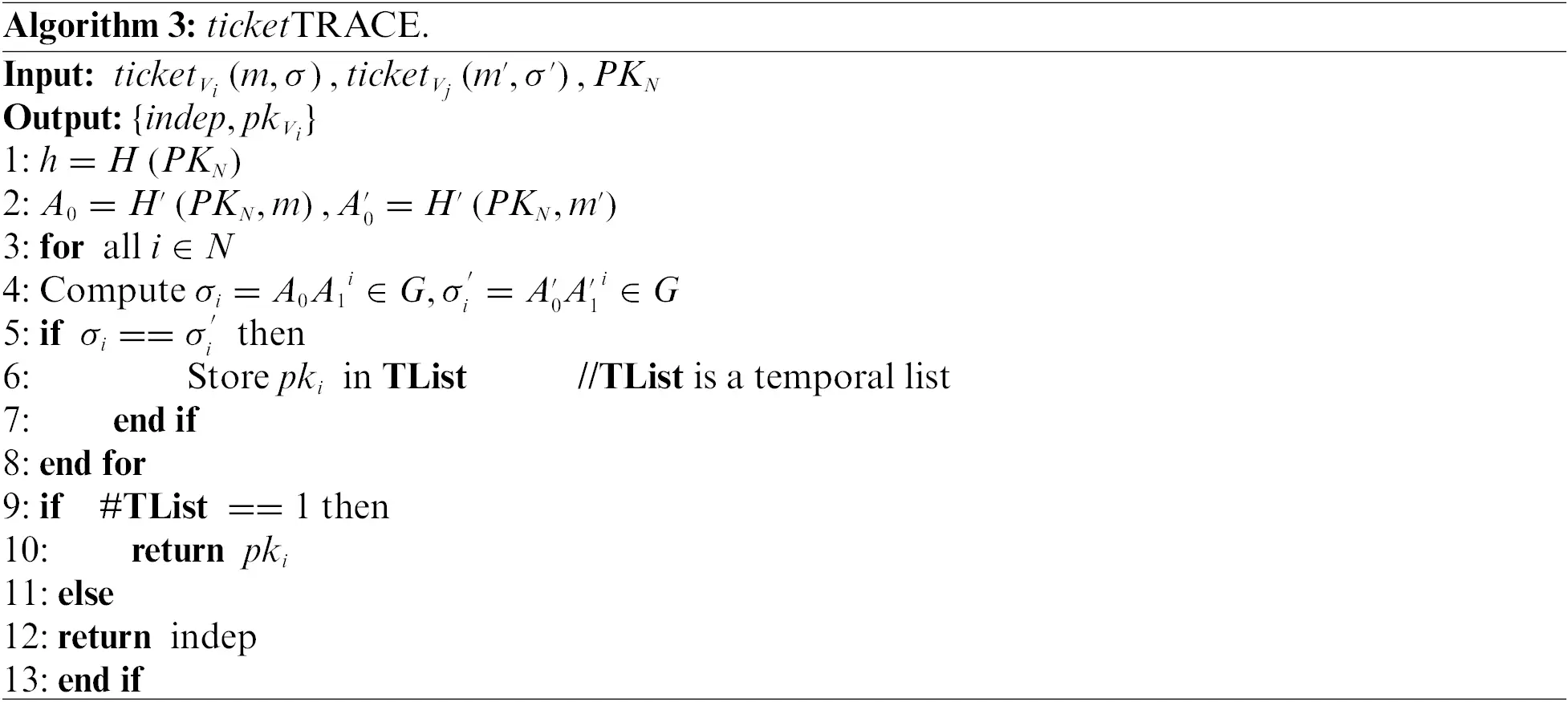

•   {indep,pki}←ticketTRACE(ticketVi,ticketVj,PKN). When Vi submits a ticket, the ticketTRACE algorithm checks whether the ticket has already been used. It takes the ticketVi, a previously used ticketVj, and the public key list of the ring group PKN as inputs. If the ticket was generated by a different V, it outputs ‘indep’. If the ticket was generated by the same signer, it outputs ‘pki’. The detailed process is shown in Algorithm 3.

4  AnonymousTollPass Model

In this section, we first propose our smart contract system for managing AnonymousTollPass tickets. Then we present a basic protocol for our AnonymousTollPass model in detail.

4.1 Smart Contract System

The smart contract system for AnonymousTollPass model consists of TicketSaleContract and TicketUsageContract. A TSP deploys both contracts after AnonymousTollPass ticket sales.

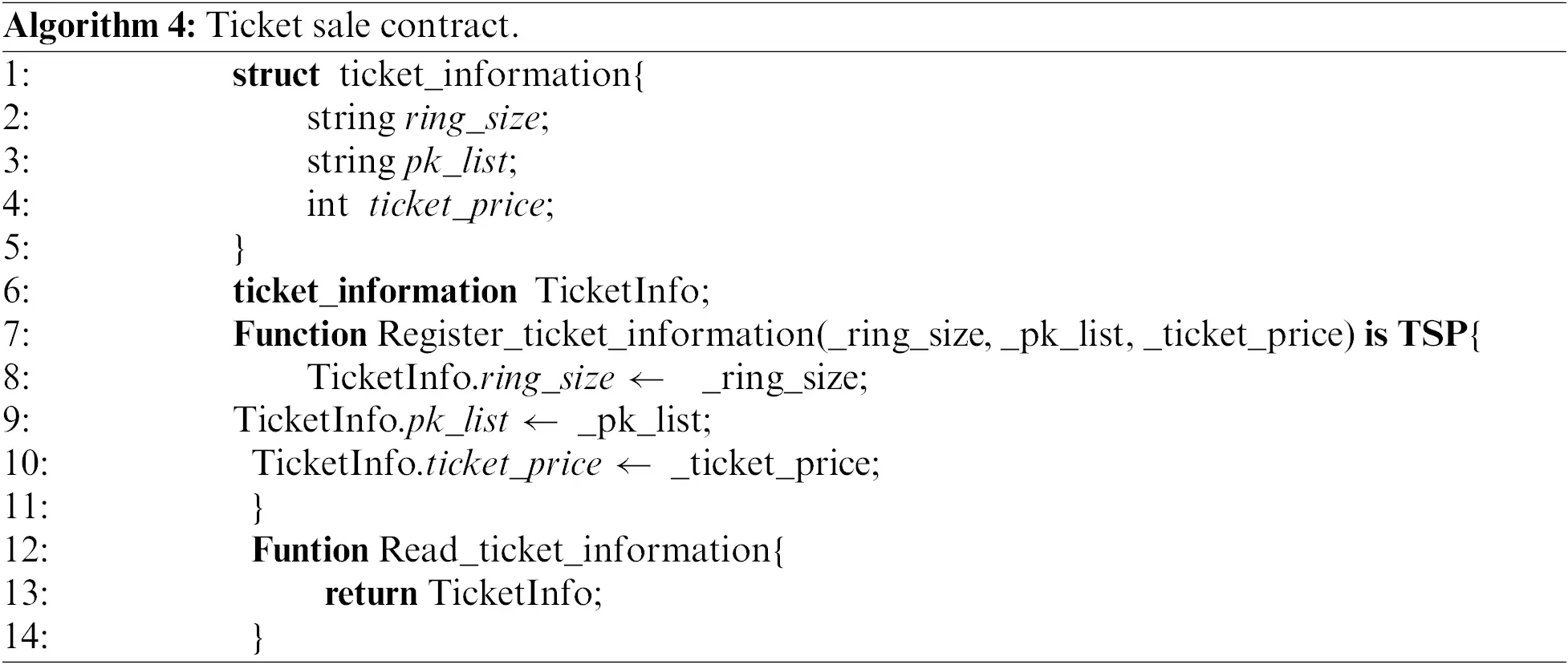

4.1.1 TicketSaleContract

The TSP that sells an AnonymousTollPass ticket deploys TicketSaleContract on the blockchain network. This contract records ticket-related data on the blockchain and allows participants to access it. The ticket-related data consists of Ring size, PK list, and Ticket price as follows:

•   ring_size: It is the number of V that purchased the same price ticket.

•   pk_list: It is the public key list of the ring members.

•   ticket_price: It is the price of the AnonymousTollPass ticket.

These ticket-related data are stored in the blockchain through the Register_ticket_information() function and can be checked through the Read_ticket_information() function.

•   Register_ticket_information(): This is a function to record AnonymousTollPass ticket information on the TicketSaleContract. Since only the TSP can sell toll tickets, we use a modifier to ensure that only TSP can execute this function. After the TSP sells AnonymousTollPass tickets to Vs that purchased the ticket at the same price, the TSP executes this function with ring size, a PK list of Vs, and the ticket price as inputs.

•   Read_ticket_information(): This is a function to check the information of the AnonymousTollPass ticket. The V can check the information on the purchased ticket. A TP verifies the ticket submitted by the V through the function.

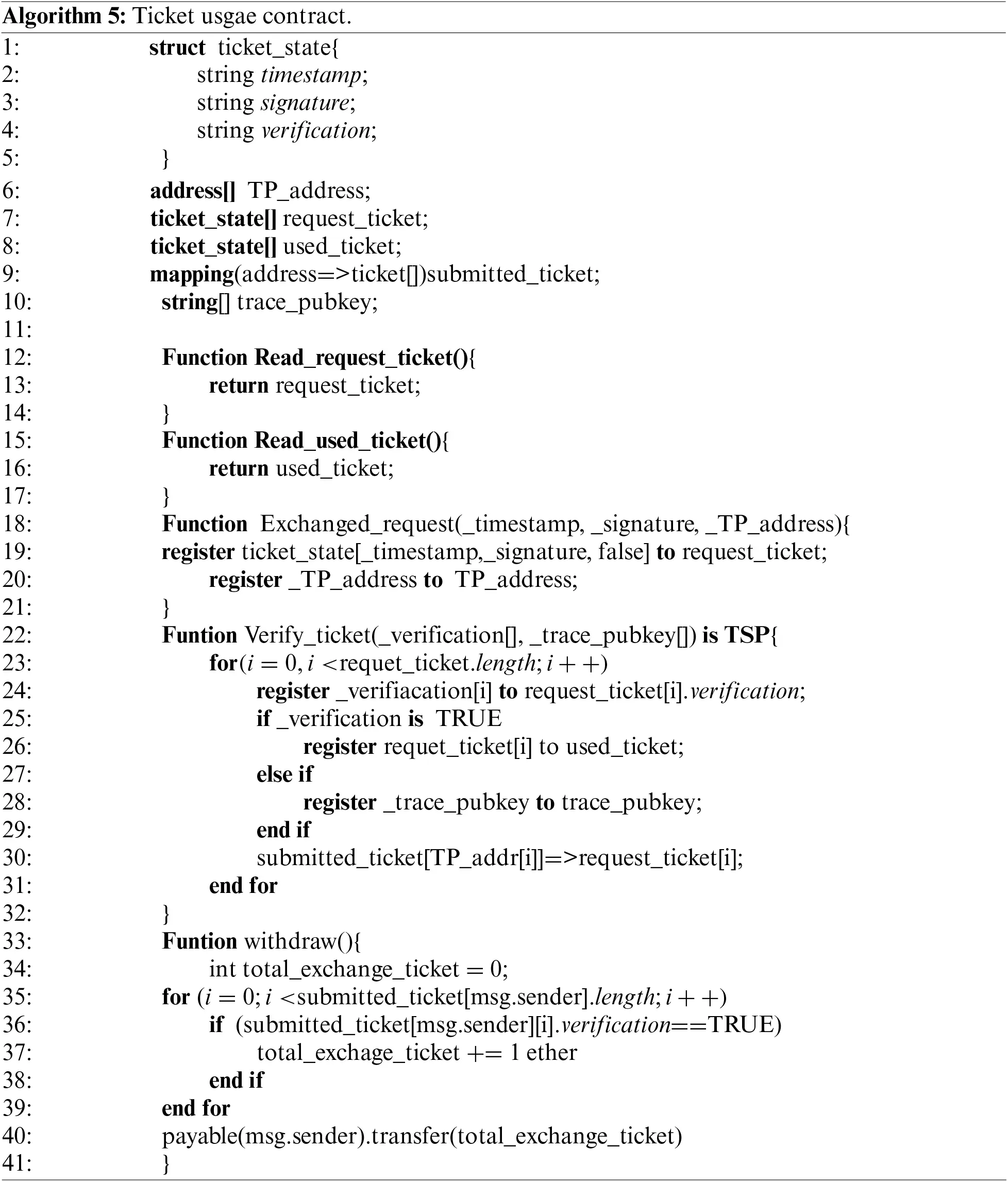

4.1.2 TicketUsageContract

The TP records the used ticket-related data that it received from each V through the TicketUsageContract. The ticket-related data is stored in the form of a ticket_state structure which includes timestamp, ticket and a verification result. The ticket_state structure has the following three components:

•   timestamp: It is the timestamp of when a V enters the TPn.

•   signature: It is the signature of the AnonymousTollPass ticket that the V generated.

•   verification_result: If the ticket verification is successful, ‘True’ is stored. Otherwise, ‘False’ is stored.

The variables used in the TicketUsageContract are as follows:

•   address[] TP_address: This is an array that stores the addresses of TPs who requested AnonymousTollPass ticket exchange.

•   ticket_state[] request_ticket: This is an array that stores the ticket_state of the tickets that have been requested for exchange from the TPx.

•   ticket_state[] used_ticket: This is an array that stores the ticket_state of the used tickets.

•   mapping(address=>ticket[]) submitted_ticket: This is a variable that maps the ticket_state of the ticket submitted by a TP as a key to the TP’s address as the corresponding value.

•   string[] trace_pubkey: This is an array that stores the public key of Vs revealed through the reuse of tickets.

The description of the five functions of the TicketUsageContract is as follows:

•   Exchange_request(): The TP upload AnonymousTollPass ticket received from a V in the request_ticket array. The TP uses timestamp, signature and TP’s address as inputs. Since the verification of the ticket has not been confirmed yet, the initial verification value of the ticket is false.

•   Verify_ticket(): The TSP updates the verification and trace result of the tickets in the request_ticket list. Only the TSP should be able to update the ticket verification result. The TSP inputs the _verification array and the _trace_pubkey array into this function. The _verification array stores the verification result of the request_ticket, and the _trace_pubkey array stores the traced public key value of the ticket if the verification result is ‘false’, otherwise it stores Null value. Only tickets with a verification result that is ‘true’ are stored in the used_ticket list.

•   Read_request_ticket(): This is the function to check the request_ticket list. The TSP executes this function to verify the requested tickets for toll payment.

•   Read_used_ticket(): This function checks already used ticket sets. The TP executes this function when authenticating a ticket.

•   withdraw(): This function allows TP to withdraw an amount of Ether corresponding to the ticket price for the tickets in the used_ticket list.

4.2 A Basic Protocol

The basic protocol for AnonymousTollPass model consists of five steps: (1) Registration, (2) AnonymousTollPass pre-ticket issuance, (3) Vehicle Entry, (4) Vehicle Exit, (5) Ticket settlement. The list of notations is shown in Table 1. We assume that all participants, such as a toll service provider TSP, toll plazas TPs, and vehicles Vs have each own public-private key pair for performing signature algorithms. In this paper, we use the Elliptic Curve Digital Signature Algorithm (ECDSA) [31].

4.2.1 Registration

The Toll Service Provider TSP registers the identity information of the new participating Toll Plaza TPn in this registration phase. TPn submits its public key pkTPn to the TSP for registration. The TSP checks whether the submitted pkTPn is not registered before and adds the public key information to a registered TP list. The TSP shares the updated list to TPn and other entities of the AnonymousTollPass model.

4.2.2 AnonymousTollPass Pre-Ticket Issuance

The TSP issues AnonymousTollPass pre-tickets to vehicles Vs who want to purchase tickets. Vs initiate a purchase request to the TSP for the desired ticket price. The TSP groups Vs who are purchasing AnonymousTollPass tickets of the same amount into a N-member ring group. Each Vi(i=1,2,⋯,N) makes the payment for the requested ticket and generates a pair of private and public keys.

(pkVi,skVi)←GEN(1λ)(1)

Each Vi submits the generated pkVi to the TSP. The TSP collects pkVi submitted by each Vi belonging to the ring group.

PKN={pkV1,pkV2,…,pkVN}(2)

The TSP creates and deploys two smart contracts which are TicketSaleContract and TicketUsageContract on the blockchain networks. It registers AnonymousTollPass pre-ticket information of the ring group by running register_ticket_information() function of the TicketSaleContract. The TSP shares the two smart contract addresses with each ring group member Vi. Each Vi can read PKN through Register_ticket_information() of the TicketSaleContract, which is used for generating a valid AnonymousTollPass ticket.

4.2.3 Vehicle Entry

In this phase, Vi receives a proof of entry from the toll plaza TPn located at the entry zone when it enters the highway to use its AnonymousTollPass ticket. When Vi enters the highway, TPn generates its signature σTPn for a timestamp t and sends it to Vi.

σTPn=Sign(skTPn,t)(3)

Then, Vi verifies σTPn and generates a valid AnonymousTollPass ticket by executing the algorithm ticket GEN with private key skVi, public key set PKN, and timestamp t as inputs.

{0,1}=Verify(pkTPn,σTPn,t)(4)

ticketVi=ticketGEN(skVi,PKN,t)(5)

4.2.4 Vehicle Exit

In the Vehicle Exit phase, Vi, who exits the highway, submits an AnonymousTollPass ticket to TPx, and the TPx verifies it. Firstly, Vi sends ticketVi, σTPn and the addresses of the TicketSaleContract and TicketUsageContract to TPx. After receiving, TPx executes the Read_ticket_information() function of the TicketSaleContract to confirm the ticket-related data. TPx verifies the value of σTPn and checks that the value of the toll ticket is appropriate for the distance traveled by Vi.

{0,1}=Verify(pkTPn,σTPn,t)(6)

Also, TPx verifies the ticketVi by checking if it was generated from the ring group PKN through Algorithm 2.

{0,1}=ticketVER(PKN,ticketVi)(7)

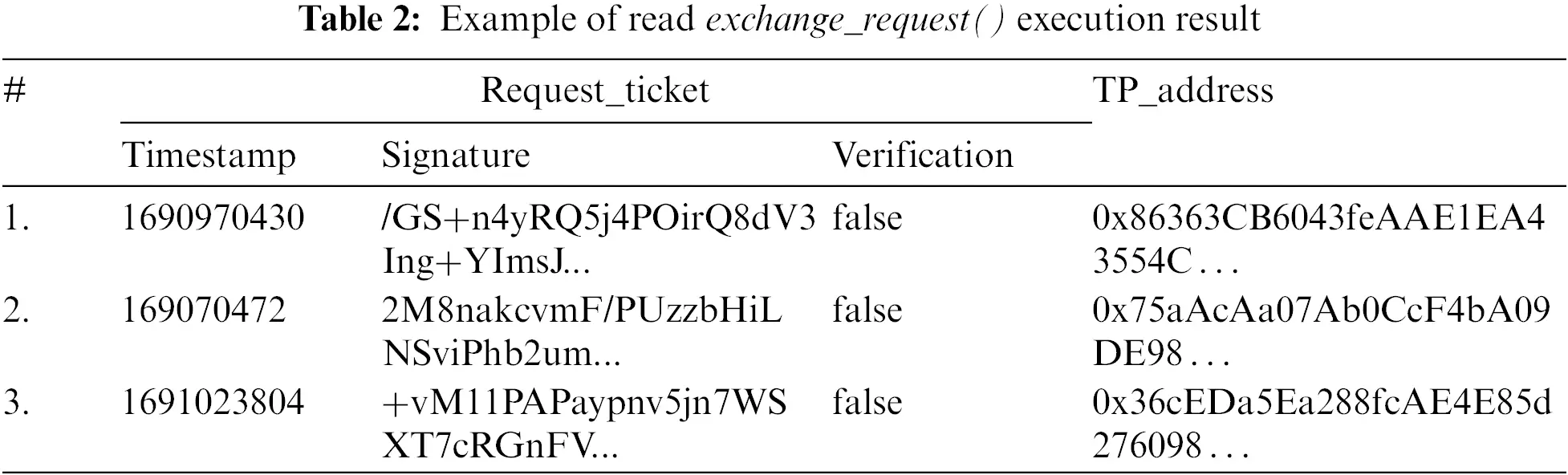

Then, TPx checks information about the used tickets through the read_used_ticket() function. TPx traces ticketVi and used tickets to verify whether ticketVi is a reused ticket using Algorithm 3. If the ticket has not been used before, the output is ‘indep’. When the ticket is reused by Vi, the output is pkVi.

{indep,pki}=ticketTRACE(ticketVi,ticketVj)(8)

All results must be ‘indep’ to pass the verification. After verification, TPx shares the information that ticketVi has been used with other TPs by running the exchange_request() function. The transaction of exchange_request() is shown in Fig. 3.

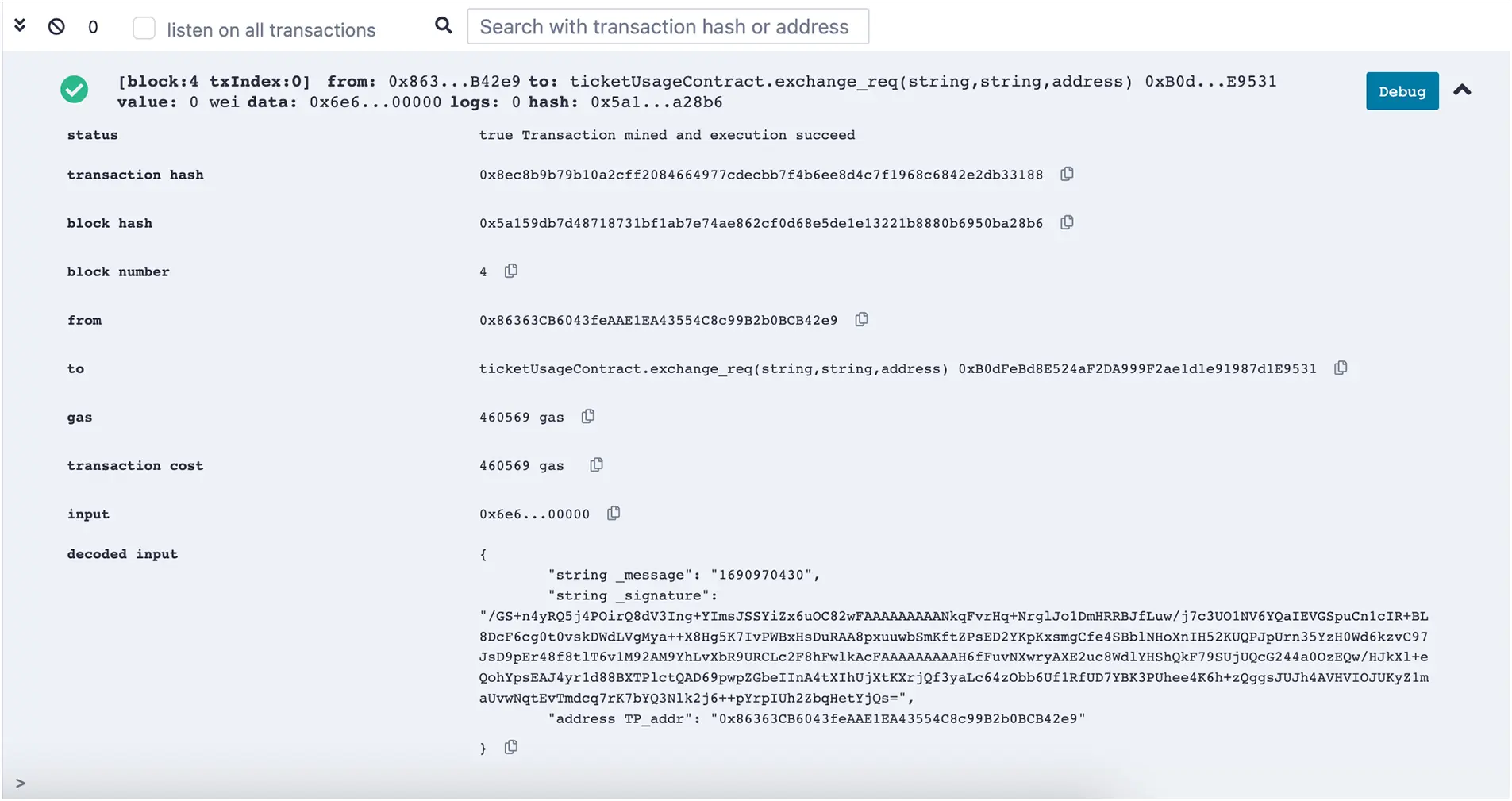

Figure 3: The transaction of exchange_request() on remix IDE

The size of ticketVi varies depending on the ring size, and it can consume a significant amount of gas fee to store the ticket information in the ledger. To reduce the gas fee, TPs share ticket information off-chain and store the hash value of ticketVi, which is H(ticketVi), instead of storing ticketVi on-chain.

4.2.5 Ticket Settlement

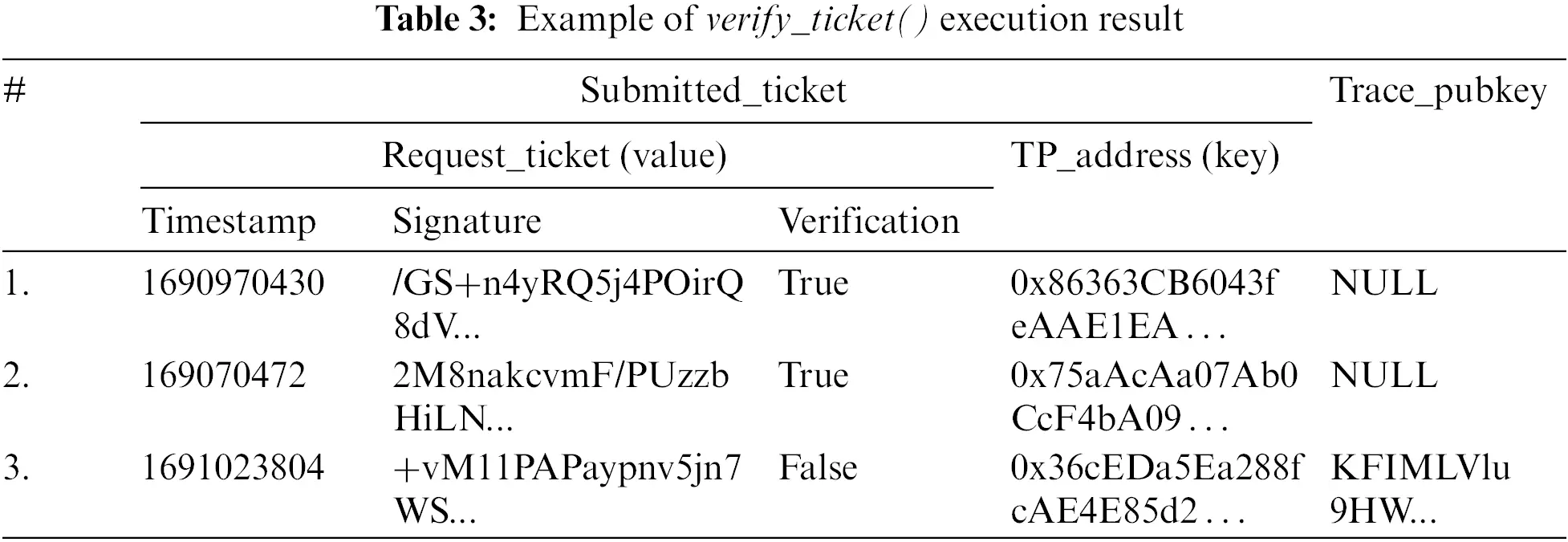

In the Ticket Settlement phase, the TSP verifies the tickets stored in the request_ticket[] list and processes the settlement for valid tickets. The TSP checks the request_ticket[] list through the read_request_ticket() function and validates each ticket in the request_ticket[]. Table 2 shows the results of read_exchange_request().

For tickets that pass the verification, the TSP validates whether the tickets have been reused. Then, the TSP executes verify_ticket() function to store the verification result of the toll tickets in the used_ticket[] list. Fig. 4 shows the transaction of verify_ticket(). The updated results are recorded in the blockchain as shown in Table 3. The TP can convert the verified tickets into ETH through withdraw() function.

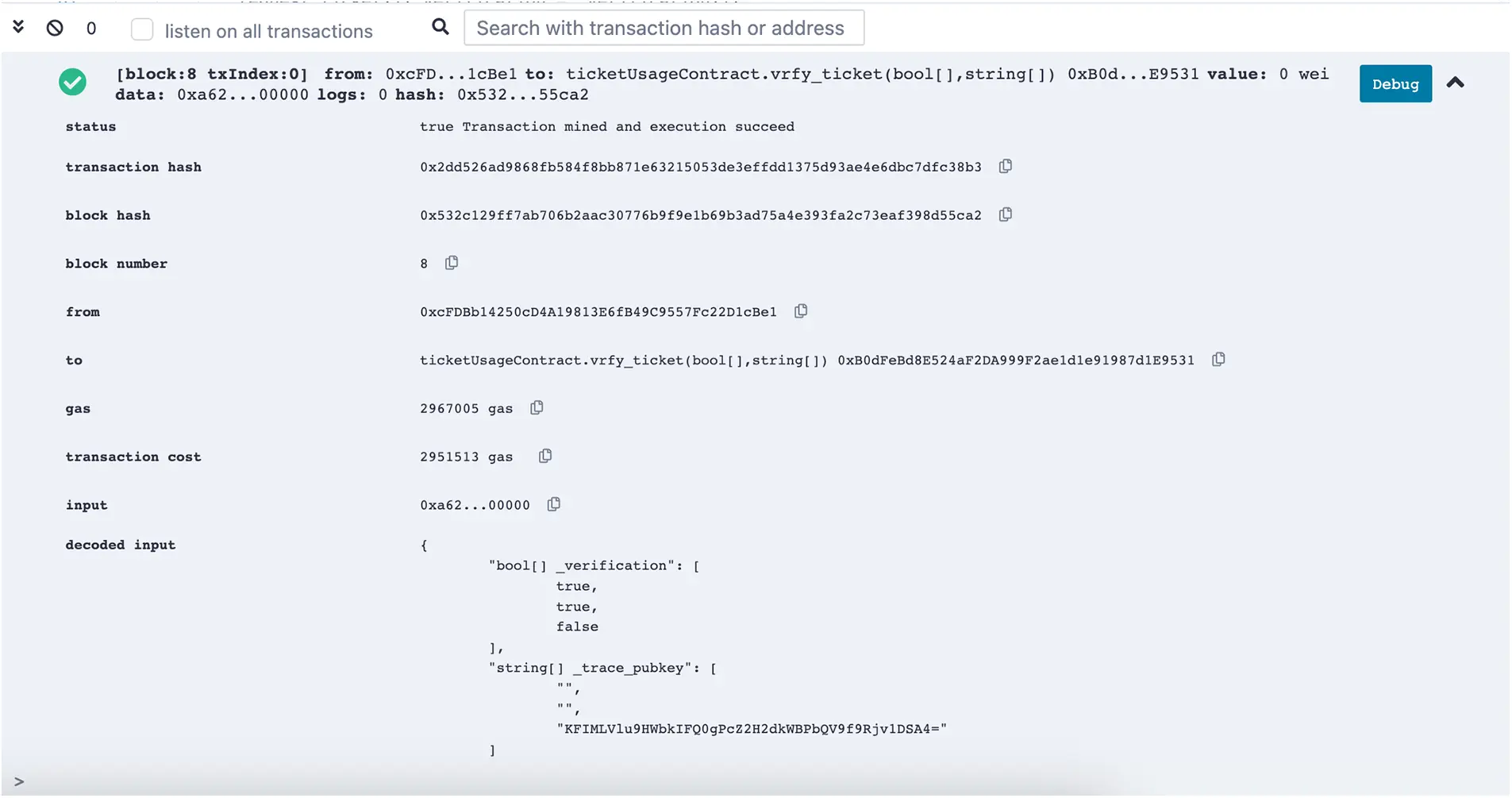

Figure 4: The transaction of verify_ticket() on Remix IDE

5  Security and Privacy Analysis

5.1 Identity Privacy

The proposed protocol provides privacy-preserving authentication through AnonymousTollPass ticket. A curious TP can attempt to infer pkVi for the corresponding ticketVi submitted by Vi. Also, a curious participant exposes the identity of a vehicle from the list of used tickets recorded on the blockchain. As for the first case, The AnonymousTollPass ticket is generated using a traceable ring signature, and due to the properties of this signature, the identity of the signer (i.e., vehicle) protected during the verification process. Even if the TSP knows the pkVi when purchasing a ticket, it cannot infer pkVi through the ticket when using the ticket. Furthermore, even members of the same ring group cannot infer which member created each other’s ticket. As for the second case, the vehicle pre-pays the ticket price to the TSP, which is managed through a smart contract between the TSP and TP. The vehicle is not a direct participant in the smart contract transactions, so it remains undisclosed regardless of the ticket usage records.

5.2 Ticket Unlinkability

When a vehicle uses multiple AnonymousTollPass tickets, if the tickets used by the vehicle are linked, the vehicle’s route could be exposed. Therefore, the tickets used by a single vehicle must be unlinkable to each other. A curious participant can try to infer if a Vi has created the same ticket by looking at multiple used ticket lists recorded on the blockchain. Let us assume that Vi used two tickets, ticketVi and ticketVi′, which are included in the same PKN. A curious participant can try to infer pkVi for both tickets using Algorithm 3. When a vehicle purchases a ticket from the TSP, a new key pair (pkVi,skVi) is generated and used for each ticket. Therefore, they compute ticketVi(m,A1,cN,zn) and ticketVi′(m′,A1′,cN′,zn′) with different skVi values during their creation using Algorithm 1. Even if two tickets are traced, comparing A0A1i and A0′A1′i computed through the two tickets, pkVi is not included in the TList which is a temporal list for storing pkVis using in Algorithm 3. Additionally, Algorithm 3 is based on tracing tickets within the same ring group, so it cannot be used if two tickets were created based on different ring groups.

5.3 Resistance to Distance Forgery

A malicious Vi can attempt to travel a longer distance than the toll amount they paid by forging their passed TPn. Also, a malicious TP can forge the vehicle’s passing of TPn to claim more ether for a settlement. As for the first case, when the Vi enters the highway, they use the signature σTPn for the timestamp from TPn. The Vi can try to forge σTPn when calculating the AnonymousTollPass ticket ticketVi=ticket GEN (skVi,PKN,σTPn). However, TPx can verify σTPn of the ticket submitted by Vi, and confirm the location of TPn that Vi has passed. It allows TPx to verify if the distance driven by Vi matches the toll amount on the ticket. Consequently, in order for Vi to forge the distance, they would need to forge σTPn. Since Vi does not know the private key of TPn, Vi cannot generate σTPn. TPn generates the σTPn based on ECDSA using its private key, which is not disclosed to others. Also, the ECDSA [29], which is proven to be difficult to derive skTPn from its pkTPn based on the hardness of the ECDLP (Elliptic Curve Discrete Logarithm Problem). Since Vi does not know the private key of TPn, Vi cannot generate σTPn. As for the second case, even if TP forges σTPn, they cannot create the ticket because they are not a group member of the ticket submitted by Vi and thus do not have the private keys held by the group members.

5.4 Abuse of Tickets

The used AnonymousTollPass tickets cannot be reused, and it should be possible to reveal the identity of a vehicle that maliciously reused a ticket. Malicious Vi can attempt to reuse a ticket already used. After using ticketVi(m,σ), Vi can generate a new ticket ticketVi(m′,σ′) using the new σTPn′ received from TPn in order to reuse the ticket. However, during ticket validation, the ticketVi(m,σ) used and stored in the used ticket list is compared with the new ticketVi(m′,σ′) submitted by Vi through the tracing process using Algorithm 3. In this process, tickets generated with the same private key havethe same results of A0A1i=A0∗hxiA0 and A0′A1i′=A0′∗hxiA0′ revealing pkVi. Since the information about the used tickets is recorded on the blockchain and cannot be altered, reusing them is impossible.

6  Performance Evaluation

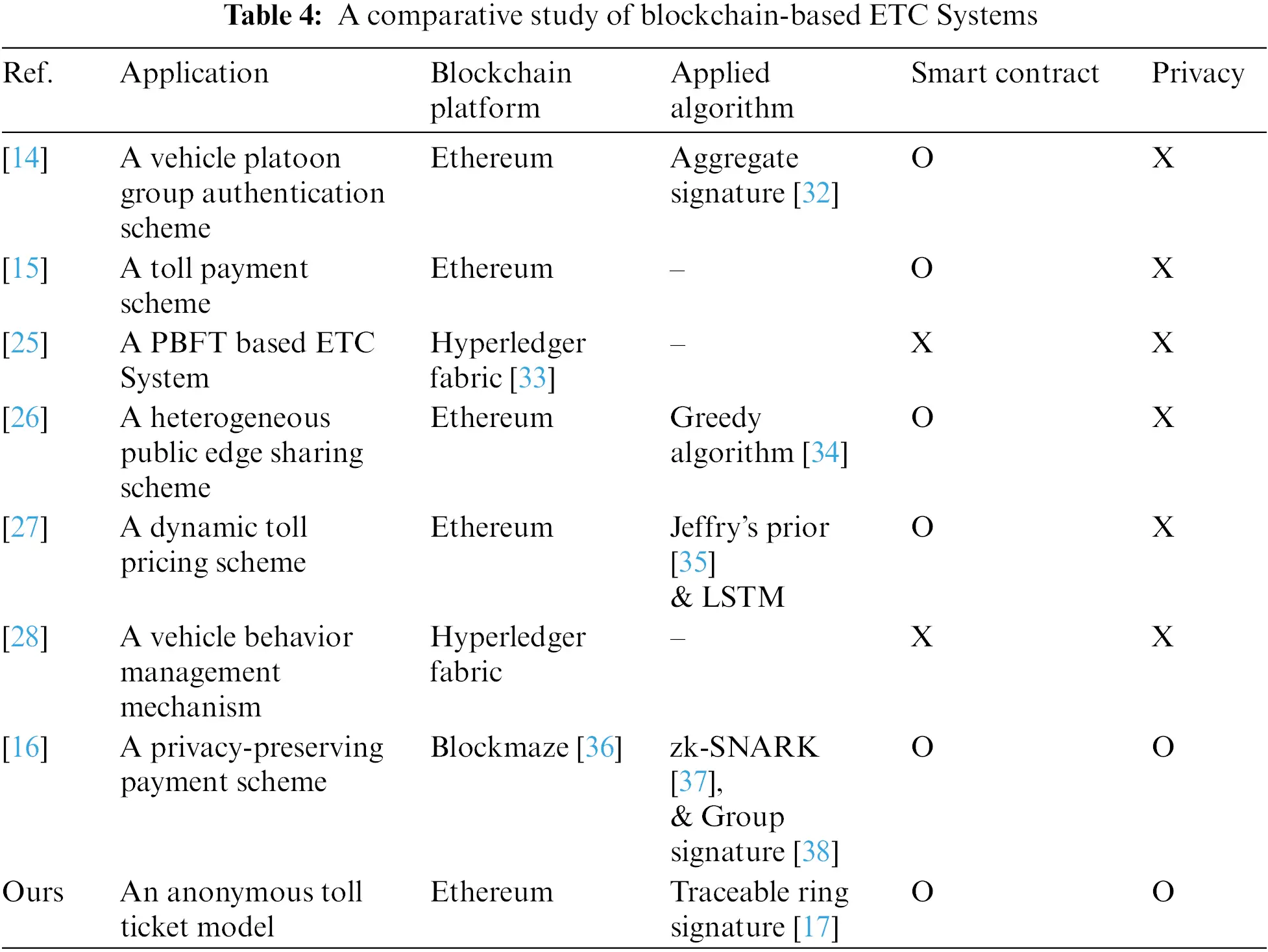

Previous blockchain-based ETC Systems [14–16,25–28] exposed vehicles’ toll usage information directly on the blockchain. In [16], they proposed the first ETC System that provides privacy for vehicles. Related studies of blockchain-based ETC Systems are outlined in Table 4. In this section, we demonstrate that our proposed smart contract systems for the AnonymousTollPass model have more efficient performance compared to [16].

We implemented our smart contract systems by using Remix v0.8.7 [39], and then deployed the smart contract using Ganache v2.5.4 [40] and a virtual Ethereum test blockchain. The deployed smart contract was executed using Python v3.9.1 [41]. We utilized a laptop equipped with Mac OS Monterey v12.5.1, an Intel Core i7 1.2 GHz CPU and 16 GB of RAM for the experiments. Our experimental scenario refers to the actual ETC System in South Korea called Hipass to realistically set the maximum allowable time parameters for AnonymousTollPass ticket generation and verification. In South Korea’s ETC System, there is a speed limit of 30 km/h near the tollgate and DSRC (Dedicated Short Range Communication) based on IEEE 802.11 standard with a communication range of up to 90 m. So, we assume that the vehicle communicates with the TP from a distance of approximately 30 m, traveling at a speed of 30 km/h, allowing for communication for 3.5 s. Therefore, to ensure smooth ETC System operation without delays, the time required for AnonymousTollPass ticket generation and verification must be within 3.5 s.

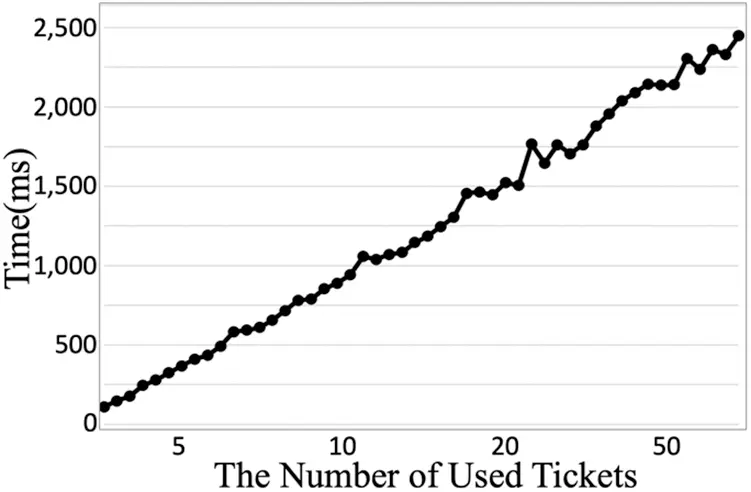

Fig. 5 shows the execution time of the ticketTRACE phase according to the number of used tickets when the ring size is 50. As the number of used tickets increases, the time also increases because more tickets must be checked for reuse. The time it took to check the reusability of the last ticket when there were 49 used tickets was approximately 2.5 s.

Figure 5: The ticket verification time according to the number of used tickets

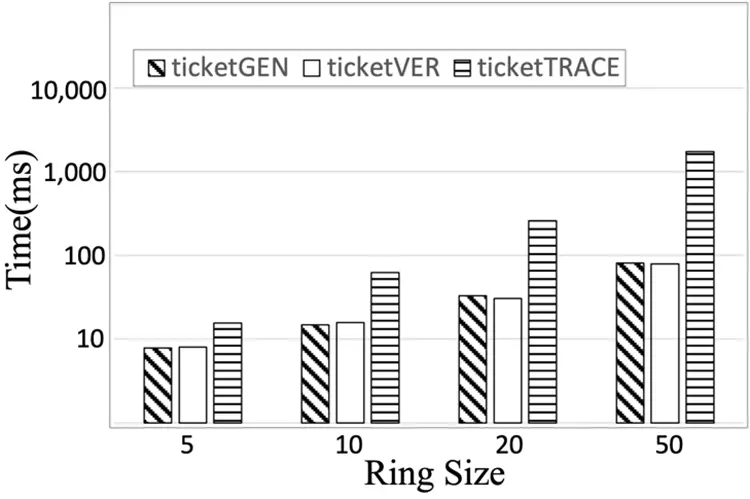

Fig. 6 shows the execution time of each phase according to the ring size. As the ring size increases, the key size used in the ticketGEN and ticketVER phases increases, resulting in increased computation time. When the ring size is 50, the ticketGEN phase takes 81 ms, the ticketVER phase takes 79 ms, and the ticketTRACE phase takes 1737 ms. The total time required is approximately 3.3 s, which is less than the previously assumed 3.5 s requirement. Therefore, our AnonymousTollPass system can be applied effectively in a real-world situation.

Figure 6: The performance of each AnonymousTollPass algorithm according to the ring size

We also measured the key size for each phase of the AnonymousTollPass model. The result is shown in Fig. 7. The key size increases linearly as the ring size increases. When the ring size is 50, the key size in the ticketGEN phase is about 8.6 MB, and in the ticketVER phase, it is about 13 MB, which is a reasonable size.

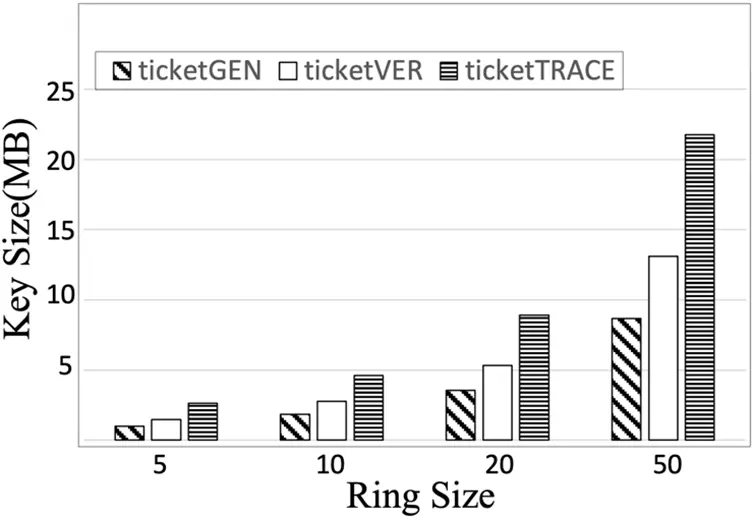

Figure 7: The key size of each AnonymousTollPass algorithm according to the ring size

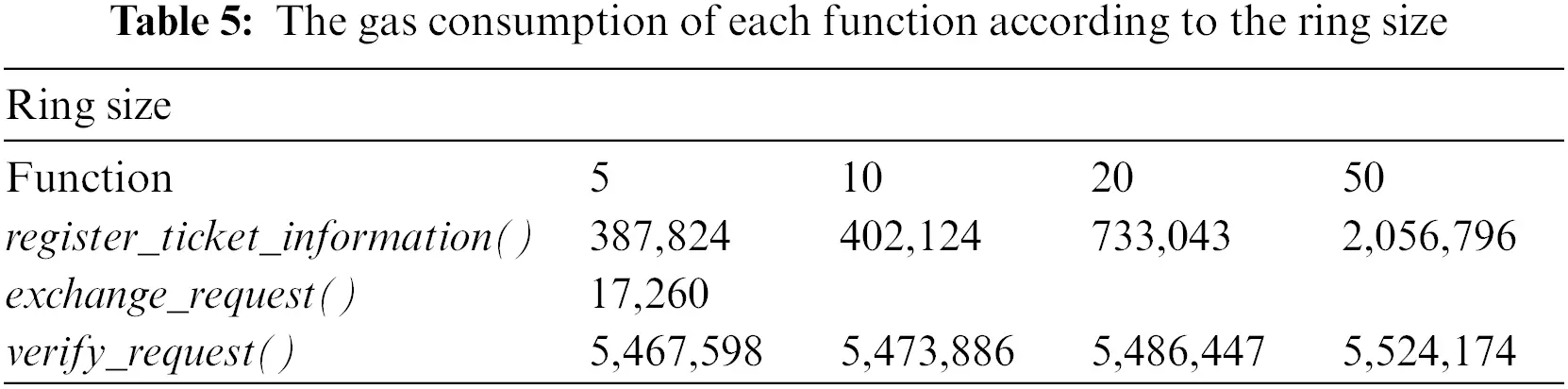

Table 5 shows the gas fees consumed by the three main functions of the TicketSalesContract and TicketUsageContract in our smart contract system. For register_ticket_information(), the gas fee increases as the ring size increases, with 387,824 for a ring size of 5 and 2,056,796 for a ring size of 50, as more information is registered with larger ring sizes. For exchange_request(), the gas fee is the same for each ticket, with 17,260 gas consumed when the function is executed. For verify_ticket(), the gas fee increases slightly as the ring size increases, with 5,467,598 gas consumed for a ring size of 5 and 5,524,174 for a ring size of 50.

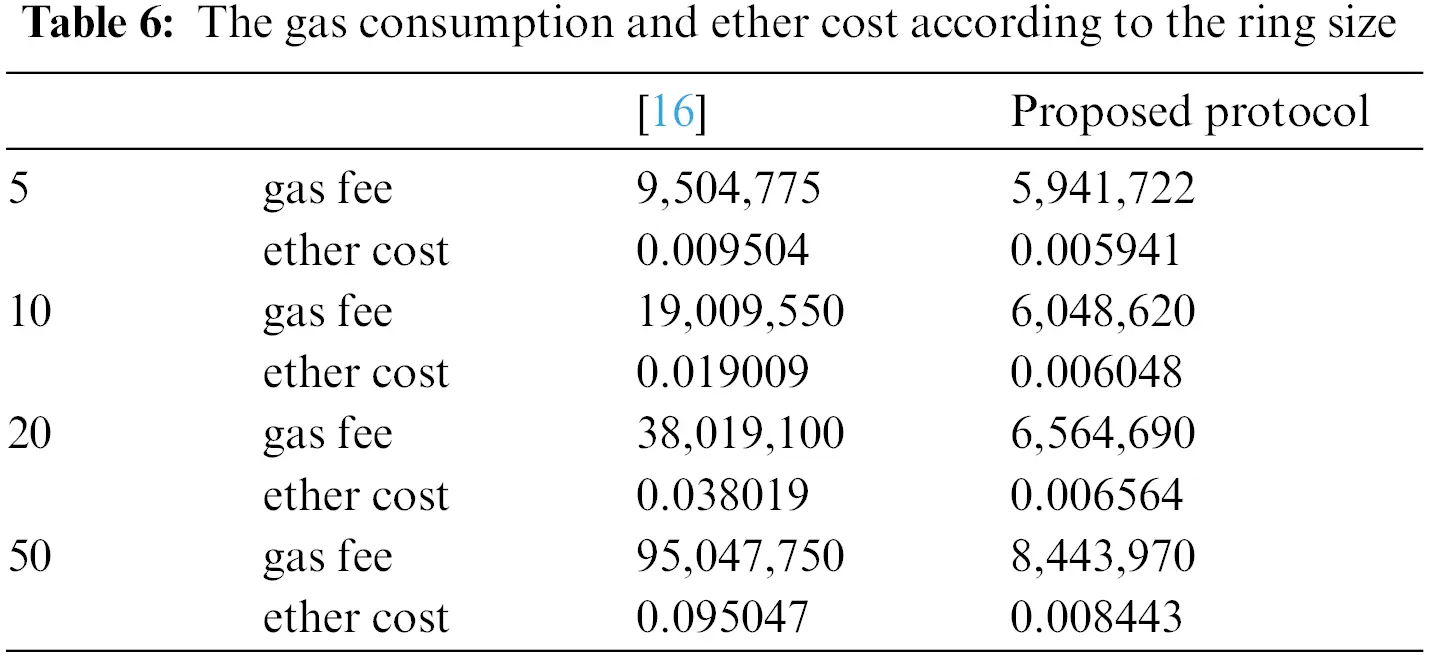

Table 6 compares the total gas fees and ether costs consumed by the functions for each number of vehicles with Vehiclock [16]. The gas fees consumed in the proposed smart contract system were calculated based on the average gas fee consumed when executing functions of the TicketSalesContract and TicketUsageContract, with ether cost calculated by converting 1 gas to 1 gwei. The total gas fee is calculated through register_ticket_information() + (exchange_request() * ring size) + verify_ticket(). As the ring size increases, more information about the ring members is stored in the blockchain and the number of used tickets increases, so the total gas fee increases as well. However, setting the ring size to 50 rather than 10 for creating 5 rings can reduce the total gas fee. In [16], all signature generation and verification processes are performed on the smart contract and recorded in the blockchain.

However, in our proposed system, only the hash value of the ticket signature and the verification result are recorded on the blockchain, and the ticket generation and verification are performed in the local environment, reducing the computational load of running the smart contract. As a result, when the ring size is 50, our AnonymousTollPass smart contract system consumes approximately 10% of the gas required in [16]. This result demonstrates the efficiency of our smart contract system.

7  Case Study Discussion

In this section, we discuss the security and privacy levels by analyzing a case study in South Korea utilizing our AnonymousTollPass model. TP,TSP, and V, which are participants in the ETC System, cannot identify the Vi from a particular AnonymousTollPass ticket. But a curious participant can infer the route from the Vi based on ticket usage history recorded on the blockchain.

When a V uses a ticket, the probability that the curious participant can correctly identify the route of a Vi is 1/N when the ring size is N. Since the AnonymousTollPass ticket is for one-time use, even if a V’s driving route is inferred with a probability of 1/N, it is difficult to link the V ‘s driving route to personal information. However, for users who drive a consistent route, such as commuting to work or making regular hospital visits, if their driving route is exposed, it can be linked to personal information such as their lifestyle patterns, workplace, and residence. The V generates a new key pair for each ticket, and the ring members change as well. Therefore, for participants except the TSP that sells the tickets, it is difficult to infer the public keys used by the same V from the list of used tickets. Even for the TSP, it becomes more difficult to infer the V’s driving route as the number of tickets used by the V increases. The probability of determining the route when a V uses the ticket r times can be expressed as (1/N)r. As N and r increase, the probability becomes smaller, making it hard to link all the tickets used by a vehicle. Based on this, we calculated the value of r satisfying the security level requirement for each ring size, as shown in Table 7.

For instance, if a user commute using a vehicle five days a week, he uses 10 tickets per week and 40 tickets per month. For a ring size of 50, this satisfies 192-bit security, which is the highest security level. Thus, when considering real-world driving scenarios for regularly using the ETC System, it is difficult for the participants to determine a single vehicle’s route through the used ticket list recorded in the blockchain.

(1/2)192>(1/50)35(9)

There is no restriction on applying the proposed AnonymousTollPass model when launching a new ETC System for toll plazas where none currently exist. However, for countries that already provide ETC Systems, to determine whether different routes taken by the Vs can be grouped together for the same ticket, we examined the number of routes with the same toll fee.

To verify this, we used the ETC toll data of South Korea as a test case. We represented the toll fees for each vehicle type based on the weekday toll data provided by Korea Expressway Corporation in 2022 [10] in Fig. 8. When counting all toll routes for each vehicle type within the same price range, we found that the number of routes varied. In the price range of $ 6∼$ 7 and $ 7∼$ 8, we found that the maximum number of routes was approximately 80,000. Even in the $ 0∼$ 1 section with the fewest routes, there are 4,122 routes, which is reasonable enough to create a ring group for vehicles passing through that section.

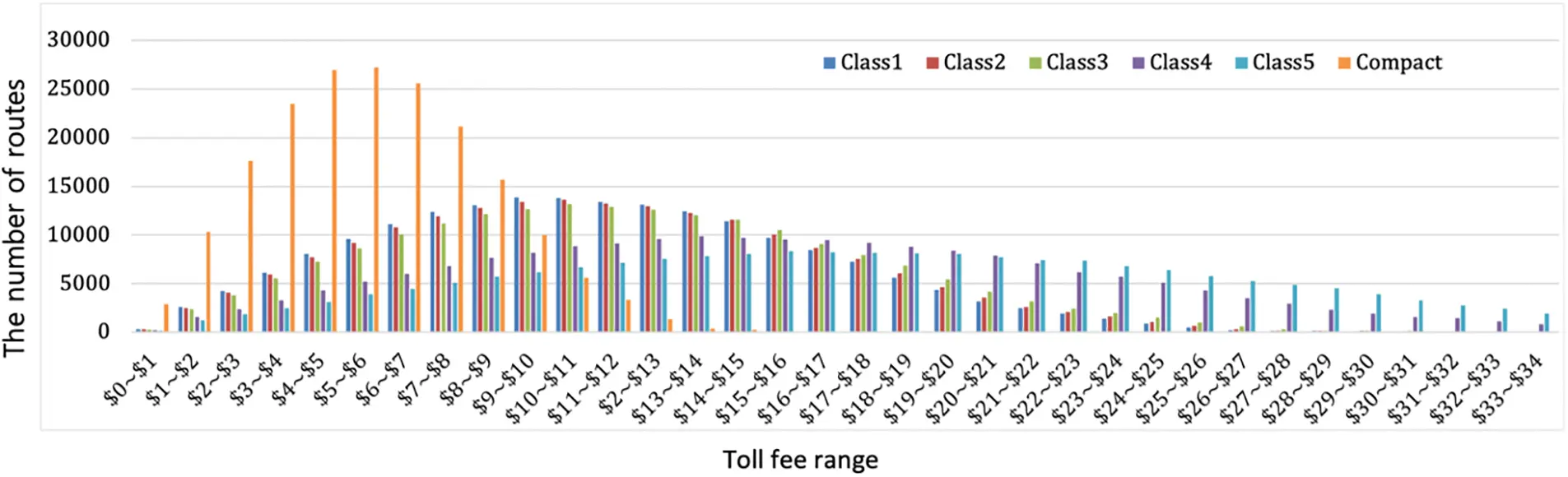

Figure 8: The number of routes by toll fee range

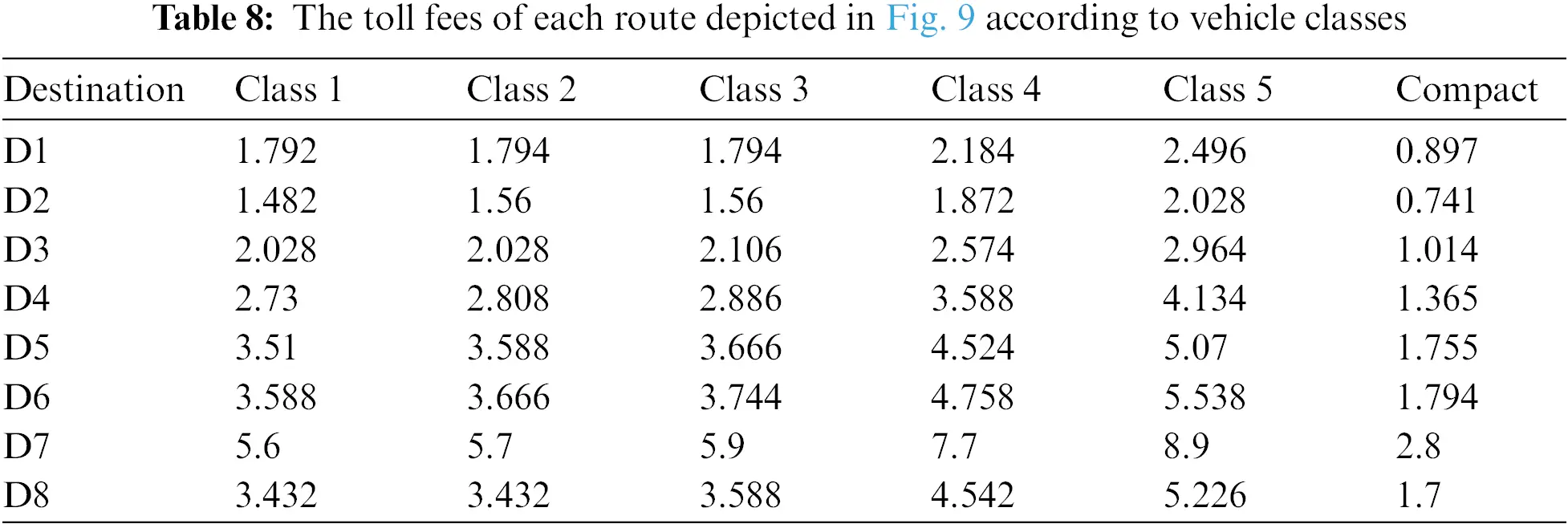

Additionally, we compared popular routes that start in Seoul, and travel to nearby cities. Fig. 9 represents the routes marked as D1∼ D8, which correspond to eight cities (Siheung-si, Gwangmyeong-si, Gunpo-si, Hwaseong-si, Pyeongtaek-si, Yongin-si, AnSeong-si, Gwangju-si), displayed on a map. Each destination is located approximately 20 to 35 km away from the origin. Then, we compared the actual toll fees for each of the 8 destinations and visually indicated the grouping of tickets using colors in Table 8. Through this, we confirmed that the destinations are different, and therefore it is possible to purchase the same ticket.

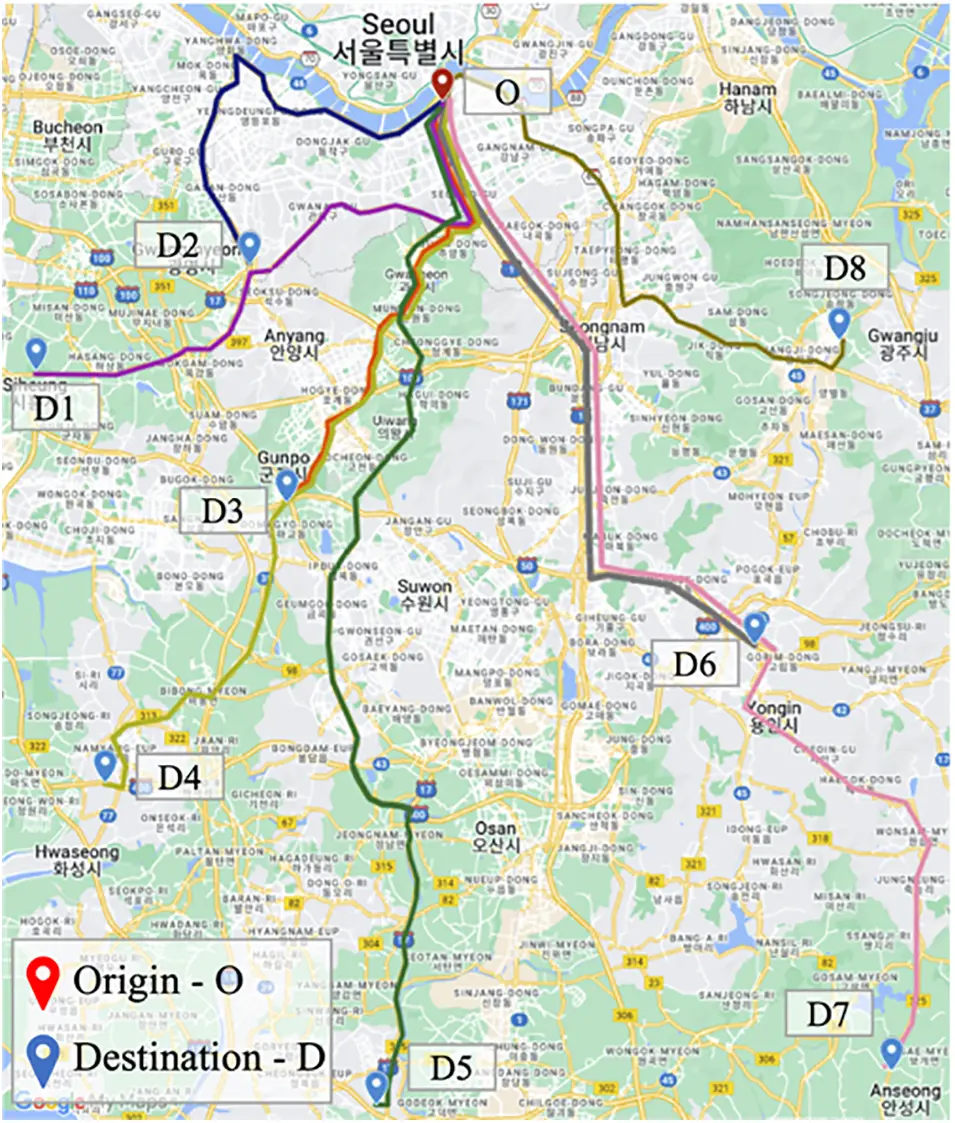

Figure 9: Routes from Seoul to surrounding cities

8  Conclusion

In this paper, we proposed a privacy-preserving blockchain-based toll payment model for ETC Systems, called AnonymousTollPass model. Vehicles use disposable AnonymousTollPass tickets generated based on TRS, which provide anonymity to the vehicles but can reveal the identities of malicious vehicles. Moreover, the usage history of AnonymousTollPass tickets and information about malicious vehicles are shared between the ETC service provider and toll plazas through smart contracts to ensure the integrity of the ticket usage history. To demonstrate the effectiveness of the proposed model, we calculated the gas fee the cost of executing the smart contract and checked that it consumes less gas compared to previous work. Also, we utilized the ETC System in South Korea as a test case and demonstrated the practicality of the proposed model in real-world situations. Additionally, AnonymousTollPass model can be utilized in ETC Systems and various payment systems that require anonymity in the future.

Acknowledgement: We are grateful to the editors and reviewers for their insightful feedback on this work. We would also like to thank the National Research Foundation of Korea (NRF) and the Korea government (MSIT) for their support.

Funding Statement: This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIT) (No. 2021R1A2C1095591).

Author Contributions: Authors confirm contribution to the paper as follows: Study conception and design: Jane Kim, Seung-Hyun Seo; data collection: Jane Kim, Soojin Lee; analysis and interpretation of results: Jane Kim, Soojin Lee; draft manuscript preparation: Jane Kim, Chan Yeob Yeun, Seung-Hyun Seo. All authors reviewed the results and approved the final version of the manuscript.

Availability of Data and Materials: The datasets used in the experiments should be clearly cited in the article.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
