Covalent Bond Based Android Malware Detection Using Permission and System Call Pairs

1  Introduction

The Android operating system has maintained a dominant position in the smartphone industry for the past decade. Within the Android API framework, functions grant access to sensitive system resources. Unfortunately, this feature has allowed cyber attackers to develop and disseminate harmful applications through alternative app stores or social media advertisements. Furthermore, an attacker may introduce malicious components in the installed Android application. These malevolent applications empower attackers to perform various operations, including information theft, SMS transmission, and remote device control. Consequently, safeguarding smartphones from these malicious applications is imperative [1–3].

Malware detection methods currently fall into three primary categories: Static, dynamic, and hybrid analysis. Static analysis is capable of discerning malicious behavior by examining an application’s source code without executing it [4]. On the other hand, dynamic analysis identifies malicious behavior by analyzing the runtime information generated during the application’s execution, such as system calls [5]. The strength of static analysis lies in its ability to pinpoint malicious components directly from the source code, resulting in high code coverage [6]. Dynamic analysis excels in uncovering exploits within the runtime environment [7]. Therefore, by merging the strengths of static and dynamic analysis, a hybrid analysis approach can be formulated to enhance malware detection accuracy [8,9].

Several static works have been proposed in the literature for Android malware detection. For instance, in [10], Talha et al. extracted application permissions. They then assign a score to each permission, determined by the ratio of malware instances containing that specific permission to the total number of malware instances. In [11], the study utilized pairs of permissions extracted from the manifest file, resulting in an overall accuracy of 95.44%. IPDroid, as discussed in [12], incorporated both permissions and intents from the manifest file in their analysis. They achieved a notable accuracy of 94.73% by employing a Random Forest classifier.

The TaintDroid model [13] employed dynamic taint analysis to monitor the movement of privacy-sensitive data within third-party applications. Yang et al. [14] expanded upon the TaintDroid model to not only identify data leaks from applications but also ascertain whether these leaks are a result of user intention or not. In [15], the authors introduced a proficient and automated approach for detecting malware by leveraging the textual semantics of network traffic. Specifically, they treated each HTTP flow produced by mobile applications as a textual document, allowing them to apply natural language processing techniques to extract features at the text level.

Some of the works have combined static and dynamic features to propose a hybrid Android malware detector. MADAM [16] is a host-based malware detection system designed for Android devices. It conducts concurrent analysis and correlation of attributes across four tiers: Kernel, application, user, and package. This comprehensive approach aims to identify and thwart malicious activities effectively. Monet [17] consists of a module on the user side, an application responsible for analyzing malicious activity and signatures. Conversely, the module installed on the server side is responsible for detecting malicious applications based on analysis on the client side. In [18], authors developed AppAudit which employs a combination of static and dynamic analysis to deliver highly effective real-time app auditing. It introduces an innovative dynamic analysis approach that leverages this combination to reduce false positives generated by an efficient yet conservative static analysis.

1.1 Motivation

Identifying dangerous combinations of permissions and system calls is instrumental in spotting malicious behavior. Hence, this study endeavors to scrutinize permissions and system calls in pairs and introduces a novel methodology to identify such pairs that can differentiate between benign and malicious samples. To the best of our knowledge, we are the first to use permissions and system call pairs to detect Android malware. Pairing permissions and system calls has several key benefits. Firstly, permissions are static features, and system calls are dynamic features; pairing both of them will combine the advantages of static analysis and dynamic analysis to form a hybrid analysis technique. Second, this combination allows for a more detailed examination of an application’s behavior. Permissions provide a high-level overview of what resources an app may access, while system calls offer a finer-grained view of actual interactions with the system. By correlating permissions with system calls, we can better understand how an application uses the permissions it requests. This context is crucial in distinguishing legitimate behavior from potentially malicious actions. It enables the detection of anomalies or suspicious activities. For example, if an app with camera access permission unexpectedly starts making network-related system calls, it may raise a red flag. The app requests access to the camera (Android.permission.CAMERA). Additionally, it asks permission to access the internet (Android.permission.INTERNET). Based on permissions alone, the app seems legitimate. Camera apps naturally require camera access and internet access could be justified for features like cloud storage of images. During runtime, if the app makes system calls such as open(), read(), write(), and connect(). This observation may establish suspicious behavior as the app is accessing files unrelated to image storage and making network connections to unusual domains. Hence, this study endeavors to scrutinize permissions and system calls in pairs and introduces a novel methodology to identify such pairs that can differentiate between benign and malicious samples.

1.2 Contributions

We present a covalent bond-based Android malware detection model using permissions and system call pair. We use the analogy of covalent bonds between two atoms in chemistry to form covalent bonds between every permission and system call. We also calculate bond strengths between permission and system call pairs to denote the strength of the bond they create between them. The estimated bond strength helps detect an Android application as malicious or benign. Our detection results demonstrate an overall accuracy of 97.5%, better than many state-of-the-art detection techniques proposed in the literature. The main contributions of the paper are summarized below:

•   We build the permission and system call covalent bond pairs to identify and analyze the impact of these pairs.

•   We proposed a novel approach to calculate the Covalent bond strength score for the permissions and system calls bond pair. Two scores, i.e., malicious and benign, are computed for each bond pair.

•   We designed a technique for identifying Android applications as malicious or benign based on the malicious and benign scores of permission and system call pairs.

•   We conducted a comparative analysis between our proposed model and other state-of-the-art detection techniques. Our findings demonstrate that the proposed model surpasses similar state-of-the-art models in terms of performance.

1.3 Organization

The subsequent sections of this paper are structured as follows: In Section 2, we delve into the related work. Section 3 provides an in-depth exploration of our methodology. Section 4 is devoted to presenting results and engaging in discussions. Finally, in Section 5, we conclude and outline potential future directions for this research.

2  Related Work

This section presents a literature review on detecting Android malware using machine-learning methods. Android malware analysis methods enable gathering various feature types, which are essential for characterizing and constructing machine-learning systems. Three primary approaches are employed, depending on the type of features gathered: Static analysis, dynamic analysis, or a combination of both, known as hybrid analysis [19]. This section offers a concise overview of these approaches and the typical features of machine learning-based Android malware detection.

2.1 Static Analysis

Shahriar et al. [20] introduced a method to identify Android malware by examining requested permissions. Their initial approach involved utilizing Latent Semantic Indexing (LSI) to pinpoint frequently requested permissions within known instances of malicious applications. In a separate development, Arp et al. [21] introduced Drebin, a method for static malware detection. This technique relies on unchanging attributes from manifest file components such as permissions, hardware and application components, and intent filters. Cen et al. [22] proposed a strategy to identify malicious Android applications by scrutinizing permissions and API calls. They employ a trained probabilistic classifier to predict an application’s potential maliciousness. Qui et al. [23] proposed Android malware detection model based on reverse engineering to detect zero day malware families. Ibrahim et al. [24] proposed an approach for predicting malicious applications through API deep learning model based on two new features, i.e., application size and fuzzy hash.

2.2 Dynamic Analysis

Yu et al. [25] presented a method for classifying an Android application as malicious by system call analysis with ML techniques such as SVM or naive Bayes learners. Dmjsevac et al. introduced Maline [26], a framework to detect Android malware applications. Maline utilizes binary machine learning classifiers to deduce an application’s malicious behavior by examining the frequencies of individual system calls and their interdependencies. Crowdroid [27] adopts a behavior-centric approach for Android malware detection, utilizing a cloud-based infrastructure. The K-means clustering technique on the server side processes the data gathered regarding system call events on the client side to identify malicious Android applications.

In [28], authors presented an Android malware detection model for detecting malware applications based on traces of their behavioral system calls. Lu et al. [29] introduced a new encoding scheme F2D, which uses raw payload of network traffic along with neural networks to propose an Android malware detection model. Hussian et al. [30] proposed a malware detection technique using particle swam optimization, which selects traffic characteristics from network traffic data which in turn is fed to ML algorithms to build the prediction models.

2.3 Hybrid Analysis

Arora et al. [31] introduced a methodology for Android malware prediction that relies on permissions and internet traffic features. This approach leverages the FP-growth algorithm, using permissions and network traffic features to discern potentially malicious behavior. In [32] authors proposed a hybrid detector technique for identifying malicious Android applications. This method combines a sequence of API calls represented as a Markov chain from static and dynamic analyses to detect malicious behaviour effectively. AASandbox [33] employs a hybrid analyzer for the detection of malware. In their static model, they uncovered patterns that help identify malicious applications. Further, they captured system calls for dynamic analysis in an emulator. The authors in [34] used permissions, API calls, and intents as features to propose a hybrid Android malware detector.

3  The Proposed Covalent Bond Pair Detection

In this section, we present our novel Covalent Bond Pair-based model for detecting malicious Android applications. The proposed model is depicted in Fig. 1.

Figure 1: Proposed covalent bond pair detection model

3.1 Data Set Description

KronoDroid [35], a meticulously structured Android dataset, holds the distinction of being the largest in its category. It is distinguished by its amalgamation of static and dynamic features and the notable inclusion of timestamps. This dataset meticulously accounts for the unique characteristics of dynamic data sources, encompassing samples from over 209 distinct Android malware families. Its creation involved the fusion of diverse sources of benign and malware data, resulting in a comprehensive collection spanning a significant period. The dataset comprises 41,382 instances of malware belonging to 240 distinct malware families, along with 36,755 benign applications.

The dataset predominantly comprises permissions as static features, represented as binary indicators of whether the app requested the standard Android permissions (1) or not (0). There are a total of 166 distinct permissions in the dataset. In contrast, the dynamic feature set mainly consists of system calls, represented by the absolute frequency of each system call issued by the app at runtime. The system call set comprises 288 features. Hence, the total number of features under consideration amounts to 454.

3.2 Feature Space Transformation

As previously stated, the KronoDroid dataset is well-organized and accessible in CSV file format. These files contain information on both malware and benign applications. The feature vectors within these CSV files are represented as combinations of 0’s and 1’s. A 0 in the feature vector signifies the absence of a particular feature in an application, while a 1 indicates its presence. Tables 1 and 2 provide a visual representation of the feature spaces for benign and malicious applications, respectively.

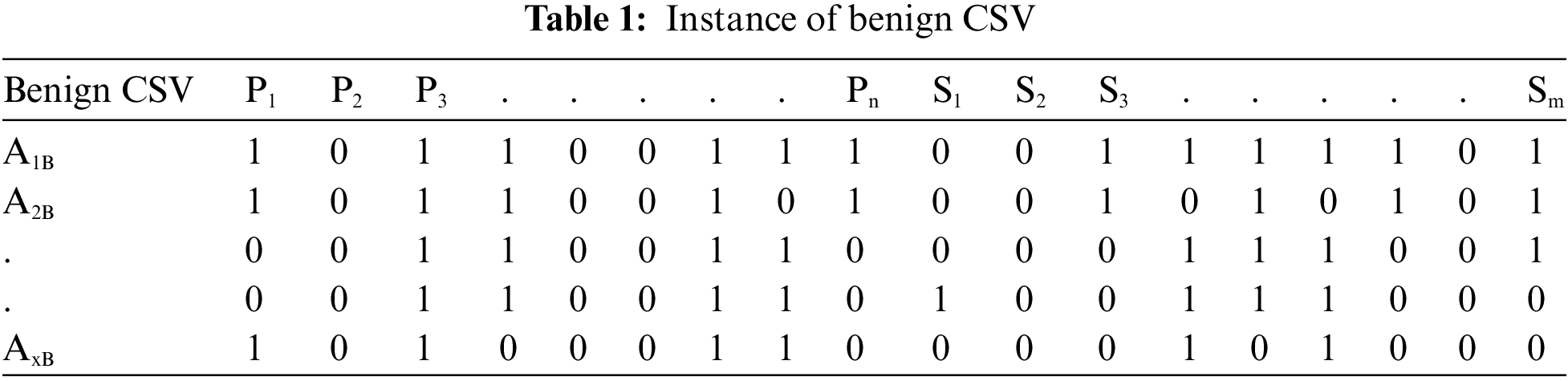

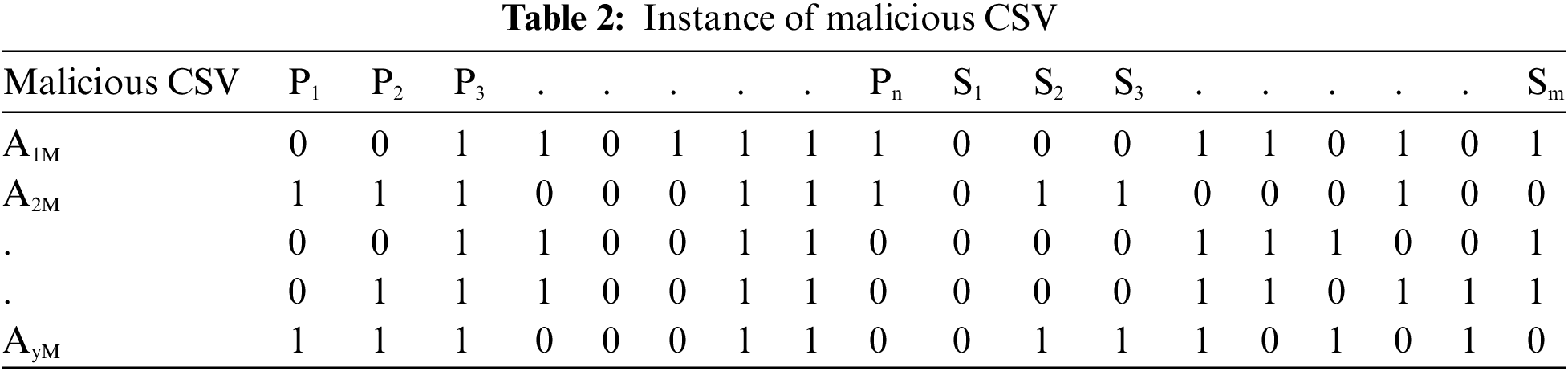

Within both the instances of benign and malicious CSV files as represented in Tables 1 and 2, respectively, the labels P1, P2, P3,..., and Pn represent the n permissions, while S1, S2, S3,..., and Sm denote the m system calls. In our specific dataset, n is set at 166 and m at 288. The benign applications are denoted as A1B, A2B,..., and AxB, where x represents the total number of benign applications. Similarly, the malicious applications are labeled A1M, A2M,..., and AyM, with y indicating the total number of malicious applications.

3.3 Covalent Bond Pair Formation Phase

The concept of feature pair covalent bond formation is based on the concepts of the covalent bond theory of chemistry [36]. A covalent bond arises from the mutual sharing of electrons between the involved atoms. This pair of electrons engaged in this form of bonding is referred to as a shared pair or bonding pair. Additionally known as molecular bonds, covalent bonds facilitate the attainment of outer shell stability, resembling the configuration of noble gases, by enabling the sharing of these bonding pairs. Covalent bonds are normally categorized into three types: Single covalent bonds, double covalent bonds, and triple covalent bonds. We will restrict our proposed methodology to single covalent bonds and double covalent bonds only.

A single bond is established through the sharing of only one pair of electrons between the two involved atoms, symbolized by a single dash (-). Despite having lower density and strength than double and triple bonds, this type of covalent bond is the most stable.

A double bond is created when two pairs of electrons are shared between the participating atoms, denoted by two dashes (=). Double covalent bonds exhibit significantly greater strength than single bonds, although comparatively less stable.

In the case of our proposed methodology, we calculated single covalent bond strengths and double covalent bond strengths between two arbitrary features fi and fj, and formed feature pair fij. We separately calculated these bond strengths from two perspectives: w.r.t benign applications and w.r.t malicious applications. Hence, the concept of covalent bond strengths helps to calculate benign and malicious feature pair scores between every possible feature pair in the dataset. This notion of covalent bond strengths gives us a perspective of separately viewing any arbitrary feature pair regarding the role played for benign and malicious applications. Algorithm 1 depicts the whole phase of Feature Pair Covalent Bond Formation.

The data set is assumed to have benign and malicious feature matrices in which each of the application feature vectors in the form of 0’s and 1’s is represented, respectively. Then, the feature vs. the feature matrix is calculated from these feature matrices, holding single covalent bond strengths. If fi and fj, are two arbitrary features, then we calculate two single covalent bond strengths for the feature pair fij, one w.r.t fi and other w.r.t fj., Calculating single bond strength is done from benign and malicious perspectives. The single covalent bond strength of feature vs. feature matrices is combined to form new feature vs. feature matrices holding double covalent bond strengths for both benign and malicious perspectives.

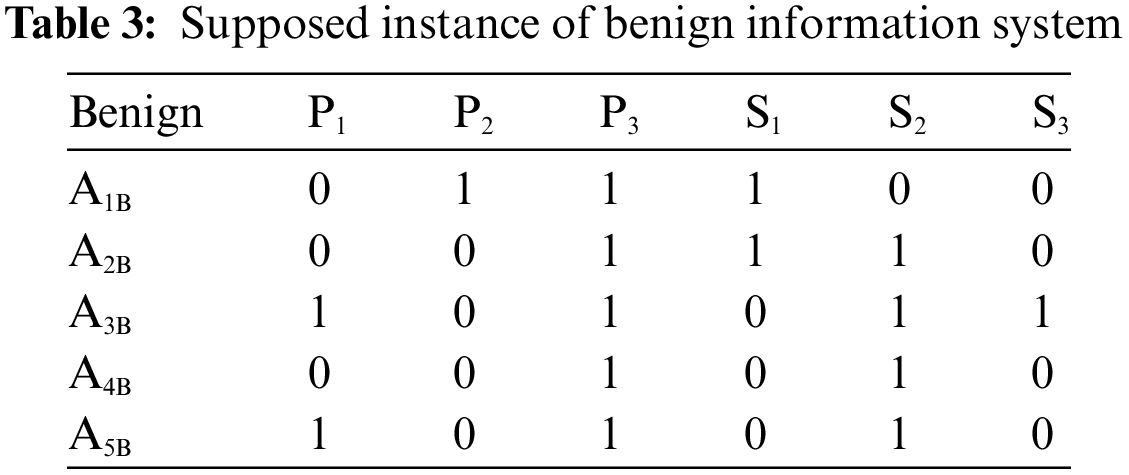

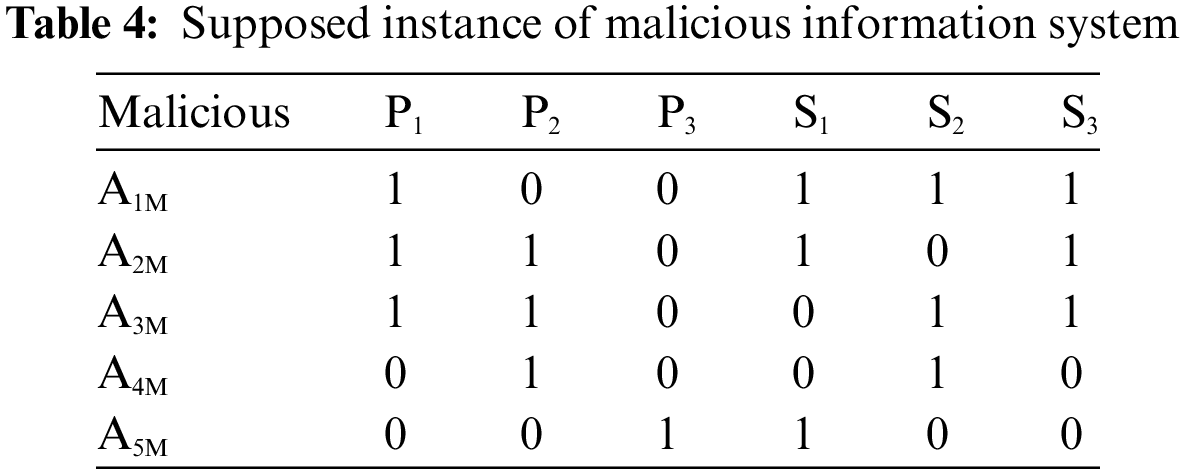

Let us suppose an instance of benign and malicious information systems, as shown in Tables 3 and 4. P1, P2, and P3 denote permissions as features in both instances. Similarly, S1, S2, and S3 denote system calls as features. A1B, A2B, A3B, A4B, and A5B denote the benign applications in the supposed instance of benign information systems. Similarly, A1M, A2M, A3M, A4M, and A5M denote the malicious applications in the supposed instance of a malicious information system.

After assuming the benign and malicious instances of the information systems, now we show how to calculate the single bond strengths of every feature pair. As discussed earlier, single bond strengths of two arbitrary features are calculated from two perspectives, i.e., benign and malicious. For each perspective, the single bond strengths are calculated again from two aspects, i.e., w.r.t fi and w.r.t fj. The formulas for this are evident from Eqs. (1)–(4).

Eq. (1) denotes the single benign bond strength of the feature pair fij w.r.t feature fj. As discussed earlier, the single bond is established by sharing only one pair of electrons between the two involved atoms, symbolized by a single dash (-). The same phenomenon is established in our concept represented by Eq. (1) as ben⇀[fi][fj].Here, the (⇀) represents a single covalent bond w.r.t. to the feature at the right side of the arrow, simulating the sharing of only one electron pair. It gives us the benign score of the single covalent bond between fi and fj w.r.t. fj, where n(fij) is the number of applications for which both features were present simultaneously in the benign feature matrix. In addition, n(fj) is defined as the number of applications for which the feature fj is present. The value for Eq. (1) will be lying in the set [0,1]. A value of 1 indicates a strong single covalent bond while a value of 0 indicates a weak bond. The ratio of n(fij) w.r.t n(fj) denotes the the probability that the association between two features fi and fj in the is strong or weak w.r.t to the feature fj, i.e., higher the ratio greater the association.

ben⇀[fi][fj]=n(fij)/n(fj)(1)

ben↽[fi][fj]=n(fij)/n(fi)(2)

mal⇀[fi][fj]=n(fij)/n(fj)(3)

mal↽[fi][fj]=n(fij)/n(fi)(4)

Eq. (2) denotes the single benign bond strength of the feature pair fij w.r.t feature fi. Here (↽) represents a single covalent bond w.r.t. to the feature at the left side of the arrow, simulating the sharing of only one electron pair. It gives us the benign score of the single covalent bond between fi and fj w.r.t. fi, where n(fij) is the number of applications for which both features were present simultaneously in the benign feature matrix. In addition, n(fi) is defined as the number of applications for which the feature fi is present. The value for Eq. (2) will be lying in the set [0,1]. A value of 1 indicates a strong single covalent bond while a value of 0 indicates a weak bond.

Similarly, with the help of Eqs. (3) and (4), we can calculate mal⇀[fi][fj] and mal↽[fi][fj] where the former is the single malicious bond strength of the feature pair fij w.r.t feature fj while later is the single malicious bond strength of the feature pair fij w.r.t feature fi. They are both calculated from the malicious feature pair matrix. The value for Eqs. (5) and (6) will be lying in the set [0,1]. A value of 1 indicates a strong double covalent bond while a value of 0 indicates a weak bond. Since the single covalent bonds are calculated from two perspectives, i.e., w.r.t fi and fj separately, taking their average will give the strength of association between the two features w.r.t both the perspectives. Higher the average value greater the association between both the features w.r.t both the perspectives.

ben⇋[fi][fj]=(ben⇀[fi][fj]+ben↽[fi][fj])/2(5)

mal⇋[fi][fj]=(mal⇀[fi][fj]+mal↽[fi][fj])/2(6)

Eqs. (5) and (6) calculate double covalent bond strength for the feature pair fij. ben⇋[fi][fj] denotes the double covalent benign bond strength, and mal⇋[fi][fj] denotes the double covalent malicious bond strength. As discussed, the double covalent bond is created when two pairs of electrons are shared between the participating atoms, denoted by two dashes (=). We used (⇋) to denote a double covalent bond for the feature pair fij. The benign single covalent bond strengths calculated in Eqs. (1) and (2) are used to calculate double covalent bond strength in Eq. (5), simulating the sharing of two pairs of electrons between the participating atoms. Similarly, the malicious covalent bond strengths calculated in Eqs. (3) and (4) are used to calculate double covalent bond strengths in Eq. (6).

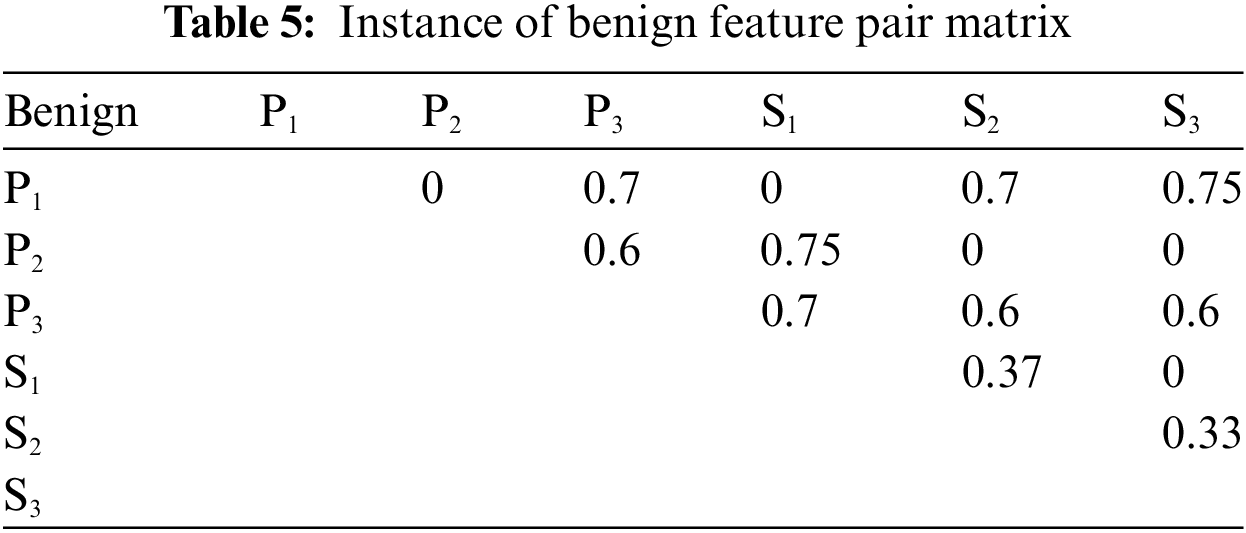

Tables 5 and 6 depict benign and malicious feature pair matrices representing benign and malicious double feature pair covalent bond strengths, respectively. Tables 5 and 6 are calculated from Tables 2 and 3 using Eqs. (1)–(6).

3.4 Detection Phase

The double covalent benign and malicious bond strength calculated in the previous phase is used to detect an arbitrary application as malicious or benign. The whole process of the detection phase is depicted in Algorithm 2.

The testing application is first analyzed to form all possible distinct feature pairs. After this, the net benign and malicious scores are calculated based on the feature pairs formed for the test application. The net benign and malicious scores are calculated from the double covalent benign and malicious strengths stored in benign and malicious feature pair matrices, respectively.

Let us take an instance of the test Android application as At, then the net benign score and net malicious score of the application are calculated with the help of Eqs. (7) and (8), respectively.

netben(At)=netben(At)+ben⇋[fi][fj](7)

netmal(At)=netmal(At)+mal⇋[fi][fj](8)

In Eq. (7), the netben(At) represents the net benign score of application At whereas in Eq. (8) the netmal(At) represents the net malicious score. Both equations sum up the benign and malicious feature pair scores of all the distinct feature pairs, respectively. If netmal(At) score is greater than netben(At) then we can deduce that the test application At is detected as malicious otherwise benign.

4  Results and Discussions

This section reports results obtained from each of the covalent bond pair models. Three types of detection models are formed with the help of covalent bonds pair: Permissions-permissions, system calls-system calls, and permissions-system calls.

4.1 Feature Pair Analysis

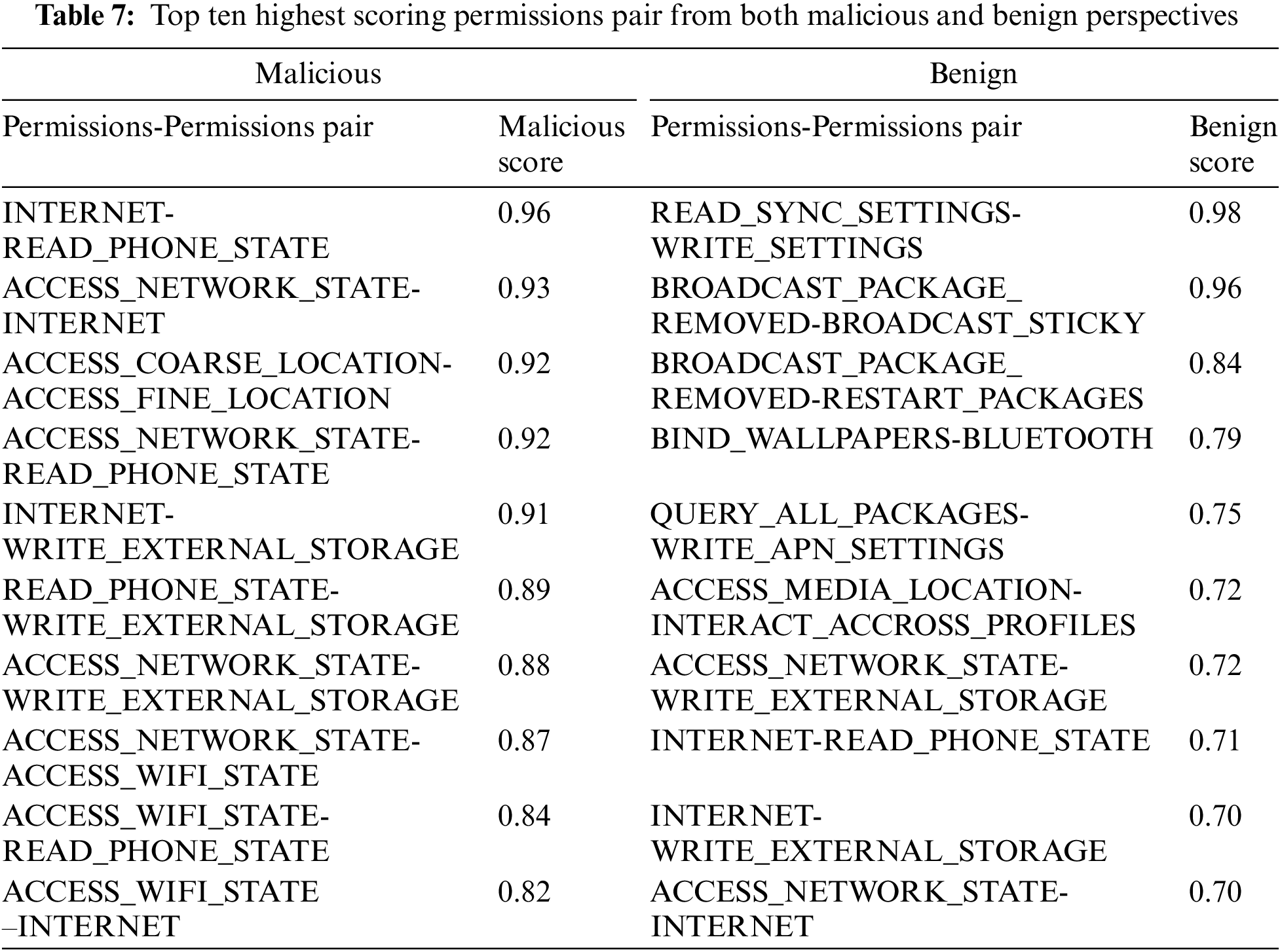

Table 7 shows the top ten highest-scoring permission pairs based on both malicious and benign covalent bond strengths between them. The maximum malicious permissions pair is INTERNET and READ_PHONE_STATE, with the malicious colavent bond strength score of 0.96. This behavior seems evident because pairing INTERNET and READ_PHONE_STATE permissions in an Android app may pose privacy and security risks. The INTERNET permission allows access to online resources, while READ_PHONE_STATE grants access to device details like phone numbers and network information. These permissions could enable an app to collect and transmit sensitive user data without consent, potentially indicating malicious intent. Similarly, the reason for other pairs could also be inferred.

Table 8 shows system call-system call covalent bond pairs with their malicious and benign score arranged in descending order of covalent bond strengths. The top pair in this table with the highest malicious score is “getuid32-ioctl”. The getuid32 system call retrieves the effective user ID of a process in Linux-based operating systems. On the other hand, the ioctl system call, which stands for “Input/Output Control,” is employed in Unix-like systems to control devices beyond standard read and write operations. When used together, these system calls could be leveraged in a potentially malicious manner. For instance, a malicious program might use getuid32 to ascertain if the current user possesses administrative privileges. If affirmative, it could then utilize ioctl to manipulate a system device or resource, potentially resulting in a security breach or compromise.

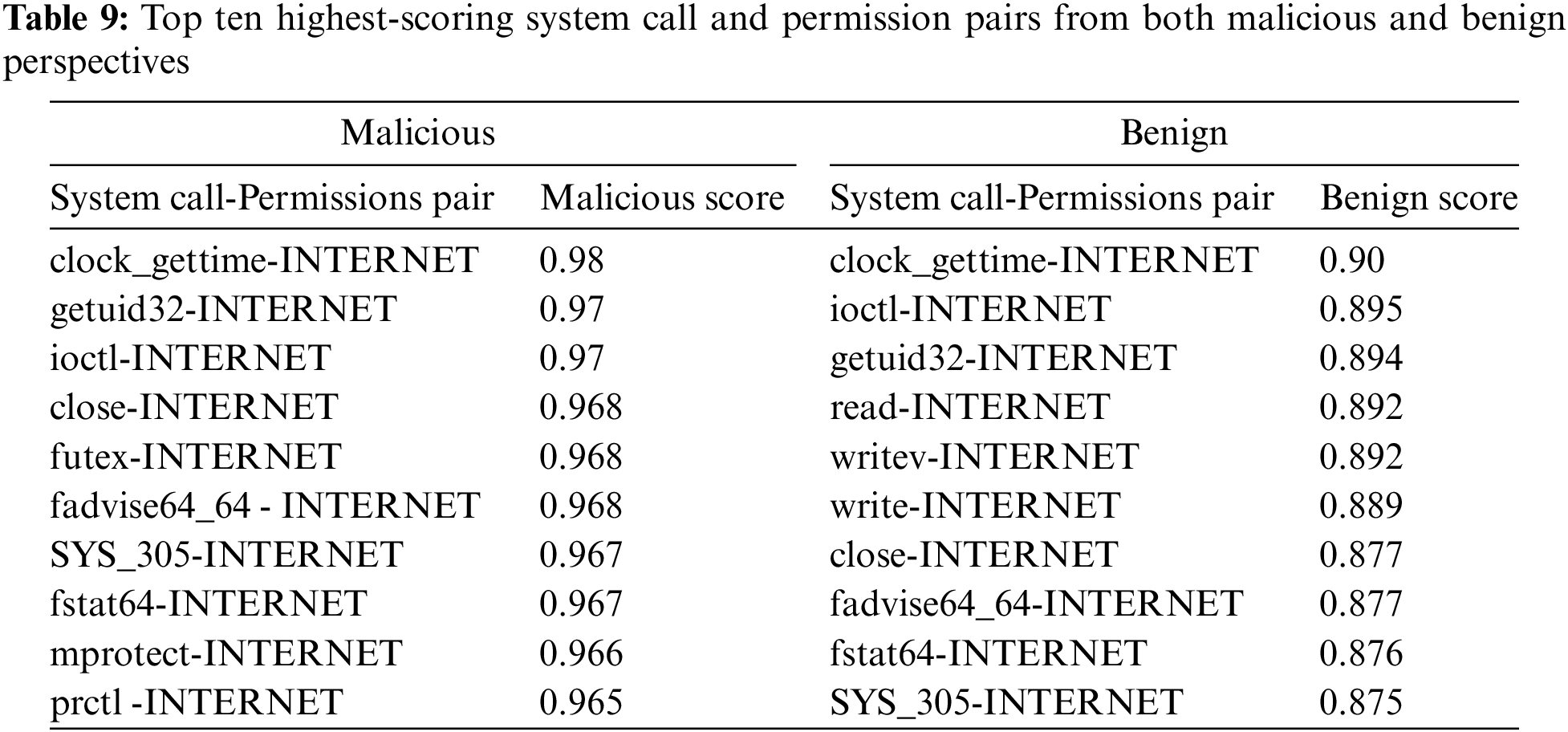

Table 9 shows system call and permission pair covalent bonds arranged in descending order of their malicious and benign bond strength score, respectively. One of the top system call and permission pairs in malicious and benign pairs is clock_gettime and INTERNET. An application may use the precise timing obtained from clock_gettime with the internet access granted by the INTERNET permission to perform covert communication. The combination of precise timing and internet access could allow an application to engage in stealthy activities, making it harder to detect malicious behavior. The malicious score of this pair is 0.98, while the benign score is 0.90. Hence, its malicious intent is more in our case than normal intent. Still, one could not rule out that many legitimate applications use these functionalities for legitimate purposes, such as measuring performance or synchronizing with online services.

4.2 Detection Results

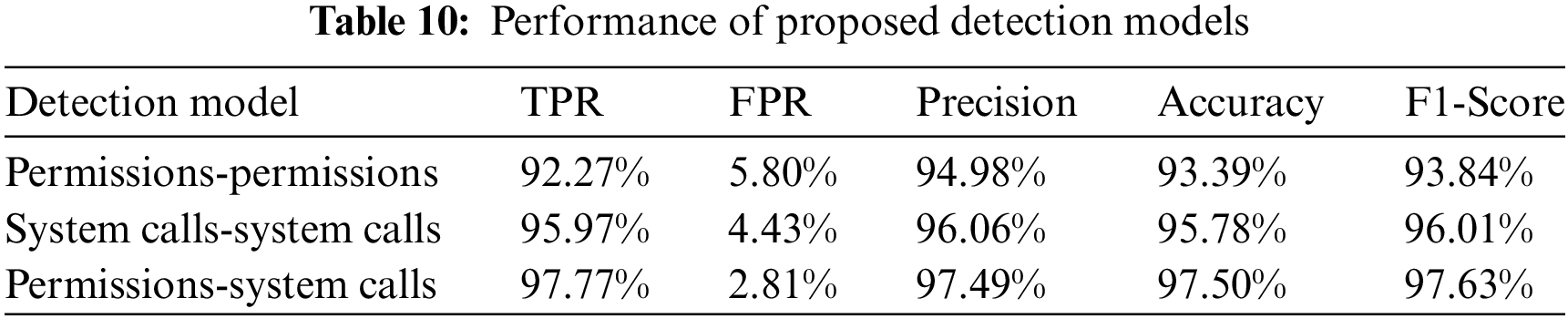

Table 10 shows the performance of various detection models. The proposed models are evaluated on five parameters, i.e., True Positive Rate (TPR), False Positive Rate (FPR), Precision, Accuracy, and F1-Score. The permissions-permissions model is static as it considers only permission-permission covalent bond score for detecting Android Malware applications. The system call-system call covalent bond pair model is dynamic and has better results in the evaluation parameters, which is evident from the fact that dynamic features consider the run time behavior of the application while static feature does not. Hence, those malicious behavior that are activated at run time uncovers hidden insights that are helpful in the identification of malicious application. The next model is the permissions–system call model, a hybrid model in which a covalent bond pair is formed among permissions and system calls, and their bond strengths are used to detect malicious applications. This model, which is a hybrid, has even better evaluation parameters than the system call-system call detection model. The apparent reason seems to be the uncovering of system calls and permissions bonding. The permission requested by the application is not alone responsible for malicious behavior because benign applications may also use the same permission. The combination of permission with system calls allows a more detailed examination of an application’s behavior. Permissions provide a high-level overview of what resources an app may access, while system calls offer a finer-grained view of actual interactions with the system. The Permissions-System calls model shown is the best of all. This model is a hybrid model and achieves an overall accuracy of 97.50%, which is better than both static and dynamic models. The confusion matrix for the permissions-system call model is given in Table 11.

4.3 Detection Results on Unknown Samples

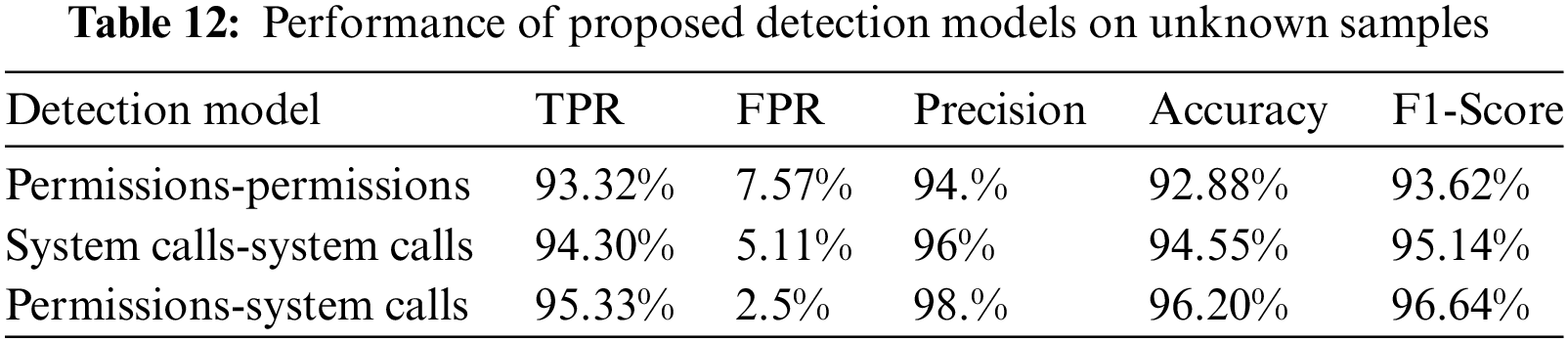

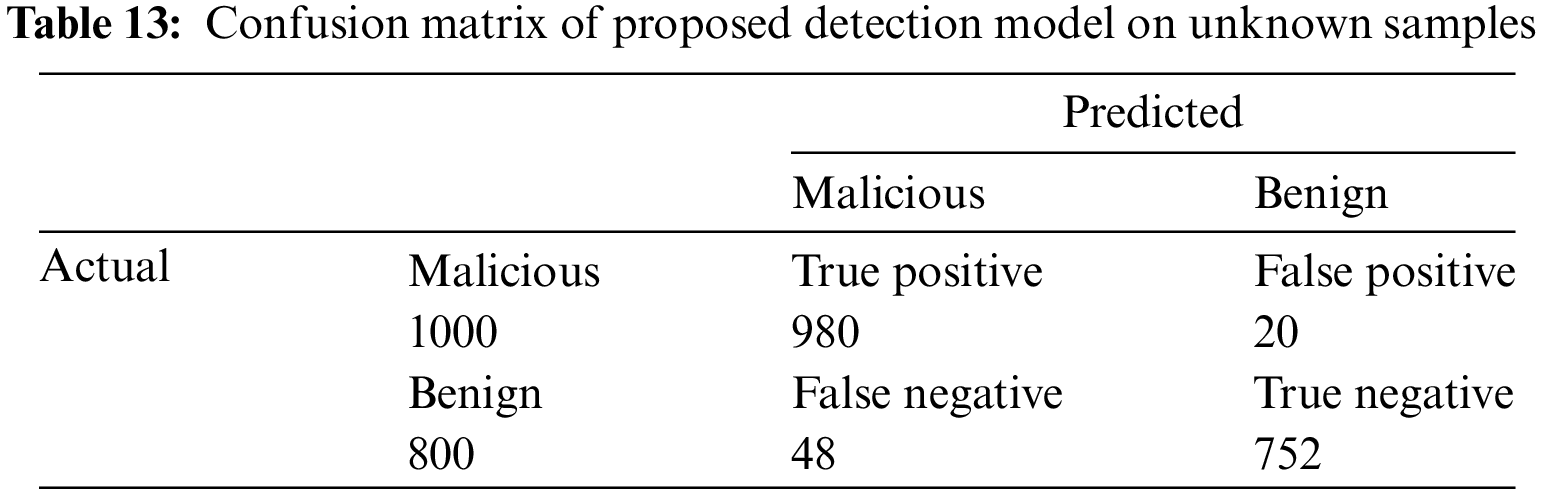

We comprehensively evaluate our proposed model on unknown samples. The sample is taken from the CICAndMal2017 [37] data set. A total of 1800 samples were taken, of which 1000 were malicious, and 800 were benign. These are the unseen samples as they are in the form of apks. We first installed these applications in a virtual environment, and then random clicks were done on installed applications for nearly a minute. The generated system calls are captured with the help of a strace script. The permissions were extracted from the Android manifest file of each application after unpacking each application using the apk tool. The observed result shows an accuracy of 96.20%. The details of the results are represented in Tables 12 and 13.

4.4 Comparison with Other Related Works

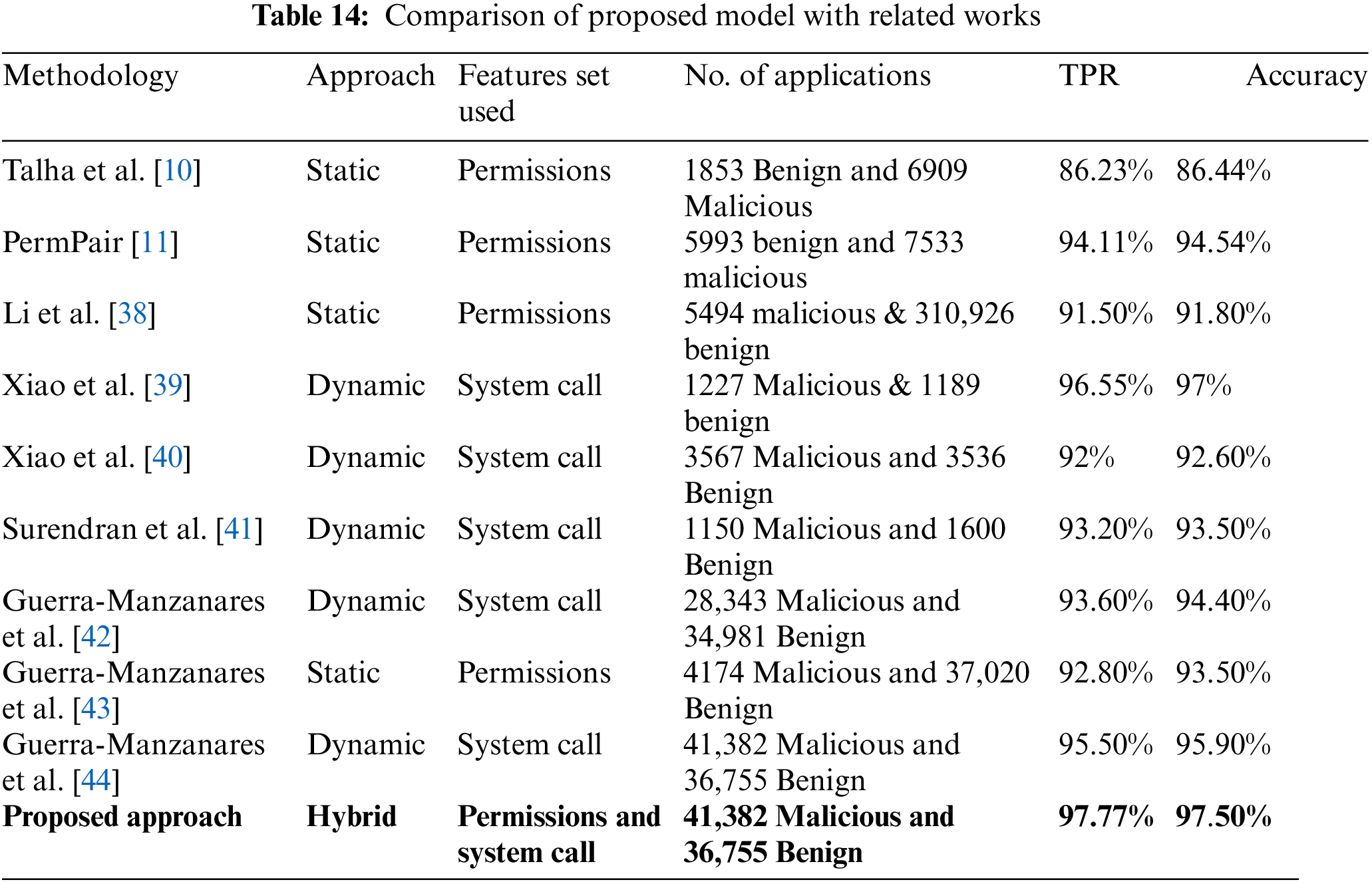

We comprehensively evaluate the detection results obtained from our proposed method, comparing them with findings from previous studies in the literature focusing on Android malware detection. We implemented several state-of-the-art techniques on our data set and to facilitate this comparison, we provide a concise summary in Table 14. Upon examination of these results, it becomes apparent that our proposed methodology outperforms all the aforementioned related works regarding detection accuracy, demonstrating its superior performance compared to existing approaches. Moreover, the data set used by all the approaches was old and outdated. The data set used by us is the latest, and it chronicles the entire history of Android, covering the years from 2008 to 2020 while also accounting for the distinct dynamic data sources.

4.5 Limitations

In this subsection, we address certain ambiguities in our proposed approach. Specifically, our model relies on feature pairs to assess applications. Some malware samples with a limited number of features may go undetected. To bypass detection, attackers may incorporate commonly used features into the malware, thereby generating a more significant number of ordinary feature pairs. Additionally, we have observed that when a feature pair appears only once in the malicious samples, and both individual features have a frequency of one for a specific application, it results in a malicious covalent bond strength of one. This misrepresents the actual strength of the bond, potentially elevating the significance of an otherwise insignificant feature pair and leading to misclassification. We plan to address these limitations by exploring the potential of incorporating additional components like intent filters, hardware specifications, and API call logs for more efficient detection alongside the existing focus on permissions and system calls.

5  Conclusion and Future Work

This study established covalent bonds between permissions and system calls to evaluate their combined impact. We introduced a novel methodology for calculating these pairs’ Covalent Bond Strength Score, resulting in both malicious and benign scores. These scores were then utilized in our Android malware detection technique.

We thoroughly compared our proposed model and other advanced detection methods. Our results indicate that our model outperforms similar state-of-the-art models in performance. In the future, our research will analyze additional components of the manifest file, such as intent filters and hardware specifications, to further enhance detection accuracy.

Acknowledgement: Not applicable.

Funding Statement: The authors received no specific funding for this study.

Author Contributions: All authors contributed to the study’s conception and design. Material preparation, data collection and analysis were performed by Rahul Gupta. The first draft of the manuscript was written by Rahul Gupta and all authors commented on previous versions of the manuscript. All authors read and approved the final manuscript.

Availability of Data and Materials: Data sharing is not applicable to this article as no datasets were generated.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
