A Video Captioning Method by Semantic Topic-Guided Generation
College of Computer Science and Technology, Xi’an University of Science and Technology, Xi’an, 710054, China
* Corresponding Author: Zhenhua Yu. Email:
Computers, Materials & Continua 2024, 78(1), 1071-1093. https://doi.org/10.32604/cmc.2023.046418
Received 30 September 2023; Accepted 28 November 2023; Issue published 30 January 2024
Abstract
In the video captioning methods based on an encoder-decoder, limited visual features are extracted by an encoder, and a natural sentence of the video content is generated using a decoder. However, this kind of method is dependent on a single video input source and few visual labels, and there is a problem with semantic alignment between video contents and generated natural sentences, which are not suitable for accurately comprehending and describing the video contents. To address this issue, this paper proposes a video captioning method by semantic topic-guided generation. First, a 3D convolutional neural network is utilized to extract the spatiotemporal features of videos during the encoding. Then, the semantic topics of video data are extracted using the visual labels retrieved from similar video data. In the decoding, a decoder is constructed by combining a novel Enhance-TopK sampling algorithm with a Generative Pre-trained Transformer-2 deep neural network, which decreases the influence of “deviation” in the semantic mapping process between videos and texts by jointly decoding a baseline and semantic topics of video contents. During this process, the designed Enhance-TopK sampling algorithm can alleviate a long-tail problem by dynamically adjusting the probability distribution of the predicted words. Finally, the experiments are conducted on two publicly used Microsoft Research Video Description and Microsoft Research-Video to Text datasets. The experimental results demonstrate that the proposed method outperforms several state-of-art approaches. Specifically, the performance indicators Bilingual Evaluation Understudy, Metric for Evaluation of Translation with Explicit Ordering, Recall Oriented Understudy for Gisting Evaluation-longest common subsequence, and Consensus-based Image Description Evaluation of the proposed method are improved by 1.2%, 0.1%, 0.3%, and 2.4% on the Microsoft Research Video Description dataset, and 0.1%, 1.0%, 0.1%, and 2.8% on the Microsoft Research-Video to Text dataset, respectively, compared with the existing video captioning methods. As a result, the proposed method can generate video captioning that is more closely aligned with human natural language expression habits.Keywords
At present, videos have become an essential carrier of information dissemination and an important source of daily human life, learning, and knowledge acquisition, such as object detection studies, video surveillance technology popularization, and film entertainment [1–4]. The studies of video captioning have become a hotspot in computer vision and cross-modal content cognition [5,6]. Their purpose is to enhance the intelligent understanding and analysis of video data by using natural language to describe and interpret the content of videos, aiming to achieve structured summarization and re-expression of visual content. In recent years, video captioning studies have gained attention for their applications in navigation assistance, human-computer interaction, automatic interpretation, and video monitoring [7].
Since 2010, there have been two primary video captioning methods: template-based video captioning [8] and retrieval-based video captioning [9]. The template-based video captioning methods require many manually designed annotations, resulting in a single syntactic structure and limited sentence diversity; in contrast, the retrieval-based video captioning methods are easily limited by the retrieval samples, which makes it difficult to generate accurate natural sentences. Currently, with the in-depth studies of deep learning in image processing [10] and machine translation [11], deep network models with encoder-decoder have been applied to generate video captioning [12,13]. This kind of model regards to video captioning as a process of “translation”. In the encoding phase, the visual contents of video data are encoded into feature vectors using an encoder; in the decoding phase, a decoder is utilized to map feature vectors to generate semantic aligned natural sentences. In general, the video captioning methods based on encoder-decoder can achieve caption generations that are more in line with human language habits through cross-media semantic alignment. However, since the rich and diverse presentation forms of video content, relying solely on the visual features extracted by an encoder can easily ignore some details and be affected by noise and changes in appearance features, which are not conducive to accurately comprehending and describing the video contents. To address this issue, an attention mechanism is introduced into a video captioning method based on the encoder-decoder in [14]. This method improves the quality of generated sentences by assigning weights to optimize and select the temporal features. At present, although attention mechanisms can improve the generated accuracy of video captioning, a semantic alignment issue due to a single input source limits accurate video captioning generation.
Considering that the semantic topic expression is not only limited to text information but also can convey visual information, which can effectively converge cross-modal semantic elements in the visual and linguistic domains and alleviate the limitations of limited visual features. Furthermore, incorporating the semantic topics of video data can also effectively guide the caption generation of the video contents. Therefore, a video captioning method based on semantic topic-guided generation is proposed, which guides the generation of video captioning using external semantic topic information. This method utilizes the Convolutional 3D (C3D) model to extract advanced spatiotemporal features of video data, then generates video captioning by constructing a decoder Enhance-TopK Generative Pre-rained Transformer-2 (EGPT-2) based on the extracted semantic topics of the video data. Taking Fig. 1 as an example, when input video data of “a woman rides a horse through the forest”, even though the scene “forest” and the object action “through” are not easy to obtain in the encoding and decoding phases, they are still possible to utilize a Latent Dirichlet Allocation model to construct a semantic topic of the video data to guide and predict the video content of “girl riding through the forest” by retrieving “woman”, “horse”, “riding” and other keywords contained in a video with similar semantics. In this process, to alleviate the long tail problem existing in the decoding phase and make the generation of video captioning more accurate, a novel sampling algorithm named Enhance-TopK is designed, which calculates the probability distribution of the topic correlation coefficient to affect the probability distribution of the predictive words, further ensuring the accurate generation of the video captioning. As shown in the decoding phase of Fig. 1, the generated video captioning is “a girl is riding a horse through the forest” instead of passing through “fields” or “wilderness”.
This paper’s contributions are summarized as follows: (1) an innovative idea of utilizing video semantic topics as a “bridge” to guide the video captioning generation is proposed, which can improve the semantic alignment between generated natural sentences and video content, thereby reducing the “deviation” effect in the semantic mapping process between video and text; (2) in the decoding phase, a baseline caption of a video and its semantic topic are jointly decoded through an EGPT-2 deep network model. In this process, a sampling algorithm named Enhance-TopK is designed to enhance the topic impact on the next prediction word, thereby adjusting the probability distribution of the prediction words. The purpose is to ensure that the generated video captioning is consistent with the video topic and keeps the natural sentences smooth; (3) the proposed method is verified on the Microsoft Research Video Description (MSVD) and Microsoft Research - Video to Text (MSR-VTT) datasets with a significant difference in size to evaluate the different effects of semantic topics on the generation of video captioning, which provides help for in-depth studies on how the topic information of video content can guide the video captioning generation.
This paper is divided into several sections. First, Section 2 presents a brief review of related video captioning. Subsequently, Section 3 introduces a video captioning method based on semantic topic-guided generation. The performance of this method is then verified through experiments in Section 4. Finally, we conclude and provide the future study in Section 5.
In the early stages of video caption studies, video captioning methods mainly consisted of template-based and retrieval-based video captioning methods. Template-based video captioning methods involve two phases: syntax generation and semantic constraints. Syntax generation refers to detecting attributes, concepts, and relations of objects in videos using designed manual features; semantic constraint refers to pre-setting fixed sentence templates or syntax rules, and then the detected objects are combined into the final natural language descriptions [15]. For example, a study in [16] first detects objects in images, and predicts the attributes of objects and prepositional relations between objects; then a Conditional Random Fields (CRF) model is constructed to predict labels in the form of <object–attribute–preposition>triplet and generate natural sentences based on linguistic templates. Yang et al. [17] first detected the features and scenes of objects in the images, then predict the verbs, scenes, and prepositions that makeup sentences. Afterward, a hidden Markov model is used to infer the optimal quaternion of <noun–verb–scene–preposition> to form the sentence. Finally, a description sentence of the video content is generated. However, this method relies more on attribute detections and template settings, resulting in poor performance of the final generated video captioning. The retrieval-based video captioning methods are to transform the video captioning generation task into a video retrieval task. Specifically, video captioning is generated by retrieving sentences with similar semantics to the target video from manually constructed sentence sets. For instance, the global similarities of the query images are calculated on a constructed large image dataset, and the retrieved sentences are used as the natural sentences of video contents [18]. The work in [19] utilized the potential semantic information of the images to generate a new video captioning through a triple group <visual clues–corpus statistics–available descriptions>. In general, although retrieval-based video captioning methods can retrieve natural sentences like the semantics of the video contents, due to the limited scale of retrieval samples, they are challenging to generate video captioning with a high fit to the video contents. Under some extreme conditions, the generated video captioning may have nothing to do with the video contents themselves.
With the in-depth studies of video captioning approaches, the encoder-decoder models combining convolutional neural networks with recurrent neural networks [20] have been widely used to generate video captioning. For example, Venugopalan et al. [21] utilized an encoder of the AlexNet model to extract video features. Then, these features are fed into a short-term long memory (LSTM) network model to generate the natural sentences. However, this method ignores the influence of the temporal features on the semantic representation of video data. To address this issue, the study in [22] constructed a long-short-term graph (LSTG) to capture the short-term spatial semantic relationship and long-term conversion dependency relationship between several visual objects, then fully exploring the spatiotemporal relationships between visual objects, and implements the inference of object relationship on LSTG through the global gated module, further improving the quality of generated video captioning. Zheng et al. [23] suggested that existing methods prioritize the accuracy of object category prediction in generated video captioning. However, it often overlooks object interactions. Hence, a Syntax-Aware Action Targeting model is designed to detect semantic objects and dynamic information to learn the actions in videos to improve the accuracy of action prediction in the generated video captioning. The work in [24] proposed a semantic-based video keyframe method that extracts the initial video keyframe using a convolutional neural network model and the feature windows. Then the keyframes are automatically marked by the image caption network. Finally, a pre-interactive LSTM network model is proposed to generate video captioning, which can fully extract the semantic feature of a video using the video keyframes to improve the generation of video captioning. However, the quality of the generated video captioning depends on the accuracy of keyframe annotations. Liu et al. [25] proposed an Unpaired Video Captioning with Visual Injection system to address the issue that sufficient paired data is unavailable for many targeted languages. However, the semantic information of video captioning is still limited. The study in [26] presented a novel global-local encoder to obtain video captioning across frames by generating a rich semantic vocabulary. However, this method only enriches semantic vocabulary by encoding different visual features, and the source of semantic information is relatively single. Recent studies of video captioning utilized an encoder-decoder to extract the visual features from the video data and then decode these features with a decoder to produce human-like sentences that match the video content semantically. However, video content is diverse and complex, which can result in an encoder losing some critical visual information during the encoding process. This loss of part visual information can make it difficult to accurately convey the video content during the decoding phase.
There have been related studies to address this issue. For example, the work in [27] proposed a dual-stream learning method with multiple instances and labels, which minimizes the semantic gap between the original video and the generated captions through a dual-learning mechanism of captioning generation and video reconstruction. Furthermore, a Textual-Temporal Attention Model was proposed in [28]. This model introduces pre-detected visual labels from the videos and selects the most relevant visual labels based on the contextual background. Subsequently, the temporal attention mechanism is used to enhance semantic consistency between visual content and generated sentences. Nevertheless, whether it is simple to label extraction or enhance the semantic alignment between video and text by stacking a multi-layer attention mechanism, it may introduce irrelevant semantic noise, which may further amplify the impact of “semantic deviation” on the generation of video captioning.
To alleviate the problem of “semantic bias” caused by limited visual information, a video captioning method based on semantic topic-guided generation is proposed, and the overall idea is shown in Fig. 2. This approach comprises an encoder, a semantic topic extraction module, and a decoder. In the encoding phase, the encoder in this methodology utilizes a C3D deep network model to capture the spatiotemporal features. At the stage of semantic topic extraction of videos, the retrieval of video reference sentences and extraction of semantic topics are mainly implemented. Due to the visual consistency between the video reference sentences and the video contents, the topic words with the reference text R related to the contents of an input video are extracted in this phase. Then, a probability set of topic words is obtained, denoted as
3.1 An Encoder Construction of C3D Deep Neural Network
Since video data have both temporality and spatiality, the C3D deep network model can extract both appearance and motion features from videos simultaneously, a pre-trained C3D deep network model with eight convolution layers, five pooling layers, two fully connected layers, and a softmax output layer was used in this paper. Specifically, we take any ith video clip
where
3.2 Semantic Topic Extraction of Videos
In this paper, the reference sentences of videos refer to the natural sentences related to this video content, which are derived from the description sentences of other videos like this video content. Since the reference sentences of the input videos contain valuable semantic information that aids in describing video topics, the semantic topic distribution of the video data can be extracted according to the reference sentences of the videos.
First of all, the matching pairs of “video clip–reference sentences” in a video dataset are defined as
Before retrieving similar video data, each video in the video datasets can be represented as a high-dimensional feature vector by using a C3D deep network model. Then, similar video data are retrieved by calculating the similarities between the given input video
where
Through the above phases, similar video data
Specifically, a reference text R of a video is extracted first, and then a topic probability based on this reference text is calculated according to Eq. (3):
where
On this basis, the probability distribution of topic words under the uth topic can be obtained through Eq. (4):
where
When the topic words under all topics in the reference text R have been extracted, the semantic topics of the given input video
where
For any one row or column in the matrix
3.3 The Construction of an EGPT-2 Decoder
Inspired by the open domain question and answer tasks [34], video captioning is not generated directly based on visual features, but a GPT-2 language model [35] is introduced to generate video captioning. Since the GPT-2 language model is a language model that has been pre-trained by a large number of unsupervised data, it can learn rich semantic information from external text data, and reduce the dependence on labeled data. In the decoding phase, aiming to obtain external semantic information from the video semantic topics to enrich the semantics of video captioning, the visual semantic topics based on the GPT-2 language model and a baseline caption of video content are jointly decoded. In addition, to alleviate the long-tail problem that appears during the decoding phase, a novel Enhance-TopK sampling algorithm is designed to combine with the GPT-2 language model to construct an EGPT-2 decoder. This decoder can adjust the probability distribution of the predictive words by combining the topic correlation coefficient
As shown in Fig. 3, the EGPT-2 decoder contains a stacked 12-layer Transformer module. Specifically, the input data
where
Subsequently, the feature vector
where
According to Eq. (10), the greedy sampling algorithm selects the word with the highest probability for prediction at each time step. However, this method often leads to repetitive or meaningless video descriptions. When using pure random sampling, the length of the predicted word set

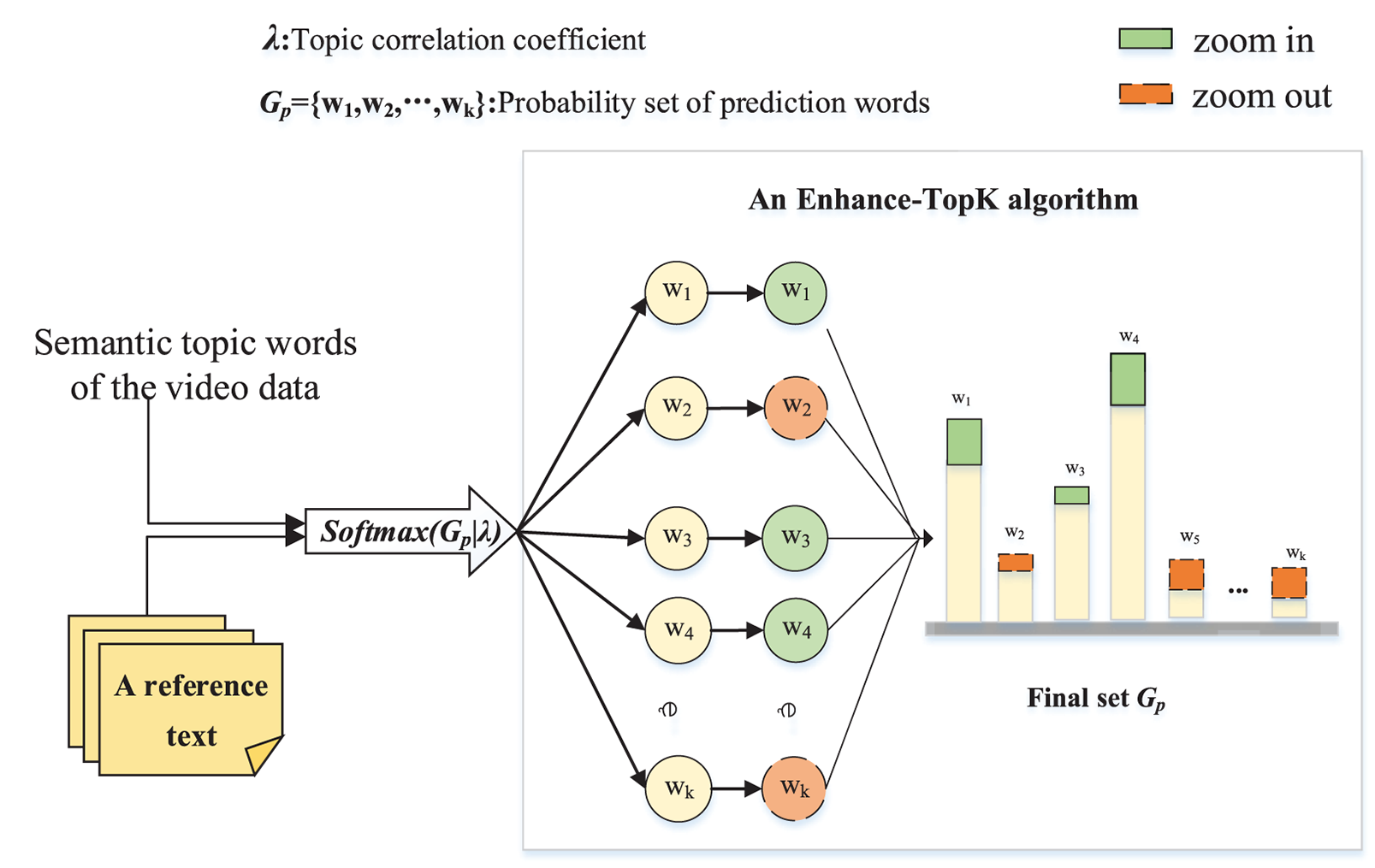

Compared to existing Top-K sampling algorithms, the Enhance-TopK sampling algorithm considers the influence of the topics on the predicted word probability distribution. The “zoom in” in Fig. 4 shows the words that are greatly affected by the topic in
Specifically, an Enhance-TopK sampling algorithm first splits the topic words of an input video
where
where
On this basis, a topic correlation coefficient
where m is the number of sentences in a reference text R.
Then, the first Top-K words (we set
where K is the number of predicted words in the sampling set
Finally, a prediction word at each moment is connected until the next prediction word is marked with <endoftext> to complete the generation of video captioning.
In the encoding phase, a pre-trained C3D deep network model is used to extract the spatiotemporal features of the videos. The input size of the C3D deep network model is
where a sequence
Finally, the EGPT-2 network model is trained using the minimum negative log-likelihood loss function by using Eq. (17).
where
In addition, this model is trained with a batch size of 8 for the MSVD dataset and 16 for the MSR-VTT dataset. The number of training iterations is set to 20, and the learning rate is set to
4.1 Dataset and Evaluation Indicator
This paper evaluates the proposed method’s performance through extensive experiments using MSVD [40] and MSR-VTT [41] datasets. MSVD is a collection of 1970 open-domain video clips from YouTube covering various topics such as sports and cooking. Each video has around 40 natural sentences as labels. The dataset is partitioned into three sets: a training set of 1200 video clips, a validation set of 100 video clips, and a test set of 670 video clips. On the other hand, MSR-VTT is a larger dataset consisting of 10,000 videos and 200,000 captions. Each video has an average of 20 annotation sentences. The dataset is divided into a training set of 6513 video clips, a validation set of 609 video clips, and a test set of 2878 video clips.
Currently, the evaluation indicators Bilingual Evaluation Understudy (BLEU) [42], Metric for Evaluation of Translation with Explicit Ordering (METEOR) [43], Recall Oriented Understudy for Gisting Evaluation-longest common subsequence (ROUGE-L) [44], and Consensus-based Image Description Evaluation (CIDEr) [45] are widely utilized to evaluate the quality of the generated video captioning. Since the number of n-grams overlapped between the generated and reference sentences can better reflect the quality of video captioning, the performance of the BLEU-4 indicator in the experiment has also received attention.
The experiments are conducted using Python 3.8 programming language and Pytorch 1.7.0 framework for model training on a Linux operating system. The GPU used in the experiments is RTX A5000, with 42GB memory and 100GB hard disk size. Moreover, CUDA11.0 with cuDNN8.0 is utilized to accelerate the proposed method’s computation.
4.2 Experimental Results Analysis
1) Training analysis of the proposed method
The proposed method utilizes 48000 reference sentences and 130260 reference sentences for model training in MSVD and MSR-VTT datasets, respectively. In the experiments, the optimal performance is achieved by setting the learning rate to

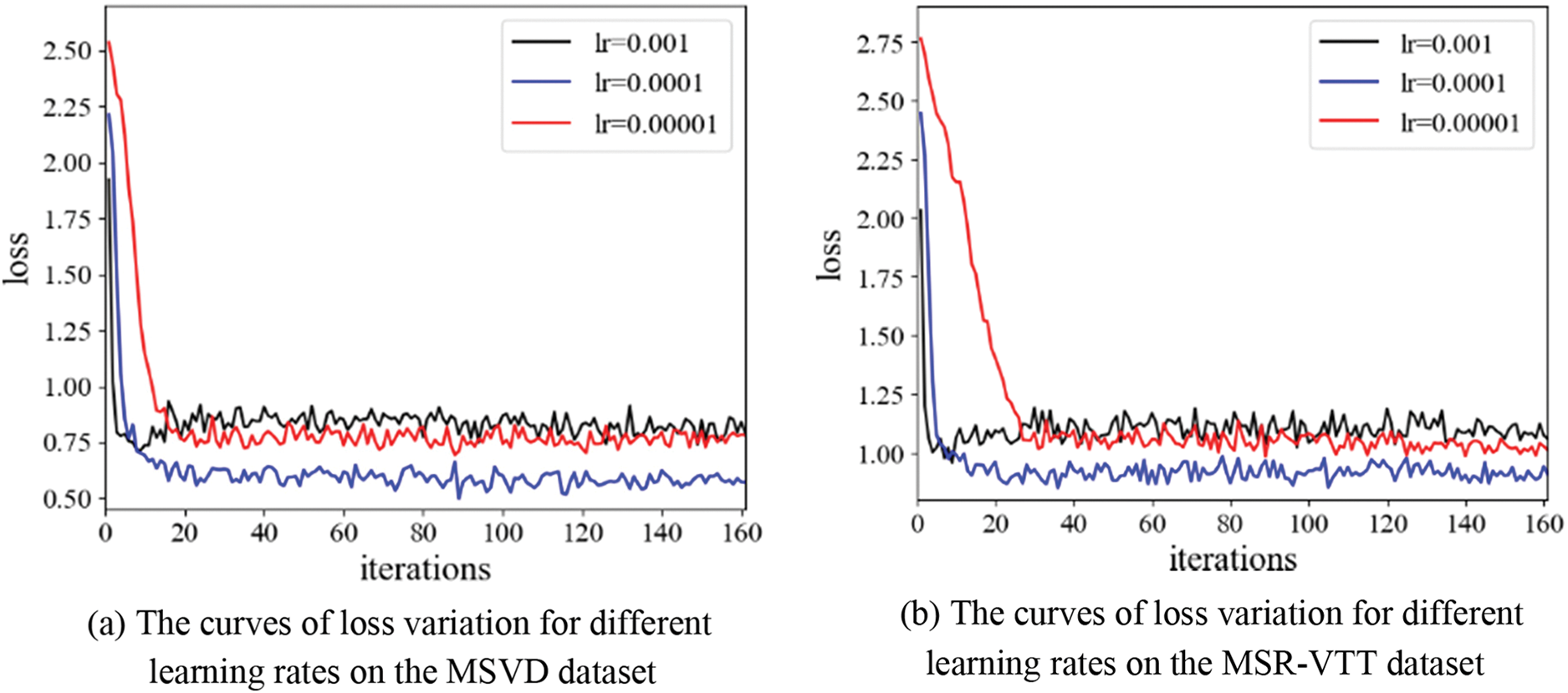

To evaluate the effectiveness of the proposed method, the performance indicators at different learning rates are further compared on the MSR-VTT dataset. The experiment results are presented in Table 1.

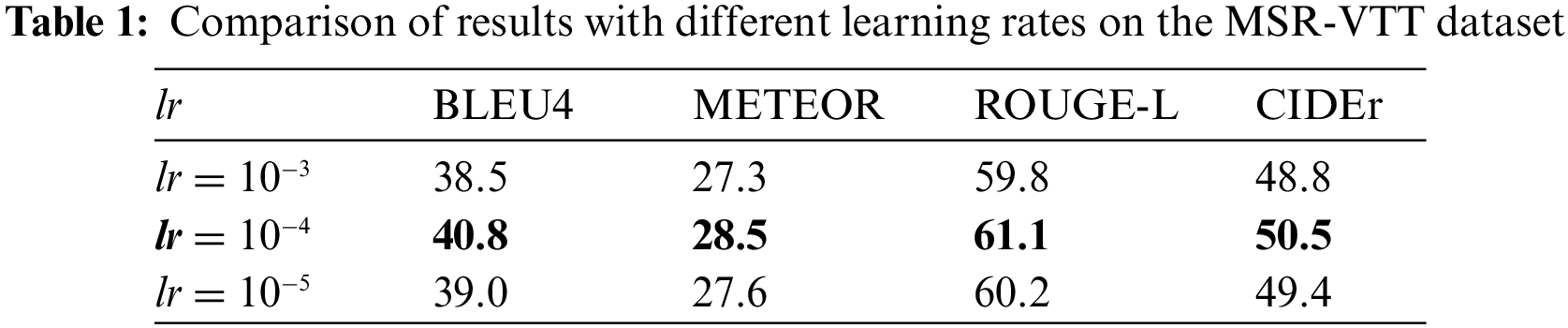

The results in Table 1 demonstrate the effectiveness of the proposed method in generating video captions that are coherent with the video content without overfitting.
2) Ablation experiments
To clarify the respective contributions of the video semantic topics and the Enhance-TopK sampling algorithm to prediction words, the following ablation experiments are conducted in two datasets.
① Experiment-1: the input data of the proposed method only contain video clips and their baseline captions
② Experiment-2: the input data of the proposed method contain video clips, their baseline captions
③ Experiment-3: based on the above experiments, the Enhance-TopK sampling algorithm is used in the decoding phase to verify its effectiveness.
It should be noted that to ensure the training effect of the EGPT-2 deep network model, Experiment-1 and Experiment-2 both utilize the normal greedy sampling algorithm in the training phase, and Experiment-3 is conducted based on the above experiments, which is only used the verify the effectiveness of the Enhance-TopK sampling algorithm, and does not involve the training phase. Therefore, the comparison results of training the EGPT-2 deep network model through Experiment-1 and Experiment-2 are shown in Fig. 6.

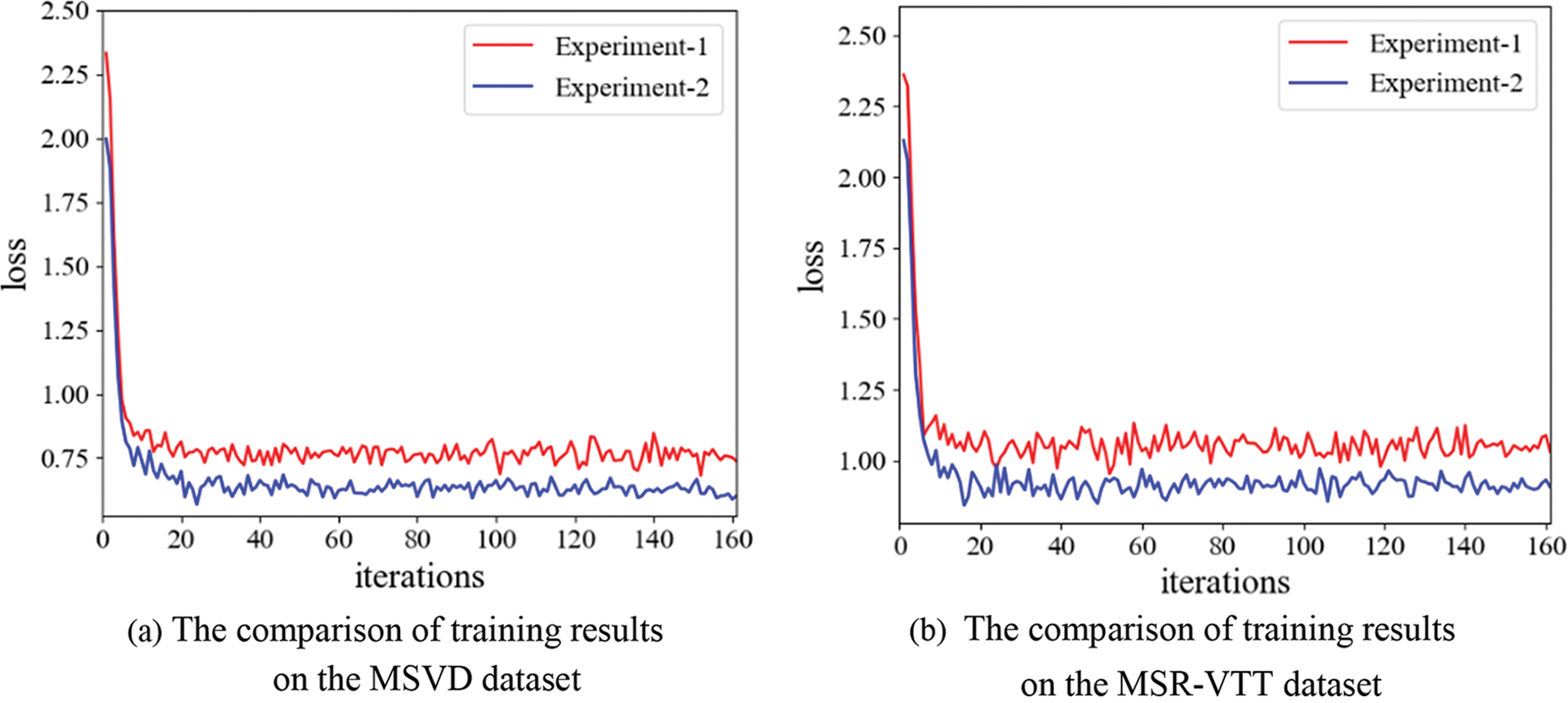

From Fig. 6, it can be seen that Experiment-1 and Experiment-2 both start to converge smoothly after 20 iterations, and the loss of Experiment-2 is significantly lower than Experiment-1. It is considered that since Experiment-2 embeds the semantic topic features of videos in the encoding and decoding process, it can predict the target words with the help of semantic topics to improve the accuracy of video captioning. For example, when the semantic topic of an input video contains the semantics “slicing” and “cucumber”, the generated video captioning will be more specific, and there will be no blurred descriptions such as “A person is cooking”. To further verify the impact of the semantic topics on the model performance, the comparative experiments separately are conducted on the two datasets, and the experimental results are shown in Tables 2 and 3.

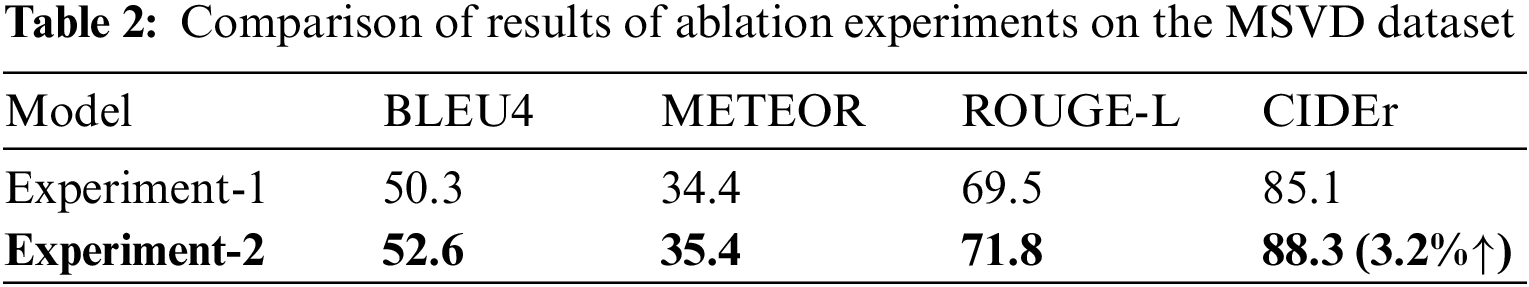

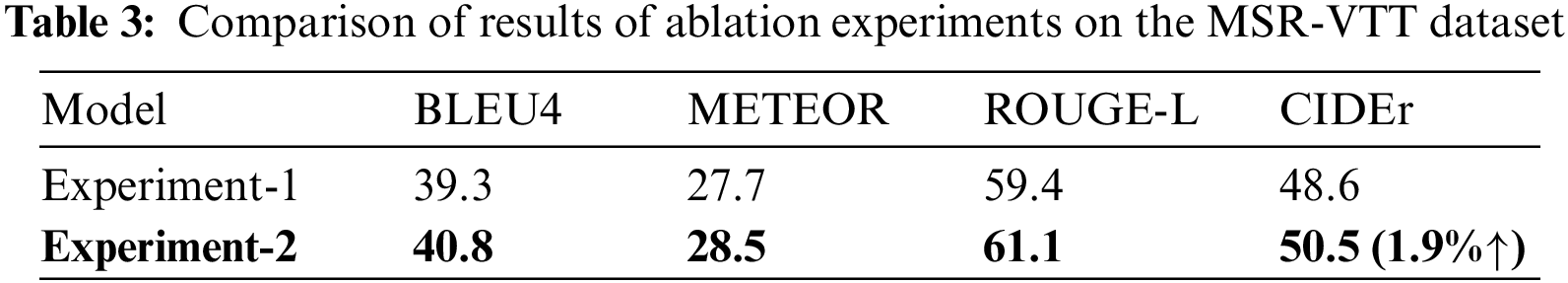

Tables 2 and 3 explore the impact of topics on model performance through ablation experiments. It can be seen that all indicators of Experiment-2 are superior to Experiment-1 on both datasets, especially on the indicator CIDEr, which has been significantly improved by 3.2% on MSVD and 1.9% on MSR-VTT, respectively. This is because Experiment-2 captures the topic information of video content through video semantic topics. During the decoding stage, additional information can be obtained from the video semantic topic features to predict the generation of sentences, making the generated video captioning both consistent with the video content and accurate. Specifically, the CIDEr metric is calculated using the TF-IDF algorithm, which assigns low weights to infrequent n-grams and high weights to the core n-grams in a sentence. A high CIDEr score indicates that the decoder can further accurately capture the semantic information of video data using video semantic topics. Thereby ensuring that the generated sentences of video content are more consistent with human consensus.

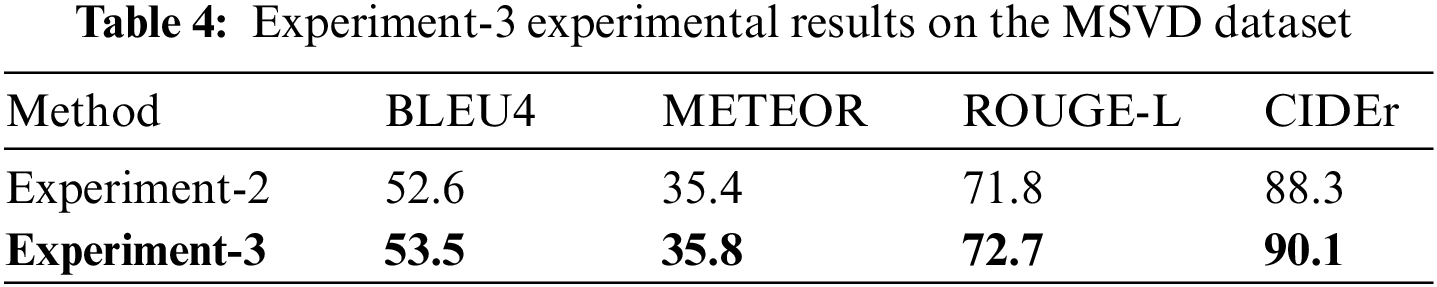

In addition, the Enhanced-TopK sampling used in the decoding phase is also effective. As shown in Tables 4 and 5, Experiment-3 has achieved good results on both datasets. It is considered that since the Enhance-TopK sampling algorithm utilizes the topic correlation coefficient
3) Parameter setting
① The sampling interval of the Enhance-TopK algorithm
To ensure the generated video captioning conforms to the video content, which maintains the smoothness and rationality of the natural language, a novel Enhance-TopK sampling algorithm is constructed in the decoding stage. In this algorithm, to determine the value of the optimal initial sampling interval K, K is set to 10, 20, 30, 40, and 50 for experimental verification on the MSVD video dataset. The experimental results are shown in Table 6.
The results in Table 6 show that when the K value of the sampling interval is equal to 30, the score of each indicator is highest. It is considered that when the K value is less than 30, the sampling interval is small, leading to the next predicted word being likely to be sampled by using the maximum probability to generate repeated or flat sentences, such as the sentence “A woman is riding horse riding horse” resulting in the poor semantics of the generated video captioning. When the K value is greater than 30, the sampling interval is too large, which may cause the mode to sample the long tail words and make the generated sentences impassable. Therefore, the K value of the initial sampling interval is set to 30.
② Parameter setting of the semantic topic quantity

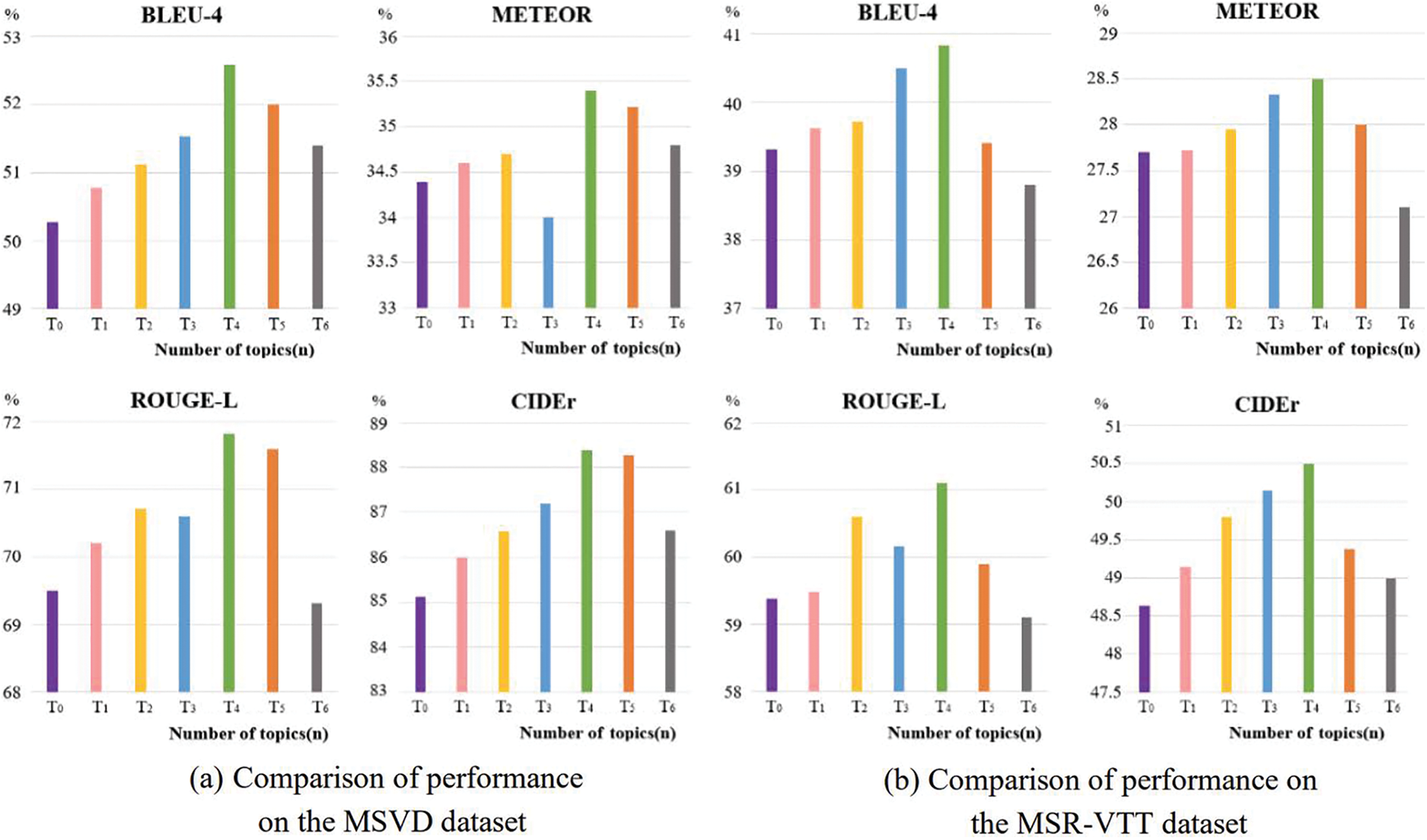

The method proposed in this paper can learn additional semantic information by embedding the semantic topic of the video content to predict the next word. In this process, the parameter setting of the semantic topic quantity is very important. To obtain an appropriate parameter of visual semantic topics, 0 to 6 topic words are set for each video to verify the performance of the method. The experimental results are shown in Fig. 7.
To evaluate the impact of the Enhance-TopK sampling algorithm on the performance of the proposed method, comparative experiments with different numbers of topic words are conducted in Experiment-2. It can be seen from Fig. 7 that when the number of topic words is 4, all indicators of the proposed method on the two datasets can achieve the best ones. It is considered that when the number of topic words is small, the EGPT-2 decoder will lose some key objects and actions in the video content. On the contrary, when too many topic words are selected, some irrelevant noise will be introduced into the EGPT-2 decoder, leading to the generated video captioning deviating from the video content. For example, when generating the sentence “A monkey is grasping the dog’s tail.”, if the number of topic words is set to 0, the generated video captioning may lose some key information about the monkey, such as “attack” and “grab” actions. When the number of topic words is set to 6, the irrelevant semantic noise such as “animals” and “roadside” may affect the generation of video captioning that is inconsistent with the video content, such as the sentence “Monkeys are dragging an animal off the road.”. Therefore, according to the results in Fig. 7, the topic words are finally set to 4 for each video data.
4) Comparative analysis with different video captioning methods
To evaluate the performance of the proposed method, it is compared with other video captioning studies. Tables 7 and 8 show the comparison results on the MSVD and MSR-VTT datasets.
It can be seen from Tables 7 and 8 that the proposed method shows better performance on two datasets compared with S2VT [20], SAAT [23], PI-LSTM [24], TTA [28], CSA-SR [46], GRU-EVE [47], ADL [48], RecNet [49], STM [50], TDDF [51], PickNet [52], and CoSB [53] methods, especially the advantages of CIDEr indicator is obvious. It is considered that since the CIDEr indicator is used to measure the amount of video-related information contained in the contents generated by the models, and the method proposed utilizes the EGPT-2 decoder to jointly decode the semantic topics and baseline of video captioning simultaneously. This alignment of prediction words with video content enhances semantic consistency, and the generated video captioning contains more semantic information about video content. In addition, the Enhance-TopK sampling algorithm can be used in the vocabulary prediction stage to improve the accuracy of word prediction, which makes the generated video captioning smooth and closer to the semantics of video content.

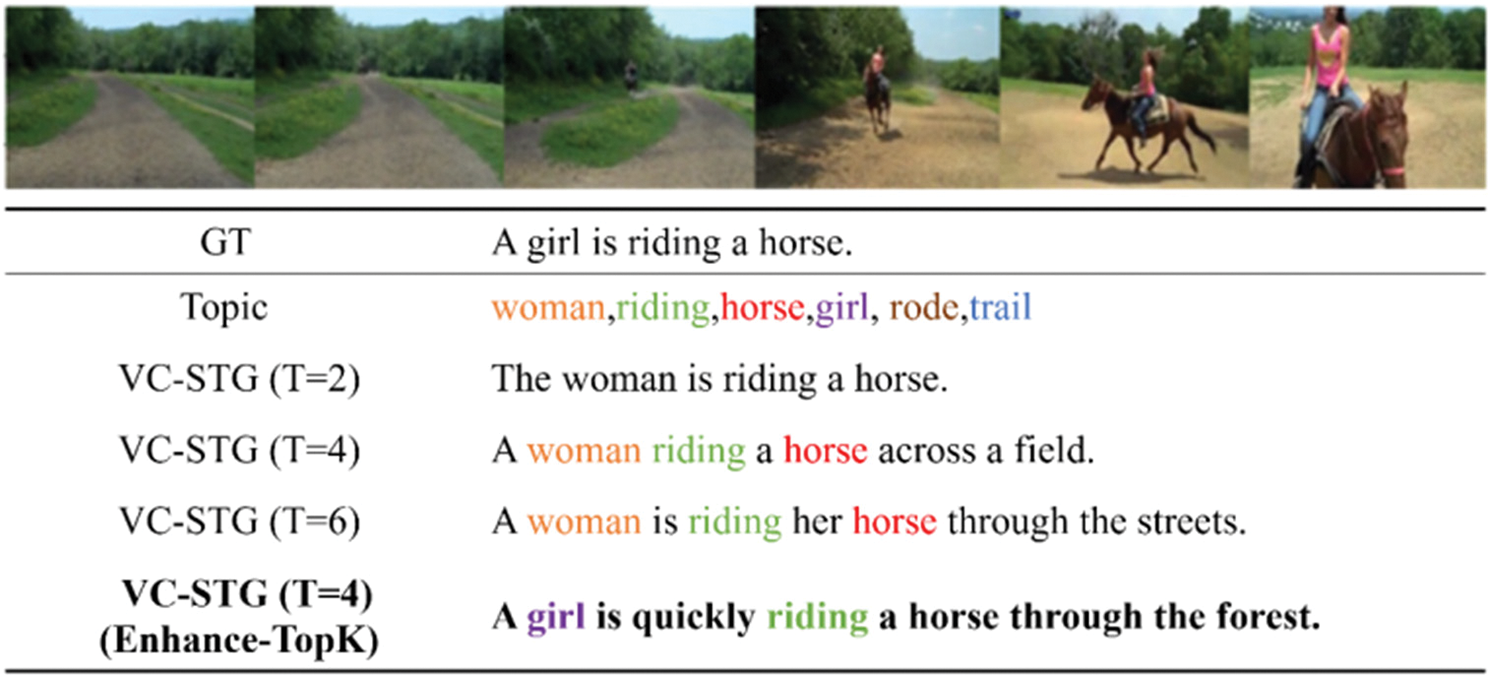

Finally, we utilize the proposed method (denoted as VC-STG) to generate the video captioning on the MSVD and MSR-VTT datasets, as shown in Figs. 8 and 9. In Fig. 8, “GT” denotes a reference sentence of a video, and “Topic” denotes the topic words of a video. To reflect the impact of the semantic topics on the performance of the proposed method, 2, 4, and 6 topic words are selected to compare the results of the video captioning. It can be seen from Fig. 8 that when the given input video contains the baseline and topics of the video content, it will output a relatively complete video captioning. However, when the number of topic words is large (the number of topic words T = 6), semantic noise may be introduced into the EGPT-2 decoder, resulting in a deviation in the generated video captioning, such as “through the streets.”. When the optimal number of topic words is T = 4, the Enhance-TopK sampling algorithm can be used to help generate more accurate video captioning, such as the generated word “quickly” and the phrase “through the forest”.
In addition, the impact of semantic topics on video captioning is verified. When the number of topic words is 4 (T = 4), the accuracy of prediction words can be significantly improved. However, having too few or too many topic words cannot improve video captioning. For example, the error message “lying on a floor covered with dirt.” may be predicted according to the words “lying”, “floor” and “ground”.

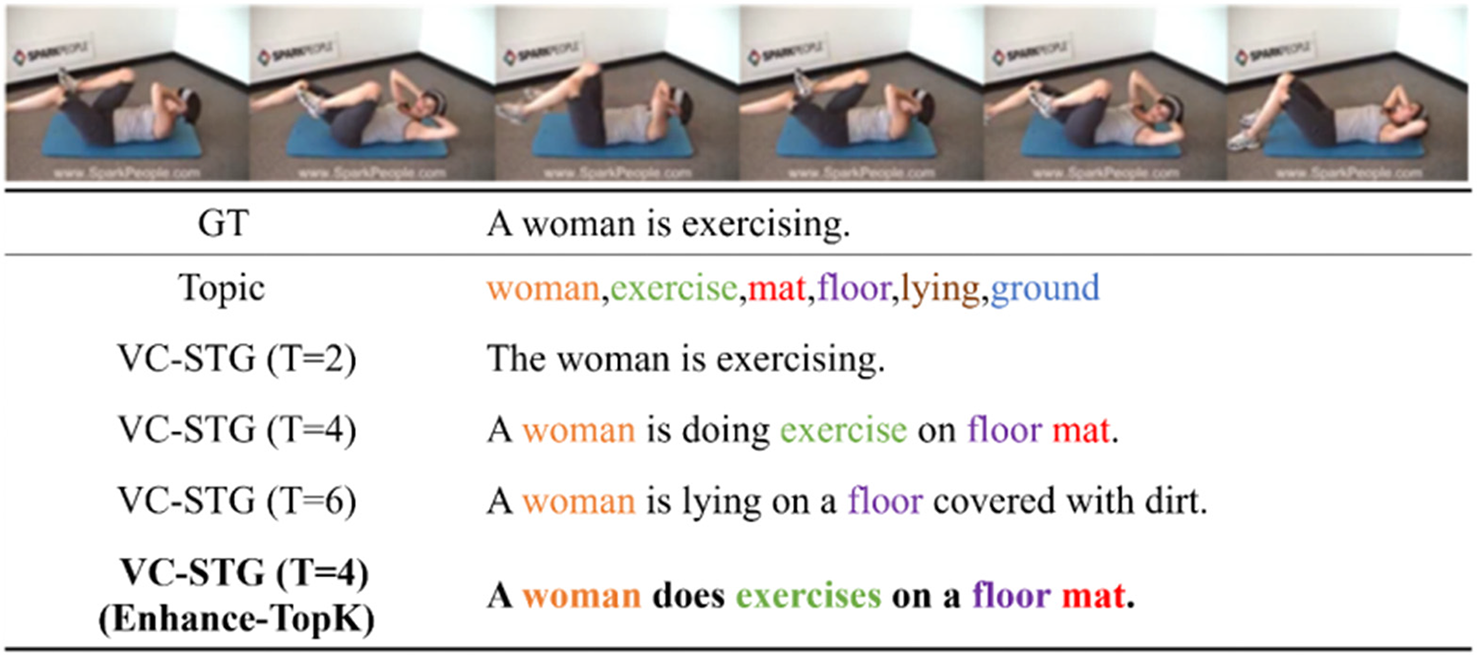

It can be seen from Figs. 8 and 9 that when the number of topic words is 4, the method proposed can generate a video captioning that conforms to the video content. On this basis, when the Enhance-TopK sampling algorithm is used in the decoding stage, the generated video captioning is more accurate and the effect is better.
To address the issue that the existing video captioning methods developed based on encoder-decoder rely on a single video input source, this paper proposes a video captioning method based on semantic topic-guided generation to improve the accuracy of video captioning, which can enhance the alignment between visual information and natural language by introducing the semantic topics of video data and guide the generation of video captioning. The proposed method is verified with two common MSVD and MSR-VTT datasets. The experimental results demonstrate that the proposed method outperforms several state-of-art approaches. Specifically, the performance indicators BLEU, METEOR, ROUGE-L, and CIDEr of the proposed method are improved by 1.2%, 0.1%, 0.3%, and 2.4% on the MSVD dataset, and 0.1%, 1.0%, 0.1%, and 2.8% on the MSR-VTT dataset, respectively, compared with the existing video captioning methods. The introduction of semantic topics can be effective in generating topic-related video captioning and improving the generation effect of video content by a decoder. However, since the limited baselines of video data in public video datasets, the extraction of video semantic topics is restricted. Future studies will introduce target detection algorithms to capture fine-grained semantic information and combine the attention mechanism to eliminate irrelevant and interfering semantic information.
Acknowledgement: The authors would like to express their gratitude to the College of Computer Science and Technology, Xi’an University of Science and Technology (XUST), Xi’an, China, and China Postdoctoral Science Foundation (CPSF) for providing valuable support to carry out this work at XUST.
Funding Statement: This work was supported in part by the National Natural Science Foundation of China under Grant 61873277, in part by the Natural Science Basic Research Plan in Shaanxi Province of China under Grant 2020JQ-758, and in part by the Chinese Postdoctoral Science Foundation under Grant 2020M673446.
Author Contributions: Study conception and design: Ou Ye; data collection: Ou Ye, Xinli Wei; analysis and interpretation of results: Zhenhua Yu, Xinli Wei; draft manuscript preparation: Yan Fu, Ying Yang. All authors reviewed the results and approved the final version of the manuscript.
Availability of Data and Materials: Datasets used for generating the results reported in Sections 3 and 4 are available at https://opendatalab.com/OpenDataLab/MSVD and https://www.kaggle.com/datasets/vishnutheepb/msrvtt?resource=download.
Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
