Survey on Deep Learning Approaches for Detection of Email Security Threat

1  Introduction

Cyber security plays a vital role in advancing technology, internet services, and applications. It is essential for both organizations and individuals. Cyber attackers are increasingly using malware, sometimes known as “malicious software,” such as viruses, worms, Trojan horses, and spyware, to infect businesses with a range of attacks. Research on leveraging the classification power of deep neural networks in the security of e-mails is relatively new. Deep neural networks, such as Convolutional Neural Networks, Long Short Term Memory Networks, and Recurrent Neural Networks are some important networks, which resulted in designing and improving the security of e-mails. Therefore, literature related to the methodologies of such deep learning techniques in e-mail threat detection highlights the findings of this research and finds the existing gaps in this area. Attackers can easily modify rights, access confidential data, observe user activity, and carry out other nefarious deeds [1,2].

“Business E-Mail Compromise” (BEC), is an email-borne employee impression that has become a significant security threat and is thus named “Federal Bureau of Investigation (FBI)” [3]. Almost $2.7 billion has been lost by U.S. organizations in 2018 and $12 billion collectively since 2013 [4]. Several well-known companies have witnessed such attacks, such as Ubiquiti, Facebook, and Google [5,6].

Blacklisting comprises blacklisted senders’ list whose email and IP addresses are blocked and categorized as a list-based filter. Spamming and phishing can be detected through different techniques like heuristics and blacklisting [7]. The main issue concerning the procedure of blacklisting is that filters check the presence of newly arrived emails or Uniform Resource Locators (URLs) in the existing blacklisted records. If the email or URL is present, it will be classified as a malicious email. Moreover, a lot of time is taken to detect the blacklisted emails with the help of the heuristics technique [8]. The studies relating to the classification of email spam and the techniques used in the organization to control the threats related to security. The research identifies that spam threats are present in any account and can easily be transferred all around the world in the system or the network. In the study, Term frequency-inverse document frequency was a proposed method approach using a support vector machine which is one of the tools to calculate the matrices and accuracy of the algorithms in datasets [9,10]. According to one of the studies, Thermal Emission Imaging System (THEMIS) is one of the deep learning models which identify and improve the word level in spam emails. The percentage accuracy of these models on educating data sets is 99.9% and the analytical data set are 98.9% [10]. The professionals, engineers, and researchers who believe in the general area of e-mail security, and especially those designing and developing robust techniques for detecting e-mail threats would benefit from the findings of this comprehensive review. Thus, machine learning techniques are likely to offer better outcomes as compared to classical heuristic and blacklisting techniques.

Many recent studies proposed the methodologies but this research has combined the merit and demerits of the deep learning approaches adaption in email security threats. The study aims to investigate deep learning approaches for detecting the threats associated with e-mail security. This study compiles the literature related to the deep learning methodologies which are applicable for providing safety in the field of cyber email security of different organizations. Deep learning approaches are comprised of different models and their application needs more advancement in the field of technology networks which is a more complex and newer approach than the traditional machine learning approaches, even though deep learning is considered a subset of machine learning [11]. Furthermore, examples are encompassed to show how the techniques have been utilized in e-mail security.

The main contributions of this study are as follows:

•   Create a theoretical base for email security using deep learning methods. Unlike previous reviews, this review investigates papers published between 2016 and 2022, from pre-defined resources, and based on pre-defined inclusion/exclusion criteria.

•   Provides a comparison between challenges in detecting email security using deep learning and detection methods with their performances.

•   Identify research gaps in email security and suggest future possible research directions.

The rest of the paper is organized as follows: Section 2 discusses the related works to our investigation. Section 3 presents the methodology of conducting this review including the inclusion/exclusion criteria. A review of the different types of email attacks is presented in Section 4. In Section 5, a comprehensive investigation of the different techniques used in email security is discussed. Section 6 presents a discussion of the pros and cons of the different deep learning methods used in email security.

2  Literature Review

2.1 Internet of Things

The Internet of Things (IoT) is a new emerging technology that generates much data nowadays. Today, IoT is largely a concept in which everything is interconnected via the Internet. IoT is presently and will undoubtedly be the cornerstone for future development since it opens up new avenues for unique services. The IoT market is thriving because the number of calculations that a computer can perform almost doubles biannually. In comparison, the size and quantity of electricity required over the same period are approximately half [12]. This implies that smaller and more powerful devices for connectivity and data transmission are now accessible, allowing for a broader range of applications. This component raises severe security concerns, which will be addressed immediately. Spamming difficulties are on the rise as a result of the rise of IoT. To identify and filter spam and spammers, numerous spam detection approaches are presented [13]. Existing spam detection systems are broadly classified into two categories: semantic pattern-based approaches and behavior pattern-based approaches. Every business carefully assesses the available solutions to combat spam in their environment to correctly detect spam emails and prevent escalating email spam challenges. Whitelist/Blacklist, keyword checking, mail header analysis, and other well-known procedures are employed for identifying and analyzing incoming emails for spam detection.

2.2 E-Mail as Medium of Communication

The usefulness of communication via email has pointed to the issue of large-scale spam, specifically e-mail attacks. To address the problem of phishing attacks, several measures against phishing have been proposed. Sheng et al. [14] examined the efficiency of phishing blacklists. The Blacklist majorly contains a Blacklist of senders and a Blacklist of links. This discovery method receives the sender’s address and contact information in the e-mail and checks whether it has been blacklisted. Users are usually notified of updates to the Blacklist and manually detect whether it is a phishing scam. There are currently two known websites for this purpose, PhishTank, and OpenPhish. In this regard, the outstanding performance of the Blacklist shows that the method is well based on the responsive list of hardware logistics. Notably, the link between natural language processing and machine learning has immensely contributed to the discovery of online phishing. Semantic features [15], grammatical features [16], and contextual elements [17] have previously been used in this field. Vazhayil et al. [18] commenced with the fundamental techniques for net phishing analysis. Hamid et al. [19] investigated the use of a hybrid process that merges content and behavior. Email-based analytics majorly uses tagged phishing e-mails and legitimate e-mails for training and sorting to acquire a sorting model for online sorting. Bergholz et al. [20] proposed a set of actions, divided into three categories: basic features, latent topic features, and the powerful features of the Markov chain. The basic features represent extraction directly from the email without extra processing. The topic model features cannot be extracted from email while they appear similar and together. However, Dynamic Markov chain features are text features based on the bag-of-words, where the goal is to compute the probability of whether an email belongs to a specific group by modeling each type of message content.

According to the latest research, email security threats are having domains to be emphasized for the real identification of users, the content of the emails which hack the Internet integrated technologies by their exposure on the device. The simple login in the technology can absorb all the accessible data of the network. While combining machine learning, deep learning methodologies with the algorithms of the neural network have to control the traffic of the email spasm. As email is one of the cheapest and most easily accessible platforms all around the world. Natural language processors are one the efficient way to understand the nature of the email, whether the source is authenticated for the future aspect or not [21,22].

One disadvantage of Natural language processing (NLP)-based machine learning in online phishing is that it is based on the surface text of the e-mail rather than deep semantics. Therefore, with NLP based on machine learning, it is difficult to find synonyms, various sentence types, and other variants [23]. Also, machine learning methods rely primarily on attribute creation to create e-mail attributes and perform tasks through these attributes. Both blacklisting and functional engineering should be performed manually and need a large workforce and experienced specialists, which restricts the success of the analysis. On the other hand, deep learning has been successful in various NLP projects, which include text categorization [24], information extraction [25], and machine translation [26].

2.3 E-Mail Text Representation

Bag-of-word is an approach for extracting features in text data and is thus used as e-mail text representation [27]. The vocabulary of the predefined words and the extent of their occurrence are the two aspects encompassed within the model [28].

A term document matrix is an approach to represent the text based on its presence in the document [29]. The documents are expressed through the horizontal rows, while the terms that occurred in the corpus are described in the vertical columns. The term frequency-inverse document matrix determines a word’s relevancy in a predefined document [30]. The inverse document frequency indicates how much data a specific comment offers, whether a rare or a common phrase [31]. Thereby, singular value decomposition can be initiated for the symmetric diagonal decomposition (SDD) [32]. A document term matrix can be developed using different terms from a pair of documents in this process [33]. Random weights initialize the embedding layer and explore embedding for all training dataset words. The first hidden layer of a network is conceptualized through the embedding layer.

2.4 Deep Learning

Here in text, scientists and researchers use machine learning (ML) and Deep learning (DL) models in several applications including agriculture [34], environment [35], text sentiment analyses [24], medicine [36], and in cyber security [37].

•   Planet scope Nanosatellites Image Classification Using Machine Learning [38]

•   Convolutional Neural Network-Based Automated Weed Detection System Using Unmanned Aerial Vehicle UAV Imagery [39]

•   Synthetic Minority Oversampling Technique with Deep Neural Network (SMOTEDNN): A Novel Model for Air Pollution Forecasting (APF) and Air Quality Index (AQI) Classification [40]

•   Climate Deep Long Short-Term Memory (CDLSTM): A Novel Model for Climate Change Forecasting [41]

•   Ground water level prediction using machine learning models [42]

•   Deep Learning-Based Supervised Image Classification Using UAV Images for Forest Areas Classification [43]

•   Bulk Processing of Multi-Temporal Modis Data, Statistical Analyses, and Machine Learning Algorithms to Understand Climate Variables in the Indian Himalayan Region [44]

•   Study of permafrost distribution in Sikkim Himalayas using Sentinel-2 satellite images and logistic regression modeling [45]

•   The efficiency of artificial neural networks for glacier ice-thickness estimation: A case study in the western Himalayas, India [46]

•   Sentiment analysis using machine learning: Progress in the machine intelligence for data science [47]

•   Fine-tuned convolutional neural network for different cardiac view classifications [48]

•   Insider Threat Detection Based on Natural Language Processing Word Embedding and Machine Learning [49]

•   Classification of botnet attacks in Internet of Things Using a Convolution Neural Network [50]

•   A survey of Convolution Neural Network based Network intrusion detection [51], natural language processing [48], and speech recognition [52].

Based on their architectures, deep learning models may be divided into four groups:

•   Deep feed-forward neural network (DFNN), which includes several multi-layer deep learning models such as deep belief network [53], deep Boltzmann machine [54], and deep autoencoder [55]

•   Convolutional neural network (CNN), which uses the convolutional and pooling layers to achieve the shift-invariant property

•   Recursive neural network (RvNN), which accepts a recursive data structure of various sizes and generates hierarchical predictions

•   Recurrent neural network (RNN), which has an internal hidden state to capture sequential input.

The most popular machine learning-based classifier is the support vector machine, which helps in detecting phishing and spam emails. A feature map based on the train sets and predefined transformation is built. Moreover, the phishing and spam emails are also filtered with the help of classifiers like K-nearest neighbor (KNN), in which the decisions are taken considering the K-nearest train input. A predefined similarity function is used for choosing the samples. Another classifier named Naïve Bayes considered the simple probabilistic classifier is also used. It is also possible to incorporate boosting techniques considering sequential adjustment during the process of classification. The term frequency-inverse document frequency (TF-IDF) and hand-crafted feature engineering are used for converting the email into email vectors. The reliance on classical machine learning algorithms for feature engineering is considered the major disadvantage [56]. The accuracy can be increased by selecting the best feature and for selecting the best feature there is a need for adequate knowledge about of domain. There is a decrease in the algorithm’s predictive value when the feature engineering is not performed correctly. Moreover, the models can be predicted with the help of classical machine learning algorithms. Feature extraction during the classical machine learning workflow takes most of the time.

Recently, leverage has been given to the application of deep learning architectures for different cases using cyber security such as detecting phishing and malicious URL [57], intrusion detection [58], malware detection [59], detecting malicious domain names [60], and detecting phishing e-mail [61]. Deep learning architecture is can extract optimal features without any reliance on feature engineering. Therefore, deep learning architecture is considered to be robust in an adversarial environment, as compared to classifiers of classical machine learning.

2.5 Deep Learning Tools

Deep learning tools can automatically create active e-mail operations for detecting phishing e-mails. Thereby, the emphasis is on using deep learning to discover e-mail phishing in a more complete and comprehensive description of e-mail information. Repke et al. [62] returned the structure to a free-text e-mail conversation with in-depth study and word usage. Although this work is not about analyzing e-mails by e-mail, it is still illustrative for us to use deep learning and built-in word technology to use e-mails. Hiransha et al. [63] and Keras [64] suggested Word Connection and Convolutional Neural Networks (CNN) for building a phishing e-mail discovery model. There are other in-depth algorithms in use, such as Deep Fault Networks (DBN) and Recurrent Neural Networks (RNNs) [65–67]. These in-depth methods of counterfeiting e-mail analytics only apply NLP technology to fake e-mail analytics and ignore the difference between counterfeit e-mail and other goals. Contextual information is avoided to some extent.

Xu et al. [68] proposed region-based convolutional neural network (RCNN) for text classification in 2015. They investigated it on four different datasets, which include 20 Newsgroups datasets (2018), Fudan library (2018), Association for computational linguistics (ACL) corpus network (2018), and Stanford Attitude tree library (2018). They were found to be effective as compared to the standard CNN. RCNN can generate highly complex sequencing tasks. Based on why e-mail is also a problematic text, this article introduces the THEMIS model based on RCNN. Zhang et al. [65] suggested different methodologies in machine translation. Lee et al. [69] studied attention-grabbing methods of neural machine translation (NMT) and their implication on life. Attractive ways are very beneficial in several areas and can enhance image classification [70], automatic captions [71], and machine translation [72]. Pappas et al. [73] examined the hierarchical review process for document categorization and were successful in 2016.

For accurate compilation, the J48 classification algorithm deals with the extracted properties of data entered into the e-mail classification. Senturk et al. [74] treated pointless markup and new pages as feature sets and choose some features with better predictability from the initial operations. They provide O (1) complexity as an assessment method for each element set to assess its predictive power. Brites et al. [75] suggested solutions to overcome the lack of time to analyze phishing. The solution provided for phishing by analyzing the characteristics of who is Responsible for this domain name (WHOIS) and their URL information. Deep learning methods detect malicious URLs and domains [61]. Unnithan et al. [61] have used Hypertext markup language (HTML) content to analyze net phishing. Databases that contain reported phishing for this purpose, are used for many different purposes. Baykara et al. [76] used different types of classification methods, such as multi-layer perception (MLP), decision tree (D.T.), support vector machine (SVM), method of data processing like Group method of data handling (GMDH), probable neural network (PNN), genetic programming (G.P.) and logistic regression (L.R.). Mahesh [77] proposed a method for analyzing e-mails by e-mail with mixed features. It is called hybrid action because it combines URL-based, behavioral, and competitive actions. Overall calculated achievement remains 97.25% and an error rate of 2.75%. Hiransha et al. [63] suggested a weak assessment method that works through anomaly analysis, detecting a system where behavior deviates from a standard procedure. Karim et al. [78] created a machine-learning model for analyzing e-mails by e-mail. Using predictive analytics, a machine learning model was designed to use static analytics to distinguish between phishing and legitimate e-mail.

2.6 Architecture of Deep Learning

Classification of URLs as malicious or benign is represented in deep learning architecture in Fig. 1. The three national sections present in this architecture are:

•   URL’s character coding—convert characters into a format to be transmitted over the Internet

•   Representing features via deep layers—arranging high-dimensional vectors in a compact image form conducible for deep learning

•   Classification—non-linear activation function to assign scores

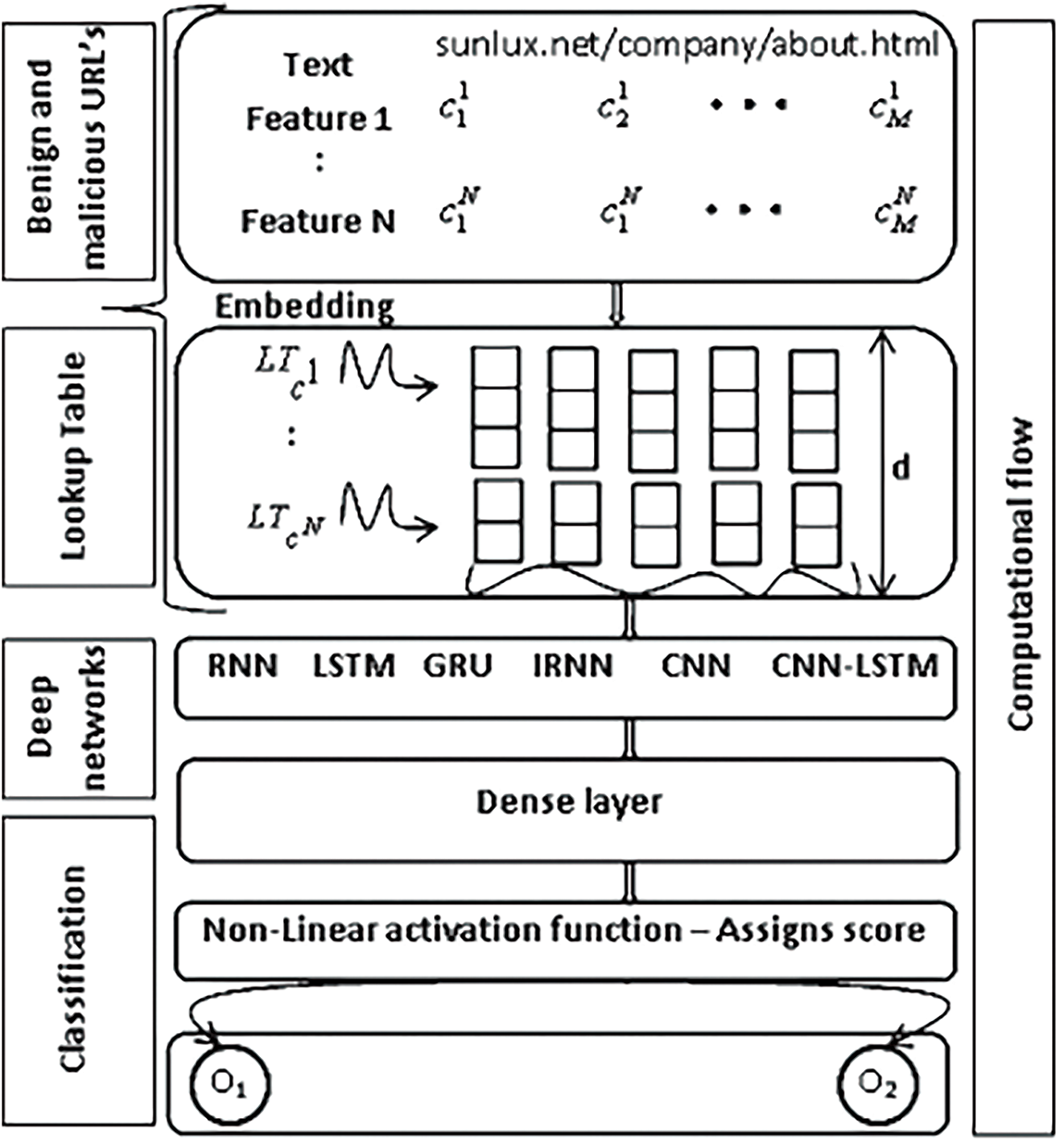

Figure 1: Architecture of deep learning [79]

2.7 Deep Neural Network

Artificial neural network (ANN), a computational model, is affected by features of biological neural networks. The family of ANN includes a convolutional neural network, recurrent neural network (RNN), and feed-forward neural network (FFN). A graph comprising neurons known as mathematical units is formed by FFN. The continuous cycle is formed as information is passed on by FFN from one side of the node to another. Therefore, past values are not highly valued. As shown in Fig. 2, the MLP is a kind of FFN comprising 3 or more layers:

•   Input layer—receives the input signal to be processed

•   Hidden layers (may be more than 1)—the true computational engine of the MLP

•   Output layer (comprises of neurons known as units in mathematical notation)—performs tasks such as prediction and classification

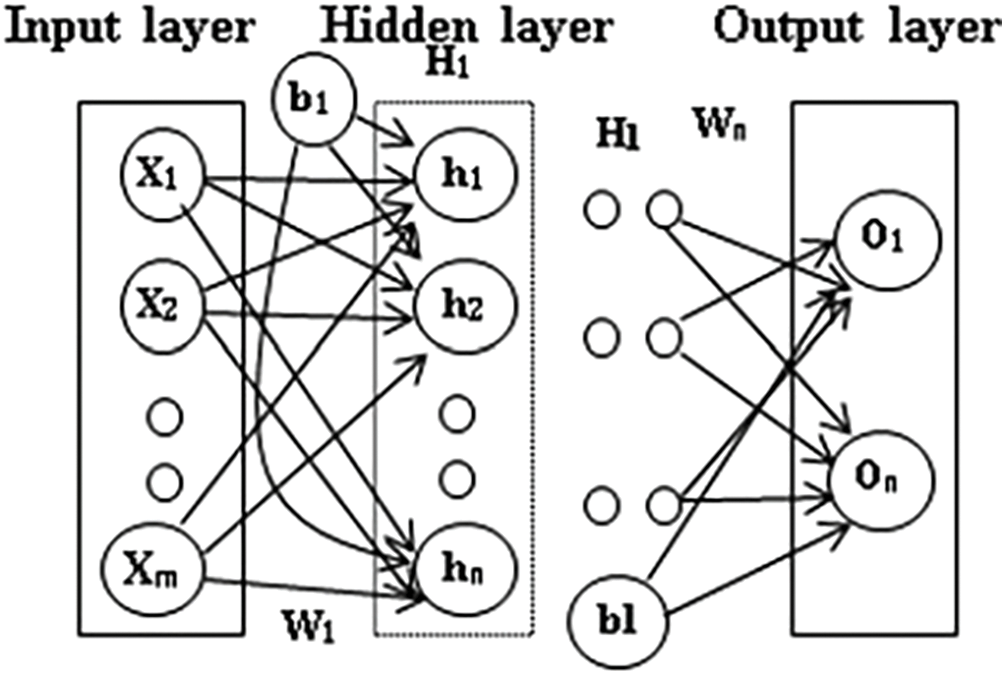

Figure 2: Hidden layers in the deep neural network [8]

The choice of the hidden layer is made considering the hyper-parameter tuning method. The sigmoid non-linear activation function is used by the classical multi-layer perceptron.

3  Methods

3.1 Threats to Validity

This review study has set criteria to include studies that deal with at least one of the six machine models in cyber security. The target cyber threats include spam, detection, intrusion, and malware detection. For searching different string combinations were used for instance: ‘machine learning and cyber security and ‘deep learning and cyber security. Moreover, relevant data was taken from the Association for Computing Machinery (ACM) Digital Library, Science Direct, Web of Science, Scopus, IEEE Xplorer, and SpringerLink. Google Scholar. In addition to the papers provided, the prior survey and review articles were used to offer a thorough performance rating.

3.2 Paper Filtering

After downloading the paper results from the search using the search terms discussed above, the study analyses articles that are available in Open access. Irrelevant and duplicate documents were removed by applying the exclusion criteria (shown below). The following inclusion/exclusion rules are used in these papers. After screening studies through inclusion and exclusion the study includes 101 studies in this review article. The inclusion criteria of the study are:

•   Papers published within the last decade.

•   Papers in the area of detecting e-mail threats using deep learning techniques.

•   Papers are written in the English language.

•   Papers that are available in Open access.

The exclusion criteria of the study are:

•   Papers on deep learning but not on e-mail threat detection.

•   Papers with unclear citation information include year, authors, publisher, etc.

•   Papers with unclearly written methodology.

•   Papers with that are not available on Open access.

4  Review Analysis

4.1 E-Mail Security Threats

E-mail is frequently the target of attacks since it is widely deployed, used, and well-understood for communicating with untrusted external organizations. Attackers can exploit e-mails to gain control over an organization, disrupt Information Technology. Access to resources, and access confidential information [80]. The following are the common threats to e-mail systems:

4.1.1 Malware

Progressively, attackers benefit from e-mails for delivering a myriad of attacks to corporations through malicious software or malware that encompass viruses, spyware, worms, and Trojan horses [81]. If successful, such attacks may offer negative entity control over servers and workstations, which can be exploited for transforming advantages, gaining access to sensitive information, monitoring users’ activities, and performing other malicious activities [82]. Deep learning techniques are also used in post-production. In other words, after the malware’s analysis (training) of the available signaling data, the analysis tool (detection system) can be tested based on new real-time data for performance evaluation.

4.1.2 Spam and Phishing

Spam messages disturb consumer productivity, use information technology resources excessively, and are used as a dissemination platform for malware [83]. Phishing is related to spam and refers to deceptive computer-based ways to trick individuals into reacting to the e-mail and disclosing sensitive information. Spam messages are delivered through compromised e-mail systems using an alternate e-mail address [84].

4.1.3 Social Engineering

E-mail can be used by an attacker instead of hacking into a system to collect sensitive information from consumers of an organization or getting users for performing activities. E-mail spoofing is a typical social engineering attack. One individual or program successfully pretenses as another by fabricating sender information in e-mails to hide the true origin [85].

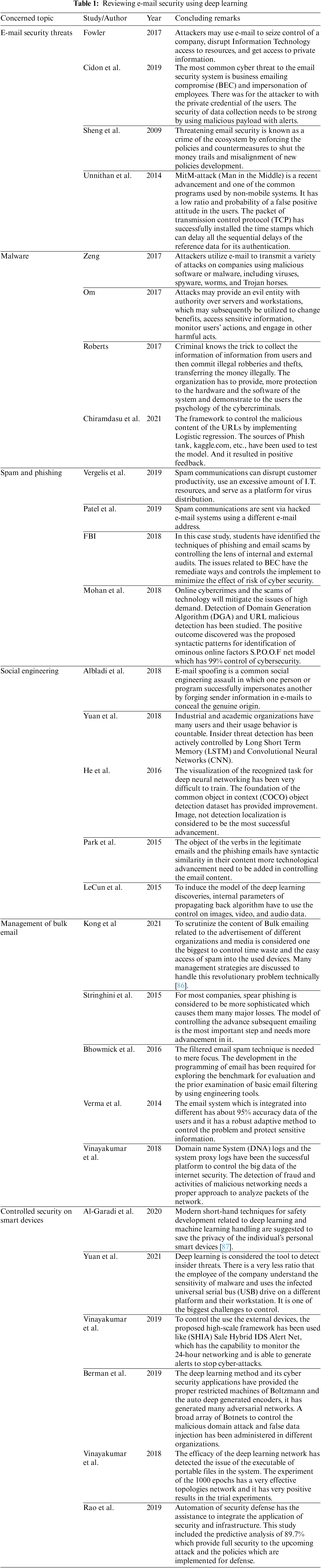

Table 1 presents a review of e-mail security using deep learning, discussing various concerned topics and studies conducted by different authors over the years. It highlights the threats related to e-mail security, such as e-mail-based attacks aimed at seizing control of companies and accessing private information. It also covers malware, spam, phishing, and social engineering issues in e-mail security, as well as the use of deep learning for managing bulk e-mails and controlling security on smart devices.

4.2 Deep Learning Methods for Handling Email Security Threats

4.2.1 Content-Based Filtering Technique

In the content-based recommender system, the explanations related to the target item play an essential role in making predictions. These explanations are termed Content. In the content-based recommender system, the past purchasing designs and the senior ratings of the users, along with the item’s content, are collectively utilized, keeping in mind the end goal to arrive at predictions. The primary thought behind the content-based recommender system is that user interests can be determined based on features or properties of the items they have graded or used previously. Content-based systems suggest items because of a close examination between the description of the items and a client’s profile. The component of items is mapped with the highlight of clients keeping in mind the end goal to get a client–item similarity. The best-coordinated pairs will be recommended as suggestions. In the recommendations of documents to the users such as articles, papers, weblogs, web pages, publications, and so on, the content-based recommender systems are regarded as the most successful filtering technique. Content based filtering (CBF) used many different models, such as the vector space model, neural networks, decision trees, etc., to find or measure document similarity.

4.2.2 Case-Based Spam Filtering Method

It is one of the well-known spam filtering methods. In particular, pre-processing steps transform the e-mail via client interface, selection, process assessment, feature extraction, and e-mail data grouping. Initially, extraction for both spam and non-spam e-mails is made using the collection model. Afterward, the data is categorized into two vector sets. Finally, the deep learning algorithm is utilized for training datasets and testing them for deciding whether the prospective mails are spam or non-spam [88].

4.2.3 Recommender System

The first important point or approach in the recommendation system is predicting the rating value for the compound of the user item. In this case, the assumption is to predict data through the user’s preferences for specific items. An M × N matrix is created to record the M user, and N items were recorded values used for the training model. The problem has occurred in the system due to a lack of accuracy as the system is based on an assumption. This problem is often known as the matrix completion problem because the matrix of values is recorded incomplete, and all other values are forecasted by learning algorithms. The other common problem in the recommendation system is the ranking problem. In the real scenario, it is not necessary that predicted items must be based on the user’s past preferences because a user may not like any item again, which was considered in the past. The requirement for new item recommendations is not only based on ratings of user-specific preferences. So, the merchant should present something new to the user which may attract him more than past.

4.2.4 Likeness-Based Spam Filtering Technique

The likeness-based recommender system requires related data about various accessible things as the content alongside the client’s profile, which must follow the client’s preferences. In the content-based recommender system, the past purchasing designs and the senior ratings of the users, along with the item’s content, are collectively utilized, keeping in mind the end goal to arrive at predictions. This technique is recommended the ideas to the users by comparing the user preferences and the content related to the items. Afterward, the current circumstances are assigned to the most well-known class of its K-closest training cases [89]. The K-nearest neighbor is used in this approach to filter spam e-mails. The newest form of likeness-based spam filtering technique is the support vector machine, the art classification technique to experience unwanted mail [90].

4.2.5 Adaptive Spam Filtering Technique

The primary thought behind the content-based recommender system is that user interests can be determined based on features or properties of the items they have graded or used previously. The explanations related to the target item play an essential role in making predictions. These explanations are termed Content. Content-based systems suggest items because of a close examination between the description of the items and a client’s profile. The component of items is mapped with the highlight of clients keeping in mind the end goal to get a client–item similarity. The best-coordinated pairs will be recommended [91]. Previously, Seth et al. [92] applied multimodal spam classification using deep learning techniques. Similarly, Long Short-Term Memory (LSTM) and Bidirectional-LSTM (Bi-LSTM) were used in a previous paper conducted by Sethi et al. [93].

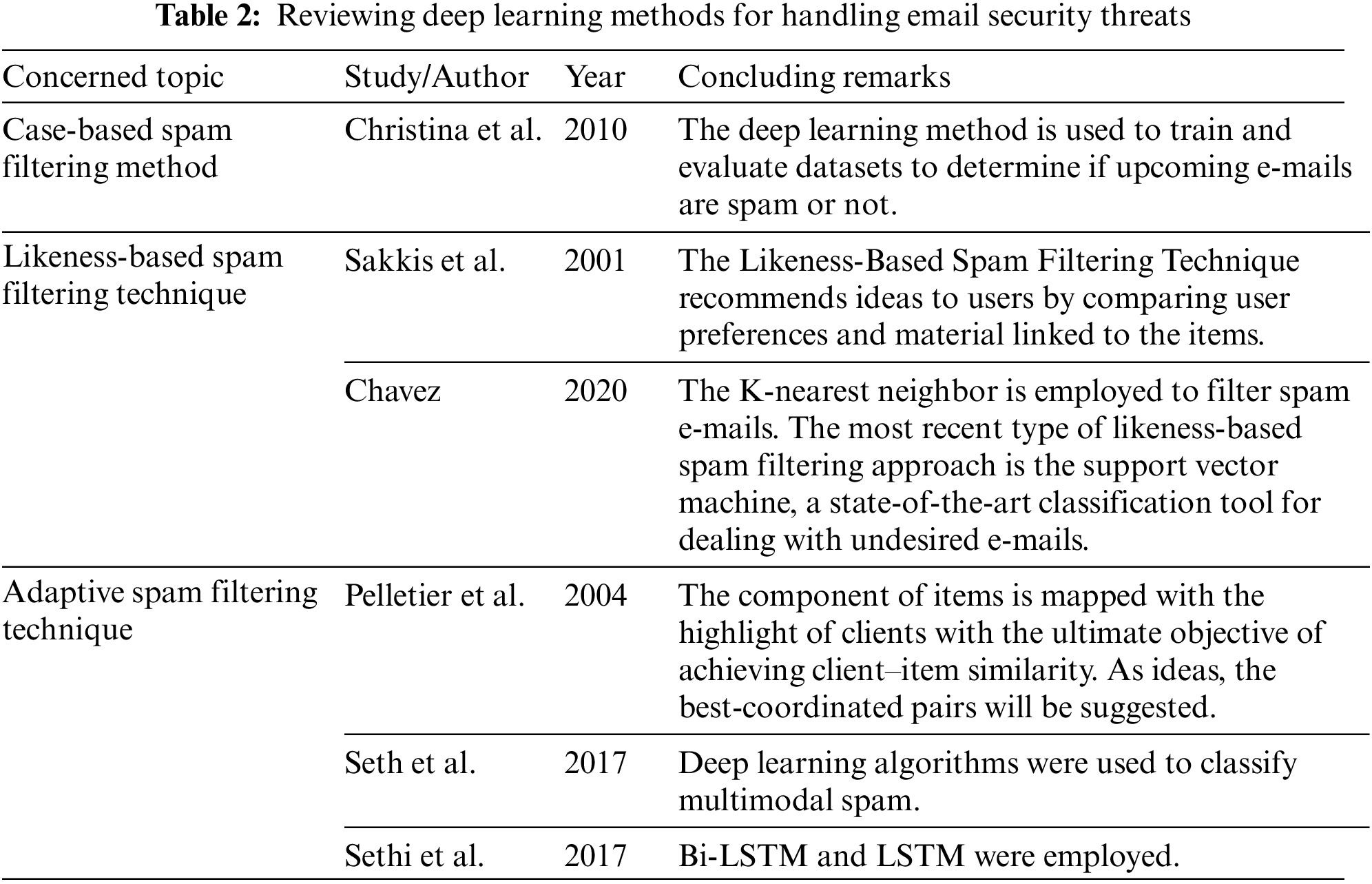

Table 2 reviews different deep learning methods for handling email security threats, specifically focusing on spam filtering techniques. The first study proposes a Case-Based Spam Filtering Method using deep learning to identify and classify spam emails based on training and evaluating datasets. The Likeness-Based Spam Filtering Technique, as described in the second study, suggests ideas to users by comparing user preferences and related email content. The third study presents an Adaptive Spam Filtering Technique that utilizes deep learning algorithms to map item components with user highlights, recommending the best-coordinated pairs as suggestions to users. Additionally, the third study mentions the use of Bi-LSTM and LSTM in classifying multimodal spam.

5  Discussion

Email is commonly used for official communication between people. Therefore, attackers frequently attack emails to access confidential information. Emails are attacks by malware which is also reported by Zeng [81] who stated that attackers benefit from e-mail for delivering a myriad of attacks to corporations through malicious software or malware. The spam is sent using a different email address and delivered through infected email systems as also stated by Patel et al. [84].

The cyber realm has massive amounts of data from many sources, to which deep learning may be applied. However, a study in this area is complicated by the scarcity of publicly available datasets, which are either tiny, outdated, or developed internally and not shared among researchers. Large, frequently updated benchmark datasets will be essential to improve cyber security solutions to build genuine confidence in deep learning algorithms. Furthermore, the ability to evaluate detection rates, speed, memory utilization, and other performance parameters require the capacity to test suggested deep learning algorithms in real-world operating settings. The cyber security sector has just recently begun to recognize the usefulness of Deep Learning, and new datasets are appearing.

Email security is among the most common issue encountered in recent times; therefore, several solutions are provided for controlling email security threats. However, the attackers usually modify their attack strategy by exploiting the existing solution’s susceptibilities. The email security threat can occur through the most common ways are malware, social engineering, and using fake e-mail or web pages which is in line with studies [94].

The DNS protocol is deployed through a DNS-based Blacklist for controlling phishing e-mails. However, a server experiences constraints concerning performance and resources because of many blacklisted e-mails. The term frequency and the inverse document frequency are essential concepts in an information retrieval system. The term frequency, denoted as term-frequency (TF), is the frequency of the specific terms in a particular document. It simply tells how many times the specific term appears in a document. At the same time, the inverse of the document is denoted by the inverse document frequency (IDF), which considers the terms with the lowest frequency. Suppose a user makes a search on Google for “the rise of technology”, it is undoubtedly the term “the” will must have a high frequency than the term “technology”. Still, the importance of the term technology cannot be denied as well from the query point of view. In such situations, the tf-idf discredits the impact of highly repeated words in a document to decide the significance.

According to the study, the smart devices which are integrated with the internet of things have many issues related to network access control, email, bank account, identity address authentication, and verification. The methods are introduced to control easy access by the hacker or the bad internet organization. Many advantages and shorthand techniques for safety development related to deep learning and machine learning handling are suggested to save the privacy of the individual on its own [87].

The service provider ensures authentication at the domain level [95]. E-mail based on domain name and hash password is used for authenticating e-mail level authentication as a digital signature [96]. It has been witnessed that most consumers ignored e-mail authentication, which became one of the significant barriers. Spoofed hyperlinks are a prevalent attribute in phishing e-mails. For instance, Chen et al. [97] examined the actual and visual associations for any variations. So, if the specific term appears many times in a document, it will reduce its weight automatically. Similarly, if a term appears a few times in documents, it is evident that the term has a higher weight. The IDF uses the log to dampen the impact of high-frequency terms [98]. In the review study by Kong et al. [86] enclosed are the management strategies to control the trafficking of the bulk email related to the promotion and advertisement of the organization or the media. The uncontrolled feedback on the product makes the user tired and wastes the time the user goes through every email. The most difficult part that user faces is the deletion of thousands of emails all at once. This traffic diverts the focus of the relevant communications [99].

It is recommended that the future of e-mail security systems lies in deep learning for deep adversarial learning and content-based classification techniques. Deep understanding enables computers to learn from knowledge and experience irrespective of comprehensive programming and significant patterns from primitive data [100]. In recent studies, the user who is using electronic email faces many fake email trafficking which disturbs the storage capacity and several cloud tool systems are invented for the protection of the systems [101].

6  Study Limitation

The conventional machine learning algorithms were very complicated for mining appropriately-represented attributes due to the restrictions that classified such algorithms. The limitations of the traditional machine learning algorithms encompass high computational costs, the need for knowledge from professionals in a specific field, and the curse of dimensionality. Deep learning techniques are deployed to solve representation issues by constructing several Naïve attributes to represent a multifaceted concept. Deep learning will be more influential in solving the problem of spam e-mails. Since the number of available training data is rising, the efficiency and effectiveness of deep understanding have become more considerable. Papers that are available in Open access are easy to access for extraction of the relevant studies but all the papers relevant to this study are not as open access. This is one of the main study limitations that every relevant study was not available to collect more information or for comparison.

7  Conclusion

The present study has investigated deep learning approaches for detecting the threats associated with e-mail security. This survey aims to present a relevant body of work to encourage academics to enhance the state of deep learning for cyber security systems. This study classified e-mail security threats, including social engineering, malware, spam, phishing, uncontrolled traffic of advertisement emails, and spam are aligned with discussion through various solutions for handling these threats. The compilation of different studies in this paper identifies many platforms for the organization to observe the internet system’s security in the form of email trafficking. E-mail security can be detected easily by the coding method and spam email can be easily filtered by many computer software and the network by different learning models of deep learning and machine learning. This highlighted many visionary modules which are part of our daily life that require the safety development by cyber security to protect their dataset of the smart devices and the organization. LSTM and Bi-LSTM, the THEMIS model based on RCNN, and many models are integrating and designing the best platform to provide deep learning approaches for the detection of email security. Various solutions were classified as fake page detection or spoofed e-mail filtering. Identifying malicious actions can be improved by including these two sub-modules in the current framework. Although, many recent studies proposed the methodologies but this research have combined the merit and demerits of the deep learning approaches adaption to the email security threat. Future studies need to investigate technologies based on protected software or strategies or network to differentiate between useful email and spam email. Moreover, future studies also need to develop the strategy of deleting the bulk email at a more organized and organizational level as it is a time-consuming process.

Acknowledgement: The authors would like to express their deep thankful and grateful to all the associated personnel in any reference that contributed in/for the purpose of this research.

Funding Statement: This study is supported via funding from Prince Sattam bin Abdulaziz University Project Number (PSAU/2023/R/1444).

Author Contributions: M. M. Saeed: conceived and designed the experiments, analyzed the data, prepared figures and tables, authored and reviewed drafts of the manuscript, and approved the final manuscript. Z. Aghbari: analyzed the data, prepared figures and tables, authored and reviewed drafts of the manuscript, and approved the final manuscript.

Availability of Data and Materials: The data that support the findings of this study are available from the corresponding author M. M. Saeed, upon reasonable request.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
