CF-BFT: A Dual-Mode Byzantine Fault-Tolerant Protocol Based on Node Authentication

1  Introduction

Early consensus protocols focused on ensuring data and operation consistency in distributed systems, resulting in mainly Crash Fault Tolerance (CFT) protocols [1]. However, the emergence of cryptocurrencies such as Bitcoin [2] in 2008 brought attention to the decentralized and tamper-proof features of blockchain technology, leading to its application in federated learning [3], data sharing [4], and other various fields [5–13]. At the same time, Byzantine Fault Tolerance (BFT) protocol [14] has gradually become the focus of consensus protocol research, which cannot only tolerate network delays, node failures, and crashes but also handle Byzantine nodes intentionally disrupting system consistency.

Hence, BFT protocols make different “sacrifices” to prevent attacks, which can result in issues such as low consensus performance and high resource overhead. Proof of Work (PoW) uses computational competition for ledger rights and rewards to prevent malicious behavior and blockchain fork problems, but it results in excessive resource consumption. Proof of Stake (PoS) [15], on the other hand, uses stake competition and “Coin Days” to measure node rights but sacrifices fair competition and decentralization characteristics of the blockchain. Practical Byzantine Fault Tolerance (PBFT) protocol [16] uses cryptographic technology and mutual voting to maintain consistency, but its communication complexity and high demand have limited its scalability.

To solve these issues, this paper presents a dual-mode consensus protocol based on node identity authentication. The protocol divides the consensus process into two subprotocols: Check_BFT and Fast_BFT. By monitoring the behavior of the primary in Check_BFT to verify the primary’s identity, the Fast_BFT protocol is initiated if appropriate to allow the primary node to handle transactions alone. The protocol greatly improves consensus efficiency and reduces communication costs without relying on extensive resource consumption, while ensuring consistency and security. The particular contributions of this paper are:

•   This paper introduces a node identity verification process and divides the protocol into two modes: preparatory mode Check_BFT subprotocol and fast consensus mode Fast_BFT subprotocol, which improves the performance and throughput of the protocol.

•   In Check_BFT, this paper introduces an information verification process that allows all nodes to monitor the behavior of the primary to determine if its identity is honest without requiring client participation.

•   Based on the authentication result of the primary, the Check_BFT determines whether to enter the Fast_BFT. There is no need to perform the regular view change. Which reduces communication consumption.

•   In CF-BFT, this paper introduces two useful mechanisms. One is the node reputation mechanism and the other is the fast mode consensus number random mechanism. Which ensures the safety and decentralization of the blockchain effectively.

The rest sections of this paper are organized as follows: The related work is discussed in Section 2; the overall design and implementation of CF-BFT are presented in detail in Section 3; the safety, consistency, and communication complexity of CF-BFT are comprehensively analyzed in Section 4; the performance evaluation and comparison results of CF-BFT are discussed in Section 5; the conclusion and prospect are concluded in Section 6.

2  Related Work

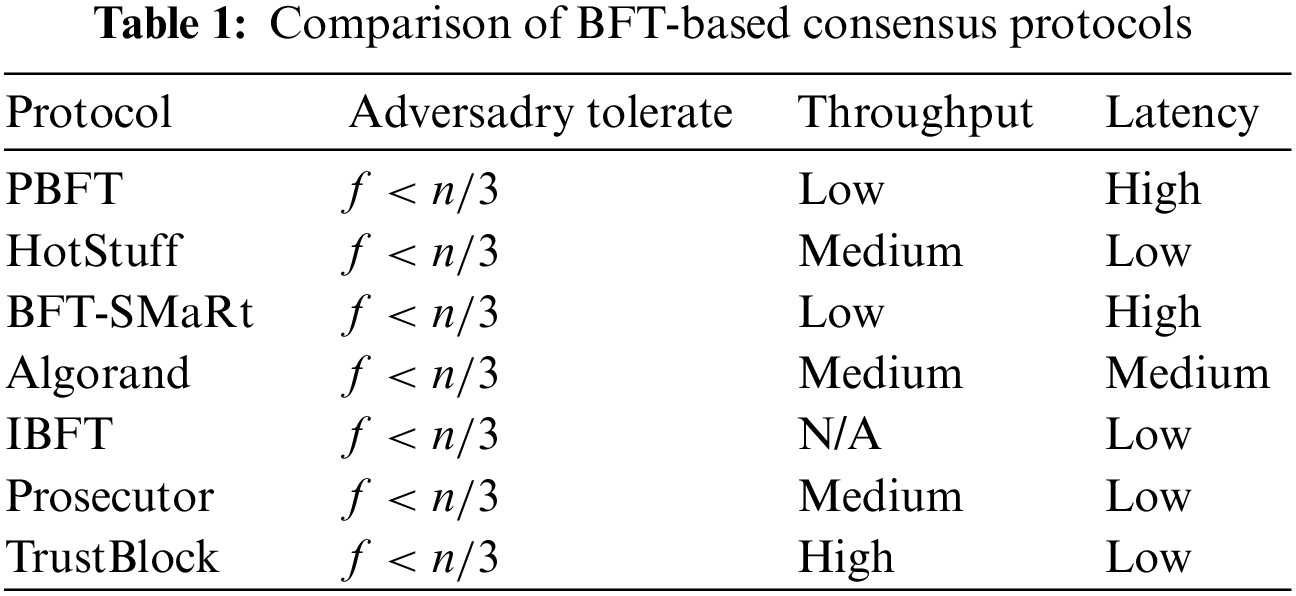

Most BFT protocols [17,18] have high complexity because they need to maintain consistency in the worst condition. However, the blockchain is not always in the worst condition. Because BFT consensus is based on the primary, some scholars have proposed improved methods based on primary selection and primary authentication. These protocols improve performance by avoiding selecting Byzantine nodes as primary. For example, Algorand [19], IBFT [20], Prosecurtor [21], and other protocols have added primary selection algorithms to select the honest node as primary by calculating the reputation of nodes. Another type of improvement method, such as Thunderella [22], Trust [23], and other protocols, improves protocol performance by monitoring primary behavior to identify whether nodes are honest or malicious. Thunderella monitors primary by the clients, and if there are problems with transactions, the client will report errors to the blockchain system and send the transaction information they sent. The blockchain system judges whether the primary is an honest node by analyzing the messages sent by the client. Trust builds a blockchain data structure or third-party that filters the malicious behavior of Byzantine nodes and improves protocol performance. The characteristics of some representative protocols are summarized in Table 1.

One kind of method for improving consensus efficiency is to use dual-mode or multi-mode protocols. These protocols have two subprotocols typically: a fast subprotocol for optimistic conditions to increase performance and a backup subprotocol for extreme conditions to ensure safety and consistency. The characteristics of dual-mode protocols are summarized in Table 2. CheapBFT [24] consists of three subprotocols: the normal case protocol CheapTiny, the transition protocol CheapSwitch, and the fallback protocol MinBFT. During optimistic conditions, CheapTiny only requires f + 1 active replicas to participate. Thunderella selects a committee and a primary called the Accelerator to quickly process messages if more than 3/4 nodes of the committee and primary are honest. Zyzzyva [25] assumes an optimistic condition but requires all nodes to be honest, with clients helping to converge to the total order of requests if nodes are faulty. AZyzzyva [26] separates the “fast path” and “slow path” of Zyzzyva using PANIC messages sent to replicas instead of “commit-certificate” messages sent to clients. SAZyzz [27] enhances scalability and reduces the communication complexity of both modes to O(log⁡n) through a tree-based communication model, and SBFT [28] divides nodes into primary, commit collectors, and execution collectors, different sets can handle different phases without mutual voting.

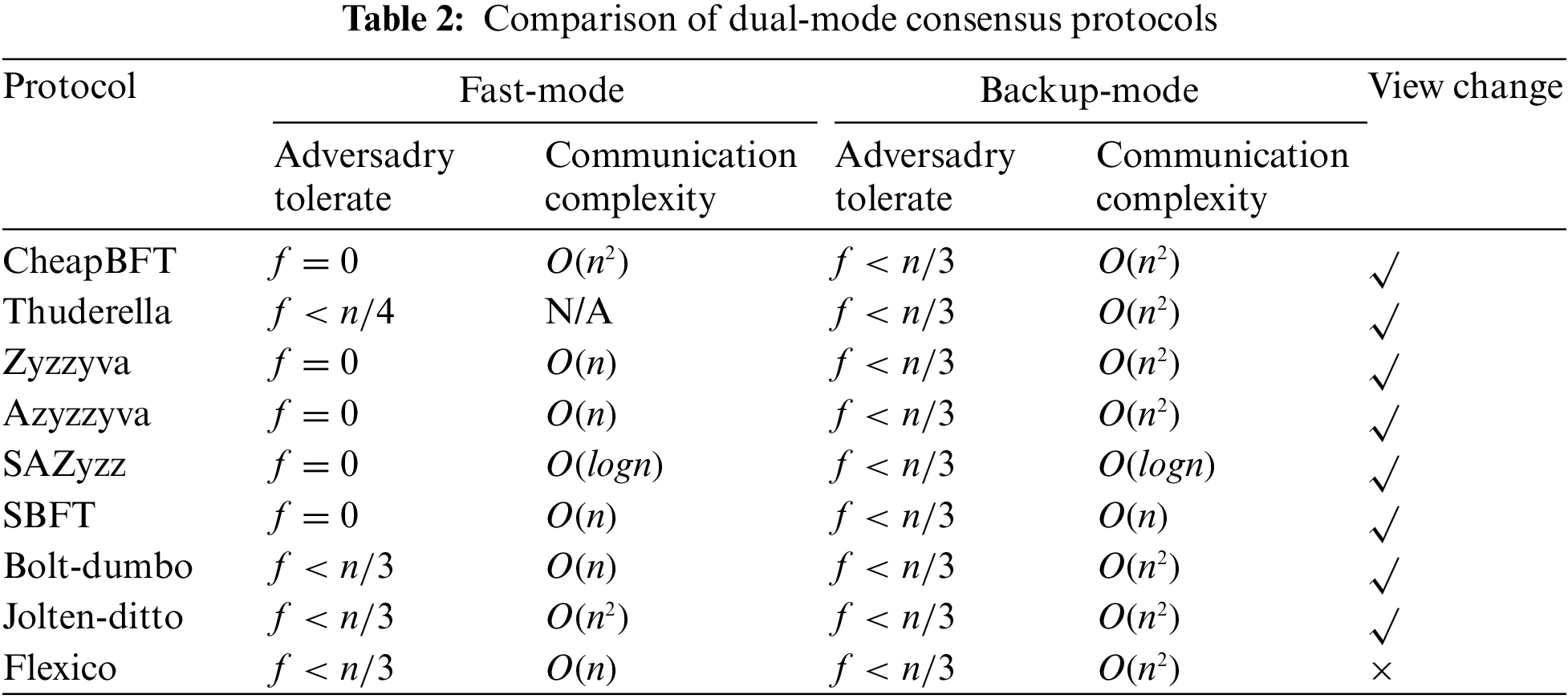

The aforementioned dual-mode protocols are proposed based on the number of honest nodes in the system and the identity of nodes that assume certain roles. In contrast, protocols such as Bolt-Dumbo [29], Jolteon-Ditto [30], and Flexico [31] are proposed based on synchronous and asynchronous environments. When the designated nodes are in a synchronous or weakly synchronous state, the fast protocol is used. When nodes are in an asynchronous environment, the backup protocol takes over the blockchain system to ensure safety. The Flexico protocol divides nodes into active nodes and passive nodes while setting a weakly synchronous network condition, where most active nodes can communicate within a known upper bound.

In conclusion, most consensus protocols have two directions for improvement. One approach is to enhance performance by increasing the selection algorithm for primary, which avoids selecting Byzantine nodes as primary. The other approach is to invoke appropriate subprotocols under different conditions, which ensures both security and consistency while improving protocol performance.

3  CF-BFT Protocol

This section introduces the CF-BFT protocol model, which is a dual-mode protocol based on node identity authentication and describes in detail the execution methods of the protocol in optimistic and pessimistic conditions.

3.1 CF-BFT Protocol Overview

CF-BFT protocol is divided into the Check_BFT subprotocol for the preparation and Fast_BFT subprotocol for the fast consensus, as shown in Fig. 1. In Check_BFT, all nodes perform message computation and processing through mutual voting. At the same time, replicas monitor the behavior of the primary and detect whether the primary has any behavior that violates consistency or reduces protocol efficiency. In Fast_BFT, only the primary needs to process messages, and replicas only need to passively replicate messages transmitted by the primary. Thereby improving the protocol’s performance and reducing communication overhead.

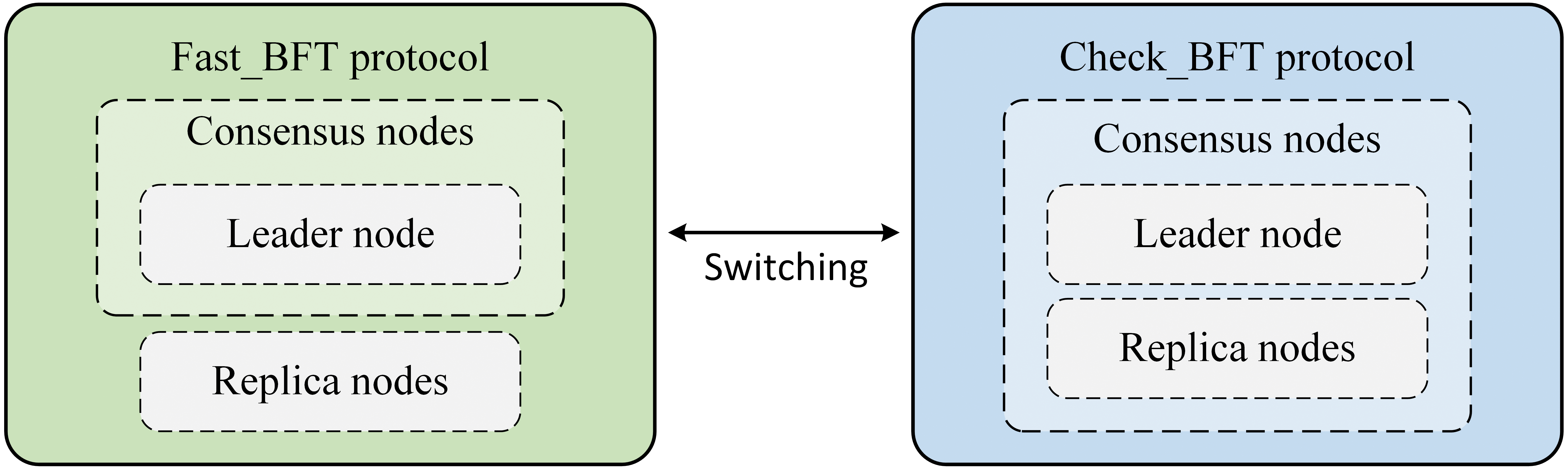

Figure 1: Consensus nodes for Fast_BFT and Check_BFT protocols

This paper assumes that CF-BFT consists of 3f+1 nodes, and the adversaries can control f nodes at most. Each node has a key pair (including a public key and a private key) and a data structure to record the address, reputation of nodes, and other local data. Adversaries can control and coordinate malicious nodes to perform any destructive behavior that affects system consistency. As shown in Fig. 2, consensus can be achieved using the Check_BFT or Fast_BFT protocol.

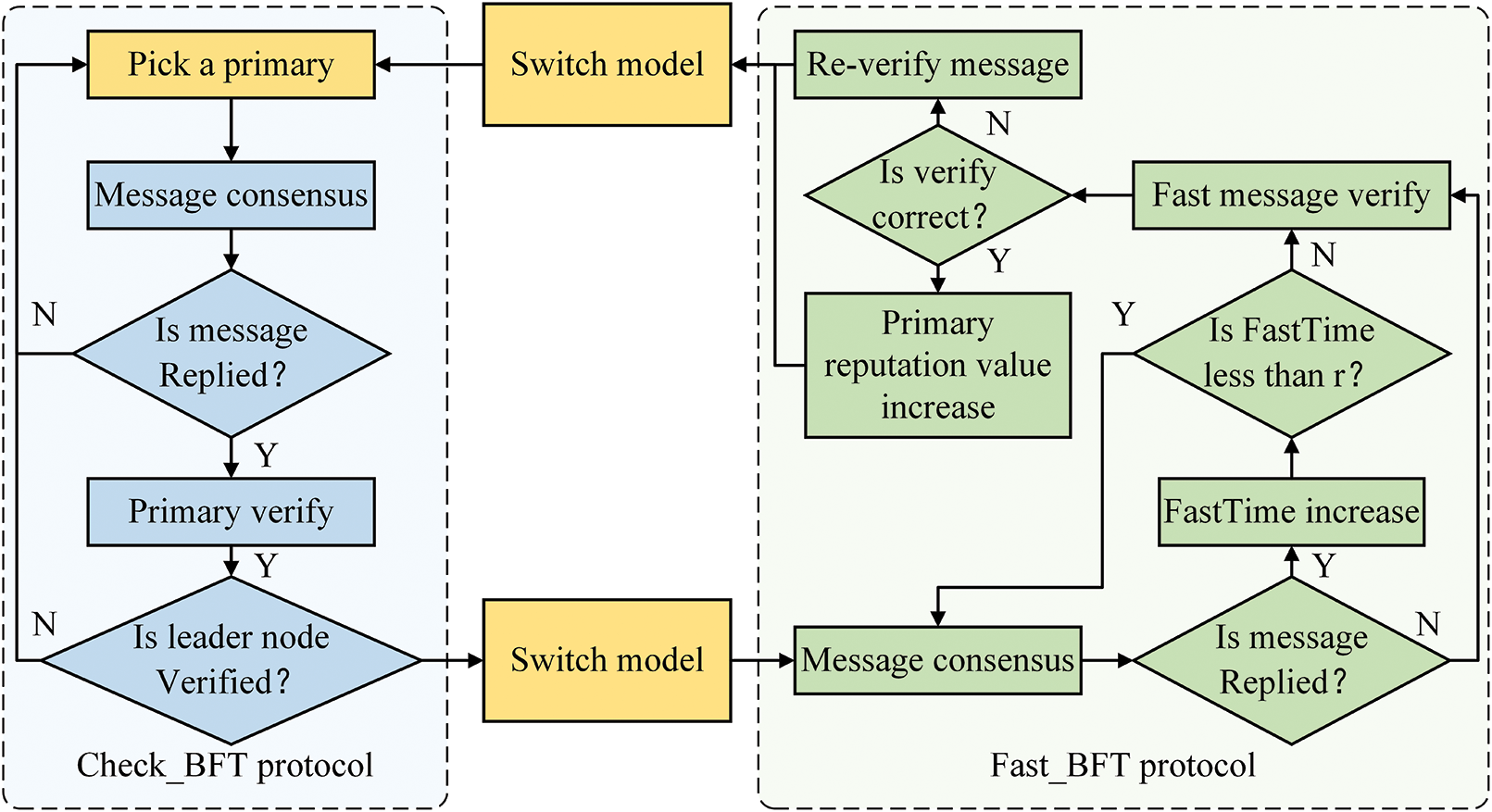

Figure 2: Overall operation of CF_BFT dual-mode protocol

Firstly, after selecting the primary, the protocol initiates a round of message consensus which is transmitted by the client and performs voting calculations in conjunction with the replicas. When 2f+1 nodes reach consensus, the message is considered to reply and enters the primary authentication phase. In the consensus phase, all replicas monitor the behavior of the primary. Subsequently, the primary initiates authentication voting. If the primary does not engage in malicious behavior that violates system consistency, the replicas will provide support votes. Otherwise, the replicas will cast opposing votes.

When the primary receives support votes from 2f+1 nodes, CF-BFT begins the fast consensus phase and runs the Fast_BFT subprotocol. At this point, the protocol calculates a random number r, to determine the number of times the current primary can receive messages from the client. During fast consensus, only the primary needs to process messages, while other nodes passively replicate the messages sent by the primary. Each time a fast consensus is carried out, the number of consensuses, FastTime, increases, and when the FastTime reaches the specified upper limit, Fast_BFT ends. Subsequently, all nodes calculate the hash value of all messages in Fast_BFT and vote mutually to authenticate the result. If the result is consistent, the reputation value of the primary increases and the protocol switches to Check_BFT. Else, the most recent r messages among honest nodes are converged.

3.2 CF-BFT Protocol Overview

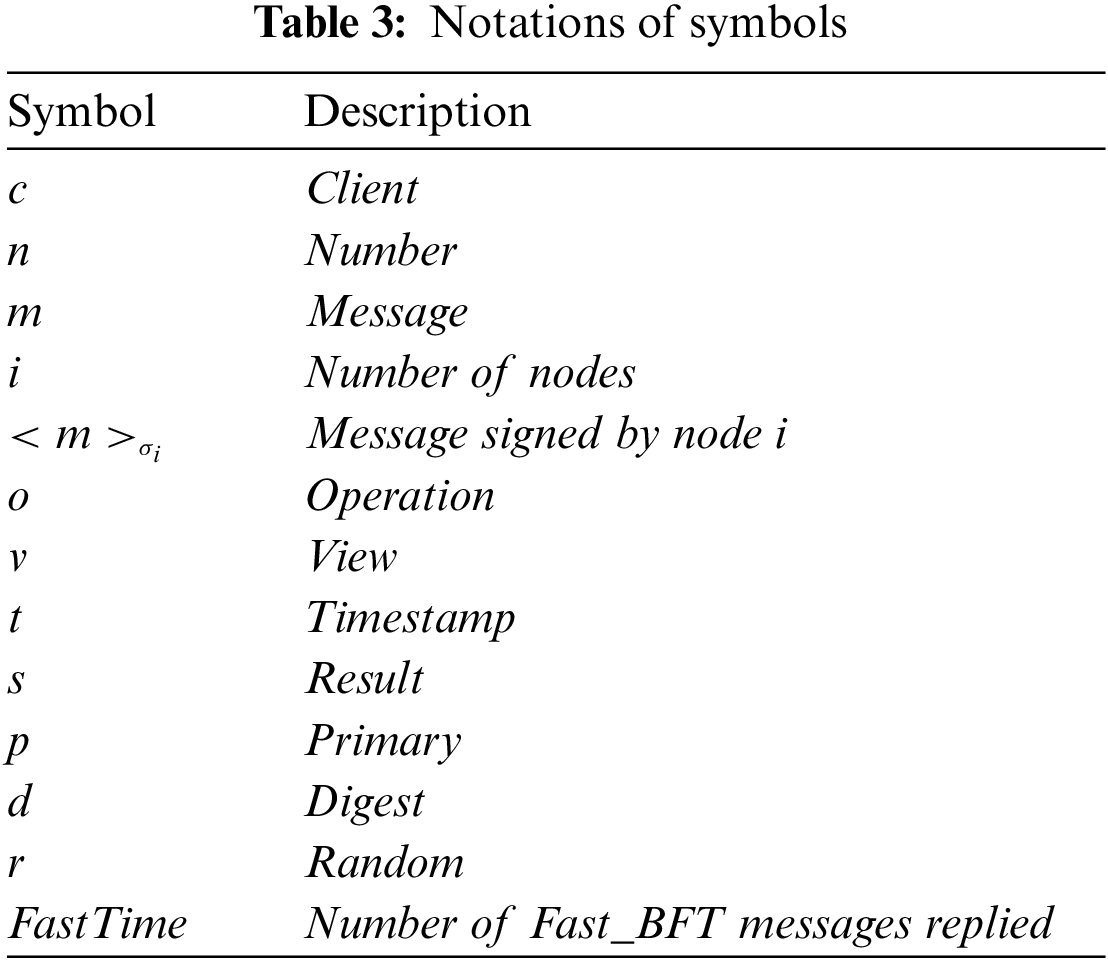

Check_BFT is a distributed consistency protocol based on Byzantine fault tolerance technology. The notations used are summarized in Table 3. The total number of nodes is n=3f+1, and it can tolerate f Byzantine nodes. Check_BFT is divided into four phases. The phases are Prepare, Test, Commit, and Verify, as shown in Fig. 3. In this protocol, replicas determine whether the primary is an honest node by monitoring its behavior.

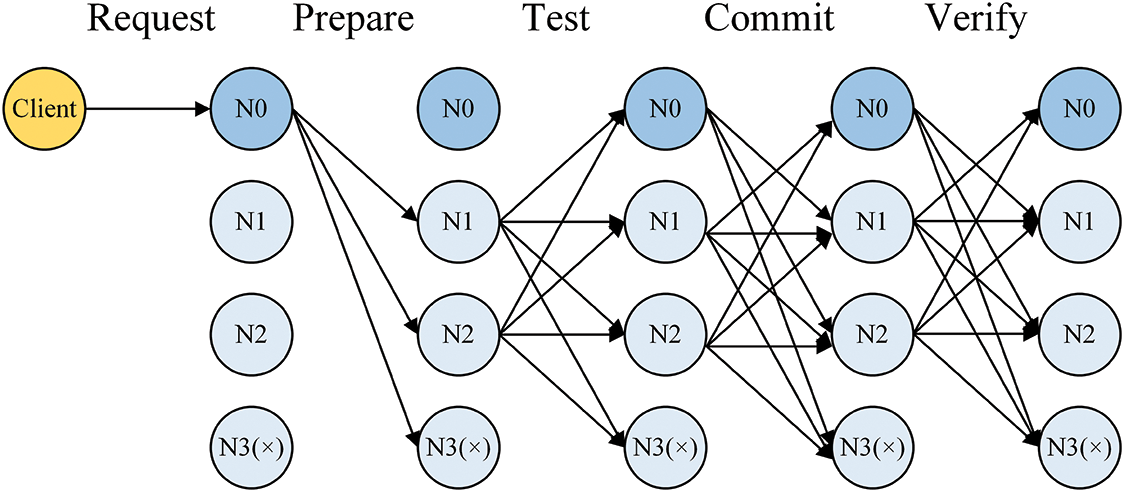

Figure 3: Check_BFT operation

Specifically, the protocol first selects a primary p=vmodn. The client c sends a <REQUEST,o,t,c>σc to the current primary p. Which contains the message’s content and operation. The primary response to the client with a <REPLY,v,t,c,i,s>σi message. If the client does not receive REPLY message, it will send the REQUEST message to all nodes. And the nodes verify switching the primary or not.

In Prepare phase, the primary node p broadcasts the PREPARE message <<PREPARE,v,n,d>σp,m> to replicas after signing and encrypting the client message. If the primary fails to broadcast and reply to the message in the specified time, the replicas consider it a Byzantine node and switch to electing a new primary.

In Test phase, the replicas receive and validate the PREPARE message sent by the primary. If the validation is successful, they broadcast a TEST message <TEST,v,n,d,i>σi to other replicas, and store the message in a temporary message pool. All nodes receive the TEST message and validate it. If a replica receives the PREPARE conflict message transmitted by the primary or receives the conflict message from f+1 or more replicas, it immediately packages it as evidence and sends it to other nodes. When the replicas verify that the primary is a Byzantine node, the protocol switches to a new view. If a replica receives 2f+1 TEST messages with the same digest within the specified time, it enters the Commit phase.

In Commit phase, the primary and all replicas participate in message submission and validation. If nodes consider the message to have passed the Test validation, it sends a <COMMIT,v,n,D(m),i>σi message to other nodes and receives COMMIT messages from others. When a node receives 2f+1 COMMIT messages, it writes the message to the local log. In Verify phase, the replicas still judge the behavior of the primary to determine whether it is an honest node, thus ensuring the consistency of the protocol.

In addition, the protocol introduces a random timeout mechanism to prevent the failure of the primary from disrupting the replication service. During the execution of each phase, the primary needs to complete the operation within a specified time. Otherwise, the replicas will consider it a faulty node and begin broadcasting to elect a new primary. This mechanism helps prevent such malicious behavior of the primary as the coordinating of faulty nodes or delayed communication. Which can disrupt the service’s safety and consistency.

3.3 Fast_BFT Protocol

Most consensus protocols are inefficient and require high communication costs because nodes need to prevent malicious behavior in distributed protocols, therefore need to verify each other through voting. However, if proving that the primary is an honest node, message validation and reply only need to be completed through the primary. The other replicas no longer need to verify messages and vote for each other. They only need to be responsible for receiving messages sent by the primary. Fast_BFT can be divided into the preparation phase Fast_Prepare and the submission phase Fast_Commit, as shown in Fig. 4.

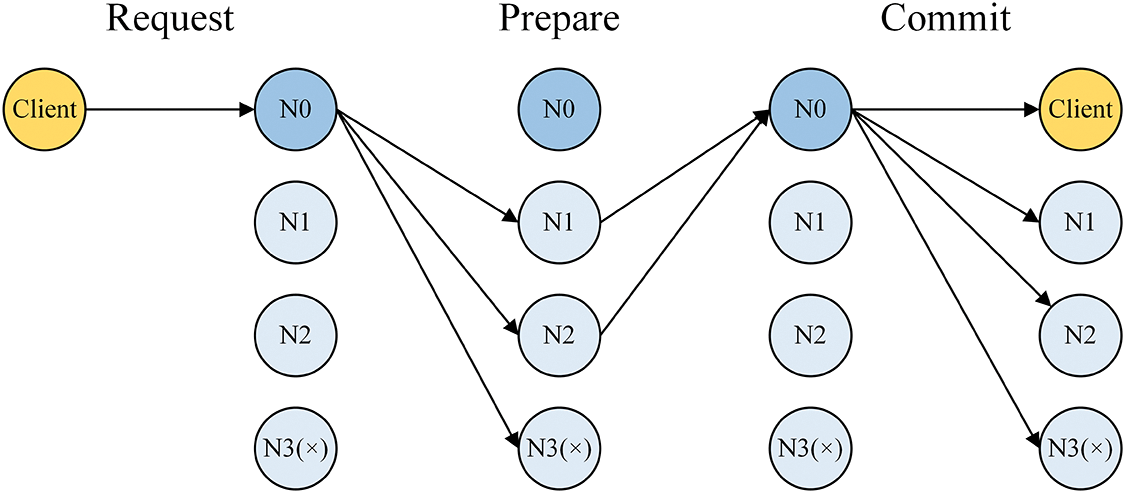

Figure 4: Fast_BFT operation

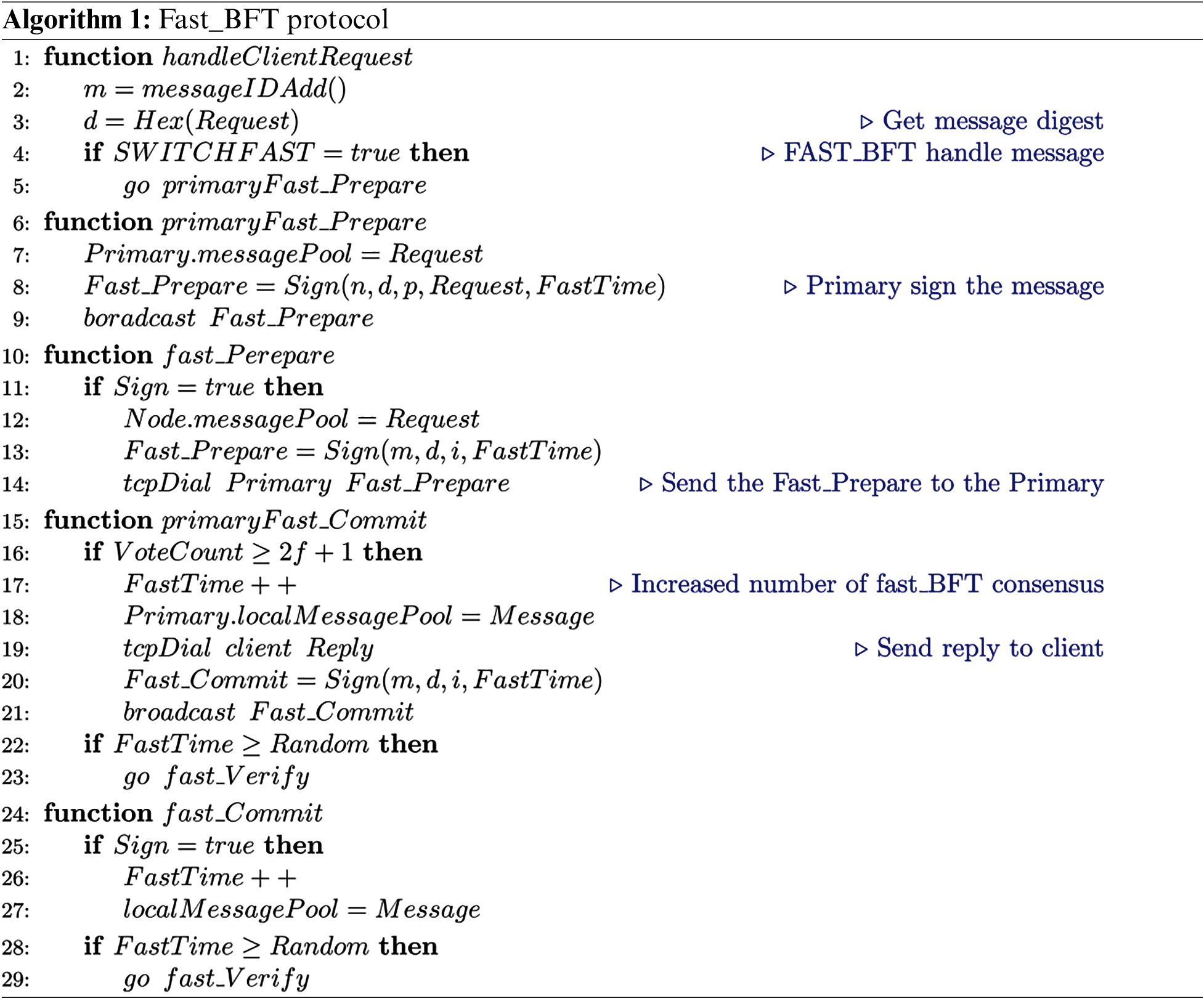

The specific process is as follows: a client sends a <REQUEST,o,t,c>σc message to the primary p. In the Fast_Prepare phase, the primary verifies the message and sends the signed message to all replicas in the format of <<FAST_PREPARE,v,n,d,p,FastTime>σp,m> where FastTime is the number of messages processed by the primary in the Fast_BFT protocol. Upon receiving the FAST_PREPARE message, the replicas verify the signature and the consensus message count, store the message in a temporary message pool, and send the primary with a message <FAST_PREPARE,v,n,d,i,FastTime>σi. After the primary confirms that it has received FAST_PREPARE messages from 2f+1 nodes, it enters the Fast_Commit phase and replies message. The primary also sends a <FAST_COMMIT,v,n,D(m),FastTime>σi to all replicas. Upon receiving the FAST_COMMIT from the primary, the replicas store the current message in their local logs.

3.4 Protocol Switching

Most dual-mode or multi-mode consensus protocols assume an optimistic environment, executing fast consensus protocols. Once a fork or other disruption to consistency and performance occurs, the protocol falls back to a backup protocol for error repair. In contrast, the CF-BFT protocol assumes a pessimistic environment by default, using the Check_BFT protocol to detect whether the current environment is safe and whether the primary is an honest node. After confirming the security of the current environment, Fast_BFT is switched for processing messages. Therefore, in CF-BFT, protocol switching is simpler and faster than other multi-mode protocols.

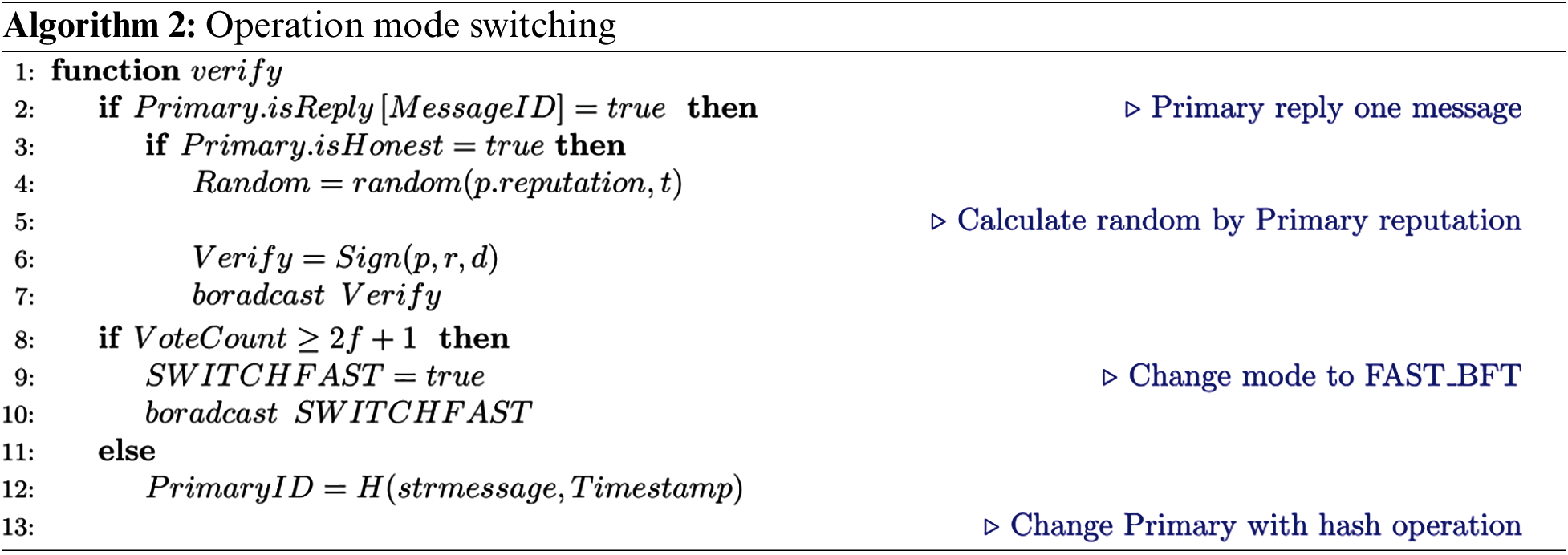

CF-BFT protocol applies a mode-switching scheme. In which the modes are switched by triggering SWITCHFAST and SWITCHCHECK messages. The following two conditions need to be met to trigger the SWITCHFAST message:

•   The primary successfully reply a message in the Check_BFT for this view;

•   More than 2f replicas do not detect malicious behavior from the primary.

After replying to a message in Check_BFT, the primary initiates a protocol switching request, enters the node Verify phase, and broadcasts a VERIFY message <VERIFY,v,p,r,d>σp, where r is the number of times the primary processes messages in the fast protocol, consisting of the current reputation value of p and a random number. If the replicas don’t detect any behavior from the primary that violates the protocol consistency, such as sending inconsistent messages or intentionally delaying communication, they consider the primary to be honest and broadcast a <SWITCHFAST,v,p,r,i>σi message. When a node receives 2f+1 SWITCHFAST messages, it considers the current primary to be a trusted node, switches the consensus protocol, and runs the Fast_BFT protocol. After the fast consensus ends, nodes broadcast a <SWITCHCHECK,v,p,i,r,h>σi message to switch to the Check_BFT protocol, where h is the hash value of all FAST_COMMIT messages during Fast_BFT, i.e., the hash value of the last r messages in the local log, used to re-verify whether the message contents of each node are consistent.

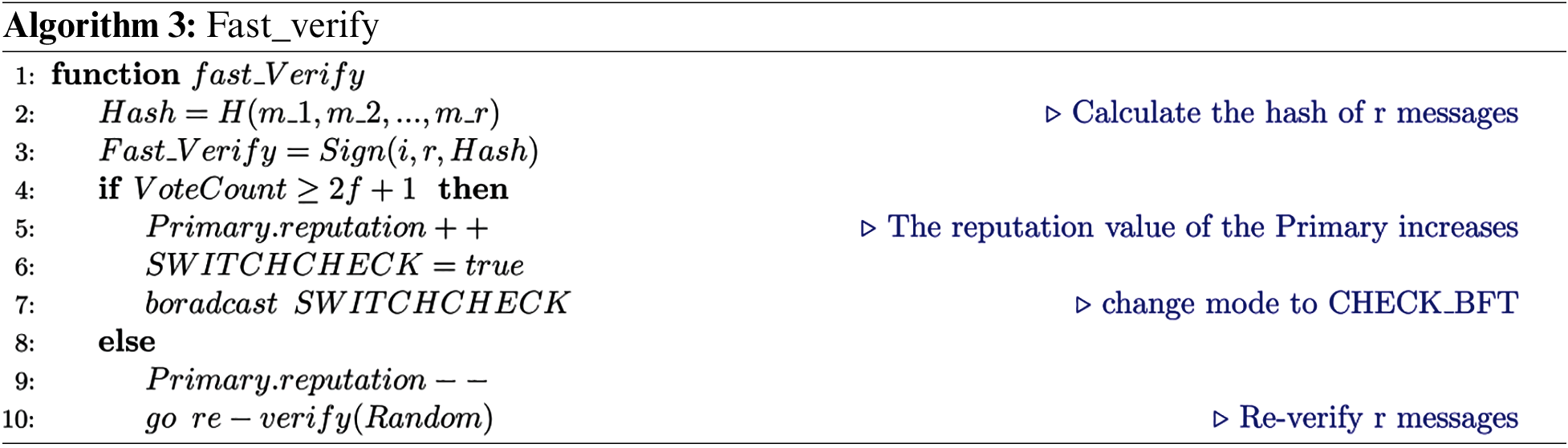

3.5 Fast_BFT Protocol’s Verification

To further improve the safety of consensus and prevent adversary nodes from attacking the primary when it processes transactions alone, a fast protocol re-verify mechanism is introduced. When the number of FastTime reaches the upper limit r of Fast_BFT, all nodes consider the current term of primary to be over and enter the Fast_Verify phase. The normal nodes calculate the hash value h of the last r replied messages and broadcast a <SWITCHCHECK,v,p,i,r,h>σi message. The node checks whether the hash value h in the message is consistent with the locally calculated value. If 2f+1 messages with consistent results are received, the messages are considered correct, and the reputation of the current primary will increase. The more the primary that completes the Fast_Verify tasks multiple times will gradually increase its reputation, the more its reputation values have been increased. Thereby its probability of processing events alone in Fast_BFT increases. If the number of h is different, it will fall back to the Check-BFT protocol to re-verify the correctness and consistency of the message to prevent forking. At the same time, the reputation of the primary is decreased, and the probability of processing events alone in fast consensus is decreased. All information including transactions and node information from the local message pool is stored in the current block and a blockchain database is constructed. The encrypted hash value of the total transactions in the current block and primary nodes information are stored in the block header. The hash value can be used to verify the data integrity of the database.

4  Theoretical Analysis of CF-BFT

In this section, the safety, consistency, and communication complexity of the CF-BFT protocol is analyzed.

4.1 Safety

The Check_BFT and Fast_BFT subprotocols assume that there are 3f+1 nodes in the worst condition, where f is the number of Byzantine nodes. Safety is ensured through mutually voting and keys between nodes.

Lemma 1. In the Check_BFT protocol, if the primary is a Byzantine node, it can’t pass authentication, and a view change is initiated to elect a new primary.

Proof. Assuming the primary is Byzantine, it signs and broadcasts verifiable messages, and the replicas receive and verify the results. Since there are at most f Byzantine nodes, replicas can receive at most f votes, which is not enough to enter the message submission phase. The message validation fails and a view change is initiated to elect a new primary.

Lemma 2. In the Fast_BFT protocol, if the primary does not work properly, replicas elect a new primary.

Proof. If the primary is attacked and becomes unresponsive, either by not responding to clients or not forwarding messages, the client sends a request message to all nodes after the timeout period. And the replicas initiate message validation and elect a new primary after detecting that the primary is unresponsive. This does not affect the final consensus result.

4.2 Consistency

Lemma 3. If the primary is a Byzantine node in the Check_BFT protocol and proposes different messages, conflicting messages cannot be submitted.

Proof. Assuming the primary is a Byzantine node, it sends different messages to 3f replicas. It sends message m to A=f+1 honest nodes, sends message m′ to A′=f honest nodes, and coordinates f Byzantine nodes to vote for message m to the A node cluster and votes for message m′ to the A′ node cluster. The A node cluster receives 2f+1 votes for message m, and message m is successfully submitted. However, the A′ node cluster receives at most 2f votes for message m′, and message m′ cannot be submitted. The A′ node cluster cannot submit the message, and it will warn other replicas that the primary is faulty. The A node cluster will receive the warning message and replicate message m to the A′ node cluster to ensure consistency.

Lemma 4. In the Fast_BFT protocol, if the primary tries to destroy consistency, the Fast_BFT validation phase ensures consistency.

Proof. If the primary is attacked and sends different messages under the Fast_BFT protocol, it will temporarily cause different messages among the nodes. However, during the Fast_BFT validation phase, inconsistent messages can be detected, and the inconsistent messages will be rolled back for re-verification. And correct messages will be verified for completeness and consistency while conflicting messages will be deleted to ensure consistency.

4.3 Communication Complexity

Here the communication costs of the protocols are calculated and compared. In the Check_BFT protocol, this paper set the average communication cost to be Zcheck and the average communication cost to be Zfast in the Fast_BFT.

The average communication cost of the protocol is defined as Z, where Zmin represents the communication cost in the best condition and Zmax represents the communication cost in the worst condition. A random variable μ represents the number of times the primary processes messages in the Fast_BFT protocol. It is easy to prove that in the best condition:

Zmin=Zcheck+μZfast1+μ(1)

In the worst condition:

Zmax=(4+μ)Zcheck+3μZfast3+3μ(2)

Compared to traditional BFT protocols which can tolerate up to 1/3 Byzantine nodes, in CF-BFT protocol, the worst case is when all 1/3 of the nodes are attacked and turn from honest to malicious during their terms. Therefore, the conditions for CF-BFT protocol to reach the worst case are more stringent, and the requirements for the optimistic condition are lower, as long as the malicious nodes do not attack during their extremely short terms.

5  Performance Evaluation

In this section, by comparing with traditional PBFT protocol, BFT-SmaRt, and other improved BFT protocols, as well as SAZyzz dual-mode protocol, the throughput and latency will be analyzed. One of the main objectives of test evaluation is to detect whether CF-BFT protocol still has an advantage over some traditional protocols in the worst condition of tolerating Byzantine nodes. The tests were conducted using a 2.10 GHz Intel(R) Xeon(R) 5218R CPU and 8 GB RAM.

5.1 Performance Comparison with BFT Protocols

Consensus latency is one of the most critical metrics for evaluating consensus protocols. In the experiment, this paper varied the block size and ran tests with 4, 8, 16, 32, and 64 nodes to measure the throughput and latency, using 512, 1024, 2048, 4096, and 8192 transactions per block. The results are shown in Fig. 5. As expected, the impact of increasing the number of nodes on protocol latency is not high when the block size is moderate.

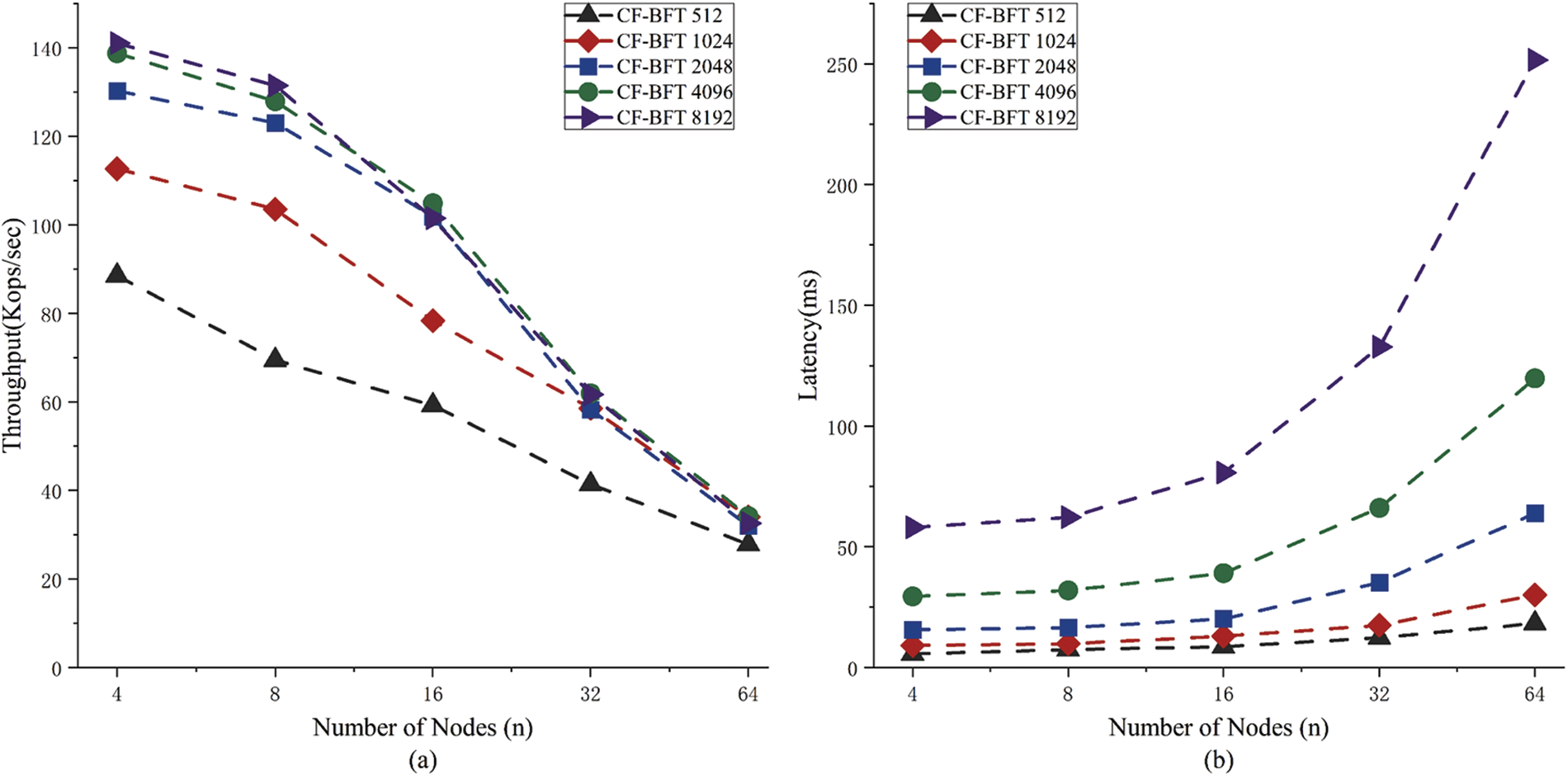

Figure 5: Performance analysis of CF-BFT protocol

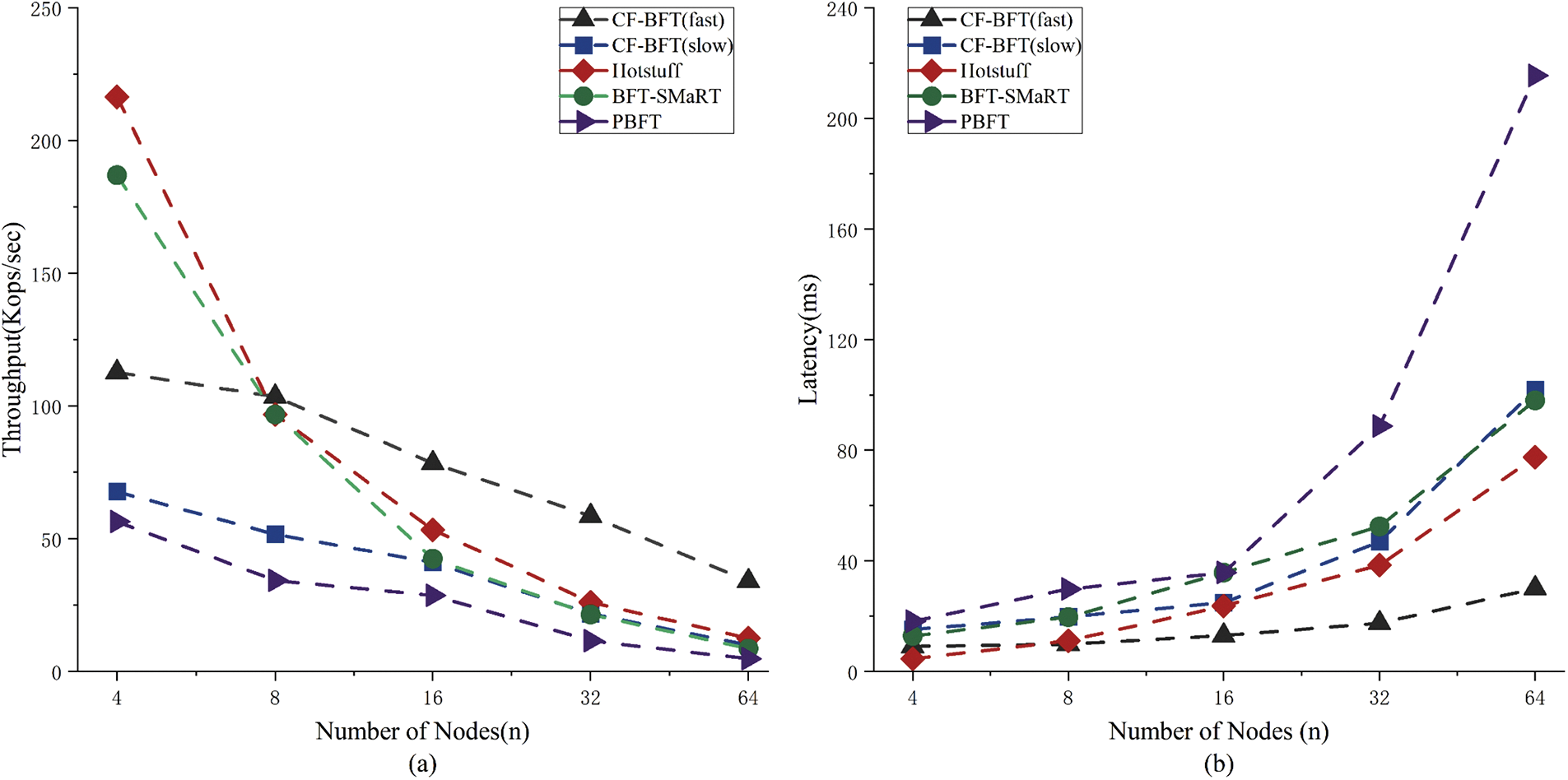

Fig. 6 shows the impact of launching different numbers of nodes on the throughput and latency of CF-BFT, PBFT, BFT-SMaRt, and Hotstuff under the Bitcoin benchmark (256 bytes per transaction, 1024 transactions per block). The experiment results show that the advantage of the CF-BFT protocol increases as the number of nodes increases. Due to the use of full broadcast, PBFT and other protocols are heavily influenced by the number of nodes, while CF-BFT protocol is less affected. Moreover, even in the worst-case scenario, CF-BFT still has advantages.

Figure 6: BFT protocols performance comparison

The theoretical communication times of CF-BFT and PBFT are calculated as shown in Fig. 7. Here, μ represents the number of transactions processed by the primary in the Fast_BFT. The impact of μ=10 and μ=20 on the number of communication are compared. The data shows that the larger number of nodes, the greater advantage of the CF-BFT protocol.

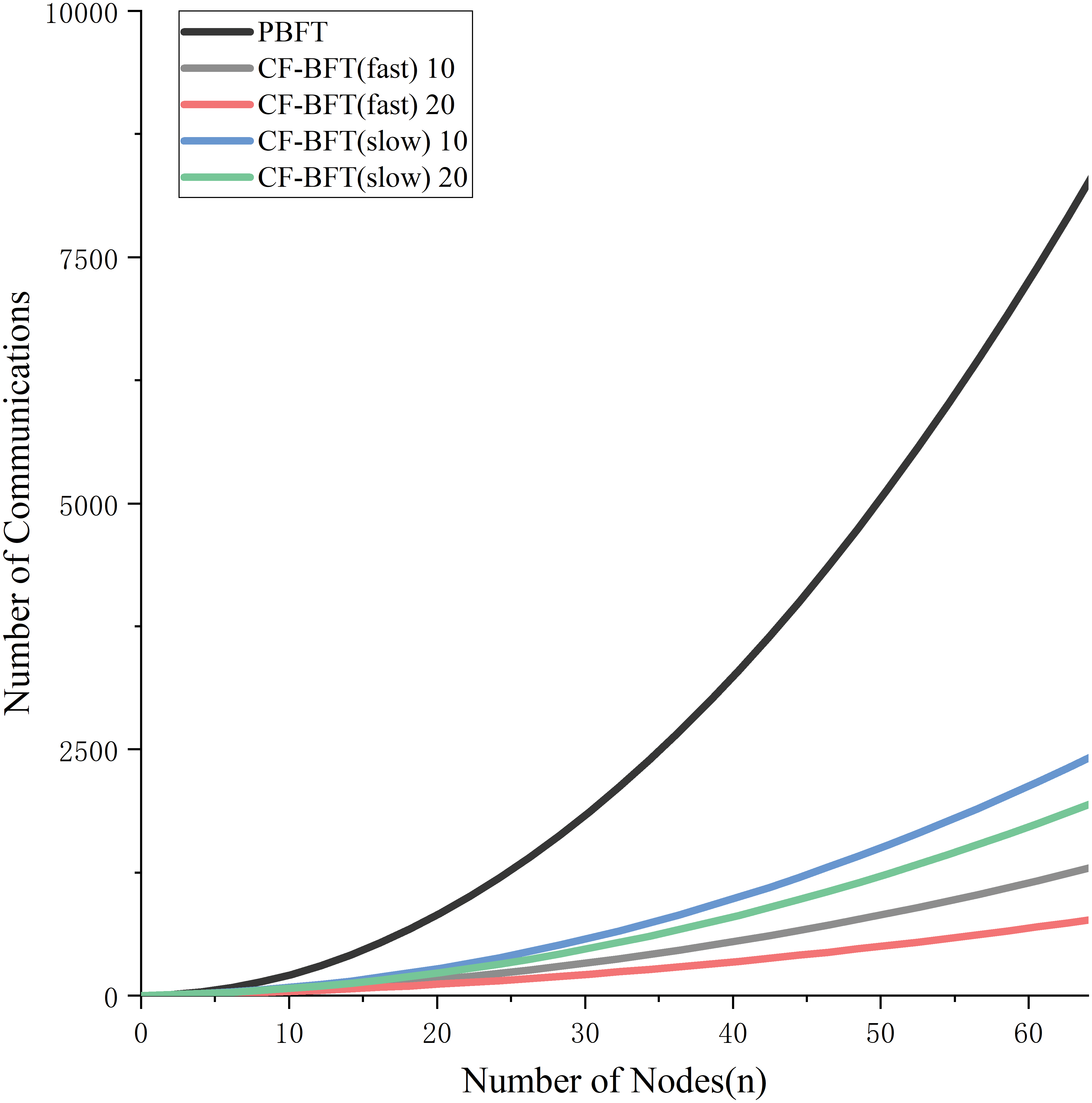

Figure 7: Number of communications

5.2 Performance Comparison with Dual Mode Protocol

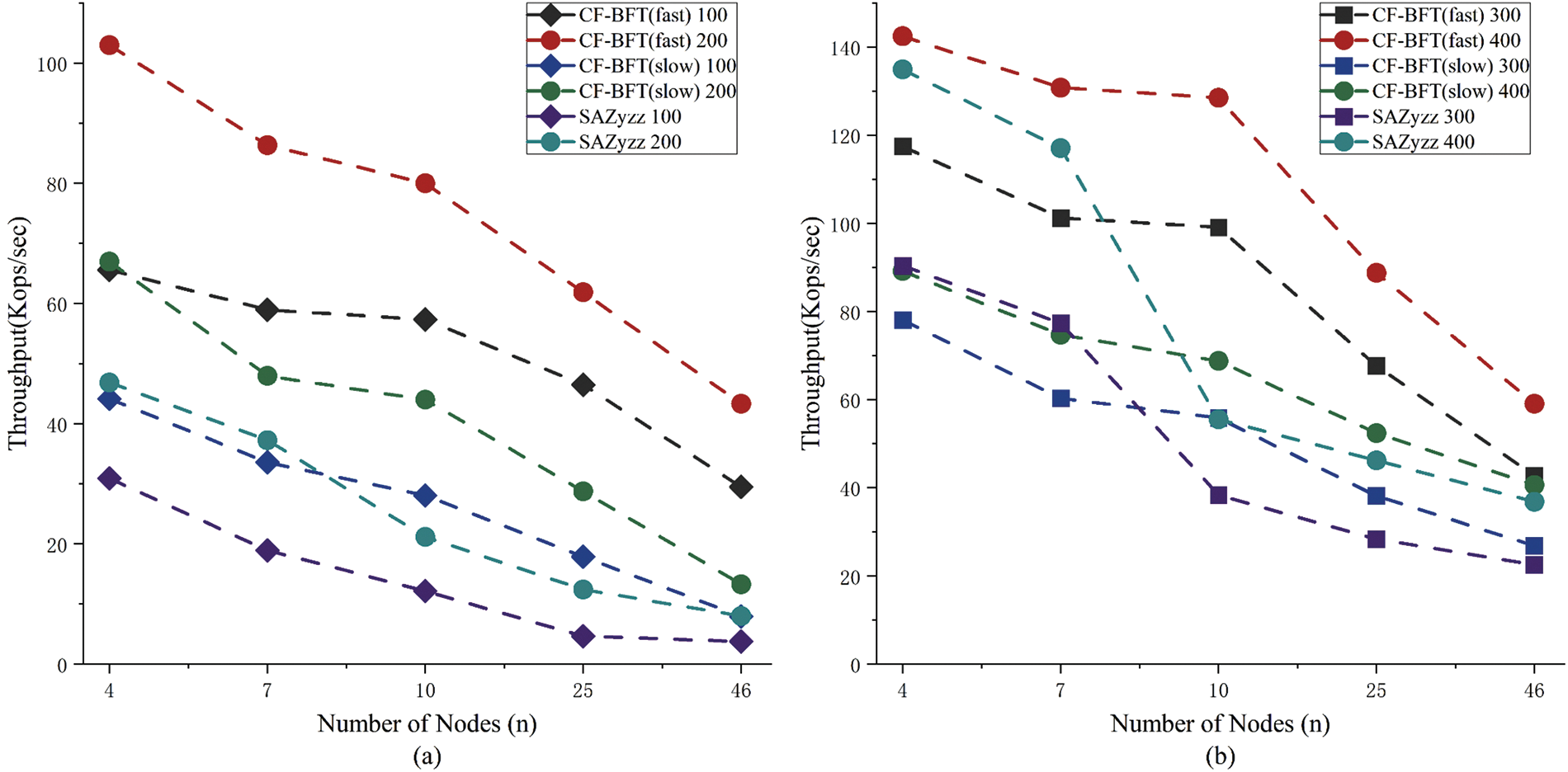

This section compared CF-BFT in optimistic and worst conditions with the SAZyzz dual-mode protocol by setting a block size to 100–400 KB under 4, 7, 10, 25, and 46 deployed nodes. Results are shown in Fig. 8, CF-BFT protocol consistently outperformed SAZyzz, particularly with more nodes. CF-BFT has stricter worst condition requirements, where each malicious node must be flipped during its term, leading to a high usage rate of the fast protocol in practical applications.

Figure 8: Dual-mode protocols performance comparison

CF-BFT switches modes by triggering SWITCH messages, and the protocol switching time can be ignored. Compared to traditional dual-mode protocols that require a lot of resources to switch protocols, CF-BFT has a significant advantage in protocol switching speed.

6  Conclusion

This paper presents a node-authenticated CF-BFT dual-mode consensus protocol, consisting of Check_BFT and Fast_BFT subprotocols. By authenticating nodes before entering the fast protocol and implementing a simpler protocol switch, it outperforms previous BFT consensus protocols and other dual-mode protocols in terms of throughput and consensus efficiency. Unlike traditional dual-mode protocols, the CF-BFT protocol defaults to a pessimistic condition and switches to the optimistic fast protocol only after node identity is verified. Therefore, even in the worst condition, CF-BFT also can significantly improve throughput and consensus efficiency. The advantages of the protocol become more pronounced as the number of nodes increases. In addition, to enhance the safety of the protocol and prevent attacks from Byzantine nodes, the CF-BFT provides the replica alert mechanism that can package evidence of the primary’s malfeasance and provide it to other nodes to ensure the correctness of main node identity authentication. Furthermore, the protocol introduces a node reputation mechanism, where nodes with higher reputation values are more likely to process transactions alone in the Fast_BFT. Test results show that CF-BFT outperforms traditional BFT protocols and other dual-mode protocols in all performance indicators. Under the premise of ensuring consistency and safety, it dramatically reduces communication costs and improves performance, providing more efficient and secure consensus services for blockchain systems.

Based on the feature of CF-BFT protocol that does not require client nodes to participate in consensus and its high performance, it has potential application prospects in public chains, enterprise-level chains, Internet of Things (IoT), financial services, and public services. It can be used in distributed systems in IoT, such as sensor data collection and processing, and security control; in distributed ledgers in financial services, such as insurance contract execution and securities trading settlement; as well as in distributed systems in public services, such as election voting and supply chain management.

Currently, CF-BFT has been tested with a maximum of 64 nodes. However, in the case of a large-scale Internet of Things network composed of more nodes, further research is needed to improve the performance of the CF-BFT. The next step is to improve the protocol in three aspects. Firstly, by using a pipelined consensus approach, reducing the computational difficulty of each primary. Secondly, the blockchain structure can be optimized by introducing a DAG graph-style structure [32] to improve efficiency. Thirdly, we can optimize the structure of the nodes by changing the communication method [33] to reduce consumption between nodes.

Acknowledgement: The authors would like to thank the support of the Distributed Computing & BlockChain Lab, Henan University of Technology and Government, and the hard work of the editors and reviewers.

Funding Statement: The authors are supported by the Key Laboratory of Network Password Technology in Henan Province, China (LNCT2022-A20); the Major Science and Technology Special Project of Henan Province, China (Nos. 201300210100, 201300210200); the Key Scientific Research Project of Higher Education Institutions in Henan Province, China (No. 23ZX017); the Key Special Project for Science and Technology Collaborative Innovation in Zhengzhou City, Henan Province, China (No. 21ZZXTCX07); and the Key Science and Technology Project of Henan Province, China (No. 232102211082).

Author Contributions: The authors confirm contribution to the paper as follows: study conception and design: Zhiruo Zhang, Xinlei Liu, Feng Wang; data collection: Zhiruo Zhang, Yang Lu, Feng Wang; code development: Zhiruo Zhang, Xinlei Liu; analysis and interpretation of results: Zhiruo Zhang, Feng Wang; draft manuscript preparation: Zhiruo Zhang, Feng Wang; supervision: Feng Wang, Yang Liu; project administration: Feng Wang, Yang Liu. All authors reviewed the results and approved the final version of the manuscript.

Availability of Data and Materials: The datasets used and analysed during the current study are available from the first author on reasonable request.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
