Enhancement of UAV Data Security and Privacy via Ethereum Blockchain Technology

1  Introduction

Unmanned aerial vehicles (UAVs) are currently making inroads into a multitude of industries, increasing their market domination. There is now a lot of study being done on UAV communication issues and how to address their flaws. Due to a lack of physical infrastructure, it is frequently difficult to access certain locations. Drones enable us to do this. Drones are so often utilized in a range of industries, including agriculture, forestry, environmental protection, and security, for essential tasks like rescue, surveillance, and transportation. UAVs are becoming useful commercial instruments in the civilian sector thanks to recent developments in operation, network technology, communication, and manufacturing methods, which have allowed them to move beyond their defensive applications [1–5]. Both the public and private sectors of the economy are welcoming their introduction [6], and the industry is now presented with significant market opportunities [7]. However, as UAVs gain wider acceptance, their limitations are also becoming increasingly evident.

Since UAVs are now widely used, companies that sell items have developed a new mode of transportation that offers quicker delivery at less expensive prices for delivering goods to clients. As an example, Amazon has recognized the advantages of integrating drones and related technology into their current delivery process. This has led to quicker delivery times, as stated in [8,9]. This will benefit Amazon’s supplychain management systems as the corporation has boosted its research and development spending on UAVs [10,11].

UAVs are less likely to be lost, physically taken over, or destroyed in open environments, but language hurdles impede attempts to attack the software that creates them [12–15]. UAV security, data management and storage, intra-UAV communication, and air data security are only a few of the issues with UAV networks that need to be handled because of the globalization of UAV technology.

A UAV ad-hoc network (UAANET) must be protected from hostile actors interfering with or disrupting data transmission and exchange since drones and ground control stations (GCS) interact by utilizing open wireless channels [16,17]. The usefulness of virtual circuit (VC)-based applications has significantly increased in the present era due to the inclusion of speed and altitude-supporting mechanisms. When deployed and operated appropriately, these technologies have the potential to be highly reliable and cost-effective wireless communication solutions for a range of issues, as referenced in [18,19]. For instance, many countries utilized UAV technology to monitor drone activity and track them, which can also function as Aerial User Equipment (AUE), which are surveillance drones designed to coexist with ground users and are sometimes referred to as cellular-connected UAVs [20,21].

However, it is vital to remember that modern UAV and drone systems, which entail diverse networking technologies and a high rate of utilization, must be well-protected to be used easily across many sectors of human life. The risk of VC-based devices (UAVs, drones, and Internet of Things (IoT) devices) is evaluated by considering the surrounding environment, weather, and geographical factors [22,23]. Additionally, there are technical factors to take into account, such as network protocols, communication privacy, and the use preventative measures [24–26]. When it comes to data security, UAVs and drones face comparable risks.

Various communication technologies have been developed to reduce the risks associated with network protocols used in these devices [27,28]. For drones and UAV systems, researchers have identified cryptography-based methods as potential solutions to reduce risks [29,30]. However, mitigating the risks of signal data compromise remains challenging, especially in adverse weather conditions. To determine the optimal technique for risk identification and data preservation, cutting-edge technologies such as machine learning, cryptography, network communication systems, and radar systems have been researched. As part of this study, BCT [31,32] has been proposed as a potential solution for risk reduction, data protection, and maintenance, especially in VC-based devices.

Different sectors have implemented applications based on blockchain to offer infrastructure for service, data, and business levels while also guaranteeing top-notch security. The usage of secure technology like blockchain can establish a protective system against the growing instances of cyber threats in the UAV network [33–35].

As a distributed ledger, blockchain ensures that every node in the network has a copy of all the data, and the blockchain network cannot be corrupted or destroyed even if a hacker attack or eliminates all the UAVs in it [36]. By employing blockchain, data security can be improved, and malicious nodes can be kept from joining the network. The current effort aims to enhance the privacy and security of the UAV network using blockchain technology.

In this study, the distributed, safe, and fair deep learning platform DeepChainis introduced. DeepChain offers a value-driven incentive mechanism that is based on the Blockchain to push players to behave properly. DeepChain, in the meantime, makes sure that each participant’s data is secure and provides audibility during the entire training process. This work constructs a DeepChain prototype and conducts testing using a real dataset in a variety of circumstances; the results show that our DeepChain is promising [37,38].

The structure of the paper is as follows: Section 2 provides a thorough review of the literature. Section 3 explains the proposed approach and its related applications. The last paragraph of the Section 4 describes the findings and performance analysis. The paper concludes with a summary and suggestions for future research.

1.1 Motivation

IoD, which stands out for its usability, adaptability, and mobility, is a vital component of the forthcoming Internet of Things. IoD applications are becoming more prevalent in both military and non-military domains. Drones, however, have limited resources and are extremely susceptible to various security concerns and assaults. IoD network security on the blockchain is getting more and more attention.

The study demonstrates that blockchain technology can fulfill fundamental security requirements, including authentication, privacy protection, and confidentiality, integrity, and access control. Drones are vulnerable to various hazards based on their characteristics and methods of operation. The attacks are classified into three categories: device-based attacks, network-based attacks, and software based attacks.

•   Attacks using devices attempt to physically access drone parts, such as memory, to steal sensitive information or seize control of the drone.

•   Attacks that use networks involve attacks where an attacker can intercept and change the sent data, such as man-in-the-middle, replay, eavesdropping, and modification attacks.

•   Attacks based on software intent to introduce harmful data into drones and ground stationsto take advantage of software flaws. Denial of service/distributed denial of service (DoS/DDoS) attacks can be launched using them.

To defend against the aforementioned attacks, it is essential to provide the fundamental security properties of confidentiality, integrity, availability, authentication, and privacy preservation. By upholding confidentiality, communication is protected against unauthorized access and the potential for data leakage.

•   Integrity ensures that data transmissions are free from tampering or modification.

•   Access to resources or services offered to authorized drones or users is maintained by availability.

•   Before data access or exchange, authentication requires confirming identification.

•   Privacy protection stops malicious attackers from revealing personal information without consent.

The work proposes a technique for maintaining the integrity of acquired data while also safeguarding drone connectivity during data transmission and collection. The paper anchors the drone-collected hashed data records rather than simply adding the drone to the blockchain network. The paper suggests anchoring the hashed data records collected by drones rather than merely integrating the drones into the blockchain network. To ensure data integrity, the research recommends safeguarding the collection and communication of drone data when employing a public blockchain. The findings indicate that this approach creates a reliable, scalable, and decentralized system that guarantees drone data protection and resilience with minimal overhead.

1.2 Contribution

The contribution of the research effort is outlined as follows:

•   To detect assaults, this paper keeps a watch on all blockchain transactions (data transmitted by each node, timestamp of each transaction, and routing table of each node). Transaction data cannot be altered because blockchains are immutable, maintaining data integrity.

•   To establish confidence between participating network nodes, token transactions take place in the blockchain. Additionally, in exchange for ensuring the legality of the route to the originating node, the intermediary nodes pay ethers as a guarantee for successful transmission.

•   The suggested model was experimentally evaluated and the findings revealed that it outperforms the referred state-of-the-art technique.

The remaining portions of this work are organized as follows: In Section 2 of the proposed design, the characteristics of blockchain and associated difficulties are discussed. The suggested strategy is highlighted in Section 3, which also discusses the notion of node registration in the UAV Network, the flow of data transactions and, contract functions in the blockchain. The implementation information and underlying algorithms for the planned system are described in Section 5. Section 6 discusses the detail of the outcomes and conclusions from the simulation of the suggested strategy. The paper’s conclusion and possible next measures should be followed.

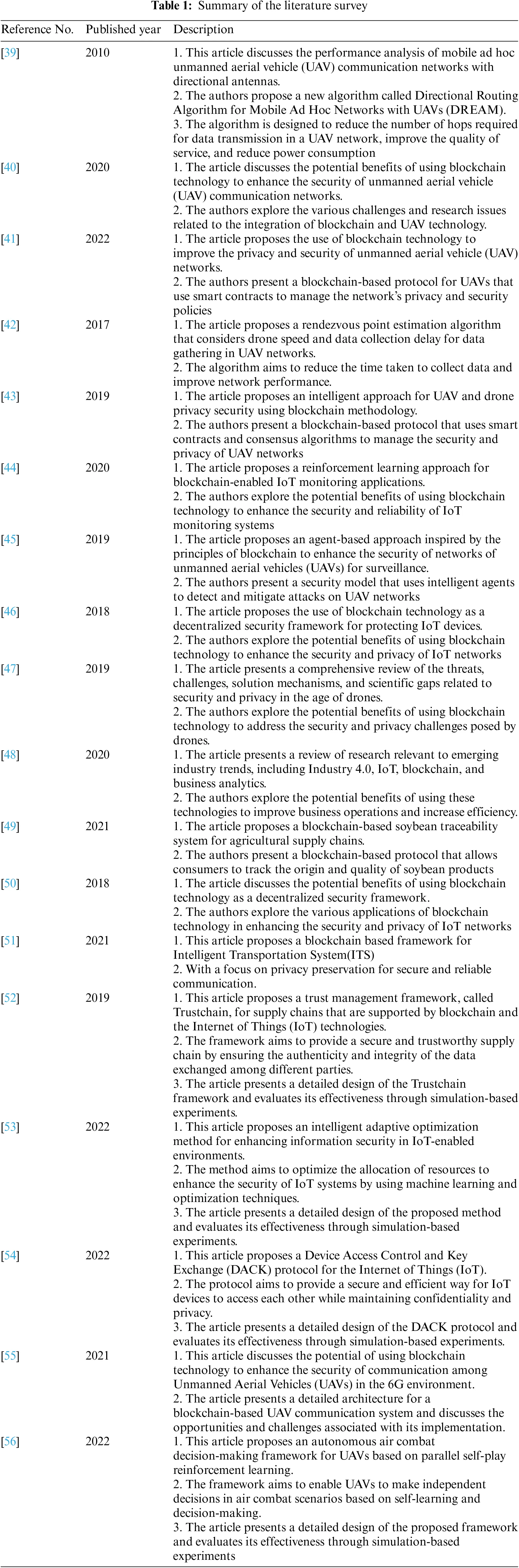

2  Related Work

This section presents the preliminary steps and the related work that isimportant for the suggested work.

2.1 Unmanned Aerial Vehicle Systems (UAVs)

The UAV system is composed of the GCS, components from the aircraft, and sensor payloads. UAVs can be flown using either ground-based control equipment or onboard electronics [39]. The UAVs cooperate to control and guide traffic, transfer data for transmission from source to destination, and remotely sense the UAVs and the GCS [40]. UAANET security can be improved by addressing the issues caused by the CIA trinity (Confidentiality, Integrity, and Availability).

2.2 Blockchain Technology

Blocks of transactional records are preserved in a blockchain, which is a decentralized, impermeable ledger [41]. A block is added to the blockchain permanently after transaction verification [42]. To link to the block preceding it, every block makes use of a unique identifier. Every time a data block is changed, a unique identity is altered, and all users are made aware of the change. The nodes disapprove of all such modified blocks. The blockchain network, a robust platform for collaborative record keeping, is challenging to alter or eliminate.

Its distributed, constant nature, absence of centralized approval, and security are increased. Blockchain technology and public key infrastructure (PKI) are used in this work to encrypt data [43]. As is done in the present study, automating dynamic UAV systems can be accomplished by utilizing consensus procedures and smart contracts. Traceability and automated business logic application properties of the blockchain serve as its driving forces [44,45]. Asymmetric encryption is used to guarantee the authenticity of the matching UAV’s signature. Data alteration by malicious, illegal individuals is significantly less likely thanks to blockchain technology [46]. The unique security issues related to the use of drones in society were described in detail in a paper [47]. This paper addressed some of hazards, challenges, and scientific gaps in the use of this technology.

The study does not, however, focus on presenting practical answers to the raised issues with drone usage. Reference [48] have provided a model that takes drone, IoD, and unmanned aerial vehicle (UAV) considerations into account (UAV). The significance of privacy and network management has been emphasized in this study. The paper describes how network components like the 5G Network and the Global Positioning System, which are utilized to operate UAVs, work. Reference [49] refers to the unethical monitoring and control of UAVs utilizing data, which is often done by unauthorized individuals. The study puts a lot of focus on the BCT technique’s ability to secure data privacy, preserve UAV, and drone communication data.

The blockchain network is a promising choice for trust management because it has been present and active in several research areas, including wireless networks [50] and the IoT [51–53]. The UAV ad-hoc network’s resource restriction is essential for developing a trust management system that makes use of the decentralised blockchain. Drone delivery by Dorado Platform, Walmart’s package tracking system, and drone package delivery are just a few of the well-known projects fusing drones and the blockchain technology that many researchers have even used. When adopting blockchain, security and, privacy of data are two important considerations. Studies on certain articles dealing with data security and privacy issues have been conducted.

The paper suggested a new methodology that reduces the number of operations required to produce secret keys by utilizing elliptic curve cryptography [54]. The next step has been the presentation of research difficulties and future directions for further developing the suggested system [55,56].

Blockchain is a technology that aims to improve product traceability and increase operational openness. However, there is not much discussion about blockchain usage, which suggests that its motivating factors need to be examined. The research identifies the drivers of blockchain adoption at a time when information technology is gaining attention. The Neutrosophic-based robust ranking analyses driving variables, giving drivers priority. Regarding the effect of the presented work on the adoption of blockchain operations in supply chain performance systems, the outcomes vastly outrank the drivers. It offers administrators a methodical strategy for integrating blockchain technology into supply chain operations. Table 1 provides the summary of the literature study in this work.

3  Proposed Work

The present study proposes using a smart contract to enhance security in the UAV network and mitigate various network threats. As smart contracts are decentralized and unchangeable, they provide a secure means for data transmission and communication in the UAV network. The proposed technology can help prevent threats like black holes, gray holes, DOD, and ensue confidentiality and integrity of the data.

The research proposes a Block chain technology (BCT)-based approach to minimize risks associated with data management in UAV and drone systems. The proposed method aims to enhance data storage and privacy measures through features like immutability, tamper proofing, transparency, security, and efficient distribution mechanisms. Drones, UAVs, and IOT devices are typically equipped with various sensors that facilitate the completion of pre-defined tasks according to the application chosen by user.

Drones or UAVs are used for these jobs, and they are controlled and observed locally or remotely using a network connection system. The proposed architecture of the proposed drone system as shown in Fig. 1 using the Ethereum blockchain consists of mainly four components as described below.

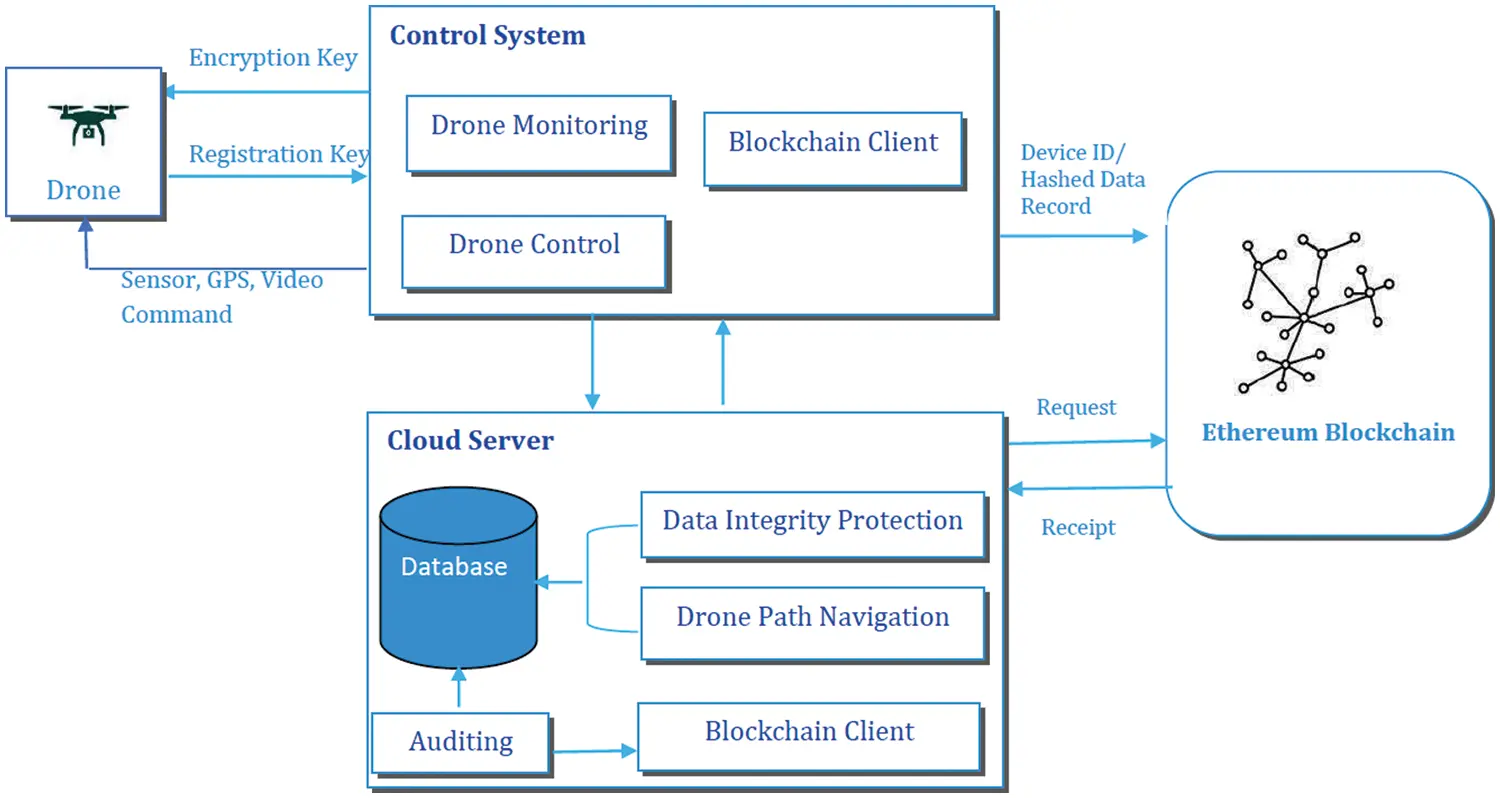

Figure 1: Proposed drone system architecture using Ethereum blockchain

3.1 Cluster of Drones

To order to do difficult tasks, one or more drones may band together to form a drone cluster. The cluster of drones can utilize sensors to collect physical data and embedded cameras to shoot photographs and films in the field. Drones need to be connected to a control system to transmit or receive commands and information about the state of their flight. Alternatively, by using a representative drone, this communication can happen directly.

3.2 Control System

A Control system can be allocated to and in communication with a drone cluster for the data gathering and command dissemination. The control system is in charge of giving drones instructions to adjust their flight route and various other physical parameters after receiving data from individual drones or drone clusters.

The control system functions as an intermediary that gathers information from drones, encrypts the data to ensure its authenticity, and transmits it to the blockchain network and cloud, both in its original and encrypted forms. The control system also follows the same process for its command data, creating an enduring log for monitoring purposes.

3.3 Cloud Server

The cloud server stores a vast amount of data gathered by the drones, and it conducts real-time processing and analysis to support future decision-making. The database on the cloud server is continuously updated with new information. It holds records of the original drone data, control system commands, cloud server data, and auditor data. Access to the data is monitored, and each entry is marked with a unique fingerprint that is logged in the database. To ensure accuracy, a daemon process checks the information stored in the database and the blockchain network at regular intervals. Both the command and object data are trackable. Once a data breach or leak has been identified, the hostile entity can be traced and tracked down.

The cloud server is in charge of verifying the authenticity of data receipts by requesting a blockchain receipt from the blockchain network, which serves as a permanent record of data integrity. The cloud-based back-end system may also recover precise and quick feedback for additional drone manipulation, such as drone path routing, by utilizing machine learning algorithms. In the interim, advanced persistent threats (APTs) [6] and distributed denial of service (DDoS) attacks [7] can be early detected by analyzing the communication data between the server and the drone’s control system as well as between those two systems.

3.4 Ethereum Blockchain

The blockchain is a decentralized network that is deployed for data validation and reliability. The blockchain network can be put to three different uses. For integrity protection and to ensure stability, each hashed data entry for the information gathered by drones and the instructions from the control system is uploaded to the blockchain network. Additionally, every database access and cloud server feedback transaction will be recorded on the blockchain for future auditing or study. Along with keeping the data records forever, a blockchain receipt will be given for data confirmation.

3.5 Data Security

Potential weaknesses have been examined for the implementation of Drone systems to provide a secure-aware architecture for drone data gathering and communication. The cloud server keeps a database to store data gathered by drones, but due to recognized flaws in cloud operating systems, it cannot ensure that data records will remain unmodified. Data security is done in two phases. In the first phase, data is encrypted using a hash function and then stored on the blockchain. Once the drone system is activated, the cloud server will be able to track the data, and the auditor will be given access to all the data operations, control orders, and monitoring data for the drones. The auditor, however, cannot be trusted. Hence, the gathered information or data can be altered.

Since the primary goal of a drone system employing blockchain is to safeguard the data. Hence, data is encrypted and stored in a chain of blocks, so that unauthorized users cannot access the data. To collect data through drones, they need to register first. Algorithm 1 presents the Pseudo Code for Drone Registration smart contract for registering drones and control systems. For data storage on the cloud, encryption is done through encryption keys. Encryption keys are described as follows:

•   Registration Keys. The Drone needs to be registered with the system while collecting data. The Key for registration is denoted by KeyD. Every time a new data recordis generated, the registration key is needed. Similarly, the registration key for the control system is KeyC.

•   Data Encryption Key (KeyE). Following registration, the drone creates the encryption key KeyE that will be used to encrypt all of the data. Drone encrypts data entries when they are made, allowing only authorized key holders to view the data. The hashed data entry will be stored on the blockchain each time a new data input is made.

•   Data Access Public/Private Key Pair (KeyPB, and KeyPR). To access data, a public/private key pair is produced, designated as (KeyPB, KeyPR). In certain situations, the private key is utilized to produce an operator fingerprint that confirms the source of the data when recording data access activity on the blockchain. The public key is then used by the other parties to validate the stated origin.

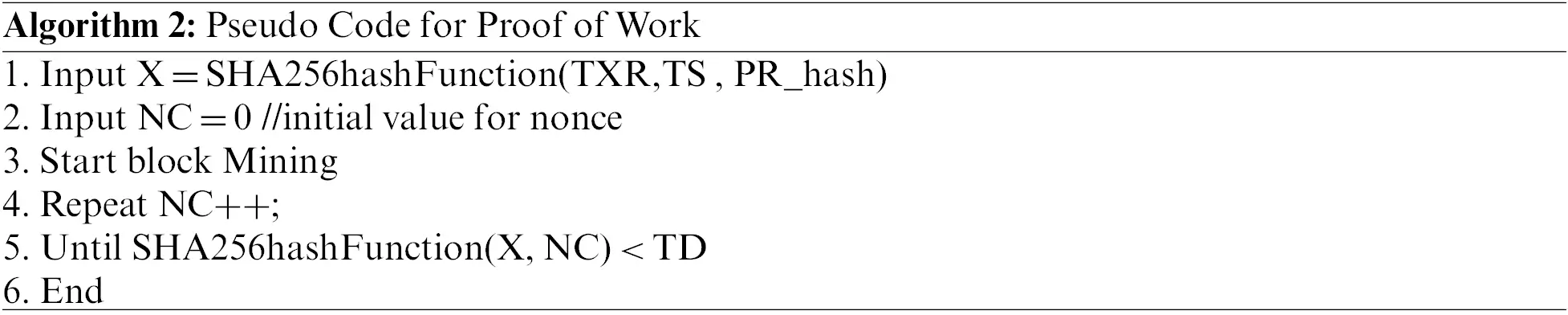

The second phase of security is provided through a consensus algorithm embedded in the Ethereum blockchain itself. Proof of Work (PoW) consensus algorithm pseudo-code is presented in Algorithm 2. For hashing SHA256 hashing function is used which takes three inputs root node transaction, timestamp of the transaction, and previous node hash. Nonce (NC) will be initialized by 0. Mining of the block will continue until the target difficulty (TD) is greater than the new block. In this way, a new block can be added if 51% of nodes agree on that.

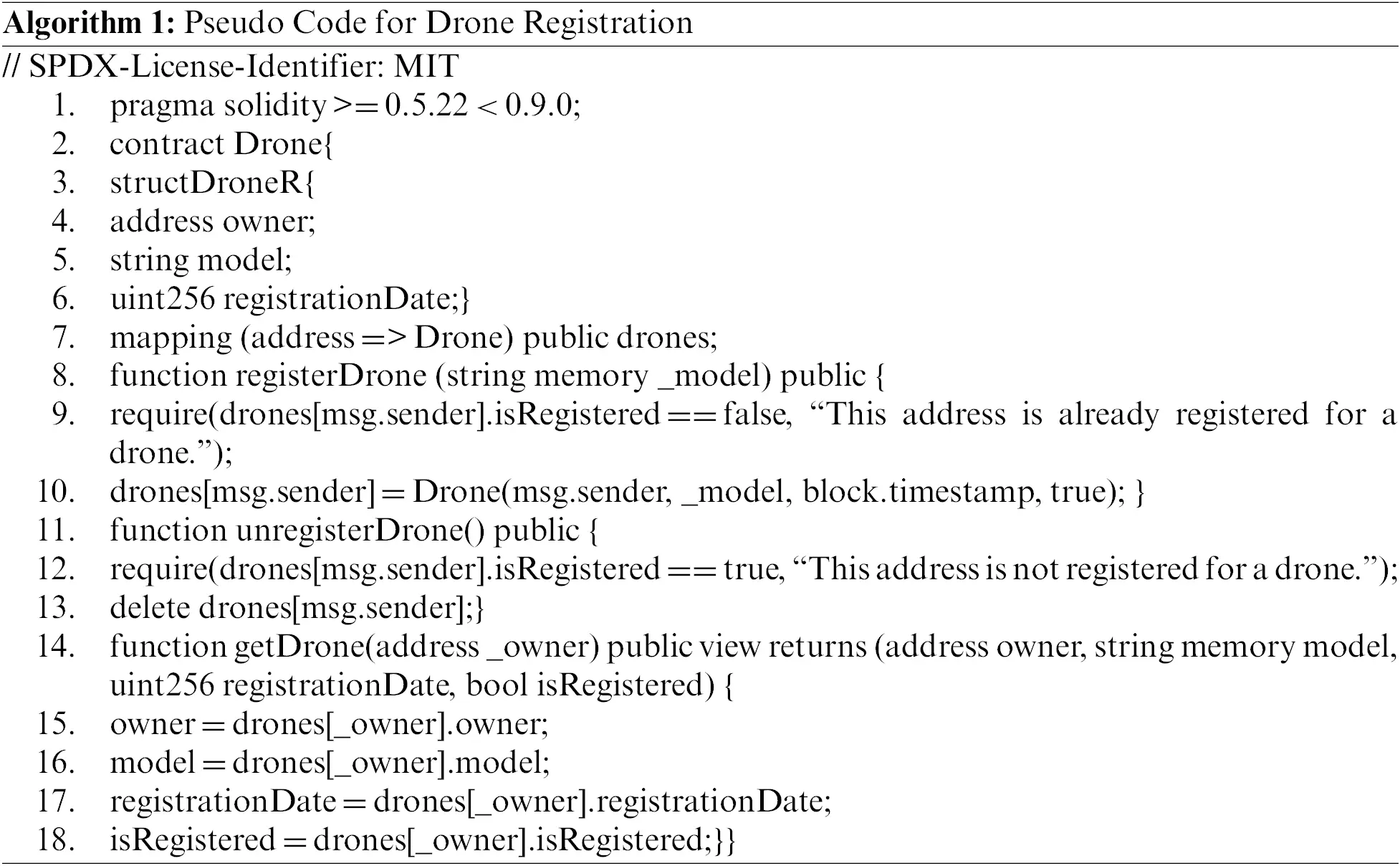

The contract defines a DroneRstruct, which contains information about the drone’s owner, model, registration date, and whether or not it’s currently registered. The contract uses a mapping to associate each drone owner’s Ethereum address with their Drone struct.

The register Drone function allows a drone owner to register their drone by providing the model of their drone. The function checks to make sure that the sender’s address is not already registered for a drone and then adds the new drone to the mapping.

The unregister Drone function allows a drone owner to unregister their drone by deleting the Drone struct associated with their Ethereum address. The getDrone function allows anyone to query the contract to get information about a particular drone owner’s drone. The function takes an Ethereum address as input and returns the drone owner’s address, model, registration date, and whether or not the drone is currently registered.

4  Implementation Results

The Drone implementation process consists of seven steps as described below:

4.1 Drone and Control System Registration

The drone must register in our system as a node to save data gathered from a specific place. After registration, the phase of data gathering begins, and each drone will be given a special ID. The device ID will be connected to each data record. The type of data could include measurements, videos, or pictures. Each data record is treated as an object for ease of use and hashed before uploading to the blockchain network. The original data is simultaneously saved in a local database for later retrieval. For the control system to forward hashed data on the blockchain, the drone must first be registered.

4.2 Data Transmission Through System Controller

The data entry can be created as a tuple consisting of the following elements: DeviceID, Time, Location, and Data for each data record that is acquired from the drone. The system controller will transmit the tuple to the blockchain network after receiving it. It will also reply with a few commands based on the facts and task at hand. The tuple “ControllerID, Time, Location, Command” will be used to store the commands together with other information on the blockchain.

4.3 Blockchain Receipt Generation

A blockchain transaction will be created once a drone’s acquired data record is transmitted to the network via the controller. The data management system can now perform future validation, tracking, and auditing thanks to this. The blockchainwill batch together some data items into a transaction. A new block will be created using a list of the transactions and confirmed by blockchain nodes. After the block has been verified, it will be included in the current blockchain and become a part of a tamper-proof ledger. Information regarding the blockchain transaction that was utilized to validate the transaction is included in the blockchain receipt. Fig. 2 displays a sample transaction details receipt.

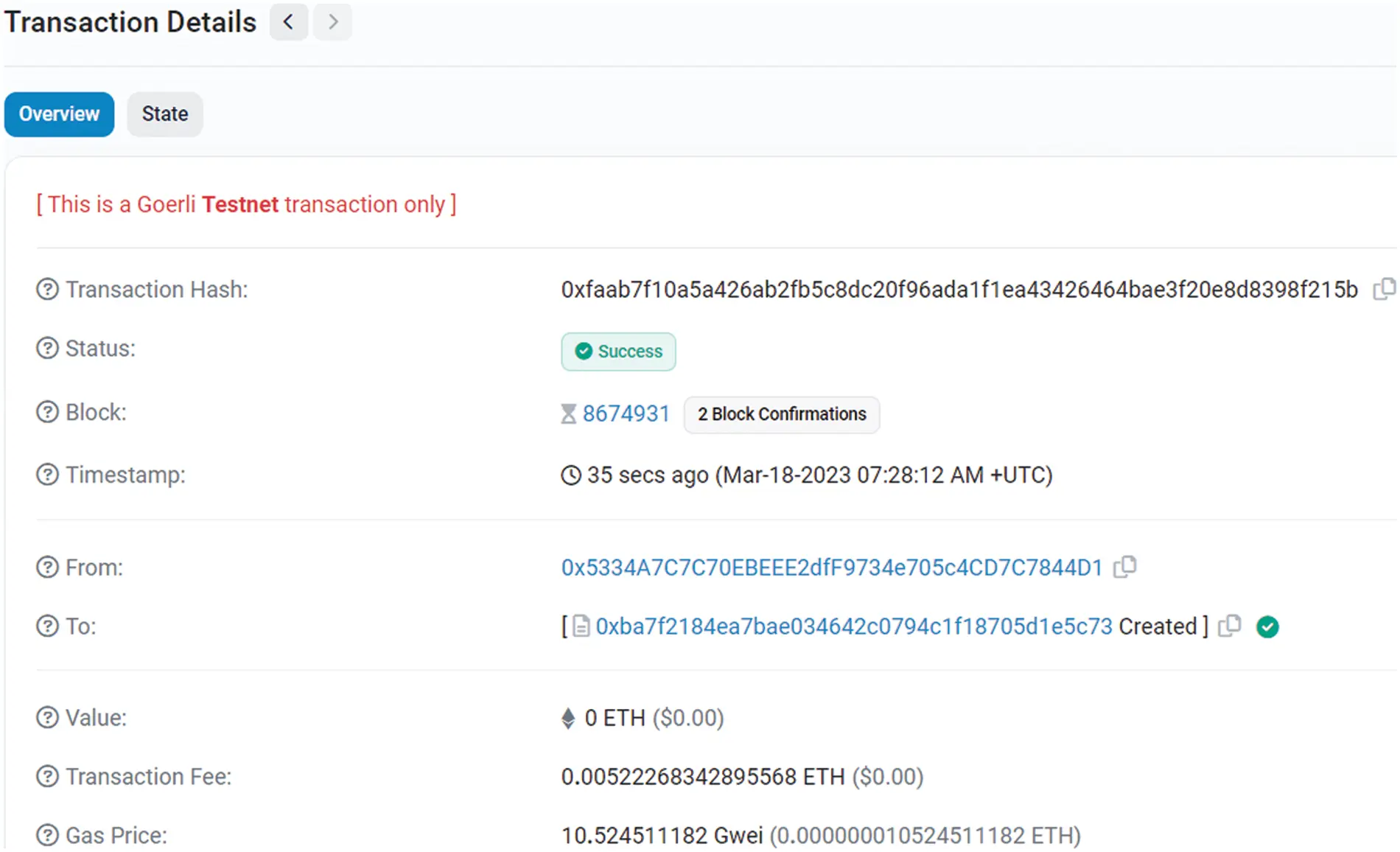

Figure 2: Transaction details receipt

4.4 Cloud Data Validation

As each record is instantly stored in the cloud, the integrity of the data can be regularly verified. This is done by comparing the computed hash to the target hash from the blockchain transaction detail receipt, which is obtained by regularly communicating with the blockchain network. This confirmation process applies to every record.

If an inconsistency is found, the record might be thought to have been compromised. Target hash, Merkle root, and the evidence from the blockchain details receipt are used as inputs to validate the data records. Reconstructing the Merkle tree from the blockchain receipt to calculate the Merkle root is the most crucial step [3]. In the blockchain network, each data record is kept alongside other records as one transaction. The evidence section of the receipt shows how each record from the same transaction is related to the others. For instance, the left node denotes that its record is anchored in the right node and that its record is collected earlier. The block index is represented by the transaction attribute height, and Block Explorer [4] provides the precise block.

4.5 Auditing of Data and Decision Making

Data auditing and decision-making can be initiated based on the trustworthy data set once the cloud data is accessible for validation. The data records are kept in chronological order and are traceable to a reliable data source. Depending on the drones’ application circumstances, either synchronously or asynchronously. Data auditing is essential for spotting irregularities in the command records from the cloud server and control system. Effective actions to prevent and mitigate APT assaults or DDoS attacks can be made based on the auditing results.

4.6 Experimental Environment

Remix Ethereum IDE environment setting

1.    Environment: Javascript VM

2.    Account: Administrator’s account (0xCA35b7d915458EF540aDe6068dFe2F44E8fa733c)

3.    GAS Limit: 3000000

4.    Value: in wei (100)

5.    Contract: Solidity Contract (Drone)

6.    Address: deploy address of contract (0x14723A09ACff6D2A60DcdF7aA4AFf308FDDC160C)

7.    Solidity: Version of solidity (>= 0.5.22 < 0.9.0)

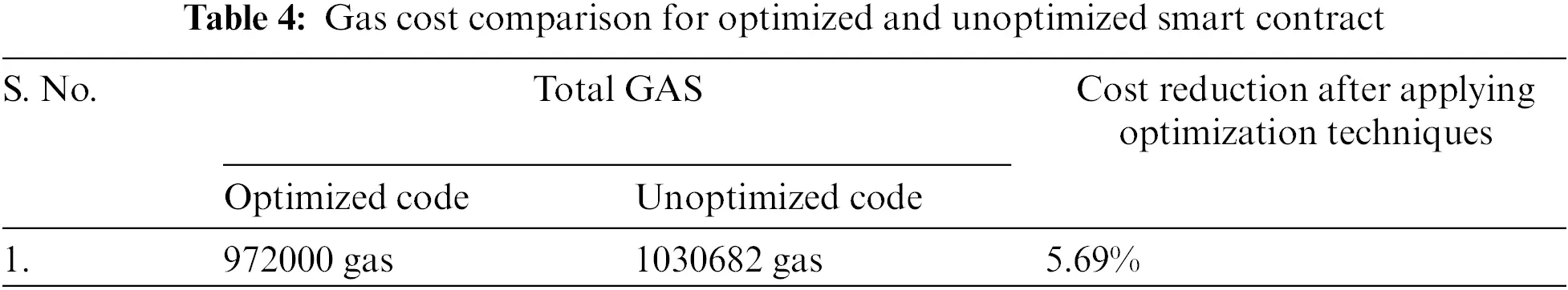

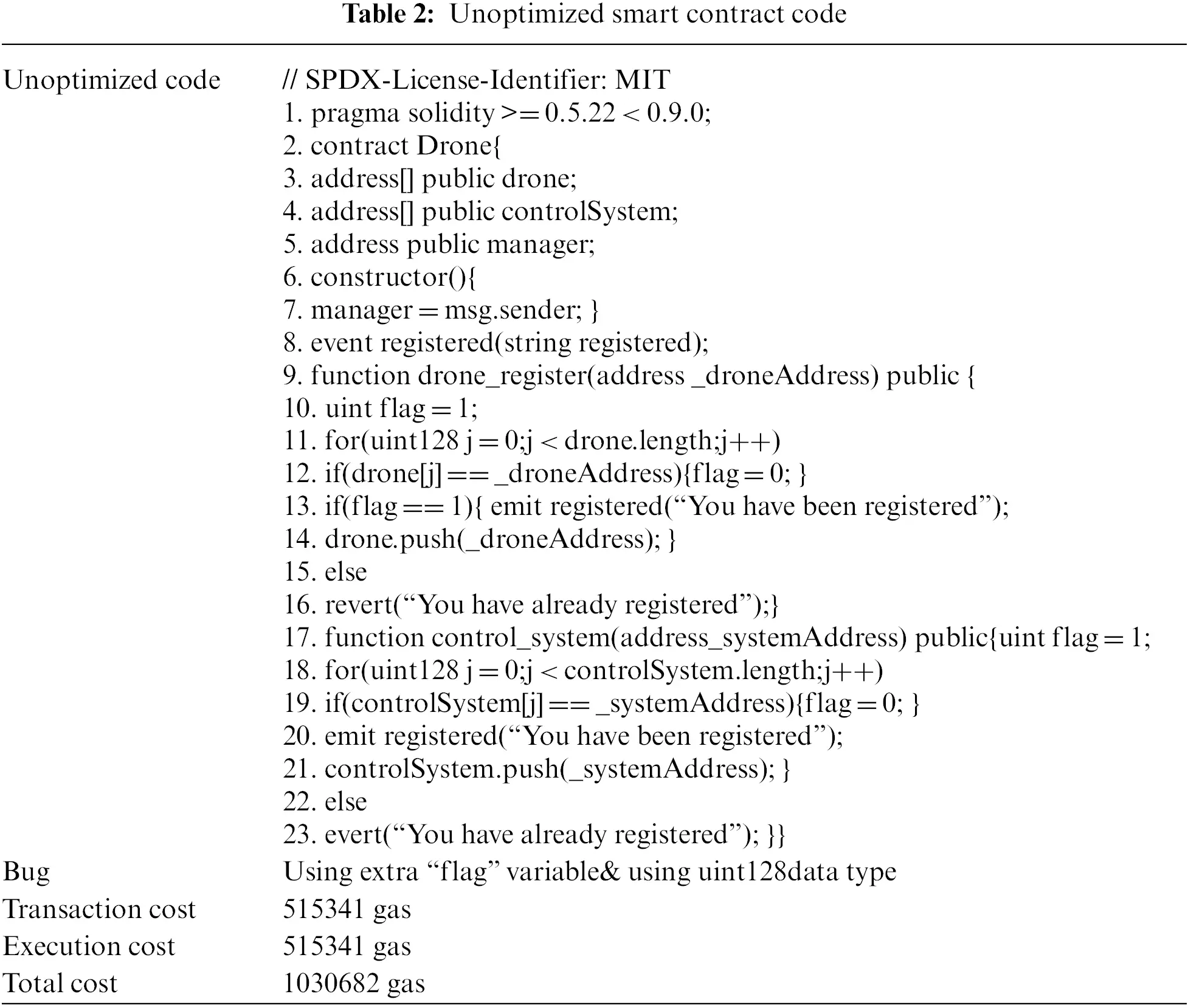

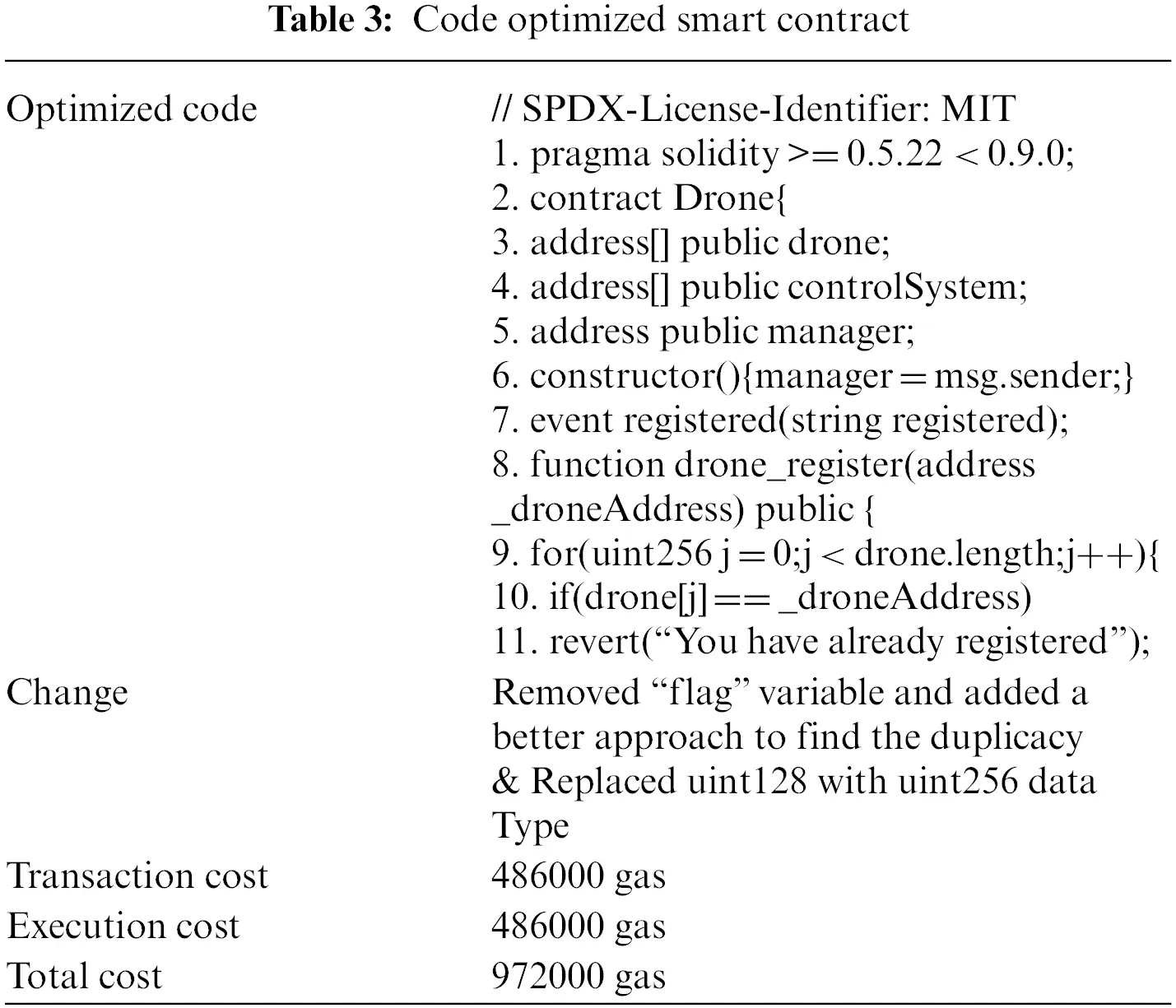

4.7 Gas Optimization for Smart Contract

In this section, the gas optimization for smart contracts is shown below in Tables 2 and 3. The execution of programmable code on a blockchain is made easier by smart contracts. Gas is a resource that is metered according to the cost of executing smart contract code; the precise quantity depends on how computationally intensive the underlying smart contract is. Therefore, it is crucial to optimize smart contract codes to cut down on gas usage and, in some cases, even prevent harmful assaults.

As the Ethereum platform is being used for the implementation of the application, Ethers will be consumed. Cost of 1 Ether = 1,548.95 USD (as of date 15/02/23). Hence, a 5.69% reduction in GAS will be reduced much in amount. It can be observed from Table 3 that a small registration smart contract code saves 5.69% on gas cost, hence more gas cost can be saved for smart contracts by applying different methods of optimization.

4.8 Discussions

In this work, a drone system architecture has been built. Registration for drone systems, and control systems, a smart contract has been created as shown in Algorithm 1 required transaction details have been shown in Algorithm 2, Tables 3 and 4 presents the optimized and un-optimized code for smart contract. In the optimized code, the variable flag has been removed and replaced uint128 data type with uint256 which in turn reduced the gas cost by 5.69%.

As the Ethereum platform is being used for the implementation of the application, Ethers will be consumed. Cost of 1 Ether = 1,548.95 USD (as of date 15/02/23). Hence, a 5.69% reduction in GAS will be reduced much in amount. It can be observed from Table 4 that a small registration smart contract code saves 5.69% on gas cost, hence more gas cost can be saved for smart contracts by applying different methods of optimization.

5  Conclusions

The potential applications for UAVs keep growing. UAVs will play an important role in the growth and operation of smart cities in the future. It can result in service improvements from companies and franchisors. However, after realizing the amazing things that drones are capable of, many have even begun to utilize this technology. UAV networks are vulnerable to numerous threats since they transmit important data. Their implementation necessitates secure and resilient UAV networks since it demands private and dependable UAV communications.

This study suggests a blockchain-based approach to enhance the security and reliability of the UAV ad-hoc network. By leveraging blockchain technology, data security is ensured, and the network is safeguarded against malicious nodes attempting to infiltrate it. Moreover, both GCS and UAV nodes can detect any attempts at manipulating the data. A smart contract implemented in the Ethereum network can address a variety of issues in the UAV network, including blackhole and grey hole attacks, as well as data eavesdropping. Potential future enhancements for the system include developing different response mechanisms for each type of attack. The proposed method proved to be more effective that the existing approaches available.

Acknowledgement: The authors extend their appreciation to the Deanship for Research & Innovation, Ministry of Education in Saudi Arabia for funding this research work through project number: IFP22UQU4281768DSR205.

Funding Statement: This research was supported by the Deanship for Research & Innovation, Ministry of Education in Saudi Arabia with the Grant Code: IFP22UUQU4281768DSR205.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
