Optimal Deep Convolutional Neural Network for Vehicle Detection in Remote Sensing Images

1  Introduction

Object detection (OD) was considered a basic issue in remote sensing image (RSI) analysis. Latest developments in software and hardware abilities enabled the advancement of robust machine-learning (ML) related OD methods. To be specific, deep learning (DL) methods gained attention because of their higher potentiality to extract more abstract and descriptive feature data representations from original input units [1]. On the contrary utilizing shallow structures and conventional hand-crafted feature processing, DL techniques present a larger array of very deep architectures on the basis of stacking layers that derives increasingly complicated and abstract features from the inputs in hierarchical and successive manner [2,3]. From this perspective, convolutional related neural methods illustrated a more generalizing power with a powerful and automated feature extracting ability, permitting them to attain an extraordinary performance and deploying as the recent several missions with regard to computer vision (CV), particularly in image classifier roles [4]. Dissimilar to the natural scene image, remotely sensed images contain greater scale variations and higher feature complications in distinct observation circumstances, which needs larger generalizing of object detectors. DNN-related detection techniques are currently being launched from the CV domain to remote sensing domain and gained high grades on multi-class OD [5]. Yet, the great object scale variation in multi-resolution RSIs till now contributes to a greater barrier for object detectors.

OD in RSIs serves a significant part in many military and civilian applications, like search-and-rescue operations, urban planning, and geographical information system upgrading [6,7]. RSI vehicle detection intends for detecting every instance of vehicles in RSIs. In previous techniques, authors generally extracted and devised vehicles feature physically and categorized them for attaining vehicle detection. The main ideology was extracting features of the vehicle and employing traditional ML techniques for categorization [8,9]. But classical target detecting techniques receive higher interest in the conclusion of RSI vehicle detection missions, and it finds it hard for balancing speed and accuracy [10]. When comparison is made to that of conventional techniques (template-matching-related techniques, knowledge-related techniques), the DL related techniques derive features automatically from raw data by shifting a load of manual feature model to the underlying learning mechanism, allowing a very strong feature depiction for extracting maximal semantic stages of feature maps. But this merit, DL related detection methods gained more achievements in both remote sensing and CV [11,12].

This study develops an Artificial Ecosystem Optimizer with Deep Convolutional Neural Network for Vehicle Detection (AEODCNN-VD) model on RSIs. The proposed AEODCNN-VD model employs single shot detector (SSD) with Inception network as a baseline model. In addition, Multiway Feature Pyramid Network (MFPN) is used for handling objects of varying sizes in RSIs. The features from the Inception model are passed into the MFPN for feature fusion which is then passed into bounding box and class prediction networks. For enhancing the detection efficiency of the AEODCNN-VD model, AEO based hyperparameter optimizer is used. The experimental result analysis of the AEODCNN-VD model is carried out using two benchmark datasets.

2  Related Works

Deng et al. [13] present a unified and effectual approach to concurrently identifying multi-class objects from RSI with huge scales of variabilities. Primarily, the researchers reform the feature extraction by implementing Concatenated ReLU and Inception elements that is improves the variation of receptive field sizes. Afterward, the recognition was executed by 2 subnetworks they are a multiscale object proposal network (MS-OPN) to object like region generation in many intermediate layers, which corresponding field equal distinct object scales, and accurate OD network (AODN) to OD dependent upon fused feature map that integrates many feature map which allows smaller and densely packed object for producing stronger response.

Zhou et al. [14] established the polar coordinate model for the DL detection for the very first time, and present an anchor free Polar Remote Sensing Object Detector (P-RSDet) that is attained competitive recognition precision utilizing easier object representation method and lesser regressing parameter. In P-RSDet approach, arbitrary-based OD is gained by forecasting the mid-point and regressing 1 polar radius and 2 polar angles. In [15], the authors present YOLOrs: a novel CNN, specially planned for real-time OD from multi-modal RSI. YOLOrs are OD at several scales, with lesser receptive domains to account for smaller targets, and forecast target orientation. Besides, the YOLOrs establish a new mid-level fusion structure which renders it applicable for multi-modal aerial imagery.

The authors in [16] enhance the YOLOv4 network and current a novel method. Primary, the authors present a classifier setting of non-maximum suppression threshold for increasing the accuracy with no effect on the speeds. Secondary, the author analysis the anchor frame allocation issue from YOLOv4 and presents 2 allocation methods. In [17], Domain Adaptation Faster R-CNN (DA Faster R-CNN) technique was presented to detect aircraft from RSI. Two domain adaptation frameworks were devised and chosen as the standards of similarity measurements among domains. Adversarial training has been implied for alleviating the shift of domain. Ye et al. [18] advance a convolution network method that has an adaptive attention fusion mechanism (AAFM). The method was suggested on the basis of the backbone networks of EfficientDet. At first, as per the object distribution characteristics in datasets, the stitcher can be implemented for making single image that has various scales objects. This process could potentially balance the proportion of multiscale objects and manages the properties of scale variables.

3  The Proposed Model

In this study, a new AEODCNN-VD approach was established for the identification of vehicles accurately and rapidly on RSIs. The proposed AEODCNN-VD model primarily utilized an SSD based object detector with Inception network as a baseline model. Besides, the features from the Inception model are passed into the MFPN to multiway and multiscale feature fusion, which are then passed into bounding box and class prediction network. At the final stage, the AEO based hyperparameter optimizer is used for Inception network.

3.1 Overview of SSD

The SSD utilizes the decreased VGG-16 as based network and added more convolutional layers to end of it. After choosing any layers of distinct sizes in more added convolutional as well as based layers for predicting score and offset to any default boxes (DB) on all the scales. These forecasts were created by single convolutional layer, and the amount of convolutional kernels to these layers are compared with the amount of DBs and the amount of forecast classifications [19]. While the RRC and RON declared, that the semantic data of shallow layers of SSD was restricted, resultant in the efficiency of shallow layers in identifying smaller objects is future weaker than the efficiency of huge ones from the deep layers. Enhance in resolution permits the system for extracting comprehensive features. Another issue is that higher resolution images require CNNs with further layers, for instance, depth scaling. The reason behind deeper network was superior receptive field is extracting similar features which contain further pixels from higher resolution images. The width of network (count of channels) is improved for acquiring the fine-grained feature from the image. Thus, the standard VGG net was exchanged by Inception network. Fig. 1 depicts the structure of SSD.

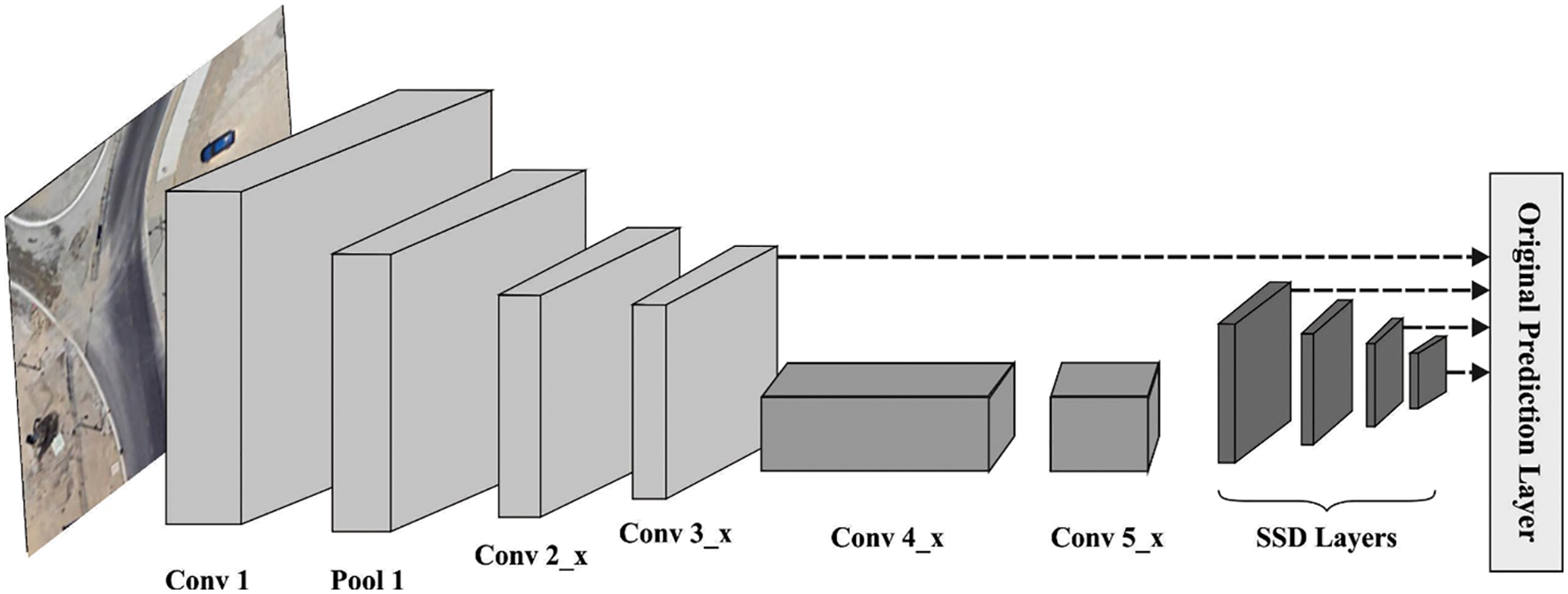

Figure 1: Structure of SSD

3.1.1 Multi-Scale Feature Maps for Detection

Here, convolution feature layers are added subsequent to truncated base network and those layers progressively reduce in size and enable prediction of detection at different scales. The convolution models to predict detection is diverse for all the feature layers and YOLO function on an individual scale feature map.

3.1.2 Convolution Predictor for Detection

Every added feature layer produces a determined set of prediction detection through a group of convolution filters. They are specified on top of SSD network structure. For a feature layer of m × n size with p channels, the building blocks to predict parameter of possible detection is a 3 × 3 × p smaller kernel that generates a score, or a shape offset in relation to DB coordinate. At every m × n position, whereas the kernel was employed, it generates a resultant value. The bounding box offset resultant value is evaluated in relation to DB location in relation to every feature map place that exploits an FC layer rather than a convolution filter.

3.1.3 Default Boxes and Aspect Ratios

In this method, relate a group of default bounding boxes with every feature map cell, for several feature maps at the top of network. The DBs tile the feature maps in a convolution process, such that the location of all the boxes in relation to their respective cell was set. In every feature map, it can be forecast the offset in relation to the DB shape in the cell, along with the per-class score indicating the existence of class sample in every box.

3.2 Base Network: Inception Model

CNN has made remarkable successes in image processing and OD. The weight sharing greatly decreases the learned free parameter count thus minimizing the storage requirement for network functioning and enabling the training of wide-ranging, more powerful network. A CNN encompasses pooling, fully connected normalization, and convolution layers. At all the layers, the X∈Rn×m input image is convoluted by a collection of K kernels {Wk∈Rv×v,k=1,2,⋯,K} and bias {bk∈R,k=1,2,⋯,K} is added, which produces a novel Xk feature map using an element-wise nonlinear conversion σ. Likewise, the procedure is reiterated for l convolutional layers,

Xkl=σ(Wkl⊗Xl−1+bkl)(1)

From the expression, ‘⊗’ is represented as discrete convolutional operator, and the specific type of operation has different versions like ‘valid’ convolution, ‘extra’ convolution, ‘same’ convolution, fractionally stridden convolution, stridden convolution, etc. Usually, convolutional layer is replaced by pooling layer where the pixel values of neighborhood are aggregated through per-mutation invariance function, generally max or average operation that provides alternate means of translational invariant.

Sk(l)=Pooling(Xk(l))(2)

Eventually, convolution and max-pooling layers, the highest-level reasoning in the NN has been done through FC layer, from which the weight is shared again. The considerable decline in the weighted parameter amount and the translation invariant of learned features contributed to the capability of CNN to be trained end-to-end.

Inception is a model in GoogleNet and it was approved to be better in complex image classification tasks [20]. It has multiscale convolutional kernel for extracting the feature from the input image by incrementing the number of convolution kernels and introducing multiscale convolution kernel. The inception model had been enhanced with respect to accuracy and speed. There exist different editions of Inception: Inception ResNet, Inception V1, V2, V3, and V4, which is an iterative evolution of the preceding version. Generally, a lesser variant of Inception model works better in classification tasks. As demonstrated, 1 × 1, 3 × 3, and 5 × 5 convolution kernels are utilized for convoluting the output of upper layer simultaneously to form a multiple branch structure. Feature maps attained from the dissimilar branches are later concatenated for obtaining classification feature of an input image. Processing the operation simultaneously and integrating each result will lead to better image depiction. For making the feature maps have a similar size, all the branches adopt the similar padding mode using the stride of 1. The 1 × 1 convolutional process is utilized beforehand 3 × 3 and 5 × 5 and afterward Max-pooling to decrease the calculation count. Fig. 2 depicts the process of Inception model.

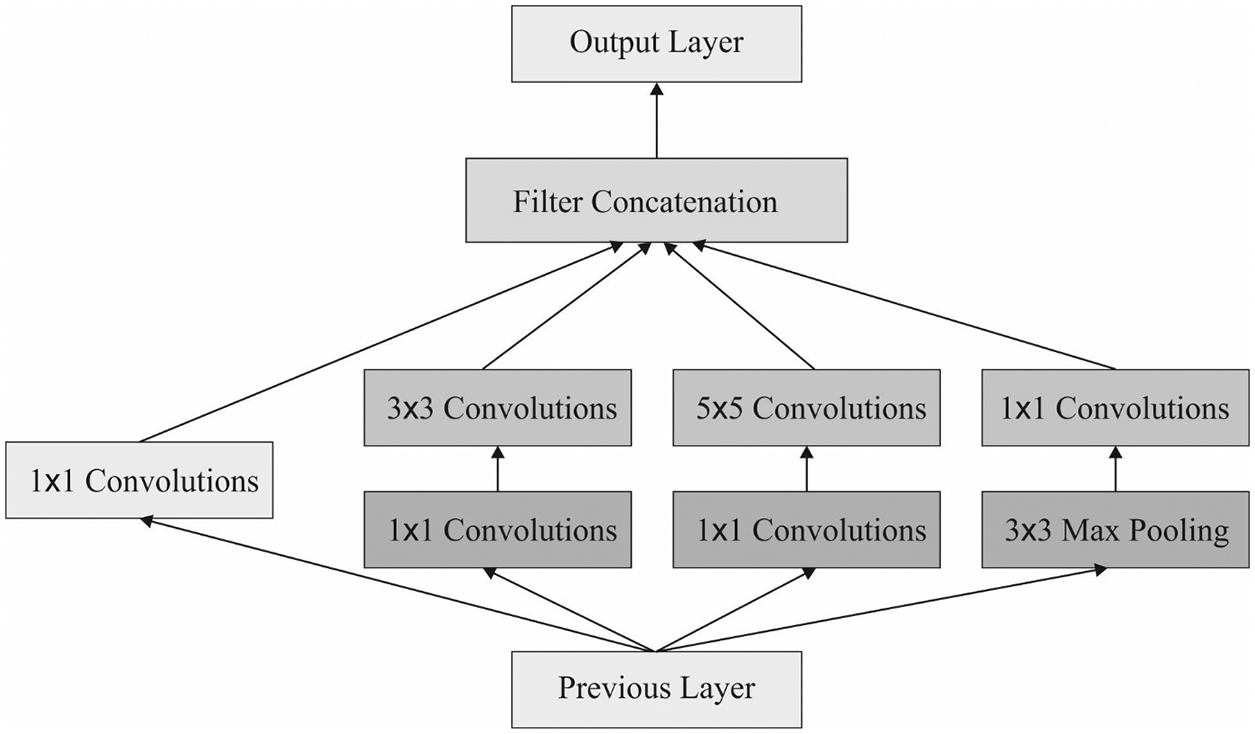

Figure 2: Process of Inception model

3.3 Multiway Feature Pyramid Network

In SSD, when the feature extracting stage, it can attain a feature layer of sizes x×y with n channels (8×8 or 12×12 or superior) [21]. After that 3×3 convolutional was executed on x×y×n feature layer for obtaining fused features in several scales. It can be changed this further feature layer with MFPN which groups feature at distinct resolutions. MFPN permits the detection features for flow from several paths for obtaining superior fused features. The feature detection at several resolutions does not continuously pay a similar weightage for outcome of method. Further weights were allocated for all the input layers that the network acquires the importance of all the filter fusion procedures. Rather than standard convolutional, it can be executed depth-wise detachable convolutional. Steps to fuse lower-level features with higher-level features were provided under:

     i)  The nodes with one input edge don’t require some feature fusion. Thus, the nodes were distant.

    ii)  When the input as well as output nodes are at a similar level, then a further edge was additional among them.

   iii)  The 2-way path was constructed that is repeated several times for obtaining superior feature fusion.

    iv)  Execute weight fusion provided as:

O=∑mwm∈+∑nwn.Im,(3)

(v)   Combine MFPN multiscale connection with weight fusion as provided under:

Fintern=Convol(w1⋅Finn+w2⋅Resize(Finn+1)w1+w2+∈)(4)

Foutn=Convol(w1′⋅Finn+w2′⋅Fintern+w3′⋅Resize(Foutn−1)w1′+w1′+w1′+∈)(5)

In where Fintern denotes the feature at middle level n on top-down paths of MFPN and Foutn implies the resultant feature at level n on bottom-up paths of MFPN.

3.4 Hyperparameter Optimization

In order to effectually choose the hyperparameter values of the Inception model [22–24], the APO algorithm is utilized. AEO is based on the three energy transfer techniques including decomposition, consumption, and production in the ecosystem [25]. In the production method, the operator enables AEO to randomly generate a new individual that replaces the prior one among an individual (r(U−L)+L) and the best individual (xn) randomly produced in the searching area and it is formulated by the subsequent Eq. (6):

x1(t+1)=(1−(1−tT)r1)xn(t)+r1(1−tT)(r(U−L)+L)(6)

Let, the (n) and T be the size of population and the highest iteration count, correspondingly, the variables (U) and (L) correspondingly represent the lower and upper limits. Further, (r) and (r1) illustrates a random vector and number lies within zero and one. In addition, (r(U−L)+L) and ((1−t/T)r1) demonstrates a position of an individual and linear weight coefficient, that is randomly produced in the searching region correspondingly. During the consumption model, Levy flight is included in nature-inspired algorithm that effectively explores the searching area. Parameter-free random walk named consumption factor using the features of Levy flight.

C=12v1|v2|v1≈N(O,1),v2≈N(0,1)(7)

In Eq. (7), standard distribution with mean (0) and standard deviation (1) can be represented as N(O,1). Thus, the consumption factors might help various kinds of consumers for adopting three consumption approaches. The initial process is Herbivore, where the consumer consumes the producer. Such behaviors are modeled by the following expression:

xi(t+1)=xi(t)+C⋅(xi(t)−x1(t)),i∈[2,…n](8)

The next process is Carnivore, where the consumer eats a consumer in a random manner using the highest level of energy. Such behaviors are modelled by Eq. (9):

{xi(t+1)=xi(t)+C⋅(xi(t)−x1(t)),i∈[3,…n]j=r([2i−1])(9)

The secondary process is Omnivore, where the consumer eats producer and consumer at a random manner with the highest level of energy and it is given in the following:

{xi(t+1)=xi(t)+C⋅(r2⋅xi(t)−x1(t))+(1−r2)(xj(t)−xj(t)),i=3,…nj=r([2i−1])(10)

During decomposition process, the i-th individual xi location in a population is upgraded, with the decomposer xn location through the weight coefficient (r3⋅r([12])−1 and 2⋅r3−1) and the decomposition factor =3u,u≈N(O,1). Therefore, the process demonstrates exploitation to certain degree since it allows the following location of every individual to spread around the optimal individual and it is formulated by:

{ xi(t+1)=xn(t)+3u⋅((r3⋅r ([12])−1)⋅xn(t)−(2⋅r3−1)⋅xj(t)),i=1,…n,u≈N(O,1)(11)

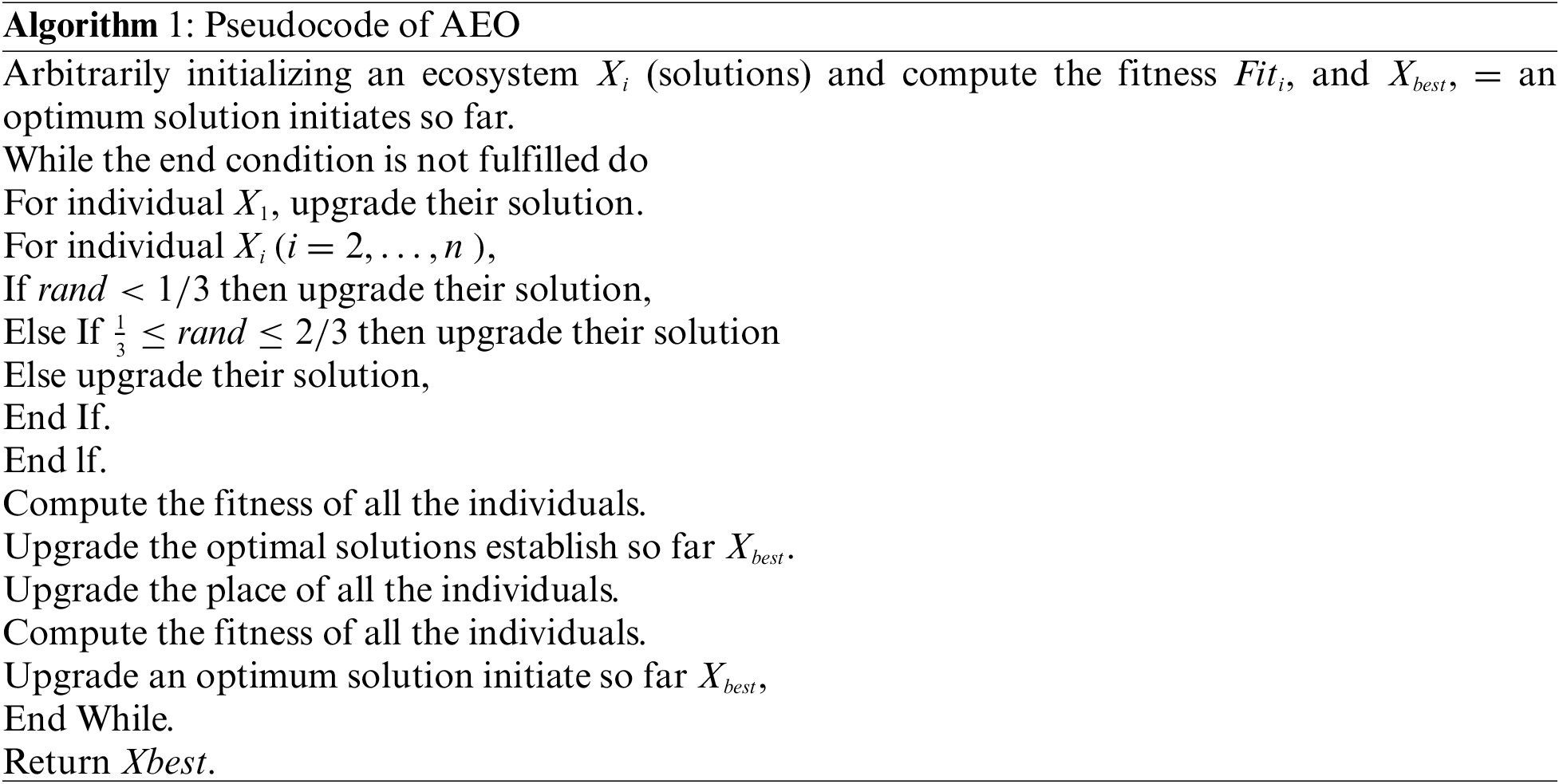

AEO is initiated by producing g a population in a random manner. The initial search individual, at all the iterations, updates their location based on Eq. (6), but, there is an equal probability, for other individuals, to select between Herbivore, Carnivore, and Omnivore as in Eqs. (8)–(10) for updating the position. It is accepted if a better function value is attained using an individual. Next, the location of all the individuals is upgraded based on Eq. (11). In the updating procedure, an individual is arbitrarily generated in the searching space, if it is farther from the lower or upper bounds. Until the AEO process with an end condition is fulfilled, every single update are interactively carried out. At last, the solution of best individual is attained.

4  Result and Discussion

In this section, the vehicle detection performance of the AEODCNN-VD model is tested using two datasets namely VEDAI dataset and VEDAI512 dataset [26]. The VEDAI is a dataset for vehicle recognition from the aerial images offered as a tool to benchmark automatic target detection techniques from unconstrained environments and gathered in Utah, USA.

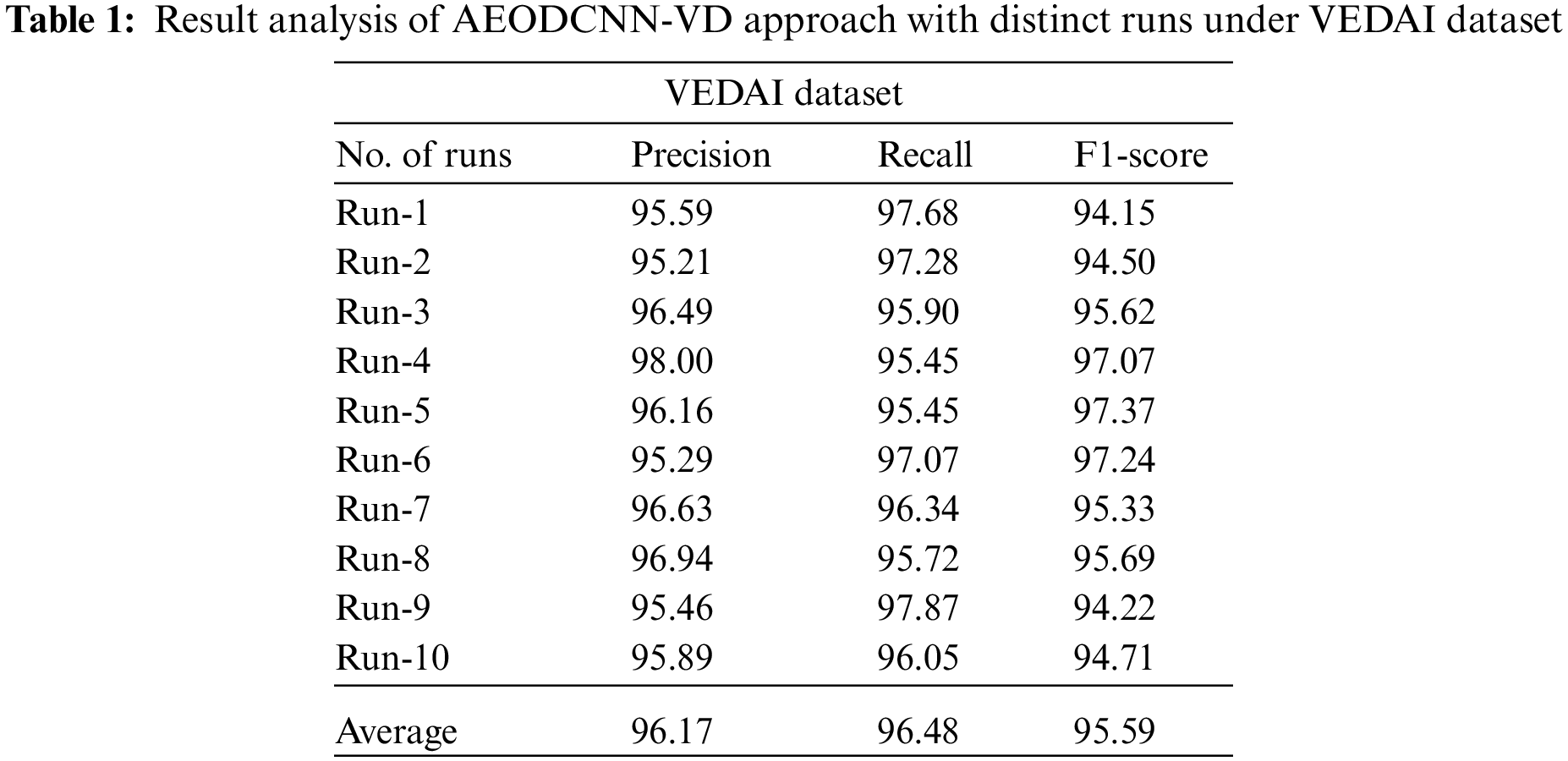

Tab. 1 and Fig. 3 illustrate the vehicle detection results of the AEODCNN-VD model on VEDAI dataset. The experimental results reported that the AEODCNN-VD model has recognized the vehicles properly under every run.

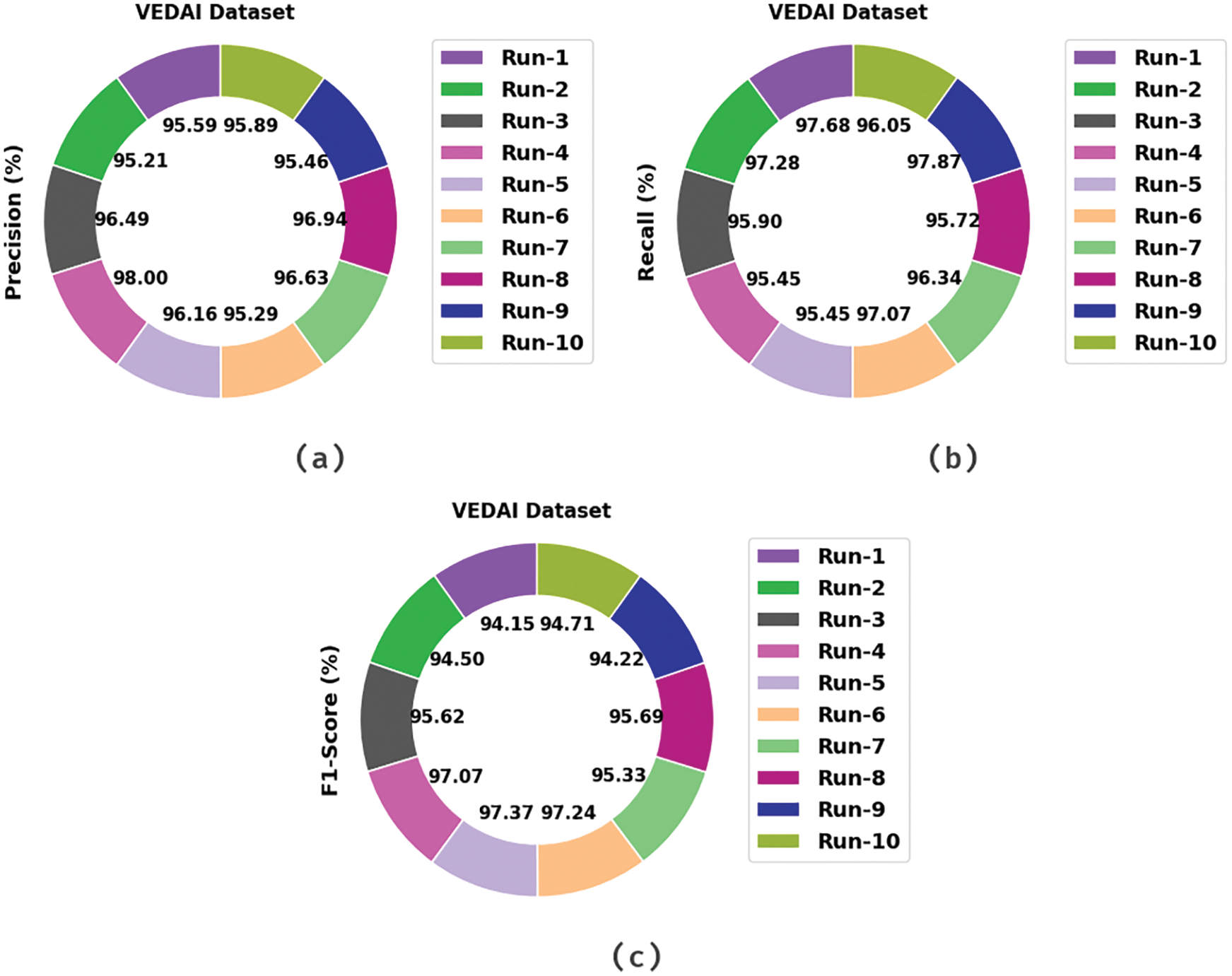

Figure 3: Result analysis of AEODCNN-VD approach under VEDAI dataset (a) Precn, (b) Recal, and (c) F1score

For instance, with run-1, the AEODCNN-VD model has offered precn of 95.59%, recal of 97.68%, and F1score of 94.15%. Meanwhile, with run-4, the AEODCNN-VD approach has obtainable precn of 98%, recal of 95.45%, and F1score of 97.07%. Eventually, with run-8, the AEODCNN-VD system has accessible precn of 96.94%, recal of 95.72%, and F1score of 95.69%. At last, with run-10, the AEODCNN-VD algorithm has obtainable precn of 95.89%, recal of 96.05%, and F1score of 94.71%.

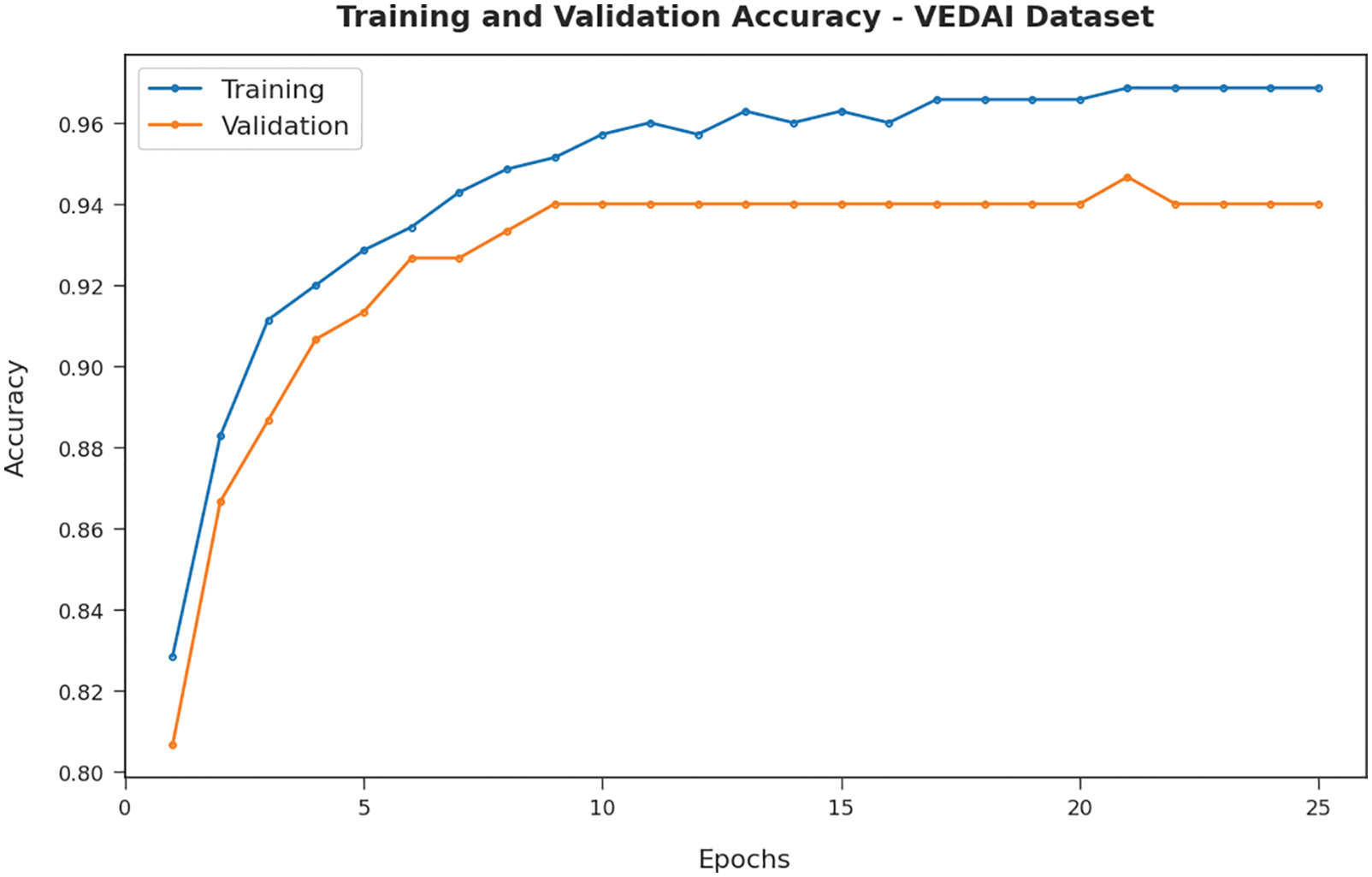

The training accuracy (TA) and validation accuracy (VA) achieved by the AEODCNN-VD approach under VEDAI dataset is demonstrated in Fig. 4. The experimental outcome represented that the AEODCNN-VD algorithm has gained increased values of TA and VA. In specific, the VA has appeared that superior to TA.

Figure 4: TA and VA analysis of AEODCNN-VD approach under VEDAI dataset

The training loss (TL) and validation loss (VL) reached by the AEODCNN-VD approach under VEDAI dataset are established in Fig. 5. The experimental outcome revealed that the AEODCNN-VD methodology has been able least values of TL and VL. In specific, the VL seemed to be lower than TL.

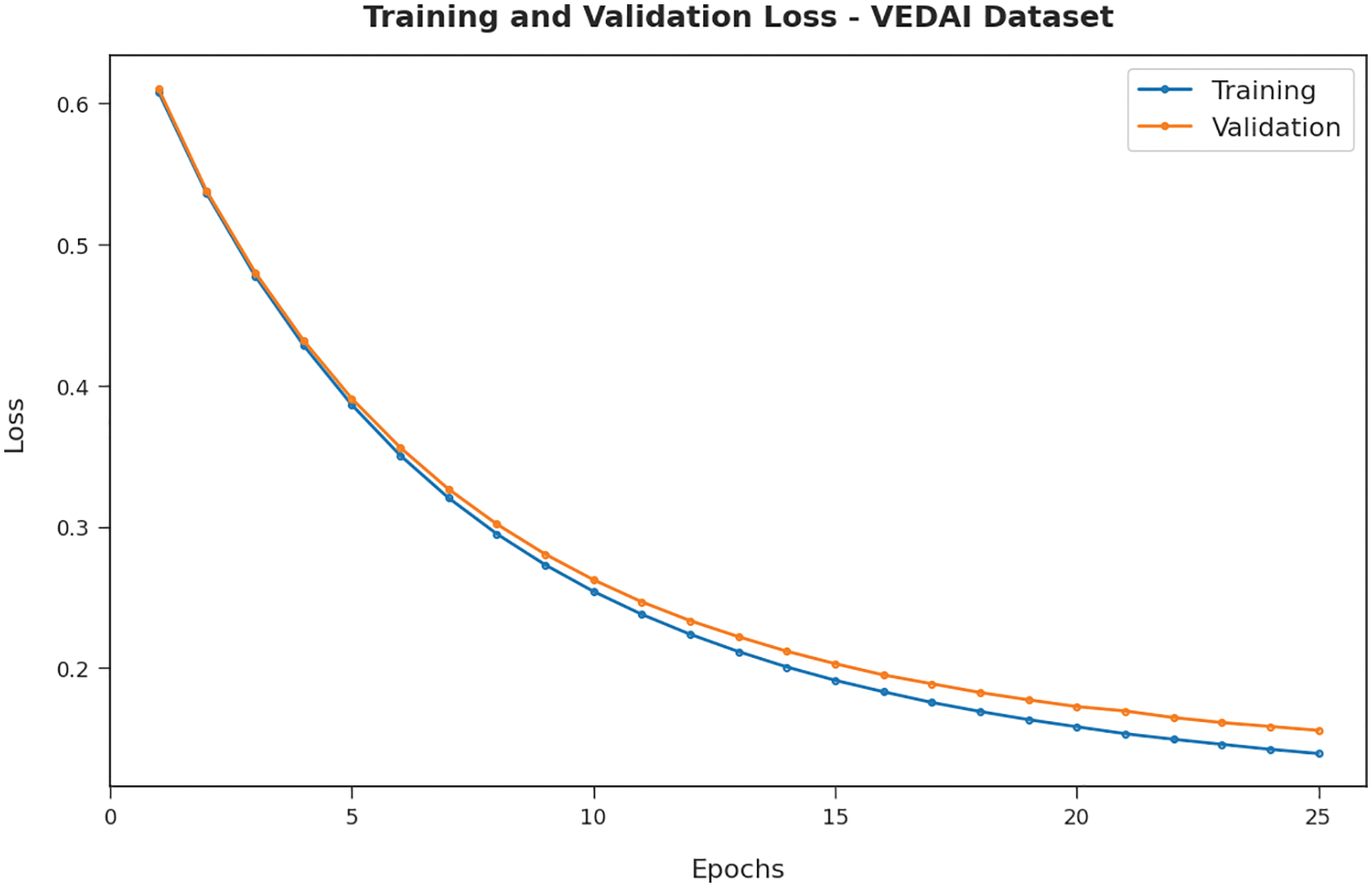

Figure 5: TL and VL analysis of AEODCNN-VD approach under VEDAI dataset

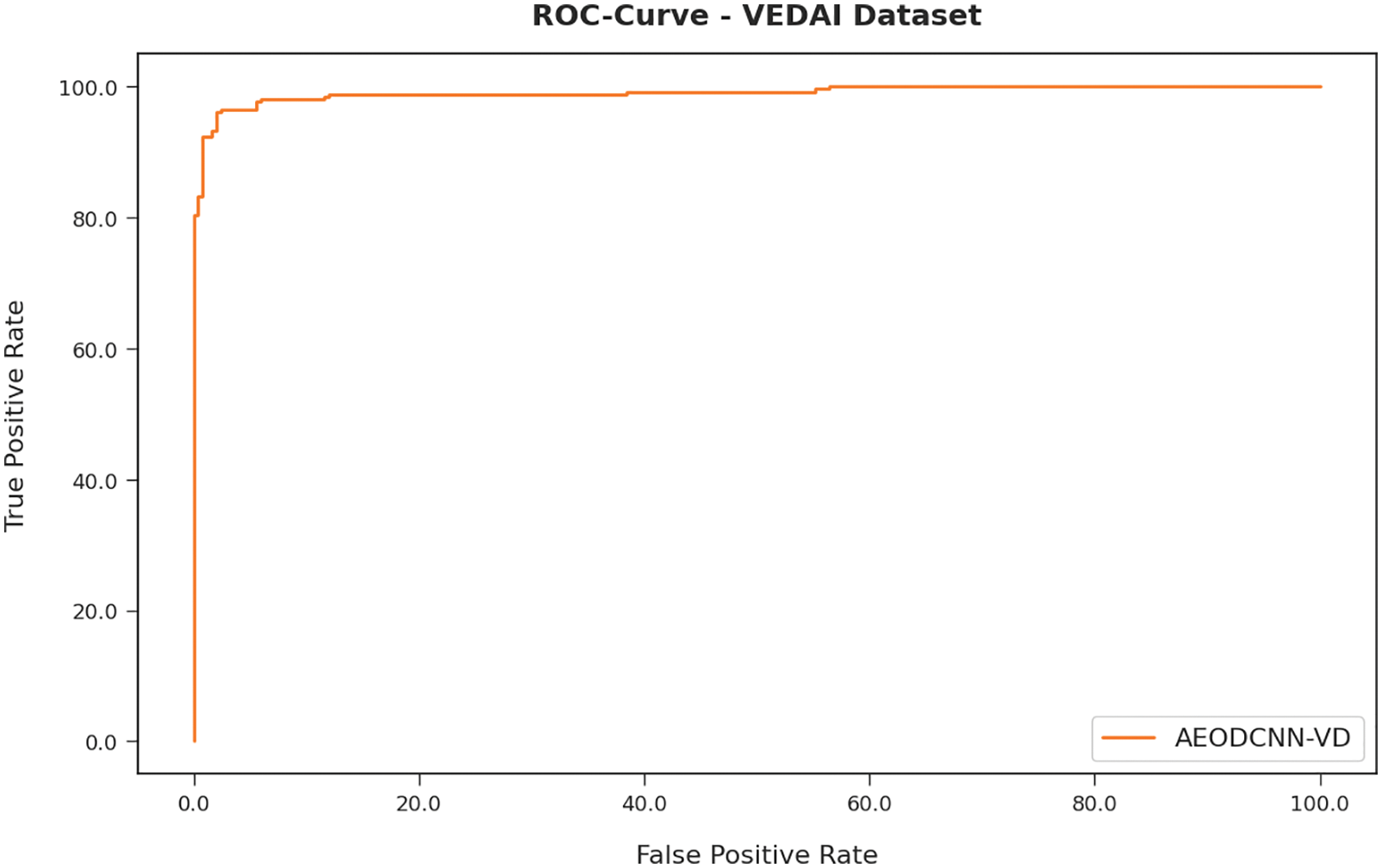

A detailed ROC investigation of the AEODCNN-VD approach under VEDAI dataset is represented in Fig. 6. The figure portrayed that the AEODCNN-VD approach has resulted in proficient results with maximal ROC value.

Figure 6: ROC analysis of AEODCNN-VD approach under VEDAI dataset

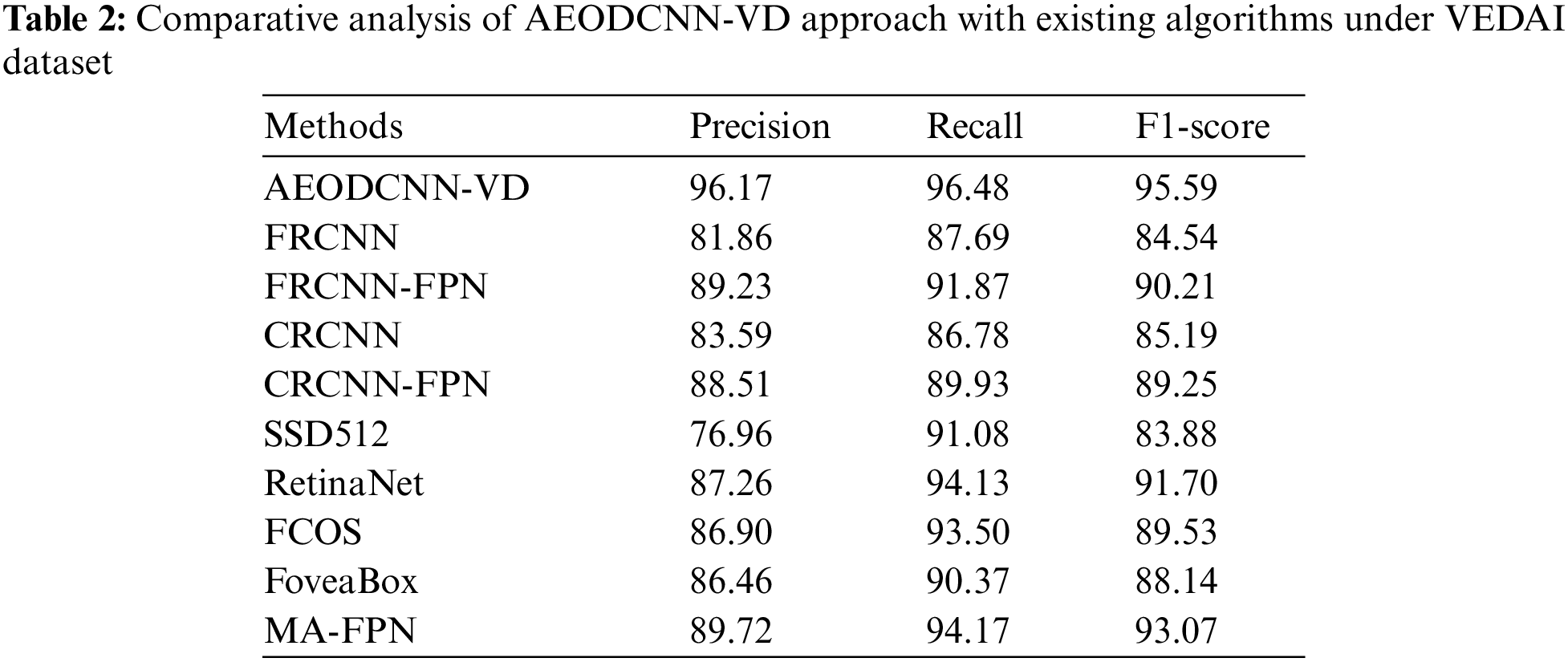

To assure the enhanced detection efficiency of the AEODCNN-VD model, a comparison study is made with existing models on VEDAI dataset as illustrated in Tab. 2 [27]. Fig. 7 illustrates a comparative precn investigation of the AEODCNN-VD model with recent algorithms on VEDAI dataset. The figure implied that the SSD512 approach has shown least performance with precn of 76.96%. Besides, the FRCNN and CRCNN systems have demonstrated somewhat enhanced precn of 81.86% and 83.59% respectively. In line with, the FRCNN-FPN, CRCNN-FPN, RetinaNet, FCOS, FoveaBox, and MA-FPN models have reached reasonable precn of 89.23%, 88.51%, 87.26%, 86.90%, 86.46%, and 89.72% respectively. But the AEODCNN-VD model has outperformed other models with maximum precn of 96.17%.

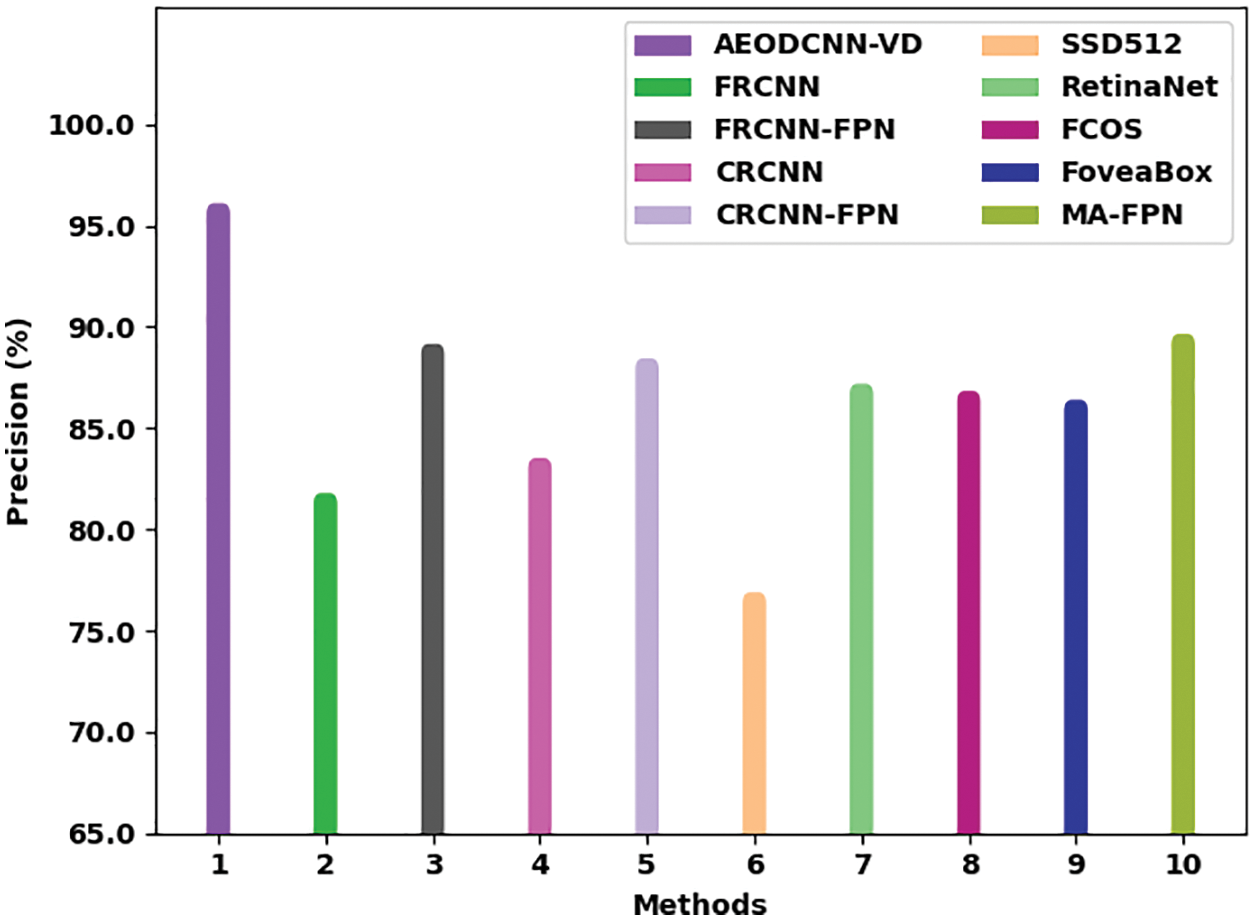

Figure 7: Precn analysis of AEODCNN-VD approach under VEDAI dataset

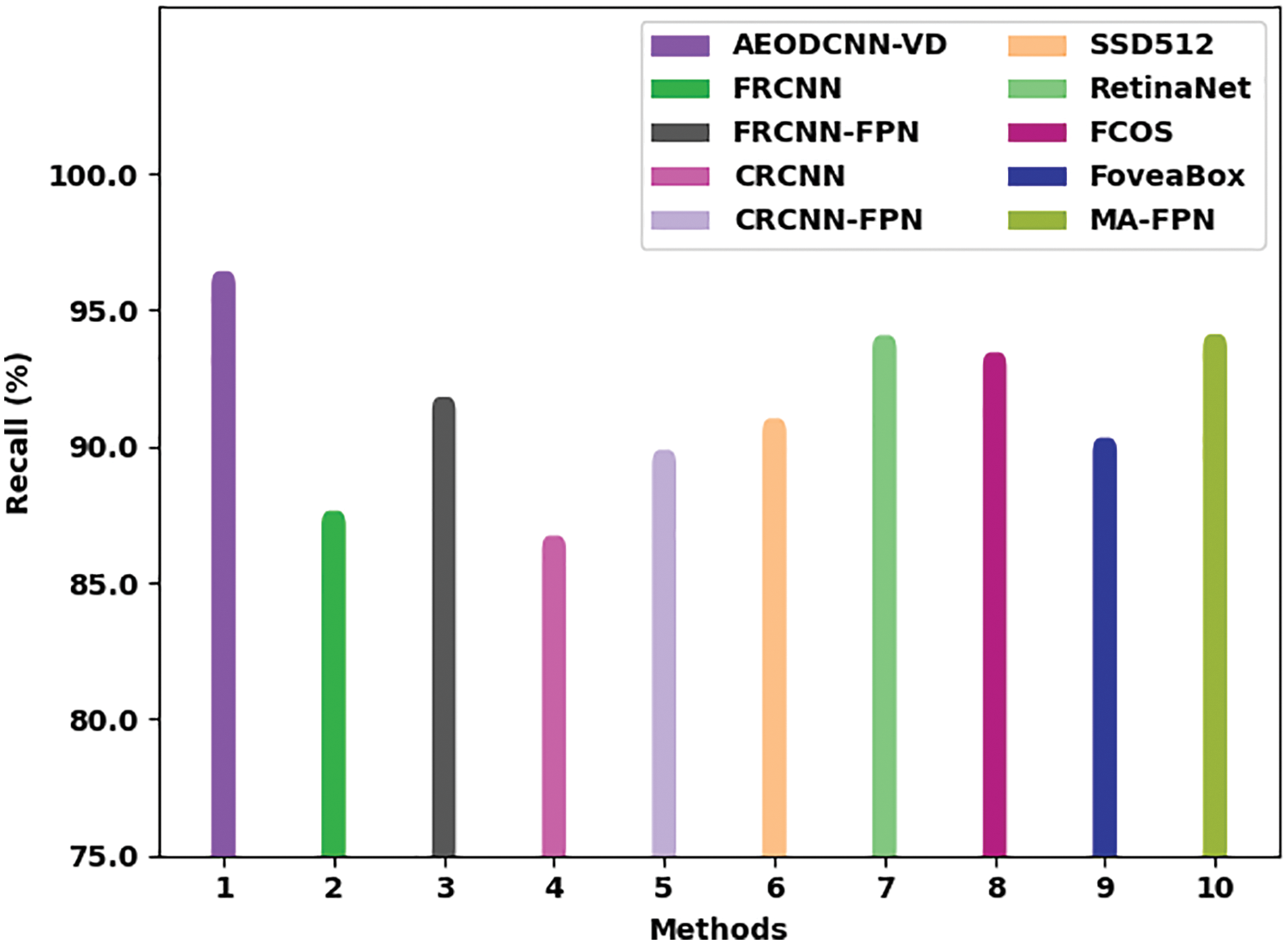

Fig. 8 depicts a comparative recal investigation of the AEODCNN-VD method with recent methodologies on VEDAI dataset. The figure exposed that the SSD512 approach has shown least performance with recal of 91.08%. Besides, the FRCNN and CRCNN techniques have exhibited somewhat enhanced recal of 87.69% and 86.78% correspondingly. In addition, the FRCNN-FPN, CRCNN-FPN, RetinaNet, FCOS, FoveaBox, and MA-FPN models have reached reasonable recal of 91.87%, 89.93%, 94.13%, 93.50%, 90.37%, and 94.17% correspondingly. At last, the AEODCNN-VD algorithm has depicted other models with maximal recal of 96.48%.

Figure 8: Recal analysis of AEODCNN-VD approach under VEDAI dataset

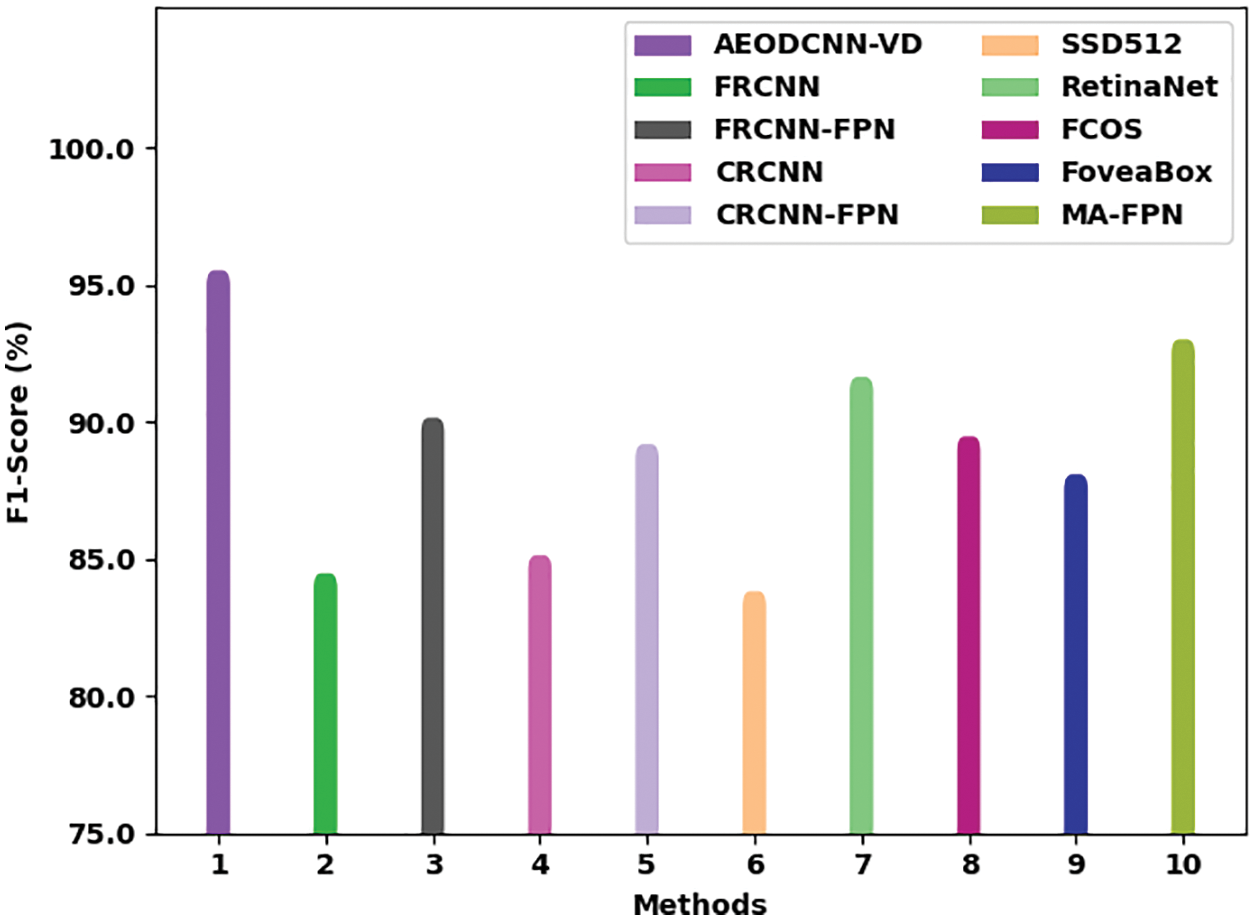

Fig. 9 demonstrates a comparative F1score examination of the AEODCNN-VD approach with recent approaches on VEDAI dataset. The figure revealed that the SSD512 model has outperformed least performance with F1score of 83.88%. Followed by, the FRCNN and CRCNN approaches have demonstrated somewhat maximal F1score of 84.54% and 85.19% correspondingly. Along with that, the FRCNN-FPN, CRCNN-FPN, RetinaNet, FCOS, FoveaBox, and MA-FPN methodologies have reached reasonable F1score of 90.21%, 89.25%, 91.70%, 89.53%, 88.14%, and 93.07% correspondingly. Eventually, the AEODCNN-VD algorithm has portrayed other models with higher F1score of 95.59%.

Figure 9: F1score analysis of AEODCNN-VD approach under VEDAI dataset

5  Conclusion

In this study, a novel AEODCNN-VD algorithm was introduced for the identification of vehicles accurately and rapidly on RSIs. The proposed AEODCNN-VD model primarily utilized an SSD based object detector with Inception network as a baseline model. Besides, the features from the Inception model are passed into the MFPN for multiway and multiscale feature fusion, which are then passed into bounding box and class prediction networks. At the final stage, the AEO based hyperparameter optimizer is used for Inception network. The experimental result analysis of the AEODCNN-VD model is carried out using two benchmark datasets. The extensive comparative study of the proposed AEODCNN-VD model showed a promising performance over recent DL models. In future, advanced DL models can be applied to boost detection efficiency.
