Handwritten Character Recognition (HCR) is a computer-based identification of alphabets and numerals written by natural handwriting [1,2]. HCR systems have been reserved for practical applications in various disciplines like publishing houses industries, Banking sectors, and Healthcare organizations . The development of automatic HCR is a motivating area in the field of pattern recognition and has gained a lot of intense effort. But building a robust HCR system is still a challenging task due to several reasons. The primary ones are the multiplicity of languages and the complex instructions of each language, the huge variations in writing styles among humans, and the unexpected noise on the scanned source images for the handwriting . Dealing and learning with these constraints in machine learning algorithms requires hundreds or thousands of training samples to achieve suitable performance. The situation is getting more complicated if only a few labeled handwritten samples exist. This case can be refereed as few-shot learning in HCR.
Few-shot learning aims to make correct predictions with the restriction of only having a few training samples for each class [5,6]. It is a trail from machines for imitating human ability in acquiring new things from very little overlooking. For example, a child can generalize the shape of a “dinosaur” from a picture in a frame and also can simply identify any person from the first look or by just viewing a few photos of him. Learning from a few examples like human avoids the effort of collecting labeled data and reduces computational costs. Few-shot learning can create more robust and general models that can recognize object-based on fewer data as opposed to the highly specialized models.
Supporting few-shot learning by deep networks is a challenge. The remarkable performance expansions for deep learning occur when plenty of labeled training samples are available [7,8]. Adjusting the enormous parameters of deep networks requires sufficient labeled data. As a result, the best deep learning systems lose their ability to generalization in HCR tasks when only a few samples are available for training. Beside that training deep networks requires big training data, there is also another restriction that controls the deep network performance. This restriction is that training and test data must operate in the same feature space. This means that the deep network will be badly acted when it is tested with classes that have not been seen before in the training phase . This case can be referred as zero-shot learning.
Metric learning is one of the recommended methods for the challenge of supporting few/zero-shot learning by deep networks . Deep metric learning depends on building a Siamese architecture of two homogeneous CNNs that share the same architecture and parameters [11,12]. Fig. 1 represents the traditional structure of the Siamese architecture. It deals with the existence of a few training samples in each class by learning the similarity between inputs to differentiate them.
The Siamese architecture is considered a natural data augmentation technique and can create a large number of training sample pairs from only a few numbers of input characters. Fig. 2 demonstrates a simple example for the way of Siamese architecture in augmenting the training data. The main purpose of the generated training sample pairs by the Siamese architecture is to learn a nonlinear mapping function that enables it to map the extracted features in the vector space in an understandable way. This way considered that features of similar characters that share the same class identity are close to each other and conversely features of dissimilar characters that belong to different classes are far apart. Consequently, the Siamese architecture will be able to discriminate between input characters not classify between classes . This characteristic guarantees the network’s generalization ability. As a result, applying the Siamese architecture will help not only in learning with the existence of few training samples but also in recognizing zero-shot classes without any extra training options.

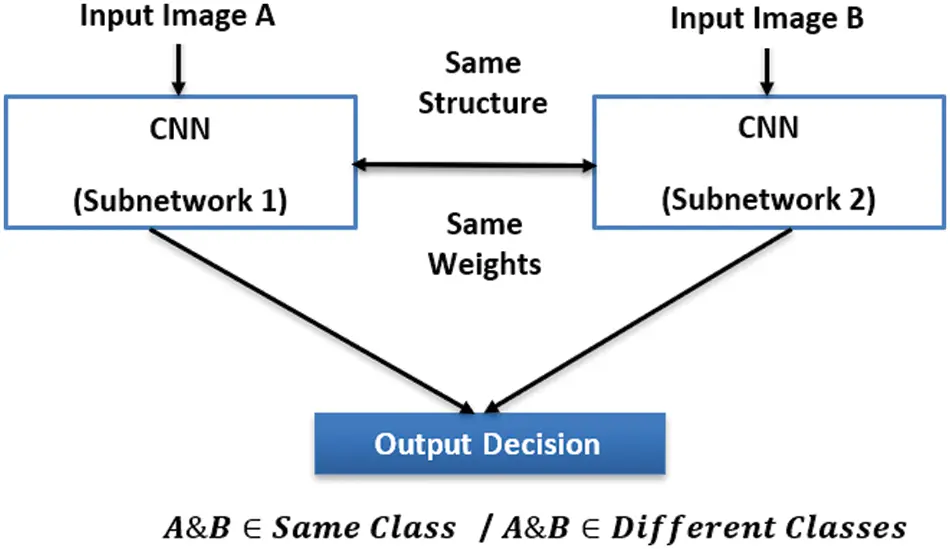

The traditional structure for the Siamese architecture used in deep metric learning was built by constructing twin CNNs from scratch with randomly initialized weights and trained by binary cross-entropy loss [11,14,15]. Building two networks from scratch is a trial and error, and time-consuming phase. In addition, training with binary cross-entropy loss sometimes leads to poor margins . So, a novel Siamese network is proposed to avoid the limitations of traditional Siamese networks in few/zero-shot HCR tasks.
The proposed network is built by applying transfer learning instead of forming and initializing two CNNs from scratch. Applying transfer learning by fine-tuning a pre-trained network is typically much faster and easier than training a network from scratch with randomly initialized weights. The preferred pre-trained network that is used in building the proposed network is the AlexNet. AlexNet has a simple deep structure compared with other pre-trained CNNs, but it fails in achieving results and suffers from overfitting when it is trained with few training data. So, utilizing AlexNet in a Siamese architecture will be a valid solution for extending its high achieved performance to few-shot tasks. In addition, the proposed network is trained by contrastive loss. Contrastive loss works to minimize the distance among the same class’s samples and maximize it among different classes’ samples. This means that the network is trained well to the extent that enables it to map features belonging to the same class close to each other in the feature space and far from features belonging to other classes.
The rest of the paper is organized as follows. Section 2 presents some existing studies in providing reliable models for few/zero-shot learning in HCR. Section 3 illustrates the steps of building and training the proposed Siamese network. Section 4 discusses the experimental results and evaluation. Finally, Section 5 poses the conclusion and suggestions for future works.
The challenge of supporting few/zero-shot HCR tasks by deep networks can be reduced by applying one of three methods: data augmentation, meta-learning, and metric learning . In this section, some of the state-of-the-art studies in each method is introduced.
Data augmentation is interested in providing an approach that can enlarge the number of training samples. This is committed by generating synthetic samples or edited copies of the existing samples. Han et al.  presented a data augmentation approach based on self-supervised learning for few-shot Oracle Character Recognition (OCR). The proposed approach was a pre-trained Orc-Bert Augmenter. The basic objective of Orc-Bert was generating sample-wise augmented samples by converting pixel format character images into vector format stroke data. The vectorization helped in highlighting the strokes and points of the character and facilitated adding noise to generate augmented samples.
XUI and JIN  supported few-shot learning of Korean ancient character recognition by proposing an approach that combined two augmentation methods. The first one considered applying traditional image transformations which were the random affine, elastic distortion, and noise perturbation. While the other method concentrated on generating synthetic samples by using a Conditional Deep Generative Adversarial Network (CDGAN). This combination helped in expanding the dataset and reduced the generalization error with a significant margin.
Hayashi et al.  suggested a statistical character structure model for preparing a large amount of image data in the field of HCR. The clue under the proposed model was extracting the strokes that represented the character structure and acquiring their probability distributions. Then, the augmented samples of that character were generated using the learned distributions. The generated character images in this way would cover various handwriting patterns similar to ones written by many people.
The basic thought of meta-learning is to borrow knowledge from formerly trained models for learning new related low data tasks. Varghese et al.  introduced a one-shot rule learning approach for the challenging task of Malayalam Character Recognition (MCR). The main contribution of the introduced approach was using a logic program declarative bias. As it facilitated reasoning at the meta-level and helped in reducing the search space for hypothesis derivation by allowing transfer bias from one problem to another related problem. Consequently, the rules of each character were learned in a visually acceptable way.
Zhang et al.  proposed an Adversarial Feature Learning (AFL) model for representing the big contrast between handwriting styles. The contribution of applying AFL was utilizing prior knowledge of standard printed characters to develop writer-independent semantic features. This property combined the strengths of generative and discriminative models and aided in making a better classification.
Jaramillo et al.  applied transfer learning to borrow knowledge that aided in HCR with small-size training datasets. Parameters learned from a previously trained model with thousands of samples were borrowed in target HCR problems with a few samples. Also, Sadouk et al.  developed a transfer learning system by introducing a pre-trained Phoenician ConvNet and utilizing it in a series of experiments on different target alphabet datasets.
This method depends on a Siamese architecture for learning a distance function that can map the input data from the input space to the feature space. Shaffi et al.  built a robust deep metric model based on the Siamese CNN for the problem of few-shot learning in Tamil HCR. Each CNN in the Siamese architecture was a five-layer deep network and optimized by binary cross-entropy loss. The model achieved an optimal accuracy with just 40-shots per class.
Dlamini et al.  introduced a one-shot learning author verification approach based on the handwritten characters by applying a Siamese architecture. A twin CNN was built, each one composed of three convolutional layers and three fully connected layers. The introduced approach was trained by the pairwise-loss.
Li et al.  considered that learning discriminative features in the availability of few training data for Handwritten Chinese Characters (HCC) was a template matching problem. So, a deep template matching model was introduced and built by a Siamese CNN. A collection of machine-printed images generated by a font of Microsoft YaHei were used with the available few handwritten samples for training the model. So that, the network learned a comprehensive similarity metric which enabled it to distinguish between the template and handwritten characters and generalize to zero-shot characters.
Sokar et al.  introduced a generic one-shot classification system for the area of Optical Character Recognition (OCR). The proposed system was based on deep Siamese CNNs and Support Vector Machines (SVMs). Firstly, the Siamese CNN was trained to learn a non-linear mapping function then one of the twin networks in the Siamese CNN was used as a feature extractor to train the SVM classifier. Evaluating the proposed system was performed on different domains of Arabic OCR tasks.
In this paper, a metric learning approach is proposed for few/zero-shot HCR tasks. Most state-of-the-art Siamese architectures used in metric learning were built by initializing two CNNs from scratch and trained by binary cross-entropy loss. Building two CNNs from scratch is a trial and error and time-consuming phase. So, the proposed approach introduces a novel Siamese network that is built by applying transfer learning and using the pre-trained AlexNet CNN to be the feature extractor in the Siamese architecture. Fine-tuning pre-trained models achieves fast and not complex training rather than training from scratch. In addition, the proposed network is trained by contrastive loss instead of the traditional binary cross-entropy.

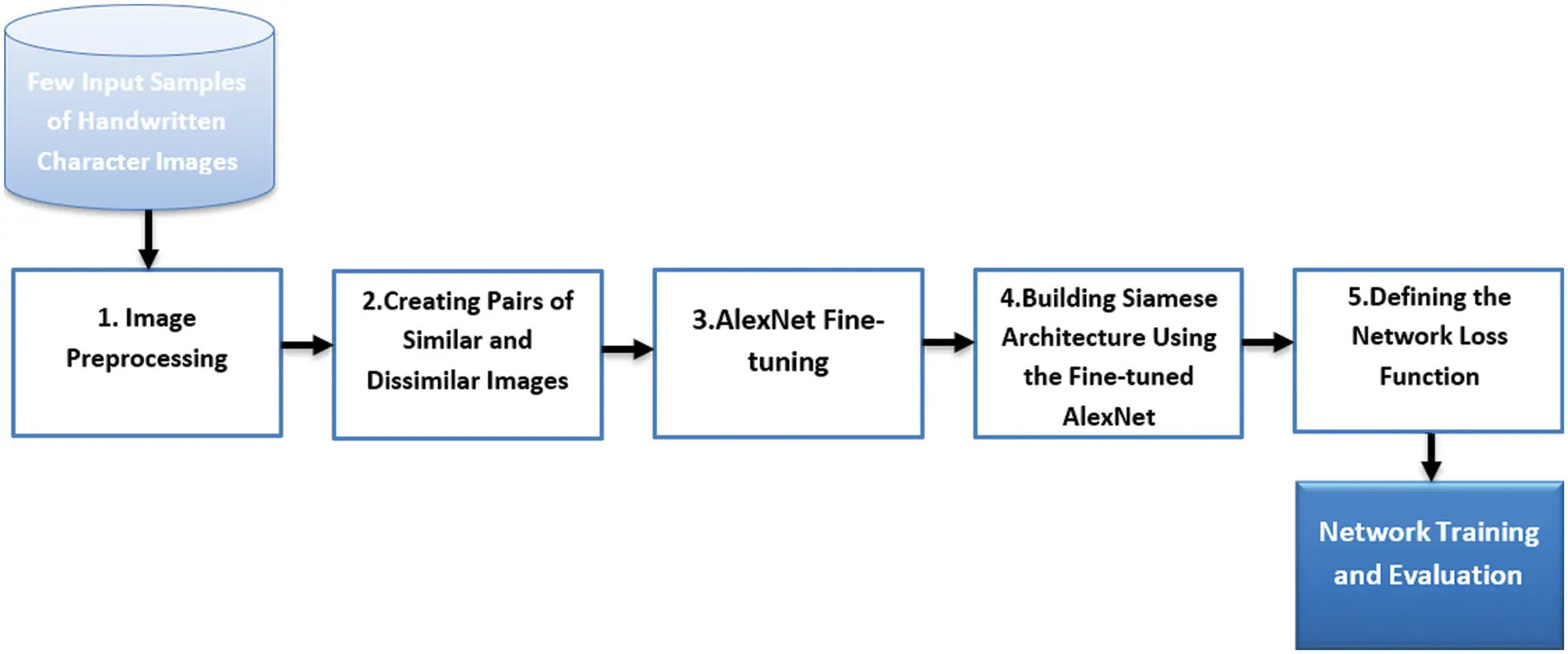

This section explains the basic steps of building the proposed Siamese network. Fig. 3 summarizes these steps in a block diagram and then the detail of each step is discussed in the following subsections.

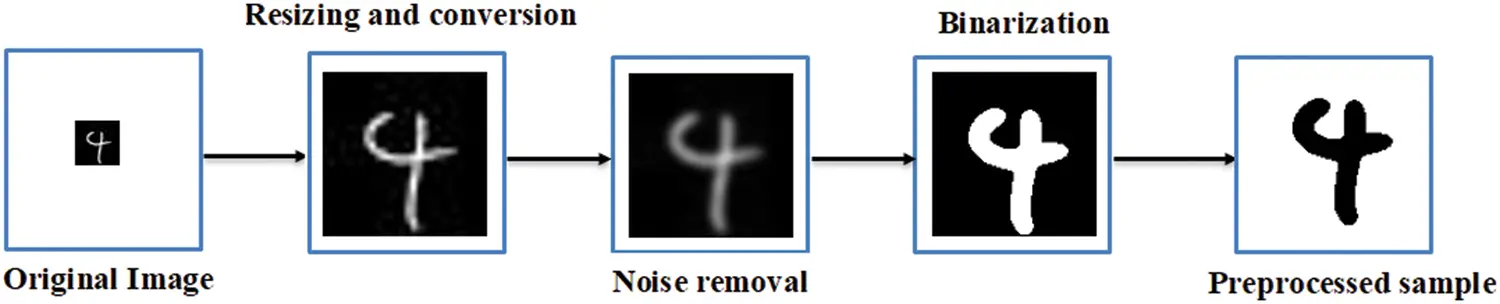

The main purpose of preprocessing step in the proposed network is to reduce large variations of the writing styles by unique the thickness, size, and center of each character. This guarantees that the network in the training phase extracts optimal discriminative features of the input characters in a time-saving way. The main issues of preprocessing that are considered to be applied for the proposed network are resizing, conversion, noise removal by applying a Gaussian filter followed by unsharp masking, and binarization. Fig. 4 displays a sample of a handwritten character after each step of the considered preprocessing.

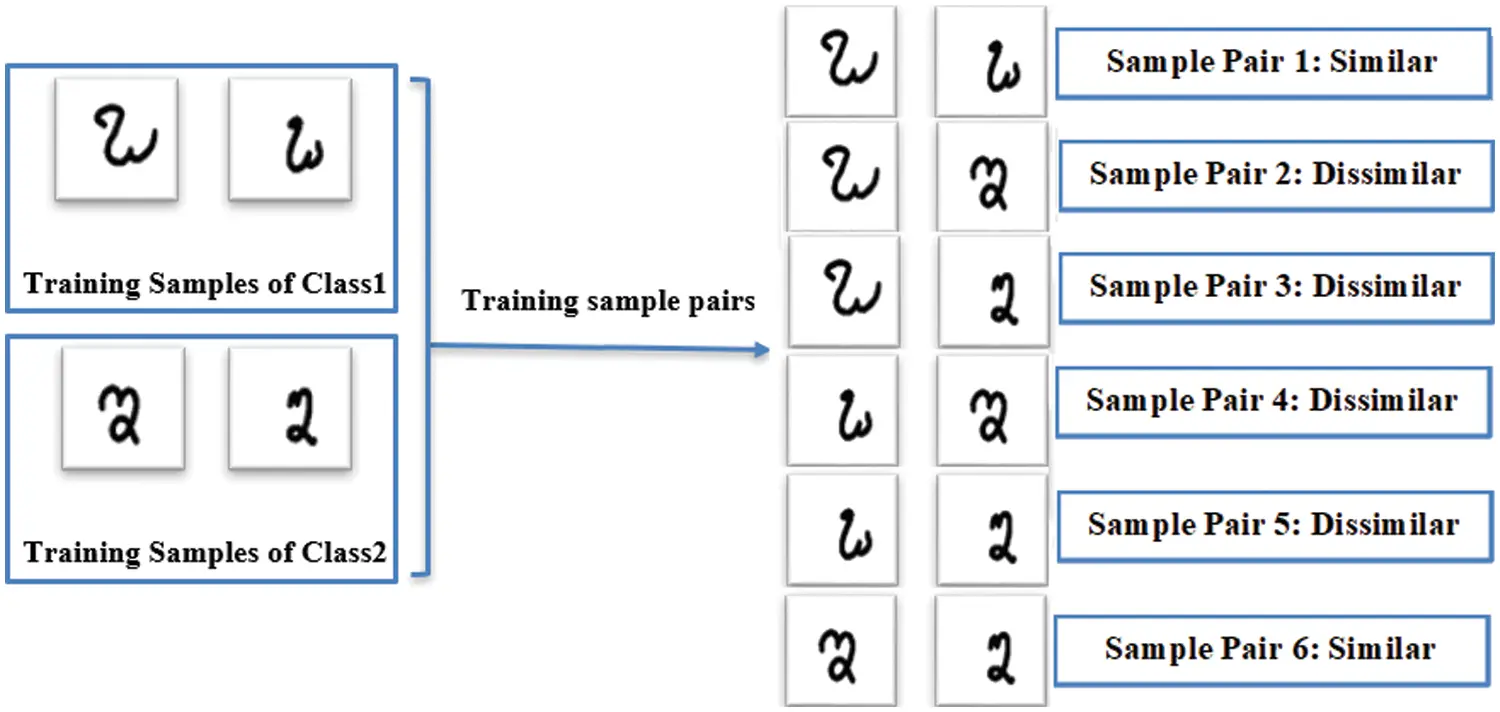

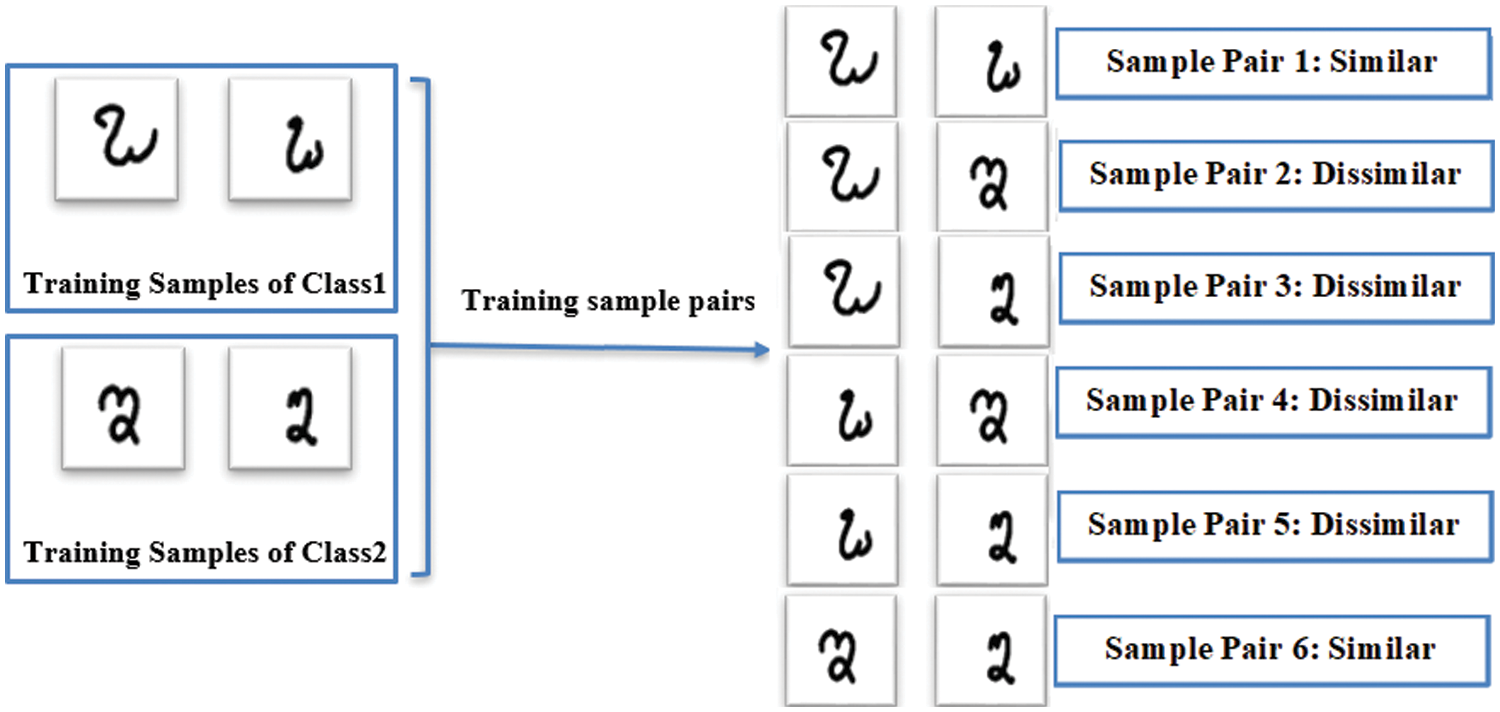

Training the proposed network entails reshaping the full set of preprocessed training samples to be a balanced set of similar and dissimilar image pairs . Each similar image pair is two different handwritten samples of the same character and conversely, each dissimilar image pair is two different handwritten samples for different characters. Algorithm 1 concludes the followed steps in producing a stable set of similar and dissimilar pairs of handwritten characters in the proposed network.
AlexNet is a CNN model proposed by Krizhevsky et al. . The architecture of AlexNet consists of 25 layers, eight of them are learnable layers (five convolutional and three fully connected). It trained on approximately 1.2 million high-resolution images from the ImageNet database to classify 1000 different object categories. The total learned weights and biases of AlexNet exceeded 60 million parameters .
Several studies were succussed in utilizing the previously learned parameters of AlexNet for extracting features in numerous HCR tasks [29,30]. It is observed that every time the training set increases, the AlexNet recognition rate also increases. As a result, AlexNet suffers from overfitting when it is applied for classifying few-shot HCR tasks . Utilizing AlexNet in a Siamese architecture will be a valid solution for such a problem. The Siamese architecture reformulates the few input samples to be an enormous number of training input pairs. So, using AlexNet as a feature extractor in the Siamese architecture will 1) lead to easy and fast training, and 2) make AlexNet more suitable for few-shot learning.

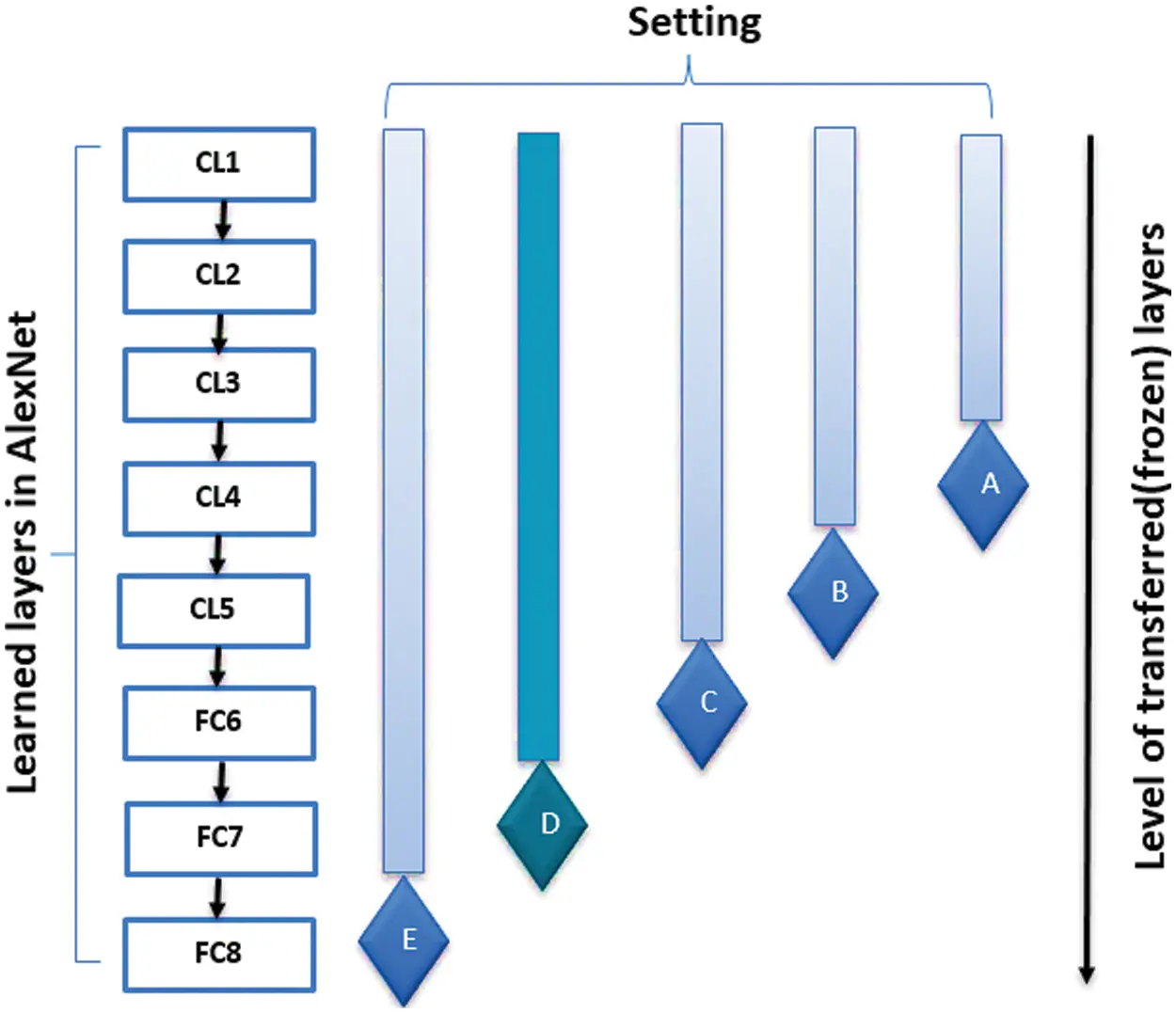

Hua et al.  compared five different fine-tuning settings for AlexNet. Each setting determined which layers would be frozen and which ones would be eliminated or replaced to make AlexNet suitable for new target models. Fig. 5 summarizes these settings. We find that Setting D is an optimal fine-tuned AlexNet for the proposed network. Setting D indicates that all the AlexNet’s Convolutional Layers (CLs) and the first Fully Connected (FC) layer are frozen. These layers are usually responsible for creating a feature map for the detected features in the input. But the last fully connected layers are eliminated and no SoftMax or classification layers are added.

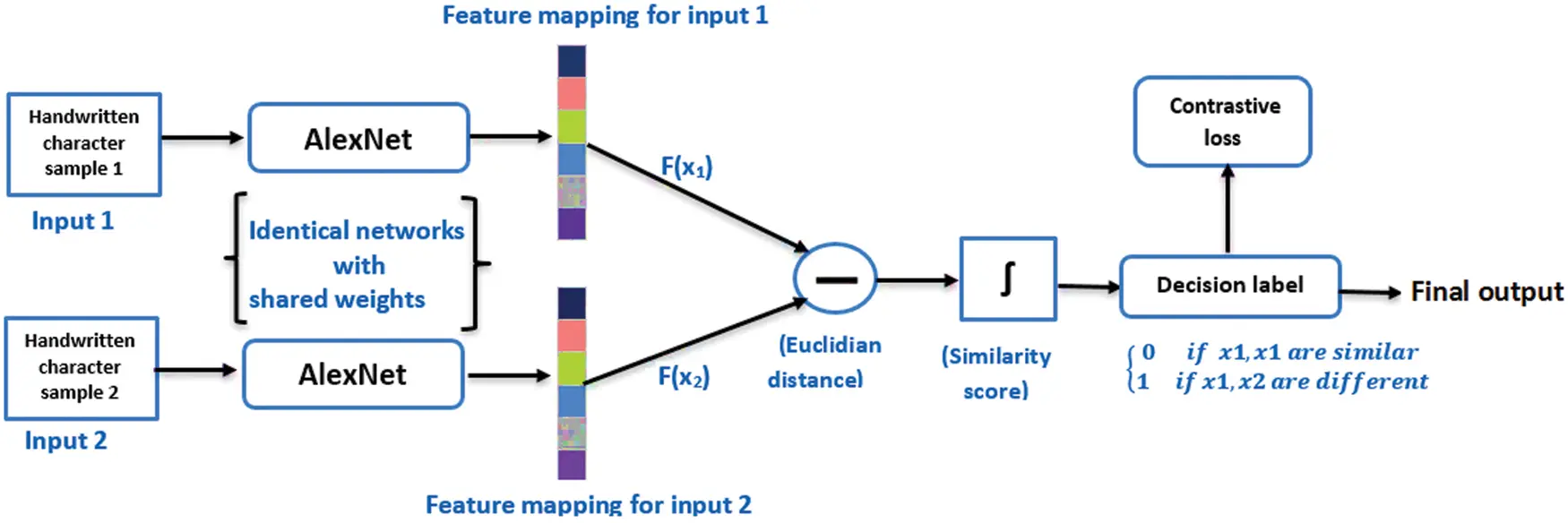

Fig. 6 explains the total structure of the proposed Siamese network. Each subnetwork in the proposed Siamese architecture is formed by a fine-tuned AlexNet. As the Siamese architecture accepts a couple of images at once, each AlexNet parallelly receives an image to extract its corresponding features. The extracted features by each one is an output vector mapped in the feature space. The two output vectors will be mapped behind together if the two inputs are belonging to the same class. Conversely, if the two inputs are belonging to different classes, the two output vectors will be mapped far from each other. The distance metric between the two output vectors is the Euclidean distance and is calculated as Eq. (1).
Reshaping the value of d to be a probability between and is needed in determining the decision label. So, a sigmoid operation is applied based on Eq. (2) to determine a meaningful similarity score. If the output vectors are sufficiently close in the feature map, then the system will decide that the input images are similar and belonging to the same class. Otherwise, they are dissimilar and belonging to different classes. The final decision of the system depends on Eq. (3).
Making an adaptive estimation during training between the proposed network decisions and the ground truth is considered by applying contrastive loss function. Contrastive loss has achieved an optimized weight learning compared with the binary cross-entropy . Contrastive loss function is calculated as Eq. (4).
where y is the true label ( for dissimilar pairs, for similar pairs), is a hyper-parameter called margin and has a value more than zero.

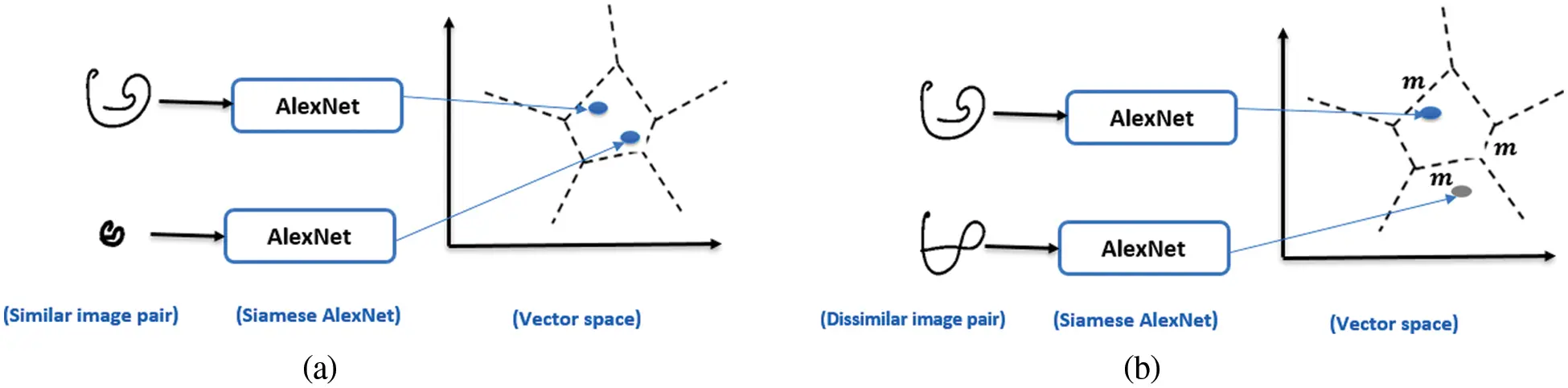

The first part of Eq. (3) is related to loss of similar pairs. As indicated in Fig. 7a, for any similar pair, the value of d is small and near to zero, and square of d is extremely small. So, the network decides that the two images are similar. As a result, the predicted label will be equal to the true label. So, the calculated loss will be near to zero, and the learned weights are not needed to be changed. In contrast, if the loss value is large this implies that the predicted distance between the two images is different from the actual distance. In this case, the network will be optimized to minimize the distance between similar image pairs.
The second part of Eq. (3) is considering the loss of dissimilar pairs. For any dissimilar pair, the value of d is large as indicated in Fig. 7b, and the difference between m and d is a negative value, so is taken as the maximum value in the equation and the loss will be zero. This signifies that the predicted label is equal to the actual label. In contrast, if the value of d is small then the difference between m and d will be the m value, so m is taken as the maximum value and the loss will be large. In this case, the network will be optimized to maximize the distance between dissimilar image pairs.
Minimizing the total loss in the proposed network is considered by applying the Adaptive Moment Estimation (ADAM) optimization algorithm. ADAM combined advantages of two algorithms: the gradient descent with momentum algorithm and the Root Mean Square Propagation (RMSProp) algorithm . This combination gives it ability to update network weights repeatedly by maintaining a learning rate for each parameter instead of applying only a single learning rate for all weight updates. Besides that, the exponentially decaying averages of past squared gradients are stored. These abilities help ADAM to converge faster.
In this section, two experiments are conducted. The first one is for evaluating performance of the proposed network in few-shot learning. While the second one is for evaluating it in zero-shot learning. One of the official datasets is used in our experiments which is the Chars74K package [33,34]. All experiments are implemented in MATLAB 2021a on a personal computer Intel Core i7 with 2.60 GHz processor and 16 GB of RAM.
Chars74K package comprises two datasets of handwritten characters. The first dataset is the EnglishHnd which consists of classes of English characters . Each class has different handwritten samples of the same character. Each sample is an RGB image of size . While the second dataset is the KannadaHnd which covers classes of Kannada characters. Each class has handwritten samples that have the same type and size of English characters. Fig. 8 shows some samples from each dataset.
The proposed network is trained on each dataset separately to conduct two experiments (A and B). The details, and the purpose of each experiment are summarized as follows:
■ Experiment (A): This experiment is performed on EnglishHnd dataset. The high challenge of this dataset is due to some troubles in the writing style of English characters. One of these troubles is the shape of capital and small samples in some letters are very close to each other. Such as letters c, k, o, x, and z. Another trouble is the shape of some digits is near to shape of some letters. Such as letter o and digit 0. This makes difference between some classes hardly observable. We intend to exploit this challenge for testing the proposed network in distinguishing new unseen samples that belong to seen classes in the training phase (few-shot learning experiment). So, all the samples of each class in EnglishHnd dataset are divided to for training ( samples) and for testing ( samples).
■ Experiment (B): This experiment is performed on KannadaHnd dataset. The high challenges of this dataset are due to the large-scale vocabularies and the complicated structural hierarchy of kannada characters. This makes number of the dataset’s classes extremely large. We intend to exploit this challenge for testing the proposed network in distinguishing samples that belong to unseen classes in the training phase (zero-shot learning experiment). So, classes of KannadaHnd dataset are divided to for training ( class) and for testing ( class).
Firstly, all images are resized to have the same input size of AlexNet which is and converted to be gray scale images rather than RGB. The needed time for processing colored image is threefold longer than the needed time for processing a grayscale one. Secondly smoothing images and reducing the level of noise are considered by applying an unsharp masking followed by Gaussian filter with kernel value equal to . Finally, all images are binarized with Luminance threshold equal to .
After generating the training sample pairs, the proposed network’s parameters are adjusted. The batch size is set to , this means that the network is trained by 180 paired images at each iteration on the training loop. For ADAM optimization, the value of margin, learning rate, gradient decay factor, and squared gradient decay factor is set to , ,, and , respectively. In addition, the trailing average gradient and trailing average gradient-square decay rates are initialized. Finally, after specifying training options, the proposed network is trained for iterations.
The loss of the proposed network almost converges to zero after the specified training iterations. This denotes that the network reaches to an optimal weight learning and generates a correct mapping function. Such function enables it to map the extracted features from same class’s images close to each other and the features from different classes’ images far apart. Fig. 9 displays a test batch of image pairs with the proposed network’s prediction and similarity score, and the ground truth label.

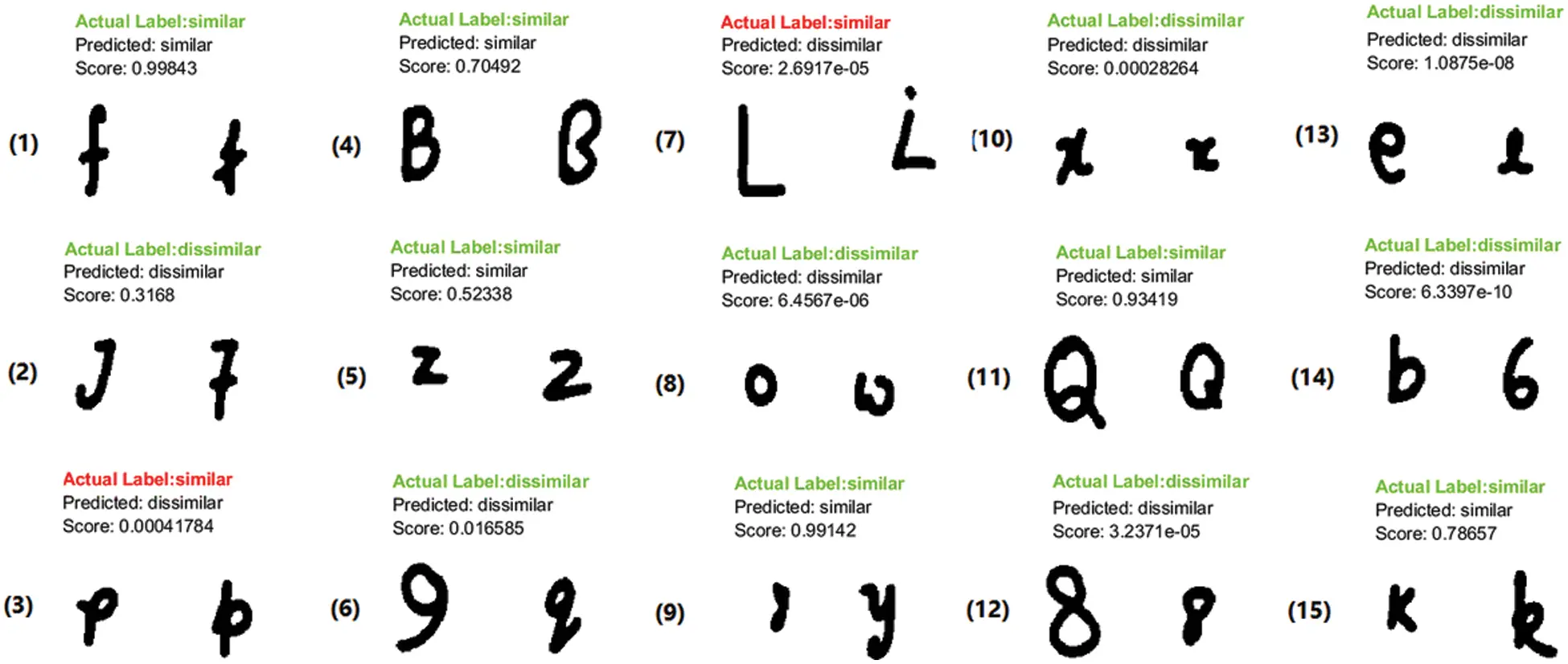

From the test samples appeared in Fig. 9, it is observed that even though the proposed network trained with few samples for each class, but it achieves high success in distinguishing the characters’ classes. The proposed network proves its ability in 1) recognizing writing variations of characters belong to the same class such as test pairs (1), (4), (5), (9), (11), and (15). 2) Distinguishing dissimilar characters that belong to different classes but have similar form of writing such as test pairs (2), (6), (8), (10), (12), (13), and (14). For errors that occurred by the proposed network in the test pairs (3) and (7), it may be due to incorrect writing that causes outliers.

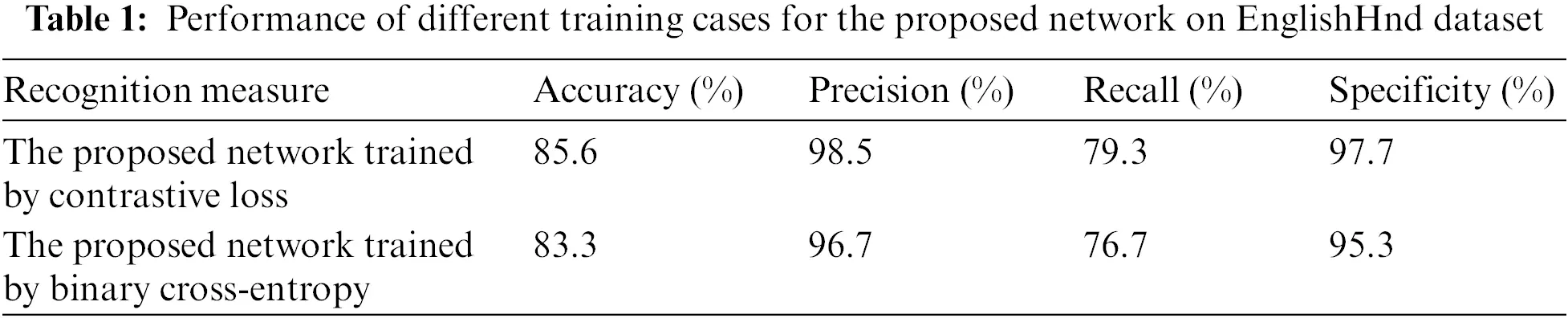

Training the proposed network using contrastive loss instead of binary cross-entropy loss helps in increasing the performance. Tab. 1 displays the recognition results of the proposed network under two training cases. The first case when it is trained by contrastive loss while second case when it is trained by binary cross-entropy loss. Training with contrastive loss achieves the highest recognition results according to four measures: accuracy, precision, recall, and specificity.
For evaluating the proposed network on few-shot learning, its performance is compared with the performance of traditional Siamese CNN on EnglishHnd dataset. The Siamese CNN that used in the comparison is built by following the same architecture that was introduced in . It was considered the default structure for the Siamese architecture. Each subnetwork was a CNN with four CLs and one FC. In addition, binary cross-entropy loss was used in training. Tab. 2 presents the results of the comparison.

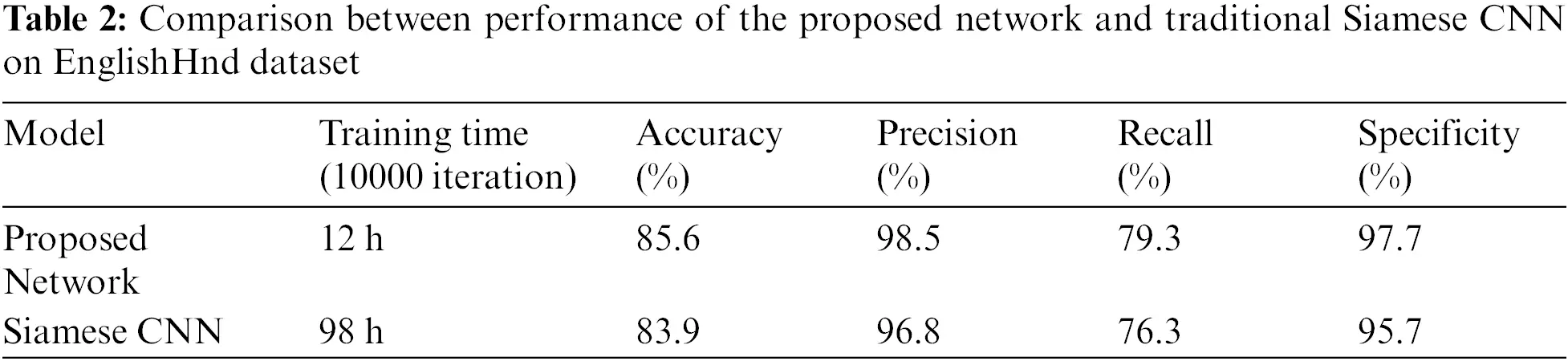

Tab. 2 indicates that training the proposed network takes time approximately the training time of traditional Siamese CNN. Applying transfer learning by using a pre-trained CNN with learned weights leads to faster training than building a CNN from scratch with initial weights. In addition, training the Siamese AlexNet with contrastive loss helps in increasing the network performance compared with binary cross-entropy loss used in the Siamese CNN.

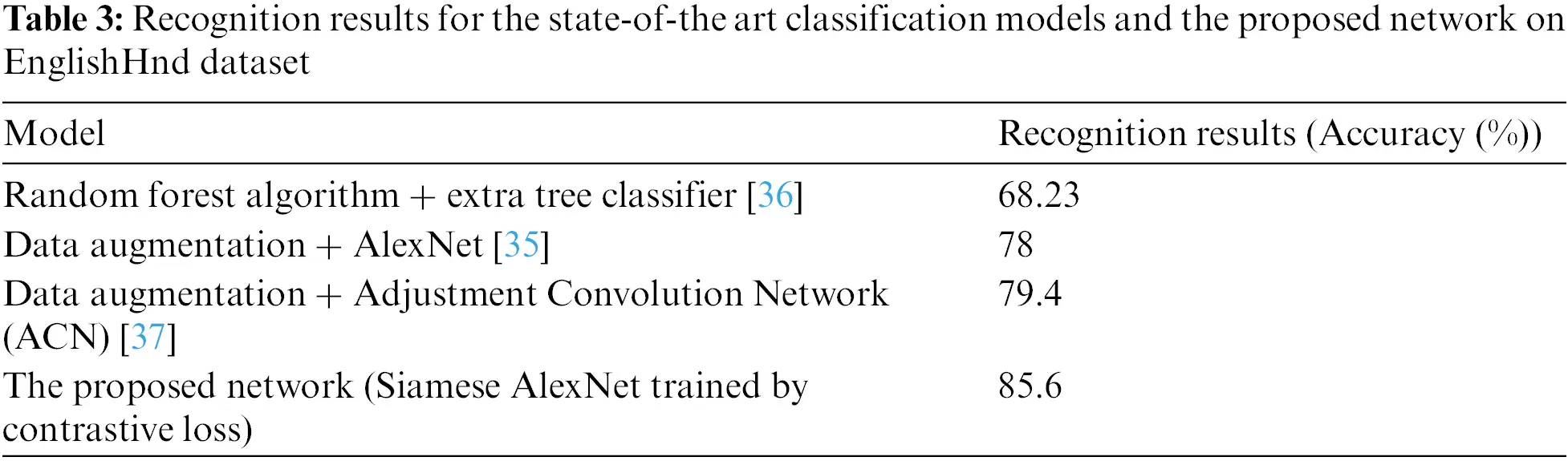

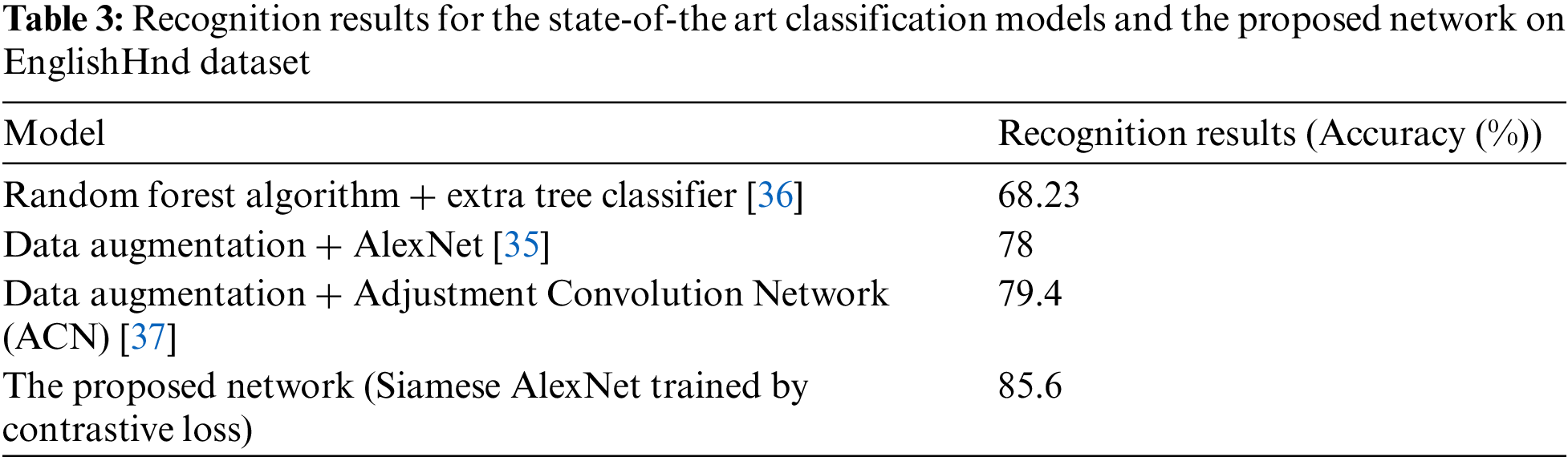

For further evaluations on EnglishHnd dataset, recognition results of the proposed network are compared with recent state-of-the-art classification models used for it. Tab. 3 shows results of the comparison. It is remarked that the state of the art deep model represented in  was applied data augmentation technique with AlexNet to overcome the existence of few training samples. However, the proposed network achieves the highest recognition accuracy without any augmented data. The Siamese architecture can create enormous training sample pairs from a few samples without affecting the model size. So, the proposed network is considered a more robust and general recognition model for few-shot HCR tasks.
This experiment differs from the experiment (A), It concentrates on testing the proposed network in recognizing handwritten characters from zero-shot classes. Fig. 10 displays results of the proposed network on a test batch of image pairs that belong to new classes not seen before in the training phase. Results submitted that extracted features from the proposed network are strong enough for acquiring the generalization ability. Even though training is done with the existence of few samples.

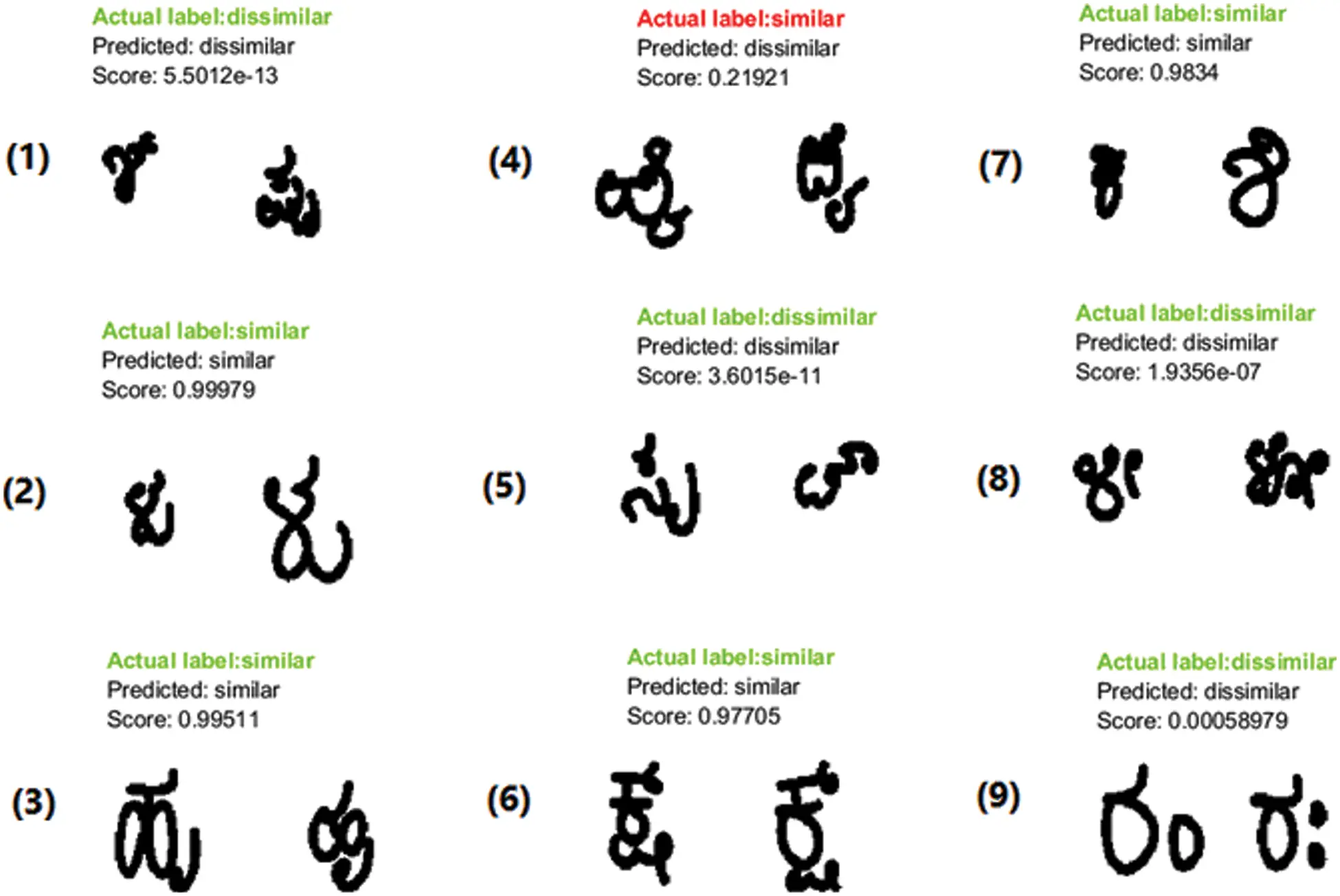

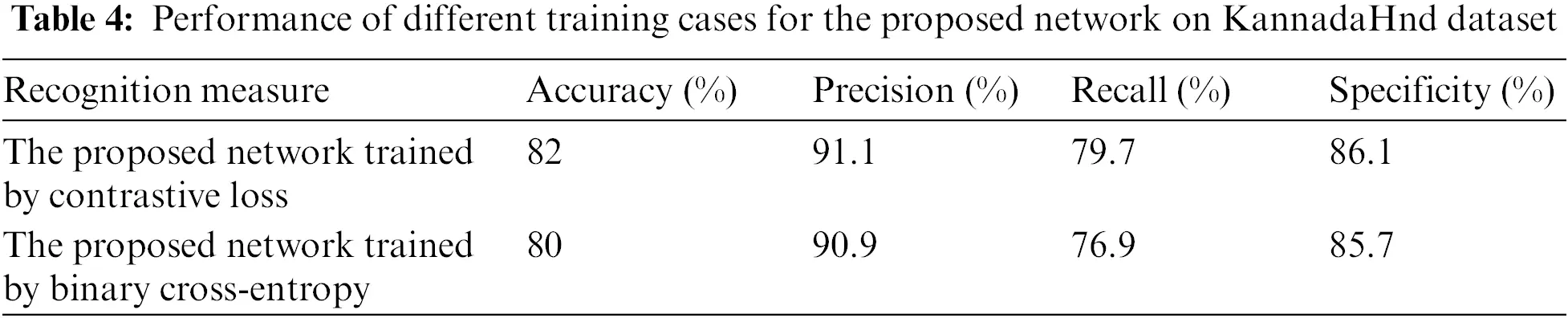

Tab. 4 shows recognition results of the proposed network on zero-shot learning under the two training cases (mentioned before in experiment (A)). Results prove that training with contrastive loss helps in improving performance of the proposed network on zero-shot learning. In addition. For evaluating the proposed network on zero-shot learning, its performance is compared with the performance of traditional Siamese CNN on KannadaHnd dataset. Tab. 5 represents results of the comparison which assures ability of the proposed network in outperforming traditional Siamese CNN in zero-shot learning.

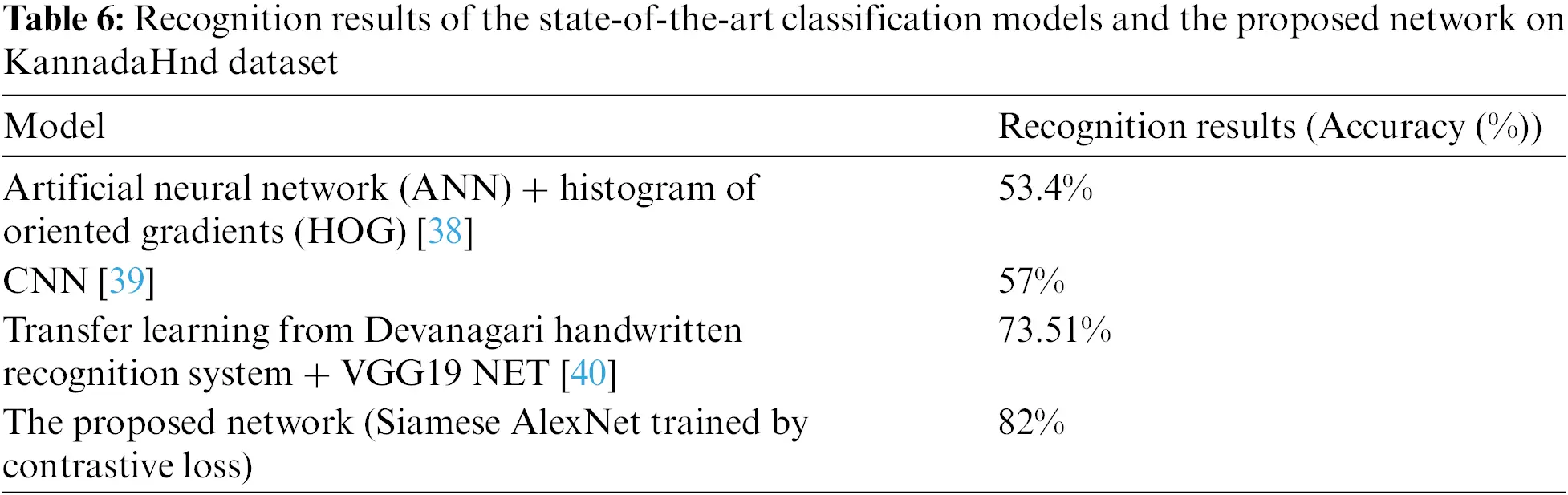

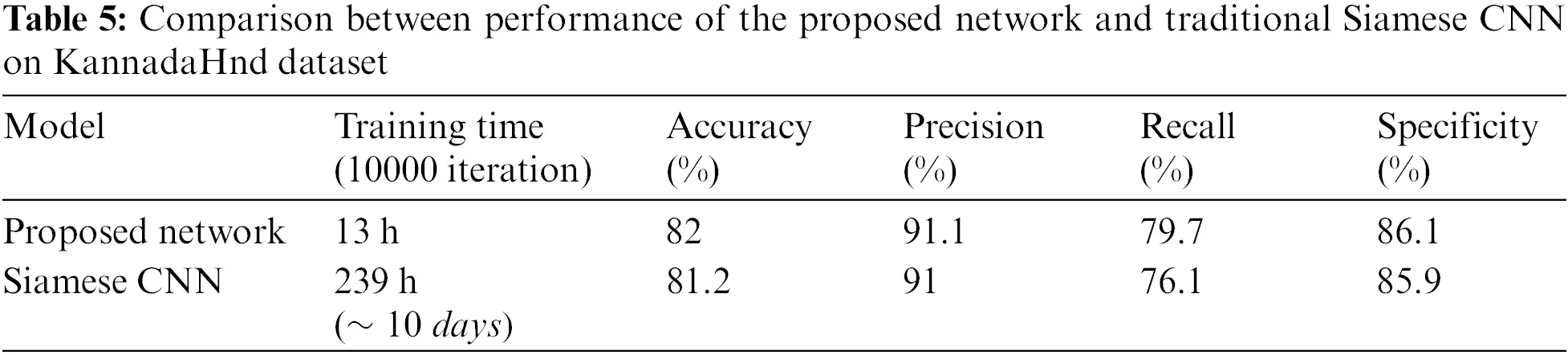

There are no recent state-of-the-art models that used KannadaHnd dataset for zero- shot learning to do further evaluations on the dataset. So, the models that test this dataset for solving the challenge of few-shot learning are only stated. Even though, few-shot learning is considered more easier than zero-shot learning, but the proposed network outperforms three models as shown in Tab. 6.
The two experiments are conducted to test behavior of the proposed network on few-and zero-shot learning in HCR. In experiment (A), the samples of EnglishHnd dataset are divided to 30% for training and 70% for testing. The proposed network is tested in recognizing new samples of classes appeared in training but have few training samples. But in experiment (B), the classes of KannadaHnd dataset are divided to 70% for training and 30% for testing. The proposed network is tested in recognizing the new classes that not seen before in training while the appeared classes also have only few training samples.
Building the proposed network by utilizing AlexNet in a Siamese architecture instead of training a Siamese CNN from scratch helps in reducing the training time by a significant margin. Training Siamese CNN from scratch takes approximately days on EnglishHnd dataset and days on KannadaHnd dataset. Both datasets contain few training samples in each class, but KannadaHnd dataset contains large number of classes compared with EnglishHnd dataset. This is the reason that makes training from scratch in KannadaHnd dataset takes longer time. On the other hand, Fine-tuning Siamese AlexNet for the two datasets reduces the training time from days to hours. Fine-tuning Siamese AlexNet for EnglishHnd and KannadaHnd takes approximately hours respectively.
In addition, training the Siamese AlexNet by contrastive loss function improves total performance of the proposed network. The comparative results show that training by contrastive loss achieves high recognition results compared with training by binary cross-entropy loss that was used in traditional Siamese architectures. Finally, the proposed network outperforms recent three states of the art classification models used for EnglishHnd dataset. The existed state-of-the-art models on KannadaHnd dataset were tested for few-shot learning not zero-shot learning. Even though, zero-shot learning is considered more difficult than few-shot learning, but the proposed network also outperforms three recent states of the art models applied for KannadaHnd dataset.
In this paper, a novel Siamese network is proposed for supporting few/zero-shot HCR tasks. The proposed network is built by utilizing transfer learning. The pretrained AlexNet is used to be the feature extractor in the Siamese architecture instead of building twin CNNs from scratch with initialized weights. Applying transfer learning guarantees fast and not complex training. In addition, the proposed network is trained with contrastive loss instead of the traditional binary cross-entropy. Two experiments are conducted using Chars74K datasets to evaluate the proposed network in few- and zero-shot learning. For the few-shot learning experiment, even though the proposed network is trained by 30% of training data which holds only samples. But its recognition accuracy reaches to 85%. For the zero-shot learning experiment, the recognition accuracy of proposed network reaches to 82% when it is trained by 70% of classes and tested on 30% of unseen classes. The proposed network achieves higher recognition results than the traditional Siamese CNN in terms of accuracy, precision, recall, specificity, and training time. Training the proposed network takes time approximately the training time of traditional Siamese CNN. In addition, the proposed network achieves the highest recognition results compared with recent state-of-art on Chars74K datasets.
For future work, we intend to build the proposed network by utilizing a deeper transfer learning model such as GoogleNet, and VGG16 and test it in different few/zero shot learning domains.
