Computers, Materials & Continua DOI:10.32604/cmc.2022.032083
Article

Blockchain Assisted Intrusion Detection System Using Differential Flower Pollination Model

Mohammed Altaf Ahmed1, Sara A Althubiti2, Dronamraju Nageswara Rao3, E. Laxmi Lydia4, Woong Cho5, Gyanendra Prasad Joshi6 and Sung Won Kim7,*

1Department of Computer Engineering, College of Computer Engineering & Sciences, Prince Sattam Bin Abdulaziz University, Al-Kharj, 11942, Saudi Arabia
2Department of Computer Science, College of Computer and Information Sciences, Majmaah University, Al-Majmaah, 11952, Saudi Arabia
3Department of Computer Science and Engineering, Chitkara University Institute of Engineering and Technology, Chitkara University, Punjab, 140401, India
4Department of Computer Science and Engineering, Vignan’s Institute of Information Technology, Visakhapatnam, 530049, India
5Department of Software Convergence, Daegu Catholic University, Gyeongsan, 38430, Korea
6Department of Computer Science and Engineering, Sejong University, Seoul, 05006, Korea
7Department of Information and Communication Engineering, Yeungnam University, Gyeongsan-si, Gyeongbuk-do, 38541, Korea
*Corresponding Author: Sung Won Kim. Email: swon@yu.ac.kr
Received: 06 May 2022; Accepted: 07 June 2022

Abstract: Cyberattacks are developing gradually sophisticated, requiring effective intrusion detection systems (IDSs) for monitoring computer resources and creating reports on anomalous or suspicious actions. With the popularity of Internet of Things (IoT) technology, the security of IoT networks is developing a vital problem. Because of the huge number and varied kinds of IoT devices, it can be challenging task for protecting the IoT framework utilizing a typical IDS. The typical IDSs have their restrictions once executed to IoT networks because of resource constraints and complexity. Therefore, this paper presents a new Blockchain Assisted Intrusion Detection System using Differential Flower Pollination with Deep Learning (BAIDS-DFPDL) model in IoT Environment. The presented BAIDS-DFPDL model mainly focuses on the identification and classification of intrusions in the IoT environment. To accomplish this, the presented BAIDS-DFPDL model follows blockchain (BC) technology for effective and secure data transmission among the agents. Besides, the presented BAIDS-DFPDL model designs Differential Flower Pollination based feature selection (DFPFS) technique to elect features. Finally, sailfish optimization (SFO) with Restricted Boltzmann Machine (RBM) model is applied for effectual recognition of intrusions. The simulation results on benchmark dataset exhibit the enhanced performance of the BAIDS-DFPDL model over other models on the recognition of intrusions.

Keywords: Internet of things; feature selection; intrusion detection; blockchain; security; deep learning

1  Introduction

The Internet of Things (IoT) is an interlinked system that depends on approved protocols that interchange information amongst the gadgets functioning through the internet. Latest developments in IoT launch the ideology of smartness to gadgets, homes, sensors, cities, and streets. IoT is one of the leading and rising domains of communication technology and modern computing done great contributions to several fields, starting from agricultural field to automobile automation [1]. Today, IoT has further termed the Internet of Everything (IoE) why because it has been dealing with every single type of linked device or gadget in day-to-day routine. In 2025, the number of connected gadgets is expected to reach 21.5 billion. IoT is a compilation of numerous layers adding a network layer [2]. The network layer model is depending on the old layers of Internet transmission and is mostly accountable for sending data packets among hosts. Also, the network layer is complicated and a prone part of IoT substructure resulting in several safety threats [3]. Nonetheless, numerous security structures have been placed for addressing the security problems. Such structures need fixing in the IoT substructure and or the gadgets to function effectively resolving security menaces. Inappropriately, many security structures need substantial storage and computational power [4].

Intrusion detection systems (IDS) identify doubtful events and well-known menaces and produce warnings [5]. Intrusions can be detected as any event which makes damage to an information system. IDS can be hardware or software systems able to identify any other malevolent actions in computer systems [6]. The objective of intrusion detection systems is to observe the computer network to identify irregular conduct that might not be noticed by an orthodox packet filter. It is more important to reach a higher extent of cyber resilience towards the malevolent actions and to recognize unauthorized accessibility to a computer system by examining the network packets for signs of malevolent action [7]. During the past decades, IDSs is highly dependable and effective since invaders also enhanced many expanded assault modes for defeating such identification systems. Moreover, old IDSs could not cooperate with that the complicated network layers in IoT [8]. The recent advances in intelligent systems put forwarded the authors to use of dispersed IDSs in amalgamation with several machine learning (ML) algorithms, for instance, reinforcement learning (RL), artificial neural network (ANN), and deep learning (DL) [9]. Usual ANNs contain few restrictions in handling the difficulty of IDSs. Enlightening technology through deciding these faults is a prerequisite for understanding the promise of IDSs auspicious in the actual ecosphere [10]. The foremost contribution of this study is applying blockchain (BC) for a multi agent system and tested with a known dataset for its efficacy.

Alkadi et al. [11] present a deep BC framework (DBF) planned for offering security-based distributed ID and privacy-based BC with smart contracts from IoT networks. The ID technique was utilized by bidirectional long short-term memory (BiLSTM) DL technique for dealing with sequential network data and is measured utilizing the dataset of UNSW-NB15 and BoT-IoT. The privacy-based BC and smart contract techniques were established utilizing the Ethereum library for providing privacy to distributed ID engines. Tariq et al. [12] purpose for enhancing knowledge of the challenges for securing future digital frameworks but it can be still developed. Then presenting the structure creating big data, the functionality-based fog structure was determined. Liang et al. [13] presented the collaborative clustering-characteristic-based data fusion technique to ID from BC-based method, whereas the mathematical process of data fusion was planned and AI technique was utilized for training and analysing data clusters from BC network.

Cheema et al. [14] examine the distributed ML based IDS in IoT employing BC technology. Particularly, spectral partitioning was presented for dividing the IoT network as to autonomous systems (AS) allowing traffic observation for ID that is executed by chosen AS border region nodes from the distributed approach. The IDS was dependent upon ML, whereas an SVM technique was trained utilizing prominent IoT dataset and recognition of attackers is given. Zhang et al. [15] present the BC supported massive IoT data collection (MIDC) intelligent structure for supporting the security, trust, and efficacy of enormous data collection to large-scale heterogeneous WSN. Particularly, it can present a series of novel technology to structure. Primary, it can be structured as a Large-Scale Heterogeneous WSN Collaborative Identity Verification protocol for ensuring reliable data sources. Secondary, it can be structured as a Hierarchical Massive Data Aggregation technique for collecting huge IoT data secure and efficient. Tertiary, it can demonstrate the BC based Massive IoT Data Management technique for constructing trust amongst distinct parties.

This paper presents a new Blockchain Assisted Intrusion Detection System using Differential Flower Pollination with Deep Learning (BAIDS-DFPDL) model in IoT Environment. The presented BAIDS-DFPDL follows blockchain (BC) technology for effective and secure data transmission among the agents. Besides, the presented BAIDS-DFPDL model designs Differential Flower Pollination based feature selection (DFPFS) technique to elect features. Finally, sailfish optimization (SFO) with Restricted Boltzmann Machine (RBM) model is applied for effectual recognition of intrusions. The simulation results on benchmark dataset exhibit the enhanced performance of the BAIDS-DFPDL model over other models on the recognition of intrusions.

2  Design of BAIDS-DFPDL Model

In this study, a new BAIDS-DFPDL model has been developed for identification and classification of intrusions in the IoT environment. To accomplish this, the presented BAIDS-DFPDL model follows BC technology for effective and secure data transmission among the agents. Besides, the presented BAIDS-DFPDL model designed DFPFS technique to elect features. At last, the SFO algorithm with RBM model is applied for effectual recognition of intrusions. Fig. 1 showcases the overall process of BAIDS-DFPDL technique.

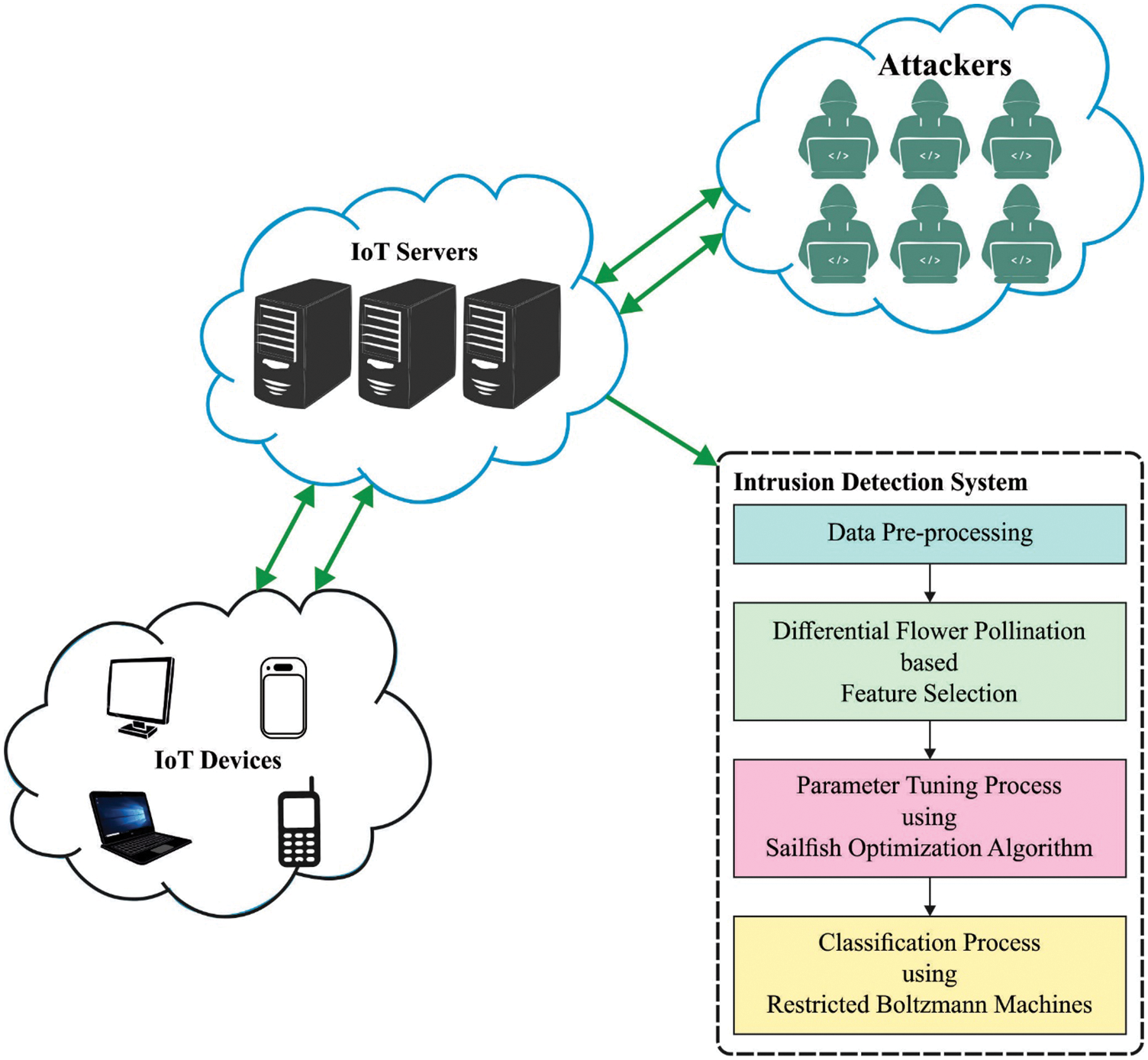

Figure 1: Overall process of BAIDS-DFPDL technique

2.1 BC Enabled Secure Communication

The presented BAIDS-DFPDL model follows BC technology for effective and secure data transmission among the agents. BC transformed the architecture of the transactional system from a star to a point to point (P2P) design. This architecture enables two parties to handle one another straightaway through security and encryption based on algorithm and code privacy [16]. Meanwhile, the party engaged in the transactional network are essential to entrust the used approach to establish mutual trust, there is no need for knowledge regarding the dependability of party. Here, private chain is utilized for securing interaction among agents. The scheme incorporates the embedded dataset and the BC node in a similar agent, stopping and starting simultaneously. The modern interaction would be included in the cache region, decreasing the searching time, and speeding up the use and disk storage dataset through agents. Saving a copy of databases in each agent would decrease the overhead of transmission agents by implementing a local search of the recently upgraded dataset.

The transmission agent of the analysis and detection model is a great node for the BC model. Fig. 2 depicts the framework of BC. It comprises the whole BC ledger and is utilized for guaranteeing each node in the system could get the right copy and connected with one another. Each transmission agent would be complete node. They distribute and contain the whole BC ledger and are necessary to validate each transmission record in the BC. Another agent in all the modules is empowered as light node and connected with the transmission agents which are parental nodes. Such light node contains block header of the block and is employed for checking whether the parental nodes get interfered. The BC model is applied for regulating and validating behavior of transmission agents and to guarantee the security of the network, along with construct reliance in IoT network whereby several parties are included that have their own agent. Additionally, information from transmission messages is employed for analyzing attacks and improving the agent by employing reinforcement learning.

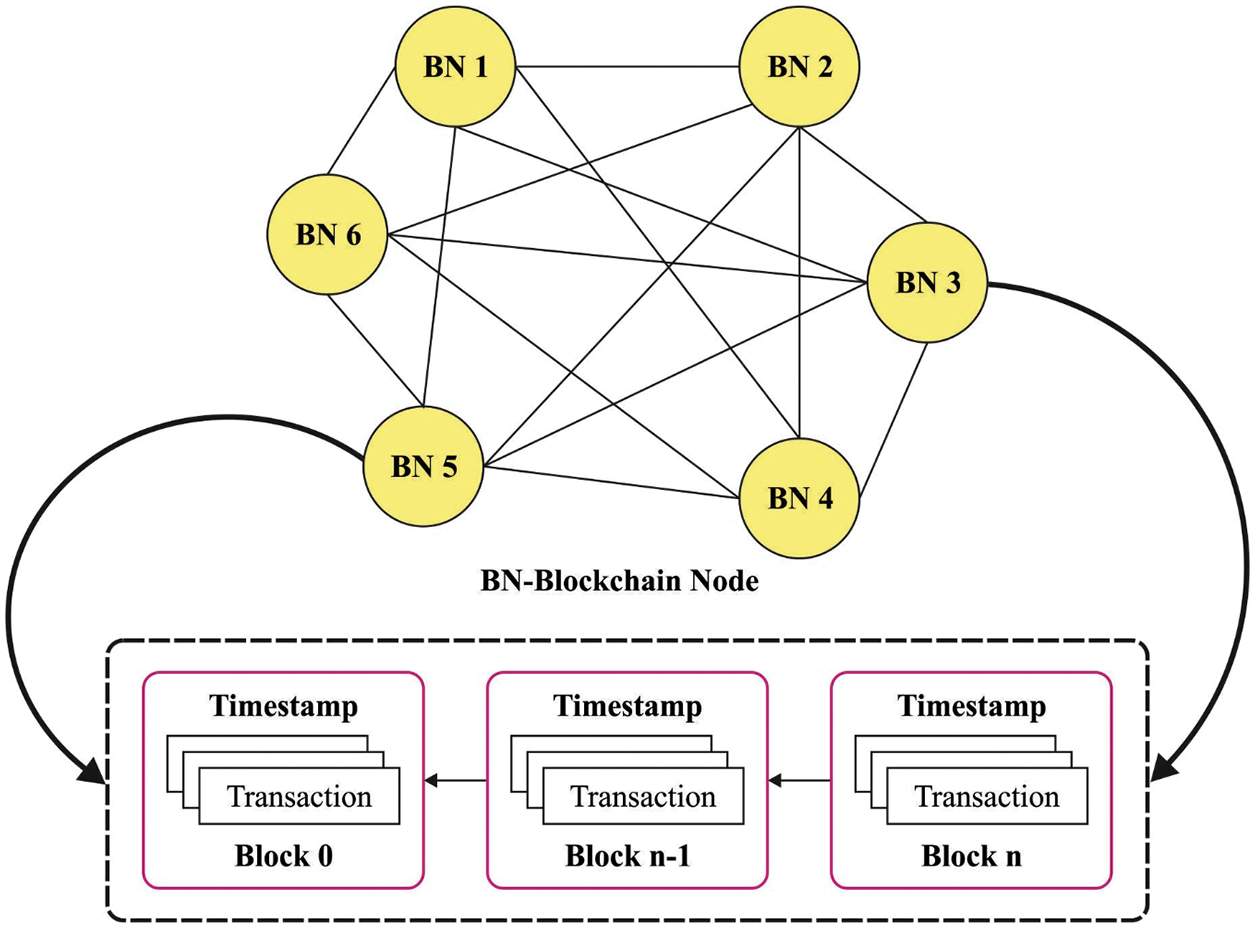

Figure 2: Structure of blockchain

2.2 Process Involved in DFPFS Model

At this stage, the DFPFS technique has been developed for the effectual choice of features. DFP is a fusion of two separate Meta-heuristic approaches such as flower pollination algorithm (FPA) and differential evolution (DE). DE is a remarkably successful variant of evolutionary algorithm that includes important evolutionary processes comprising recombination and mutation [17]. In the meantime, FPA is dominant in searching space exploration because of its usage of Lévy flight tasks. The fusion of FPA and DE conserves the benefit of the self-adoptive mutation of DE and considerably improves the efficacy of the contraction performance of DE transitional arithmetical reintegration. Thus, the integrated DFP approach has an effective exploitation ability and has an escape strategy to avoid early convergences. According to the arbitrarily made population of candidate solutions, the DFP implements global and local searching tasks. The rate of two search processes are depending upon a possibility p based on the subsequent rules:

When r<p then

{Execute global searching task}

Otherwise

{Execute local searching task},

Here r indicates an arbitrary value lies in the interval of [0, 1]. p is usually fixed as 0.8 based on.

The global and local searching tasks are defined in the following:

(i)  The FPA-based global searching function is represented as follows

Xitria1=Xig+L.(Xig−Xbest),(1)

In Eq. (1), g indicates the present generation. Xitria1 denotes a recently made test solution. L signifies the amount made from the Lévy distribution.

(ii) The DE-based local searching function is represented as

Xi,gmutated=xr1,g+F.(xr2,g−xr3,g),(2)

In Eq. (2), 1,r2, and r3 denote three arbitrary values. F indicates a mutation scaling factor. The variable F is made from a Gaussian distribution using the standard deviation =0.15 and the mean =0.5.

Xj,i,g+1crossed={Xj,imutated,ifrandj≤Crorj=rnb(i),Xj,i,g,ifrandj>Crandj≠rnb(i),(3)

In Eq. (3), Cr indicate the crossover possibility that is usually fixed as 0.8.

It is stated that the variable L is an arbitrary amount produced from the Lévy distribution. The mathematical expression of this distribution can be given below:

L∼λΓ(λ)sin⁡(πλ2)πs1+λ,(4)

Here s=Ul|V|1/λ and U and V∼ standard (0,1). Γ(λ) indicates the Gamma distribution using λ=3/2.

The fitness function of the DFPFS technique assumes the classifier accuracy and the quantity of features which is selected. It optimizes the classifier accuracy and reduces the set size of the selected features. Thus, the succeeding fitness function is utilized for evaluating separate solutions, as displayed in Eq. (5).

Fitness=α∗ErrorRate+(1−α)∗#SF#All_F(5)

Whereas ErrorRate denotes the classification fault rate utilizing the selected features. ErrorRate is computed as the percentage of inaccurate classified to the number of classifiers made, denoted as a value between 0 and 1. (ErrorRate is the supplement of the classifier accuracy), #SF is considered as the number of selected features and #All_F is regarded as the aggregate sum of attributes in the novel dataset. α is utilized for controlling the significance of classifier quality and subset length. In our experiments, α is fixed to 0.9.

2.3 Optimal RBM Based Classification

Next to the election of features, the RBM model is employed to detect and classify intrusions. RBM is known as Stochastic Neural Network since they assume a probabilistic method. They are comprised of:

•   Single visible unit or input layer

•   Single hidden unit or hidden layer

•   Bias unit

RBM is applied as a generated method for labeled or unlabeled datasets. There is no intra-layer interaction in RBM that is the constraint [18]. In the initial node of hidden layer, an input value is increased with weight and included in bias and the outcome is transmitted to the activation function and later the output is generated. The energy of joint formation of visible and hidden layers is evaluated by:

E(v,h)=−∑iaivi−∑jbjhj−∑i,jvihjwij(6)

vi and hj indicates the binary state of i and j visible and hidden units, ai;bj indicates the biases and wij indicates the weight among themselves. For calculating the involvement of the visible or hidden units and biases, the dot product is evaluated. Then, the possibility of each probable pair of visible and hidden vectors is evaluated by the energy function as:

p(v,h)=1Ze−E(v,h)(7)

From the equation, Z indicates the partition function:

Z=∑v,he−E(v,h)(8)

The likelihood that the network allocates to a visible unit is evaluated by:

p(v)=1Z∑he−E(v,h)(9)

The derivation of log likelihood of a trained vector in terms of weight is evaluated.

∂log⁡p(v)∂wij=⟨vihj⟩data−⟨vihj⟩model(10)

That results in a simple rule with ∈as learning rate:

Δwij=∈(⟨vihj⟩data−⟨vihj⟩model)(11)

Geoffrey Hinton presented a fast learning method where recreation is formed by setting vi to 1:

Δwij=ε(⟨vihj⟩data−⟨vihj⟩reconstruction)(12)

This model has the uppermost trained time amongst each model, consequently, the general trained time of module is equivalent to the trained time of the SRBMM model. The values of network traffic feature in data corresponding to “visible” unit of the RBM because they are observed. The pre-training stage involves a stack of RBM with contrast divergence approach. The extracted feature from initial demonstration RBM is utilized to train in the following RBM and lastly, back-propagation of error can be implemented. In such cases, it is impossible to utilize Eq. (7) in this technique. To substitute visible unit with linear unit, Gaussian RBM consider there are real-value visible layers amongst [0, 1]:

E(v,h)=∑i(vi−ai)22σi2−∑jbjhj−∑i,jviσihjwij(13)

2.4 Parameter Optimization Using SFO Algorithm

For tuning the parameters [19–21] related to the RBM model, the SFO algorithm is utilized. SFO [22] is a population based metaheuristic approach that is motivated by the attack-alternated method of collection of hunting sailfish that hunt a school of sardine. This hunting method offers dominance for hunters by providing the opportunity of soring the energy. It considers that: sailfish along with sardine populations. The sailfish was considered the solution candidate and the problem parameter are the position of sailfish from the searching region. This algorithm tries to randomize the effort of searching agents (sardine and sailfish) highly possible. The sailfish is considered as disseminated from the searching space, however, the position of sardines is used to find an optimal solution from the searching space.

The sailfish with optimal fitness values are called ‘elite’ sailfish and the position in ith iterations are presented by PSlfBesti. For sardine, the ‘injured’ is one with optimal fitness values and the position in ith iterations are represented by PSrdInjuredi. For each iteration, the sardine and sailfish places are upgraded. In i+1th iteration, an original location PSlfi+1 of sailfish has upgraded with ‘elite’ sailfish and ‘injured’ sardine as follows.

PSlfi+1=PSlfBesti−μi×(rnd×PSlfBesti+PSrdInjιιredi2−PSlfi)(14)

In Eq. (14), PSlfi indicates prior location of Slfth sailfish and rnd indicate the random value between zero and one and μi denotes the coefficient that is generated by using the following equation.

μi=2×rnd×PrD−PrD(15)

In Eq. (15) PrD indicates the prey density which indicates the prey amount in each iteration. From each iteration, the values of PrD, calculated in the following expression, minimize when the prey amount is minimized in group hunting.

PrD=1−NumSlfNumSlf+NumSrd(16)

In Eq. (16), NumSlf and NumSrd are the amount of sailfishes as well as sardines correspondingly.

NumSlf=NumSrd×Prcnt(17)

In Eq. (17), Prcnt indicates the percentage of sardine population that generated the most important sailfish population. The main quantity of sardines is considered greater than the sailfish amount. The sardine position was upgraded in every iteration as follows.

PSrdi+1=rnd(0,1)×(PSLfBesti−PSrdi+ATK)(18)

ATK=A×(1−(2×itr×κ))(19)

From the above equation, PSrdi and PSrdi+1 correspondingly indicates the prior and upgraded positions of sardine and ATK indicates the sailfish attack strength in itr iteration. Currently, the quantity of sardines upgrades the position and the displacement amount depends on ATK. In order to decrease the ATK assist the convergences of searching agent. With the variable ATK, the sardine amount upgrades the position (Γ) and the variable amount of (δ) is evaluated by:

Γ=NumSrd×ATK(20)

δ=v×ATK(21)

In the equation, v indicates the variable amount and NumSrd indicates the sardine amount. Once the sardine develops proper into sailfish, the sailfish upgrade the location following the sardine, and the sardine was detached from the population. The selection of sardine and sailfish randomly guarantees the exploration of searching space. Therefore, the attack strength of sailfish is minimized, each iteration gives an opportunity for sardine to escape from optimal sailfish which assists in exploitation. The ATK variable tries to discover the balance between exploration and exploitation.

3  Performance Validation

In this section, the experimental validation of the BAIDS-DFPDL model is tested using Bot-IoT dataset and NSL-KDD dataset.

The first Bot-IoT dataset comprises distinct classes such as Normal (8945), DDoS (2766), DoS (6391), Reconnaissance (298), Keylogging (73). Then, the NSL-KDD dataset holds several class labels namely Dos (45927), Probe (11656), R2L (995), U2R (52), and Normal (67343).

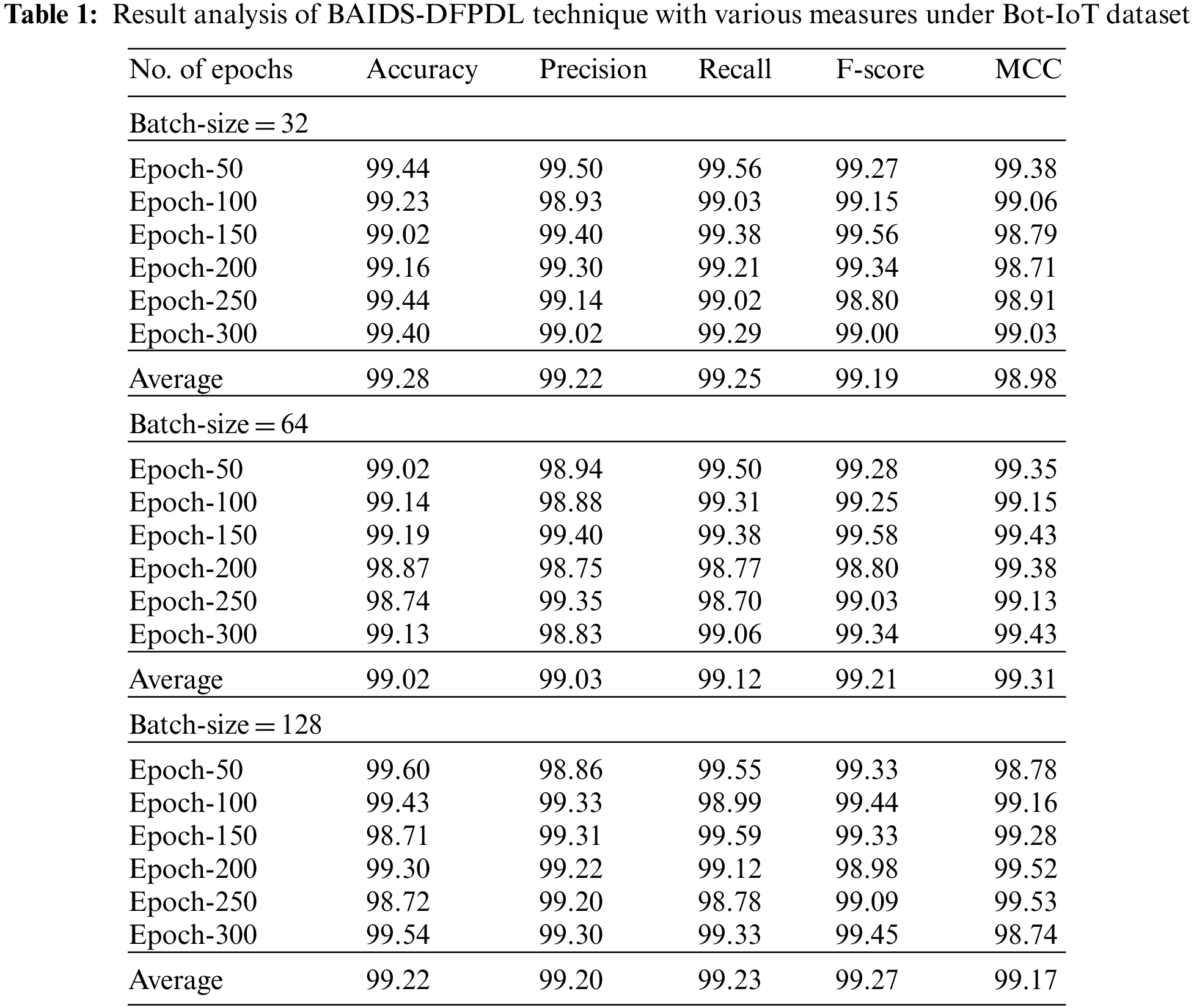

Tab. 1 and Fig. 3 report a brief classification outcome of the BAIDS-DFPDL model under distinct batch size (BS) and epoch count on Bot-IoT dataset. The results implied that the BAIDS-DFPDL model has accomplished enhanced classifier results in all aspects. For instance, with BS of 32, the BAIDS-DFPDL model has gained improved classification performance with average accuy, precn, recal, Fscore, and MCC of 99.28%, 99.22%, 99.25%, 99.19%, and 98.98% respectively. In addition, with BS of 64, the BAIDS-DFPDL methodology has attained higher classification performance with average accuy, precn, recal, Fscore, and MCC of 99.02%, 99.03%, 99.12%, 99.21%, and 99.31% correspondingly. Along with that, with BS of 128, the BAIDS-DFPDL approach has reached improved classification performance with average accuy, precn, recal, Fscore, and MCC of 99.22%, 99.20%, 99.23%, 99.27%, and 99.17% correspondingly.

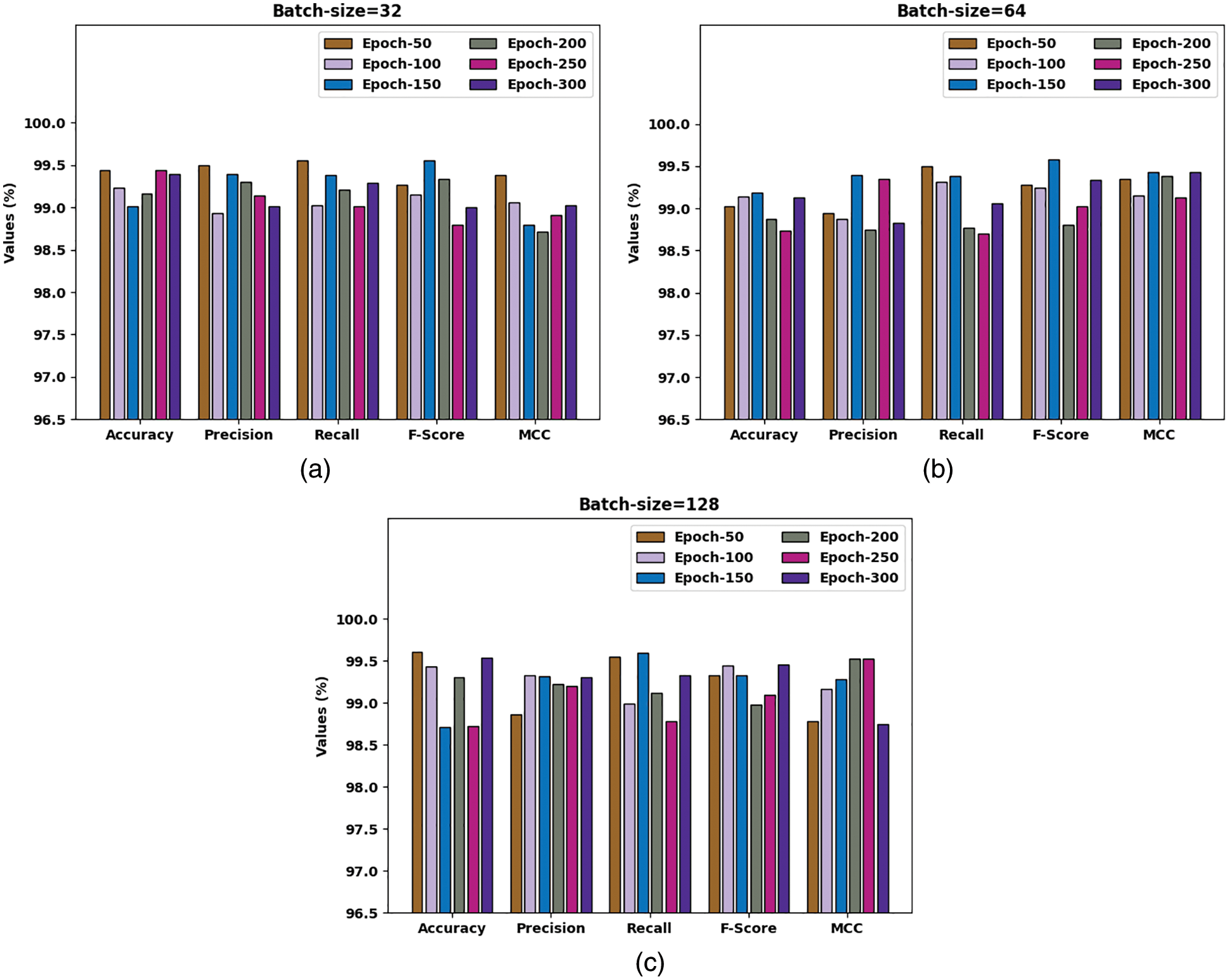

Figure 3: Result analysis of BAIDS-DFPDL technique under Bot-IoT dataset (a) BS = 32, (b) BS = 64, and (c) BS = 128

A brief precision-recall examination of the BAIDS-DFPDL model on Bot-IoT dataset is portrayed in Fig. 4. By observing the figure, it is noticed that the BAIDS-DFPDL approach has accomplished maximal precision-recall performance under all classes.

Figure 4: Precision-recall curve analysis of BAIDS-DFPDL approach under Bot-IoT dataset

A detailed ROC investigation of the BAIDS-DFPDL model on Bot-IoT dataset is portrayed in Fig. 5. The results exposed that the BAIDS-DFPDL model has exhibited its ability in categorizing five different classes on the test dataset.

Figure 5: ROC curve analysis of BAIDS-DFPDL approach under Bot-IoT dataset

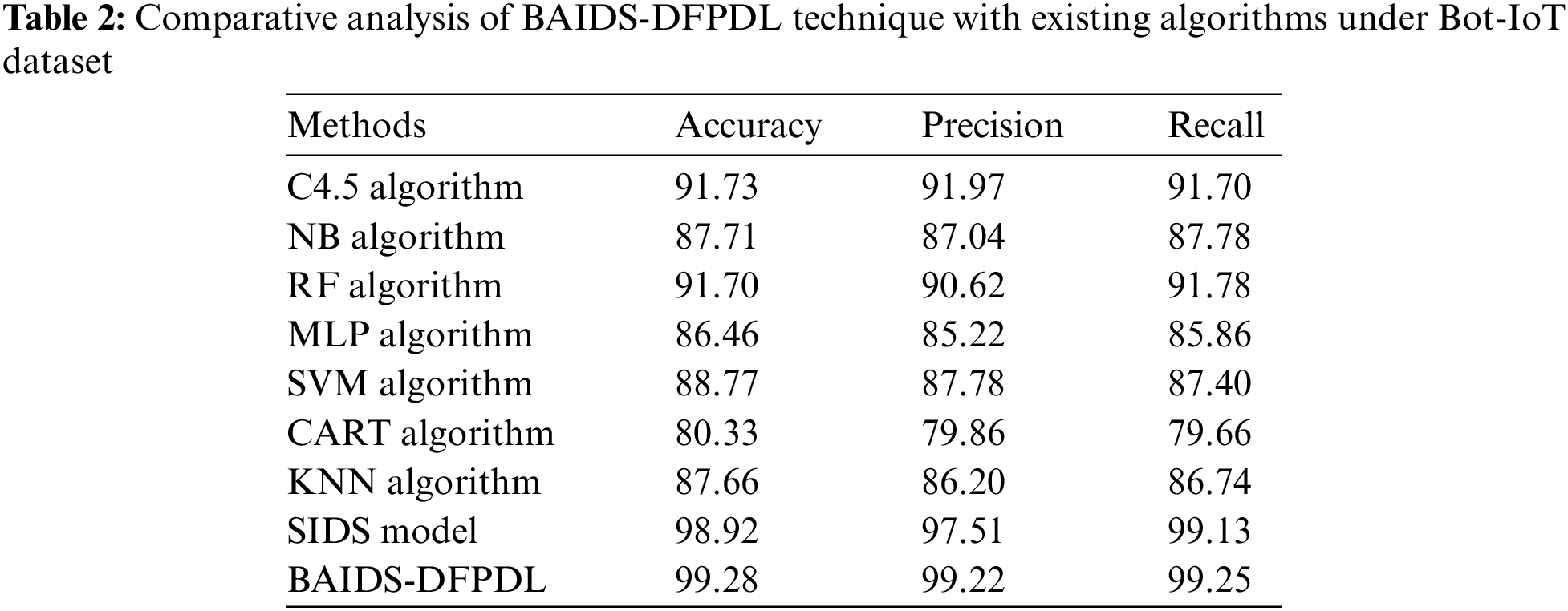

Tab. 2 and Fig. 6 report a brief comparative study of the BAIDS-DFPDL model on the test Bot-IoT dataset [23,24]. The experimental values implied that the CART model has shown worse performance with least accuy, precn, and recal of 80.33%, 79.86%, and 79.66% respectively. At the same time, the MLP, KNN, NB, and SVM models have reached slightly improved performance over other models. Then, the RF and C4.5 models have tried to accomplish reasonable outcomes. Though the SIDS model has resulted in considerable classification results with accuy, precn, and recal of 98.92%, 97.51%, and 99.13%, the presented BAIDS-DFPDL model has depicted maximum performance accuy, precn, and recal of 99.28%, 99.22%, and 99.25% respectively.

Figure 6: Comparative analysis of BAIDS-DFPDL technique under Bot-IoT dataset

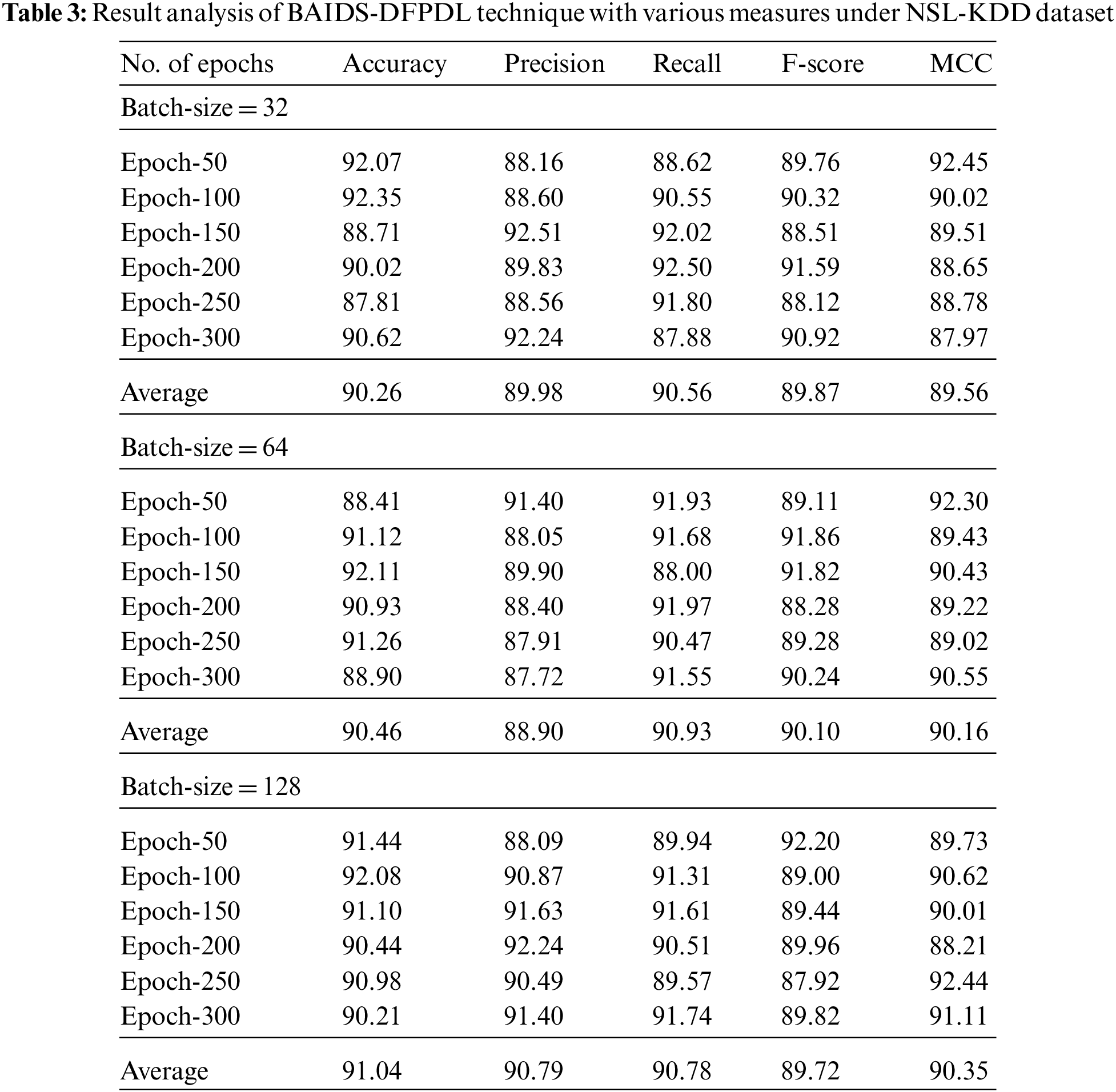

Tab. 3 and Fig. 7 illustrate a brief classification outcome of the BAIDS-DFPDL algorithm under distinct BS and epoch counts on NSL-KDD dataset. The outcomes exposed that the BAIDS-DFPDL model has accomplished enhanced classifier outcomes in all aspects. For instance, with BS of 32, the BAIDS-DFPDL algorithm has gained increased classification performance with average accuy, precn, recal, Fscore, and MCC of 90.26%, 89.98%, 90.56%, 89.87%, and 89.56% correspondingly. Furthermore, with BS of 64, the BAIDS-DFPDL model has gained maximal classification performance with average accuy, precn, recal, Fscore, and MCC of 90.46%, 88.90%, 90.93%, 90.10%, and 90.16% respectively. Eventually, with BS of 128, the BAIDS-DFPDL algorithm has gained enhanced classification performance with average accuy, precn, recal, Fscore, and MCC of 91.01%, 90.79%, 90.78%, 89.72%, and 90.35% correspondingly.

Figure 7: Average analysis of BAIDS-DFPDL technique under NSL-KDD dataset (a) BS = 32, (b) BS = 64, and (c) BS = 128

Tab. 4 and Fig. 8 demonstrate a brief comparative analysis of the BAIDS-DFPDL technique on the test NSL-KDD dataset. The experimental values exposed that the SVM approach has demonstrated least performance with minimal accuy, precn, and recal of 70.32%, 70.84%, and 70.37% correspondingly. Besides, the MLP, KNN, NB, and CART algorithms have reached somewhat enhanced performance over other methodologies.

Figure 8: Comparative analysis of BAIDS-DFPDL technique under NSL-KDD dataset

Followed by, the RF and C4.5 models have tried to accomplish reasonable outcomes. But, the HIDS algorithm has resulted in considerable classification results with accuy, precn, and recal of 83.60%, 85.13%, and 83.56%, the presented BAIDS-DFPDL methodology has exhibited higher performance accuy, precn, and recal of 91.04%, 90.79%, and 90.78% correspondingly. Therefore, the proposed BAIDS-DFPDL model has showcased excellent performance over all the other models.

4  Conclusion

In this study, a new BAIDS-DFPDL model has been developed for identification and classification of intrusions in the IoT environment. To accomplish this, the presented BAIDS-DFPDL model follows BC technology for effective and secure data transmission among the agents. Besides, the presented BAIDS-DFPDL model designed DFPFS technique to elect features. At last, the SFO algorithm with RBM model is applied for effectual recognition of intrusions. The simulation results on benchmark dataset exhibit the enhanced performance of the BAIDS-DFPDL model over other models in the recognition of intrusions in the IoT environment. Thus, the BAIDS-DFPDL technique can be exploited for accomplishing security in the IoT environment. In future, the performance of the BAIDS-DFPDL model can be boosted by the design of feature reduction approaches.

Funding Statement: This research was supported in part by Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (NRF-2021R1A6A1A03039493), in part by the NRF grant funded by the Korea government (MSIT) (NRF-2022R1A2C1004401), and in part by the 2022 Yeungnam University Research Grant.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
