Computers, Materials & Continua
DOI:10.32604/cmc.2022.029166
images
Article

A Novel Stochastic Framework for the MHD Generator in Ocean

Sakda Noinang1, Zulqurnain Sabir2, Shumaila Javeed3, Muhammad Asif Zahoor Raja4, Dostdar Ali3, Wajaree Weera5,* and Thongchai Botmart5

1Department of Mathematics Statistics and Computer, Faculty of Science, Ubon Ratchathani University, Ubon Ratchathani 34190, Thailand
2Department of Mathematics and Statistics, Hazara University, Mansehra, Pakistan
3Department of Mathematics, Comsats University Islamabad, 45550 Islamabad Campus, Islamabad, Pakistan
4Future Technology Research Center, National Yunlin University of Science and Technology, Yunlin 64002, Taiwan
5Department of Mathematics, Faculty of Science, Khon Kaen University, Khon Kaen 40002, Thailand
*Corresponding Author: Wajaree Weera. Email: wajawe@kku.ac.th
Received: 26 February 2022; Accepted: 06 May 2022

Abstract: This work aims to study the nonlinear ordinary differential equations (ODEs) system of magnetohydrodynamic (MHD) past over an inclined plate using Levenberg-Marquardt backpropagation neural networks (LMBNNs). The stochastic procedures LMBNNs are provided with three categories of sample statistics, testing, training, and verification. The nonlinear MHD system past over an inclined plate is divided into three profiles, dimensionless momentum, species (salinity), and energy (heat) conservations. The data is applied 15%, 10%, and 75% for validation, testing, and training to solve the nonlinear system of MHD past over an inclined plate. A reference data set is designed to compare the obtained and proposed solutions for the MHD system. The plots of the absolute error (AE) are provided to check the accuracy and precision of the considered nonlinear system of MHD. The obtained numerical solutions of the nonlinear magnetohydrodynamic system have been considered to reduce the mean square error (MSE). For the capability, dependability, and aptitude of the stochastic LMBNNs procedure, the numerical performances are provided to authenticate the relative arrangements of MSE, error histograms (EHs), state transitions (STs), correlation, and regression.

Keywords: MHD energy; salinity; levenberg-marquardt backpropagation; Soret number; nonlinear

1  Introduction

Ocean energy is considered one of the significant sources of renewable energy globally. Due to the necessity of long-term hydropower systems, various electrical power systems have existed and been installed based on demand and energy usage. For example, the improved and low-cost system is photovoltaic panels [1], which recharged the solar collectors through geothermal energy reservoirs, biomass gasification [2], and turbines [3]. In order to obtain an energy system, the interest in power production marine energy can be included (especially in Asian regions) along with the advanced systems that have been established in the ocean thermal energy conversion [4], wave energy conversion devices [5], and tidal powerhouse [6]. Although several alternative oceanic renewable designs have been proposed, the magnetohydrodynamic (MHD) saltwater generator [7]. These types of converters interchange the kinetic energy of source energy into electrical energy in the process of MHD [8]. The experimental magnetic field is an important aspect in optimizing both efficiency and performance parameters in MHD ocean generators, as it is in the traditional land-based MHD generators. Rotating disk and channels, Hall current along with the helicoid [912], are well-known systems that have been researched in the present decade. To perform better, the complicated features of heat, mass, and momentum are used to improve operational efficiency, which has sparked a lot of interest in mathematical and computer modeling. The physical parameters of sea wave motion are determined by salinity, temperature, and pressure, posing significant seawater properties. The presence of tiny, suspended particles in seawater significantly impacts the generation of marine waterpower [13].

In recent years, the mass and heat flows have achieved significant attention with inclined MHD. Such studies of different physical parameters affect the energy production systems and how porous inclined plate affects magnetized nanofluid flow [14]. In a stretching plate, magnetic number and heat effects are studied on hydromagnetic flow with an inclined plane [15,16]. Palani et al. investigated a hydromagnetic solution using a numerical technique named finite-difference to find the natural convection with the help of ohmic impacts [17]. Chamkha et al. obtained the numerical solutions of buoyancy-driven magneto-convection by the blotter-difference method [18]. Masthanrao et al. investigated the chemical reaction impacts on the stable 2-D hydromagnetic natural process of convection in a porous phase [19]. Hossain et al. examined the inclined plate and their convection together with the effects of the weak-magnetic line by using the finite-difference method and local similarity [20]. Ramadan et al. obtained a computational solution of two-phase convection (natural) in an inclined surface considering the variable characteristics and effect on the magnetized boundary-layer flow [21]. Wang et al. proposed the implicit method of inverse direction cubic spline to replicate the mixed convection flow (magneto-hydrodynamic) from an inclined wavy plate [22]. Along with that, they observed that the leading-edge flow depends on the force of increasing magnetic body, whereas decelerates the flow when the wavy surface is far from downstream. Chen studied the characteristics (mass transfer, heat, and momentum) of non-isothermal flow in joule and viscous dissipation from a porous slope surface [23].

The above studies discussed the rate of heat flow and generally ignored mass transfer, which is simultaneous species in the process of diffusion. However, as noted previously, the combined impacts of heat as well as mass transfer is important in systems devices. In the ocean, MHD generators have serious issues with salinity. The diffusion of mass and mixed convection flow investigations show that mass transfer obeys the Frckian-law [24] and complex properties of the mixed-convection flow. Ferdows et al. found the double-diffusive convection effects on wall slip [25]. Rashidi et al. solved the transport phenomena due to the reactive boundary-layer convection [26]. Zueco et al. applied numerical-network simulation on thermophoretic magneto-convection to get the effect by thermophysical variable [27,28]. However, these findings have been excluded from the diffuse-thermal (Dufour) or thermal–diffusion (Soret) effects. Bég et al. used boundary layer theory and local non-similarity processes to find the Dufour effects [29]. Bég et al. simulated the effects of Soret based on thermo-diffusion considering the peristaltic pumping and described the relationship among wave amplitude buoyancy force [30]. Few more studies related to Soret have been presented in the references [31,32]. Vasu et al. investigated the Dufour effect and Soret effect on hydromagnetic transportation from a circular body in porous channels [33]. In recent years, Vasu et al. interrogated advanced solutions employing finite-difference scheme considering the effects of Dufour-Soret cross-diffusion [33]. Soret/Dufour impacts are substantial. The energy flux generates the difference of concertation and produces diffusion-Thermo or Dufour effects. While the mass flux is induced via temperature difference is the thermo-diffusion or Soret effect.

The present literature has not studied the MHD ocean system flows from the inclined plate with heat generation and Soret effects. Therefore, we focused on that and examined the MHD ocean-generator, the transport phenomena of thermo-diffusion, and heat-generation effects from an inclined surface. Saltwater liquid transportation phenomena have a Soret effect. The laminar steady-state edge leading system is studied for MHD double-diffusive flow in ocean water convection besides heat generation with the inclined insulated (non-conducting) plate. The velocity, concentration (salinity), and temperature are also a wide range of self-control parameters along with surface-heat transfer, skin-friction coefficient, and mass transfer.

1.1 Mathematical Form of the Transport System

The ocean-generator MHD approach is one of the feasible capabilities of mankind. Numerous Russian, Japanese, American, and French engineers studied renewable energy. In Japan, the floating installation system represents the construction of MHD floating ocean-energy along with the basic MHD ocean-energy production. Here α is the slope of the inclined plate. The initial assumption is that the same temperature, T for both plate and fluid, and gets the same salinity level, S at every point. Also, assumed that both are at rest, the generator plate (channel wall) and the fluid. When the wall moves forward along X-axis with a constant velocity then the temperature of species salinity and the wall becomes SW(>S) and TW(>T). Here, SW is the rest species salinity, TW is the temperature at rest, while SW and TW are far away from the wall respectively, and as a result, a low magnetic field B0. The magnetic field is every time normal to the wall and never alters due to the change of wall. The force (Lorentz) is always directed and relative to the plate (wall). To study the boundary-layer approximation, the governing equations of energy conservation, momentum, salinity, mass, incorporating heat-generation and Soret effects are as follows:

Continuity equation:

Ux+Vy=0.(1)

Momentum Conservation:

(UUx+VVy)=v (2Uy2)+gβ(TT)sinα  σβ02ρU.(2)

Species (Salinity) Conservation.

(USx+VSy)=Ks (2Sy2)+Fs(2Ty2). (3)

Energy (heat) conservation:

(UTx+VTy)=KT (2Ty2)+Fs(QTρCP). (4)

The specified boundary-conditions are given below:

U=0  Y=0 V=0  T= Tw=T=+sinα As Y:U0:V0:T T,  SS,       (5)

where, U is the uniform velocity, V is the kinematic viscosity, g is the acceleration (gravity), β is the expansion coefficient of the volumetric thermal process, β* is the expansion coefficient of mass, σ is the conductivity of the fluid, ρ is the density of fluid. QT is the heat generation, CP is the constant pressure of specific heat. Moreover, Ks, KT are thermal diffusive due to temperature, and salinity (salt species) respectively and Fs is the molecular diffusivity. The second last factor in Eq. (3) represents the Soret effect term. The key point to be noted in Eq. (5), the thermal and solutal boundary-conditions show the inclusion plate’s place under the temperature field and solutal [34]. In this study, the isothermal and non-solutal effects are ignored. Thermal and concentration impacts at the plate cannot be fully measured, particularly in the MHD domain of the ocean generator. It is impossible to minimize completely the time or spatial difference of such phenomena. Gebhart et al. followed boundary-layer theory and founded a robust boundary-value problem, which helped the logical and validated supposition for engineers [34]. This supports a reasonable estimation for close wall transfer phenomena. Eqs. (1)(4) define boundary-value problems that cannot solve analytically under the considered boundary-conditions (c.f. Eq. (5)). In primitive variables, the primitive boundary-value problem using numerical methods cannot yield explanations in terms of significant dimensionless measures. To overcome this, the similarity transformation makes the problem dimensionless and converts the partial differential equations to the system of ordinary differential equations. This is an easy method that is helpful to observe several physical parameters of the transport phenomena.

1.2 Transformation of Model

Proceeding for transformation and defining dimensionless variables as follows:

η=yUo2vX,ψ=2xUoXf(η),θ=θ(η)=TTTwT,ϕ=ϕ(η)=SSSwS=ψY,v=ψX(6)

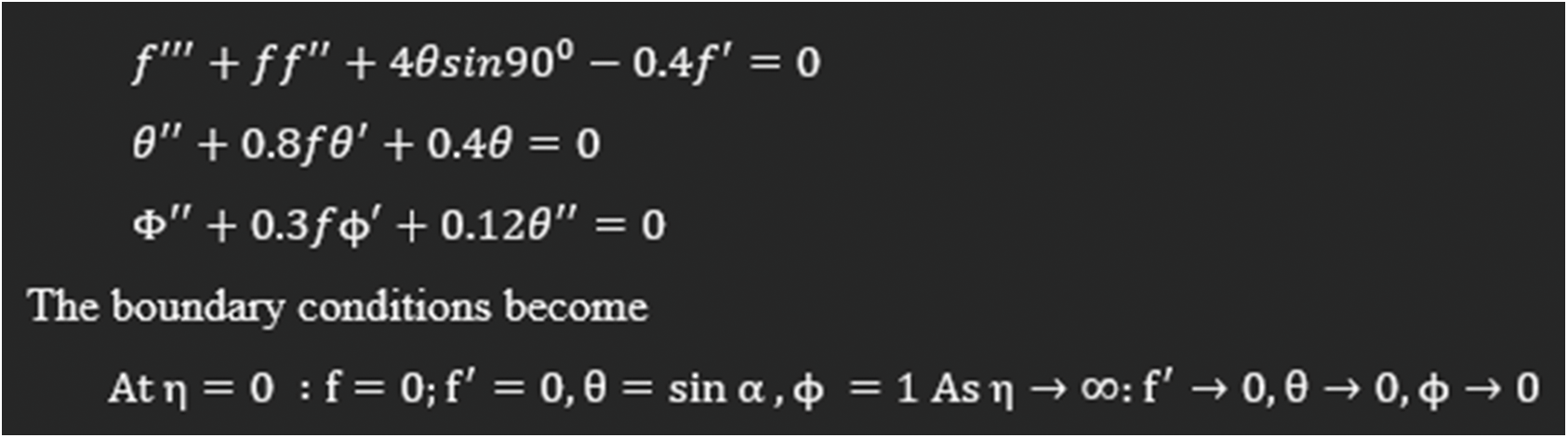

These parameters introduced in the systems (c.f. Eqs. (1)(4)) as the non-dimensional ODEs are

images

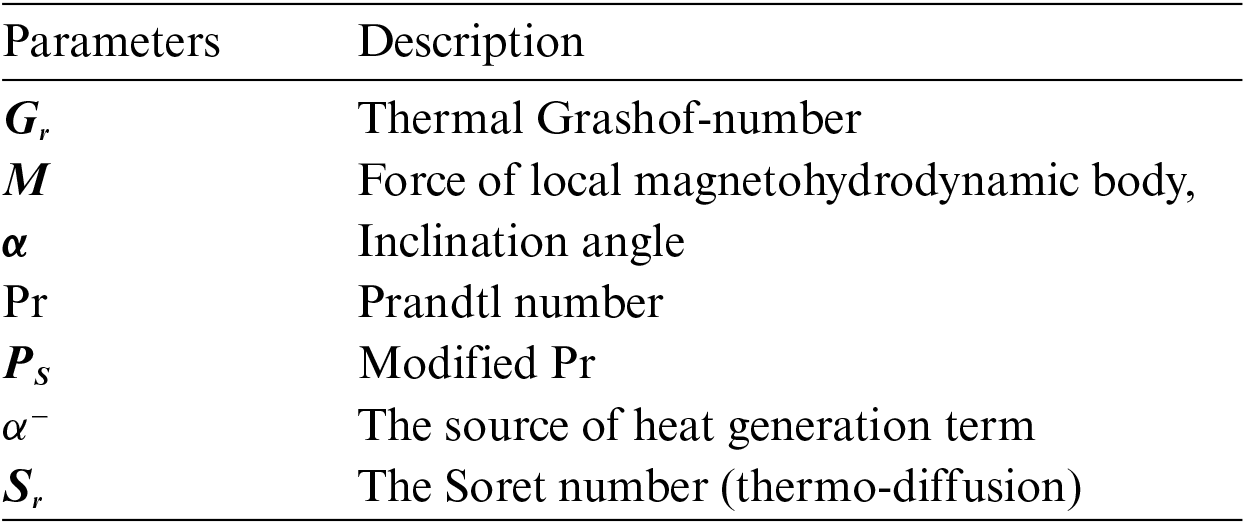

The energy systems in which the coefficient of skin-friction along with the rate of heat and salinity transfer is computed by the below expressions:

Cj(Re)12=f(0) Nu(Re)12=θ(0) Sh(Re)12=ϕ(0) .

Here Re is the Reynolds-number.

images

The purpose of this investigation is to design a robust computational artificial neural network (ANN) technique using the novel characteristics of the Levenberg-Marquardt backpropagation (LBMBP), i.e., ANN-LBMBP for solving the MHD generators in the ocean system. The nonlinear mathematical form of the boundary-layer wall in the ocean system is in three groups, heat transfer, mass transfer and momentum. The obtained solutions through the proposed ANN-LBMBP procedure for solving the MHD ocean energy generating system are related to the reference work out solutions. The stochastic-based numerical processes have been applied to solve various evolutionary/swarming schemes [3537]. Additionally, the stochastic methods have been applied to solve the fractional order singular nonlinear model [38,39], SITR model based on coronavirus [40,41], functional order singular system [42], HIV nonlinear model [4345], delayed form of the models [46], dengue fever systems [47] and periodic differential models [48,49]. The general novel features of the ANN-LBMBP for solving the MHD in the ocean system are provided as follows:

•   A novel stochastic ANN-LBMBP procedure is presented for solving the energy generating in the ocean system.

•   The obtained numerical results through the stochastic ANN-LBMBP procedures have been compared with the reference solutions for boundary-layer approximation in the ocean system.

•   The results correspond with performance, which indicates the exactness of the designed stochastic NN-LBMBP for solving energy generation in the ocean system.

The absolute error (AE) performances are found in good ranges to solve the waste energy in the ocean system. The rest of the paper’s parts are summarized: The procedure for the MHD in the ocean’s nonlinear ODEs system past over an inclined plate is provided in Section 2. The numerical results are given in Section 3. The concluding remarks and future work directions are provided in Section 4.

2  Methodology: Stochastic LMBNNs

In this section, the designed stochastic LMBNNs procedures are provided in two steps for solving the MHD nonlinear ODEs system past over an inclined plate. Firstly, the necessary details of the stochastic process for the ODEs are explained, whereas the execution actions of the stochastic procedures are provided in the second phase.

An appropriate optimization LMBNNs procedure is provided in Fig. 1 based on the multi-layer processes. The LMBNNs procedures are executed with ‘nftool’ command, which is build-in MATLAB procedure using the statistics, 10%, 15% and 75% for testing, validation and training are provided to solve the MHD nonlinear ODEs system past over an inclined plate.

images

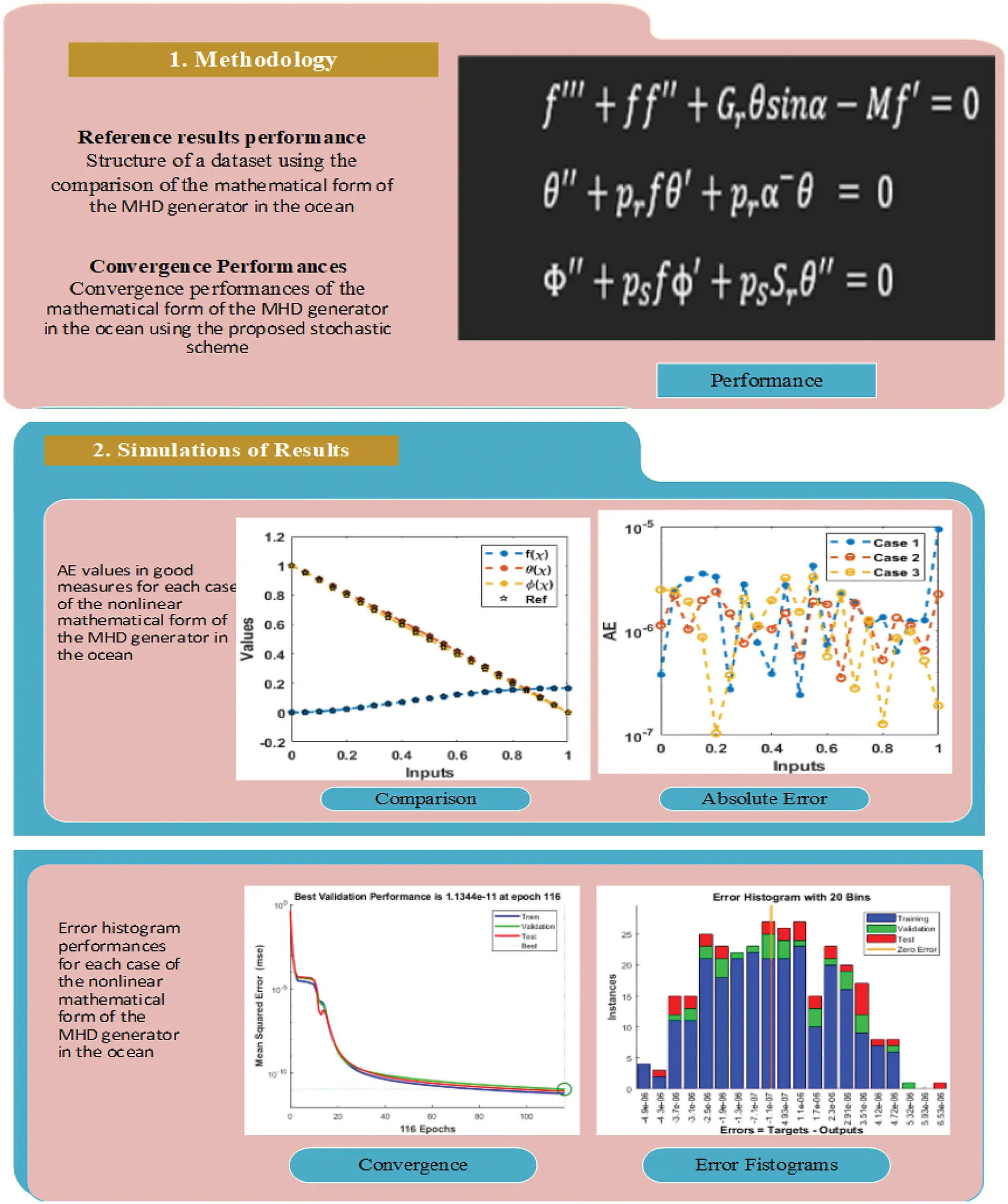

Figure 1: Workflow illustrations of the proposed LMBNNs for solving the nonlinear ODEs system past over an inclined plate

3  Numerical Simulations

Case-1: Consider the nonlinear MHD past over an inclined plate with Gr=4, M=0.4, α=90°, Pr=0.5, Ps =0.3, α=0.5, Sr=0.4. The mathematical representations of non-linear, non-dimensional ODEs system (7) using these values are provided as:

images

Case-2: Consider the nonlinear MHD past over an inclined plate with Gr=4, M=0.4, α=90°, Pr=0.8, Ps =0.3, α=0.5, Sr=0.4. The mathematical representations of non-linear, non-dimensional ODEs system (7) using these values are provided as:

images

Case-3: Consider the nonlinear MHD past over an inclined plate with Gr=4, M=0.4, α=90°, Pr=1.3, Ps =0.3, α=0.5, Sr=0.4. The mathematical representations of non-linear, non-dimensional ODEs system (7) using these values are provided as:

images

The numerical results based on stochastic LMBNNs procedures for solving the MHD system past over an inclined plate are provided in the input [0, 1]. The ‘nftool’ command is built-in MATLAB procedure using the statistics, 15%, 10% and 75% for testing, validation, and training to solve the MHD past over an inclined plate. Seven numbers of neurons have been used throughout this numerical study. The obtained numerical representations of the stochastic procedures for the nonlinear MHD past over an inclined plate are illustrated in Fig. 2.

images

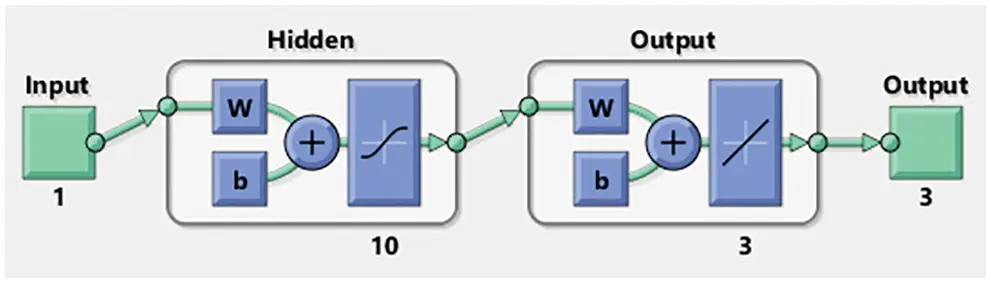

Figure 2: Stochastic LMBNNs procedure to solve the nonlinear MHD system past over an inclined plate

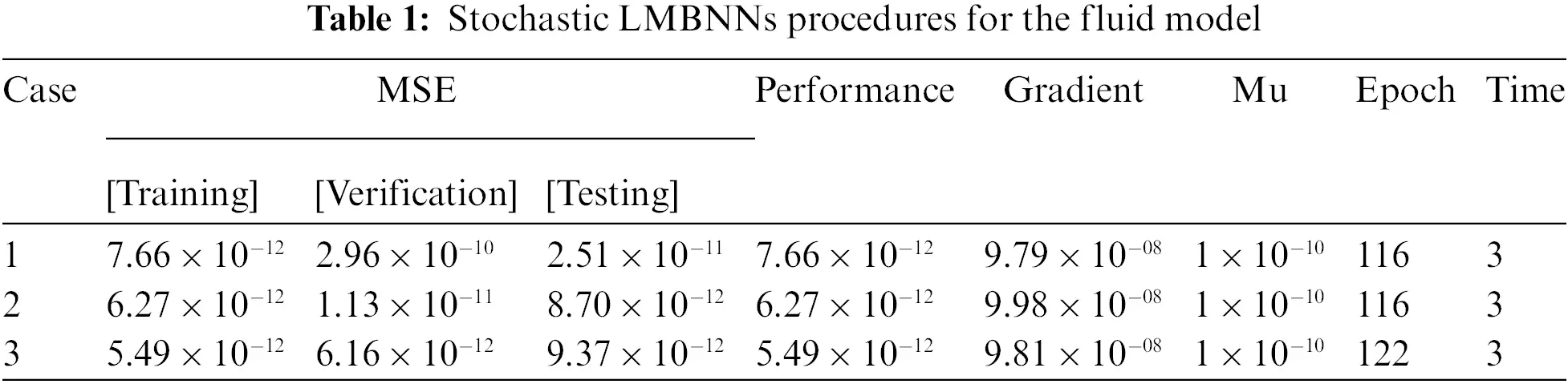

The numerical representations to solve the nonlinear MHD system past over an inclined plate are drawn in Figs. 311 using the stochastic LMBNNs procedures. The proficient numerical performances are given in Figs. 35 based on the STs and performances. The obtained performances using the MSE for training, STs, best curve, testing states and authentication are plotted in Fig. 3. The best routines for the ODEs model are calculated at epochs 116, 116 and 122 around 2.96 × 10−10, 1.13 × 10−11 and 6.16 × 10−12, respectively. Fig. 4 represents the gradient performances of the stochastic procedures for the MHD past over an inclined plate, which lie around 9.79 × 10−08, 9.98 × 10−08 and 9.81× 10−08. These illustrations designate the accuracy and precision of the proposed stochastic procedures for the MHD past over an inclined plate. The fitting curve representations are illustrated in Figs. 57, which are drawn on the basis of the comparison of the obtained results through LMBNNs and the database results. The error plots are shown based on the performances of training, testing and authentication through the proposed stochastic procedures for the nonlinear ODEs system of MHD past over an inclined plate. The plots of EHs are drawn in Figs. 8a8c based on the regression, which are calculated around 4.51 × 10−08, 4.93 × 10−07 and 3.83 × 10−07 for cases 1, 2 and 3. The correlation performances are observed in Figs. 911 for cases 1, 2 and 3 to solve the nonlinear ODEs system of MHD past over an inclined plate. One can observe that the values of correlation are calculated around 1 to solve the nonlinear ODEs system of MHD past over an inclined plate, which indicates the perfect system. The testing, verification and training illustrations indicate the correctness of the proposed stochastic scheme for the system of MHD past over an inclined plate. Furthermore, the MSE convergence is accomplished for authentication, training, epochs and testing in Tab. 1 for the system of MHD past over an inclined plate.

images

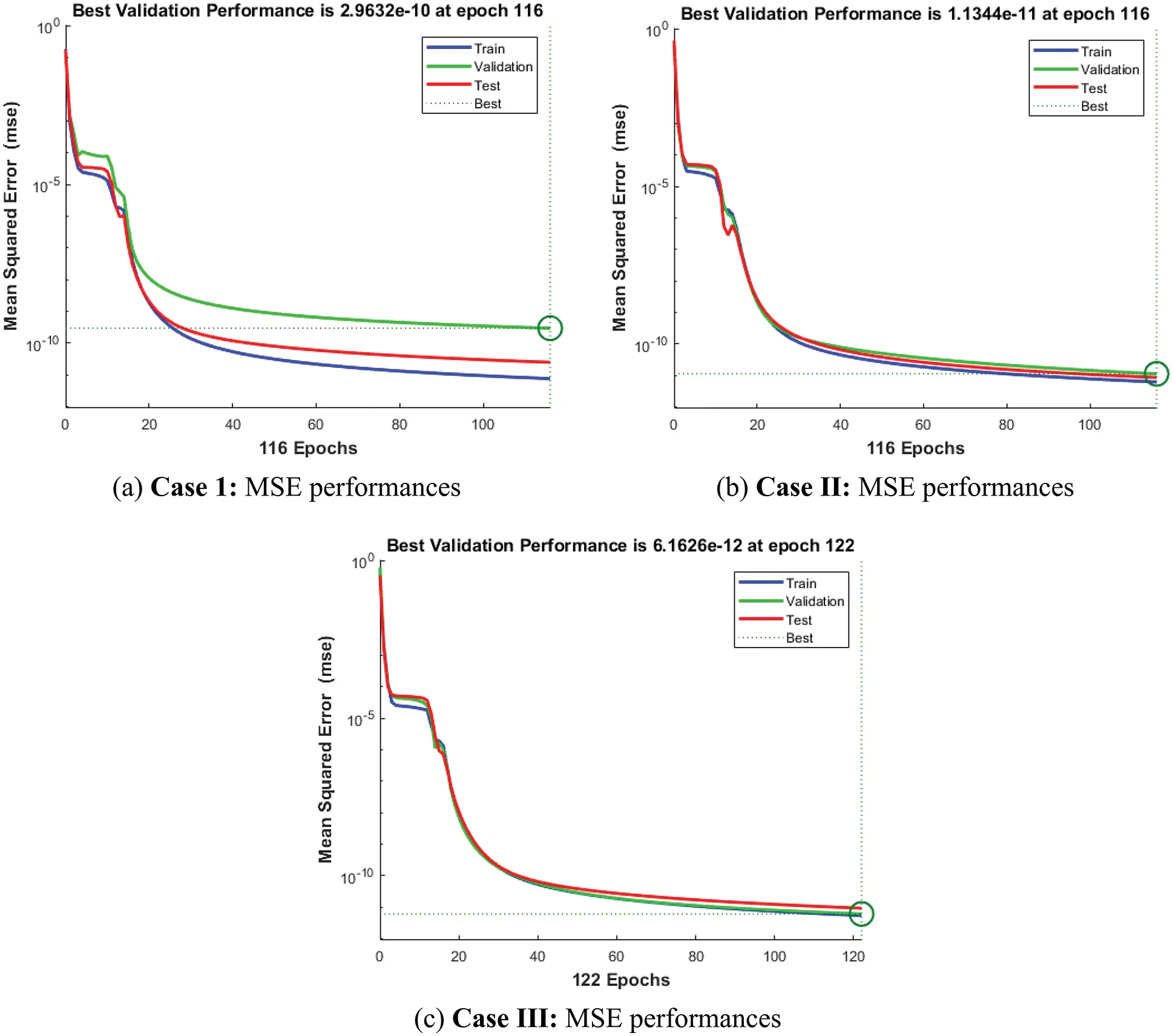

Figure 3: MSE performance using the stochastic procedures for the system of MHD past over an inclined plate

images

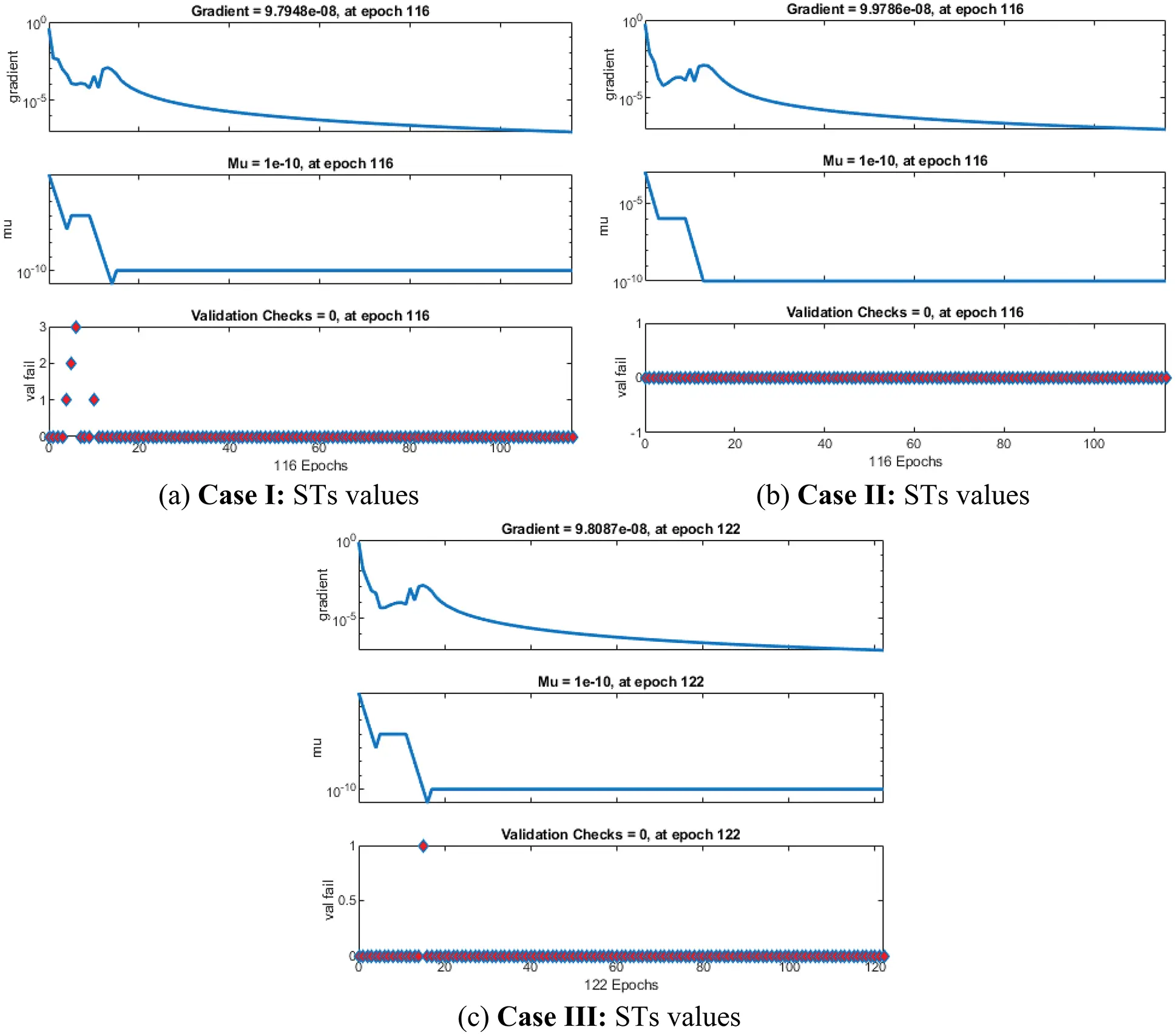

Figure 4: STs values using the stochastic procedures for the system of MHD past over an inclined plate

images

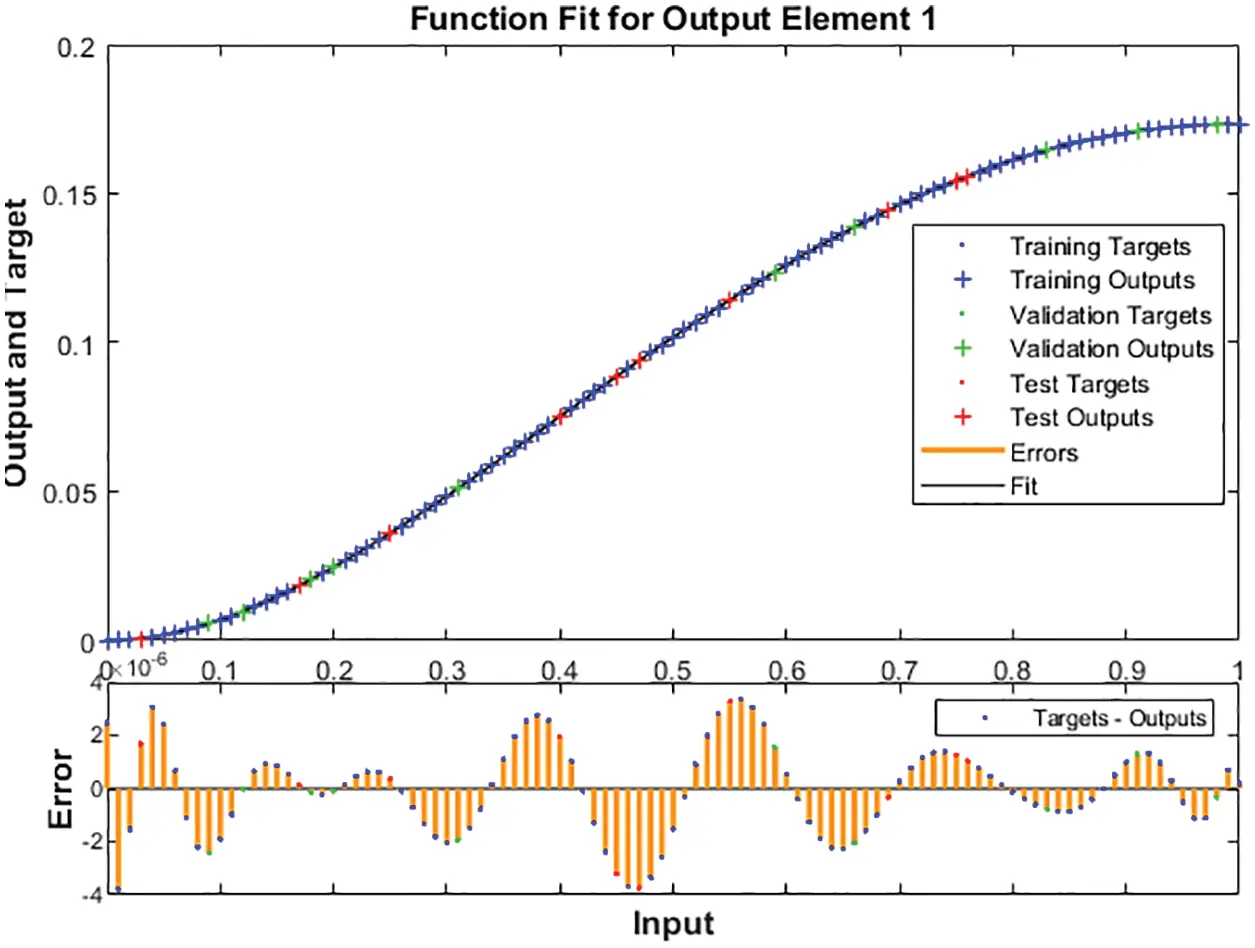

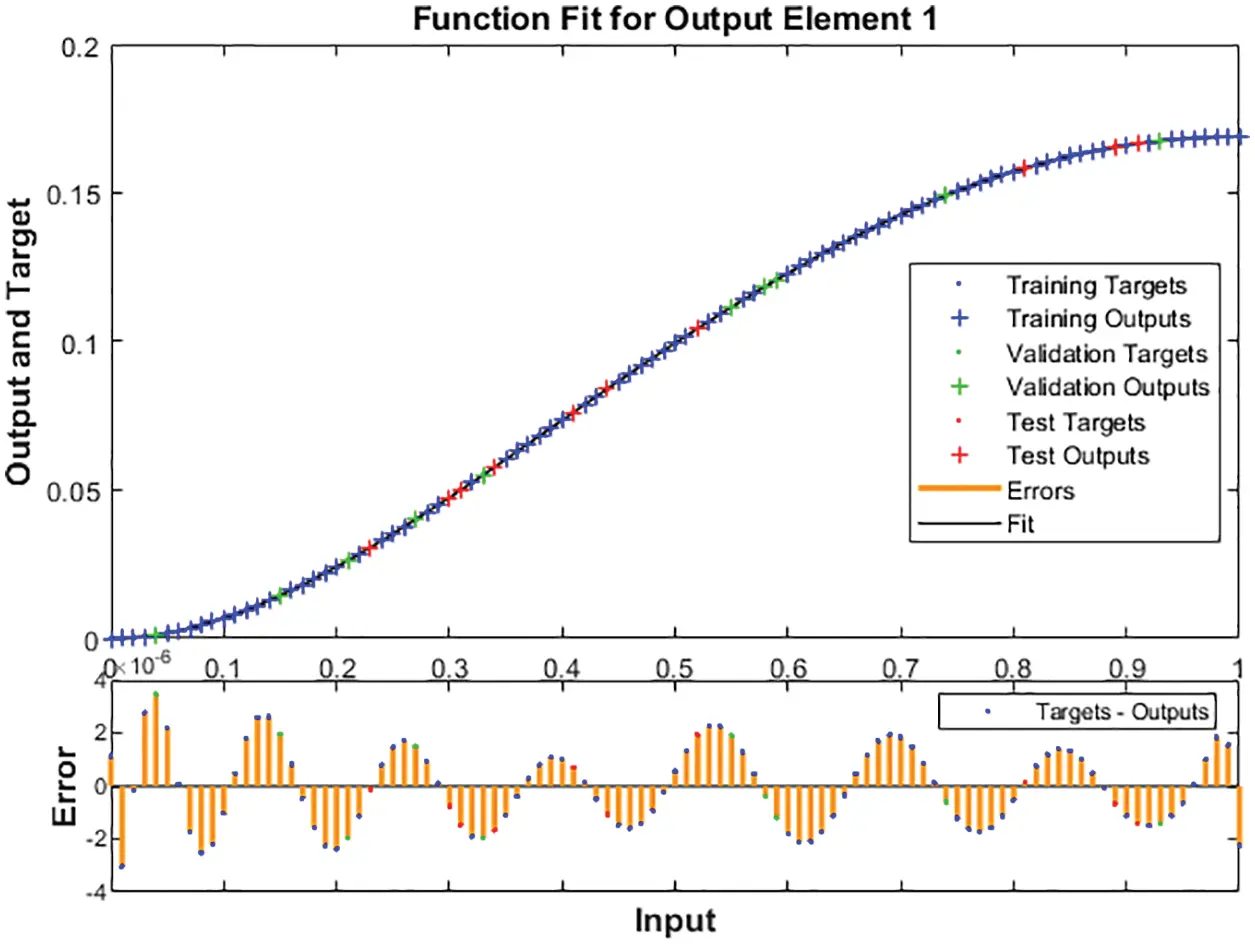

Figure 5: Case 1: Results using the stochastic procedures for the system of MHD past over an inclined plate

images

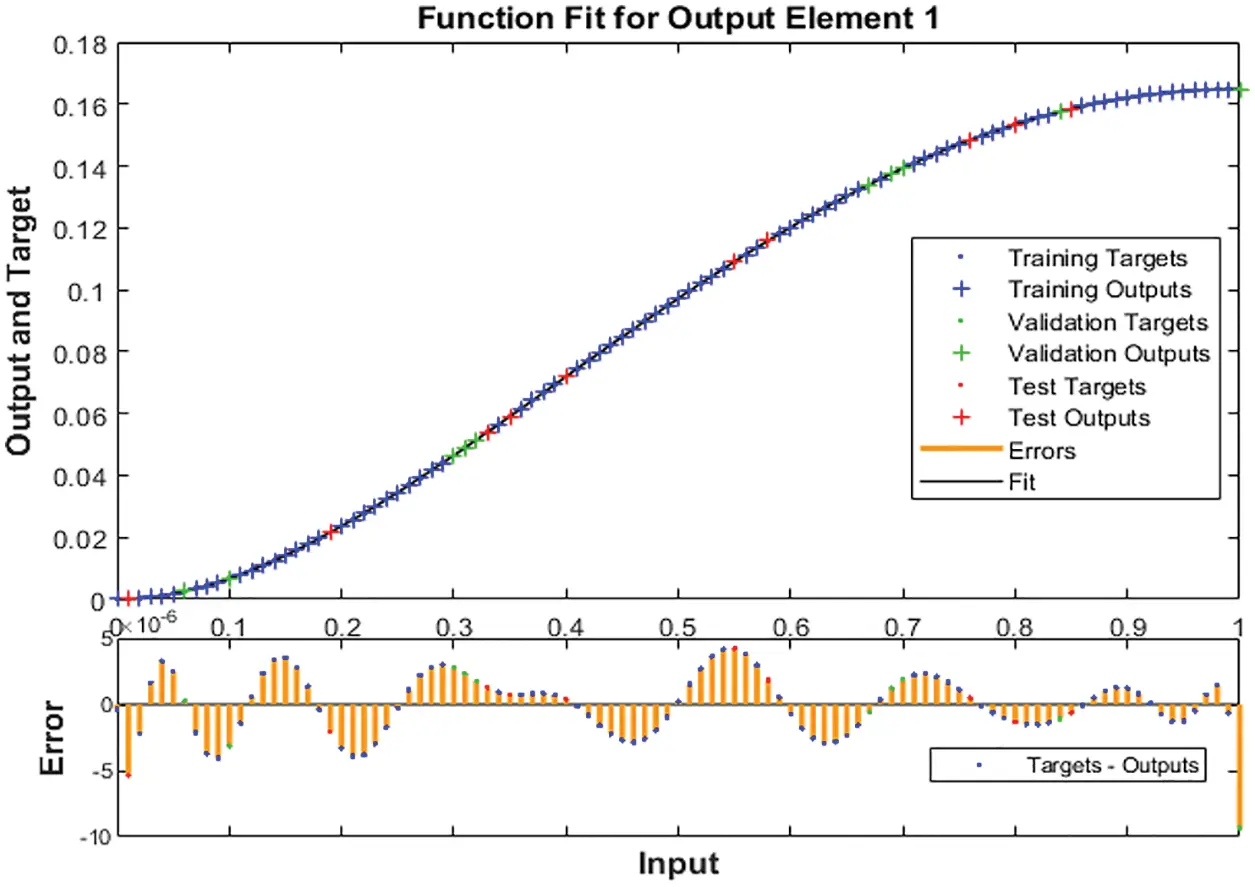

Figure 6: Case 2: Results using the stochastic procedures for the system of MHD past over an inclined plate

images

Figure 7: Case 3: Results using the stochastic procedures for the system of MHD past over an inclined plate

imagesimages

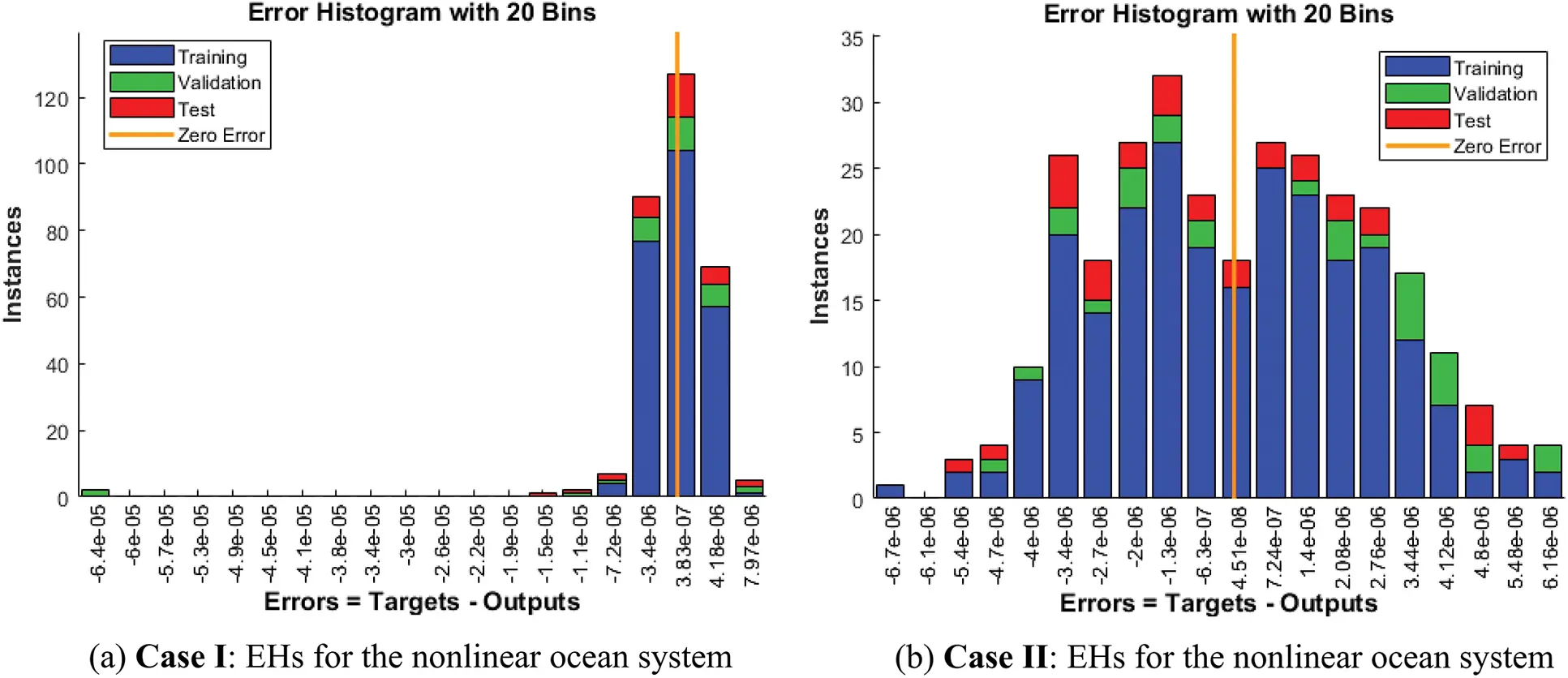

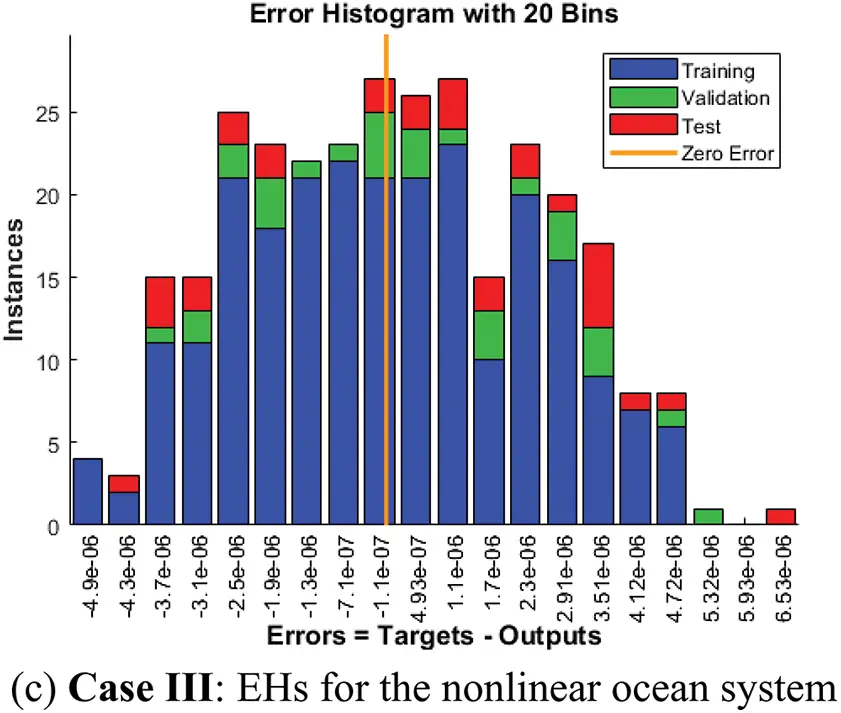

Figure 8: EHs based on the stochastic procedures for the system of MHD past over an inclined plate

images

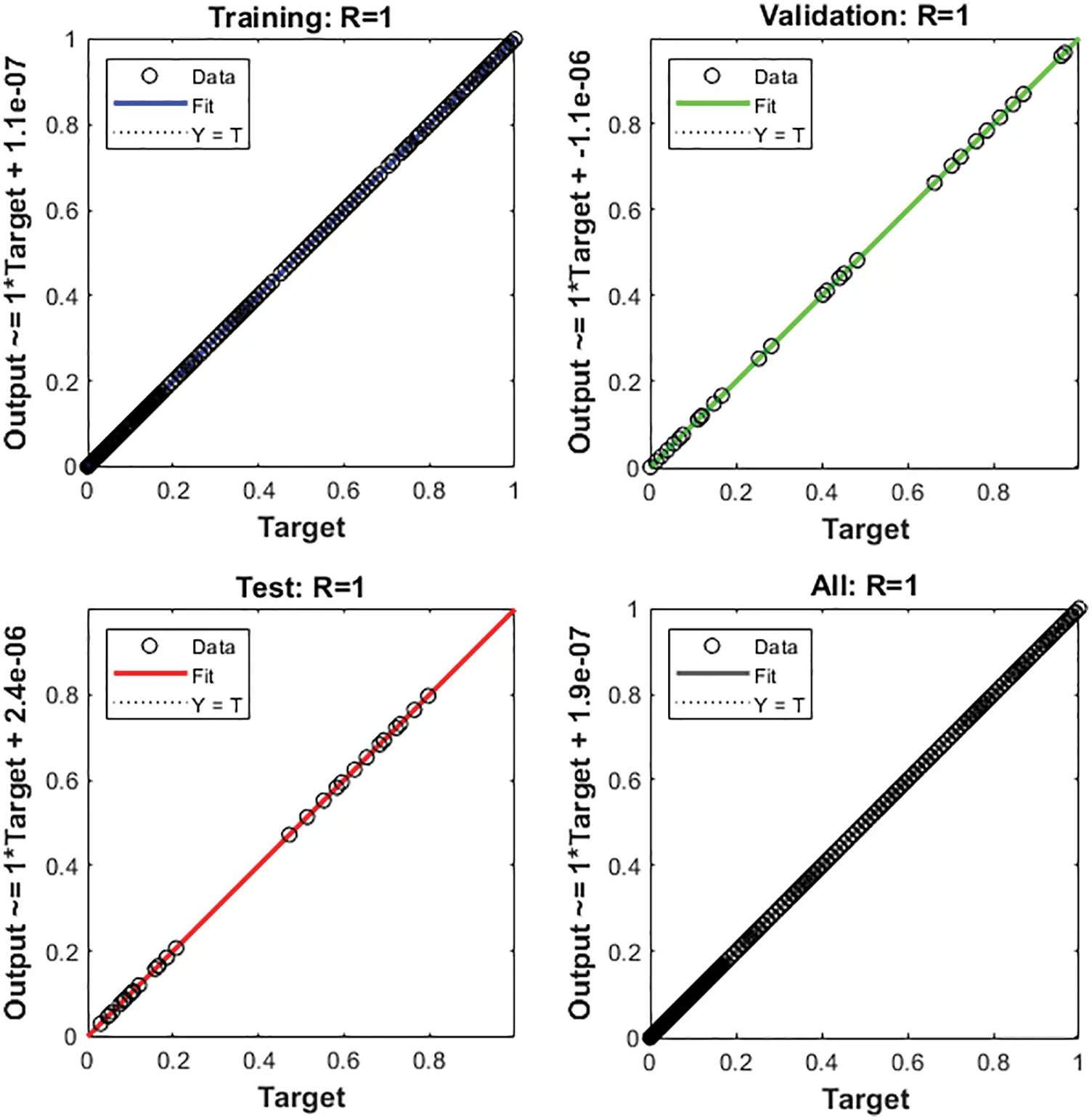

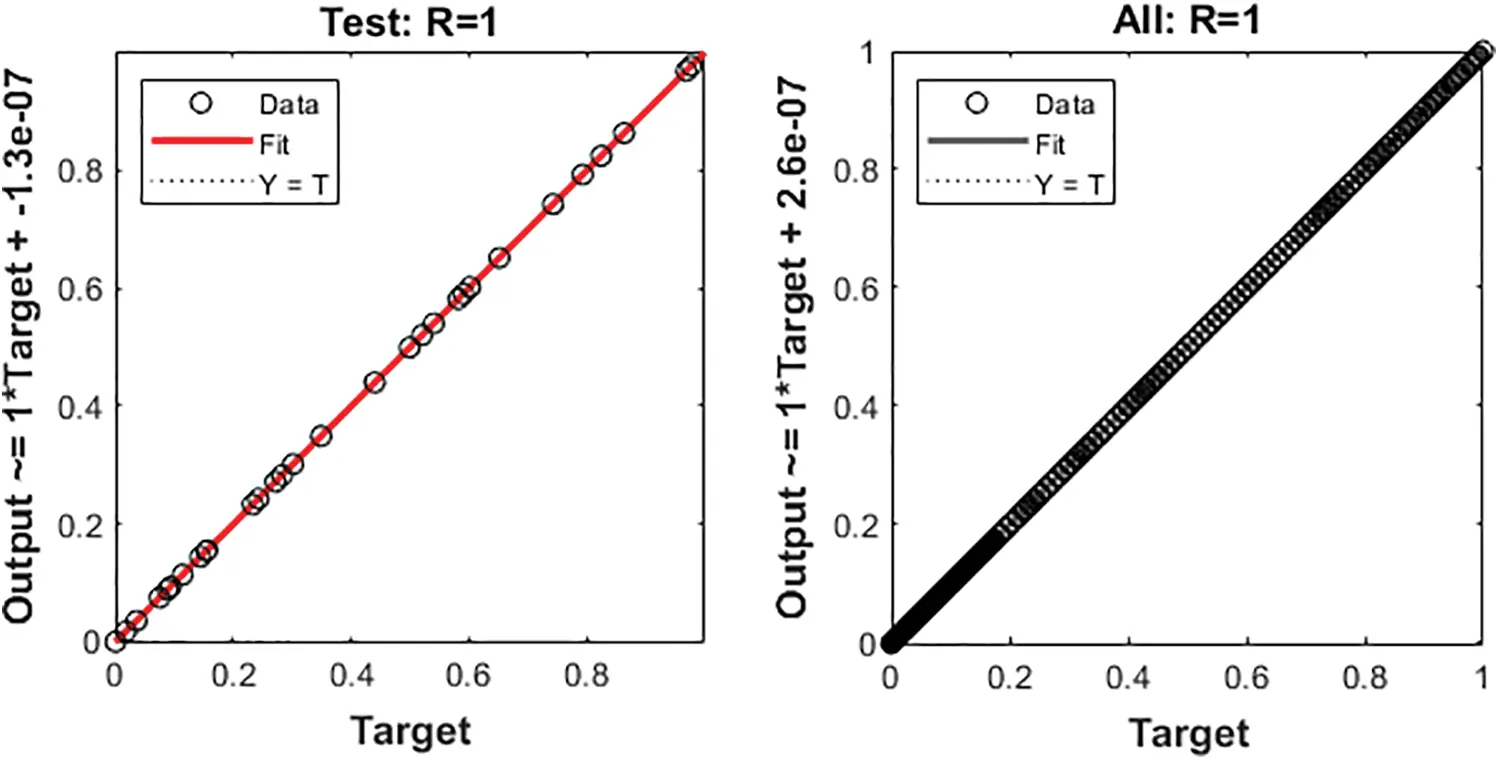

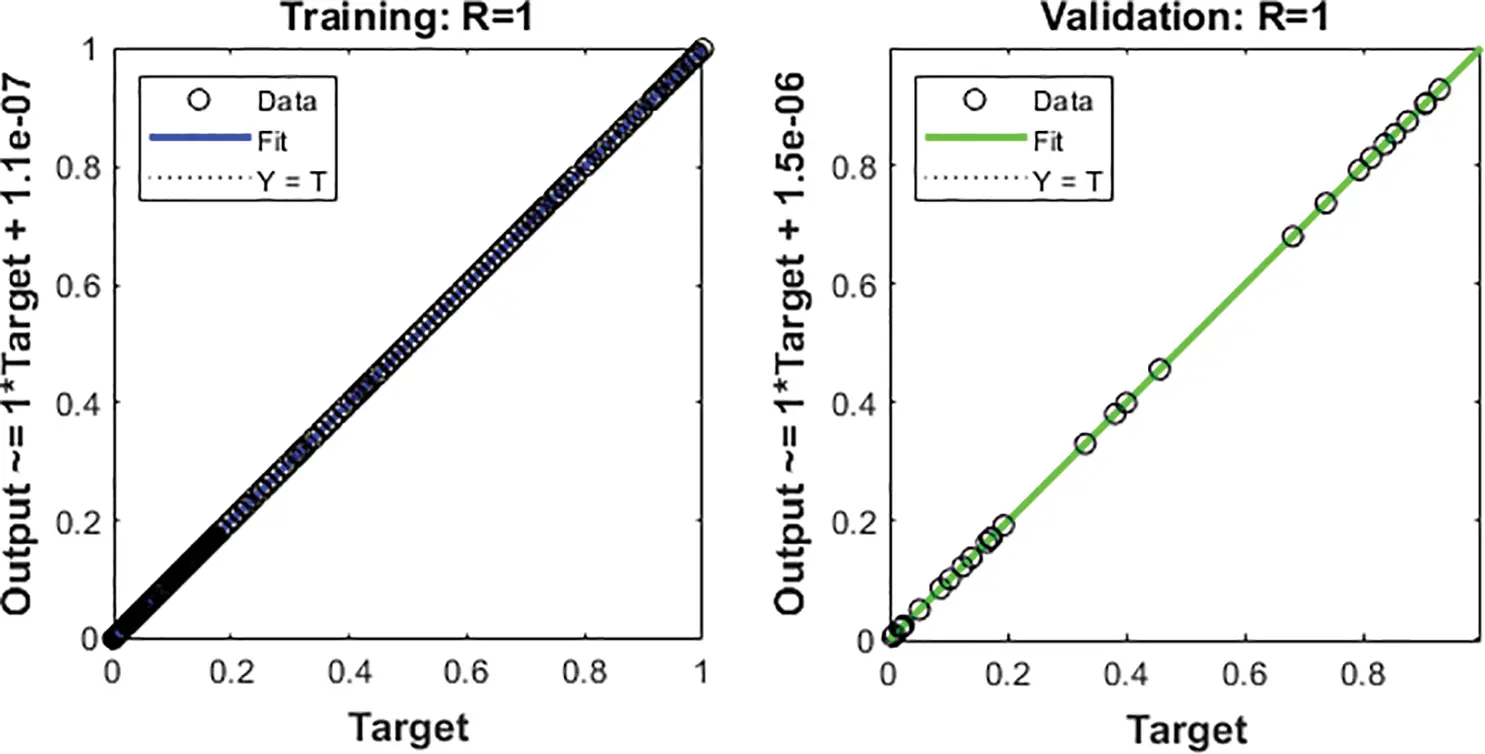

Figure 9: Regression plots for case 1

images

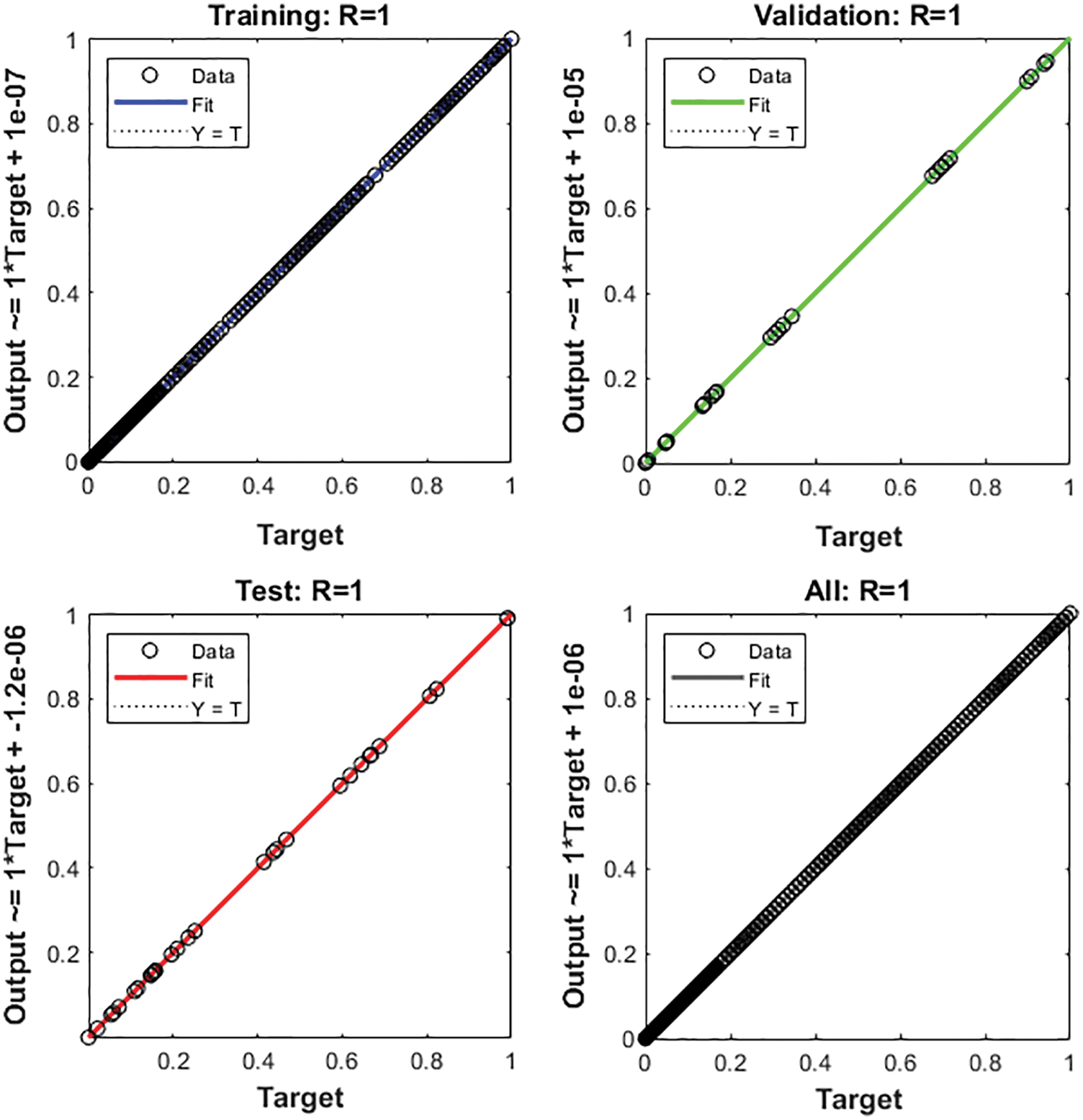

Figure 10: Regression plots for case 2

imagesimages

Figure 11: Regression plots for case 3

The comparison plots are drawn in Figs. 12 and 13 to solve the nonlinear ODEs system of MHD past over an inclined plate. The parameters f(η), θ(η) and ϕ(η) plots are provided in Figs. 12a12c based on stochastic procedures for the system of MHD past over an inclined plate. The overlapping results are performed to check the precision and accuracy of the designed stochastic procedures. The AE values are illustrated in Fig. 13 to solve the nonlinear ODEs system of MHD past over an inclined plate. The parameters f(η), θ(η) and ϕ(η) plots are illustrated in Figs. 13a13c for the nonlinear ODEs system of MHD past over an inclined plate. One can observe in Fig. 13a, that the values of the AE for f(η) lie around 10−05 to 10−08 for case 1, 10−05 to 10−07 for case 2 and 10−05 to 10−06 for case 3. Fig. 13b authenticates the AE for θ(η) calculated around 10−05 to 10−08 for case 1, 10−05 to 10−07 for case 2 and 10−04 to 10−06 for case 3, respectively. Likewise, the AE values for ϕ(η) is observed in Fig. 13c, which is calculated 10−05 to 10−07 for case 1, 10−04 to 10−06 for case 2 and 10−05 to 10−06 for case 3, respectively. These closely overlapped results of the AE values designate the correctness and exactness of the nonlinear MHTWF past over a stretched surface.

images

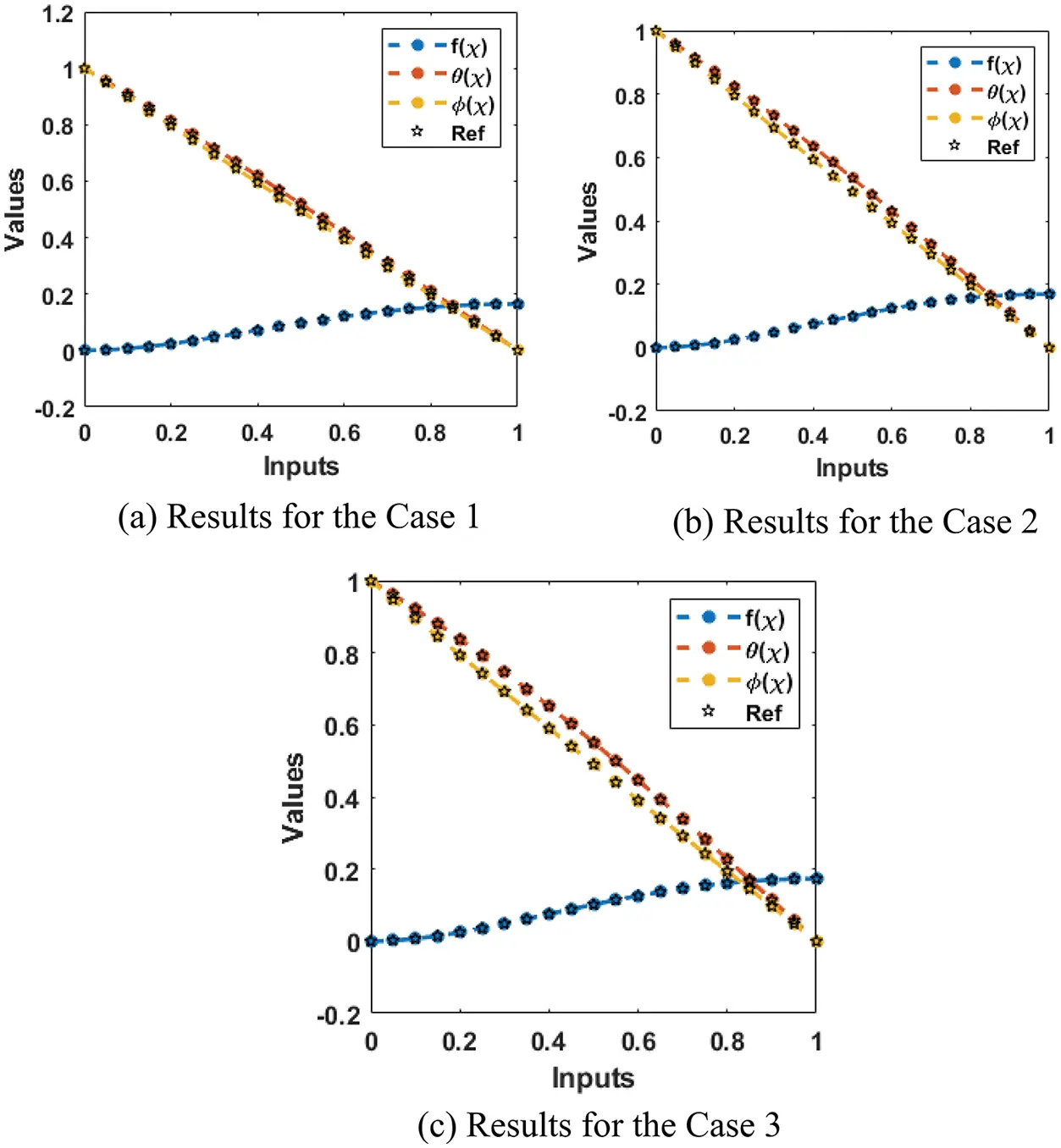

Figure 12: Comparison routine using the stochastic procedures for the system of MHD past over an inclined plate

images

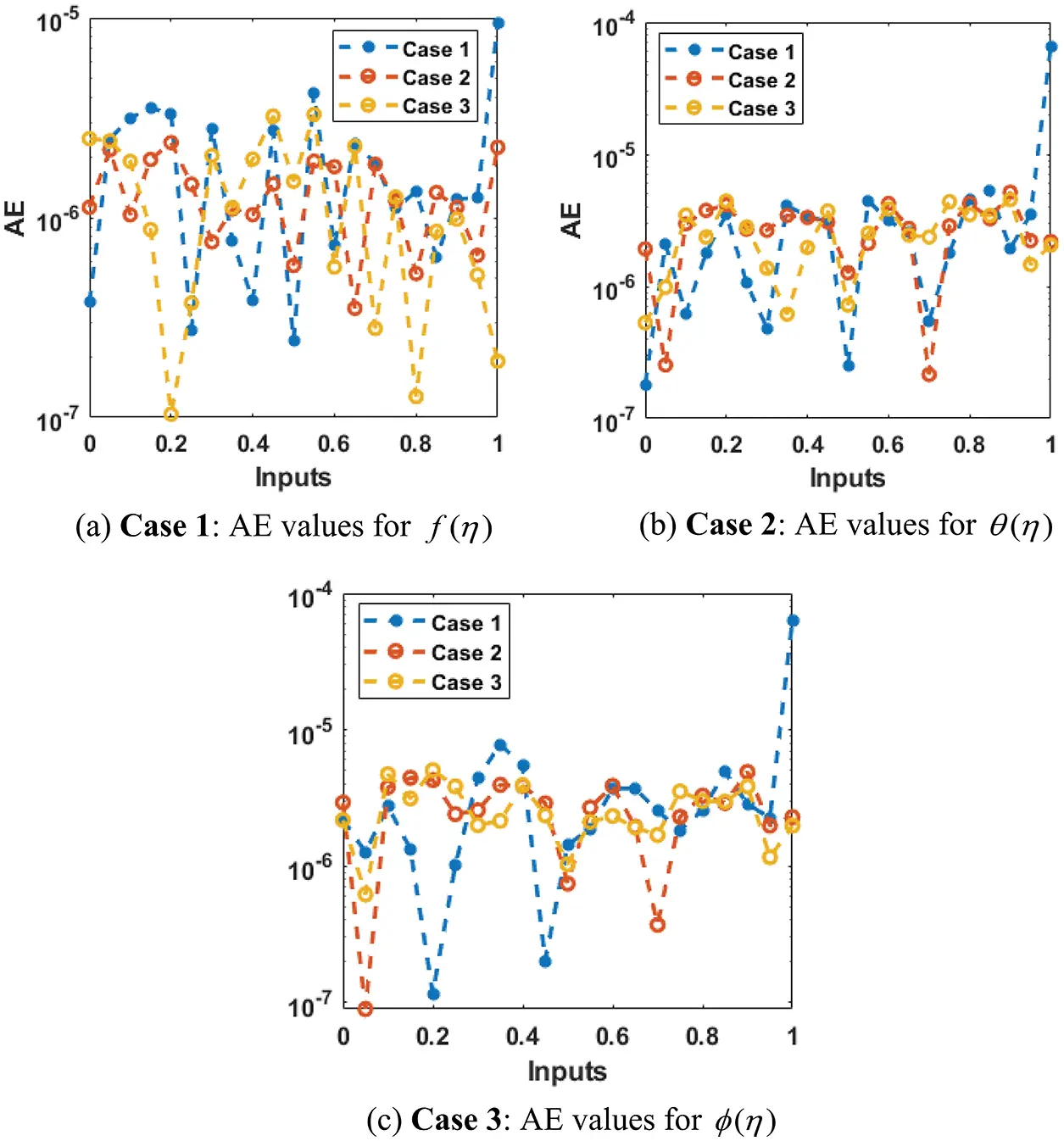

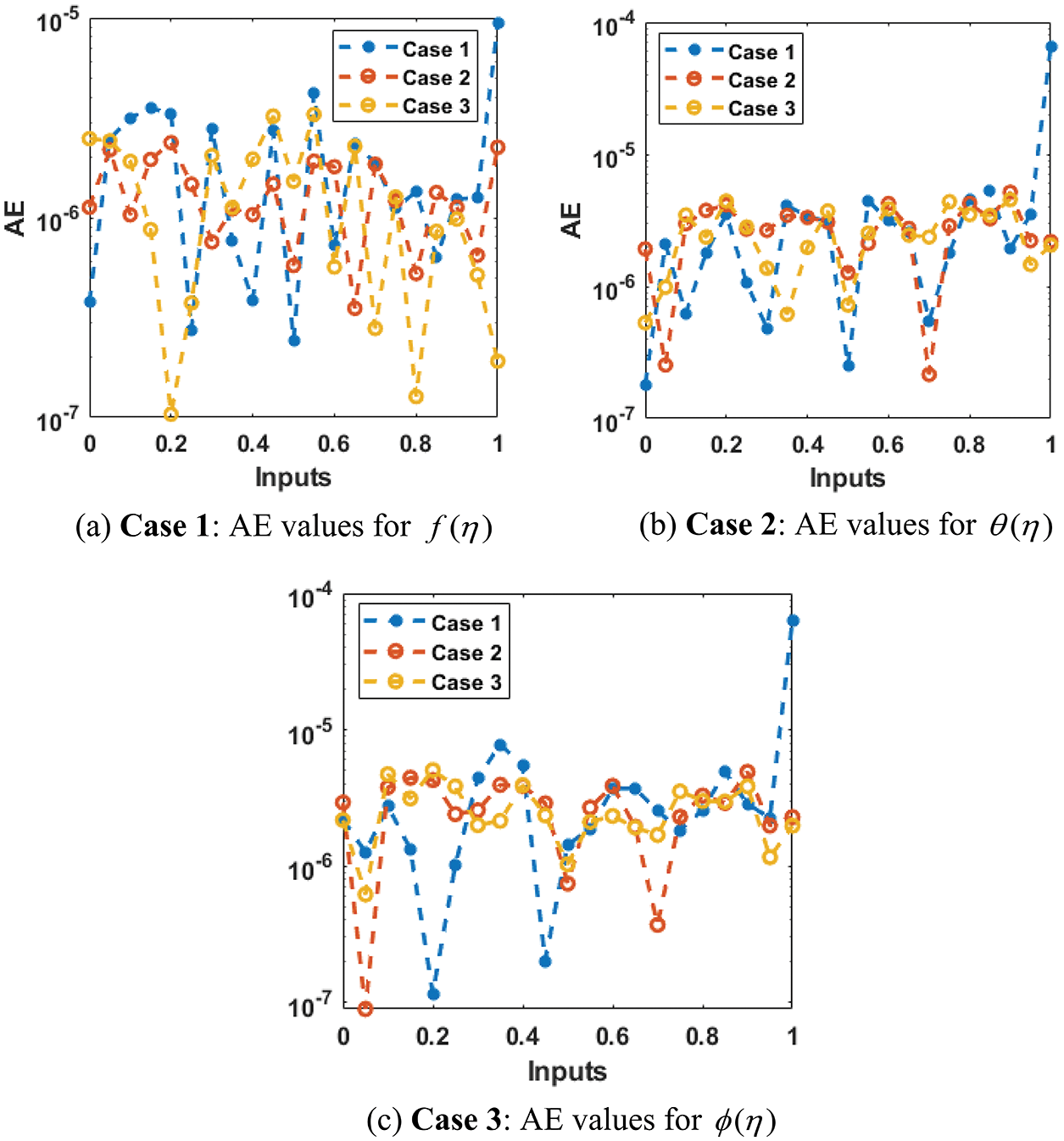

Figure 13: AE values using the designed stochastic procedures for the system of MHD past over an inclined plate

images

4  Concluding Remarks

The purpose of this study was to perform the numerical simulations based on the ANNs along with the novel stochastic procedures of the LMB for solving the system of MHD past over an inclined plate. The nonlinear system of MHD past over an inclined plate was categorized into three profiles, Momentum Conservation, Species (Salinity) Conservation, and Energy (heat) conservation. The procedures based on the stochastic paradigms were provided with three different categories of sample statistics, testing, training, and validation. The statistics 10%, 15% and 75% for testing, validation and training were given to solve the MHD past over an inclined plate. Seven numbers of neurons have used in this numerical study for solving the nonlinear transport model. A reference dataset was proposed for the comparison of the obtained and proposed solutions for the MHD system in the ocean. One can observe the overlying of the solutions, which demonstrates the correctness of the LMBNNs. The absolute error plots were provided in good measures that validated the accuracy and precision of the nonlinear ODEs system of MHD past over an inclined plate. The obtained numerical solutions of the nonlinear above mention system using the LMBNNs performances have calculated to reduce the MSE. For the capability, dependability and aptitude of the stochastic procedure, the numerical performances were provided to authenticate the proportional arrangements of MSE, error histograms (EHs), state transitions (STs), correlation and regression. The MSE convergence presentations were applied to the best curve, training, validation and testing for each variation of the nonlinear transfer model. The correlation representations were capable to confirm the regression actions. The gradient measures were also provided for the nonlinear transfer model. Furthermore, the precision was pragmatic using the numerical conformations as well as graphical procedures through the STs, MSE, EHs, regression and convergence measures, respectively.

In future work, the designed LMBNNs procedures can be applied to solve the biological, fluid, singular, fractional, and lonngren-wave models [5058].

Funding Statement: This research is supported by Department of Mathematics, Faculty of Science, Khon Kaen University, Fiscal Year 2022.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
