A Blockchain-Based Framework for Secure Storage and Sharing of Resumes
1Key Laboratory of Intelligent Computing and Information Processing, Ministry of Education,Computer Science College of Xiangtan University, Xiangtan, Hunan Province, China
2Department of Computer Science, The University of Georgia, Athens, Georgia, USA
*Corresponding Author: Jianquan Ouyang. Email: oyjq@xtu.edu.cn
Received: 06 February 2022; Accepted: 10 March 2022
Abstract: In response to problems in the centralized storage of personal resumes on third-party recruitment platforms, such as inadequate privacy protection, inability of individuals to accurately authorize downloads, and inability to determine who downloaded the resume and when, this study proposes a blockchain-based framework for secure storage and sharing of resumes. Users can employ an authorized access mechanism to protect their privacy rights. The proposed framework uses smart contracts, interplanetary file system, symmetric encryption, and digital signatures to protect, verify, and share resumes. Encryption keys are split and stored in multiple depositories through secret-sharing technology to improve the security of these keys. Corresponding key escrow incentives are implemented using smart contracts to automatically verify the correctness of keys and encourage the active participation of honest key escrow parties. This framework combines blockchain and searchable symmetric encryption technology to realize multi-keyword search using inverted indexing and Bloom filters and verify search results on the chain. Escrow search service fees are charged through contracts. Only after the search results are verified can the search service provider obtain the search fee, thus ensuring fair and efficient search for encrypted resumes. The framework is decentralized, secure, and tamper-evident, and achieves controlled sharing while protecting personal privacy and information security.
Keywords: Resume; blockchain; interplanetary file system; secret sharing; searchable encryption
In the recruitment market, a personal resume is an essential document that highlights the qualifications of an individual for a job. The resume states the person’s educational background and work experience, as well as contact information and even identification numbers.
Resumes are generally publicly stored on a third-party recruitment cloud server, exposing the owner’s private information. Even if some third-party recruitment platforms also provide an encryption function, the keys for encrypting and decrypting resumes are stored centrally on a third-party server. When a third party maliciously views or leaks keys, the encryption security is put at risk. Also, the resume owner on the existing recruitment platform cannot control the authorization or know when the document has been downloaded.
Many recruitment platforms have leaked user resumes. An example in the United States is Ladders, one of the most popular recruitment websites specializing in high-paying job recruitment. In 2019, this company mistakenly made its database public without a password such that anyone could access the data, resulting in the disclosure of user information belonging to more than 13.7 million individuals.
According to the published judgment files on China Judgments Online, from 2017 to 2020, a total of 48 cases involving resume trading were convicted of infringing on citizens’ private information. These cases involved websites such as 58.com, Ganji.com, and Zhilian.com. Criminal cases for the sale of resumes on third-party recruitment platforms are rampant, and the security of personal privacy information contained in resumes cannot be guaranteed.
On Zhilian.com, as long as a corporate account pays for membership, it has unlimited ability to download resumes containing personal information. Similar problems occur on 51job.com and Liepin.com. Corporate accounts only need to pay a fee to download the complete resumes of job applicants. Thus, the privacy of applicants is compromised without their knowledge.
With the current centralized storage and management of resumes on third-party recruitment platforms, resumes’ security, authenticity, and controllability are seriously challenged. For example, when a resume is shared, there is no guarantee that the owner has control over the resume, and there is no real way to know when the resume is shared with whom. This research proposes a blockchain-based framework for securely storing and sharing resumes to address these issues.
The main contributions of this study are the following:
1) A blockchain-based resume-sharing framework is proposed, which leverages interplanetary file system (IPFS), smart contracts, and digital signature technology to store and share resumes securely. Only authorized recruiters have access to plaintext resumes. Authorization and other access services are done by blockchain accounts to ensure identity privacy protection.
2) Secret sharing is used to implement secure key escrow and design incentives for it. A fair and verifiable multiple-keyword searchable encryption algorithm is proposed to achieve fair and efficient search of encrypted resumes.
3) We implemented our scheme and performed security and performance analysis. The time for index generation, trapdoor generation, search, and verification, as well as the economic consumption of the contract function, have been experimentally simulated. Results show that the proposed scheme is feasible.
The rest of this paper is organized as follows. Section 2 describes the research background and related work. Section 3 outlines the system model and definition of each stage. Section 4 summarizes the detailed design of the framework. Section 5 introduces the design of smart contracts. Section 6 discusses security and performance. Section 7 provides the research conclusions and future development directions.
Blockchain is a concept proposed by Satoshi Nakamoto in the “Bitcoin White Paper” [1]. Ethereum, a representative of Blockchain 2.0, provides smart contracts that can be automatically executed on the blockchain and has the characteristics of strong tamper-proof modification and a high degree of decentralization [2,3].
The IPFS is a distributed storage system that uses distributed hash tables to solve the problem of data transmission and positioning, and changes the single point of transmission through a peer-to-peer (P2P) network. The IPFS makes data storage safer and more efficient for a longer period compared with the traditional system [4].
Secret sharing is a technology for sharing secrets among a group of participants. It is mainly used to protect critical information and prevent information from loss, damage, or tampering. Shamir [5] and Blakley [6] first proposed it in 1979. Asmuth et al. [7] proposed a (t, n) threshold scheme based on the Chinese remainder theorem in 1983. Using secret sharing technology to keep the keys can prevent confidential information from risk exposure and being extremely concentrated in authoritative third parties, thereby improving the stability and robustness of the keys.
2.4 Symmetric Searchable Encryption
Searchable encryption technology can efficiently retrieve ciphertext data without leaking private information. As symmetric searchable encryption only requires one symmetric key, the scheme has a simple structure, the encryption and decryption processes are fast, and the method is suitable for data encryption and retrieval. Construction methods of symmetric searchable encryption include SWP scheme proposed by Xiaoding et al. [8] and SSE-1 scheme proposed by Curtmola et al. [9].Cash et al. [10] proposed symmetric searchable encryption that can be extended to massive databases. Existing symmetric searchable encryption schemes are expanded from multiple perspectives, including security [11,12], dynamic [13,14], and expandability [15–18].
The Bloom filter [19] is a long binary vector and a series of random mapping functions that can quickly determine whether an element belongs to a certain set or not. Its advantage is that the space efficiency and query time are much better than the general algorithm. Its disadvantage is its misidentification rate and deletion difficulty.
In recent years, many researchers have explored the application of blockchain technology in data sharing. For example, Fan et al. [20] proposed an information management system called MedBlock using blockchain, access control protocols, and symmetric cryptography. This system enables authorized users to share sensitive medical information.
However, a centralized database management system controls a large amount of data and involves many hidden dangers, such as denial of service attacks and single points of failure. Tan et al. [21] used the IPFS to store archive data and realized the management, verification, and sharing of such data on the chain through a combination of public and alliance chains. Nizamuddin et al. [22] used the smart contract of the Ethereum blockchain to manage the sales of e-books and realized the transaction sharing of e-books but not the access control of e-book owners and other users who obtained e-books. Alzubi et al. [23], based on AG codes over Hermitian curve, design a new crypto system for IoT devices to protect data security, and in [24] propose an IoT network combining blockchain and artificial intelligence-driven secure medical data transfer (BAISMDT) for data transfer security and privacy in IoT networks. Uddin et al. [25] proposed an electronic health record (EHR) system incorporating the Hyperledger Fabric blockchain for storing, sharing, and exchanging EHRs in a P2P network of healthcare stakeholders. Alnssayan et al. [26] proposed a VacChain system in conjunction with blockchain to track children’s vaccination records, creating a convenient information-sharing solution without loss of integrity and privacy, as well as alleviating the current problems of human error, intentional tampering, and untraceable vaccination records for vaccination certificates.
The aforementioned data-sharing schemes for file encryption can ensure data confidentiality, but they do not consider the safe custody of content-encryption keys. Naz et al. [27] used secret sharing to split and encrypt the hash address of the file stored in the IPFS and store it in other nodes. However, once the hash address of the file is leaked, anyone can directly access the plaintext data through the address. Sohrabi et al. [28] improved the security of encrypted file keys for cloud data by using the Shamir secret sharing algorithm, which enables the owner to split the decryption key into n parts distributed to miner nodes on the blockchain for storage through a secure channel. However, this algorithm does not verify the correctness of the miner nodes’ keys, nor does it provide escrow rewards.
Searchable encryption can effectively retrieve ciphertext data, so some scholars have incorporated this technology into effective search when sharing encrypted data in their proposed schemes. Nevertheless, the traditional searchable encryption technology cannot guarantee the fairness of retrieval. Zhang et al. [29] used a method that involved submitting a deposit in the blockchain to achieve fair payment of the handling fee, ensuring that participants can obtain correct search results and service fees when they execute honestly. However, numerous signature verifications are required during the verification process, and the overhead is large. Li et al. [30] proposed a searchable symmetric encryption scheme using the Bitcoin blockchain system to solve the problem of data search and the unfairness of traditional symmetric searchable encryption schemes. However, the scheme requires six transactions to obtain search results. The correctness of the search results verified through the Bitcoin script makes the transaction cycle long and inefficient. Chen et al. [31] proposed a searchable encryption scheme for EHRs based on blockchain, supporting logical expression queries and fair payment. This scheme uses smart contracts to replace cloud servers. However, its ciphertext database and security index are stored in smart contracts, which requires a large amount of gas. Feng et al. [32] used attribute encryption and searchable encryption methods to control private data on the blockchain and fast ciphertext search, which solved the privacy leakage problem. However, this scheme cannot achieve efficient multi-keyword search or fair payment.
Blockchain-based technology research has made great progress in digital rights, finance, and electronic medical record sharing. However, relatively little research has been done related to resumes. The above studies still have the problems of inability to securely escrow keys and inefficiency of searchable encryption schemes. This paper uses secret sharing and blockchain technology to enhance the security of keys. A fair searchable encryption scheme supporting multi-keyword search is implemented using Bloom filters to improve the searching efficiency of encrypted resumes.
3 System Framework/Stage Definition

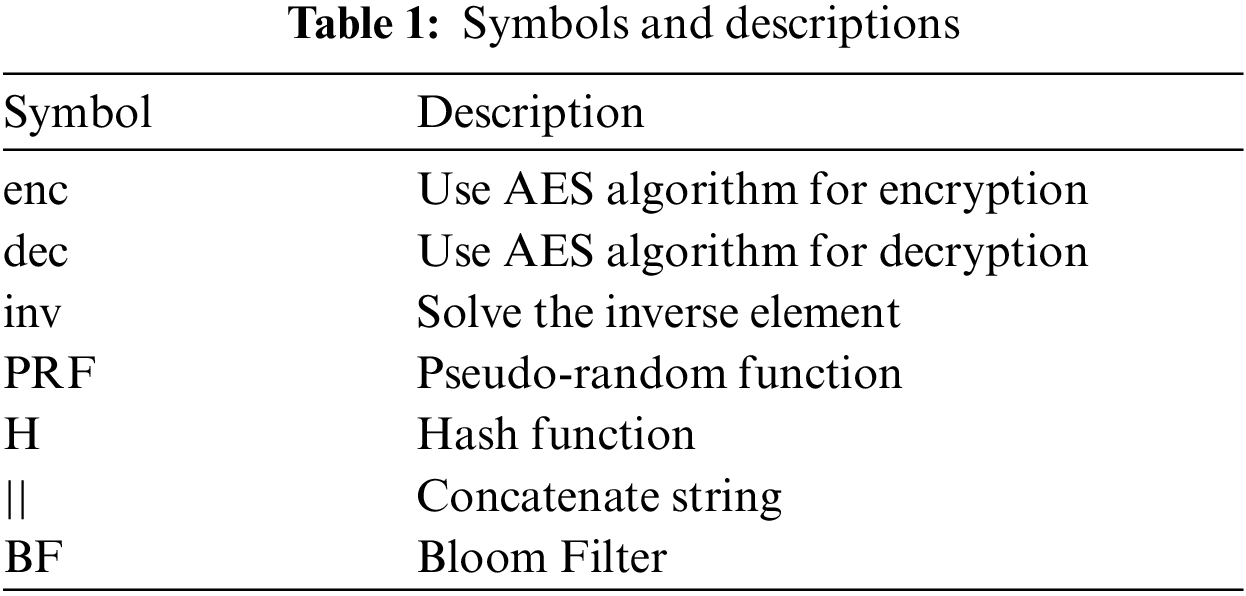

In this section, the overall design of our framework is presented. Tab. 1 summarizes the symbols and corresponding descriptions used.
The framework consists of the following four entities:
Applicant (Ap): Ap is the resume owner who has the absolute right to hold the document. Ap encrypts the resume and, at the same time, uploads the search index corresponding to the encrypted resume to the cloud server. No one can view Ap’s resume unless authorized by him/her.
Recruiter (Rt): Users request to download complete resume information. After the request is authorized, the full key is synthesized through a smart contract. After Rt enters the address of the encrypted resume on the client and calls the contract to receive the decryption key, the complete plaintext resume can be obtained. At the same time, Rt can use the contract to generate a search token to search for resumes containing keywords.
Key keeper (Kk): Kk receives Ap’s subkey through a secure channel and can receive the custodian fee from Ap. Kk can obtain a portion of the money from Rt for downloading the resume by providing the subkey correctly through a smart contract and assisting in recovering the symmetric key.
Third-party recruitment platform (TRP): TRP and Kk operate the IPFS. TRP operates the blockchain platform, keeping the encrypted index uploaded by Ap and providing the search function. If TRP returns correct search results, then TRP receives a service fee, but a penalty is applied if TRP returns incorrect results. Fig. 1 shows the framework diagram of the safe storage and sharing system.

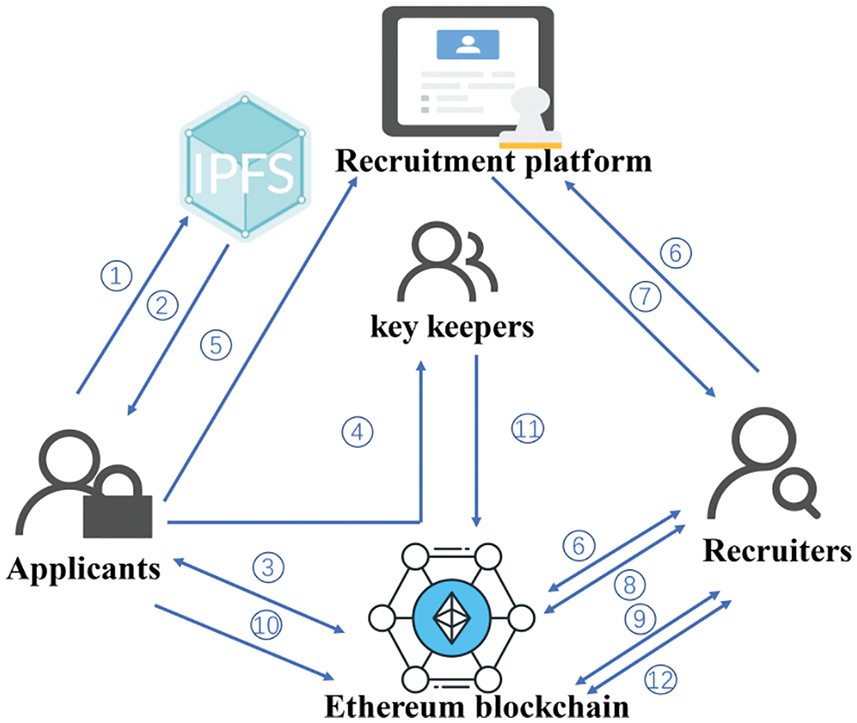

Figure 1: System framework
Each step in the figure is described as follows:
1) Ap enters his/her information, generates an encryption key in the local client, encrypts the complete resume containing personal private information, and then uploads the encrypted data to the IPFS.
2) The IPFS returns the hash address of the file.
3) Ap stores the hash address and the resume information on the blockchain.
4) Ap divides the encryption key into n subkeys via
5) Ap creates and uploads the search index related to the resume to TRP.
6) Rt selects the keywords, uploads to the blockchain to get the search token, and sends it to TRP.
7) TRP sends the search results to Rt.
8) Rt uploads the search results to the blockchain and obtains the verified search results.
9) Rt initiates the request and stores the request information on the blockchain.
10) Ap authorizes Rt after receiving the request and notifies Kk.
11) Kk enters the subkey into the key recovery function in the smart contract, and Kk is rewarded for correct subkey verification.
12) The contract recovers the original key and notifies Rt after receiving the correct subkey that meets the threshold. Rt empties the subkey stored on the contract after calling the contract method to obtain the original key.
Finally, Rt accesses the encrypted resume according to the hash address set of the searched resume and uses the recovered key for decryption to obtain a complete plaintext document.
Based on the secret-sharing scheme by Asmuth [7] and the SSE scheme by Curtmola [9], a blockchain-based secure storage and sharing framework for personal resumes is constructed through seven stages, which can be defined as
1) Key generation stage:
Security parameter
2) Encryption stage: This stage is run by Ap and consists of the following two substages:
File encryption stage:
Key distribution stage:
3) Index generation stage:
4) Search token generation stage:
5) Search stage:
6) Verification stage:
7) Decryption stage: This stage consists of the following two sub-stages:
Key recovery stage:
Resume recovery stage:
1) System initialization stage
2) Encryption phase
Based on the assumption that Ap has several plaintext resume files
Step 1: File encryption,
Ap calls the Evidence() in the smart contract to record the hash address of the uploaded encrypted file and other related information. The verification key K2 is used to generate the verification set

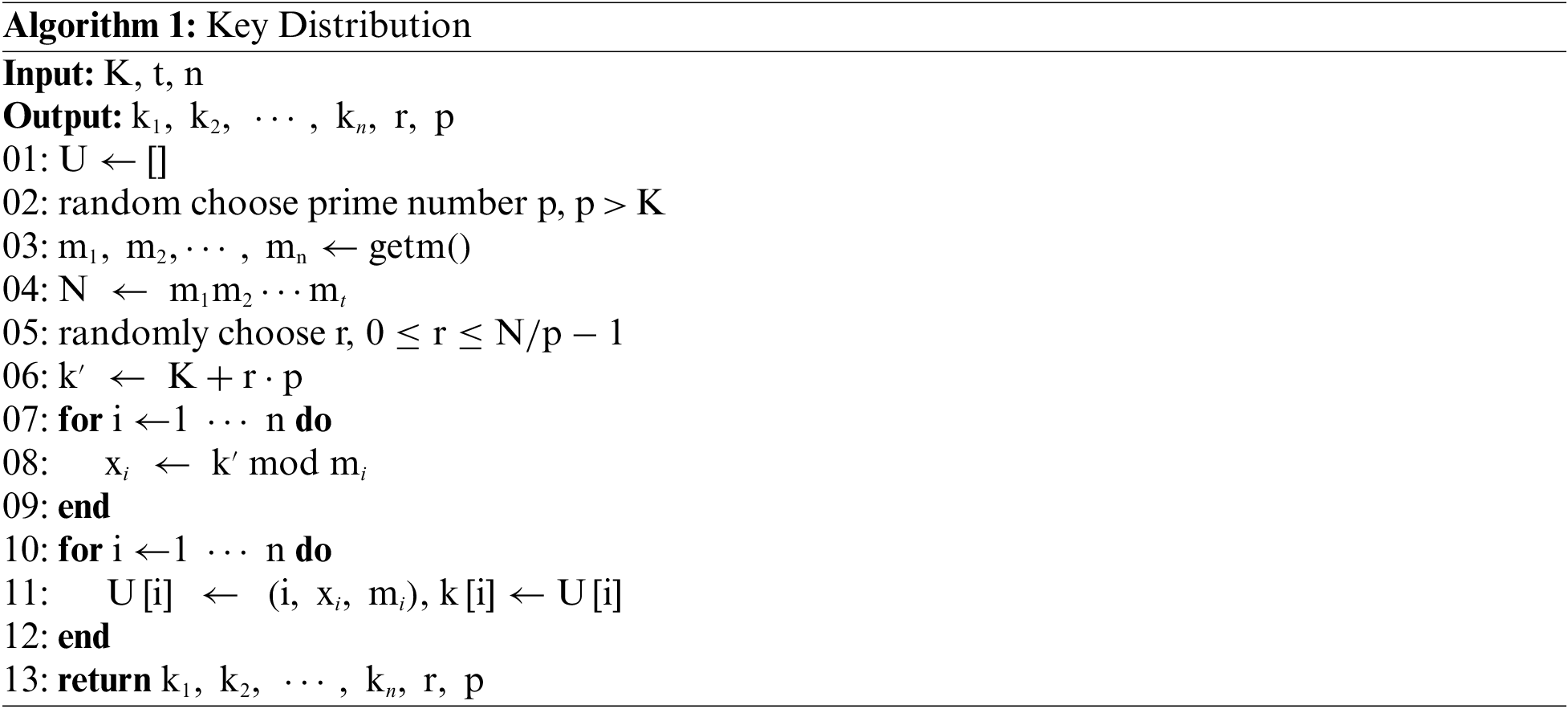

Step 2: Key splitting,
3) Index generation stage
4) Search token generation stage
5) Search stage
6) Verification stage
7) Decryption phase
Key recovery phase:
Decryption stage:

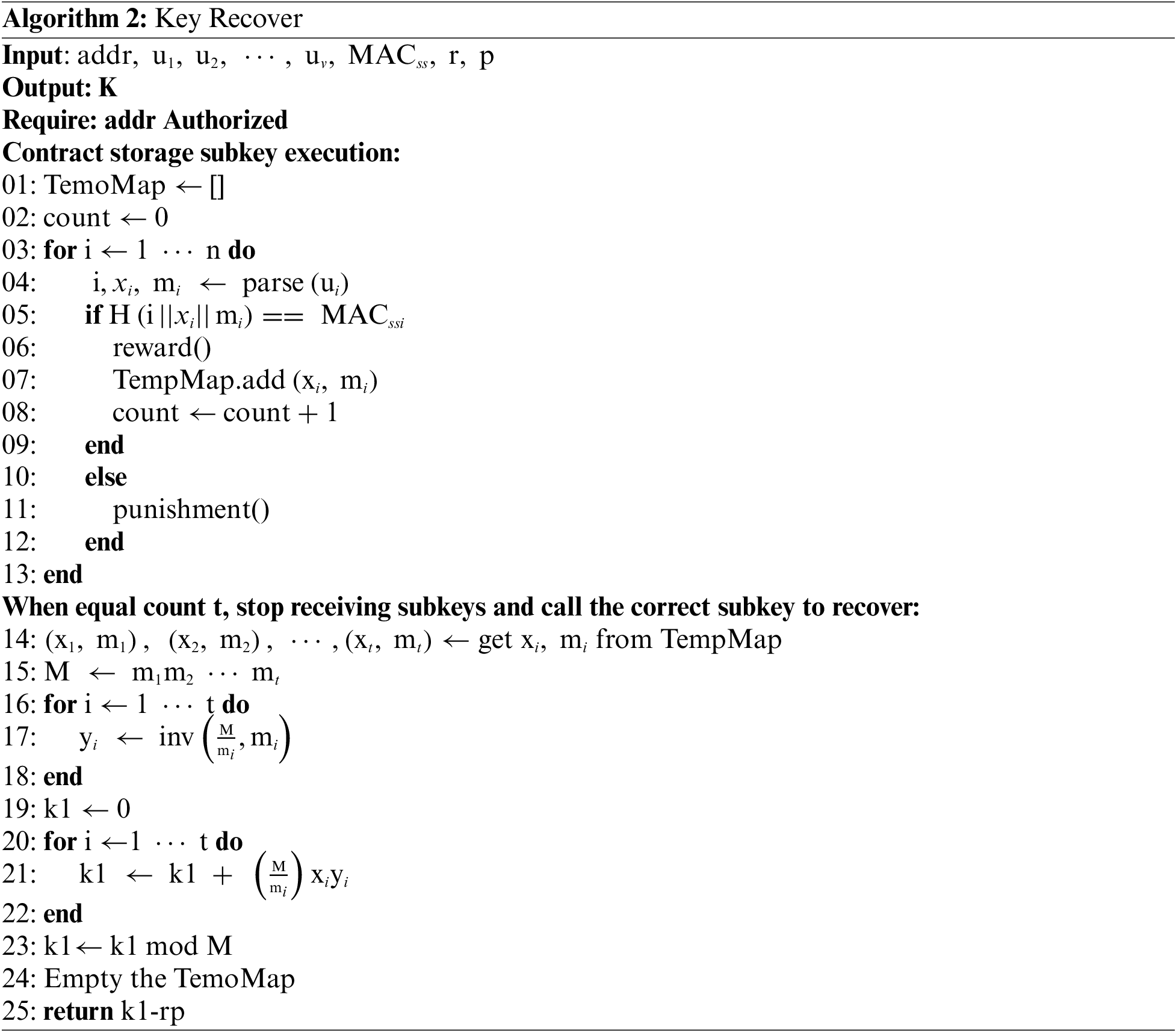

This section describes the interface and algorithm logic of the smart contract used in this study. The smart contract is programmed using Solidity and mainly includes a data-sharing contract and verification contract.

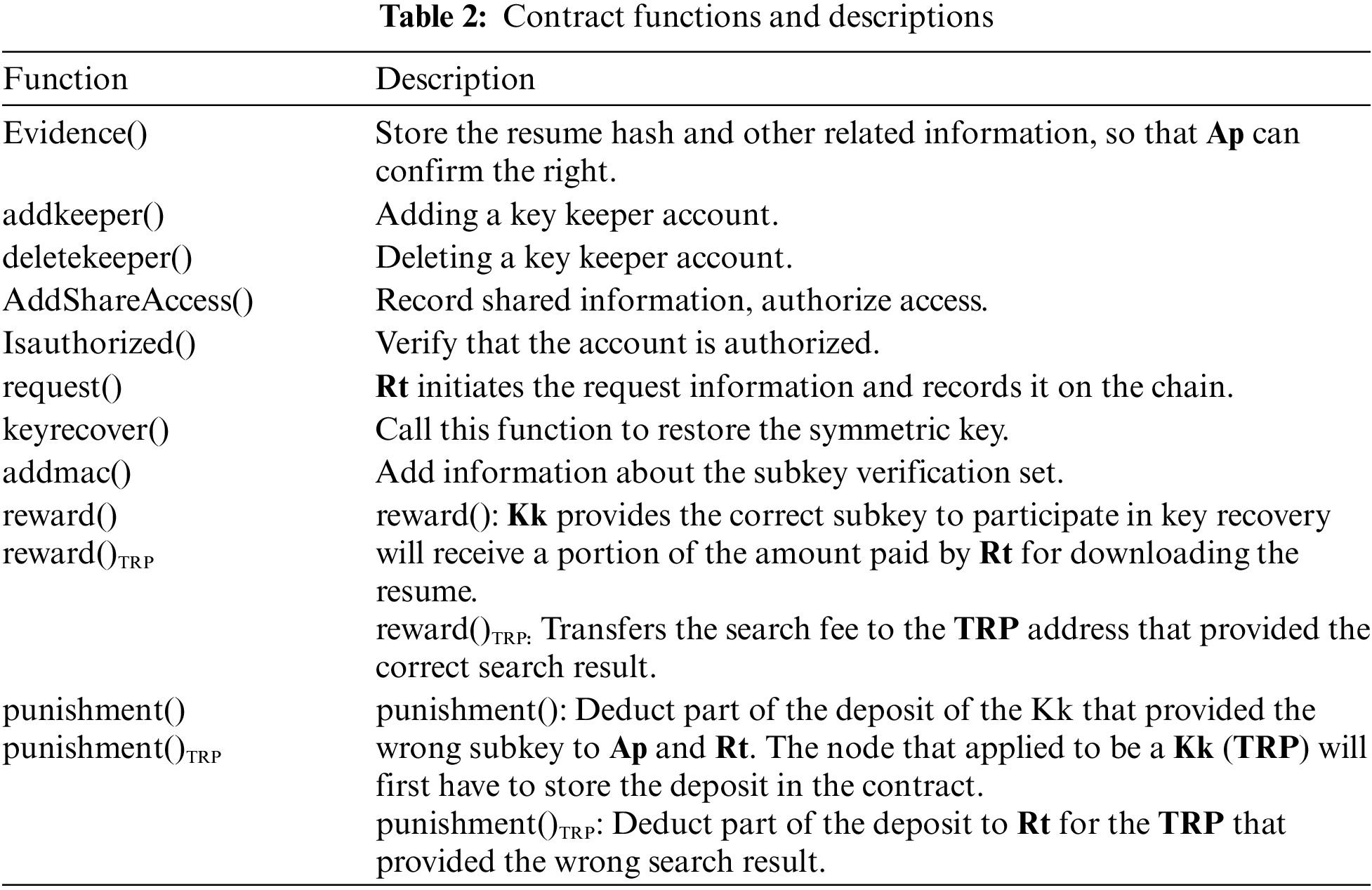

1) Data-sharing contract. The main functions used in the data-sharing contract and resume-sharing interaction are shown in Fig. 2. The implementation of the AddShareAccess() function is mainly used for authorization.

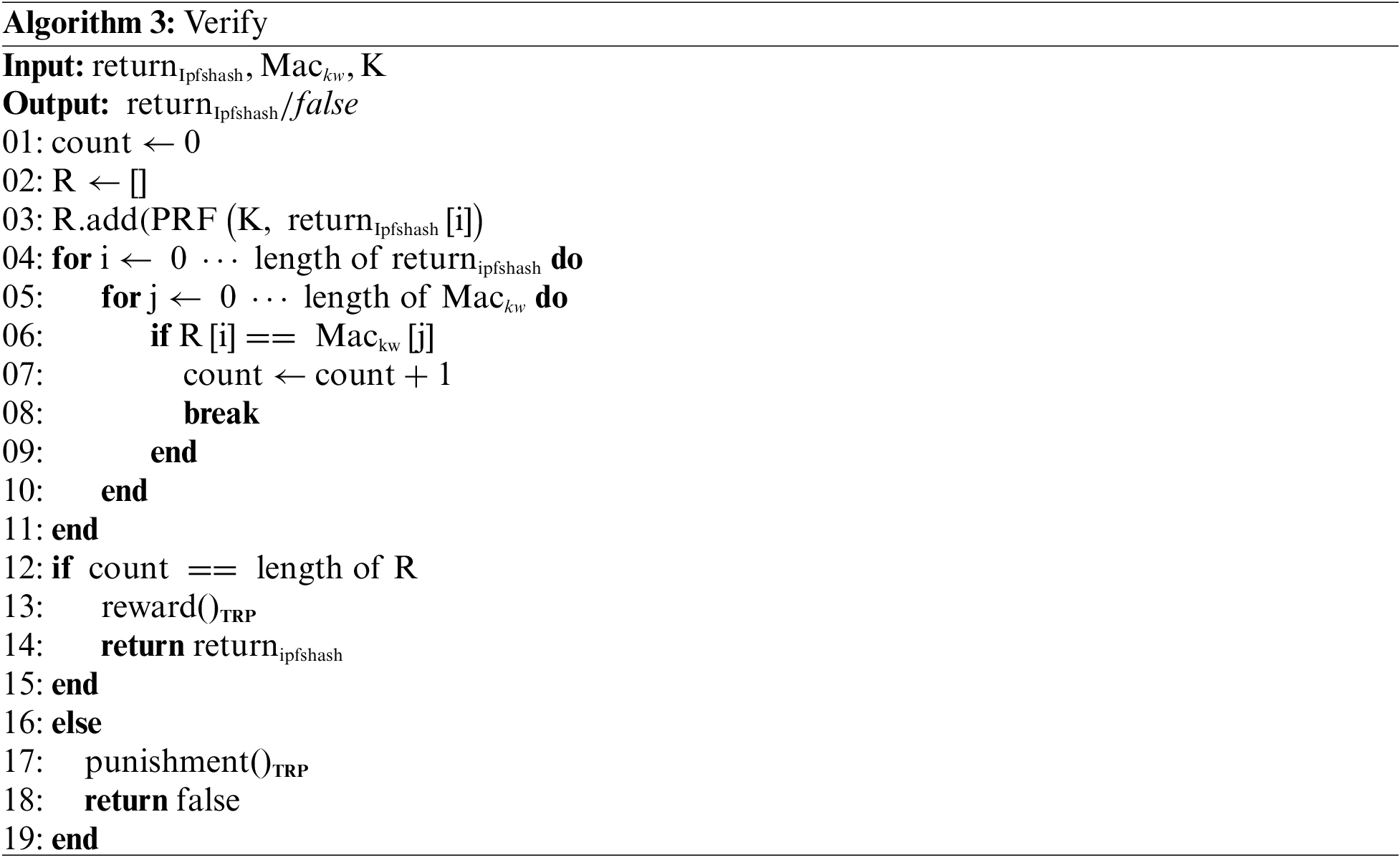

2) Verified contract. The main verification operation is implemented in the contract, as shown in algorithm 3, the add() function is used to add the processed search results, and loop is used to compare whether elements in R are equal to those in

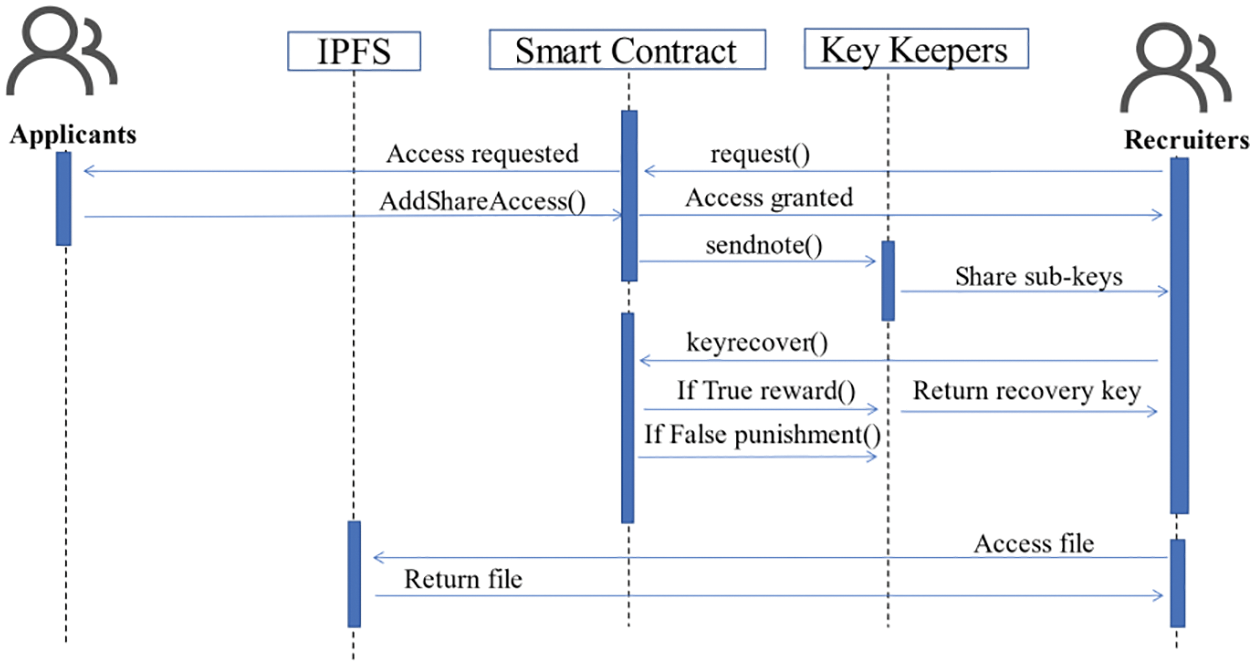

Figure 2: Complete resume sharing interaction
This section evaluates the proposed framework from three aspects: security, function, and performance.
The proposed framework combines Ethereum blockchain, IPFS, secret-sharing technology, and searchable encryption technology, which have more advantages than the traditional TRP for storing and sharing resume files. This section discusses the benefits of the framework in the following four aspects:
1) Controlled sharing and recording
Only authorized recruiters can recover the key for decrypting resumes in the proposed framework. Rt is entitled to the key only when the candidate adds Rt to the authorized list of the data-sharing contract. Meanwhile, the resume information, Rt’s request, and other operation records related to the resume are stored in the blockchain and cannot be tampered with, making it easy to track and confirm the right resume with high traceability.
2) Resume security and privacy
Instead of traditional cloud servers, the IPFS is used to store files. Even if a node is breached, the stored data are fragments instead of complete files, and outsiders can only view messy code. Thus, the proposed framework guarantees secure storage and privacy protection of resumes.
3) Key management
The file encryption key is divided into n parts by a secret-sharing scheme, and they are assigned to different custodians. Therefore, at least t trustees need to collude maliciously to recover the key and decrypt the resume. Smart contracts provide automatic reward and penalty mechanisms for Kk. Those who send correct subkeys honestly can obtain certain rewards. By contrast, after sending wrong subkeys, malicious Kk incurs a deduction on deposit to achieve incentives and fairness.
4) Retrievability and retrieval fairness
The traditional scheme does not support the retrieval of encrypted files, which causes great inconvenience. This condition requires the use of searchable encryption technology to ensure the efficient retrieval of encrypted files. Still, most traditional searchable encryption solutions only support single keyword searches and require semi-honest cloud servers. The cloud server may maliciously return the wrong results while obtaining service fees. This framework constructs two index tables for multi-keyword search through inverted indexes and Bloom filters. It generates a search token using a smart contract by temporarily storing the service fee at the contract address. After performing the retrieval task, the server returns the result to the validating smart contract, and the validating contract verifies whether the result is correct. If the result is correct, then the corresponding service fee is transferred to the server account; if it is incorrect, then the server loses the service fee and receives a penalty. Therefore, to obtain the service fee and avoid penalties, the server returns the correct search results to ensure a fair search.
1) Functional comparison
On the one hand, the functional features of the proposed framework are compared with the schemes presented by [25–32], as shown in Tab. 3. Y indicates that this feature is implemented, and N indicates that it is not.

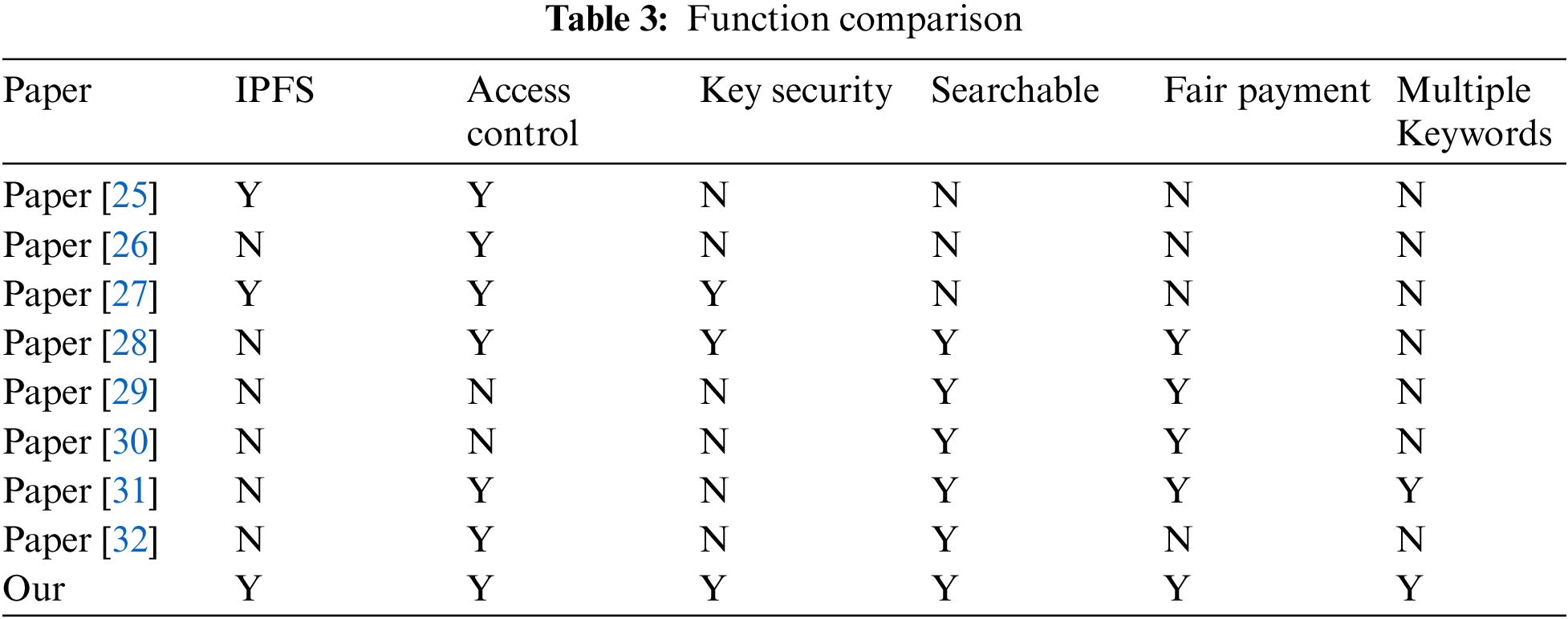

As can be seen from Tab. 3, in terms of data sharing, the advantages of the scheme in this paper are the design of a secret sharing scheme with an incentive mechanism to improve the security of the key. And the support of multiple keywords for encrypted data retrieval. In terms of resume application scenarios, this paper uses IPFS and blockchain to replace the centralized storage and management of resumes in current recruitment platforms to avoid the problems of resume forgery, loss, and leakage. Further, the existing recruitment platform only has public and confidential options. Once a resume is confidential, it cannot be searched. Applicants are faced with the dilemma of protecting their privacy and not being retrieved by recruiters. This paper combines searchable encryption to ensure that the recruiter can search the resume by keywords. The disadvantage of the solution is that the construction and maintenance of IPFS and the Ethereum platform will increase the cost.
2) Performance comparison

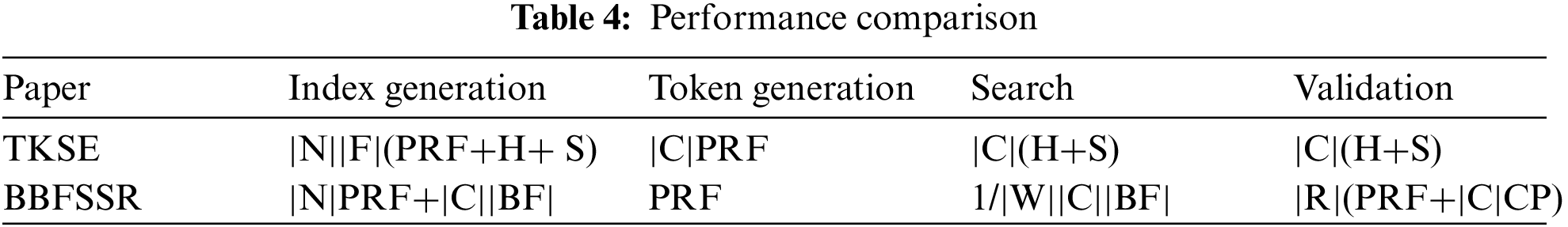

The computational cost of the blockchain-based framework for secure storage and sharing resumes (BBFSSR) in the present study is compared with the schemes TKSE [29] in index generation, token generation, search phase, and verification phase, as shown in Tab. 4. H denotes hashing operation, PRF denotes pseudo-random function, CP denotes string comparison operation, |N| denotes the number of keywords extracted by Ap in the index generation phase, |F| denotes the number of files containing keyword w, |R| denotes the number of returned ciphertext files, |C| denotes the number of files, |W| denotes the number of keywords in a multi-keyword query, and |BF| denotes the time required to determine whether a keyword is in Bloom’s filter. Furthermore, S denotes the signature algorithm, which contains two processes: signature and verification. SE denotes the symmetric encryption algorithm, which contains two processes: encryption and decryption.
In the index generation phase, TKSE needs to execute 1 S, 1 PRF, and 1 H for each keyword. BBFSSR needs to perform 1 PRF to build the first inverted index
3) Experimental analysis
To more accurately evaluate the actual performance of the framework, this paper conducts simulation tests in terms of index generation time, search token generation time, search time, and verification time. The experiments use English word dataset, and hashing algorithm H is SHA-256, pseudo-random function PRF is HMAC-SHA256, symmetric encryption algorithm SE is AES-256 CBC mode, signature algorithm is ECDSA, the smart contract is solidity language, Ethereum blockchain is built locally, embark framework is used to compile, deploy and run. The hardware environment for this experiment is Intel Core™ i5-10400 CPU (2.9 GHz) with 32 GB RAM. The experimental results are shown below.
As shown in Fig. 3, suppose each file contains 200 keywords in the index generation phase. TKSE and BBFSSR increase index generation time as the files increase and the corresponding keywords increase; TKSE involves the signature operation; the index takes a long time to generate, 10,000 keywords to build the index, TKSE takes 4889.95 ms, BBFSSR takes only 324.26 ms. As shown in Fig. 4, in the token generation phase, BBFSSR executes 1 PRF algorithm. TKSE runs more PRF depending on the number of files. In Fig. 4, assuming that the total number of files |C| is 5, TKSE performs 5 PRFs.

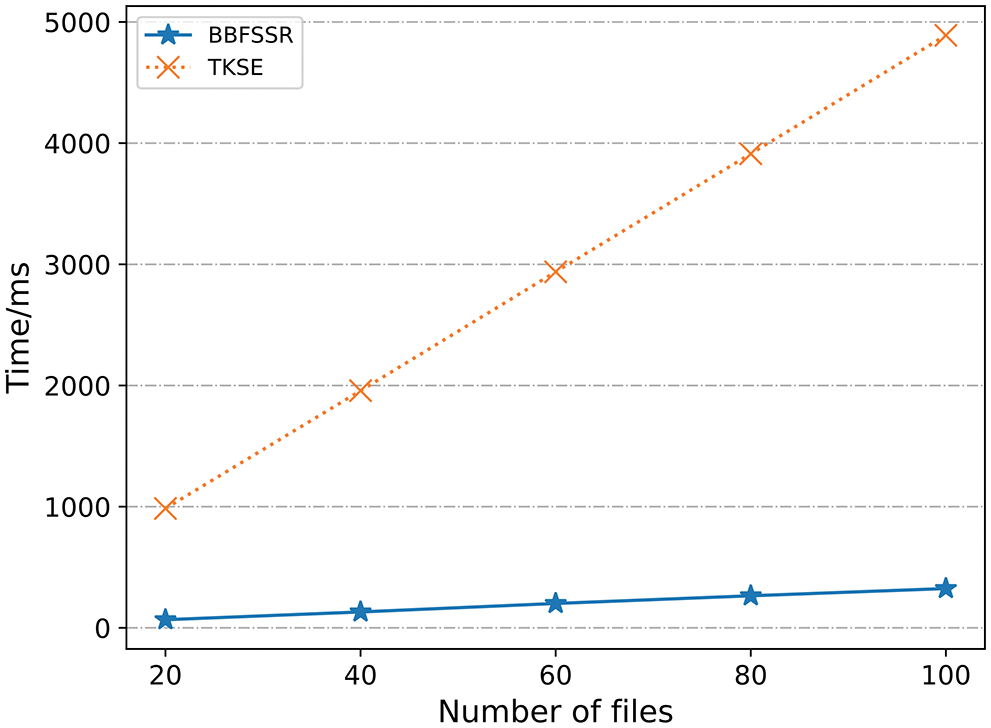

Figure 3: Index generation time

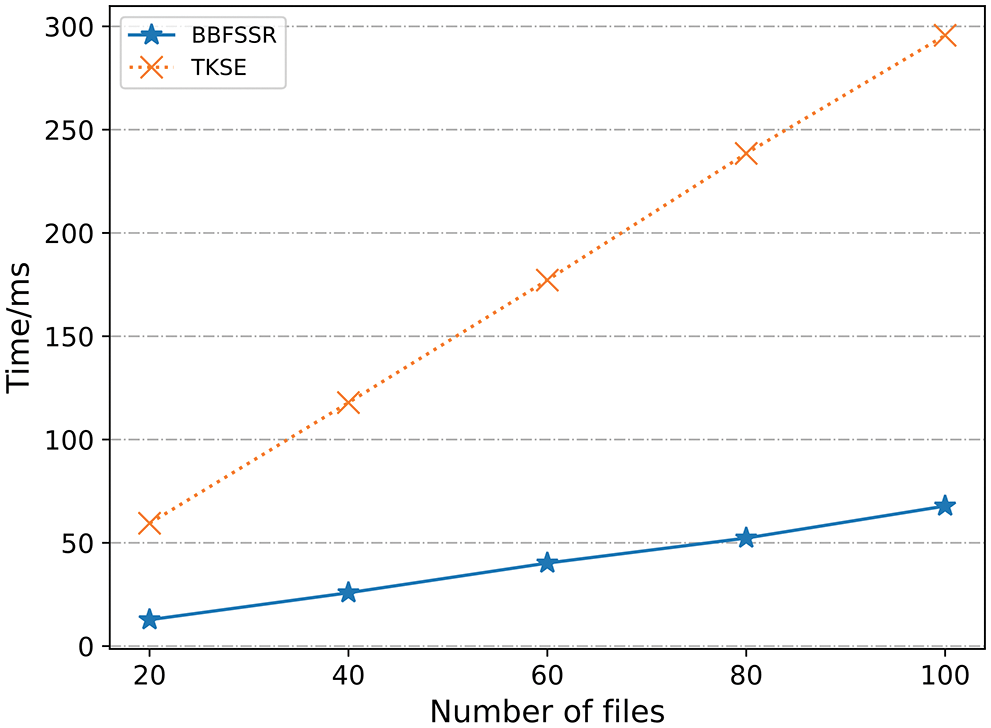

Figure 4: Token generation time

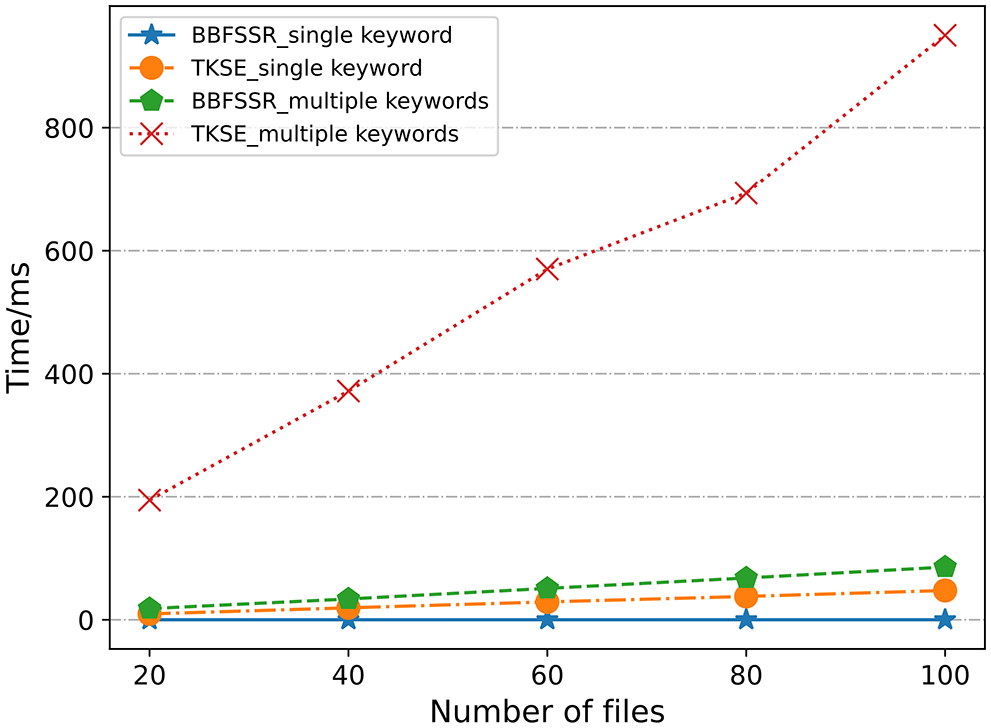

As shown in Fig. 5, a single keyword search in BBFSSR is O(1) operation, and the search time in the index table is established by 2000 to 10000 keywords is maintained at 0.1 ms. TKSE increases the search time due to increasing the number of files, and when the number of files is 100, the search time is 47.65 ms. TKSE does not support multi-keyword search; to search for multiple keywords, not only to conduct multiple single-keyword searches also need to constantly filter out the files containing all the keywords, very time-consuming, as shown in the figure, the search in 100 files to meet the files containing 10 keywords took 950.12 ms. In contrast, BBFSSR supports multi-keyword search only takes 85.72 ms. In the validation phase, the number of files returned by the search |R| is the same as the total number of files |C|, and the validation times of the two schemes are shown in Fig. 6.
Figure 5: Search time
Figure 6: Verification time
We simulated the cost of the smart contract, where the price of ETH is 1 ether = 1,906 USD, the price of gas is 1 Gwei (1 Gwei = 10−9 and Wei = 10−9 ether). Figs. 7 and 8 show the cost of contract deployment and several functions used. The contract deployment consumes a large amount of gas, but the deployment of the functions in the contract consumes a small amount of gas, which is within the acceptable range.
Figure 7: Smart Contracts Cost (Gas)

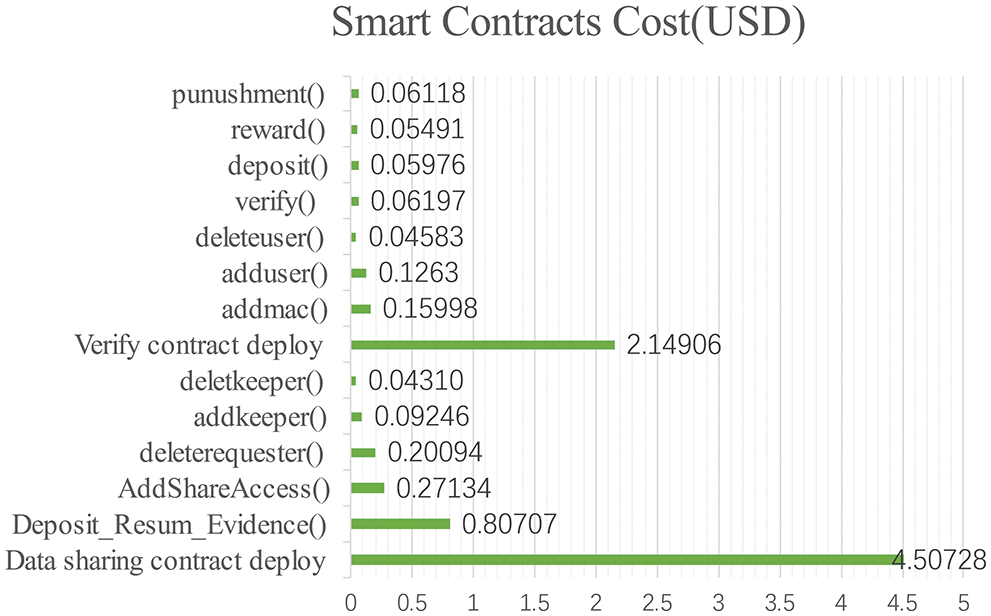

Figure 8: Smart Contracts Cost (USD)
This paper tested the time to perform 1000 secret distributions and reconstructions for 256-bit integers using the Asmuth-Bloom algorithm with different thresholds. as shown in Appendix A, in Fig. 9 1000 times (10, 11) threshold secret distribution takes 51.34 s, and secret reconstruction takes only 0.62 s. Therefore, the contract can reconstruct the key quickly when it receives enough subkeys.
This paper has presented a new solution based on blockchain, secret sharing, and searchable encryption technology to address the problems of centralized data management, resume leakage, falsification, and the inability to pursue responsibilities in traditional recruitment platforms accurately. The solution uses blockchain to replace traditional third-party agencies. It combines on-chain and off-chain distributed storage mechanisms and secret sharing technology to ensure the security and authenticity of resumes. It also realizes fair and efficient resume search based on searchable encryption technology. The analysis and experiments on the security and performance of the scheme show that the scheme can support resume sharing and meet the requirements of privacy protection and sufficient system performance. However, further refinement is needed in consensus mechanism selection and framework deployment cost optimization.
Funding Statement: The authors gratefully acknowledge the financial supports by Key Projects of the Ministry of Science and Technology of the People’s Republic of China (2018AAA0102301).
Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
1. S. Nakamoto, “Bitcoin: A peer-to-peer electronic cash system,” Decentralized Business Review, pp. 21260, 2008. [Google Scholar]
2. K. Christidis and M. De vetsikiotis, “Blockchains and smart contracts for the internet of things,” IEEE Access, vol. 4, pp. 2292–2303, 2016. [Google Scholar]
3. N. Szabo, “Formalizing and securing relationships on public networks,” First Monday, vol. 2, no. 9, pp. 1–21, 1997. [Google Scholar]
4. J. Benet, “IPFS - content addressed, versioned, P2P file system,” arXiv, arXiv:1407.3561, pp. 1–11, 2014. [Google Scholar]
5. A. Shamir, “How to share a secret,” Communications of the ACM, 1979, vol. 22, no. 11, pp. 612–613, 1979. [Google Scholar]
6. G. R. Blakley, “Safeguarding cryptographic keys,” in Proc. MARK, New York, NY, USA, pp. 313–318, 1979. [Google Scholar]
7. C. Asmuth and J. Bloom, “A modular approach to key safeguarding,” IEEE Transactions on Information Theory, vol. 29, pp. 208–210, 1983. [Google Scholar]
8. S. D. Xiaoding, D. Wagner and A. Perrig, “Practical techniques for searches on encrypted data,” in Proc. S&P 2000, Berkeley, CA, USA, pp. 44–55, 2000. [Google Scholar]
9. R. Curtmola, J. Garay, S. Kamara and R. Ostrovsky, “Searchable symmetric encryption: Improved definitions and efficient constructions,” in Proc. CCS ‘06, New York, NY, USA, pp. 79–88, 2006. [Google Scholar]
10. D. Cash, J. Jaeger, S. Jarecki, C. Jutla, H. Krawczyk et al., “Dynamic searchable encryption in very-large databases: Data structures and implementation,” IACR Cryptol. ePrint Arch, vol. 2014, pp. 853, 2014. [Google Scholar]
11. J. Li, Y. Huang, Y. Wei, S. Lv, Z. Liu et al., “Searchable symmetric encryption with forward search privacy,” IEEE Transactions on Dependable and Secure Computing, vol. 18, no. 1, pp. 460–474, 2021. [Google Scholar]
12. Z. Li, J. Ma, Y. Miao and X. Liu, “Forward and backward secure keyword search with flexible keyword shielding,” Information Sciences, vol. 576, pp. 507–521, 2021. [Google Scholar]
13. C. Xu, L. Yu and L. Zhu, “A Blockchain-based dynamic searchable symmetric encryption scheme under multiple clouds,” Peer-to-Peer Netw, vol. 14, pp. 3647–3659, 2021. [Google Scholar]
14. S. Cui, X. Song and M. R. Asghar, “Privacy-preserving dynamic symmetric searchable encryption with controllable leakage,” ACM Transactions on Privacy and Security, vol. 24, no. 18, pp. 1–35, 2021. [Google Scholar]
15. J. Chen, K. He, L. Deng, Q. Yuan, R. Du et al., “EliMFS: Achieving efficient, leakage-resilient, and multi-keyword fuzzy search on encrypted cloud data,” IEEE Transactions on Services Computing, vol. 13, no. 6, pp. 1072–1085, 2020. [Google Scholar]
16. L. Li, C. Xu, X. Yu, B. Dou and C. Zuo, “Searchable encryption with access control on keywords in multi-user setting,” Journal of Cyber Security, vol. 2, no. 1, pp. 9–23, 2020. [Google Scholar]
17. J. Zhang, G. Xu, X. Chen, H. Ahmad, X. Liu et al., “Towards privacy-preserving cloud storage: A blockchain approach,” Computers, Materials & Continua, vol. 69, no. 3, pp. 2903–2916, 2021. [Google Scholar]
18. C. Xu, L. Mei, J. Cheng, Y. Zhao and C. Zuo, “IoT services: Realizing private real-time detection via authenticated conjunctive searchable encryption,” Journal of Cyber Security, vol. 3, no. 1, pp. 55–67, 2021. [Google Scholar]
19. P. Almeida, C. Baquero, N. Preguiça and D. Hutchison, “Scalable bloom filters,” Information Processing Letters, vol. 101, pp. 255–261, 2007. [Google Scholar]
20. K. Fan, S. Wang, Y. Ren, H. Li and Y. Yang, “Medblock: Efficient and secure medical data sharing via blockchain,” Journal of Medical Systems, vol. 42, pp. 1–11, 2018. [Google Scholar]
21. H. Tan, T. Zhou, H. Zhao, Z. Zhao, W. Wang et al., “Archival data protection and sharing method based on blockchain,” Journal of Software, vol. 30, pp. 2620–2635, 2019. [Google Scholar]
22. N. Nizamuddin, H. Hasan, K. Salah and R. Iqbal, “Blockchain-based framework for protecting author royalty of digital assets,” Arabian Journal for Science and Engineering, vol. 44, pp. 3849–3866, 2019. [Google Scholar]
23. O. A. Alzubi, J. A. Alzubi, O. Dorgham and M. Alsayyed, “Cryptosystem design based on hermitian curves for IoT security,” the Journal of Supercomputing, vol. 76, no. 11, pp. 8566–8589, 2020. [Google Scholar]
24. O. A. Alzubi, J. A. Alzubi, K. Shankar and D. Gupta, “Blockchain and artificial intelligence enabled privacy-preserving medical data transmission in internet of things,” Transactions on Emerging Telecommunications Technologies, vol. 32, no. 12, pp. e4360, 2021. [Google Scholar]
25. M. Uddin, M. S. Memon, I. Memon, I. Ali, J. Memon et al., “Hyperledger fabric blockchain: Secure and efficient solution for electronic health records,” Computers, Materials & Continua, vol. 68, no. 2, pp. 2377–2397, 2021. [Google Scholar]
26. A. A. Alnssayan, M. M. Hassan and S. A. Alsuhibany, “Vacchain: A blockchain-based emr system to manage child vaccination records,” Computer Systems Science and Engineering, vol. 40, no. 3, pp. 927–945, 2022. [Google Scholar]
27. M. Naz, F. A. Al-zahrani, R. Khalid, N. Javaid, A. M. Qamar et al., “A secure data sharing platform using blockchain and interplanetary file system,” Sustainability, vol. 11, no. 24, pp. 7054, 2019. [Google Scholar]
28. N. Sohrabi, X. Yi, Z. Tari and I. Khalil, “BACC: Blockchain-based access control for cloud data,” in Proc. (ACSW ‘20), New York, NY, USA, pp. 1–10, 2020. [Google Scholar]
29. Y. Zhang, R. H. Deng, J. Shu, K. Yang and D. Zheng, “TKSE: Trustworthy keyword search over encrypted data with two-side verifiability via blockchain,” IEEE Access, vol. 6, pp. 31077–31087, 2018. [Google Scholar]
30. H. Li, H. Tian, F. Zhang and J. He, “Blockchain-based searchable symmetric encryption scheme,” Computers & Electrical Engineering, vol. 73, pp. 32–45, 2019. [Google Scholar]
31. L. Chen, W. K. Lee, C. C. Chang, K. K. R. Choo and N. Zhang, “Blockchain based searchable encryption for electronic health record sharing,” Future Generation Computer Systems, vol. 95, pp. 420–429, 2019. [Google Scholar]
32. T. Feng, H. Pei, R. Ma, Y. Tian and X. Feng, “Blockchain data privacy access control based on searchable attribute encryption,” Computers, Materials & Continua, vol. 66, pp. 871–890, 2021. [Google Scholar]
Appendix Secret sharing time consumption

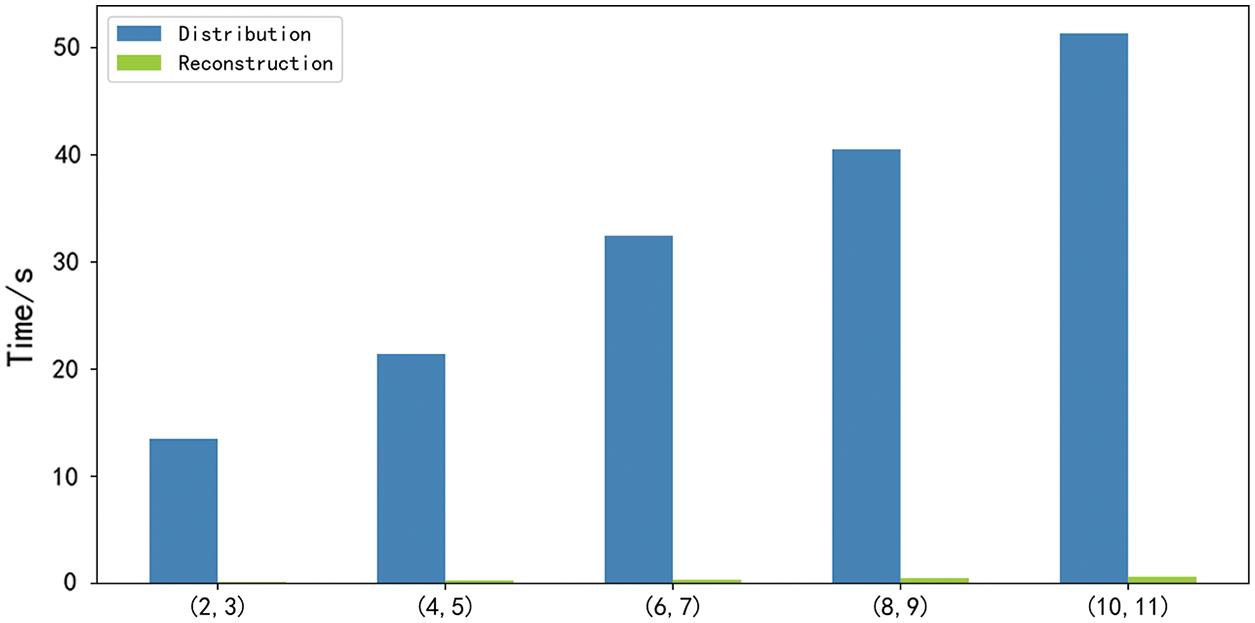

Figure 9: Secret sharing time consumption
