DOI:10.32604/cmc.2022.026513
| Computers, Materials & Continua DOI:10.32604/cmc.2022.026513 | |
| Article |
An Efficient Security Solution for Industrial Internet of Things Applications
Department of Information Systems, Faculty of Computing and Information Technology, King Abdulaziz University, Jeddah, Kingdom of Saudi Arabia
*Corresponding Author: Alaa Omran Almagrabi. Email: aalmagrabi3@kau.edu.sa
Received: 29 December 2021; Accepted: 02 March 2022
Abstract: The Industrial Internet of Things (IIoT) has been growing for presentations in industry in recent years. Security for the IIoT has unavoidably become a problem in terms of creating safe applications. Due to continual needs for new functionality, such as foresight, the number of linked devices in the industrial environment increases. Certification of fewer signatories gives strong authentication solutions and prevents trustworthy third parties from being publicly certified among available encryption instruments. Hence this blockchain-based endpoint protection platform (BCEPP) has been proposed to validate the network policies and reduce overall latency in isolation or hold endpoints. A resolver supports the encoded model as an input; network functions can be optimized as an output in an infrastructure network. The configuration of the virtual network functions (VNFs) involved fulfills network characteristics. The output ensures that the final service is supplied at the least cost, including processing time and network latency. According to the findings of this comparison, our design is better suited to simplified trust management in IIoT devices. Thus, the experimental results show the adaptability and resilience of our suggested confidence model against behavioral changes in hostile settings in IIoT networks. The experimental results show that our proposed method, BCEPP, has the following, when compared to other methods: high computational cost of 95.3%, low latency ratio of 28.5%, increased data transmitting rate up to 94.1%, enhanced security rate of 98.6%, packet reception ratio of 96.1%, user satisfaction index of 94.5%, and probability ratio of 33.8%.
Keywords: Industrial internet of things (IIoT); blockchain; trusted third parties; endpoint verification
The Industrial Internet of Things (IIoT) has gained popularity as it enables contemporary industrial operations and applications to increase efficiency and effectiveness [1]. The IIoT combines industry and network connection worlds by connecting, controlling, and monitoring everything in industry [2]. New business models such as the proactive maintenance that keeps machinery and equipment down to a minimum require further data interchange between manufacturing systems and other types of equipment [3]. Because of this continuous digitization, a higher level of networking is essential in industrial facilities and the manufacturing business [4]. Smart sensors are linked to systems that enable Industrial Internet of Things (IIoT) applications, using especially low-cost edge node devices [5]. The increasing interconnections and equipment increase the attachment area and lead to new safety challenges [6]. Due to its potential for quicker and better decision making, the IIoT is significant. The IIoT can provide an insight into the wider supply chain, allowing enterprises to coordinate and achieve further efficiencies. Endpoint authentication is an authentication method used to validate an external or remote network connector [7]. This approach guarantees that the network is mainly linked to legitimate or authorized endpoint devices.
Smartphones, tablets, and servers are included among such gadgets [8]. Endpoint security is the technique of safeguarding terminal devices or access points from hostile players and campuses such as PCs, laptops, and mobile devices [9]. Security endpoint systems safeguard these endpoints against cybersecurity attacks on a network or in the cloud [10]. Endpoint safety has developed from standard antivirus software to provide complete protection against advanced malware and developing zero-day threats [11]. Hacktivists, organized crime, and intentional and unintentional insider threats are endangering organizations of all sizes [12]. The IIoT can help firms better understand their business operations by delivering incredibly detailed data in real-time. Analyzing data from sensors can make their processes more efficient and offer up new sources of income. The IIoT can provide an insight into the wider supply chain, allowing enterprises to coordinate and achieve further efficiencies. Safety at endpoints is frequently viewed as the forefront of cybersecurity, and the endpoint is one of the top locations in which companies seek to safeguard corporate networks [13]. For several reasons, an endpoint platform for protection is important to business cybersecurity [14]. Data collection is sometimes the most relevant asset a company has in today's economic climate and the loss of data or access to such data may jeopardize the entire organization [15]. These include direct sales, subscriptions, premiums, and the franchise. Depending on the business, one of these income-generating strategies is likely to be the most appropriate approach to manage the organization. Companies have never had to face such an increasing number of endpoints [16]. Endpoint safety is a practice where endpoints or entry points of end-user products such as desktops, laptops, and mobile devices are secured from malicious actors or campaigns. Today's endpoint protection solutions are designed swiftly to identify, analyze, block, and contain ongoing assaults. This makes it harder for business safety by distant operational and network rules, progressively making perimeter protection insufficient and creating vulnerabilities [17]. Add to the cost of redistributing resources from company objectives to address risks, the cost of a major reputation infringement, and the actual financial impact of compliance violations and it is easy to see why platforms are considered essential for safeguarding contemporary businesses [18,19]. Endpoint security management is the policy that is developed to guarantee the safety and security of all the endpoint devices in a network [20]. It is part of an extensive cybersecurity program, a modern need for small local companies and big multinationals [21]. There is limited guidance and management of IoT devices for the life cycle, and limited best practice is available for IoT developers. In addition, the authentication and permission standards for IoT edge devices are lacking. Endpoint security is a technique of protecting the information and workflows of the devices connected to the network [22]. The EPP works by looking at files while entering the networks. Modern EPPs leverage the power of the cloud to maintain a continuously increasing database of information about threats, to unbundle endpoints involved with keeping all this information locally and to maintain them [23]. More speed and scalability can sometimes be achieved by accessing this information via the cloud [24].
The EPP provides a single dashboard that allows cybersecurity professionals to remotely regulate security for each device for system administrators on a network gateway or server. The monitoring of endpoints concerns tracking activity and risk on all the mobile network devices. It represents the process of continual and continuous management of a dynamic range of endpoints in a corporate network. This article introduces the notion that the IIoT based on blockchain technology has been trusted and used in several industries to ensure anonymity. The IIoT is concerned with the IoT branch that specially deals with the production and agriculture industries. It likewise involves linking gadgets and making them considerably more intelligent and available, and on a far larger scale. The end objective in industry is to improve speed and safety to enhance the smooth operation of manufacturing sites at a lower cost.
As a result, blockchain is a guaranteed solution, with a decentralized structure and distributed approach, and is a helpful approach to IIoT situations. The blockchain used is a block chain that tracks and coordinates transactions and stores data for millions of IIoT devices on distributed blocks. However, endpoint security software examines the whole corporate network and may provide visibility for all connected endpoints from a single location. Legacy antivirus solutions depend on the user for manual updating or updating the databases in advance. EPPs offer integrated security, which transfers management duties onto IT companies or cybersecurity staff. An important initial step requires all devices to use an authorized operating system and a virtual private network (VPN). If a device does not comply, access to essential data might be restricted. Users may now remotely manage or even automate security programs to ease the procedure.
2 Related Works Based on IIoT Secure Authentication
Xu et al. [25] described the Novel Blockchain Framework (NBF) to edge computing in the IIoT. This report offered a Layered Lightweight Blockchain Framework (LLBF) and implementation method restricted by resources. The framework comprises a resource-restricted blockchain layer and an extended resource layer in the IIoT. A lightweight consensus method and a dynamic trust algorithm are created to enhance blockchain performance and minimize verified transactions in fresh blocks.
Khan et al. [26] suggested the Blockchain-Based Secure Image Encryption Scheme (BCSIES) for the IIoT. The cryptographic pixel values of a picture are recorded on the blockchain to ensure data privacy and security. Encrypted findings demonstrate that the method presented is very successful in preventing and ensuring data leakage.
Arachchige et al. [27] explored the PriModChain for industrial IoT systems. This article offered a PriModChain architecture that promotes data confidentiality and confidence via mixing differential privacy, ML, Ethereum blockchain, and intelligent contracts. PriModChain was tested with the help of simulations created in Python using socket programming on a general purpose computer in terms of privacy, security, dependability, security, and resilience.
FASTEN IIoT for the end-to-end integration of the Industrial Internet of Things was expressed by Costa et al. [28]. The aim was to give a flexible, configurable, and open solution to the FASTEN IIoT Platform. The platform works as an interface of 4.0 advanced applications and solutions between the shop floor and the industry. These efforts include administration, provision, optimization, and simulation by harmonizing diverse data source features while fulfilling real-time needs.
A hinge classification algorithm based on mini-batch gradient descent with an adaptive learning rate and momentum (HCA-MBGDALRM) was described by Yan et al. [29]. In contrast to standard neural networks, decision trees, and retrograde logistic measures, the method significantly increases the performance of deep network training. In the shuffle phase, they have solved the data skew problem, and they are implementing a parallel HCA-MBGDALRM framework to increase the processing speed of very large data sets.
The node degree (N), distance from the cluster (D), residual energy (R), fitness (NDRF), and salp swarm algorithm (SSA) for a secure Industrial Internet of Things was deliberated by Abuhasel et al. [30]. The sensor nodes’ accuracy is calculated using the SSA. SoftMax's deep-neuronal network is recommended to minimize latency and overhead communication for IIoT devices. In all cluster head applications, optimal resource planning is dependent on the demand for storage, computation, and bandwidth.
A cybersecurity framework (CF)-based power system connected for the IIoT was discussed by Jang et al. [31]. A suitable cybersecurity directive must thus be developed to allow effective answers to risks posed by cybersecurity due to the misuse of such flaws. Unfortunately, developing an effective cybersecurity guideline for each organization is not straightforward.
A deep-learning feature extraction based semi-supervised model (DLFE-SSM) for IIoT networks was introduced by Hassan et al. [32]. In addition, they presented an adaptive IIoT network for confidential border security utilizing a DLFE-SSM. The technique described requires no manual effort to upgrade the attack databases. The quickly changing nature of unknown attack models may be learned through unmonitored learning and unlabeled wild data. A BlockEdge model is proposed in [33], which combines blockchain and edge computing to address a few of the critical issues faced by the current IIoT networks. The authors validate the possibility of BlockEdge in terms of latency, power consumption, and network usage. In [34], the authors propose a blockchain-based model along with fog computing (FC), which inserts a blockchain with a yet-another-consensus protocol creating a safety structure into FC for storing and transmitting IoT data.
The main contribution of this paper:
➢ Designing the proposed BCEPP to enhance cybersecurity with secure end-to-end communication.
➢ The proposed method, BCEPP, utilized the virtual network function for optimized network output.
➢ The experiment has been performed based on the proposed BCEPP to achieve a high data transmission rate, packet reception, security, and user satisfaction index.
The overall paper structure is as follows: Section 1 discusses the importance of endpoint node verification for the IIoT; Section 2 explores the related works based on IIoT secure authentication; Section 3 demonstrates the BCEPP for reducing the network latency; Section 4 presents the results and discussion; and Section 5 concludes the paper.
3 Blockchain-based Endpoint Protection Platform (BCEPP)
This paper discusses the Industrial Internet of Things (IIoT) for endpoint authentication. A novel idea, termed the industrial relationship between IIoT devices, will be based in the first part of this paper's architecture. The model to monitor IIoT nodes in the architecture is suggested in the trust metrics. Compared to the conventional IIoT network design of automotive plants, the simulation results have demonstrated the energy efficiency of our BCEPP architecture. The manufacturing industry concentrates on converting tangible goods, such as raw materials, into final products, while the production process includes non-tangible items. Both procedures aim to develop finished items that are sold for profit by firms. The first part of this paper's architecture will be built on a unique notion known as the industrial interactions between IIoT devices. In the confidence metrics, the model for monitoring IIoT nodes in the architecture is suggested. The simulation results showed the energy efficiency of our BCEPP architecture compared to the standard IIoT network design of manufacturing plants. The essential distribution and security of IIoT applications in practice involve the intelligent placement of services in physically distinct areas that directly influence latency and an appropriate policy enforcement system that ensures dependability, security, and services security. This article addresses these concerns by presenting a new VNF solution for the IIoT that reduces the overall latency while verifying that network-wide rules such as connection or isolation exist between the endpoints. Networking enables individuals to access opportunities that may not be found alone. The network can give information on what possible employers are searching for and recommendations on developing a network professionally.
The IIoT infrastructure schemes are shown in Fig. 1. Various possible approaches for secured communication and control in the IIoT via a cloud platform or at the leading level around Fig. 1 have been suggested. Authors have introduced technology for understanding the IoT, controlling access, downloading, and identifying viruses for data protection. If an assault breaches cloud-based security measures effectively, few documented solutions to assure the safety of a CPS are available. The local safety of a CPS is not responsible operationally for these works. The closest work the author could detect shows that the primary part of the middleware layer is an IoT name resolution service. The technique to detect and minimize safety hazards initially requires specific CPS limits for the IIoT. Workplace safety can be related to both physical and mental security. In both circumstances, it indicates a reasonably safe workplace for all employees and actively avoids insecurity in the workplace.

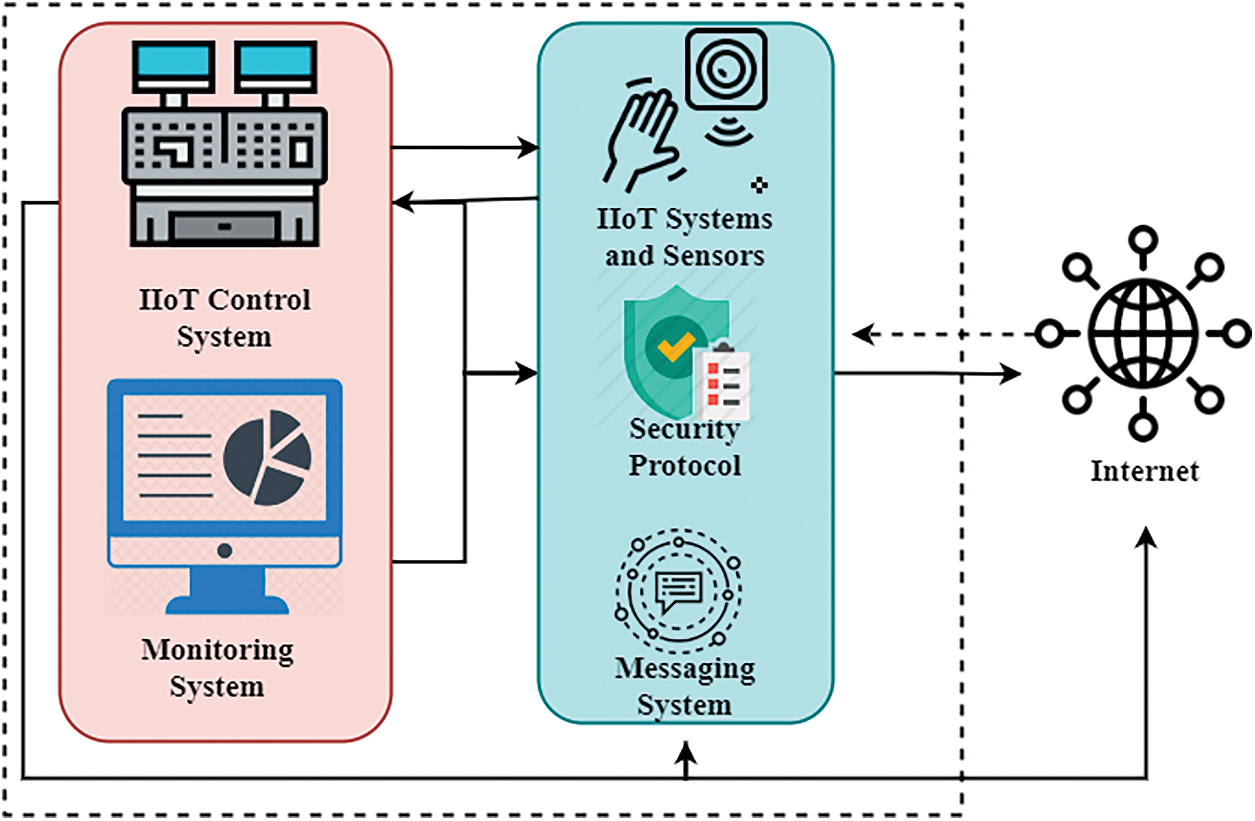

Figure 1: IIoT architecture
Network connection management is then set to these criteria by the CPS. Fig. 1 illustrates the position of the heating fan sensor and refrigeration ventilators, as described in the above paragraph, in the IIoT system and external sensor system (the scattered-line box). The microcontroller Raspberry Pi is the feature of every block with a dotted line. The detection of endpoints and reactions, often known as endpoint threat detection and response, is the integrated endpoint security solution, combining continuous monitoring and data gathering in real-time with automated response and analysis capabilities based on rules. The IIoT control system controls cooling and heat supply, as indicated in the above section. The monitoring device identifies all uneven CPS activities. The protocol of the security system provides appropriate web security protocols based on tracking system data. The messaging platform transmits important messages to the users based on the IIoT control system; the IIoT covers industrial applications, including robotics, medical devices, and manufacturing processes with software definition. The IIoT extends beyond regular consumer gadgets and physical IoT-associated internet activities. The last part of the normal surgery is stated in the circumstances that follow. If the target temperature is not stabilized for at least 30 s, the messaging system will produce a message announcing uneven operation on the IIoT gateway. When the temperature within the target environment has not stabilized within 50 s, all network connections with the IIoT gateway are terminated by the protocol frame.
This study provides a method based on edge nodes that examines the network environment from each smart sensor. The example of mapping from a network node device is shown in Fig. 2. There are four nodes (M1–M4) in this sample network, and M1 periodically scans the network pseudo-randomly. The first scanning findings of four devices (M1–M4) are shown in the dashed arrows. This first scan will be used as a reference and this network must be kept safe. After then, the network enters a new edge node device (A). The second (dotted) scan finds the expected equipment on the one hand and the new equipment on the other (A). This may suggest an intruder or other activities that cause the network to change maintenance. The following settings can be used for the network scanning and mapping in which the connections of the hosts are analyzed. The following classes include the standard port scan techniques and extra possibilities. These groups are divided into two classes. Activated hosts in the network can be discovered with an internet control message protocol (ICMP) ping sweep. SYN detects and connects scanning of open ports and services. The detection of redirection might utilize time. The approaches provided here incorporate these as a safety component for devices with IIoT edge nodes. No network scanner for low-power MCUs is currently available to the best knowledge of the authors.

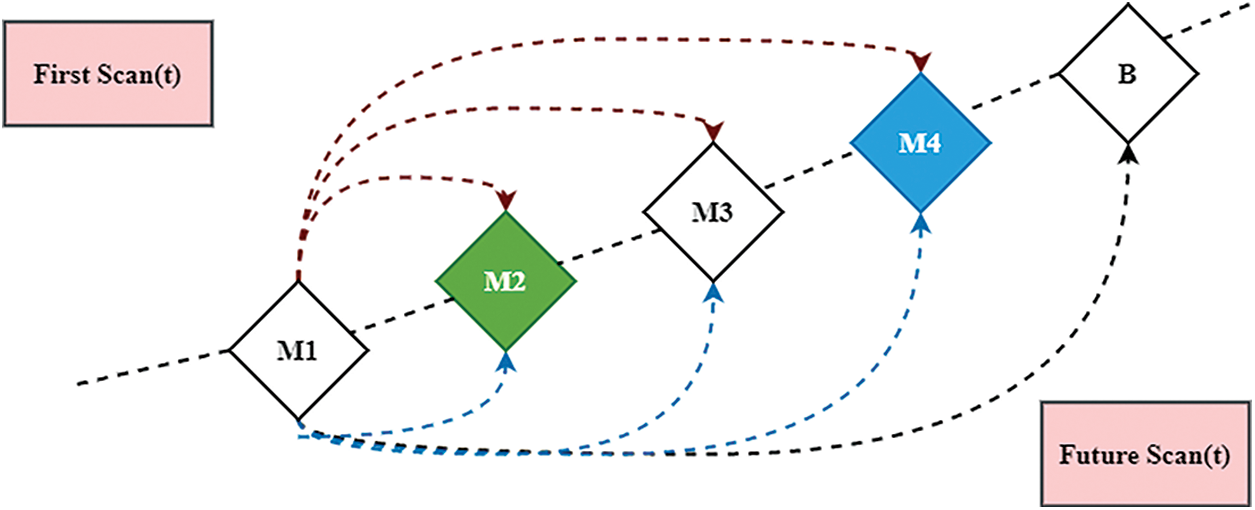

Figure 2: Mapping network node
The preceding section presented an IIoT blockchain-based architecture that considers the importance of the IIoT network to provide confidence and privacy. There are several advantages to the IIoT, as shown in Fig. 3. Predictive maintenance is one of the primary advantages of the IIoT, using sensors that can anticipate machine faults in real-time from the IIoT. It moreover leads to better on-site servicing by helping to spot possible equipment problems. Asset management, customer satisfaction, and facility management are all of the IIoT's benefits, and all this is achievable provided the network runs without any problems. There can be confidence and privacy problems via the suggested design of the blockchain. In this section, various key blockchain architecture applications in the IIoT will be highlighted. Industrial automation can be revolutionized by blockchain technology. Blockchain can combine a large number of digital ledgers stored in various locations and process them as blocks. This results in improved governance of transactions. Process automation as well as transparency may be achieved by integrating technology and automating business operations. This might prove fabrication, as any transactions that follow depend on confirmation of the preceding transactions. Many factories are developing intelligent robotics systems. Intelligent robotics is concerned with the correct and efficient use of tools and resources. Smart robotic arms can be used to specify precise requirements. The design of the blockchain can make sure data are safe in intelligent robots. The smart robot can use sensor data directly for decision making without human intervention. The blockchain architecture cannot be responsible for data securement. It is important to protect the industrial process and ensure that AI choices are visible and traceable. The secure exchange of information within and outside the industrial walls is one of the major issues facing businesses. Blockchain technology may play a major role in IIoT manufacturing when it comes to data security and privacy. The technique is useful when there is no trust between parties needing to collect, store, and communicate vital information securely. Innovative business models may be developed using blockchain and production boundaries can be extended beyond standard plants. This would result in improved supply chain efficiency. It can lead to greater order precision, product quality, and tracking. This would ensure that producers can fulfill delivery deadlines, increase the quality of the products, and sell more. The intelligent grids are simply electric networks, which operate and implement energy measures. Smart grids are subject to many security vulnerabilities because of interconnection, data sharing, authorization, and blockchain technology. Their safety is essential because of automation and remote access. Blockchain can help prevent unauthorized access to power systems and harmful assaults. Intelligent cities are based on data and technology, improving the quality factor for living standards and improving sustainability and economic development. Since the intelligent city has many components, blockchain is individually applicable. Blockchain-technology-based remote employee payment solutions can help securely transfer funding to anybody without incurring additional transaction fees for third parties. Blockchain technology with the assistance of intelligent contracts for diverse tasks may define a better governance scenario. In addition, it provides support for digital signatures in place of a conventional password-based method for managing and tracing digital identities. This can help improve the management of the supply chain. Moreover, greater transparency may be introduced between manufacturers and customers. Due to its decentralized ledger, it may store personal user data in different businesses about healthcare and banking. It would exclude any manipulation of data. To allow improved trash management, blockchain may be interfaced with smart and AI sensors. All papers and transactions must be transparent for the logistics sector. This can be addressed by blockchain technology and eventually enhance the supply chain's productive route. Blockchain technology can help to resolve inefficiencies in logistics by supervising the process of transferring products from start to finish in the supply chain or logistical business. Blockchains are suitable for streamlining complicated and fragmented procedures frequently seen within the supply chain and logistics business. Blockchain technology can monitor transactions, track assets, and establish a system of transparency to manage all sorts of key documents. Blockchain technology can be incorporated with its digital business transactions in vehicles. In various instances, it can be utilized. It can provide improved interconnection using smart sensors to avoid vehicle involvement and drive smoothly away from incoming traffic without breaking. This can lead to quick transactions on the road, such as e-wallets, and will simplify these transactions and protect information. Everything that might be handled can be done so securely and effectively via blockchain. Insurance agencies may utilize blockchain. Payments can thus be issued if the sensors of the vehicle identify a contravention. Due to blockchain information stored in the number of accessible servers, it may be hard to achieve illegal access to data on such systems. Electric power networks face safety challenges and blockchain might be one of the most effective methods to respond. Blockchain technology is sufficient to turn the intelligent grid into a peer-to-peer trade network. In addition, grid balancing through dispersed energy resources is sufficiently effective. The wholesale market, in particular, establishes the energy price based on client demand and the necessary quantity. Blockchain technology, in particular for electricity, enables storing and exchanging for sustainability. Transforming migration services from the public chain to business logic would need blockchain technology amalgamation and virtualization. Over the years, several designs and business requirements have emerged in virtualization logic. Enterprise virtual machines deal with performance, scalability, verification, upgradable intelligent contracts, and confidentiality regulations that are mostly achievable with blockchain technology. The future of industry-ready VMs may be blockchain technology coupled with virtual machines.
Figure 3: IIoT blockchain-based architecture
The proposed method has Boolean input variables
Eq. (1) determines the mapping function, subject to
The storage requirement has been calculated in Eq. (2). It assumes that the actual value of
In light of this formalization, the following phrases have been developed to represent
The virtual network function is expressed in Eq. (3). To appropriately link variable
Eq. (4) calculates and discusses the bind variable. At least one VNF is deployed in this node while the
The routing tables have been described in Eq. (5), where a soft clause d with weight z is specified by notation
The remaining
Identical soft-clause provisions have been evaluated in Eq. (6). When VNF j forwards the packets in the neighboring
VNF settings allow us to simulate a fixed processing time for each VNF. This is the latency (
As many services as feasible should be mapped to the substratum network, using substrate network resources efficiently from the network infrastructure perspective. In the industrial context, too, the propagation of connections between endpoints is normally minimized. Consequently, our method has two objectives: to decrease the quantity and the latency of substrates in use.
The soft provisions with route predicates reduce the latency of the solver. Add an extra soft clause for each substratum node ns to decrease the number of substratum nodes using
Eq. (7) estimates a soft clause for each substrate node, where L is determined based on the prioritization of latency minimization, a smaller L, or several substratum nodes in use depreciation, a bigger L. To reduce the penalty for incorrect provisions in the current model, the MaxSAT solver seeks to assign fake values to the Boolean variable
The likelihood of a mistake in the door test is a maximum of
where
The probability of error occurrence has been estimated in Eq. (8). If M wins, the forgery attack
where
Session two probability occurrence is evaluated in Eq. (9). Because of freshness, N does not perform a static key reveal (
where
To assess their members
The proposed method utilizes a state transition diagram in
As shown in Eq. (11), the transition matrix has been performed. When
The probability of the transition state has been deliberated in Eq. (12). The altered variable
The probability has been described in Eq. (13).
The rate of collaboration assesses the behavior of the monitored
The collaboration rate has been estimated in Eq. (14), where

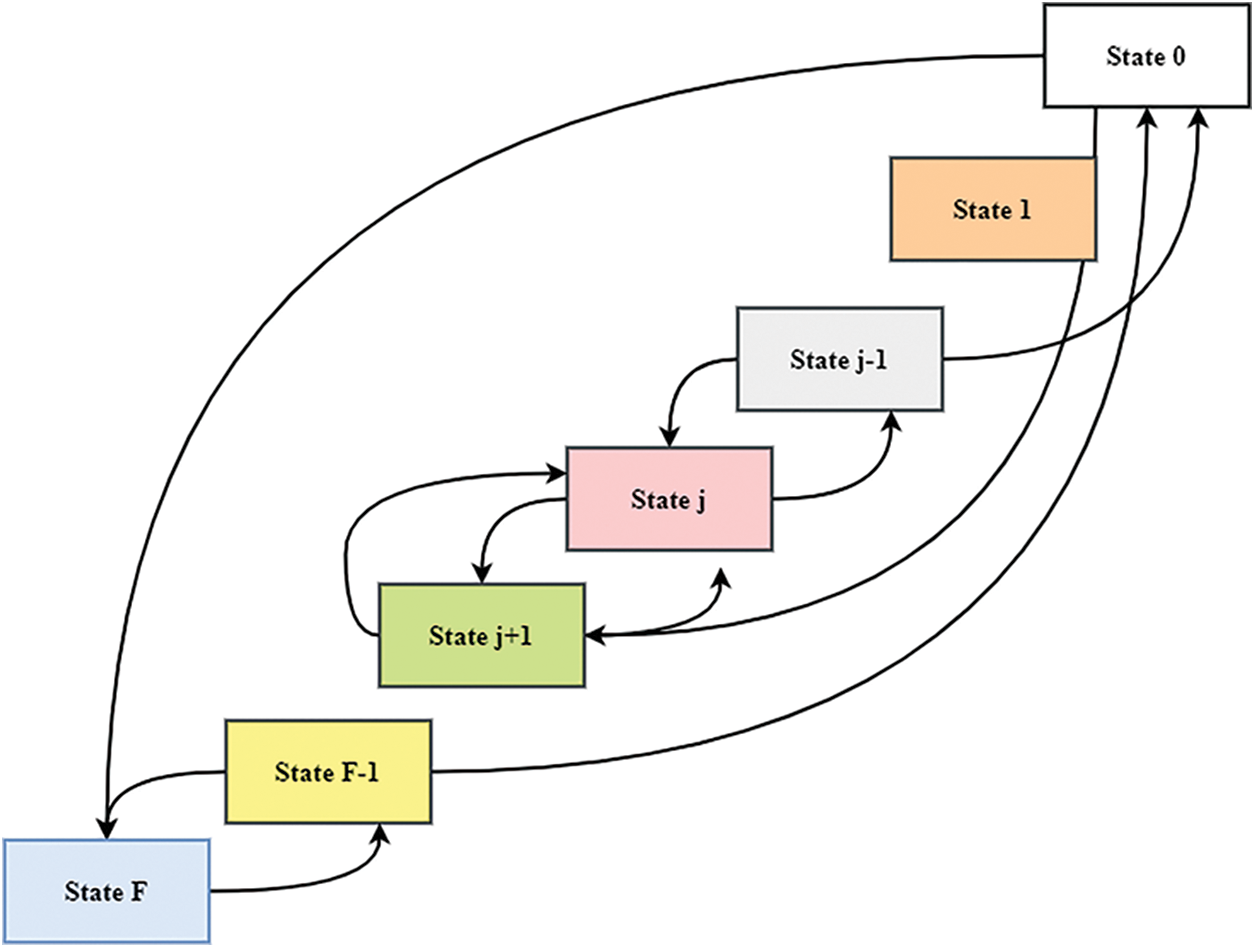

Figure 4: Transition diagram
The wireless network constraints have been formulated in Eq. (15), where
The straightforward honesty assesses the compatibility with and profiling of the actions done in the network by the
A set of hashed activities that the
As shown in Eq. (16) the similarity ratio has been derived.
The monitored probability has been evaluated in Eq. (17). The
As shown in Eq. (18), the average score has been determined. In
Positive reputation has been explored in Eq. (19). To achieve the transitional matrix Q of Eq. (19), the probability of stay
Each probability is determined using an equation in State
Fig. 5 explores the proposed BCEPP. The paper analyzes the typical IIoT scenario consisting of a Key Generation Center (KGC) cloud-string, providing the storage of IIoT users, data proprietors, and generally not data proprietors, magenta and IIoT sensors. The following four companies are the enhanced IIoT community leader scheme. The KGC creates public and partial-private key (PPK) system parameters for cloud servers and users’ data owners. The server of the cloud is accountable for user owners’ data processing. It then connects with users to transmit and calculate data. The data owner generates a certificate-free signature scheme with its own private signing key produced using KGC's partial-private key. For signature verification, the appropriate public key will be given to the data user. On the cloud server, the CLS data are saved and hence the data user may be checked. The data user obtains their KGC PPK and the public key for verifying a CLS system from the information owner. They can produce their private key and its equivalent public key with their partial-private key. Its communication flows can be signed with the cloud for authentication. As a network administrator, users of KGC are first required to be registered for the proposed IIoT system.

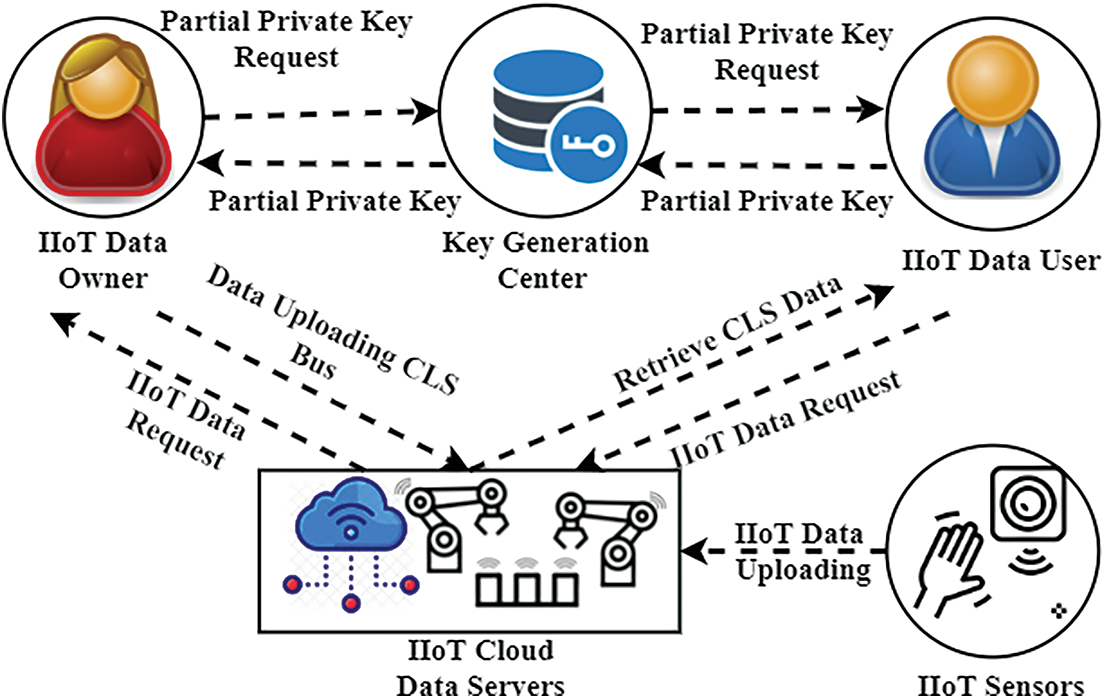

Figure 5: Proposed BCEPP
KGC makes public parameters and partial-private key publications and publishes them; users transmit their identity and partial-private keys to the KGC for registration. Data owners and data consumers then establish and utilize their private signing keys to generate community leaders of IIoT data. The users’ keys are saved on intelligent IIoT devices. Data from the IIoT sensor are stored on the cloud server and collected, signed, and retained as CLS data by the data owner. Finally, data consumers can obtain stored IIoT cloud data and verify them using the public key of the data proprietor. The internet security of IoT devices and the networks with which they are associated is the securing act. IoT devices in the business environment include industrial machinery, smart energy grids, construction automation, and personal IoT devices that employees use. This then suggests an entirely new CLS that provides comprehensive security safety with the standard security model against all identified threats and complete security proof (without random oracles). Currently, it redefines industries such as energy, manufacturing, transport, and healthcare. This new wave is the Industrial Internet of Things (IIoT): an Internet of things, machines, computers, and people that enables intelligent industrial operations to achieve transformative business results utilizing advanced data analytics.
As mentioned above, this paper intends to modify the existing IIoT network design in the car industry to simplify confidence administration. The IIoT network will thus be subdivided into clusters known as industrial communities, as shown in Fig. 6. It consists of L community leaders and K nodes of members. Let the groups

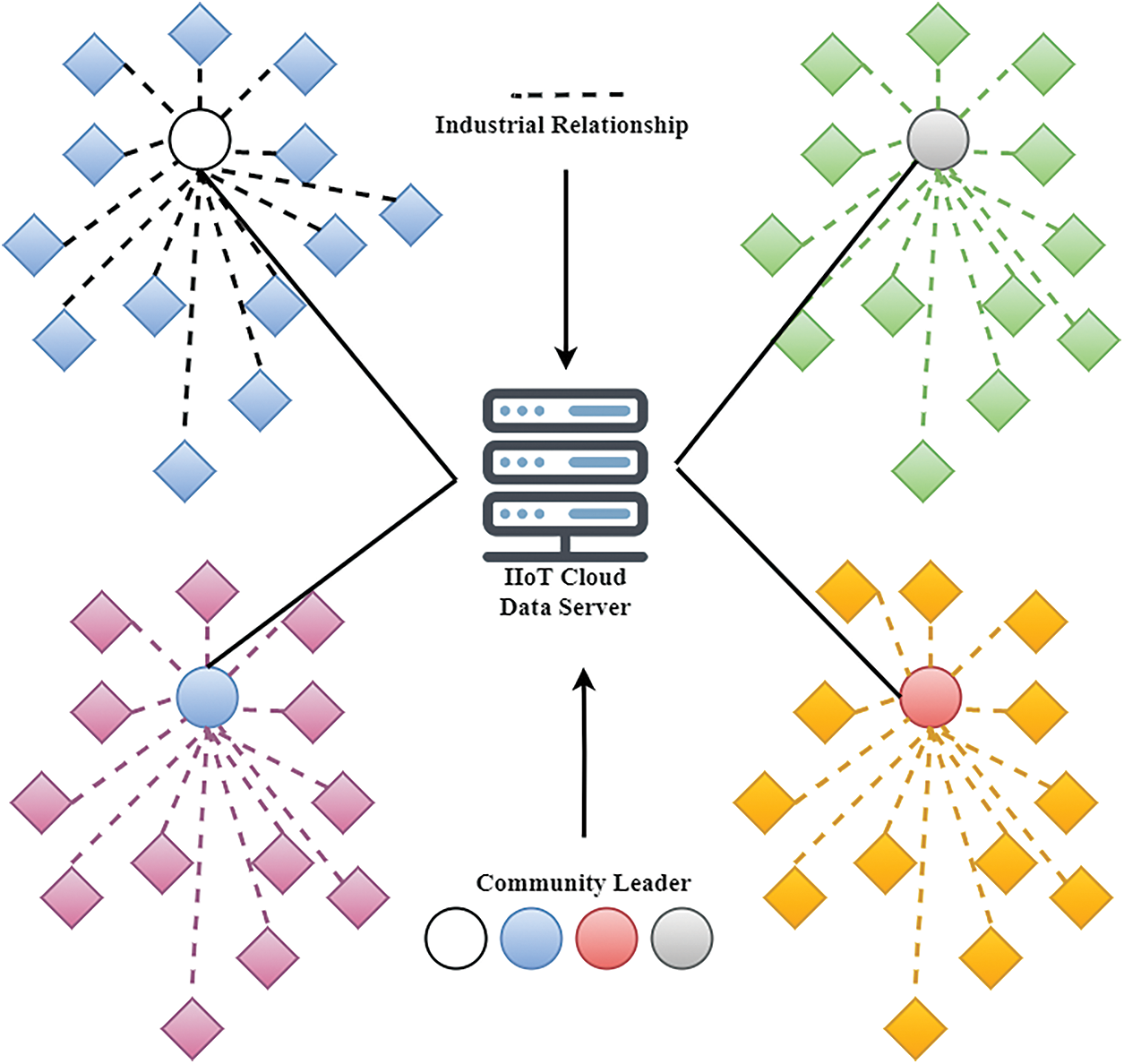

Figure 6: IIoT data communication
In the industrial situation, these blockchain technologies may be used to build a network functional chain guaranteed by latency, jitter, loss of packets, and redundancy, with tight latency and reliability requirements for important events. In addition, network virtualization real-time monitoring techniques assist in mitigating important occurrences, which may be tested by changing the service diagram and enforcing new network regulations. IIoT applications require an intelligent positioning of services across physically isolated sites, directly affecting latency, and a proper policy enforcement mechanism to ensure dependability, security, and safety. This study takes these factors into account by offering a VNF placement solution for the IIoT to minimize overall latency and, in addition, to verify that policies throughout the network, such as connection or isolation, are maintained across these endpoints.
Considering the network topology and security vulnerabilities, the likelihood of choosing distinct security flaws as attack entry points has been analyzed. An analysis has been carried out on the assault and defense strategy, for this is the basis of the security model. By solving the security model, probable attack nodes in the next phase may be anticipated. Finally, by evaluating the importance of various vulnerabilities to security, the safety level of the power network vulnerabilities may be assessed and evaluated. The likelihood is high that hostile attackers will target them. The protocol can be extended to ensure long-term sustainability and the availability of encryption. The suggested protocol is based on the study of probability, which ensures that the system designer has a common key among all IoT devices in predefined likelihood. The execution demonstrates the viability of our proposed IoT network security protocol. Tab. 1 shows the probability ratio.
This article offers the common NFV and SDN-enabled IIoT network service model for optimization and verification. This allows us to monitor network service transmission behavior and ensure optimum latency positioning in the network architecture. The encoded model is given to a solver as an input. Network features are optimally positioned in the infrastructure network as an output if the included VNFs meet the network features. The result ensures minimum cost for the end-to-end service, including latency issues and network latency. The findings shown reflect latency reduction issue calculations under different situations, reductions in the number of substratum nodes in use and reductions in network latency. Tab. 2 expresses the latency ratio.
When the customer receives the request, the node will not execute a transaction but will put it together and pass it on to the check node. The member services administration module issues certificates, transactions, transmissions, and encryption keys in the blockchain. The system uses the participation technique immediately. The data collection and consensus modules are employed to manage power nodes for the sharing method. During the transaction process, these lead to achieving the broken book. In these cases, if the transaction information is altered, the rogue node should occupy numerous computer resources. Compared to unlawful collusion attacks, the proposed technique performs better. Therefore, the suggested system can enhance the packet receipt and transmission rate if significant warning information is found in the blockchain-based network. Fig. 7 depicts the data transmission rate.

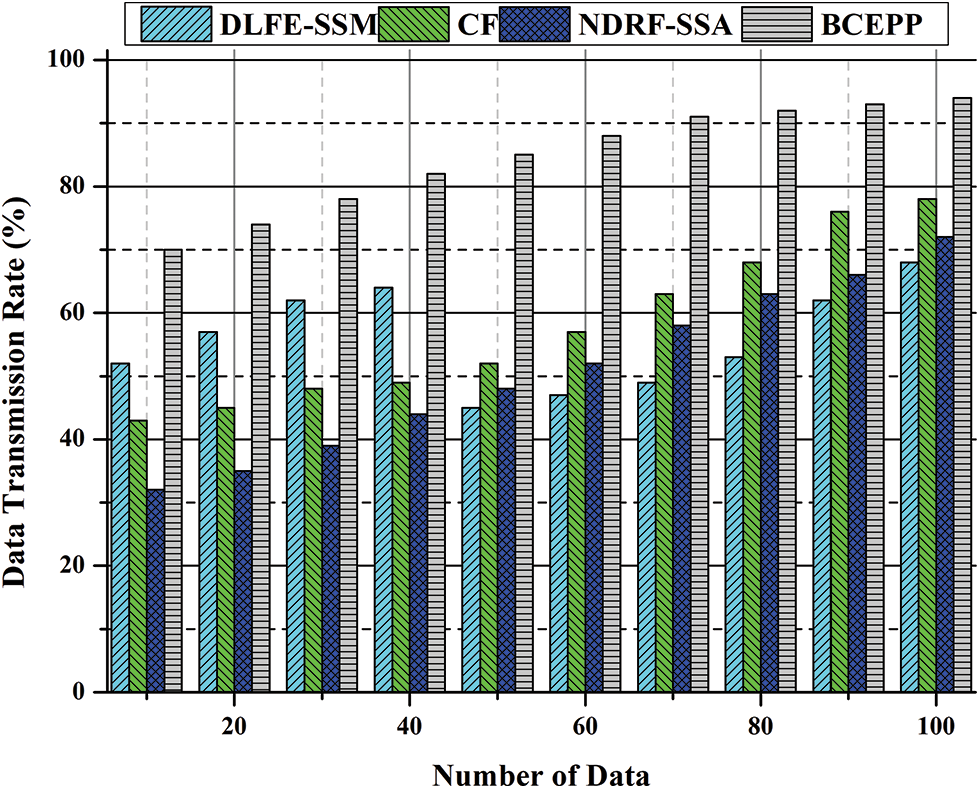

Figure 7: Data transmission rate
Illegal attackers may acquire information from power users using system vulnerabilities in the energy-based blockchain network to transfer data. This impacts the confidentiality of data and the stability of the network throughout the whole network. The experimental findings are displayed in Fig. 8. The recommended secure data transmission system based on blockchains provides a mechanism for data exchange. Because of the decentration communication technique, the system will not communicate data to other power nodes. In blockchain networks, data transmission delays check the security and the reliability of the transfer of data. The results reveal that the technique calculates the blockhead hash value by changing the random integer in the blockhead of the power node. In this instance, if the malicious node wants to manipulate transaction data, it should use many calculation resources.

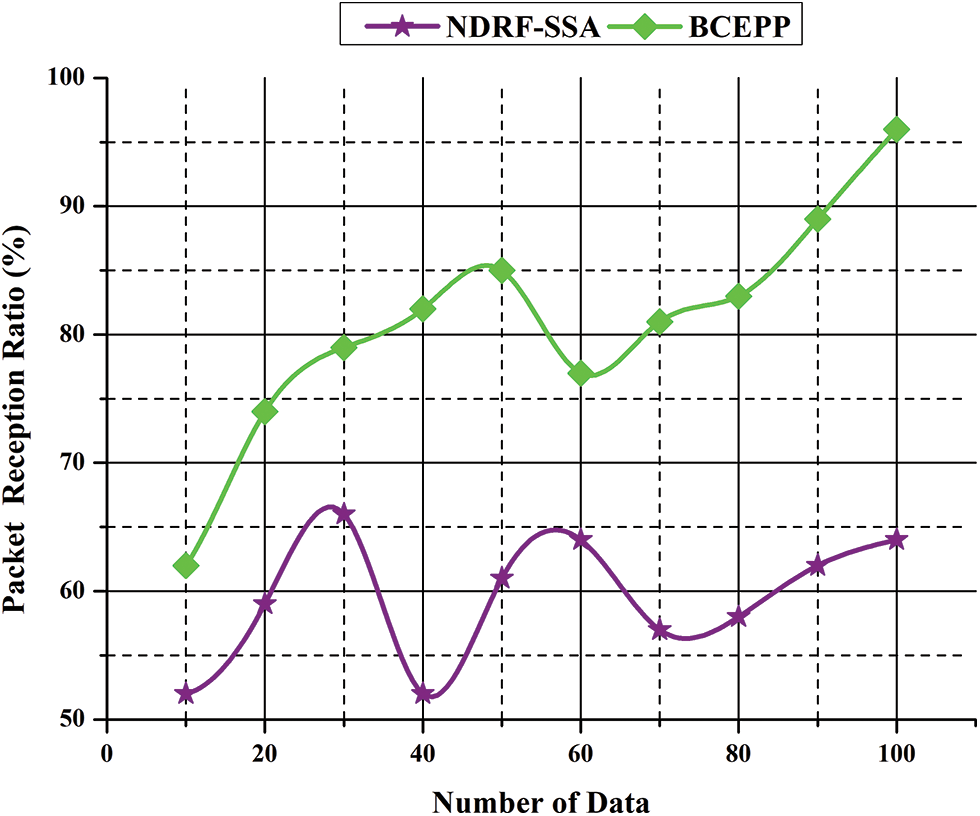

Figure 8: Packet reception rate
In comparison to unlawful collusion attacks, the proposed technique performs better. Consequently, the suggested regime may enhance packet reception and transmission speeds when significant warning information is available in the blockchain-based network. Fig. 8 demonstrates the packet reception rate.
The calculation costs of the various data packets are assessed in this section. The outcome is shown in Fig. 9. The computational costs of the proposed system are low because of the usage of the decentration-based secure transmission model with the increase of transmitted and received data packages. The overhead communication of data transmission is minimized efficiently. Compared to the suggested method, the overall performance is superior. Enabling dynamic power node add-ons by initiating data transactions across nodes offers a very efficient and trustworthy data consensus process. The safety consensus approach works at the price of additional computation resources. The consensus time in the data transfer can be shortened by adding the additional node dynamically. The proposed approach is appropriate for a network based on a blockchain system. The compatibility of the running system should be increased further. Fig. 9 shows the computational costs.

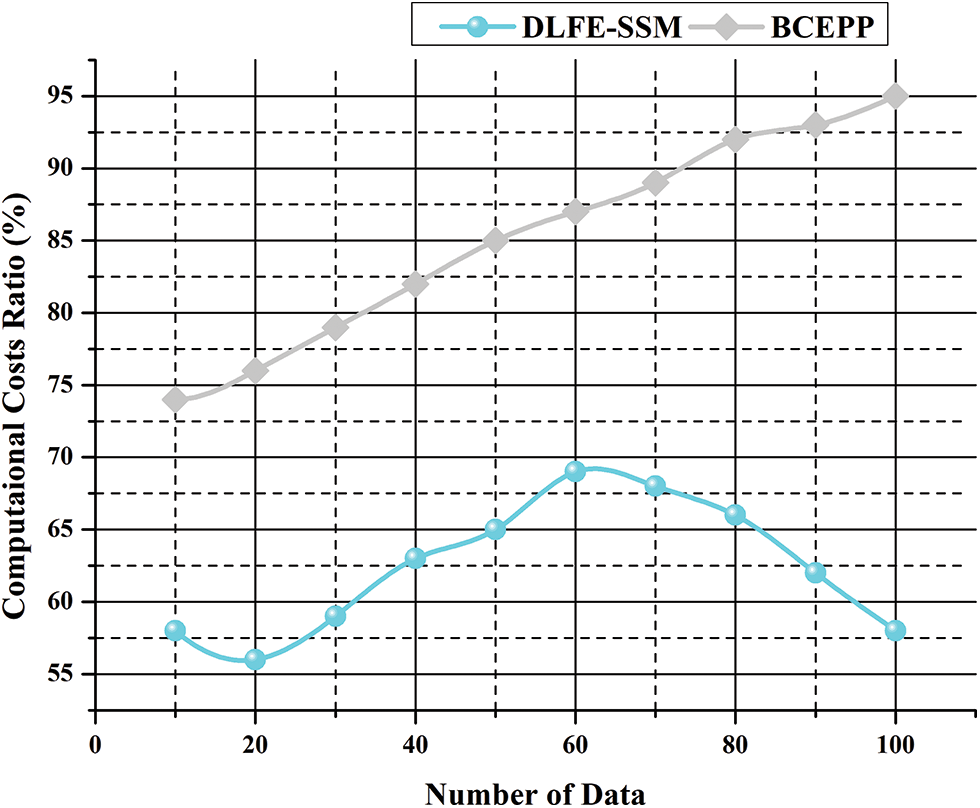

Figure 9: Computational costs
The experiments indicate that the technique for data consensus decreases system costs significantly. The spread of malicious applications in the industrial blockchain network is regulated. By addressing the security model, the suggested system creates an optimal control strategy. The method provides a mechanism for data consensus that can increase the data transfer success rate. The consensus method can dynamically pick a security approach when the malicious software stores the total power nodes. Fig. 10 shows the security rate.

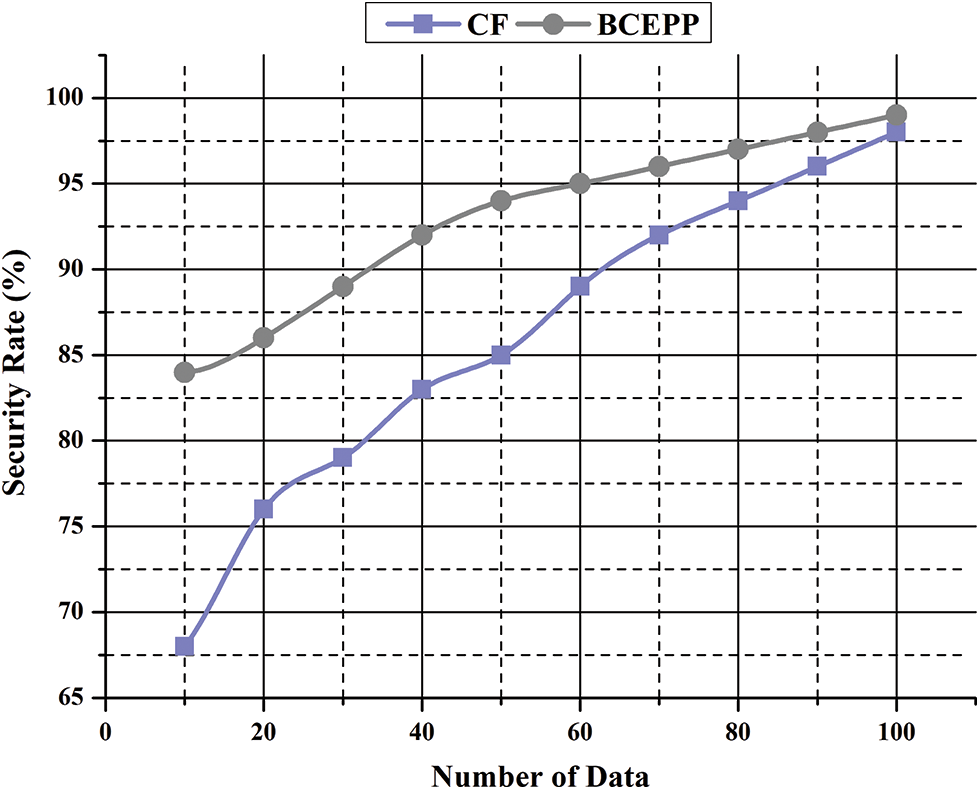

Figure 10: Security rate
For the classification of the fog resources, the encryption is carried out and the resource size required is determined. The user requirements can be split into many classes. Provided they are available, relevant resources are identified and adapted to user demands. Because users have various resource needs, the computer, bandwidth, and storage requirements are combined. The system includes all three sorts of conditions with different resources, measures user and resource needs, and awards the user the maximum score. Fig. 11 illustrates the user satisfaction index.

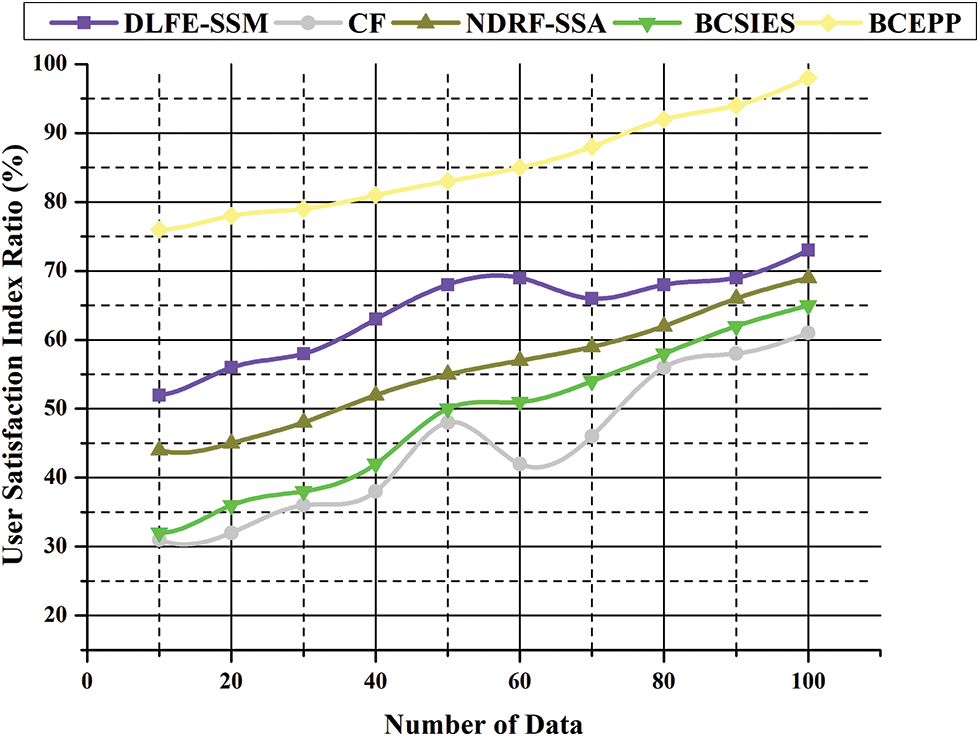

Figure 11: The user satisfaction index
Eq. (20) and Fig. 11 show the user satisfaction index.
These technologies may be employed in the industrial environment to construct the delay, vibration, data loss, and redundancy networks guaranteed to ensure that key events demand strict latency and dependability. Furthermore, real-time network virtualization approaches help minimize significant events, which may be evaluated by altering the service design and applying new network rules. In reality, IIoT applications require a clever positioning of services across physical isolation locations that directly impact latency and an appropriate policy enforcement mechanism to guarantee service safety, reliability, and security. To reduce overall latency and ensure that policies such as the link or isolation throughout the network are maintained across those endpoints, the survey considers these aspects by giving a VNF placement solution for the IIoT. Thus, the experimental results show our proposed BCEPP method to have the following: high computational cost of 95.3%, low latency ratio of 28.5%, increased data transmitting rate up to 94.1%, enhanced security rate of 98.6%, packet reception ratio of 96.1%, user satisfaction index of 94.5%, and probability ratio of 33.8%.
Acknowledgement: The authors extend their appreciation to the Deputyship for Research & Innovation, Ministry of Education in Saudi Arabia for funding this research work through the Project Number IFPHI-218-611-2020.” and King Abdulaziz University, DSR, Jeddah, Saudi Arabia.
Funding Statement: The authors received funding as stated in the acknowledgment.
Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
