Computers, Materials & Continua DOI:10.32604/cmc.2022.023630
Article

FSpot: Fast and Efficient Video Encoding Workloads Over Amazon Spot Instances

Anatoliy Zabrovskiy1,3, Prateek Agrawal1,2,*, Vladislav Kashansky1, Roland Kersche4, Christian Timmerer1,4 and Radu Prodan1

1University of Klagenfurt, Klagenfurt, 9020, Austria
2Lovely Professional University, Phagwara, 144411, India
3Petrozavodsk State University, Petrozavodsk, 185035, Russia
4Bitmovin, Klagenfurt, 9020, Austria
*Corresponding Author: Prateek Agrawal. Email: dr.agrawal.prateek@gmail.com
Received: 14 September 2021; Accepted: 18 November 2021

Abstract: HTTP Adaptive Streaming (HAS) of video content is becoming an undivided part of the Internet and accounts for most of today's network traffic. Video compression technology plays a vital role in efficiently utilizing network channels, but encoding videos into multiple representations with selected encoding parameters is a significant challenge. However, video encoding is a computationally intensive and time-consuming operation that requires high-performance resources provided by on-premise infrastructures or public clouds. In turn, the public clouds, such as Amazon elastic compute cloud (EC2), provide hundreds of computing instances optimized for different purposes and clients’ budgets. Thus, there is a need for algorithms and methods for optimized computing instance selection for specific tasks such as video encoding and transcoding operations. Additionally, the encoding speed directly depends on the selected encoding parameters and the complexity characteristics of video content. In this paper, we first benchmarked the video encoding performance of Amazon EC2 spot instances using multiple ×264 codec encoding parameters and video sequences of varying complexity. Then, we proposed a novel fast approach to optimize Amazon EC2 spot instances and minimize video encoding costs. Furthermore, we evaluated how the optimized selection of EC2 spot instances can affect the encoding cost. The results show that our approach, on average, can reduce the encoding costs by at least 15.8% and up to 47.8% when compared to a random selection of EC2 spot instances.

Keywords: EC2 spot instance; encoding time prediction; adaptive streaming; video transcoding; clustering; HTTP adaptive streaming; MPEG-DASH; cloud computing; optimization; Pareto front

1  Introduction

Nowadays, most Internet traffic represents multimedia content, such as live or on-demand audio and video streaming [1]. The streaming experience over the Internet depends on several factors like user location, network speed, traffic congestion, or end-user device, which significantly vary over time [2]. Streaming platforms and services use the HAS technology [3] to adapt to these bandwidth variations that provide video sequences in multiple bitrates. The resolution pairs are divided into short-term video and audio segments (e.g., 2 to 10 s), individually as requested by a client device depending on its technical conditions (e.g., screen size, network performance) in a dynamic, adaptive manner [4]. Client devices and video players use segment bitrate selection (or rate adaptation) algorithms to optimize the user experience [5,6]. The widely used MPEG-DASH HAS implementation allows streaming providers to choose from a set of codecs for video encoding due to its codec independent [3] characteristic, including Advanced Video Coding (AVC) [7], High-Efficiency Video Coding (HEVC) [8], VP9 [9], AOMedia Video 1 (AV1) [10] and Versatile Video Coding (VVC) [11]. However, encoding video segments for adaptive streaming is a computationally-intensive process that can take seconds or even days depending on many technical aspects, such as video complexity or encoding parameters [12] and typically requires expensive high-performance computers.

Currently, most streaming services and video encoding platforms opt for less expensive and more scalable cloud resources (e.g., Amazon Web Services (AWS), Google Cloud, Microsoft Azure) rented on demand [13,14], deployed worldwide on low-latency geo-distributed infrastructures [15,16]. Amazon EC2 currently operates in eighteen geographical locations and provides different instances for general purposes (m instances), compute-optimized (c instances), memory-optimized (r instances), or burstable (t instances) [17]. EC2 spot instances are unused spare compute capacity in the AWS cloud available at a high discount compared to on-demand prices, with the limitation is that AWS can stop them at any time upon a two-minute warning. While modern encoding platforms and services can significantly leverage spot instances to reduce their encoding costs, the unavailability of intelligent models to estimate the video encoding time and costs makes the correct selection of the cloud instances for thousands of encoding tasks still critical [13,18]. Cloud infrastructures, dedicated servers and Internet of Things devices [19] are examples of predicting encoding time, cost and stability significantly impacting the provisioning and scheduling of encoding tasks. Therefore, a highly desirable system that estimates the encoding time and costs and optimizes the encoding task schedule on selected spot instances [20].

To decrease the encoding costs and maximize the utilization of Amazon EC2 spot instances, we propose a new method called the Fast approach for better utilization of Amazon EC2 Spot Instances for video encoding (FSpot) based on four phases: 1) instance benchmarking, 2) fast encoding time estimation, 3) instance set selection and 4) priority and numerical calculation. The first phase tests different EC2 instances using various encoding parameters, extracts the critical features from the video encodings and creates a dataset, and proposes a heuristic for selecting EC2 spot instances. The second phase uses a fast estimate of the encoding speed for videos on a master node hosted on an on-demand EC2 instance that splits video into segments, estimates the encoding time and distributes encoding tasks to worker nodes hosted on spot instances. The third phase selects the required number of EC2 spot instances recommended for optimized video encoding in the Amazon cloud. Finally, the last phase calculates the priorities and number for EC2 spot instances, such that those with the lowest predicted video encoding cost have the highest priority. We evaluated FSpot on a set of ten heterogeneous videos of different genres with different duration and frame rates using three AWS availability zones. Experimental results show that, on average, our model can reduce the encoding costs by at least 15.8% and up to 47.8% when compared to a random selection of EC2 spot instances.

The significant contributions of the FSpot work are:

1.    We benchmarked on eleven commonly used Amazon EC2 spot instances using different encoding parameters and video sequences.

2.    We developed a novel method for fast encoding time estimation of video segments and proposed an algorithm combining Pareto frontier and clustering techniques to find an appropriate set of spot instances.

3.    We also proposed and implemented a fast method to calculate the instance number and priority for different EC2 spot instances to optimize the Amazon EC2 spot instance selection for encoding task allocation. The proposed FSpot approach reduces the encoding costs by at least 15.8% and up to 47.8% compared to a random selection of EC2 spot instances.

This paper has five sections-Section 2 highlights related work. Section 3 describes the proposed FSpot approach and its implementation, followed by results evaluation in Section 4. Section 5 concludes the paper and highlights future work.

2  Related Work

2.1 General Scheduling Techniques

Gog et al. [21] studied various scheduling architectures and proposed a min-cost max-flow (MCMF) optimization over a graph and continuously reschedules the entire workload. Authors extend Quincy's [22] original MCMF algorithm that results in task placement latencies of minutes on a large cluster. In [23], the authors propose global rescheduling with adaptive plan-ahead in dynamic heterogeneous clusters. Malawski et al. [24] presented a mathematical model to optimize the cost of scheduling workflows under a deadline constraint. It considers a multi-cloud environment where each provider offers a limited number of heterogeneous virtual machines and a global storage service to share intermediate data files. Ghobaei-Arani et al. [25] presented an autonomous resource provisioning framework to control and manage computational resources using a fuzzy logic auto-scaling algorithm in a cloud environment.

Similarly, Rodriguez et al. [26] described a plan-based offline auto-scaler that partitions workflows into bags-of-tasks and then applied a MIP-based approach to make the allocation plan. Another work of Malawski et al. [27] considered the problem of task planning on multiple clouds formulated but in the more general framework of the mixed-integer nonlinear programming problem (MINLP). Garcia-Carballeira et al. [28] combined randomized techniques with static local balancing in a round-robin manner for tasks scheduling. Chhabra et al. [29] combined multi-criteria meta-heuristics to schedule HPC tasks on the IaaS cloud. Ebadifard et al. [30] proposed a dynamic load balancing task scheduling algorithm for a cloud environment that minimizes the communication overhead. Wang et al. [31] performed an empirical analysis of amazon EC2 spot instance features affecting cost-effective resource management.

2.2 Video Transcoding-specific Scheduling Techniques

Some recent remarkable works contributed to scheduling the video transcoding tasks [32–34]. Kirubha et al. [35] implemented a modified controlled channel access scheduling method to improve the quality of service-based video streaming. Similarly, Jokhio et al. [36] presented a distributed video transcoding method to reduce video bitrates. Li et al. [37] presented a QoS-aware scheduling approach for mapping transcoding jobs to heterogeneous virtual machines. Recently, Sameti et al. [38] proposed a container-based transcoding method for interactive video streaming that automatically calculates the number of processing cores that maintain a specific frame rate for any given video segment and transcoding resolution. The authors performed benchmarking to find the optimal parallelism for interactive streaming video. Li et al. [39] proposed a HAS delivery scheme that combines caching, transcoding for energy and resource-efficient scheduling. Ma [40] proposed a scheduling method for transcoding MPEG-DASH video segments using a node that managed all other servers in the system (rather than predicting the transcoding times) and reported a saving time of up to 30%.

2.3 State-of-the-art Analysis

Previously listed general and transcoding-specific scheduling techniques are capable of processing a large amount of different computational workloads. Such systems use various scheduling algorithms ranging from general mixed-integer programming (MIP) techniques, flow-based formulations and workload-agnostic techniques to video-specific heuristics [41,42] that maximize the use of processing units and minimize the associated costs. Companies currently prefer on-demand and spot instances by utilizing state-of-the-art video codecs to enable cost-effective video encoding. As the cost of such computing units depends on the time of use (ph or ps), the customers strive to keep the highest possible utilization for all computing resources. They typically deploy the encoding tasks using opportunistic load balancing (OLB) algorithms to utilize the resources at all times. It is relatively easy to achieve maximum resource utilization if all the encoding tasks have similar complexity, require similar execution times on the underlying computing units and all computing units have the same price. However, a problem arises when a simple scheduling algorithm randomly assigns specific encoding tasks to expensive spot instances with a low availability probability or is not optimized for selected encoding parameters. This can lead to load imbalance, increased encoding time and costs and degraded video quality on the viewer side. The motivation for our work is to maximize the Amazon EC2 spot instances utilization for video encoding and provide the encoding infrastructure with advanced information on the various video encoding tasks to ensure their fast completion with reduced cost. The relatively straightforward case for the methods mentioned earlier is when all the encoding tasks have similar complexity, require similar execution times on the underlying computing units and all computing units have the same price. However, a problem arises when the scheduling algorithm misses specific knowledge about encoding workload and underlying computational resources behavior. Some methods are simply incapable of solving the problem directly in the case of the even bigger video workloads and smaller segment sizes of 2–4 s. Natural extension led to the flow-based formulations and workload-agnostic techniques that can work on significantly larger scales. However, it can quickly happen that those methods will assign segment encoding tasks to spot instances with a low availability probability or not optimized for selected encoding parameters. It will result in additional expenses and sub-optimal performance. This can also lead to load imbalance, increase encoding time and costs and degrade video quality on the viewer side. Further, some approaches consider only a single objective to optimize. Our multi-objective approach maximizes the Amazon EC2 spot instances utilization, reduces the related costs and increases the execution reliability for large-scale video encoding workloads by reinforcing decisions with advanced information on the various video encoding tasks obtained via the fast benchmark algorithm.

3  Proposed FSpot Approach

3.1 EC2 Instance Benchmarking

3.1.1 Dataset Selection

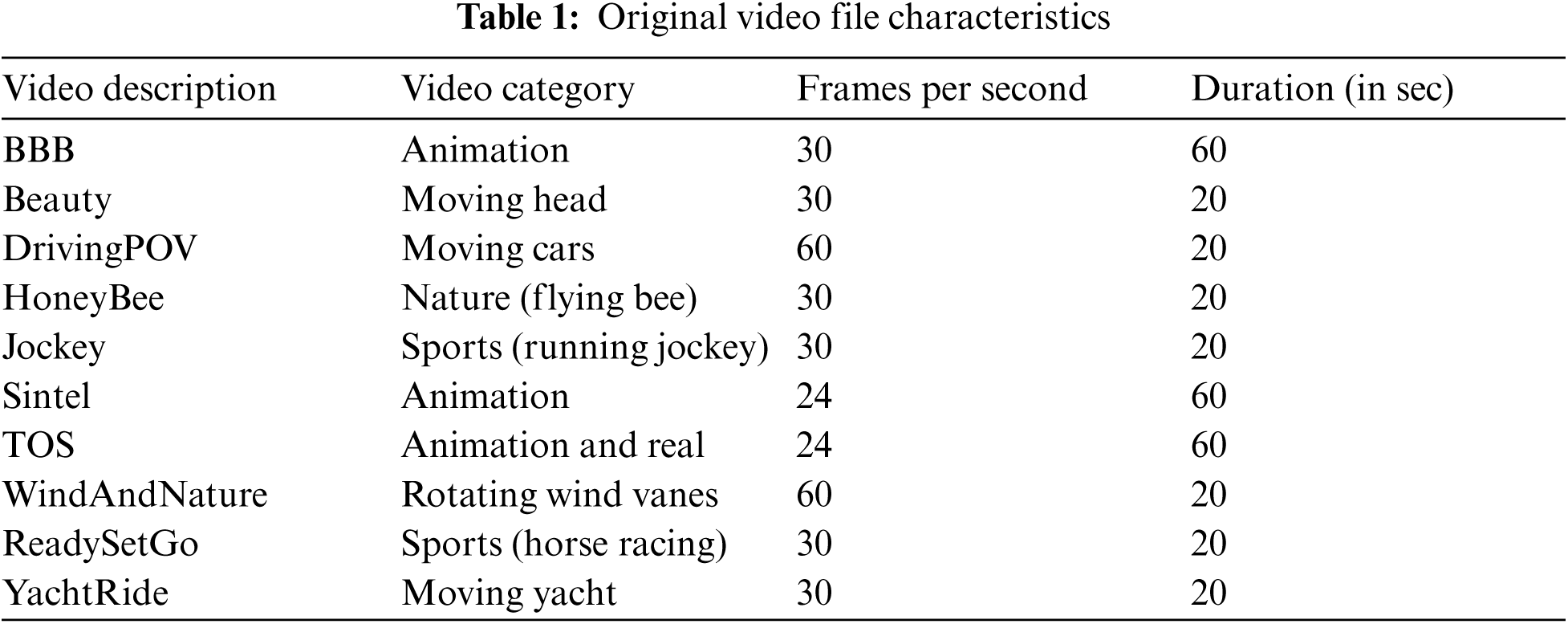

First, we selected ten video sequences of different visual complexity from the publicly available dataset [12]. Fig. 1 shows the SI and TI metrics of the selected videos. The average TI and SI metrics confirm the varying video content complexity. We used video sequences that represent a wide range of possible visual scenes and use cases. Tab. 1 presents video categories (or genres) and critical file characteristics of original videos. Using the FFmpeg [42] software v4.1.3, we uncompressed all video sequences into raw Y4M format and divided them into 80 video segments of 4 s duration each. Typically, each segment is a switching point to other video representations. Therefore the segment length becomes an important parameter in HTTP Adaptive Streaming. The 4 s segments are widely used in real video streaming deployments because they show a good trade-off between encoding efficiency and video streaming performance [43].

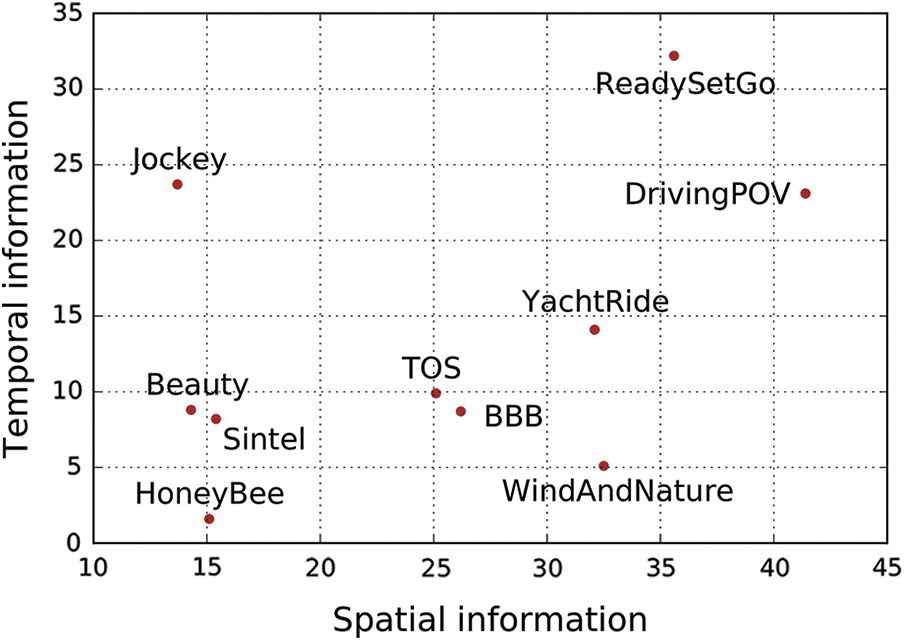

Figure 1: Average spatial information (SI) and temporal information (TI) for video sequences

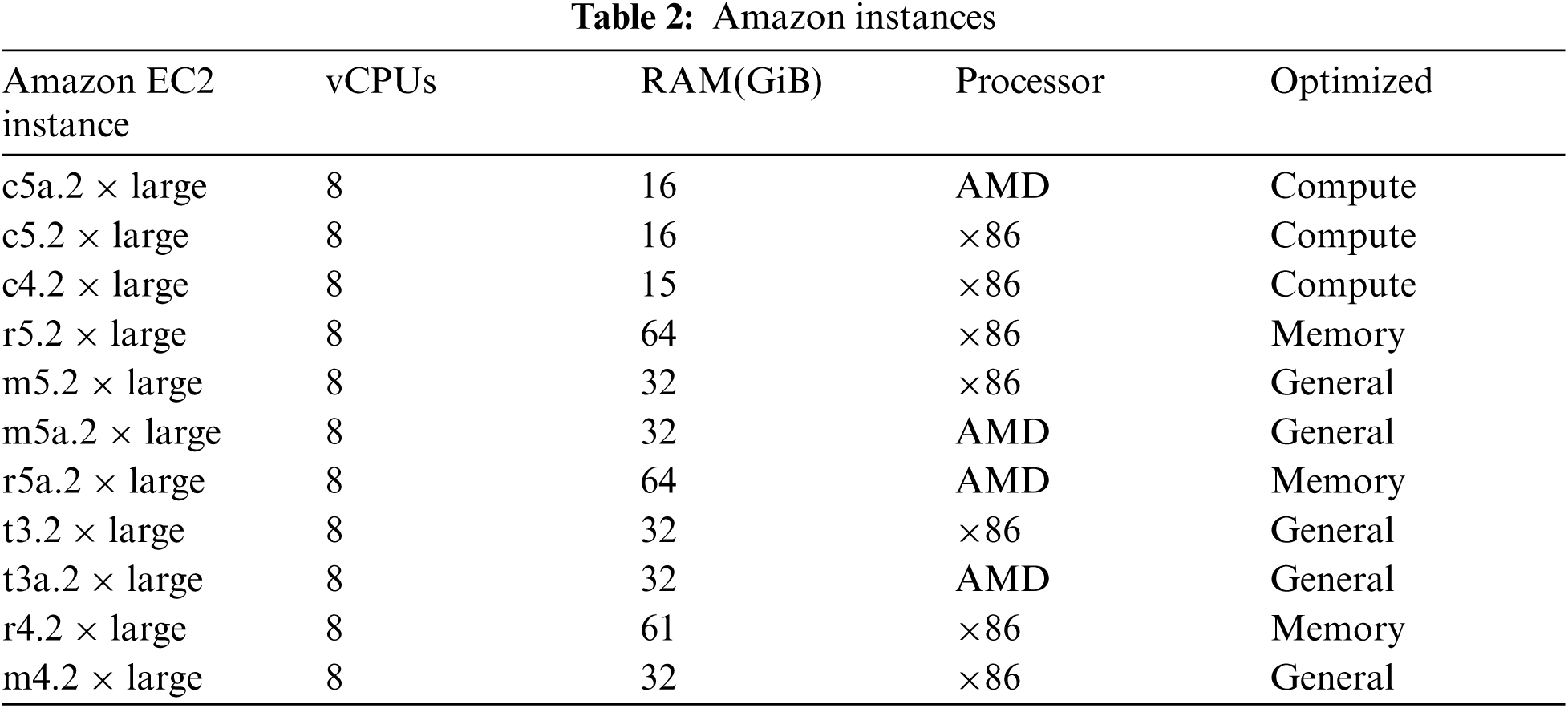

3.1.2 EC2 Instance Performance Analysis

We encoded each Y4M segment using the FFmpeg ×264 video codec implementation with the veryslow encoding preset to get the highest possible quality compared to the original videos. The ×264 video codec contains nine encodings presets: ultrafast, superfast, veryfast, faster, fast, medium (default preset), slow, slower, veryslow, placebo [44]. Encoding bitrate with a slower ×264 encoding preset for the same video usually has a slower encoding speed but better visual quality [45]. We considered these generated video segments as source files and used them to encode different Amazon EC2 instances. We developed a framework using Python programming language to encode video sequences in the Amazon cloud automatically. Tab. 3 shows all encoded video segments on eleven different Amazon 2 × large instances (presented in Tab. 2) using various encoding parameters, i.e., bitrates and resolutions. All EC2 spot instances have eight vCPUs and RAM size ranges from 15 GiB for the c5a.2 × large instance to 64 GiB for the r5.2 × large and r5a.2 × large instances. We used multiple Amazon 2 × large instances commonly used for video transcoding [43]. We then extracted several features from the video encodings and created the Amazon EC2 instance encoding dataset. The raw dataset contains 16720 encoding tasks (80 segments * 19 bitrates * 11 EC2 instances) for the 4 s length video segments on medium encoding preset. Each record in our dataset contains EC2 instance name, EC2 instance availability, EC2 instance price, video segment name, encoding bitrate, file size, segment width, segment height, encoding time.

3.1.3 EC2 Spot Instance Selection Heuristic

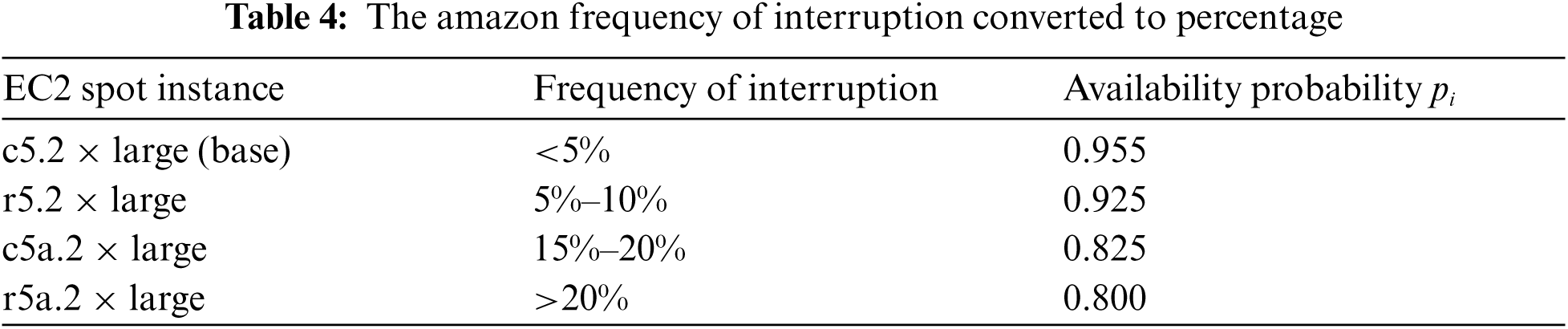

Let us assume we have over one hundred different spot instances to encode segments of a single video. Further, we only want to select the top N spot instances that will minimize the cost. Our work proposes a method that selects a set of computing units, for example, 5, for optimized video encoding. The main goal of this method is to reduce the number of computing units for further analysis quickly. We calculate the price ratio βi and the speed factor ri for each EC2 instance with respect to c5.2 × large base EC2 instance (see Tab. 5), as shown in Eqs. (1) and (2), respectively.

βi=cicbase(1)

ri=ebaseei(2)

We then calculate the instance availability speed ratio Hi as shown in Eq. (3).

Hi=Gi+α∗(1−pi)(3)

Gi=1ri(4)

Eq. (3) reflects the adequate speed information of the EC2 spot instance i by analyzing its actual speed against the availability probability pi. α is an adjusted weighting coefficient. We use the availability and pricing information of EC2 spot instances in our proposed FSpot model from the Amazon website [46,47]. Instead of the availability metric, Amazon uses the term frequency of interruption. For example, if the frequency of interruption is <5%, it means that the spot instance interruption of Amazon services based on historical information of the last three months before being terminated intentionally by a client is less than 5%. The Gi parameter in Eq. (3) is a relative time to encode a single video on EC2 spot instance i and is calculated by Eq. (4). The availability probability pi of EC2 spot instance i is Amazon frequency of interruption between 0 to 1. Tab. 4 shows the availability probability calculation from the amazon frequency of interruption converted to percentage. Further, in our proposed work, we use Hi and βi to select a set of computing units for optimized video encoding

3.2 Fast Encoding Time Estimation

We use a sample video file segment to calculate the encoding speed for the different Amazon EC2 instances. First, the system encodes a middle segment of a video sequence at the base node-the master node or the fastest available EC2 instance for a few seconds with selected encoding parameters. It then uses obtained encoding time data ti,j∗ for the middle segment and instance availability speed ratio (Hi) to estimate the encoding speed vi,jencode (in segments/sec) for different EC2 spot instances and video segments as shown in Eq. (5).

vi,jencode=1Hi∗ti,j∗(5)

We assume that the encoding time of all segments of the same video sequence has similar values. Recent research [20] shows that the encoding times of segments of the same video file with the same encoding parameters have similar values and do not exceed one second for the ×264 video codec. Our approach uses a quick estimate of the encoding speed for each new video and a new set of encoding parameters.

From our dataset, we extracted ×264 codec encoding times for the base EC2 instance (c5.2 × large) for middle segments and all unique combinations of encoding parameters for each video sequence. We then used the instance availability speed ratio (Hi) to estimate the encoding speed for video segments on different EC2 spot instances. We only used the information about the encoding time of the middle segment on the base c5.2 × large EC2 instance. We can use our approach to make predictions for different video codecs, for example, for ×265. To do this, we need to automatically benchmark EC2 instances for the ×265 video codec and then use the results for the calculations. The output of this implementation phase is an array of estimated encoding speeds vi,jencode for different video segments j and EC2 spot instances i.

3.3 EC2 Instance Selection Using Pareto Fronts and Clustering

We used our dataset to calculate Hi for all eleven EC2 spot instances and then calculated their βi using the pricing information retrieved from Amazon [46,47]. Tab. 5 presents an example of different calculated parameters for all selected EC2 spot instances for the Amazon Europe (Frankfurt) region and eu-central-1b availability zone. Then, we applied Pareto fronts and a clustering approach to finding five EC2 spot instances for optimized video encoding in the cloud. The selected EC2 spot instances used to minimize the encoding costs are t3a.2 × large, t3.2 × large, c4.2 × large, c5a.2 × large, c5.2 × large. Please note that pricing information on the Amazon website changes in real-time, so in the entire encoding system, our proposed model will ask for new EC2 Spot prices every minute and recalculate the selected EC2 spot instance set.

For each EC2 spot instance, we calculate the (i) instance availability speed ratio Hi and (ii) price ratio βi and use them as input parameters for our Pareto-fronts and clustering model. We calculate different Pareto fronts between Hi and βi for all selected EC2 spot instances and rank each front in ascending order (see Fig. 2).

We then apply K-means clustering on Pareto fronts points to form K clusters (see Fig. 2) such that the centroid of each cluster.

K=min(x,quotient(n2))(6)

where x is the number of Pareto fronts and n is the total number of EC2 spot instances. For example, if the number of EC2 spot instances is ten, clusters will be four. Our algorithm first selects EC2 spot instances belonging to the first Pareto front to find a set of optimized EC2 spot instances. Depending on the optimization problem (minimizing encoding time or cost of encoding), the algorithm selects points from the bottom or the top of the first Pareto front. If all EC2 spot instances of the same type in one Pareto front are already in use, the proposed algorithm selects other EC2 instances belonging to the same cluster and same front. If no EC2 spot instance from the same front and the same cluster is available, the proposed algorithm searches different EC2 instances within the same cluster but from another front. If all EC2 spot instances of one cluster are already in use, it requests the remaining EC2 spot instances from the first front, which belong to different cluster(s). If all EC2 spot instances of the first Pareto front are already in use, the algorithm will move to the second Pareto front and so on. We proposed Algorithm 1 to find a set of appropriate EC2 spot instances. This phase results in a set of preselected EC2 spot instances for optimized video encoding in the cloud.

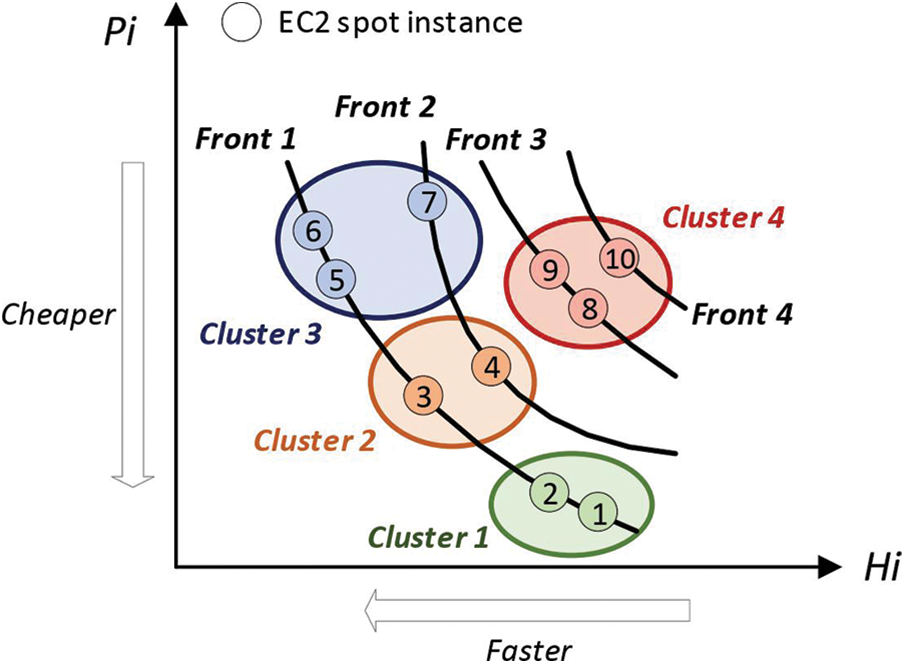

Figure 2: EC2 spot instance selection by using Pareto fronts and clusters

3.5 Calculating Priorities and Numbers for EC2 Spot Instances

This phase only uses EC2 spot instances that belong to the set selected by Algorithm 1. First of all, we represent the constraints. We consider the disk speed dcopy and the network speed kcopy from the master node to a cluster of EC2 spot instances as two main parameters influencing segments’ distribution time. In actual encoding infrastructure, the open-source tool IPerf can be used to measure the network speed kcopy. The transmission speed of video segments wcopy is the minimum value between dcopy and kcopy, as shown in Eq. (7).

wcopy=min(dcopy,kcopy)(7)

Eq. (8) calculates the minimum time to copy all segments of one video Ticopyall to multiple EC2 spot instances, where l is the number of segments for encoding and s is the average segment size. In turn, Eq. (9) calculates the minimum time to encode all segments of a video on zi EC2 spot instances, where vi,jencode is the estimated encoding speed (in segments/sec) of EC2 Spot instance type i.

Ticopyall=l∗swcopy(8)

Tiencodeall=lvi,jencode∗zi(9)

For continuous encoding of video segments on EC2 spot instances of type i, the following constraint must be met:

Ticopyall<Tiencodeall(10)

Then the number zi of EC2 spot instances to use can be represented as inequality 11. Also, zi must be less than or equal to the number of l segments to encode and the maximum number zmax of EC2 spot instances that the system can request simultaneously (See 11). The value of zmax can be defined by the encoding infrastructure administrator or be a maximum number of EC2 instances of the specific type available in the cloud.

{zi<wcopyvi,jencode.szi≤lzi≤zmax(11)

By satisfying defined constraints for zi, we calculate the maximum possible value of zi for each EC2 spot insblence i. The next step is to prioritize EC2 spot instances. To do this, we calculate the predicted encoding time Tipred as shown in Eq. (12) for all segments l of a video file for different EC2 spot instances i. Next, the model uses the predicted encoding time to compute the predicted encoding cost Vipred of a video for each type i of EC2 instance, as shown in Eq. (13).

Tipred=lvi,jencode.zi(12)

Vipred=Tipred.zi.ci(13)

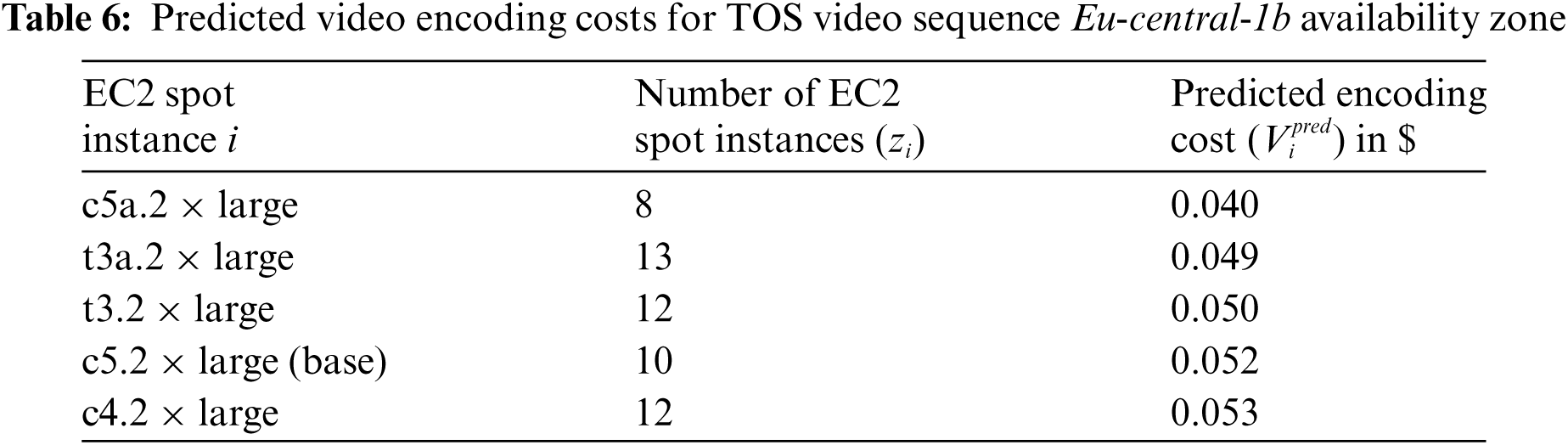

We sort the predicted encoding cost for all EC2 Spot instances in ascending order. The EC2 spot instance type with the lowest predicted video encoding cost has the highest priority and vise versa.

We calculated the priorities and optimized the number of EC2 spot instances of each type (i) required for encoding different video sequences (see Tab. 1). First, using defined constraints, the model finds the maximum possible number of EC2 spot instances zi to use. Then the model uses the calculated number of EC2 spot instances zi, EC2 spot instance price ci and the predicted encoding time Tipred to calculate the predicted encoding cost Vipred of a video for different EC2 spot instances. We sorted the predicted encoding cost for all EC2 spot instances in ascending order in a manner that the EC2 spot instance i with the lowest predicted video encoding cost has the highest priority and vise versa. Tab. 6 shows the predicted video encoding cost for TOS video and different Amazon EC2 spot instances. We used 285 encoding tasks (15 video segments * 19 bitrates) and assumed that a video segment should be delivered to an EC2 spot instance again for each encoding operation. As we can see from Tab. 6, the proposed model recommends using eight c5a.2 × large EC2 spot instances to minimize the encoding cost of the TOS video sequence, which results in a cost of $ 0.04.

4  Results and Analysis

This Section presents the proposed FSpot approach results to analyze the performance and examine its advantages for utilizing Amazon EC2 spot instances better. We compare the predicted encoding time and cost with the actual encoding time available in the dataset. We calculate the actual encoding time Tiactual of a video for each EC2 spot instance using the same number of EC2 spot instances zi predicted by the model. We calculate the actual encoding cost using Eq. (14) and compare it with the predicted encoding cost Vipred.

Viactual=Tiactual.zi.ci(14)

Finally, we check how the predicted encoding times and costs are correlated with actual values. The predicted priorities for the EC2 spot instance have to be correct for the actual and predicted values.

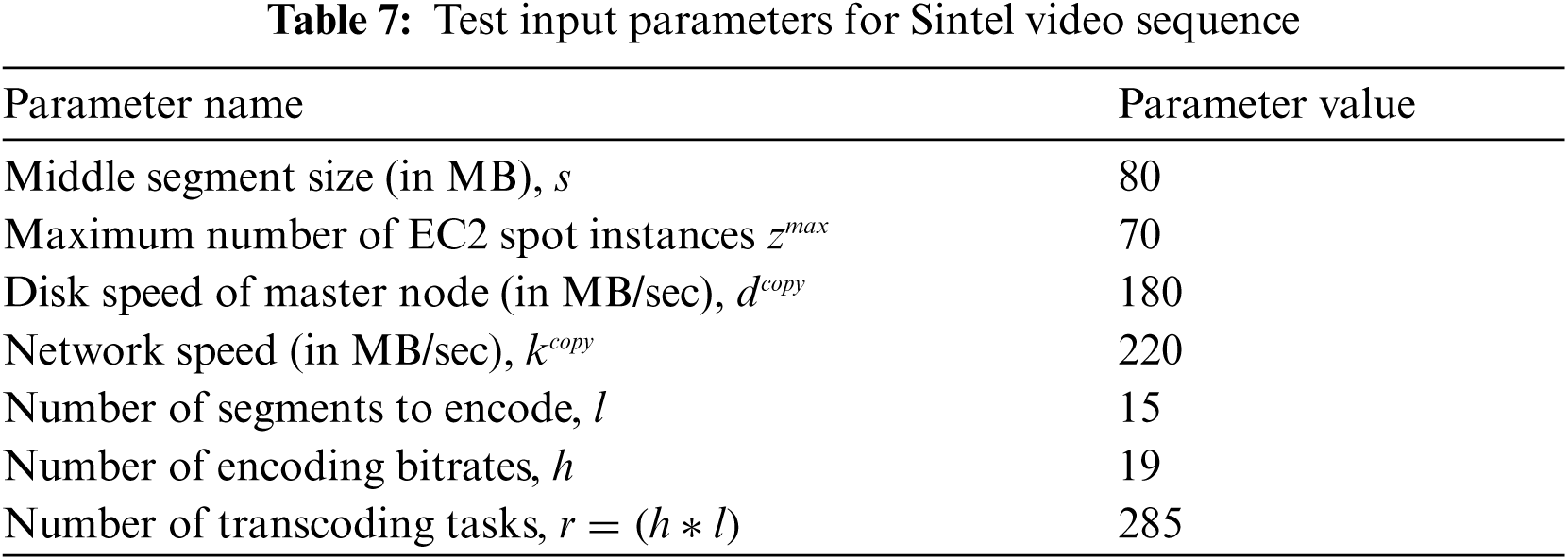

Tab. 7 shows various parameters and their defined test values to evaluate our proposed FSpot model performance. We used the encoding times and prices for Amazon EC2 spot instances from our dataset. Tab. 8 shows the selected EC2 spot instances marked as ‘+’ and their count calculated by the proposed FSpot model for Sintel video sequences and three availability zones eu-central-(1a|1b|1c) of AWS Frankfurt region. We see that the 1a and 1b zones have eleven, while the 1c zone has only nine different Amazon EC2 spot instances. It occurs due to the dynamic availability of EC2 spot instances and dependency on the selected zone. The last column of Tab. 8 shows that the calculated numbers for the same EC2 spot instance and different availability zones have the same values. This is because the calculated numbers for EC2 spot instances primarily depend on the encoding speed and availability probability of EC2 spot instances, which remain unchanged for the same EC2 spot instance and Amazon region.

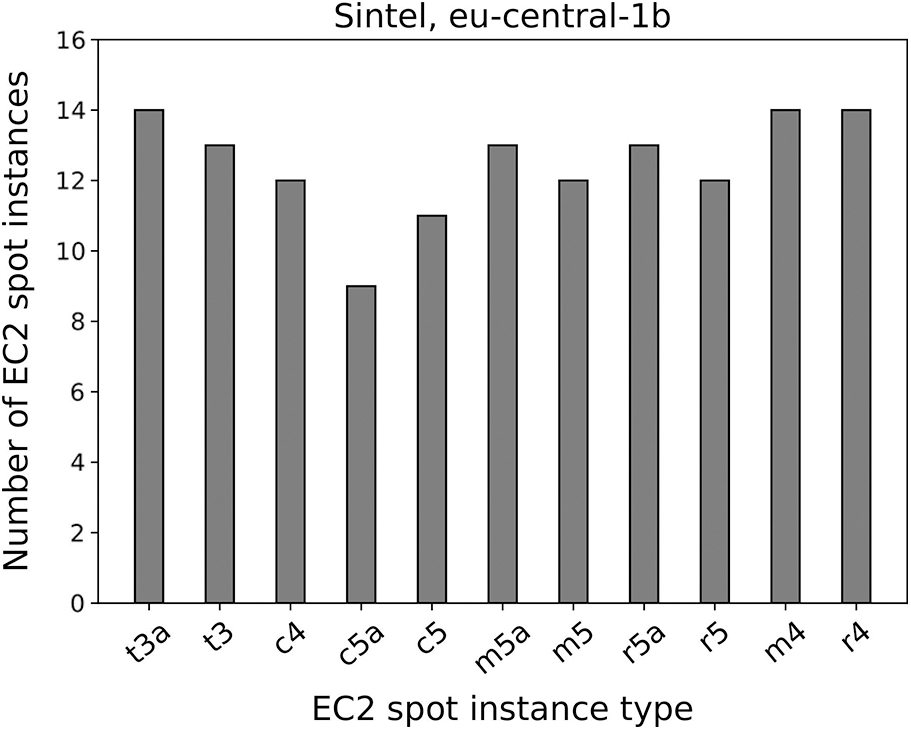

Fig. 3 depicts the estimated numbers of different EC2 spot instances located in the eu-central-1b availability zone. It clearly shows that the number of EC2 spot instances for the Sintel video sequence varies from nine to fourteen. The proposed FSpot model calculates a minimum of nine EC2 spot instances for c5a.2 × large type and a maximum of fourteen EC2 spot instances for t3a.2 × large, m4.2 × large and r4.2 × large instance types. Fig. 4 shows the predicted and actual encoding time for Sintel video on different EC2 spot instances of the eu-central-1b availability zone. The predicted encoding time for all EC2 spot instances is slightly higher than the actual encoding time extracted from the dataset. There is a slight difference of less than 4% between the predicted and actual encoding times. It occurred because we used only one middle segment encoding information of the video sequence and replicated it to the rest of the segments to estimate the encoding time.

Figure 3: The calculated number of EC2 spot instances for the sintel video sequence

Figure 4: Predicted and actual encoding time for different EC2 spot instances for the sintel video sequence

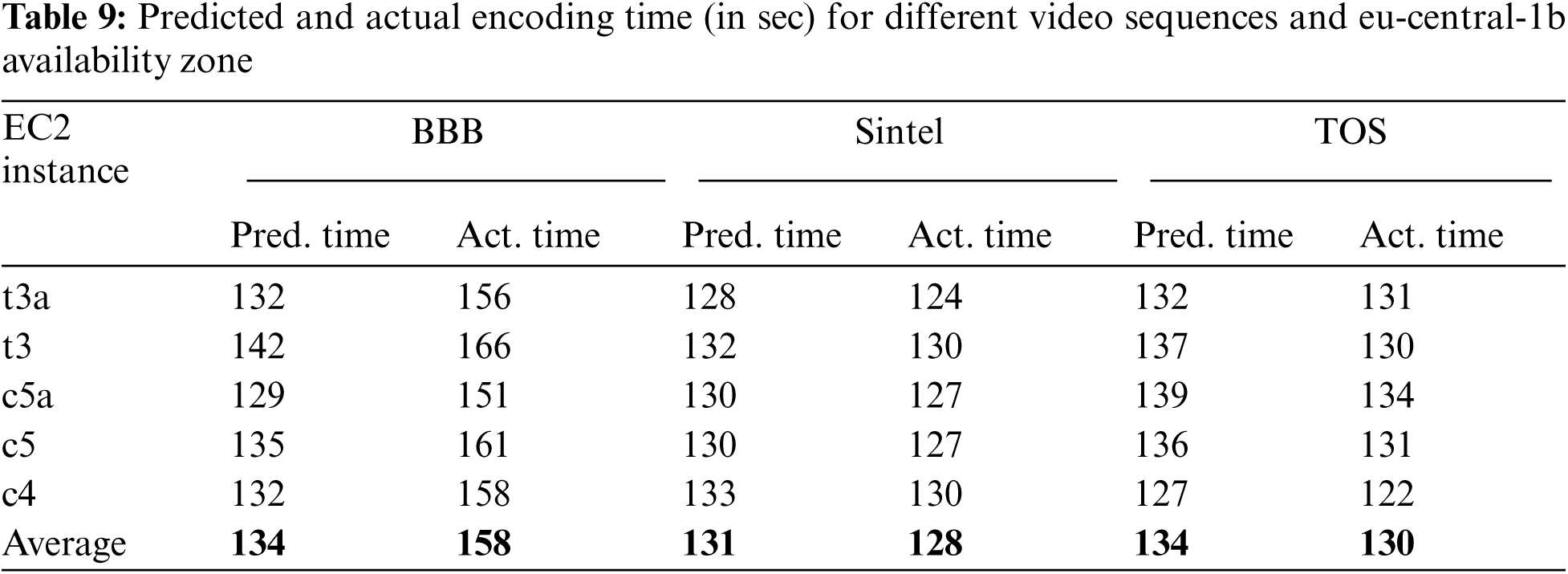

Tab. 9 presents the predicted and actual encoding time results for three video sequences (BBB, Sintel, TOS) on five different EC2 spot instances. We can see that for Sintel and TOS videos, the difference between the average predicted and actual values for all five EC2 spot instances is relatively small, 3 and 4 s, respectively. However, for the BBB video sequence, the difference reaches 24 s. This is because the actual encoding time of the middle segment of the BBB video sequence has a significant difference from the average encoding time of all video segments. Tab. 10 shows the average actual encoding times for all segments of three video sequences compared to the average encoding times of middle segments of the videos. Tab. 10 presents the results for the c5.2 × large EC2 spot instance and eu-central-1b AWS availability zone. We see that the BBB video sequence has the highest difference of 0.64 s (3.94–3.30) between the average actual encoding time for all segments and the middle segment. The difference for Sintel and TOS videos is only 0.09 and 0.17 s, respectively.

Fig. 5 shows the predicted and actual encoding costs for the Sintel video sequence on the eu-central-1b availability zone. We see that the predicted encoding times for all EC2 spot instances are slightly higher than the actual encoding times. This is because the predicted encoding times for the EC2 spot instances are slightly higher than the actual encoding times (see Fig. 4). Our proposed FSpot model selects different EC2 spot instances by prioritizing the low cost. Tab. 11 shows that the c5a.2 × large spot instance has the highest priority. Both the predicted and actual encoding costs for c5a.2 × large are the lowest compared to other EC2 spot instances. This means that the proposed FSpot model can select the appropriate EC2 spot instance type and the number of EC2 spot instances with minimum video encoding costs.

Figure 5: Predicted and actual encoding cost (in $) for different EC2 spot instances for sintel video sequence and eu-central-1b availability zone

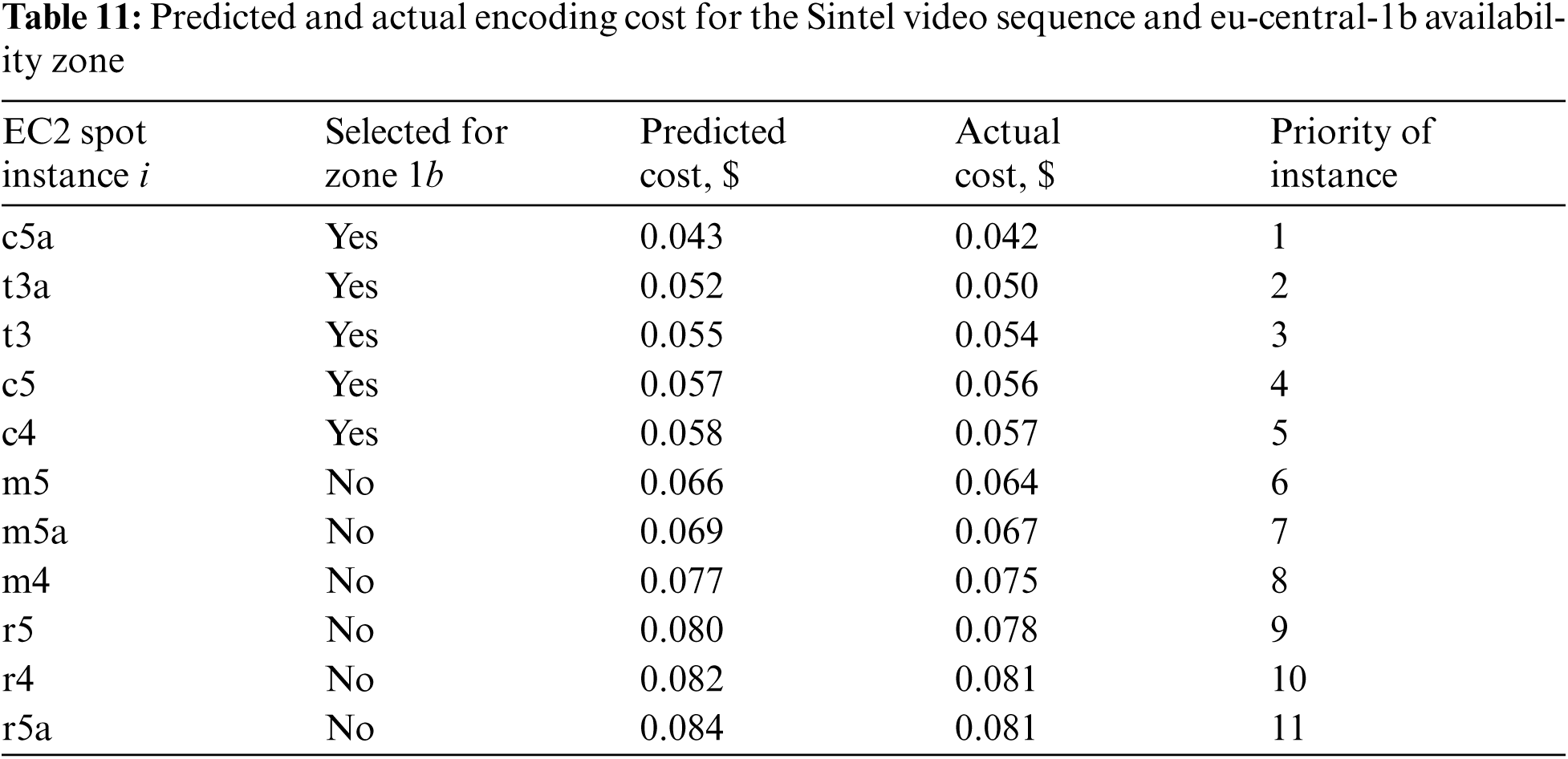

Additionally, Tab. 11 shows all predicted priorities for all EC2 spot instances in ascending order in the last column table. Interestingly, all predicted and actual costs are mapped as per their priority and arranged in ascending order. This shows that the model assigned the correct priorities to all EC2 spot instances. Additionally, the first five EC2 spot instances (from c5a to c4) belong to a set selected by our FSpot approach. Thus, our FSpot approach outperforms in quickly reduce the number of EC2 spot instances for further and in-depth analysis.

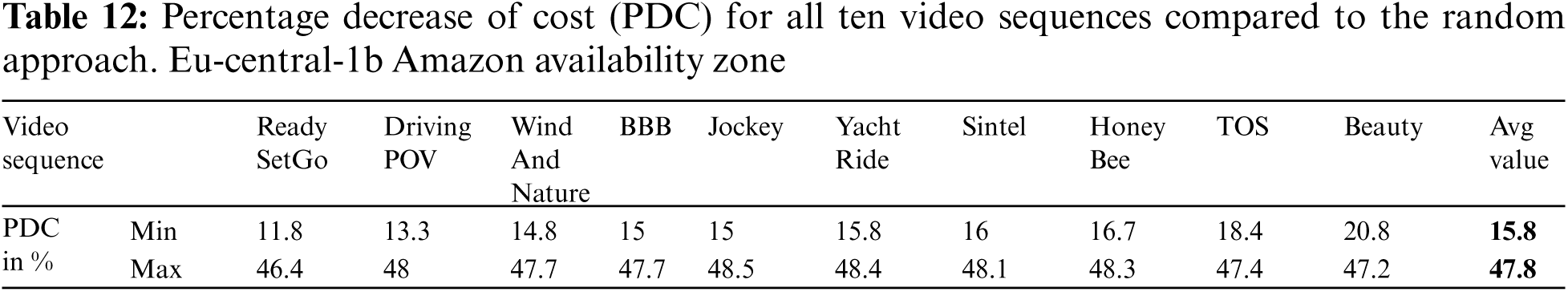

We compared our proposed FSpot approach to a random method where the system randomly selects 2 × large EC2 spot instances to encode video segments. With the proposed FSpot approach, the percentage decrease of cost (PDC) for Sintel video sequence ranges from 16% for t3a.2 × large spot instances to 48% for r4.2 × large and r5a.2 × large spot instances. Fig. 6 presents the PDC values for ten EC2 spot instances compared to c5a.2 × large spot instances. We also compared our FSpot approach with another approach where the lowest price EC2 spot instance has the highest priority. According to Tab. 5, the EC2 spot instance t3a.2 × large has the lowest price of 0.1037 $. The proposed FSpot model selects c5a.2 × large spot instance type and achieves PDC to 16% with the highest priority compared to the lowest price EC2 spot instance (t3a.2 × large). This means that the model can choose the appropriate EC2 spot instance, even with a higher price. The higher price EC2 spot instances typically have higher video encoding speed and vice versa. Tab. 12 shows PDC for all ten video sequences compared to the random approach. We can see that the ReadySetGo video sequence has the lowest PDC of 11.8%, while the Beauty video sequence has the highest PDC of 20.8%. The results show that, on average, our approach can reduce the encoding cost by at least 15.8% and the maximum by 47.8% (see the last row in Tab. 12). Ideally, the PDC value will be zero if the random approach selects the best EC2 spot instance and the correct number of EC2 instances. However, the chances of choosing both values correctly are meager. Our proposed FSpot model can select the best EC2 spot instances between different AWS availability zones.

Figure 6: PDC for ten EC2 spot instances compared to c5a.2 × large spot instance

We proposed the FSpot method by combining the Pareto front with clustering techniques to optimize the AWS EC2 spot instance selection for encoding tasks allocation to minimize the encoding costs. Our model, on average, can reduce encoding costs by at least 15.8% and up to 47.8% compared to the random approach. FSpot can be customized and applied to the Google Cloud, and Microsoft Azure platforms with their own spare compute capacity instances. Deploying our model in an existing encoding infrastructure requires the development of an application programming interface. The encoding infrastructure will interact via the API with the model to calculate the predictions for upcoming encodings.

5  Conclusion and Future Work

In this research, we performed benchmarking on Amazon EC2 instances using different encoding parameters and video sequences. We used video sequences and segments of different genres and visual complexity. We proposed a novel FSpot approach for fast estimation of video segments encoding time at the master node and selecting the appropriate set of EC2 spot instances for video encoding. We developed an algorithm by combining Pareto front and clustering techniques to find a set of appropriate EC2 spot instances for video encoding. Our approach calculates the EC2 spot instance count and priorities for optimized video encoding in the cloud. We implemented and tested our FSpot approach to optimize the Amazon EC2 spot instance selection for encoding tasks allocation. Results show that the FSpot approach optimizes Amazon EC2 spot instances utilization and minimizes the video encoding costs in the cloud. On average, FSpot can reduce the encoding costs ranging from 15.8% to 47.8% compared to a random selection of EC2 spot instances.

We plan in the future to extend our method for predicting the encoding time using multiple video codecs on different cloud computing instances and infrastructures. We will test our model on ARM and GPU processing instances in the cloud. In addition, we plan to develop an intelligent scheduler and auto-tuner to automate the process of optimized video encoding in the cloud.

Funding Statement: This work has been supported in part by the Austrian Research Promotion Agency (FFG) under the APOLLO and Karnten Fog project.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
