Computers, Materials & Continua
DOI:10.32604/cmc.2022.021374
images
Article

Incentive-Driven Approach for Misbehavior Avoidance in Vehicular Networks

Shahid Sultan1, Qaisar Javaid1, Eid Rehman2,*, Ahmad Aziz Alahmadi3, Nasim Ullah3 and Wakeel Khan4

1Department of Computer Science and Software Engineering, International Islamic University, Islamabad, 44000, Pakistan
2Department of Software Engineering, Foundation University Islamabad, 44000, Pakistan
3Department of Electrical Engineering, Taif University KSA Taif, 21944, Saudi Arabia
4Department of Electrical Engineering, Foundation University Islamabad, 44000, Pakistan
*Corresponding Author: Eid Rehman. Email: eid.rehman@fui.edu.pk
Received: 01 July 2021; Accepted: 20 August 2021

Abstract: For efficient and robust information exchange in the vehicular ad-hoc network, a secure and trusted incentive reward is needed to avoid and reduce the intensity of misbehaving nodes and congestion especially in the case where the periodic beacons exploit the channel. In addition, we cannot be sure that all vehicular nodes eagerly share their communication assets to the system for message dissemination without any rewards. Unfortunately, there may be some misbehaving nodes and due to their selfish and greedy approach, these nodes may not help others on the network. To deal with this challenge, trust-based misbehavior avoidance schemes are generally reflected as the capable resolution. In this paper, we employed a fair incentive mechanism for cooperation aware vehicular communication systems. In order to deploy a comprehensive credit based rewarding scheme, the proposed reward-based scheme fully depends on secure and reliable cryptographic procedures. In order to achieve the security goals, we used the cryptographic scheme to generate a certified public key for the authenticity of every message exchange over the network. We evaluated the friction of misbehaving vehicles and the effect of rewarding schemes in context with honest messages dissemination over the network.

Keywords: VANET; misbehavior; reputation; rewards; congestion avoidance; certified public key

1  Introduction

The emergence of Vehicle Ad Hoc Network (VANET) brings new challenges and requires deeper Consideration about vehicle reputation and trust calculation because these parameters can be used to accept or forward the message over the network. Incentive schemes for cooperative VANET frameworks can be characterized as trust and credit-based schemes. A comprehensive trust management system allows vehicles to interact in the network based on the assessment and evaluation of past historical communication. To preserve the reputation history of other vehicles is a challenging task as most of the vehicles are anonymous and changing their identities periodically. It is also very difficult to store trust and reputation information for a dense and large-scale network. An adaptable and general-purpose trust-management approach can keep up-to-date and reliable data delivery with diverse entities in a distributed network [1].

In addition, since VANETs are independent and self-organizing systems of participation between vehicles, we cannot continuously anticipate all vehicles to intentionally contribute their computing assets to the network. Additionally, a few selfish vehicles will not forward message hand-off services for other vehicles. One way to resolve this challenge is to back motivations to compensate for deliberate cooperation within the network with credit rewards [2].

For example, when the sender requests help from the vehicle, the sender will motivate the vehicle so that the vehicle is willing to store, carry and forward the sender’s message to the destination. Although, on the one hand, incentives seem to be an attractive approach to selfish behavior, another problem is how to determine whether the sender actually delivers the message to the destination. If the source location server first provides a credit line for the vehicle, the malicious vehicle will not faithfully store the message to the designated destination after receiving the credit line. The origin location server may worry about this malicious behavior of the vehicle, that is, the so-called meal and dash, which is unfair to the origin location server. Therefore, how to solve the unfair problem of the incentive scheme on the autonomous vehicle network is also a serious challenge [3].

In our proposed scheme, the vehicle can accept and exchange messages at an event time after assessing and evaluating the trust and reputation score of the participating vehicles in the network. To analyze the behavior of the particular vehicular node, the proposed scheme evaluates the type of message exchanged in each transaction in context with vehicular reputation score. The reputation of the sender vehicle that creates or forwarding the message plays a decisive role in accepting the forwarded or created message. To this approach, the vehicle’s trust and reputation certificate score is assigned to the message created or forwarded by a specific vehicle. We proposed an incentive-driven approach that works with the generation of a certified public key for robust and secure dissemination over the network. In the proposed scheme, a collaborative trust mechanism is adopted for calculating the reputation and trust score for every vehicular node. Reputation and trust scores can be suitable tools for accepting and forwarding messages in correlation with two behavioral factors: use to generate event-driven messages about road conditions and to cooperate when forwarding messages. In order to achieve the security goals, we used the cryptographic scheme to generate a certified public key for the authenticity of every message exchange over the network. We evaluated the friction of misbehaving vehicles and the effect of rewarding schemes in context with honest messages dissemination over the network.

The rest of the paper is organized as follows: Section II describes work related to misbehavior avoidance in VANETs; Section III defines system model including system architecture of incentive-driven scheme, secure public key generation, and incentive paradigm; Section IV includes performance evaluation, network parameters and discussion of the results of the proposed scheme; Section V summarizes the conclusion of the research study.

2  Related Works

In this section of the paper, we emphasize on work related to trust and reputation management schemes. Second, we relate the trust-based approach to an incentive-driven mechanism.

In VANET scenario, trust and confidence building measures are the vital research areas, because vehicular nodes introduce fake information in the network system. Centralized approaches for trust management are not best suited for large scale network; VANET requires trust-based approaches for a service provider that experiences higher network delay. A significant effort has been made to create distributed trust administration schemes for VANETs, based on the presumption that it is not conceivable to depend on a centralized approach for VANETs. The primary reason for implementing a centralized system is that the vehicles are directed and represented by a central authority. Hence, it is natural to adopt a centralized scheme [4]. In expansion, the centralized framework may be best fitted than decentralized due to simple administration, control, and security.

Nowadays, it is conceivable to structure a centralized reputation framework that includes innovations such as Long-Term Evolution (LTE); this can be the foremost effective way of linking the vehicles to the Internet. Another approach utilized a single-hop trust calculation mechanism and proposed a multi-hop implementation based on carrying and forward strategy [5]. The recommendations look to assess the reliability of messages and the accumulation of reputation scores. In any case, these schemes need protection and security since the messages and inputs are linkable and not anonymous. An intruder can launch an attack on traceability to trace out the pathway of a target vehicle. The author in [6] defined a nonexclusive reflection to authenticate the anonymous announcement mechanism utilizing the reputation framework. Trust information can be collected through neighboring participating nodes in a very short span of time. Trust-based misbehavior detection schemes assigned trust values to the node based on their past communication information [7].

The author introduced a time series pattern, RSS evaluation, and the historical communication record for a specific vehicular node and dynamic connection procedure in [8]. The mentioned scheme comprehensively evaluates the direct and indirect trust and reputation scores and quality parameters to handle intrusion attacks. The vehicular trust model based on Bayesian inference proposed in [9] works on intrusion attacks.

Chen et al. [10] presented a full depiction of a novel cryptographic primitive, which enhances the mechanism to address a secure medium for the recovery of updated cryptographic keys. The author in [11] proposed a blockchain-based anonymous reputation system (BARS), to preserve privacy the proposed mechanism disrupts the congeniality between honest nodes and public keys. The work by [12] presented a trust-based dueling deep reinforcement learning approach (T-DDRL); the network deployment includes dueling network design into a consistently centralized control system of software-defined Networks (SDN). The authors in [13] used trust-based techniques to find out vehicular location with the assistance of the trust value of the node. Kumar et al. [14] proposed an improved trust-based technique to choose trusted vehicular nodes through which messages are exchanged.

The work in [15,16] suggested a reputation-based system, where network nodes assess trust relationships with each other and vote on neighboring node’s activity of message exchange so that non-cooperative nodes with low reputation scores are prohibited from the system. In order to stimulate vehicles to cooperate positively, the author in [17] proposed a robust incentive mechanism integrating with Bitcoin for Vehicular Delay tolerant Networks (VDTNs) to give rewards for their positive efforts. MultiSig transaction is used to ensure fairness of the rewarding scheme so only those vehicles redeem the Bitcoins incentive transactions provided that vehicle honestly completes the message forwarding to a target vehicle. The scheme [18] presented three primary prototypes from the fundamental model of the Internet of vehicles. On the basis of the fundamental models, the categorization and classification of the fundamental model were analyzed; and at the end, optimization impacts were compared for different variables. In [19], the authors presented a stimulus-centric approach to credit Blockchain. The driver can get Credit coins for positive contributions provided that legendary focuses must be on the normal behavior of the participating vehicles.

However, Credit Coin portends security breaches and permits dependent offense in light of Blockchain, and traces out malicious approaches to dangerous zones in a horrendous case and so on.

The scheme [20] proposes re-broadcast operations and a credit-based incentive approach for achieving effectiveness in honest data exchange. A mechanism in [21] based on the Blockchain techniques executes a credit installment service for participating vehicles. The technique used to assist the utilization and pathway service in Vehicle-to-vehicle communication. MobiCent [22] proposes a credit-incentive approach for the Disrupt Tolerant Networks (DTNs) and calculates incentives by a multiplicative decreasing remuneration (MDR) scheme. The proposed scheme helps to minimize the computation cost and delay of the network. However, the source and target vehicle have the opportunity to access the network for exchanging messages all the time over the network. The reciprocal incentive scheme (RIS) proposed in [23] investigates how two types of malicious vehicular nodes select appropriate data sources to exploit network resources for personal profit gain under extreme buffer limitations.

Furthermore, the proposed RIS approach ignores those nodes in VANET that have different levels of benefits and maliciousness for different kinds of exchanged data. As a result, the scheme suffers a higher ratio of latency to receive the required data contents successfully. To address these defects, three types of approaches such as credit-based [2426], reputation-based [27,28] and tit-for-tat (TFT)-based [29,30] incentive mechanisms have been proposed to motivate the vehicular nodes to share their data and resources. The mentioned schemes focused on trust and credit evaluation to stimulate the vehicular node to exchange the content data to its neighbors by disbuRSing some credit reward to it. For every message-forwarding operation, a central authority would charge the source node of the data packet a part of the credit reward and pay it to each communicated node. It is worth mentioning that the failure of the central authority becomes a major issue while paying among the participating nodes.

However, these solutions additionally need to implement a reputation management system or virtual coin management system that depends on VANET applications. Existing work does not provide analysis and experiments to calculate the packet transfer rate and transmission delay of the encryption function, as well as the number of messages that is the implementation of this scheme. In addition, the existing incentive scheme completely relies on a central and trusted third party to allocate some virtual coins to each node and track the virtual coins that have been issued in the system.

3  Proposed System Model

The main emphasis of this work is to apply a collaborative trust approach to avoid misbehavior of vehicular node in VANET ensuring less packet drop ratio and robust end-end throughput. In our proposed scheme, to avoid message congestion on highways and roads it is suggested that each node or vehicle receive a single message per node with certified key pair. To cope with the issue of duplication of messages a public key-based strategy will be followed to discard and reduced the retransmission of unnecessary packets. A vehicular node will only send and respond to the most current data based on the unique identifier associated with the specific data packet.

Congestion control schemes are mainly the procedures and techniques to keep the network load below the defined capacity of the network. In VANET flooding technique is employed to route the packets across the whole connected network. In this network topology, we have to send and receive many data packets from a node to one or multiple destinations. In flooding the routing is as simple as every packet is sent back through every outgoing link. But it is also associated with certain issues such as contention of a medium, collision of packets, and redundancy or duplication of messages.

3.1 Architecture

VANET applications can be categorized in store, carry, and forward mechanisms in collaboration with participating vehicles where source to destination cannot be linked directly. To design a certified public key scheme, we consider that a vehicle assisted in carrying some data packets received from the main server to the points for displaying the information as depicted in Fig. 1.

images

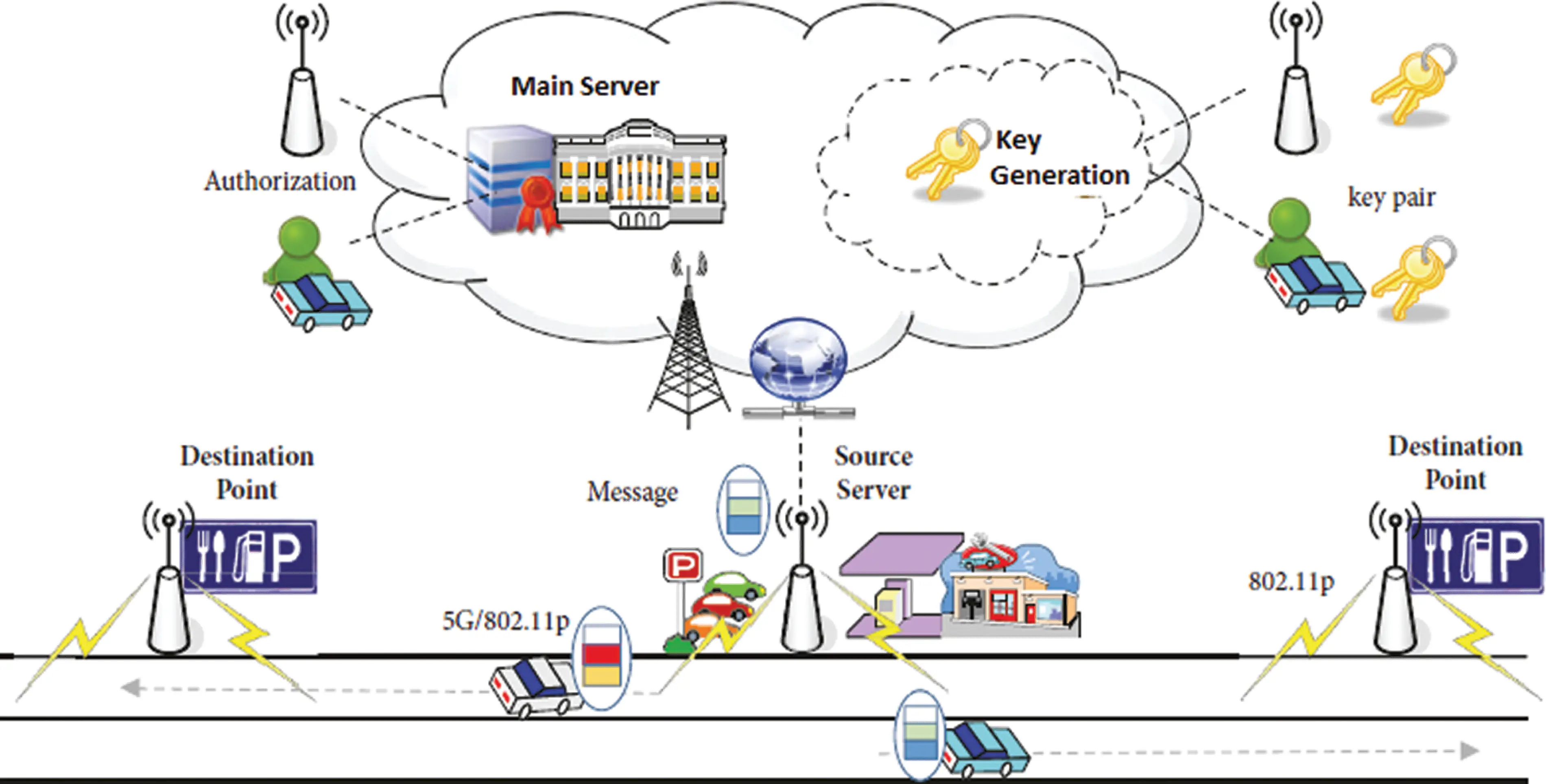

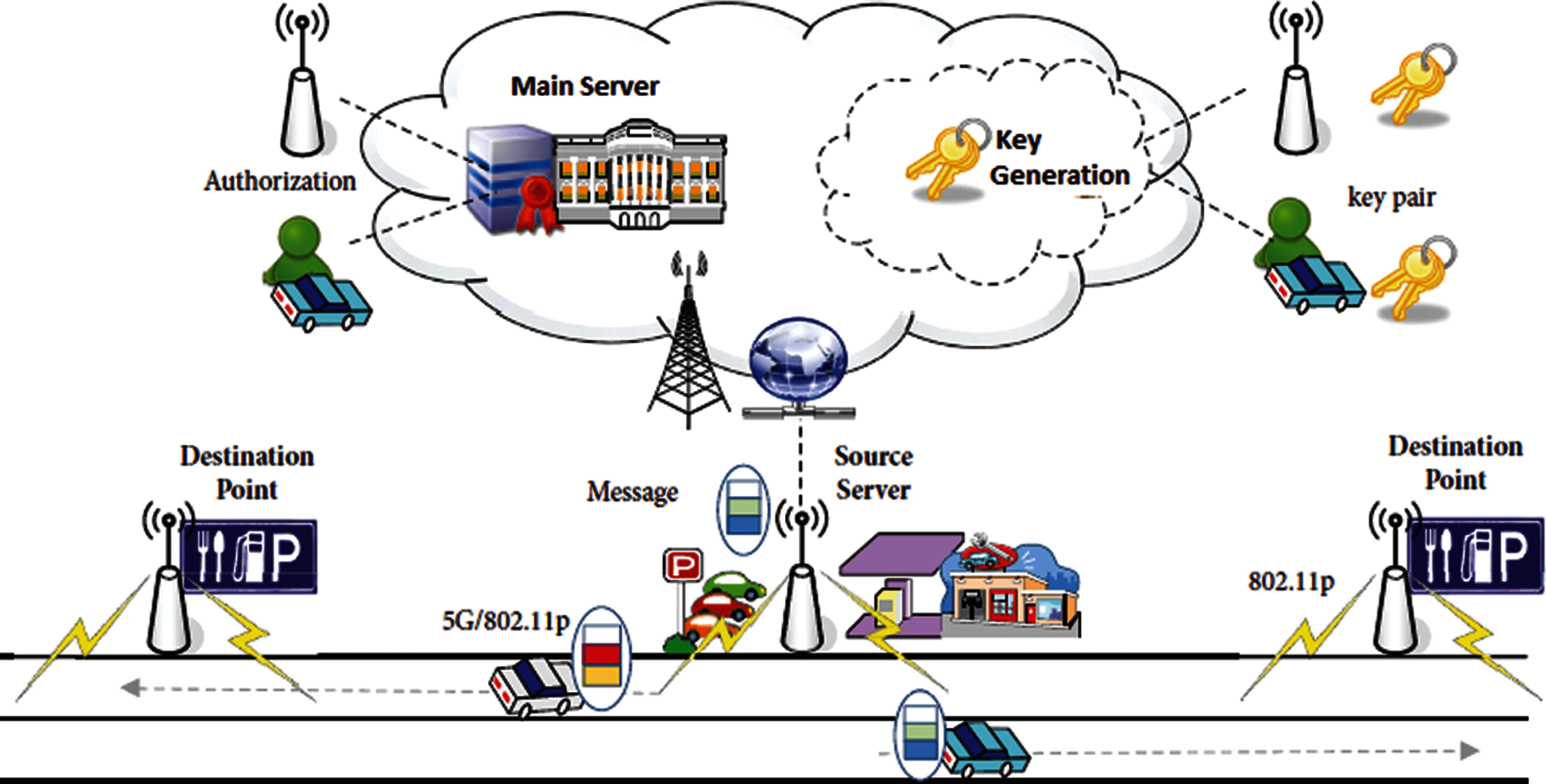

Figure 1: Public key-based Information propagation model in VANET

(i) Main Server (MS) controls Road Side Units (RSUs) and authorizes participating vehicles for message propagation services on VANETs. Authentication of vehicular nodes can be done with the process of generating certified public keys for roadside units and participating vehicles.

(ii) Participating vehicles in the network are fitted out with On Board Units (OBUs) capable of LTE/5G communication. The 802.11p standard is used for Vehicle to Infrastructure and Vehicle to Vehicle communications with a digital map navigation system.

(iii) MS is responsible for controlling RSUs with 802.11p capability for collaborating with nearby vehicles. As roadside units don’t have direct communication with all participating vehicles, so indirect communication can only be possible using the opportunistic approach with the help of nearby vehicles.

We assume that roadside units and vehicles have their key pairs to receive and transmit messages. When a roadside unit or source server requests a participating vehicle to transmit a message to a specific destination vehicular point, the roadside unit or source server generates a public key pair from the main server to the participating vehicle. The roadside source server locked the key pair under the condition that these certified key pairs can be utilized by the specific participating vehicle which carries the message to the destination vehicular point. These certified key pairs can be used if the vehicle trustfully transmits the message to the destination point and receives an acknowledgment.

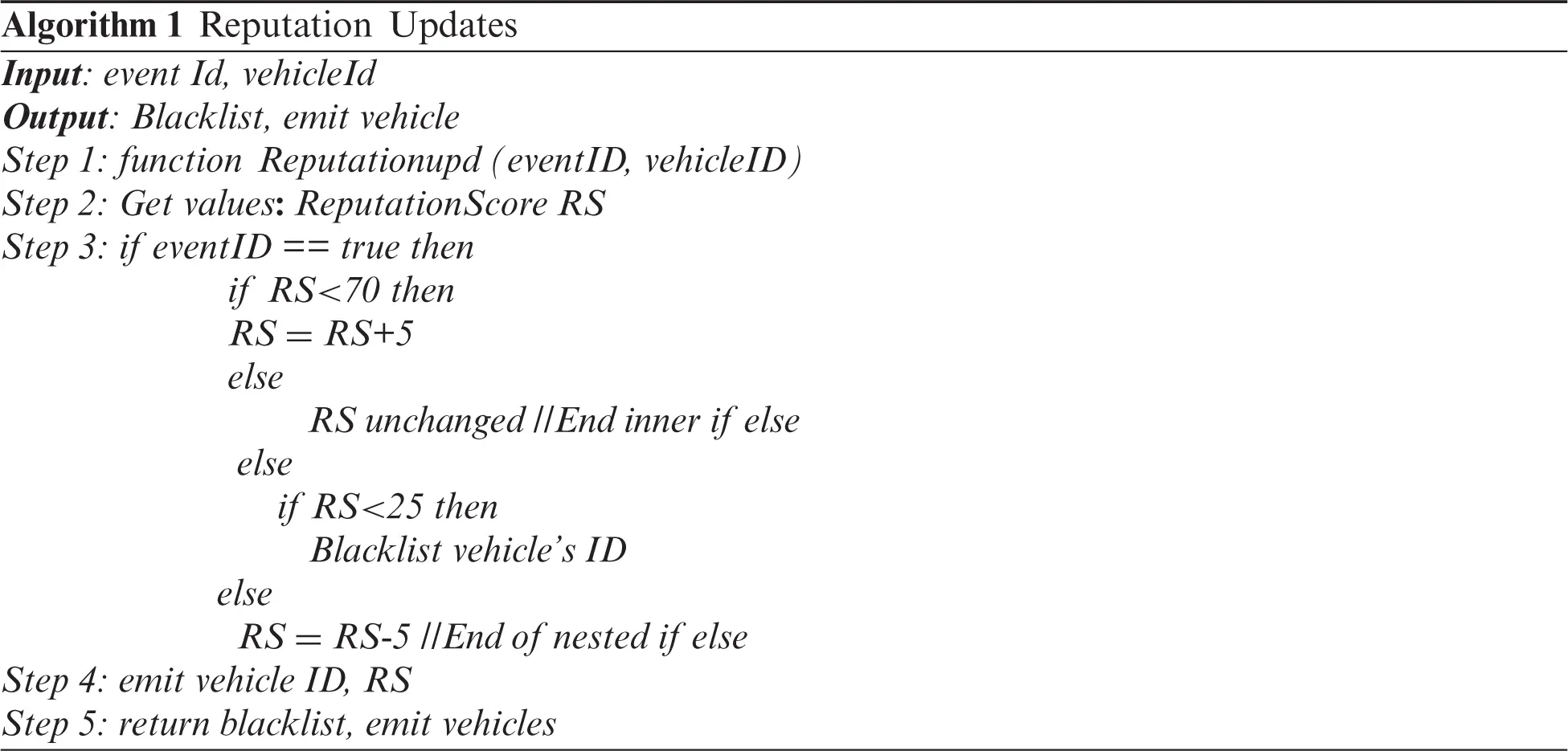

Algorithm 1 shows the reputation calculation of each vehicle in the proposed system. To calculate the reputation of the nodes Reputationupd function is used. RSU calls these functions and exchanges event information with nearby vehicular nodes. If the event occurrence is genuine, the reputation value of the vehicle will increase by 5 points. Otherwise, the reputation of the vehicle is reduced by 20 points. It prevents vehicles from signing and initiating false occurrences. In addition, this feature will also check the current reputation value of the vehicle to prevent signing or launching a false event. If the reputation of the vehicle is found to be less than 20, then the Central Authority (CA) cancels the registration of the vehicle by deleting it from the network. The function also describes that the reputation value has only increased to 60 points. This means that the node with the largest reputation value has only two opportunities to continuously verify the false event and then cancel its registration.

images

3.2 Security Goals

In this paper, we highlighted how to implement certified key generation scheme for VANETs in term of following security goals.

(i) Vehicle authorization: as VANET is monitored by Computer-based algorithm, only the vehicular nodes authorized by MS would be able to communicate over the network. Vehicle authorization process prevents illegal entities from mishandling the information propagation over the network.

(ii) Vehicle anonymity: hiding the identities of the source and destination points in store-carry-forwarding mechanism during VANET communication.

(iii) Fair allocation of resources: resources must be allocated to the participating vehicles while ensuring fairness. If a vehicle successfully transmits a message from source point to the destination point, the resources must be fairly allocated in order to prevent from dine and dash situation.

The proposed system attains these security measures by adopting certified public key mechanism for authorization of vehicles. Tab. 1 depicted the basic notations used in the proposed system.

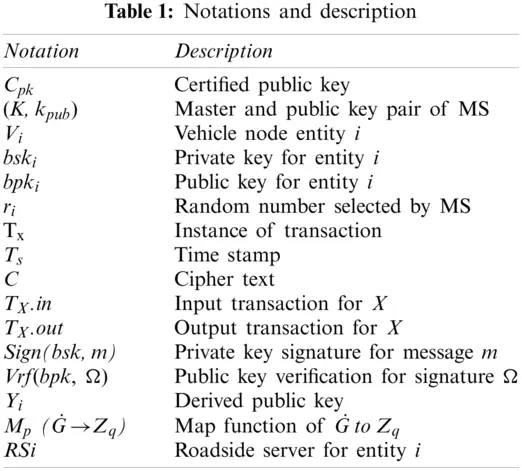

images

3.3 Cryptographic Schemes

A symmetric encryption plot comprised of three calculations which are depicted as below.

     i)  Key Generation (1k): in this phase input for Key parameter 1k and output parameter 1k ∈ K.

    ii)  Encryption (kpub, m): the second phase takes input for public key parameter kpub and text m for all output ciphertext c.

   iii)  Decryption (kpub, c): third phase input for public key parameter kpub and ciphertext c to generate output text message m.

3.4 Certified Public Key Generation

For calculating public key pair for road side units and participating vehicles, we assume that each RSi and Vi on VANET has a master key K allotted by the Main server. Moreover, RSi have its own key pair 〈 bskSi, bpkSi〉 and Vi also have its own key pair 〈bskVi, bpkVi〉. Furthermore, let 〈 bsKi, bpki, Vi, RSiĠ〉 be the public key parameters for road side server and participating vehicle. In order to derive certified public key, let 〈 p, q, Ġ, PG〉 where p and q represent prime numbers, G represent addition function and P represented base point for G.

Let 〈K, kpub〉 be the master and public key allotted from MS where public key can be kpubĠ and master key can be K = P.kpub. For each vehicular entity Vi certified public key pair Cpk can be generated as:

(1) V chooses bskiĠ and then computes its master key Ki =., kpub.P, Vi then send Ki to MS and requests for certified public key.

(2) we sssumed that the that Vi is valid and legitimate vehicle, MS selected a random number riG, and computes certified public key as Cpk = Ki + riP and Yi = ri + ρ(Cpk) ⋅ kpub (mod q) where ρ is a positive integer used for encoding function by element G. Now SM provides the generated certified public and derived keys 〈 Cpk, Yi〉 to V.

(3) Vi computes y’i = Yi + kpub (mod q), Y'i y'i·P and verify that Yi = Cpk + (CpkK.

The calculated key set for V 〈 bskiYi, bpkiYi〉 can be used as public and private key pair respectively and Cpk can be taken as certified public key. As we calculated Vi’s certified public key Cpk, the public key Yi can also be derive from Cpk through MS’s public key K as Yi = Cpk + (Cpk) ⋅ K.

The Cpk itself is encrypted in input and output transactions for designated the recipient of message m. in contrast, in our proposed system, the Cpk is only used for authentication process of the participating vehicle Vi and RSi.

3.5 Incentive Driven Message Forwarding and Verification

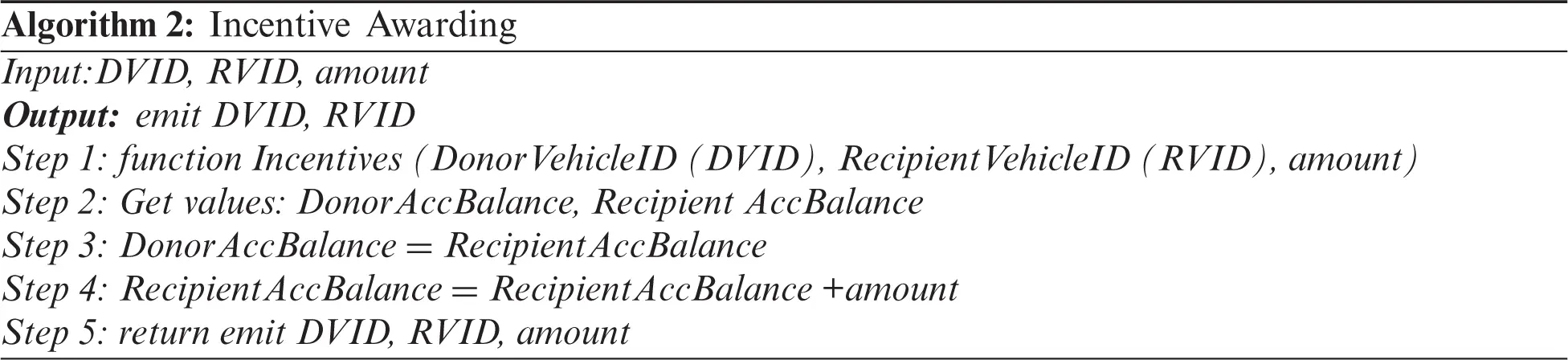

In this section of the, we discussed an incentive-based forwarding mechanism to pay the reward to the vehicle for successful message delivery across the network. In case, if RSi needs to send a message m to RSj through a store-carry-forward mechanism with the assistance of Vi. Then RSi demands Vi to carry out a message m to RSj, the system initiates an incentive transaction Tx for RSi. If Vi successfully finishes the message forwarding process for RSi then incentive transaction Tx is credited to the system network. The incentive transaction Tx can be cashed by RSj using an encashment forward signature (FwdSig) transaction.

In case, if Vi does not send the message m to RSj, RSi will lose its incentive. Once Tx is credited to the system, the RSi’s input value of Tx is termed as consumed in the incentive scheme. To handle this condition, we set time-stamp Ts condition locked with FwdSig for RSi to draw the incentive from Tx. This scheme is suitable in the case where Vi deliberately not forward the message earlier than the time-stamp lock condition expires. Algorithm 2 shows the function that defines the incentive mechanism for witnesses who verify the event information produced by the source node. Utilizing the define function, RSU adds the credit reward to the account of the responding vehicle and deducts the same amount from the account of the event initiator’s vehicle. Another define function ‘‘emit” is used at the end to save the data in the Blockchain.

images

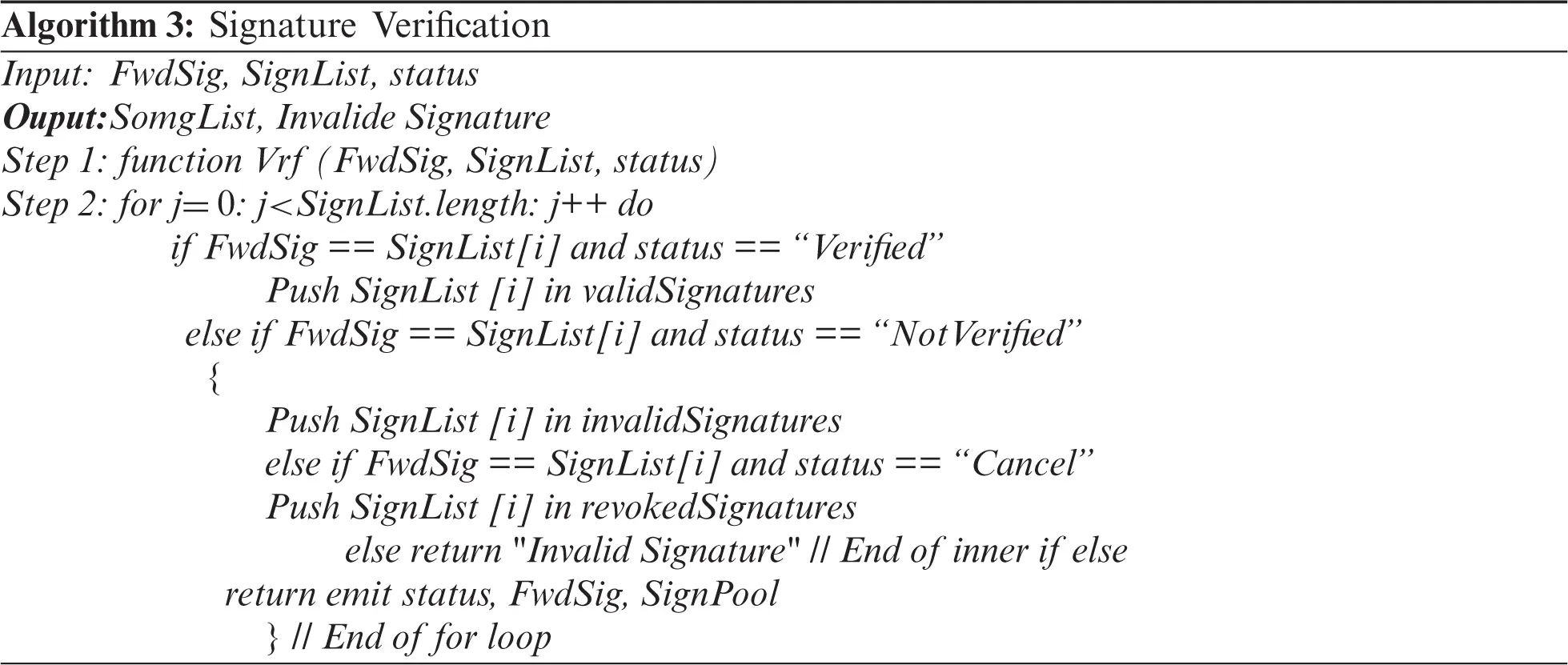

The detailed proposed scheme for message forwarding and signature verification is defined as follow:

(1) The RSi broadcasts a request over the network system and asks for the assistance of the volunteer vehicle to carry a message m to RSj. The broadcast request includes the location information and identity of the RSj.

(2) We can assume that Vi which is near by RSj’s location and voluntarily helps RSi for message forwarding, responds to RSi by giving Ω = Sig(bski Vi, RSj ‖ loc) with its CpkVi.

(3) RSi verifies the signature Ω as v (bpkiVi, Ω) by deriving Vi’s public key bpkiVi from CpkVi as calculated in Section D. After verification if the signature found valid, RSi formulates incentive transaction Tx1 and combines a message msg1: = {mTsSig (bski RSi, mTs), Cpk RSi, Tx1}. Incentive transactions for crediting and reclamation amount as incentives can be stored in TX1. where TX1.in specifies credited amount received from RSi’s MS pool. Vi recorded the amount given as incentives in TX1. out and the reclamation condition for TX1. out is described by using script-locking containing of 2-of-2 FwdSig for Vi and time-stamp constraint for RSj. At last, RSi publishes the TX1 to the incentive network and delivers msg1 to Vi.

(4) As Vi received msg1, Vi calculates RSi’s certified public key from Cpk RSi, which is then used for the verification of RSi’s signature. The message is now stored and carries to the destination point RSj by vehicle Vi. Moreover, Vi initiate a validation check of Tx1 using incentive network and generates transaction Tx2 to claim the amount specified in Tx1. out. To claim the amount, Vi verify the transaction Tx2 excluding FwdSig unlocking script of transaction Tx2. in.

(5) If Vi founds to be an honest and successful volunteer vehicle, the system will allow Vi to store, carry, and forward.

(6) When Vi reaches at the target location and recognizes RSj, Vi constitutes another message msg2: = {mTs ‖ si(bski RSi, mTs), Cpk RSi, Tx2} and exchange the same with to RSj.

(7) RSj analyzes the msg2 and initiates the signature verification process (bski, mTs) through CpkRSi. After successful verification RSj accepts the message m from Vi.

(8) As to acknowledge the message delivery of Vi, RSj generates transaction Tx2 and generates a partial signature to unlock 2-of-2 FwdSig script. This signature can be used by Vi to spend the amount claim in the preceding transaction Tx1. out. The generated signature {Tx2, Sig (bski RSj, Tx2), Cpk RSj} can be provided to Vi by RSj.

(9) Vi calculates RSj’s public key from Cpk RSj to verify the signature {Tx2, Sig (bski RSj, Tx2), Cpk RSj}. If the signature is valid, Vi finalizes 2-of-2 FwdSig unlock-script by appending Vi signature with Tx2. Finally, Tx2 will be published to the incentive network to en-cash the amount given by Tx1 to Vi’s account.

The validation process can be started on transactions Tx1 and Tx2 over the incentive network, upon successful validation the transactions Tx1 and Tx2 will be appended to the blockchain network. As a result, Vi can get a credited amount as incentive for its volunteer cooperation for message propagation on VANETs. The most important aspect of the 2-of-2 FwdSig lock-script is that it cannot be accomplished alone by Vi. Therefore, Vi will not be rewarded if it stops message forwarding even if Tx1 is already published to its account in step 3 because Vi cannot solely achieve 2-of-2 FwdSig lock-script. As soon as RSi finds that Tx1 is not cashed by Vi after the time-lock expires, RSi freeze the transaction TX’2 to publish incentive because Vi did not forward the message m to the actual destination point RSj. Algorithm 3 shows the function of FwdSig, used for verification of the signatures of every vehicle. RSi generates a confirmed the list of verified, not verified, and cancelled signatures using this function.

images

4  Proposed System Model

In this section, we evaluate the implementation scenarios and elaborate to obtained experimental results in detail. Our performance evaluation objectives are three folded:

i) To motivate node contribution in the message delivery and to illustrate the requirements of the incentive scheme.

ii) To verify the practicability of the proposed incentive schemes.

iii) To investigate the special effects of different system parameters on the incentive and rewards scheme.

4.1 Simulation Setup

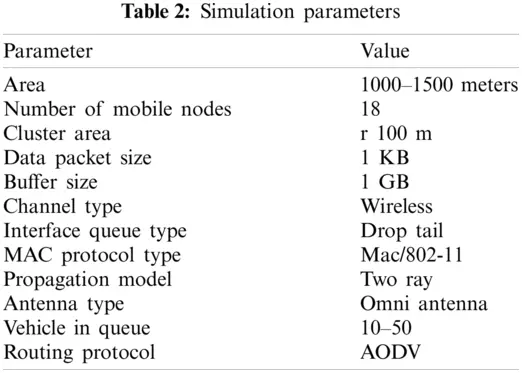

The simulation parameters are shown in Tab. 2. We assume that power balancing is the same for all nodes. Furthermore, we also assume that no handoffs have been taking place and there is no radio link failure detected in simulation parameters. The simulation parameters in the experimental setup are depicted in Tab. 2.

images

4.2 Experimental Results

In the proposed scheme the communication cost is measured by the ratio of transmitted byte counted at the channel, which both include event-driven data and periodic data across the networks. In congestion the medium is wholly or partially exploited by the periodic beacons thus the event-driven message could not be disseminated timely.

Figs. 2 and 3, the effects of misbehaving vehicular nodes on the performance evaluation of VANET are investigated in the situation where no incentive scheme is implemented. In the simulation scenario, a misbehaving vehicular node will only forward its self-created messages but decline to deliver those created by other vehicular nodes. Fig. 2 depicted the impact of the misbehaving vehicles on packet delivery ratio (PDR). Two lines curve in Fig. 2 illustrates the decline tendency of the PDR and relative packet delivery ratio (RPDR) as the proportion of misbehaving vehicles increases. At the beginning we assume that all participating vehicles are honest, i.e., the proportion of misbehaving vehicles is equivalent to 0, and the PDR can be nearly 70%. In case when all the nodes are misbehaving, the proportion of misbehaving nodes is equivalent to 100%, the PDR falls down to only 20%. If the ratio of misbehaving nodes is 100%, as the misbehaving vehicular node will only forward its self-created messages bundle and refused to deliver those created by other vehicles. In such cases, the PDR can be larger than 0 subsequently every node directly carries its own created message from a source point to the destination point.

The dotted-line curvature in Fig. 2 depicted the decline tendency of the PDR relative to no misbehaving nodes. The graph clearly illustrates the lower percentage of the PDR if more misbehaving nodes exist over the network.

Fig. 3 demonstrates the impact of the misbehaving vehicles on the delay factors and the relative delay of the system. The double-line curve shows the increased tendency of the transmission delay as the proportion of misbehaving nodes increases. Fig. 3 depicted that the transmission delay is in the defined range of 6000 to 7600 s where all the participating vehicles are honest. As the proportion of misbehaving vehicles increases, the transmission delay will rise exponentially. Transmission delay will rose to 7400 s in worst case scenario where all the participating vehicles are misbehaving. The dashed-line curve depicted the higher proportion of the transmission delay under the different proportions of misbehaving nodes.

images

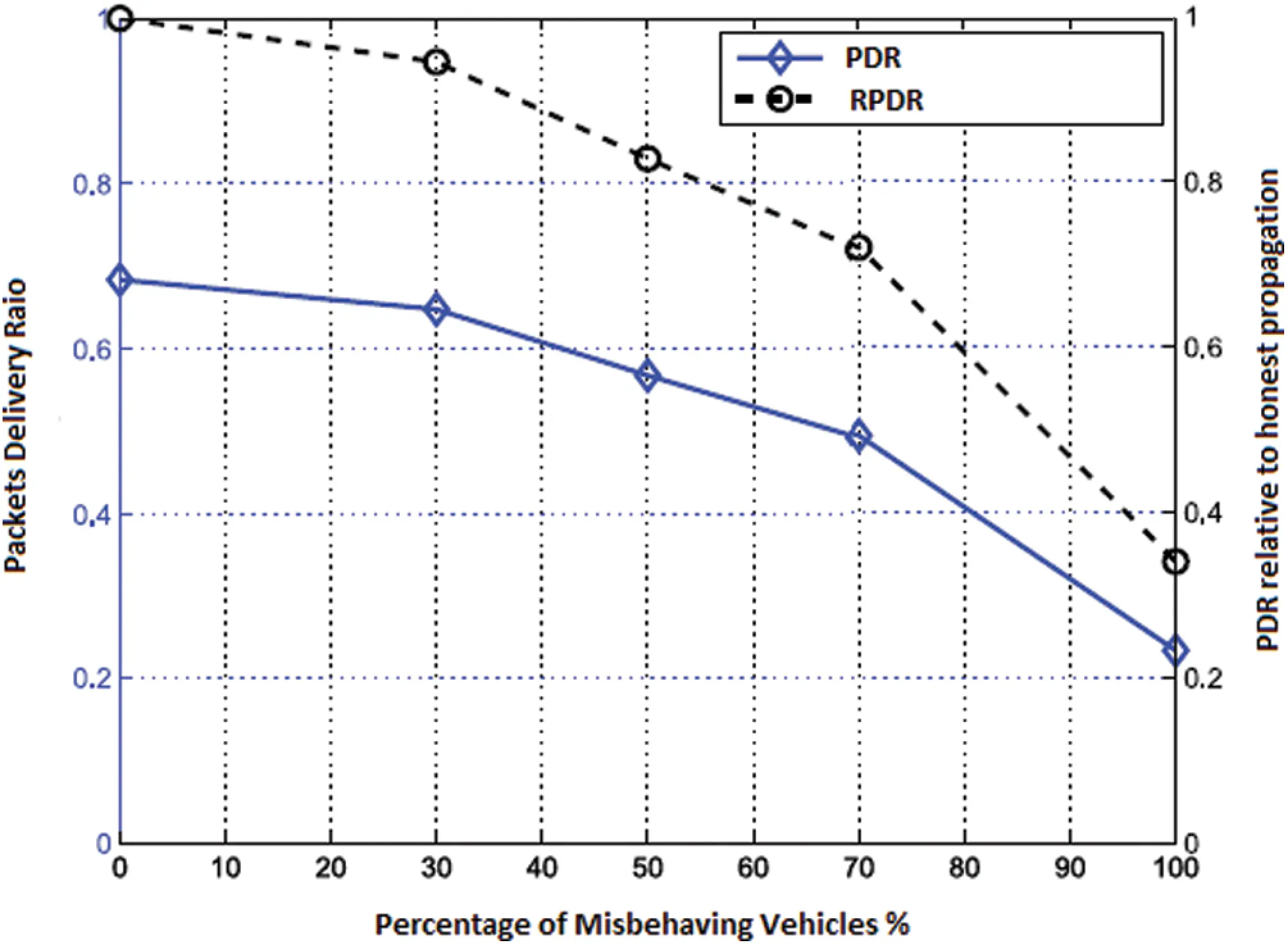

Figure 2: Packet delivery ratio and relative friction for different percentage of misbehaving vehicles

images

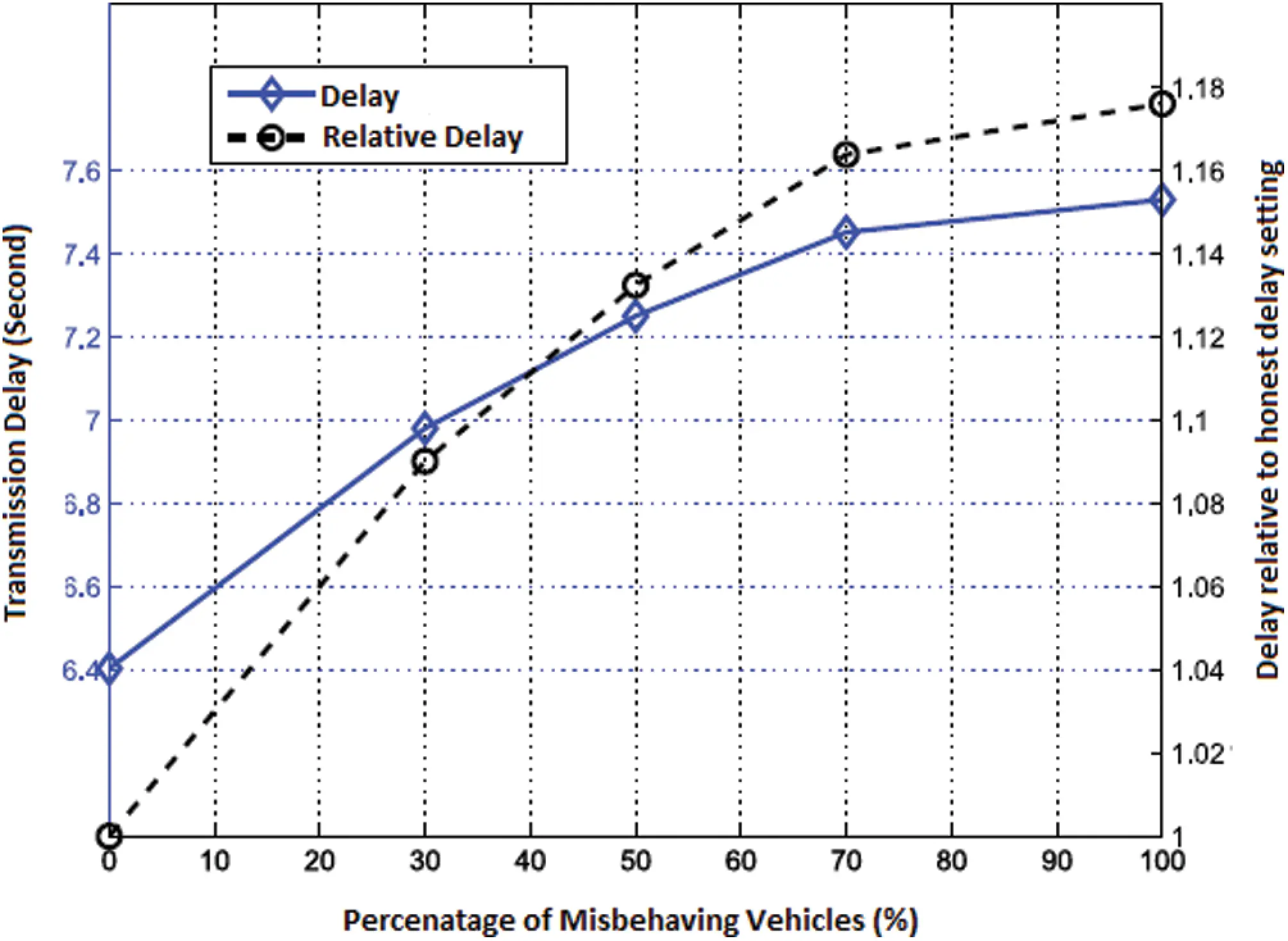

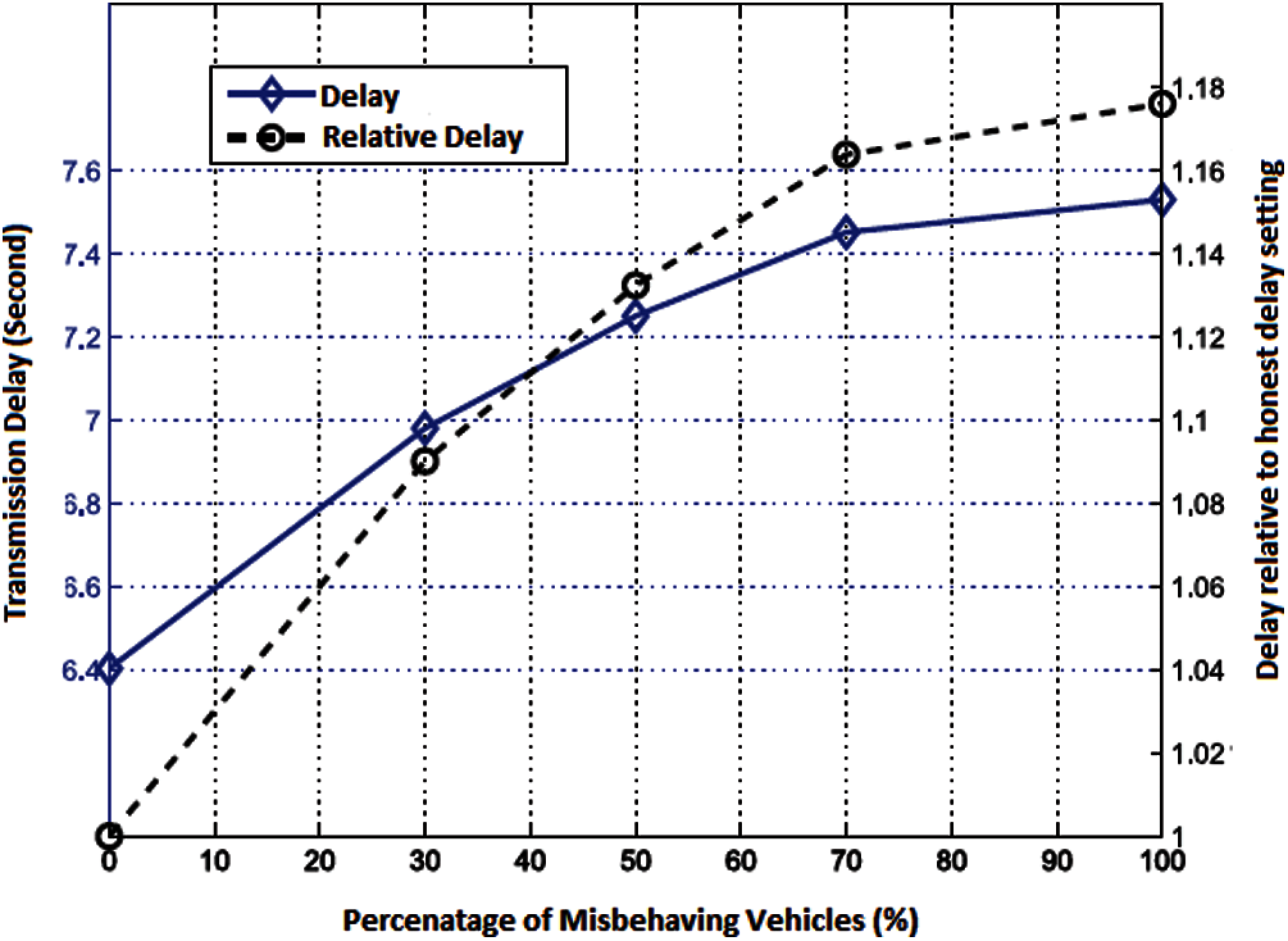

Figure 3: Transmission delay and relative friction under different percentage of misbehaving nodes

As depicted in Figs 2 and 3, the presence of the misbehaving nodes will eventually drop down the packet delivery ratio and increase transmission delay. Thus, message forwarding can be greatly affected by the high proportion of misbehaving nodes, and it is very essential to introduce the reward- based incentive approach to stimulate node contribution in the message forwarding over the network.

We also proposed a unique node identification mechanism scheme by generating a certified public key attached with each message. Public key mechanism is taking into consideration to ensure reliable and accurate message dissemination.

Fig. 4 illustrated the total and average rewarded credits of the suggested scheme with two different scenarios. Total number of created messages also varies from 500 to 1500. At this point, total rewarded incentives refers to the sum of the rewarded incentives of all the forwarded messages, while average rewarded incentives refers to the average rewarded incentives for each forwarded message bundle in the network. The time to live (TTL) per delivered message in Fig. 4 is nearly 600 s. The solid-line curvatures depicted the total rewarded incentives, the curve raises almost exponentially as the number of created messages increases. It is very obvious from Figs. 4 and 5 that increase in the number of generated messages, the aggregated rewarded incentives will be escalated exponentially with the increase ratio of delivered messages at the destination point. In comparison with our proposed incentive driven misbehavior avoidance (IDMA) scheme, the total rewarded credits are much higher than that of the incentive-based misbehavior detection and tolerance (IMDT) scheme. Dotted-line curves depicted the average rewarded incentives for every conveyed message of the proposed incentive-driven forwarding schemes. Moreover, the average rewarded incentives in the proposed IDMA approach are much higher than that of the existing IMDT approach. Figs. 4 and 5 shows that the average rewarded incentives of the proposed incentive-driven scheme are quite stable, as the credits are rewarded from the roadside servers after validation and verification of FwdSig lock-script. This also endorses our previous claims that the rewards imbursement from source nodes for every conveyed message is highly restricted.

images

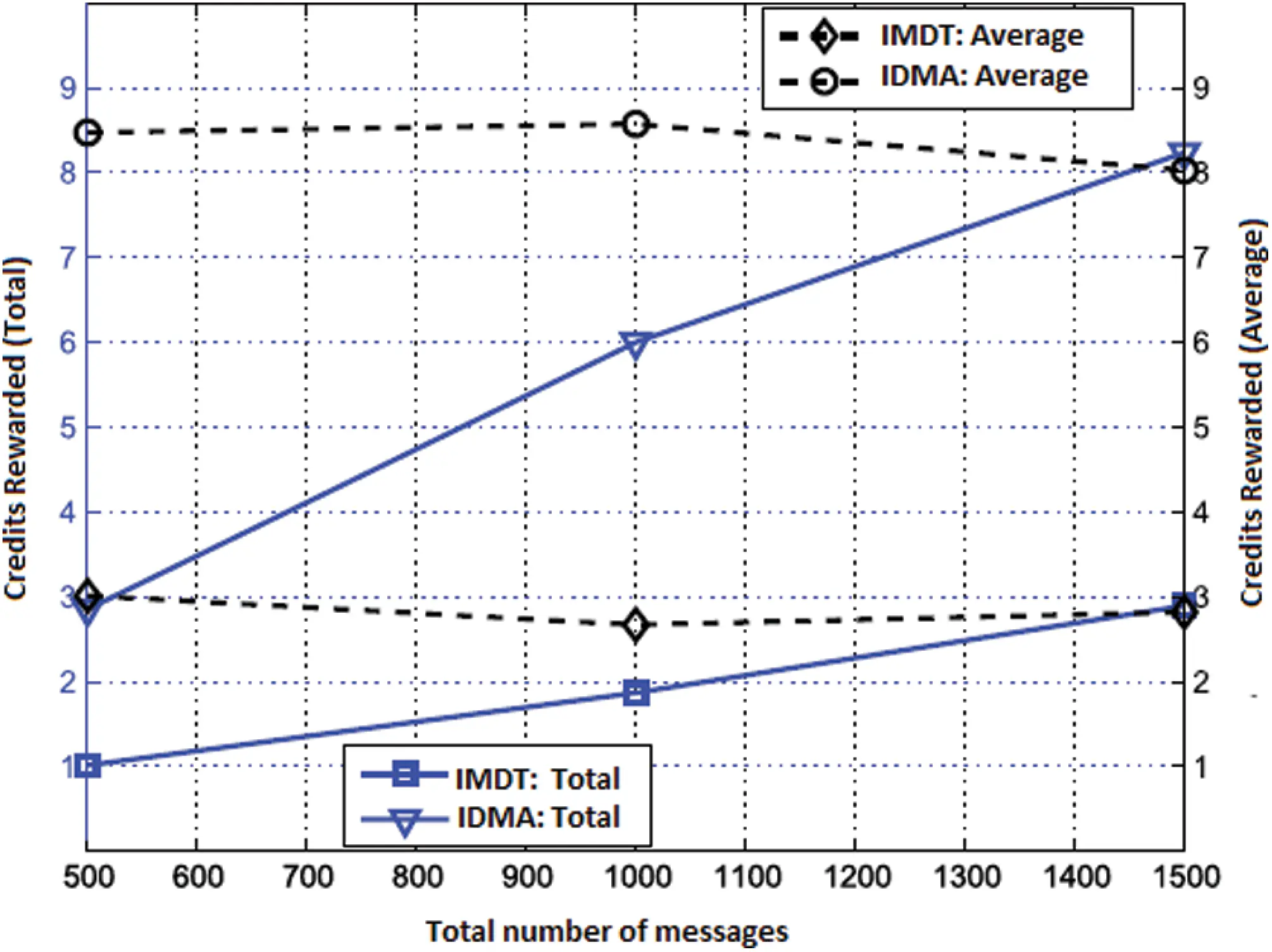

Figure 4: Total rewarded and average rewarded credits for different number of generated messages

The proposed incentive-driven scheme where all the vehicles in the network will have honestly delivered the messages; this clearly shows that the proposed scheme is incentive compatible. For this purpose, the packets can be dealt for brief time at the destination by introducing a buffer. The buffer stores the incoming packets from the source for a given time interval. After elapsing the given time interval these data packets assemble with each other.

Fig. 5 depicted the effects of the TTL of delivered messages, TTL values varies from 2000s to 4000s in the system model. The idea of the total number of rewarded incentives and average rewarded incentives is similar as illustrated in Fig. 4. The rewarded credits in the demonstrated mechanism are depend on the node’s cooperation time. TTL is exponentially increased with an increase in the total cooperation time of the participating node in message forwarding process. As a result, the number of conveyed messages is directly proportional to TTL values. The solid line curve in Fig. 5 illustrates the impacts of the time-to-live ratio on the total rewarded incentives of the proposed scheme. Fig. 5 shows that the total rewarded incentives of the IMDT mechanism is less than that of the IDMA mechanism. The dotted-line curve illustrates the outcome of the time-to-live ratio on the average rewarded incentives per conveyed packet, which demonstrated that the average incentives of the incentive-driven mechanism are exponentially increase with the high TTL value. In the same way, the average rewarded incentives of the IMDT mechanism are much less than that of the IDMA mechanism.

images

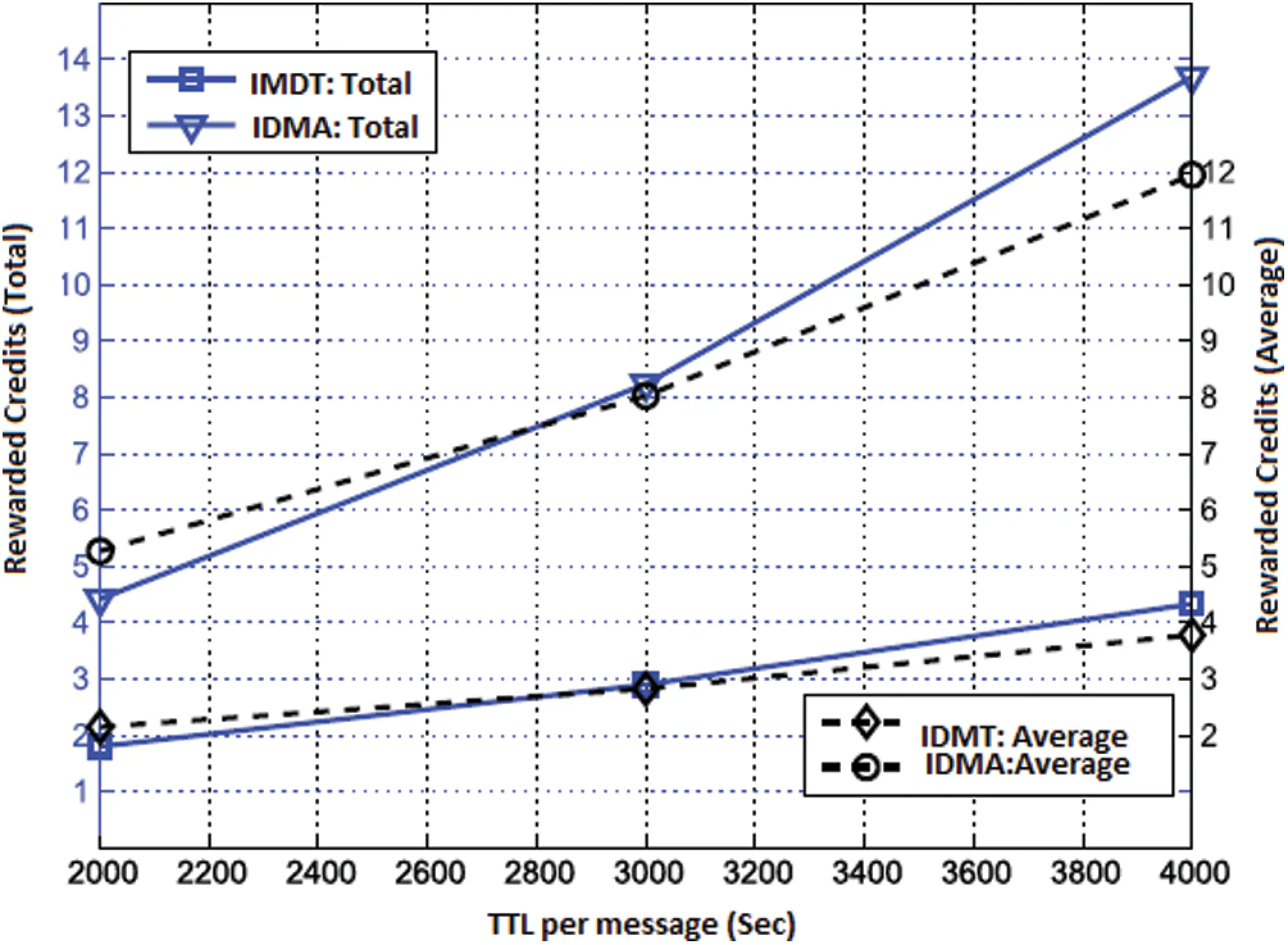

Figure 5: Total rewarded and average rewarded credits under different number of TTL per message

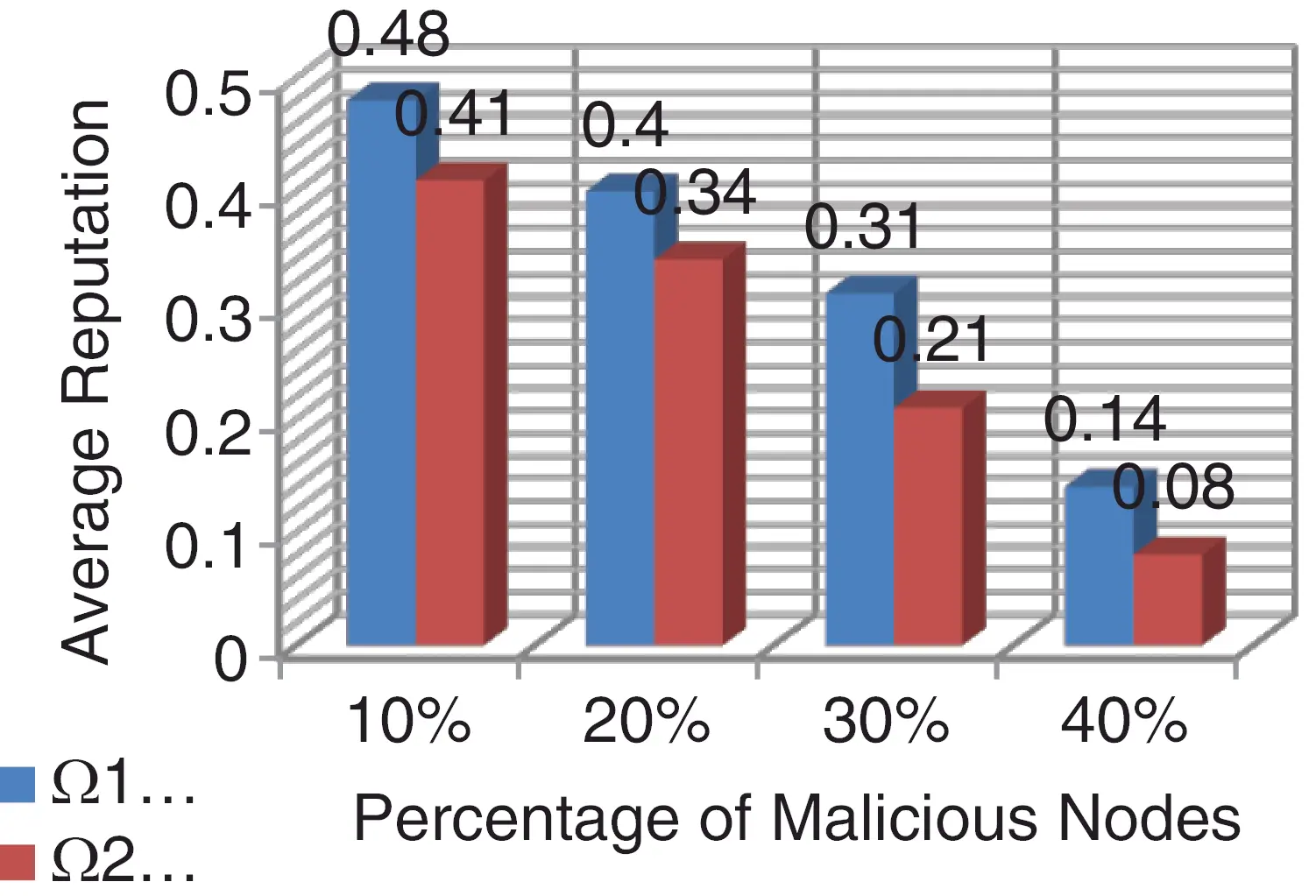

Moreover, we tested the experiment with constant Ω value; Fig. 6 compares the ultimate outcomes about the average reputation with two values of Ω and malicious nodes rate.

All the outcomes about average reputation values were positive; this is due to the fact that the number of vehicles getting feedback in response to sending messages is much higher than the number of vehicles getting feedback in response of generating messages. The outcomes showed that average reputation is impacted by Ω; the four experimental results about average reputation with Ω = 1.00 are higher than for the four tests with Ω = 0.5. This can be clarified on the basis that the weightage given to forward message is high; while the weightage given for the generating messages is low. Because a large number of vehicular nodes receiving negative feedbacks in response to create and flood bogus messages, and fewer nodes receive positive feedbacks for forwarding real and honest data.

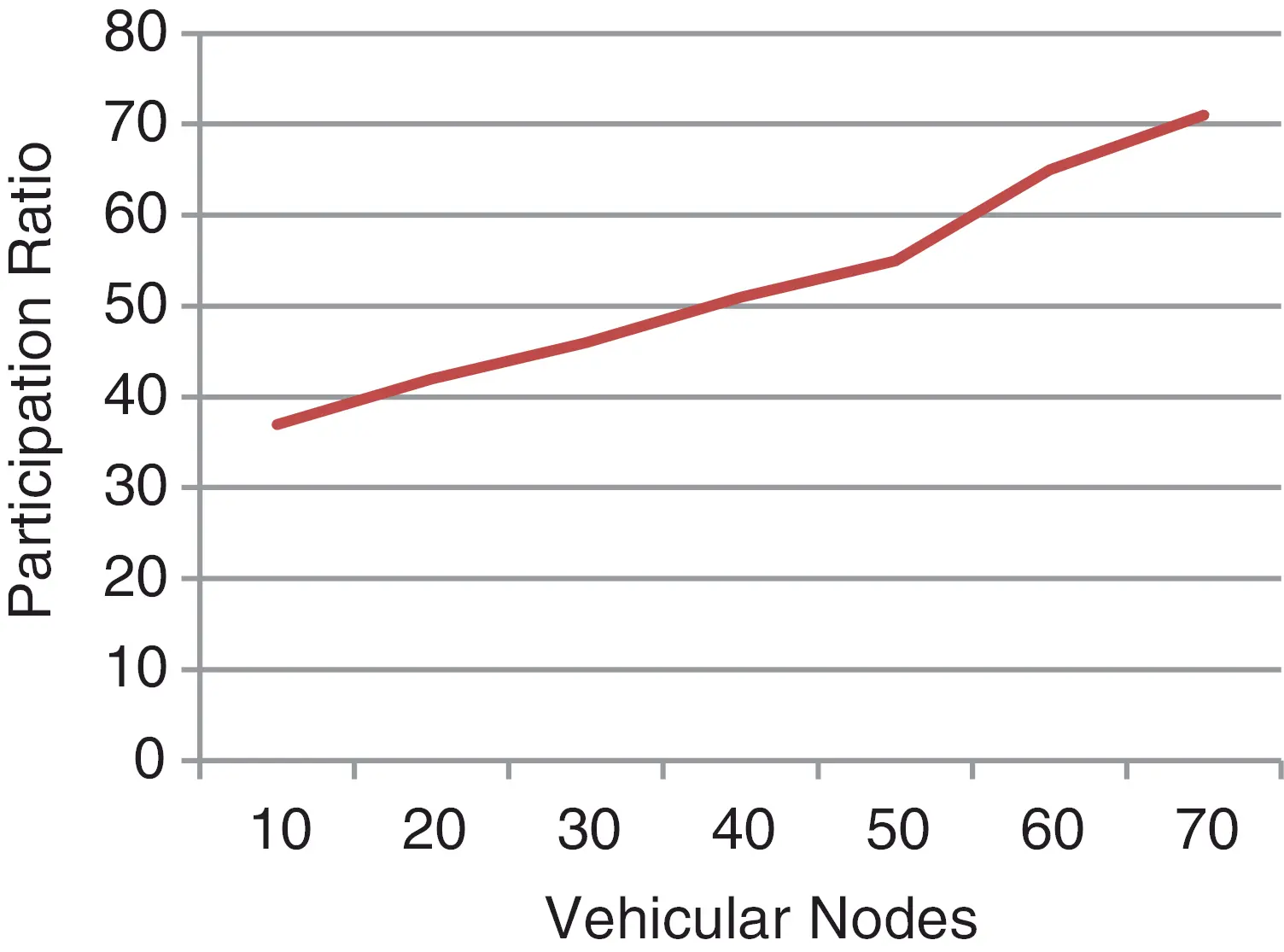

Fig. 7 represents the cooperation or participation ratio of the vehicles within the VANET. As discussed earlier in the paper, the participation ratio depends on the incentive-driven model and the number of legitimate vehicles within VANET. The vehicles appear to be cooperative when they get compensated rewards for their support, that’s why there is an exponential increment in participation ratio. As depicted within the fig, the vehicular cooperation ratio directly proportional to the number of vehicles in the network. Experimental results show that participation ratio directly influenced by number of vehicles on network.

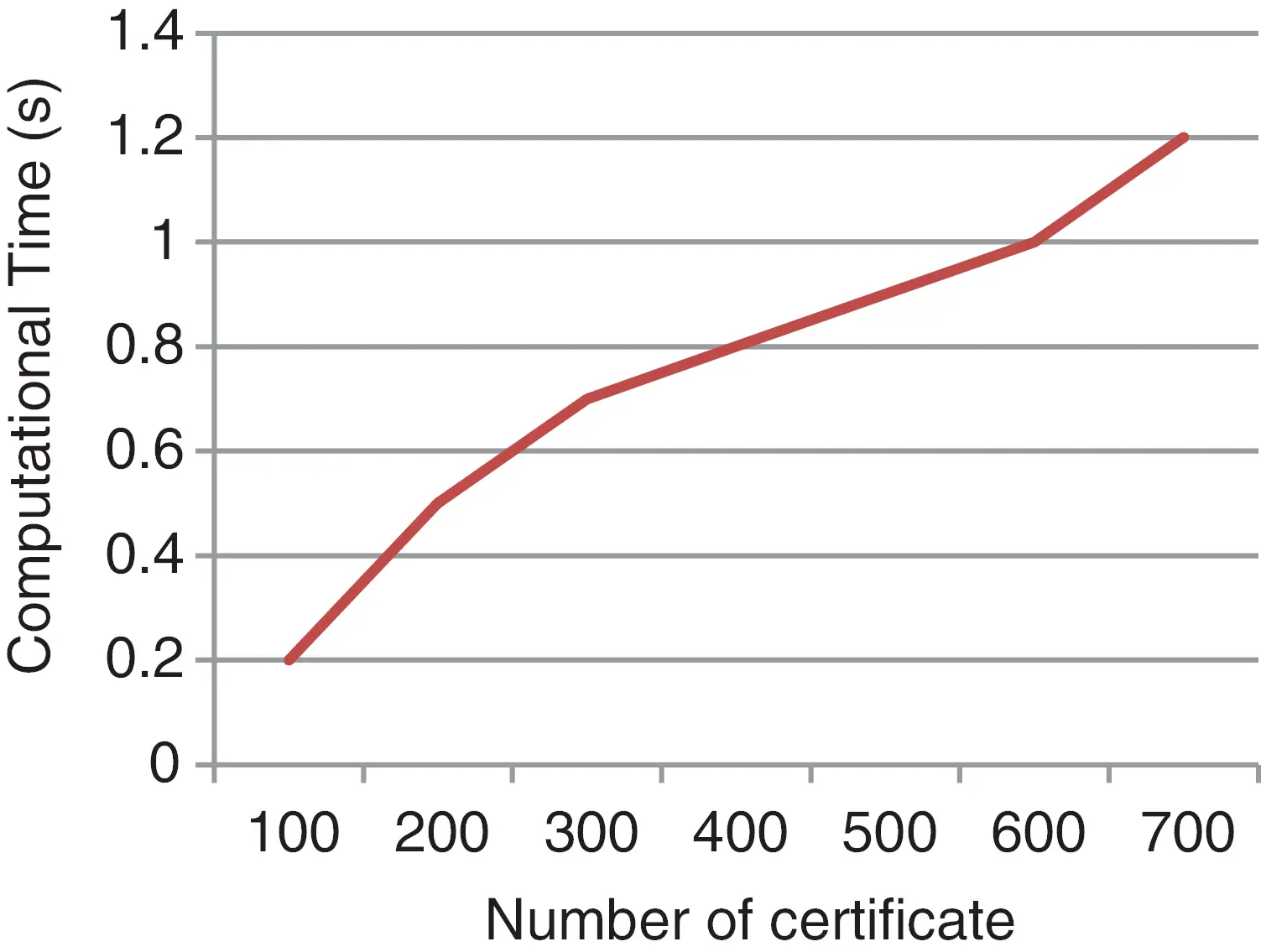

Fig. 8 depicted the time of creating diverse numbers of certificates for every vehicular node using an elliptic curve cryptographic scheme. The total number of generated certificates comprises two main parameter of digital signature and a pair of cryptographic key combinations. The results show that computational time increases as the number of generated certificates increases. these two-performance metrics are directly proportional to each other. Moreover, resources utilization also increases with the increased number of generated certificates. The line appears in the depicted graph is not plane and an unexpected increase can be observed in computation time when the total number of generated certificates crosses 300. Due to this reason, the maximum limit value is set to 250, due to the reason that not more than 250 certifications will be granted at the same time, so the overhead can be reduced on certificate authority.

images

Figure 6: Total rewarded credits and average rewarded credits for different number of messages

images

Figure 7: Total rewarded and average rewarded credits for different number of generated messages

images

Figure 8: Total rewarded credits and average rewarded credits for different number of messages

5  Conclusion

In this paper, we proposed an incentive-driven scheme incorporating certified public key generation for VANETS. In order to avoid nodes from misbehaving, a stimulus approach is adopted where vehicles can get rewards for their volunteer efforts and positive cooperation with other vehicles on the network. In proposed scheme, fairness and security can be guaranteed by using FwdSig validation and verification mechanism so that a message carrying node can claim the amount of credit only if the node successfully transfers the message bundle to the target point. To realize the objectives of fairness, we also employed 2-of-2 FwdSig lock and unlock scripts incorporated with time-locked condition to deal with fair incentive rewarding. Moreover, in comparison with the existing schemes, our proposed incentive-driven scheme can be deployed reasonably because the proposed scheme does not implement any virtual incentive system on VANETs.

Acknowledgement: Authors acknowledge the financial support of TAIF University researchers supporting project under grant TURSP-2020/21.

Funding Statement: This research was financially supported in part by Researchers Supporting Project (TURSP-2020/121), Taif University, Saudi Arabia.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
