A Secure Key Agreement Scheme for Unmanned Aerial Vehicles-Based Crowd Monitoring System

Bander Alzahrani1, Ahmed Barnawi1, Azeem Irshad2, Areej Alhothali1, Reem Alotaibi1 and Muhammad Shafiq3,*

1Faculty of Computing and Information Technology, King Abdulaziz University, Jeddah, Saudi Arabia
2Department of Computer Science and Software Engineering, International Islamic University Islamabad, Pakistan
3Department of Information and Communication Engineering, Yeungnam University, Gyeongsan, 38541, Korea
*Corresponding Author: Muhammad Shafiq. Email: shafiq@ynu.ac.kr
Received: 07 June 2021; Accepted: 16 August 2021

Abstract: Unmanned aerial vehicles (UAVs) have recently attracted widespread attention in civil and commercial applications. For example, UAVs (or drone) technology is increasingly used in crowd monitoring solutions due to its wider air footprint and the ability to capture data in real time. However, due to the open atmosphere, drones can easily be lost or captured by attackers when reporting information to the crowd management center. In addition, the attackers may initiate malicious detection to disrupt the crowd-sensing communication network. Therefore, security and privacy are one of the most significant challenges faced by drones or the Internet of Drones (IoD) that supports the Internet of Things (IoT). In the literature, we can find some authenticated key agreement (AKA) schemes to protect access control between entities involved in the IoD environment. However, the AKA scheme involves many vulnerabilities in terms of security and privacy. In this paper, we propose an enhanced AKA solution for crowd monitoring applications that require secure communication between drones and controlling entities. Our scheme supports key security features, including anti-forgery attacks, and confirms user privacy. The security characteristics of our scheme are analyzed by NS2 simulation and verified by a random oracle model. Our simulation results and proofs show that the proposed scheme sufficiently guarantees the security of crowd-aware communication.

Keywords: IoT; unmanned aerial vehicles; authentication; crowd monitoring

1  Introduction

Crowding usually occurs in major occasions, such as international games and sports competitions, cultural festivals, concerts, religious gatherings, etc. We cannot ignore the possibility of accidents in large gatherings, such as the Hajj 2006 or Love Parade 2010 in Germany, and the Kumbh Mela stampede reported in 2013 in the past few years [1,2]. The demand for crowd management solutions in urban metropolises is also becoming more and more common. Such gatherings always have risks, so precautions need to be taken in advance to ensure public safety. In addition, it is also important to use technology to identify anti-social and atypical behaviors in the population, and to distinguish these factors in order to take preventive measures to enhance public safety and security. Recently, the pandemic riot phenomenon needs to perceive crowd behavior without involving human factors, and further requires technological innovation to deal with it. In order to ensure public safety, the administrator or event manager must foresee and check the indicators of real-time data captured from the crowded terrain, and finally make timely decisions to curb unforeseen situations.

In the follow-up of major catastrophic situations such as floods, earthquakes, fire outbreaks, and rescue operations, Unmanned Aerial Vehicles (UAVs) are the first responders. According to observations, surveillance is one of the emerging fields, which has expanded the application range of UAVs (or drones). The sensors in drones help these devices effortlessly expand the scope of mission execution, so they are very suitable for surveillance-based rescue and monitoring operations [3,4]. The drone can focus on their target location and can easily provide the control team with key information about what is happening at that location. The economy of its use and the technological improvement of drones make these devices a strong competitor to improve the safety of surveillance and crowd monitoring operations.

UAVs can help police officers ensure the security and safety of large cities, because these devices can be introduced in real time to collect real-time updates on various actions on the spot. For example, police officers in the United Kingdom use drones to catch suspected robbers [5]. However, it becomes very challenging to manage the efficiency and effectiveness of such monitoring systems in cities. Other agencies such as the US Congress and the US Department of Justice have allowed the use of drones to manage large-scale events in large cities [6]. The combination of drones with multimedia streaming, safe wireless interaction, forensic applications, video detection technology for abnormal motion [7], and video recognition of human abnormal behavior [8] may help to achieve a peaceful living place.

Nevertheless, this development of drone network technology exposes new ways of cyber threats, such as eavesdropping, privacy, forgery, and data reconciliation issues, which makes crowd management very challenging. If any malicious adversary accesses surveillance-related data, it may disrupt the entire surveillance activity. If any legal mobile user wants to access the data collected by a specific drone introduced in the flight area, this must be possible in the follow-up process of the mutual authentication process, leading to an agreed session key. The gateway is a trusted entity that cannot be hacked by opponents, and the mobile user's equipment and drones may be physically compromised. Therefore, designing a secure and lightweight authentication key agreement is essential for the Internet of Drones (IoD) architecture to overcome the above shortcomings.

The salient features of the contribution are as follows:

•   We propose a secure key agreement scheme for UAVs-based crowd sensing system. In the proposed scheme, police or intelligence personnel can safely obtain the real-time status of crowd dynamics with mobile devices by using crowd-sensing drones. These drones are used to report the perceived crowd information to the mobile user/police officer (CMDi) through the reliable registration agency GRSj after adopting an appropriate authentication process and using a mutually shared session key. However, this communication must be carried out between legitimate members after using a successful authentication procedure and establishing a mutually agreed session key

•   We have verified the session key security of the proposed scheme using the ROR (Real-Or-Random) trusted model [9]. In addition, an informal security analysis was conducted to prove the security function of the proposed schemes against a capable adversary.

•   We developed a simulation in NS2 to verify the efficiency of the proposed model in terms of throughput and latency benchmarks. The performance evaluation results show that the proposed scheme is sufficiently safe and efficient in computation and communication.

The rest of this article is organized as follows. Section 2 describes the related work. Section 3 explains the system model and adversary model. Section 4 demonstrates the proposed model. Section 5 analyzes the methods proposed on the formal and informal routes. Section 6 introduces the performance evaluation and comparative study of the proposed models. The conclusion is drawn in the last section.

2  Related Works

We can find some research articles on protecting drone-based surveillance [10]. In [11], for example, the authors proposed a UAV communication scheme for rescue operations. In [12], the authors demonstrated the advantages and disadvantages of using drones to monitor the US border. In [13], the authors proposed a security method based on multi-UAV architecture to manage catastrophic scenarios. In [14], the authors discussed equipment for monitoring crowds. In [15], the hierarchical intrusion detection is designed as a lightweight detection and response method to protect drone-based networks from known attacks. Since then, the Time Credential-based Anonymous Lightweight Authentication Scheme (TCALAS) has tried to solve the problems in key protocols related to drone networks. In [16], a certificate-less group key authentication protocol for untrusted drone architecture is proposed. In [17], the authors proposed another lightweight authentication protocol for drone Internet. However, this scheme does not support mutual authentication and so lacks a secure key agreement. In [18], the authors proposed a mobile user authentication protocol for wireless sensor networks related to the Internet-of-Things (IoTs) framework, which establishes an agreed session key with sensor nodes. However, this protocol is particularly suitable for sensor nodes with insufficient resources only and so it uses minimal hash-based operations and XOR operations to support mutual authentication among sensor nodes, mobile users, and gateway server nodes. In [19], authors proved that the scheme in [18] is vulnerable because it does not support anonymity and untraceability. In addition, this solution is susceptible to forgery attacks, stolen card attacks, and man-in-the-middle attacks. In [20], authors proposed a novel and efficient signature-based authentication protocol for IoT-based architecture, in which data is accessed from IoT sensors in real time after a mutual authentication process. However, no solution can meet the goals of real-world online application scenarios to make full use of a secure drone-based crowd sensing system.

3  Preliminaries

There is always a communication security threat between entities in the IoD environment. This requires the development of effective and efficient authentication protocols. The network model of the proposed framework is shown in Fig. 1, including three participating roles, such as control room (CR), ground registration station (GRSj), mobile user (MUi), and crowd monitoring drone (CMDi). The IoD network consists of multiple flight zones with specific identifiers (FZi), and a specific UAV is deployed to any specific FZi, and at the same time it can fly and communicate with other GRSj and drones of the same FZi. GRSj acts as a trusted entity and is connected to the CR endpoint. GRSj registers all mobile users and remote drones by providing long-term keys based on their identity. Mobile user MUi or police officer with smart device obtain is/her own long-term key through GRSj. The drone CMDi introduced in a specific FZi can report to GRSj in real time after scanning and monitoring crowd-based information.

images

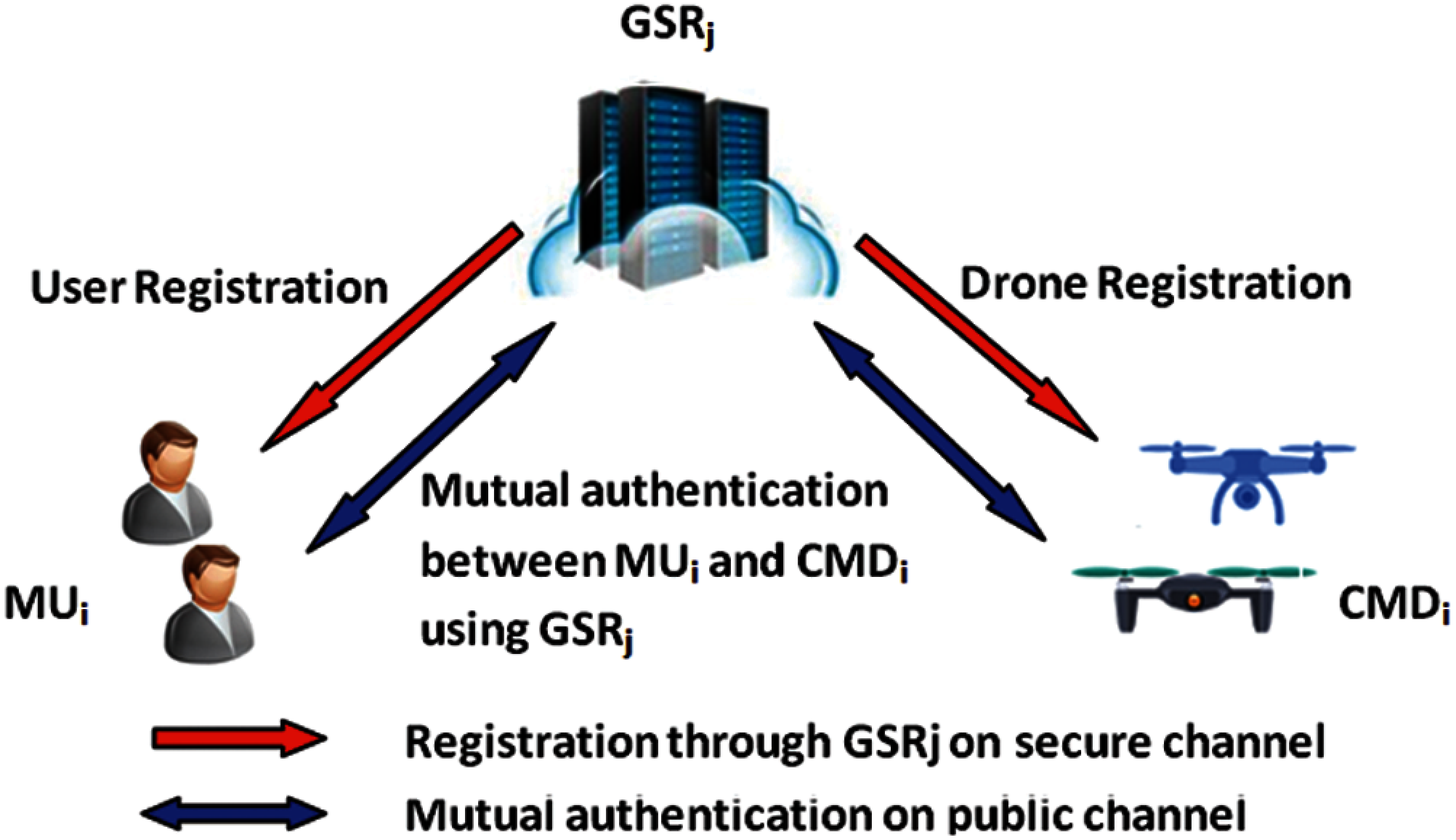

Figure 1: System model

We use the Dolev-Yao (DY) threat model to assume the capabilities of malicious adversaries. Under the DY threat model, adversaryA can intercept, delete, modify, append or replay any eavesdropping messages exchanged on public channels. The adversary can physically capture the deployed drone in any FZi, steal the information stored in its memory and manipulate it to achieve its malicious objectives. It may also attempt to use this information to expose secret network communications by disrupting the data exchanged between the hijacked drone and other un-compromised drones. In addition, the A can also obtain smart card credentials such as identity, password, and biometric secrets by using power differential analysis attacks [21]. For the current solution, compared with the DY model, we assume another powerful threat model, namely the adversary model of Canetti and Krawczyk (also known as the CK-adversary model). Under the CK model, A can physically access the credentials of a single entity by recovering its content and calculating its corresponding session key and its session state.However, a sound agreement must retain the forward and backward secrecy under the CK model in the follow-up actions of the exposed credentials. In addition, assume that GRSj is deployed in a physically protected lock system as a trusted entity in our IoD-based architecture, which is reliably protected from malicious attackers.

4  Proposed Scheme

Our proposed scheme consists of three sub-phases, namely the network establishment phase, the MUi registration phase, the CMDi registration phase and the mutual authentication procedure. Before we proceed, we have listed a summary of the symbols used in Tab. 1.

4.1 Network Setup

In the network setting, entities in the IoD network are initialized with key secret parameters before deployment on site. First, GRSjconstructs its master secret key and auxiliary parameters required in the protocol, as shown in the following.

•   The GRSj selects its 160-bit master secret key KG as well as bit-mask key mk along with a high entropy parameter n.

•   The GRSj selects its identity IDGR and calculates PIDG = h(IDGR || mk).

•   Next, GRSj stores the parameters (KG, mk) secretly and publicizes the vector (h, n, PIDG).

images

4.2 MUi Registration Phase

In the MUi registration phase, the user MUi becomes part of the IoD system through the registration process. GRSj uses confidential channels to perform MUi registration by issuing secret parameters. This stage includes the following steps:

•   The MUi chooses its identity IDu and password PWu, and submits the identity IDu as request message for registration towards GRSj.

•   Upon the receipt of registration message request from MUi, the GRSj calculates PIDu = h(IDu || k), Bi = h(IDu || KG). Then, it stores the factors {IDu, Bi, PIDu} in its repository, and forwards the message {Bi, PIDu, PIDd} to MUi as shown in Fig. 2.

•   The MUi after receiving the message calculates Bi' = h(IDu || PWu) ⊕ Bi, PIDu' = h(IDu || PWu) ⊕ PIDu , and finally stores (Bi’, PIDu’, PIDd) in its memory.

4.3 CMDi Registration Phase

The crowd monitoring drone CMDi registers itself with GRSj and becomes part of the IoD environment. In order to complete the registration, CMDi performs the following steps:

•   The CMDi chooses its identity IDd on random basis, and submits the same towards GRSj to initiate the registration process.

•   The GRSj, then computes PIDd = h(IDd || k) , Bj = h(IDd || KG) and stores the parameters {IDd, Bj, PIDd} in its repository, and forwards the message {Bj, PIDd} to CMDi.

•   The CMDi, ultimately stores the same factors in its memory.

images

Figure 2: Proposed authentication model

4.4 Login and Authentication Phase

The MUi and CMDi participate in this stage to establish a mutual authentication session key at the end of the authentication session so that these entities can safely forward their data. The main steps at this stage can be described as follows:

•   The MUi inputs the identity IDu and password PWu into the mobile phone device. Then, the device calculates PIDu = h(IDu || PWu) ⊕ PIDu’, Bi = h(IDu || PWu) ⊕ Bi’. Next, it selects a random integer a1 ϵ Zn* and a fresh timestamp T1. Next, it further computes R1 = h(PIDG ||T1)⊕PIDu, R2 = h(PIDu || PIDG ||Bi ||T1) ⊕ a1, R3 = h(PIDu || PIDG || Bi|| a1 ||T1) ⊕ PIDd and R4 = h(PIDu || PIDd || PIDG || h(Bi || a1|| T1)). Next, it submits the message {R1, R2, R3, R4, T1} to the GRSj.

•   Upon the receipt of message from MUi, the GRSj verifies the freshness for T1. If it is fresh, it calculates PIDu’ = R1⊕h(PIDG ||T1) and retrieves Bi’ from repository LR, otherwise, rejects the session. Next, it calculates a1' = R2⊕h(PIDu'||PIDG||Bi'||T1), PIDd' = R3⊕h(PIDu'||PIDG||Bi'||a1'||T1), R4' = h(PIDu’ || PIDd'|| PIDG || Bi’ || a1'||T1). Next, GRSj verifies R4’ ? = R4, if it is false, it aborts the session. On the other hand, it calculates R5 = h(PIDG || PIDd’ || Bj’)⊕ a1, R6 = h(PIDd’ || PIDG || Bj’ || a1’) ⊕ PIDu, R7 = h(PIDu'|| PIDd'|| PIDG || Bj’ || a1’). In the last, it submits the message R5, R6, R7 towards CMDi.

•   The CMDi, after getting the message (R5, R6, R7), calculates a1″ = h(PIDG || PIDd || Bj )R5, PIDu ″ = h(PIDd|| PIDG || Bj || a1″)R6 and R7″ = h(PIDu ″|| PIDd || PIDG || Bj || a1″). Next, the CMDi verifies the equality R7″ ? = R7 , it aborts the session if it is not true. On the other hand, it randomly selects a 160-bit integer a2 ϵ Zn* and calculates R8 = h(PIDd || PIDu″ || a1″)a2 , R9 = h(PIDu″ || a1″ || a2), SKdu = h(PIDu″ || PIDd || PIDG|| R9) and R10 = h(PIDu″ || PIDd || PIDG|| a1″ || a2 ||R9). Finally, it submits the message R8, R10 towards MUi.

•   The MUi after getting the message (R8, R10) calculates a2′ = h(PIDd || PIDu|| a1) ⊕ R8, R9′ = h(PIDu || a1 || a2′) and R10′ = h(PIDu || PIDd || PIDG || a1 || a2′ ||R9′). Next, it verifies the equation R10 ? = R10. If it does not hold valid, it terminates the session. On the other hand, it authenticates the CMDi and calculates a mutual session key as SKud = h(PIDu′ || PIDd || PIDG|| R9′).

5  Security Evaluations and Analysis

We here formally prove that our scheme can resist the known attacks under the random oracle model. In addition, we informally stated that our plan is protected from contemporary threats. The following subsections consider both formal and informal security analysis.

5.1 Formal Security Analysis

We describe a model related to formal security analysis, which is described with the help of a game played between malicious A and challenger L. The adversaryA is modeled as a Turing machine, which is simulated to operate in a possible polynomial amount of time (PPT) [22]. The challenger L models each oracle in the system. gx represents the xth instance of the interactive participant g = (MUi, GRSj, CMDi). These oracles allow opponents to randomly issue a series of queries and trigger corresponding responses. The hash-based oracle keeps the hash list LHs. If A would execute hash-based query on message y, the challenger initially verifies the parameter using LHs. Upon the successful verification, the challenger returns the response h(y) to the adversary and stores the vector (y, Y) in the list LHs. This query indicates the ability of an attacker to destroy a legitimate drone and obtain its private key. After the attacker executes the extraction query on the UAV IDu's identity, the query returns the relevant key to the attacker. This oracle represents the capability of adversary for initiating an active attack. Upon submitting m to gx, the attacker may receive the response from gx along with message m. In relation to the new oracle instance gx, the attacker may launch submitting “Send (gx, Start)” towards oracle.

The “Reveal” query models the erroneous use of the session key in the session. Upon the execution of Reveal query, in case the instance is effectively created, the challenger would return the session key SK for the instance gx. On the other hand, it will return . Using the Execute query (Execute (MUi, CMDi)), the adversary may eavesdrop all communication messages exchanged previously on insecure channel.

After the use of Test query (Test (gx)), the attacker may distinguish among original session key and the randomly selected key. The adversary may execute this query just one time. The challenger selects a bit b ϵ (0, 1) at random and would return valid session key to adversary in case b = 1. On the other hand, it would return randomly selected secret key of the same size (i.e., b = 0). Alternatively, in case the queried oracle does not about the session key, challenger would return to adversary.

The adversary may employ the above mentioned queries, i.e., Send, Reveal, Extract after initiating the Test query [23]. Here, one disadvantage to A is that it may not launch the Reveal query either for oracle or the pattern oracle which employed the Test query for its execution. Finally, the adversary returns the output Φ’ after making its guess Φ. Here we can remark that the adversary could auspiciously win this game as a result of breaking the authenticated key agreement (AKE) of contributed protocol Σ in case Φ’ becomes equal to Φ. The benefit of A may be described as advΣAKE(A) = |2Pr [Φ’ = Φ]1|.

Definition 1 (AKE-secure): When there is a negligible polynomial probability, the adversary may auspiciously win that game with a non-negligible benefit advΣAKE(A), and we may infer that the contributed protocol Σ is AKE-secure.

The adversary may positively compromise the mutual authenticity of the contributed protocol Σ, in case the adversary could forge the legitimate authentication message, i.e., either authentication request or corresponding response. Suppose EMU-GRS represents the event that the adversary forges the MUi and constructs the login request acknowledged by GRSj. Also EMU-CMD characterizes the event that A masquerades the CMDi and produces the response which is acknowledged by MUi. The benefit of the adversary for being successful in this game can be described as advΣME(A) = Pr[EMU-GRS] + Pr[EMU-CMD].

Definition 2 (ME-secure): In case there exists no probability for any polynomial time attacker such that one may auspiciously win the game with considerable benefit advΣME(A), we term the proposed protocol Σ as ME-Secure.

5.2 Proof

We acknowledge that there lies no adversary A that may impersonate as a legitimate authentication and response message with non-negligible chance. This certifies that the contributed protocol is AKE-secure and ME-secure regarding the provable security strength.

Lemma1: We assume that a polynomial time attacker A may compute a legitimate authentication request and response message with non-negligible chance. Thus, there lies a challenger C who may estimate a 160-bit randomly defined integer with success having non-negligible probability.

Proof: The challenger chooses a 160-bit randomly generated integer q, and submits the factors {h, n} towards the adversary. The challenger produces a new hash-list LHs, which is blank on initial basis, and is meant for recording the query inputs as well as outputs for hash-based oracles. Then, it chooses two random drone identities, such as IDU and IDD to proceed. We assume that the rest of the oracles may be queried once the hash-based oracles perform their function. The queries’ responses are illustrated as under:

h(yi): The challenger initially verifies the occurrence of yi in the LHs list. If it exists in the list, the challenger would return Yi to attacker. Otherwise, it selects a random integer Yi, inserts (yi, Yi) in the LHs list and returns the same Yi to attacker.

Extract (IDU): In case u  U, D, the challenger searches for the tuple (IDu || KG, Bi) in LHs list, and would return Bi to the A. On the other hand, the challenger aborts the oracle query and terminates the game. Send (gx, m): The attacker may use the Send query for modeling this active threat in four ways:

Send (gxStart): The challenger searches for the hashing list LHs to find the secret key Bi for MUi by checking the inequality for u U in the list. Using the secret key Bi, the challenger selects a randomly defined integer n1ϵZn*, the fresh timestamp T1, and calculates (R1, R2, R3, R4, T1). However if the equality does not hold, the challenger chooses three random integers V1, V2, V3 ϵ Zn* and would set R1V1, R2V2, R3R3. It then calculates V1 = h(PIDG ||T1)PIDU and returns the (R1, R2, R3, R4) to the attacker.

Send (CMDik, (R5, R6, R7)): The challenger upon the receipt of message, verifies the inequality for d  D. If the equality holds, the challenger discards the message and chooses randomly two integers V2, V3 ϵZn* and will set R8V4, R10V5, R3V3. On the other hand, the challenger searches for the hash list LHs to find the secret key Bj for CMDi and proceeds with the normal execution of the protocol.

Send (MUit, (R8, R10)): The challenger now confirms the equality for d  D. If it is valid, then searches for CMDi's secret Bj in the hash-list LHs. It generates randomly an integer n2ϵ Zn* and computes (R8, R10) using Bj. If the inequality does not hold, it chooses three integers on random basis as V4, V5, V6 ϵ Zn*, and would set n2 V4, R8V5, R10V6 and returns the tuple (R8, R10) to MUi.

Reveal (gt)): In case the instance gt is accepted, the challenger would return the valid session key as SKud, otherwise it will return . We assume that an attacker may compute valid login message request or response with success, or alternatively it may compute the responses (R1, R2, R3, R4) to Send (MUit, Start) oracle query having u = U and (R8, R10) to Send (CMDik, (R5, R6, R7)) oracle query with d=D are verified by the GRSj and MUi entities. For computing the advantage for the challenger, we define the under-mentioned events as: Ev1: The modeling is not terminated. Ev2: The attacker sends the computed login request (R1, R2, R3, R4) by employing Send (MUit, Start) or some valid response message (R8, R10) using Send (CMDik, (R5, R6, R7)), however the queries Extract(IDU) and Extract(IDD) were never employed. Ev3: MUi=MUU or CMDi=CMDD. Ev4: The challenger may select any of the valid records from hash-list LHs.

We assume qsd, qLR and qLHs represent the number of Send, LR and LHs queries executed by the adversary.

Pr[Ev1]1qsd(1)

Pr[Ev2|Ev1]ϵ(2)

Pr[Ev4|Ev3Ev2Ev1]1qLR1qLR1+aqLHsbqLHsa

where a represents the valid record index in Send (MUit,Start) oracle, while b characterizes the frequency of Send (MUit, (R8, R10)) queries. Thus, the challenger would guess 160-bit random integer auspiciously with non-negligible prospect as shown in Eqs. (1) and (2).

Pr[Ev1Ev2Ev3Ev4]=Pr[Ev4|Ev3Ev2Ev1]Pr[Ev3|Ev2Ev1]Pr[Ev2|Ev1]=1qsd1qLR(1qLR1qLR1+aqLHsbqLHsa)ϵ(3)

Nonetheless, this shows the contradiction regarding the hardness for guessing 160-bit random integer as shown in Eq. (3). Alternatively, the attacker may not construct a legitimate login request or response message, so the drones in the protocol may verify the authenticity of one another.

Theorem 1. The proposed protocol is ME-Secure for rigid guessing of 160-bit random integer.

According to Lemma1, no adversary may construct a legitimate login request or response message for guessing the high entropy 160-bit random integer. Thus, the contributed protocol is ME-Secure.

Theorem 2. The proposed protocol is AKE-Secure for rigid guessing of 160-bit random integer.

Proof. We assume that the probabilistic polynomial-time attacker produces the valid b'=b with non-negligible chance ϵ upon the execution of Test oracle query. Consequently the challenger may deduce 160-bit randomly defined integer with success having non-negligible prospect. For calculating the advantage of challenger, the understated events are described here:

•   ESKi: The adversary may get the legitimate session key upon the execution of Test query.

•   EMU: The adversary runs the Test query for the instance CMDi auspiciously.

•   ECMD: The adversary runs the Test query with success for the instance CMDD.

EMUi-GRSj-CMDi: The adversary may disrupt the authentication session between MUi and GRSj, as well as between MUi and CMDi. It is known that the attacker may guess the valid b with the missing information of b as 12. Hence we have the equation Pr[ESKi] ϵ/2

Pr[ESKi]=Pr[ESKiECMDi]+Pr[ESKiECMDiEMUiGRSjCMDi]+Pr[ESKiECMDi¬EMUiGRSjCMDi]Pr[ESKiEMUi]+Pr[EMUiGRSjCMDi]+Pr[ESKiECMDiEMUiGRSjCMDi](4)

Hence

Pr[ESKiEMUi]+Pr[ESKiECMDi¬EMUiGRSjCMDi]Pr[ESki]Pr[EMUiGRSjCMDi]Pr[EMUiGSRiCMDi]ε/2Pr[EMUiGSRiCMDi](5)

In relation to Pr[ECMDiEMUi-GRSj-CMDi] = Pr[ECMDi]

We have Pr[ESKi ECMDi] ϵ4Pr[EMUiGRSjCMDi]2

The events ESKi ECMDi depicts that the adversary forges MUi and receives the valid session key with success. In accordance with the Lemma 1, EMUi-GRSj-CMDi has quite insignificant probability, hence the probability ϵ4Pr[EMUiGRSjCMDi]2 is not negligible as shown in Eqs. (4) and (5). This suggests that the probability the adversary may compromise the legitimate session key is not negligible which contradicts the hardness assumption for guessing 160-bit random integer.

5.3 Informal Security Analysis

5.3.1 Mutual Authentication

The proposed scheme provides mutual authenticity to both participants by devising a unique and mutual agreed session key between them. We know that the benefit that adversary may take by launching the login as well as an authentication request and response message is quite negligible due to illustrated lemma1 in above section [24]. Hence, the MUi and CMDi could mutually authenticate one another with the assistance of GRSj. Hence, the proposed approach supports mutual authentication.

5.3.2 Anonymity

In the contributed protocol the MUi does not send its identity plainly on pubic channel, rather it is masked in the form of PIDu = h(IDu || k). Furthermore, PIDu is integrated in the message R1=h(PIDG ||T1) ⊕PIDu during mutual authentication process. It is hard problem in polynomial terms to recover the 160-bit random integer on account of guessing the values [25], so it is not feasible to calculate the legitimate identity of mobile drone CMDi without compromising the high entropy factor k. Thus our scheme affirms anonymity to the participants in protocol.

5.3.3 Un-traceability

We employ random integers a1 and a2 along with fresh timestamps in different sessions which enable the constructed messages (R1, R2, R3, R4) in a session to be unique each time these are generated [26,27]. The attacker may not be able to distinguish the exchanged messages among for MUi and CMDi across various sessions. Furthermore, the legal identifies such as IDu or PIDu are used in collision-resistant one hash function which enables the protocol in affording the untraceability feature.

5.3.4 Protected Session Key

In the proposed scheme, the MUi confirms the authenticity of CMDi through validating R10, which ensures that both of these entities are having the legitimate randomly generated factors, a1 and a2. In this manner both entities construct a secure session key SK = SKud = SKdu = h(PIDu || PIDd || PIDG|| R9) to interact in the future. Hence our scheme supports secure key agreement between the members.

5.3.5 Impersonation Threat

In case the adversary is able to capture the legal drone physically, it may access all of the stored information in its memory including pseudonym identities for CMDi [28,29]. Then if the adversary attempts to forge the legal MUi, it would construct the legal messages (R1, R4) and submit towards GRSj. Now the adversary may compute the correct R1 = h(PIDG ||T1) ⊕PIDu and R4 = h(PIDu || PIDd || PIDG || h(Bi || a1|| T1)), while a1 and Bi depict the random integers as chosen by the adversary for random number and the protected key, respectively. After the receipt of (R1, R4), the GRSj initially would parse from R1 and recover the related secret as Bi in the list LHs. Thereafter, the GRSj calculates the parameter R4 along with another factor Bi and verifies the equation validity as R1’ = R1. Therefore, the attacker does not expose the valid parameter Bi, and make the GRSj distinguish the MUu from legal user.

5.3.6 Server Masquerading Attack

The attacker may impersonate himself as GRSj and submits the message R7 towards the CMDi. Then the attacker calculates R7 = h(PIDu′|| PIDd′|| PIDG || Bj′ || a1′), where Bj acts as a random integer chosen as CMDi's private key by the adversary. After the receipt of R7, the CMDi constructs R4 along with Bj and also checks the equality for R7’ ? = R7. Nonetheless, the adversary may not access the Bj parameter or the CMDi accesses the malicious server. Thus, our scheme is resistant to the spoofing attack.

5.3.7 CMDi Capture Threat

The drones are vulnerable in the hands of adversaries, and could be physically compromised at any time. We assume that the adversary captures e number of drones and access the stored contents including Bj = h(IDd || KG), PIDd  = h(IDd || k), and SKud = h(PIDu|| PIDd || PIDG|| R9′) where j = (1 j e) [30]. The master secret KG and other masking key k are also used to mask the crucial factors in collision resistant hash function. Despite the access of information in the compromised several drones e, the adversary might not be able to access the KG and k. At the same time, the session key SKud = h(PIDu|| PIDd || PIDG|| R9′) is composed of random integers and pseudonyms, the attacker may not calculate the subsequent session keys if it is not able to access the random integers. Consequently, our proposed model is immune to all physical drone capture threats.

5.3.8 Stolen MUi's Smart Device Threat

In case the adversary is able to approach the MUi's smart device and recover its contents (Bi′, PIDu′, PIDd) using differential analysis, where Bi′ = h(IDu || PWu) ⊕ Bi and PIDu′ = h(IDu || PWu) ⊕PIDu. The attacker may guess the password from Bi only if it can test its accuracy, however without the MUi's identity it cannot verify it. Thus, our scheme is resistant to the stolen device threat.

5.3.9 Replay Attack

The participants MUi and GRSj select random numbers and compute the login request message and response message as R4 and R10, respectively. Since the random nonces are fresh, the participants GRSj, CMDi and MUi might discern the legitimate requests from the replayed messages through verification checks. Hence, our scheme is immune to this replay attack threat.

5.3.10 Known Session Key Attack

If an attacker becomes familiar about the current session key of any session in our scheme, it may not compute the previous session keys employing the current session key [31]. This is because the attacker needs to approach crucial pseudonym parameters besides the random nonces to construct the legal session key, however these parameters are protected under collision resistant one way hash function and cannot be compromised in polynomial amount of time.

6  Performance Evaluations

This section evaluates the performance of contributed protocol against the comparative studies including Wazid et al., Singh et al., Challa et al., and Turkanovic et al. on the basis of computational and communicational costs. The execution latency for the crypto-primitives employed by the comparative schemes [17,18,20,22] is depicted as Tfe to execute fuzzy extractor operation, Th to execute one-way hash operation, Tex to execute modular exponentiation operation, Tm to execute modular multiplication operation, Tecm to execute (Elliptic Curve Cryptography) ECC-based point multiplication [31]. These crypto-primitive operations have been implemented for mobile user device as client and desktop computer as server. The mobile drones or user devices are equipped with biochemical detectors, infrared, microphone and camera-based sensors. We calculate the cost of computations with the help of MIRACL library [23] and Android-enabled MUi/CMDi client (Lenovo Zuk Z1 having 2.5Ghz Quad-core microprocessor, Android V5.1.2 OS, and 4GB RAM). To simulate the GRSj environment we used desktop computer (HP E8300 Core i5 2.96Ghz, Ubuntu 16.12 OS and 8GB RAM). The experiments were conducted on the discussed client and server hardware platform that provides varying execution costs for various primitives. We select a multiplicative cyclic group G with order n having 160-bit prime integer.

This group G helps to achieve the 1024-bit RSA level of security. Using the above simulation, the execution timing of various crypto-primitives such as TfeTecm, Th, Tex, Tm and Tecm is computed as 16.403, 0.078, 3.943, 0.012 and 0.012 ms for MUi/CMDi, and 6.276, 0.013, 0.438, 0.003 and 0.003 ms, respectively. In [17], the mobile user takes 1Tfe+16Th computational cost with 17.6 ms of execution latency. The CMDi takes seven Th operations and GRSj incurs eight Th operations with computational cost 0.54 ms and 0.104 ms respectively. In [22], the GRSj does not participate in the mutual authentication process. Therefore, in this phase the MUi and CMDi require 2Tex+5Tm and 2Tex+7Tm, i.e., 7.946 ms and 7.97 ms of computational cost, respectively. In [20], the MUi and CMDi entities bear 98.8 ms and 65.8 ms computational cost with given primitives 1Tfe+5Tecm+5Th and 3Th+4Tecm respectively. On the server's end, it bears 31.43 ms of computational latency with 4Th+5Tecm computations [18] bears 0.54 ms latency for both MUi and CMDi with 7 hash operations (7Th) each, while on the GRSj's end it incurs 19 hash operations with 1.482 ms computational latency. The proposed scheme employs 10Th, 7Th, 7Th operations with 0.78 ms, 0.54 ms, and 0.54 ms of computational costs for MUi, CMDi and GRSj, respectively. Tab. 2 describes the computational costs of [17,18,20,22] that are compared with the proposed schemes. For being lightweight symmetric crypto-operation, the hash function h(.) with Th is suitable for crowd sensing drone-based ecosystem to save the energy of mobile devices and ultimately improve their uptime.

In order to compare communication costs, we assume that |G| characterize 1024-bit element size, while |Zn| represents the 160-bit of each element in Zn. Similarly, the |ID| depict the 32-bit size of timestamp as well as MUi's identity. We make the functionality comparison of our scheme against Wazid, Singh, Challa and Turkanovic et al. schemes in Tab. 4. The incurred communication cost of protocols [17,18,20,22] is compared against the proposed scheme as shown in Tab. 3. The Wazid et al. [17] bears the communication cost of 1696-bits which is calculated as 10|Zn| + 3|ID| having 10 Zn operations and 3 ID operations. Similarly, the [22,20,18] bear 4256-bits, 2528-bits, 2720-bits against 4|G| + 4|ID|, 10|Zn| + 3|ID| and 10|Zn| + 3|ID| crypto-operations, respectively. In comparison with other schemes, the proposed scheme has remarkably less communication cost of 1472-bits against 9|Zn| + |ID| operations.

images

images

images

We now discuss the simulation details of the proposed model based on NS2 and the simulation details of the comparison schemes in [17,18,20,22]. We performed the simulation by using Ubuntu 14.04 long-term support (LTS platform) on the NS2 2.35 simulator [27]. We discussed the simulation parameters in Tab. 5. The total time taken by simulation is set as 2400 s (40 min). The entities CMDi, MUi, and Sj symbolize for ith drone, ith mobile user device, and jth IoT sensor in the compared schemes. We consider the various mobility parameters as 20, 30 and 40 mps for CMDi, MUi and Sj. We also assume a fixed server gateway across all of these schemes. The communication messages as exchanged among these participants are shown in Tab. 3. In the simulated experiment, three network performance-based benchmarks are evaluated, i.e., packet loss rate (number of packets), EED (sec) and throughput (bps). We now discuss the impact on these factors in the experiment in the following.

images

6.1 Throughput

We calculate the throughput based on the number of bits transmitted per unit of time i.e., (rp× |ps|)/Ts, where Ts represents the total amount of time in seconds, |ps| shows the size of the packet, and rp represents the received The total number of packets. The total simulation time is 2400 s. Fig. 3 shows that the throughput of contribution models [17,22,20,18] are 297.21, 225.34, 216.53, 284.76 and 267.12 bps, respectively. Obviously, the throughput of our model is higher than other protocols. This ensures that the proposed solution generates less communication cost for the small-sized communication messages exchanged during the protocol.

images

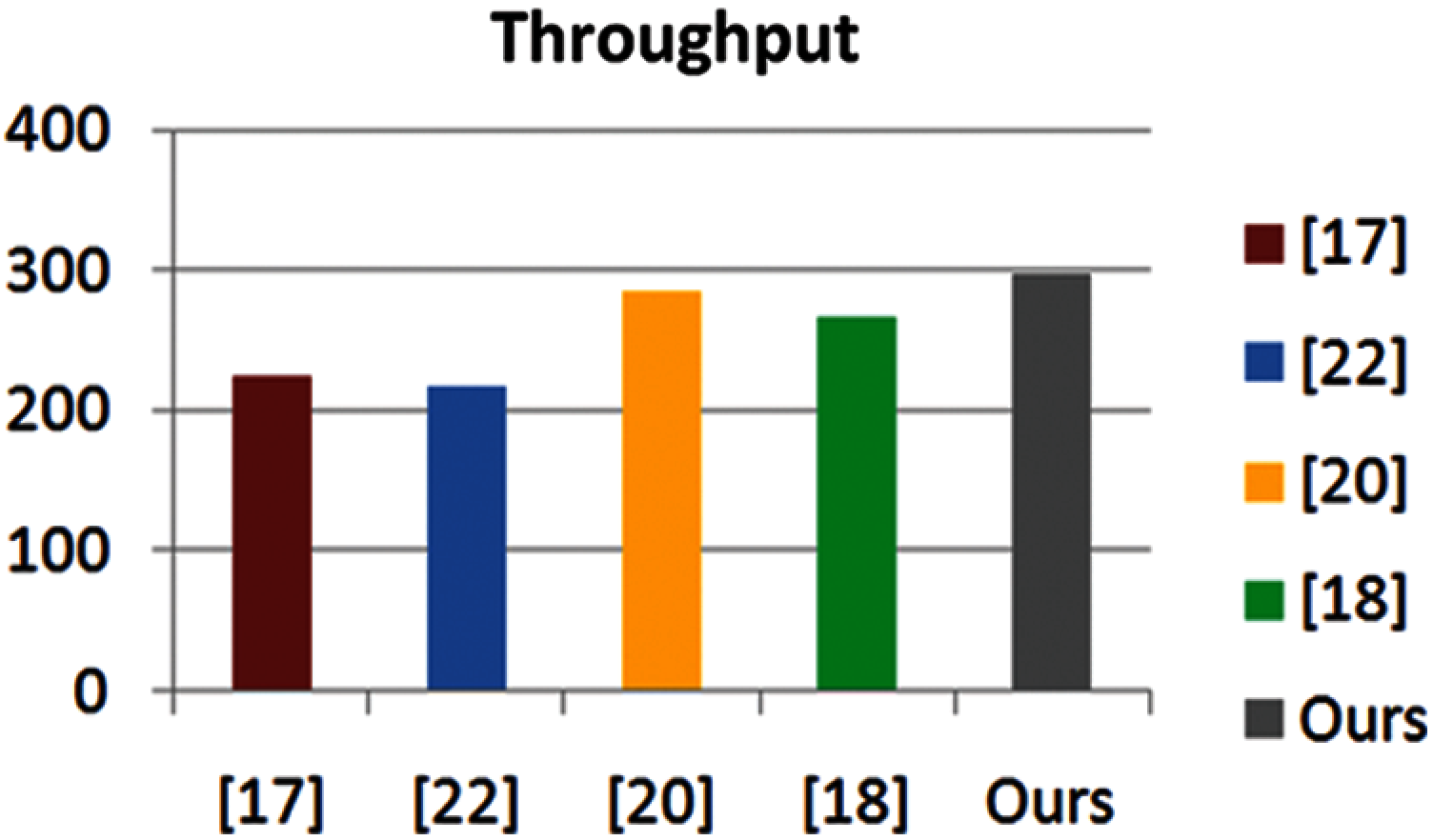

Figure 3: Throughput

6.2 End-to-End Delay (EED)

The EED shows the average time of packets to get to the sink or destination. This factor may be represented in numeric terms as j=1npkt(TrTs)/npkt, where Tr and Ts show the receiving and forwarding time of the exchanged packet, and npkt shows the number of packets to the destination. According to the Fig. 4, the EED values for [17,22,20,18] and proposed scheme are 0.041, 0.105, 0.29152, 0.04621, 0.033 sec, respectively. It is obvious that the EED factor of the contributed model is considerably less than the compared schemes and this attributes to the small size of the authentication messages.

images

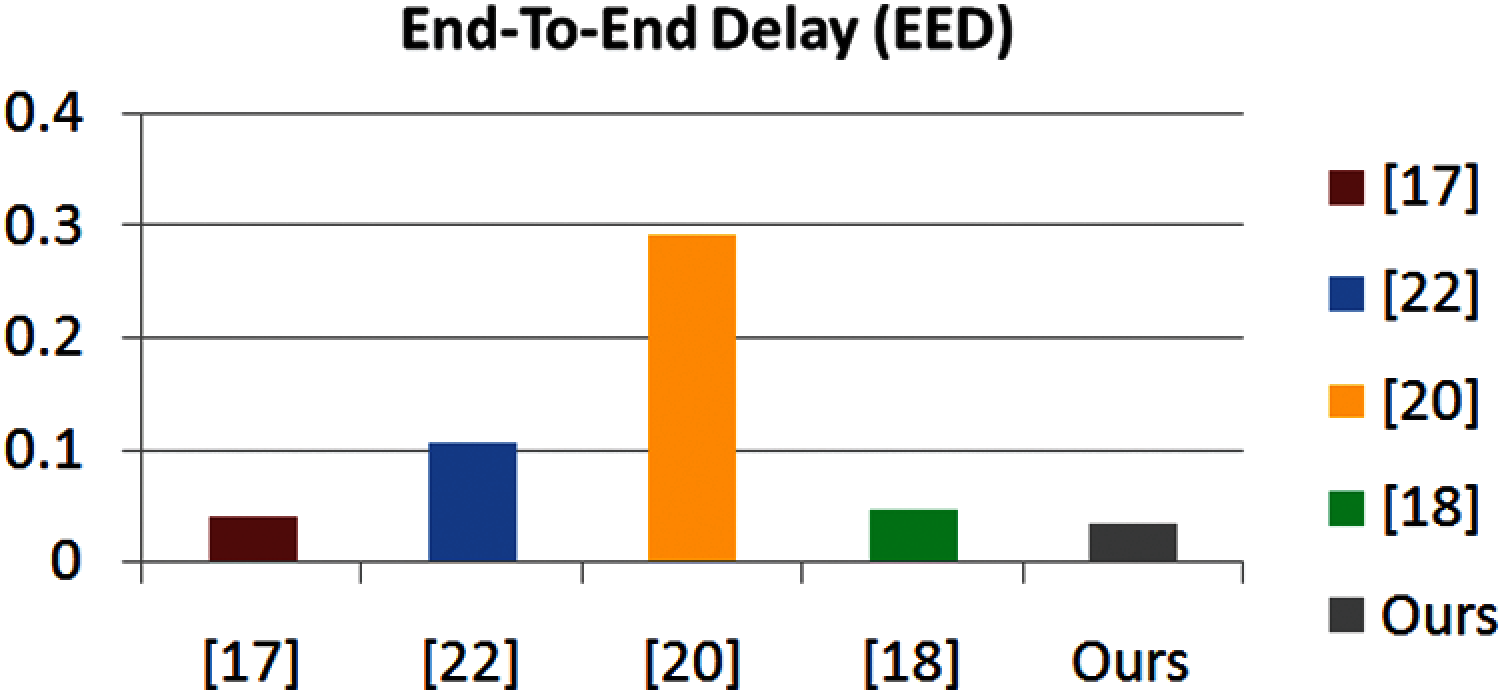

Figure 4: End-to-end delay

6.3 Packet Loss Rate (PLR)

The PLR factor describes the number of lost data packets per unit time and can be expressed as (nip/Td), where Td represents the total time in seconds, and nip represents the number of lost data packets. This factor must be as small as possible to make network-based communication more reliable. Fig. 5 shows the packet loss rate of different scenarios considering the comparison scheme and the contribution model. Obviously, the contribution model has a lower PLR compared with other schemes.

images

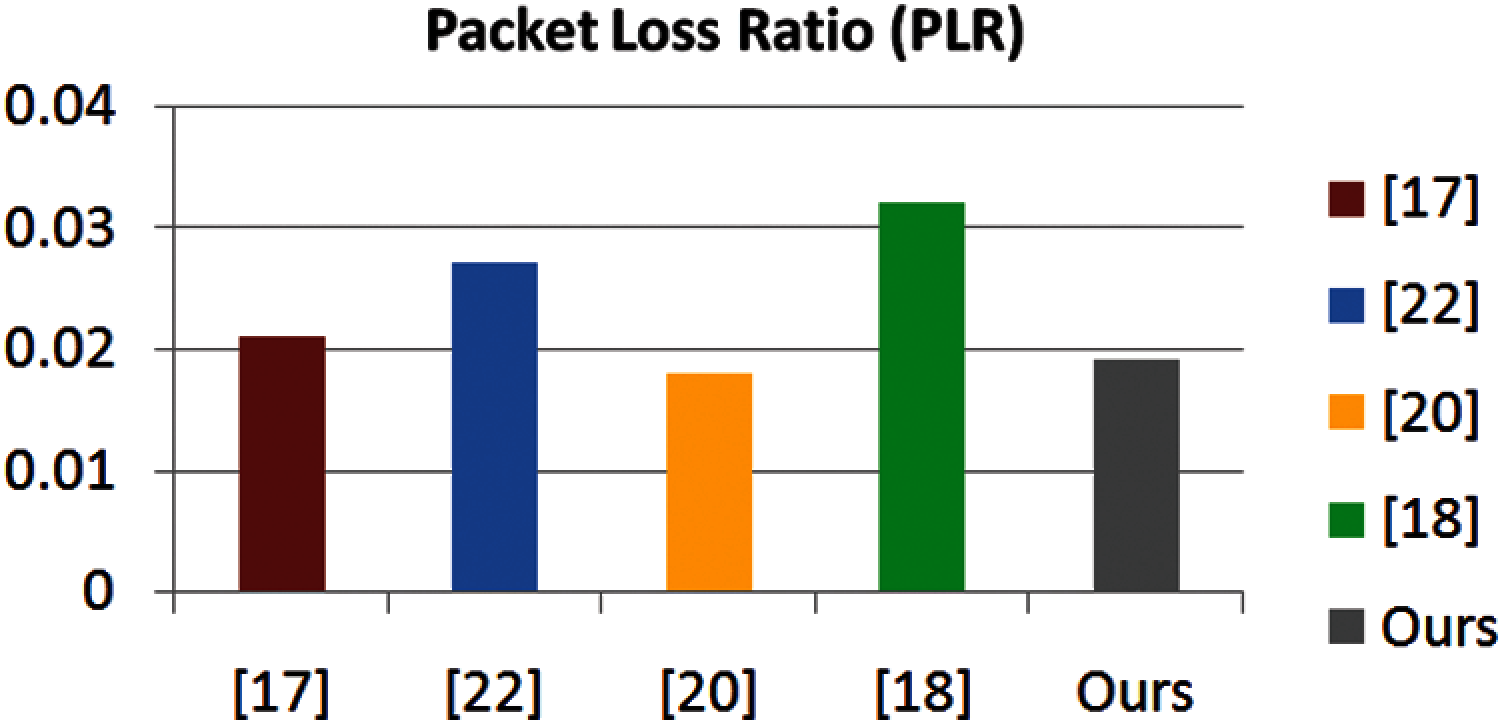

Figure 5: Packet loss ratio

7  Conclusions

The security and privacy requirements for reliable distribution of aerial monitoring and surveillance-based services have received increasing attention due to the vulnerability of the drone terrain. If the underlying authentication key agreement between the participating entities is not secure, the attacker may launch various attacks to disrupt the communication. In order to solve the security and privacy issues in such networks, we demonstrated a new identity verification protocol based on crowd monitoring drones, which enables participants to establish an agreed session key between them, and secure communication afterwards. Formal analysis under the Random Oracle Model (ROM) proved the proposed scheme. In addition, we used NS2 simulation to compare the proposed scheme with the existing scheme. Our analysis proves that the proposed scheme outperforms other schemes in terms of throughput, end-to-end delay and packet loss rate. Performance evaluation and benchmark factors show that the proposed scheme is secure compared with other contemporary studies in the same field. In the future, we can explore the prospect of using distributed systems based on blockchain to protect air surveillance.
