|Computers, Materials & Continua |
Enhancing Cloud Performance Using File Format Classifications
1Department of Computing, Iqra University, Islamabad, Pakistan
2Department of Computer Science and Artificial Intelligence, College of Computer Science and Engineering, University of Jeddah, Jeddah, Saudi Arabia
3Department of Information Technology, The University of Haripur
4Department of Computing, COMSATS University, Abbottabad Campus, Pakistan
*Corresponding Author: Muhammad Junaid. Email: email@example.com
Received: 03 May 2021; Accepted: 15 June 2021
Abstract: Metaheuristic approaches in cloud computing have shown significant results due to their multi-objective advantages. These approaches are now considering hybrid metaheuristics combining the relative optimized benefits of two or more algorithms resulting in the least tradeoffs among several factors. The critical factors such as execution time, throughput time, response time, energy consumption, SLA violations, communication overhead, makespan, and migration time need careful attention while designing such dynamic algorithms. To improve such factors, an optimized multi-objective hybrid algorithm is being proposed that combines the relative advantages of Cat Swarm Optimization (CSO) with machine learning classifiers such as Support Vector Machine (SVM). The adopted approach is based on SVM one to many classification models of machine learning that performs the classifications of various data format types in the cloud with best accuracy. In CSO, grouping phase is used to divide the data files as audio, video, image, and text which is further extended by polynomial Kernel function based on various input features and used for optimized load balancing. Overall, proposed approach works well and achieved performance efficiency in evaluated QoS metrics such as average energy consumption by 12%, migration time by 9%, and optimization time by 10%, in the presence of competitor baselines.
Keywords: Classification; load balancing; optimization; cloud computing
A massive increase in the volume of data over the years has made the extraction of appropriate features quite difficult. Further, the variety of data in this huge volume is adding computation complexities and requires powerful resources for processing. Cloud computing has gained popularity in handling such massive data and providing an opportunity to the end-users to access data as per their requirements. Both end-users and cloud service providers (CSP) are using the capabilities of the cloud on an agreed pricing model. A large number of custom driven applications are being developed by the companies in the cloud that emphasis on the integration of their products through the concept of cloud interoperability . The effect of the same has shown huge growth in public cloud computing markets with more than 20% rise during the last five years and is expected to grow further . This growth not only requires a high level of infrastructure resources but also requires approaches facilitating the use of resources from the customers’ point of view. From a vendor’s point of view, various services such as fault tolerance and virtualization need to be optimized, whereas, from the customer’s point of view, the efficient management practices such as proper resource selection options, legal obligations, and uninterrupted service delivery are of much concern . In addition, the relation between environmental impact and numerous factors like energy consumption, cost, throughput, execution, and overhead, demands optimal resource utilization for load balancing in clouds . Similarly, different cloud service models such as SaaS, PaaS and IaaS provides greater flexibility in the current as well in the future setups of the cloud in implementing the afore mentioned QoS metrics .
Recently, cloud computing has been expanded to new research areas such as fog computing, trust in cloud computing and serverless computing in which a number of challenges are faced. Few of the challenges concern are auto-scaling of web applications for determining the incoming workload and security of the cloud computing applications well addressed by the PVI (Private Virtual Infrastructure), [6,7]. Other challenges are load balancing, overhead, resource management, reliability, scalability, and optimization. Most metaheuristic approaches cover only one or more parameters of optimization but neglect several crucial variables that play a key role in achieving multi-objective optimization . Moreover, the above-mentioned challenges can be further minimized by the introduction of hybrid metaheuristic techniques solving complex optimization problems in more efficient manner [9–12]. These hybrid metaheuristic techniques combine the relative advantages of two or more approaches without compromising the efficiency of the system [13–16]. Load balancing in the cloud is one of the critical areas that face certain optimization challenges and recent studies have shown that the hybrid metaheuristics approaches are providing optimal solutions . There are a limited number of studies in the literature for multi-objective metaheuristic load balancing approaches. Therefore, there is still a need for multi-objective based optimal solutions for load balancing considering different conflicting objectives.
Recently, machine learning models have made a huge impact in achieving performance efficiency in dynamic load balancing in the cloud . These machine learning models are being integrated with load balancing algorithms resulting in hybrid techniques [19,20]. Classification is one of the important concepts of supervised machine learning which further divides into SVM , Discriminant Analysis , Naïve Bayes (NB) , K-Nearest Neighbor (K-NN) , and Neural Networks (NN) . The SVM-based algorithms can manage multiple instances, both categorical and continuous forms. SVM signifies the data set components or data, each having ‘n’ number of characteristics in an n-dimensional space separated by a margin known as a hyper-plane. Data files are then separated into an n-dimensional space to get the observation of the classification to which they pertain depending on the edge of the hyperplane. The principal components of such algorithms are the assignment, system structure, fitness function, search process, and data analysis. Based on the same components, this research is focusing on the development of new hybrid metaheuristic algorithm named as CFLB (Cat Flow Load Balancing) that employs Support Vector Machine-a classifier, using Cat Swarm Optimization-a scheduling algorithm. Multi-objective QoS metrics such as energy consumption, migration time, and optimization time are considered as performance measurement indicators by the proposed CFLB algorithm.
Classification of multiple file formats in the cloud can achieve maximum accuracy because of accurate data class assignments. This accuracy needs to be verified through validation functions and confusion matrix so that the authenticity of the developed approach is established. One of the types of file format classification is an audio classification that retrieves audio files immediately and makes content classification. It is the method of extracting the best features from audio datasets . The audio classification exists in various forms such as noise, speech, silence, and music, etc. Similarly, deep learning algorithms such as Convolutional Neural Network (CNN) are being used for audio classification . In addition, for extraction and archiving, video datasets require proper categorization and automated classification. This helps to explain the semantic void and the difficulty of computation. Integrated metaheuristic algorithms are used to achieve greater precision in video detection using multiple classifiers, such as ACO, ABC, PSO, etc. [28–30]. A big rise in text documentation has been found to make the extraction process very complicated. Text clustering is used to categorize text documents for text mining, but it is not possible to choose a text element. . Similarly, text classification and text retrieval are used for feature selection in the text files. The metaheuristic algorithms and classifiers such as GA, HS, PSO, NN, and SVM are widely used for text classifications in high dimension space providing high accuracies [32–34]. The same algorithms can also be used in the cloud computing environment for load balancing in high dimension text classification datasets . The classification of images requires the filtering of subsets of image features from broad feature spaces. The identification of optimal features in image classification is a dynamic method that is solved by multiple hybrid metaheuristic techniques such as CSO, GA, ACO, PSO, with SVM, NN, K-NN [36–39]. There are huge image datasets with extensive features and dimensions that are computation intensive. In image classification, feature selection is a common process in which relevant features are extracted from the given datasets and rest of the features are eliminated. This helps in achieving more accuracy in getting requisite features in less computation time. The same classification approach can easily be used in cloud computing for image related datasets.
SVM provides better accuracy in many applications [40–42]. It is a simple classifier that involves only two classes as compared to other classifiers with a large number of classes. The complexity of SVM is measured using a number of dimensions providing unique solutions. Even with high dimensions, SVM performed better due to its good generalization property. In this analysis, SVM is implemented to create the data class over a range of file formats such as audio, video, text, and images in the cloud environment using one-to-many classifications. Previous approaches to data formats such as AWS and PostgreSQL rely only on grouping of data types but not on types of file formats . However, the proposed approach is new using only file format types for classification in the cloud environment and then using the resultant data class into load balancing algorithm CSO for scheduling.
When applied to load balancing, this processed type of data can vastly boost scheduling using QoS parameters such as execution time, throughput time, and optimization time, etc. [44,45]. Similarly, various file formats are mapped into an acceptable class in the suggested solution that has achieved minimal computational complexity during processing. CSO is a metaheuristic scheduling algorithm based on the behavior of Cats proposed by . Over the years, the number of CSO variants has been proposed in different applications . This research is also using improved CSO keeping in view its simple implementation and faster convergence speed that attains better accuracy and global optimum in a smaller number of iterations. This helps in reducing the complexity involved and producing competitive results as compared to other metaheuristics. In this study, the grouping phase is introduced that divides the various file formats into four groups such as audio, video, image, and text. This helps in achieving an overall reduced time complexity and better performance in the presence of other baselines. The baselines used in this research consist of Min–Min , CGSA , FSALB , PLBA , AFA  and HCA . Min–Min is meant to decrease the makespan time, but it fails to produce load balancing schedules in tasks. It is usually used in small scale datasets but failed to produce scalability with huge and complex tasks. CSGA provides multi objective solution such as energy, profit and cost for various tasks in the cloud on small number of iterations and tasks but experimentation lacks huge number of tasks execution. FSALB primarily concentrated on reducing contact delays faced by users of machine learning and hence increased response time but lacking a multi-objective perspective. PLBA uses task migration approach to minimize the makespan time but did not consider number of important QoS parameters. AFA considers only single objective execution time with the help of firefly algorithm with minimum number of tasks leaving number of considerations. HCA focuses on degree of imbalance and completion time with lower makespan time in limited environment but leaves migration time, execution time and other important parameters. The suggested CFLB algorithm, however, not only addresses their shortcomings, but also strengthens them and adopts a multi-objective strategy.
The key aim of this analysis is to introduce a new hybrid metaheuristic algorithm in a cloud that efficiently performs classification and load balancing. In comparison, this paper’s contributions include:
• File format classification is proposed using SVM classification in the cloud environment to group the datafiles in respective classes.
• New multi-objective hybrid algorithm CFLB achieves highest classification accuracy in the cloud and further integrates with improved CSO for load balancing.
• CFLB has provided strong convergence and better results in the presence of a certain state of the art baselines and in terms of developed multi-objective QoS metrics.
The rest of this research is organized as: a literature review is presented in Section 2, the proposed methodology is discussed in Section 3, the experimental setup is described in Section 4, results and discussion are discussed in Section 5 and conclusions are presented in Section 6.
2 Literature Review
The algorithms for load balancing are categorized as dynamic, static, or hybrid, and rely on the state of the system. Based on the characteristics used in load balancing, they are often recognized as allocation and scheduling algorithms. In addition, based on their mix, they are listed as VM-load balancing, CPU-based load balancing, task-based load balancing, server-based load balancing, network-based load balancing and normal cloud load balancing. Much of the analysisdid not consider substantial and important QoS metrics. In addition, some important QoS metrics, such as migration length, migration costs, breach of service efficiency, mission failure rate, and balance level, are not addressed. It has been found that algorithm complexity is not granted much attention when maximizing the performance of load balancing. The research also concluded that many problems remain a major problem in load balancing that can be solved in the long term by introducing a suitable, reliable, and robust algorithm for load balancing.
The studies [54–56] are suggesting several taxonomic classifications of load balancing algorithms that invite future researchers to adequately address load unbalancing issues. The load balancing algorithm must enhance responsiveness, cost of deployment, time of implementation, throughput, vulnerability to faults, length of migration, makepan, resource throughput, and usability. The drop in these dimensions leads to low Quality of Services (QoS) at Cloud Service Centers (CSC) and a diminished CSP economy. Few of these problems are addressed in the following sections that mostly revolve around our established QoS metrics.
2.1 Approaches Used in Load Balancing
Strumberger et al.  suggested metaheuristic hybrid algorithm called WOA-AEFS in cloud storage in which they addressed the resource scheduling problem. This report has two methods to scheduling in which the first is a single objective to reduce makespan and second is multi-objective in which both makespan and cost are considered. The algorithm outperformed other metaheuristic algorithms such as original BAT and PSO. However, the algorithm did not consider other factors such as execution time which is an important one for showing the performance efficiency of the proposed algorithm. The Extended BAT Algorithm (EBA) implies that three benchmark functions, such as Ackley, Hyperellipsoid, and Rosenbrock, should be updated . This move aims to achieve greater efficiency by looking for optimal options, fitness features and convergence speeds. The two versions namely modified and hybridized showed better performance in terms of faster convergence. This helps in enhancing exploitation in the final iterations of the algorithm, improving exploration in the initial execution cycles when compared with other metaheuristics, such as MBO, MMBO, and MBO-FS in the same cloud. An analysis suggested the Gravitational Search Algorithm (GSA) for cloud load balancing where high convergence over a number of iterations was demonstrated by outperforming other algorithms such as MinMin, SA, Tabu Search, Min–Min and GA . The downside of the algorithm is computing intensive that conditionally works well under certain iterations that need to be extended for evaluating the scalability of the algorithm. One of the research suggested hybrid IRRO-CSO which is inspired by the perception of information flow in raven social activity among food search participants while CSO is focused on chicken behavior during a food hunt . The algorithm was tested against the benchmark features of CEC 2017, resulting in enhanced performance over BAT, PSO, individual RRO, and CSO. The output, however, needs to be tested on large real-time datasets while optimizing the execution time. In , Modified Heterogeneous Earliest Finish Time (MHEFT) is recommended for dynamic load balancing in cloud so that workload is uniformly distributed among processors according to task rankings that result in reduced makespan. The algorithm works well under a smaller number of tasks and did not consider other QoS metrics for performance evaluations. CEGA is a balancing algorithm that is genetically inspired and built to fulfil deadline restrictions by decreasing the execution time of tasks . CEGA findings have shown improved efficiency on the same workflows as LIGO, Epigenomics over IC-PCP, PSO, and RTC. However, this algorithm suffers exponential time complexity. An auction-based method OVMAP for virtual machine allocations, pricing models, and provisioning using the number of resources in the cloud computing environment is proposed in the work . Extensive experiments have done to demonstrate the performance of OVMAP and it is shown that an online mechanism generates good results with faster processing. However, this method focuses only on fulfilling online requests. Rekha et al. proposed an ETA-GA model for job scheduling in cloud computing to reduce task completion time, increased throughput, and reduced makespan . However, this algorithm did not consider real-time complex tasks and hybrid approaches used for optimization. Another study proposed an online error prediction model for online algorithms . This model chooses a specific algorithm based on experience, performance, and cost. The algorithm performs well against the weighted majority algorithm when 55 VMs are averaged together under the same configuration and parameters. However, the algorithm only works well under predefined and limited conditions. Load balancing mechanism for cloud computing utilizes the concept of hierarchical classification to minimize the vulnerabilities caused by multi-variant and multi-constraints . The authors claimed a strong classification system is lacking in recent survey articles. The drawback of current surveys can be illustrated as there are no specific and notable taxonomic hierarchical structure algorithms. A variant of CSO called Enhanced Cat Swarm Optimization (ICSO) is proposed by . With adjusting location and velocity equations, the first change is enhancing the tracing mode. Similarly, other option is to make changes in such a manner that the problem of local optima is avoided. The algorithm, however, is only evaluated on 12 benchmark functions with fewer operations, although QoS metrics are not included, such as execution time, migration time, and energy consumption.A hybrid metaheuristic algorithm, HBMMO, was developed by Nazia et al.  for workflow preparation in cloud computing to boost cloud performance. The study utilizes a multi-objective approach that is measured over workflows, but energy consumption is not taken into account.
For predicting load sequencing in a datacenter using a cloud computing platform, Weighted Wavelet SVM (WW-SVM) is suggested in . Experiments shown that the proposed algorithm outperformed WSVM, TSVR, ANFIS, and ARIMA in terms of execution time, throughput, and error prediction. The algorithm utilizes only estimation and consistency, although there is no talk of simple multi-goals. For load balancing in the cloud with the target of minimal resource waste, an enhanced SLA violation is addressed in . The algorithm used optimal tools in which up to 17% compared to RR, there is less failure rate of completing tasks and retaining low energy consumption, less migrations, and less SLA breaches. Execution time and various empirical analyses were not considered by the algorithm. SLA agile-based VMs is suggested by Sharma et al. to minimize reaction time . This study used ghost VM to cut the amount of VM output by roughly 12 percent, resulting in two algorithms improving performance. SLA violations are minimized by taking benefit of admission monitoring and rescheduling. Static workloads have been used and this literature does not address efficiency metrics. One of the studies considered five metaheuristic algorithms wherein QoS restrictions and penalty costs are taken into account, detailed comparisons of SLA breaches in a cloud context are carried out . The algorithm is evaluated with statistical evaluations on CEC benchmarks, though QoS metrics (except SLA) are not addressed, except scalability.
The MMA dynamic VM migration algorithm is intended for high computing (HPC) . The MMA algorithm reduces the load and decreases connectivity costs on overwhelmed computers Performance deterioration can be caused by saturation and computation sophistication is a concern. Another research addressed a technique for VM migration that offers increased scalability over all other strategies . A hybrid scoring method that measures the static and dynamic score of every other host is used in this method. There is high computation cost and overhead. Further, the only number of migrations is considered leaving other QoS metrics. The study provides an increase in decreased overhead using a metaheuristic automated electricity algorithm in VANETs . This study accomplishes energy-efficient transmission by up to 50% with the help of routing protocol. Overall, PSO outperformed other competitors in the conducted experiments and obtained energy efficiency as well as reduced network overhead. For the latest search of a neighbor using an optimal decision by ACO, the Biological Motivated Self Ordered Autonomous Routing Protocol (BIOSARP) is proposed . This algorithm has a relatively higher overhead cost. Harmony-inspired genetic algorithm (HIGA) for reducing overhead in a cloud environment combining GA (for exploration) and HS (for exploitation) metaheuristic algorithms is discussed by . While using intelligent capability, the global optimum is achieved in a reduced number of iterations resulting in reduced overhead and less energy consumption. Simulations conducted over CyberShake and Montage results in better performance of HIGA such as 39% low overhead, energy savings up to 33%, and overall, 47% performance. From the review of papers discussed here, it is noted that there is no systematic multi-objective approach that optimizes the QoS metrics without compromising the best solutions.
2.2 Overview of Classification-Based Approaches
Over the years, classification is playing a significant role in minimizing the load on the system in a number of applications such as load balancing, image recognition, textual identification, multimedia data classification and many more. Classification is a supervised learning mechanism in which the application learns to train the data and assigns to appropriate categories . In the subsequent text, a few of the classifiers are being presented in Tab. 1 to get an insight into the frequently used classifiers.

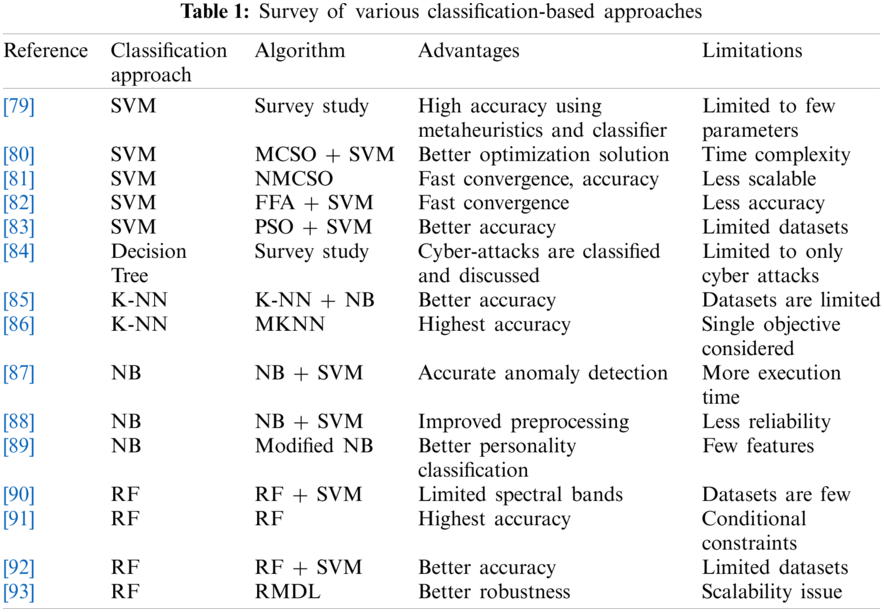

To summarize, most of the aforementioned classifiers considered either one or at most two features in different forms but have not considered multiple features simultaneously. The proposed approach addresses the limitations of previous work by taking into account multiple objectives to reach optimal solutions.
In the cloud, there exists a huge volume and variety of data in multiple formats that require extra resources to get processed. The studies mentioned in the literature did not consider the data formatting approaches to solve such problems with respect to load balancing and classification such as audio, video, image and text in a combined fashion. Similarly, those studies focused mostly on single parameter such as either audio, video, image or text with one or more QoS parameters. However, their combination with metaheuristics in cloud still has a lot of research to perform. As a result, much of the time is consumed in obtaining the actual data at run time. This time and other resources are greatly affected by the offline preprocessing approach using classification of data introduced in the study. Similarly, combination of optimization approaches with machine learning models in the cloud is relatively a new approach especially with respect to classification of data formats on number of QoS metrics. When doing offline preprocessing, the classification procedure will quickly minimize those complications and make accessible the data in the processed form. There are several constraints simultaneously encountered by the cloud service providers and clients about rapid accessibility to the cloud services. Because of the large volume and variety of data stored in the cloud, extracting actual information is a complex task that necessitates more resources. When processing large-scaled, computationally intensive, and resource-intensive applications, the problem becomes even more challenging. Data preprocessing can be useful in these situations, as an offline categorization of data using machine learning models may greatly reduce execution time and memory needs during the online processing phase. Furthermore, job assignment to VMs must be done with care to achieve effective load balancing. As a consequence, we suggested a new hybrid model based on SVM and CSO that provides optimal load balancing performance when compared to current models in order to produce finer classification results and efficient work assignment. By combining these two models into a hybrid with a multi-objective approach, their individual flaws are addressed while their combined merits are reinforced.
3 Research Methodology
The methodology involved in this research has been implemented based on the integration of SVM classifier and load balancing algorithms using the data format classification approach. Fig. 1 shows an architectural working flow of the set of activities in which the input data provided to the cloud environment is classified into different segments/formats such as audio, video/HDs, text formats, images, and digital maps etc. The classified data is then fed into an optimization algorithm where evaluations are performed according to the QoS matrix. Data classification is performed using SVM as one to many classifier types. The process is initialized with the size of input data files and proceeds with the classification process followed by the QoS evaluations. The input data is collected from various sources and fed into the system. SVM classifier accurately classifies various datafiles into appropriate data class. This is the stage where preprocessing is performed, and classified data is ready to be given to a scheduling algorithm. The next stage of data processing is the scheduling of data. The data collected are then placed to the proposed scheduling algorithmCFLB. Working of the proposed architecture is divided into following four steps:
Step 1: In the first step, the user enters a number of tasks in the cloud environment that needs to be scheduled up to 100,000. These tasks are various types of datasets, such as audio, video, text, and image. Selection of the tasks is made at random from the developed datasets.
Step 2: In the second step, these tasks are classified to respective classes such as class A for audio, class B for video, class C for image and class D for text datasets. Here training and testing of the data is passed through SVM one to many classifiers such as 70% for training and 30% for testing data. The SVM uses Polynomial Kernel function to make classifications at higher dimensional space which further helps to accurately classify the data.
Step 3: In this step, the data classification of the appropriate class is fed into datacenter which is configured to various parameters such as type of number of datacenters, number of hosts, operating system, ram size, storage size, data size, bandwidth etc. Here, four sets of VMs are used in clustering forms such as a set of VMs each for audio, video, image, and text data with respect to the following:
• A task dependent on task specifications is assigned to each computer (VM). Video tasks, for example, demand 1000 floating-point and 16 GB memory operations, audio data requires 800 floating-point and 12 GB memory operations, image tasks involve 800 floating-point and 8 GB memory operations, and textual tasks require 400 floating-point and 4 GB memory operations. The SVM classifier then defines the collection of VM types, such as VideoVM, AudioVM, TextVM, ImageVM, depending on the specifications, format, and functionality. The corresponding VM relating to each assignment is allocated here. Therefore, SVM aims to define data and fit it to the most acceptable type of VM.
• Extracted features of sequences of 40 frames are derived from four separate video classes for video data classification, where a 40-4096 matrix is used, where each row corresponds to attributes of one frame (one frame per row) that assist in classifying videos within these four distinct classes. A new video is preprocessed to restrict the number of frames and then to identify it by removing features from this video. Assume there will be four (ci, i = 1,…, 4) video groups. Each video has 40 (n = 1,…, 40) frames and we extracted 4096 features from each frame ([1 4096]). Since each frame has enough data to estimate the video class (ci), we used 40 frames as training/test samples from each video, which generates an input matrix of [160 4096] dimensions, with 160 samples and 4096 features for each sample. In addition, an output vector [160 1] containing the mark of each ci = I class is generated, where i = 1. Four audio feature sets are assessed to classify five types of audio groups for audio data classification: classical music, popular music, crowd noise, voice, and basic noise. Centered on perceptual models of sound, the feature sets include low-level signal properties, mel-frequency spectral coefficients, and two new sets. 256 256 pixels (65,536 pixels in total) are considered for image classification, in which each pixel is used as an attribute in the SVM classifier.
• There are text records of around 6 GB for text classification that are extracted in the form of unstructured text. Stemming and stop word elimination is done and the words in the form of functions are then removed.
Step 4: In the last step, the output of the above phase is fed into the load balancing algorithm for optimization. In this architecture, CSO is proposed which is used to optimize the tasks and schedule the data properly. CSO is used in this research and comparison with baselines is performed in order to determine its superiority. In order to achieve accurate load balancing by contemplating the conditions, the efficiency analysis of the proposed model is then carried out on various parameters such as energy consumption, optimization time, and migration time.
The scheduling process will be started until the number of tasks and VMs are chosen. N instances are initially generated and separated into G classes. The action of the cats is taken into account by CSO in two modes, searching mode and tracing mode. Swarm algorithms are generally accepted as they have developed the best solutions obtained to look for the closest neighbors (nodes). Thus, the cat activity is considered in this technique to look for a solution space. Each cat has d-dimensions with different velocities used for each dimension of its place. If the fitness is not equal, then measure the likelihood using Eq. (1) and, by default, the probability value is set to 1. Each cat is evaluated using the fitness function. In order to determine whether the cat is in search mode or tracing mode, we used the Boolean flag variable. In terms of its fitness function, the tracing mode is called where the position of the cat is modified according to the fitness function. The fitness function of CSO can be obtained as:
where Pi shows the probability value associated with the position of ith Cat. is the fitness of ith cat, represents the maximum fitness value and represents the minimum fitness value achieved.

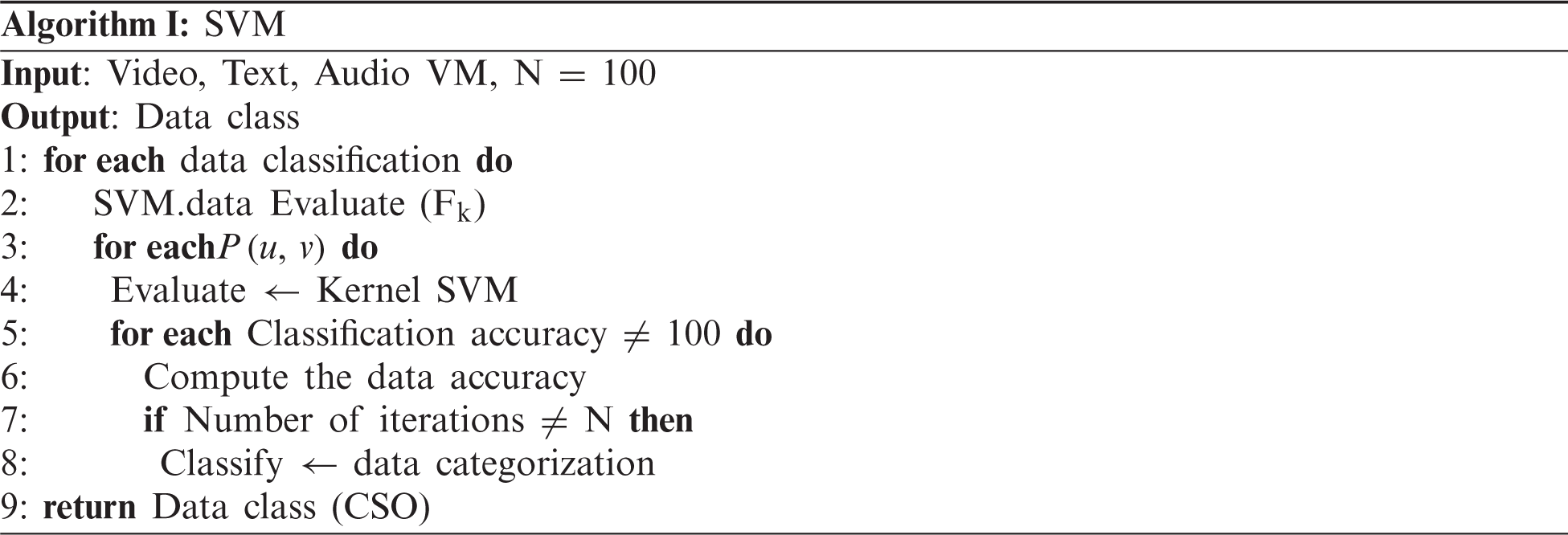

Line1: Input (dataset), Output: Data class (Classified data)
Line 2: In order to classify the data, first the data will be evaluated (to find out the class and is the input is similar to the same class)
Line 3: Condition check where u = class type and v = data (1,…, n)
Line 4: Evaluation of data in kernel SVM
Lines 5 & 6: Condition check for accuracy. If accuracy not equal to 100, evaluate the data accuracy depending on the input.
Lines 7 & 8: Iteration check. If iteration is not equal to 100, the data will be classified as specific data class.
Line 9: Output data which will be the input to CSO.
CFLB is based on load balancing method and increasing the energy efficiency of modelled technique. Load balancing aims at obtaining the best resource utilization among number of entities. This helps in achieving the maximum throughput which is the amount of data transmitted successfully for optimization.

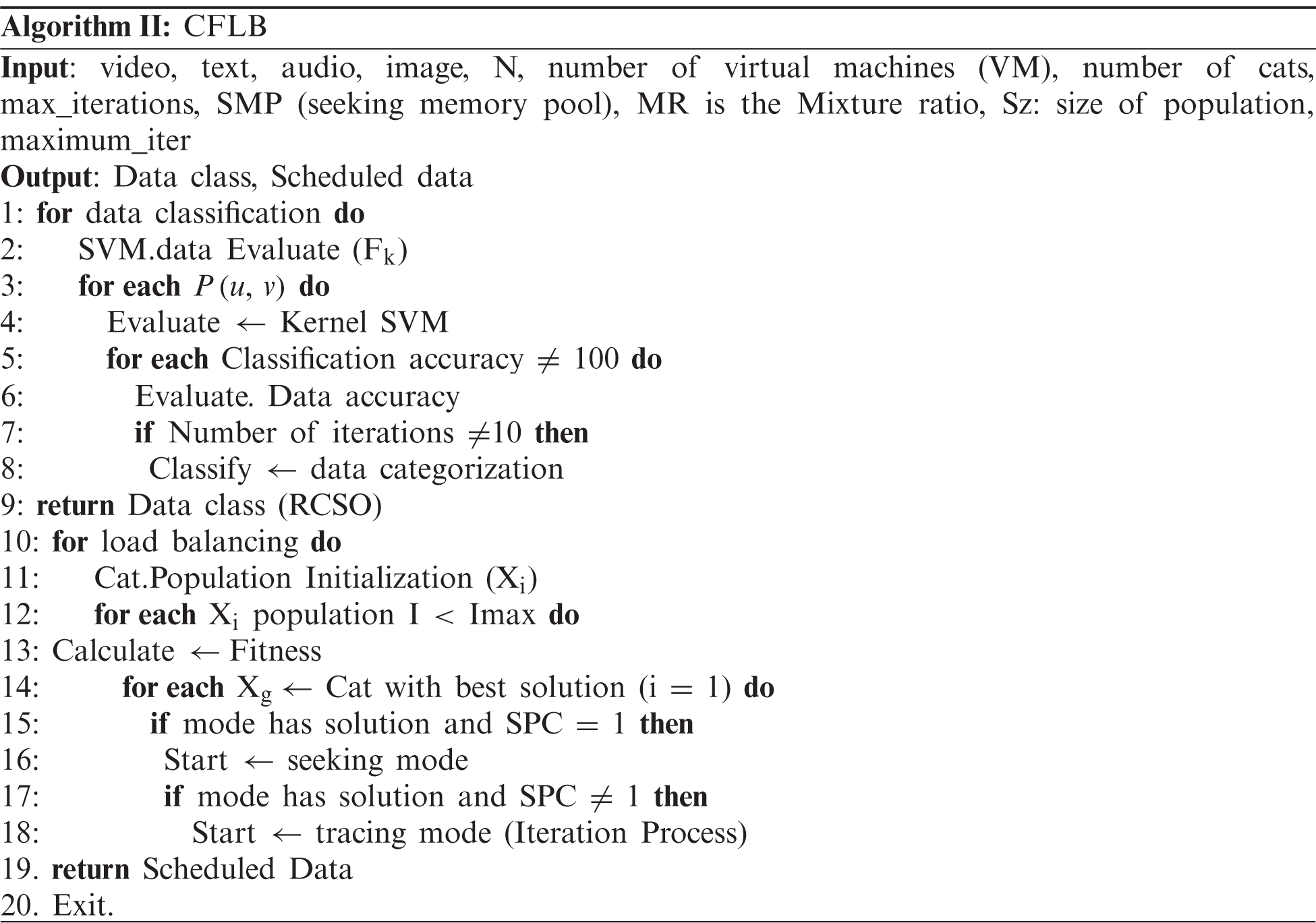

The mechanism of the proposed approach called CFLB is represented by Algorithm II. Lines 1 to 9 detailed data categorization in this algorithm, which first classified the category of data and then classified the type of VMs using SVM and allocated it to the specific class. Lines 10 to 20 used CSO to do load balancing and then output the data for the scheduling. In terms of the movement of cats, which is dependent on the excellent hunting ability of cats, the tracing mode of the CSO system is defined. In tracing mode, the movement of cats for each dimension is as per their velocity and then their positions are modified accordingly. Modified cats’ and velocity positions are determined using Eqs. (2) and (3). These equations can be
For the position of the Cats, different terminologies are used here such as is the best position of a cat in d-dimensional space, position of Cati, is the velocity, Ci, is a constant value, is a random value between [0, 1]. In the algorithm for searching mode and tracing mode, the Mixture Ratio (MR) is used to merge the two modes and to determine the Cats’ ratio in the modes. The seeking mode of the CSO technique composed of the parameters such as: Seeking Memory Pool (SMP), Seeking Range of selected Dimension (SRD), Counts of Dimension Change (CDC), and Self-Position Consideration (SPC).Centered on computation time, we have measured the CFLB model assessment. We also used various parameters that are stated in optimization computation as well as classification algorithms, as our model follows a hybrid methodology that is the synthesis of SVM and CSO. These parameters are shown in Tab. 2 for CSO. We have used parameter values for CloudSim4.0 as shown in Tab. 3. These test sets are selected based on the convergence of the CFLB algorithm after many experiments have been conducted. From experiments, it is observed that the seeking mode takes less time as compared to tracing mode. Thus, the overall time complexity of the proposed CFLB is ) which gives to and ultimately the time complexity is solved to O().
4 Experimental Setup

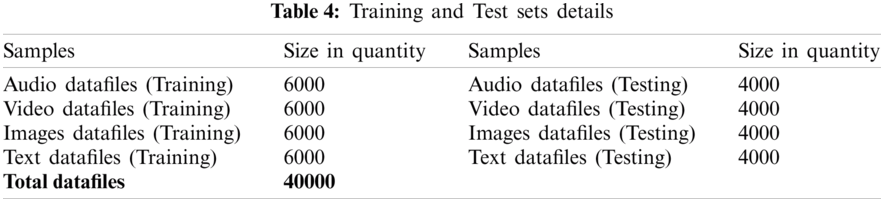

In this portion, different files, namely audio, video, text, and images taken from the UCI repository  and other databases, are provided in the form of datasets. As given in Tab. 4, there are a total of 40,000 datasets that are further divided evenly. In addition, different dataset files with a ratio of 60:40 are put in training and testing mode, where 60% of data files are training datasets and 40 percent are testing datasets as defined in Tab. 4. In contrast to other simulation models, CloudSim4.0  is commonly used in the conduct and deployment of cloud-related research. In virtualization mode, the simulator offers on-demand services and has a variety of benefits, such as accessibility, efficiency, and ease of use. The area, configuration, operating system, VM, memory, data transfer cost of storage, and the amount of physical hardware units are configured in a datacenter. In this scenario, along with 4096, 8192 MB of RAM and 2 TB of memory, we have set 500 and 1000 VMs, each, during experiments. Both simulations are conducted on a Desktop PC consisting of an MS Windows 10 operating system, a 2.6 GHz Intel Quad-Core i7 machine, 12 GB RAM and 1 TB HDD.

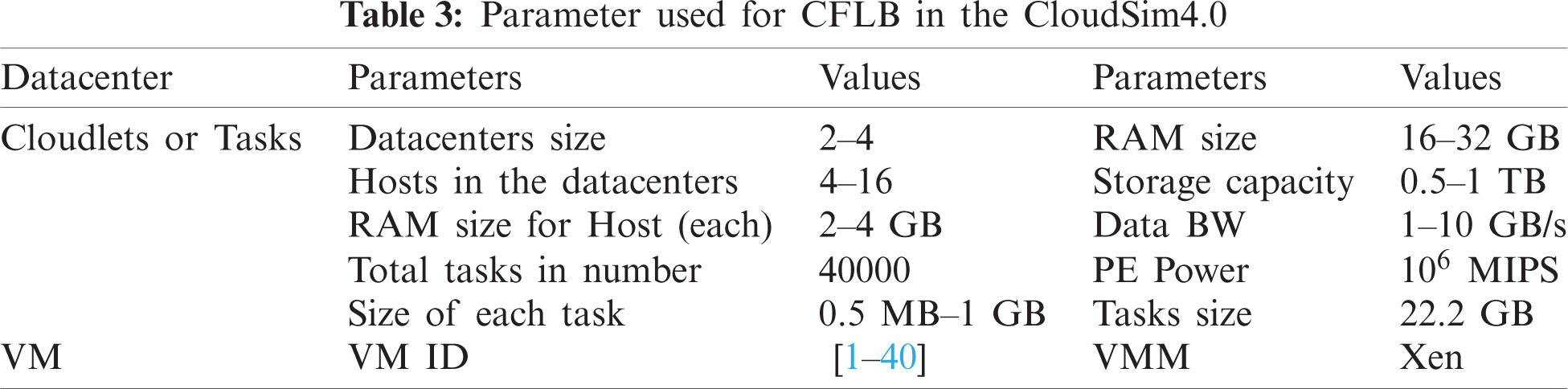

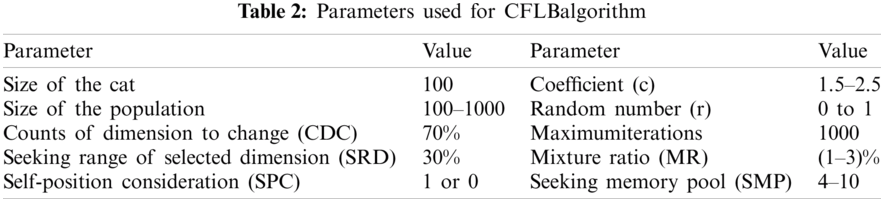

To make the findings accurate, all algorithms are applied in CloudSim4.0 obtained from their corresponding research papers with the same setup and environment setting. In addition, the results are objectively checked to verify their significance by student t-test review, which avoids the fact that the values also are not by chance.
5 Results and Discussion
The proposed algorithm has been split into two main sections in this section. In the first section, the dataset classification of the file is performed using the cloud SVM classifier. In the second component, SVM output is fed into CSO for cloud environment load balancing. We have used One-vs-All classification method to achieve easier, fast, and reliable performance, which initially classifies file datasets by contrasting them with all classes . Consequently, One-vs-AllSVMs, has exceeded other classifiers in terms of accuracy in the first level.
5.1 Accuracy of CFLB

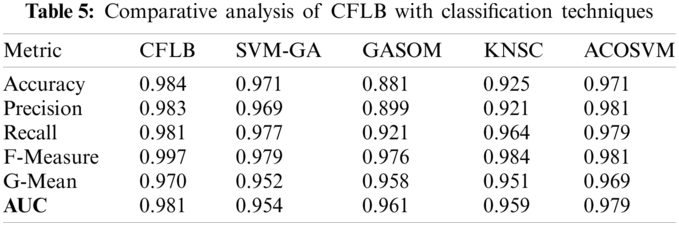

Cross validation such as accuracy, precision, recall, and F-measure are used to check the accuracy of the CFLB. The classifiers such as ACO-SVM , SVM-GA , GASOM , and KNSC  are used to perform comparative analysis given in Tab. 5. The results of CFLB are presented as comparative analysis over other algorithms in which CFLB has shown better performance in all validation methods. The results of classification algorithms are validated using classification validation accuracy measures with respect to Accuracy, Precision, Recall and F-Measure .
5.2 Evaluation of CFLB on Energy Consumption
Following Eq. (4) is used for energy consumption calculation:

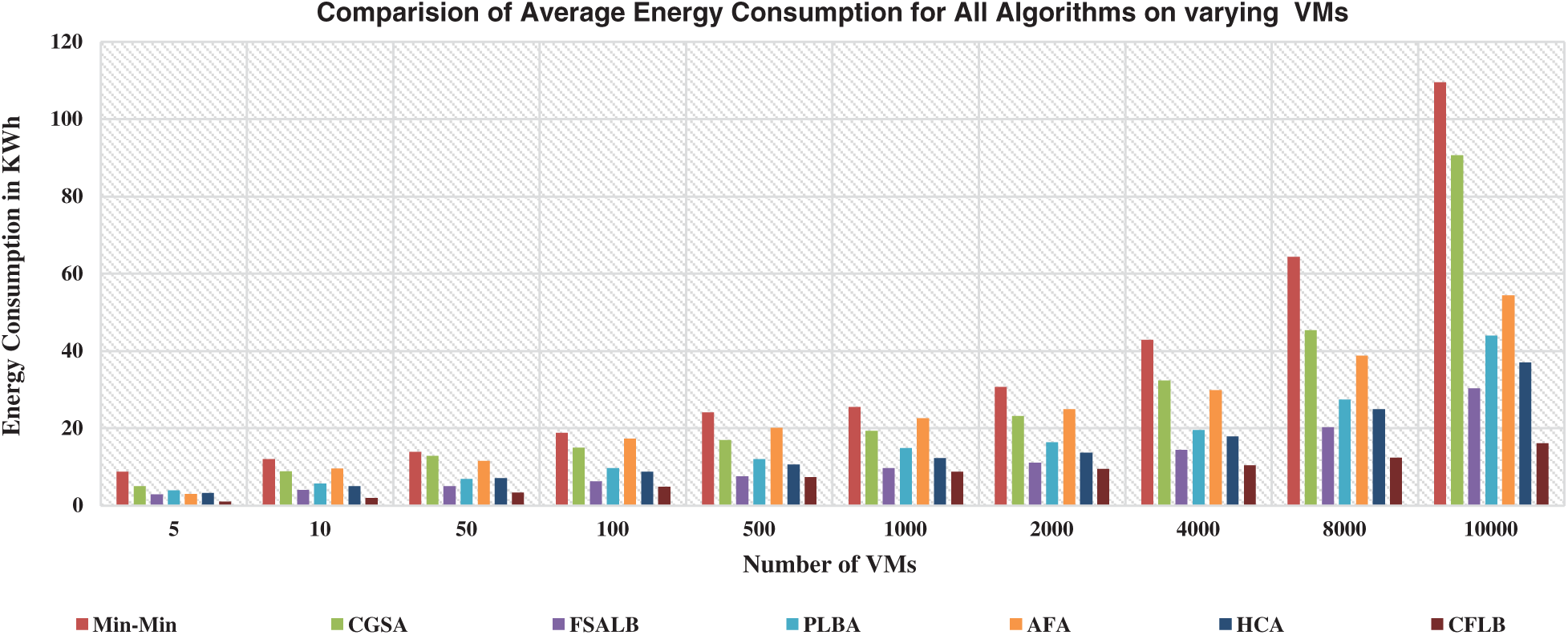

Fig. 2 shows energy consumption of CFLB against all baselines. A good difference in energy consumption can be seen from the very start which continues till 10000 VMs. It is important to mention that all parameters of the simulation are set with same configurations resulting in reliable results in all cases.
With the increase in number of VMs, an increase in energy consumption is seen with all baselines. Few of the baselines are consuming more energy showing unstable and non-scaling behavior as compared to other baselines. In computational terms with respect to percentage, Min–Min is consuming a total of 26.16% energy followed by CGSA with 20.1%, AFA with 17.31%, PLBA with 11.96%, HCA with 10.48% and CFLB with 5.63% only. Cloud classification preprocessing decreased computational complexity resulting in lower energy consumption and further faster convergence of CSO achieved the best solution in the minimal number of iterations that also retained the energy.
5.3 Evaluation of CFLB on Migration Time
Following function is used to calculate the migration time in implementation.
Here, , is the scheduling used to allocate data from VM to VM depending upon the VM availability.

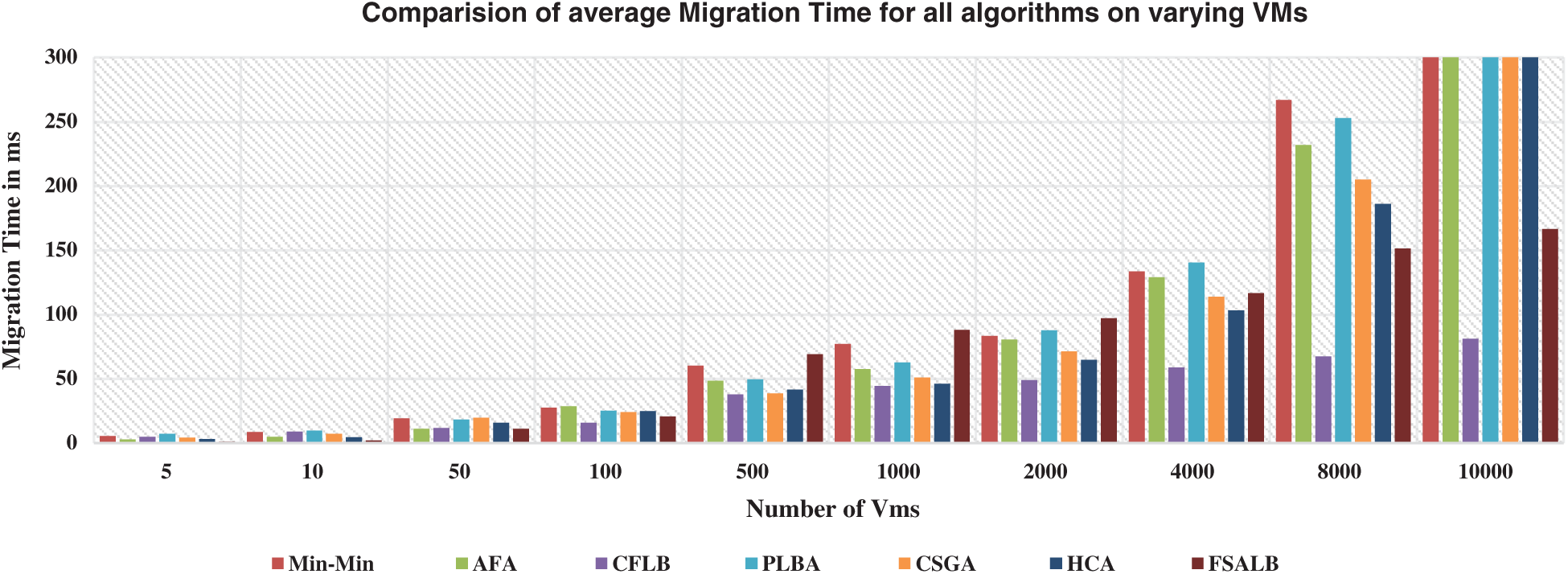

Fig. 3 displays the migration time that all baselines for various tasks and VMs have taken. As compared to less migrations, more migrations need more time. The lowest number of migrations are made by optimization algorithms since a single migration requires several processes, their correspondence, interrupts, and other variables. The VM migration policy is controlled by the administrator, where a law determines when the VM migration from one host to another host should be activated.Generally, a threshold is established that allows VM migrations to minimize the amount of SLA breaches and migrations when considering the host machines’ computing capabilities. As a hybrid approach, both heuristic and metaheuristic algorithms perform well in seeking the solution to VM migration. Metaheuristic algorithm works very well for optimization during migration. Fig. 3 depicts that in the start, least VM migrations in case of CFLBare seen which remain there till the end of simulation with every run. Similarly, in terms of percentages, Min-min algorithm has taken 19.1% migration time as compared to PLBA which takes 18.3% migrations followed by AFA with 16.6%, CSGA with 14.9%, HCA with 13.6%, FSALB with 11.4% and CFLB with 6% only.
5.4 Evaluation of CFLB on Optimization Time
Following Eq. (6) is used to calculate the optimization time:
where, : is the time taken for iteration, omplete iteration time

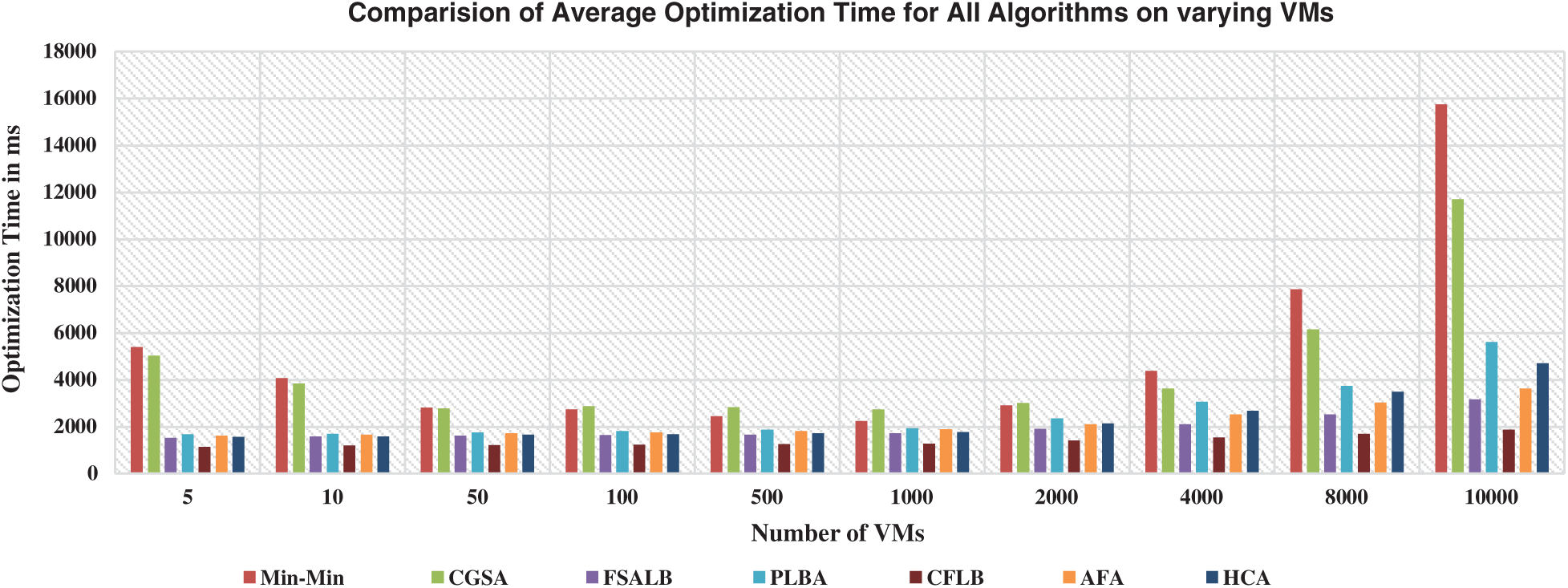

Fig. 4 shows that two algorithms Min–Min and CGSA have taken time exponentially than other algorithms. This shows the unstable behavior of both algorithms. In percentage terms, Min–Min algorithm has taken 25.4% optimization time more than all other algorithms. Similarly, CGSA has taken 22.4% optimization time followed by PLBA with 12.8%, HCA with 11.5%, AFA having 11% and finally CFLB with 7% optimization time only showing fastest convergence behavior.
5.5 Statistical Analysis

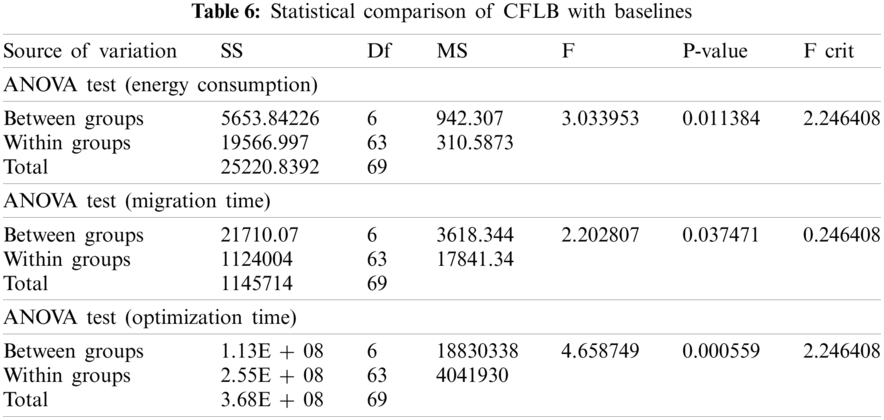

We also tested all metrics’ resulting values and found that their distribution is normal. Within this case, a parametric test involving 2 variables is needed since we have taken one baseline at a time and compared it to CFLB. The optimal measure for 2 variables of normal distribution in statistics is the ANOVA test given in Tab. 6. Similarly, we can see values like mean, standard deviation (SD), p-value, and t-value in Tab. 6. The level of significance, meanwhile, is set to p < 0.05 . At this stage, we need to define the hypothesis in the following manner:
H0:CFLB and other baselines have no difference.
H1: A significant difference exists between CFLB and other baselines.
In all cases, we could see that p-values are lower than the significance level <0.05, which indicates that there is a significant difference between the values of CFLB and other baselines. Therefore, we are right in denying the null hypothesis and supporting the alternative hypothesis. Similarly, in terms of energy consumption, migration time, and optimization time, we can say that a substantial difference occurs in the resulting values.
There is huge amount of data in cloud, located at distributed sites geographically where computation is performed over the network and tasks are transacted by read and write operations, then dynamic energy consumption and load balancing are not unanticipated but a common aspect. To make the cloud load balanced and energy efficient is challenging task. This research proposed a novel energy efficient load balancing strategy for cloud computing that provides an efficient utilization of resources in cloud environment. The developed model CFLB improves the accuracy using hybrid approach that first classifies the data into specific data class using SVM (one to many classification) and then scheduled the data class using RCSO. Initially, accuracy of the CFLB is determined using SVM and compared with other classification techniques. The results have shown that our designed approach is much better and achieved more than 98 percent accuracy on average. Similarly, the experimental setup is developed using CloudSim4.0 simulator. The results are generated gradually with varying tasks number, tasks size, tasks format and VMs size. The developed CFLB algorithm outperformed baselines like HCA, Min–Min, CSGA, FSALB, AFA, and PLBA in QoS metrics such as energy consumption, migration time, and optimization time. This shows that results have achieved scalability, performance, and intelligence in our proposed model.
Our future work will take big data, OpenStack and deep learning techniques into consideration as classification problems are being well addressed by them. Other important parameters such as deadline constraints, task immigrations, resource constraints and self-adoption need to be addressed. Furthermore, the concept of auto-scaling for predicting the incoming workload, multi cloud auto-scaling, energy aware auto-scaling, and bin packing auto-scaling requires deliberation for future research. Other issues of concern are security, cost management, pricing model and exploring monitoring tools in the cloud form strong areas of future research in the cloud domain.
Acknowledgement: Thanks to our families & colleagues who supported us morally.
Funding Statement: This work was funded by the University of Jeddah, Saudi Arabia. The authors, therefore, acknowledge with thanks to the University technical support. The authors extend their appreciation to the Deputyship for Research & Innovation, Ministry of Education in Saudi Arabia for funding this research work through the Project Number MoE-IF-20-01.
Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
