Computers, Materials & Continua
DOI:10.32604/cmc.2021.016610
images
Article

Usability Evaluation Through Fuzzy AHP-TOPSIS Approach: Security Requirement Perspective

Yoosef B. Abushark1, Asif Irshad Khan1,*, Fawaz Jaber Alsolami1, Abdulmohsen Almalawi1, Md Mottahir Alam2, Alka Agrawal3, Rajeev Kumar3,4 and Raees Ahmad Khan3

1Department of Computer Science, Faculty of Computing and Information Technology, King Abdulaziz University, Jeddah, 21589, Saudi Arabia
2Department of Electrical and Computer Engineering, Faculty of Engineering, King Abdulaziz University, Jeddah, 21589, Saudi Arabia
3Department of Information Technology, Babasaheb Bhimrao Ambedkar University, Lucknow, 226025, India
4Department of Computer Application, Shri Ramswaroop Memorial University, Barabanki, 225003, India
*Corresponding Author: Asif Irshad Khan. Email: aikhan@kau.edu.sa
Received: 06 January 2021; Accepted: 06 February 2021

Abstract: Most of the security strategies today are primarily designed to provide security protection, rather than to solve one of the basic security issues related to adequate software product architecture. Several models, frameworks and methodologies have been introduced by the researchers for a secure and sustainable software development life cycle. Therefore it is important to assess the usability of the popular security requirements engineering (SRE) approaches. A significant factor in the management and handling of successful security requirements is the assessment of security requirements engineering method performance. This assessment will allow changes to the engineering process of security requirements. The consistency of security requirements depends heavily on the usability of security requirements engineering. Several SRE approaches are available for use and each approach takes into account several factors of usability but does not cover every element of usability. There seems to be no realistic implementation of such models because the concept of usability is not specific. This paper aims at specifying the different taxonomy of usability and design hierarchical usability model. The taxonomy takes into account the common quality assessment parameters that combine variables, attributes, and characteristics identified in different approaches used for security requirements engineering. The multiple-criteria decision-making (MCDM) model used in this paper for usability evaluation is called the fuzzy AHP-TOPSIS model which can conveniently be incorporated into the current approach of software engineering. Five significant usability criteria are identified and used to evaluate the six different alternatives. Such strategies are graded as per their expected values of usability.

Keywords: Security requirements engineering; cyber-security; usability; fuzzy logic; MCDM

1  Introduction

It is evident that the digital age is now a much more threatening place. Electronic devices are progressively connected, making it easier for adversaries to attack virtually everyone in the world, often with quite minimal harm. Even basic software that shows or changes local files needs to be safe since users can access or modify high-risk documents that are received via e-mail. Sadly, many software engineers never learnt to write stable apps. With the increase of cybercrime, application security has becoming a major challenge for system managers and cyber users worldwide [1,2]. For an application development organization, security is critical to implement during software development process [3,4]. They must not only secure and build the software they construct, but must also maintain the data protection that any individuals creates and enters. The software users input may be unbelievably personal details based on the programme.

All the relevant details that people will definitely like privately are things like emails, identities or even bank account numbers. Therefore security is crucial to ensure the information is safe, the connection between the company and its customers clearly evolves and improves. If user knows that his data is safe, he would certainly retain their dealings with a software development firm. Software should be compatible from the outset of engineering and design and provide a unified security infrastructure that takes security concepts into consideration. Designers, architects, and experts have acute expectations and possible threats to record. For any step of the software development cycle, risk assessment is a basic requirement. And most significantly, it’s a must to secure the application from any modern fraudulent code intervention after software has been transferred, maintained and up-dated from time to time. The entire process of creation is skewed. Individuals may care about completely inconsequential pieces of software which are installed early in the project and then run through valuable aspects close to the end.

Activities such as quality control, normally near the final step, are streamlined and minimized [5]. Globally Security Spending explores technical, manufacturing, company and regional security opportunities. According to a revised IDC estimate, worldwide hardware, software and services spending in 2019 is expected to hit 106.6 billion dollars, up 10.7% from 2018. In 2023 this volume would hit a compound annual growth rate (CAGR) of 151.2 billion dollars (9.4 percent) over the forecast timeline 2019–2023. ICT expenditure remains largely stagnant in 2020 as a result of the COVID-19 pandemic after years of rise. The global market will be propelled back to the rise of over 2× GDP as emerging innovations start to take into account a bigger market share, even though conventional ICT expenses are expected to follow GDP rise over the next decade. IOT has already been developing and would increase over 5–10 years to cover more than 25 per cent of ICT investment, and would be powered by technological innovations like robotics, artificial intelligence [4]. Fig. 1 shows the IDC forecast report on ICT spending worldwide 2018 to 2023.

images

Figure 1: Global ICT spending forecast 2020–2023

In order to manage security issues it is important to put together enterprise, growth and security groups to identify the main intolerances and business implications induced by risk of security vulnerabilities. Since SDLC is an intake forwarding method and flaws implemented in this step will be distributed in the next implementation phase, it is essential to investigate potential risks at very initial stages. The majority of security bugs found in software and systems were triggered by deficiencies in the methodology for software development process. In order to address this issue, elements of security quality management along the software development life cycle would be described, in general the best practices for security requirement elicitation.

There are numerous security requirements engineering approaches with some advantages and disadvantages developed by different authors. It is a big challenge for the new security practitioners to select the most effective and well-organized security requirements engineering method in the software development process. In this research we implement a MCDM model based methodology to select the most effective SRE approach. Over the past couple of decades, software engineering standards have evolved to deliver high quality software applications. As per the International Standard Organization [68] there’ve been various quality parameters such as efficiency, effectiveness, reliability, usability, etc. The overall quality aspects are Functionality, Reliability, Usability, Efficiency, Maintainability and Portability. Amongst all these quality parameters, usability is an important performance factors for applications those necessities to be examined during project management. The word usability is extracted from user-friendly terms. Numerous software engineering practitioners describe usability in their own words [912].

The assortment of an effective security requirements engineering method is a multi-criteria decision-making (MCDM) issue [1315] where several usability criteria are identified in the decision-making procedure. In addition, in the evaluation practice, the issue of security requirements engineering method selection consists of some dependency characteristics, such as subjectivity, vagueness, complexity and ambiguity. This research therefore uses a model focused on AHP [1618], fuzzy sets [1922] and TOPSIS [2326] to rank the effective SRE approach. On the one side, the “AHP” can be used to evaluate the weights of and criterion, and the “fuzzy sets” are used to resolve the vagueness involved with linguistic terms and triangular fuzzy numbers (TFNs). On the other side, “TOPSIS” is proposed to obtain a priority ranking for security requirements engineering approaches [2730]. Using the hybrid AHP and fuzzy TOPSIS techniques, the statistical capacity of the proposed approach is simple and can be easily configured into an excel sheet. In addition, the integrated strategy has some clear reasoning that is easy to grasp and reflects a human decision. One of the essential reasons for using the fuzzy TOPSIS approach is that it removes the issue of rank reversal, whereas the separate AHP and fuzzy AHP methods do not eliminate the issue of rank reversal.

The rest of this article is arranged as follows. The different security requirements engineering approaches is presented in Section 2. In Section 3, the requisite usability assessment criteria that are needed to select effective SRE approach are added. Section 4 describes the brief implementation of the proposed hybrid model. Section 5 defines a numerical specification focused on the application of the proposed MCDM model. It also addresses the findings and their confirmation. The conclusion is ultimately stated in the Section 6.

2  Security Requirements Engineering

Security specifications are technically called non-functional specifications, typically defined as software qualities, which can be transformed to suitable functional requirements. The outcome application will possibly not be tested before deployment for strength or weakness. If the security requirements are non-functional to functional requirements, these represent component of the entire requirements review process and, if problems are unavoidable, they need not be adequately defined and addressed. Simplification SRE approaches is important because it is more likely that a streamlined approach is implemented than a complicated method. It also emphasizes the significance of technical training in the SRE field for developers and design engineers. Some popular security requirements engineering approaches steps are present below in Tab. 1.

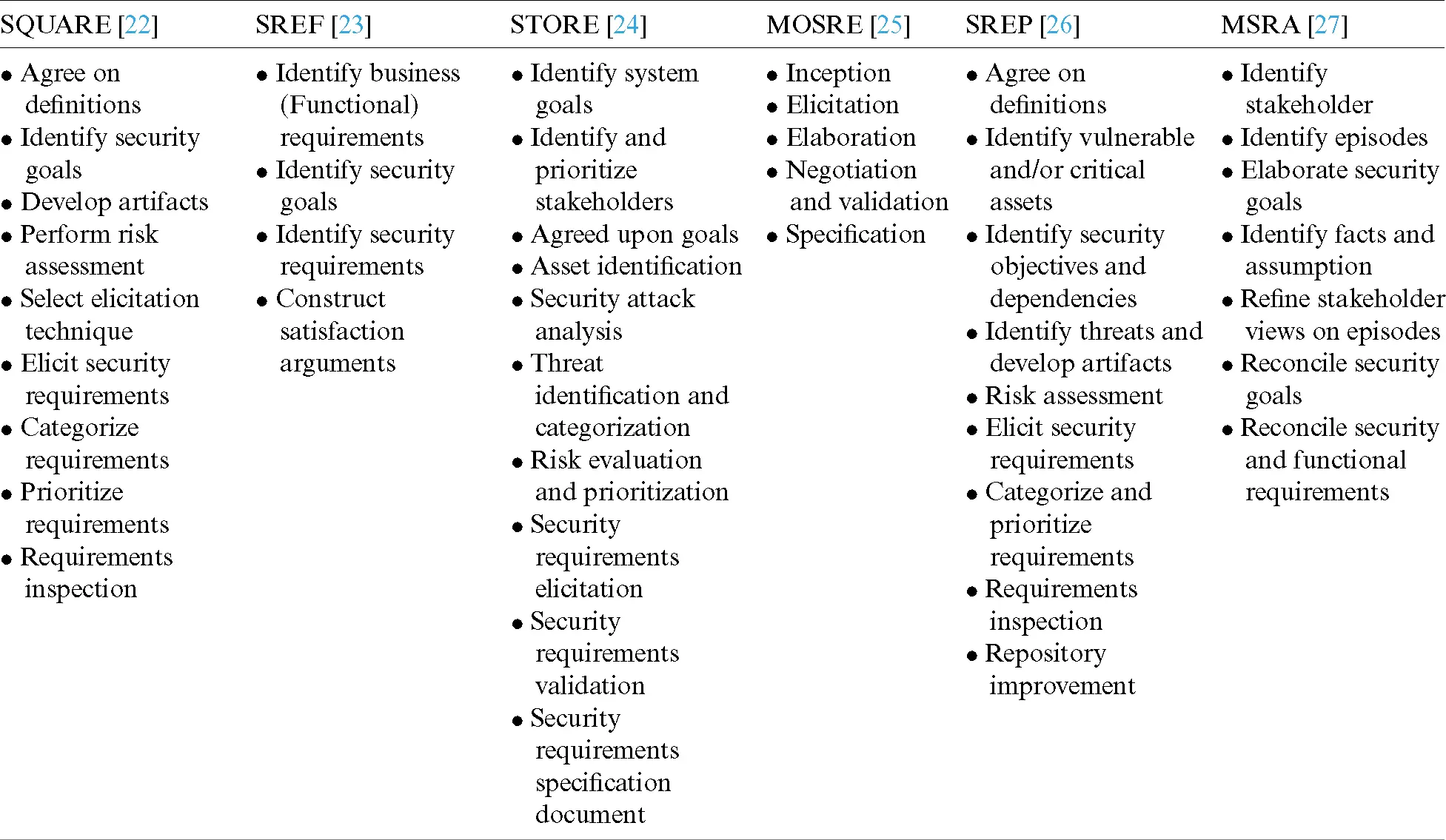

Table 1: Step of different security requirements engineering approaches

images

3  The Proposed Hierarchical Usability Model

The degree to which software is conveniently and comfortably accessible to various types of clients can be described as Usability. Numerous authors have investigated usability in different ways [1014] however; any description did not encompass all areas of software usability. We discussed in this study that the usability depends on five variables, namely Efficiency, Effectiveness, Learnability, Satisfaction, and Productivity.

This study indicated the integral taxonomy of all principles, variables and characteristics that influence the usability of software systems, as numerous researchers have observed. This taxonomy is represented in Tab. 2. The model is hierarchical in design and takes into account several requirements, which rely on usability. Evaluating usability based on the Tab. 2 and Fig. 2 model may be considered as a challenge with multi-criteria decision-making (MCDM) due to its dynamic structure with its tangible and intangible behavior.

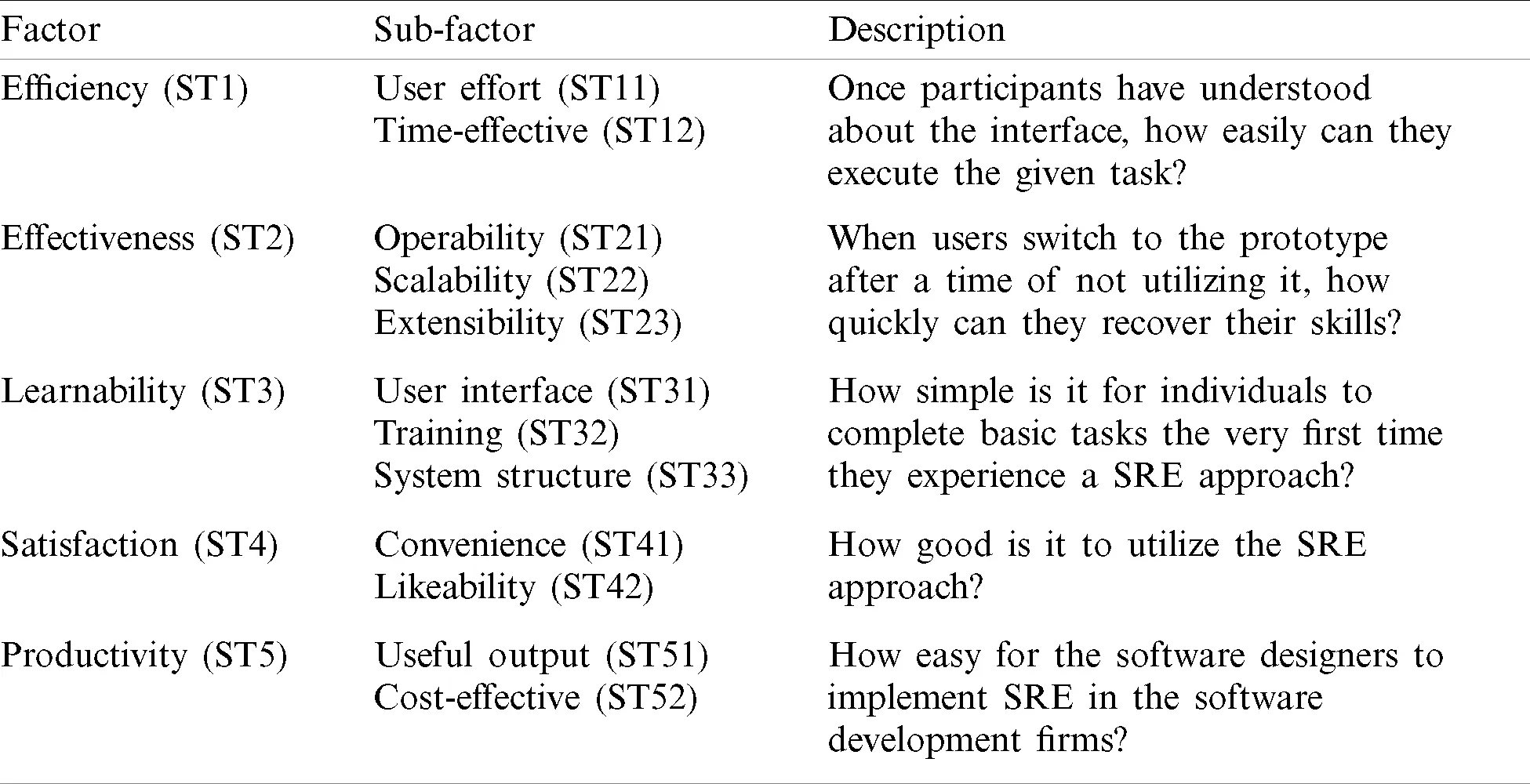

Table 2: Taxonomy of proposed model

images

images

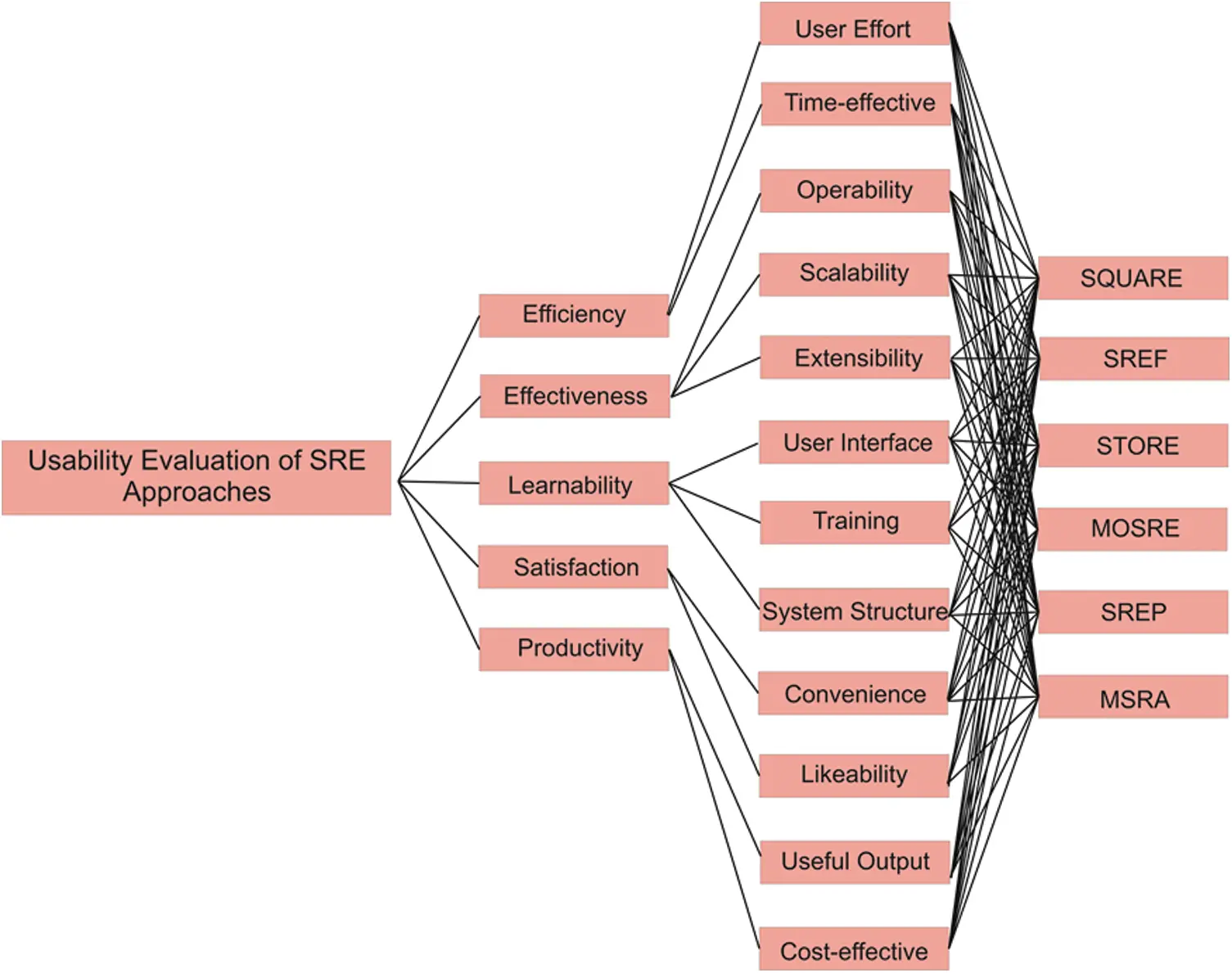

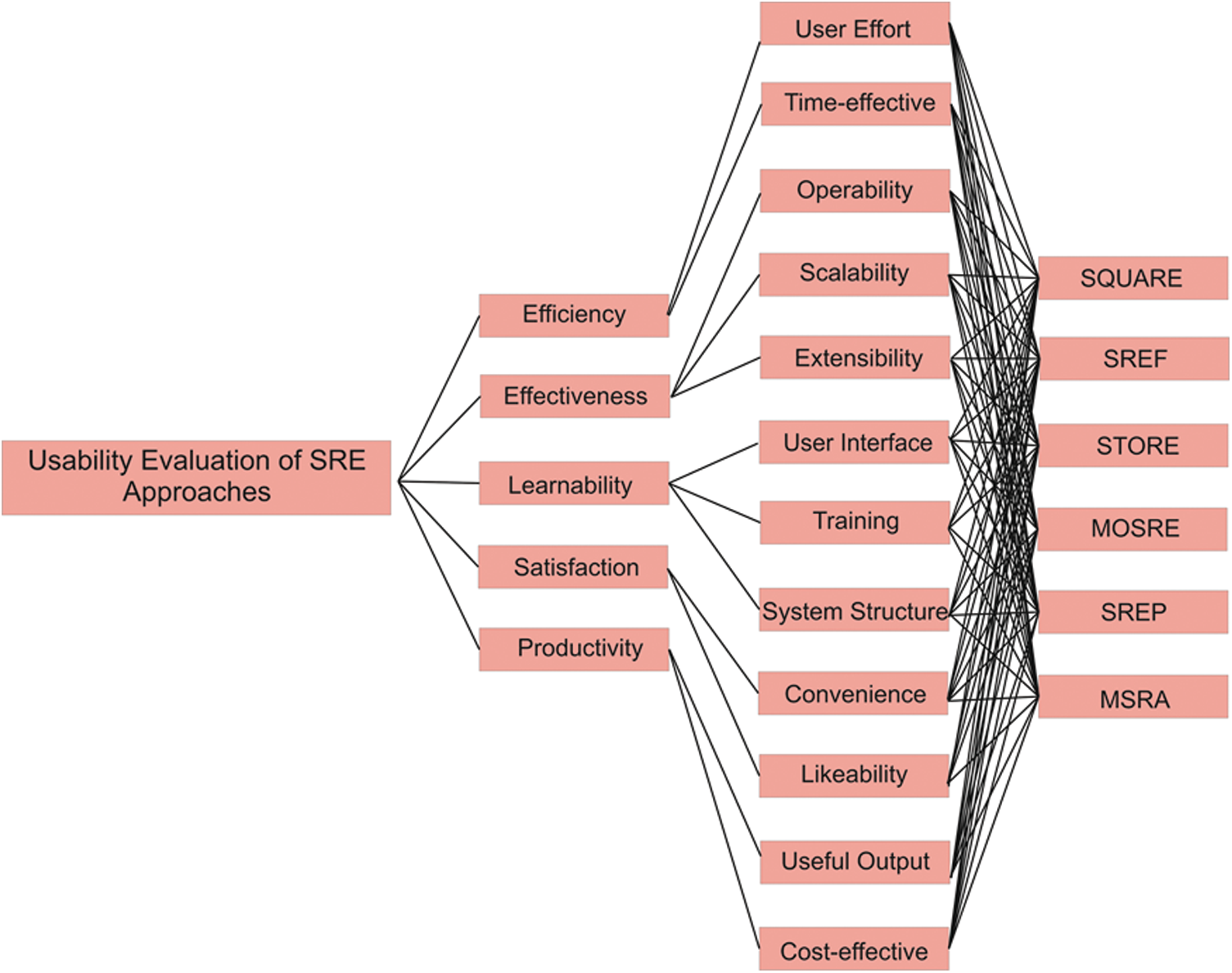

Figure 2: Detailed taxonomy of the hierarchical proposed model

4  Hybrid Fuzzy AHP-TOPSIS Approach

4.1 Fuzzy AHP

Analytical hierarchy process [15] is a mathematical technique to assist discovering solutions to real problems which can be formulated on hierarchical structures by levels of various objectives, factors, and alternatives. Taking into consideration various factors for accomplishing a feasible alternative is the greatest reason for its popularity. The strategy is effective in prioritizing multiple alternatives on the basis of several factors. However, there are some restrictions to this technique. The first restriction is that AHP is designed to handle crisp values and figures. Second, decisions and similarities are decided to make on an inconsistent scale that is difficult to assess. The third barrier of AHP is its lack of unpredictability. Ambiguity is generally linked with various comparative analyses in the AHP method, and therefore there are no strategies for dealing with ambiguity in this procedure. As a possible consequence, the forth barrier is that evaluations are not accurate [1416].

At the end of the evaluation, the findings can be severely impacted by the mentality, predilection and judgment of the experts. In responding, the concepts of fuzzy set model are used in the AHP technique to enhance the evaluation process findings. The combined effect of fuzzy set concept and MCDM techniques in real-world situations case studies has enhanced the research with the relevant structures. This evaluation is accompanied by the [17] research methodology for the fuzzy AHP procedure. In the first place, efficiency points are described and expressed by linguistic words. Linguistic words indicate the exact importance of correlations. Second, the factors can be contrasted. For this reason, a pair-wise comparative analysis of components at the very same stage of the hierarchy is made to show the relative significance of the factors. The fuzzy correlation matrixes utilize triangular fuzzy numbers (TFNs) to show the significance of the factors at each level of the proposed hierarchy. The efficiency ratings are contrasted in the first stage. Linguistic terms are used to show the relative importance of every pair of factors in the same hierarchical structure. After that, in the second phase, fuzzy comparative matrixes are created. TFNs are used to show the relative resilience of each set of factors within the same hierarchical structure. A TFN could be interpreted as (l, mi, u) [18,19]. Domain Experts assigned points as per the scale provided in Tab. 3 to the variables that influence the scores in a numerical manner.

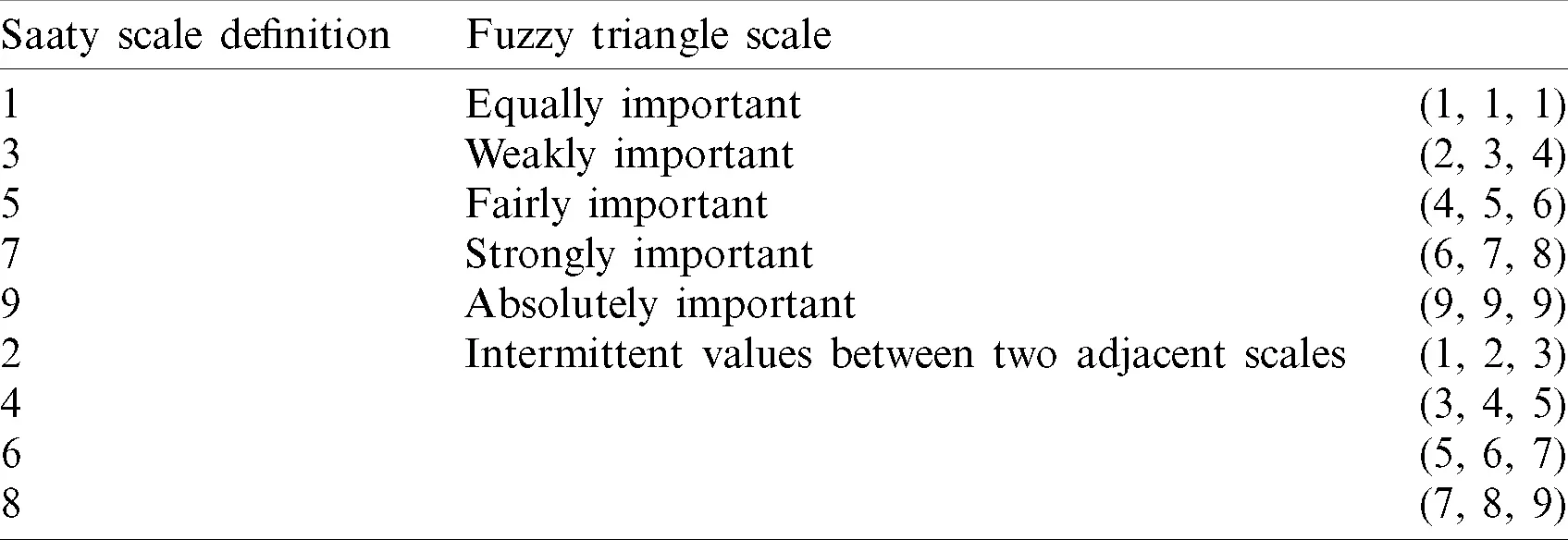

Table 3: TFN scale

images

4.2 Fuzzy-TOPSIS

The fuzzy TOPSIS approach is a powerful and efficient MCDM approach. There are many representations in the literary works of Fuzzy TOPSIS. The general concept is that two standards must be met for the chosen alternative. First, this should be the closest point from the ideal solution; as well as second, this should be the farthest width from the target solution. The conventional TOPSIS approach uses crisp values for comparative analysis [20]. As mentioned earlier, the crisp numbers do not comprise an expert judgment. For this reason, research teams use linguistic expressions to replace numerical output in the conventional TOPSIS approach. The fuzzy logic is used to create and evaluate linguistic representations. The fuzzy TOPSIS approach is a combination of TOPSIS with fuzzy logic, formed to deal with ambiguous decision-making complications. In compatibility with the actual-world fuzzy setting, this approach applies fuzzy numbers to reflect the relative value of the factor rather than specific numbers [2130]. Furthermore, the Fuzzy AHP-TOPSIS approach is especially appropriate for finding solutions of group decision-making in fuzzy settings. The overall weight acquisition process and the feasibility estimation performed by Fuzzy AHP-TOPSIS methods. The following Fig. 3 establishes the sequential process of the Fuzzy AHP-TOPSIS methodology.

images

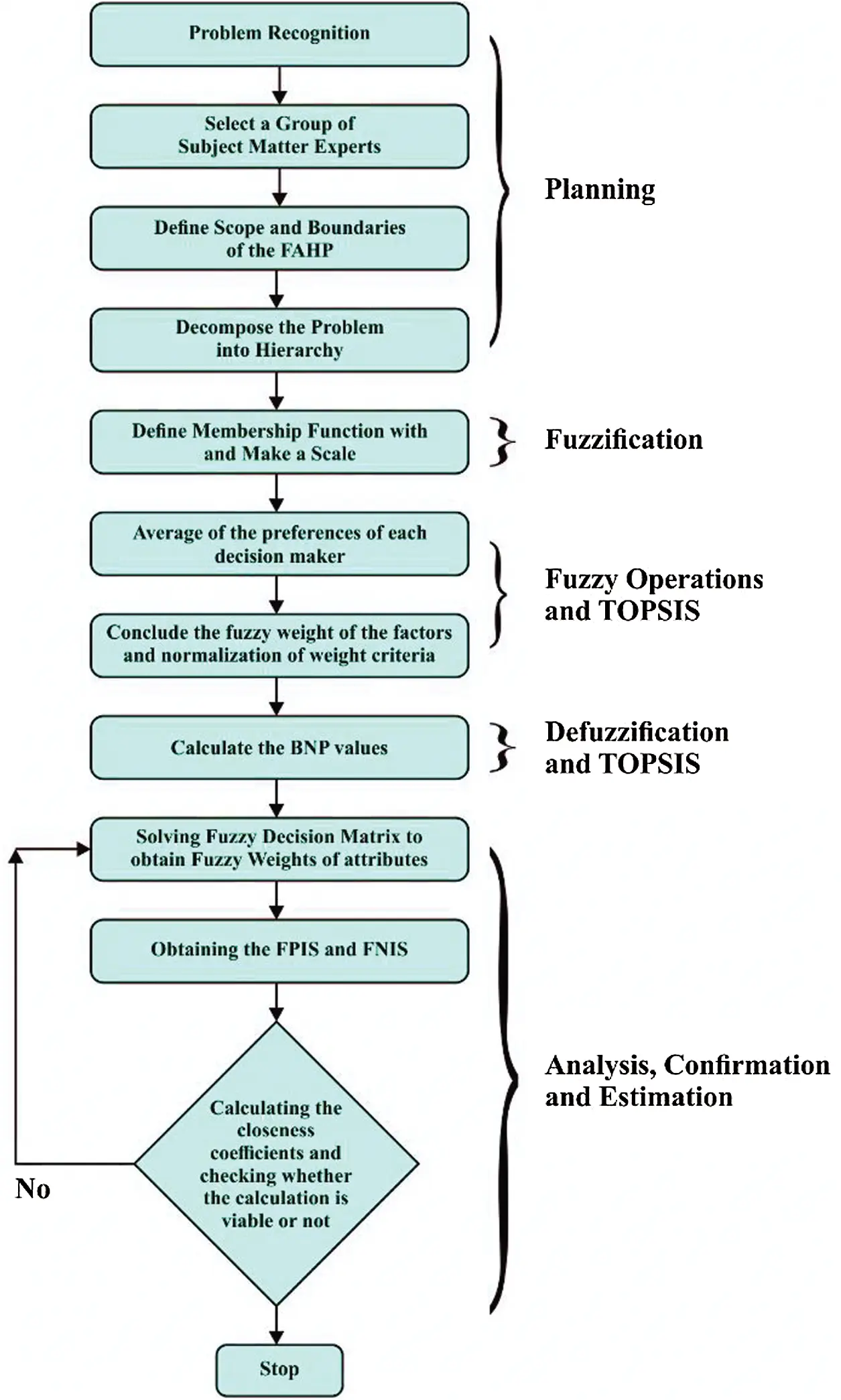

Figure 3: Functional diagram of fuzzy AHP-TOPSIS method

Next, we assess the weight of the assessment element. The present study introduces Fuzzy AHP to the resolve of problem of fuzzy priority weights. In addition, authors are creating a fuzzy based decision matrix and choosing suitable semantic terms as alternatives to the parameters using Tab. 4.

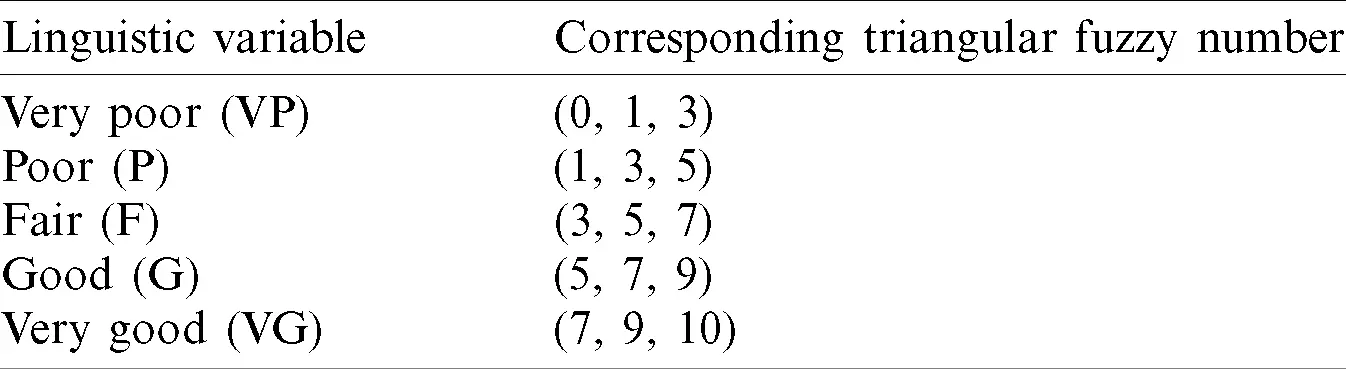

Table 4: Linguistic scales for the rating

images

5  Statistical Data Analysis

This segment delivers a comprehensive explanation of the empirical outcomes, their clarification. Tab. 5 shows the collective pairwise comparison matrix at first level. Tabs. 610 demonstrate the aggregated pair-wise assessment matrix at second level for Efficiency, Effectiveness, Learnability, Satisfaction and Productivity respectively. Tab. 11 presents the summary of the results. Tab. 12 presents the subjective cognition consequences of assessors in linguistic terms. Tab. 13 shows the normalized fuzzy-decision matrix. Tab. 14 presents the weighted normalized fuzzy-decision matrix. And finally Tab. 15 presents the closeness coefficients to the aspired level between the different Alternatives. Fig. 4 present the graphical representation of the outcome.

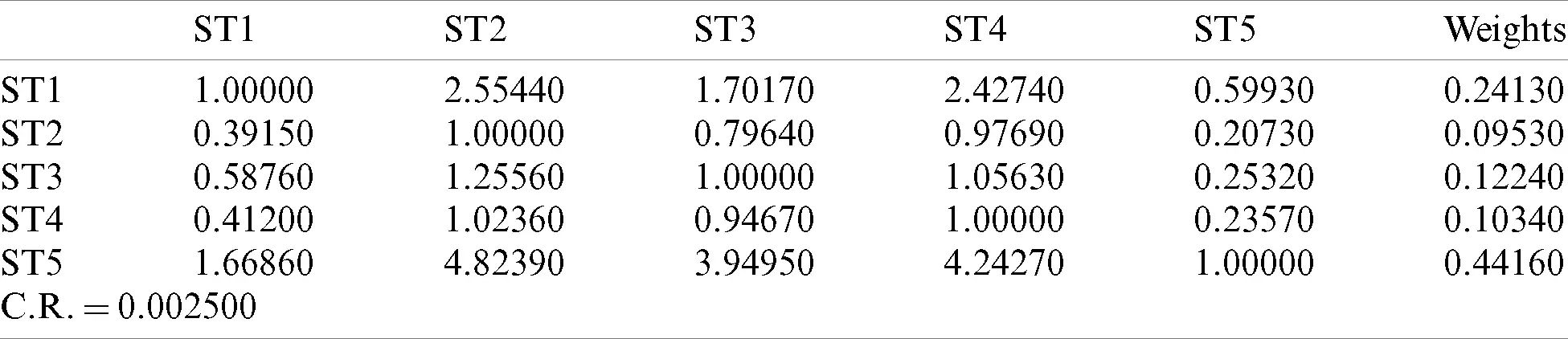

Table 5: Combined pairwise comparison matrix at level 1

images

Table 6: Aggregated pair-wise comparison matrix at level 2 for efficiency

images

Table 7: Aggregated pair-wise comparison matrix at level 2 for effectiveness

images

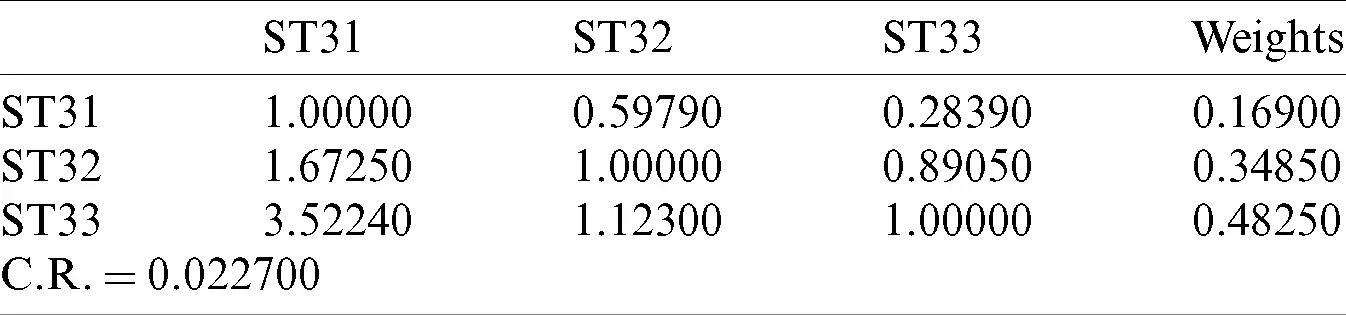

Table 8: Aggregated pair-wise comparison matrix at level 2 for learnability

images

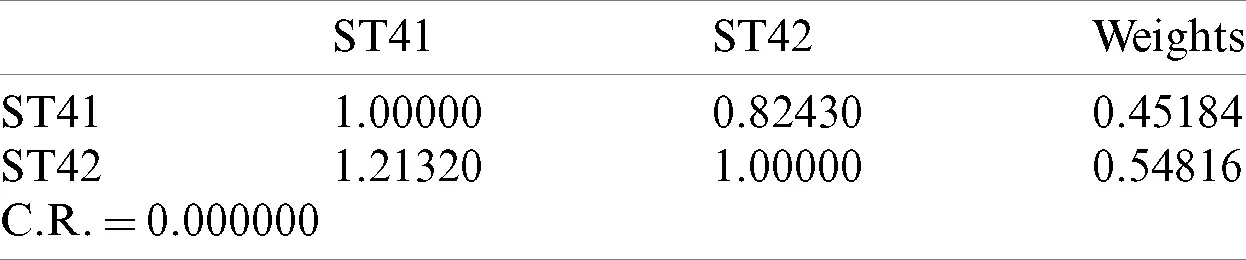

Table 9: Aggregated pair-wise comparison matrix at level 2 for satisfaction

images

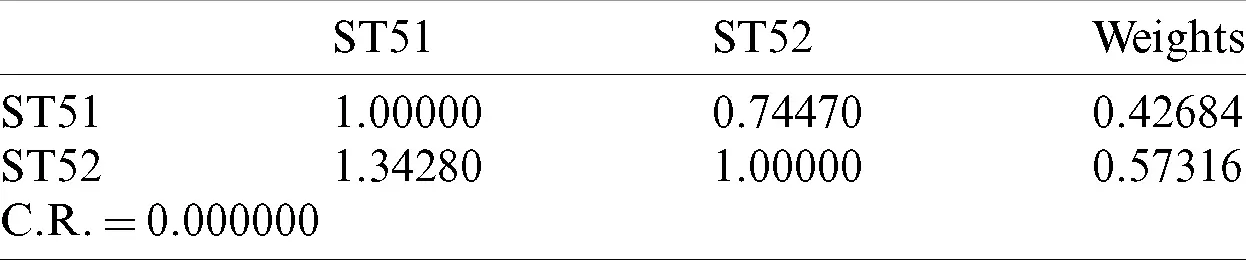

Table 10: Aggregated pair-wise comparison matrix at level 2 for productivity

images

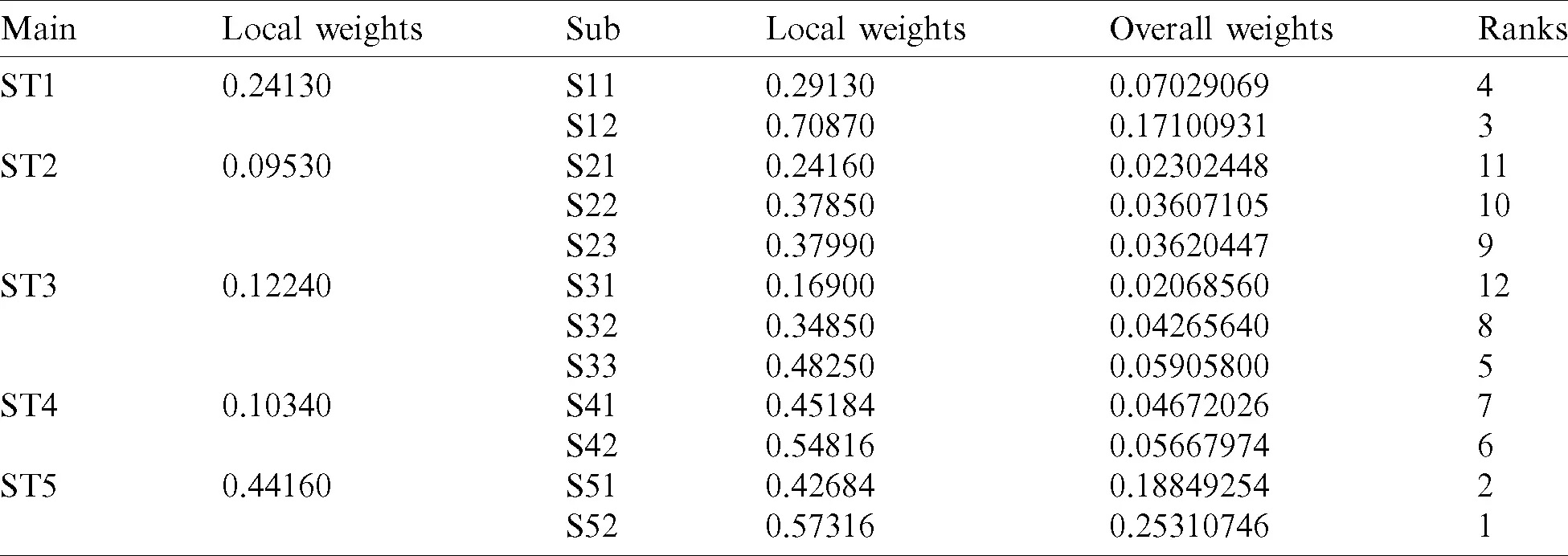

Table 11: Summary of the results

images

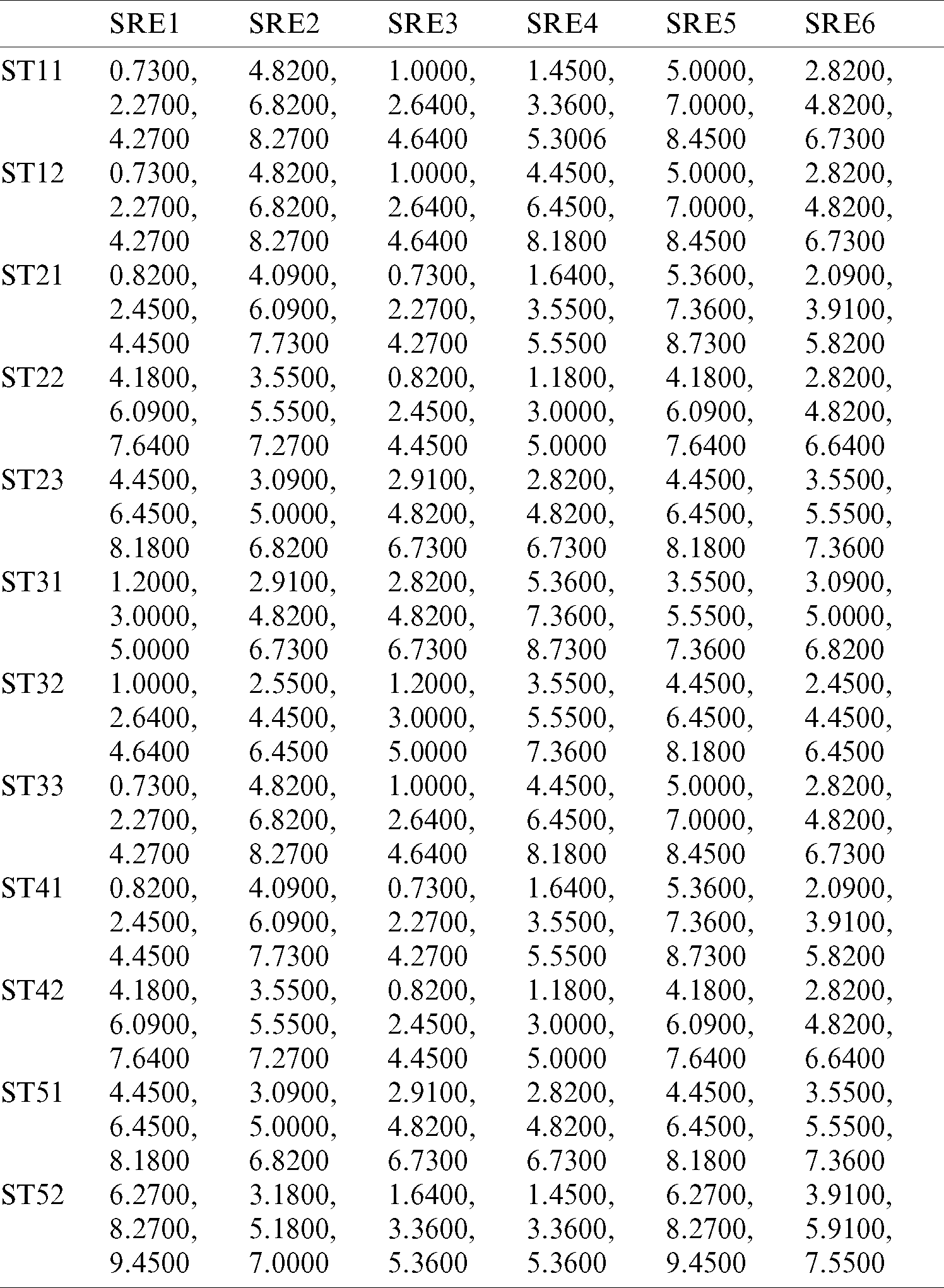

Table 12: Subjective cognition results of evaluators in linguistic terms

images

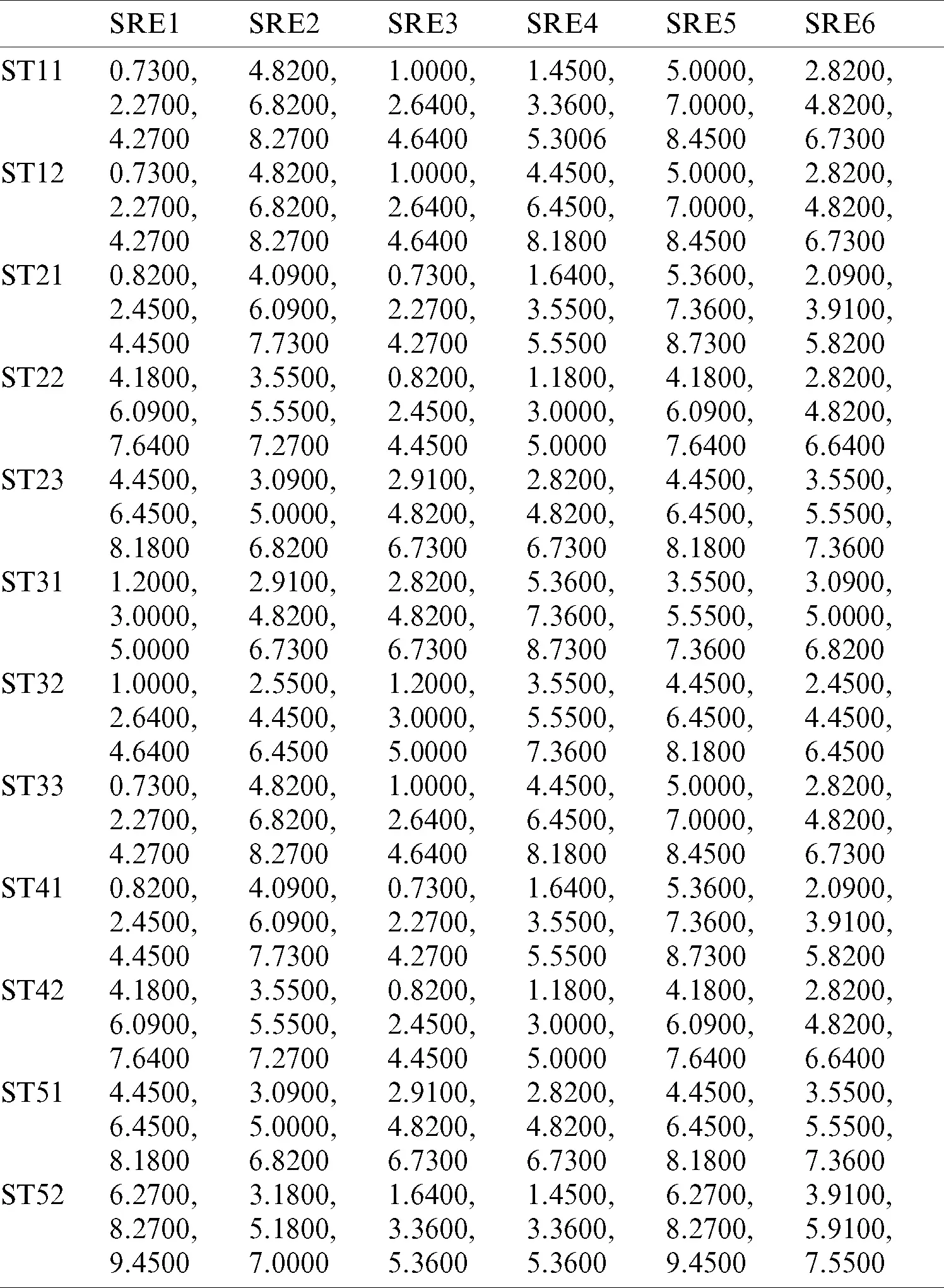

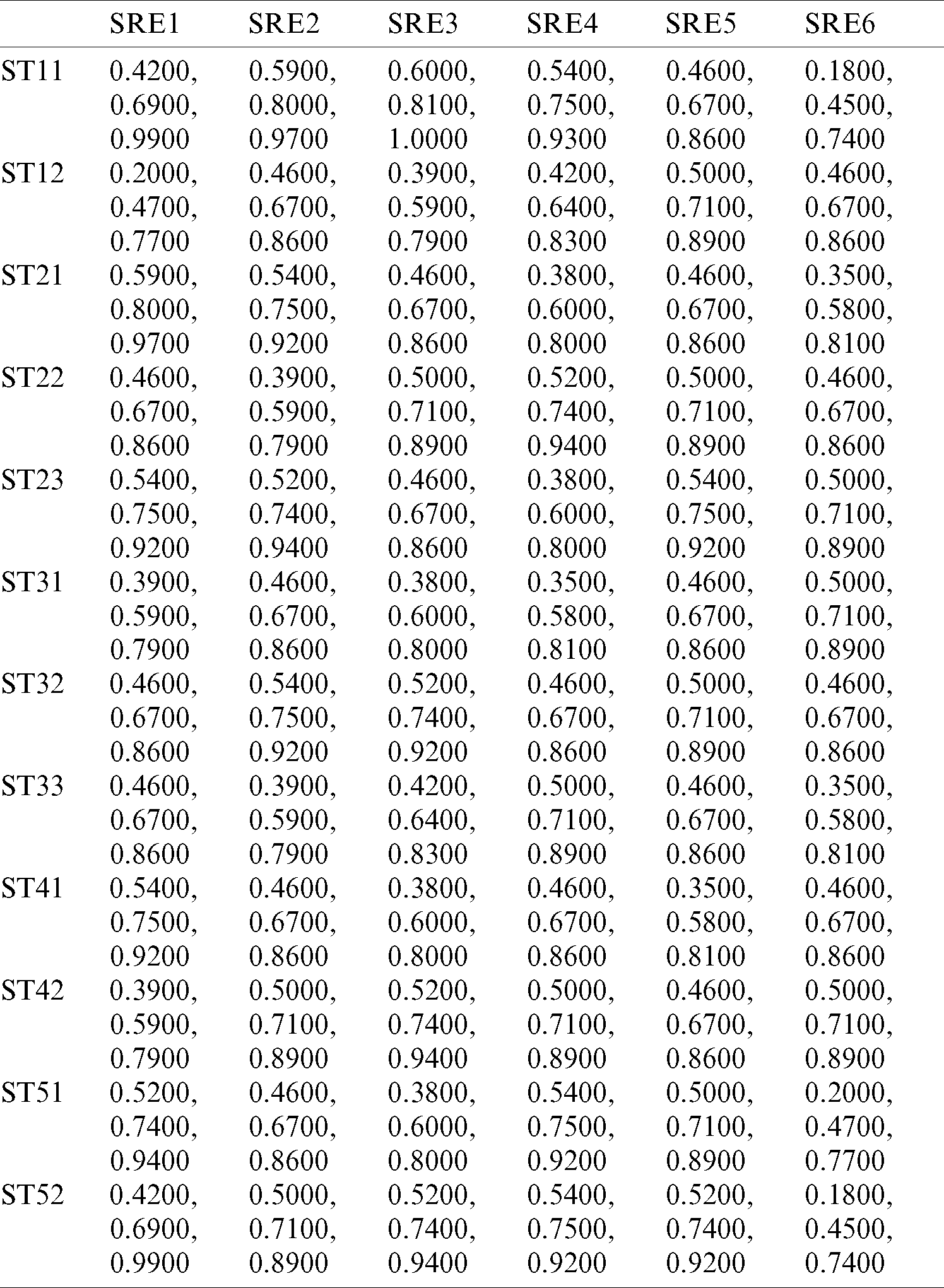

Table 13: The normalized fuzzy-decision matrix

images

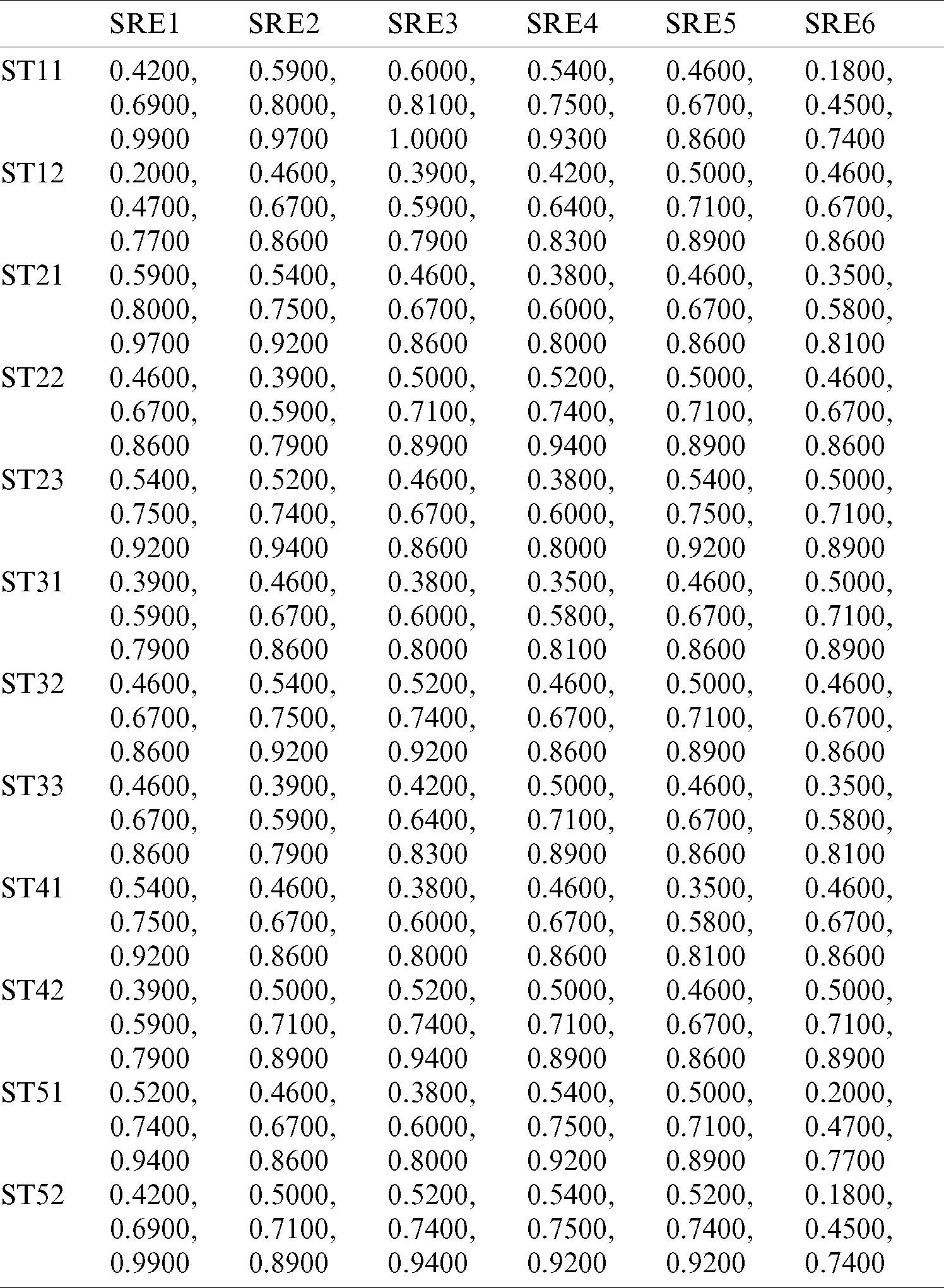

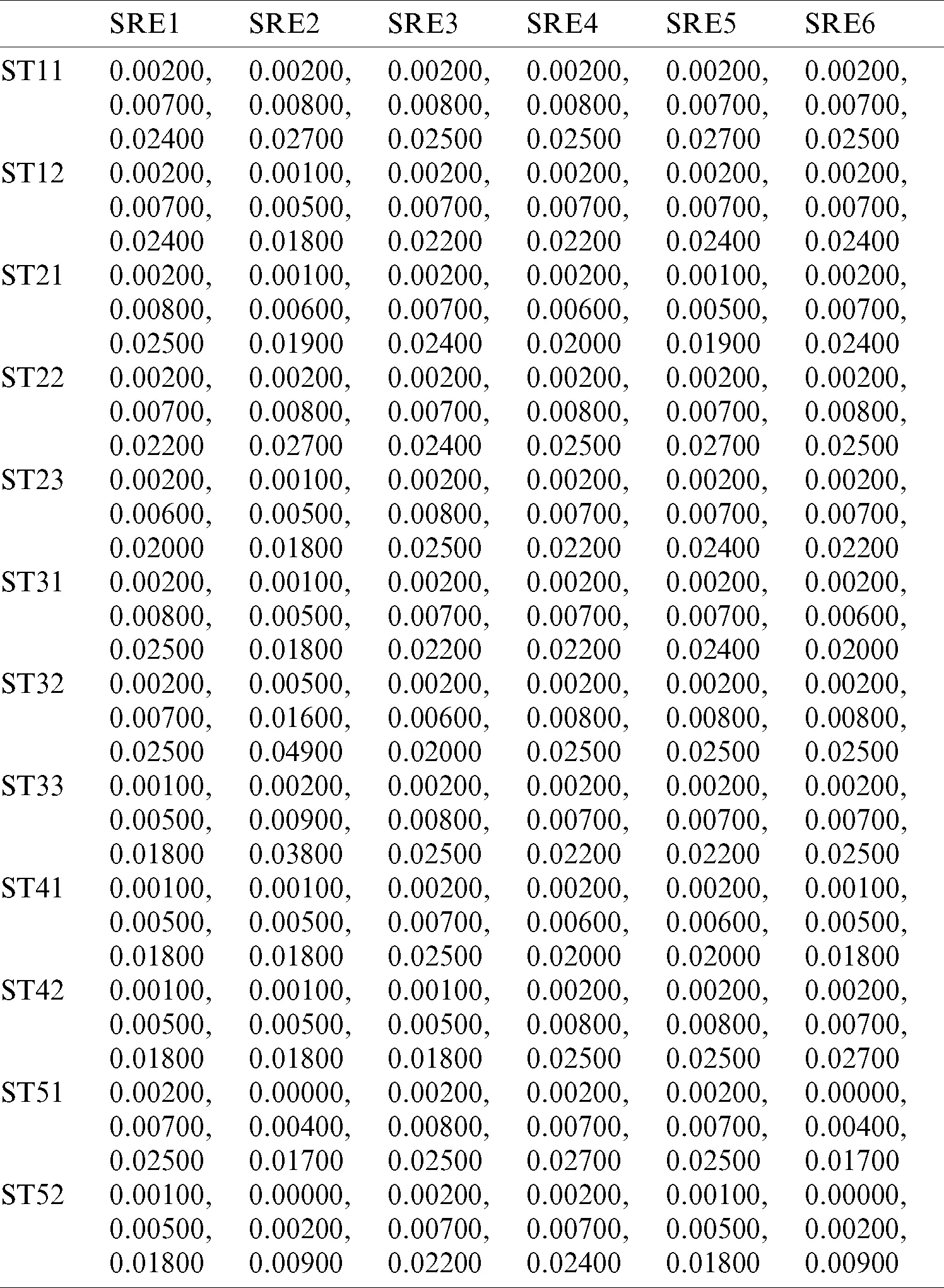

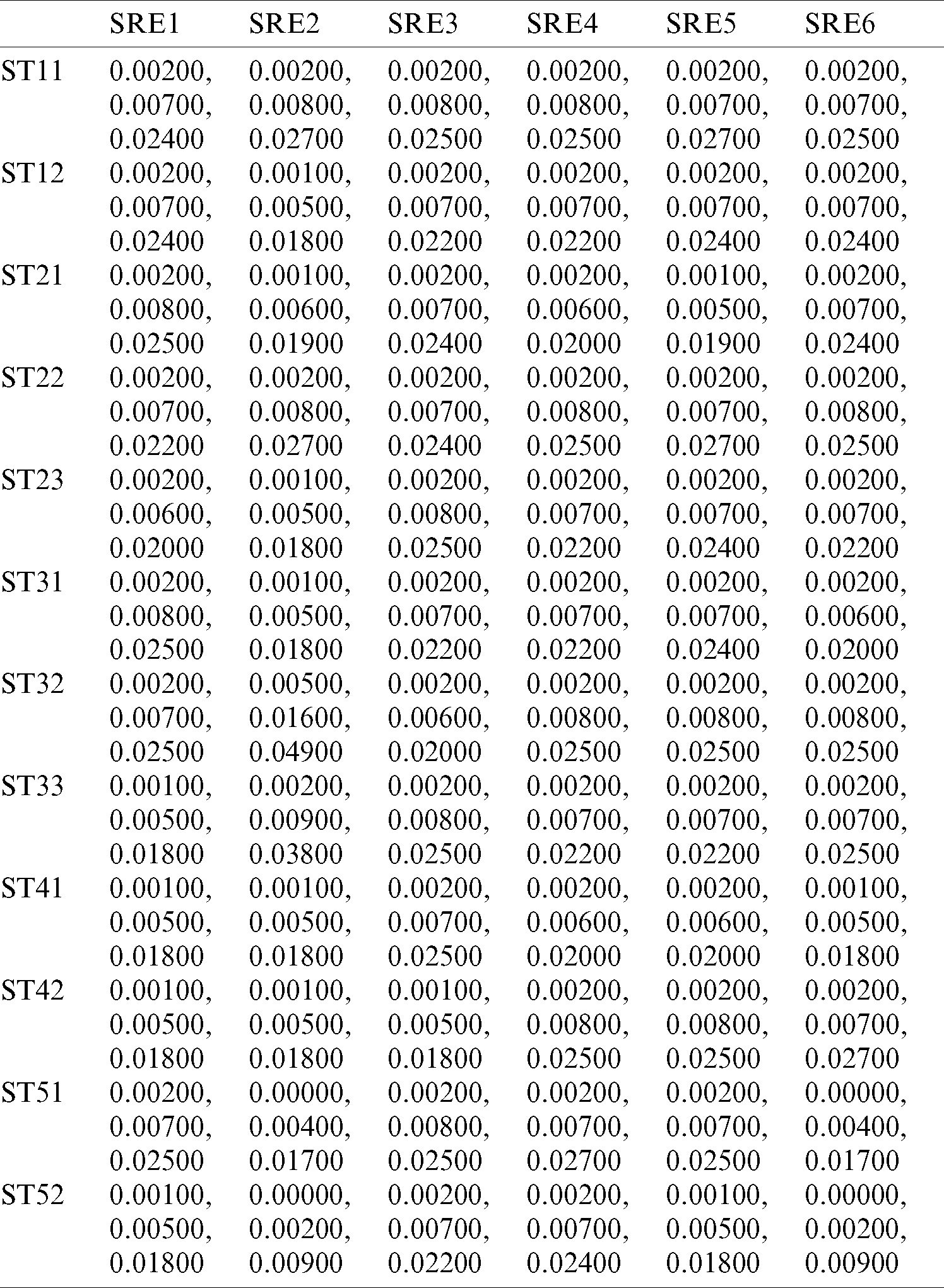

Table 14: The weighted normalized fuzzy-decision matrix

images

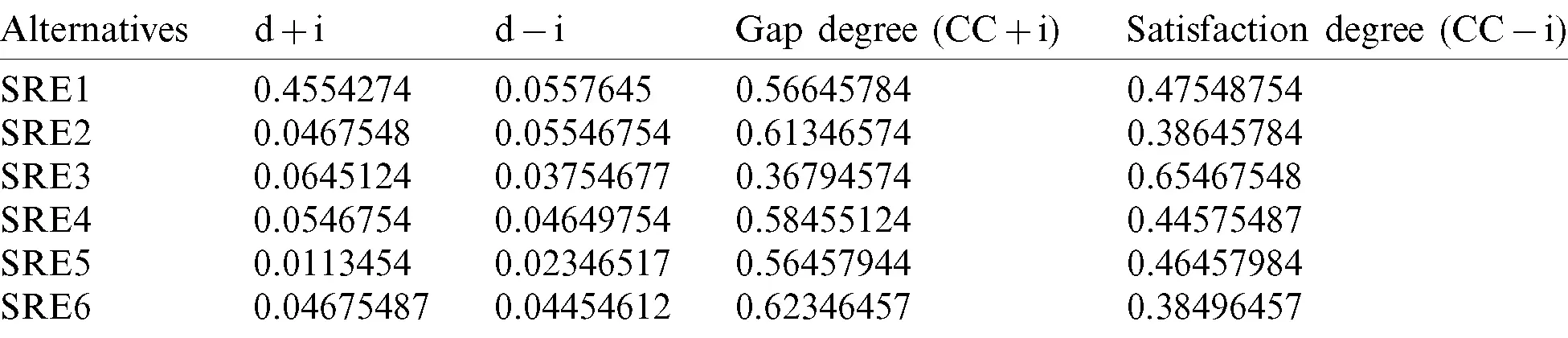

Table 15: Closeness coefficients to the aspired level among the different alternatives

images

With growing usage of the Internet, there is an elevated incidence of malicious software such as viruses impacting a business communications system. The software virus is a component of computer programs that is introduced into another programme and is inactive until it is activated by an unaware person. This cause can be as easy as accessing a file or uploading a document from the internet. With the complication and speed of the software development lifecycle, software engineering is under tremendous pressure to produce market specifications without paying enough attention to the security vulnerabilities that the application might have experienced. With these kinds of security issues, the company would have a problem providing the consistency and availability of the company needed by its clients. However some software firms use security requirements engineering approach during software development process, but even the most advanced SRE approach cannot keep up with the ever-increasing number of malware and malicious programmes out there. This research presents the usability evaluation of different security requirements engineering approaches. Fig. 4 presents the graphical representation of the findings obtained in this study. The finding demonstrates the satisfaction degree of several alternatives is estimated as 0.47548754, 0.38645784, 0.65467548, 0.44575487, 0.46457984 and 0.38496457 for ST1, ST2, ST3, ST4, ST5 and ST6 respectively. The outcome show the ST3 which is STORE methodology has highest usability priority for the assortment of effective and efficient security requirements engineering method.

images

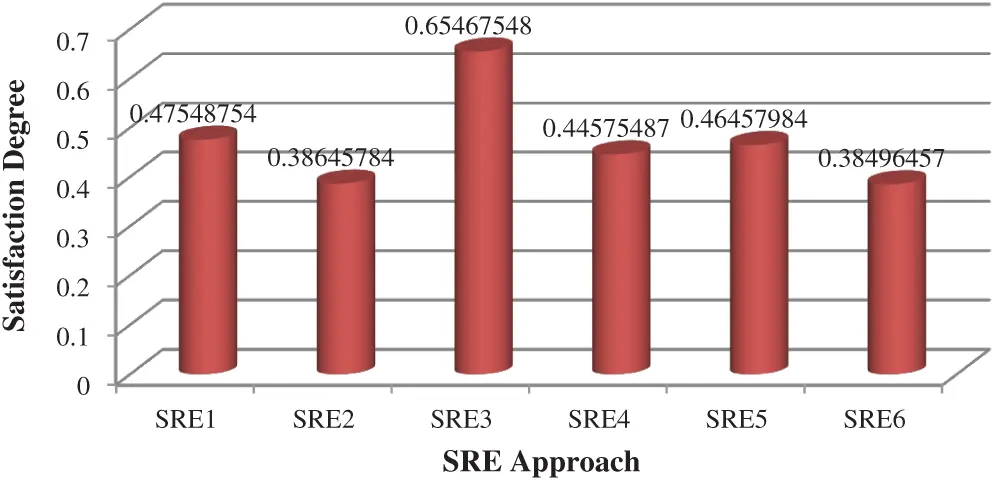

Figure 4: Graphical representation of the outcome

6  Conclusion

We contrasted and addressed different categories of security requirements engineering (SRE) approaches and procedures. Our viewpoint of assessment and analysis uses some of the usability principles set out in previous works contained in the research. One purpose of such parameters is to evaluate the ability of the process that can provide an environment for its system to develop job in a timely, efficient and productive manner while experiencing practice. Another goal is to explore which SRE approaches can be used to analyses the degree of security of the software against attacks. Our research then demonstrates and prioritizes the SRE approaches founded on the security expert’s viewpoint. We conclude that STORE methodology is the very consistent and usable SRE approaches with a threat-driven approach since it uses an effective and well-organized way of eliciting security requirements in the software development procedure. The findings of this research would assist and provide future directions to the security requirements engineers and security experts. This study helps them in selecting the most effective security requirements engineering approach.

Acknowledgement: This research work was funded by Institutional Fund Projects under Grant No. (IFPHI-269-611-2020). Therefore, authors gratefully acknowledge technical and financial support from the Ministry of Education and King Abdulaziz University, DSR, Jeddah, Saudi Arabia.

Funding Statement: Funding for this study is received from the Ministry of Education and Deanship of Scientific Research at King Abdulaziz University, Kingdom of Saudi Arabia under Grant No. IFPHI-269-611-2020.

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.
