Understanding Research Trends in Android Malware Research Using Information Modelling Techniques
1Chitkara University Institute of Engineering & Technology, Chitkara University, Punjab, 140401, India
2Department of Software, Sejong University, Seoul, 05006, South Korea
3Department of Computer Science and Engineering, Thapar University, Patiala, 147001, India
4Department of Information & Communication Engineering, Inha University, Incheon, 22212, South Korea
*Corresponding Author: Kyung-sup Kwak. Email: email@example.com
Received: 24 September 2020; Accepted: 12 October 2020
Abstract: Android has been dominating the smartphone market for more than a decade and has managed to capture 87.8% of the market share. Such popularity of Android has drawn the attention of cybercriminals and malware developers. The malicious applications can steal sensitive information like contacts, read personal messages, record calls, send messages to premium-rate numbers, cause financial loss, gain access to the gallery and can access the user’s geographic location. Numerous surveys on Android security have primarily focused on types of malware attack, their propagation, and techniques to mitigate them. To the best of our knowledge, Android malware literature has never been explored using information modelling techniques. Further, promulgation of contemporary research trends in Android malware research has never been done from semantic point of view. This paper intends to identify intellectual core from Android malware literature using Latent Semantic Analysis (LSA). An extensive corpus of 843 articles on Android malware and security, published during 2009–2019, were processed using LSA. Subsequently, the truncated singular Value Decomposition (SVD) technique was used for dimensionality reduction. Later, machine learning methods were deployed to effectively segregate prominent topic solutions with minimal bias. Apropos to observed term and document loading matrix values, this five core research areas and twenty research trends were identified. Further, potential future research directions have been detailed to offer a quick reference for information scientists. The study concludes to the fact that Android security is crucial for pervasive Android devices. Static analysis is the most widely investigated core area within Android security research and is expected to remain in trend in near future. Research trends indicate the need for a faster yet effective model to detect Android applications causing obfuscation, financial attacks and stealing user information.
Keywords: Android security; research trends; latent semantic analysis; vulnerabilities; malware; machine learning; clustering
Android has been dominating the smartphone market for more than a decade and has managed to capture 87.8% of the market share . Affordability, agility and reliability of Android smartphones have encouraged their use in e-commerce, banking, sending emails, using social media and marketing. Such popularity of Android has drawn the attention of cybercriminals and malware developers. An exponential increase in Android malware families has been observed by the research community. These malware families differ in the way they attack, the type of vulnerabilities they exploit and the Android subsystem they target . At times, these attacks may even propagate through application stores like Google play store . The malicious applications can steal sensitive information like contacts, read personal messages, record calls, send messages to premium-rate numbers, cause financial loss, gain access to the gallery and access the user’s geographic location. Popularity among users and continuously increasing Android malware attacks has gained the attention of the researchers. Few of the benchmark literature reviews have also been done by the research community [2,4–6].
These surveys have primarily focused on types of malware attack, their propagation, and techniques to mitigate them. Few surveys also highlighted fundamental vulnerabilities of Android platforms. To the best of our knowledge, Android malware literature has never been explored using information modelling techniques. Further, promulgation of contemporary research trends in Android malware has never been done from semantic point of view. This paper intends to identify intellectual core from Android malware literature using Latent Semantic Analysis (LSA). LSA mimics the human brain to filter out semantics from the text as it is mathematically proven to model words, synonyms, and metaphors to elaborate various semantic aspects of qualitative literature [7–11]. LSA is reliably efficient in information retrieval and query optimization [12,13]. Many researchers from different research fields have used LSA to discover the research trends [10,14–17]. LSA identifies the entire of the contexts in which a word could appear and learns to establish a common factor to represent underlying concepts. Keeping into consideration other researches using information modeling techniques; the main contribution of this study is to discover current trends, future research directions, and core research areas pertaining to Android malware. To minimize opinion bias, K-means clustering was used to automatically map the document to its closest possible topic solution.
The rest of the paper is organized as follows: The second section introduces the available materials and methods along with the procedure to deploy LSA. The third section explains experimental results, different topic solutions, research trends, core research areas and their mapping. Section 4 concludes the findings.
2 Materials and Methods
Automated topic modelling techniques require minimal human intervention and can process thousands of articles in one go. However, manual review process does require human intervention at every step and can be biased sometimes . It is very difficult to manually review full length articles in large numbers. A great manual effort is required to draw conclusions like research trends across large literature. At the document level, one of the most useful ways to understand the text is by analyzing its topics. The process of learning, recognizing, and extracting these topics across a collection of documents is called topic modeling. Numerous well-formed algorithms are available to produce research trends and core research areas within research field. In addition to it, numerous machine learning techniques could be used for performing data analysis, visualization and interpretation of results. LSA is the fundamental and most studied techniques in topic modeling. Papadimitriou et al.  investigated appropriate conditions for applying LSA. Few of the researchers also performed decision making to analyze trends in blockchain technology using Word2vec-based Latent Semantic Analysis (W2V-LSA) . The experimental results confirmed its usefulness and better topic modelling than tradition bibliometric methods. Initially, research trend analysis was also performed on doctoral dissertations and master’s theses for identifying future research opportunities in the domain of blended learning . Systematic information retrieval using automated and semi-automated approaches in any field of research has itself become a trend. However, recent advancements in text mining, information retrieval and topic modelling has gained attention of research community to forecast research trends . Text mining has also facilitated machine learning algorithms to enhance its capability to mine latent information  from user review on websites, newspaper articles and social media information analysis. Other techniques like probabilistic latent semantic analysis use uni-gram format conversion of a word, which generally get fail to capture the specific context in the document . Further, n-gram format leads to decrease in efficiency of model due to wide dimensionality . Owing to these probable limitations of probabilistic latent semantic analysis, LSA has been widely accepted by research community to promulgate trends within research literature.

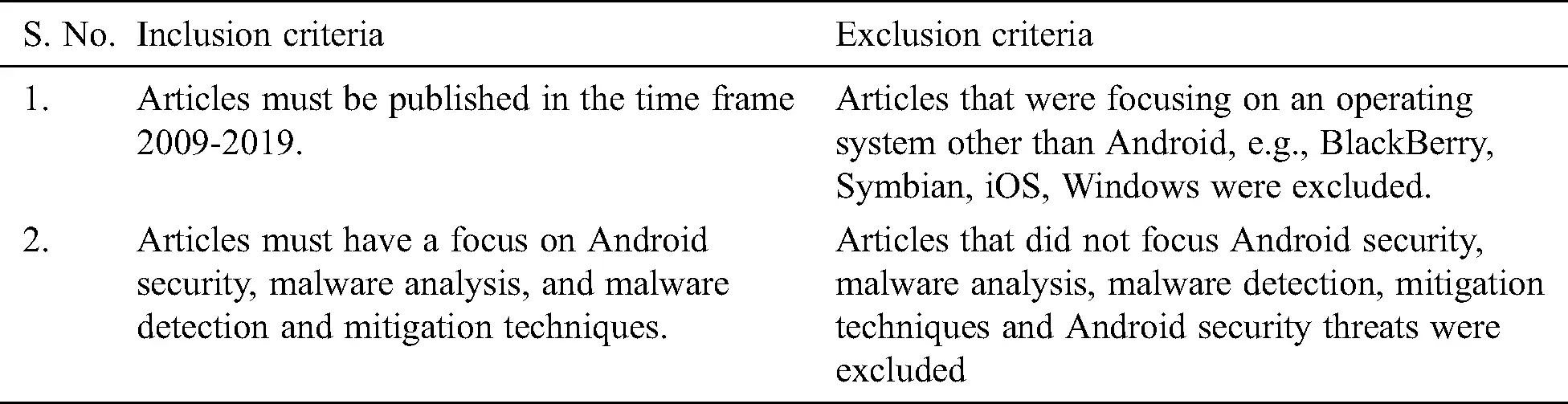

This section details the methodology to deploy LSA on Android malware literature. The keywords used to search research articles and adopted inclusion-exclusion criteria for selecting articles are detailed here. A manual search was performed across previously mentioned databases using the following search terms “malware” OR “vulnerability” OR “security” OR “privacy” OR “monitoring” OR “application” OR “smartphone” OR “android” OR “virus” OR “static” OR “dynamic” OR “detection” OR “data flow” search keywords, with Android as prefix. Prominent research databases like Google Scholar, Mendeley, ACM DL, Hindawi, Taylor and Francis, IEEE, Wiley and Scopus were searched to identify quality literature related to Android malware. The inclusion and exclusion criteria followed for selection of articles is mentioned in Tab. 1. The collected literature was pre-processed and organized using Mendeley reference manager . Mendeley helped to introduce standard formatting to all documents which were indexed according to common objects.
Initially, a total of 1289 abstracts and titles of articles published during 2009–2019 were collected by searching previously mentioned keywords. From amongst the collected documents, 251 duplicate entries were removed. Remaining 1038 articles were accessed and evaluated as per decided inclusion/exclusion criteria. Articles focusing on general malware (39), iOS (45), Symbian operating system (50), windows (61) were excluded. Finally, we were left with 843 articles to be processed using LSA. Owing to the required brevity of manuscript, the method to deploy LSA has been elaborated below with the help of an example:

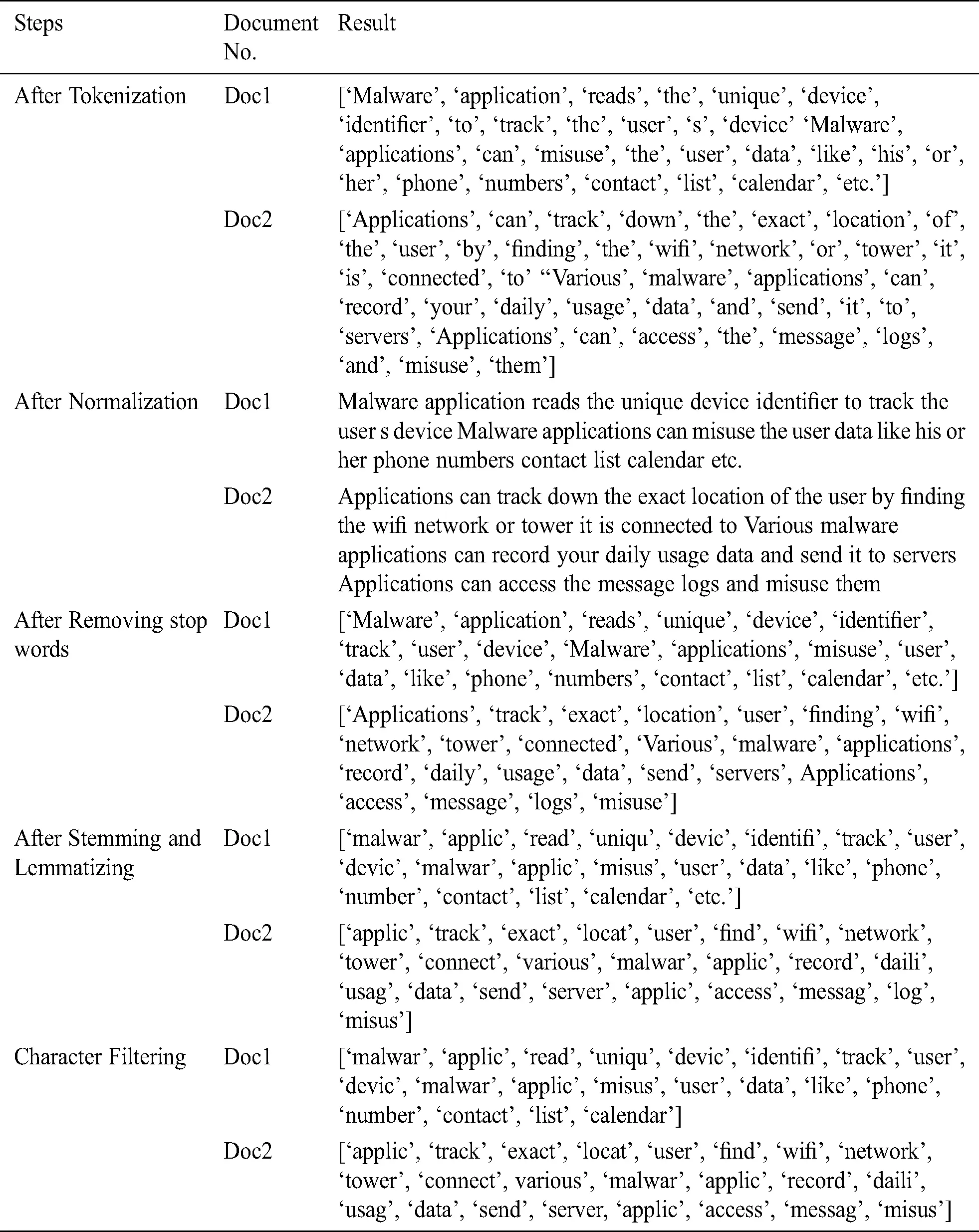

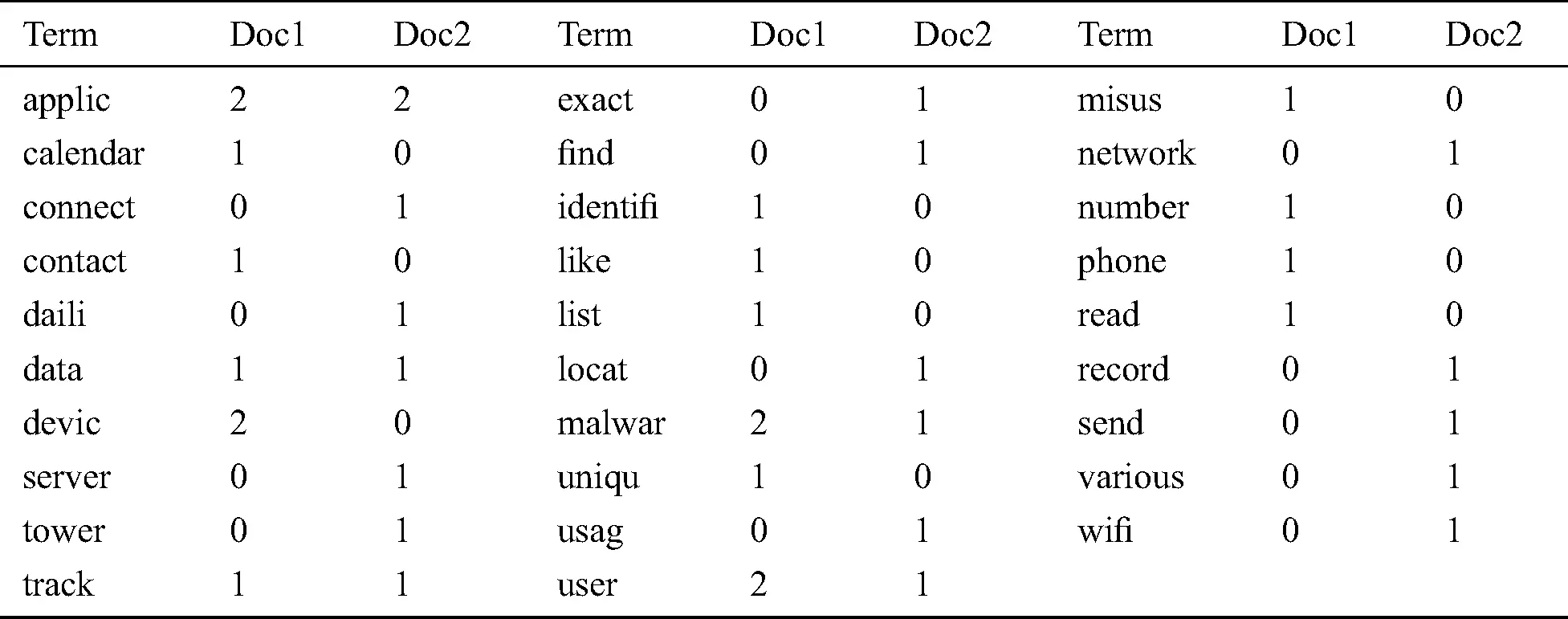

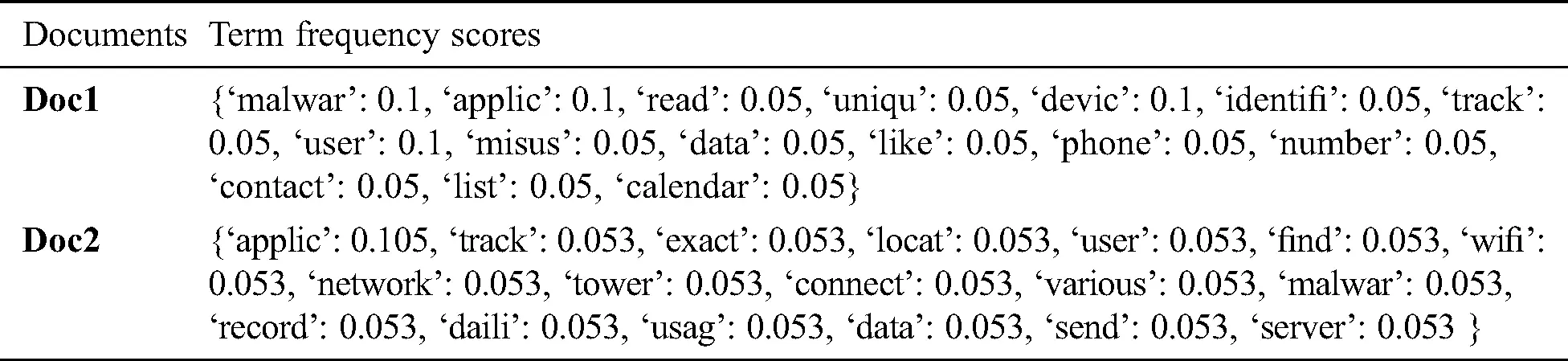

Assume Sample Doc1 and Sample Doc2 as documents within a given document corpus. The required pre-processing and document-term matrix scores for identifying frequency of each term have been detailed in Tabs. 2 and 3.
Sample Doc1: Malware application reads the unique device identifier to track the user’s device. Malware applications can misuse user data like his or her phone numbers, contact list, calendar, etc.
Sample Doc2: Applications can track down the exact location of the user by finding the WiFi network or tower it is connected to. Various malware applications can record your daily usage data and send it to servers
As the task is to mine the relevant terms that provide useful or quality information about the document, the document-term matrix has to be replaced by Term-Frequency/Inverse Document Frequency (TF-IDF) weights for further processing of the matrix. TF-IDF weight is a measure to interpret the importance of a term to a document in a collection of the large corpus. TF-IDF works on the fact that relevant words are not necessarily frequent words. The TF-IDF weight is build-up of two terms that need to be calculated beforehand:
(i) TF (Term Frequency): It provides the frequency of a term (TF) with normalized value, which can be computed as the division of the number of occurrences of a term in a document and the total number of terms in that document, refer Eq. (1). Sample TF scores in context with an example taken are shown in Tab. 4.

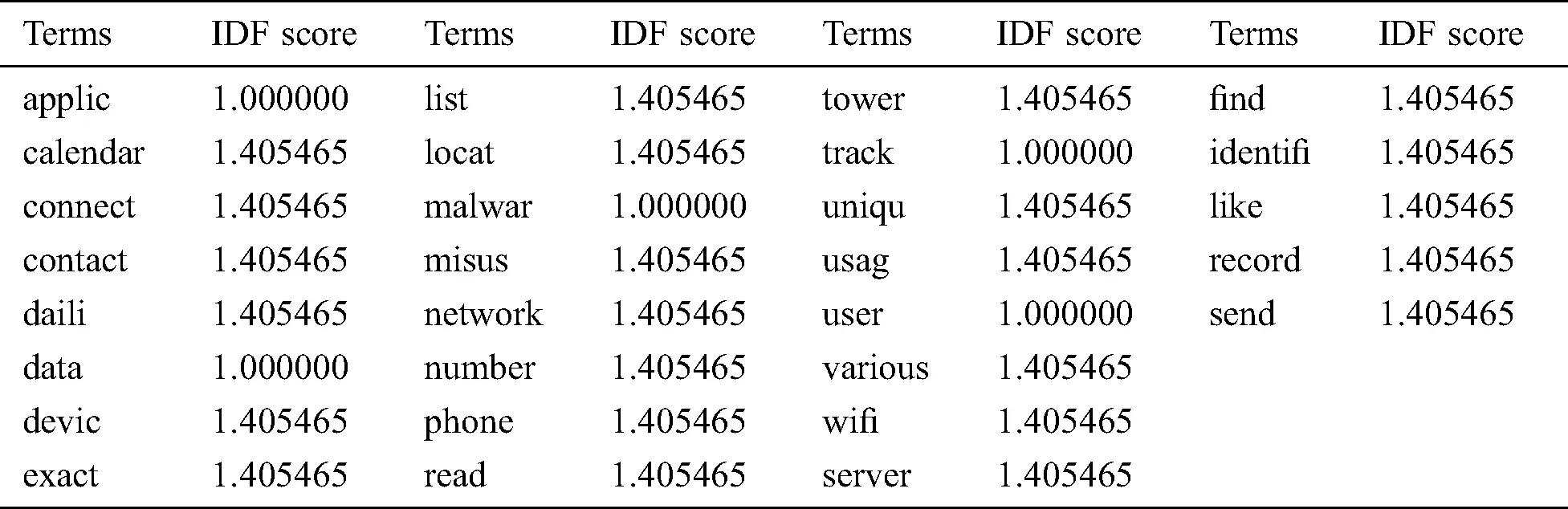

(ii) IDF (Inverse Document Frequency): IDF indicates the importance of each term within the document. IDF is calculated as a log of the division of count of documents in the corpus divided by the count of documents where the specific term appears. However, it is quite obvious that some terms, like “is”, “the”, “of”, and “that” or certain domain-specific words, may appear repeatedly but may not have much importance. Thus, arises a need to weigh down the importance of most occurred terms while scaling up the rare ones. Therefore, IDF scores are important and can be computed as given in Eq. (2). IDF scores for sample documents are presented in Tab. 5.

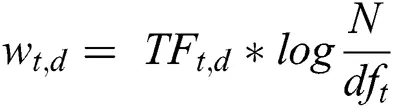

Hence, after the calculation of TF and IDF scores, the final document-term matrix with TF-IDF scores is calculated with the following Eq. (3).

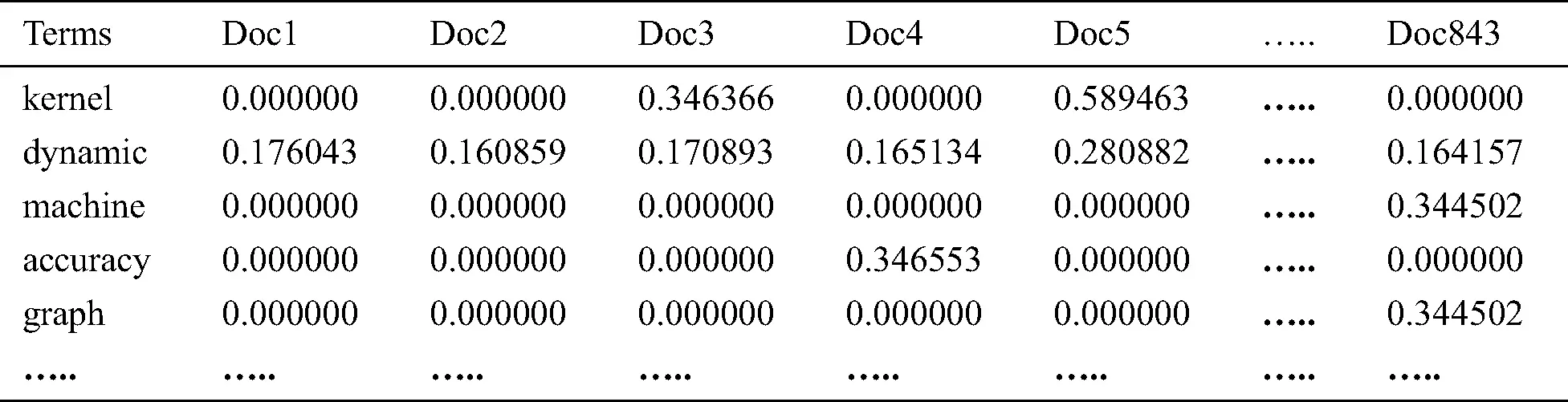

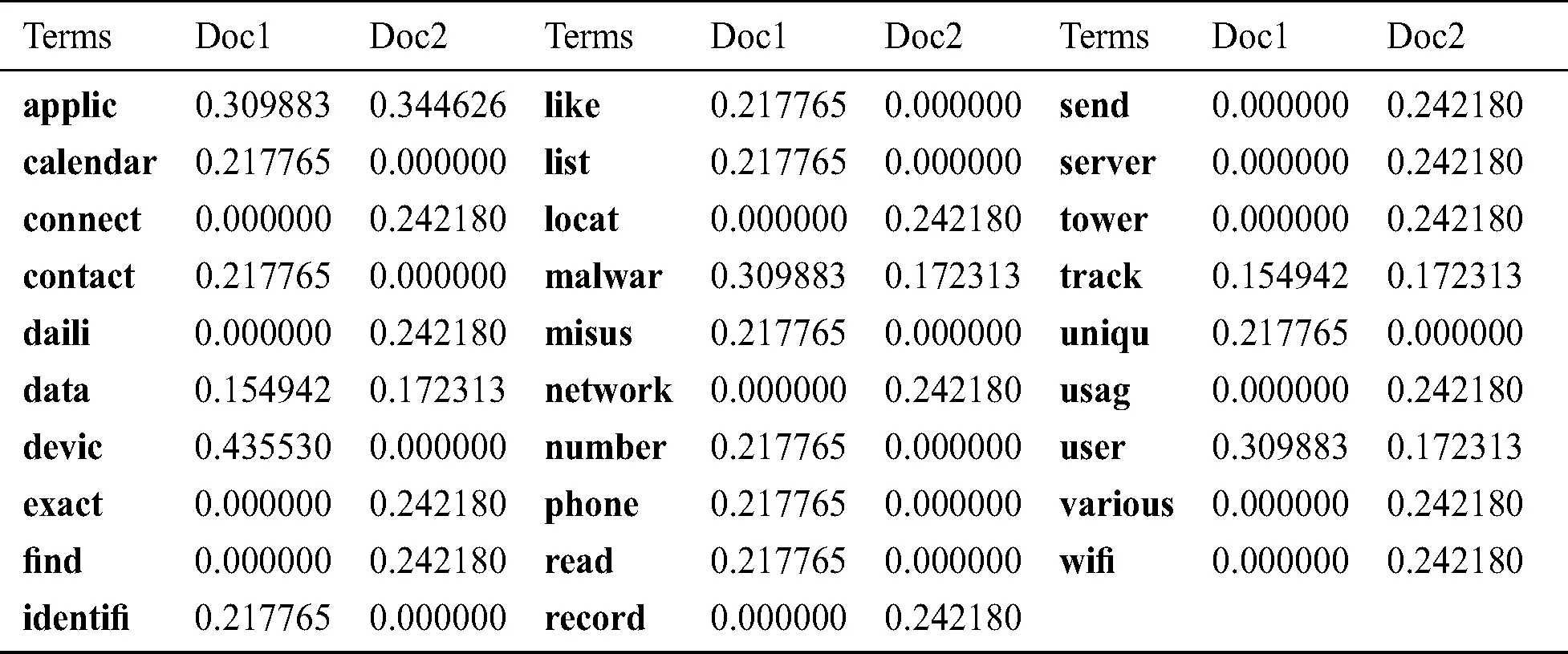

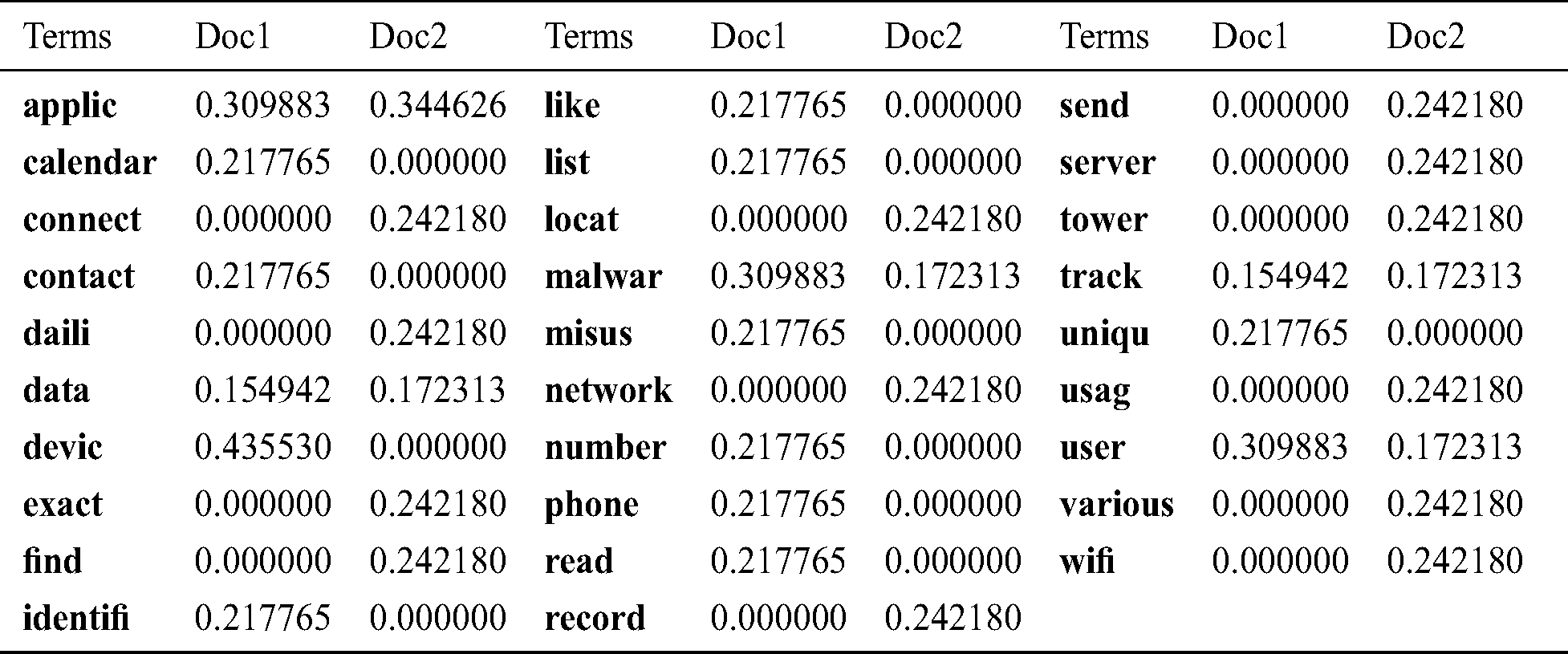

where t denotes the terms; d denotes each document; N denotes the total number of documents. Consider Tab. 6 above, it represents the document-term matrix with TF-IDF scores for previously stated example. A term will have more TF-IDF value when its occurrences across the document are more but less across the corpus. Let’s take an example of a domain-specific word i.e., “malware” which was very common in entire of the corpus, but may appear often in a document hence, it will not have a high TF-IDF score. However, the word “permissions” may appear frequently in a document, and appears less in the rest of the corpus, it will have a higher TF-IDF score. As shown in the example given above, a large corpus of the research papers on Android security and malware resulted in high dimensional TF-IDF matrix. High dimensional matrix is generally expected to be redundant and noisy. Therefore, to uncover the relationship among the words and documents and to capture the latent topics within the corpus, dimensionality reduction was required. Term Frequency-Inverse Document Frequency (TF-IDF) matrix (as produced in the previous step) was fed to truncated Singular Vector Decomposition (SVD). SVD transforms the data from high dimensional vector space to a low dimensional vector space keeping the originality of the data sustained. Using SVD, the LSA would produce two matrices, one for the terms loading values and other for the documents loading values. High loading terms and high loading documents help to interpret their association with topic solutions. Each topic solution signifies the research theme across the corpus. Researchers can modify selection by varying the selections of the number of factor solutions. The most common research areas can be found easily by selecting a lower-level factor aggregation. A higher-level factor aggregation signifies principal or core research themes. Truncated SVD is a matrix algebra technique which decomposes TF-IDF matrix into a product of three matrices—U, ∑ and V. The SVD decomposition over matrix A is represented as follows in Eq. (4):
Here, A represents the TF-IDF matrix, U represents documents-to-concepts matrix describing associations between concepts and terms, V represents terms-to-concepts matrix describing associations between documents rooted to various concepts and ∑ represents a diagonal matrix with non-negative real numbers, arranged in descending order. Moreover, these diagonal values represent the relative strength of each concept. A maximum number of concepts (also known as topics) cannot be more than the total number of documents rather its value needs to be adjusted to develop a latent semantic representation of the original matrix. Let’s assume d is the total number of documents, t is the total number of terms in all the documents and k is considered as the hyperparameter indicating the number of topics to be extracted from the textual data. Ak is the low-rank approximation of matrix A and can be produced using truncated SVD as follows in Eq. (5):
where Uk is the document-to-topic matrix (t × k), Vk is the term-to-topic matrix (d × k), and is the topic-to-topic matrix (k × k). To decrease the importance of frequent terms and increase the rare terms in documents, the TF-IDF technique was used and Tab. 6 shows the term frequencies being transformed after applying TF-IDF. To illustrate the text mining done by LSA, consider the same textual data example, SVD operation has to be applied on the TF-IDF matrix. As discussed, each of the k reduced dimensions corresponds to a latent concept which helps to discriminate the documents. To obtain the most significant dimensions, the optimal value for k needs to be adjusted. But for the above example, the value of k is taken to be two. The document loading-matrix and term-loading matrix are shown in Tabs. 7 and 8. As an application of LSA followed by clustering approach will help to identify topic solutions.
3 Experimental Results and Findings
Using procedure detailed in Section 2 and weighting scheme as given in Eq. (3), a n*843 term-document weighted matrix was created for t term in d document for all n documents within corpus. This corpus would be used for identification of prominent topic solutions within Android malware literature. Initially the dataset of 843 documents had 10076 tokens. After pre-processing, the count was reduced to 1122 tokens. 843 sparse vectors were created with 1122 tokens. The collection of 843 articles on Android malware was then transformed to a singular row of vectors wherein rows of the matrix used as 1122 terms of 843 columns, each vector representing an article on Android malware. This process would provide a unique numeric value to the collection of words as discussed in Tab. 6 for sample documents and in Tab. 10 for actual 843 documents (as proof of concept). This list of words is further used for the creation of matrix containing weights. As mentioned previously, large corpus of 843 documents on Android malware resulted into high dimensional TF-IDF matrix which was likely to be noisy and redundant across its many dimensions. Therefore, to uncover the latent structure within words and documents and to identify latent topics within corpus, dimensionality reduction step was performed as detailed in subsequent sections below.
3.1 Rank Lowering Using Singular Vector Decomposition
The weighted matrix TF-IDF obtained after preprocessing steps was provided to the SVD to further perform rank lowering. The SVD model is used to perform matrix X factorization into variables [13,26]. The following terminology is used in Eqs. (6) and (7).
U: Initial rotation
V: Final rotation

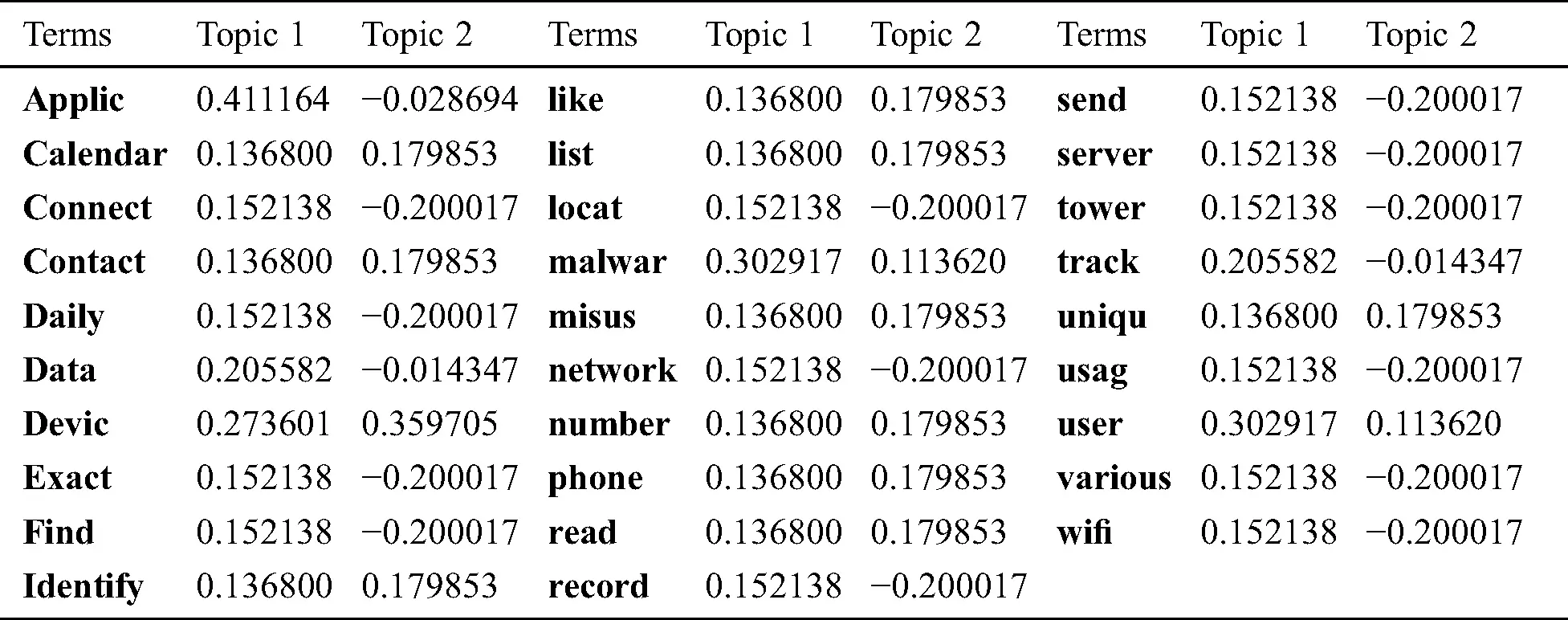

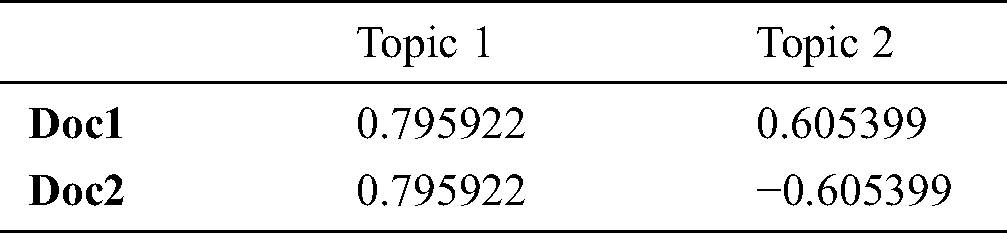

The mathematical expression XXt and XtX provides term-loading and document-loading respectively. ∑∑^t represents the weights of the topics in descending order. The maximum number of topics generated was equal to the number of documents in the corpus. For extracting a few topics (k), the topmost k singular values were taken from the matrix [27,28]. Text is represented as a matrix of form X = U∑Vt such that each row stands for unique word and each column represents unique document. Each cell represents the number of occurrences of the word with which it appears in a document. Apply preliminary transformation wherein weights have been assigned describing word importance in particular document w.r.t all other documents. The dimension reduction step had structured the matrices in such a way that words that did not appear originally in some contexts now do appear, at least fractionally. Afterwards, apply SVD which decomposed the original matrix into the product of three other matrices. Term loading XXt matrix represents terms loaded for a particular topic solution. Each cell contains term weight for a particular topic giving more weightage to that topic solution as per the specified threshold value. Document loading matrix XtX represents documents loaded for a particular topic solution. Each cell contains document weight for a particular topic giving more weightage to that topic in terms of number of documents loaded for that topic as per the specified threshold value.
3.2 Selecting Optimal Topic Solutions
Optimal topic loadings come from dimensionality reduction. It offers a detailed analysis of obtaining k optimal terms or values from the term matrix produced by it. Selecting an optimal topic value has been difficult because of its requirement to understand and requiring several procedures to obtain favorable value . The five prominent topic loadings for 843 corpus of documents is shown in Tab. 9. It is suitable enough to identify trends in Android malware research.

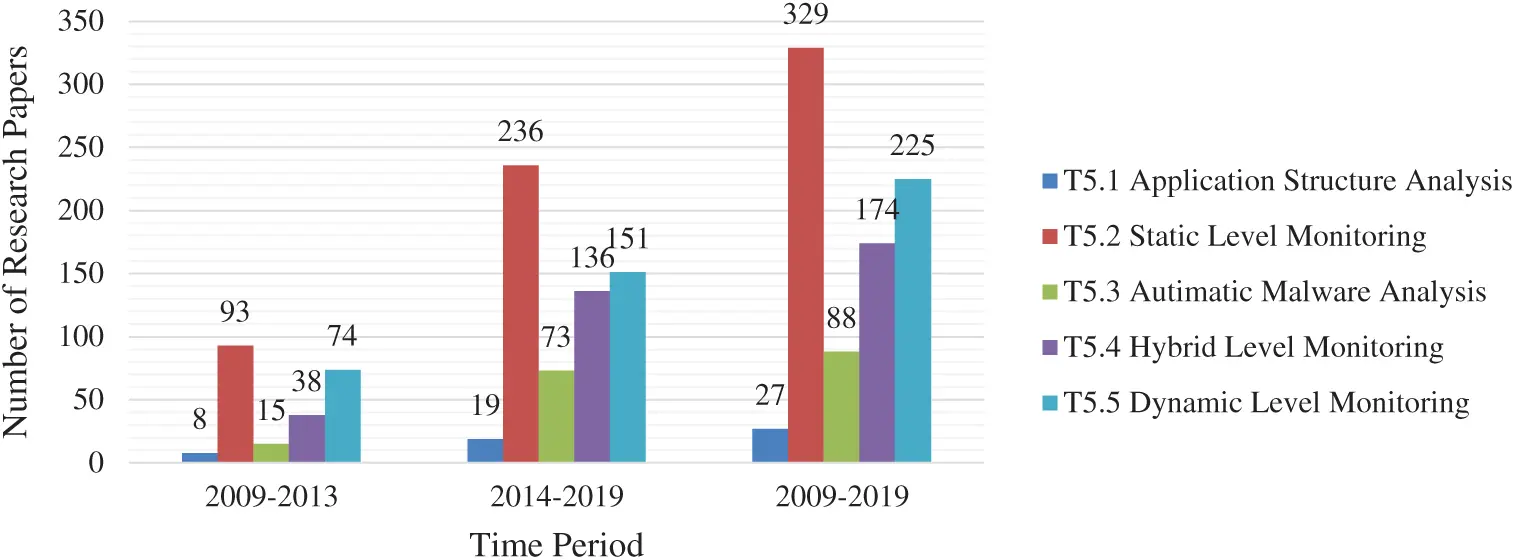

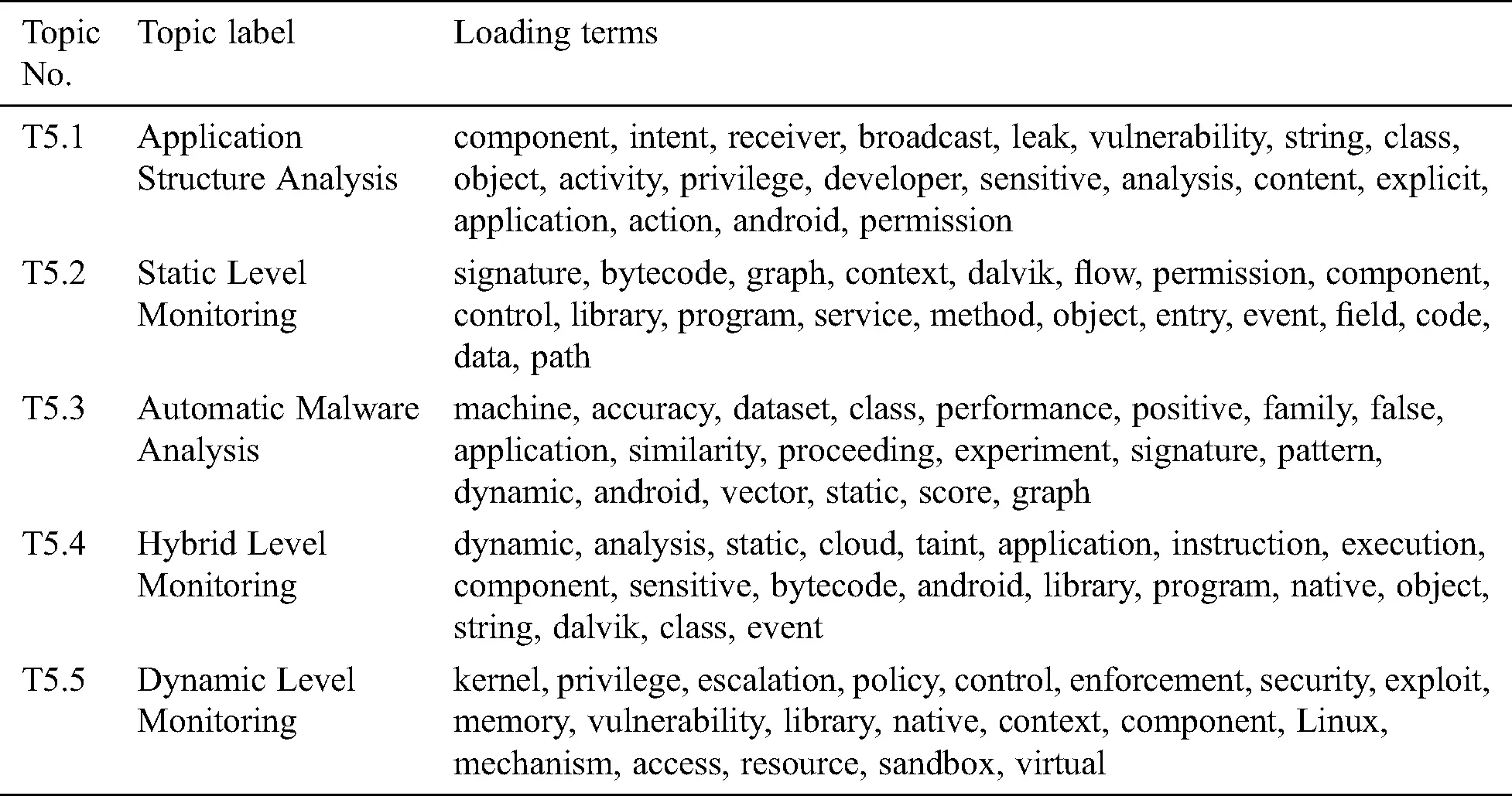

The results in Fig. 1 showed that numerous high loading publications converged to one research area, i.e., “Static Level Monitoring” (T5.2) in the five topic solutions. Static analysis is the most utilized analysis technique for malware analysis; hence it is unsurprising that “Static Level Monitoring” (T5.2) remained to trend research area throughout the year 2009-2019. Results also showed that “Automatic Malware Analysis” (T5.3) and “Hybrid level monitoring” (T5.4) also became a trending research area during the year 2014–2019. “Dynamic level monitoring” (T5.5) also had been a dominant research area in Android malware research.
In the corpus, the most common approaches used by researchers to capture security threats in Android ecosystem are based on static level monitoring (39%). Dynamic Level Monitoring (26%), Hybrid Level Monitoring (21%), Automatic Malware Analysis (about 11%), and Application Structure Analysis (3%) were also found to have considerable share in Android malware literature. It is to be noted that from the year 2009, many static technique to detect android malware were proposed  and the techniques based on dynamic analysis were first explored by the researchers in 2010 .

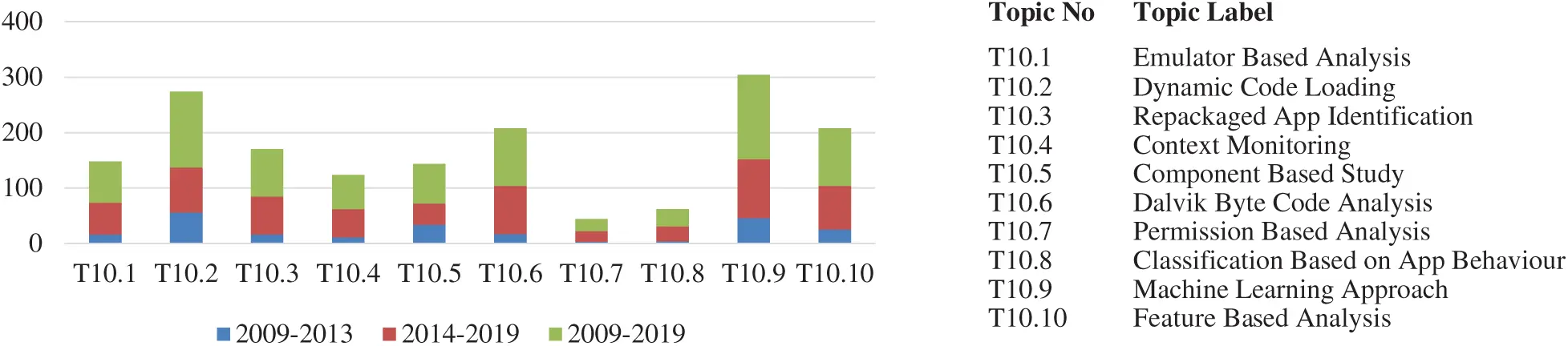

The ten-topic solution as shown in Fig. 2 uncovered ten trending areas, viz. “Machine Learning Approach” (T10.9), “Dynamic Code Loading” (T10.2), “Dalvik Byte Code Analysis” (T10.6), “Feature-Based Analysis” (T10.10), and “Repackaged App Identification” (T10.3) which were dominant research areas for the time period 2014–2019. However, in Fig. 3 the twenty-topic solution uncovered various trending areas, viz. “Permission-Based Analysis” (T20.5), “Data Flow Tracking” (T20.7), “Context Monitoring” (T20.16). “Permission-Based Analysis” (T20.5) was a dominant research area throughout the period 2009–2019. However, “Kernel Level Check” (T20.6), “Data Flow Tracking” (T20.7) and other supplementary techniques like “Machine Learning Approach” (T20.12), “Formal Analysis” (T20.20) became trending research areas during the year 2014–2019.
3.3 Android Security Research Trends

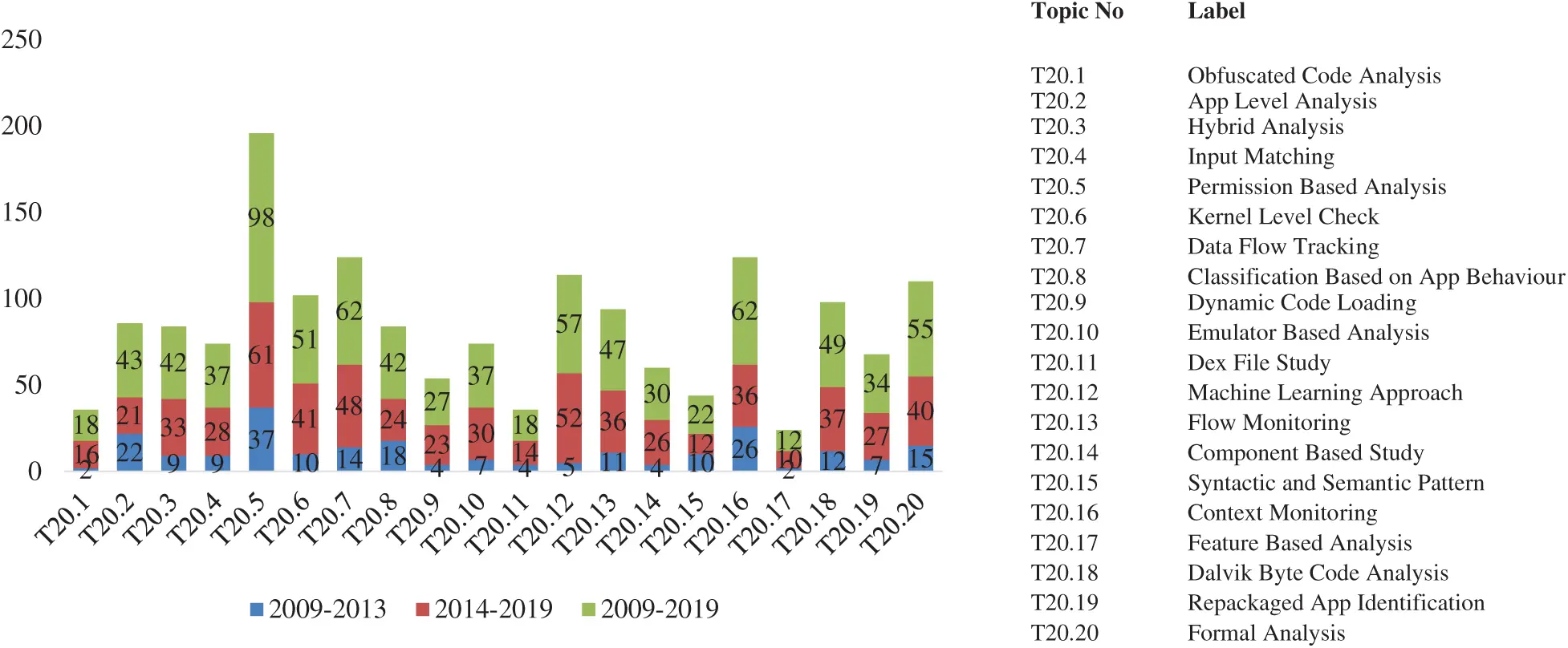

Considering the twenty-topic solutions, the prominent research trends in android security research are; the distribution of articles clearly interprets, “Machine Learning Approach” (T20.12), “Data Flow Tracking” (T20.7), “Context Monitoring” (T20.16), “Kernel Level Check” (T20.6), emerged as among highly explored topic solutions. This was consistent with the five, ten topic solutions.
The research trend, “Machine Learning Approach” (T20.12) is one of the highly explored topics over the last few years in which android applications are analyzed statically as well as dynamically to collect some set of features and then make the system learn it for making a decision about unknown sample of malicious applications. Machine learning methods were used in [31–37]. Another significant trend that emerged was “Kernel Level Check” (T20.6) which focuses on the techniques designed to make the kernel level attacks more difficult to execute .
3.4 Mapping of Core Research Areas and Research Trends

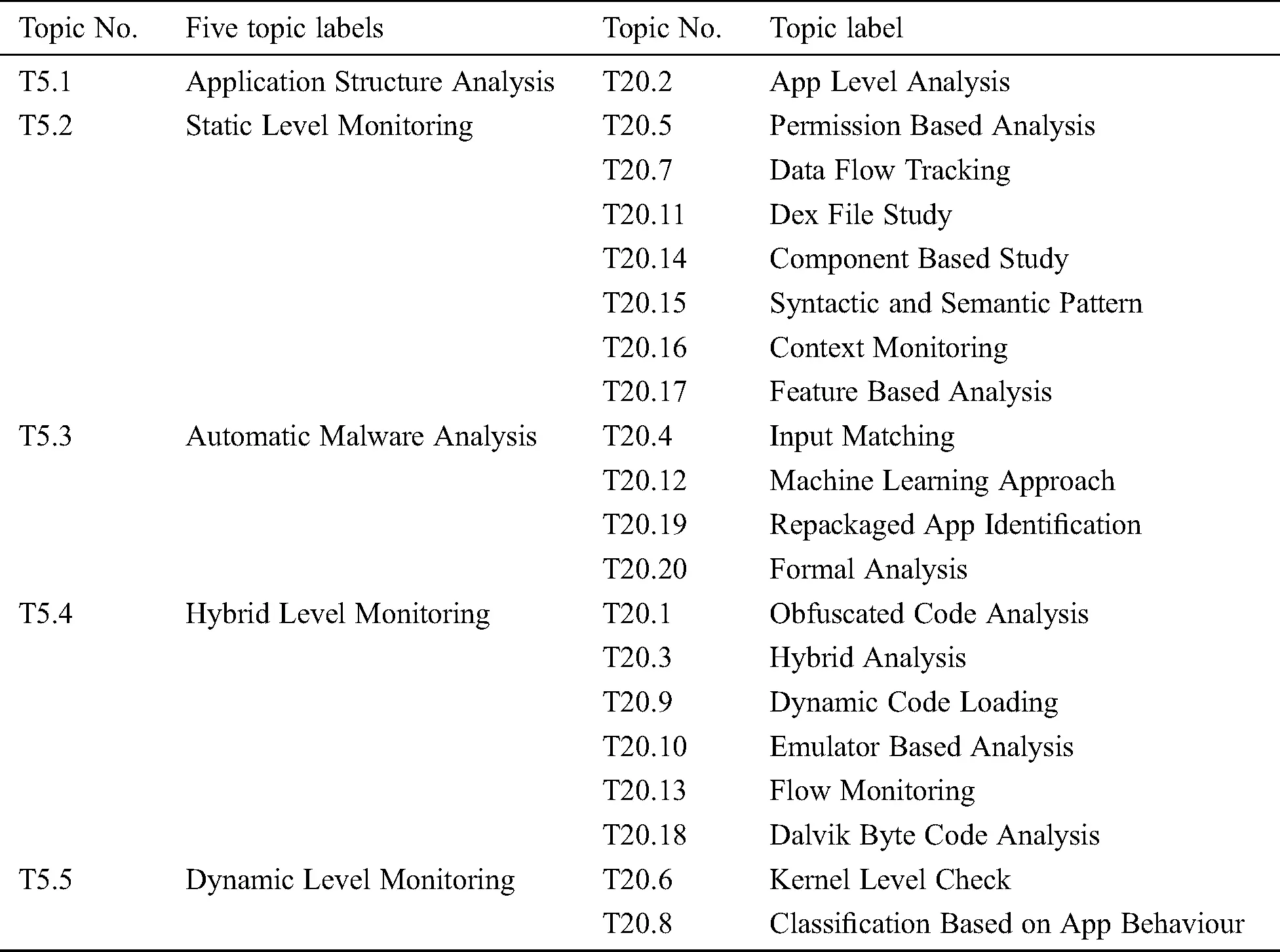

Tab. 11 shows the mapping of research trends with five core research areas. The mapping is done on the basis of similarity scores. The topics corresponding to the latter were somewhat related to the former and were verified using similarity scores. The similarity scores were calculated as a result of the low and high loading values of topic solutions. The similarity scores present a clear relationship between the core research area and their related trends which also validates the procedures developed to show their semantic connection. The detailed discussion is presented in the following sections.
3.5 Mapping of Core Research Areas and Trends
This section details the mapping of top five topic labels with top twenty topic solutions. Initial mapping of Topic (T5.1) “Application Structure Analysis” has a clear overlap with “App Level Features” (20.2). It uncovered the use of metadata and features of an Android application to detect and analyze Android malware. Metadata can be characterized as the displayed information which is available before downloading and installing the Android application, e.g., required permissions, description, version, last updated, rating, number of installations, developer information. This trend was seen in the project named WHYPER . Among all five core research areas, results revealed that (T5.2) “Static Level Monitoring” has been investigated the most. Tab. 11 demonstrates that out of twenty topic solutions, seven research trends converged to core research area T5.2. In “Permission-Based Analysis” (T20.5), permissions played a vital role for investigation of malicious content, as most activities (e.g., a collection of APIs) require specific consents keeping in mind the end goal to be achieved . Another research trend that emerged in this area is the “Dex file study” (T20.11). Though dex files are difficult to humans to understand, yet it is prudent to study dex files for mitigating malware attacks. To identify malicious code segments, researchers first decompile the dex code into more conceivable formats such as assembly, smali, dalvik bytecode, source code, jar, jimple or java bytecode . Automatic Malware Analysis (T5.3), primarily explored “Input Matching” (T20.4), “Repackaged App Identification” (T20.19), “Formal Analysis” (T20.20), and “Machine Learning Approach” (T20.12). All such techniques were related to automated identification of Android malware. To achieve the effectiveness and scalability of Android malware detection, the trend “Machine Learning Approach” (T20.12) came into light during the time period 2014-2019. Another research trend that emerged was “Repackaged App Identification” (T20.19). Repackaging is one of the popular techniques being used by malware authors to generate fraudulent repackaged applications . The year 2012 was a high time when malware started evolving and a need of hybrid techniques for malware monitoring was felt (T5.4). The rampant utilization of techniques such as dynamic code loading, native code, java reflection, and code coverage by malware community was limiting the significance of static and dynamic detection methods. Researchers were in need of a robust solution to analyze and mitigate the impact of malware. The trends like “Dynamic Code Loading” (T20.9), “Dalvik ByteCode Analysis” (T20.18), “Obfuscated Code Analysis” (T20.1) which emerged during 2014–2019 played the vital role in introducing/establishing hybrid approaches to combat against the evolving malware. The past hybrid projects such as “AppIntent , SmartDroid , IntelliDroid , Harvester , A5  witness the curtailment of smart tactics and had produced precise detection results. Dynamic Level Monitoring (T5.5) is also a prominent trend that signifies the requirement of runtime analysis of Android applications. The trend “Kernel Level Check” (T20.6) uncovered the use of system calls for effective malware detection. Android Linux kernel has more than 250 system calls in common .
The results of this study revealed that “Static Level Monitoring” (T5.2) had been proved to be the most widely investigated topic in Android malware research. The studies related to static analysis majorly focus on network addresses, data flow tracking, control flow graphs, string matching, permissions, dex files, context, and intents. Studies also focused on behavioral and structural analysis to extend its coverage for advanced malware applications. Kernel-level analysis, API call monitoring, taints were its major highlights. Researchers identified that the results of the combined effects of structural and behavioral features produce richer and robust analysis. Numerous studies support hybrid techniques to detect destructive payloads. Though automation in malware analysis and analysis with supplementary techniques were comparatively less in number yet are effective enough to produce promising results.
To maintain the effective interpretations and comparisons among the topics; change of focus over two time-frames 2009–2013 and 2014–2019 were observed. It depicts the paradigm shift from time window 2009–2013 to 2014–2019. Machine learning approaches were found to be effective among other competitive approaches to detect Android malware. These approaches are well explored and promising during the time 2014–2019. The trend kernel-level check greatly influenced the research community during 2014–2019. Applications were inspected at the kernel level in order to understand their real-time behavior. Detection of piggybacked application through sensitive graph analysis/data tracking followed by usage of machine learning algorithms was widely studied during 2014–2019. Application permissions have remained the topmost static features to detect Android malware. It has been widely investigated during 2009–2019, as it poses as the first barrier to the malware authors. To activate certain events in an Android ecosystem, some specific permission should be declared in the manifest file. Due to the ability of malicious applications to hide their actual behavior through the user interface, it became cumbersome to analyze all possible paths or inputs, while performing sandbox analysis. During 2014–2019, smart interaction solutions came into light which focused on generating activity, and function call graph using static analysis and exploring paths using dynamic analysis.
Reviewing literature manually may result in biased and incomplete inferences. This work systematically analyses a large corpus of 843 research articles on Android security using an information modeling technique. The major outcomes of this study are the analytical interpretation of five core research areas and twenty substantial research themes. The results suggest that Static Level Monitoring is the most widely investigated topic in Android malware analysis and detection. Behavioral analysis in addition to structural is a must to extend the coverage for advanced malware and vulnerable applications. Kernel-level analysis, API call monitoring, taints are also important indicators of malware behavior. Research trends indicate that results of the combined effects of structural and behavioral features produce richer and robust analysis.
This investigation also identifies new future dimensions for researchers. The results of this study will help others to choose their areas of interest for their potential research along with the associated research trend. The most impacting factor of this work lies in that researchers can apply the same methodology in any other research fields by little or almost no changes.
