Congenital Heart Disease

DOI: 10.32604/CHD.2020.011287

ARTICLE

Chronotropic Response and Pulmonary Function are Associated with Exercise Performance in Children and Adolescents with Repaired Tetralogy of Fallot Independent of Cardiac Function

Shivani M. Bhatt1,*, Michael L. O’Byrne2, Michael McBride2, Stephen M. Paridon2, Elizabeth Goldmuntz2 and Laura Mercer-Rosa2

1Children’s National Hospital, Washington, DC, USA
2Children’s Hospital of Philadelphia, Philadelphia, USA
*Correspondence Author: Shivani M. Bhatt. Email: smbhatt@childrensnational.org
Received: 29 May 2020; Accepted: 19 June 2020

1  Introduction

Although the long-term survival is favorable, patients with repaired tetralogy of Fallot (rTOF) have impaired exercise capacity as measured by diminished percent-predicted maximum oxygen consumption (%mVO2) even before reaching adulthood, and exercise capacity declines over time [1–3]. Lower %m VO2 is associated with worse health status and quality of life, and is a predictor of mortality in this population [4–6]. Measures of exercise performance on cardiopulmonary exercise test (CPET) can be variable within each patient and the determinants of exercise performance in rTOF have not been completely elucidated.

The variability in exercise performance in rTOF and incomplete understanding of its determinants are likely in part due to the many contributing factors to exercise performance, including ventricular function, pulmonary insufficiency, pulmonary function, and chronotropic competence [7–12]. Habitual exercise has been associated with better exercise capacity independently of ventricular function [7]. Diminished pulmonary function, indicating restrictive lung physiology, is associated with diminished exercise capacity in patients with single ventricles, and in adults with congenital heart disease, and has been recently demonstrated to be associated with lower exercise capacity in youth with TOF as well [8–10]. We have previously shown that greater HRR and a greater reduction in pulmonary insufficiency at peak exercise are associated with superior exercise capacity, but we did not find an association of pulmonary insufficiency severity and RV systolic function at rest with exercise parameters [11]. Additionally, while we found RV contractile reserve to be impaired in this population, with a decline in RV function at peak exercise, this change in ventricular function itself was not associated with exercise performance. Our prior study prospectively evaluated a smaller cohort of patients with rTOF (n = 32) [12]. The present study sought to validate and augment our prior findings, by evaluating whether HRR is significantly associated with exercise performance in a larger cohort of patients operated for TOF. We also sought to identify additional contributing factors associated with exercise performance in this population, including pulmonary function measured as FVC. Lastly, we aimed to identify factors associated with HRR since chronotropic health might be modifiable in rTOF.

2  Methods

2.1 Study Population

We included in this analyses patients with rTOF who participated in a cross-sectional study with prospective data collection, ages 8–18 years, at our center from January 2005 to February 2009, in which they underwent concurrent research-based cardiac magnetic resonance imaging (CMR) and CPET within a three-month period. Subjects for the study were identified from existing research studies and clinical databases at our institution. Inclusion required the confirmed diagnosis of TOF by review of medical records, a history of complete surgical TOF repair, and age 8 to 18 years on study enrollment. Preoperative echocardiographic reports, cardiac catheterization studies, and operative notes were reviewed to confirm the diagnosis. A complete TOF repair was defined as closure of the ventricular septal defect and relief of right ventricular outflow tract obstruction, if necessary. Complete repairs were either staged (patients with complex TOF anatomy that first undergo a unifocalization procedure to an right ventricular to pulmonary artery conduit or aortopulmonary shunt for completion of closure of ventricular septal defect at a later stage. Palliative procedures include, for example Blalock Taussig shunts placed prior to complete TOF repair. The cohort description and study results were previously published [13]. A written questionnaire assessing habitual exercise and exercise restriction was retrospectively administered to patients who completed CPET with metabolic measurements, as previously described [7]. Patients with metabolic exercise data available were included in this analysis. The presence of a genetic syndrome and deletion status was recorded. Patients with a pacemaker or documented arrhythmia were excluded from the analysis.

2.2 Study Procedures

2.2.1 Cardiopulmonary Exercise Testing

Patients underwent CPET on a treadmill or electronically braked cycle ergometer as previously published [7]. Metabolic data were obtained on a breath-by-breath basis using a metabolic cart (SensorMedics Encore, Yorba Linda, CA), which included maximum oxygen consumption (VO2 max), maximum work rate in Watts (physical working capacity) and ventilatory equivalents of carbon dioxide (VE/VCO2) measured at the anaerobic threshold. Percent-predicted maximum oxygen consumption (%mVO2) and percent-predicted maximum work was calculated for each patient according to normative values for age, gender and body weight [14,15]. Percent-predicted maximum oxygen consumption was used to define exercise performance and was considered abnormal if below 85% of the predicted value [14–16]. Oxygen pulse (O2 pulse) was calculated as the VO2 max divided by the peak heart rate, and was used as a surrogate of stroke volume. A respiratory exchange ratio of 1.1 or greater was used to define maximum aerobic effort on CPET [15,17]. HRR was calculated as the difference between peak and resting heart rate. A normal chronotropic response was defined as a heart rate greater than 185 beats per minute at peak exercise [17,18]. Resting indices of pulmonary function were obtained immediately prior to exercise testing using standard methods of spirometry [19]. Forced vital capacity (FVC) and forced expiratory volume within one second (FEV1) were measured. Percent predicted FVC was calculated for each patient according to reference values for healthy age and gender matched children and adolescents [20]. Breathing reserve at peak exercise was estimated using FEV1 and calculated using the calculation, breathing reserve = [1 - (FEV1 × 40)]/100] [21].

2.2.2 Cardiac Magnetic Resonance

Using a standard imaging protocol, CMR studies were performed with a 1.5-T Avanto Whole-Body Magnetic Resonance System (Siemens Medical Solutions, Erlangen, Germany as previously published [13,7]. The CMR studies were read by an experienced physician blinded to the patients’ clinical information. CMR variables included pulmonary regurgitant fraction (RF), RV end-systolic (RVESV) and end-diastolic RV volumes (RVEDV) and RV ejection fraction (RVEF). RV volumes were indexed to body surface area (m2) and RVEF greater than 50% was considered normal [22,23].

2.2.3 Habitual Exercise Questionnaire

As previously described, the exercise questionnaire recorded the types of physical activities in which the subjects participated and the number of hours per week for each activity for each subject [24,7]. Based on the calories and metabolic equivalents per hour of activity, the activities were divided into classes by their aerobic intensity and the class of maximum intensity activity for each subject was noted. In total, there were 4 categories of exercise activity based on intensity ranging from no activity to three increasing classes [25].

2.3 Statistical Analysis

Categorical variables are described using frequency and percentages. Continuous variables are presented as mean and standard deviation (SD) or as median with the first and third quartile values, as appropriate. Univariable and multivariable linear regression was used to examine the relationship between the clinical variables and the outcomes of interest, %mVO2 and HRR, which were utilized as continuous variables. All analyses were adjusted for the Respiratory Exchange Ratio (RER) to account for subjects that achieved maximal tests, as well as for presence of genetic syndrome. Variables with a P-value <0.2 on univariable analysis were considered for the multivariable model, and retained in the model if the P value was <0.05, or if they were determined pre hoc to be clinically important. We tested for collinearity between predictors, which were considered collinear if correlation coefficient greater than 0.50, and did not include collinear predictors in the same model. In order to account for significant differences that can be potentially ascribed to reaching a maximal effort on CPET, we conducted regression models restricting the group to those that achieved a maximal effort.

Secondary analyses were restricted to subjects in which habitual exercise data were available with the goal of determining whether measured associations persisted after adjusting for habitual exercise. We also conducted secondary analysis restricting to those that achieved or did not achieve maximal tests. No other sensitivity analyses were performed. A p-value of 0.05 or less was considered statistically significant. Analyses were conducted using Stata version 14.1 (StataCorp, College Station, TX).

3  Results

3.1 Study Cohort

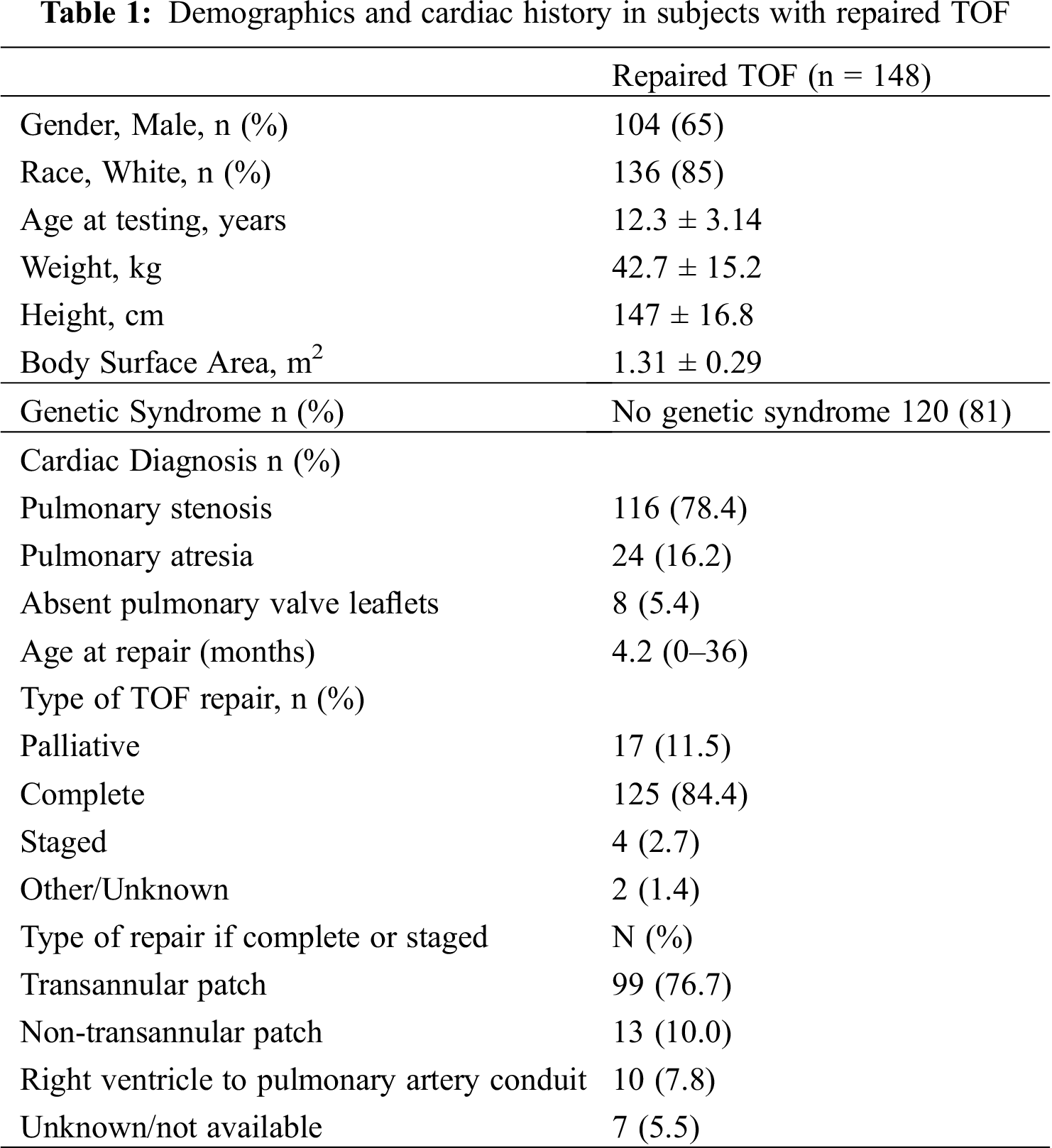

Complete data from a total of 148 subjects were available for analysis. The majority were male (65%) and white (85%). Most subjects had a preoperative anatomy of TOF with presenting anatomy of pulmonary stenosis (80%) and underwent operative correction with a transannular patch (77%). The average age at time of testing was 12.3 ± 3.14 years. Median age at repair was 4.2 months (IQR 1.2, 8.4). Genetic syndromes were present in 28 patients (19%) of subjects, and included DiGeorge Syndrome, Alagille Syndrome, Goldenhar Syndrome, Duane Syndrome and VATER Association (Tab. 1). Of the 28 patients with a genetic syndrome, 24 (86%) had DiGeorge Syndrome.

3.2 Clinical Status

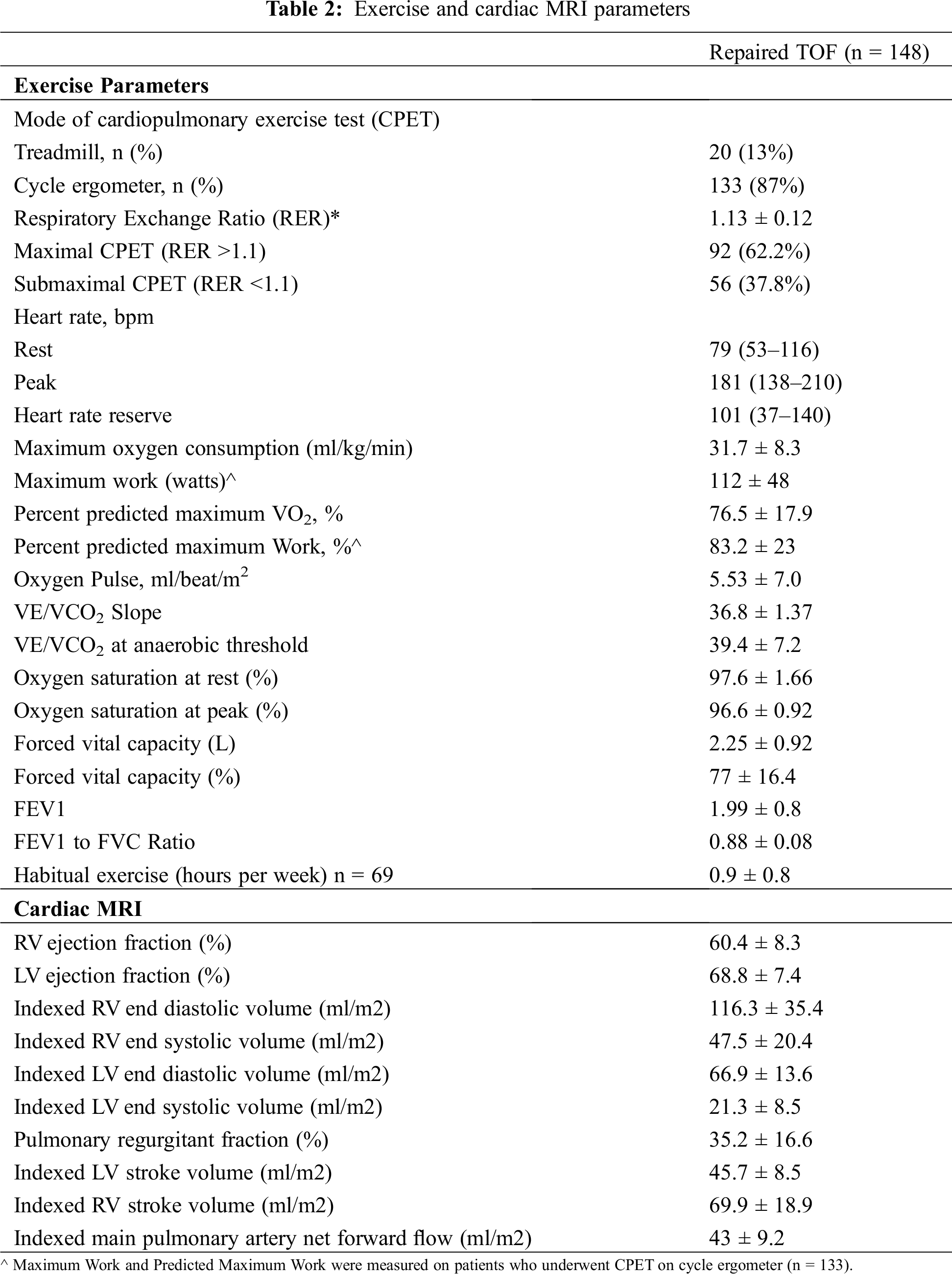

The majority of CPETs were performed on the cycle ergometer (87%). The majority of patients (n = 92/148 or 62.2%) achieved a maximum test defined as RER >1.10. Aerobic capacity was diminished in the cohort as measured by mean percent predicted maximum VO2 (%mVO2) of 76.5 ± 17.9% and mean percent predicted maximum work (%mWork) of 83.2 ± 23. There was no significant difference in %mVO2 based on treadmill vs. cycle ergometer mode of testing, 68.9 ± 17.6% vs. 77.5 ± 17.8% respectively (P = 0.06).

On CMR, there was moderate residual pulmonary insufficiency with average pulmonary regurgitation (%) of 35.2 ± 16.6. The RV and LV ejection fractions were normal. There was overall mild RV dilation with indexed RV end diastolic volume of 116.3 ± 35.4 ml/m2 (Tab. 2).

3.3 Habitual Exercise

Of the 69 subjects with available habitual exercise information, 3 were in class 1 (4.4%), 11 in class 2 (15.9%), 21 in class 3 (30.4%) and 34 in class 4 (49.3%). The average hours of exercise per week were 0.9 ± 0.8 hours.

3.4 Factors Associated with Exercise Performance (%mVO2)

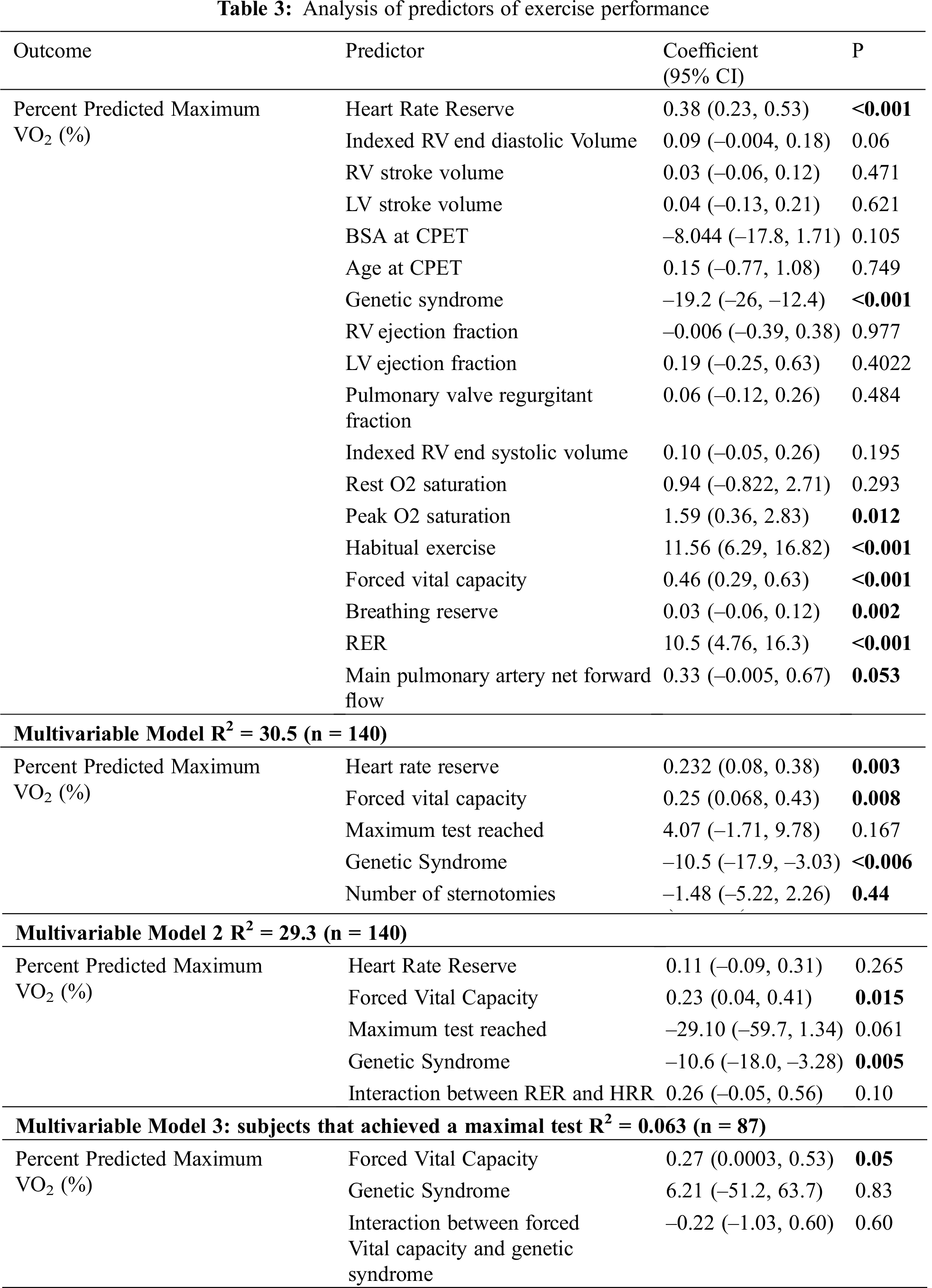

On univariable analysis, the following predictors were directly associated with higher %mVO2: HRR, oxygen saturation at peak exercise, number of hours per week of habitual exercise, FVC, breathing reserve, respiratory exchange ratio and main pulmonary artery net forward flow (indexed). Presence of a genetic syndrome was associated with lower %mVO2. On multivariable analysis, factors independently associated with greater %mVO2 included HRR, FVC and absence of genetic syndrome. (Tab. 3).

Presence of genetic syndrome was interchangeable with presence of 22q11.2 deletion (DiGeorge) syndrome in the model. Number of prior sternotomies was not directly associated with %mVO2 and was not a confounder of these associations. On secondary analysis restricted to the subjects that achieved a maximal exercise test, we found that FVC was associated with %mVO2. When we added genetic syndrome to the model with an interaction term for genetic syndrome and FVC, FVC was associated with %mVO2 with a P-value of 0.05, and genetic syndrome or the interaction term were not significant. In a similar model restricting subjects to those that achieved a sub-maximal test including an interaction term for deletion status and FVC, HRR is the only factor associated with %mVO2 (P = 0.003). (Tab. 3).

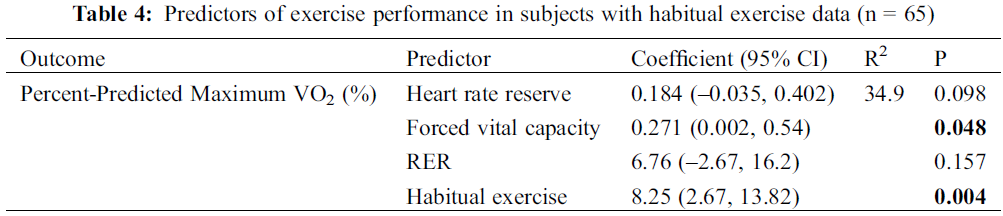

In secondary analysis restricted to subjects with available habitual exercise data (n = 69), the association between HRR and mVO2% was of similar magnitude to the overall cohort but with a broader confidence interval (P = 0.09), while duration of habitual exercise and FVC were both directly associated with higher mVO2% independently of the ability to achieve a maximum test and of HRR (Tab. 4).

3.5 Factors Associated with Heart Rate Reserve

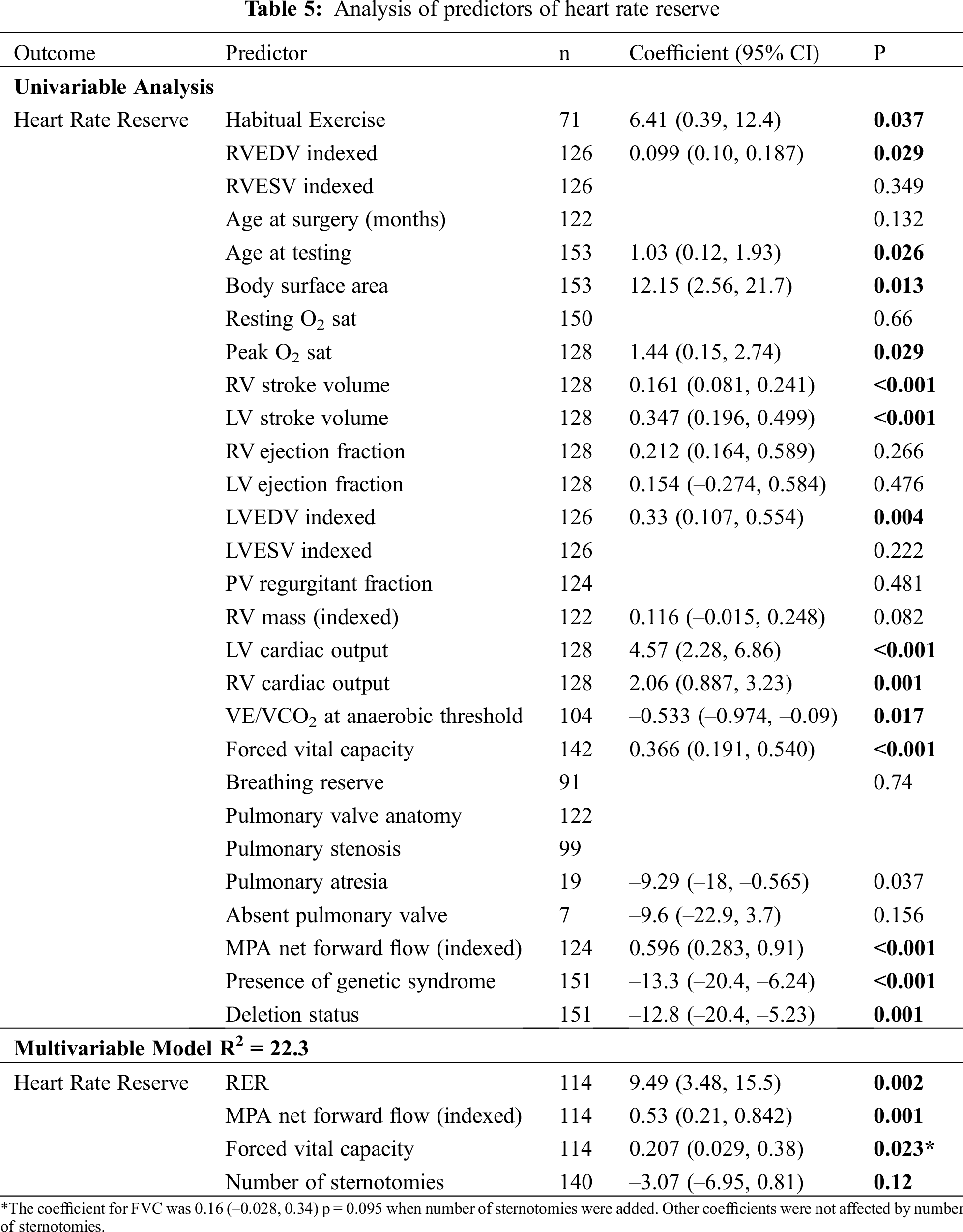

On univariable analysis, the following factors were directly associated with increased HRR: RV and LV end diastolic volume (indexed), RV and LV stroke volume, LV and RV cardiac output and net forward flow in the main pulmonary artery/m2, duration of habitual exercise, older age at testing, body surface area, oxygen saturation at peak exercise, FVC, and lower VE/VCO2 at anaerobic threshold (Tab. 5).

On multivariable analysis, FVC, net forward flow in the main pulmonary artery/m2 and ability to reach maximum effort were independently associated with HRR. When the model was adjusted for deletion status, net forward flow in the main pulmonary artery/m2 and ability to reach maximum effort remained independently associated with heart reserve. This model explains 24% the HRR. (Tab. 5). When the model was adjusted for number of prior sternotomies, FVC was not significantly associated with HRR (P = 0.095), indicating that sternotomies confound the association of FVC with HRR. Net forward flow in the main pulmonary artery/m2 and ability to reach maximum effort were associated with HRR independently of prior sternotomies. On secondary analysis restricting the group to those that achieved a maximum test, we found that net forward flow in the main pulmonary artery/m2 and deletion status were associated with HRR. When we examined the group that achieved a sub-maximal test, we found that the only factor associated with HRR was the net forward flow in the main pulmonary artery/m2 (Tab. 3).

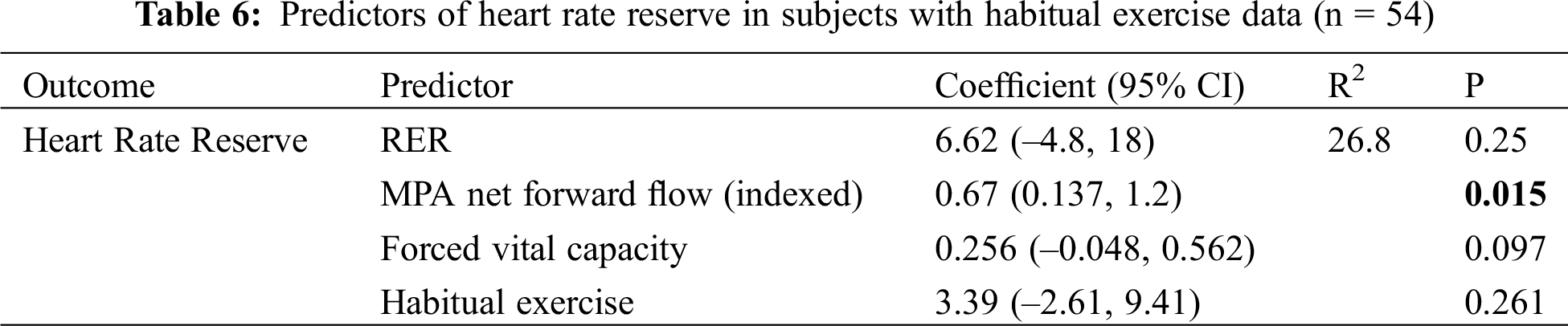

In the subset of subjects with habitual exercise data, net forward flow in the main pulmonary artery/m2 was associated with HRR independently of ability to reach a maximum test, FVC and habitual exercise (Tab. 6).

4  Discussion

In this study, we retrospectively analyzed factors associated with mVO2% and HRR in a large cohort of patients with TOF that underwent CPET, CMR and habitual exercise survey as part of a research study. Our prior prospective study of TOF undergoing exercise testing showed greater HRR was associated with superior exercise capacity and therefore in this study we sought to validate and augment our prior findings in a large well phenotyped cohort. Our main findings were: 1) FVC was independently associated with %mVO2, and 2) FVC, net forward flow in the main pulmonary artery, and the ability to reach maximum effort were independently associated with HRR.

Chronotropic incompetence with depressed maximal heart rate during exercise has been shown in patients with congenital heart disease after surgical repair including those with rTOF [26–29]. Importantly, chronotropic incompetence is a predictor of morbidity and mortality in adults with rTOF [30–32]. In normal hearts, stroke volume increases to certain degree during exercise and further increase in cardiac output (defined as stroke volume X heart rate) is accomplished by augmentation of the heart rate. Therefore, an adequate chronotropic response to exercise is necessary to achieve a normal maximal oxygen consumption. In patients with CHD, increases in stroke volume maybe impaired due to myocardial dysfunction and/or valvular abnormalities, therefore if these patients also have inadequate chronotropic response, they can have significantly impaired cardiac output during exercise [18]. We found that chronotropic response as measured by HRR was independently associated with exercise performance, after accounting for RV ejection fraction and degree of pulmonary insufficiency, however, this association did not persist when we restricted the analysis to the group of patients that achieved a maximal effort on CPET, likely because this group of patients has better chronotropic response. We have previously demonstrated a relationship between HRR and aerobic capacity in a smaller group of rTOF undergoing stress echocardiography [17,18]. In particular, we previously reported that HRR was associated with better exercise performance as measured by %mVO2 [18]. Other studies have also shown that chronotropic impairment is a significant contributor to aerobic capacity in rTOF [11,12,29,33,34]. Similarly to our finding of no association between HRR and %mVO2 in those that achieve a maximal exercise test, a study by Mulla and colleagues demonstrated no correlation between chronotropic impairment and exercise performance in a small groups of patients with rTOF after transannular patch repair [27]. Thus, one’s effort during exercise testing is important and needs to be taken into account. After we analyzed the effect of chronotropic response on %mVO2, we pursued more analyses to investigate mechanisms underlying impaired chronotropic response in the same rTOF group. Proposed causes of chronotropic incompetence after repair of CHD include sinus node dysfunction, abnormal autonomic function, neurohormonal activation and cardiac arrhythmias [28,31,32,35,36]. Patients with documented cardiac arrhythmia or pacemaker were not included in our analysis. We were unable to assess autonomic function or neurohormonal activation in our study cohort. However, there was no evidence of arrhythmia or sinus node dysfunction as only seven patients (4.7%) had a baseline heart rate less than 60 bpm with a normal peak exercise heart rate.

In addition to the primary findings, we also found that FVC was directly associated with mVO2% and HRR independently of RV ejection fraction and pulmonary regurgitation. Prior studies have shown that patients with rTOF have abnormally low FVC, consistent with restrictive lung physiology [27,29,37,38]. There are multiple possible underlying factors for impaired pulmonary function at rest and during exercise in rTOF such as chest wall or rib cage abnormalities after sternotomies and thoracotomies, abnormal development and growth of the lung and pulmonary vasculature, as well as residual hemodynamic issues related to underlying CHD [30]. Patients with TOF have abnormalities in the pulmonary vasculature even before birth and into adulthood, with evidence of altered alveolar development [39,40]. Furthermore, lung growth in rTOF may not accompany somatic growth as seen in healthy children, given evidence of lower resting spirometry measures seen with increases in height [27]. In a recent publication, Akam-Venkata et al demonstrated that restrictive lung physiology is associated with exercise capacity independently of height and age at TOF repair. Height was considered a surrogate for spinal deformities, which were prevalent in the study, and could contribute to diminished FVC [8]. In our study, FVC was associated with the outcomes mVO2% and HRR, however, its association with HRR was confounded by the number of sternotomies, although the direction of the association was maintained in the model. Thus, there seems to be common pathway between restrictive lung physiology, prior sternotomies, and rib cage abnormalities (as suggested by Akam-Venkata), which influences exercise performance. Contrary to our findings, other studies have not shown a correlation between aerobic capacity and resting spirometry measures despite abnormal resting spirometry [27,29,38]. Interestingly, the subset of patients that reached a maximal effort have a higher HRR than the sub-maximal group, therefore, FVC was the only factor associated with mVO2%, and HRR does not affect mVO2 in this group, but it does affect mVO2 in the sub-maximal effort group.

In adults with rTOF, pulmonary artery vascular function is abnormal and is associated with worse exercise performance [41]. During exercise, there is a normal physiologic vasodilation of the pulmonary vascular bed to allow for increased pulmonary blood flow and a consequent relative decrease in pulmonary vascular resistance and RV afterload [42]. Therefore, the characteristics of the pulmonary vascular bed in rTOF could play an important role during exercise. We propose that better FVC in rTOF may indicate a larger pulmonary bed and therefore greater potential for vasodilation, decreased pulmonary vascular resistance and better alveolar recruitment during exercise. While this hypothesis requires validation, it is possible that RV afterload falls further in individuals with better FVC with consequent increase in net RV forward flow during exercise and improved LV preload leading to superior exercise performance. In our study, VE/VCO2 at anaerobic threshold was not associated with %mVO2 indicating that gas exchange efficiency is not a significant contributor to exercise performance in this cohort. Thus, our findings suggest that pulmonary function, as measured by FVC, in addition to routine cardiac functional assessment, is an important variable to follow in rTOF.

There is increased risk for impaired lung function and restrictive lung physiology with earlier surgical interventions, multiple cardiac surgeries and multiple thoracotomies independent of CHD complexity and other risk factors [43–45]. As we have shown, the limitation of FVC is associated in part with the number of prior surgical interventions, and contributes significantly to impaired exercise capacity in these patients. We found that FVC, forward flow in the main pulmonary artery (indexed to body surface area) and ability to reach maximum effort were independently directly associated with HRR. FVC was associated with HRR prior to adjusting for number of sternotomies suggesting that while this association exists, there may be a link between restrictive lung physiology and prior sternotomies which influences exercise performance. A possible explanation for the association of FVC and HRR is that patients with reduced FVC may be limited by a small pulmonary vascular bed and during exercise, have greater RV afterload resulting in a drop in stroke volume and inability to reach a higher maximal heart rate, possibly due to abnormal autonomic function and neurohormonal activation, as suggested by other studies in congenital heart defects [35,36,46]. We found no association between RV ejection fraction or RV size with HRR suggesting that pulmonary function, rather than cardiac function, is associated with chronotropic reserve in rTOF. Contrary to our findings, a study by Meadows et al in young adults with TOF demonstrated that the only factor on cardiac magnetic resonance imaging associated with percent predicted oxygen consumption was right ventricular ejection fraction. This discrepancy in findings is likely due to important differences in the TOF populations studied regarding age and range of ejection fraction [47].

In summary, our data would support the concept that reduced pulmonary capacity limits the ability of the RV to maintain adequate stroke volume and cardiac output at higher levels of exercise thus also limiting LV preload under these circumstances. These factors result in limiting exercise performance at lower heart rates resulting in a lower measured HRR.

There are limited data evaluating the relationship between pulmonary function and chronotropic response in CHD. Abnormal pulmonary function as measured by spirometry is associated with increased cardiovascular risk in the adult population with acquired heart disease. It has been proposed that this may reflect the presence of chronic obstructive pulmonary disease (COPD) and a relationship between chronotropic incompetence and reduced exercise performance in patients with COPD, has been described in the adult population [48]. This mechanism has also been proposed in Fontan and TOF patients as well [49]. A blunted heart rate response in COPD has been associated with worse exercise capacity and increased disease severity [50]. Patients with hyperinflation have been shown to have impaired left ventricular diastolic filling and RV dysfunction which may result in effects on stroke volume and cardiac output as well as heart rate [51,52]. It is possible that a similar relationship between pulmonary abnormalities in rTOF and chronotropic incompetence exists.

We also found that net forward flow in the main pulmonary artery was associated with HRR in our study cohort. In a prior study of patients with rTOF undergoing stress echocardiography we found that a decrease in pulmonary insufficiency with increasing heart rate at peak exercise was associated with better exercise performance [11]. The relationship between net forward flow in the main pulmonary artery and HRR suggests a decrease in pulmonary insufficiency during exercise with increasing heart rate and subsequent improved RV output. Similar findings have been demonstrated in adults with rTOF during exercise with increased heart rate and decreased pulmonary insufficiency resulting in increased RV forward flow on CMR [53].

Presence of a genetic syndrome was associated with worse exercise performance in our study, as has been previously shown [54]. In particular, 22q11.2 deletion syndrome and exercise performance have been shown to be mediators of health status and quality of life in rTOF patients [5]. Therefore, understanding the determinants of exercise capacity and potentially intervening to improve exercise performance could also play a role in improving quality of life in patients with rTOF, particularly in those with 22q11.2 deletion syndrome, a prevalent association with TOF. Interestingly, we did not find 22q11.2 deletion syndrome to be independently associated with HRR on multivariable analysis, and thus its effect on exercise performance probably occurs through other mechanisms [55].

In the sub-group of patients with habitual exercise data (n = 69), better FVC and more frequent habitual exercise were independently associated with greater %mVO2. We found that MPA net forward flow was associated with HRR independently of habitual exercise. It is possible that increased physical activity may play a role in improved pulmonary function resulting in overall better exercise performance regardless of cardiac status. Our findings open potential avenues for intervention, such as exercise rehabilitation programs to improve performance.

5  Limitations

This was a large single center study with prospective data collection including all types of rTOF. Accordingly, these results may not be generalizable to all patients but perhaps to those followed at large tertiary care centers and to patients that undergo TOF surgical repair with a transannular patch. The degree of RV dilation was overall mild in the study group and therefore our findings may not be applicable to patients with rTOF and more significant RV dilation. There was a significant number of patients that achieved a sub-maximal exercise test. Given the overall young age of the study cohort, this could be reflective of incomplete effort rather than reflective of exercise capacity and we are not able to discern between these possibilities in this analysis. The habitual exercise data were obtained retrospectively and in a smaller number of patients. This study was a cross sectional analysis and therefore we were unable to evaluate longitudinal changes in exercise performance, pulmonary function and chronotropic response. In addition, we can only establish associations with our results, but not causality.

6  Conclusions

Our findings suggest that aerobic exercise in patients with rTOF is not limited primarily by cardiac factors such as ventricular function or pulmonary insufficiency but rather by pulmonary function and chronotropic response. Chronotropic response is important in patients that do not reach maximal effort on exercise testing. Evaluation of pulmonary function by spirometry may be an important parameter to assess in rTOF. Interventions such as exercise rehabilitation programs to improve pulmonary health and chronotropic response may potentially improve exercise performance. Interventional studies are needed to establish causality in these relationships and to evaluate results of possible therapies to improve exercise capacity in this population.

Author Contributions: Shivani M. Bhatt MD: Concept/Design, Data analysis/interpretation, Drafting article, Critical revision of article, Approval of article, Statistics. Michael L. O’Byrne MD MSCE: Data analysis/interpretation, Critical revision of article, Data collection. Michael McBride PhD: Data analysis/interpretation, Critical revision of article, Data collection, Stephen M. Paridon MD: Concept/Design, Data analysis/interpretation, Drafting article, Critical revision of article. Elizabeth Goldmuntz MD: Concept/Design, Data Collection, Data analysis/interpretation, Critical revision of article, Approval of article. Laura Mercer-Rosa MD MSCE: Concept/Design, Data analysis/interpretation, Drafting article, Critical revision of article, Approval of article, Statistics, Funding secured.

Funding Statement: This work was supported by the National Institutes of Health (K01HL125521 [L. M. R.], Pulmonary Hypertension Association supplement to K01HL125521 [L. M. R.] and the National Institutes of Health grant F32H139042 [S. M. B.]).

Conflicts of Interest: The authors declare that they have no conflicts of interest to report regarding the present study.

References

 1.  Bacha, E. A., Scheule, A. M., Zurakowski, D., Erickson, L. C., Hung, J. et al. (2001). Long-term results after early primary repair of tetralogy of Fallot. Journal of Thoracic and Cardiovascular Surgery, 122(1), 154–161. DOI 10.1067/mtc.2001.115156. [Google Scholar] [CrossRef]

 2.  Diller, G. P., Dimopoulos, K., Okonko, D., Li, W., Babu-Narayan, S. V. et al. (2005). Exercise intolerance in adult congenital heart disease comparative severity, correlates, and prognostic implication. Circulation, 112(6), 828–835. DOI 10.1161/CIRCULATIONAHA.104.529800. [Google Scholar] [CrossRef]

 3.  Kipps, A. K., Graham, D. A., Harrild, D. M., Lewis, E., Powell, A. J. et al. (2011). Longitudinal exercise capacity of patients with repaired tetralogy of fallot. American Journal of Cardiology, 108(1), 99–105. DOI 10.1016/j.amjcard.2011.02.349. [Google Scholar] [CrossRef]

 4.  Giardini, A., Specchia, S., Tacy, T. A., Coutsoumbas, G., Gargiulo, G. et al. (2007). Usefulness of cardiopulmonary exercise to predict long-term prognosis in adults with repaired tetralogy of Fallot. American Journal of Cardiology, 99(10), 1462–1467. DOI 10.1016/j.amjcard.2006.12.076. [Google Scholar] [CrossRef]

 5.  Goldmuntz, E., Cassedy, A., Mercer-Rosa, L., Fogel, M. A., Paridon, S. M. et al. (2017). Exercise performance and 22q11.2 deletion status affect quality of life in tetralogy of fallot. Journal of Pediatrics, 189, 162–168. DOI 10.1016/j.jpeds.2017.06.049. [Google Scholar] [CrossRef]

 6.  Quail, M. A., Frigiola, A., Giardini, A., Muthurangu, V., Hughes, M. et al. (2012). Impact of pulmonary valve replacement in tetralogy of Fallot with pulmonary regurgitation a comparison of intervention and nonintervention. Annals of Thoracic Surgery, 94(5), 1619–1626. DOI 10.1016/j.athoracsur.2012.06.062. [Google Scholar] [CrossRef]

 7.  O’Byrne, M. L., Mercer-Rosa, L., Ingall, E., McBride, M. G., Paridon, S. et al. (2013). Habitual exercise correlates with exercise performance in patients with conotruncal abnormalities. Pediatric Cardiology, 34(4), 853–860. DOI 10.1007/s00246-012-0556-5. [Google Scholar] [CrossRef]

 8.  Akam-Venkata, J., Sriram, C., French, M., Smith, R., Aggarwal, S. (2019). Does restrictive lung function affect the exercise capacity in patients with repaired tetralogy of fallot? Pediatric Cardiology, 40(8), 1688–1695. DOI 10.1007/s00246-019-02205-0. [Google Scholar] [CrossRef]

 9.  Bossers, S. S., Helbing, W. A., Duppen, N., Kuipers, I. M., Schokking, M. et al. (2014). Exercise capacity in children after total cavopulmonary connection lateral tunnel vs. extracardiac conduit technique. Journal of Thoracic and Cardiovascular Surgery, 148(4), 1490–1497. DOI 10.1016/j.jtcvs.2013.12.046. [Google Scholar] [CrossRef]

10. Ginde, S., Bartz, P. J., Hill, G. D., Danduran, M. J., Biller, J. et al. (2013). Restrictive lung disease is an independent predictor of exercise intolerance in the adult with congenital heart disease. Congenital Heart Disease, 8(3), 246–254. DOI 10.1111/chd.12010. [Google Scholar] [CrossRef]

11. Bhatt, S. M., Elci, O. U., Wang, Y., Goldmuntz, E., McBride, M. et al. (2019). Determinants of exercise performance in children and adolescents with repaired tetralogy of fallot using stress echocardiography. Pediatric Cardiology, 40(1), 71–78. DOI 10.1007/s00246-018-1962-0. [Google Scholar] [CrossRef]

12. Bhatt, S. M., Wang, Y., Elci, O. U., Goldmuntz, E., McBride, M. et al. (2019). Right ventricular contractile reserve is impaired in children and adolescents with repaired tetralogy of fallot an exercise strain imaging study. Journal of the American Society of Echocardiography, 32(1), 135–144. DOI 10.1016/j.echo.2018.08.008. [Google Scholar] [CrossRef]

13. Mercer-Rosa, L., Yang, W., Kutty, S., Rychik, J., Fogel, M. et al. (2012). Quantifying pulmonary regurgitation and right ventricular function in surgically repaired tetralogy of Fallot a comparative analysis of echocardiography and magnetic resonance imaging. Circulation Cardiovascular Imaging, 5(5), 637–643. DOI 10.1161/CIRCIMAGING.112.972588. [Google Scholar] [CrossRef]

14. Cooper, D. M., Weiler-Ravell, D., Whipp, B. J., Wasserman, K. (1984). Aerobic parameters of exercise as a function of body size during growth in children. Journal of Applied Physiology Respiratory, Environmental and Exercise Physiology, 56(3), 628–634. [Google Scholar]

15. Howley, E. T., Bassett, D. R., Jr., Welch, H. G. (1995). Criteria for maximal oxygen uptake review and commentary. Medicine and Science in Sports and Exercise, 27(9), 1292–1301. [Google Scholar]

16. Ross, R. M. (2003). ATS/ACCP statement on cardiopulmonary exercise testing. American Journal of Respiratory and Critical Care Medicine, 167(10), 1451. DOI 10.1164/ajrccm.167.10.952. [Google Scholar] [CrossRef]

17. Rowland, T. W. (1993). Pediatric Laboratory Exercise Testing Clinical Guidelines Human Kinetics Inc., USA. [Google Scholar]

18. Rowland, T. W. (2018). American college of sports medicine, North American society for pediatric exercise medicine.Cardiopulmonary Exercise Testing in Children and Adolescents.Champaign, IL Human Kinetics, Inc., USA. [Google Scholar]

19. Anonymous (1995). Standardization of spirometry, 1994 Update. American thoracic society. American Journal of Respiratory and Critical Care Medicine, 152(3), 1107–1136. DOI 10.1164/ajrccm.152.3.7663792. [Google Scholar] [CrossRef]

20. Hankinson, J. L., Odencrantz, J. R., Fedan, K. B. (1999). Spirometric reference values from a sample of the general USA population. American Journal of Respiratory and Critical Care Medicine, 159(1), 179–187. DOI 10.1164/ajrccm.159.1.9712108. [Google Scholar] [CrossRef]

21. Stein, R., Selvadurai, H., Coates, A., Wilkes, D. L., Schneiderman-Walker, J. et al. (2003). Determination of maximal voluntary ventilation in children with cystic fibrosis. Pediatric Pulmonology, 35(6), 467–471. DOI 10.1002/ppul.10298. [Google Scholar] [CrossRef]

22. Robbers-Visser, D., Boersma, E., Helbing, W. A. (2009). Normal biventricular function, volumes, and mass in children aged 8 to 17 years. Journal of Magnetic Resonance Imaging, 29(3), 552–559. DOI 10.1002/jmri.21662. [Google Scholar] [CrossRef]

23. Sarikouch, S., Peters, B., Gutberlet, M., Leismann, B., Kelter-Kloepping, A. et al. (2010). Sex-specific pediatric percentiles for ventricular size and mass as reference values for cardiac MRI assessment by steady-state free-precession and phase-contrast MRI flow. Circulation Cardiovascular Imaging, 3(1), 65–76. DOI 10.1161/CIRCIMAGING.109.859074. [Google Scholar] [CrossRef]

24. Kriska, A. M., Sandler, R. B., Cauley, J. A., LaPorte, R. E., Hom, D. L. et al. (1988). The assessment of historical physical activity and its relation to adult bone parameters. American Journal of Epidemiology, 127(5), 1053–1063. [Google Scholar]

25. Maron, B. J., Chaitman, B. R., Ackerman, M. J., Bayes de Luna, A.,Corrado, D. et al. (2004). Recommendations for physical activity and recreational sports participation for young patients with genetic cardiovascular diseases. Circulation, 109(22), 2807–2816. DOI 10.1161/01.CIR.0000128363.85581.E1. [Google Scholar] [CrossRef]

26. Cumming, G. R. (1979). Maximal supine exercise haemodynamics after open heart surgery for Fallot’s tetralogy. British Heart Journal, 41(6), 683–691. [Google Scholar]

27. Mulla, N., Simpson, P., Sullivan, N. M., Paridon, S. M. (1997). Determinants of aerobic capacity during exercise following complete repair of tetralogy of Fallot with a transannular patch. Pediatric Cardiology, 18(5), 350–356. DOI 10.1007/s002469900198. [Google Scholar] [CrossRef]

28. Norozi, K., Wessel, A., Alpers, V., Arnhold, J. O., Binder, L. et al. (2007). Chronotropic incompetence in adolescents and adults with congenital heart disease after cardiac surgery. Journal of Cardiac Failure, 13(4), 263–268. DOI 10.1016/j.cardfail.2006.12.002. [Google Scholar] [CrossRef]

29. Powell, A. W., Mays, W. A., Knecht, S. K., Chin, C. (2019). Pulmonary effects on exercise testing in tetralogy of Fallot patients repaired with a transannular patch. Cardiology in the Young, 29(2), 133–139. DOI 10.1017/S1047951118001920. [Google Scholar] [CrossRef]

30. Cohen, K. E., Buelow, M. W., Dixon, J., Brazauskas, R., Cohen, S. B. et al. (2017). Forced vital capacity predicts morbidity and mortality in adults with repaired tetralogy of Fallot. Congenital Heart Disease, 12(4), 435–440. DOI 10.1111/chd.12470. [Google Scholar] [CrossRef]

31. Diller, G. P., Dimopoulos, K., Okonko, D., Uebing, A., Broberg, C. S. et al. (2006). Heart rate response during exercise predicts survival in adults with congenital heart disease. Journal of the American College of Cardiology, 48(6), 1250–1256. DOI 10.1016/j.jacc.2006.05.051. [Google Scholar] [CrossRef]

32. Inuzuka, R., Diller, G. P., Borgia, F., Benson, L., Tay, E. L. et al. (2012). Comprehensive use of cardiopulmonary exercise testing identifies adults with congenital heart disease at increased mortality risk in the medium term. Circulation, 125(2), 250–259. DOI 10.1161/CIRCULATIONAHA.111.058719. [Google Scholar] [CrossRef]

33. Lambert, J., Ferguson, R. J., Gervais, A., Gilbert, G. (1980). Exercise capacity, residual abnormalities and activity habits following total correction for tetralogy of Fallot. Cardiology, 66(2), 120–131. DOI 10.1159/000170857. [Google Scholar] [CrossRef]

34. Reybrouck, T., Weymans, M., Stijns, H., Van der Hauwaert, L. G., (1986). Exercise testing after correction of tetralogy of Fallot the fallacy of a reduced heart rate response. American Heart Journal, 112(5), 998–1003. [Google Scholar]

35. Davos, C. H., Francis, D. P., Leenarts, M. F., Yap, S. C., Li, W. et al. (2003). Global impairment of cardiac autonomic nervous activity late after the Fontan operation. Circulation, 108(Suppl 1), II180–185. DOI 10.1161/01.cir.0000087946.47069.cb. [Google Scholar] [CrossRef]

36. Ohuchi, H., Watanabe, K., Kishiki, K., Wakisaka, Y., Echigo, S. (2007). Heart rate dynamics during and after exercise in postoperative congenital heart disease patients. Their relation to cardiac autonomic nervous activity and intrinsic sinus node dysfunction. American Heart Journal, 154(1), 165–171. DOI 10.1016/j.ahj.2007.03.031. [Google Scholar] [CrossRef]

37. Rowe, S. A., Zahka, K. G., Manolio, T. A., Horneffer, P. J., Kidd, L. (1991). Lung function and pulmonary regurgitation limit exercise capacity in postoperative tetralogy of Fallot. Journal of the American College of Cardiology, 17(2), 461–466. [Google Scholar]

38. Wessel, H. U., Weiner, M. D., Paul, M. H., Bastanier, C. K. (1981). Lung function in tetralogy of Fallot after intracardiac repair. Journal of Thoracic and Cardiovascular Surgery, 82(4), 616–628. [Google Scholar]

39. Bedard, E., McCarthy, K. P., Dimopoulos, K., Giannakoulas, G., Gatzoulis, M. A. et al. (2009). Structural abnormalities of the pulmonary trunk in tetralogy of Fallot and potential clinical implications a morphological study. Journal of the American College of Cardiology, 54(20), 1883–1890. DOI 10.1016/j.jacc.2009.06.040. [Google Scholar] [CrossRef]

40. Johnson, R. J., Haworth, S. G. (1982). Pulmonary vascular and alveolar development in tetralogy of Fallot a recommendation for early correction. Thorax, 37(12), 893–901. DOI 10.1136/thx.37.12.893. [Google Scholar] [CrossRef]

41. Egbe, A. C., Anavekar, N. S., Connolly, H. M. (2019). Abnormal pulmonary arterial elastance is associated with reduced exercise capacity in tetralogy of fallot. Journal of the American Heart Association, 8(12), e011731. DOI 10.1161/JAHA.118.011731. [Google Scholar] [CrossRef]

42. La Gerche, A., Burns, A. T., D’Hooge, J., Macisaac, A. I., Heidbuchel, H. et al. (2012). Exercise strain rate imaging demonstrates normal right ventricular contractile reserve and clarifies ambiguous resting measures in endurance athletes. Journal of the American Society of Echocardiography, 25(3), 253–262. DOI 10.1016/j.echo.2011.11.023. [Google Scholar] [CrossRef]

43. Hawkins, S. M., Taylor, A. L., Sillau, S. H., Mitchell, M. B., Rausch, C. M. (2014). Restrictive lung function in pediatric patients with structural congenital heart disease. Journal of Thoracic and Cardiovascular Surgery, 148(1), 207–211. DOI 10.1016/j.jtcvs.2013.07.080. [Google Scholar] [CrossRef]

44. Muller, J., Ewert, P., Hager, A. (2018). Number of thoracotomies predicts impairment in lung function and exercise capacity in patients with congenital heart disease. Journal of Cardiology, 71(1), 88–92. DOI 10.1016/j.jjcc.2017.05.005. [Google Scholar] [CrossRef]

45. Zaqout, M., De Baets, F., Schelstraete, P., Suys, B., Panzer, J. et al. (2010). Pulmonary function in children after surgical and percutaneous closure of atrial septal defect. Pediatric Cardiology, 31(8), 1171–1175. DOI 10.1007/s00246-010-9778-6. [Google Scholar] [CrossRef]

46. Ohuchi, H., Negishi, J., Miyake, A., Sakaguchi, H., Miyazaki, A. et al. (2011). Long-term prognostic value of cardiac autonomic nervous activity in postoperative patients with congenital heart disease. International Journal of Cardiology, 151(3), 296–302. DOI 10.1016/j.ijcard.2010.05.062. [Google Scholar] [CrossRef]

47. Meadows, J., Powell, A. J., Geva, T., Dorfman, A., Gauvreau, K. et al. (2007). Cardiac magnetic resonance imaging correlates of exercise capacity in patients with surgically repaired tetralogy of Fallot. American Journal of Cardiology, 100(9), 1446–1450. DOI 10.1016/j.amjcard.2007.06.038. [Google Scholar] [CrossRef]

48. Sin, D. D., Wu, L., Man, S. F. (2005). The relationship between reduced lung function and cardiovascular mortality a population-based study and a systematic review of the literature. Chest, 127(6), 1952–1959. DOI 10.1378/chest.127.6.1952. [Google Scholar] [CrossRef]

49. Shafer, K. M., Opotowsky, A. R., Rhodes, J. (2018). Exercise testing and spirometry as predictors of mortality in congenital heart disease contrasting fontan physiology with repaired tetralogy of Fallot. Congenital Heart Disease, 13(6), 903–910. DOI 10.1111/chd.12661. [Google Scholar] [CrossRef]

50. Liu, H. J., Guo, J., Zhao, Q. H., Wang, L., Yang, W. L. et al. (2017). Chronotropic Incompetence and its relation to exercise intolerance in chronic obstructive pulmonary disease. American Journal of the Medical Sciences, 353(3), 216–223. DOI 10.1016/j.amjms.2016.12.015. [Google Scholar] [CrossRef]

51. Barr, R. G., Bluemke, D. A., Ahmed, F. S., Carr, J. J., Enright, P. L. et al. (2010). Percent emphysema, airflow obstruction, and impaired left ventricular filling. New England Journal of Medicine, 362(3), 217–227. DOI 10.1056/NEJMoa0808836. [Google Scholar] [CrossRef]

52. Watz, H., Waschki, B., Meyer, T., Kretschmar, G., Kirsten, A. et al. (2010). Decreasing cardiac chamber sizes and associated heart dysfunction in COPD role of hyperinflation. Chest, 138(1), 32–38. DOI 10.1378/chest.09-2810. [Google Scholar] [CrossRef]

53. O’Meagher, S., Munoz, P. A., Muthurangu, V., Robinson, P. J., Malitz, N. et al. (2014). Mechanisms of maintained exercise capacity in adults with repaired tetralogy of Fallot. International Journal of Cardiology, 177(1), 178–181. DOI 10.1016/j.ijcard.2014.09.008. [Google Scholar] [CrossRef]

54. Mercer-Rosa, L., Paridon, S. M., Fogel, M. A., Rychik, J., Tanel, R. E. et al. (2015). 22q11.2 deletion status and disease burden in children and adolescents with tetralogy of Fallot. Circulation Cardiovascular Genetics, 8(1), 74–81. DOI 10.1161/CIRCGENETICS.114.000819. [Google Scholar] [CrossRef]

55. Kim, D. J., Lee, K. Y., Choe, Y., Han, J. Y., Choi, I. S. (2017). Cardiac rehabilitation in an adolescent with DiGeorge Syndrome. European Journal of Physical and Rehabilitation Medicine, 53(3), 462–465. DOI 10.23736/S1973-9087.16.04408-7. [Google Scholar] [CrossRef]

This work is licensed under a Creative Commons Attribution 4.0 International License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
